1. Big Data Analytics at Altocloud Maciej Dabrowski, Chief Data Scientist, Altocloud NUI Galway, 2015-02-27
2. ‣ Big Data Concepts This talk 2 ‣ Technologies ‣ Analytics Use Cases

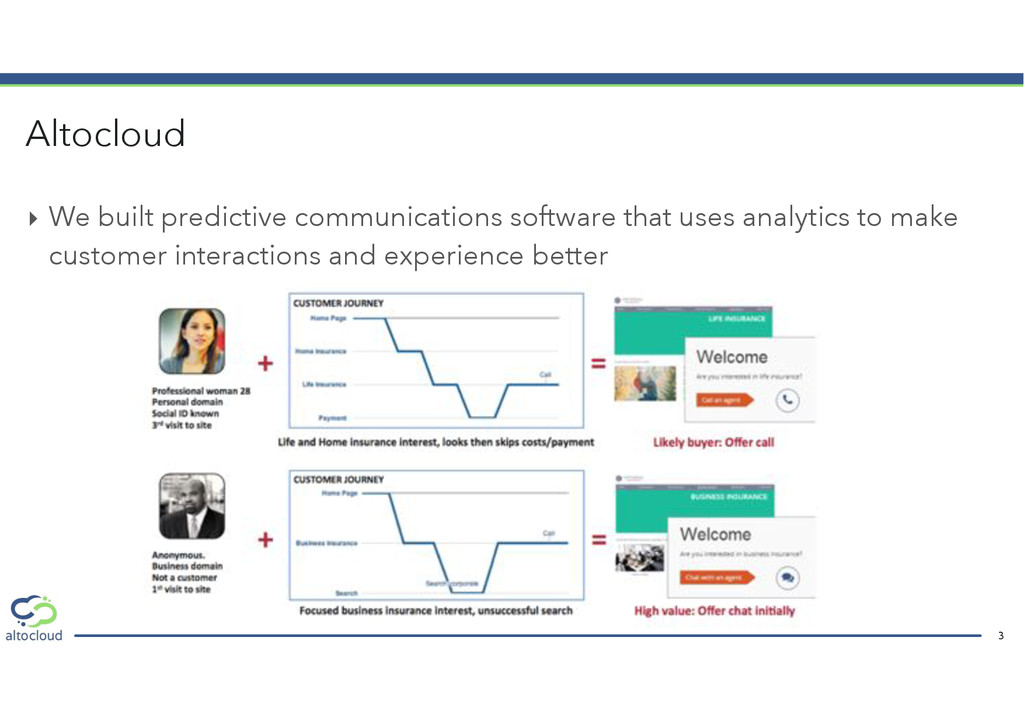

3. ‣ We built predictive communications software that uses analytics to make customer interactions and experience better Altocloud 3

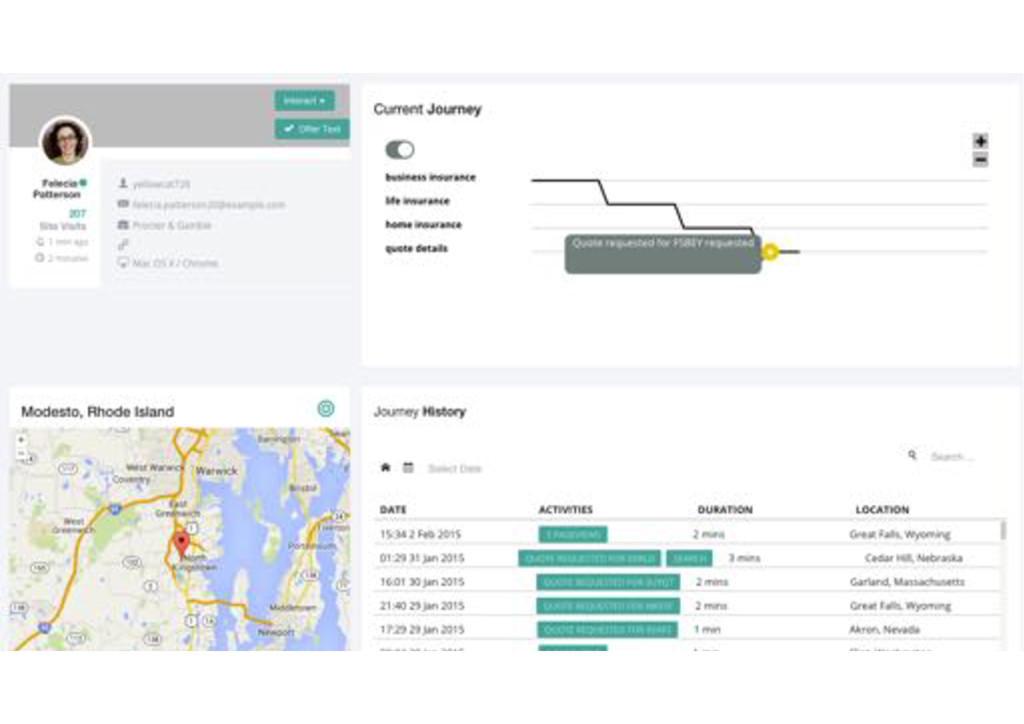

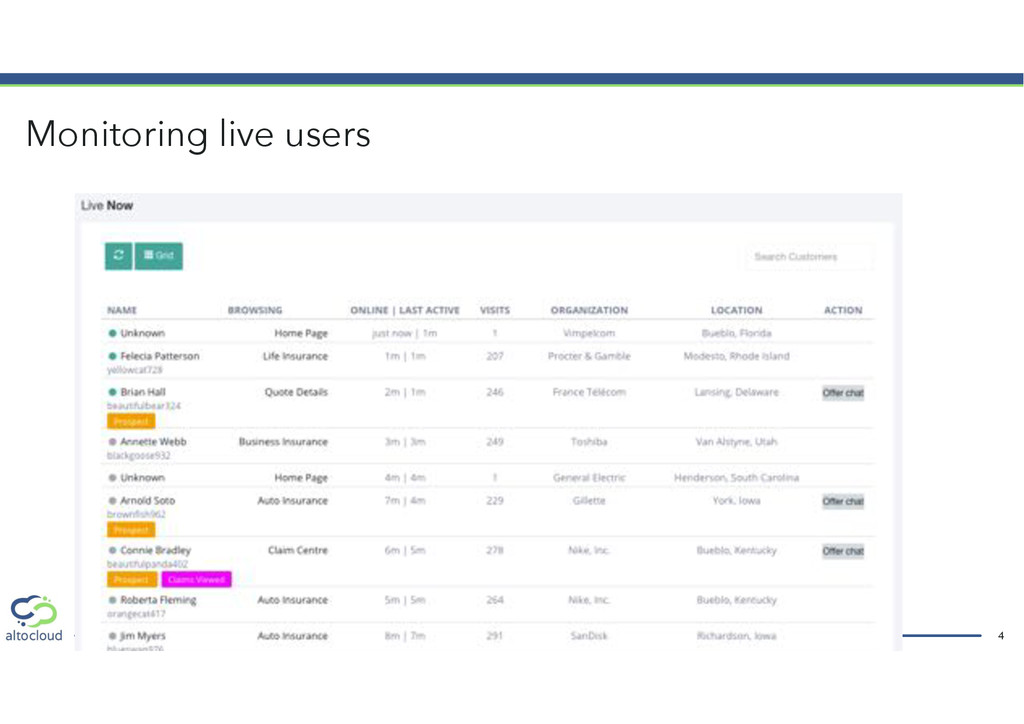

4. Monitoring live users 4
6. 6 source: https://media.licdn.com/mpr/mpr/p/1/005/0a0/167/2f98d60.jpg

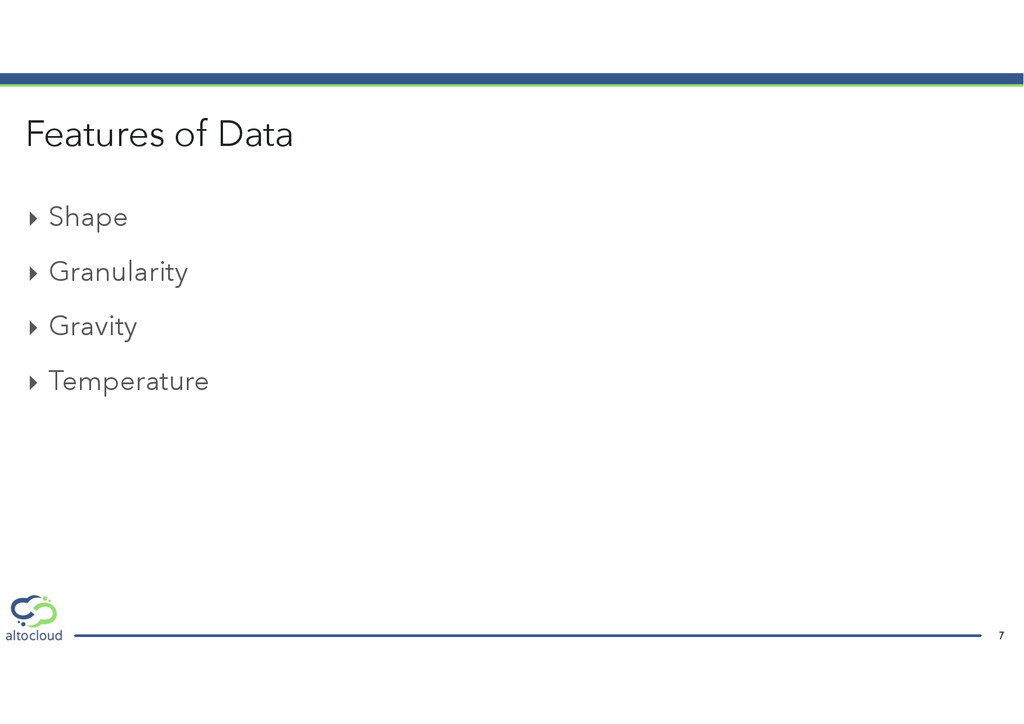

7. ‣ Shape ‣ Granularity ‣ Gravity ‣ Temperature Features of Data 7

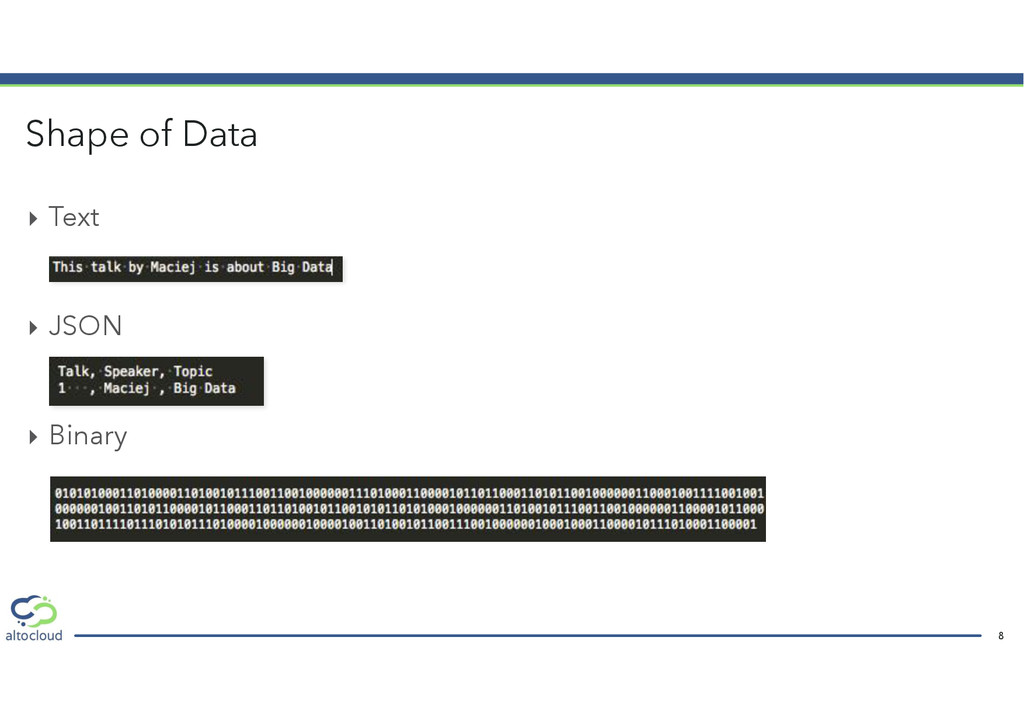

8. ‣ Text ‣ JSON ‣ Binary Shape of Data 8

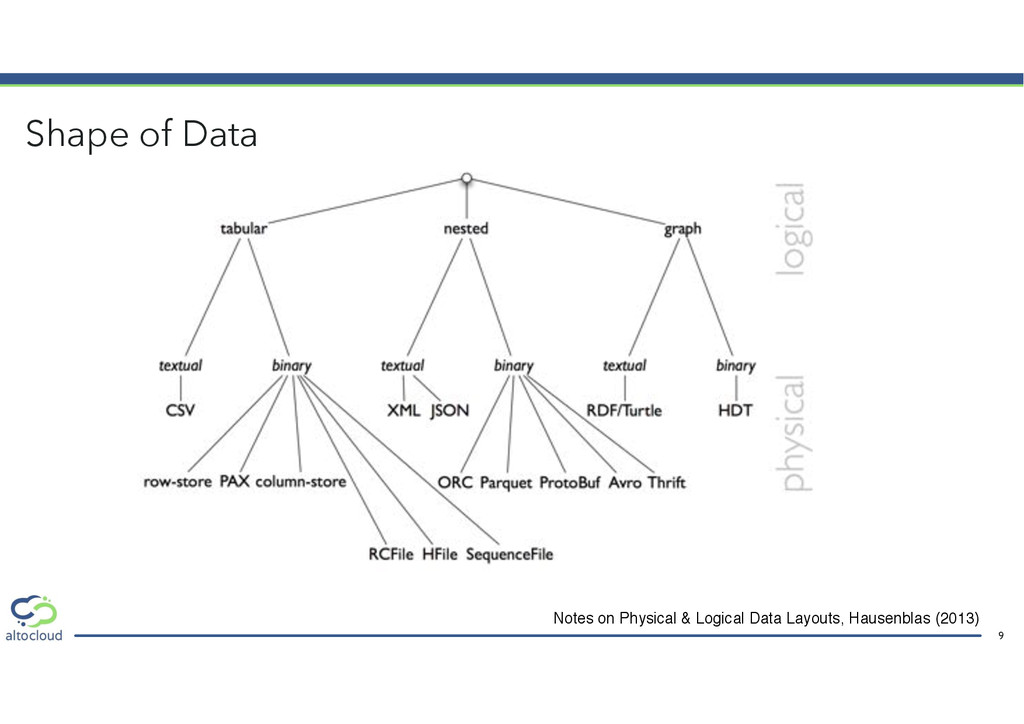

9. Shape of Data 9 Notes on Physical & Logical Data Layouts, Hausenblas (2013)

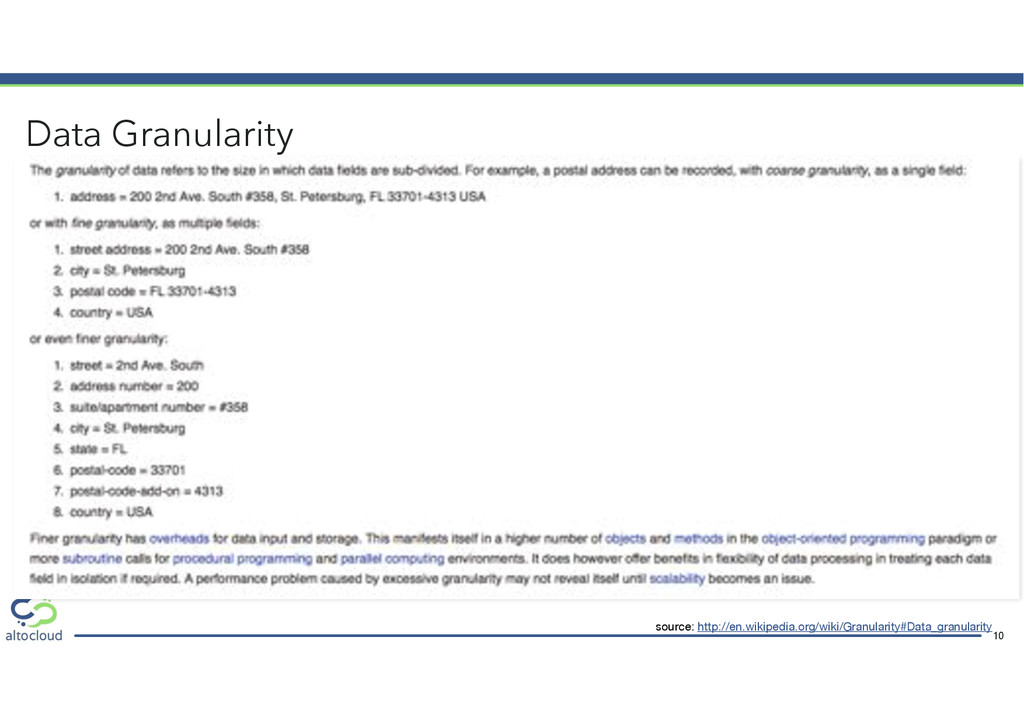

10. Data Granularity 10 source: http://en.wikipedia.org/wiki/Granularity#Data_granularity

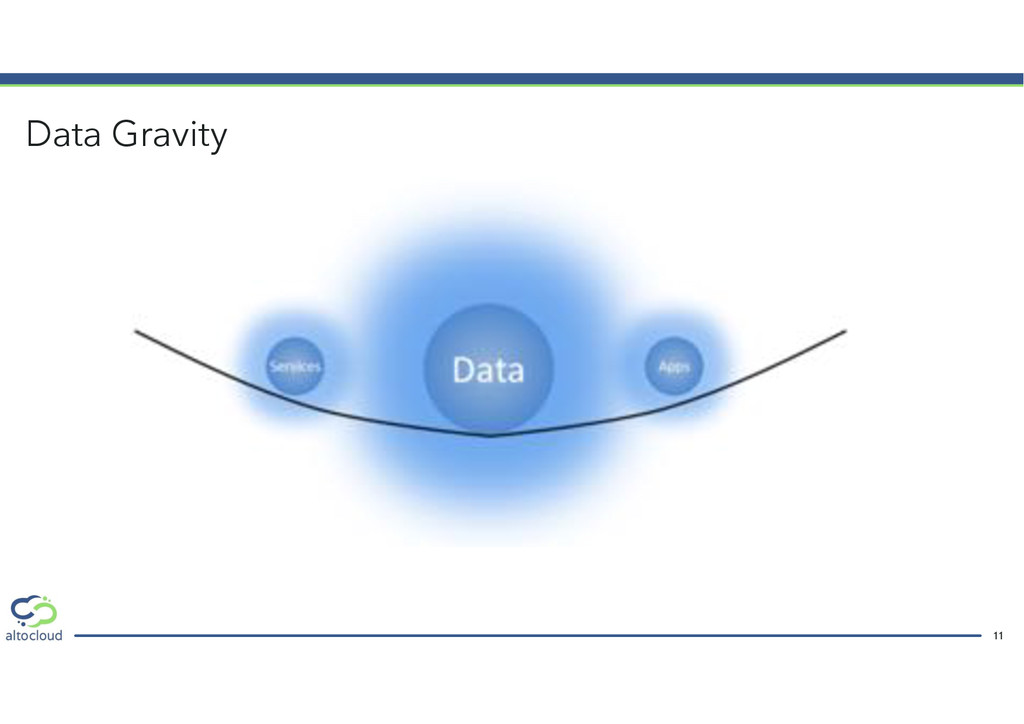

11. Data Gravity 11

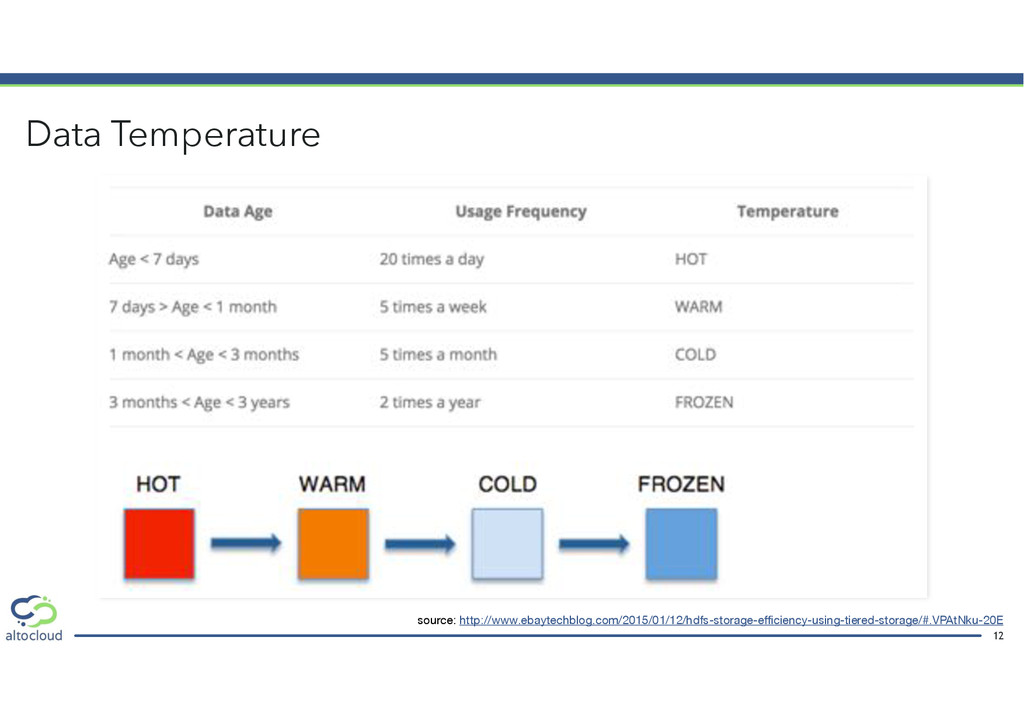

12. Data Temperature 12 source: http://www.ebaytechblog.com/2015/01/12/hdfs-storage-efficiency-using-tiered-storage/#.VPAtNku-20E
13. BIG DATA? 13
14. What is Big? 14

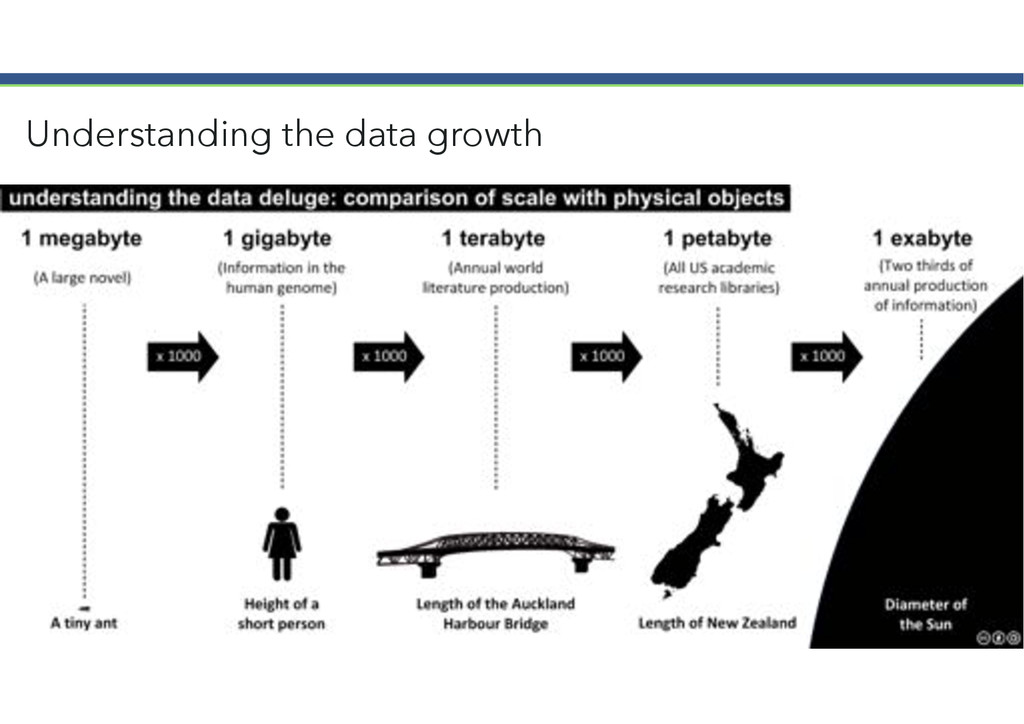

15. Understanding the data growth 15

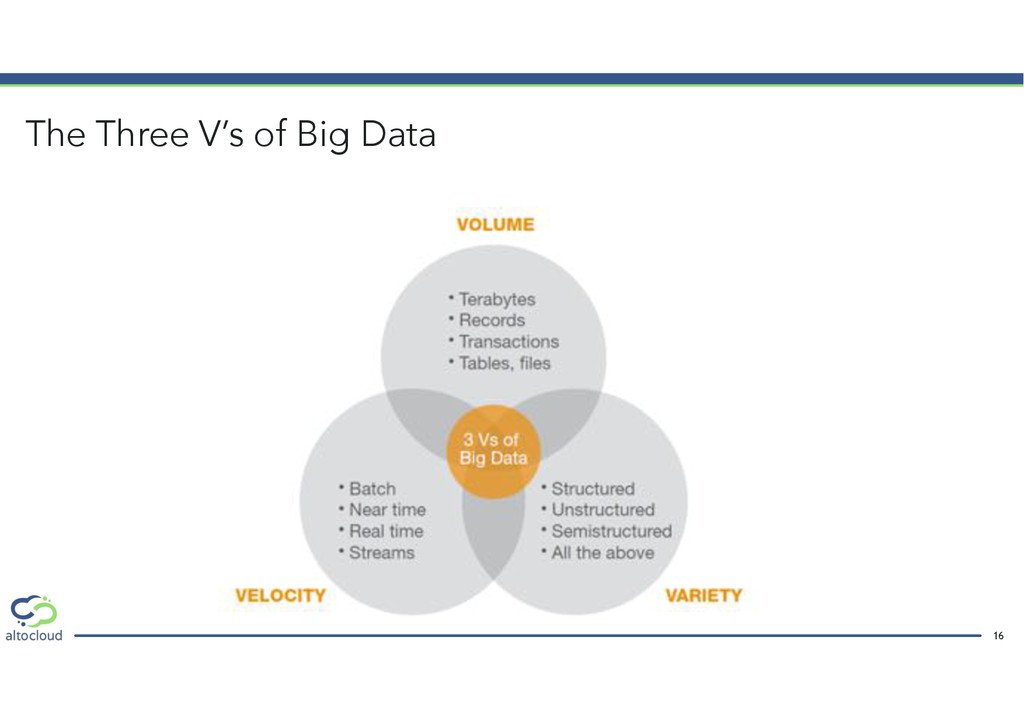

16. The Three V’s of Big Data 16
18. 18 ANALYTICS source: http://olap.com/

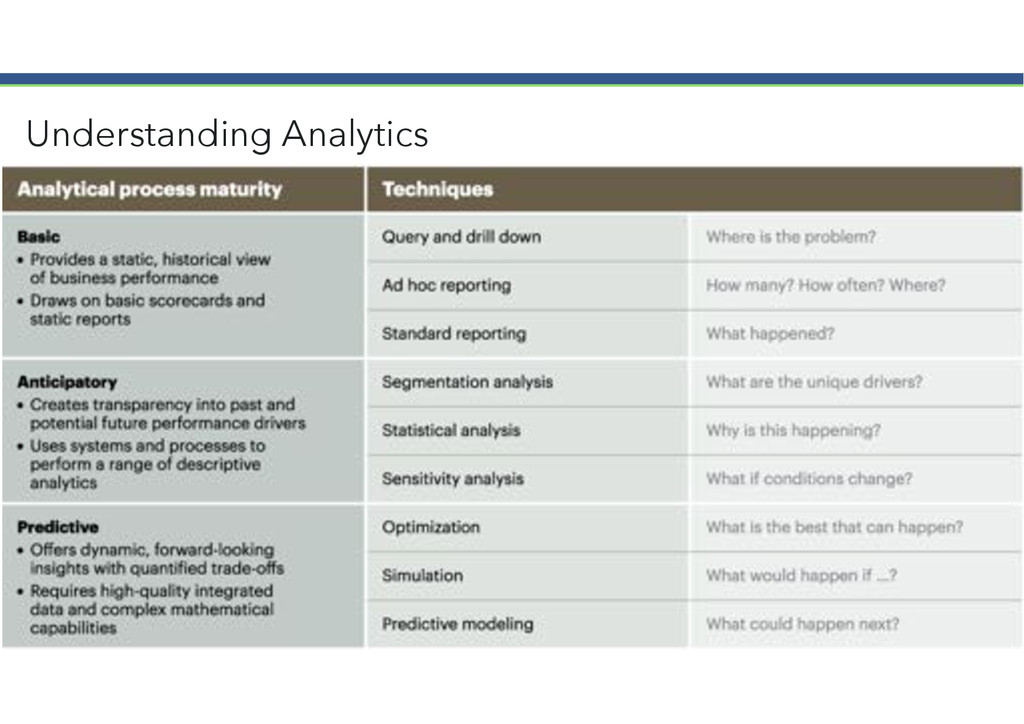

19. Understanding Analytics 19

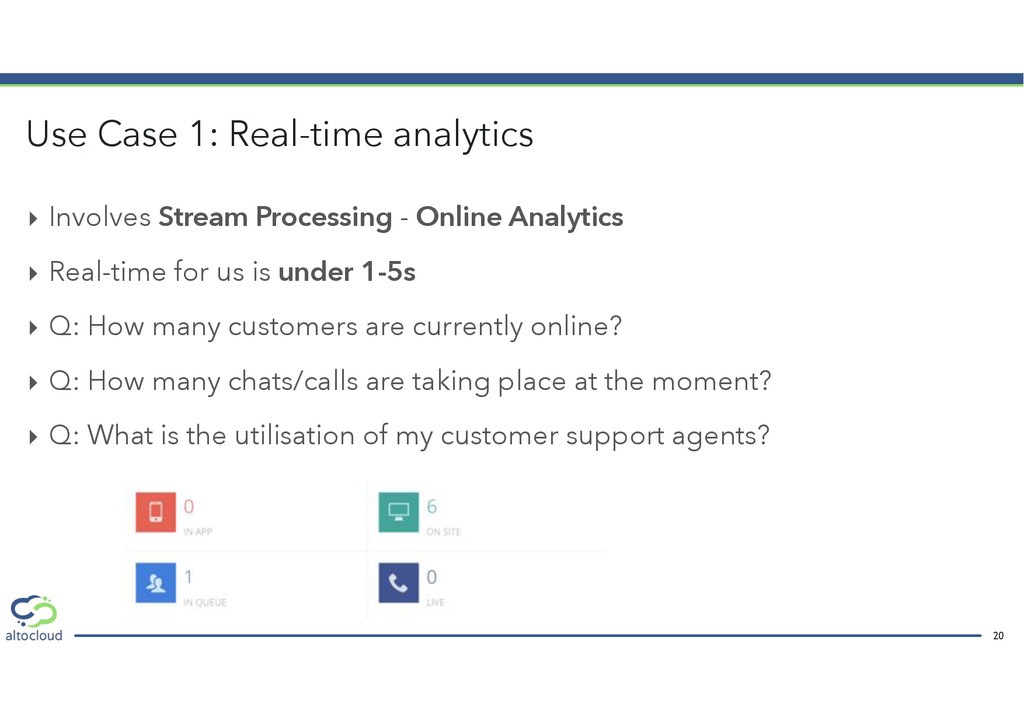

20. ‣ Involves Stream Processing - Online Analytics ‣ Real-time for us is under 1-5s ‣ Q: How many customers are currently online? ‣ Q: How many chats/calls are taking place at the moment? ‣ Q: What is the utilisation of my customer support agents? Use Case 1: Real-time analytics 20

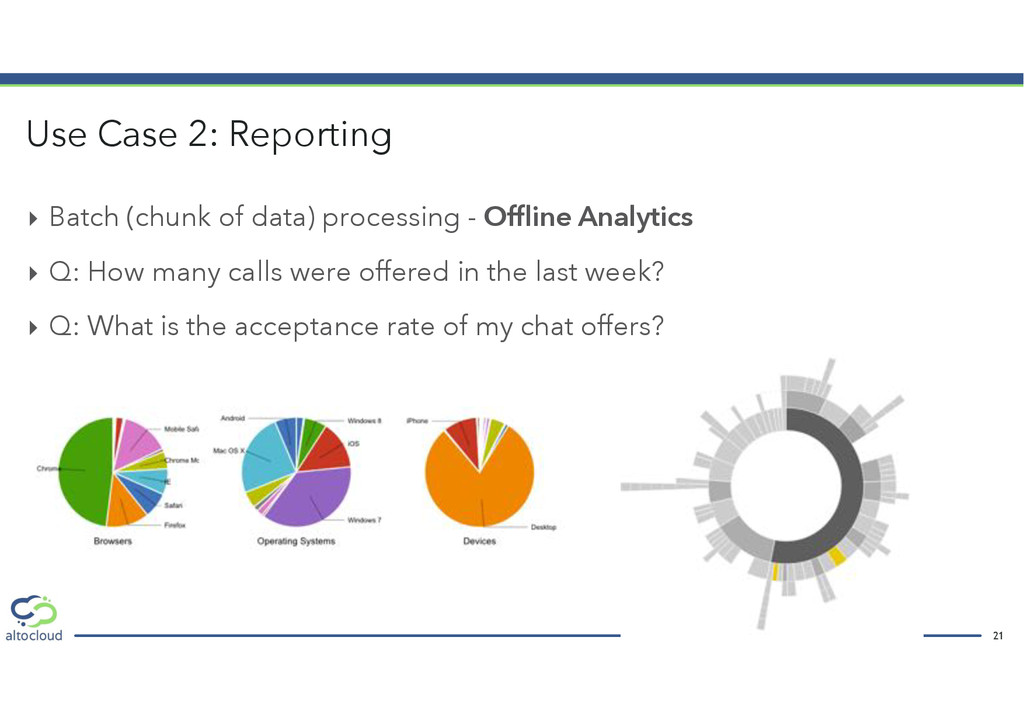

21. ‣ Batch (chunk of data) processing - Offline Analytics ‣ Q: How many calls were offered in the last week? ‣ Q: What is the acceptance rate of my chat offers? Use Case 2: Reporting 21

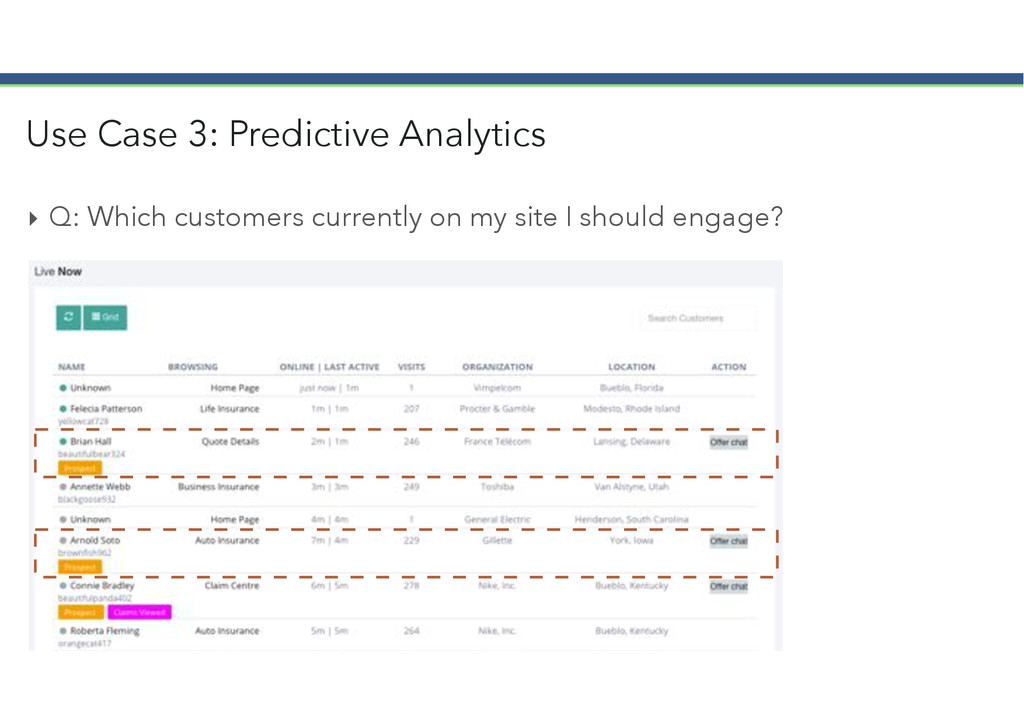

22. ‣ Q: Which customers currently on my site I should engage? Use Case 3: Predictive Analytics 22

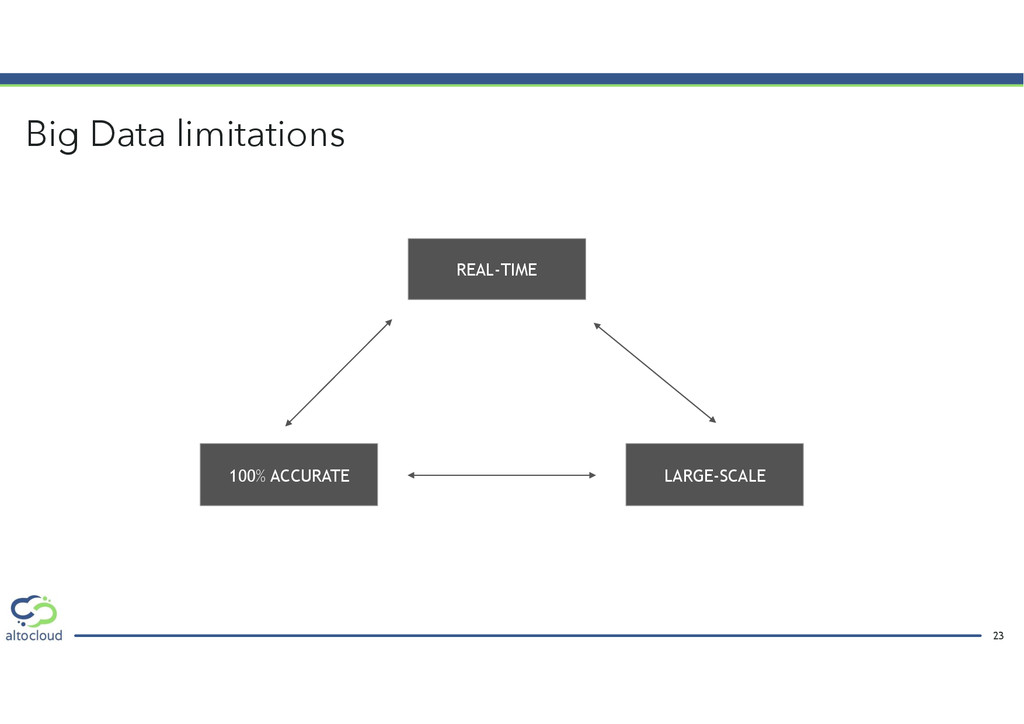

23. Big Data limitations 23 REAL-TIME 100% ACCURATE LARGE-SCALE

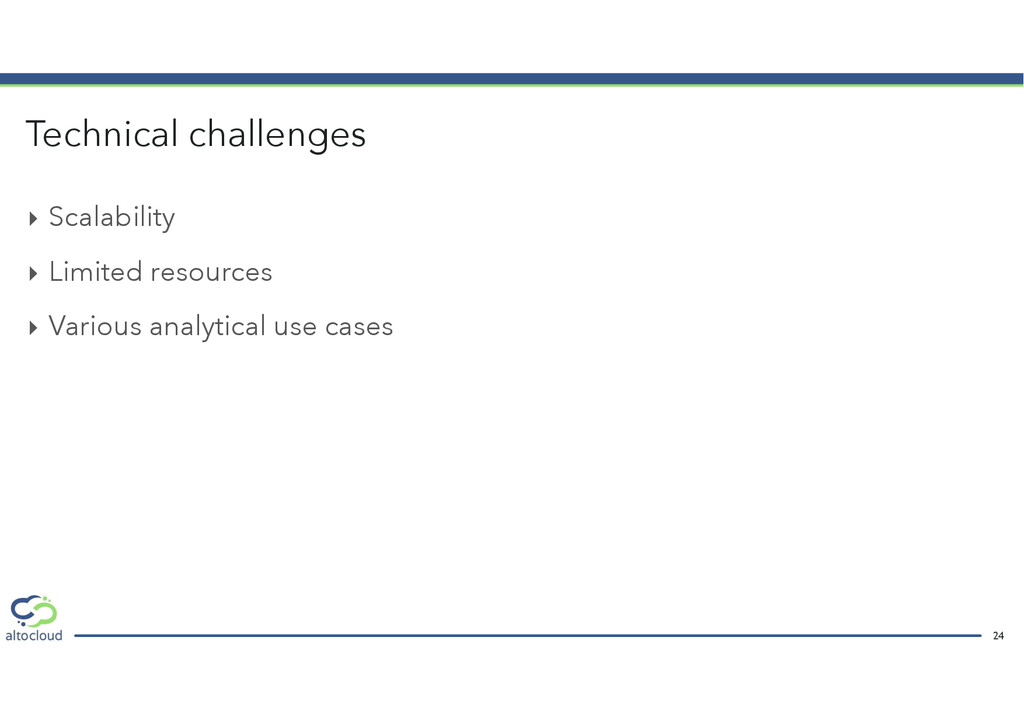

24. ‣ Scalability ‣ Limited resources ‣ Various analytical use cases Technical challenges 24
25. APIs QUERYING LAYER STORAGE LAYER PROCESSING LAYER Altocloud Platform 25 MESSAGE QUEUES FRONT-END APIs QUEUE 1 NODE 1 QUEUE N STORAGE N NODE N STORAGE 2 BACK-END APIS APPS BACK-END APIs STORAGE 1

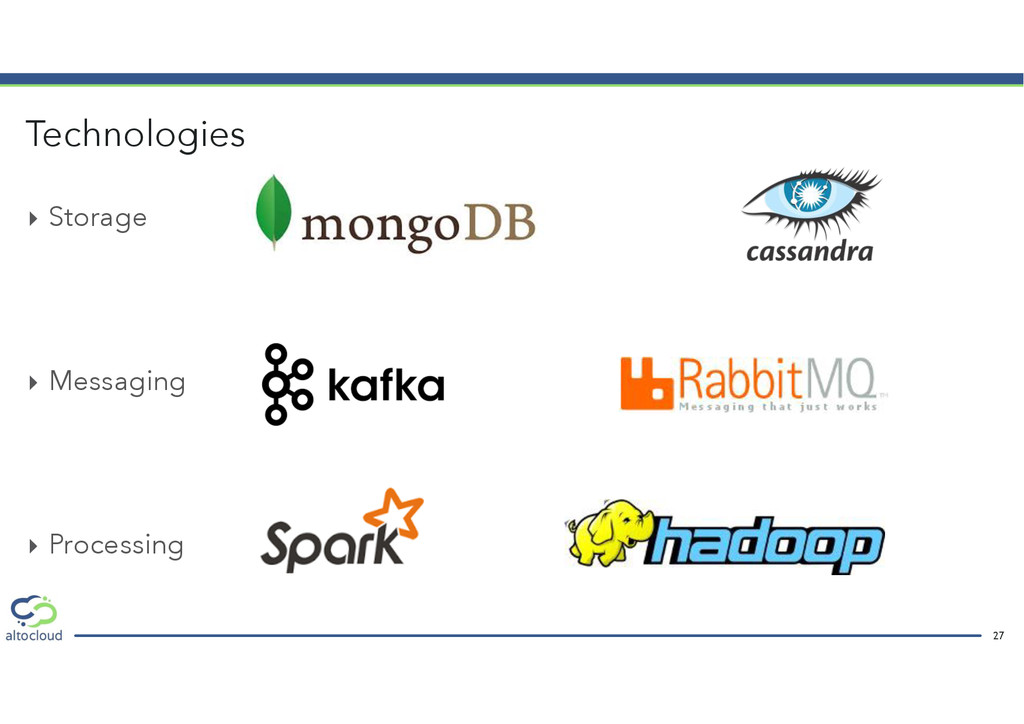

27. ‣ Storage ‣ Messaging ‣ Processing Technologies 27

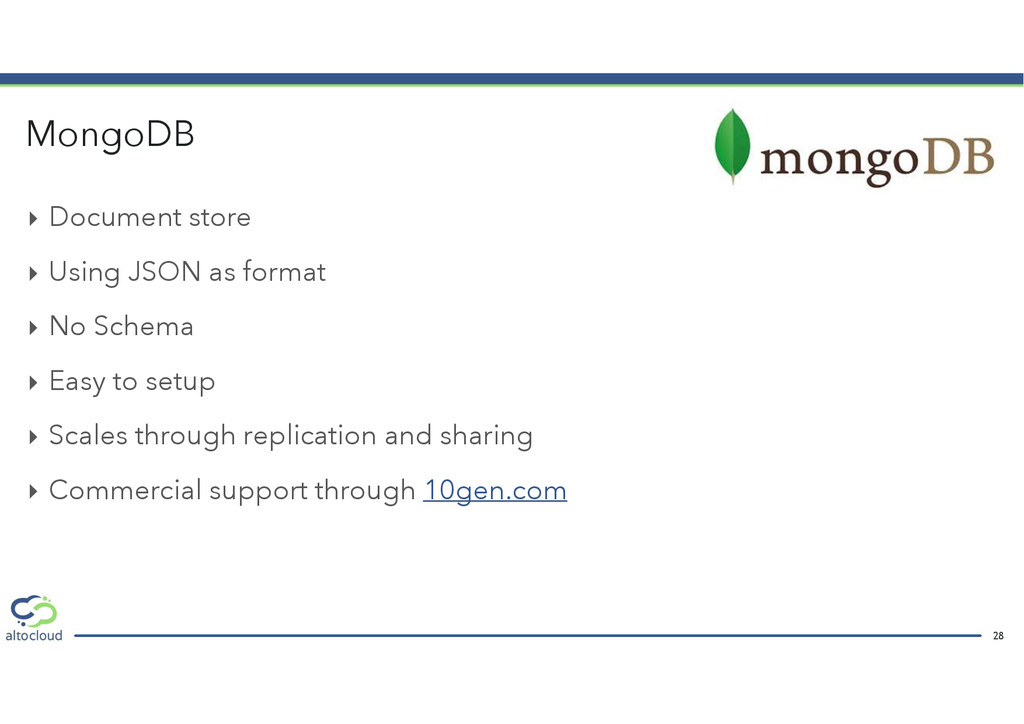

28. ‣ Document store ‣ Using JSON as format ‣ No Schema ‣ Easy to setup ‣ Scales through replication and sharing ‣ Commercial support through 10gen.com MongoDB 28

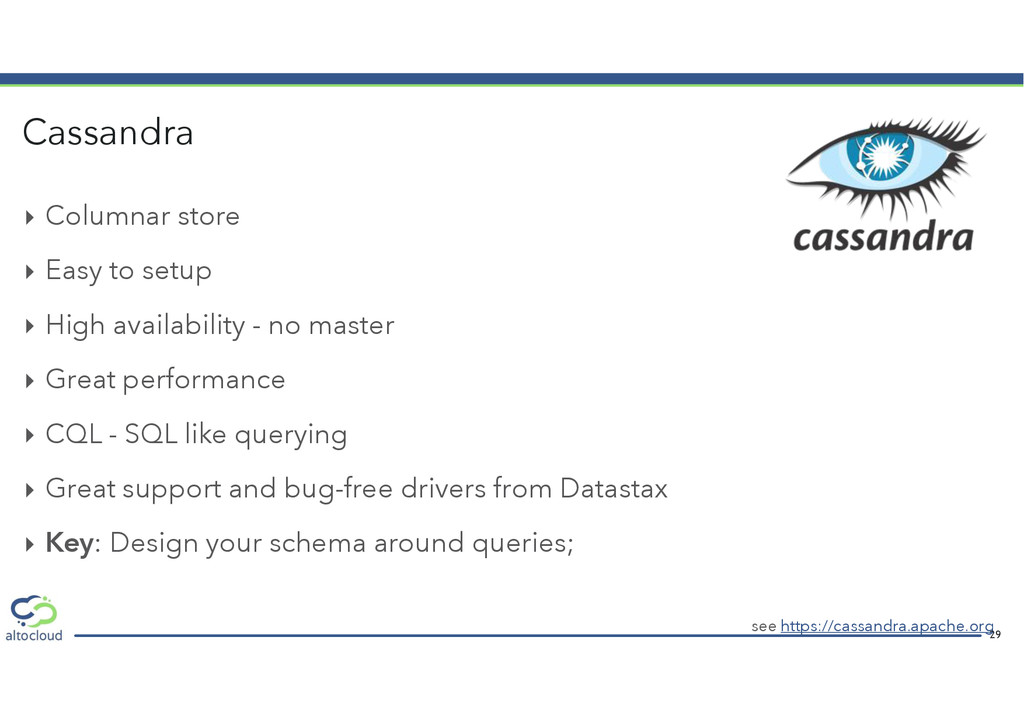

29. ‣ Columnar store ‣ Easy to setup ‣ High availability - no master ‣ Great performance ‣ CQL - SQL like querying ‣ Great support and bug-free drivers from Datastax ‣ Key: Design your schema around queries; see https://cassandra.apache.org Cassandra 29

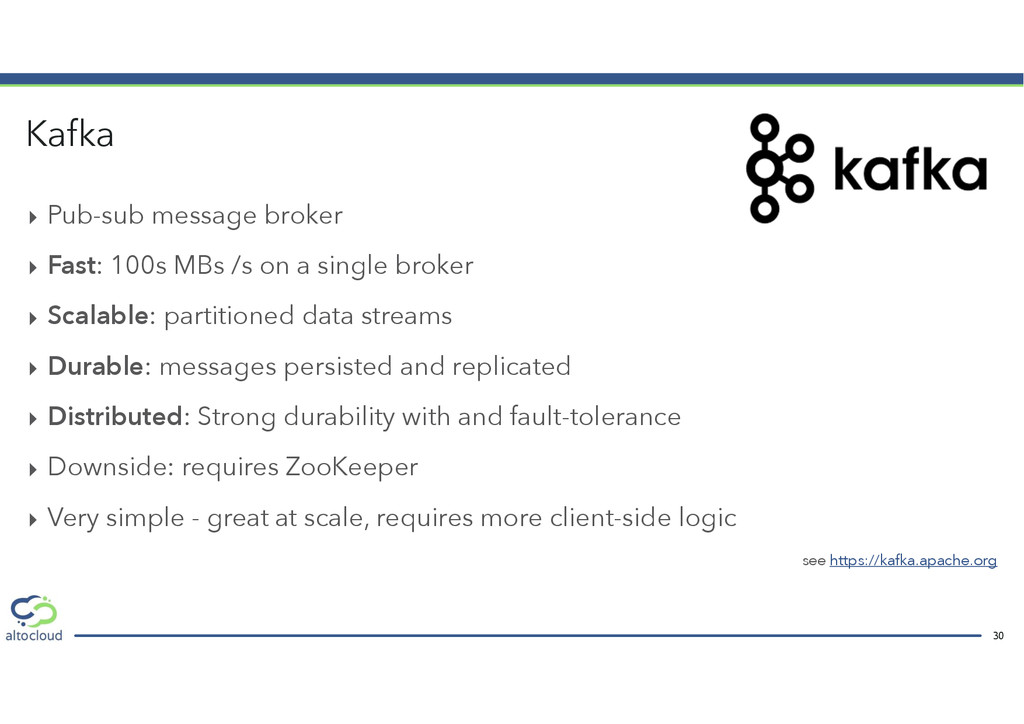

30. ‣ Pub-sub message broker ‣ Fast: 100s MBs /s on a single broker ‣ Scalable: partitioned data streams ‣ Durable: messages persisted and replicated ‣ Distributed: Strong durability with and fault-tolerance ‣ Downside: requires ZooKeeper ‣ Very simple - great at scale, requires more client-side logic see https://kafka.apache.org Kafka 30

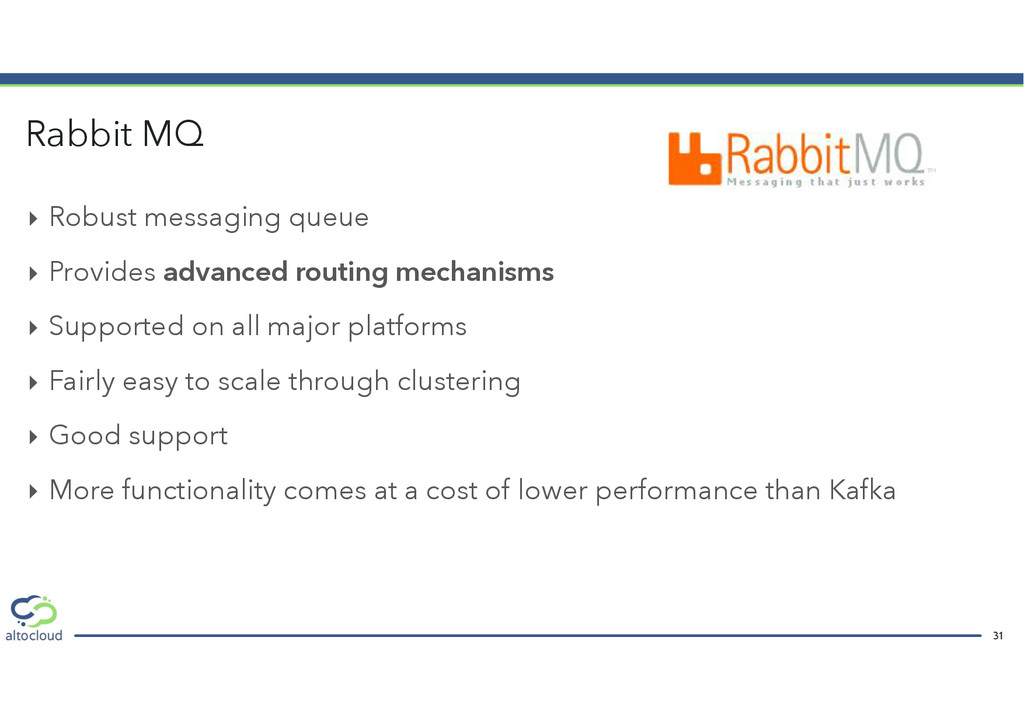

31. ‣ Robust messaging queue ‣ Provides advanced routing mechanisms ‣ Supported on all major platforms ‣ Fairly easy to scale through clustering ‣ Good support ‣ More functionality comes at a cost of lower performance than Kafka Rabbit MQ 31

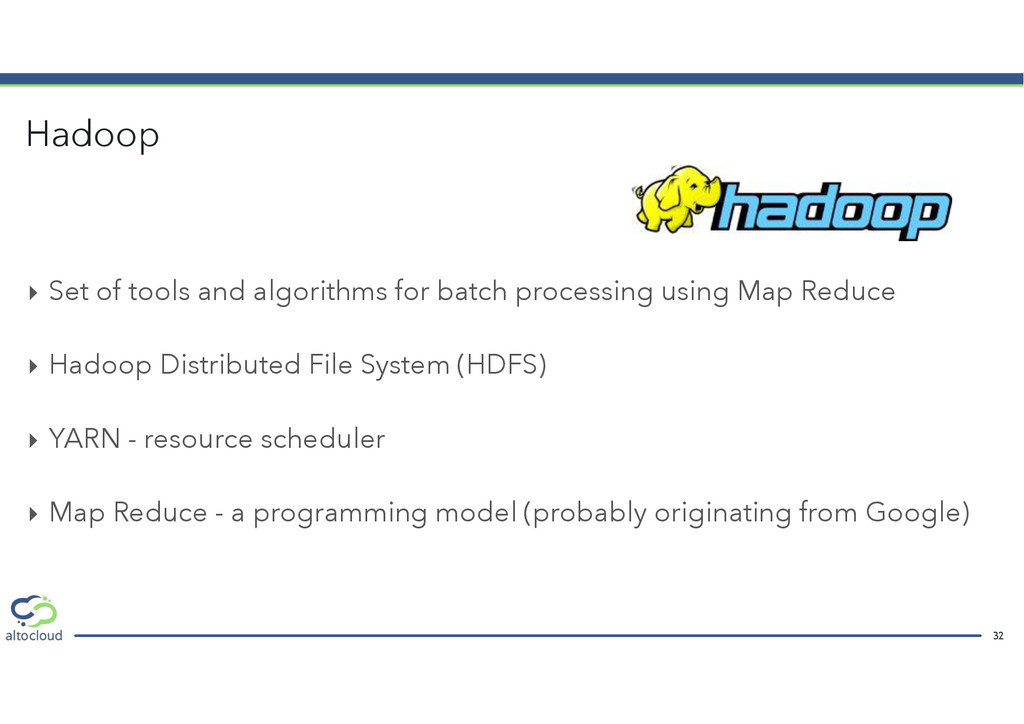

32. ‣ Set of tools and algorithms for batch processing using Map Reduce ‣ Hadoop Distributed File System (HDFS) ‣ YARN - resource scheduler ‣ Map Reduce - a programming model (probably originating from Google) Hadoop 32
34. 34 Real-time analytics with Hadoop source: http://barbarashdwallpapers.com/funny-elephant-wallpapers/

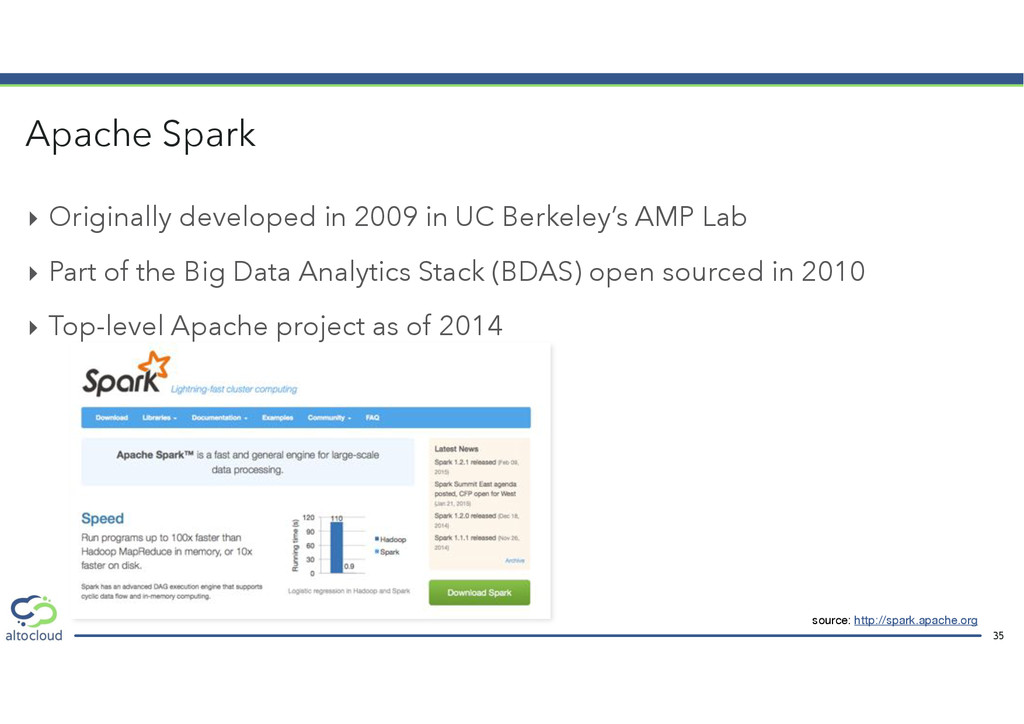

35. ‣ Originally developed in 2009 in UC Berkeley’s AMP Lab ‣ Part of the Big Data Analytics Stack (BDAS) open sourced in 2010 ‣ Top-level Apache project as of 2014 Apache Spark 35 source: http://spark.apache.org

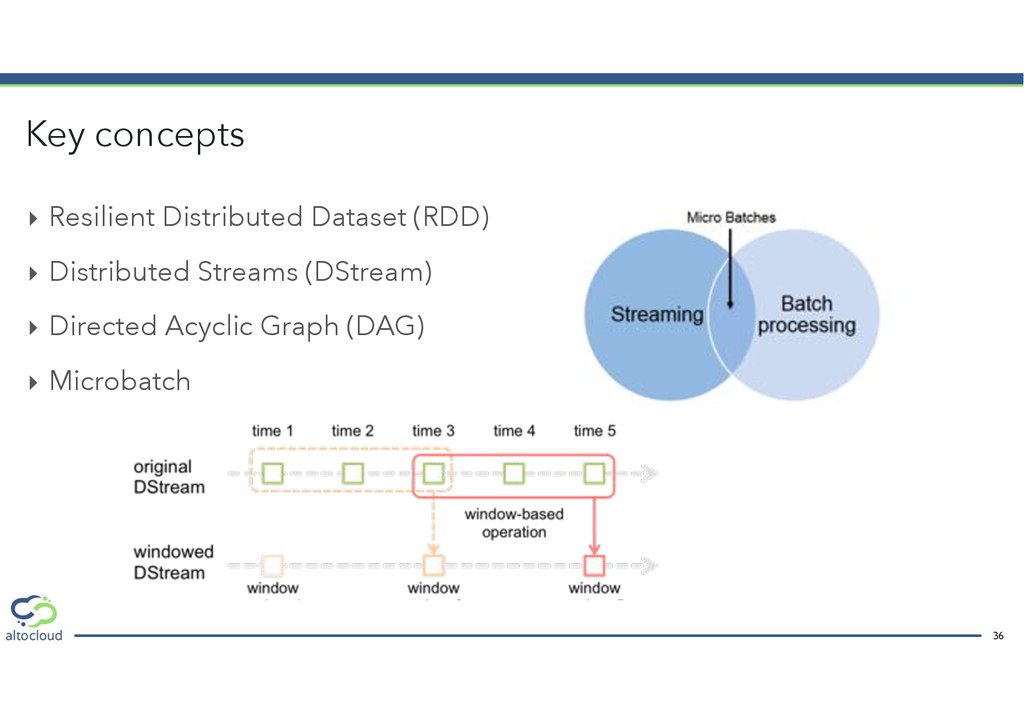

36. ‣ Resilient Distributed Dataset (RDD) ‣ Distributed Streams (DStream) ‣ Directed Acyclic Graph (DAG) ‣ Microbatch Key concepts 36

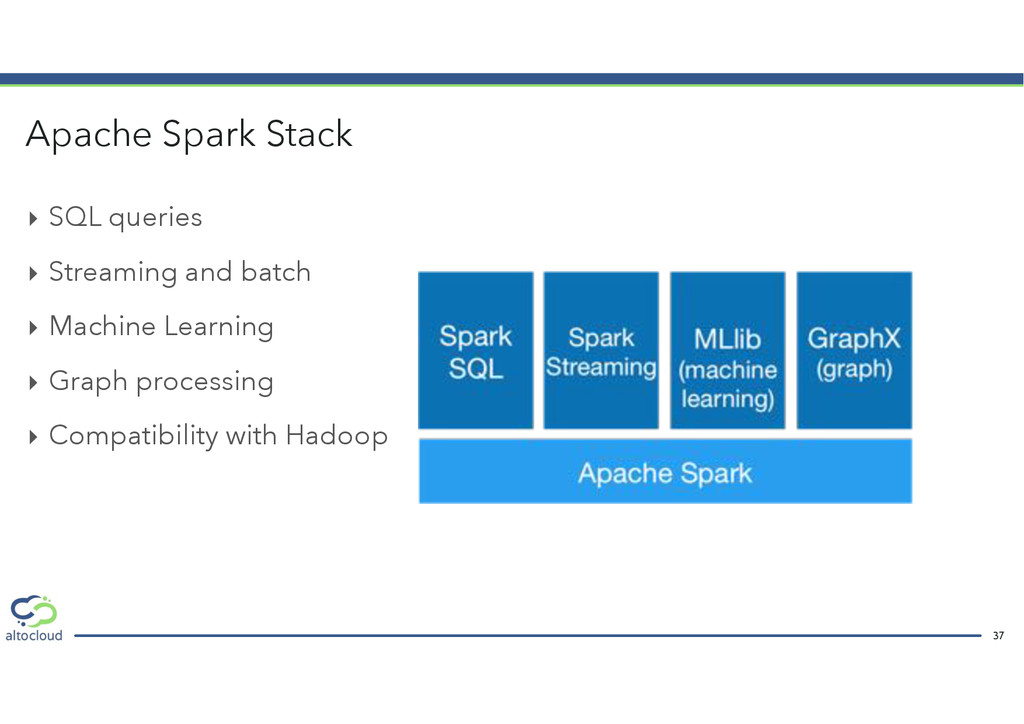

37. ‣ SQL queries ‣ Streaming and batch ‣ Machine Learning ‣ Graph processing ‣ Compatibility with Hadoop Apache Spark Stack 37

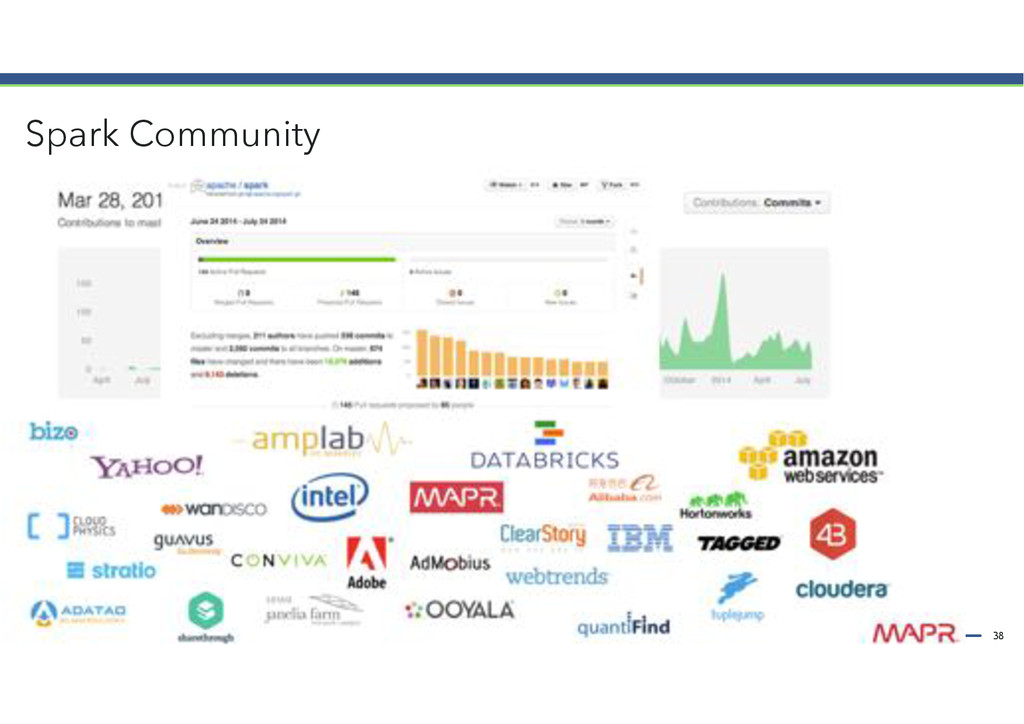

38. Spark Community 38

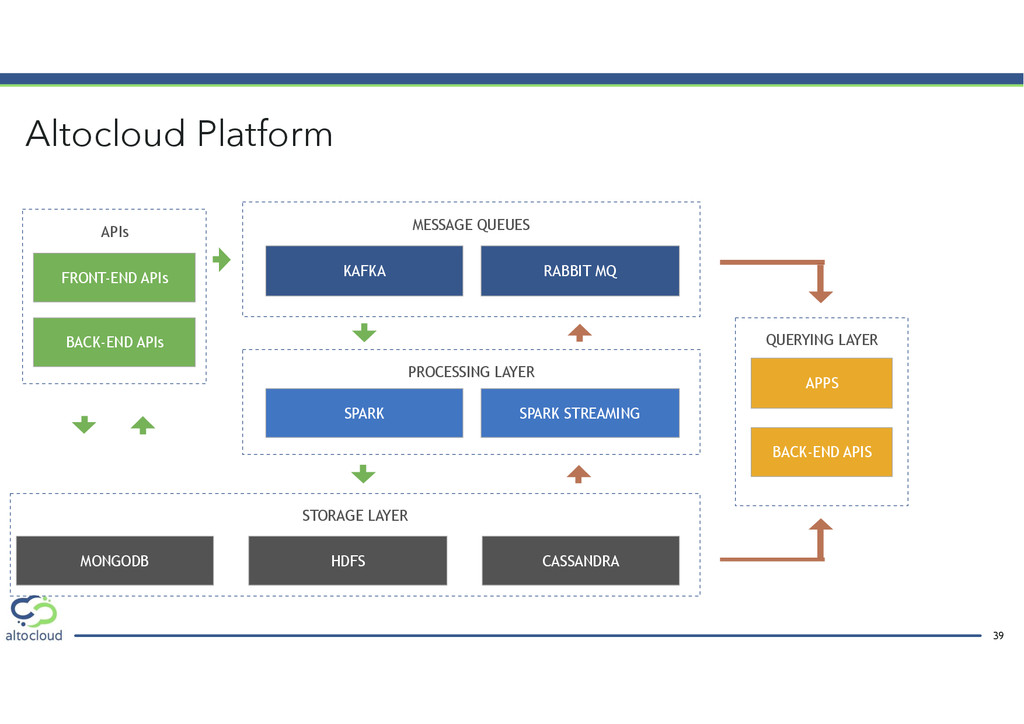

39. APIs QUERYING LAYER STORAGE LAYER PROCESSING LAYER Altocloud Platform 39 MESSAGE QUEUES FRONT-END APIs KAFKA SPARK RABBIT MQ CASSANDRA SPARK STREAMING HDFS BACK-END APIS APPS BACK-END APIs MONGODB

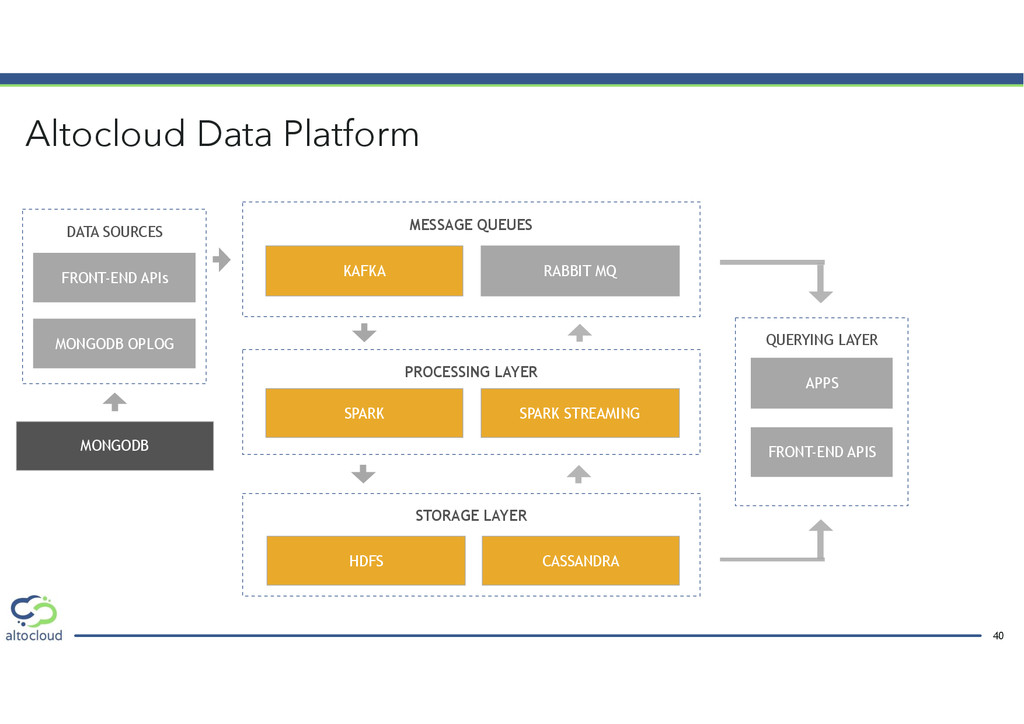

40. DATA SOURCES QUERYING LAYER STORAGE LAYER PROCESSING LAYER Altocloud Data Platform 40 MESSAGE QUEUES FRONT-END APIs KAFKA MONGODB OPLOG SPARK RABBIT MQ CASSANDRA SPARK STREAMING HDFS FRONT-END APIS APPS MONGODB

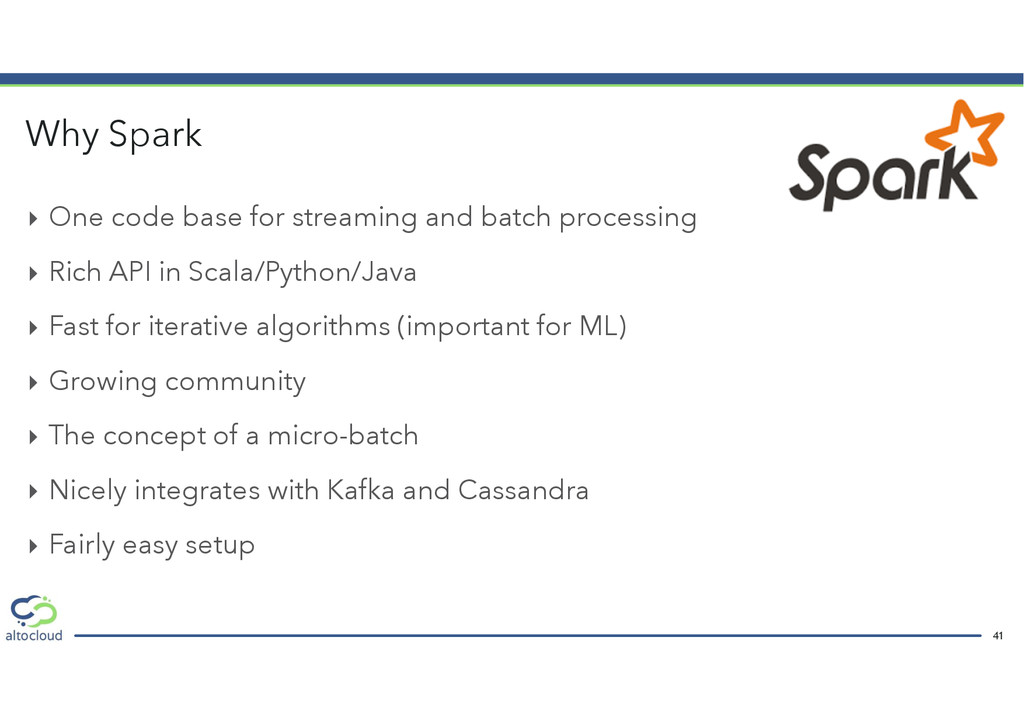

41. ‣ One code base for streaming and batch processing ‣ Rich API in Scala/Python/Java ‣ Fast for iterative algorithms (important for ML) ‣ Growing community ‣ The concept of a micro-batch ‣ Nicely integrates with Kafka and Cassandra ‣ Fairly easy setup Why Spark 41

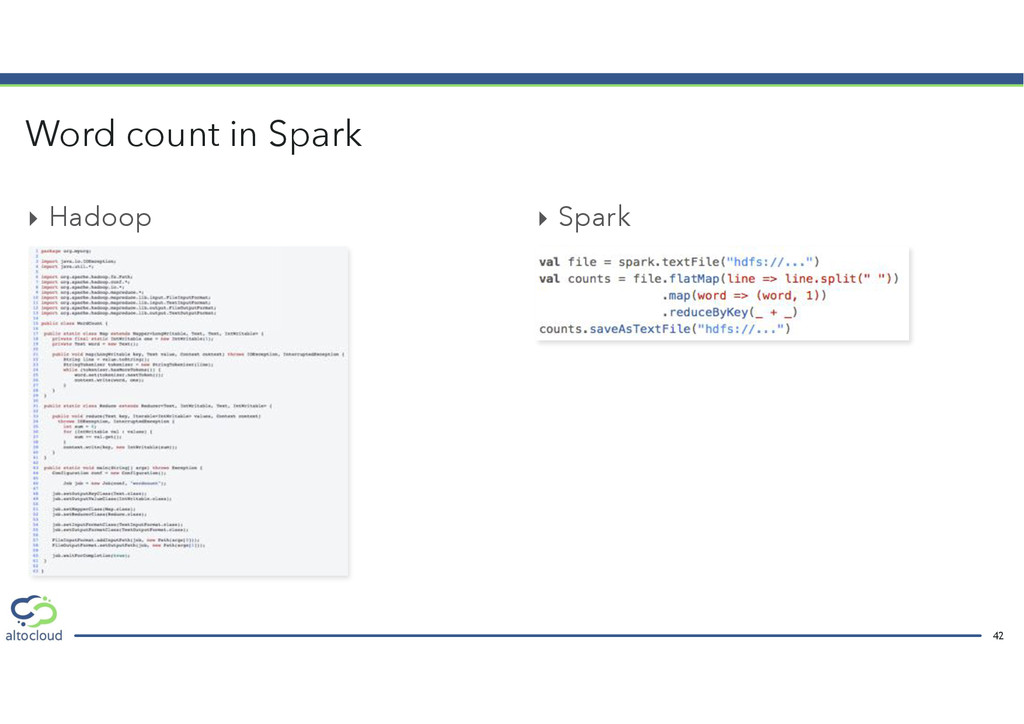

42. ‣ Hadoop ‣ Spark Word count in Spark 42

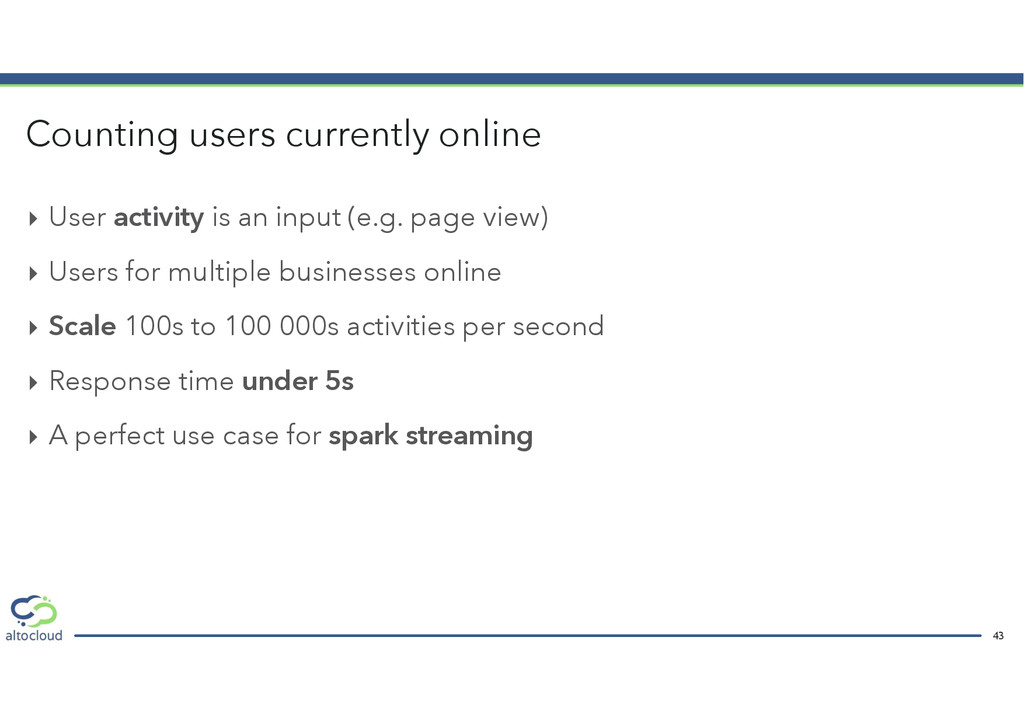

43. ‣ User activity is an input (e.g. page view) ‣ Users for multiple businesses online ‣ Scale 100s to 100 000s activities per second ‣ Response time under 5s ‣ A perfect use case for spark streaming Counting users currently online 43

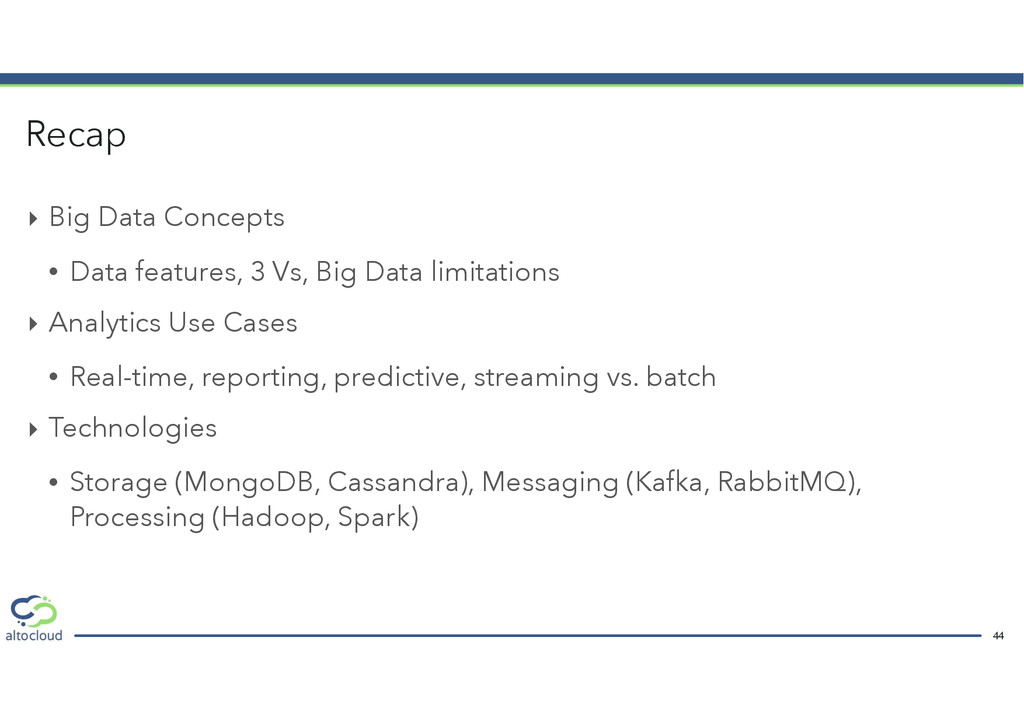

44. ‣ Big Data Concepts • Data features, 3 Vs, Big Data limitations ‣ Analytics Use Cases • Real-time, reporting, predictive, streaming vs. batch ‣ Technologies • Storage (MongoDB, Cassandra), Messaging (Kafka, RabbitMQ), Processing (Hadoop, Spark) Recap 44

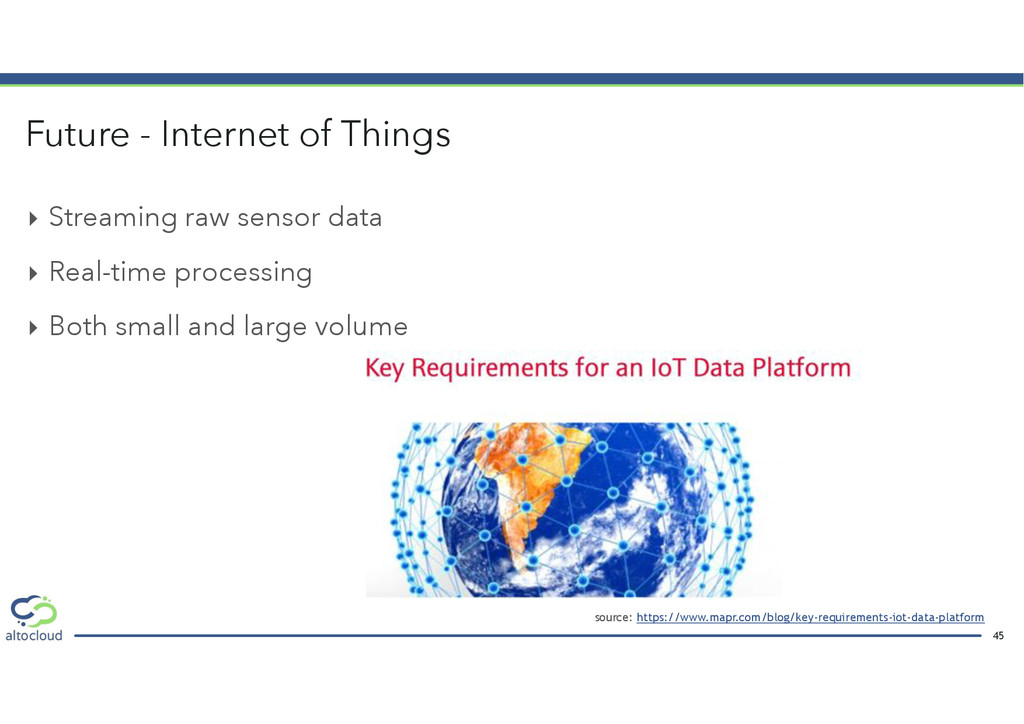

45. ‣ Streaming raw sensor data ‣ Real-time processing ‣ Both small and large volume Future - Internet of Things 45 source: https://www.mapr.com/blog/key-requirements-iot-data-platform

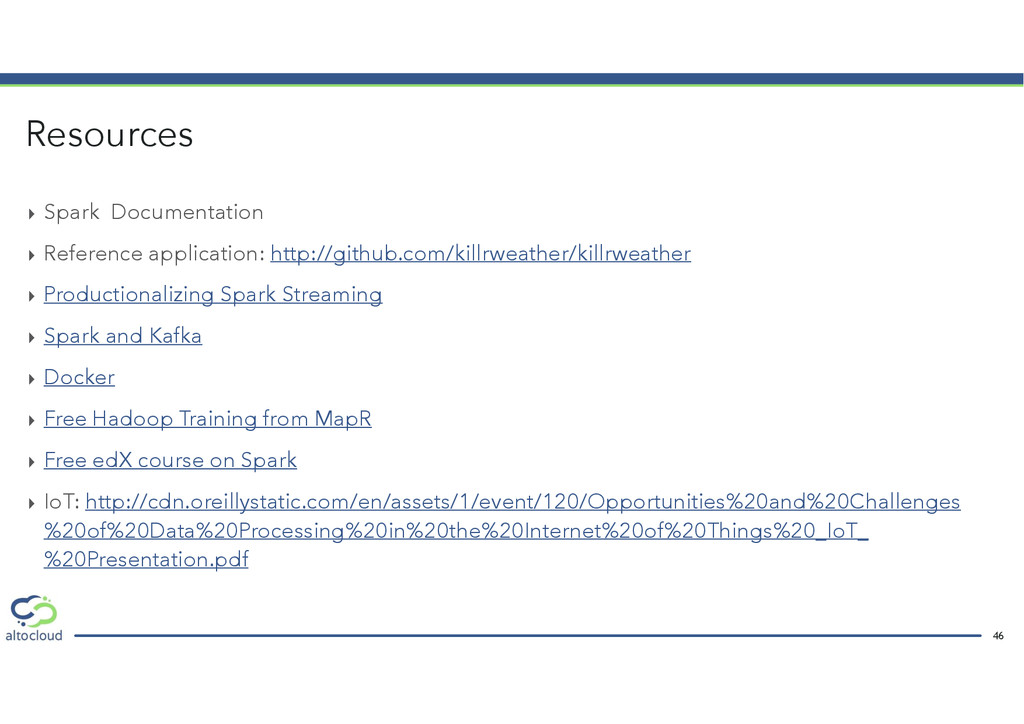

46. ‣ Spark Documentation ‣ Reference application: http://github.com/killrweather/killrweather ‣ Productionalizing Spark Streaming ‣ Spark and Kafka ‣ Docker ‣ Free Hadoop Training from MapR ‣ Free edX course on Spark ‣ IoT: http://cdn.oreillystatic.com/en/assets/1/event/120/Opportunities%20and%20Challenges %20of%20Data%20Processing%20in%20the%20Internet%20of%20Things%20_IoT_ %20Presentation.pdf Resources 46
47. 47 http://altocloud.com/careers
