Getting started with Apache Spark (Developer's edition)

The slides from the talk at Confoo Montreal at 2019.

Transcript

1. Getting started (Developer’s edition)
2. R E D V E N T U R E S Majid Fatemian mfatemian@redventures.com aws CERTIFIED - SAA @majidfn
3. TECH & DATA-DRIVEN CUSTOMER ACQUISITION SALES & MARKETING R E D V E N T U R E S
4. MACHINE
 LEARNING PRODUCT
 RECOMMENDATION DATA
 SCIENCE REALTIME
 ANALYSIS USER
 EXPERIENCE DATA
 WAREHOUSE DATA
5. WHY THIS TALK?
6. UNIFIED COMPUTING ENGINE for large-scale distributed data processing
7. EXAMPLE

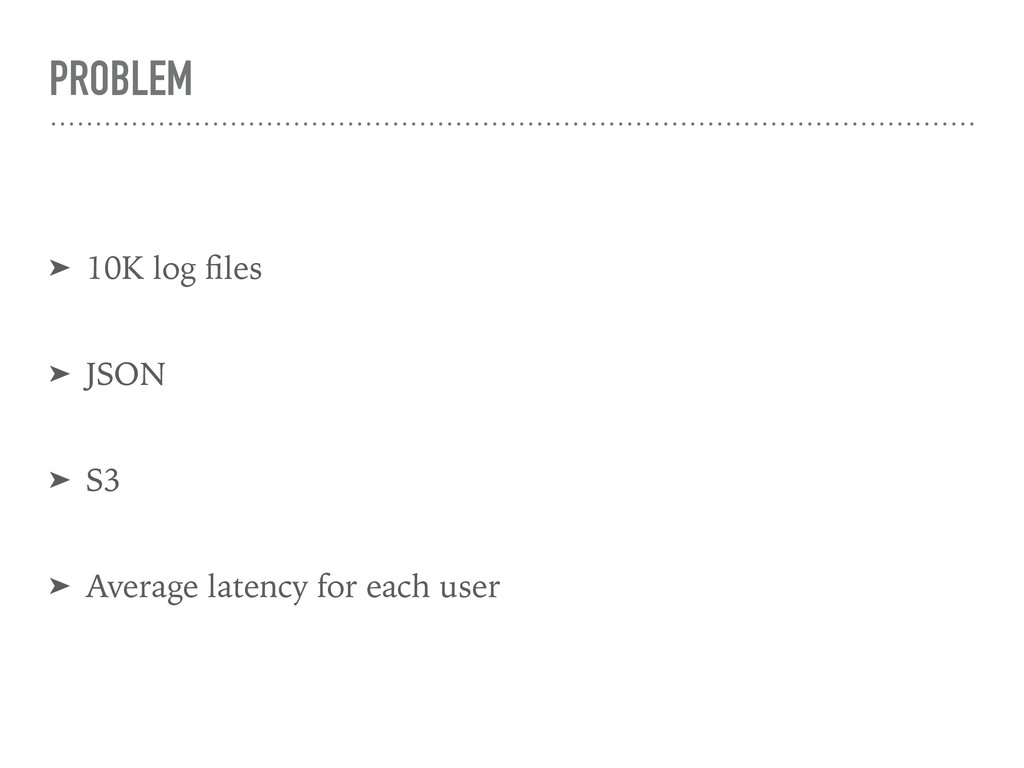

8. PROBLEM ➤ 10K log files ➤ JSON ➤ S3 ➤ Average latency for each user

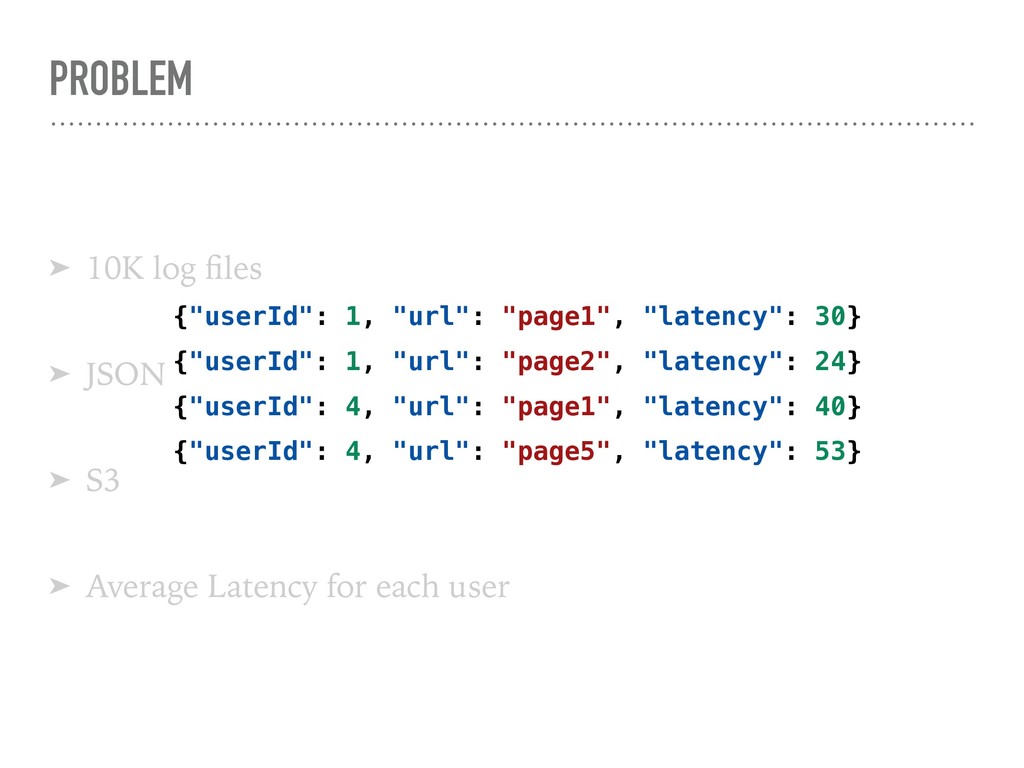

9. PROBLEM ➤ 10K log files ➤ JSON ➤ S3 ➤ Average Latency for each user {"userId": 1, "url": "page1", "latency": 30}
 {"userId": 1, "url": "page2", "latency": 24} {"userId": 4, "url": "page1", "latency": 40} {"userId": 4, "url": "page5", "latency": 53}

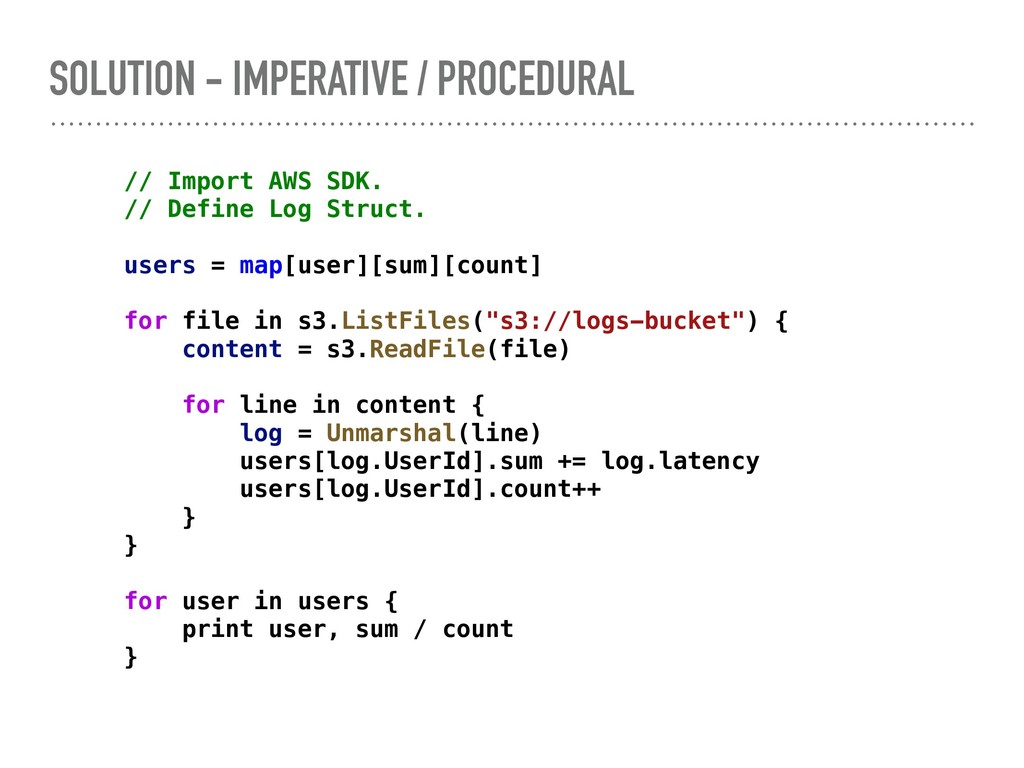

10. SOLUTION - IMPERATIVE / PROCEDURAL // Import AWS SDK. // Define Log Struct. users = map[user][sum][count] for file in s3.ListFiles("s3://logs-bucket") { content = s3.ReadFile(file) for line in content { log = Unmarshal(line) users[log.UserId].sum += log.latency users[log.UserId].count++ } } for user in users { print user, sum / count }

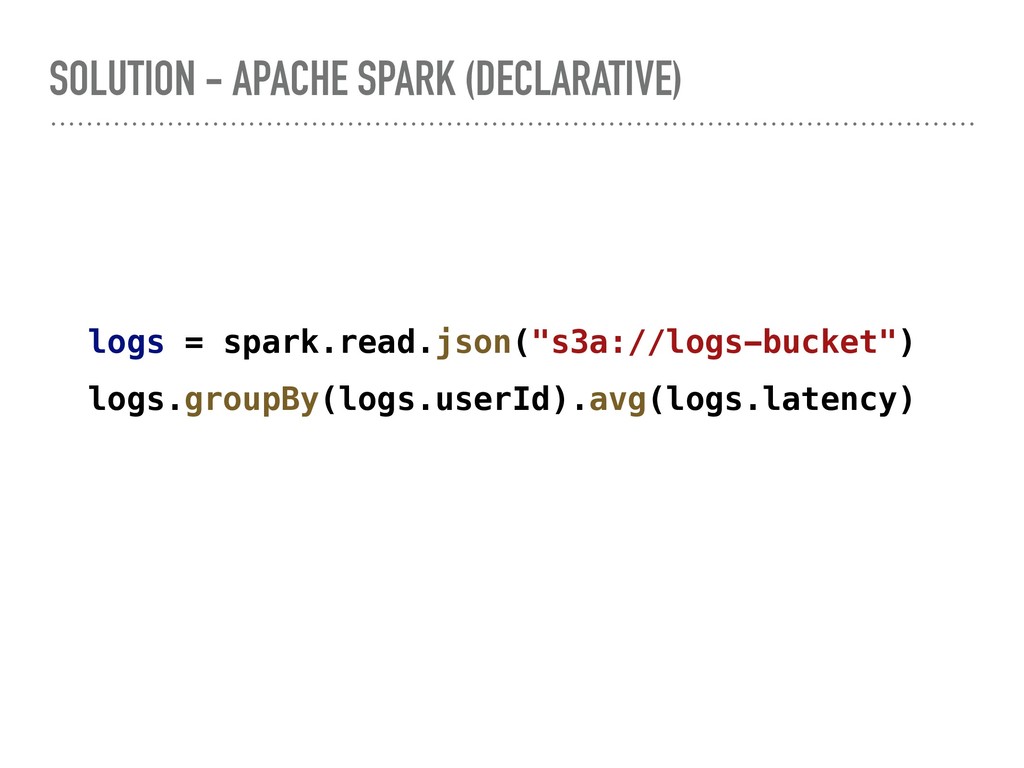

11. SOLUTION - APACHE SPARK (DECLARATIVE) logs = spark.read.json("s3a://logs-bucket") logs.groupBy(logs.userId).avg(logs.latency)
12. ABSTRACTION That’s all it’s about
13. DISTRIBUTED
14. SPARK CLUSTER

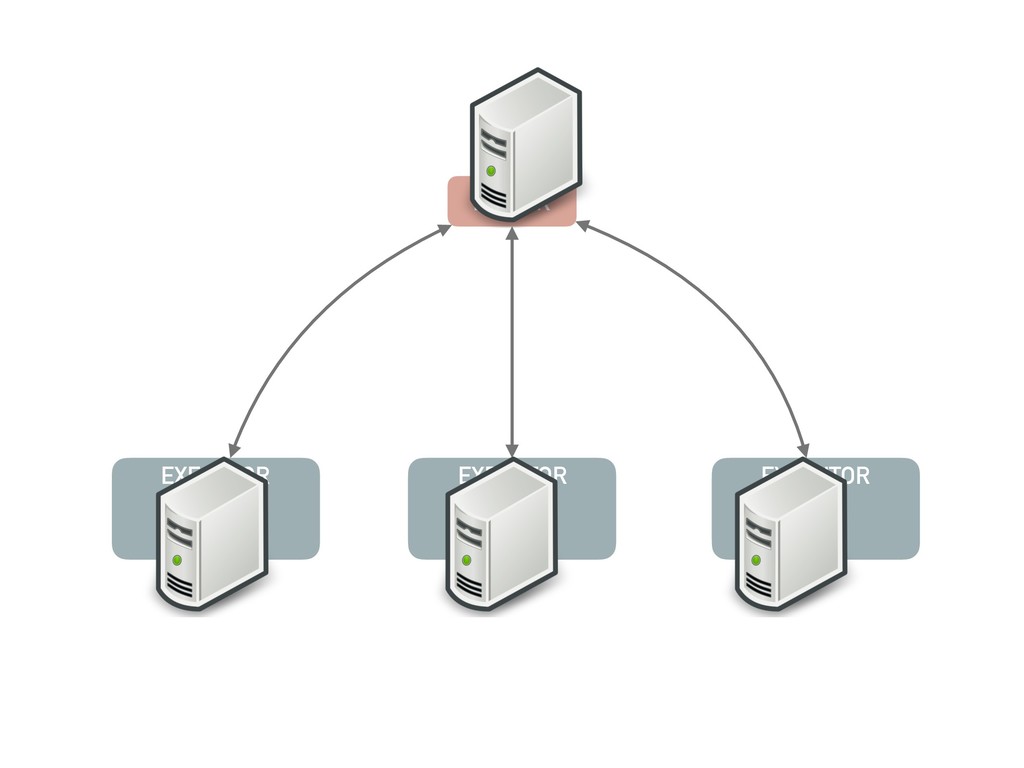

15. DRIVER EXECUTOR EXECUTOR EXECUTOR
16. DRIVER EXECUTOR EXECUTOR EXECUTOR
17. DRIVER EXECUTOR EXECUTOR EXECUTOR JVM JVM JVM JVM

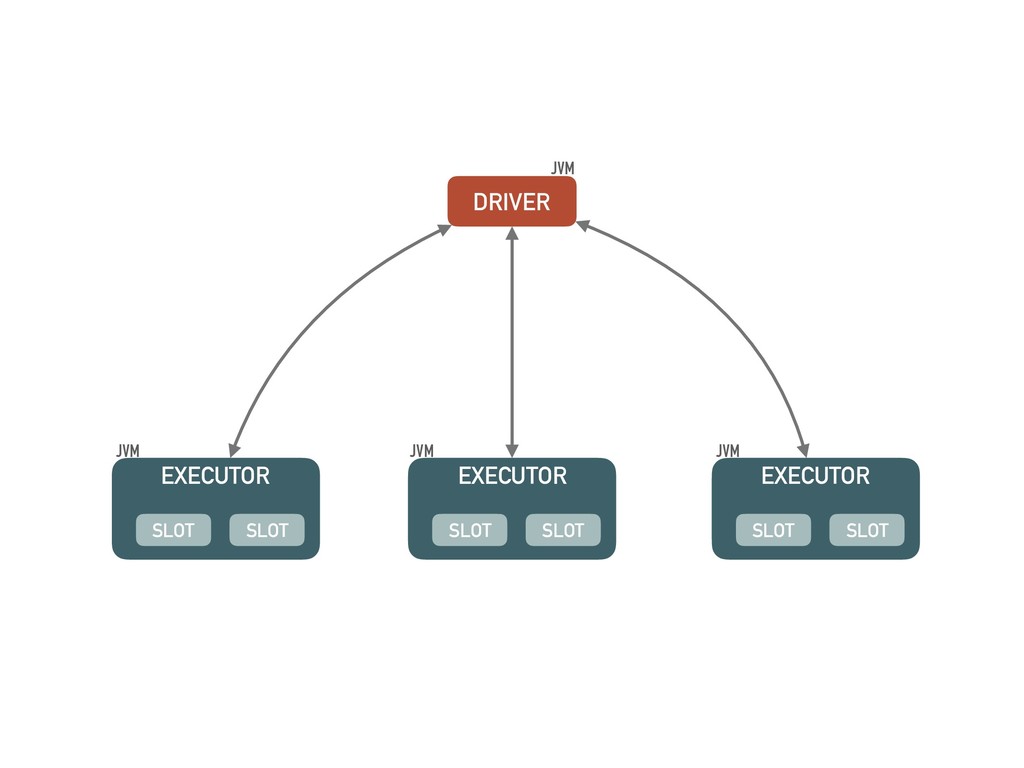

18. DRIVER EXECUTOR SLOT SLOT EXECUTOR SLOT SLOT EXECUTOR SLOT SLOT JVM JVM JVM JVM

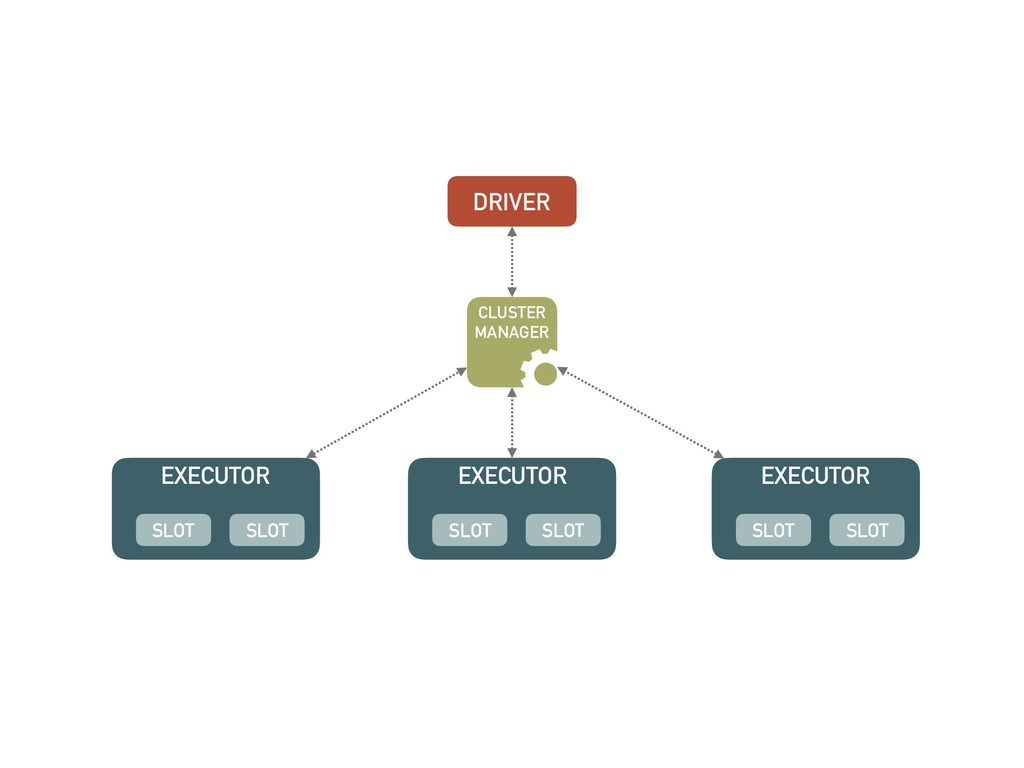

19. DRIVER EXECUTOR SLOT SLOT EXECUTOR SLOT SLOT EXECUTOR SLOT SLOT CLUSTER
 MANAGER

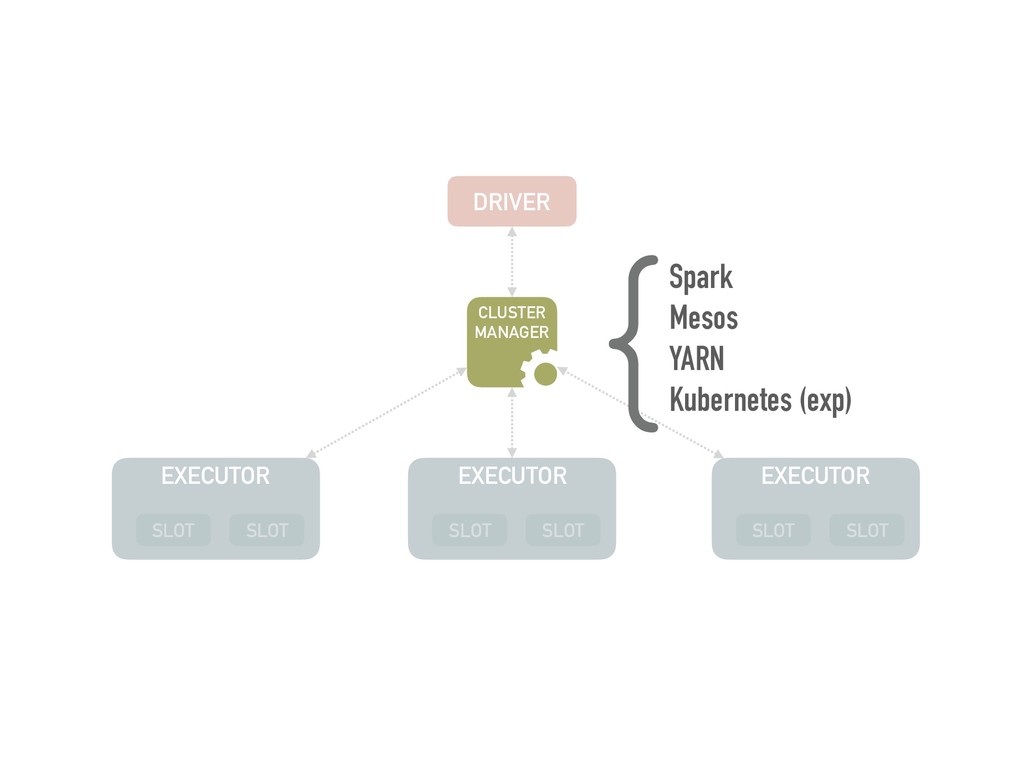

20. DRIVER EXECUTOR SLOT SLOT EXECUTOR SLOT SLOT EXECUTOR SLOT SLOT CLUSTER
 MANAGER Spark
 Mesos
 YARN
 Kubernetes (exp) {
21. DRIVER EXECUTOR SLOT SLOT EXECUTOR SLOT SLOT EXECUTOR SLOT SLOT CLUSTER
 MANAGER
22. JOB / STAGE / TASK

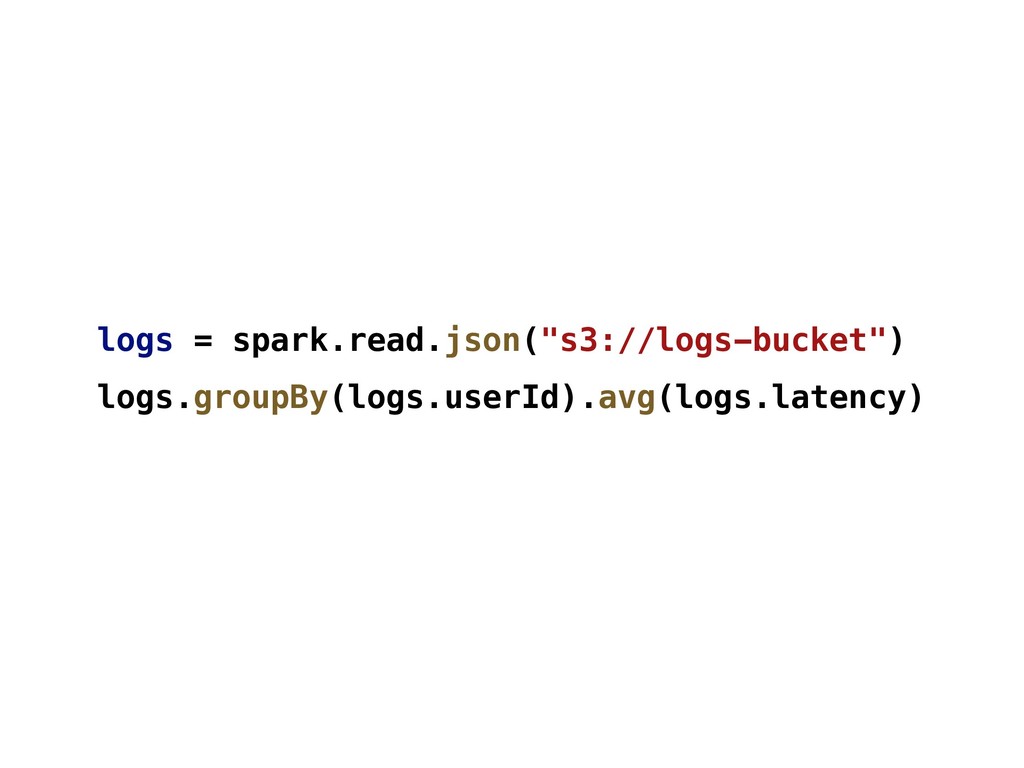

23. logs = spark.read.json("s3://logs-bucket") logs.groupBy(logs.userId).avg(logs.latency)

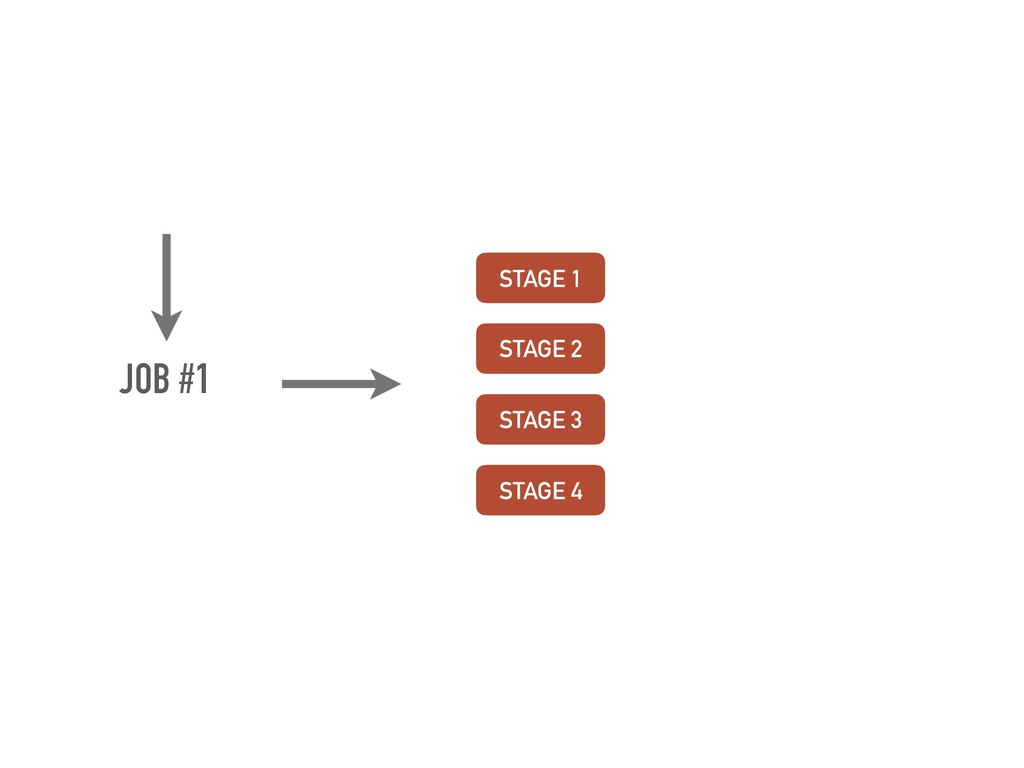

24. STAGE 1 STAGE 2 STAGE 3 STAGE 4 JOB #1

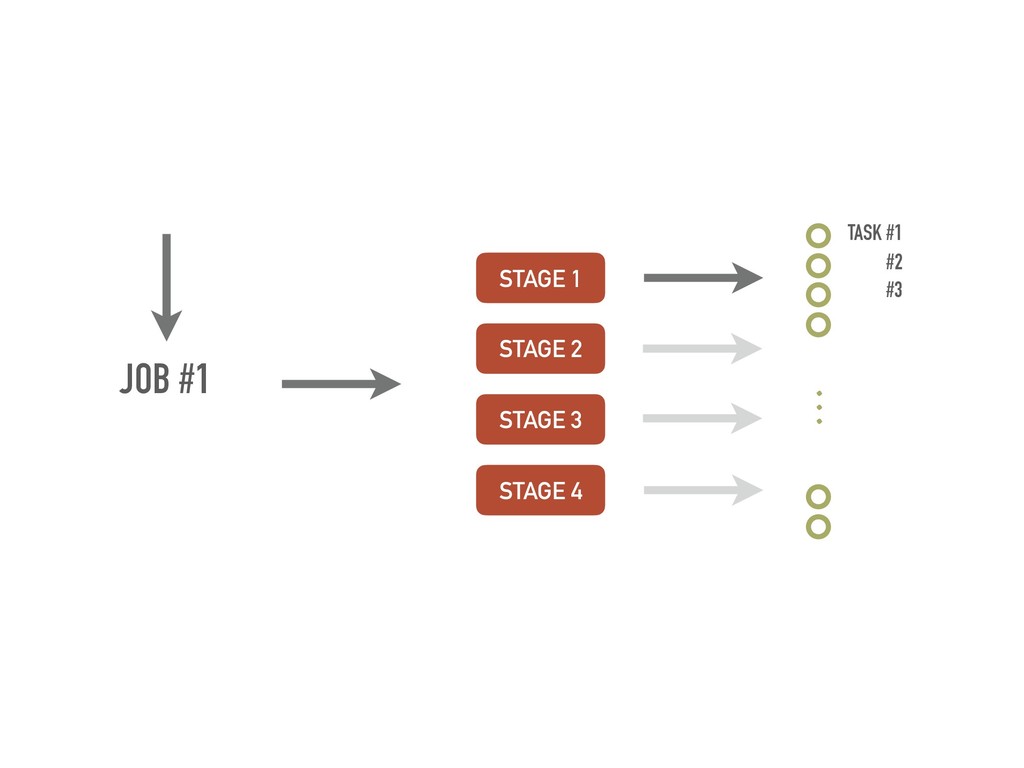

25. STAGE 1 STAGE 2 STAGE 3 STAGE 4 JOB #1 TASK #1 … #2 #3

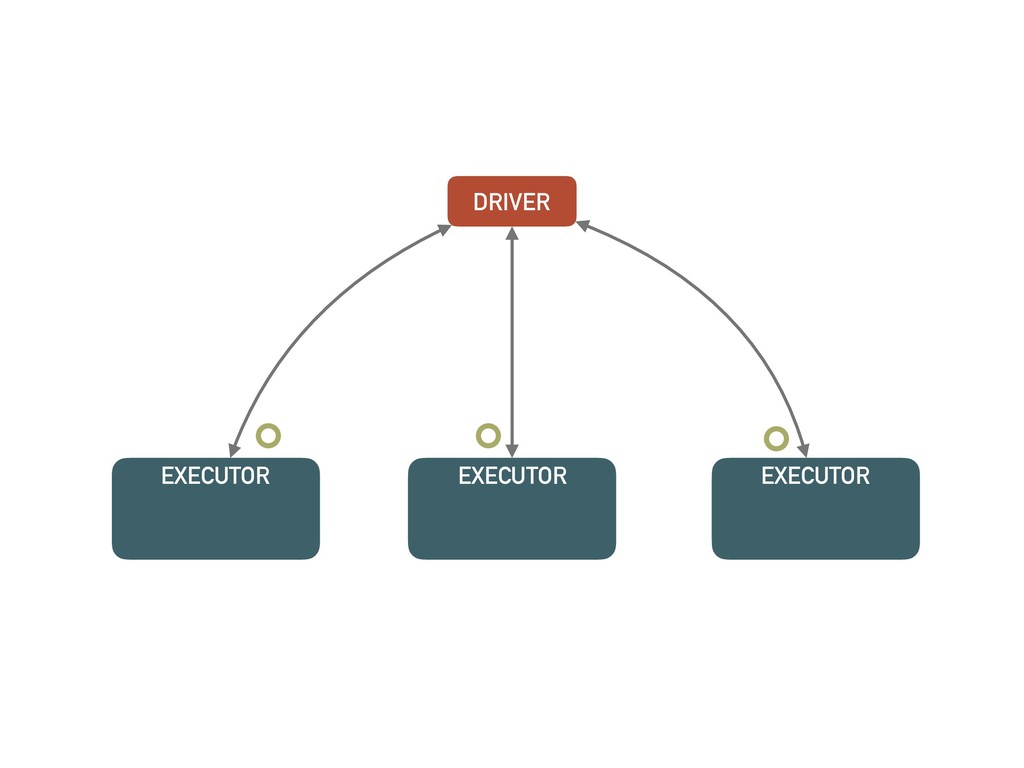

26. DRIVER EXECUTOR EXECUTOR EXECUTOR

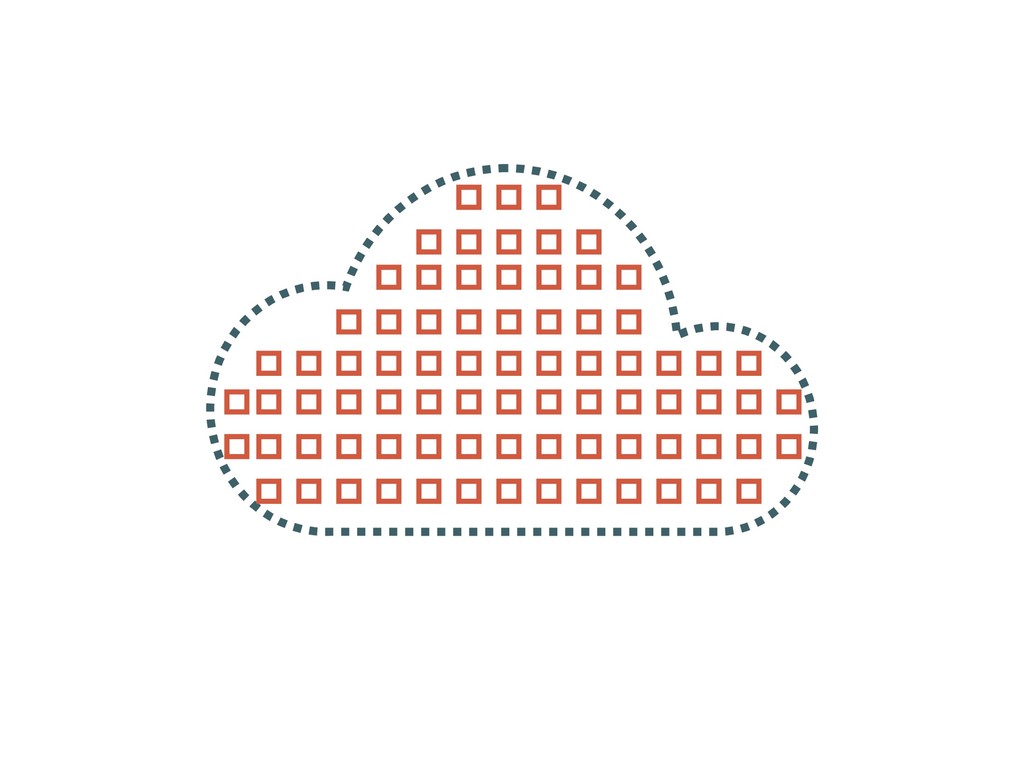

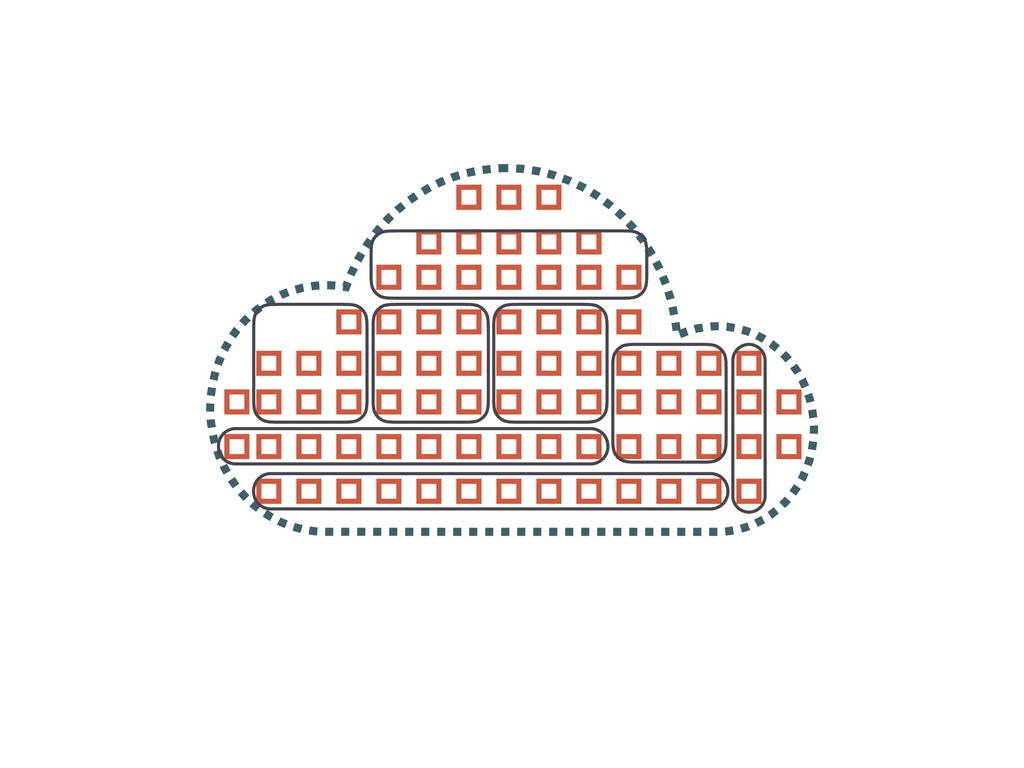

27. PARTITION

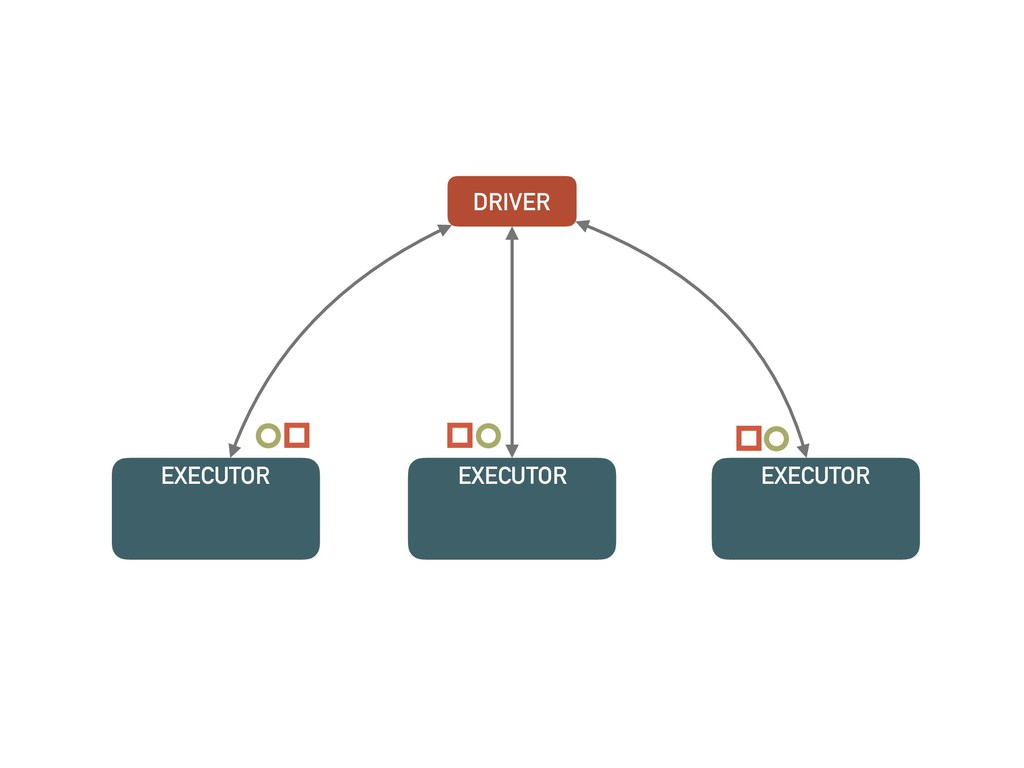

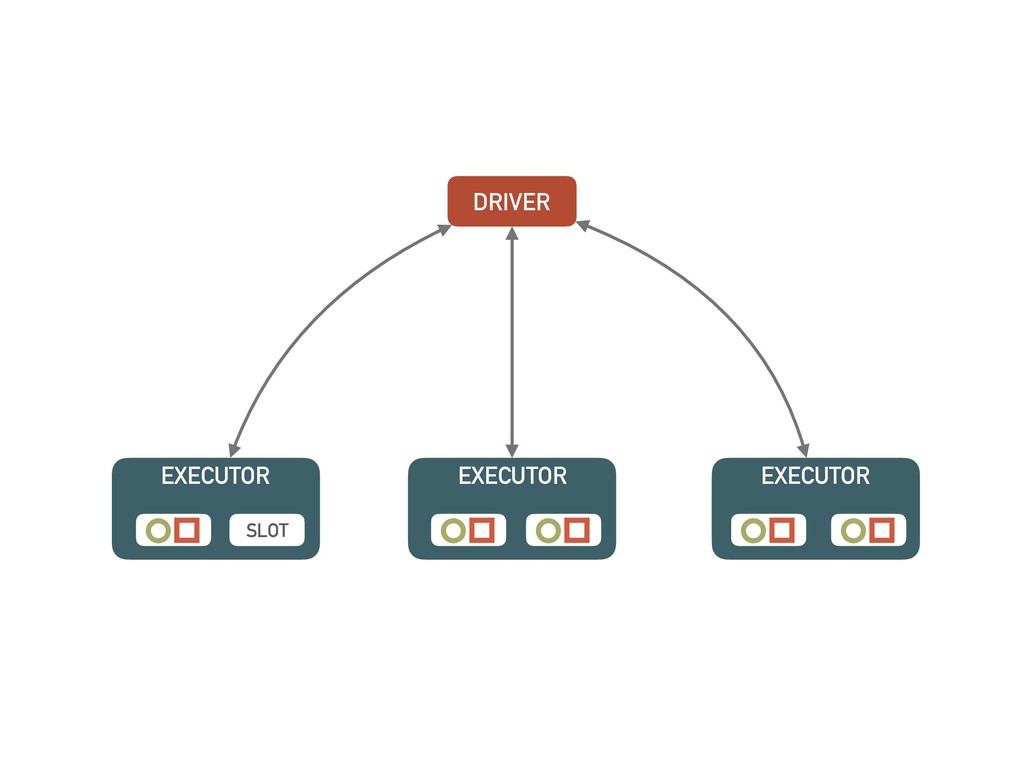

31. DRIVER EXECUTOR EXECUTOR EXECUTOR
32. DRIVER EXECUTOR SLOT EXECUTOR EXECUTOR
33. UNIFIED

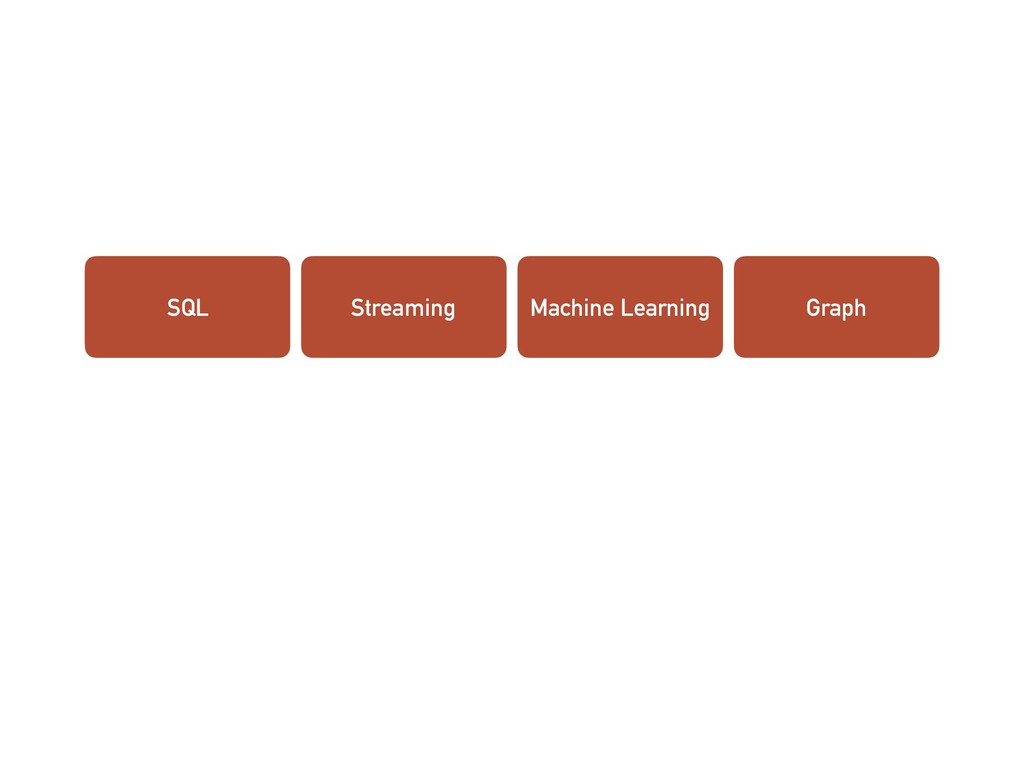

34. SQL Streaming Machine Learning Graph

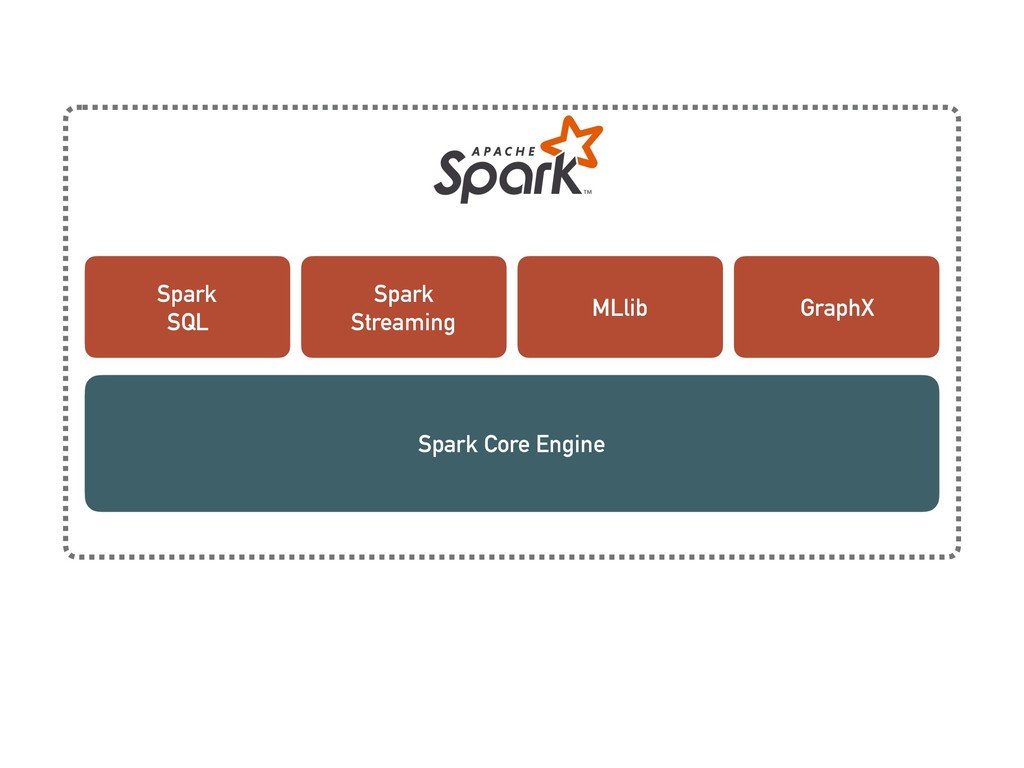

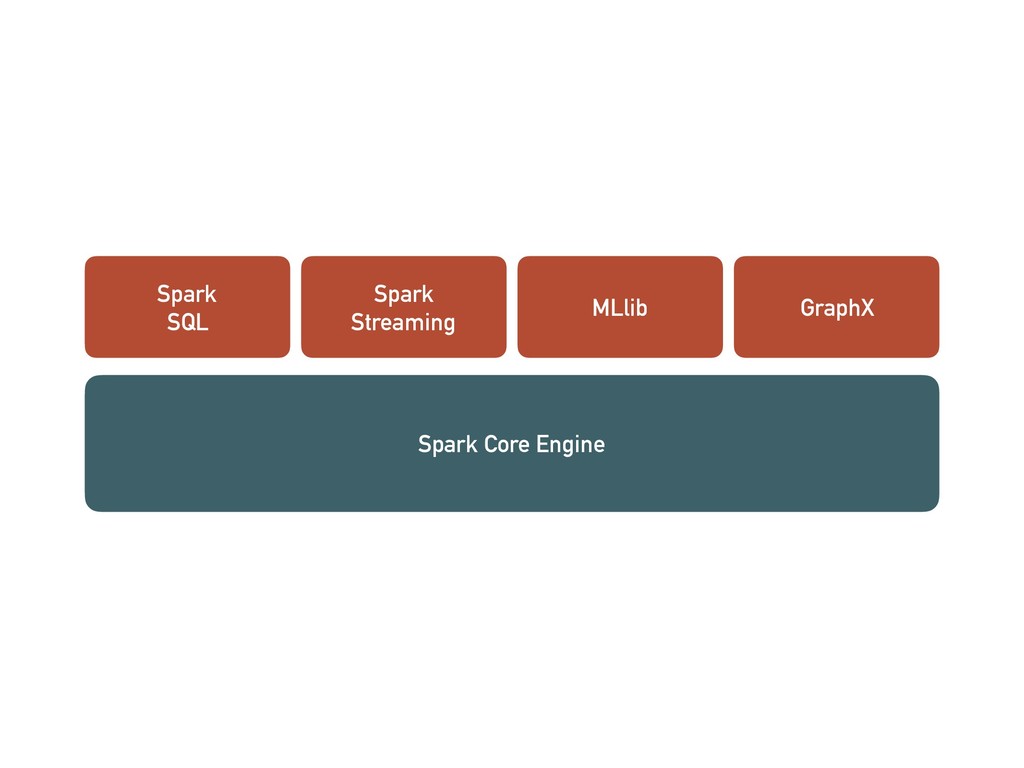

35. Spark Core Engine Spark
 SQL Spark
 Streaming MLlib GraphX
36. Spark Core Engine Spark
 SQL Spark
 Streaming MLlib GraphX

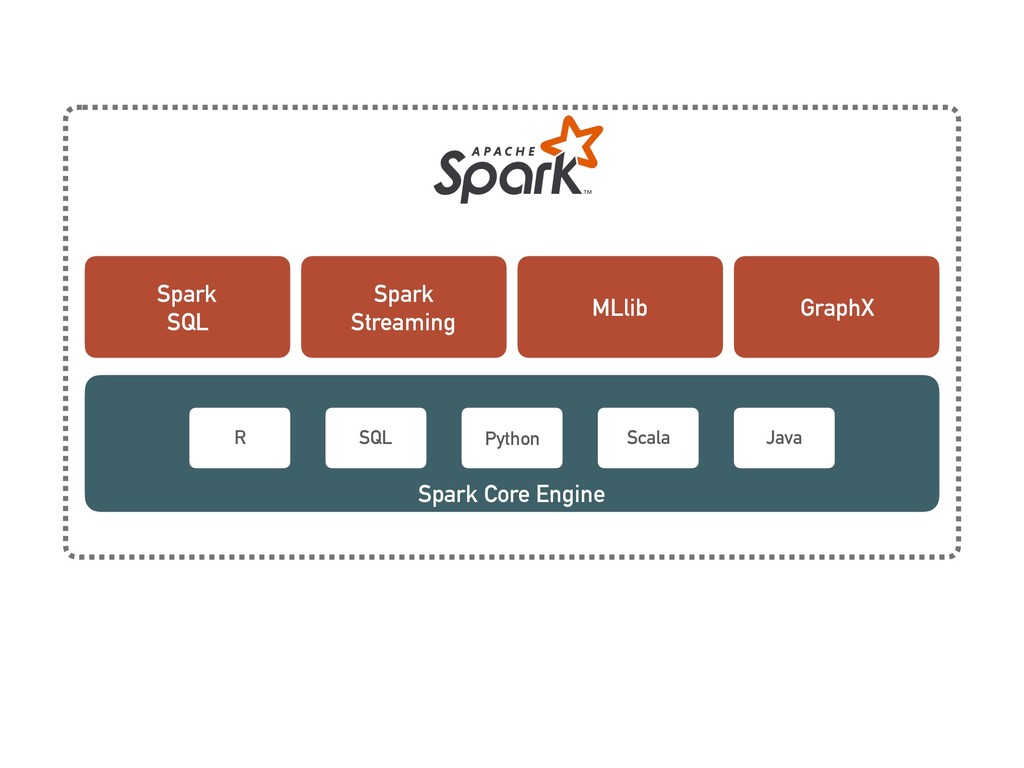

37. Spark Core Engine Spark
 SQL Spark
 Streaming MLlib GraphX R SQL Python Scala Java

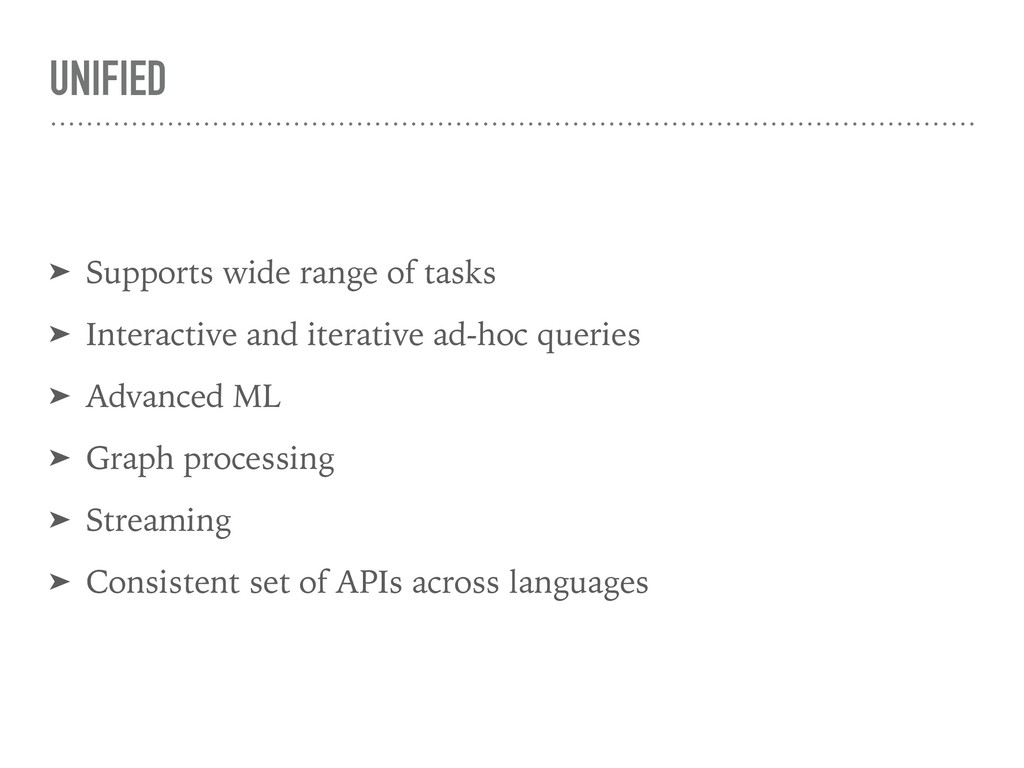

38. UNIFIED ➤ Supports wide range of tasks ➤ Interactive and iterative ad-hoc queries ➤ Advanced ML ➤ Graph processing ➤ Streaming ➤ Consistent set of APIs across languages
39. COMPUTING Engine

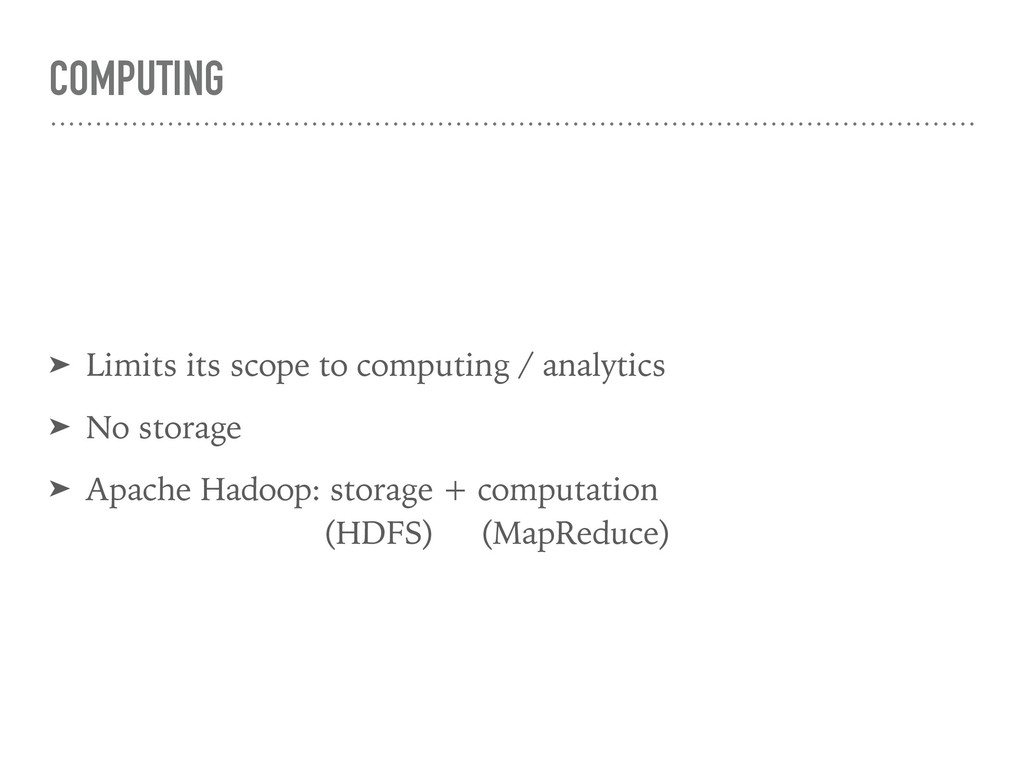

40. COMPUTING ➤ Limits its scope to computing / analytics ➤ No storage ➤ Apache Hadoop: storage + computation (HDFS) (MapReduce)
41. DATA SOURCES

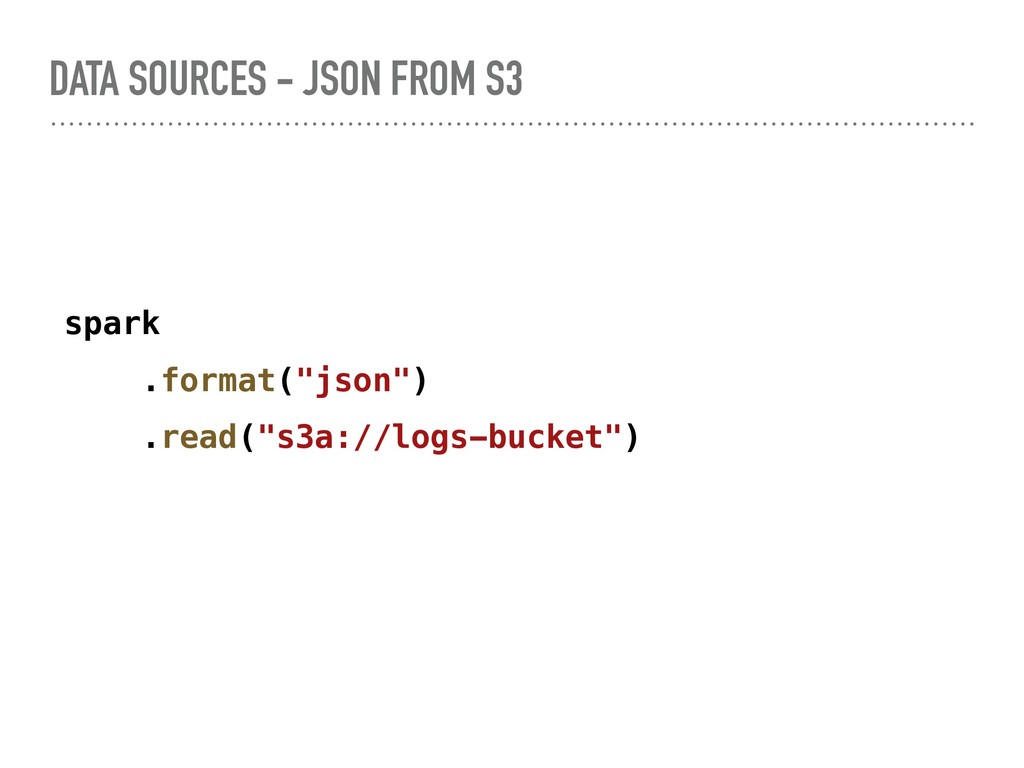

42. DATA SOURCES - JSON FROM S3 spark .format("json") .read("s3a://logs-bucket")

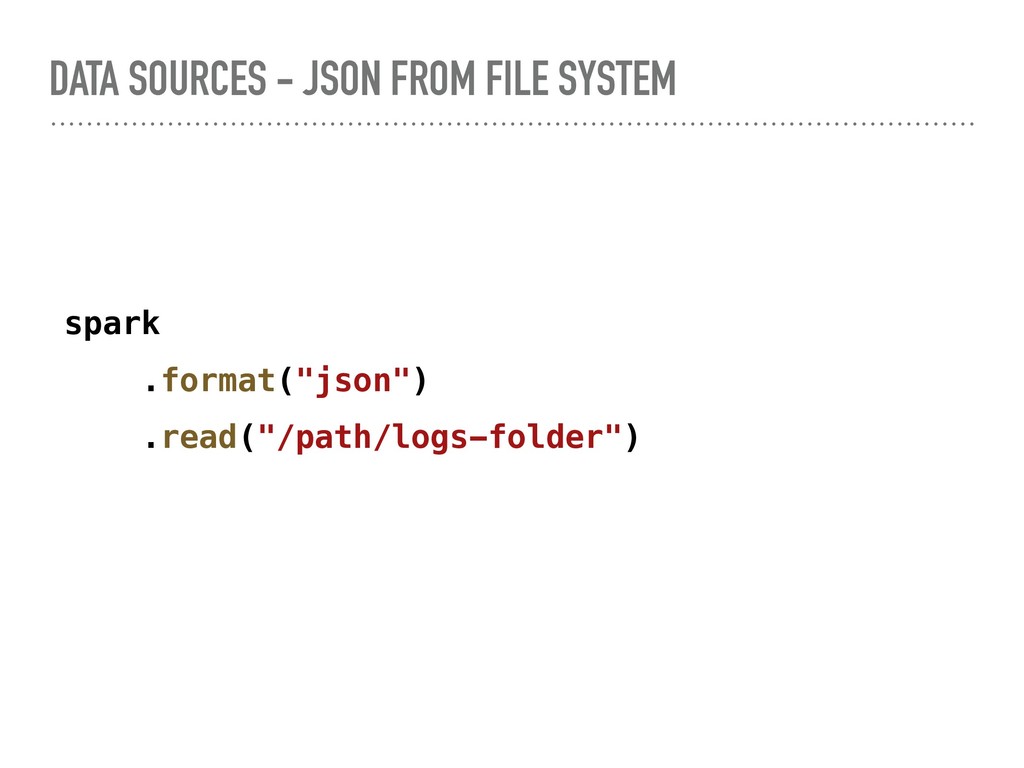

43. DATA SOURCES - JSON FROM FILE SYSTEM spark .format("json") .read("/path/logs-folder")

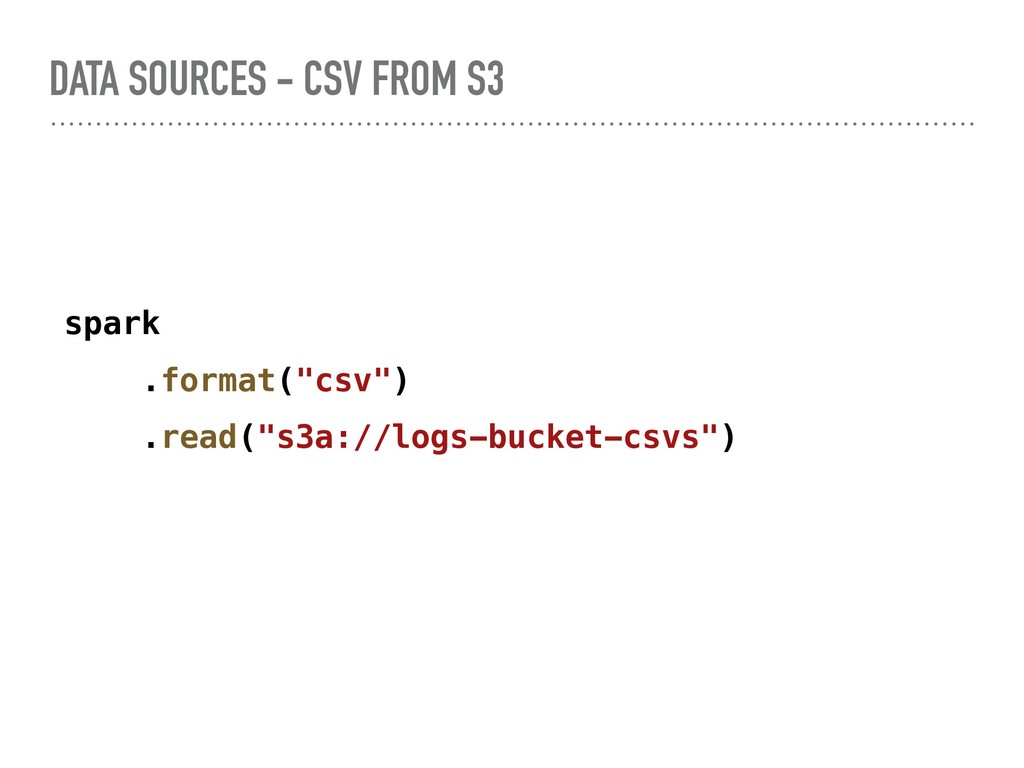

44. DATA SOURCES - CSV FROM S3 spark .format("csv") .read("s3a://logs-bucket-csvs")

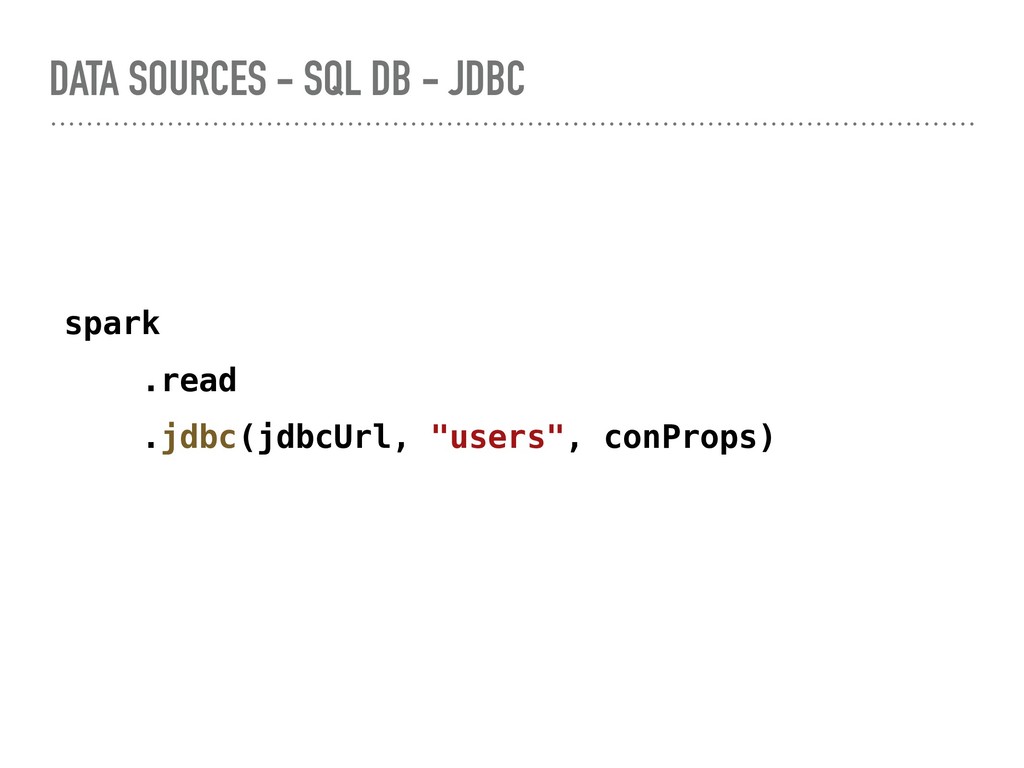

45. DATA SOURCES - SQL DB - JDBC spark .read .jdbc(jdbcUrl, "users", conProps)

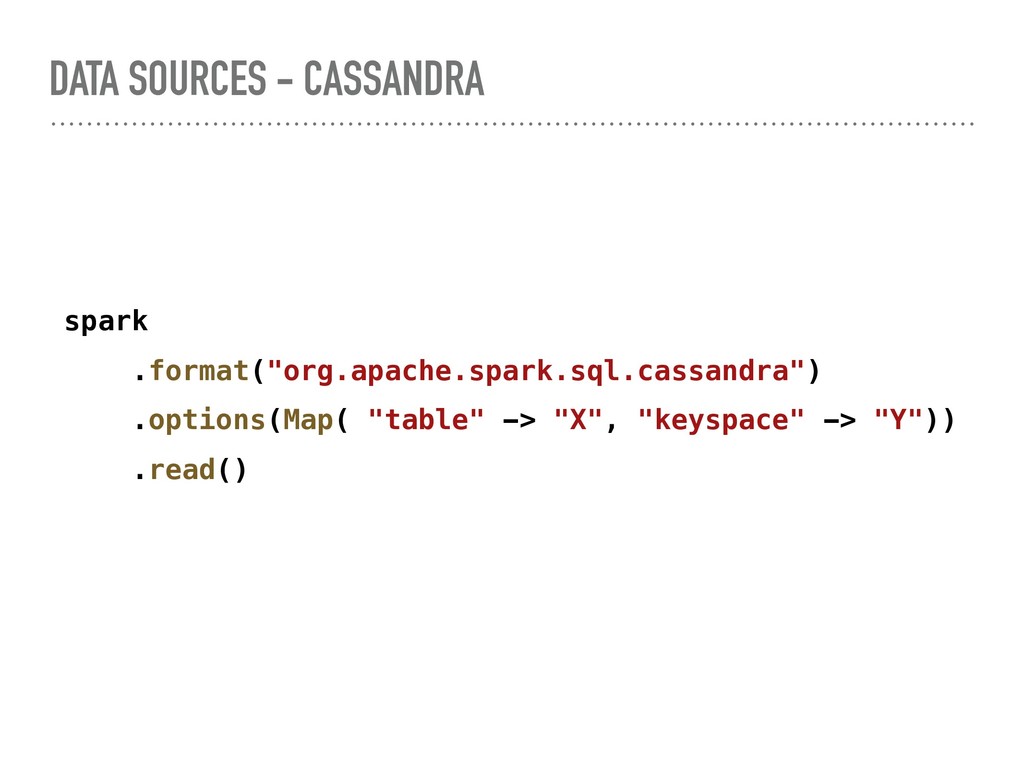

46. DATA SOURCES - CASSANDRA spark .format("org.apache.spark.sql.cassandra") .options(Map( "table" -> "X", "keyspace" -> "Y")) .read()

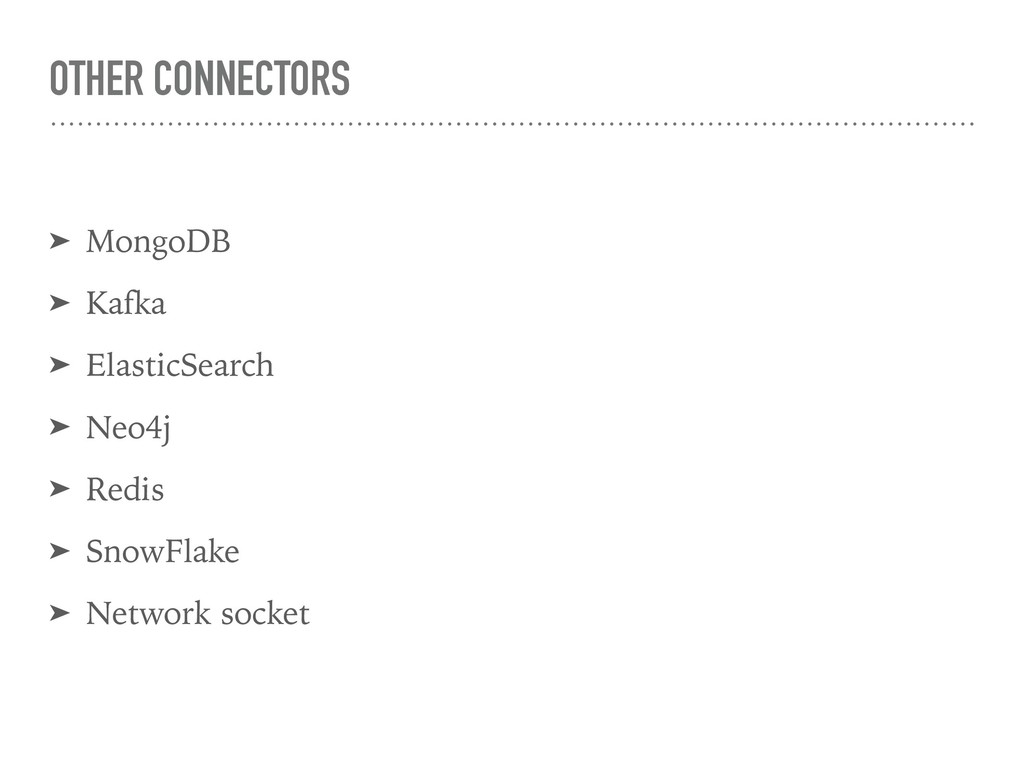

47. OTHER CONNECTORS ➤ MongoDB ➤ Kafka ➤ ElasticSearch ➤ Neo4j ➤ Redis ➤ SnowFlake ➤ Network socket

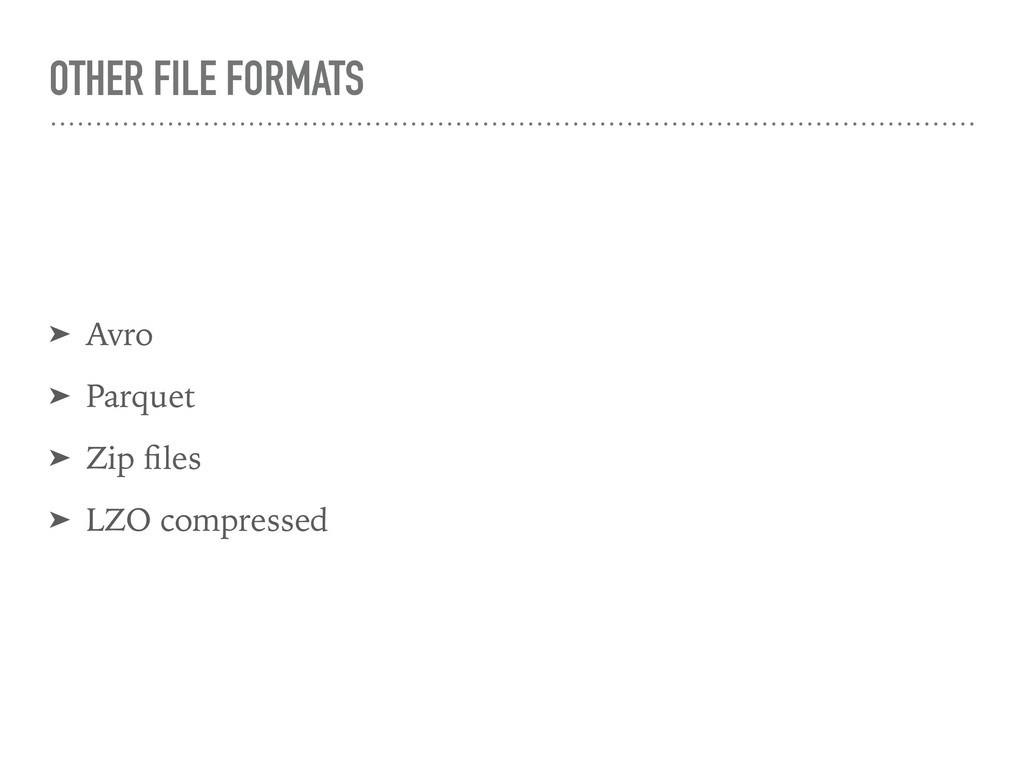

48. OTHER FILE FORMATS ➤ Avro ➤ Parquet ➤ Zip files ➤ LZO compressed
49. DATA SINKS

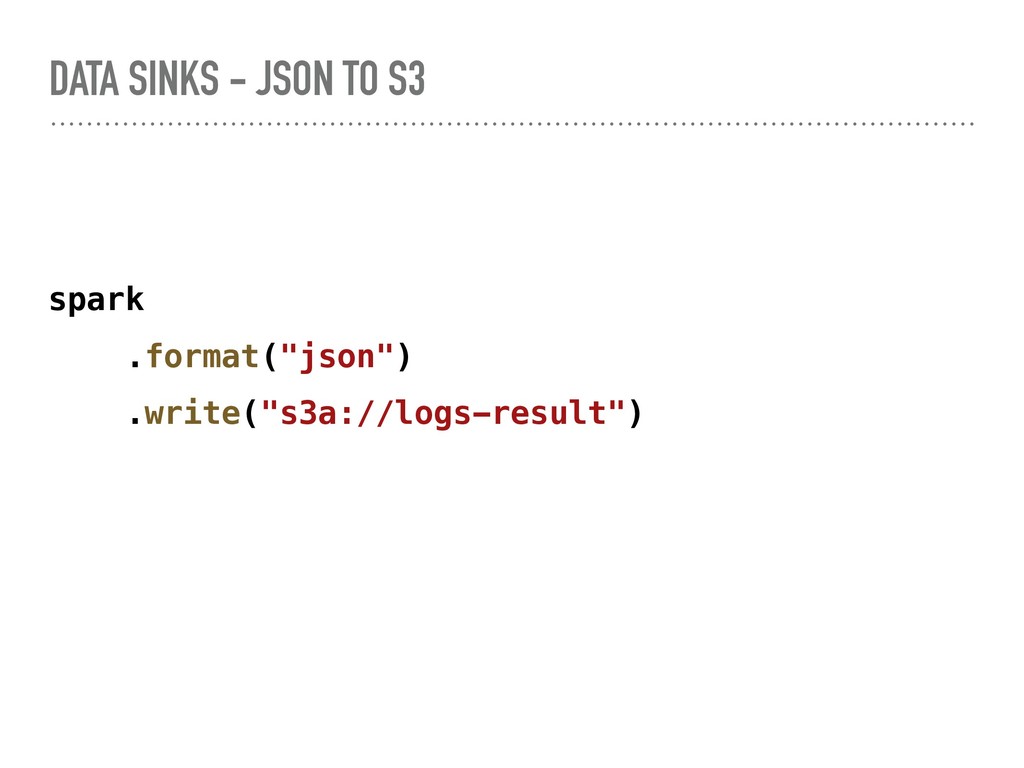

50. DATA SINKS - JSON TO S3 spark .format("json") .write("s3a://logs-result")

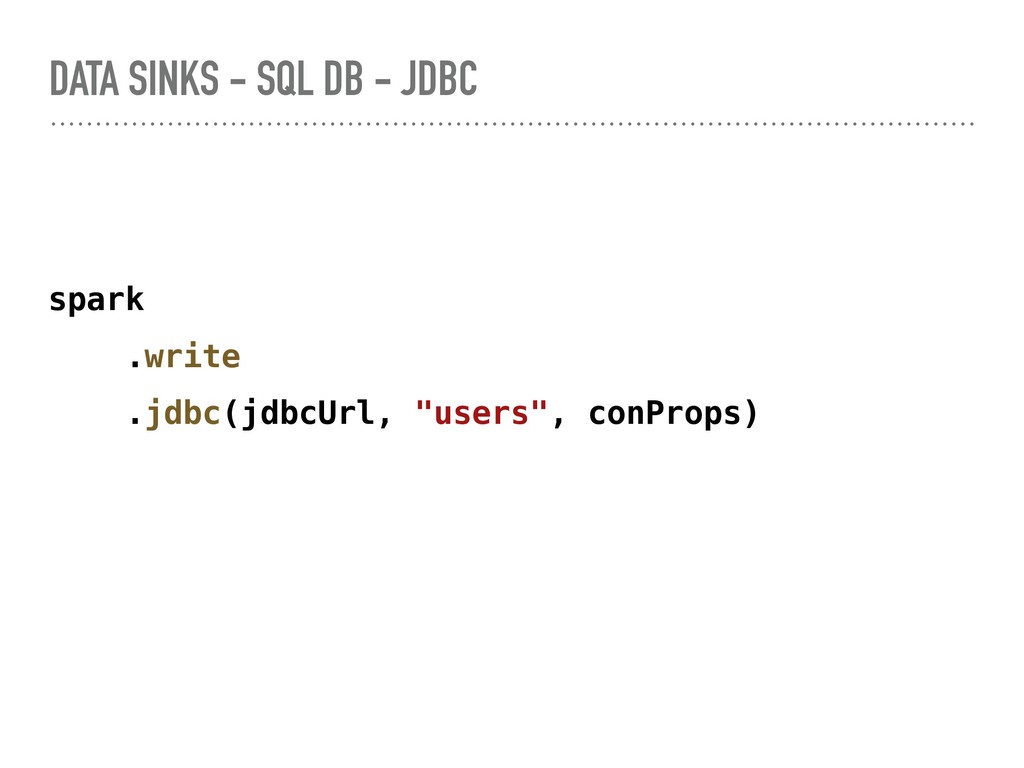

51. DATA SINKS - SQL DB - JDBC spark .write .jdbc(jdbcUrl, "users", conProps)
52. API
53. Spark Core Engine RDD APIs DataFrame | SQL | DataSet APIs Structured Streaming | Spark ML | GraphFrames

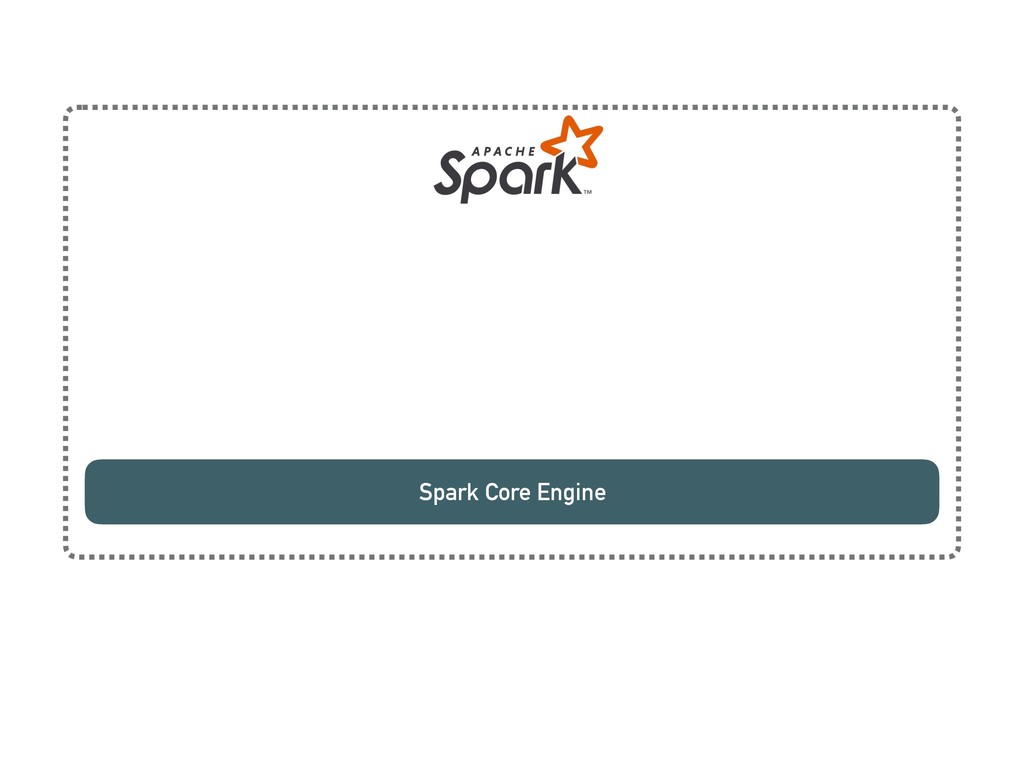

54. Spark Core Engine

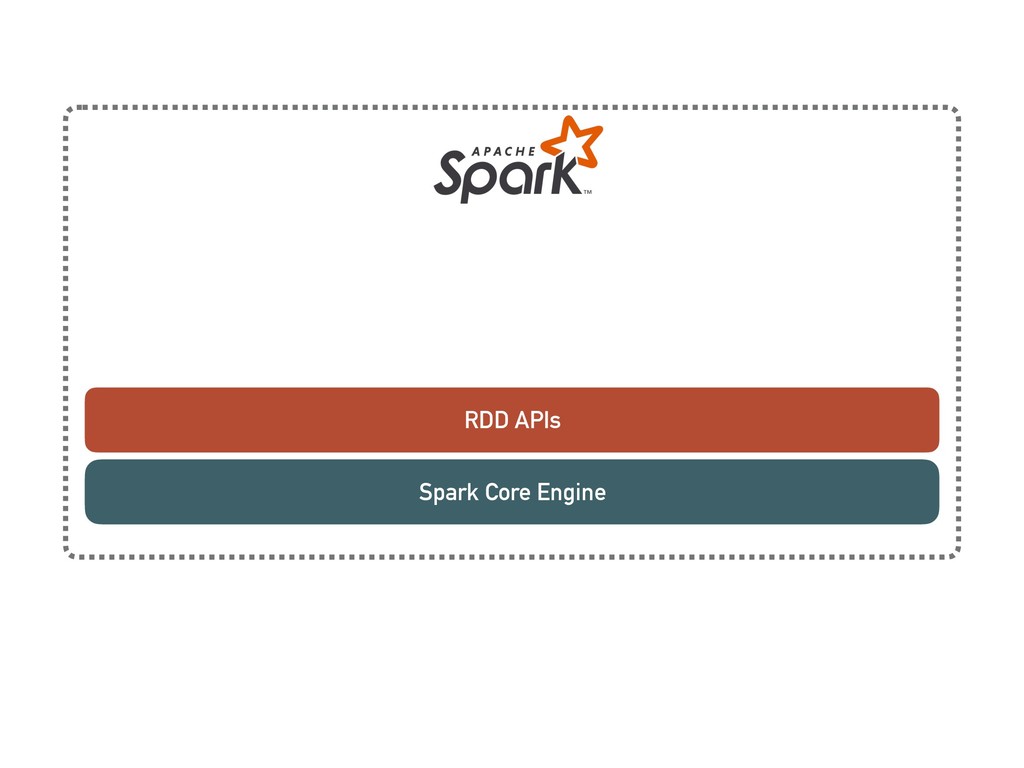

55. Spark Core Engine RDD APIs

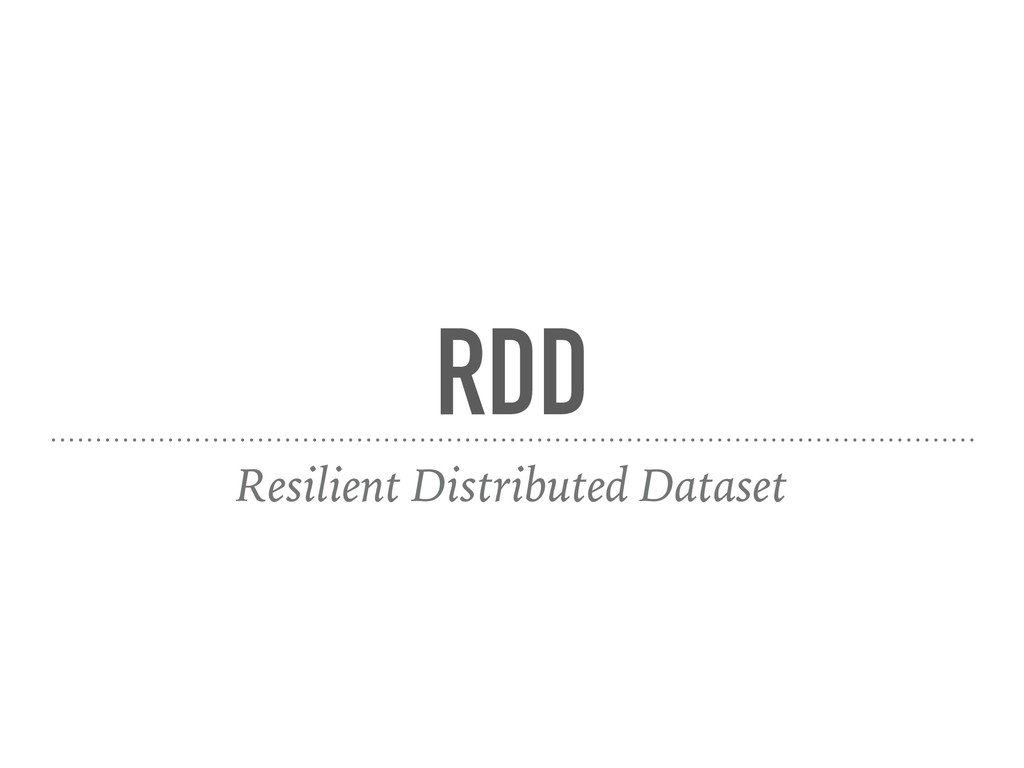

56. RDD Resilient Distributed Dataset

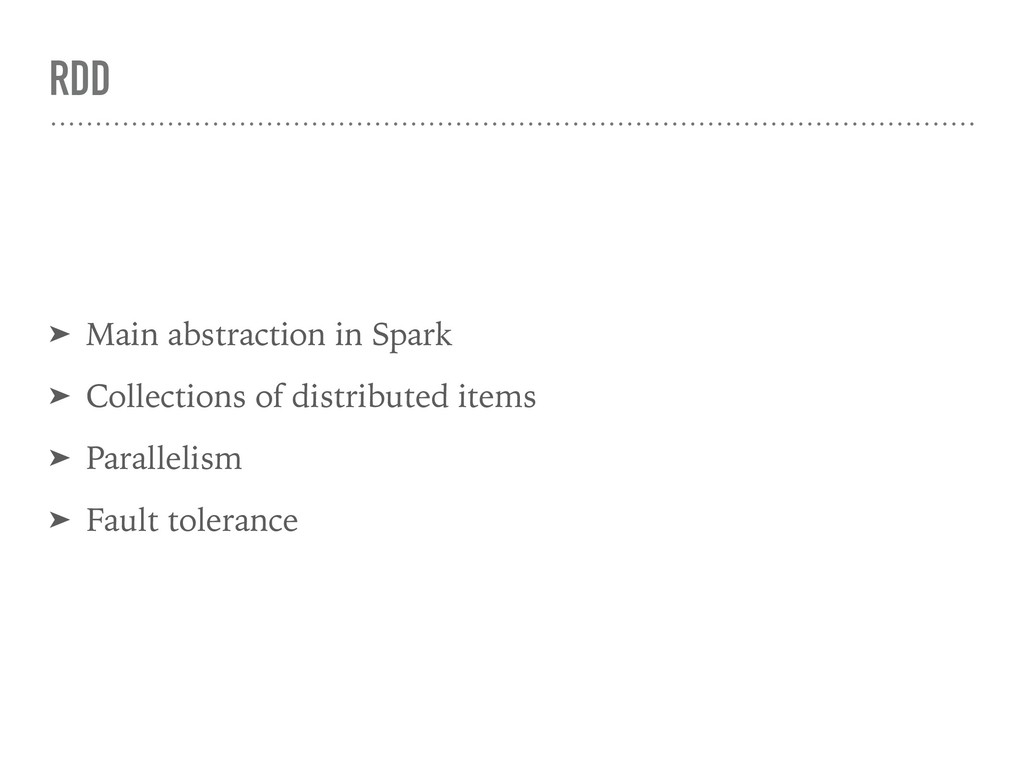

57. RDD ➤ Main abstraction in Spark ➤ Collections of distributed items ➤ Parallelism ➤ Fault tolerance
58. Spark Core Engine RDD APIs DataFrame APIs
59. DATAFRAME

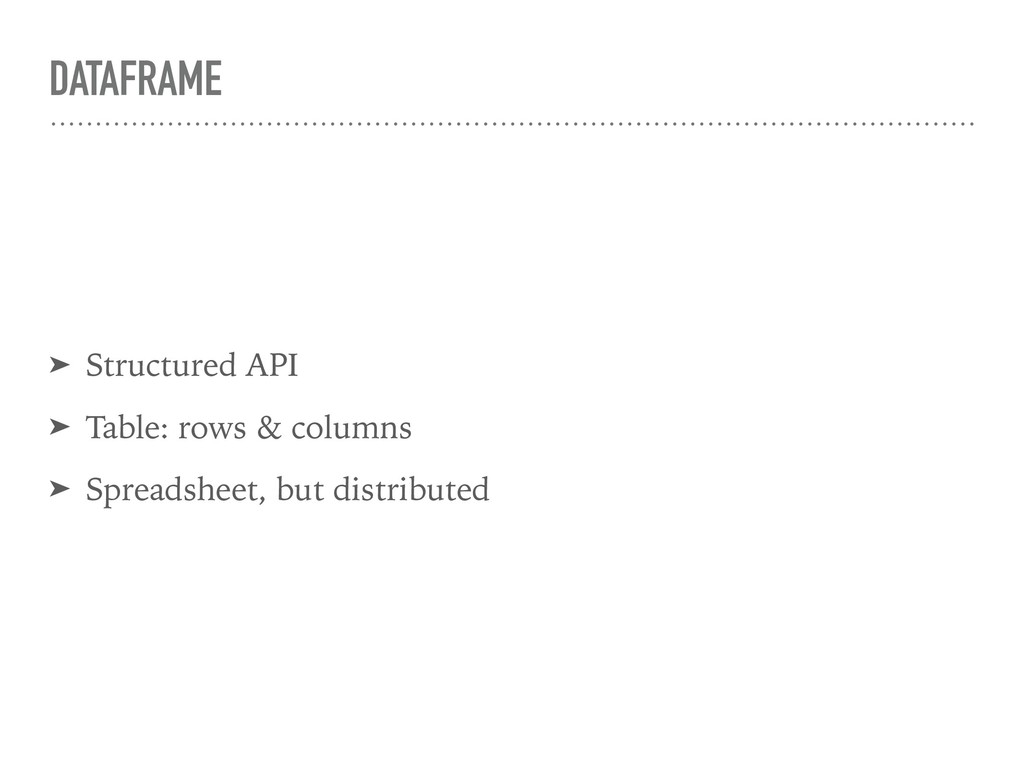

60. DATAFRAME ➤ Structured API ➤ Table: rows & columns ➤ Spreadsheet, but distributed

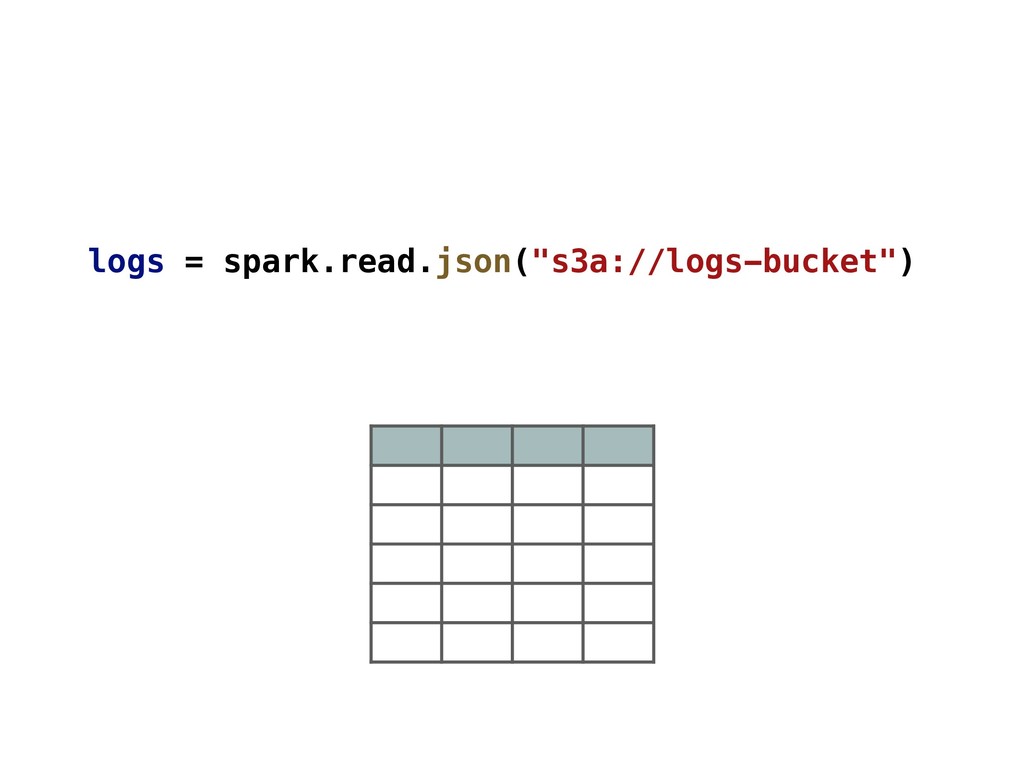

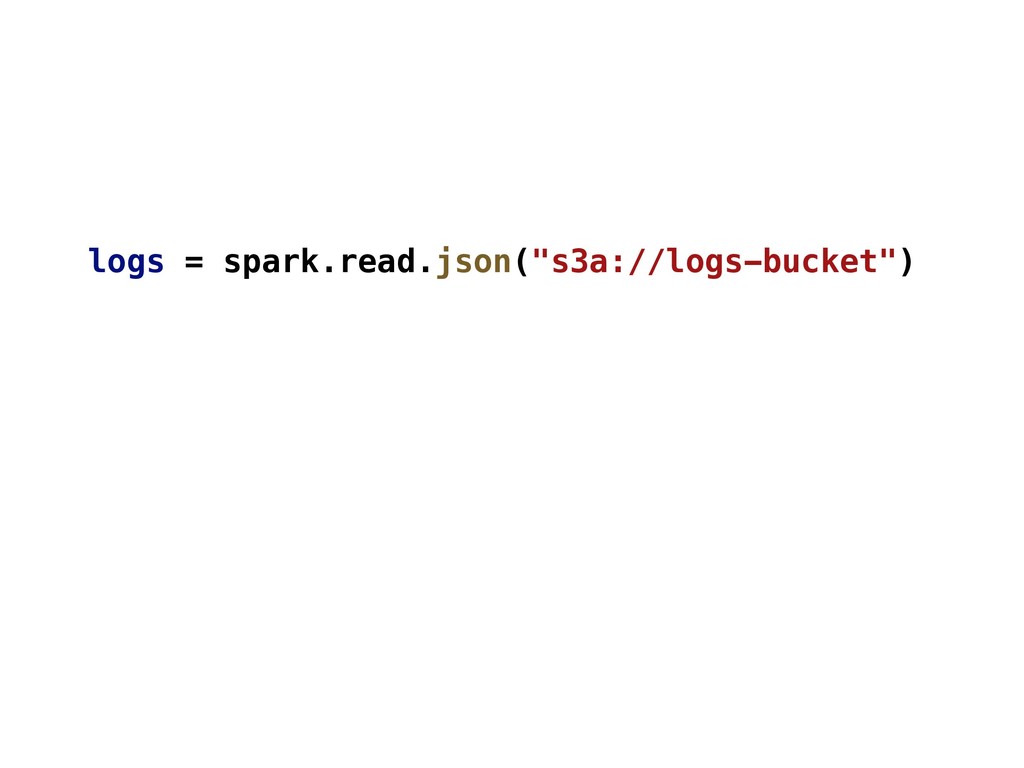

61. logs = spark.read.json("s3a://logs-bucket")
62. logs = spark.read.json("s3a://logs-bucket")

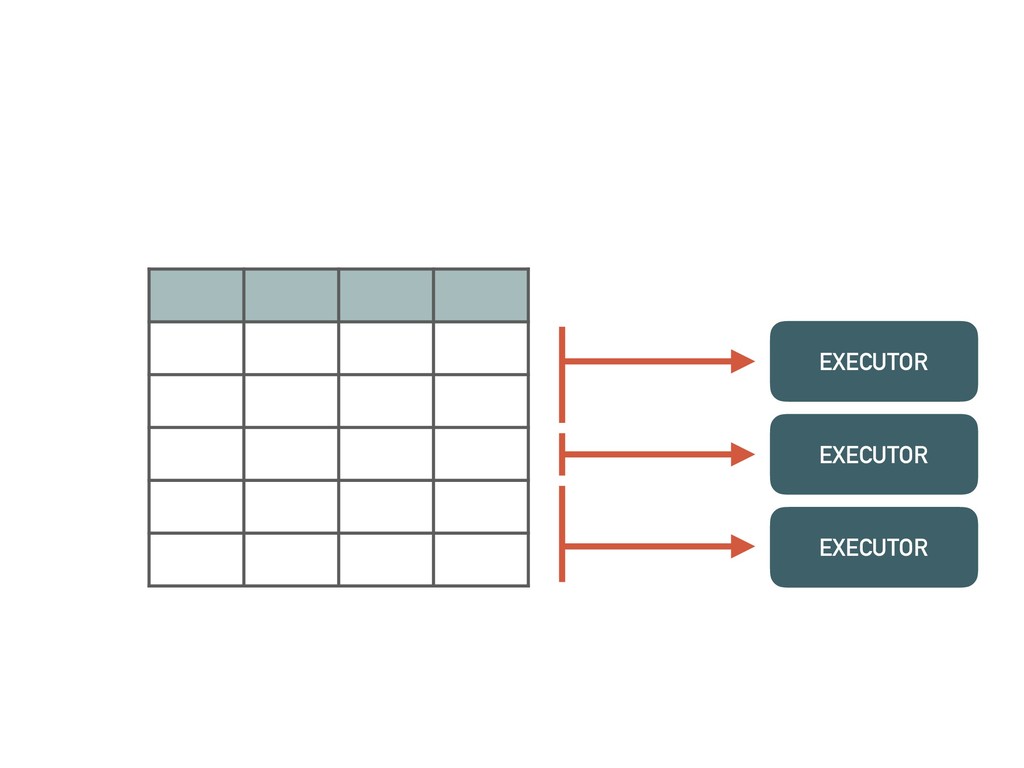

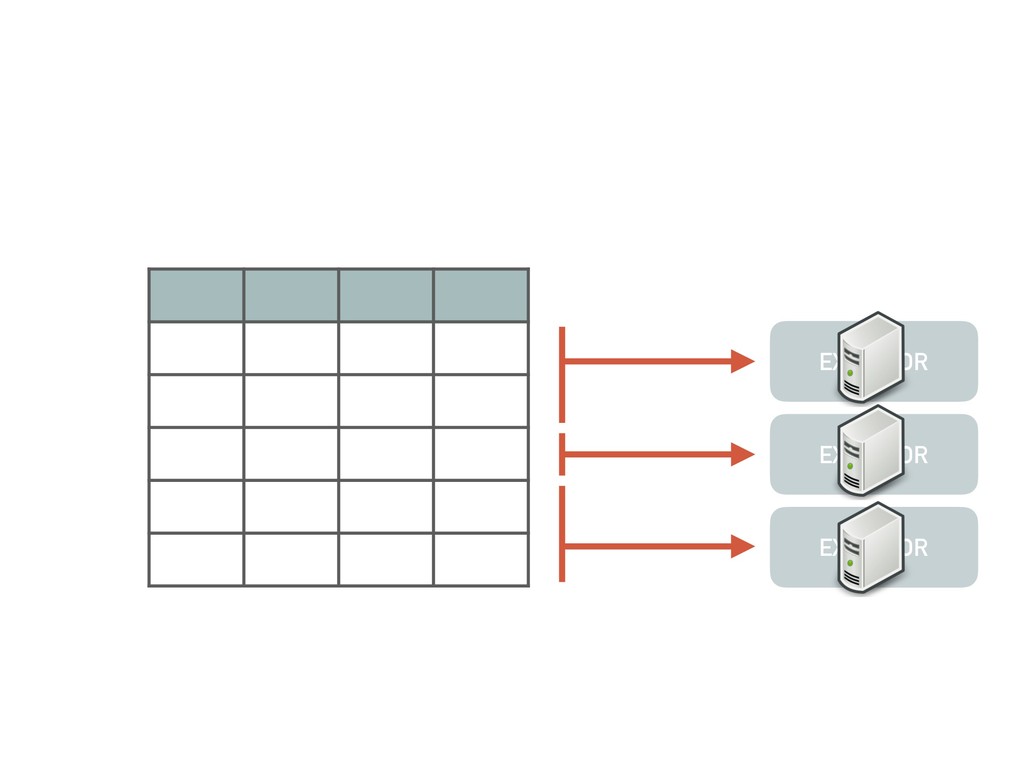

63. EXECUTOR EXECUTOR EXECUTOR
64. EXECUTOR EXECUTOR EXECUTOR
65. TRANSFORMATIONS

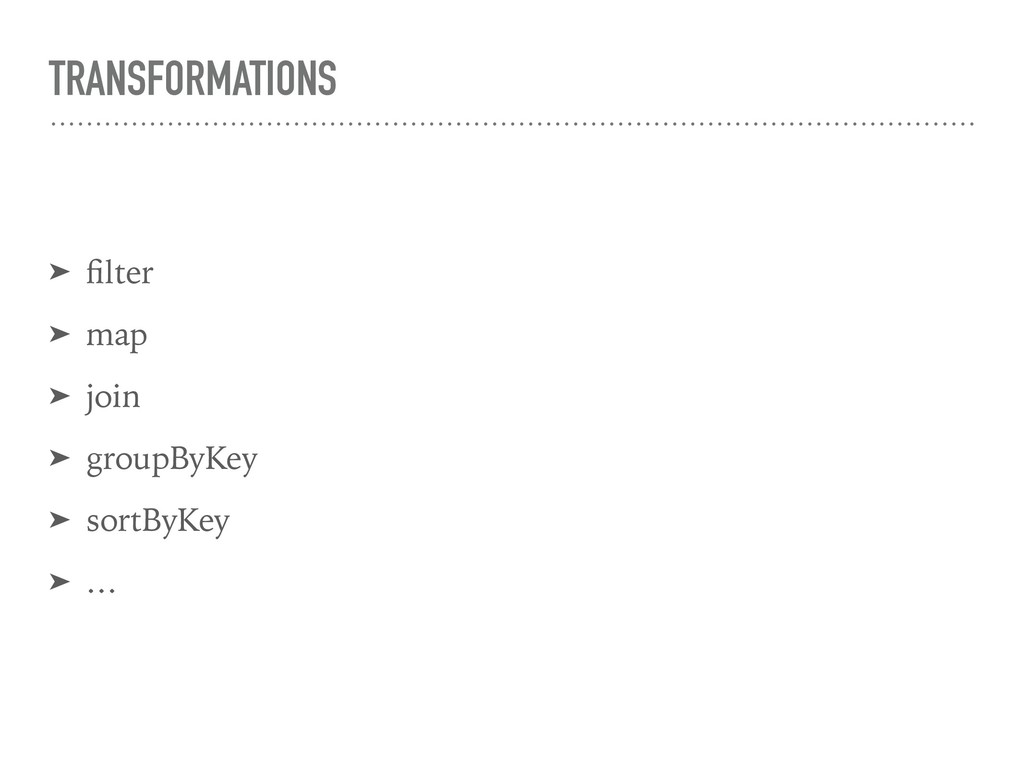

66. TRANSFORMATIONS ➤ filter ➤ map ➤ join ➤ groupByKey ➤ sortByKey ➤ …

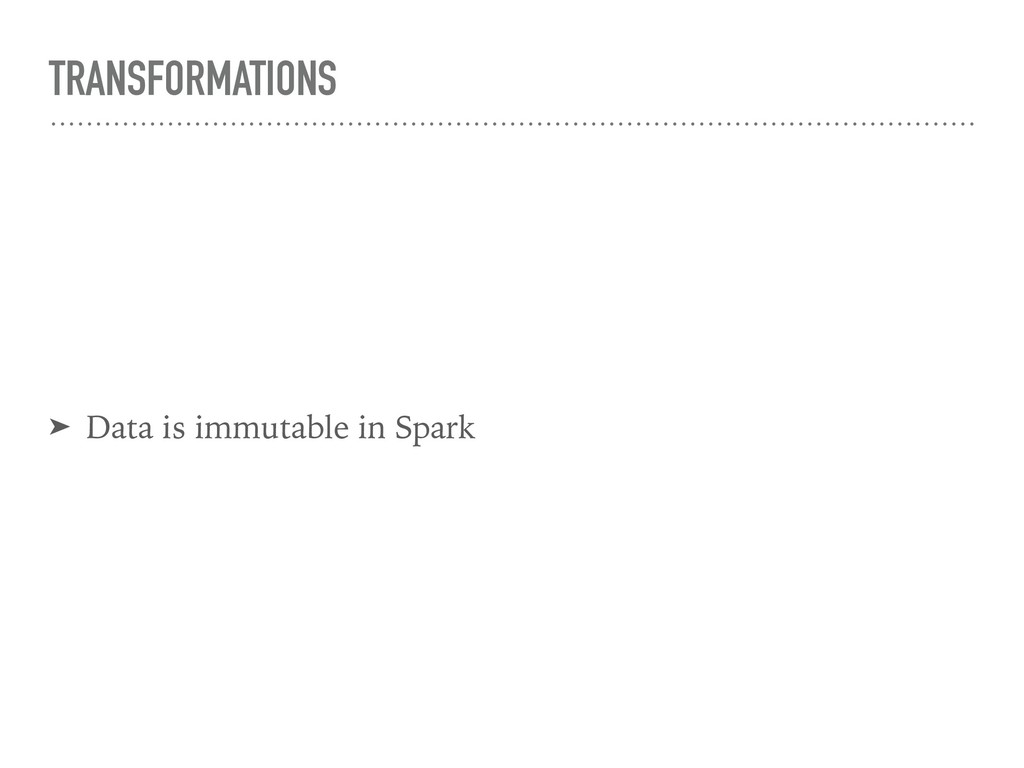

67. TRANSFORMATIONS ➤ Data is immutable in Spark

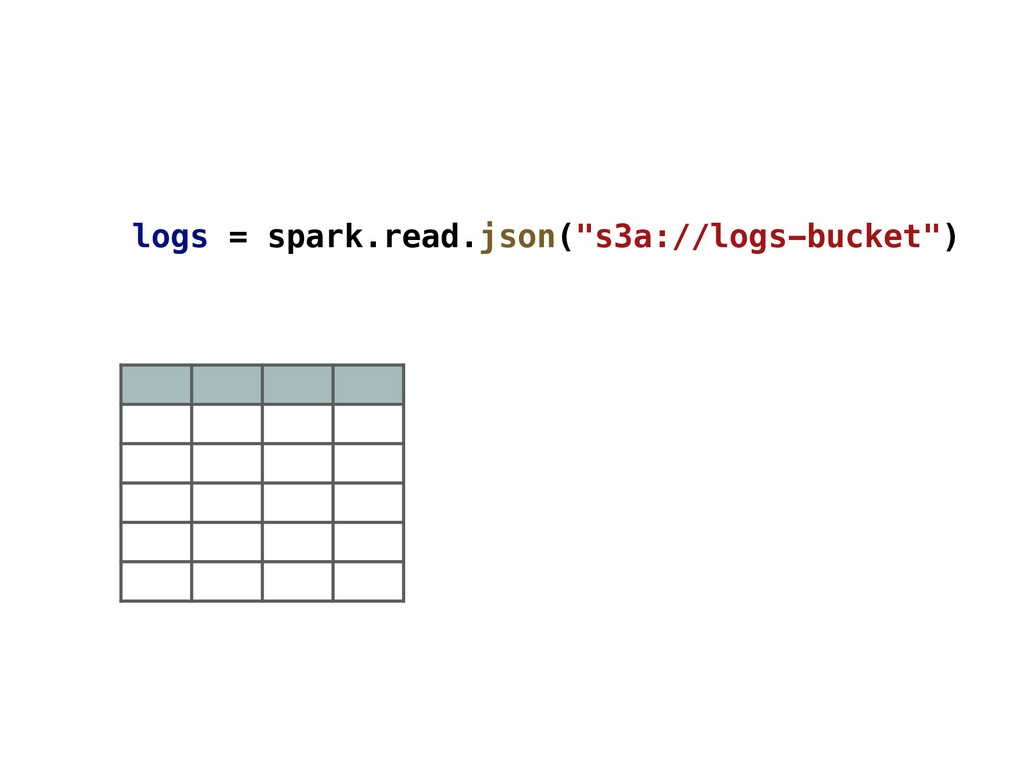

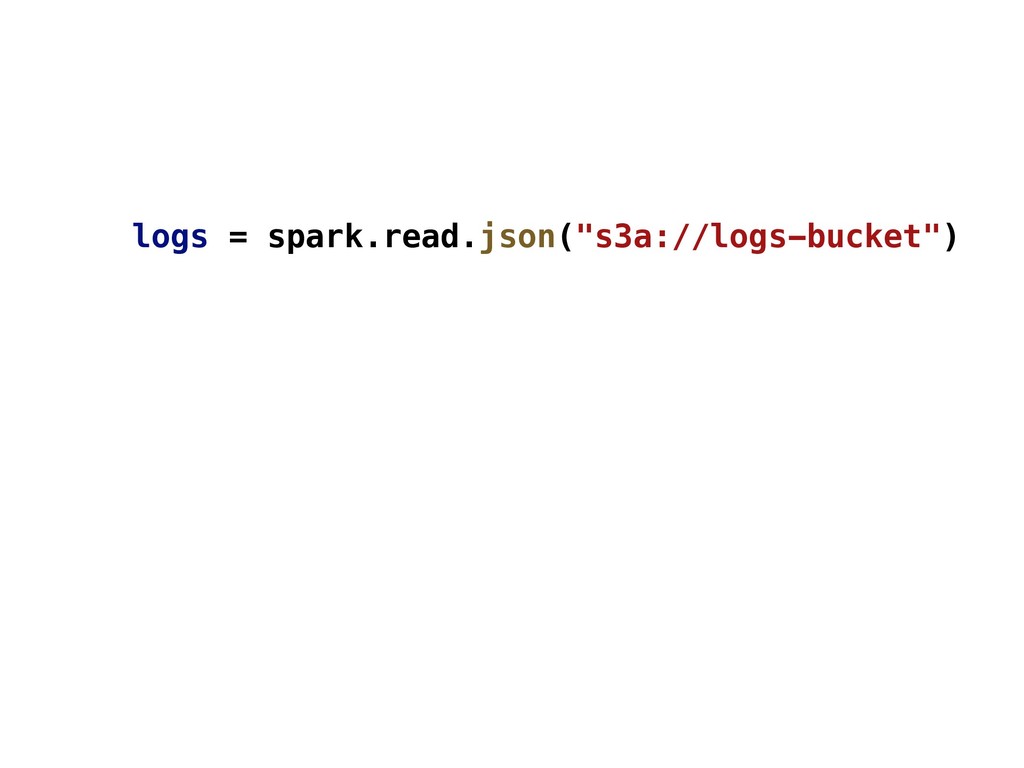

68. logs = spark.read.json("s3a://logs-bucket")
69. logs = spark.read.json("s3a://logs-bucket")

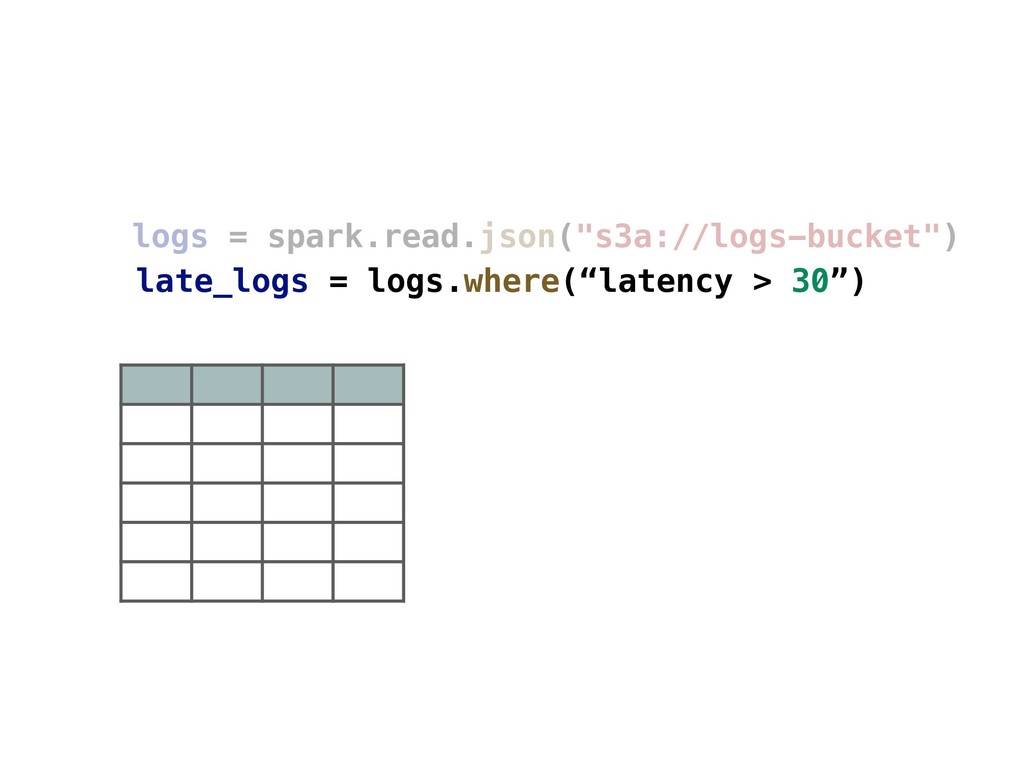

70. late_logs = logs.where(“latency > 30”) logs = spark.read.json("s3a://logs-bucket")

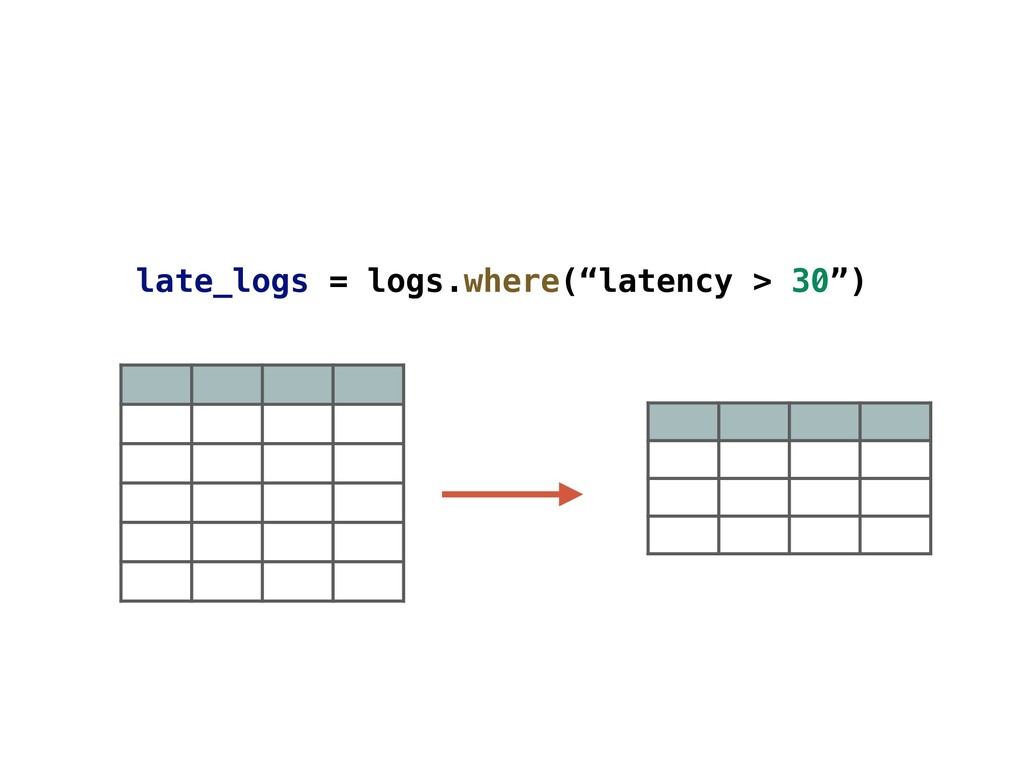

71. late_logs = logs.where(“latency > 30”)

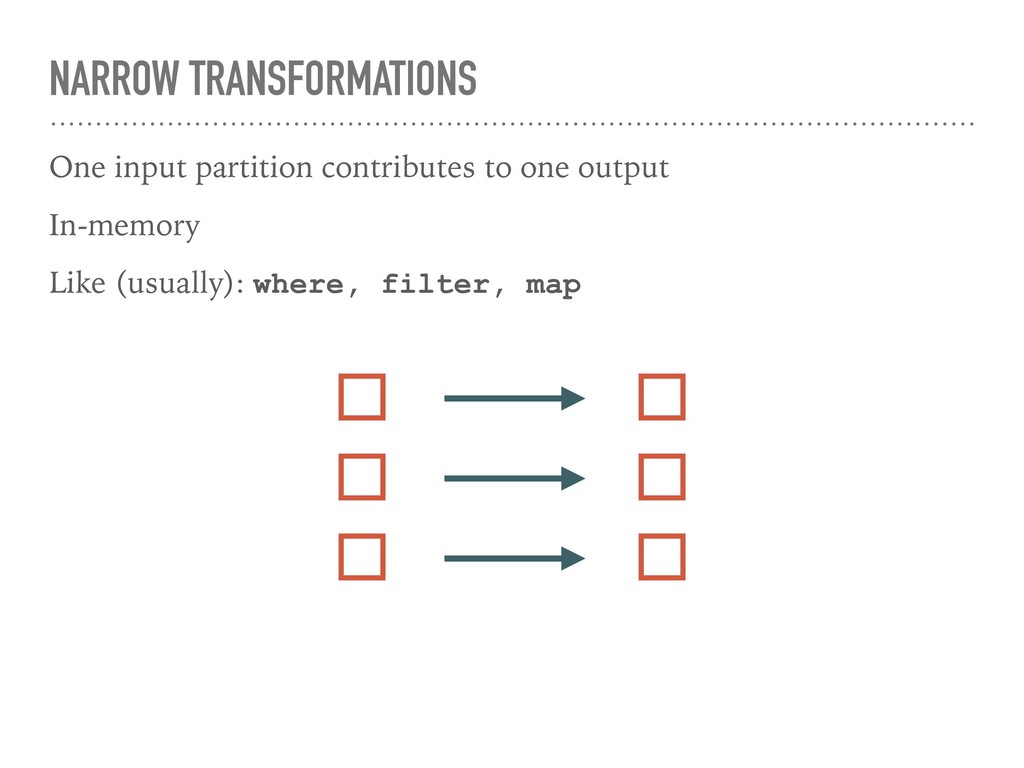

72. NARROW TRANSFORMATIONS One input partition contributes to one output In-memory Like (usually): where, filter, map

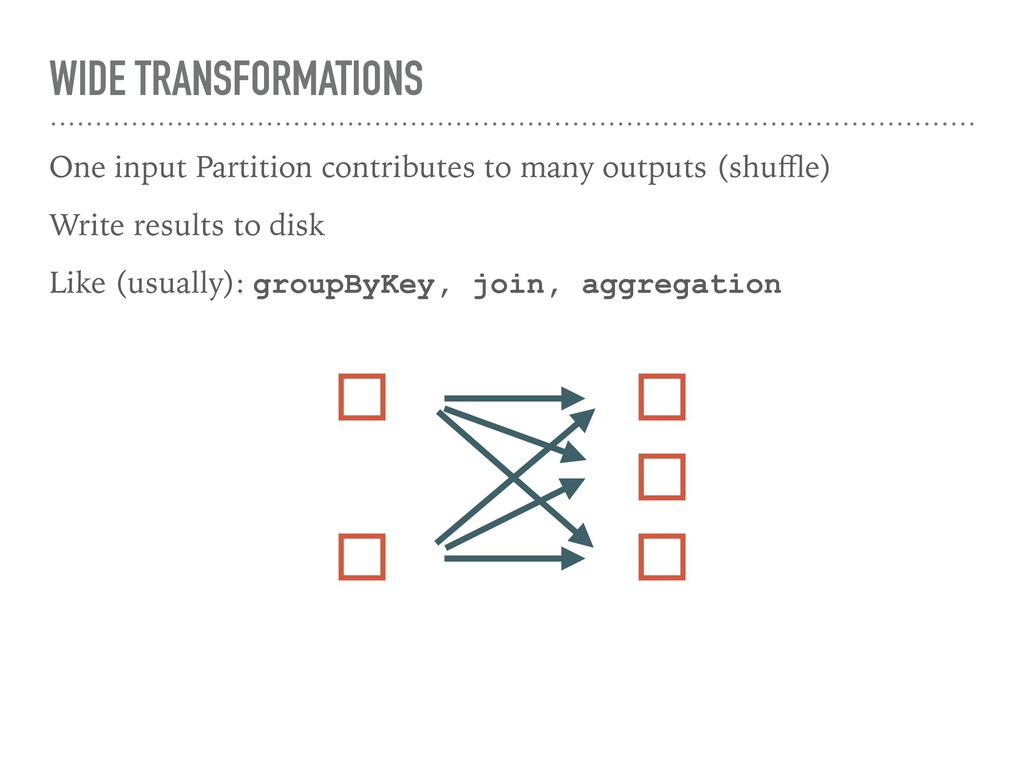

73. WIDE TRANSFORMATIONS One input Partition contributes to many outputs (shuffle) Write results to disk Like (usually): groupByKey, join, aggregation
74. ACTIONS

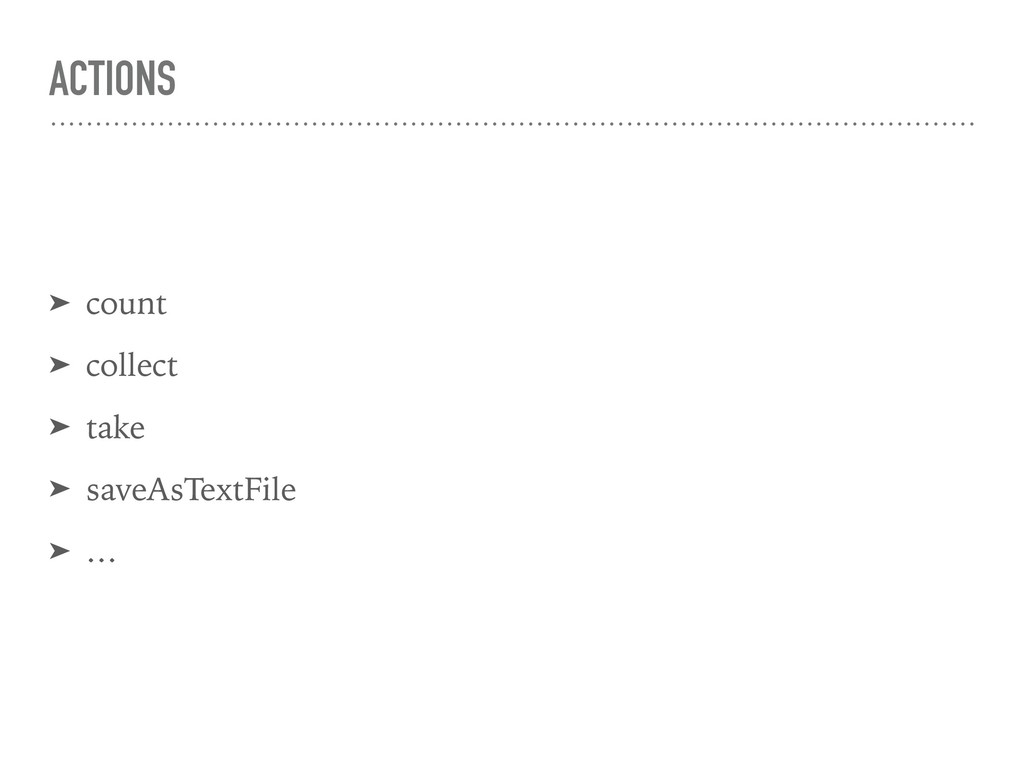

75. ACTIONS ➤ count ➤ collect ➤ take ➤ saveAsTextFile ➤ …
76. LAZY Evaluation

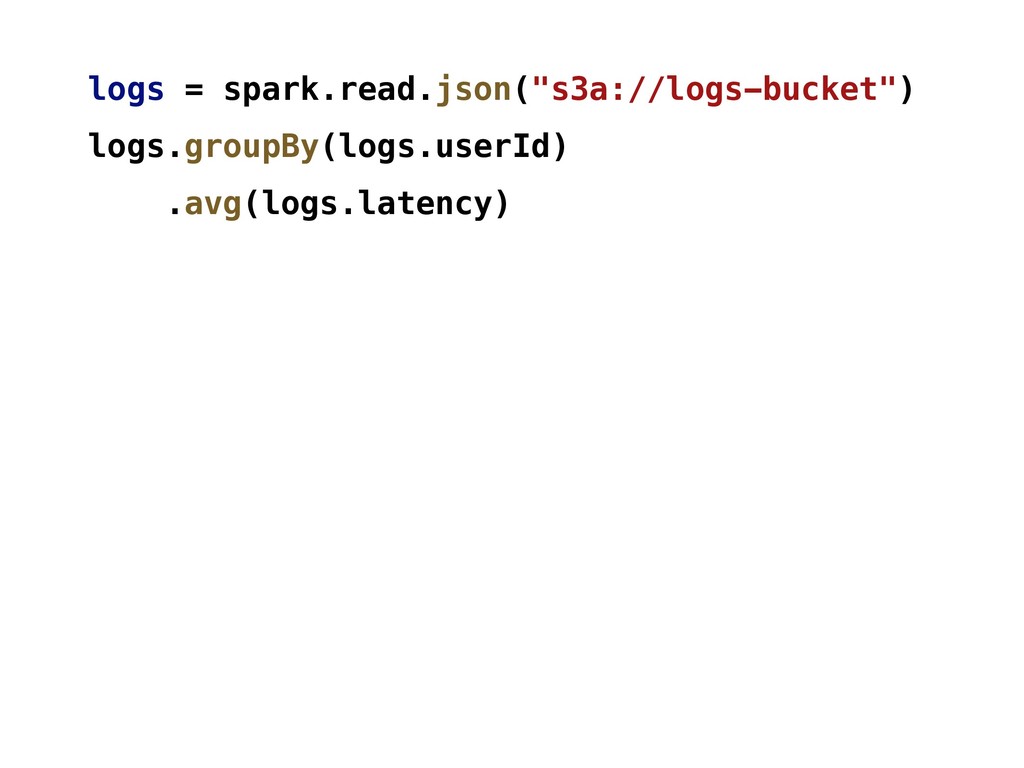

77. logs = spark.read.json("s3a://logs-bucket") logs.groupBy(logs.userId) .avg(logs.latency)

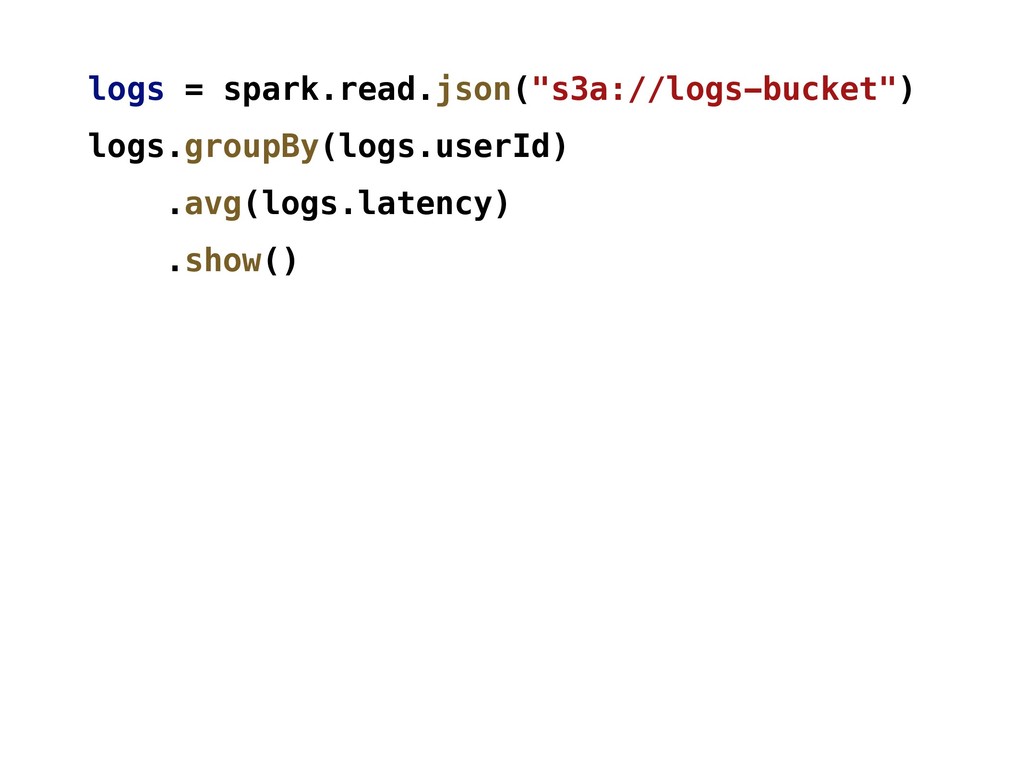

78. logs = spark.read.json("s3a://logs-bucket") logs.groupBy(logs.userId) .avg(logs.latency) .show()

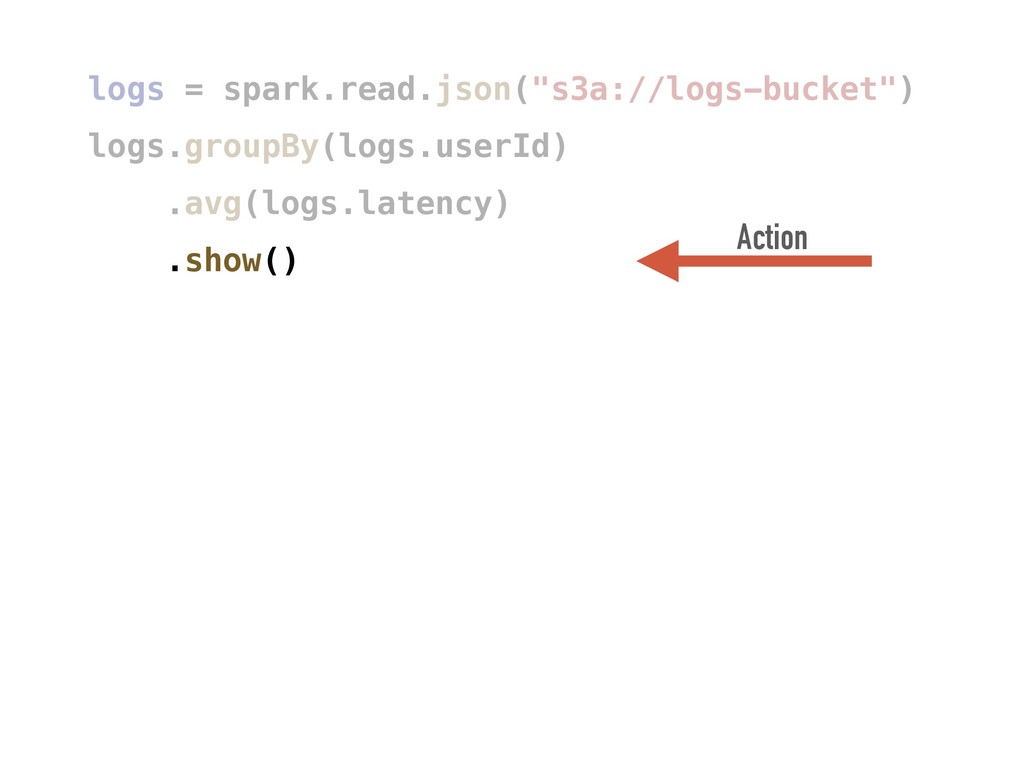

79. logs = spark.read.json("s3a://logs-bucket") logs.groupBy(logs.userId) .avg(logs.latency) .show() Action

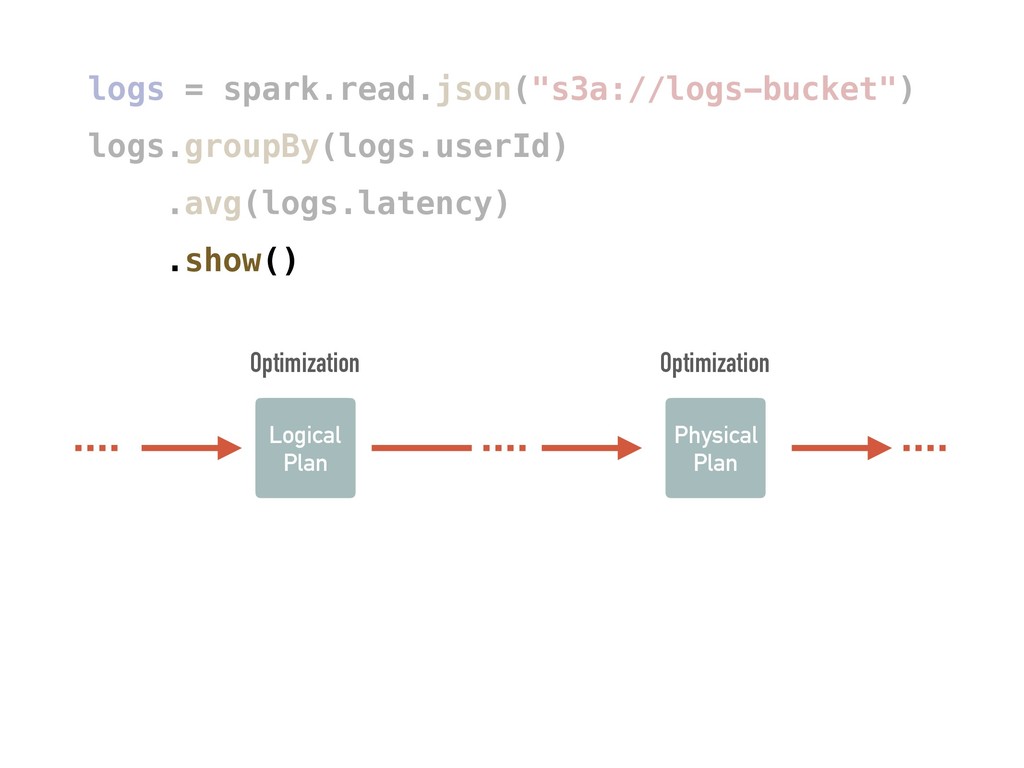

80. logs = spark.read.json("s3a://logs-bucket") logs.groupBy(logs.userId) .avg(logs.latency) .show() Optimization Logical
 Plan Optimization Physical
 Plan

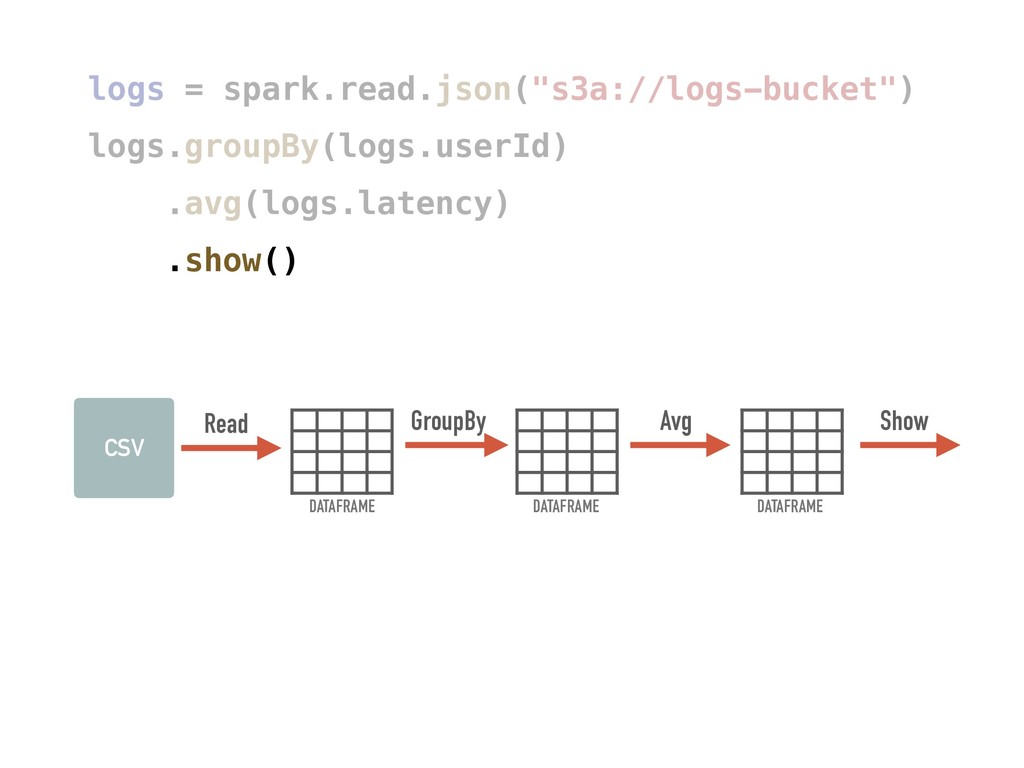

81. logs = spark.read.json("s3a://logs-bucket") logs.groupBy(logs.userId) .avg(logs.latency) .show() CSV Read GroupBy Avg DATAFRAME DATAFRAME DATAFRAME Show

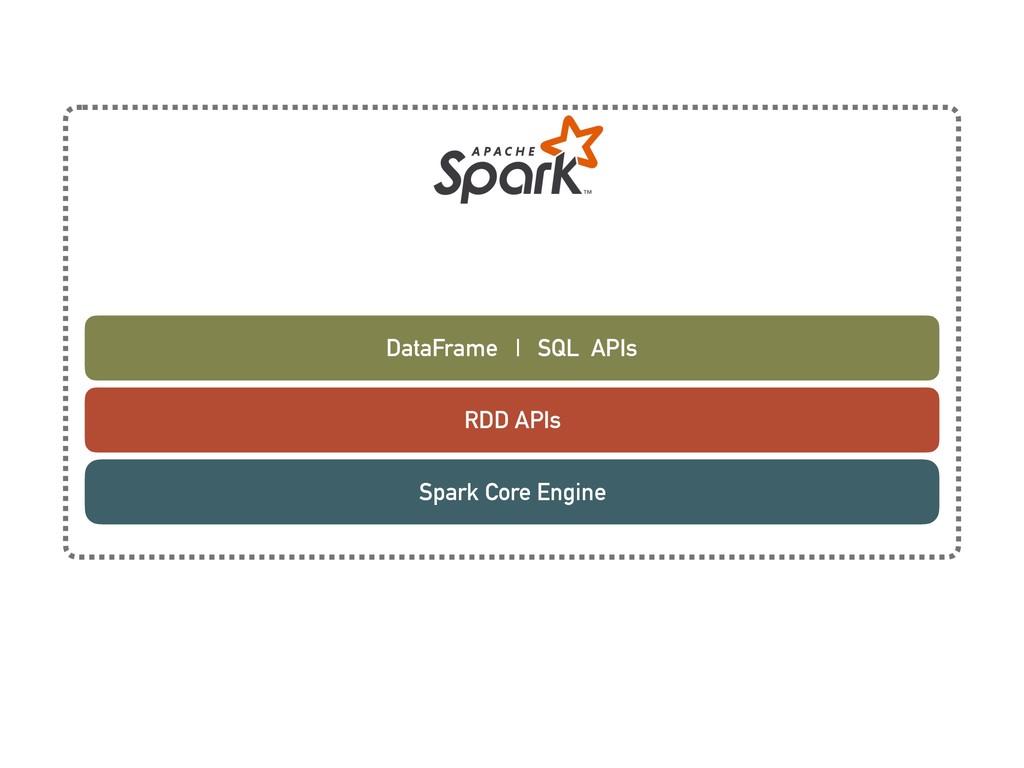

82. Spark Core Engine RDD APIs DataFrame | SQL APIs
83. SQL

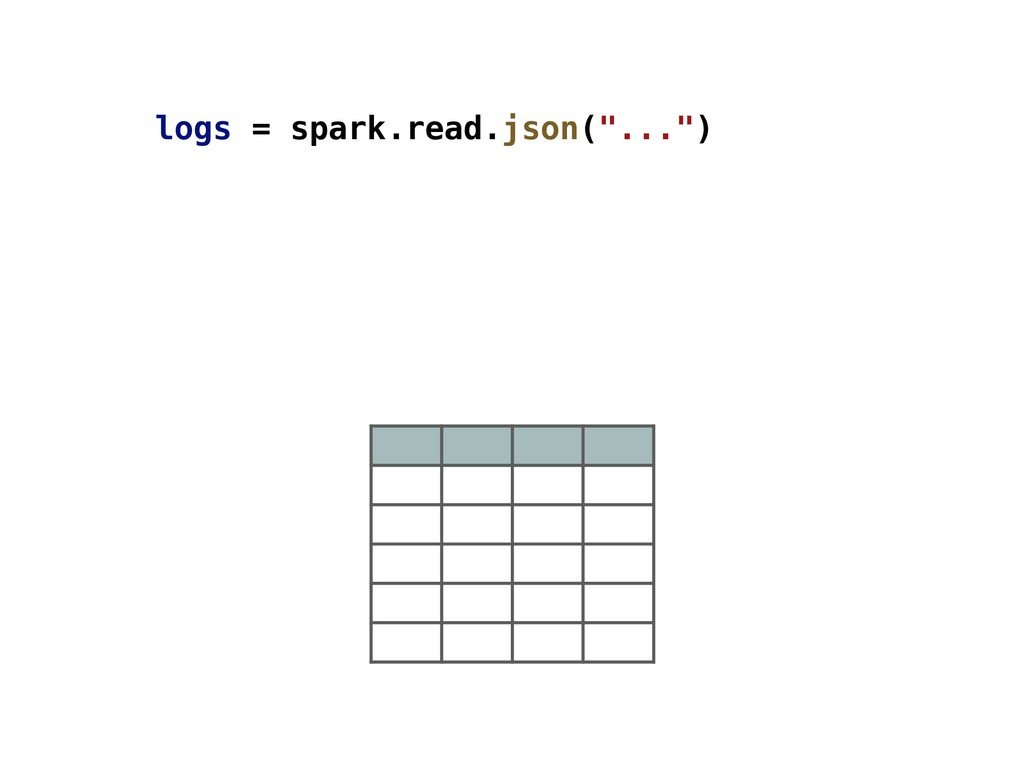

84. logs = spark.read.json("...")

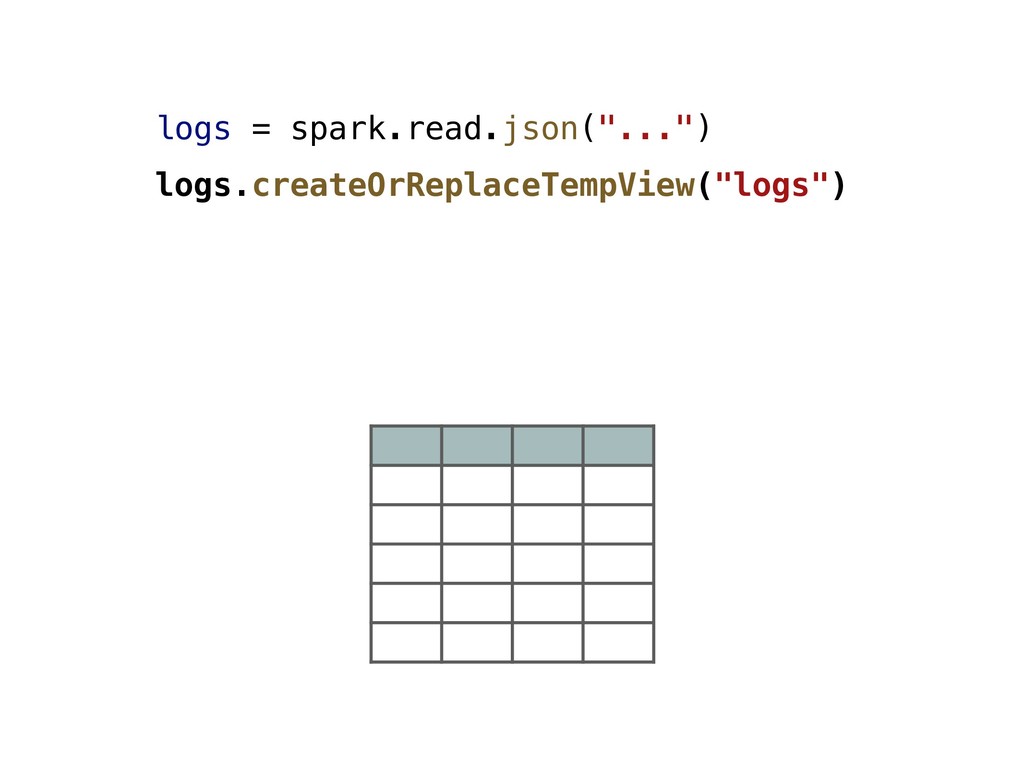

85. logs = spark.read.json("...") logs.createOrReplaceTempView("logs")

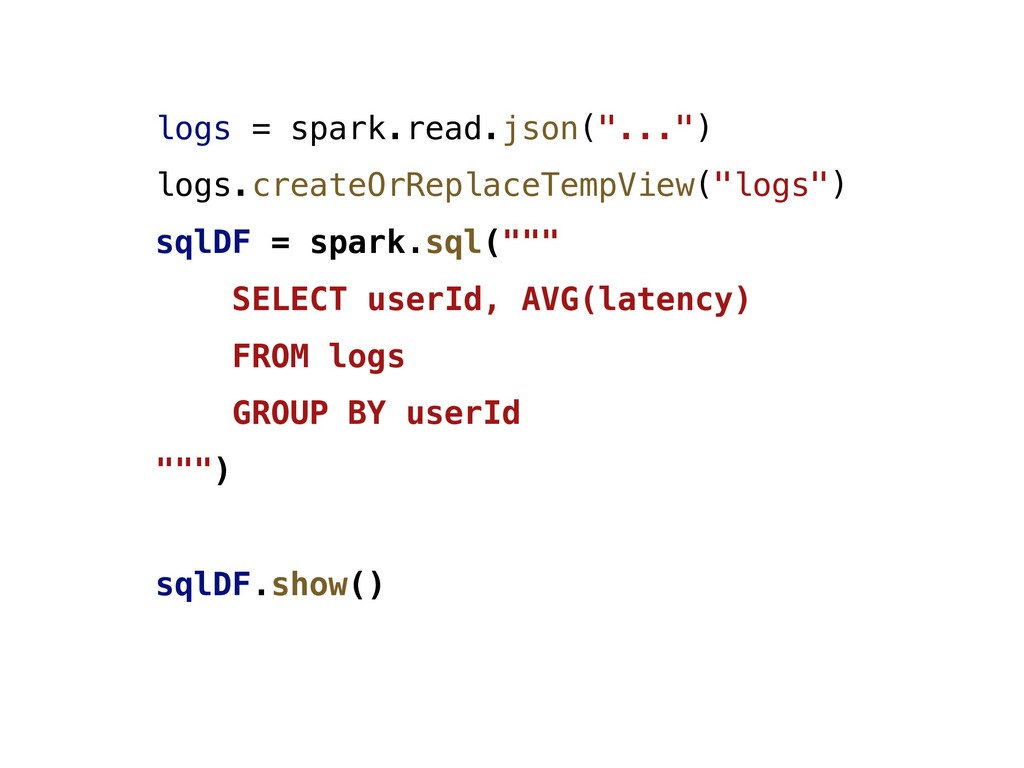

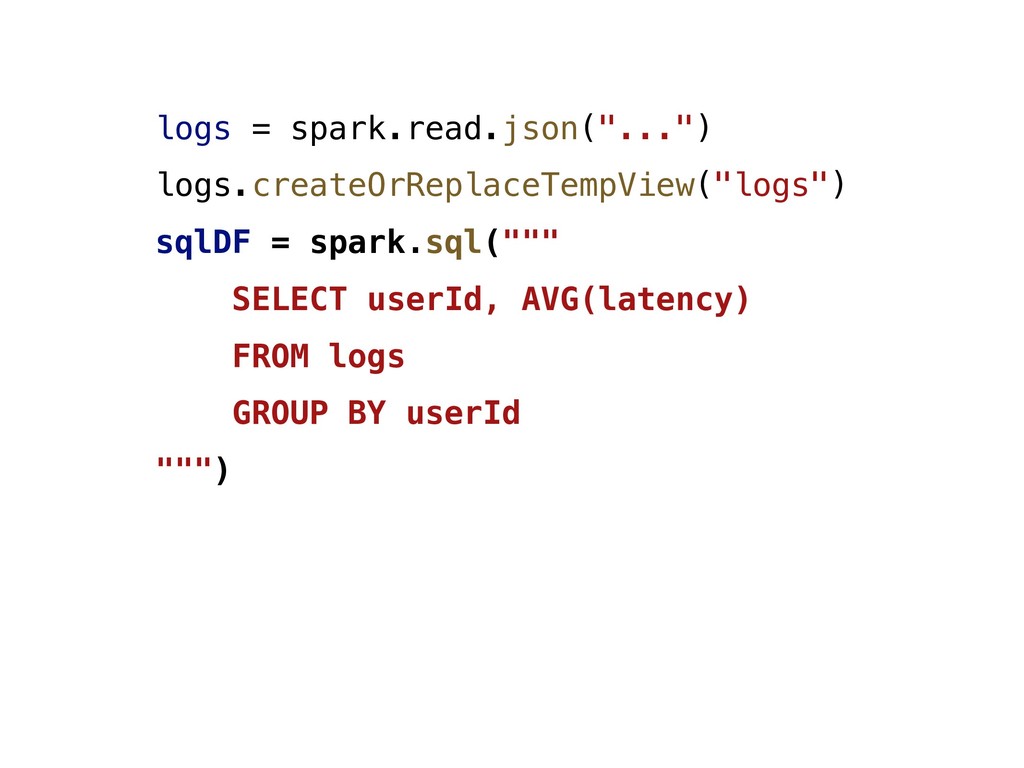

86. logs = spark.read.json("...") logs.createOrReplaceTempView("logs") sqlDF = spark.sql(""" SELECT userId, AVG(latency) FROM logs GROUP BY userId """)
87. logs = spark.read.json("...") logs.createOrReplaceTempView("logs") sqlDF = spark.sql(""" SELECT userId, AVG(latency) FROM logs GROUP BY userId """) sqlDF.show()

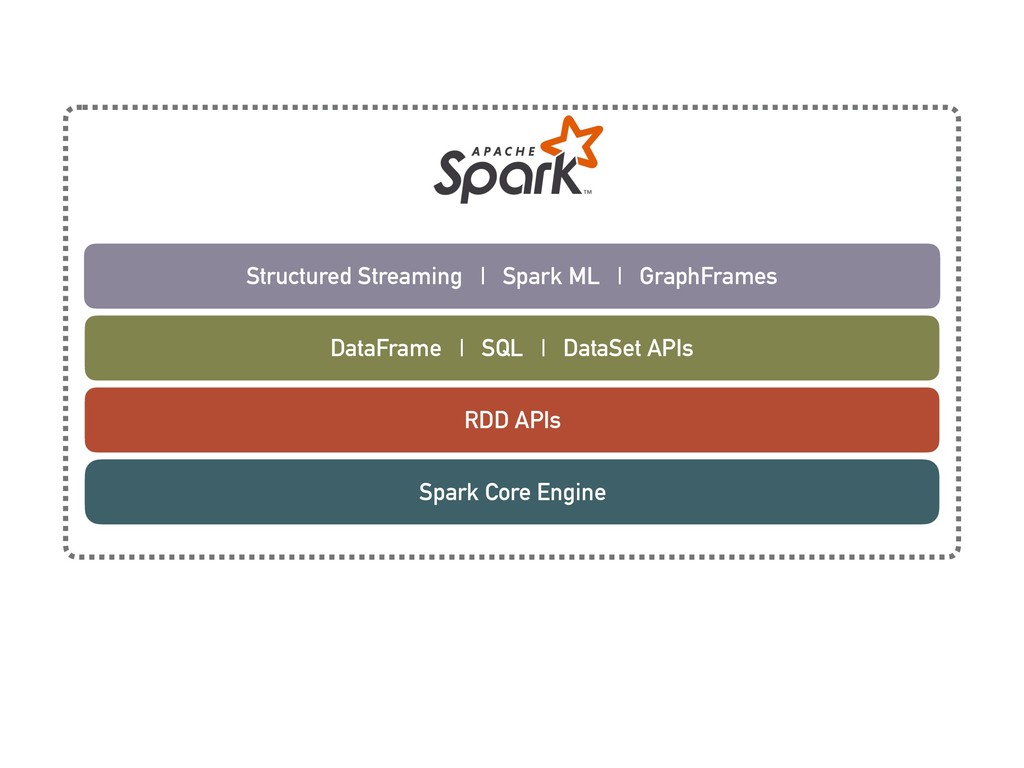

88. Spark Core Engine RDD APIs DataFrame | SQL | DataSet APIs Structured Streaming | Spark ML | GraphFrames
89. STRUCTURED STREAMING

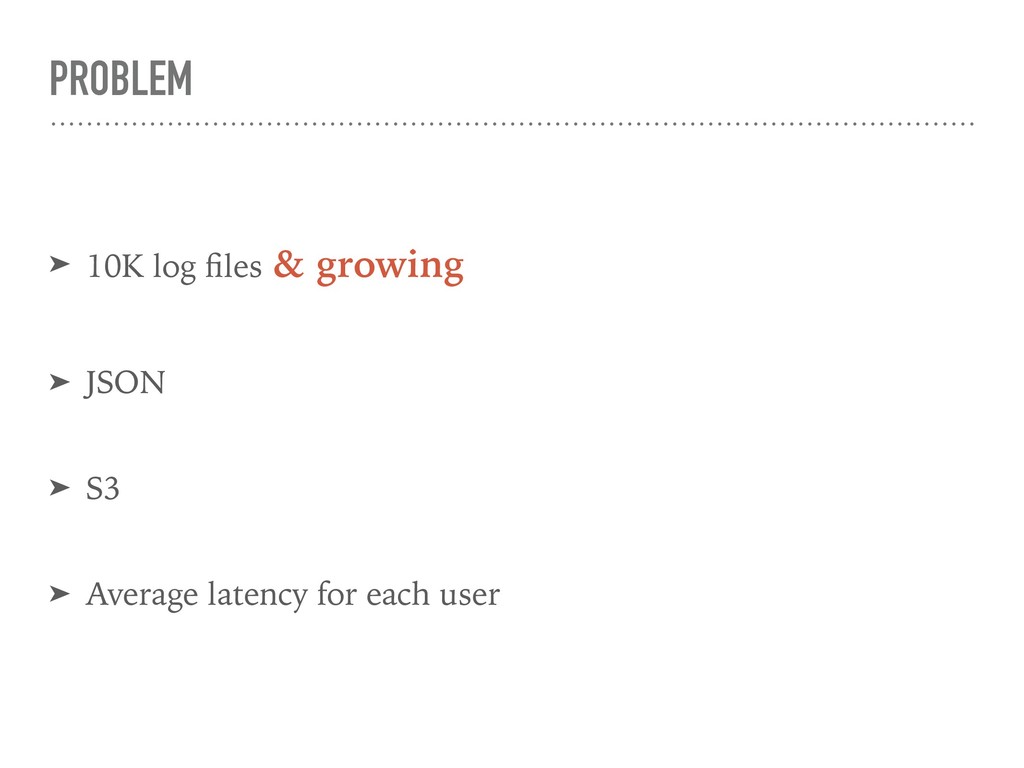

90. PROBLEM ➤ 10K log files & growing ➤ JSON ➤ S3 ➤ Average latency for each user

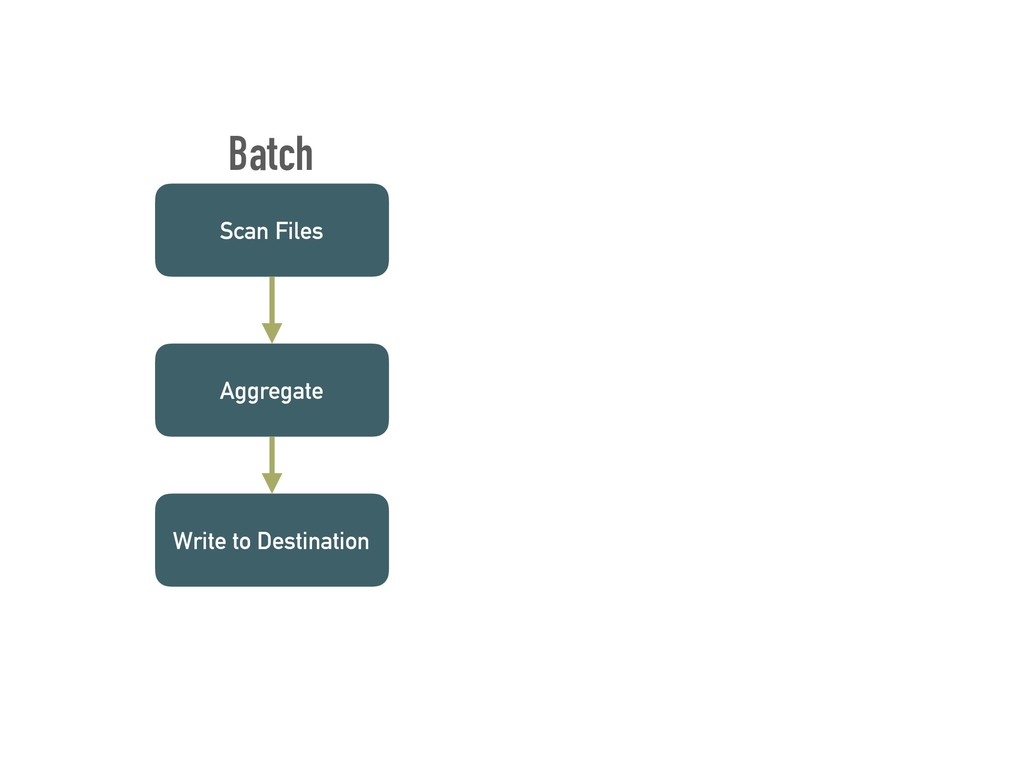

91. Scan Files Aggregate Write to Destination Batch

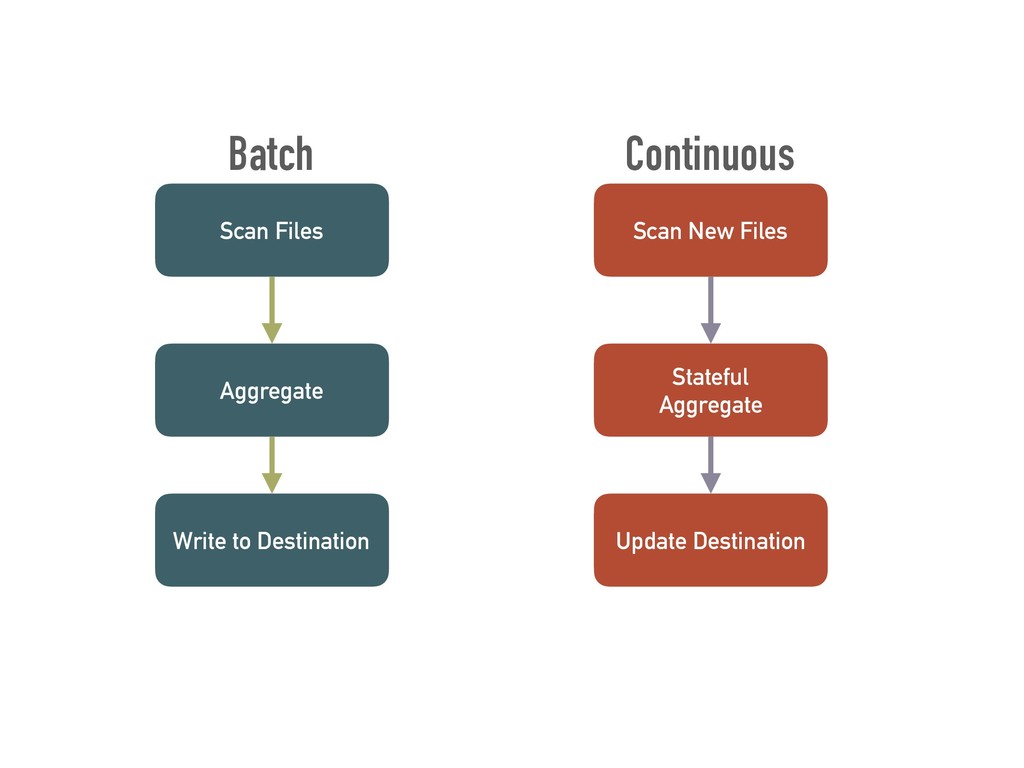

92. Scan Files Aggregate Write to Destination Scan New Files Stateful
 Aggregate Update Destination Batch Continuous

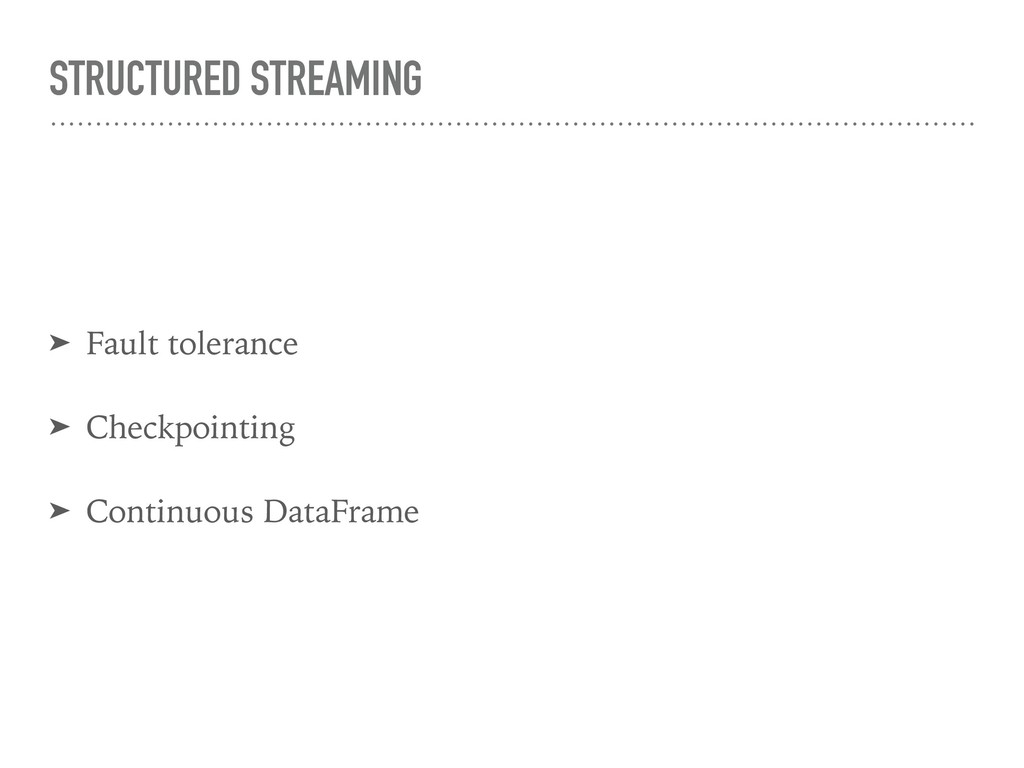

93. STRUCTURED STREAMING ➤ Fault tolerance ➤ Checkpointing ➤ Continuous DataFrame

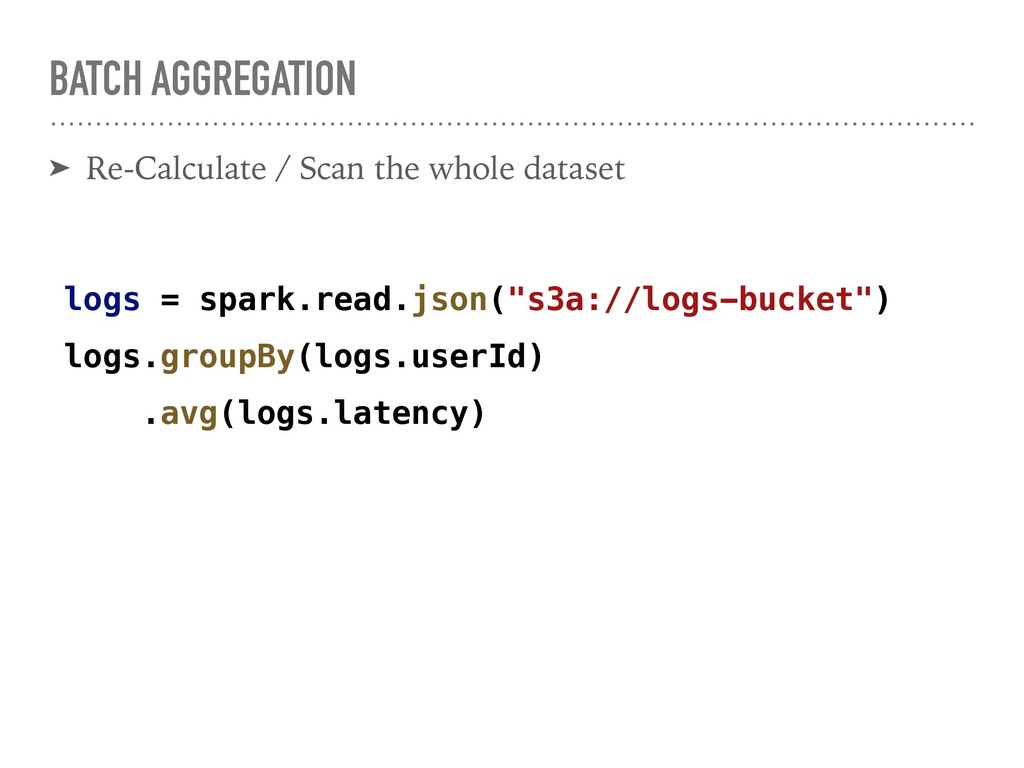

94. BATCH AGGREGATION ➤ Re-Calculate / Scan the whole dataset logs = spark.read.json("s3a://logs-bucket") logs.groupBy(logs.userId) .avg(logs.latency)

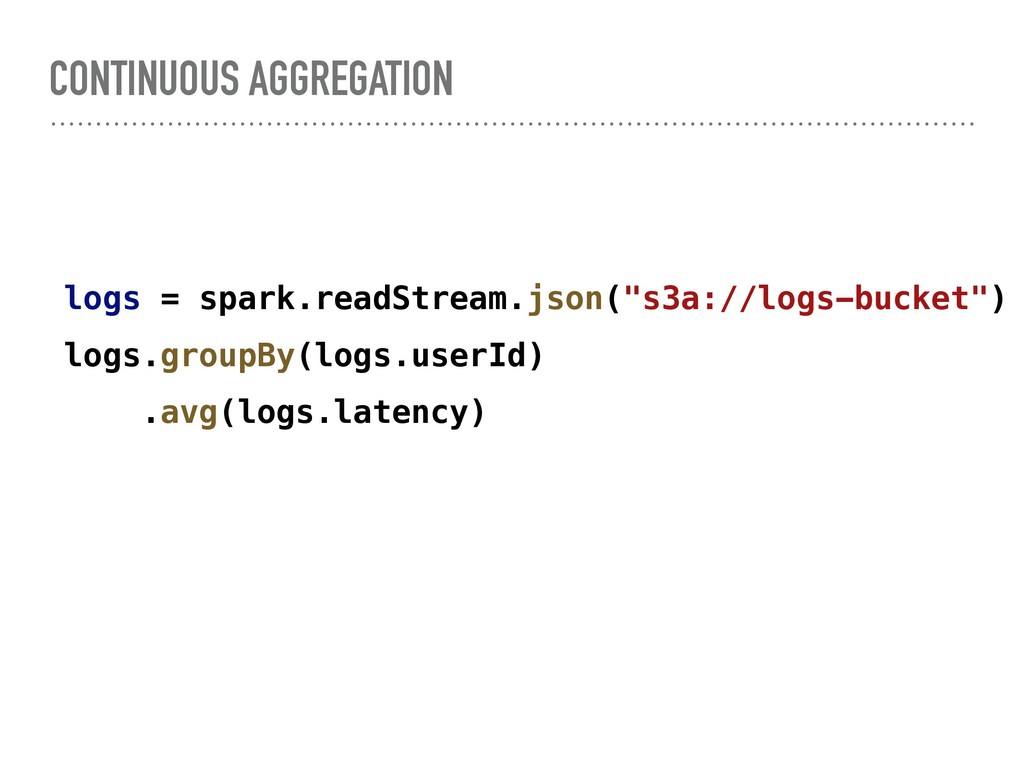

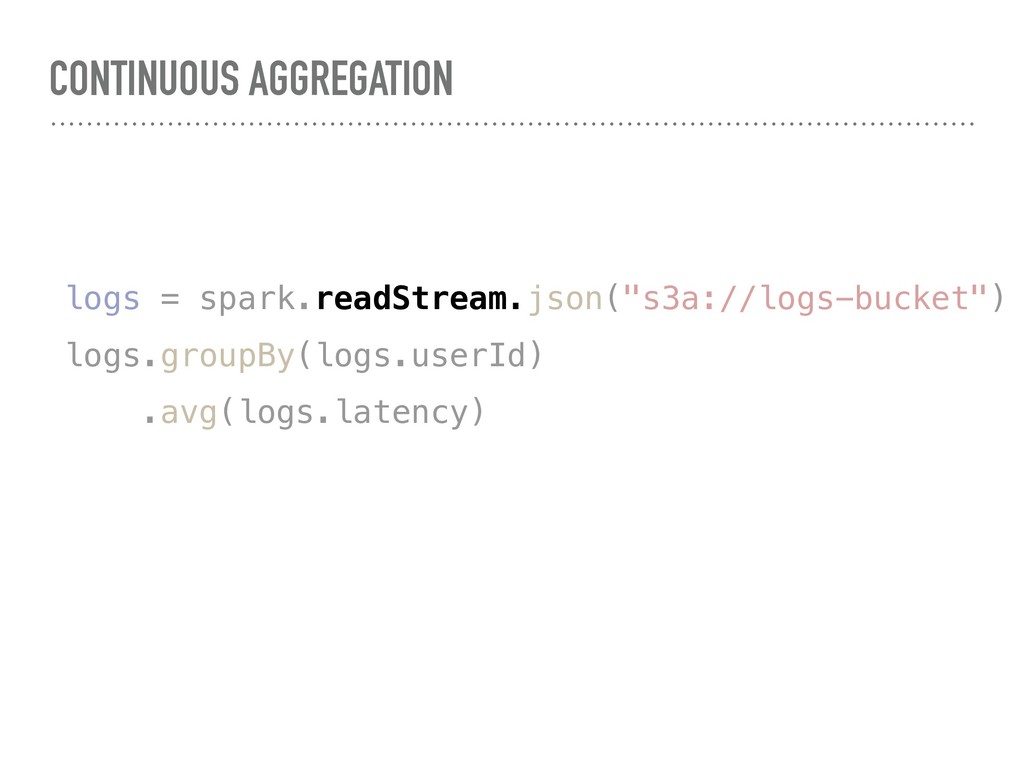

95. CONTINUOUS AGGREGATION logs = spark.readStream.json("s3a://logs-bucket") logs.groupBy(logs.userId) .avg(logs.latency)
96. CONTINUOUS AGGREGATION logs = spark.readStream.json("s3a://logs-bucket") logs.groupBy(logs.userId) .avg(logs.latency)

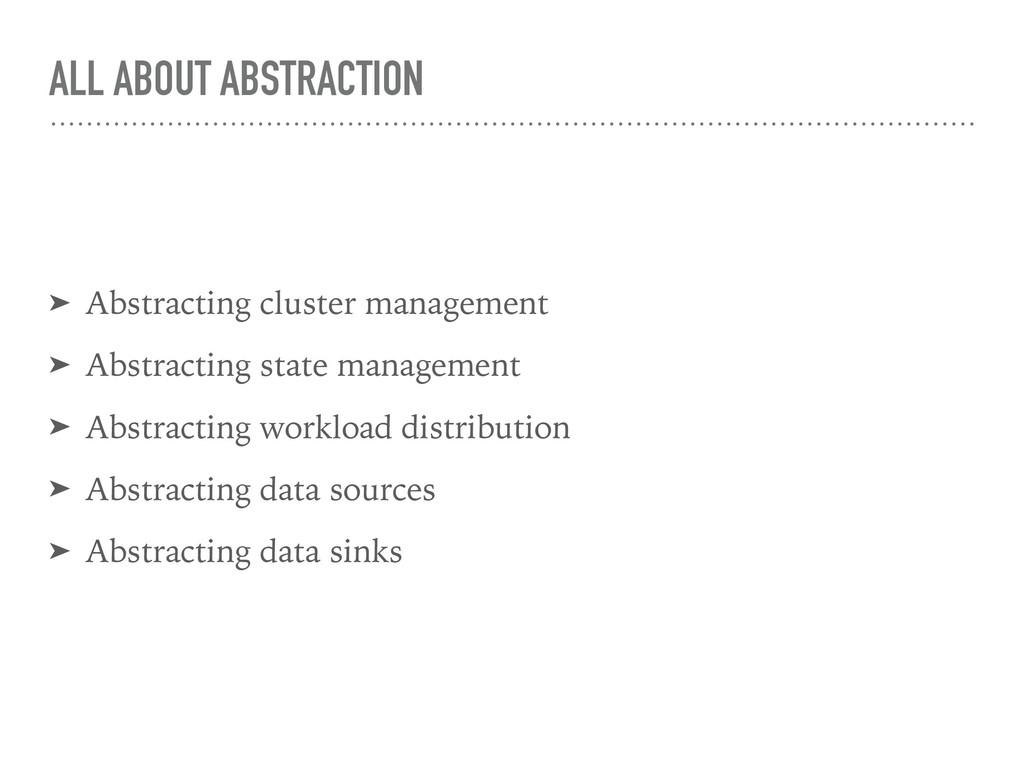

97. ALL ABOUT ABSTRACTION ➤ Abstracting cluster management ➤ Abstracting state management ➤ Abstracting workload distribution ➤ Abstracting data sources ➤ Abstracting data sinks
98. UNIFIED COMPUTING ENGINE for large-scale distributed data processing

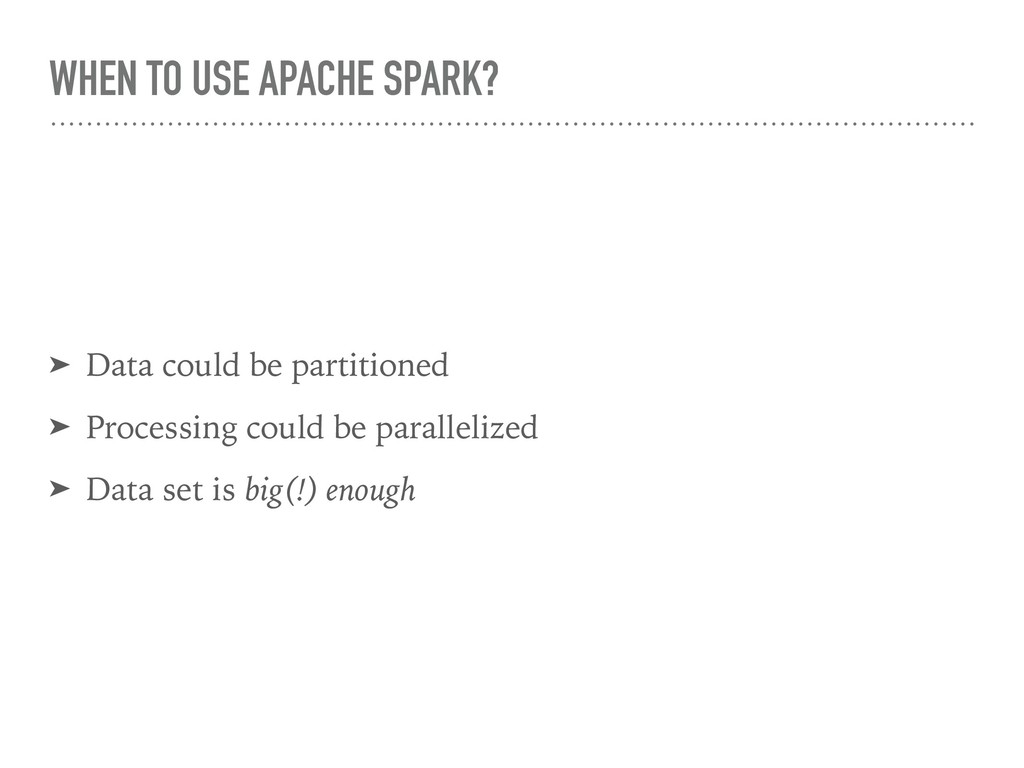

99. WHEN TO USE APACHE SPARK? ➤ Data could be partitioned ➤ Processing could be parallelized ➤ Data set is big(!) enough
100. HOW TO RUN SPARK

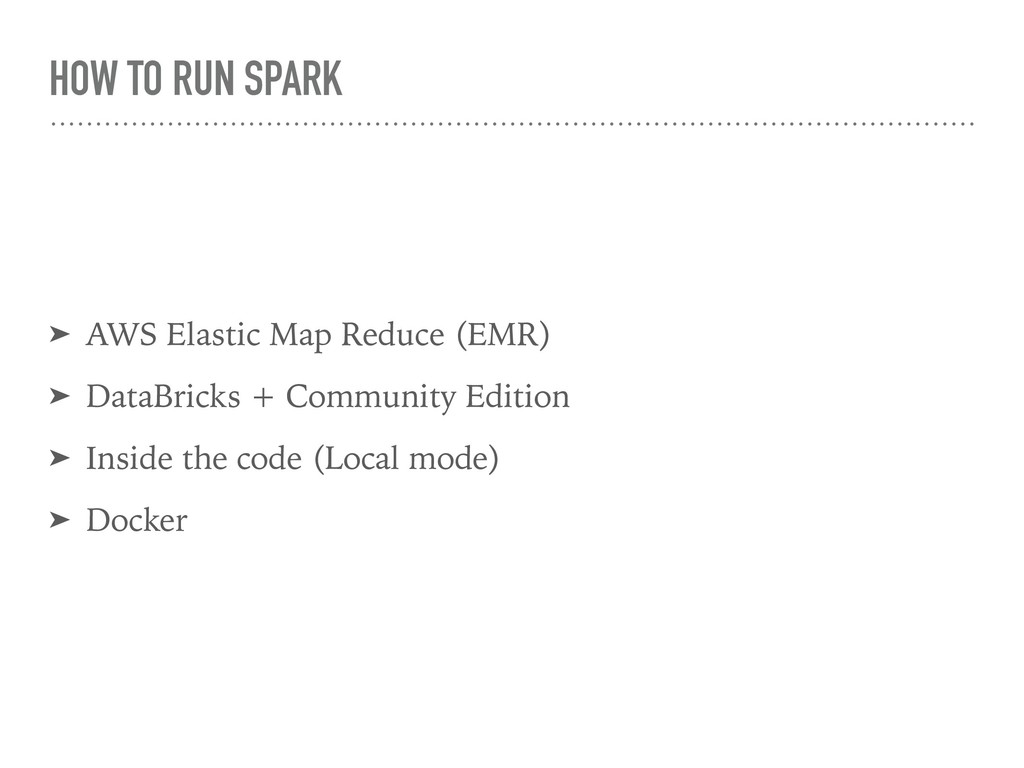

101. HOW TO RUN SPARK ➤ AWS Elastic Map Reduce (EMR) ➤ DataBricks + Community Edition ➤ Inside the code (Local mode) ➤ Docker
102. QUESTIONS?
103. EXTRA

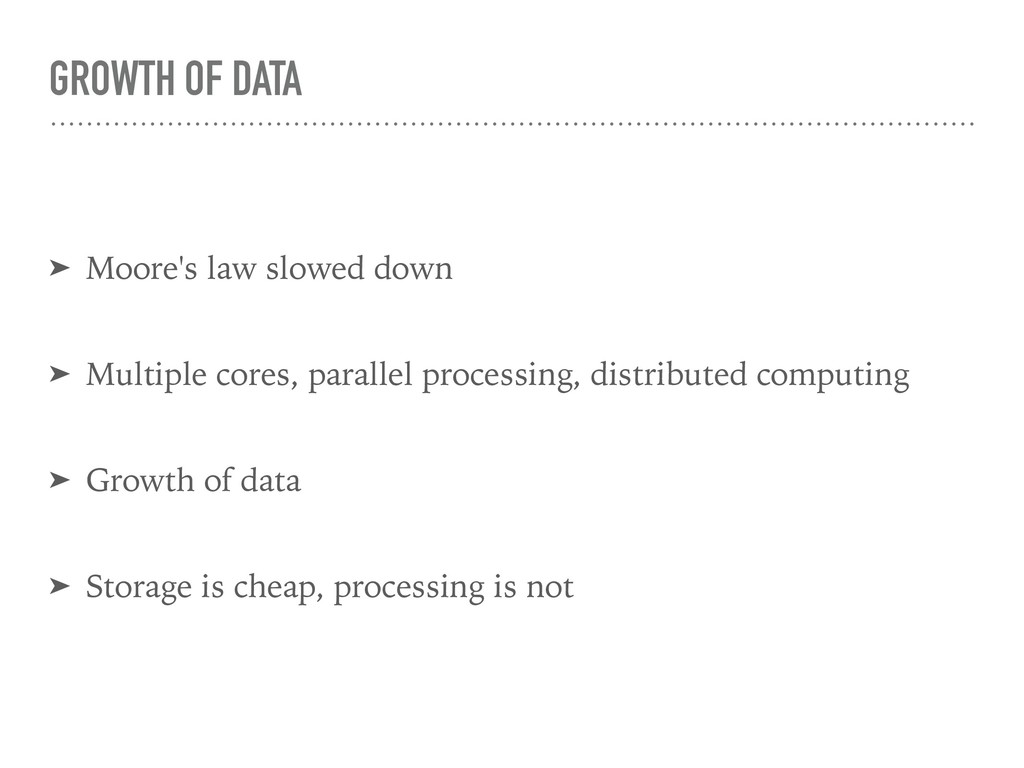

104. GROWTH OF DATA ➤ Moore's law slowed down ➤ Multiple cores, parallel processing, distributed computing ➤ Growth of data ➤ Storage is cheap, processing is not

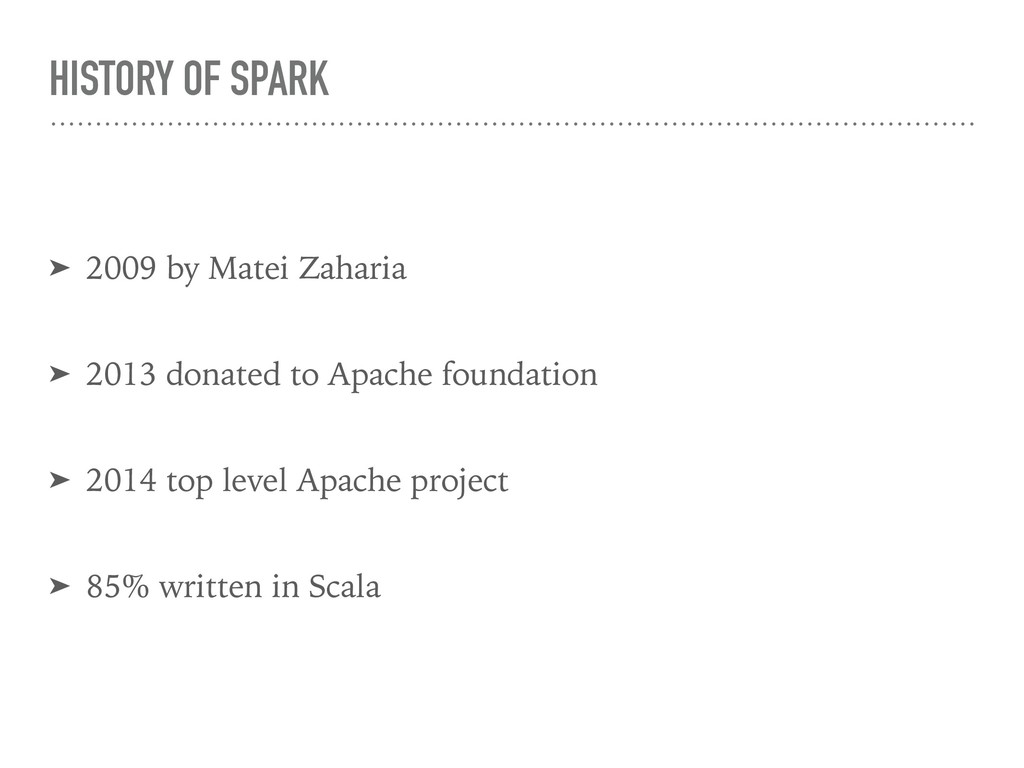

105. HISTORY OF SPARK ➤ 2009 by Matei Zaharia ➤ 2013 donated to Apache foundation ➤ 2014 top level Apache project ➤ 85% written in Scala

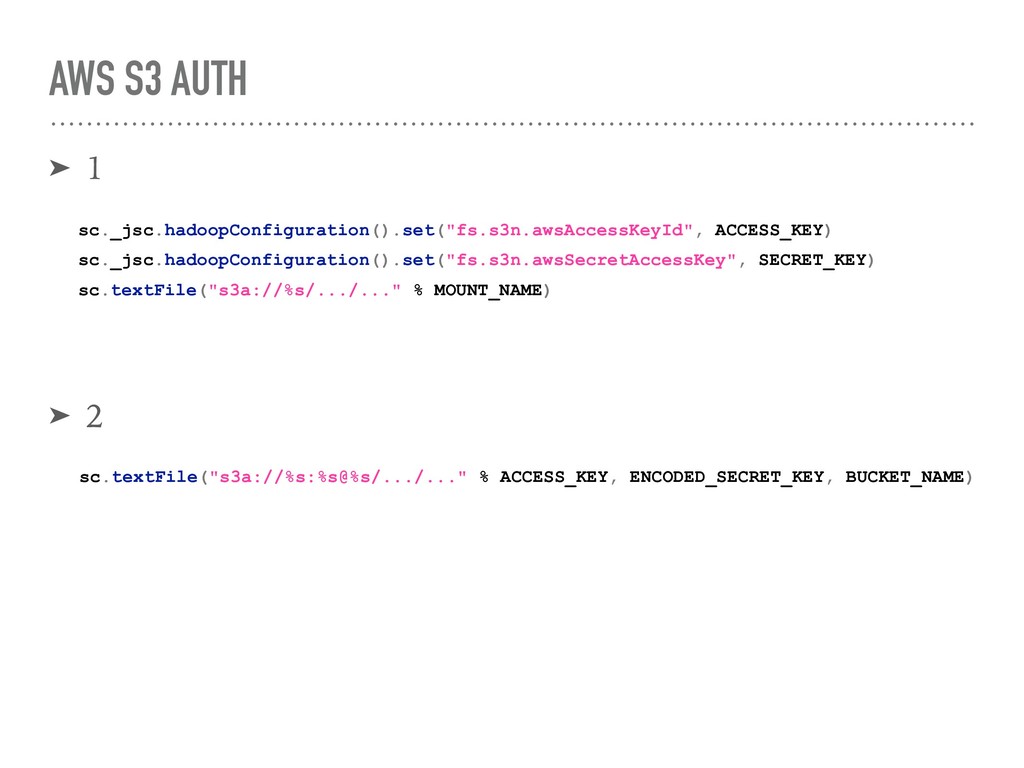

106. ➤ 1 ➤ 2 AWS S3 AUTH sc._jsc.hadoopConfiguration().set("fs.s3n.awsAccessKeyId", ACCESS_KEY) sc._jsc.hadoopConfiguration().set("fs.s3n.awsSecretAccessKey", SECRET_KEY) sc.textFile("s3a://%s/.../..." % MOUNT_NAME) sc.textFile("s3a://%s:%s@%s/.../..." % ACCESS_KEY, ENCODED_SECRET_KEY, BUCKET_NAME)

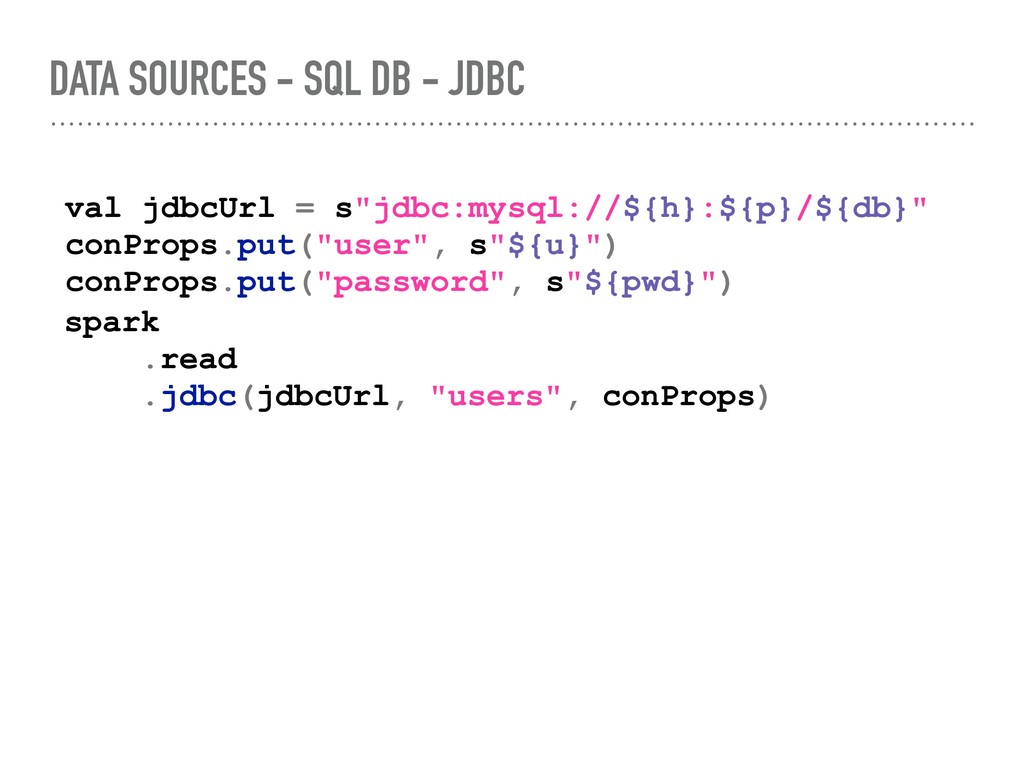

107. DATA SOURCES - SQL DB - JDBC spark .read .jdbc(jdbcUrl, "users", conProps) val jdbcUrl = s"jdbc:mysql://${h}:${p}/${db}" conProps.put("user", s"${u}") conProps.put("password", s"${pwd}")
