Lessons learned running data pipeline on AWS

Here are the slides from the talk at ConFoo Montreal 2019.

Transcript

1. DATA PIPELINE ON AWS LESSONS LEARNED RUNNING
2. Majid Fatemian R E D V E N T U R E S mfatemian@redventures.com @majidfn aws CERTIFIED - SAA
3. TECH & DATA-DRIVEN CUSTOMER ACQUISITION SALES & MARKETING R E D V E N T U R E S

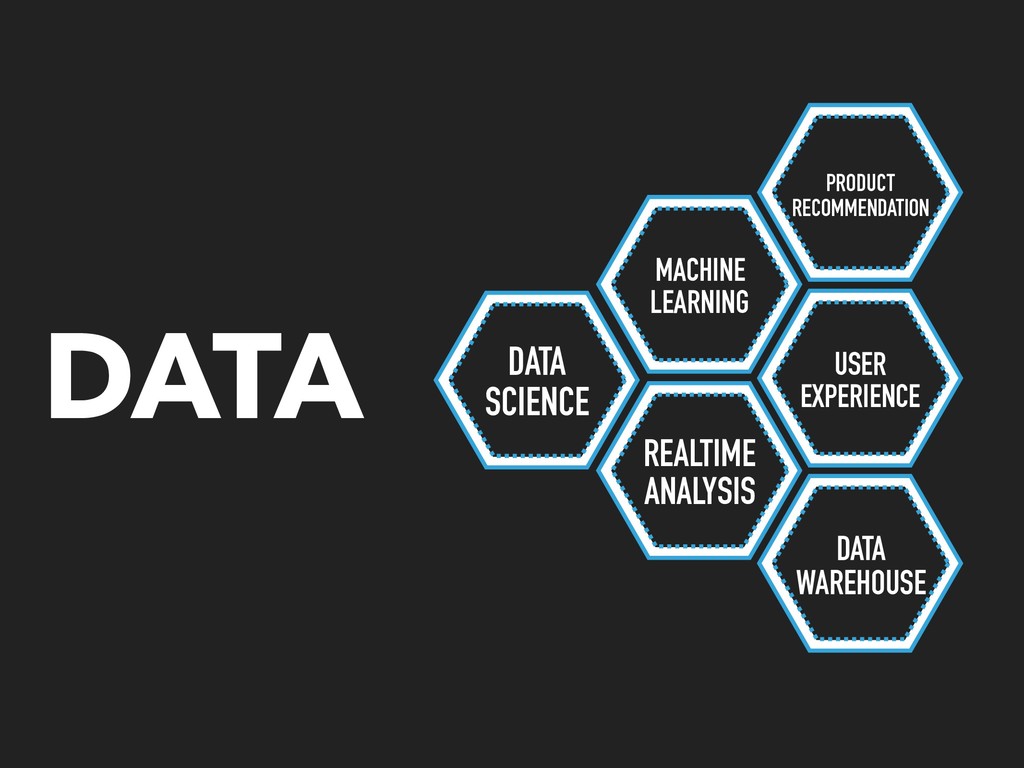

4. MACHINE
 LEARNING PRODUCT
 RECOMMENDATION DATA
 SCIENCE REALTIME
 ANALYSIS USER
 EXPERIENCE DATA
 WAREHOUSE DATA

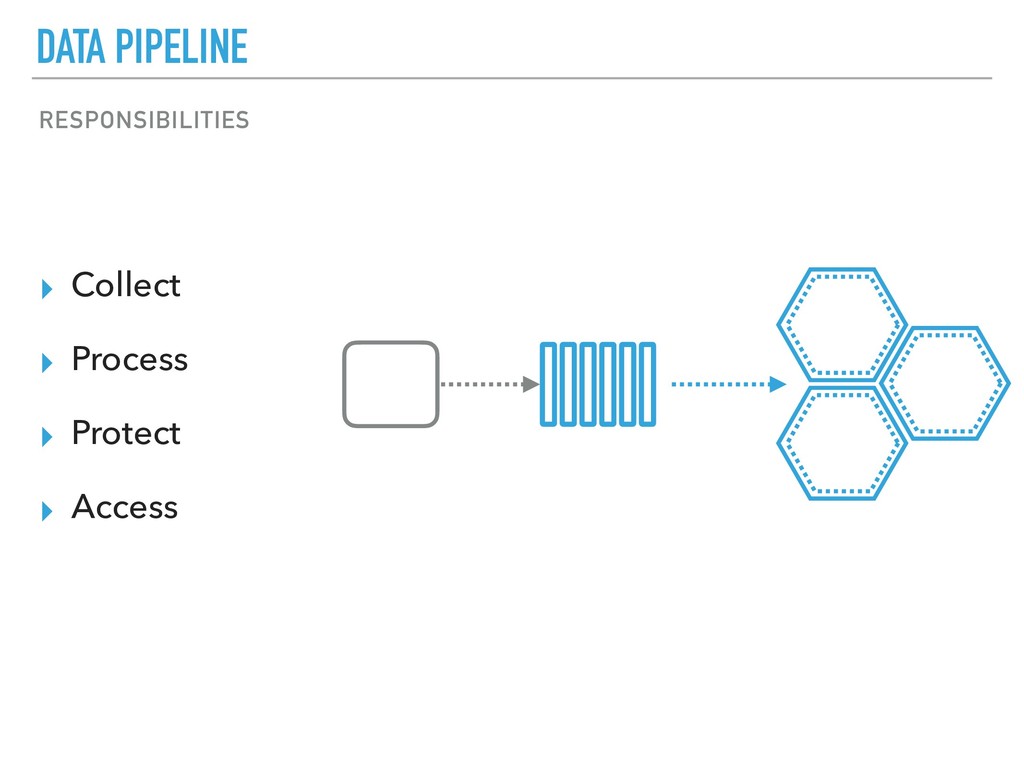

5. ▸ Collect ▸ Process ▸ Protect ▸ Access DATA PIPELINE RESPONSIBILITIES
6. DATA PIPELINE AVAILABLE D U R A B L E DESIRED PROPERTIES

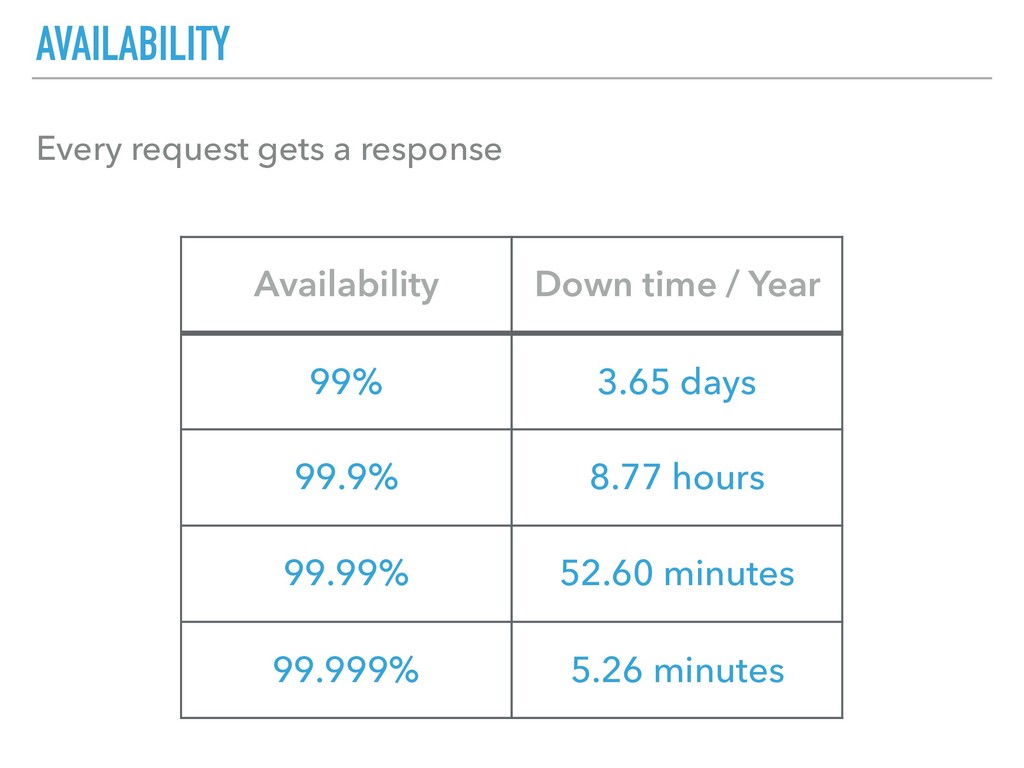

7. AVAILABILITY Every request gets a response Availability Down time / Year 99% 3.65 days 99.9% 8.77 hours 99.99% 52.60 minutes 99.999% 5.26 minutes

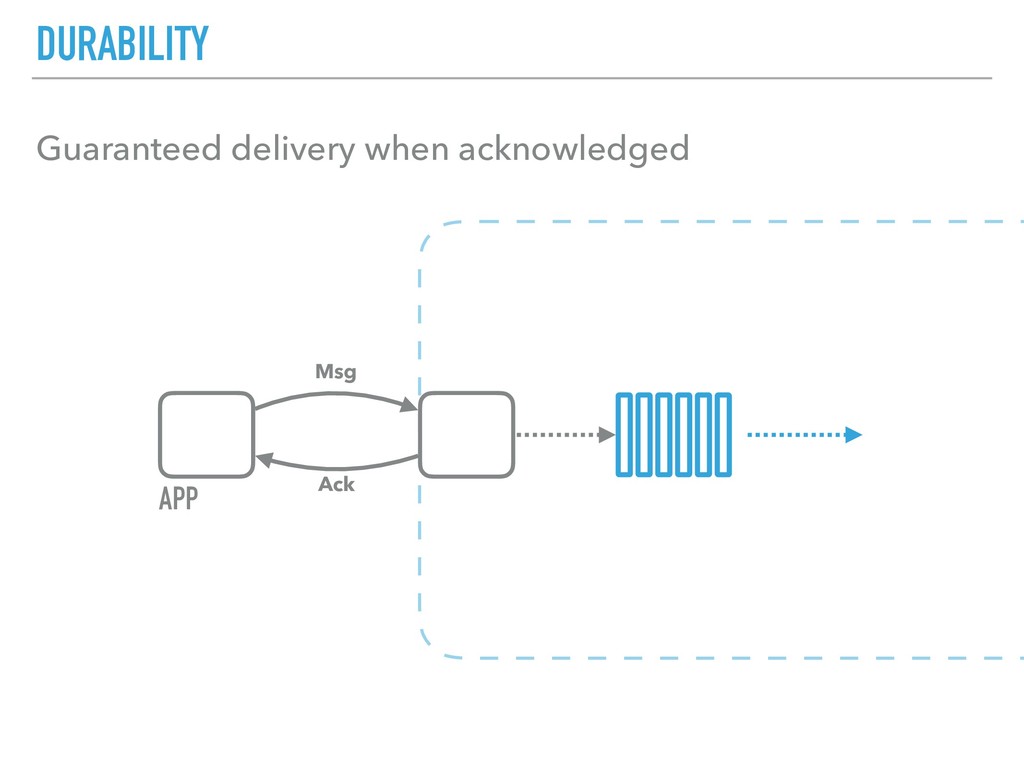

8. DURABILITY Guaranteed delivery when acknowledged APP Msg Ack

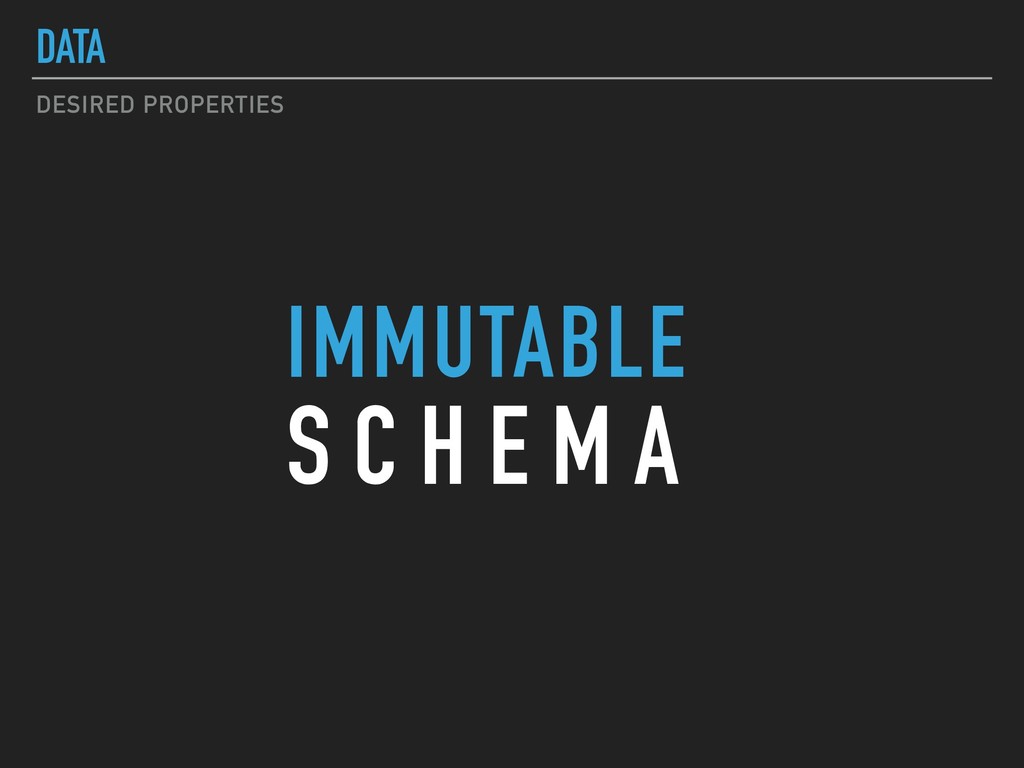

9. DATA IMMUTABLE DESIRED PROPERTIES S C H E M A

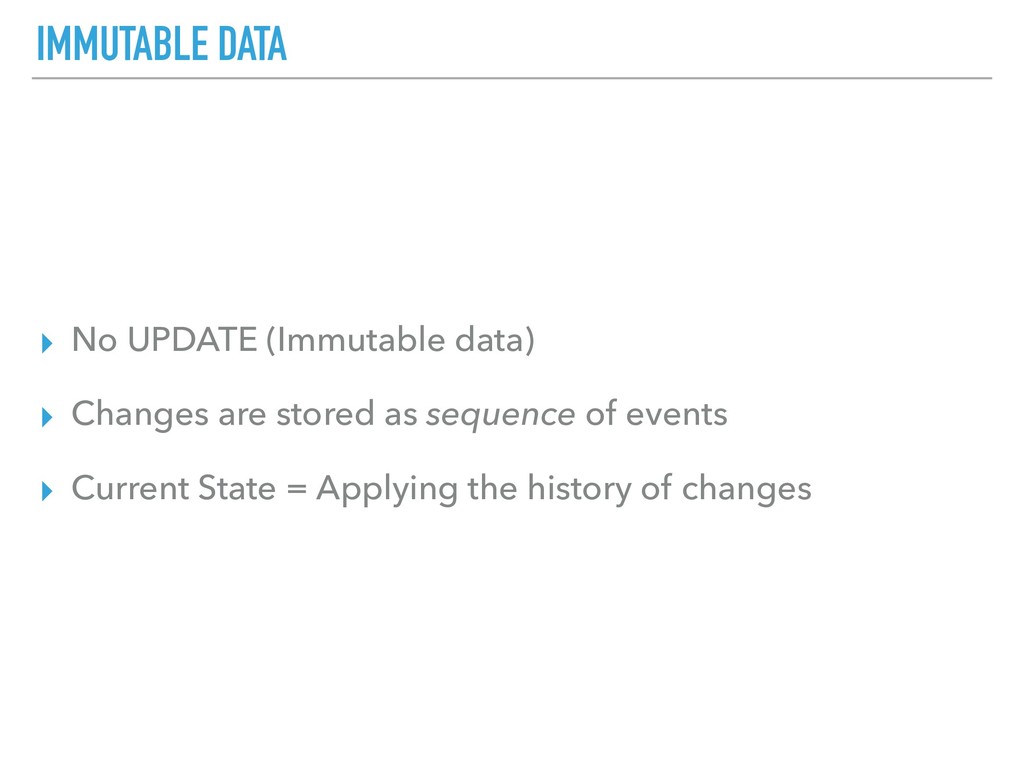

10. IMMUTABLE DATA ▸ No UPDATE (Immutable data) ▸ Changes are stored as sequence of events ▸ Current State = Applying the history of changes

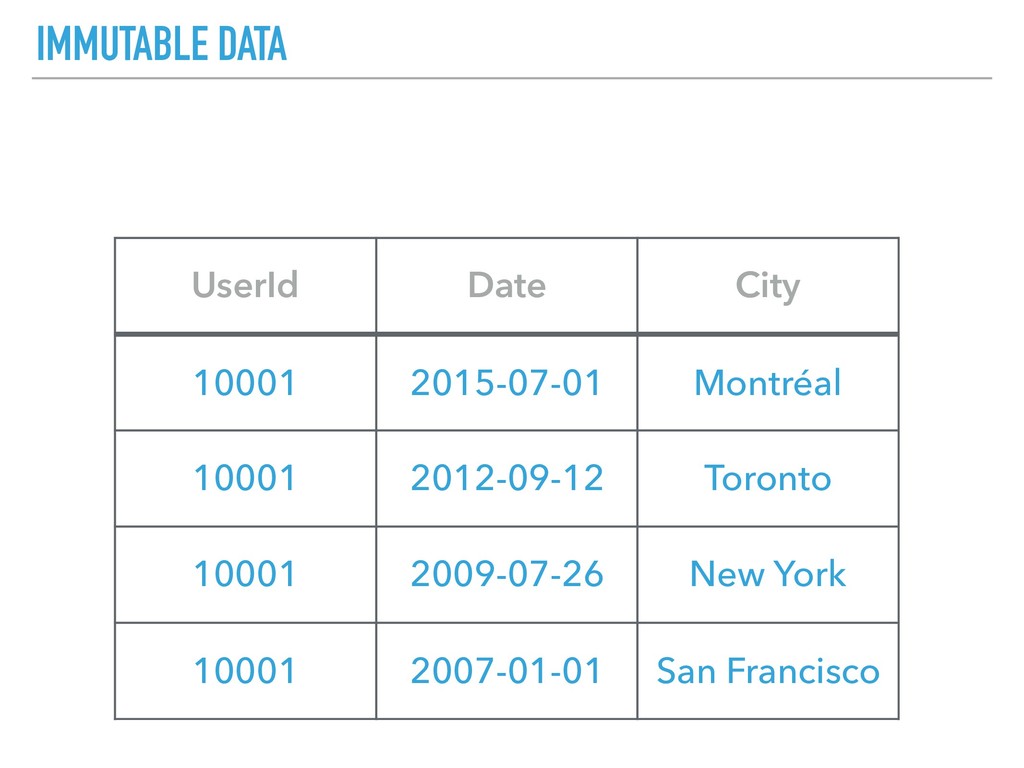

11. IMMUTABLE DATA UserId Date City 10001 2015-07-01 Montréal 10001 2012-09-12 Toronto 10001 2009-07-26 New York 10001 2007-01-01 San Francisco

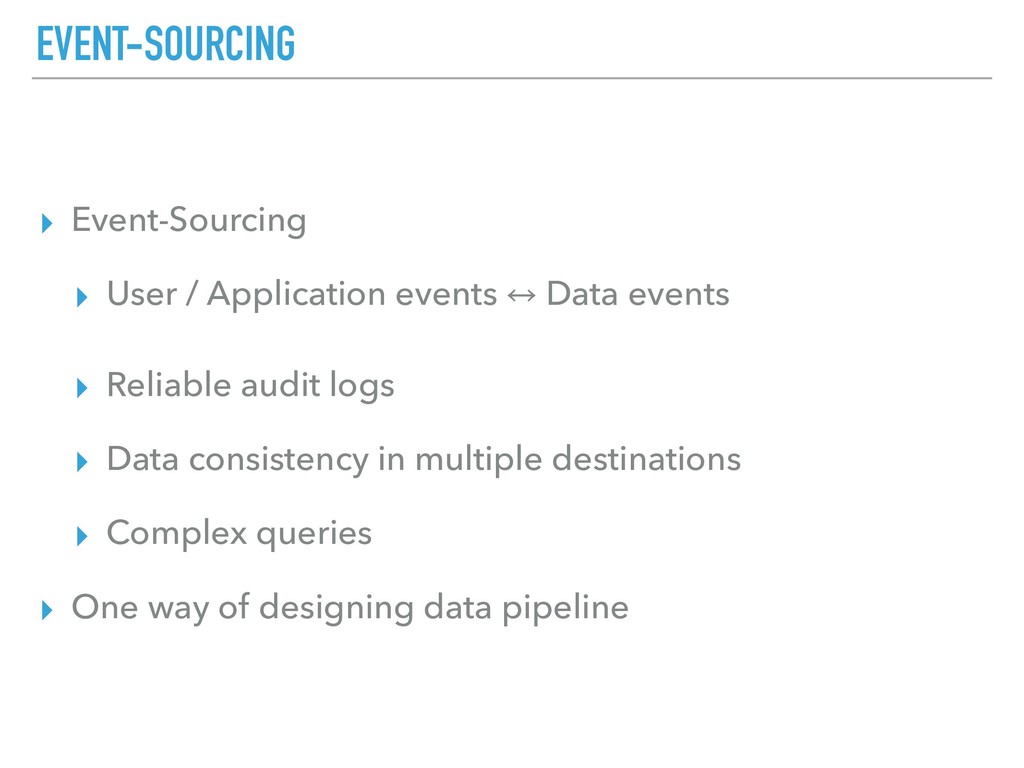

12. EVENT-SOURCING ▸ Event-Sourcing ▸ User / Application events 㲗 Data events ▸ Reliable audit logs ▸ Data consistency in multiple destinations ▸ Complex queries ▸ One way of designing data pipeline

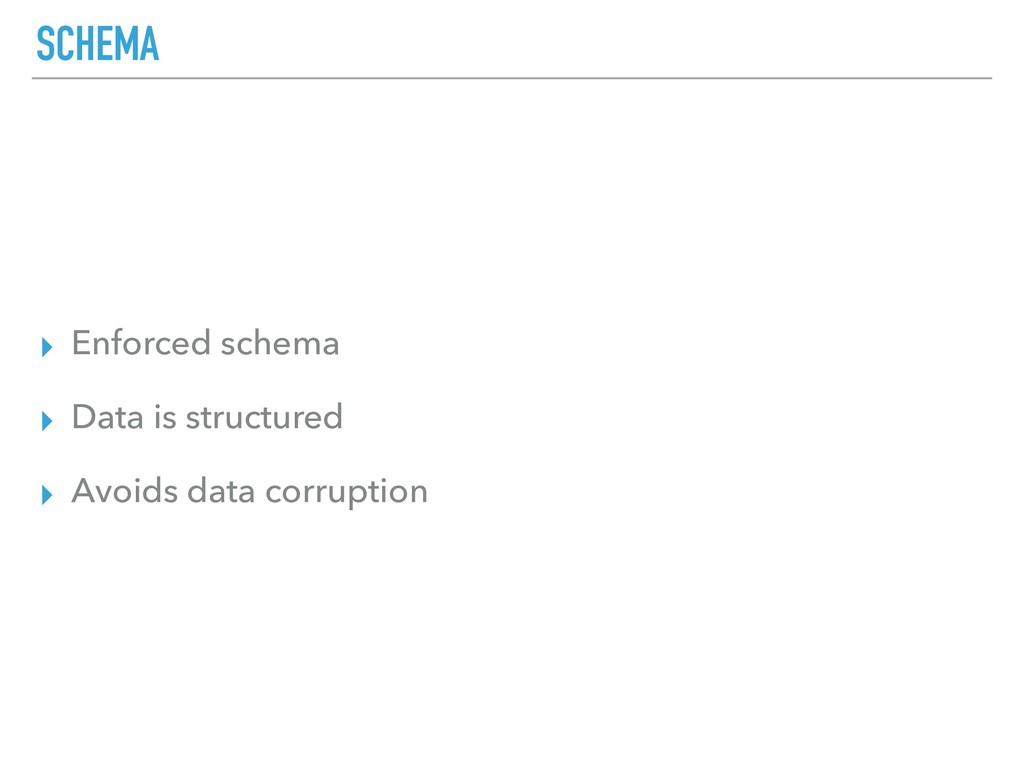

13. SCHEMA ▸ Enforced schema ▸ Data is structured ▸ Avoids data corruption

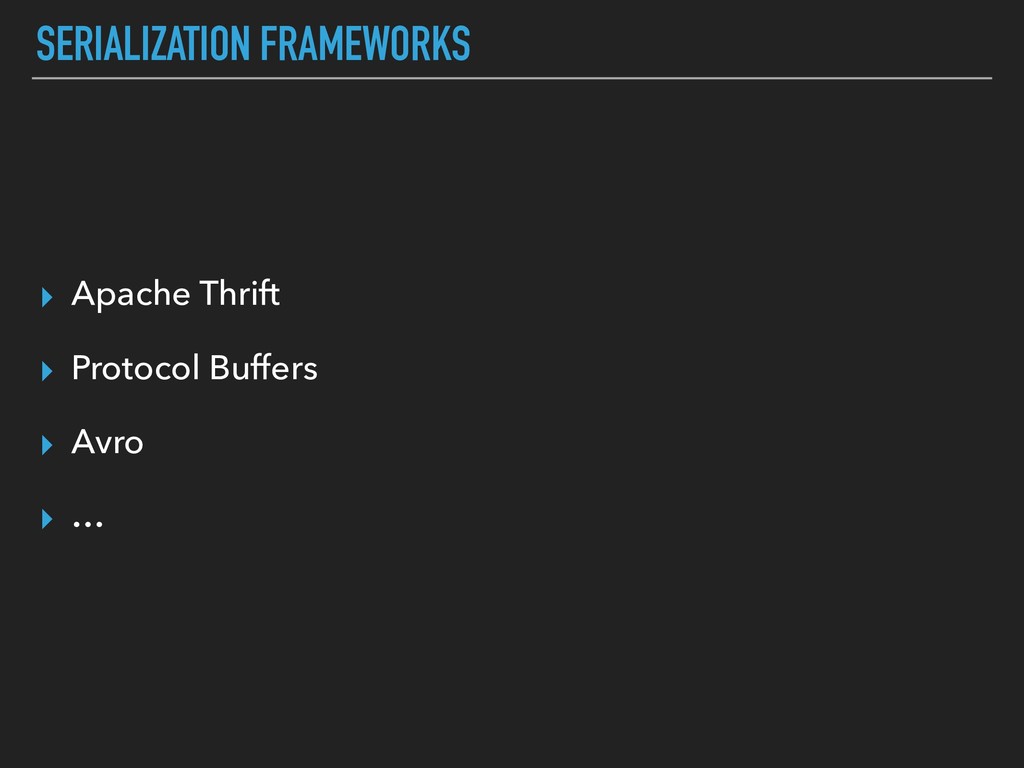

14. ▸ Apache Thrift ▸ Protocol Buffers ▸ Avro ▸ … SERIALIZATION FRAMEWORKS

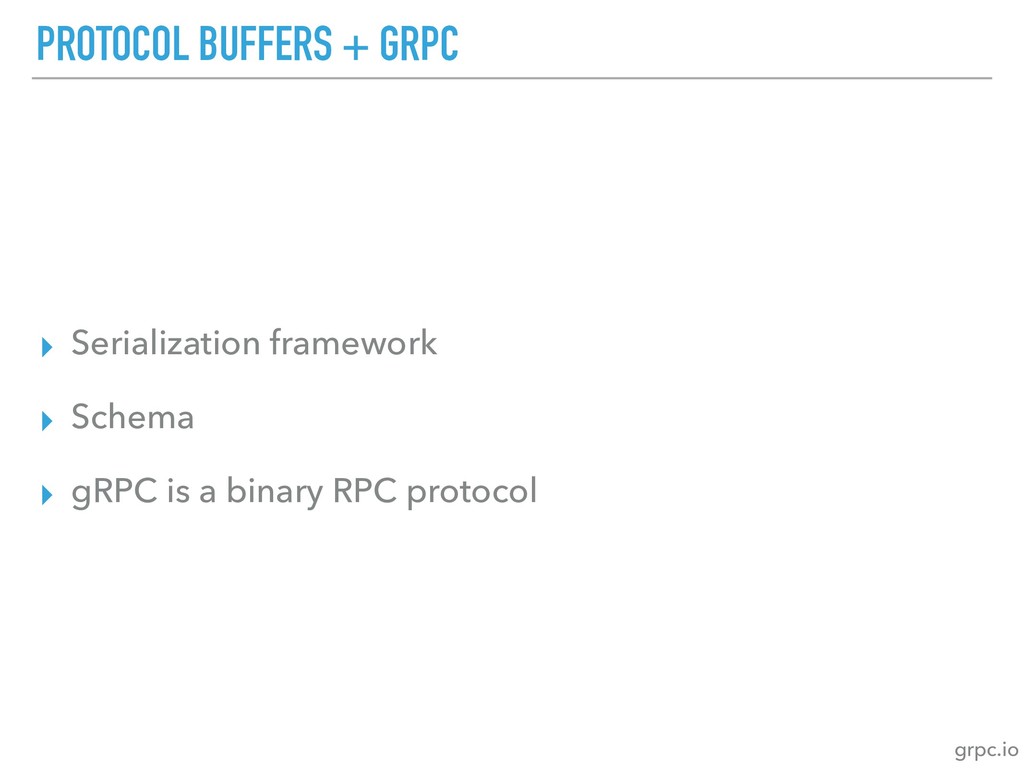

15. PROTOCOL BUFFERS + GRPC ▸ Serialization framework ▸ Schema ▸ gRPC is a binary RPC protocol grpc.io

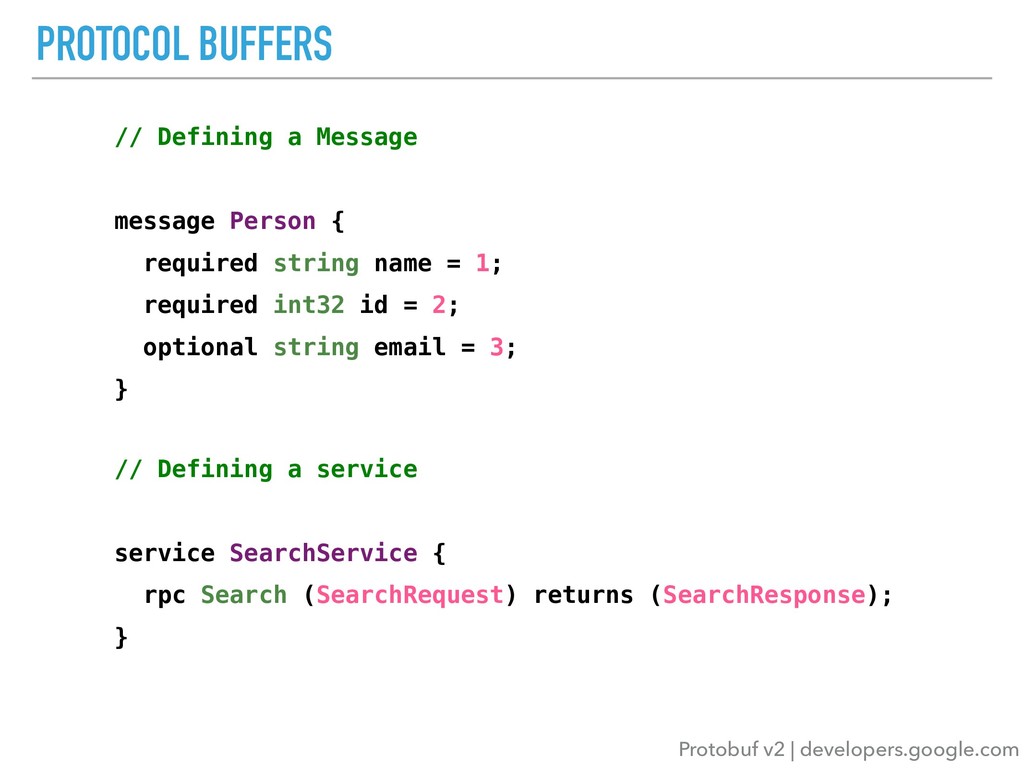

16. PROTOCOL BUFFERS Protobuf v2 | developers.google.com // Defining a Message message Person { required string name = 1; required int32 id = 2; optional string email = 3; } // Defining a service service SearchService { rpc Search (SearchRequest) returns (SearchResponse); }

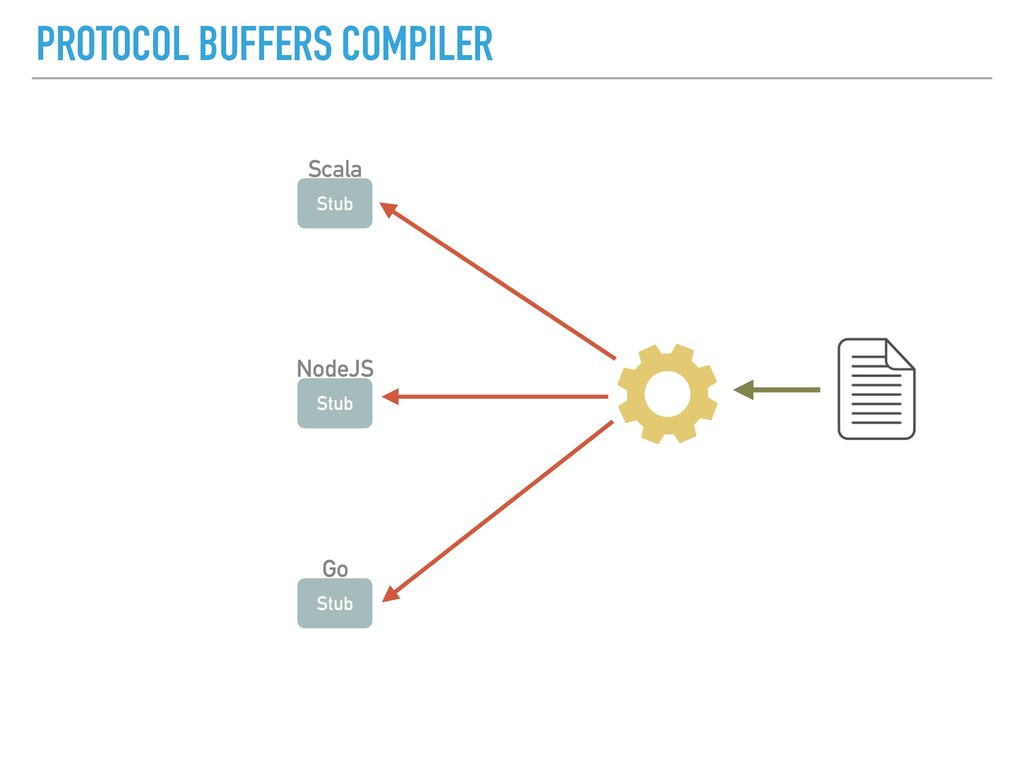

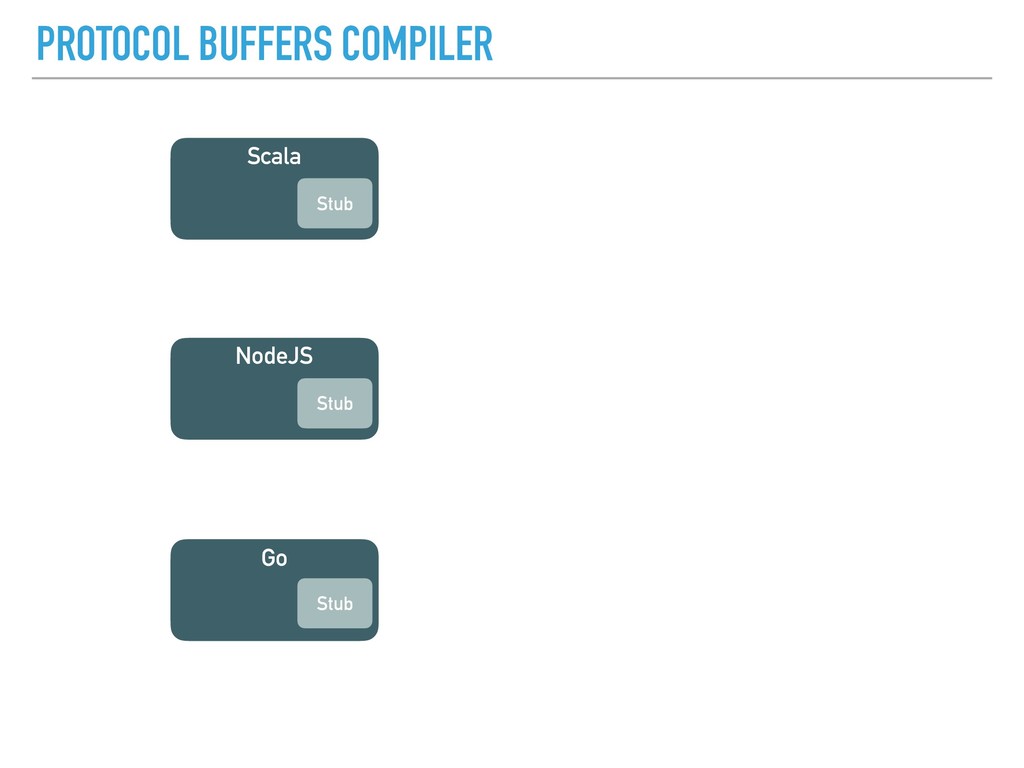

17. PROTOCOL BUFFERS COMPILER Stub Stub Stub Scala NodeJS Go
18. PROTOCOL BUFFERS COMPILER Scala Go Stub Stub NodeJS Stub

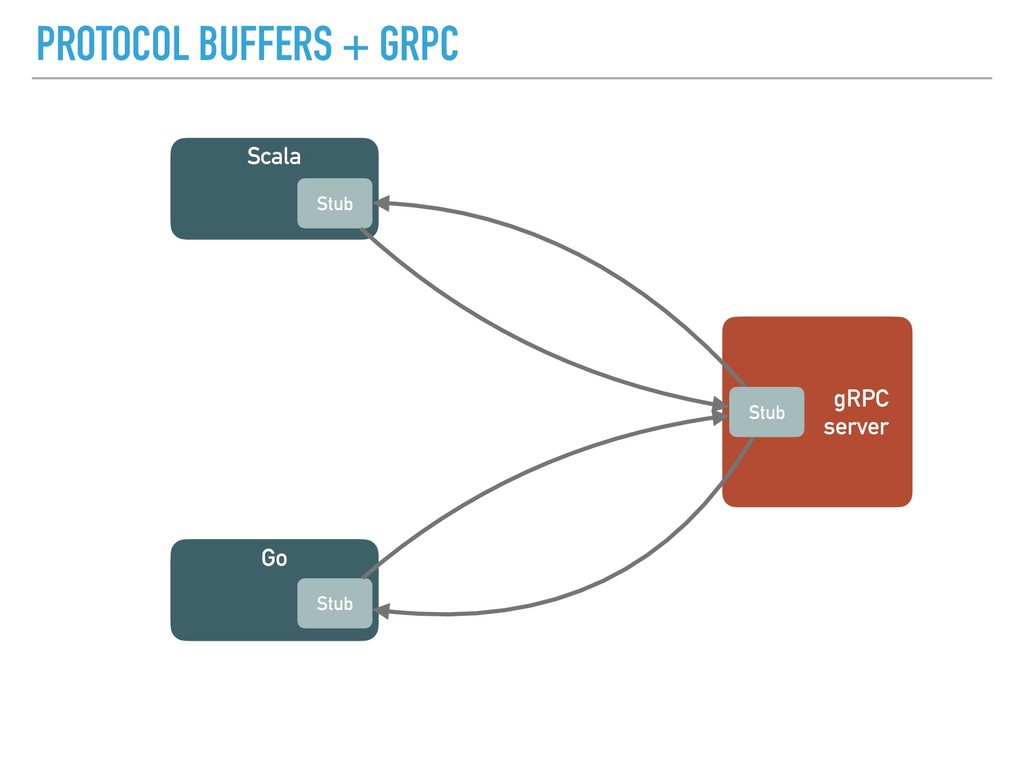

19. PROTOCOL BUFFERS + GRPC Scala Go Stub Stub Stub gRPC
 server

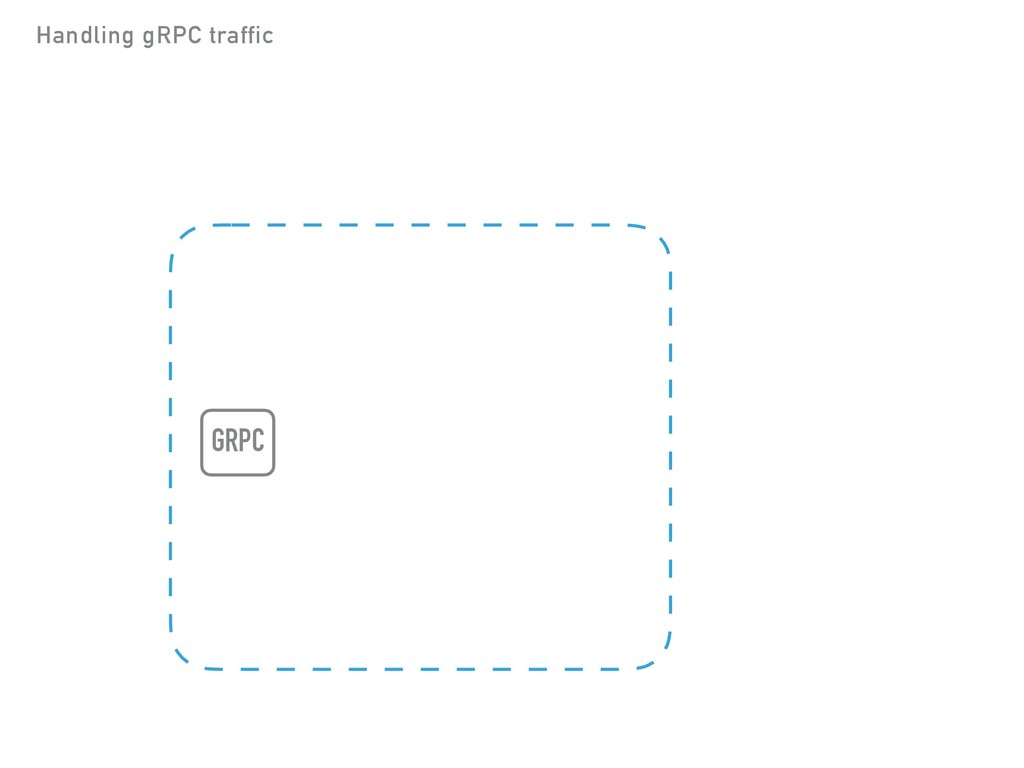

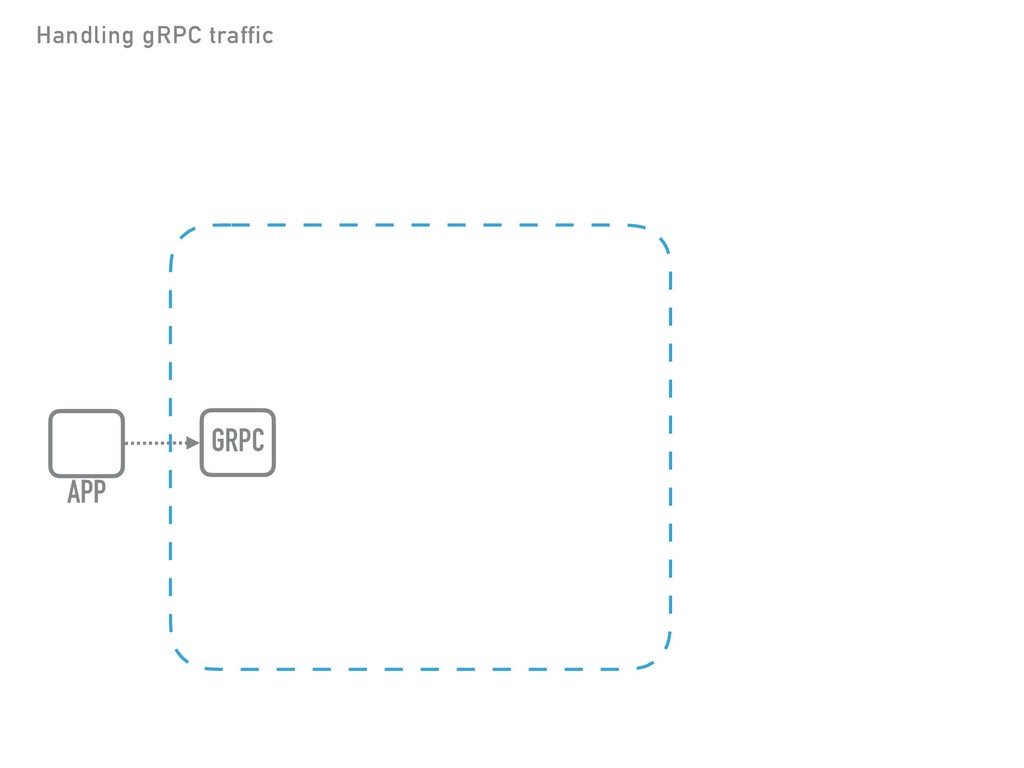

20. GRPC Handling gRPC traffic
21. GRPC APP Handling gRPC traffic

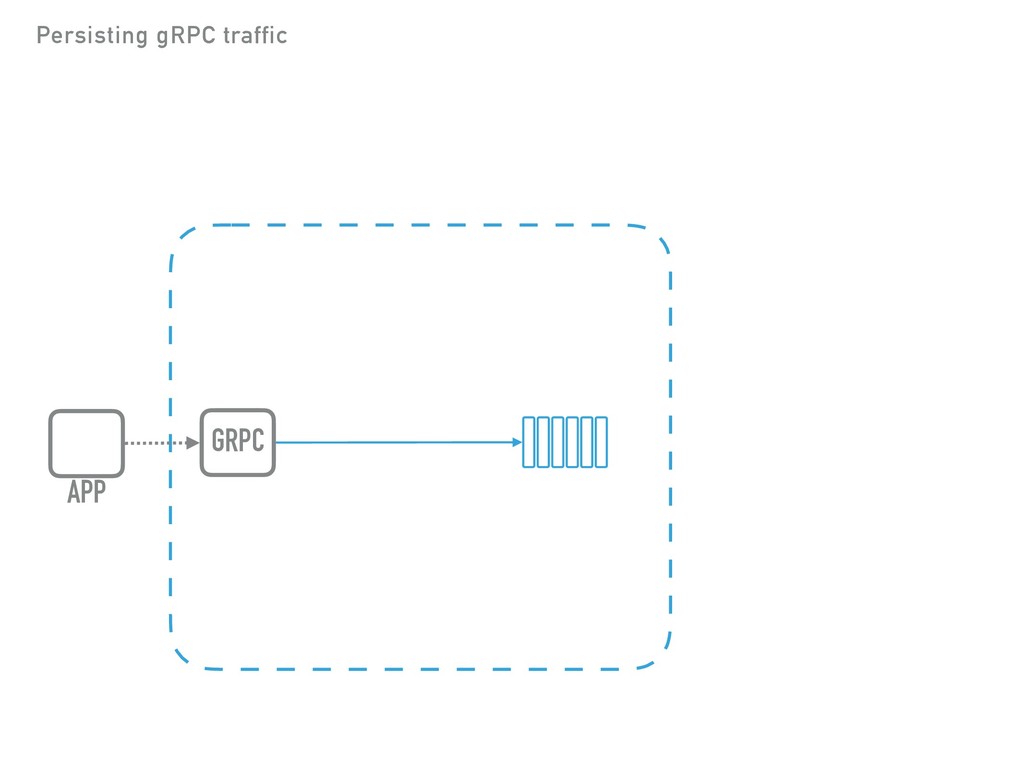

22. GRPC APP Persisting gRPC traffic
23. GRPC APP Persisting gRPC traffic

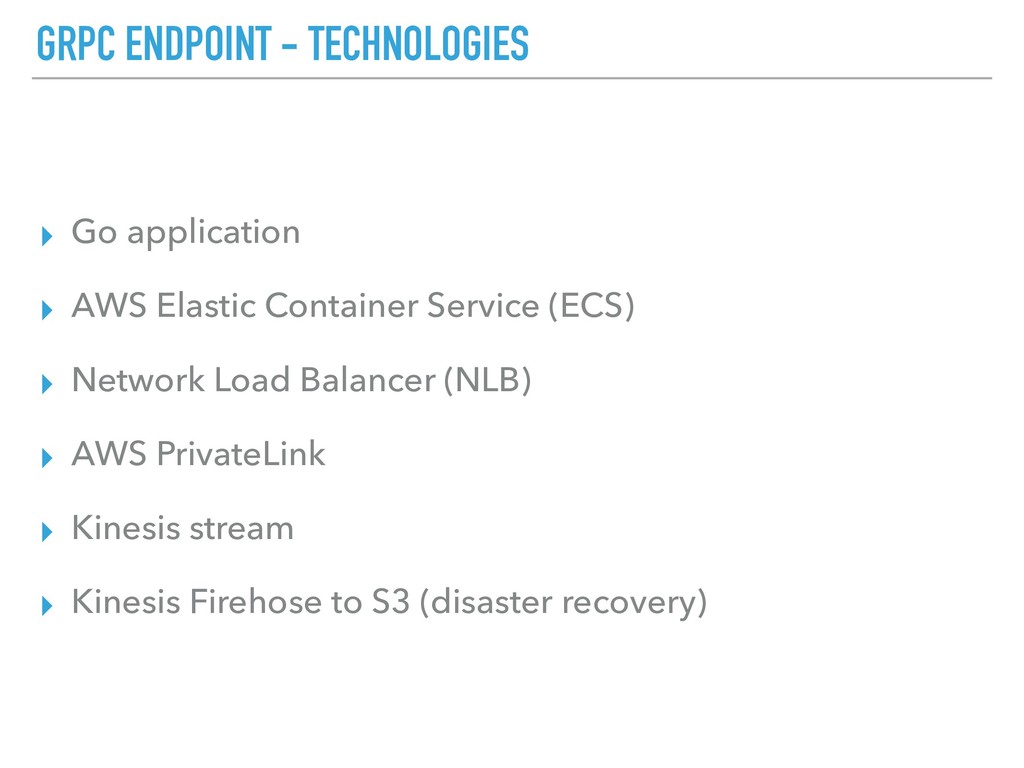

24. GRPC ENDPOINT - TECHNOLOGIES ▸ Go application ▸ AWS Elastic Container Service (ECS) ▸ Network Load Balancer (NLB) ▸ AWS PrivateLink ▸ Kinesis stream ▸ Kinesis Firehose to S3 (disaster recovery)

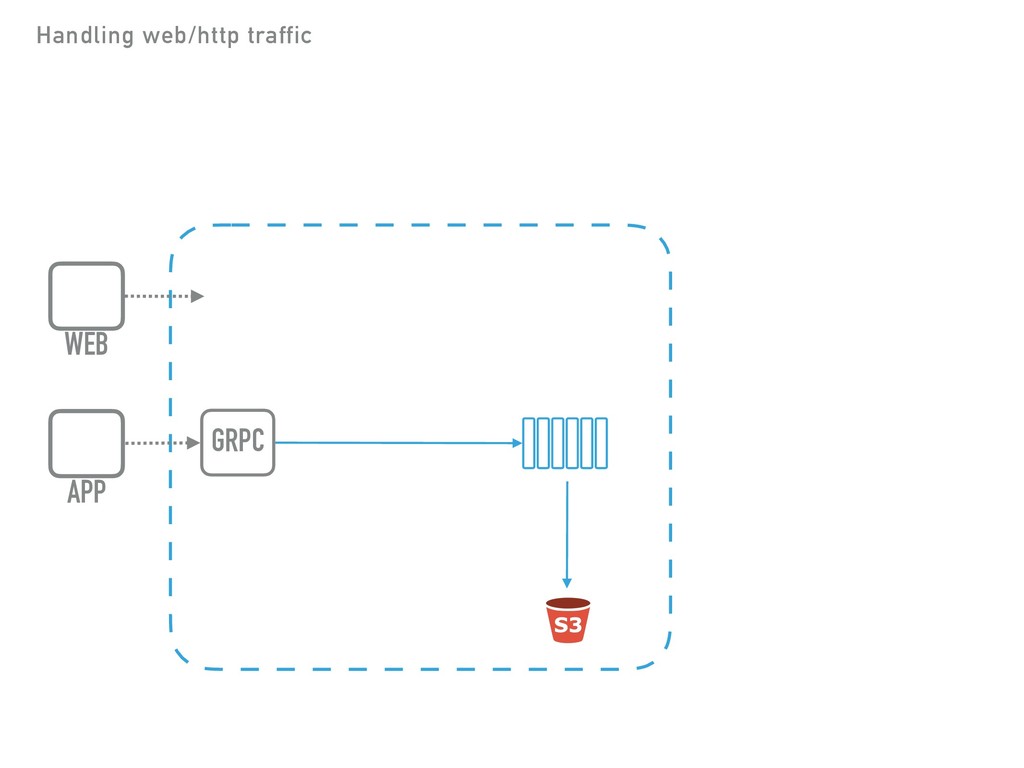

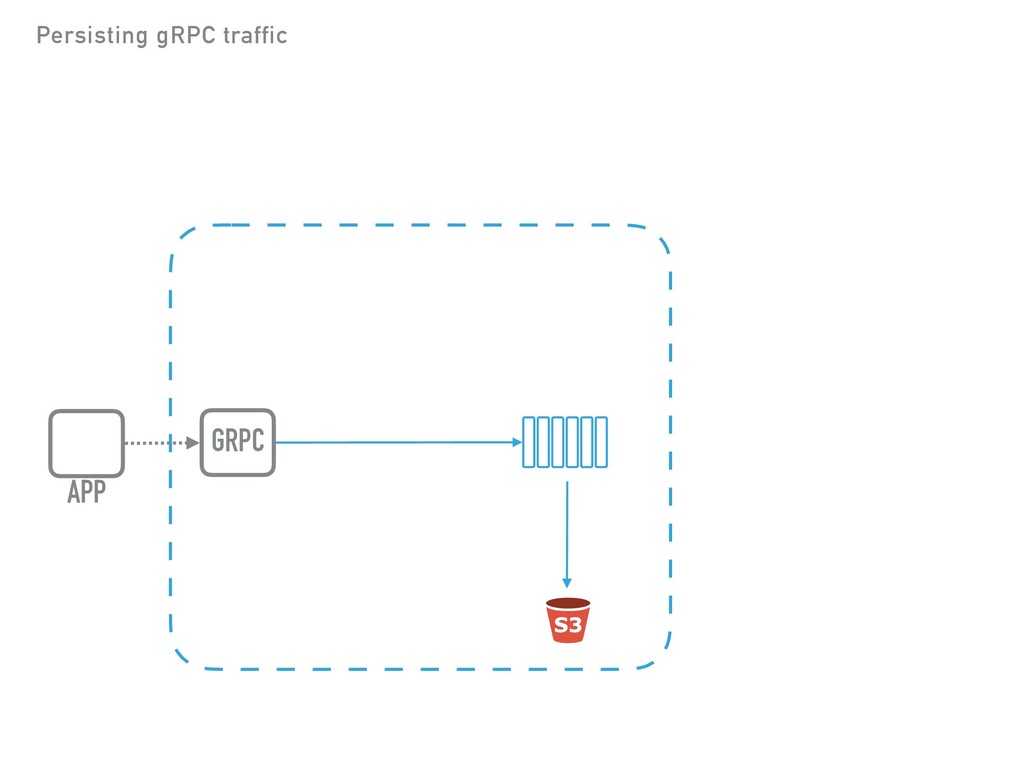

25. GRPC APP Persisting gRPC traffic

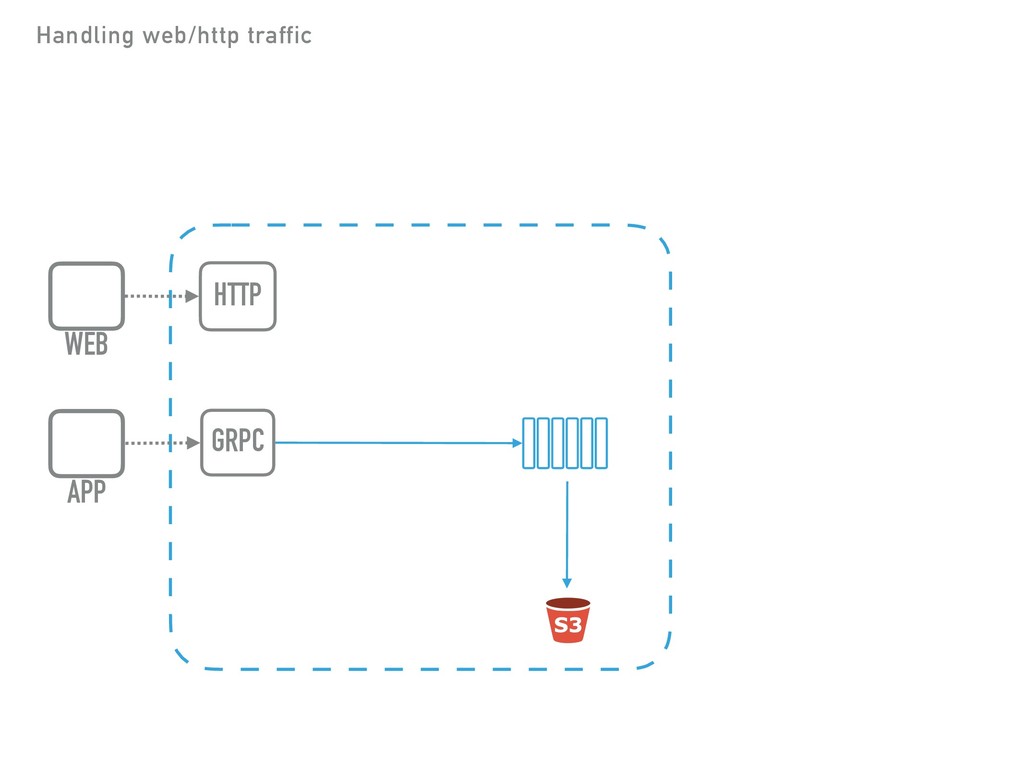

26. GRPC APP WEB Handling web/http traffic
27. GRPC APP HTTP WEB Handling web/http traffic

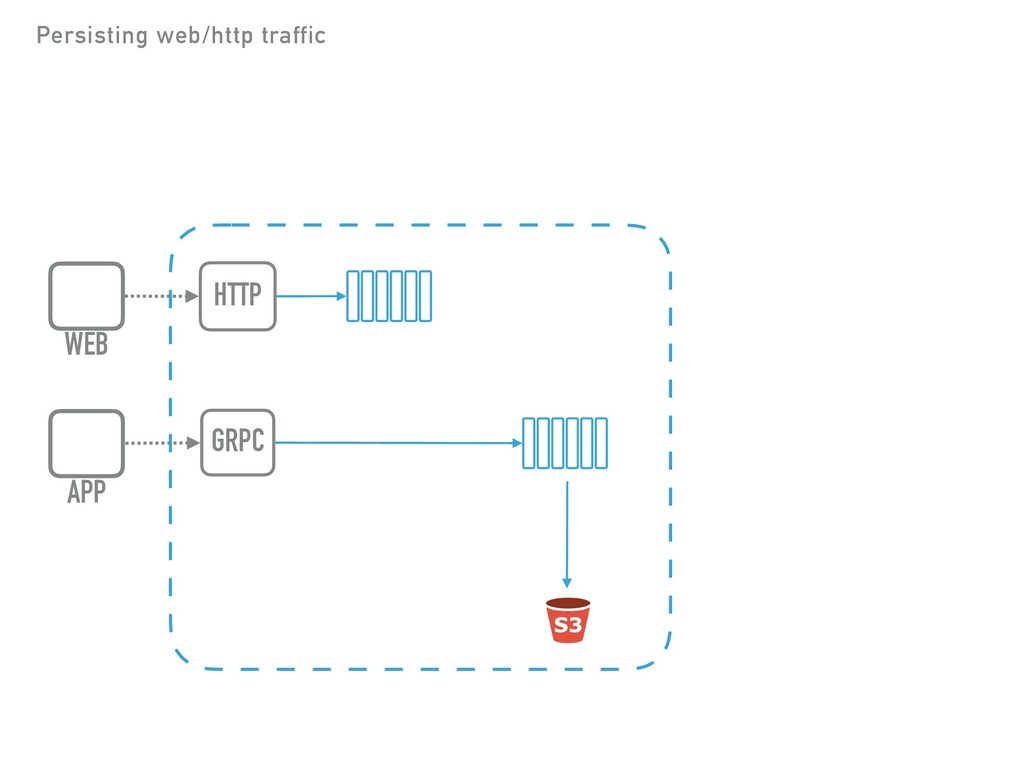

28. GRPC APP WEB HTTP Persisting web/http traffic

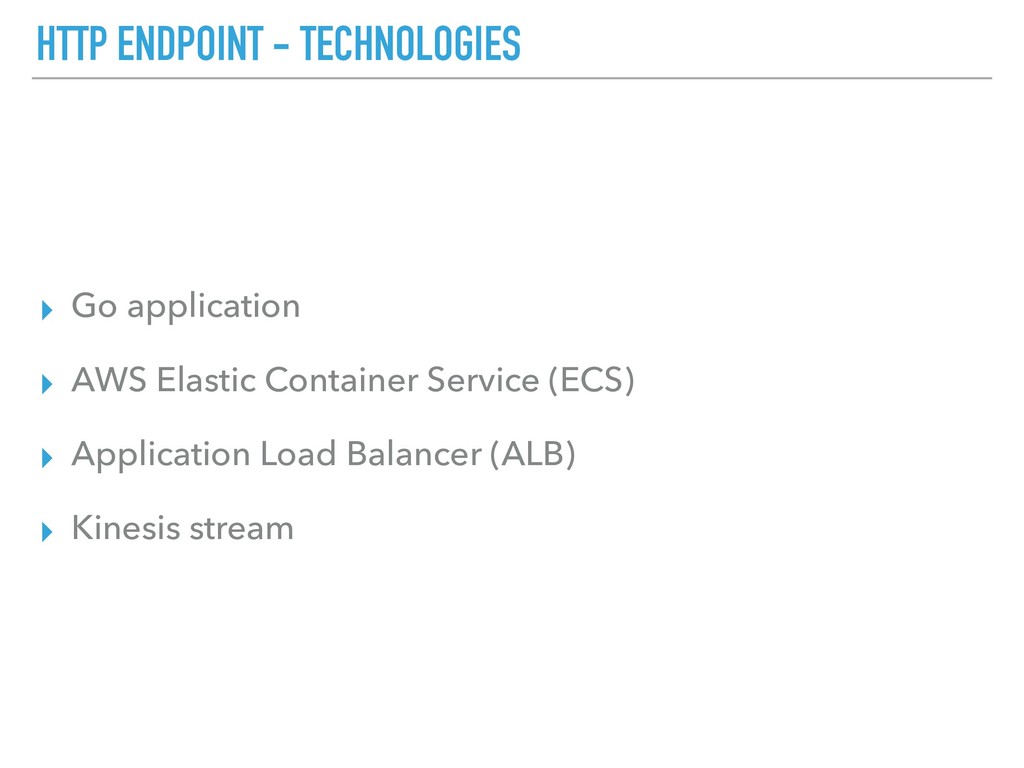

29. HTTP ENDPOINT - TECHNOLOGIES ▸ Go application ▸ AWS Elastic Container Service (ECS) ▸ Application Load Balancer (ALB) ▸ Kinesis stream
30. GRPC APP WEB HTTP Persisting web/http traffic

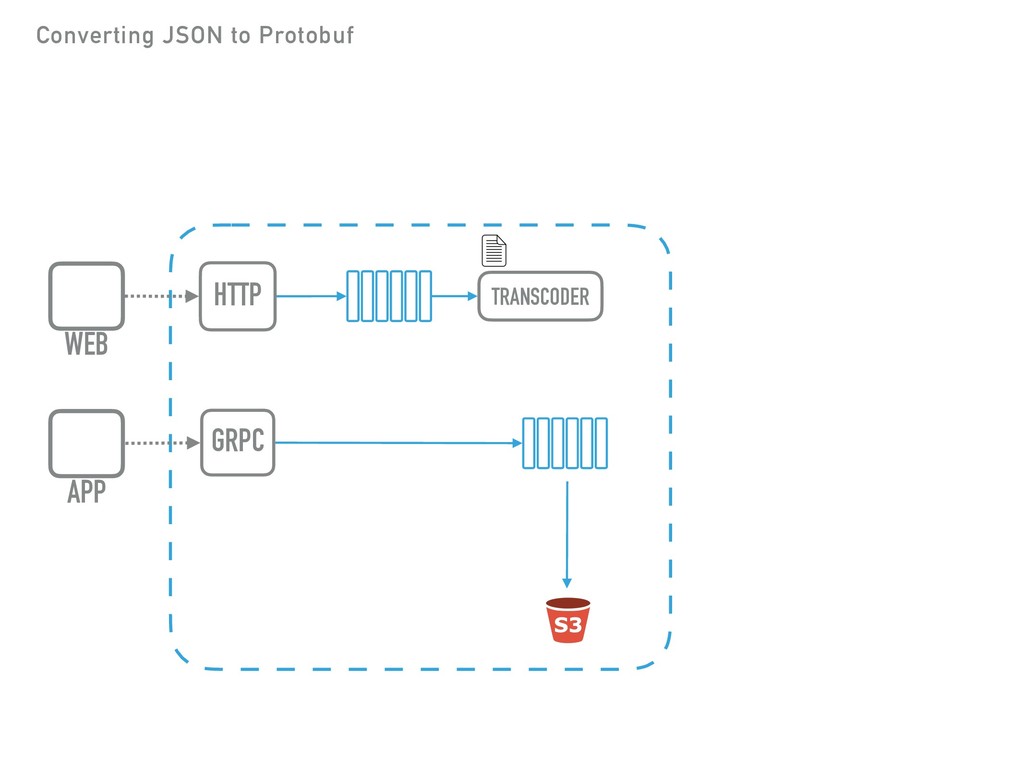

31. GRPC APP WEB HTTP TRANSCODER Converting JSON to Protobuf

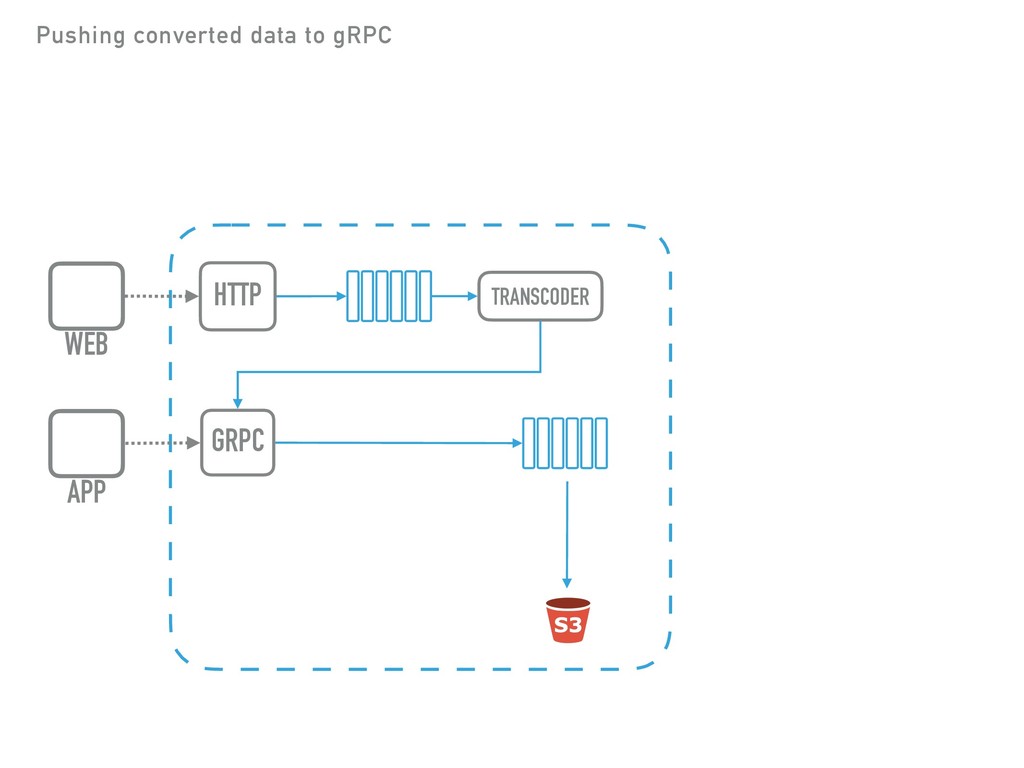

32. HTTP GRPC TRANSCODER WEB APP Pushing converted data to gRPC

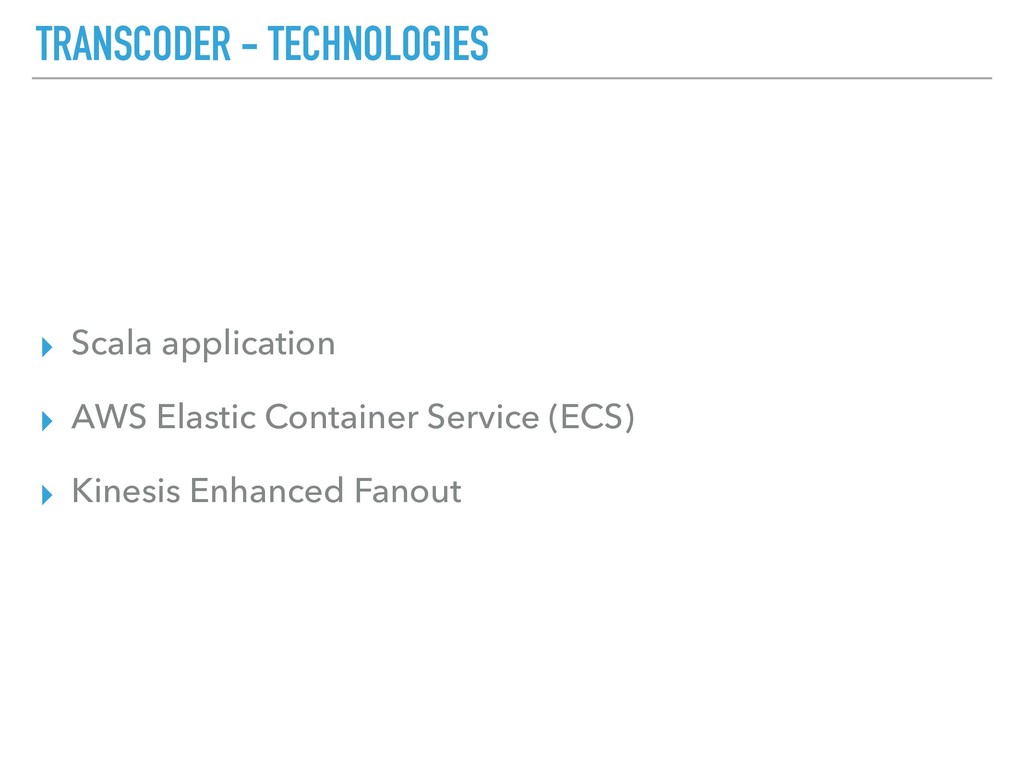

33. TRANSCODER - TECHNOLOGIES ▸ Scala application ▸ AWS Elastic Container Service (ECS) ▸ Kinesis Enhanced Fanout
34. HTTP GRPC TRANSCODER WEB APP Pushing converted data to gRPC

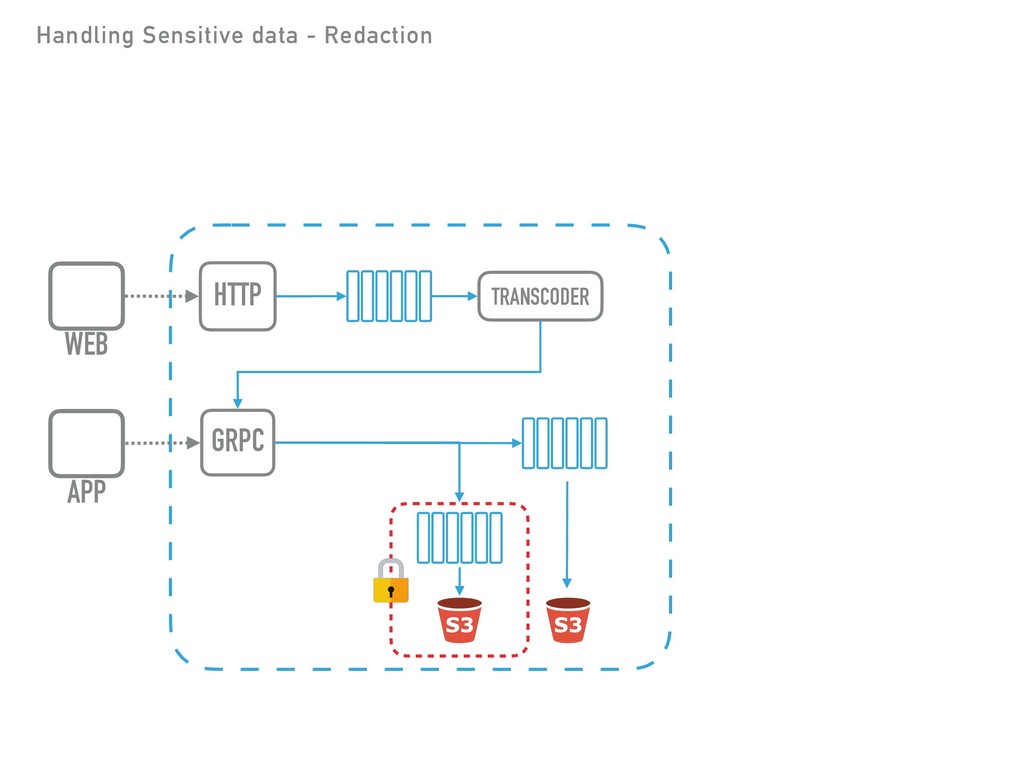

35. HTTP GRPC TRANSCODER WEB APP Handling Sensitive data - Redaction

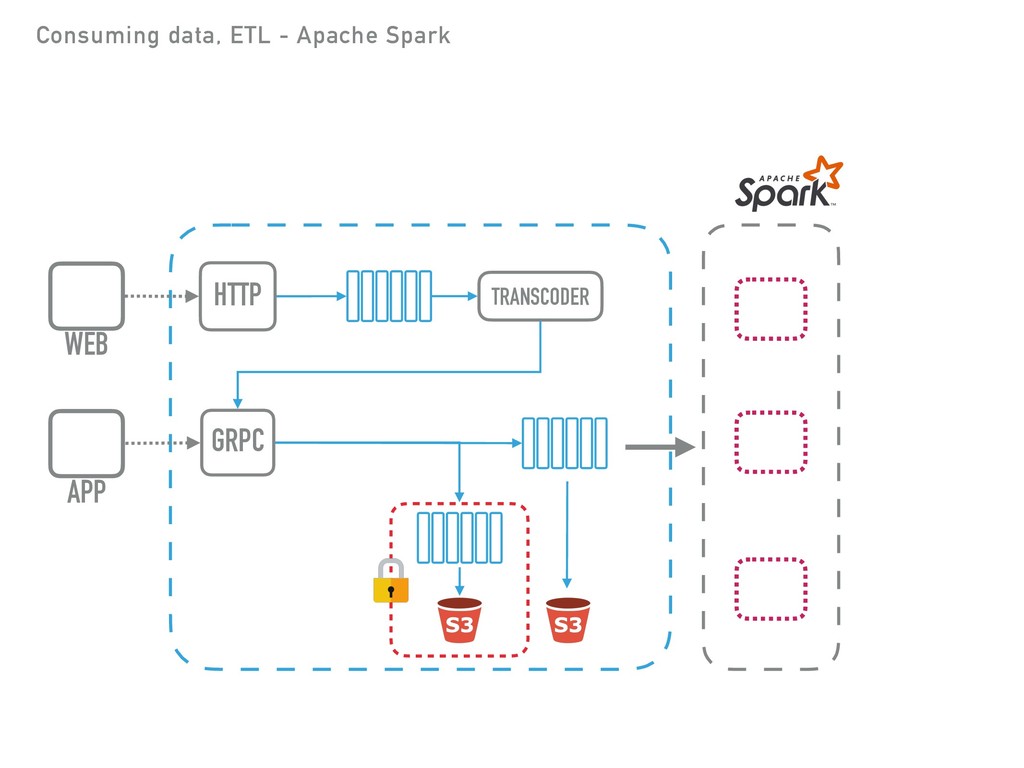

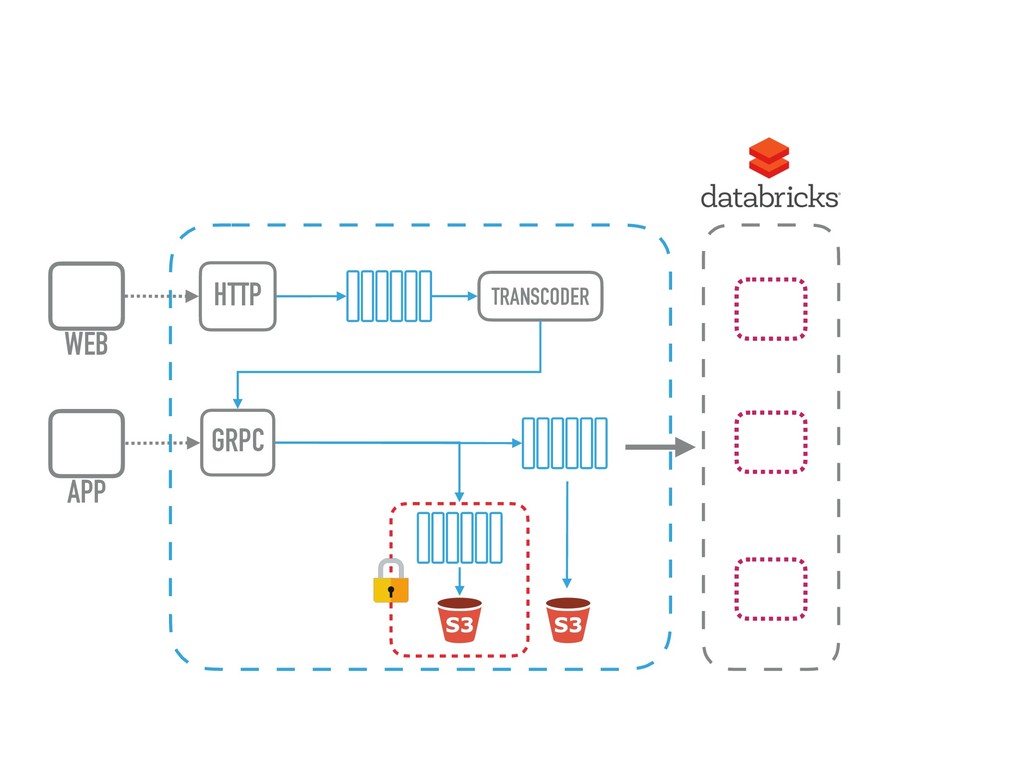

36. HTTP GRPC TRANSCODER WEB APP Consuming data, ETL - Apache Spark

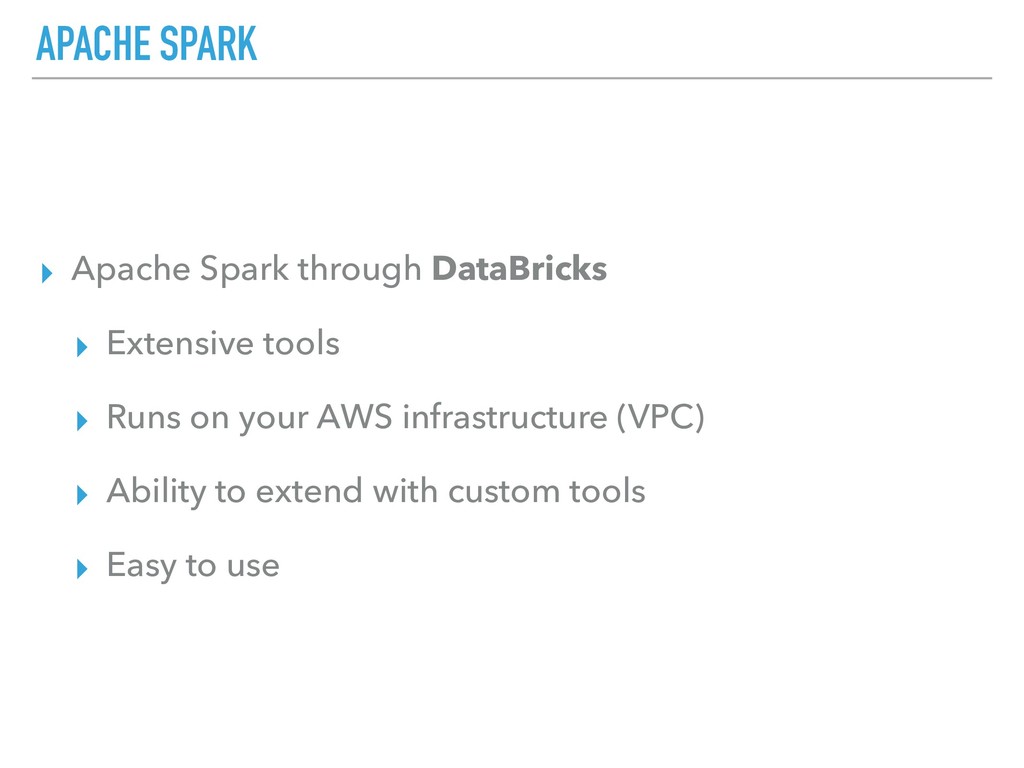

37. APACHE SPARK ▸ Apache Spark through DataBricks ▸ Extensive tools ▸ Runs on your AWS infrastructure (VPC) ▸ Ability to extend with custom tools ▸ Easy to use

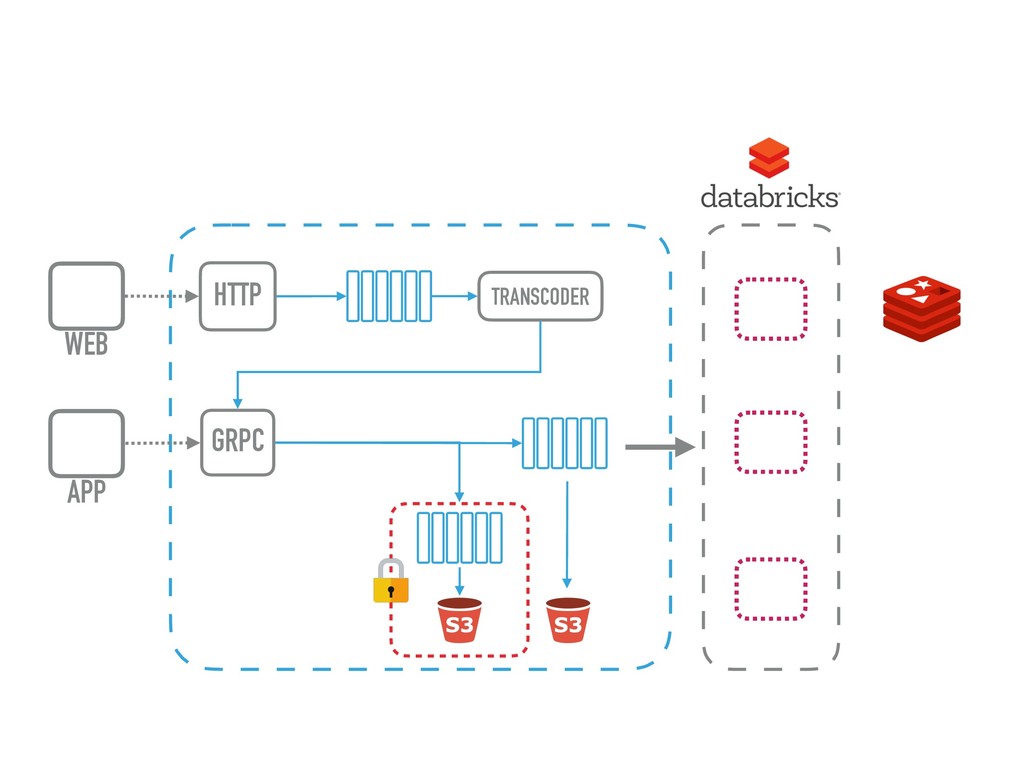

38. HTTP GRPC TRANSCODER WEB APP
39. HTTP GRPC TRANSCODER WEB APP

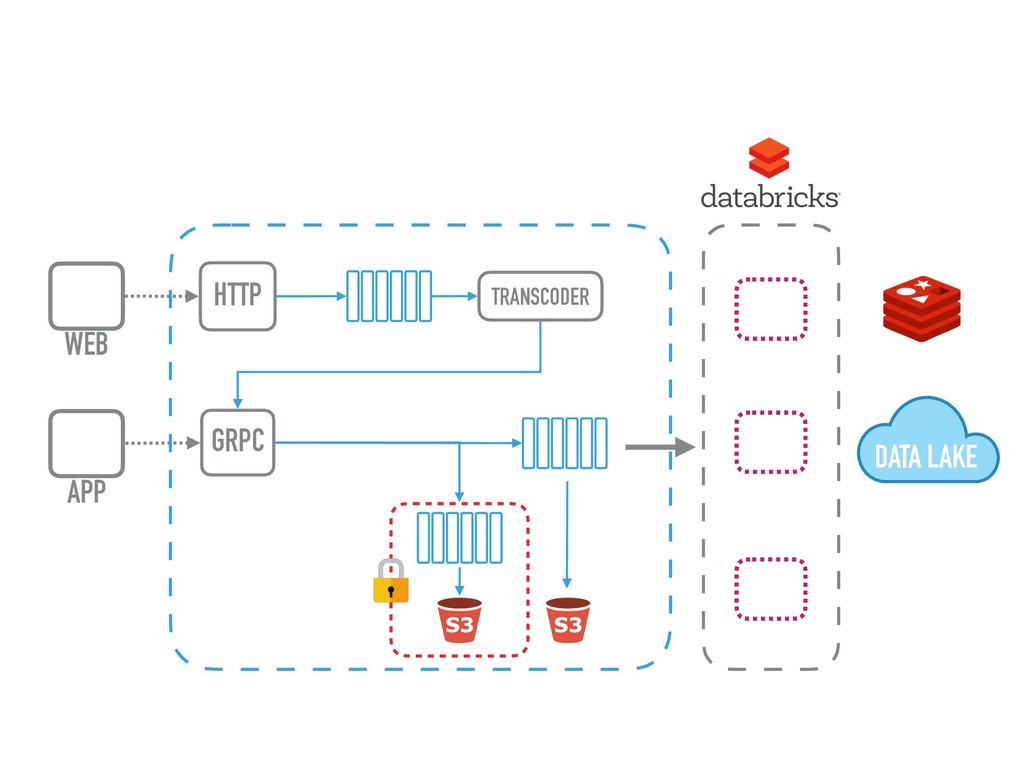

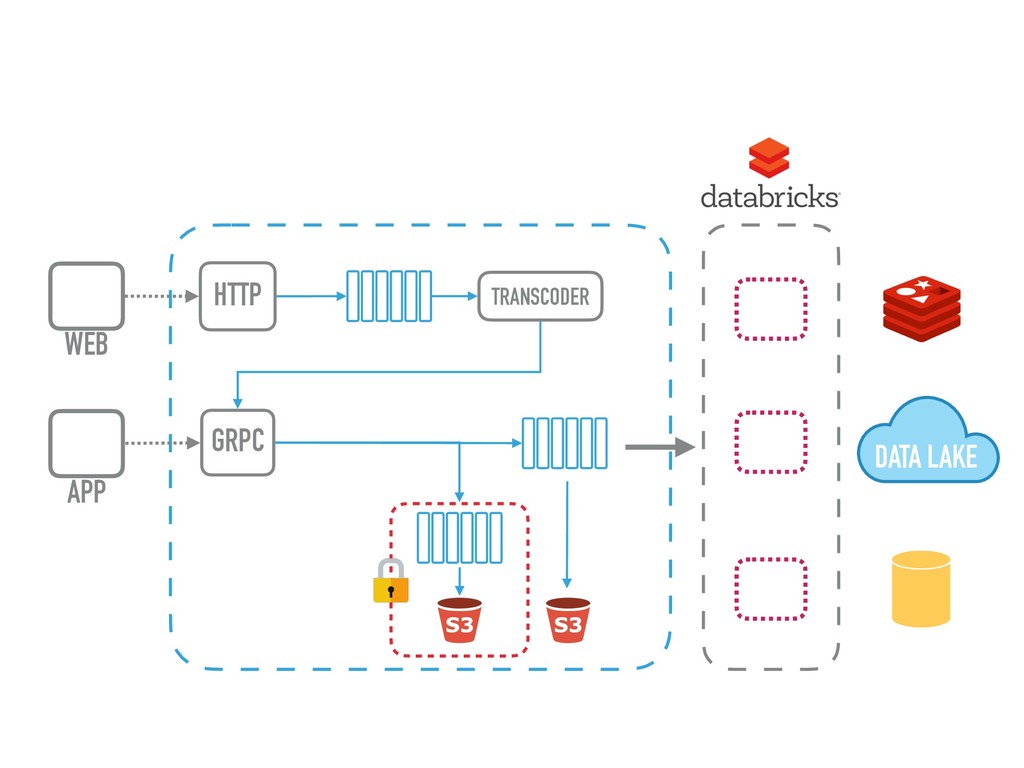

40. DATA LAKE HTTP GRPC TRANSCODER WEB APP
41. DATA LAKE HTTP GRPC TRANSCODER WEB APP

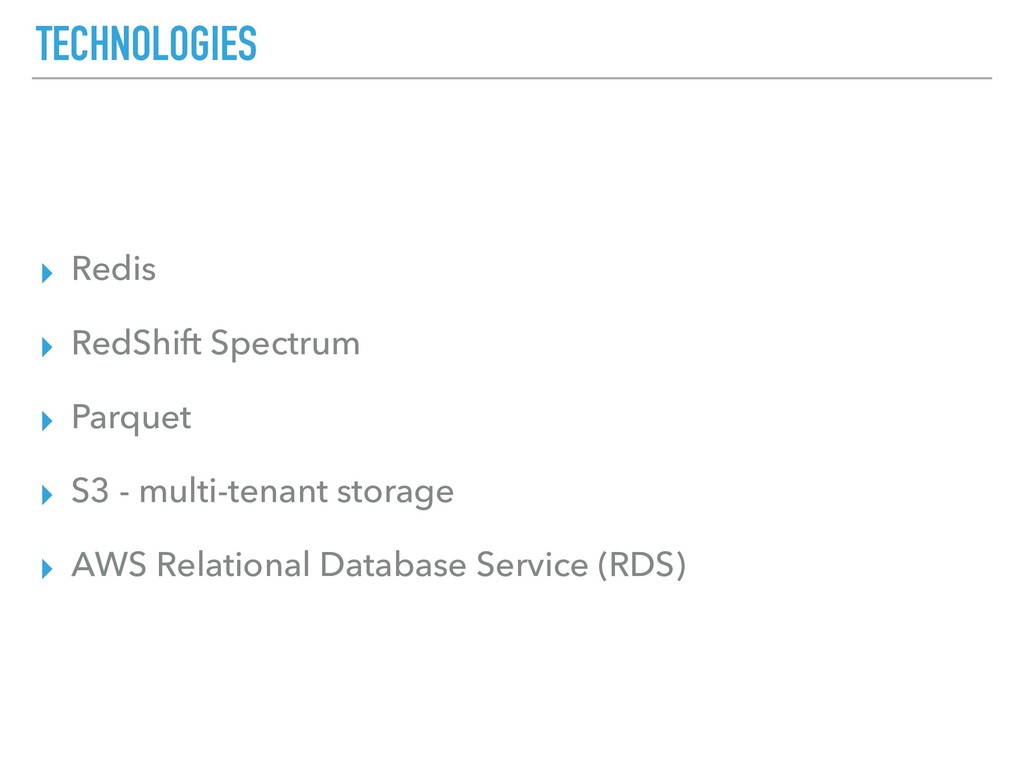

42. TECHNOLOGIES ▸ Redis ▸ RedShift Spectrum ▸ Parquet ▸ S3 - multi-tenant storage ▸ AWS Relational Database Service (RDS)
43. DATA LAKE HTTP GRPC TRANSCODER WEB APP
44. LEARNED 6 LESSONS
45. OBSERVABILITY 1/6
46. @honest_update
47. ▸ Golden metrics ▸ Latency ▸ Traffic ▸ Errors ▸ Saturation MONITORING Google | Site Reliability Engineering

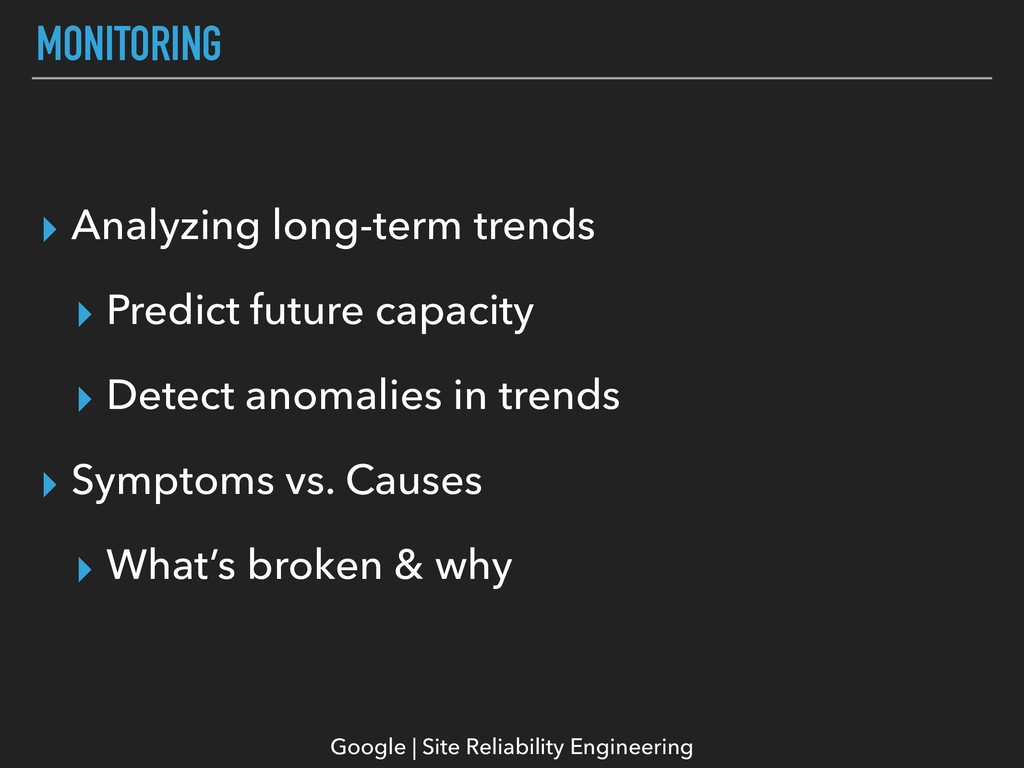

48. ▸ Analyzing long-term trends ▸ Predict future capacity ▸ Detect anomalies in trends ▸ Symptoms vs. Causes ▸ What’s broken & why MONITORING Google | Site Reliability Engineering
49. ▸ Black box monitoring ▸ Periodic test message ▸ Measure end-to-end ▸ White box monitoring ▸ Monitor individual components MONITORING Google | Site Reliability Engineering
50. DISTRIBUTED TRACING

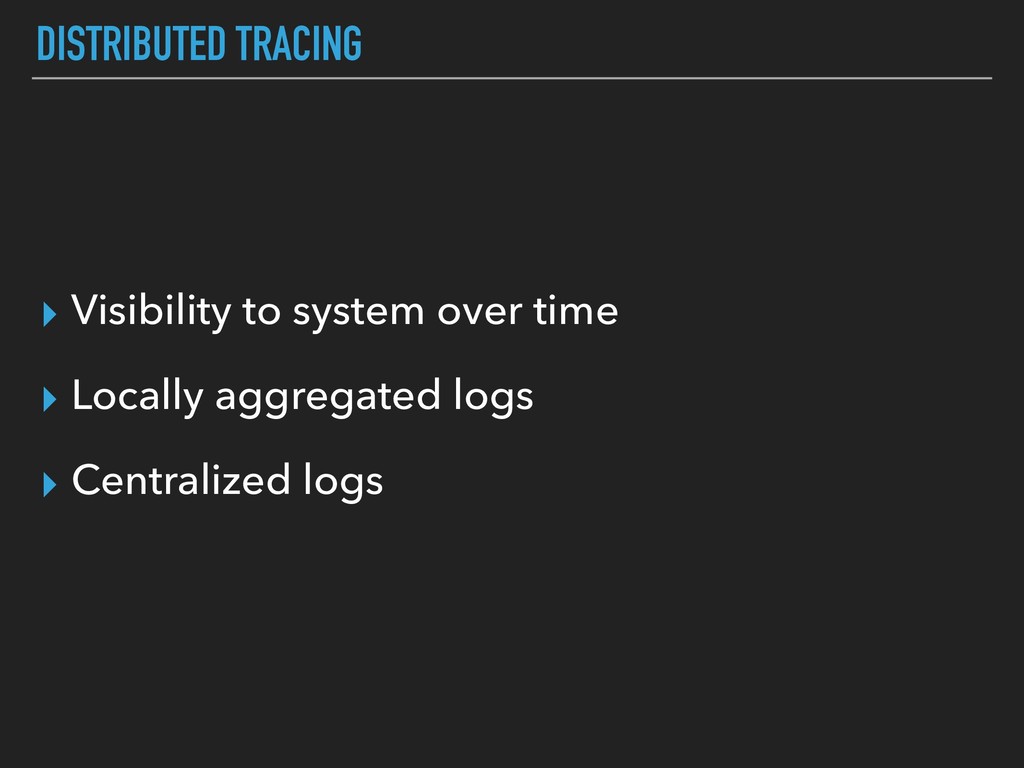

51. ▸ Visibility to system over time ▸ Locally aggregated logs ▸ Centralized logs DISTRIBUTED TRACING
52. ▸ Define thresholds ▸ Define appropriate resolution ▸ Signal vs. Noise ▸ Define escalation paths ALERTING
53. DURABILITY 2/6

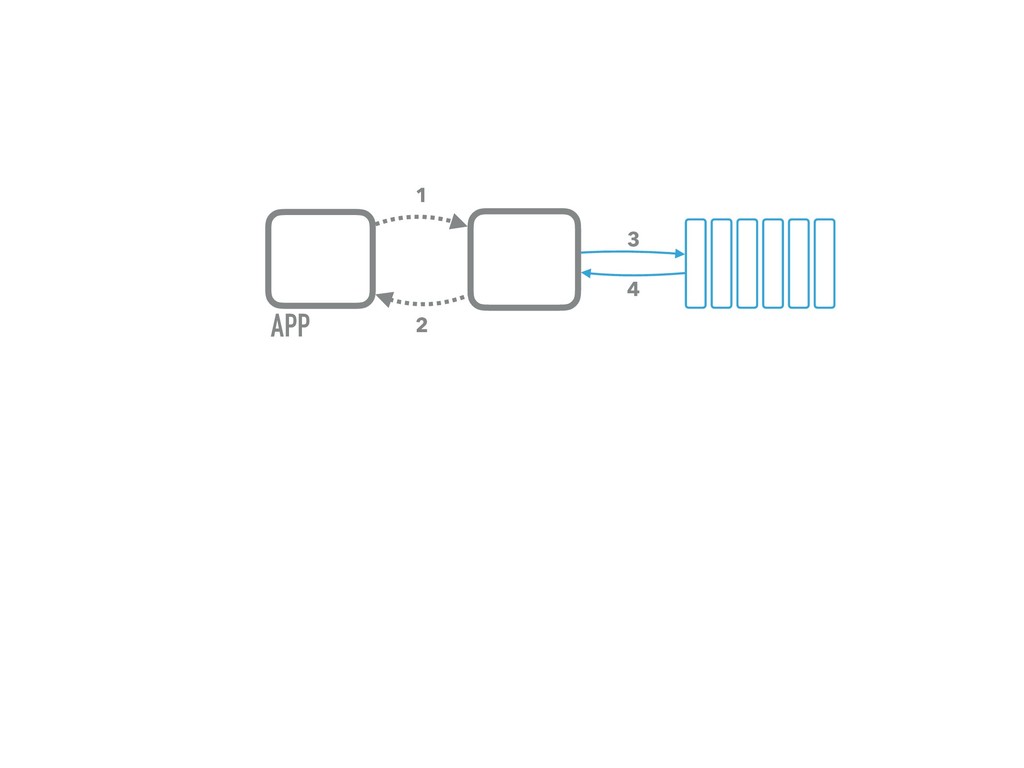

54. APP 1 2 3 4

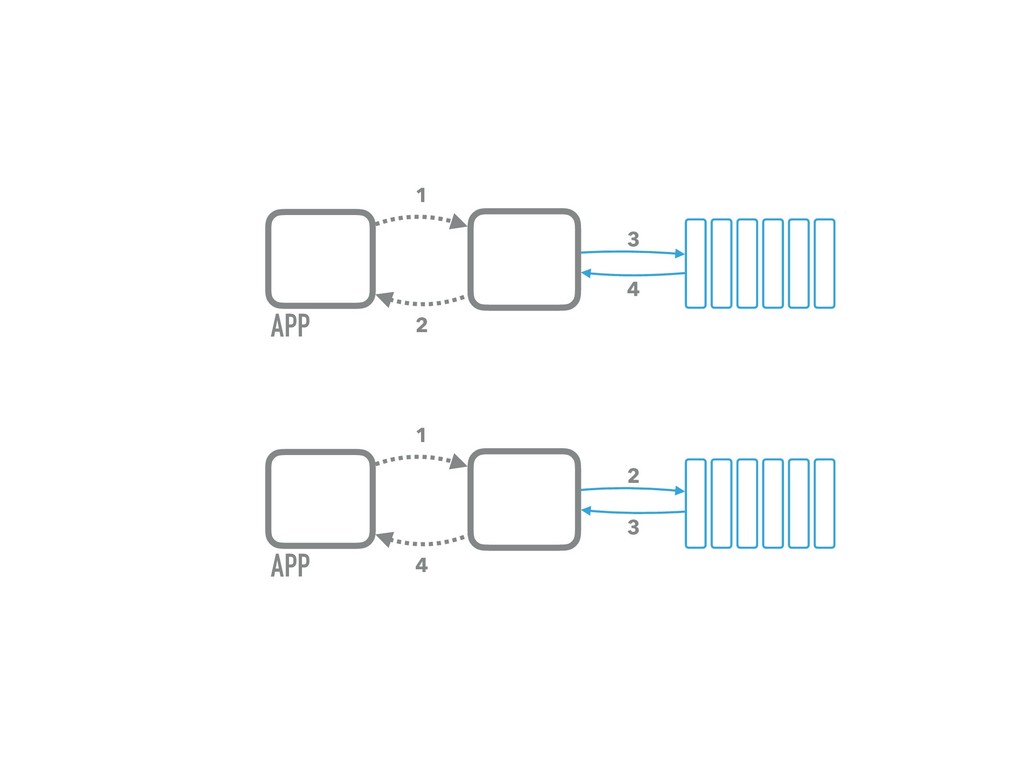

55. APP 1 2 3 APP 1 4 2 4 3

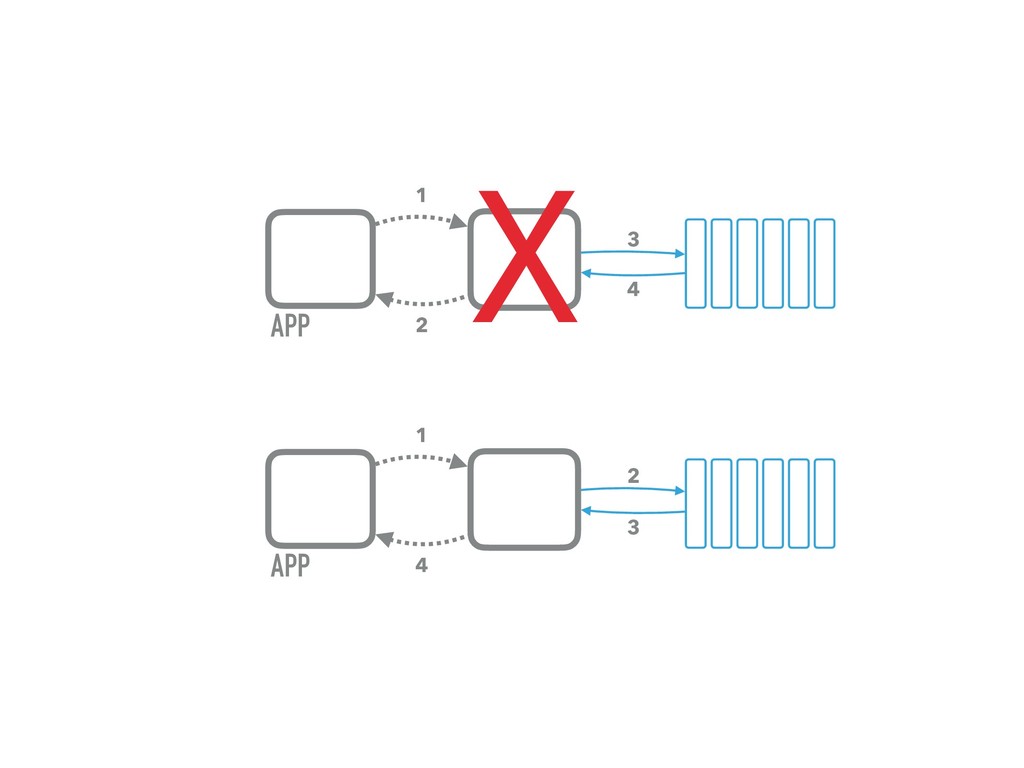

56. APP 1 2 3 APP 1 4 2 4 3 X

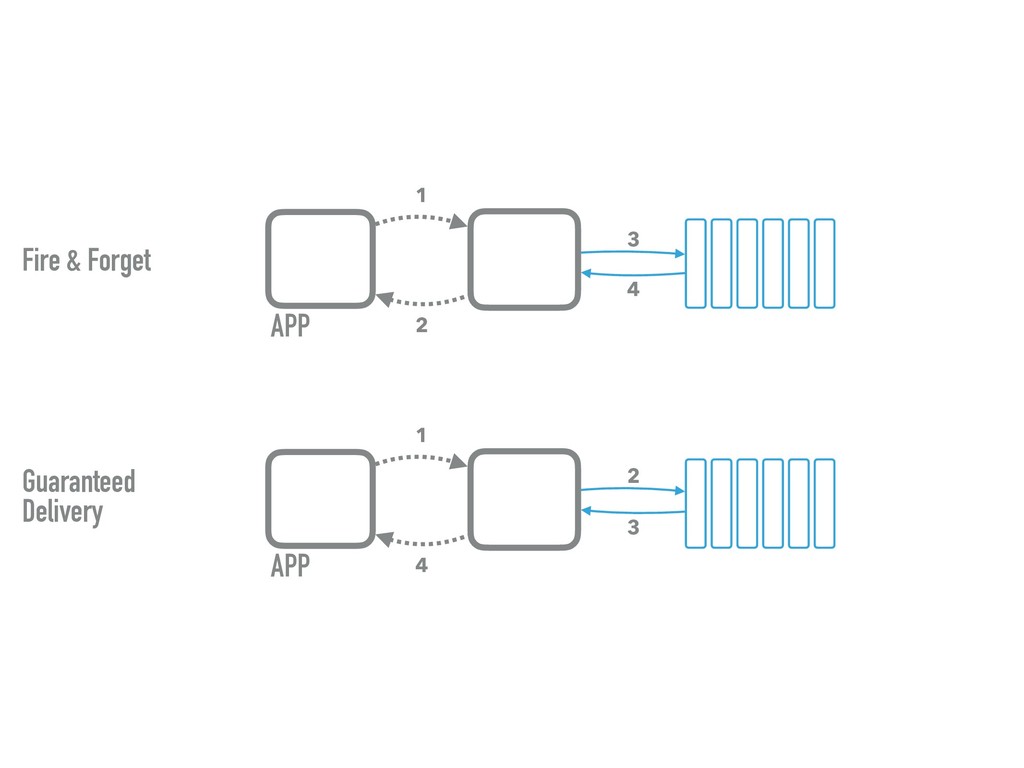

57. APP 1 2 3 APP 1 4 2 4 3 Fire & Forget
Guaranteed Delivery

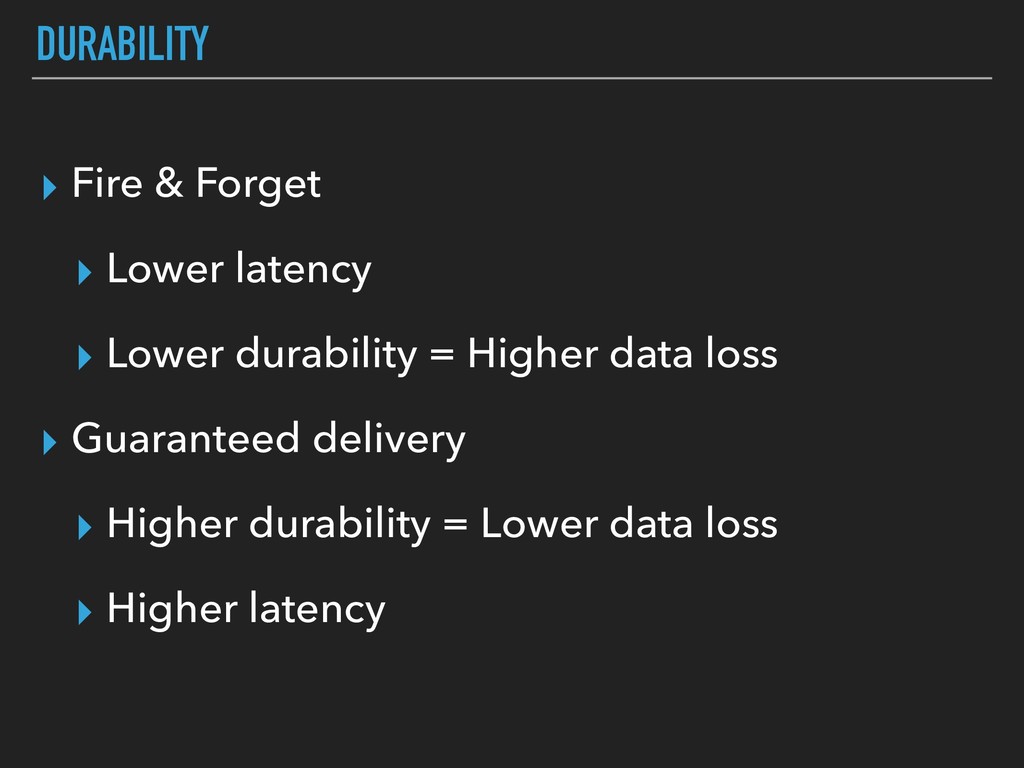

58. ▸ Fire & Forget ▸ Lower latency ▸ Lower durability = Higher data loss ▸ Guaranteed delivery ▸ Higher durability = Lower data loss ▸ Higher latency DURABILITY

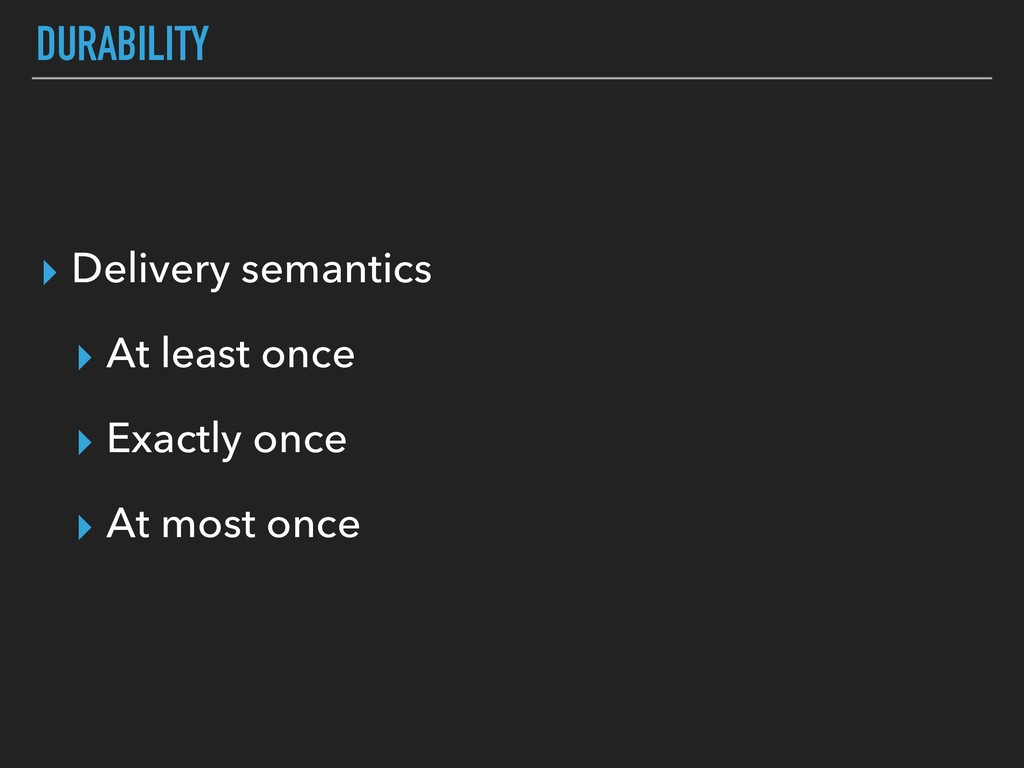

59. ▸ Delivery semantics ▸ At least once ▸ Exactly once ▸ At most once DURABILITY

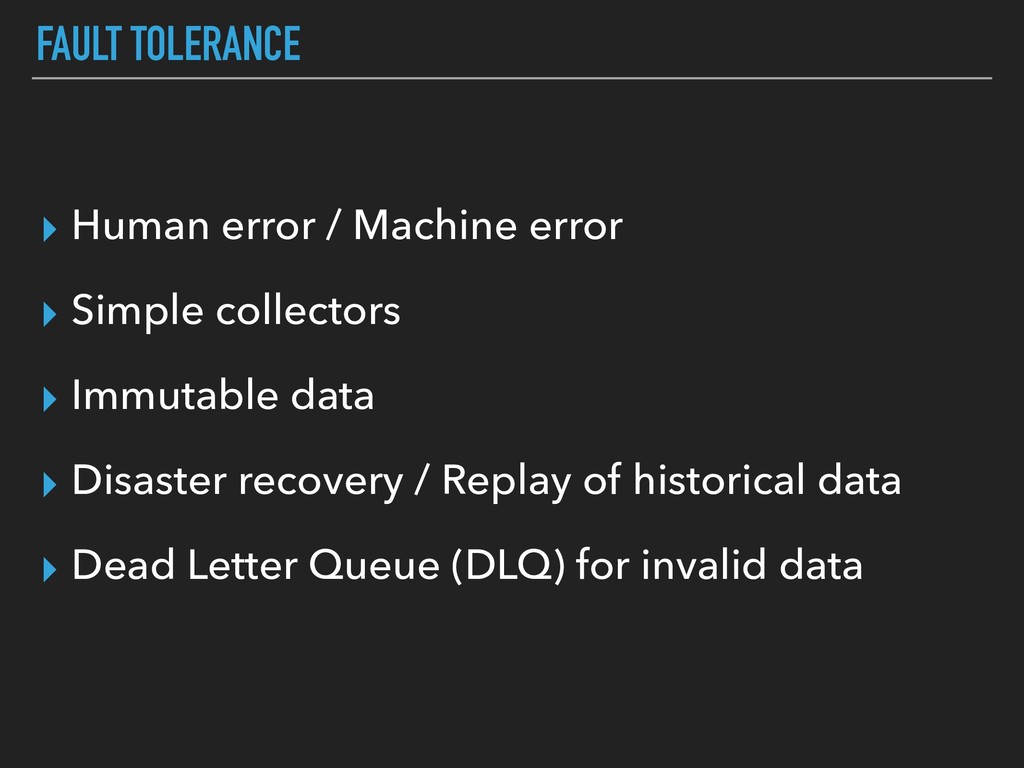

60. ▸ Human error / Machine error ▸ Simple collectors ▸ Immutable data ▸ Disaster recovery / Replay of historical data ▸ Dead Letter Queue (DLQ) for invalid data FAULT TOLERANCE

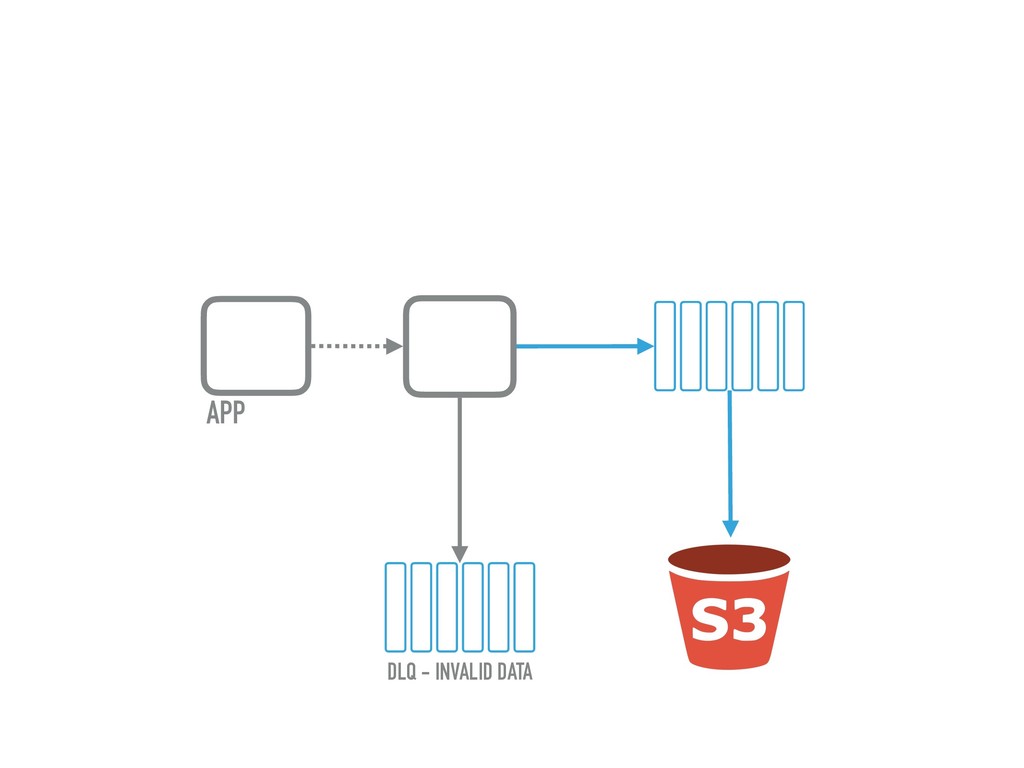

61. APP DLQ - INVALID DATA
62. ARCHITECTURE & Technologies 3/6
63. ARCHITECTURE & TECHNOLOGIES AS SIMPLE AS POSSIBLE, BUT NOT SIMPLER Albert Einstein

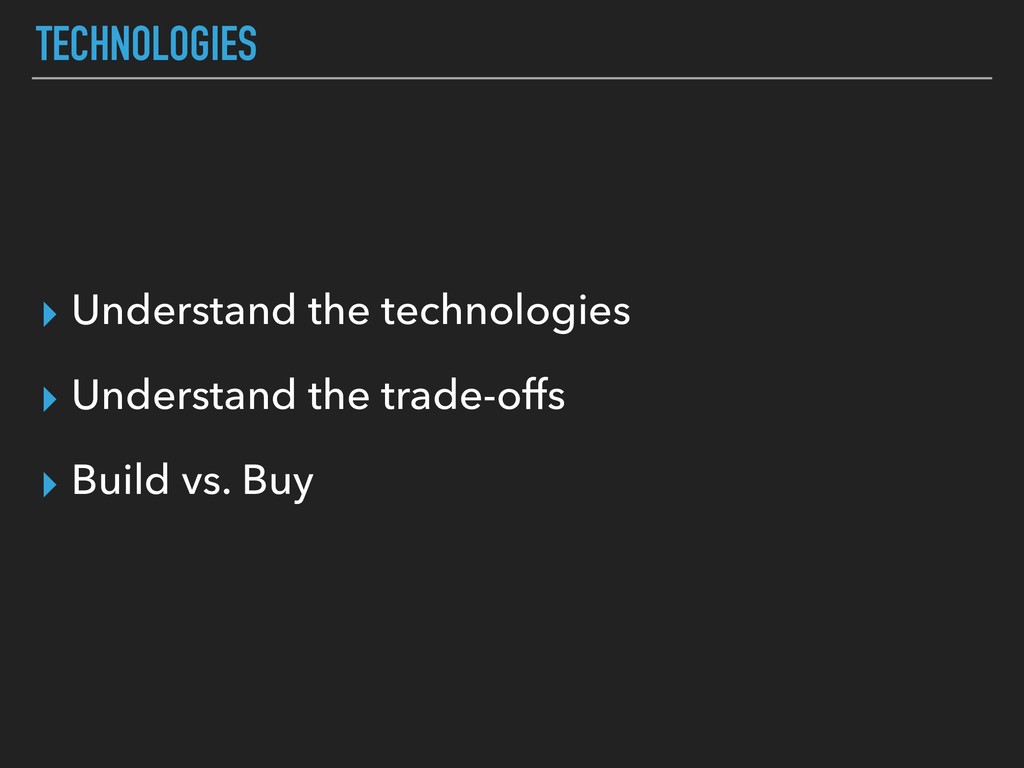

64. ▸ Understand the technologies ▸ Understand the trade-offs ▸ Build vs. Buy TECHNOLOGIES

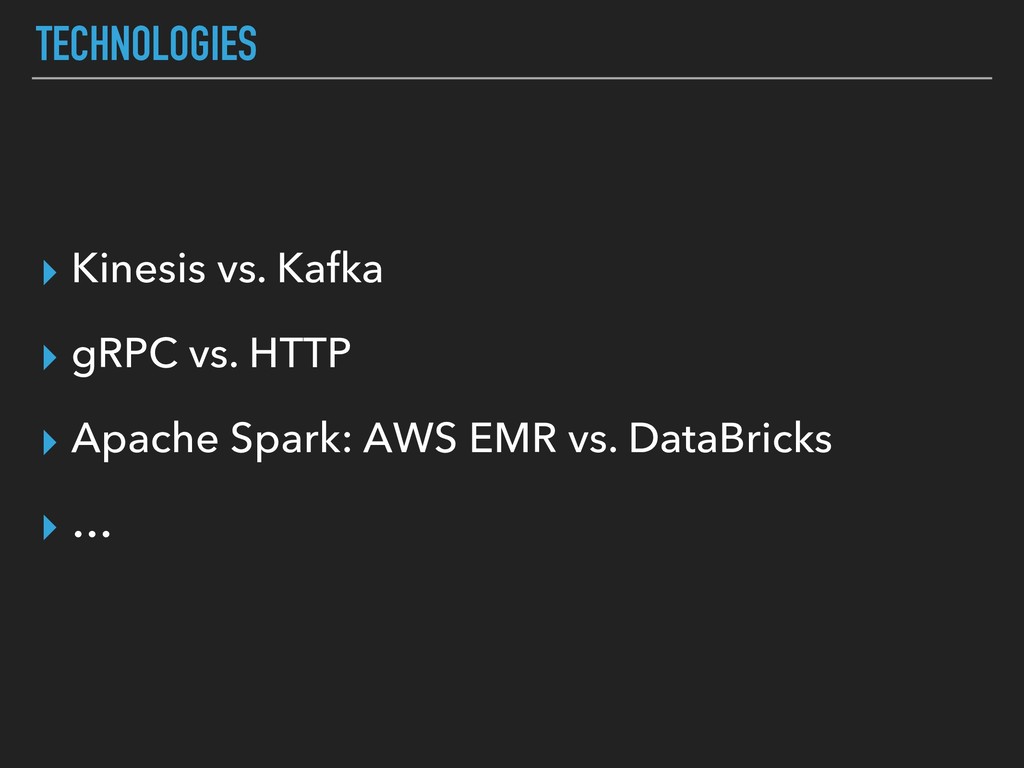

65. ▸ Kinesis vs. Kafka ▸ gRPC vs. HTTP ▸ Apache Spark: AWS EMR vs. DataBricks ▸ … TECHNOLOGIES

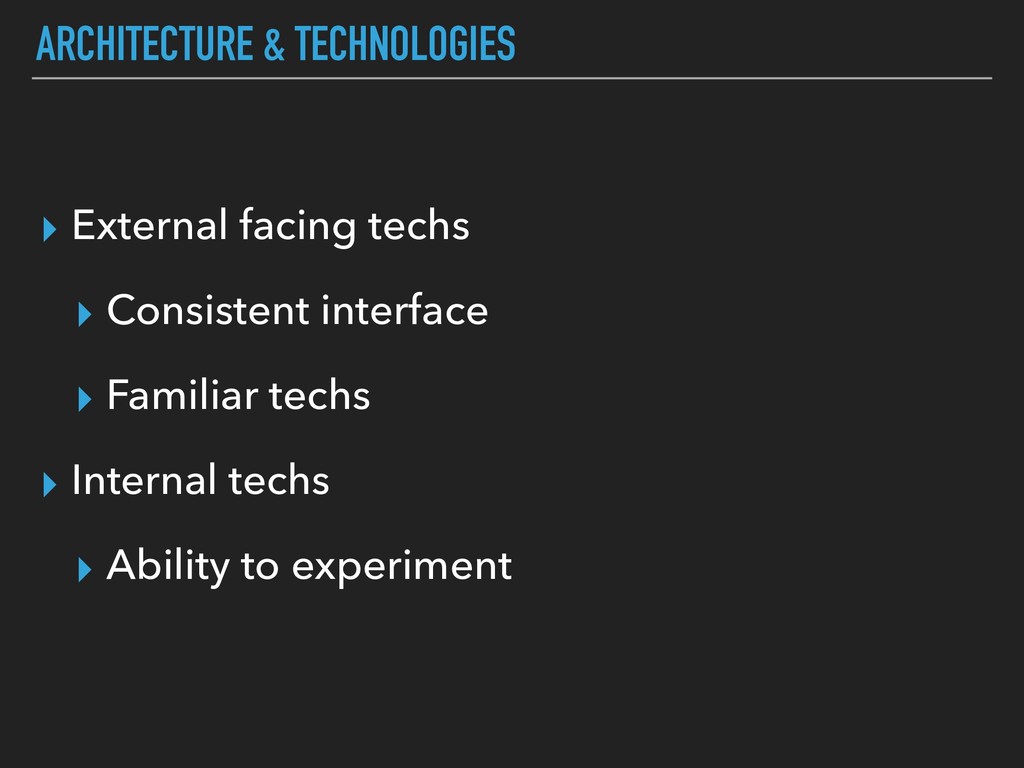

66. ▸ External facing techs ▸ Consistent interface ▸ Familiar techs ▸ Internal techs ▸ Ability to experiment ARCHITECTURE & TECHNOLOGIES
67. SDK Software Development Kit 4/6

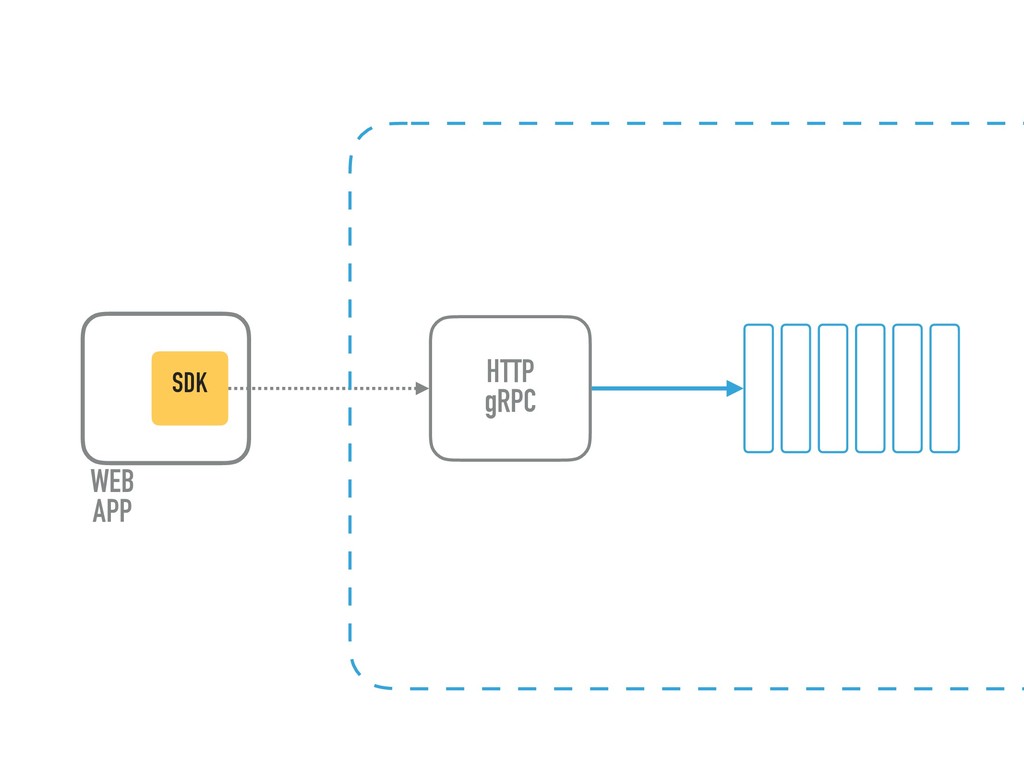

68.
HTTP gRPC WEB APP SDK

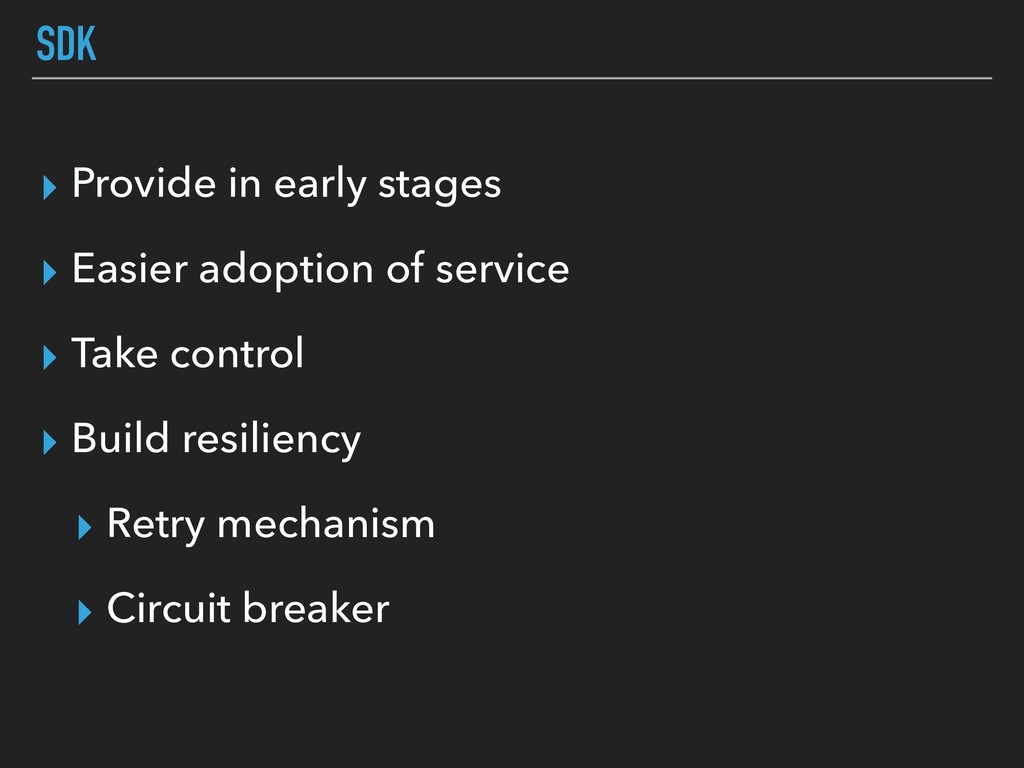

69. ▸ Provide in early stages ▸ Easier adoption of service ▸ Take control ▸ Build resiliency ▸ Retry mechanism ▸ Circuit breaker SDK
70. SECURITY Everyone’s Responsibility 5/6

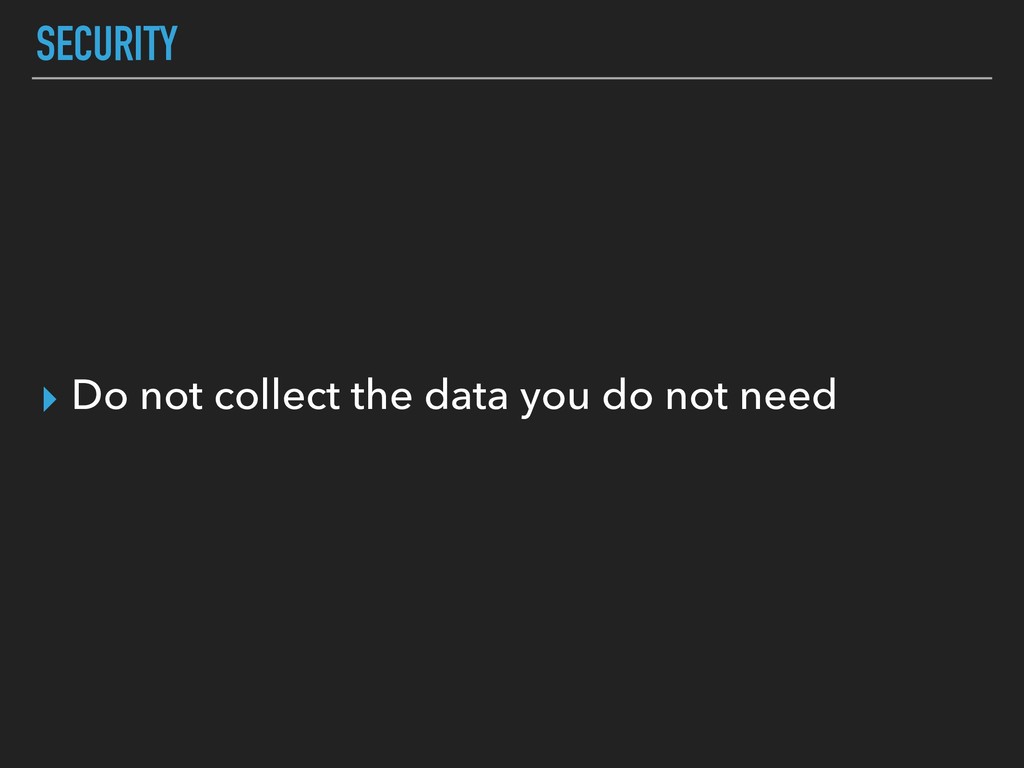

71. ▸ Do not collect the data you do not need SECURITY

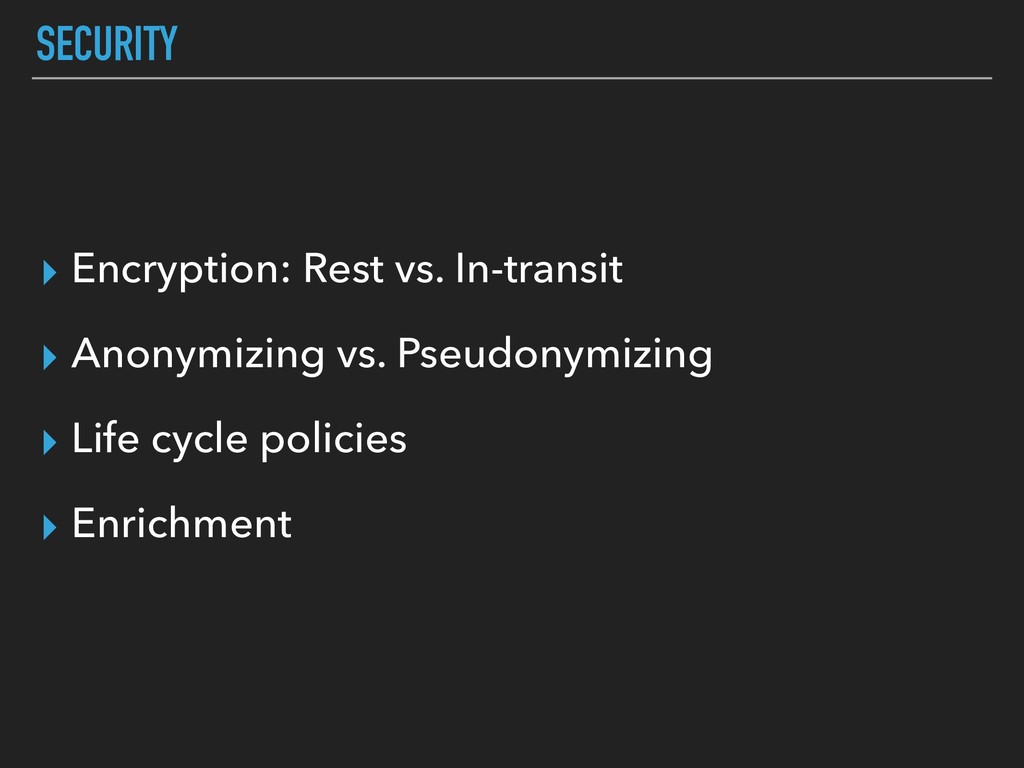

72. ▸ Encryption: Rest vs. In-transit ▸ Anonymizing vs. Pseudonymizing ▸ Life cycle policies ▸ Enrichment SECURITY
73. ▸ Multiple copies of the data? ▸ Right to be forgotten (GDPR) SECURITY
74. AUTOMATION 6/6

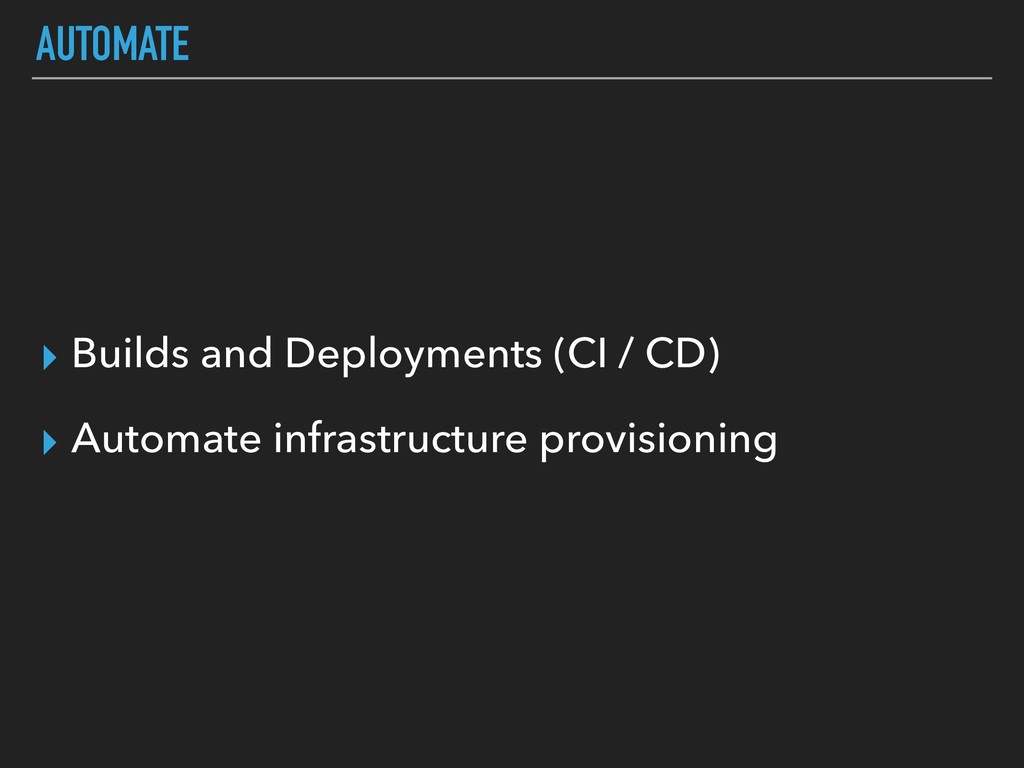

75. ▸ Builds and Deployments (CI / CD) ▸ Automate infrastructure provisioning AUTOMATE

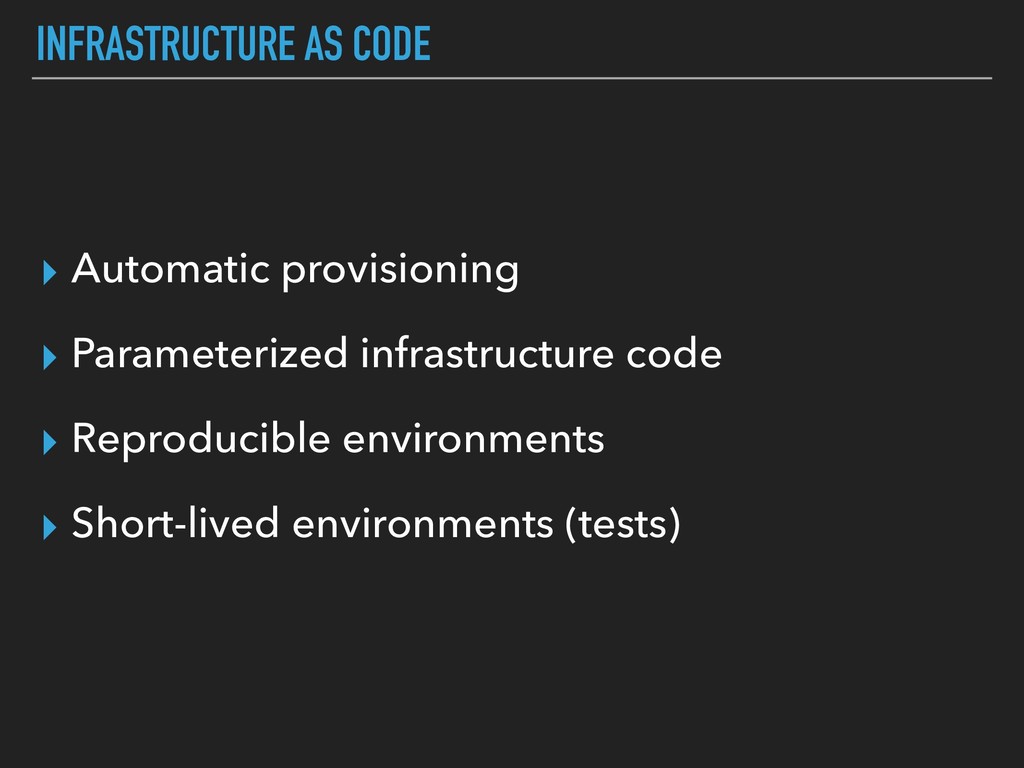

76. ▸ Automatic provisioning ▸ Parameterized infrastructure code ▸ Reproducible environments ▸ Short-lived environments (tests) INFRASTRUCTURE AS CODE

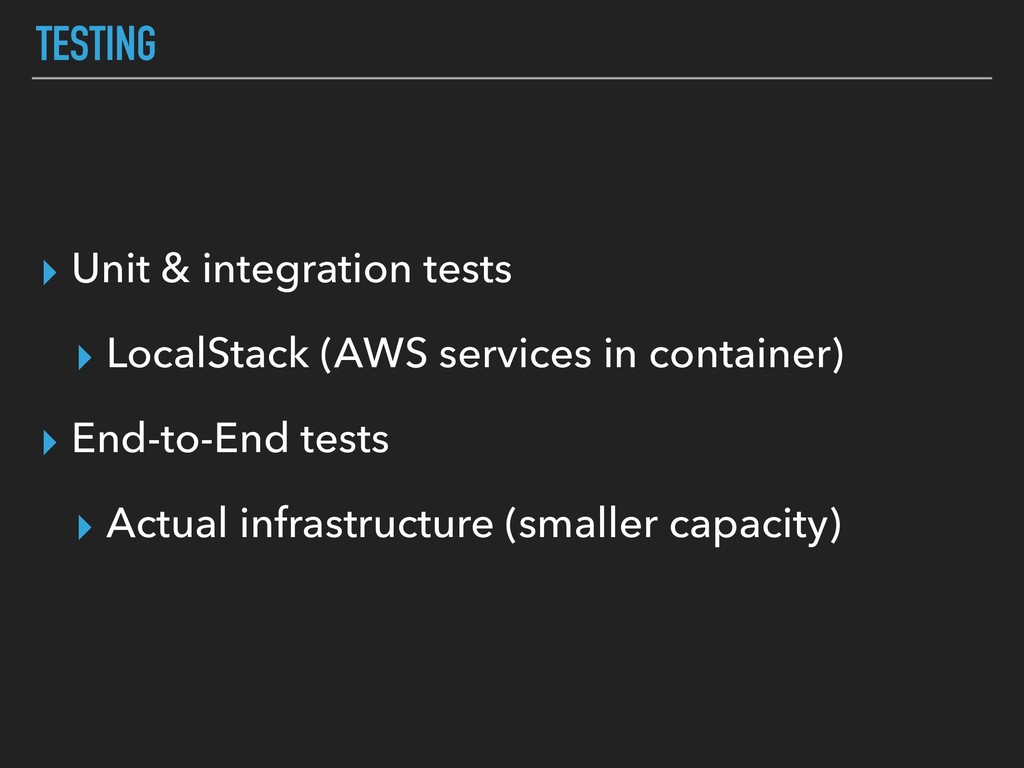

77. ▸ Unit & integration tests ▸ LocalStack (AWS services in container) ▸ End-to-End tests ▸ Actual infrastructure (smaller capacity) TESTING
78. TRADE-OFFS

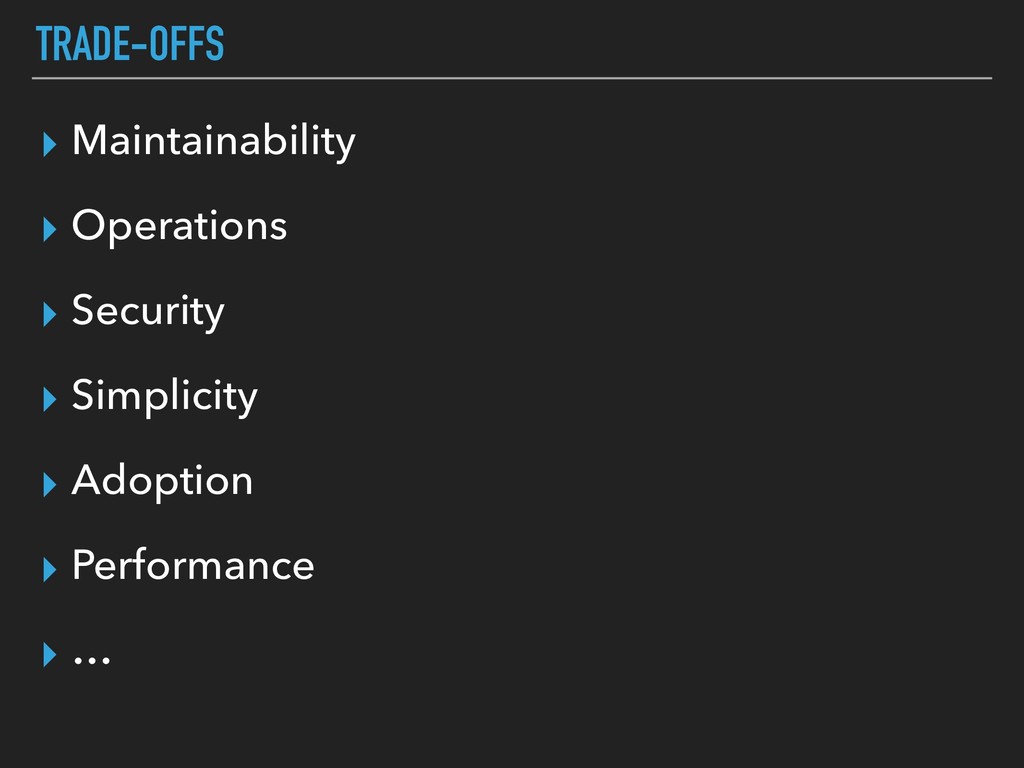

79. ▸ Maintainability ▸ Operations ▸ Security ▸ Simplicity ▸ Adoption ▸ Performance ▸ … TRADE-OFFS
80. INFORMED DECISIONS
81. QUESTIONS?

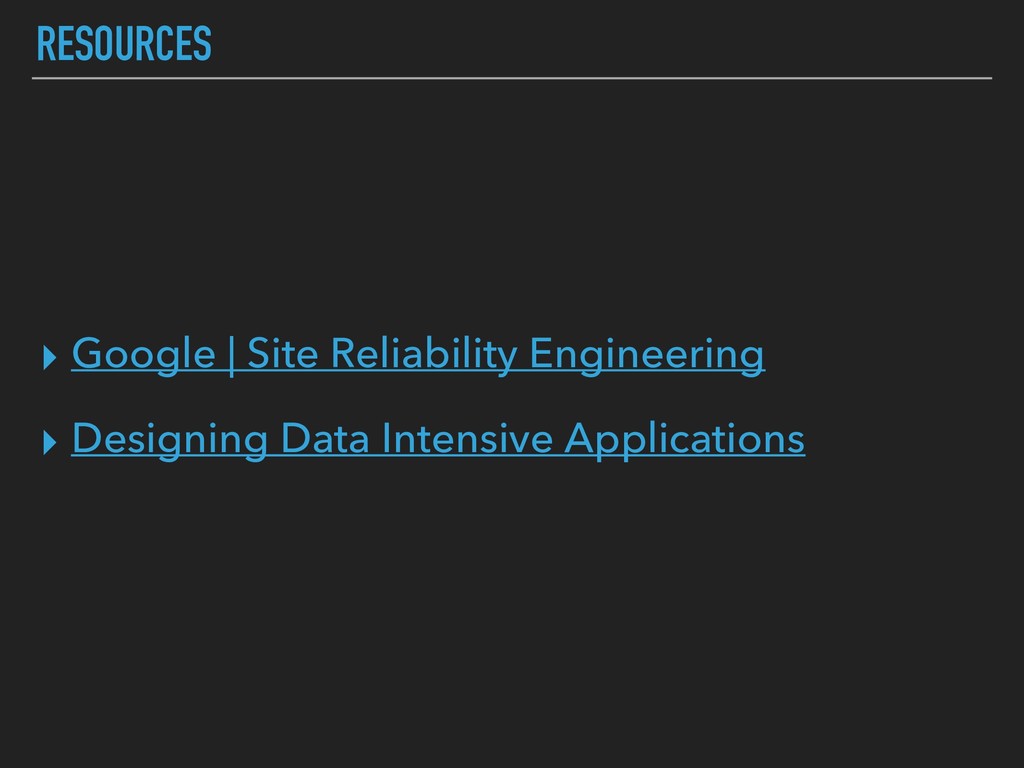

82. ▸ Google | Site Reliability Engineering ▸ Designing Data Intensive Applications RESOURCES
