@ManfredSteyer Web Components with Angular Elements: Beyond the Basics Manfred
Steyer SOFTWAREarchitekt.at ManfredSteyer
@ManfredSteyer
@ManfredSteyer [Igor Minar, Angular Connect 2018 Keynote]
@ManfredSteyer
@ManfredSteyer Angular Elements
@ManfredSteyer Web Components: Framework independent components
@ManfredSteyer Custom Elements: Framework independent components

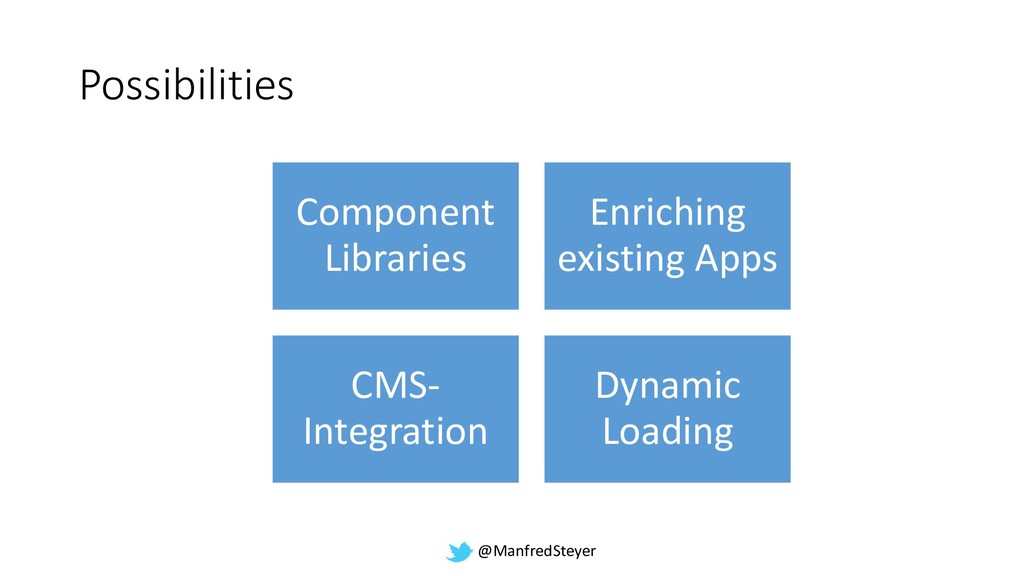

@ManfredSteyer Possibilities Component Libraries Enriching existing Apps CMS- Integration Dynamic
Loading

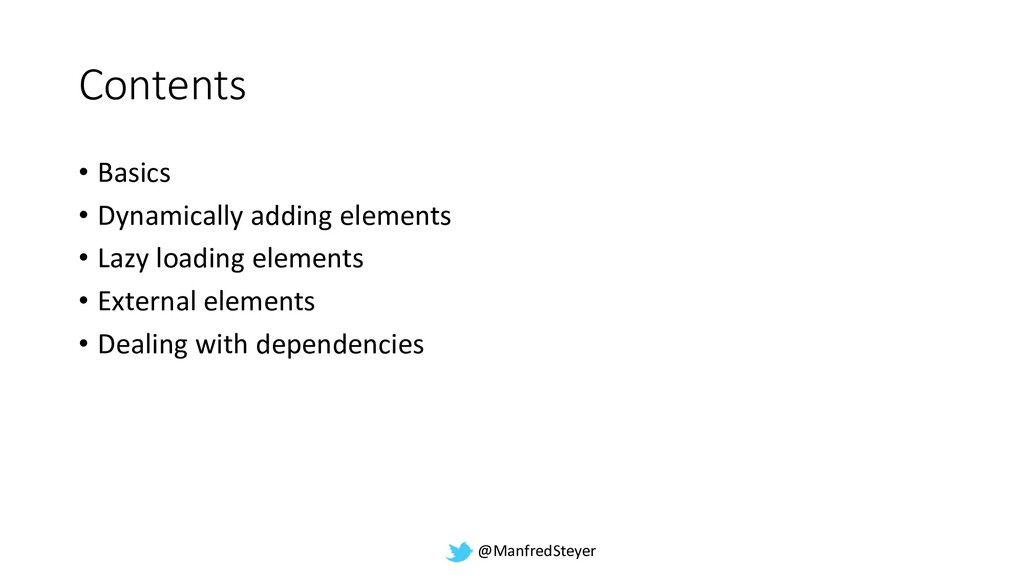

@ManfredSteyer Contents • Basics • Dynamically adding elements • Lazy
loading elements • External elements • Dealing with dependencies
@ManfredSteyer About me … • Manfred Steyer SOFTWAREarchitekt.at • Angular
Trainings and Consultancy • Google Developer Expert (GDE) • Angular Trusted Collaborator Page ▪ 10 Manfred Steyer Public: Vienna, Munich, Frankfurt In-House: Everywhere in Europe http://www.softwarearchitekt.at/workshops
@ManfredSteyer 1) Basics

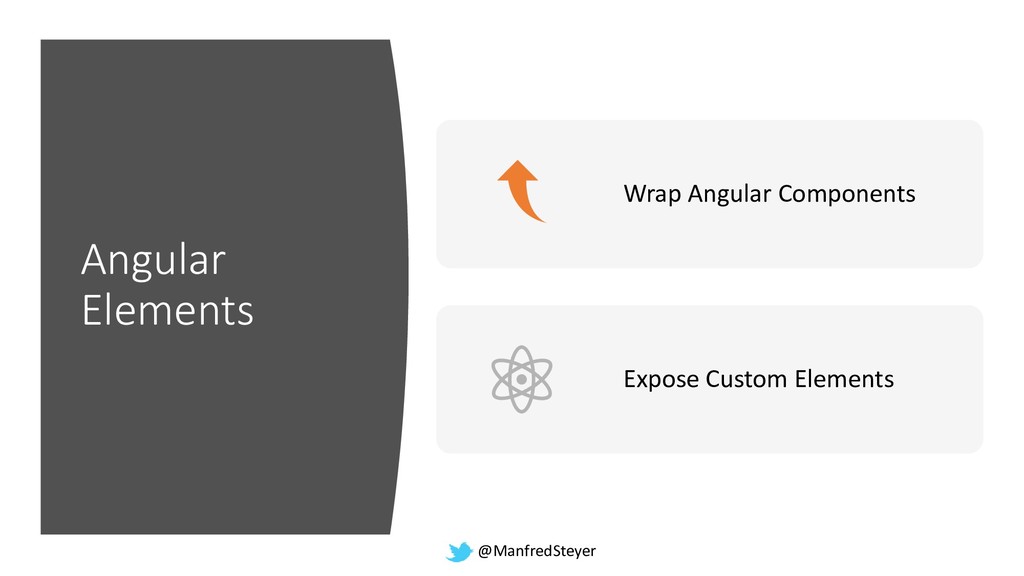

@ManfredSteyer Angular Elements Wrap Angular Components Expose Custom Elements
@ManfredSteyer Angular Elements @NgModule({ imports: [BrowserModule], declarations: [DateComponent], entryComponents: [DateComponent]
}) export class AppModule { }
@ManfredSteyer Angular Elements @NgModule({ imports: [BrowserModule], declarations: [DateComponent], entryComponents: [DateComponent]
}) export class AppModule { }

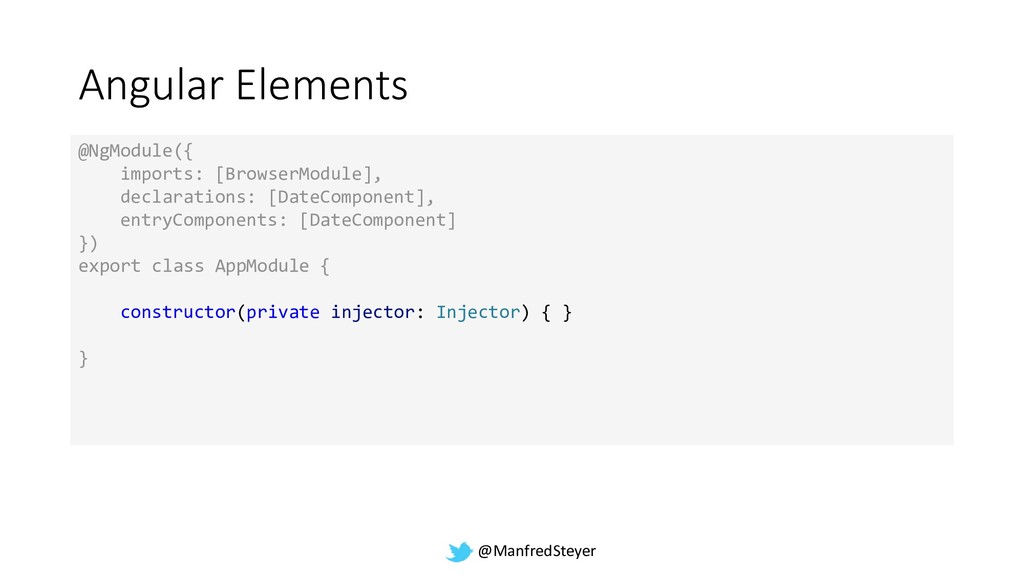

@ManfredSteyer Angular Elements @NgModule({ imports: [BrowserModule], declarations: [DateComponent], entryComponents: [DateComponent]
}) export class AppModule { constructor(private injector: Injector) { } }

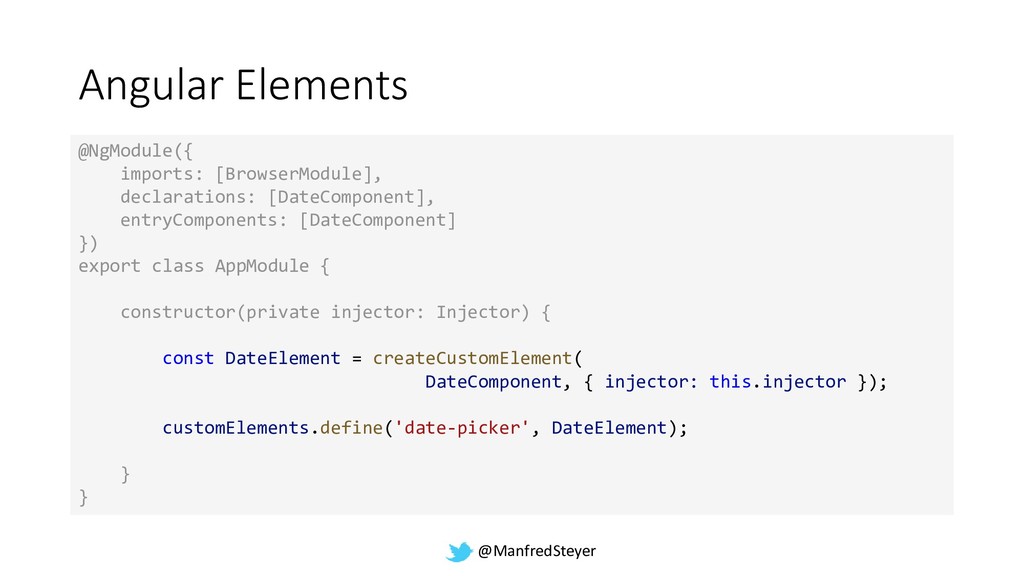

@ManfredSteyer Angular Elements @NgModule({ imports: [BrowserModule], declarations: [DateComponent], entryComponents: [DateComponent]
}) export class AppModule { constructor(private injector: Injector) { const DateElement = createCustomElement( DateComponent, { injector: this.injector }); customElements.define('date-picker', DateElement); } }
@ManfredSteyer
@ManfredSteyer 2) Dynamic Elements

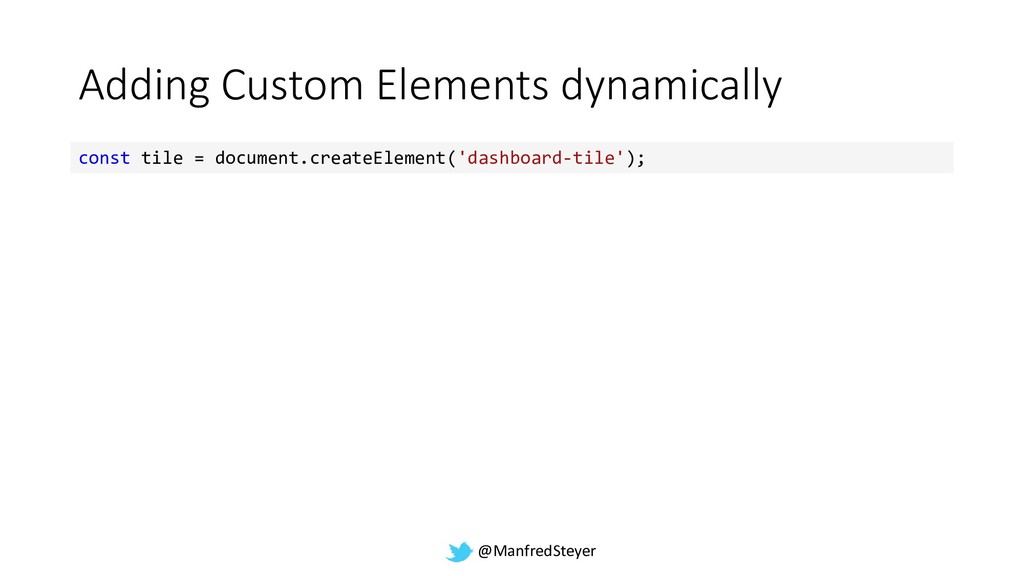

@ManfredSteyer Adding Custom Elements dynamically const tile = document.createElement('dashboard-tile');

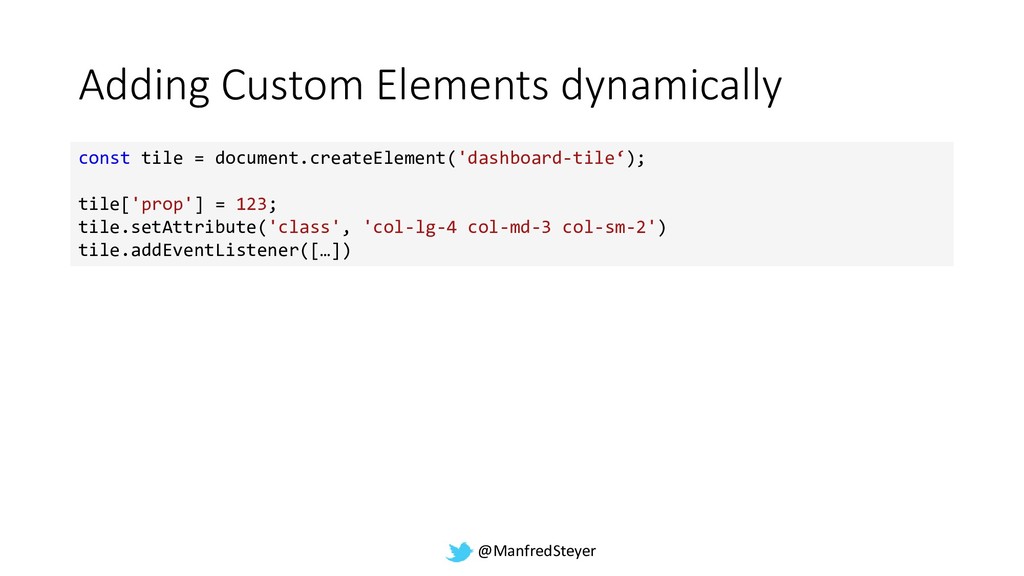

@ManfredSteyer Adding Custom Elements dynamically const tile = document.createElement('dashboard-tile‘); tile['prop']
= 123; tile.setAttribute('class', 'col-lg-4 col-md-3 col-sm-2') tile.addEventListener([…])

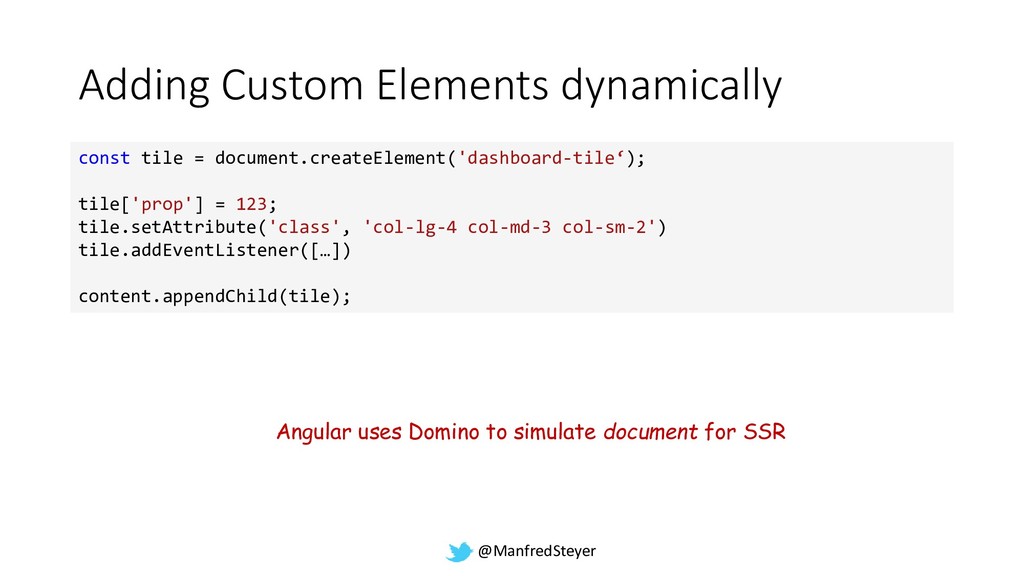

@ManfredSteyer Adding Custom Elements dynamically const tile = document.createElement('dashboard-tile‘); tile['prop']
= 123; tile.setAttribute('class', 'col-lg-4 col-md-3 col-sm-2') tile.addEventListener([…]) content.appendChild(tile); Angular uses Domino to simulate document for SSR
@ManfredSteyer DEMO
@ManfredSteyer 3) Lazy Elements
@ManfredSteyer Lazy Loading Register module in angular.json Load with with
NgModuleFactoryLoader
@ManfredSteyer Register in angular.json "lazyModules": [ "[…]/lazy-dashboard-tile.module.ts" ],
@ManfredSteyer Lazy Loading @Injectable({ providedIn: 'root' }) export class LazyDashboardTileService
{ }
@ManfredSteyer Lazy Loading @Injectable({ providedIn: 'root' }) export class LazyDashboardTileService
{ constructor( private loader: NgModuleFactoryLoader, private injector: Injector ) {} }
@ManfredSteyer Lazy Loading @Injectable({ providedIn: 'root' }) export class LazyDashboardTileService
{ constructor( private loader: NgModuleFactoryLoader, private injector: Injector ) {} load(): Promise<void> { return this.loader.load(path).then(moduleFactory => { }); } }
@ManfredSteyer Lazy Loading @Injectable({ providedIn: 'root' }) export class LazyDashboardTileService
{ constructor( private loader: NgModuleFactoryLoader, private injector: Injector ) {} load(): Promise<void> { return this.loader.load(path).then(moduleFactory => { moduleFactory.create(this.injector); […] }); } }
@ManfredSteyer DEMO
@ManfredSteyer 4) External Elements
@ManfredSteyer Project A Custom Element Custom Element Bundle Project B
@ManfredSteyer Register Custom Element when bootstrapping Compile application to self
contained bundle Load bundle into consumer 3 Steps
@ManfredSteyer Compile to self-contained bundle

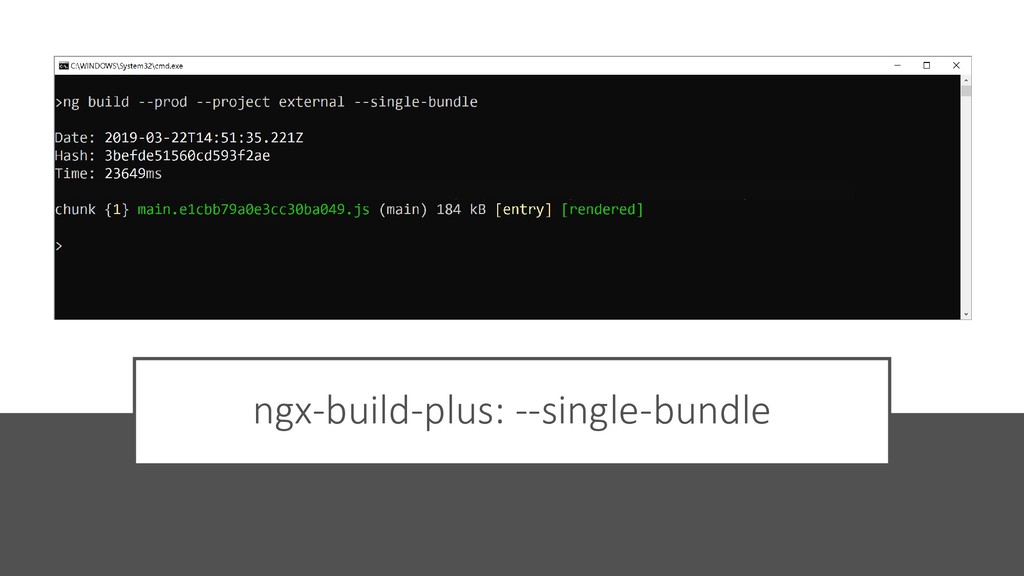

@ManfredSteyer ngx-build-plus: --single-bundle
@ManfredSteyer Load into consumer const script = document.createElement('script'); script.src =
'assets/external-dashboard-tile.bundle.js'; document.body.appendChild(script);
@ManfredSteyer DEMO
@ManfredSteyer 6) Dealing with Dependencies

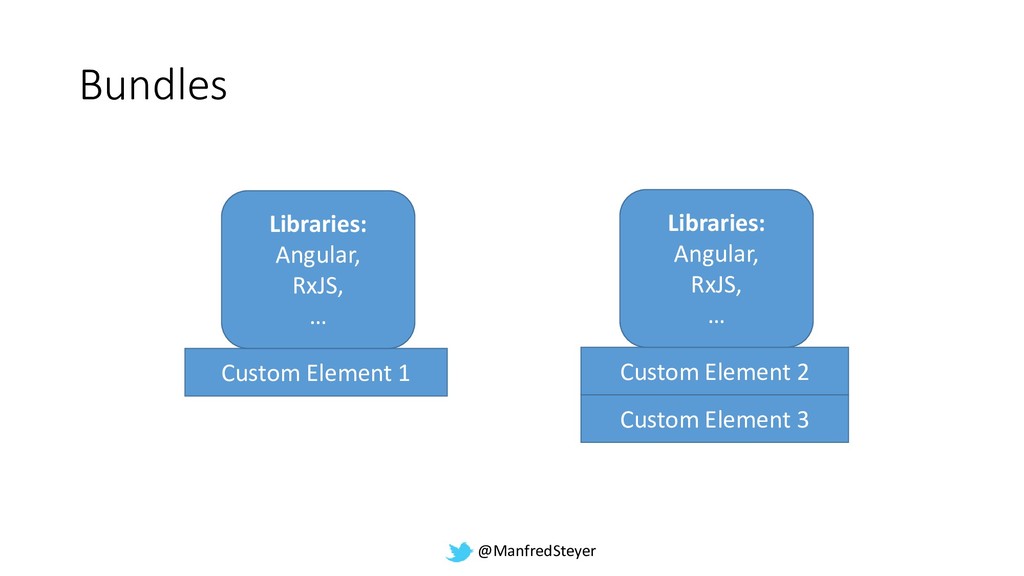

@ManfredSteyer Bundles Custom Element 1 Custom Element 2 Custom Element
3 Libraries: Angular, RxJS, … Libraries: Angular, RxJS, …

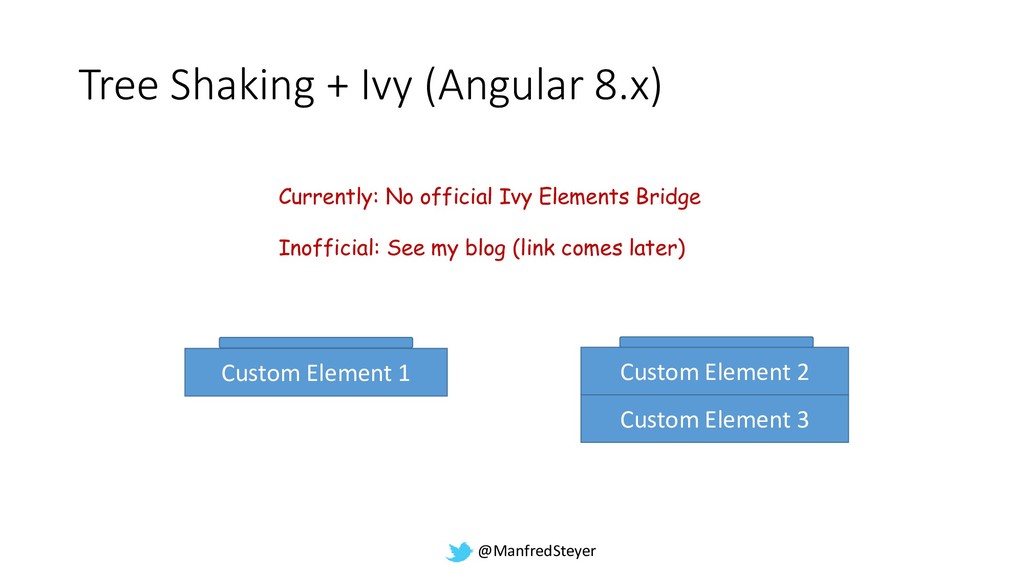

@ManfredSteyer Tree Shaking + Ivy (Angular 8.x) Custom Element 1
Custom Element 2 Custom Element 3 Currently: No official Ivy Elements Bridge Inofficial: See my blog (link comes later)
@ManfredSteyer

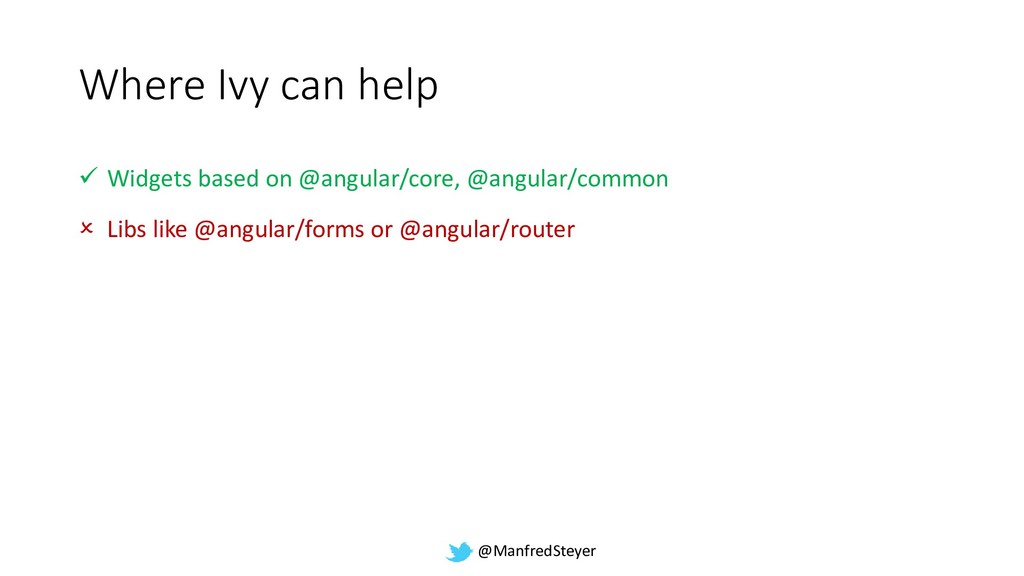

@ManfredSteyer Where Ivy can help ✓ Widgets based on @angular/core,
@angular/common Libs like @angular/forms or @angular/router
@ManfredSteyer Sharing Libs Custom Element 1 Custom Element 2 Custom
Element 3 Libraries: Angular, RxJS, … UMD Drawbacks: Complexity, no isolation

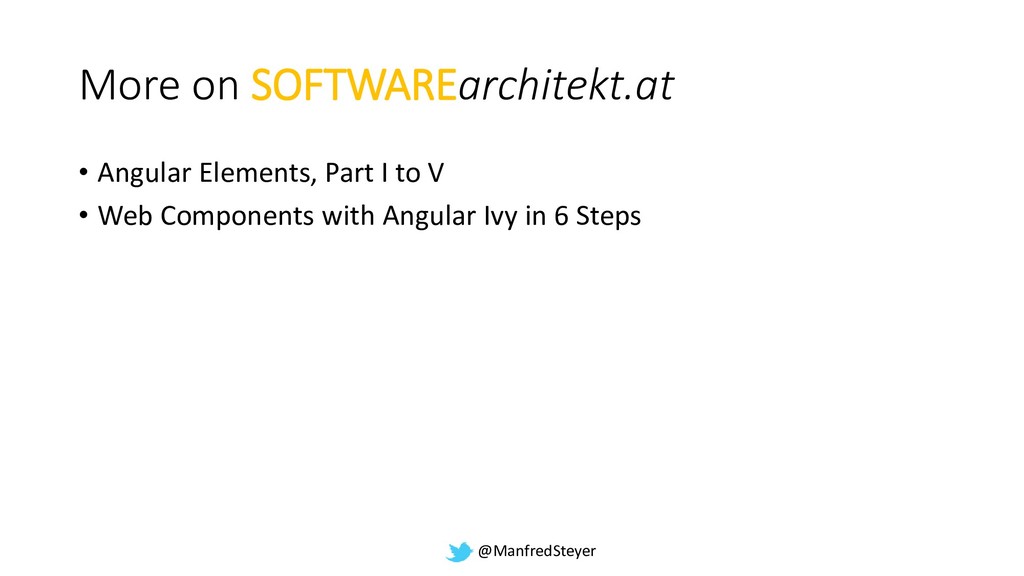

@ManfredSteyer More on SOFTWAREarchitekt.at • Angular Elements, Part I to
V • Web Components with Angular Ivy in 6 Steps

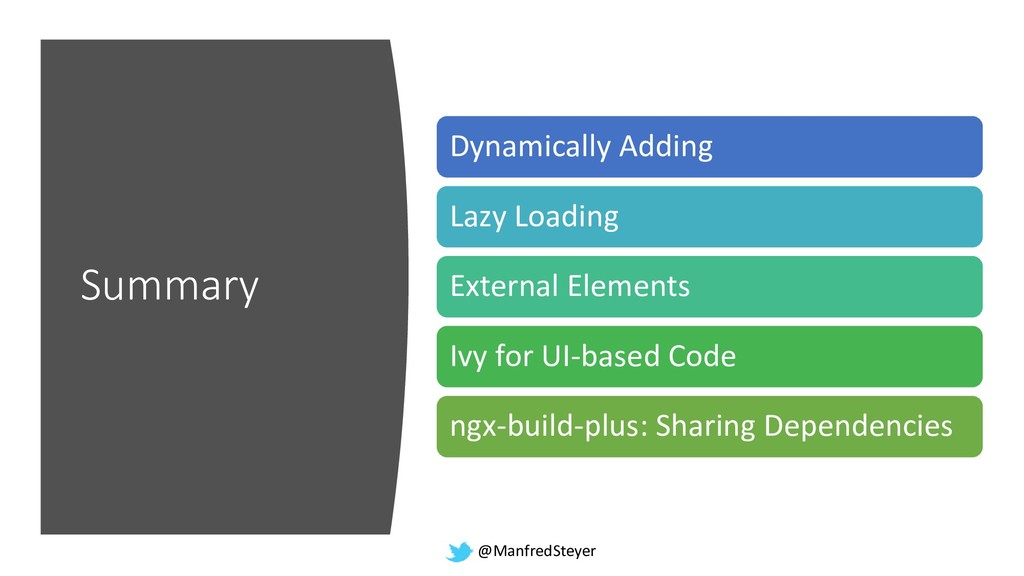

@ManfredSteyer Summary Dynamically Adding Lazy Loading External Elements Ivy for
UI-based Code ngx-build-plus: Sharing Dependencies

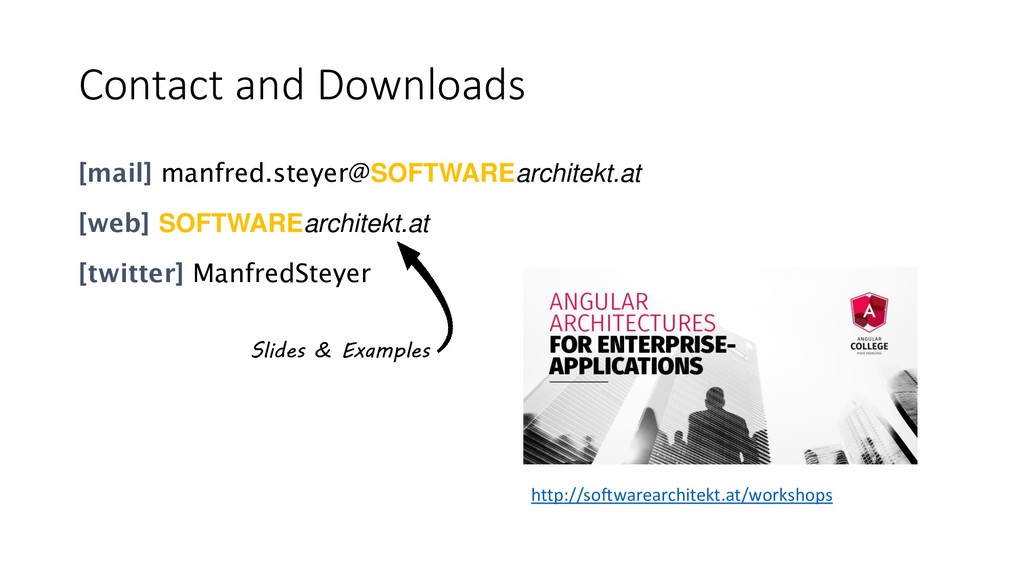

@ManfredSteyer Contact and Downloads [mail]
[email protected]
[web] SOFTWAREarchitekt.at [twitter] ManfredSteyer
d http://softwarearchitekt.at/workshops Slides & Examples
