Architectures for huge Angular based enterprise applications

Transcript

1. @ManfredSteyer Architectures for huge Angular based enterprise applications Manfred Steyer SOFTWAREarchitekt.at ManfredSteyer
2. @ManfredSteyer Ever started a project from scratch? Kick-off After some weeks After some years
3. @ManfredSteyer Contents 1) npm Packages 2) Monorepo 3) Micro Apps 4) How to choose?
4. @ManfredSteyer About me… • Manfred Steyer SOFTWAREarchitekt.at • Angular Trainings and Consultancy • Google Developer Expert (GDE) • Trusted Collaborater for Angular Page ▪ 4 Manfred Steyer Public: Frankfurt, Stuttgart, Wien In-House: everywhere http://softwarearchitekt.at/workshops
5. @ManfredSteyer 1) npm Packages
6. @ManfredSteyer Why Packages? Sub Project Sub Project Sub Project Sub Project Sub Project Sub Project Sub Project Sub Project
7. @ManfredSteyer Angular CLI 6+ supports Packages
8. @ManfredSteyer Create npm-Packages with CLI >= 6 ng new lib-project cd lib-project ng generate library flight-booking-lib ng generate application playground-app ng serve --project playground-app ng build --project flight-booking-lib cd dist/flight-booking-lib npm publish --registry http://...
9. @ManfredSteyer Advantages • Distribution • Versioning
10. @ManfredSteyer Disadvantages • Distribution • Versioning ;-)
11. @ManfredSteyer Disadvantages Distribution • Annoying within project Versioning • Old versions • Conflicts • How to force devs to use latest version?
12. @ManfredSteyer 2) Monorepos

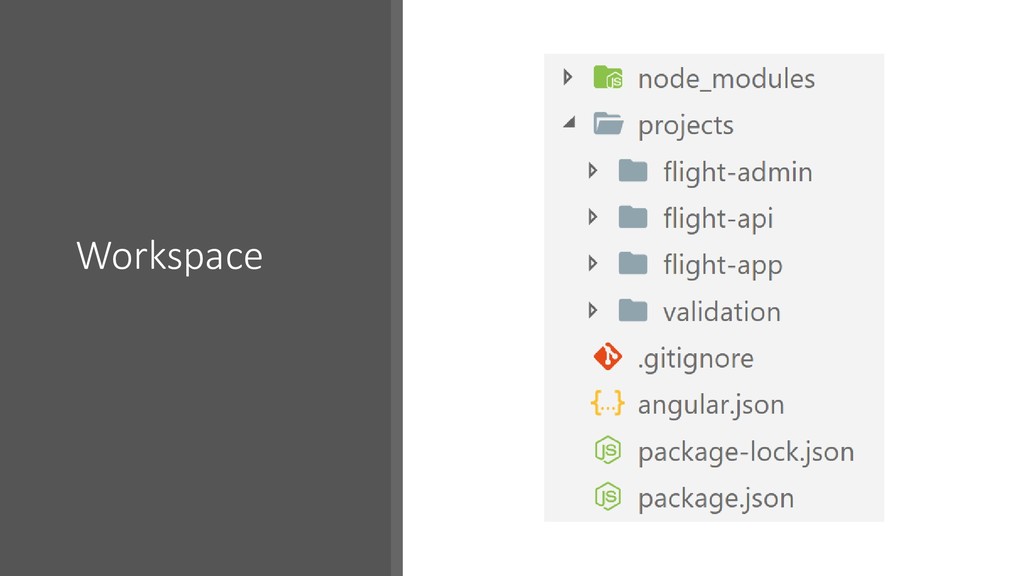

13. @ManfredSteyer Workspace
14. @ManfredSteyer Advantages Everyone uses the latest versions No version conflicts No burden with distributing libs Creating new libs: Adding folder Experience: Successfully used at Google, Facebook, …
15. @ManfredSteyer Moving back and forth Npm Registry

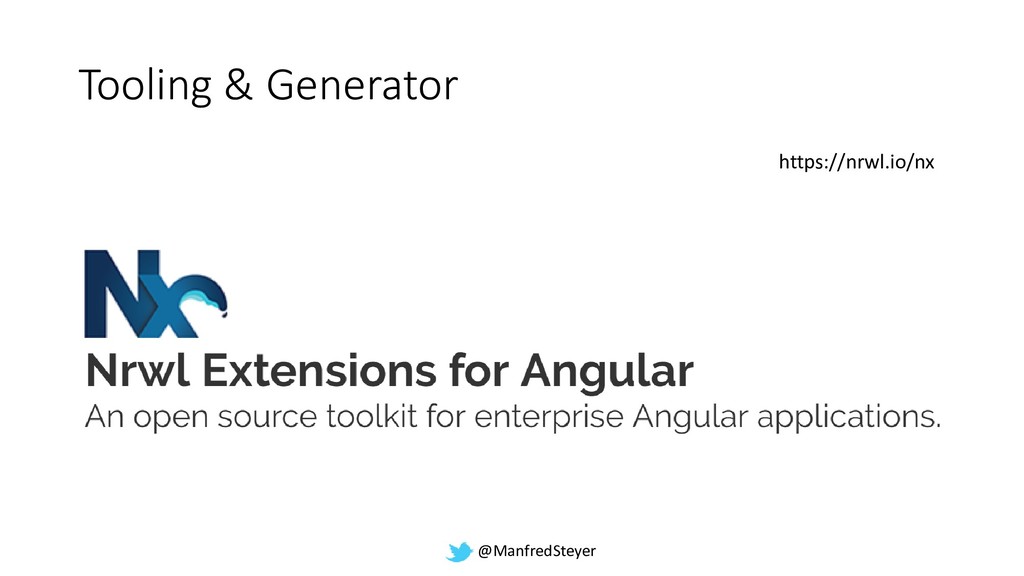

16. @ManfredSteyer Tooling & Generator https://nrwl.io/nx
17. @ManfredSteyer Visualize Module Structure
18. @ManfredSteyer Advantages Sub Project Sub Project Sub Project Sub Project Sub Project Sub Project Sub Project Sub Project
19. @ManfredSteyer Disadvantages Sub Project Sub Project Sub Project Sub Project Sub Project Sub Project Sub Project Sub Project
20. @ManfredSteyer Disadvantages Sub Project Sub Project Sub Project Sub Project Sub Project Sub Project Sub Project Sub Project Team A Team B Contract Maintainability? One Architecture/ One Framework
21. @ManfredSteyer 3) Micro Apps
22. @ManfredSteyer Idea System
23. @ManfredSteyer Idea µService µService µService
24. @ManfredSteyer Idea µApp µApp µApp

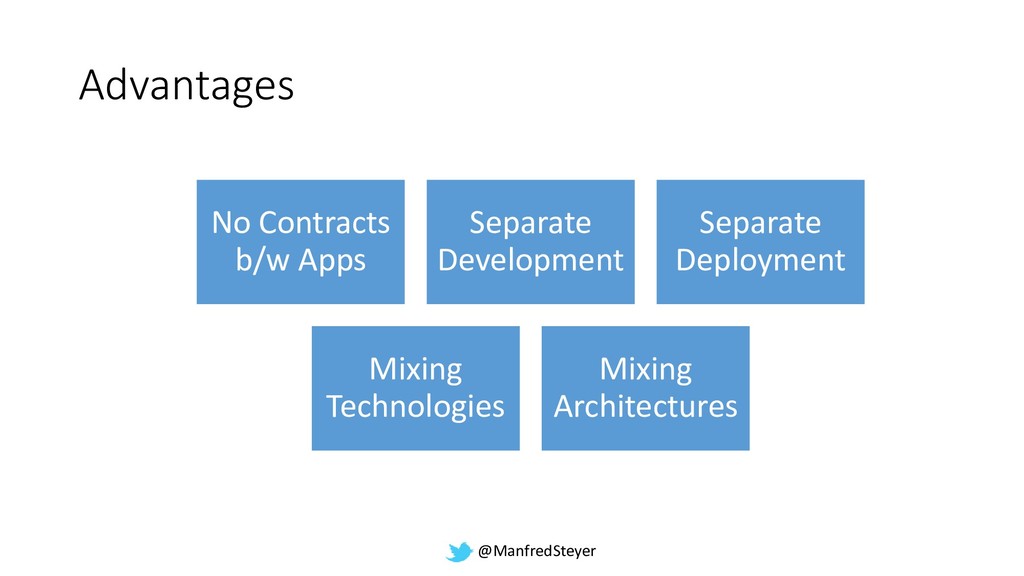

25. @ManfredSteyer Advantages No Contracts b/w Apps Separate Development Separate Deployment Mixing Technologies Mixing Architectures
26. @ManfredSteyer UI Composition w/ Hyperlinks µApp SPA µApp SPA µApp SPA <a href="…>…</a> <a href="…>…</a>
27. @ManfredSteyer ✓ Simple  Loosing State  Load a new Application
28. @ManfredSteyer
29. @ManfredSteyer Web Components for Shared Widgets?
30. @ManfredSteyer µService Providing a (SPA based) Shell µApp µApp µApp Shell
31. @ManfredSteyer µService Providing a (SPA based) Shell µApp µApp µApp Shell ▪ iframes ▪ Bootstrapping several SPAs ▪ Consider Lazy Loading!
32. @ManfredSteyer DEMO
33. @ManfredSteyer Advantages • Several small and decoupled Projects • Autarkic Teams • Seperate development/ deployment • Own decisions (technology, architecture)
34. @ManfredSteyer Disadvantages ;-) • Several small and decoupled Projects • Autarkic Teams • Seperate development/ deployment • Own decisions (technology, architecture)
35. @ManfredSteyer Disadvantages ;-) • More Bundles • Less optimized Bundles/ duplicate Code? • UI Consistency
36. @ManfredSteyer 4) Choosing a Solution
37. @ManfredSteyer Some General Advice Shared state, navigation b/w apps Hyperlinks Legacy Apps or *very very* strong isolation? iframes Separate Deployment/ mix Technologies? Bootstrap several SPAs Monorepo little much yes no yes no Not a good fit for public web sites
38. @ManfredSteyer Blog > SOFTWAREarchitekt.at • A Software Architect's Approach Towards Using Angular (And SPAs In General) For Microservices Aka Microfrontends • A Lightweight And Solid Approach Towards Micro Frontends (Micro Service Clients) With Angular And/Or Other Frameworks • Micro Apps With Web Components Using Angular Elements
39. @ManfredSteyer Conclusion Packages: Reuse Monorepo: Structure Micro Apps: Decoupling CLI 6+ CLI 6+/ Nx Links, iframes, Several SPAs
40. @ManfredSteyer Beware the Frankenstein- Monster!!
41. @ManfredSteyer Contact and Downloads [mail] manfred.steyer@SOFTWAREarchitekt.at [web] SOFTWAREarchitekt.at [twitter] ManfredSteyer d Slides & Examples http://softwarearchitekt.at/workshops
