Architectures for huge Angular based enterprise applications @NGBE Meetup, Oct 2018

@ManfredSteyer Architectures for huge Angular based enterprise applications Manfred Steyer
SOFTWAREarchitekt.at ManfredSteyer

@ManfredSteyer About me… • Manfred Steyer • SOFTWAREarchitekt.at • Angular
Trainings and Consultancy • Google Developer Expert (GDE) Page ▪ 2 Manfred Steyer Public: Vienna, München, Zürich In-House: everywhere http://softwarearchitekt.at/workshops

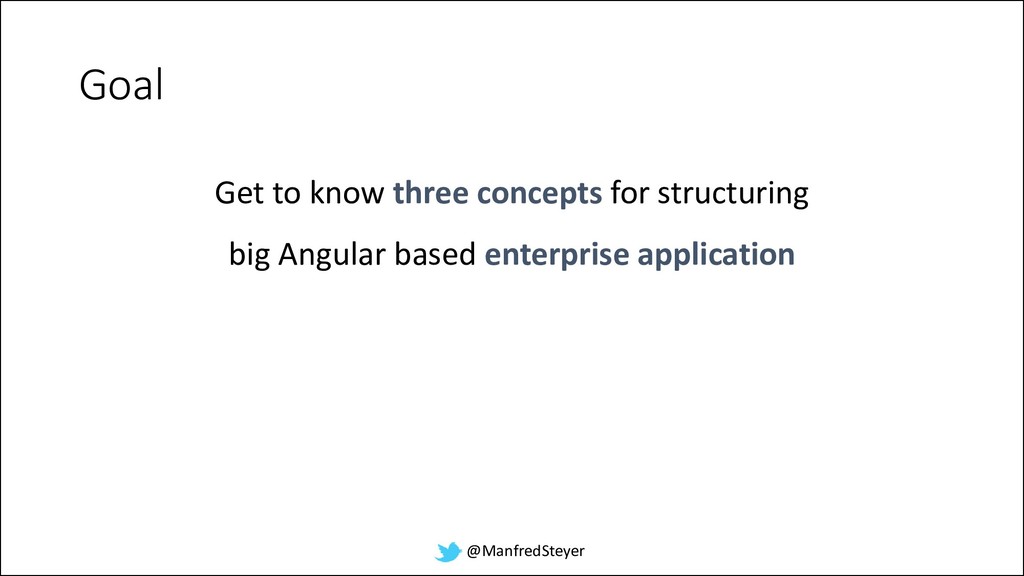

@ManfredSteyer Goal Get to know three concepts for structuring big
Angular based enterprise application

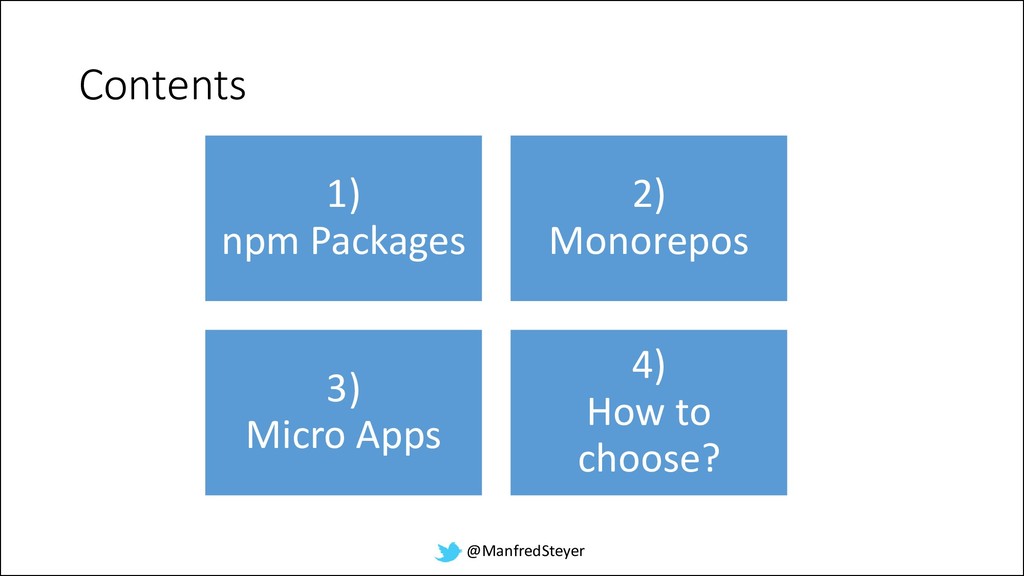

@ManfredSteyer Contents 1) npm Packages 2) Monorepos 3) Micro Apps
4) How to choose?

@ManfredSteyer 1) npm Packages

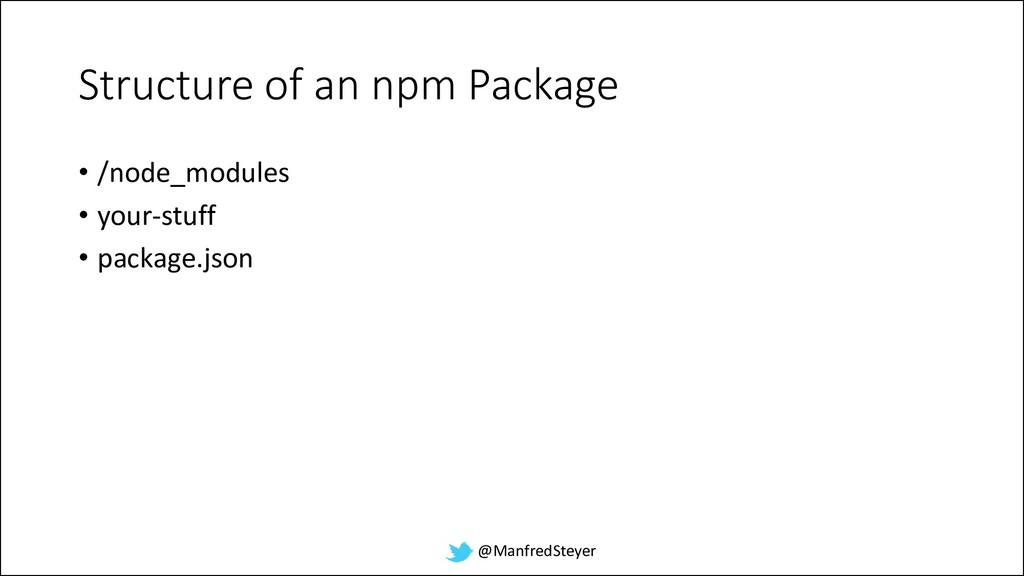

@ManfredSteyer Structure of an npm Package • /node_modules • your-stuff
• package.json

@ManfredSteyer Angular Package Format https://goo.gl/hjt7G3

@ManfredSteyer Lots of DETAILS

@ManfredSteyer Angular CLI 6+ supports Packages

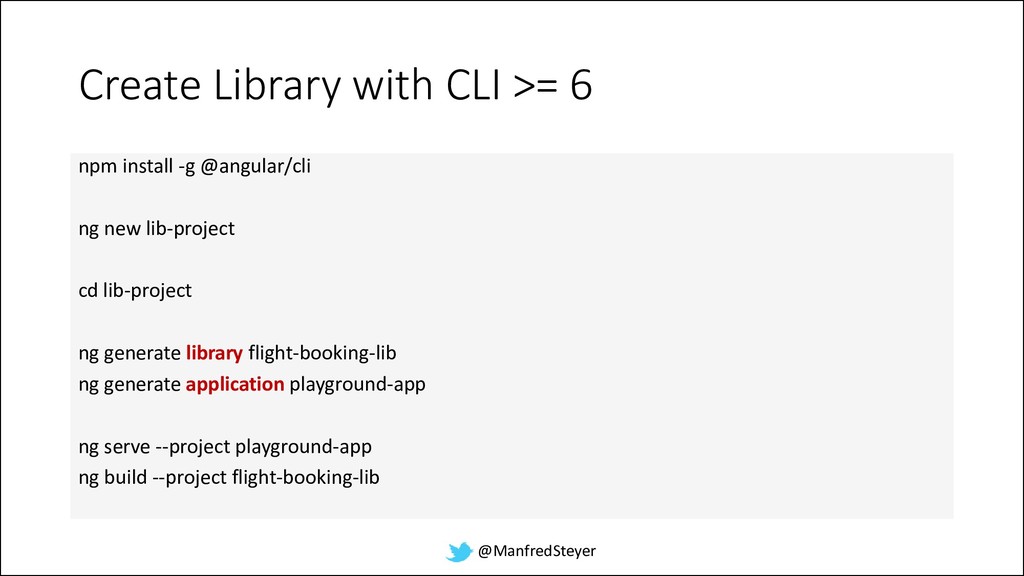

@ManfredSteyer Create Library with CLI >= 6 npm install -g
@angular/cli ng new lib-project cd lib-project ng generate library flight-booking-lib ng generate application playground-app ng serve --project playground-app ng build --project flight-booking-lib

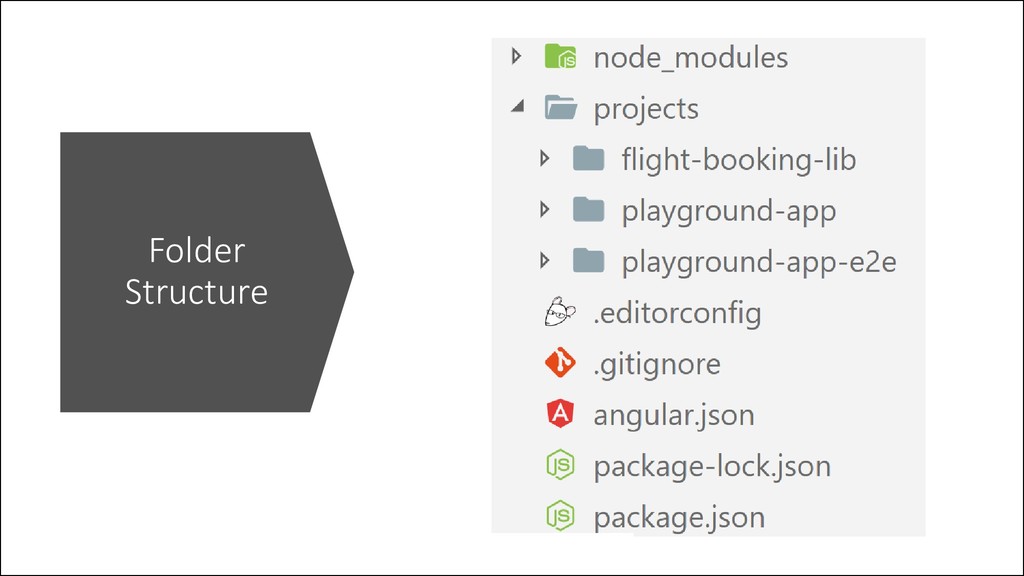

@ManfredSteyer Folder Structure

@ManfredSteyer Deployment

@ManfredSteyer Publishing to npm Registry • Increment version in package.json
• ng build --project flight-booking-lib • npm publish --registry http://localhost:4873 • npm install --registry http://localhost:4873

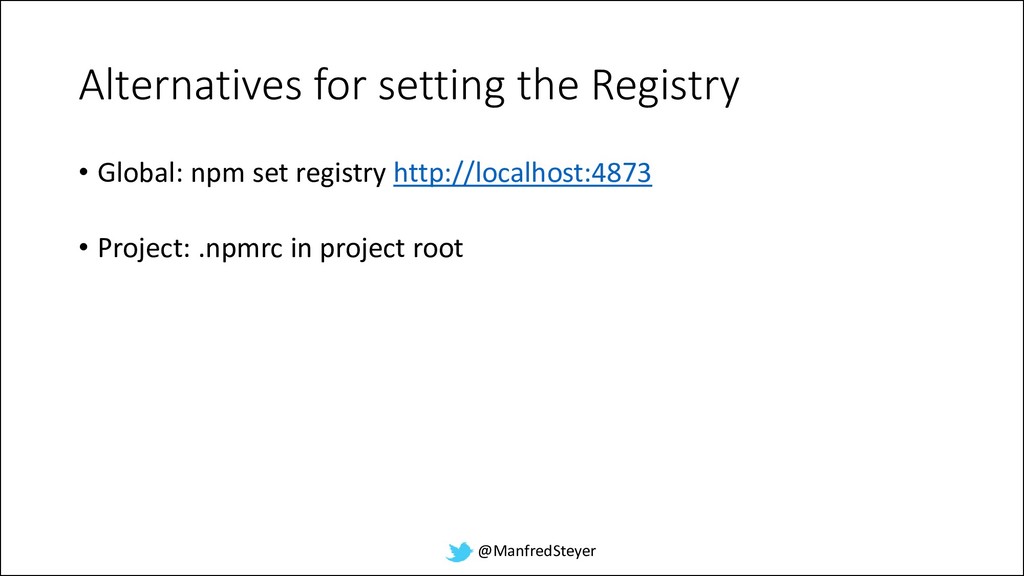

@ManfredSteyer Alternatives for setting the Registry • Global: npm set
registry http://localhost:4873 • Project: .npmrc in project root

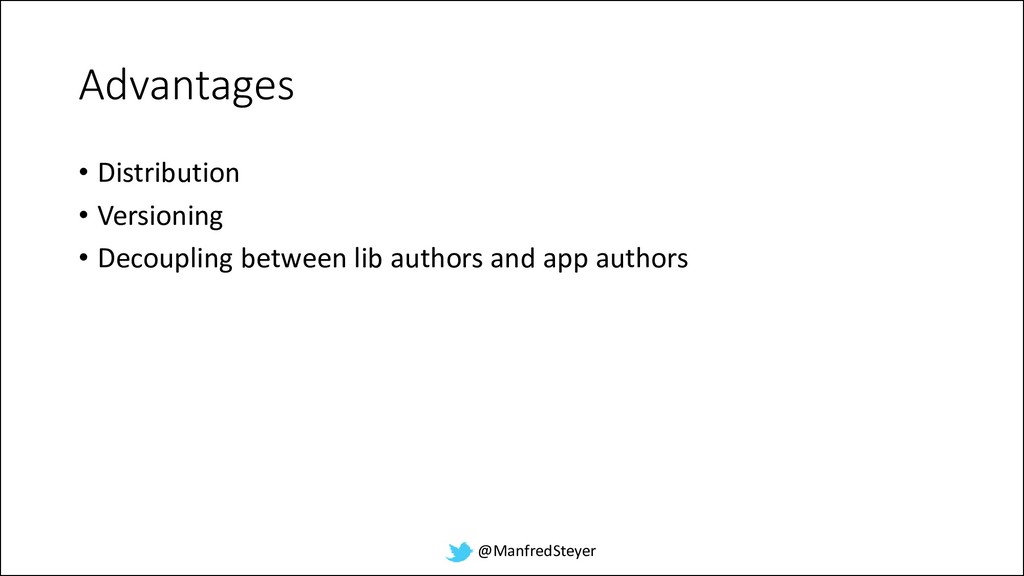

@ManfredSteyer Advantages • Distribution • Versioning • Decoupling between lib
authors and app authors

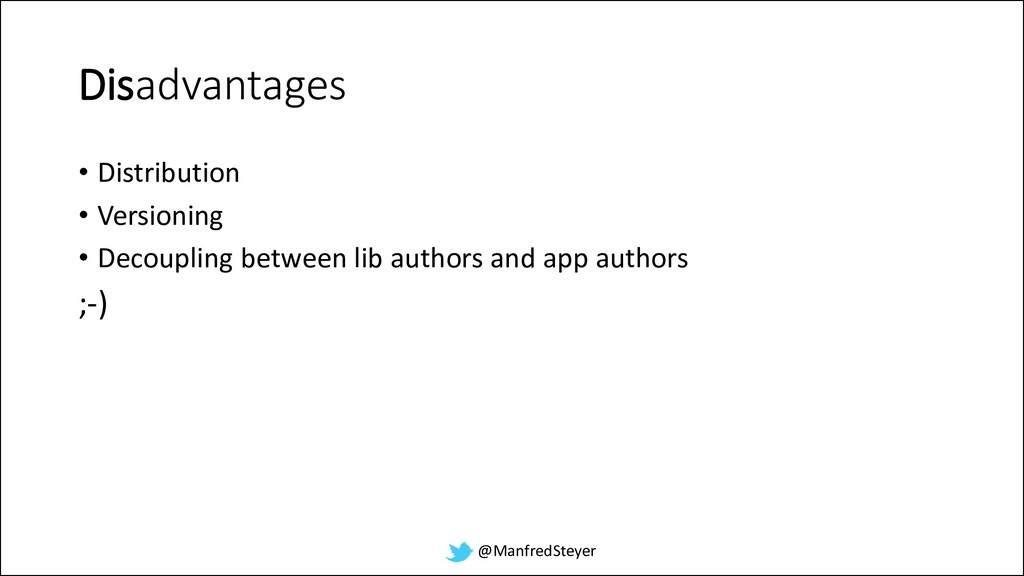

@ManfredSteyer Disadvantages • Distribution • Versioning • Decoupling between lib
authors and app authors ;-)

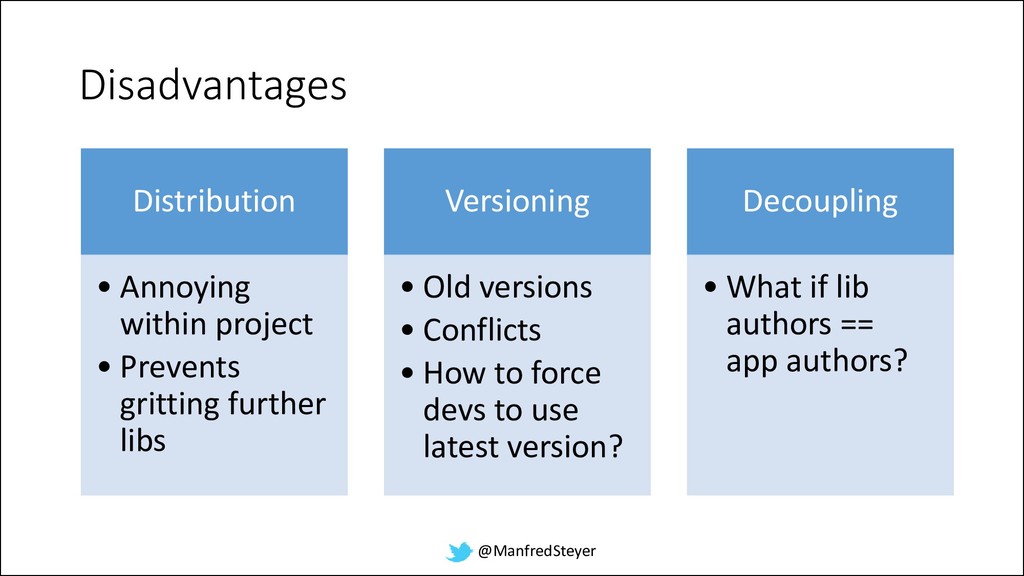

@ManfredSteyer Disadvantages Distribution • Annoying within project • Prevents gritting
further libs Versioning • Old versions • Conflicts • How to force devs to use latest version? Decoupling • What if lib authors == app authors?

@ManfredSteyer 2) Monorepos

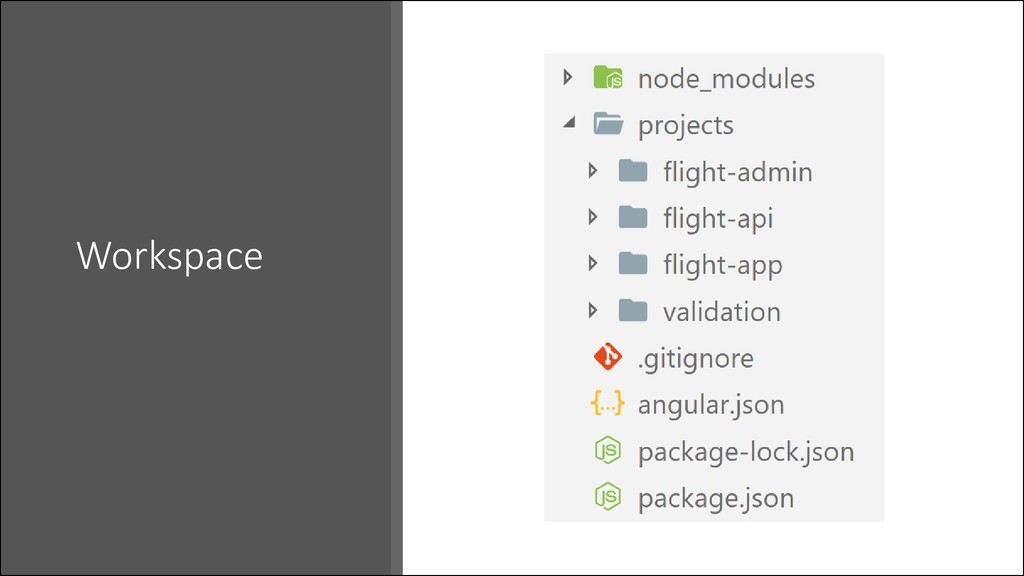

@ManfredSteyer Workspace

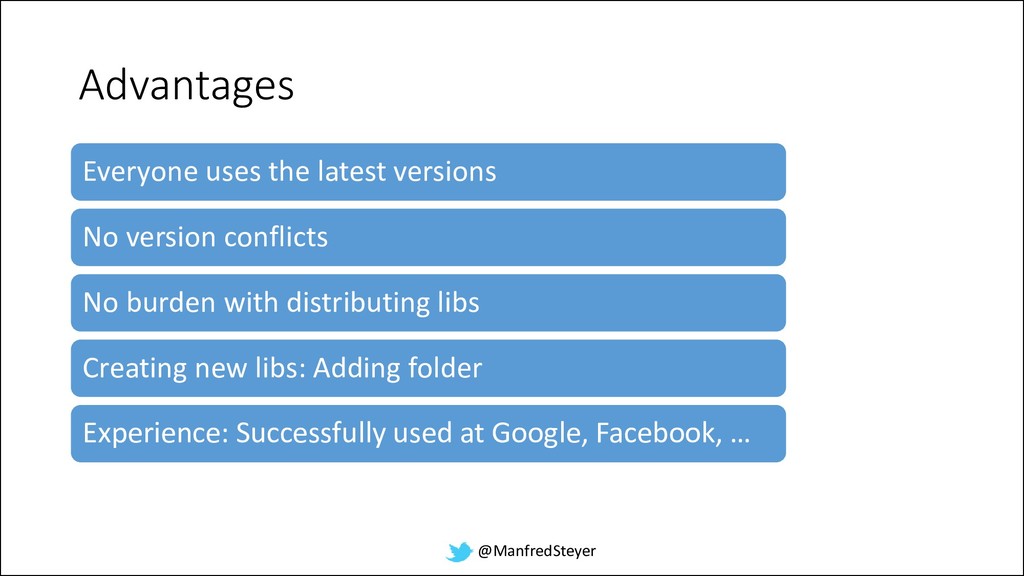

@ManfredSteyer Advantages Everyone uses the latest versions No version conflicts
No burden with distributing libs Creating new libs: Adding folder Experience: Successfully used at Google, Facebook, …

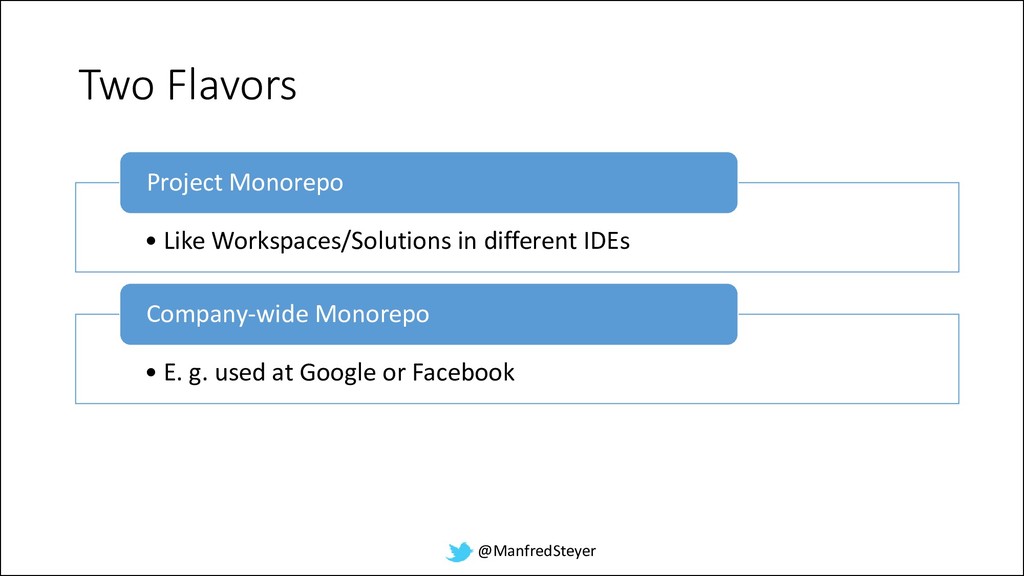

@ManfredSteyer Two Flavors • Like Workspaces/Solutions in different IDEs Project
Monorepo • E. g. used at Google or Facebook Company-wide Monorepo

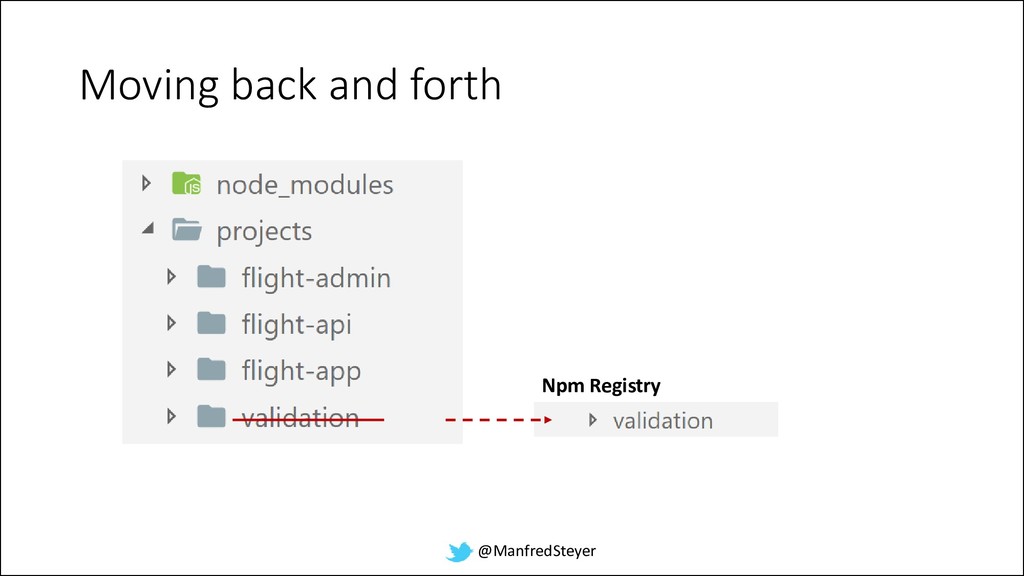

@ManfredSteyer Moving back and forth Npm Registry

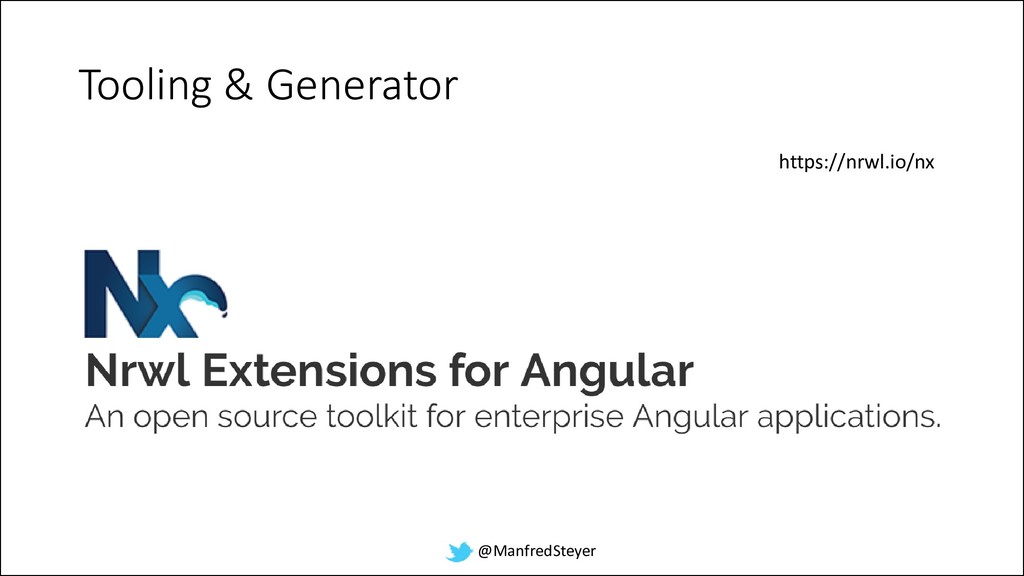

@ManfredSteyer Tooling & Generator https://nrwl.io/nx

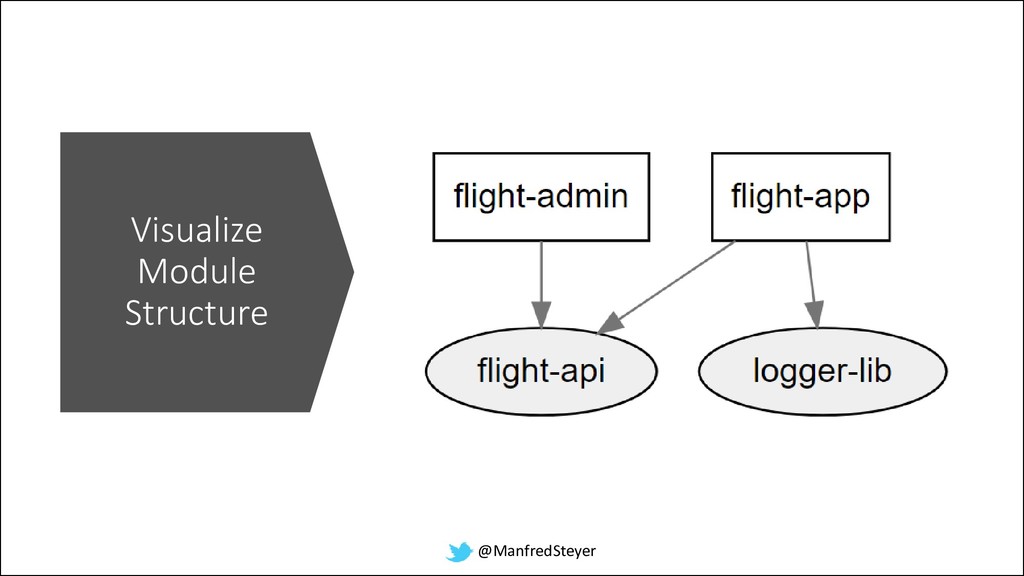

@ManfredSteyer Visualize Module Structure

@ManfredSteyer DEMO

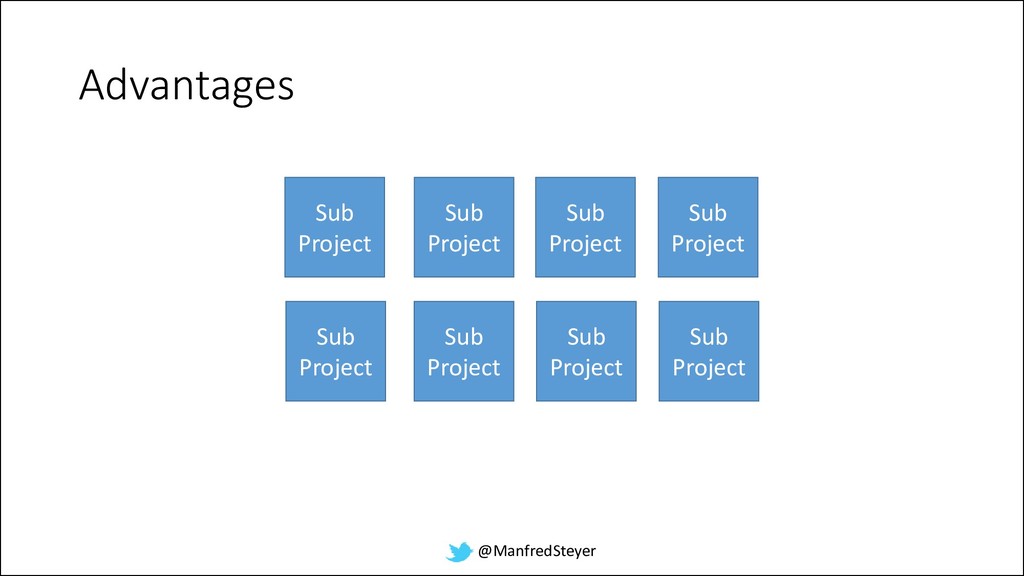

@ManfredSteyer Advantages Sub Project Sub Project Sub Project Sub Project
Sub Project Sub Project Sub Project Sub Project

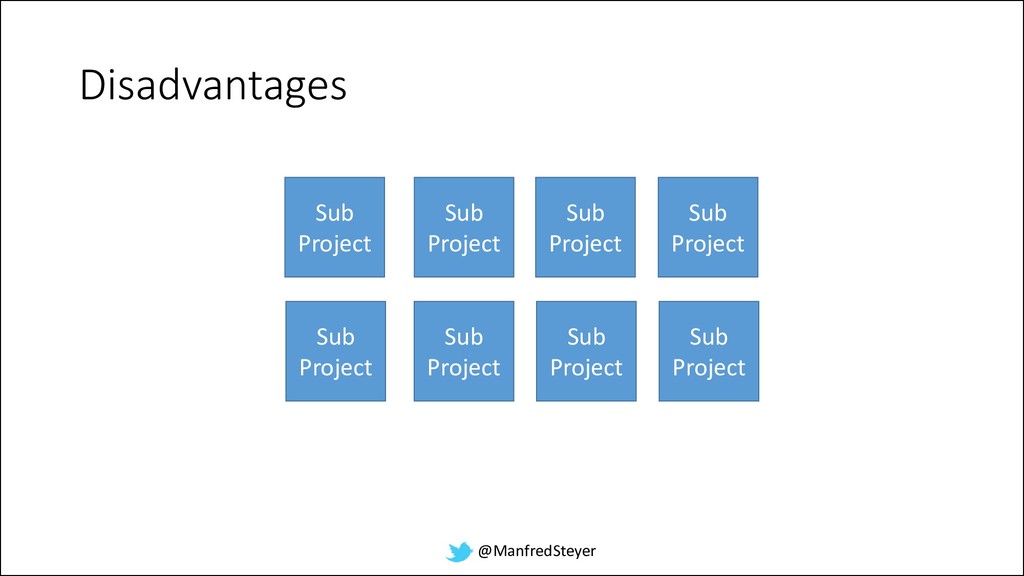

@ManfredSteyer Disadvantages Sub Project Sub Project Sub Project Sub Project
Sub Project Sub Project Sub Project Sub Project

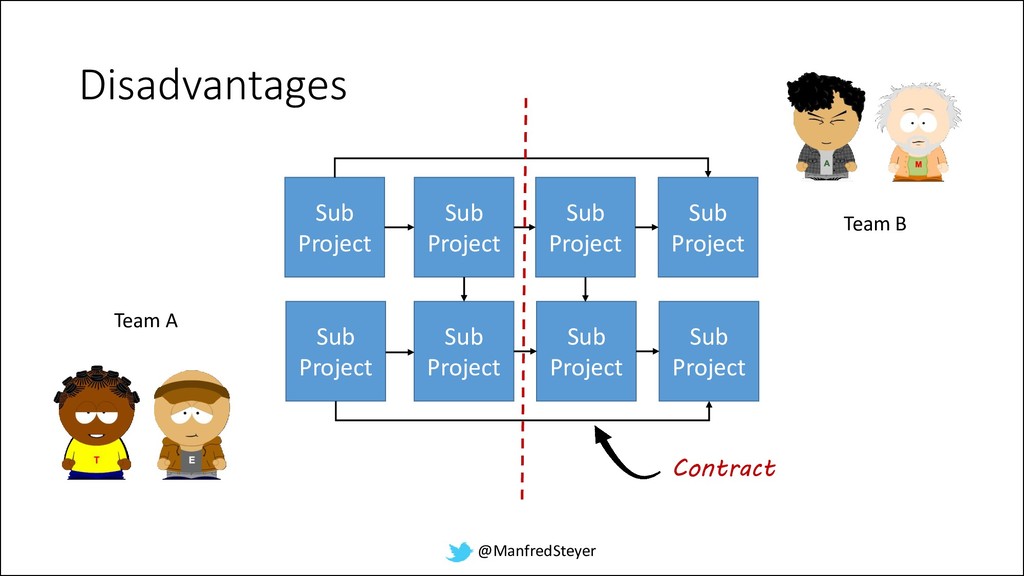

@ManfredSteyer Disadvantages Sub Project Sub Project Sub Project Sub Project
Sub Project Sub Project Sub Project Sub Project Team A Team B Contract

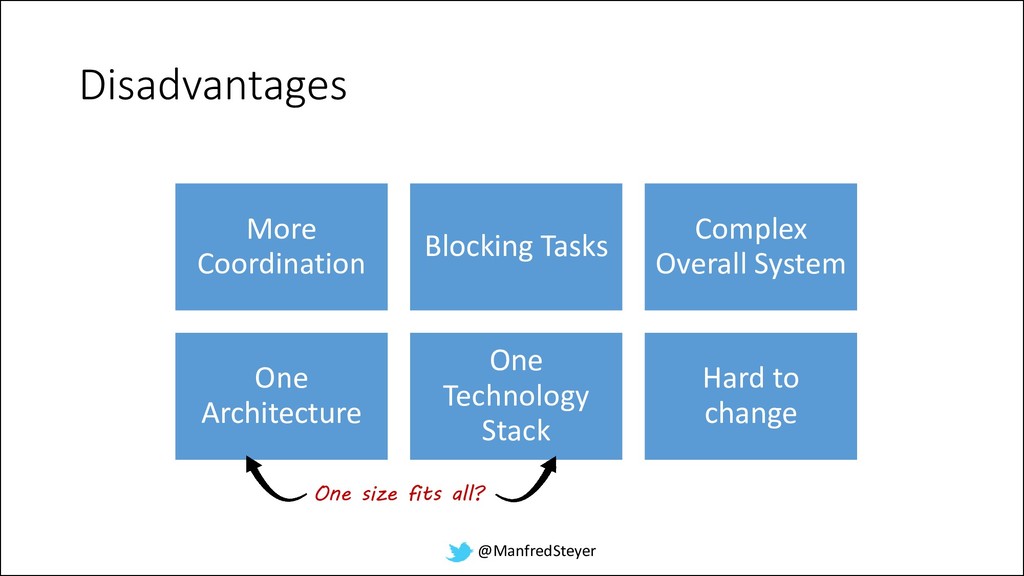

@ManfredSteyer Disadvantages More Coordination Blocking Tasks Complex Overall System One
Architecture One Technology Stack Hard to change One size fits all?

@ManfredSteyer 3) Micro Apps

@ManfredSteyer Idea System

@ManfredSteyer Idea µService µService µService

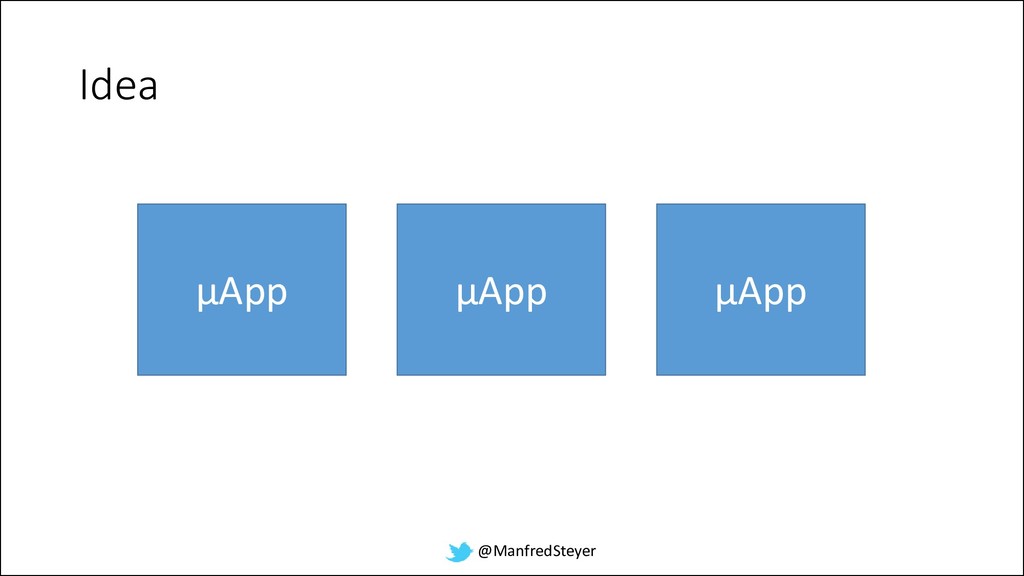

@ManfredSteyer Idea µApp µApp µApp

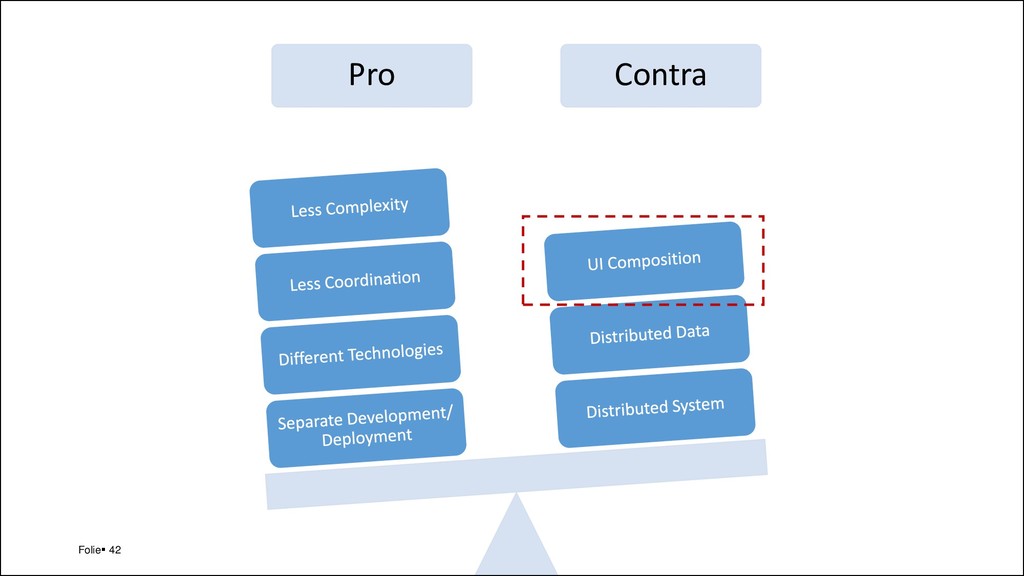

@ManfredSteyer Folie▪ 42 Pro Contra

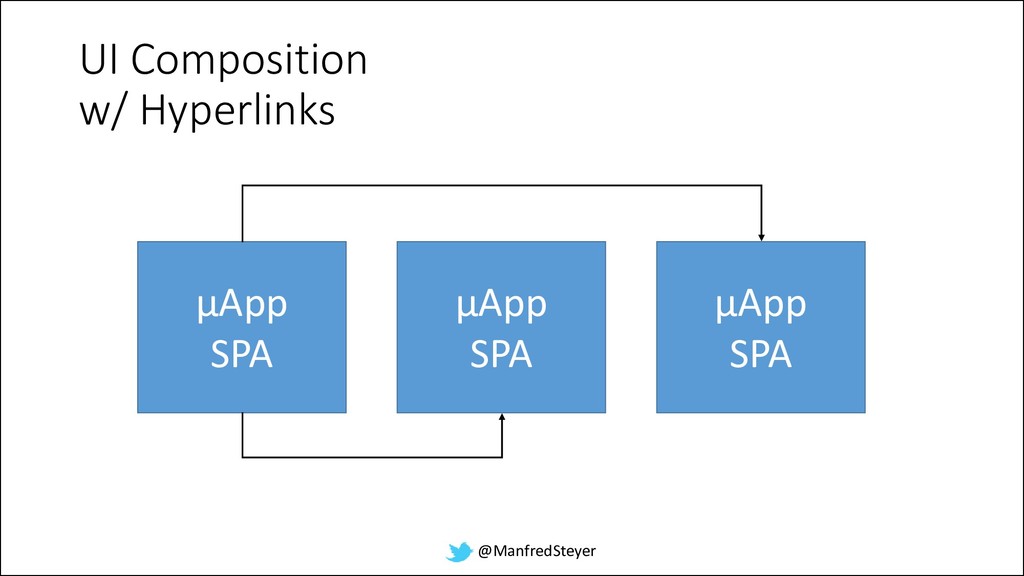

@ManfredSteyer UI Composition w/ Hyperlinks µApp SPA µApp SPA µApp
SPA

@ManfredSteyer

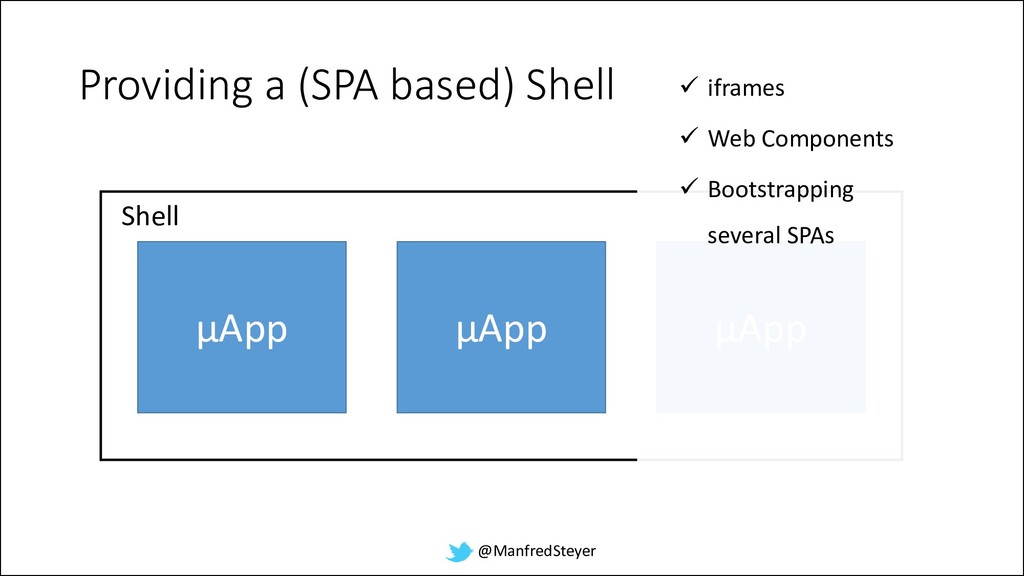

@ManfredSteyer µService Providing a (SPA based) Shell µApp µApp µApp
Shell ✓ iframes ✓ Web Components ✓ Bootstrapping several SPAs

@ManfredSteyer Angular Elements

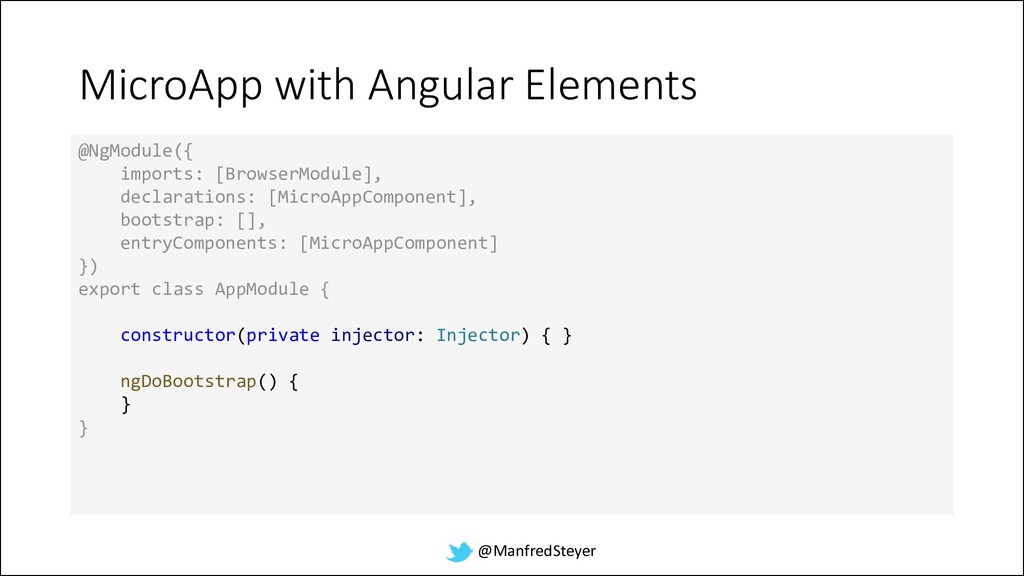

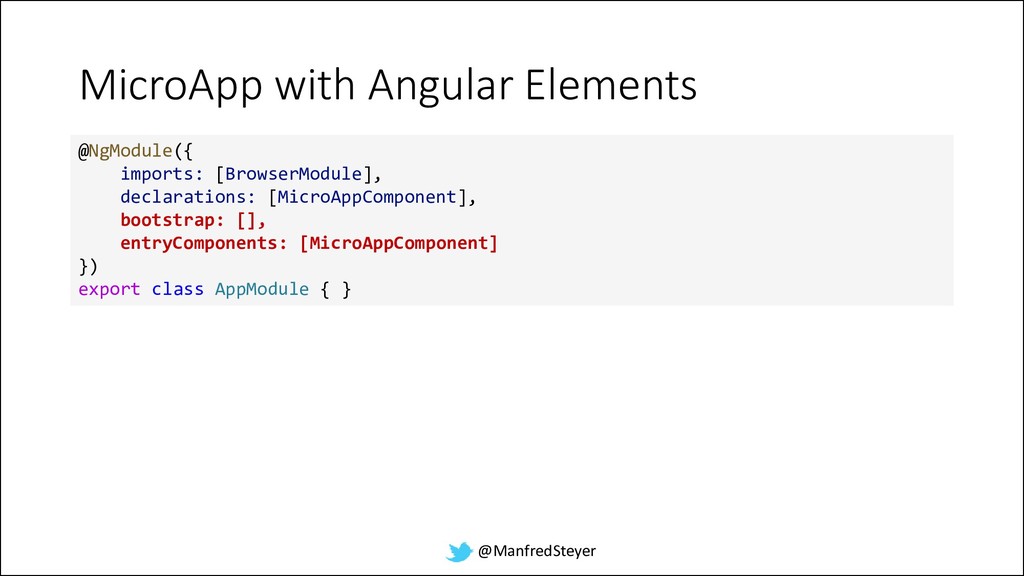

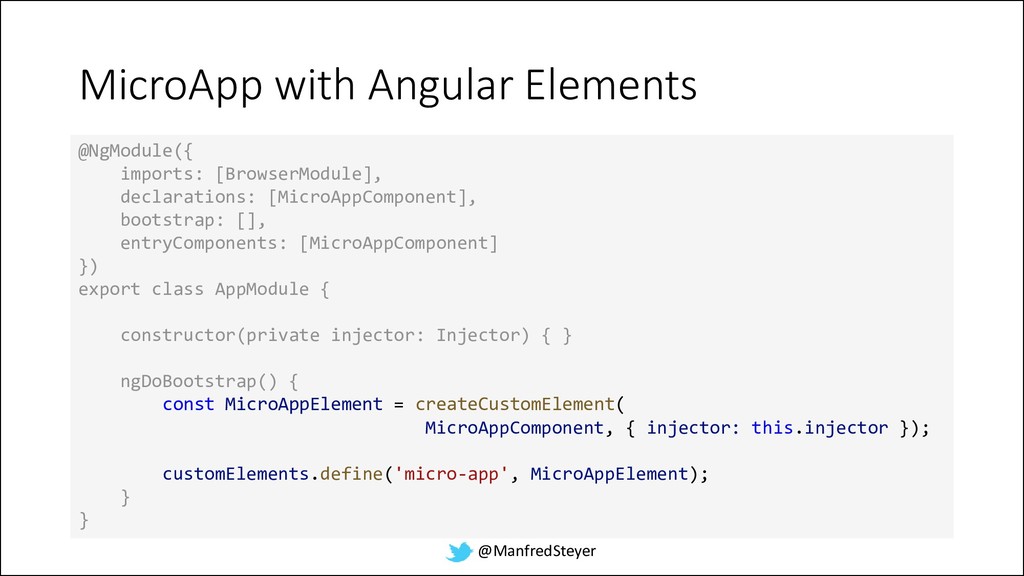

@ManfredSteyer MicroApp with Angular Elements @NgModule({ imports: [BrowserModule], declarations: [MicroAppComponent],
bootstrap: [], entryComponents: [MicroAppComponent] }) export class AppModule { }

bootstrap: [], entryComponents: [MicroAppComponent] }) export class AppModule { constructor(private injector: Injector) { } ngDoBootstrap() { } }

bootstrap: [], entryComponents: [MicroAppComponent] }) export class AppModule { constructor(private injector: Injector) { } ngDoBootstrap() { const MicroAppElement = createCustomElement( MicroAppComponent, { injector: this.injector }); customElements.define('micro-app', MicroAppElement); } }

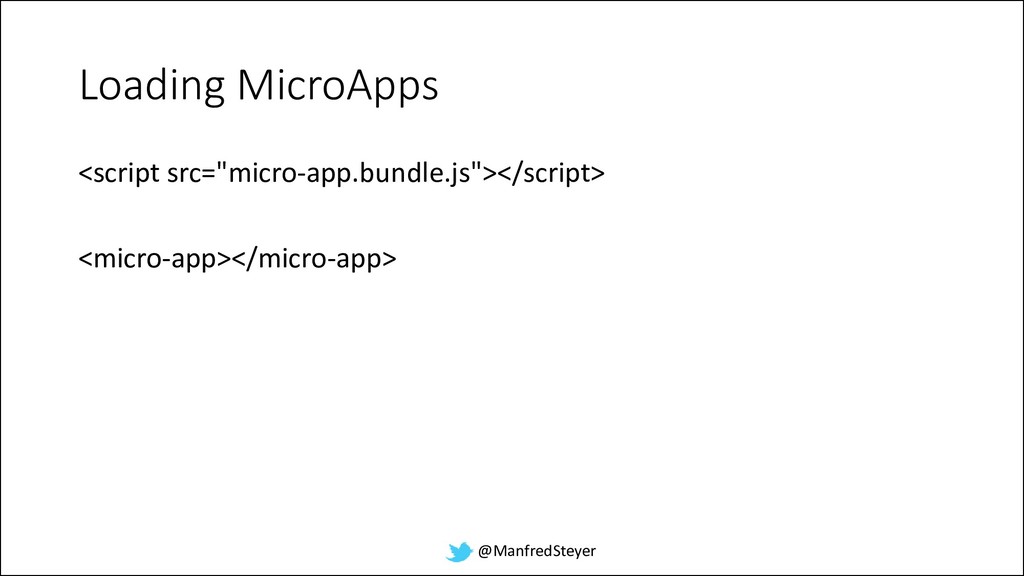

@ManfredSteyer Loading MicroApps <script src="micro-app.bundle.js"></script> <micro-app></micro-app>

@ManfredSteyer DEMO

@ManfredSteyer 4) Choosing a Solution

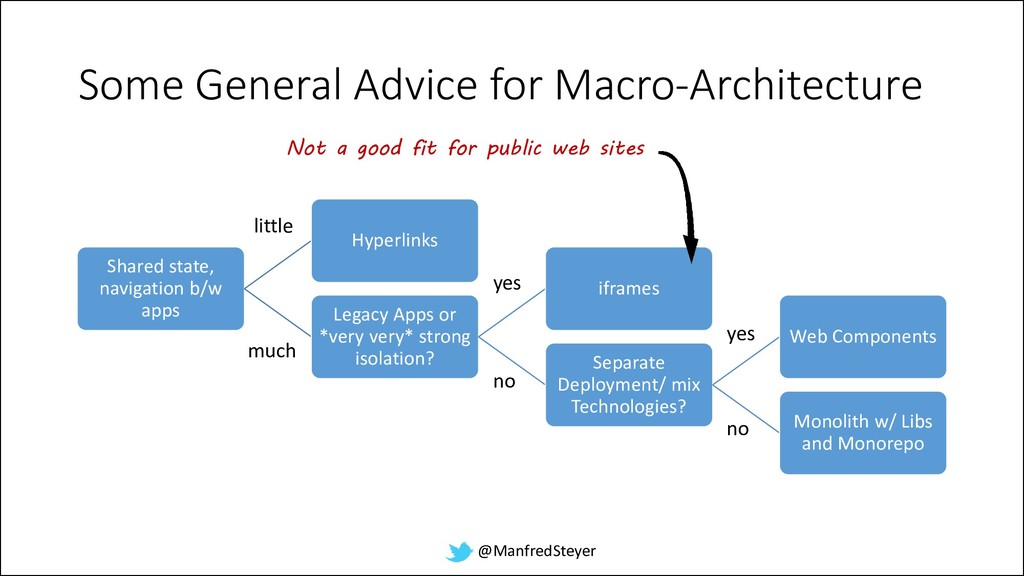

@ManfredSteyer Some General Advice for Macro-Architecture Shared state, navigation b/w
apps Hyperlinks Legacy Apps or *very very* strong isolation? iframes Separate Deployment/ mix Technologies? Web Components Monolith w/ Libs and Monorepo little much yes no yes no Not a good fit for public web sites

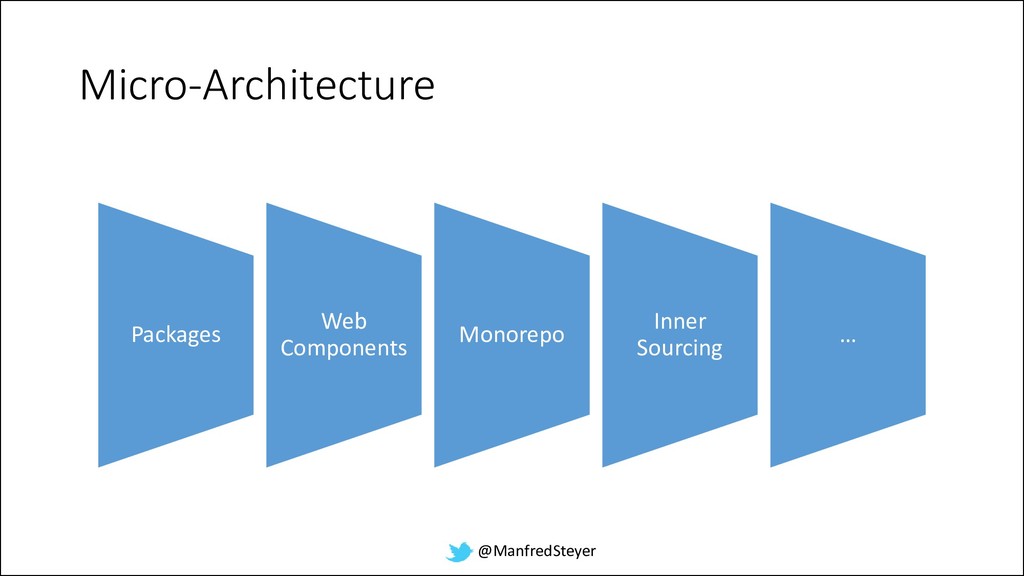

@ManfredSteyer Micro-Architecture Packages Web Components Monorepo Inner Sourcing …

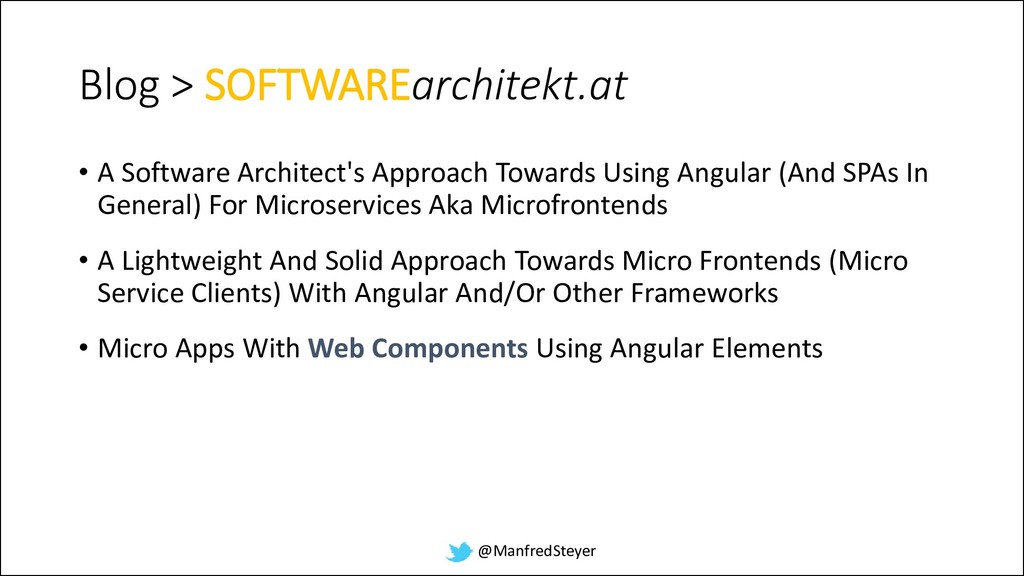

@ManfredSteyer Blog > SOFTWAREarchitekt.at • A Software Architect's Approach Towards
Using Angular (And SPAs In General) For Microservices Aka Microfrontends • A Lightweight And Solid Approach Towards Micro Frontends (Micro Service Clients) With Angular And/Or Other Frameworks • Micro Apps With Web Components Using Angular Elements

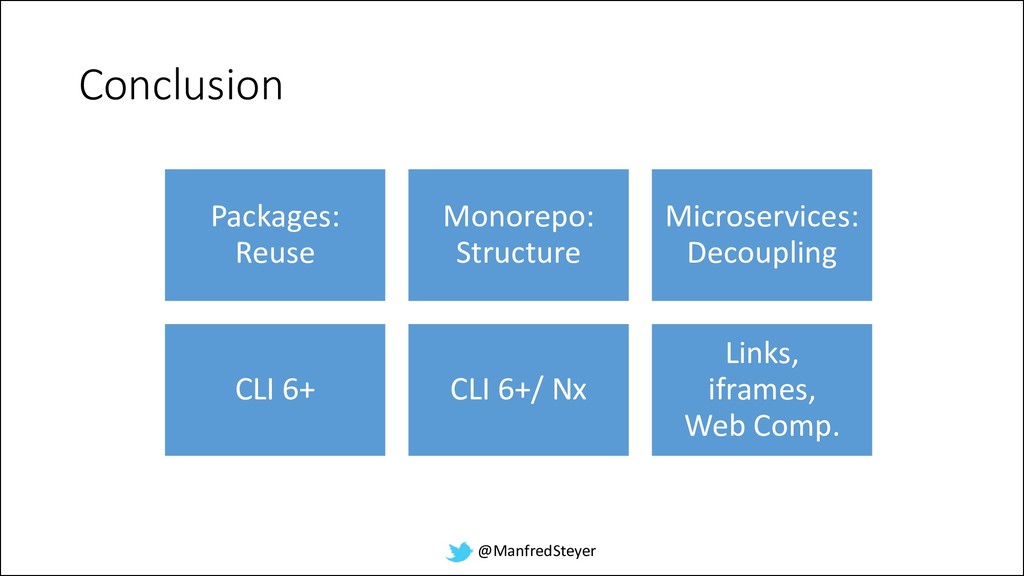

@ManfredSteyer Conclusion Packages: Reuse Monorepo: Structure Microservices: Decoupling CLI 6+
CLI 6+/ Nx Links, iframes, Web Comp.

@ManfredSteyer Contact and Downloads [mail] [email protected] [web] SOFTWAREarchitekt.at [twitter] ManfredSteyer
d http://softwarearchitekt.at/workshops Slides & Examples
