Garbage Collection as a Joint Venture

A common problem arising from embedding a virtual machine as a component in a larger software system is the management of references between the VM’s managed heap and the embedder’s heap. Direct references between components allow fast communication, but can result in cycles over component boundaries, making these hybrid systems prone to memory leaks. In this paper we present a design and implementation of a tracing mechanism for effective and efficient garbage collection over component boundaries which is implemented and shipped in Chrome’s JavaScript virtual machine V8 and the Blink rendering engine. Tracing through the C++ heap of Blink poses several challenges on which we elaborate: 1) an abstract visitation mechanism for C++ objects that can be used by the V8 garbage collector, 2) write barriers for C++ objects to reduce pauses through incremental marking, and 3) a mechanism to verify correctness of write barrier usage.

Presented at MoreVMs workshop, Brussels, Belgium, 2017.
https://2017.programming-conference.org/event/morevms-2017-papers-garbage-collection-as-a-joint-venture

Transcript

1. Garbage Collection as a Joint Venture Michael Lippautz Ulan Degenbaev, Jochen Eisinger, Kentaro Hara, Marcel Hlopko, Hannes Payer Google Inc MoreVMs Workshop, Brussels, 2017

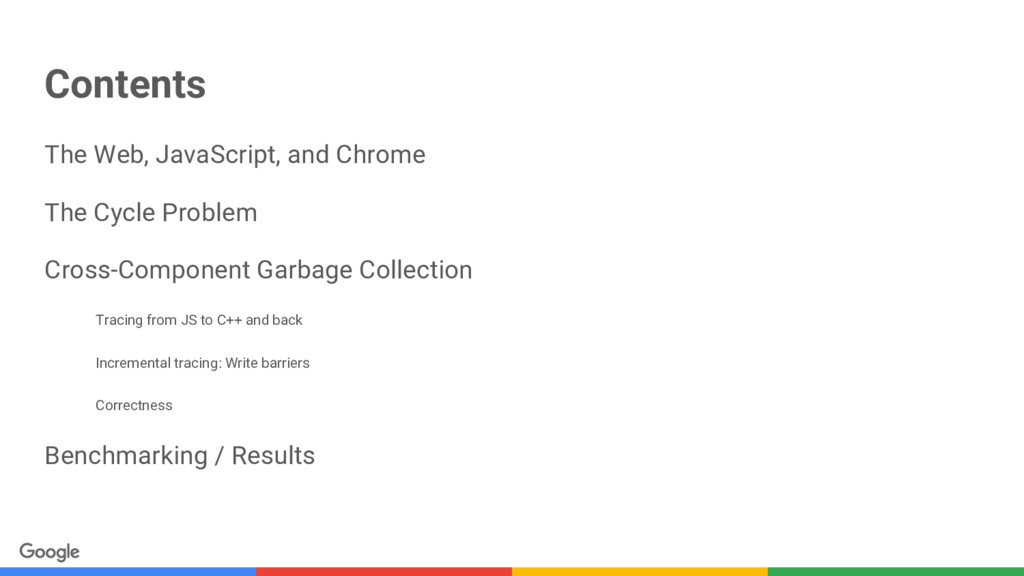

2. Contents The Web, JavaScript, and Chrome The Cycle Problem Cross-Component Garbage Collection Tracing from JS to C++ and back Incremental tracing: Write barriers Correctness Benchmarking / Results
3. Contents The Web, JavaScript, and Chrome The Cycle Problem Cross-Component Garbage Collection Tracing from JS to C++ and back Incremental tracing: Write barriers Correctness Benchmarking / Results- SPOILER: Enabled in Chrome M57 -
4. The Web, JavaScript, and Chrome
5. • Document Object Model (DOM) • Cross-platform language-independent representation of HTML • Web Interface Definition Language (IDL) • Traditionally encoded as objects in the rendering engine (e.g. Blink) Web - JavaScript - Chrome

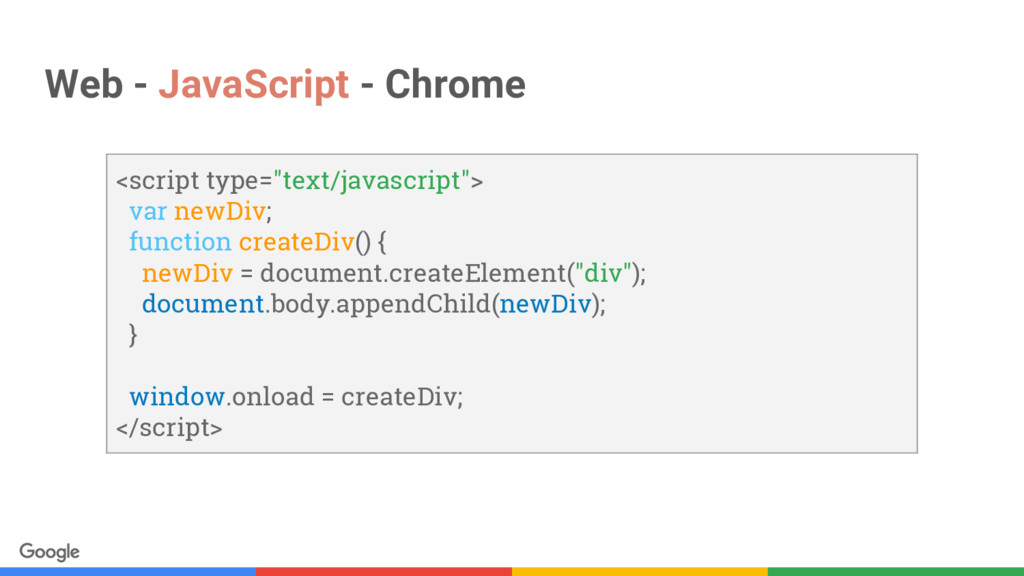

6. Web - JavaScript - Chrome <script type="text/javascript"> var newDiv; function createDiv() { newDiv = document.createElement("div"); document.body.appendChild(newDiv); } window.onload = createDiv; </script>
7. other other V8 (JS VM) other Blink (Renderer) V8 (JS VM) Browser Web - JavaScript - Chrome Blink (Renderer) Chrome Idea: Abstraction of the browser into components (and most of the time subcomponents) at runtime

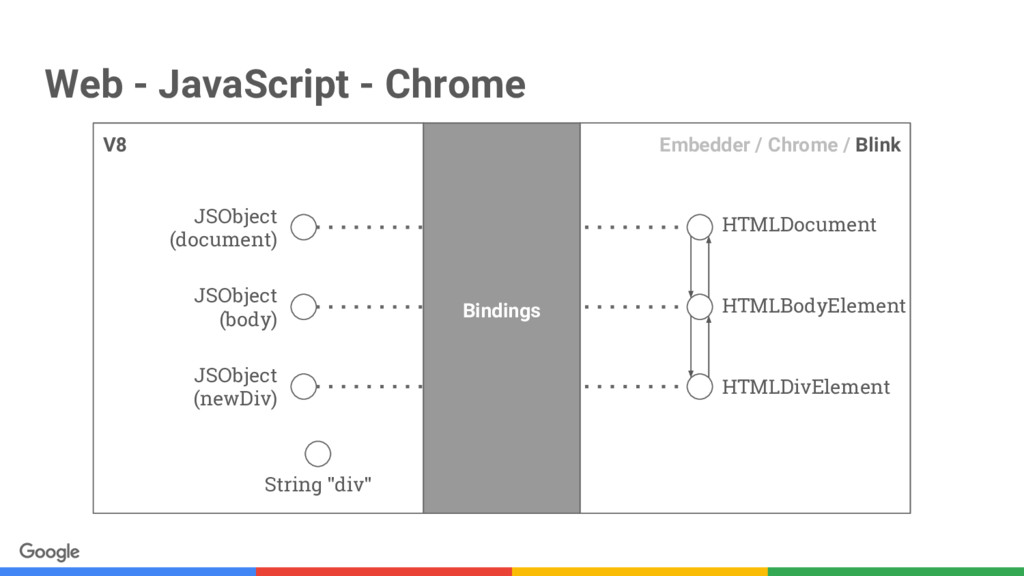

8. Web - JavaScript - Chrome V8 Embedder / Chrome / Blink HTMLDocument HTMLBodyElement HTMLDivElement JSObject (newDiv) String "div" JSObject (document) Bindings JSObject (body)

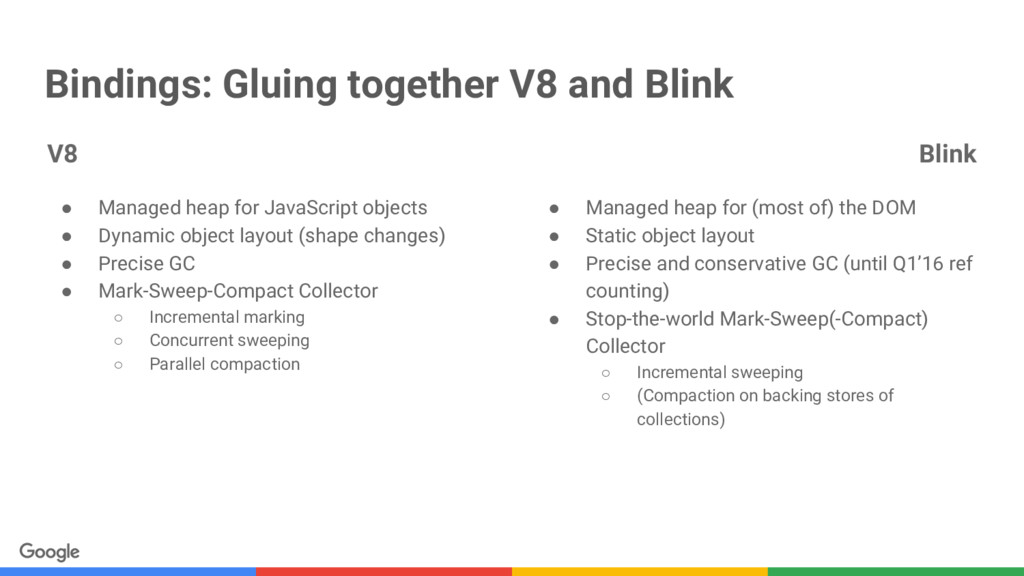

9. Bindings: Gluing together V8 and Blink V8 • Managed heap for JavaScript objects • Dynamic object layout (shape changes) • Precise GC • Mark-Sweep-Compact Collector ◦ Incremental marking ◦ Concurrent sweeping ◦ Parallel compaction Blink • Managed heap for (most of) the DOM • Static object layout • Precise and conservative GC (until Q1’16 ref counting) • Stop-the-world Mark-Sweep(-Compact) Collector ◦ Incremental sweeping ◦ (Compaction on backing stores of collections)

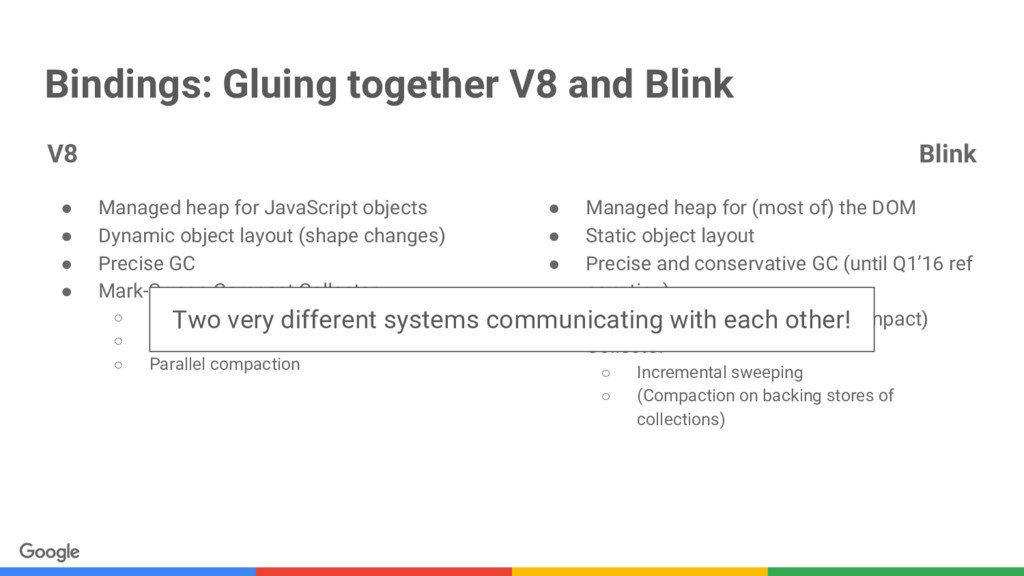

10. Bindings: Gluing together V8 and Blink V8 • Managed heap for JavaScript objects • Dynamic object layout (shape changes) • Precise GC • Mark-Sweep-Compact Collector ◦ Incremental marking ◦ Concurrent sweeping ◦ Parallel compaction Blink • Managed heap for (most of) the DOM • Static object layout • Precise and conservative GC (until Q1’16 ref counting) • Stop-the-world Mark-Sweep(-Compact) Collector ◦ Incremental sweeping ◦ (Compaction on backing stores of collections) Two very different systems communicating with each other!
11. The Cycle Problem
12. The Cycle Problem V8 Embedder / Chrome / Blink HTMLDocument HTMLBodyElement HTMLDivElement JSObject (newDiv) String "div" JSObject (document) Bindings JSObject (body)

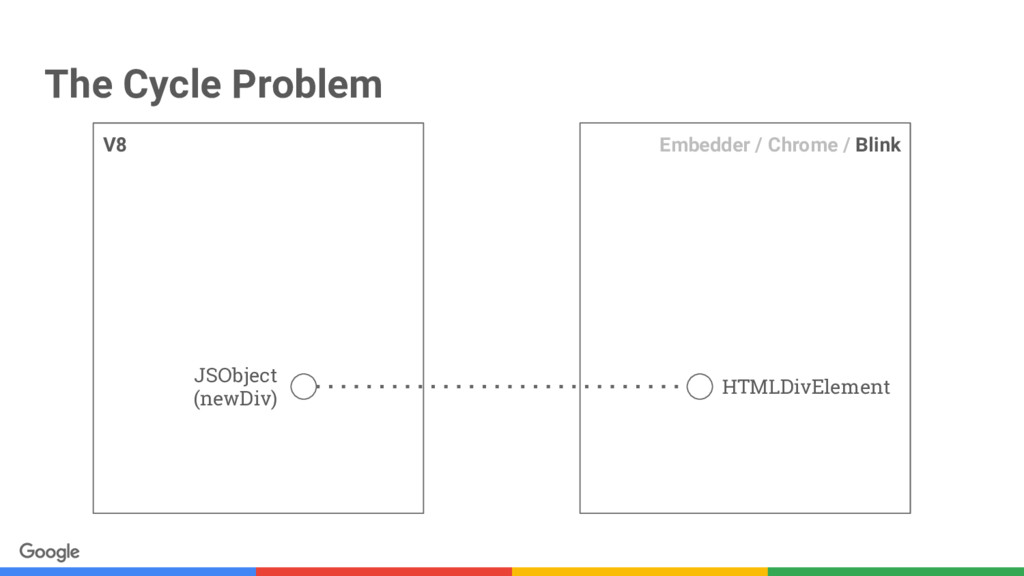

13. The Cycle Problem V8 HTMLDivElement Embedder / Chrome / Blink JSObject (newDiv)

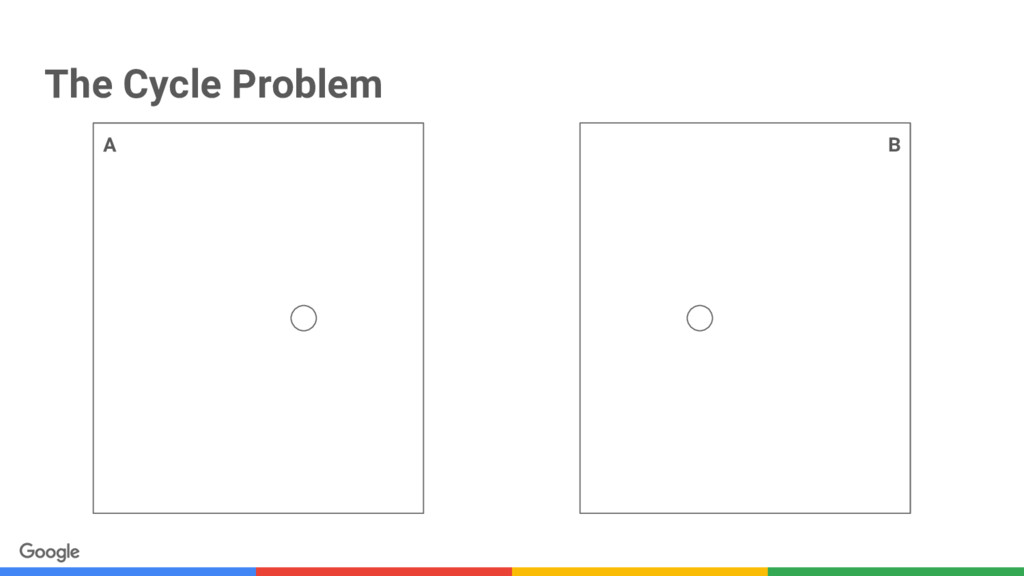

14. A B The Cycle Problem

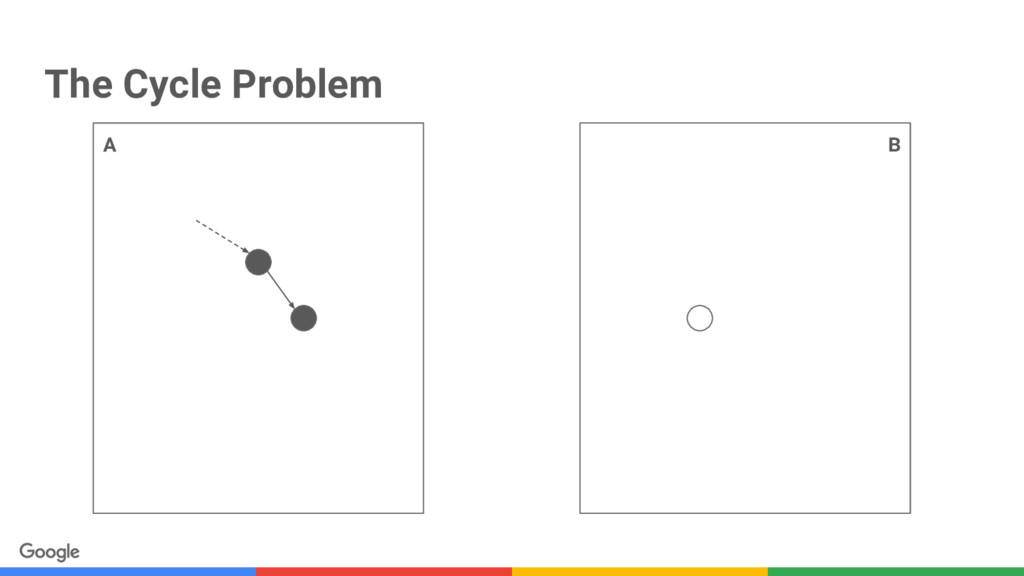

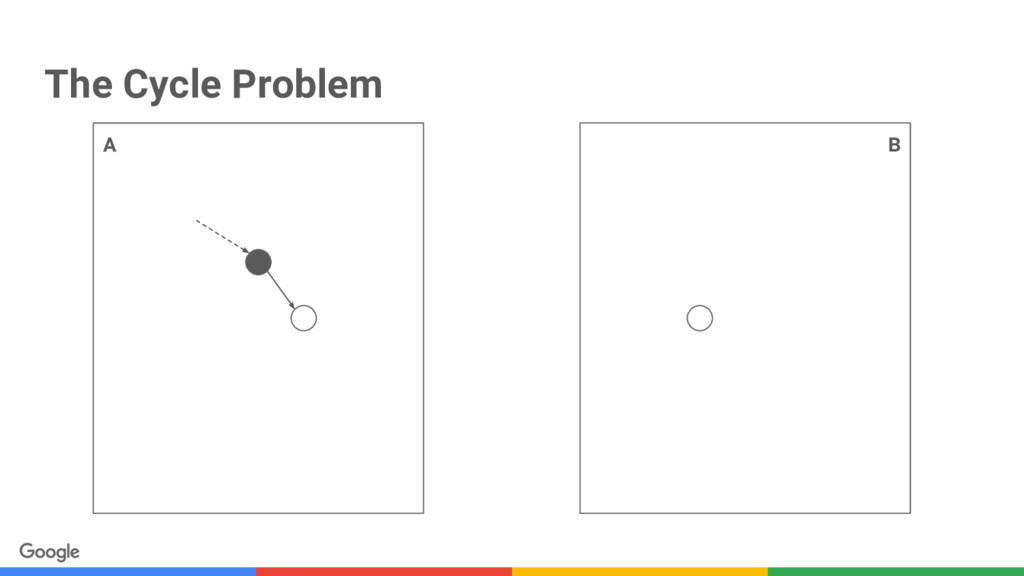

15. A B The Cycle Problem
16. A B The Cycle Problem

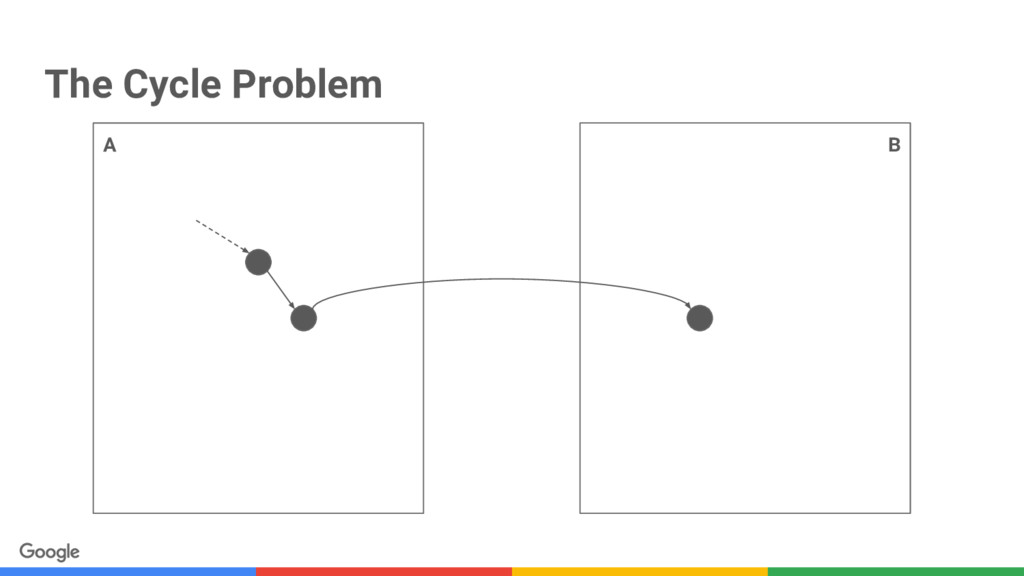

17. A B The Cycle Problem cross- component reference
18. A B The Cycle Problem
19. B The Cycle Problem A
20. B The Cycle Problem A root

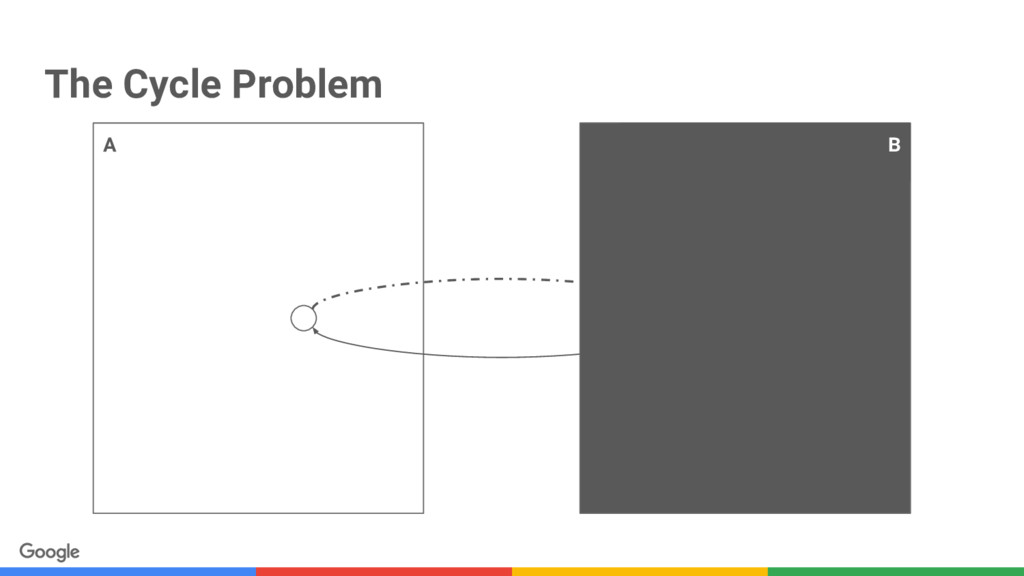

21. A B The Cycle Problem
22. A B The Cycle Problem

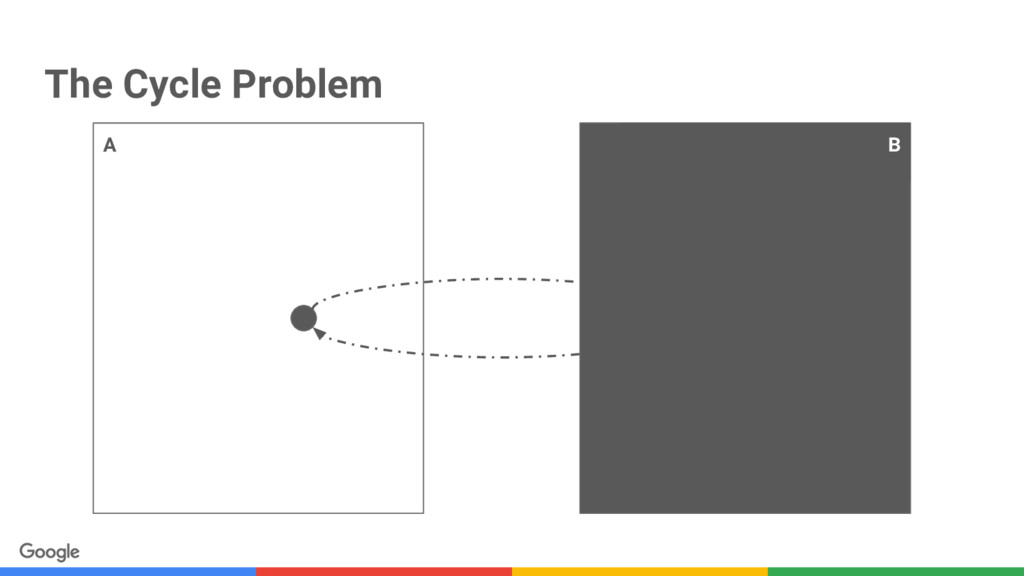

23. A The Cycle Problem B
24. A The Cycle Problem B

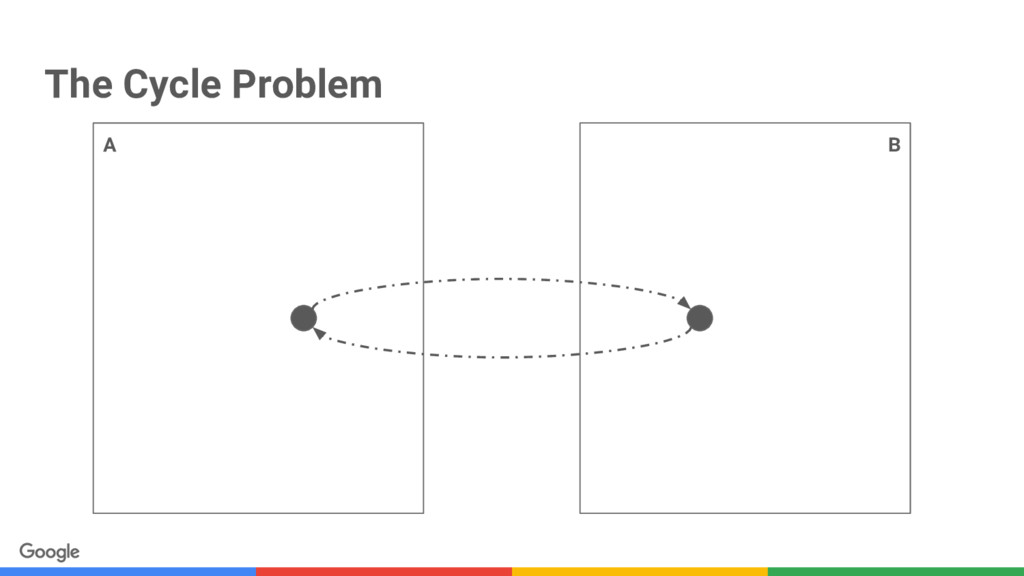

25. A B The Cycle Problem

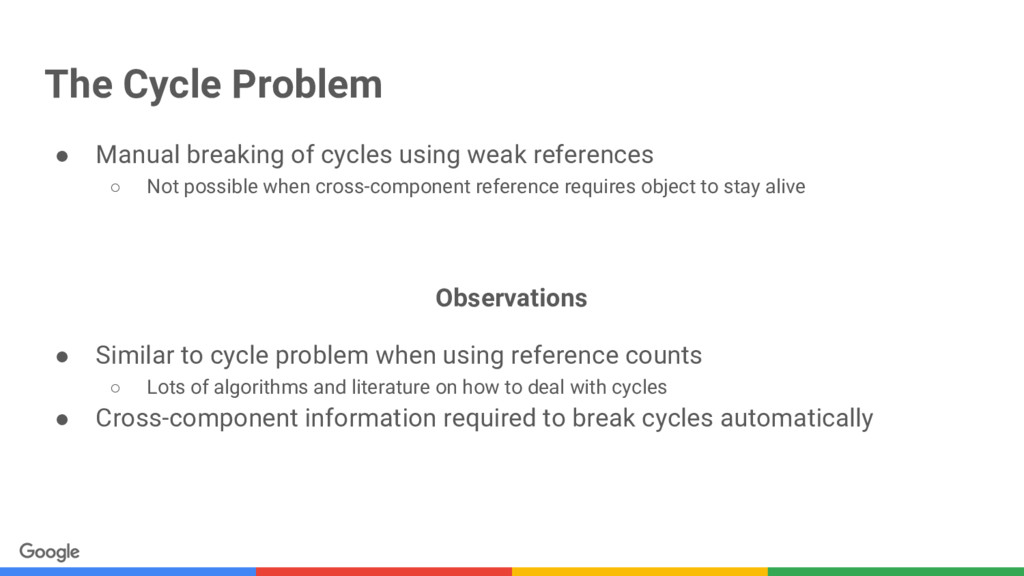

26. The Cycle Problem • Manual breaking of cycles using weak references ◦ Not possible when cross-component reference requires object to stay alive Observations • Similar to cycle problem when using reference counts ◦ Lots of algorithms and literature on how to deal with cycles • Cross-component information required to break cycles automatically
27. Cross-Component Garbage Collection
28. Cross-Component Garbage Collection Provide and process liveness information across components boundaries

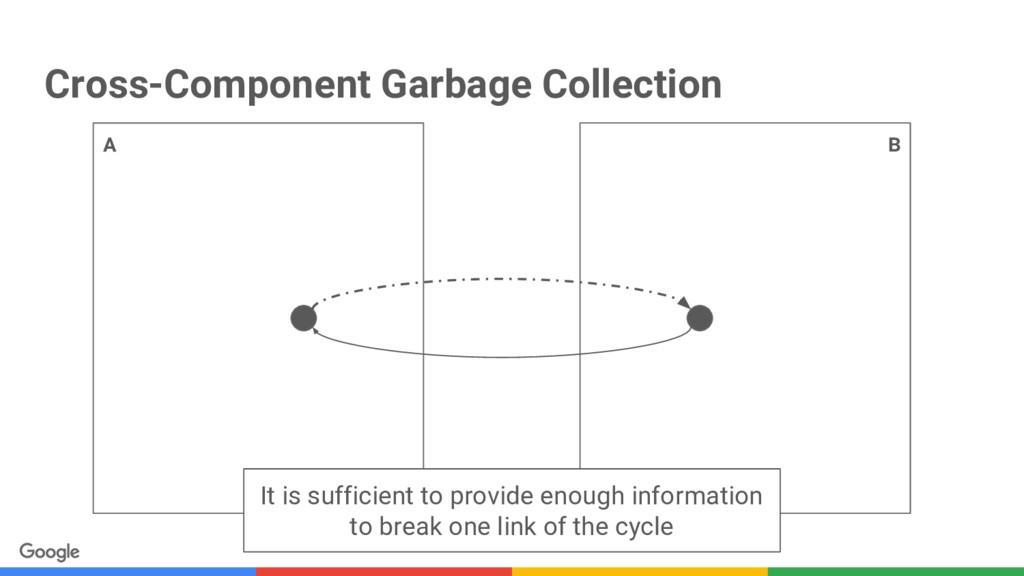

29. Cross-Component Garbage Collection A B It is sufficient to provide enough information to break one link of the cycle

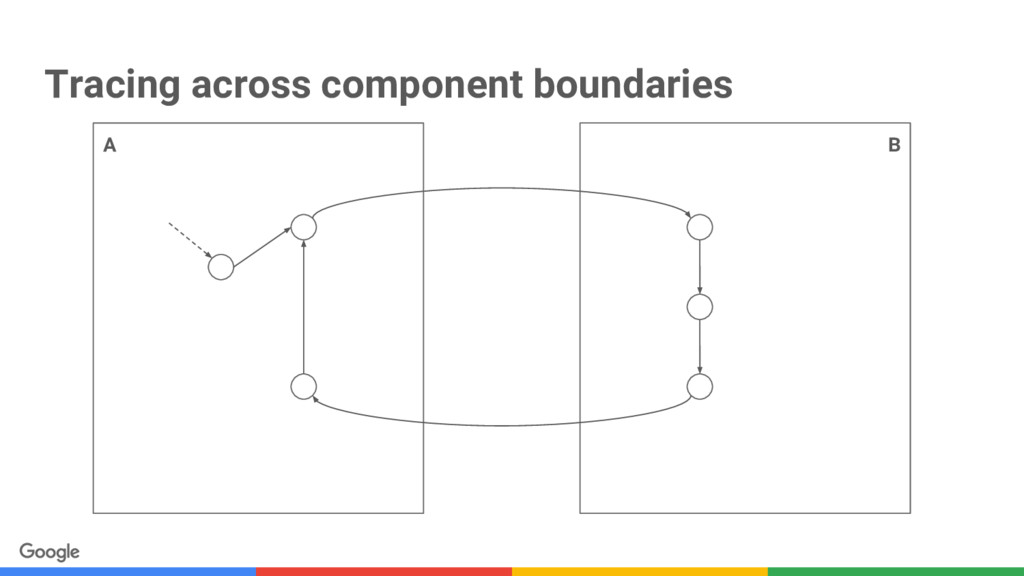

30. Tracing across component boundaries trace :: Object -> [Objects] Return all objects that are transitively reachable from a given object
31. B A Tracing across component boundaries
32. B A Tracing across component boundaries
33. B A Tracing across component boundaries
34. B A Tracing across component boundaries

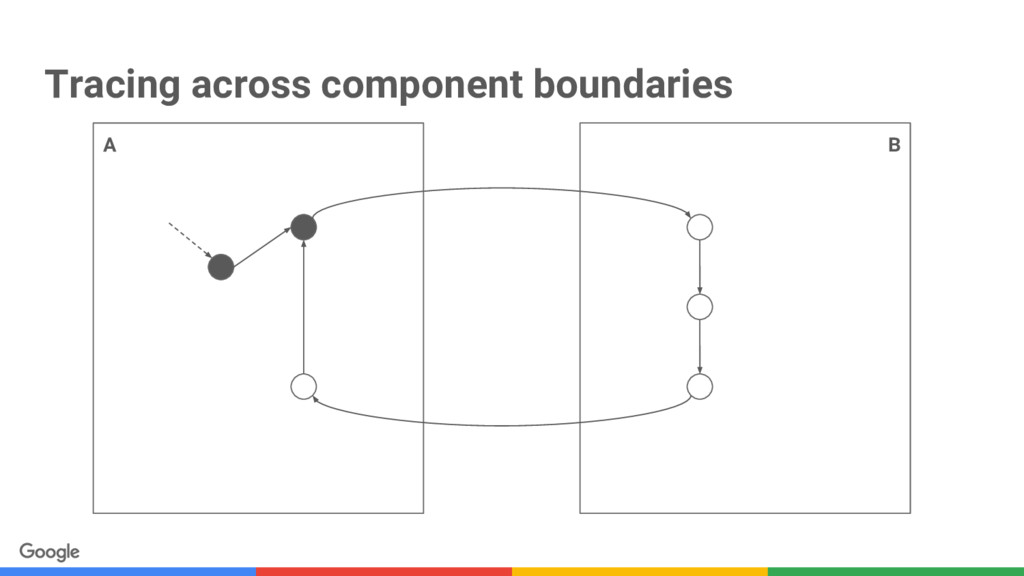

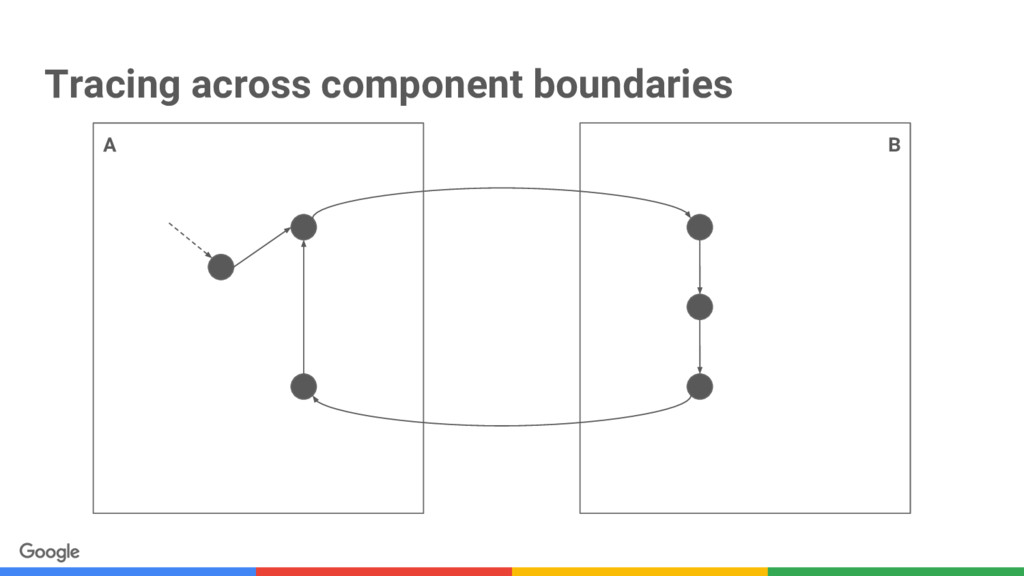

35. B A Tracing across component boundaries

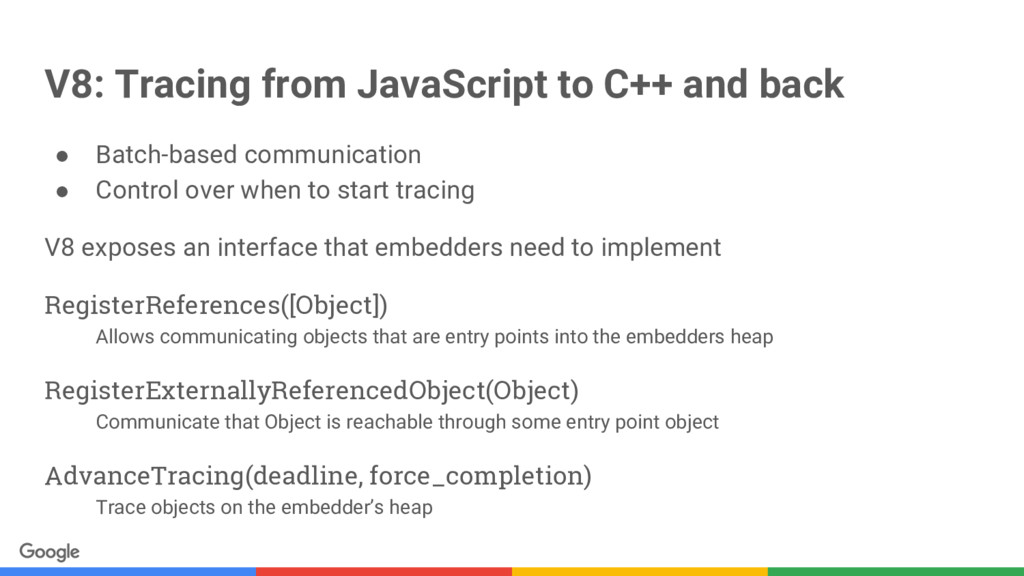

36. V8: Tracing from JavaScript to C++ and back • Batch-based communication • Control over when to start tracing V8 exposes an interface that embedders need to implement RegisterReferences([Object]) Allows communicating objects that are entry points into the embedders heap RegisterExternallyReferencedObject(Object) Communicate that Object is reachable through some entry point object AdvanceTracing(deadline, force_completion) Trace objects on the embedder’s heap

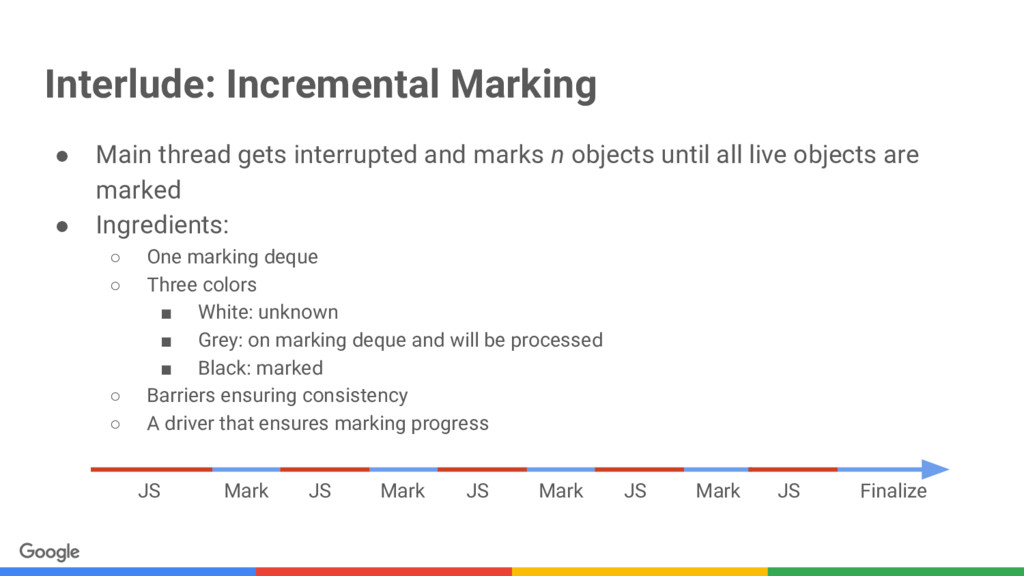

37. Interlude: Incremental Marking • Main thread gets interrupted and marks n objects until all live objects are marked • Ingredients: ◦ One marking deque ◦ Three colors ▪ White: unknown ▪ Grey: on marking deque and will be processed ▪ Black: marked ◦ Barriers ensuring consistency ◦ A driver that ensures marking progress Mark JS Mark JS Mark JS Mark JS JS Finalize

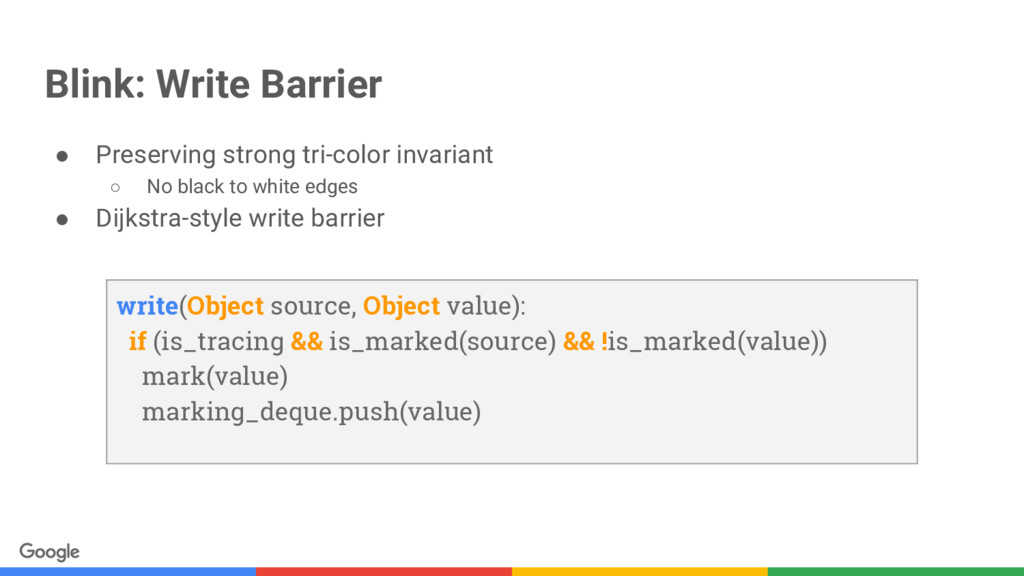

38. Blink: Write Barrier • Preserving strong tri-color invariant ◦ No black to white edges • Dijkstra-style write barrier write(Object source, Object value): if (is_tracing && is_marked(source) && !is_marked(value)) mark(value) marking_deque.push(value)

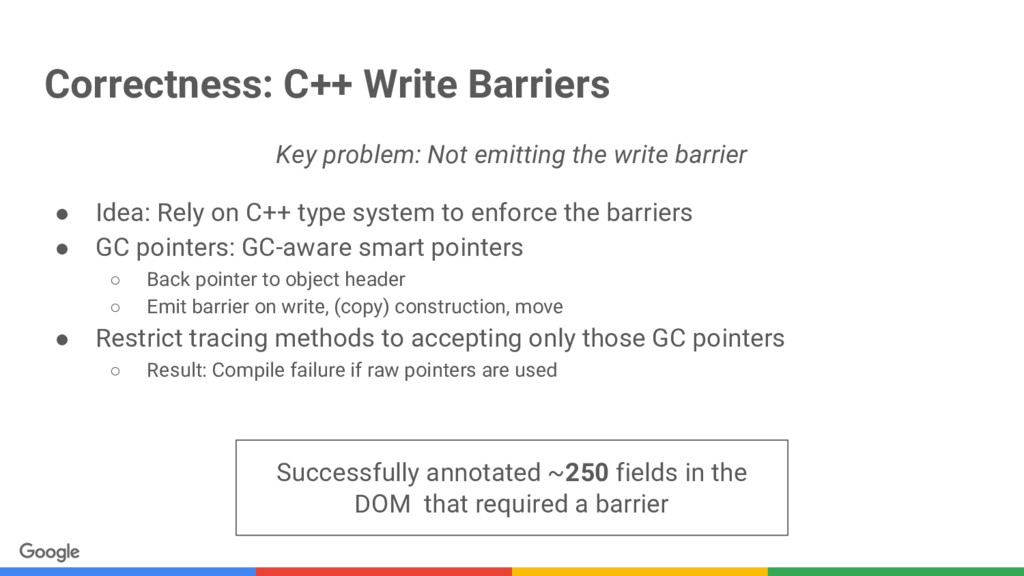

39. Correctness: C++ Write Barriers Key problem: Not emitting the write barrier • Idea: Rely on C++ type system to enforce the barriers • GC pointers: GC-aware smart pointers ◦ Back pointer to object header ◦ Emit barrier on write, (copy) construction, move • Restrict tracing methods to accepting only those GC pointers ◦ Result: Compile failure if raw pointers are used Successfully annotated ~250 fields in the DOM that required a barrier
40. Benchmarking / Results

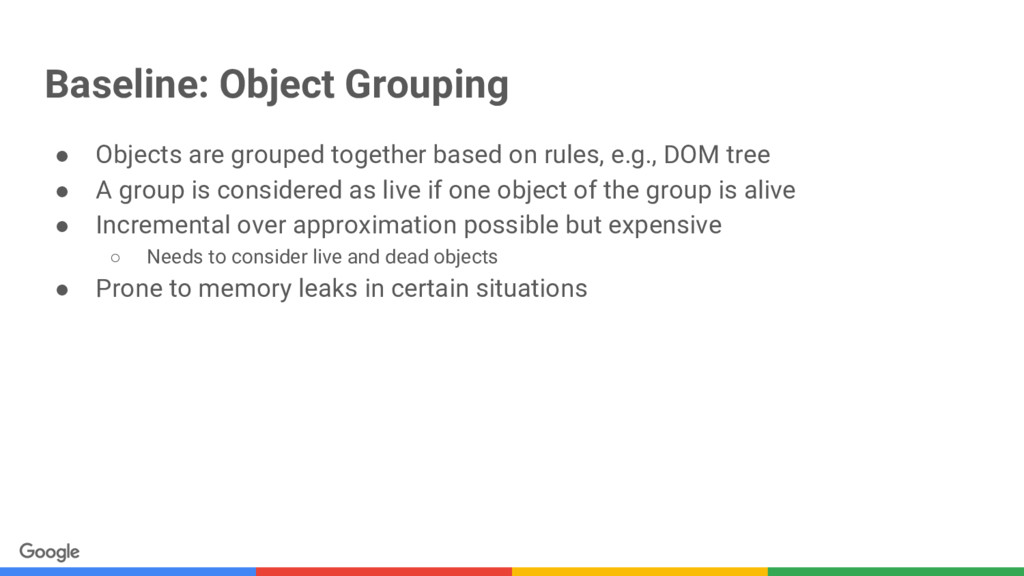

41. Baseline: Object Grouping • Objects are grouped together based on rules, e.g., DOM tree • A group is considered as live if one object of the group is alive • Incremental over approximation possible but expensive ◦ Needs to consider live and dead objects • Prone to memory leaks in certain situations
42. Benchmarking • Real-world workloads using Catapult benchmarking framework • Trace every single GC event, e.g. marking, marking finalization, atomic pause • Hypothesis testing using Wilcoxon Rank Sum Test
43. Average Latency-critical GC Pause significant significant not significant significant not significant Wilcoxon Rank Sum Test
44. Incremental Marking Finalization significant significant significant significant significant Wilcoxon Rank Sum Test Potentially last incremental step before atomic pause
45. Marking Time significant not significant not significant significant not significant Wilcoxon Rank Sum Test the tradeoff
