Mainframer или как ускорить сборку проекта в несколько раз не написав ни строчки кода, на примере Android

Transcript

1. Mainframer Or how to speed up project compilation time
2. Ilya Shknai Lead Software Engineer 7 years in Android Experience: 4 years in leadership
3. 3 Mainframer INTRODUCTION INTO ISSUE • Huge project (8 years) • Long running project • Support few release branches • Slow gradle sync • Time consuming compilation time Grodno, 2019
4. 4 Mainframer INTRODUCTION INTO ISSUE Grodno, 2019 14 branded apps 9 environments 2 build types 252 build variants
5. 5 Mainframer INTRODUCTION INTO ISSUE How much does it take to switch between branches, change a few lines and check changes ? Grodno, 2019 Config is : Core i7 (3rd gen) 2.3 GHz / 3.3 GHz turbo 4 cores 16 GB DDR3
6. 6 Mainframer INTRODUCTION INTO ISSUE How much does it take to switch between branches, change a few lines and check changes ? Grodno, 2019 23 min!
7. 7 HOW TO SPEED UP THE COMPILATION TIME ? Grodno, 2019
8. 8 Mainframer HOW WE SPEED UP SYNC TIME Filter unnecessary flavors • Release variant. 252/2 = 126 • All environments. We have 8 environments and additional flavor with environment switcher. 126/9 = 14 build variants. Grodno, 2019
9. 9 Mainframer HOW WE SPEED UP COMPILATION TIME gradle.properties • org.gradle.daemon=true • org.gradle.parallel=true • org.gradle.caching=true • org.gradle.configureondemand=true • Use latest Gradle and JVM versions • Apply plugins judiciously • Avoid expensive or blocking work • Minimize dynamic and snapshot versions • Don’t resolve dependencies at configuration time • Avoid unnecessary and unused dependencies • Multi modules Grodno, 2019
10. 10 Mainframer RESULT AFTER IMPROVEMENTS Grodno, 2019 23 min 13 min 40 sec
11. 11 Mainframer WHAT IS MAINFRAMER ? A tool that executes a command on a remote machine while syncing files back and forth. https://github.com/buildfoundation/mainframer Grodno, 2019
12. 12 Mainframer HOW IT WORKS • Syncs the folder where command is executing • Runs command on remote machine • Remote machine compiles the project the same way as on local machine • Syncs back the result Example with command line • Local compilation – ./gradlew assembleDebug • Remote compilation - ./mainframer ./gradlew assembleDebug Grodno, 2019

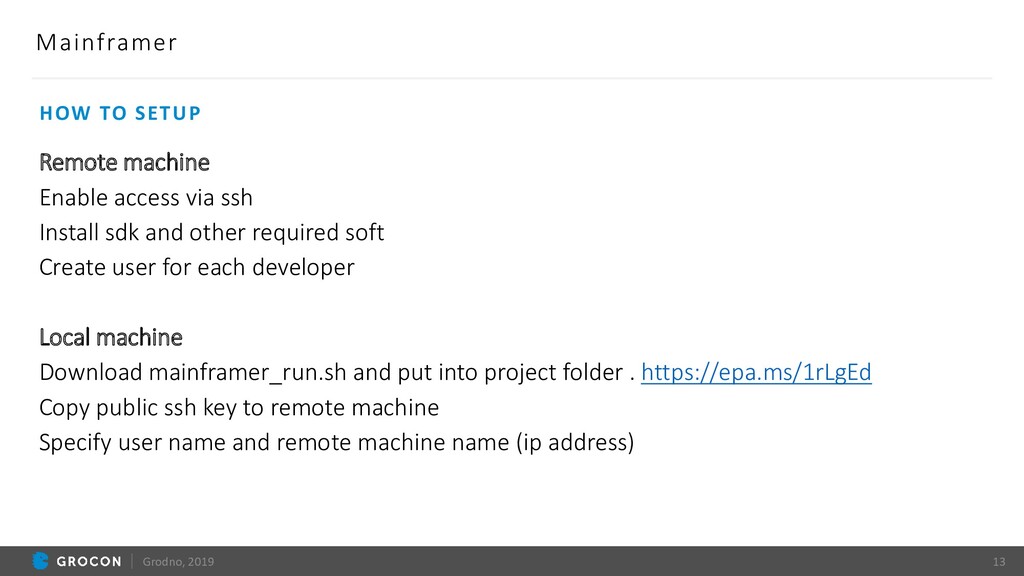

13. 13 Mainframer HOW TO SETUP Remote machine Enable access via ssh Install sdk and other required soft Create user for each developer Local machine Download mainframer_run.sh and put into project folder . https://epa.ms/1rLgEd Copy public ssh key to remote machine Specify user name and remote machine name (ip address) Grodno, 2019
14. 14 Mainframer SETUP DEMO Grodno, 2019
15. 15 Mainframer COMPATIBILITY Works from the box • Unix • Mac OS Works on windows via WSL, Cygwin etc. Grodno, 2019
16. 16 Mainframer OUR TEMPORARY PC CONFIGURATION Core i7 7700 4 cores / 8 hyper threads 3.6 GHz / 4.2 GHz turbo 32 GB RAM. DDR 3 Grodno, 2019
17. 17 Mainframer. Improvement result Grodno, 2019 13 min 40 sec 1 min 40 sec
18. 18 Mainframer OUR PERMANENT CONFIGURATION Core i9 9900K • 8 cores • 16 hyper threads • 3.6 GHz • 5 GHz turbo 64 GB RAM • DDR 4 • 2666 GHz 1 TB SSD M.2 Grodno, 2019 How much ? 2500$
19. 19 Mainframer. Improvement result IMPROVEMENT RESULT Grodno, 2019 1 min 40 sec 1 min 27sec
20. 20 Mainframer Grodno, 2019 1 user 2 users 3 users 4 users 5 users 6 users 7 users 8 users Core i7 vs Core i9 Core i7 Core i9
21. Config is : Core i7 (9th gen) 2.6 GHz / 4.5 GHz turbo 6 cores 16 GB DDR4 21 Mainframer. Remote build VS Macbook 2017 Grodno, 2019
22. 22 Mainframer. Remote build VS Macbook 2017 Grodno, 2019 1 min 27 sec 7 min 1 sec
23. 23 Mainframer ADDITIONAL PROS • Linux as additional operation system • Remote cache • Additional CI machine Grodno, 2019
24. 24 Mainframer ISSUES • Gradle task appears after Android studio restart To fix is “Help->Edit Custom VM options-> -Dgradle.ide.gradle.run.configuration.fix.enabled=false” • Sometimes windows can lock build folder and the result of remote build can’t sync back • If build isn’t successful, you can see error in build log , but can’t tap on it and quickly navigate to file Grodno, 2019
25. 25 Questions Mainframer Grodno, 2019 Mainframer https://github.com/buildfoundation/mainframer mainframer_run.sh https://epa.ms/1rLgEd
26. 26 Thank You ! Mainframer Grodno, 2019
