1. Solar panel Testing with NI MyDaq and LabView program HOSSAIN MD NAYEEM ELECTRICAL ENGINEER UNIVERSITY OF DEBRECEN, HUNGARY

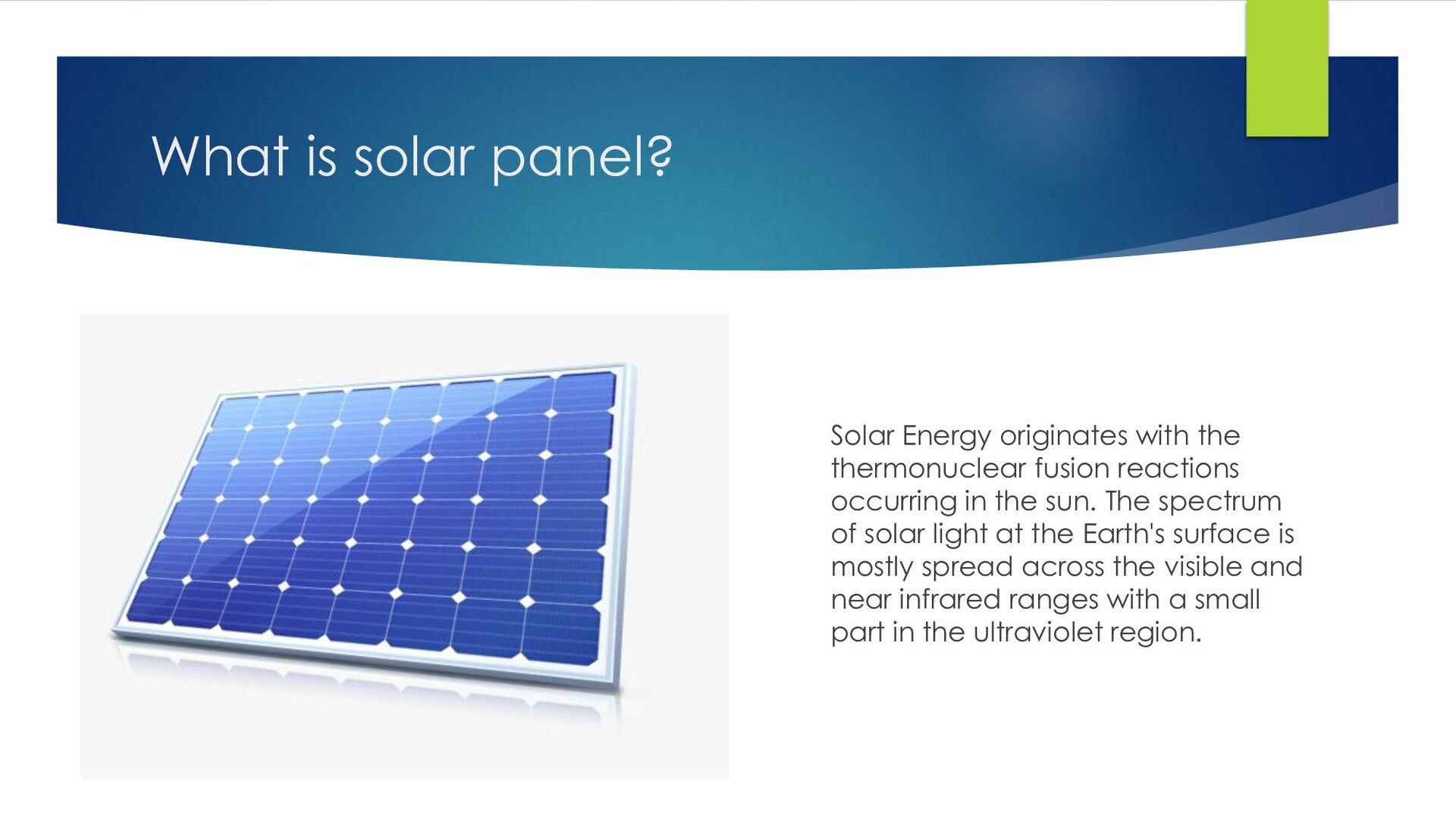

2. What is solar panel? Solar Energy originates with the thermonuclear fusion reactions occurring in the sun. The spectrum of solar light at the Earth's surface is mostly spread across the visible and near infrared ranges with a small part in the ultraviolet region.
3. Producing Electricity Using Solar Energy Solar Energy, we can generate electricity in 2 ways: 1. Thermal Solar Energy: Using solar energy for heating fluids which can be used as a heat source or to run turbines to generate electricity. 2. Photovoltaic Solar Energy: Using solar energy for the direct generation of electricity using photovoltaic phenomenon.

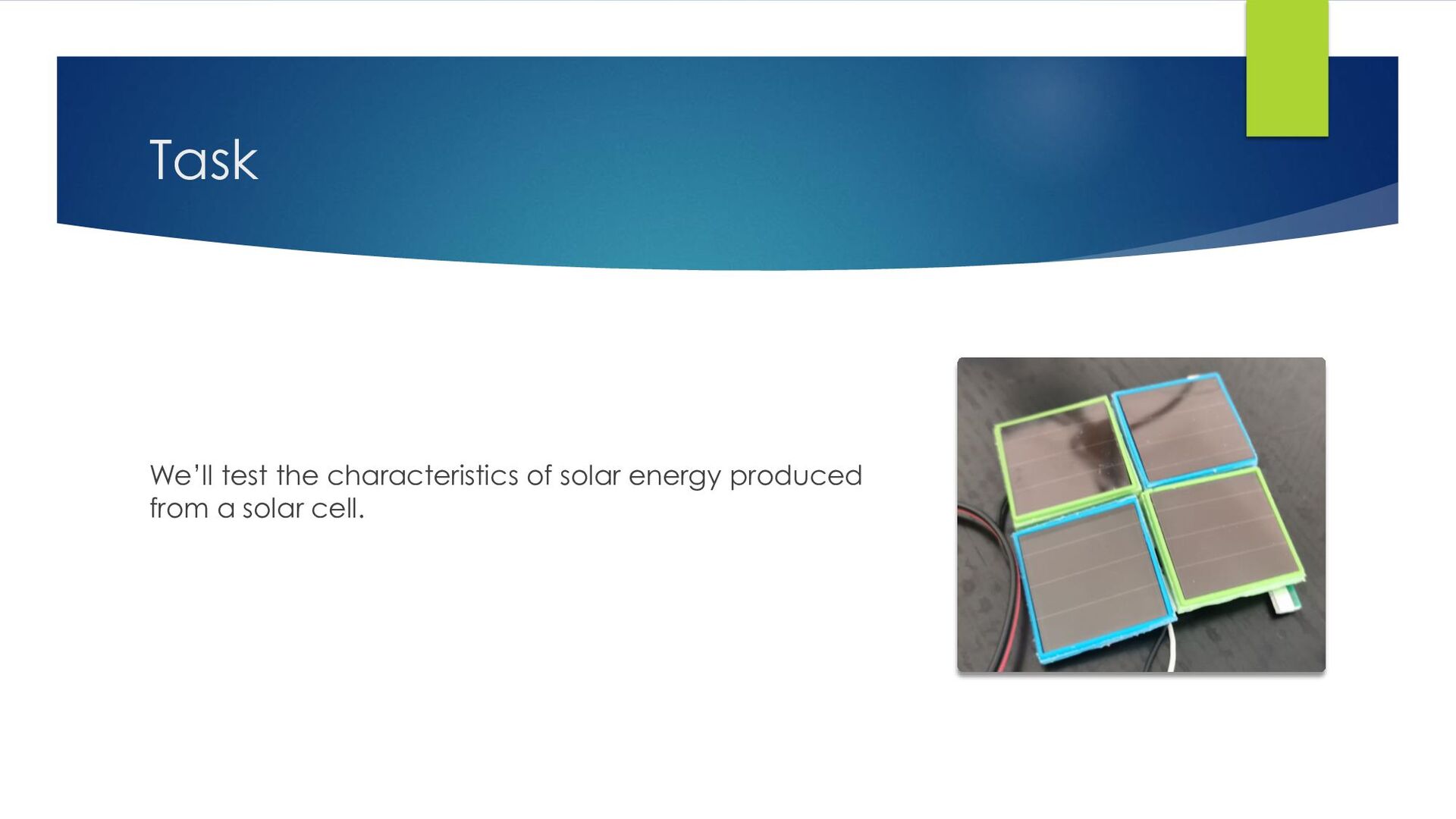

4. Task We’ll test the characteristics of solar energy produced from a solar cell.
5. Devices and Programming environment

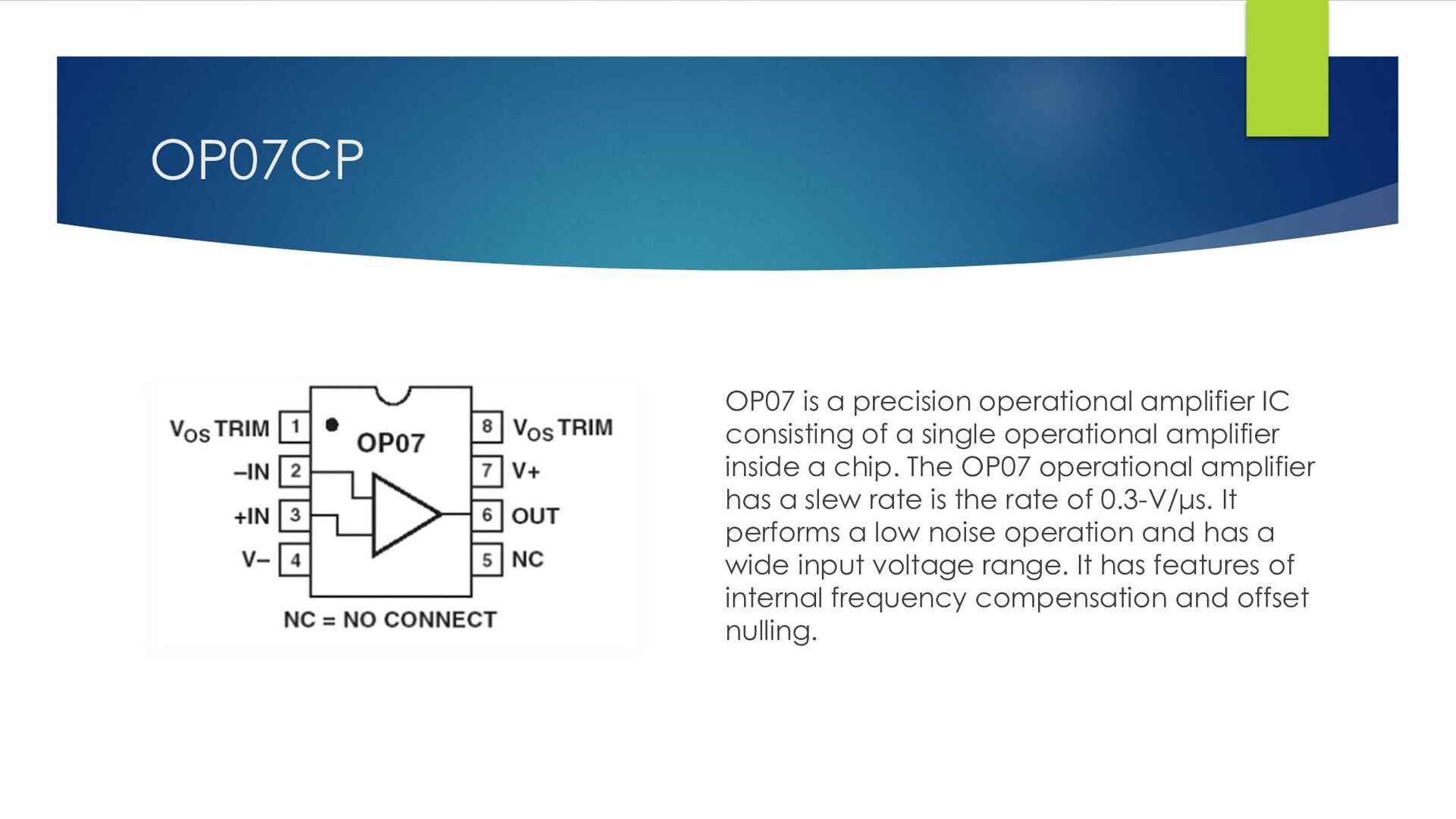

6. OP07CP OP07 is a precision operational amplifier IC consisting of a single operational amplifier inside a chip. The OP07 operational amplifier has a slew rate is the rate of 0.3-V/μs. It performs a low noise operation and has a wide input voltage range. It has features of internal frequency compensation and offset nulling.

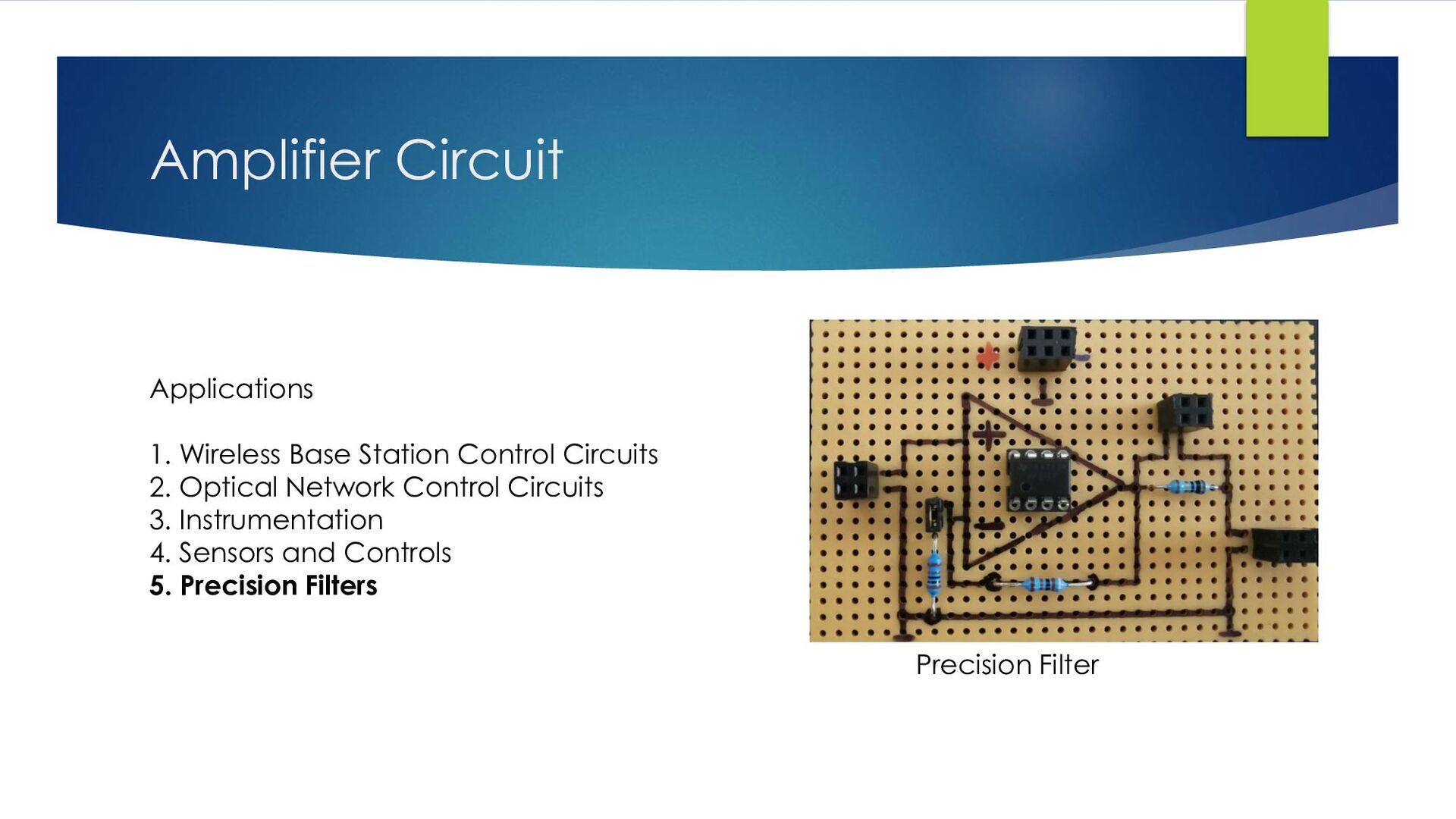

7. Amplifier Circuit Applications 1. Wireless Base Station Control Circuits 2. Optical Network Control Circuits 3. Instrumentation 4. Sensors and Controls 5. Precision Filters Precision Filter

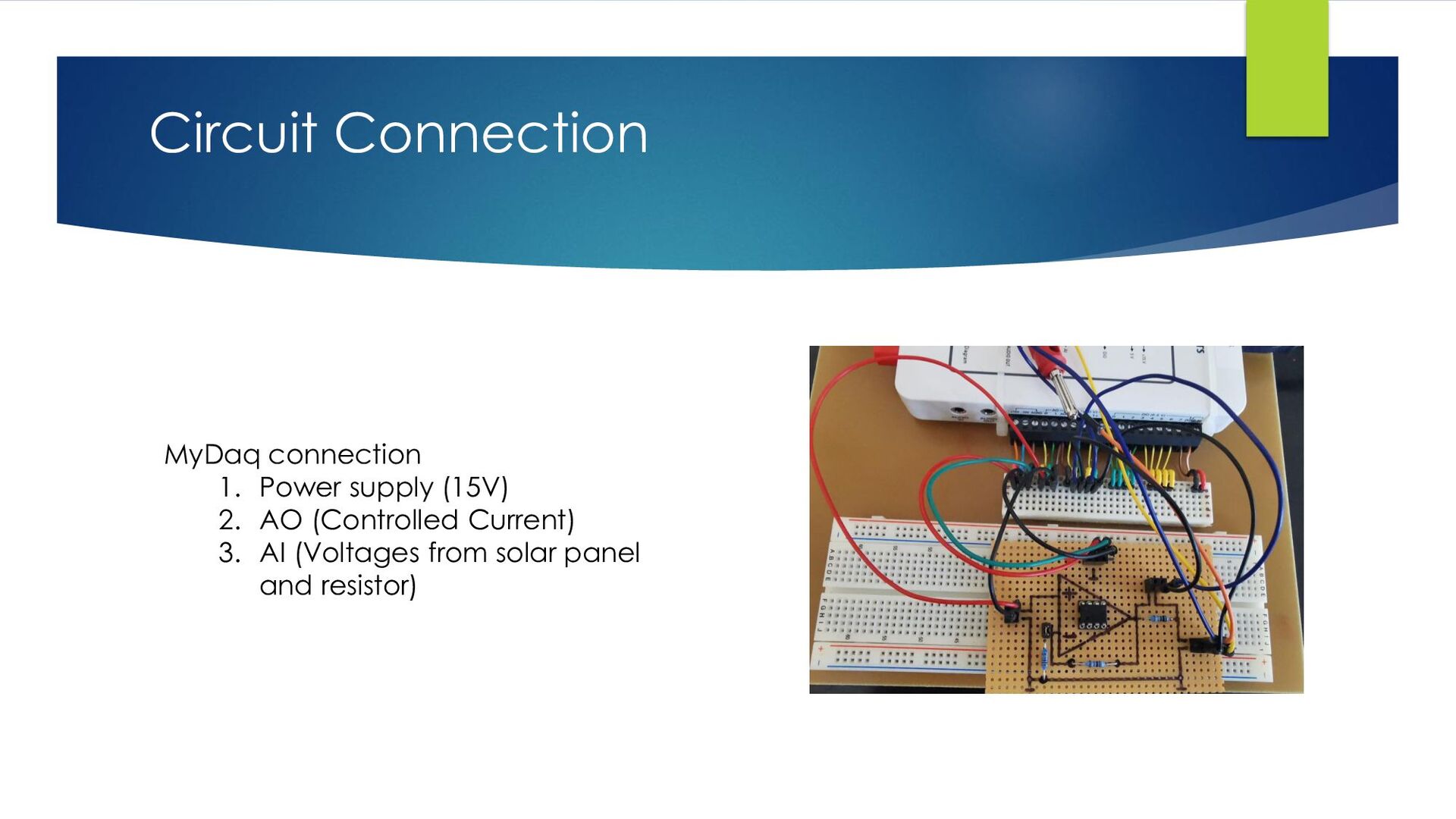

8. Circuit Connection MyDaq connection 1. Power supply (15V) 2. AO (Controlled Current) 3. AI (Voltages from solar panel and resistor)

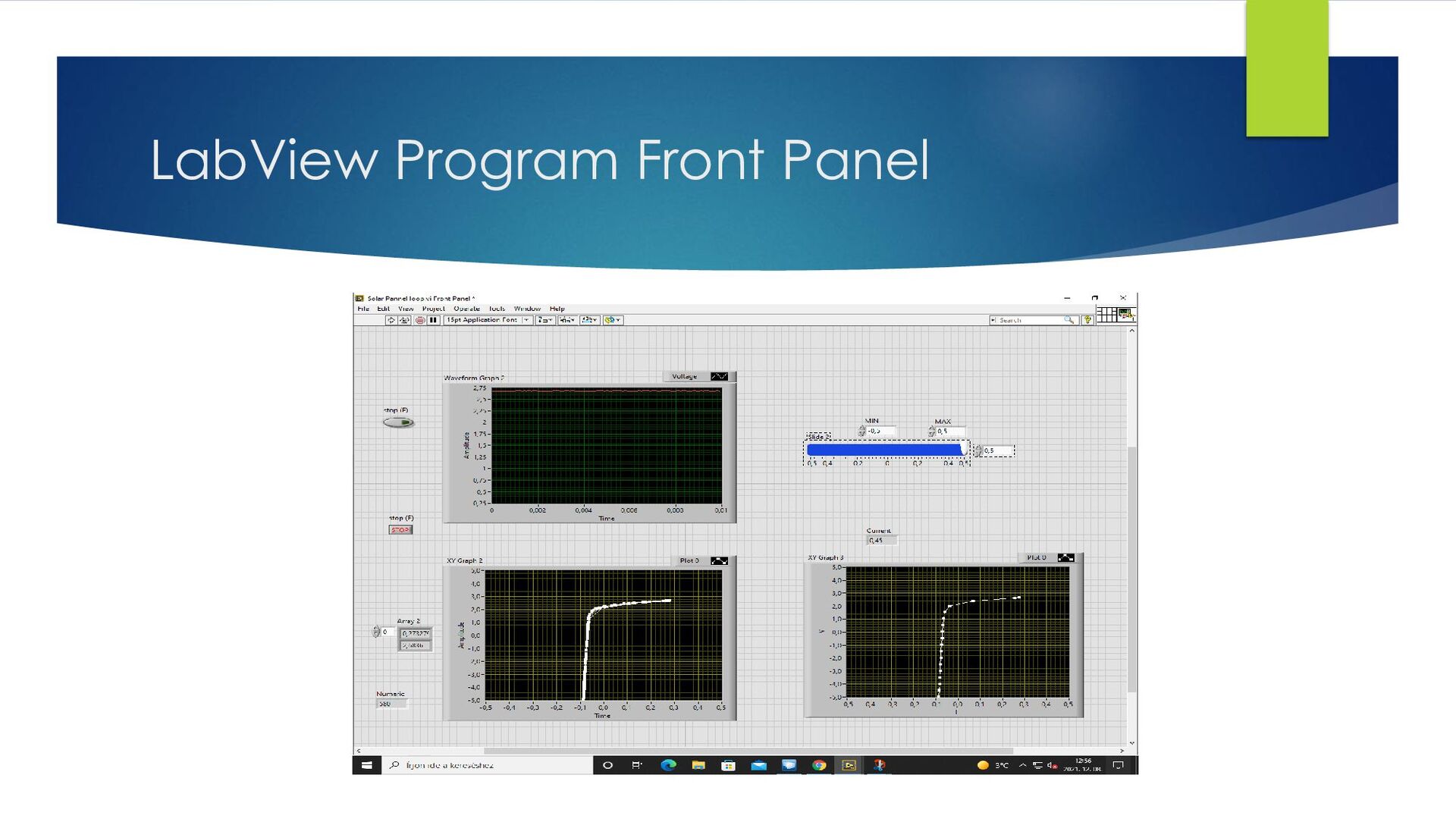

9. LabView Program Front Panel

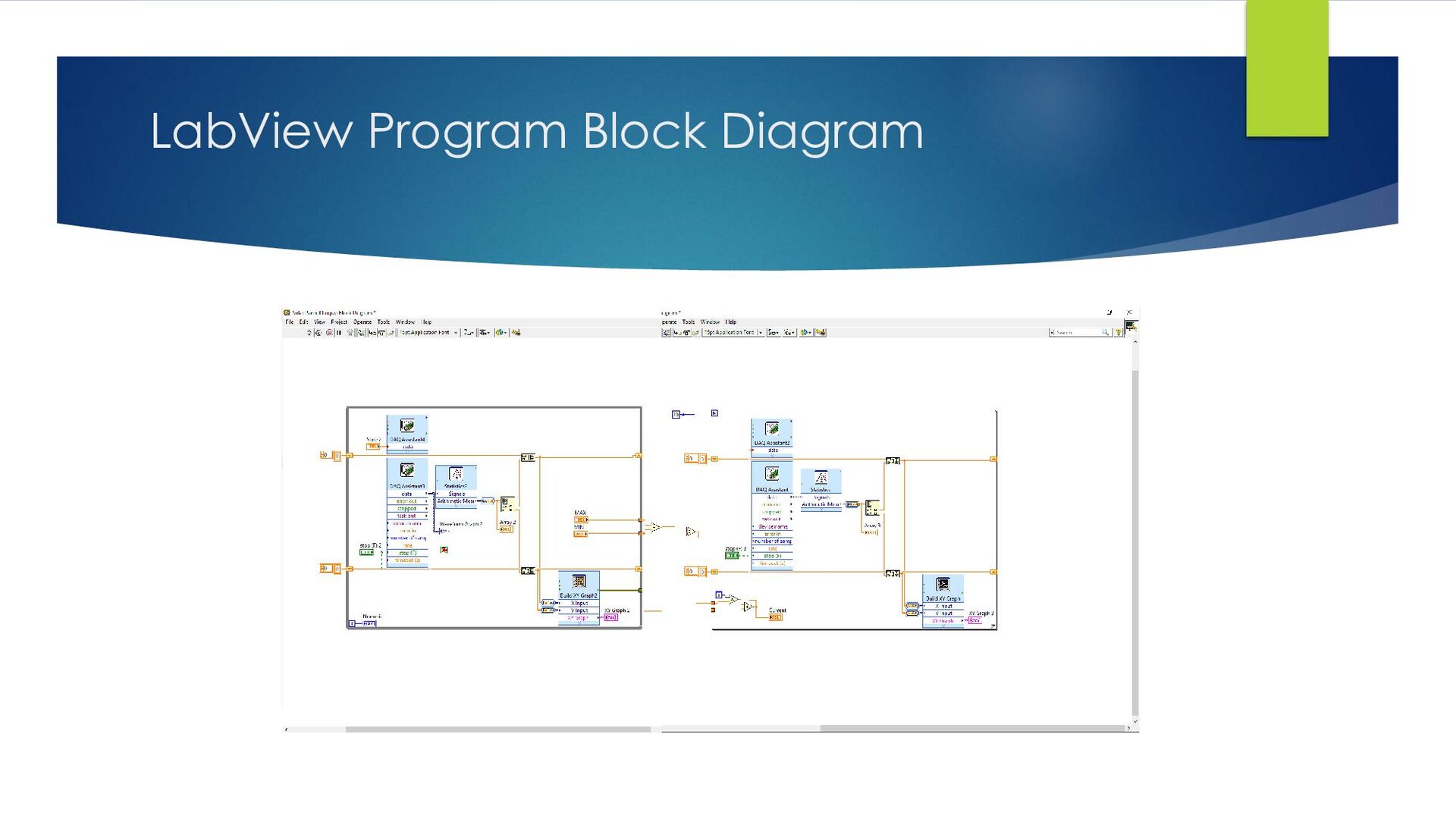

10. LabView Program Block Diagram

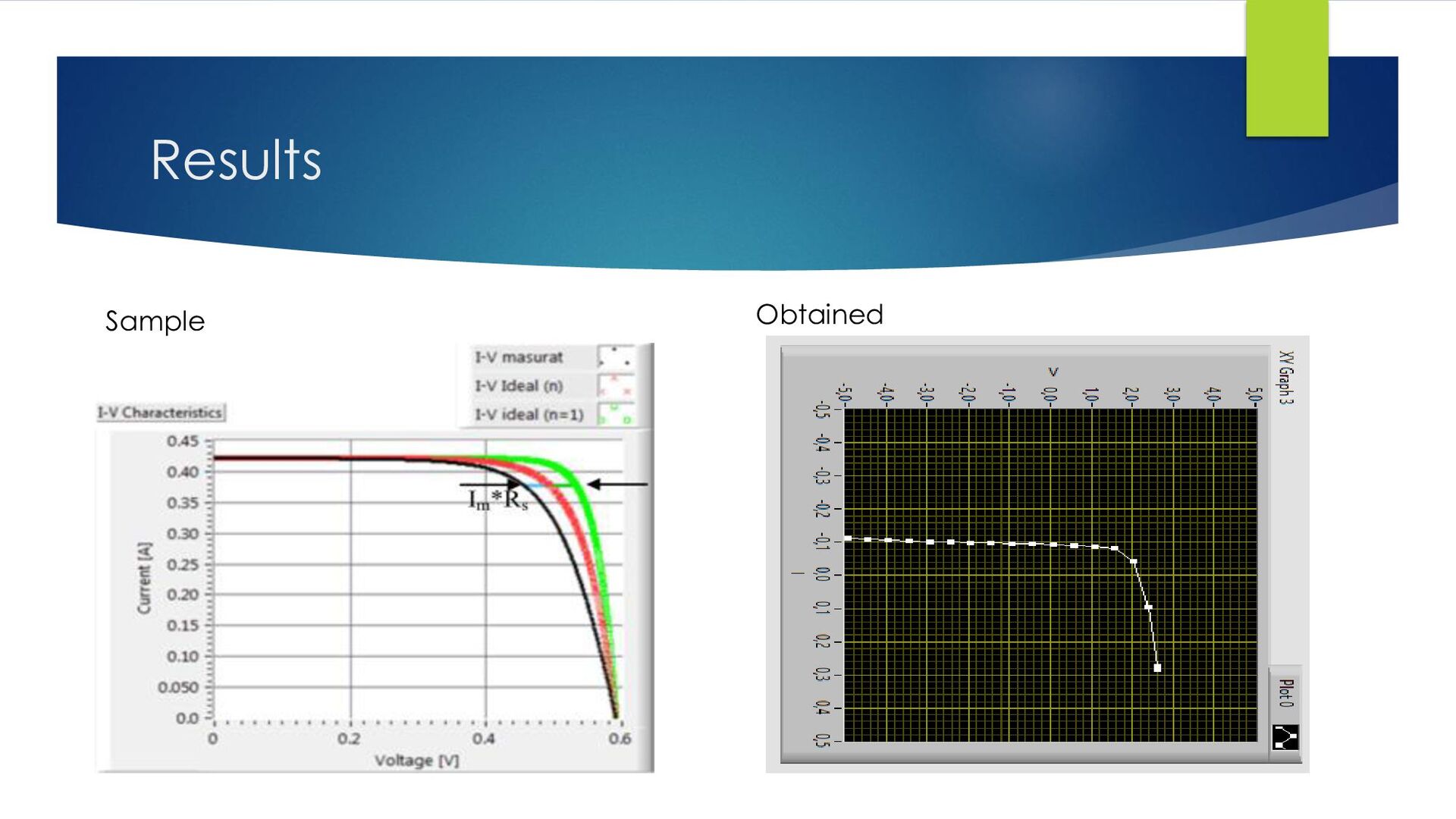

11. Results Sample Obtained
