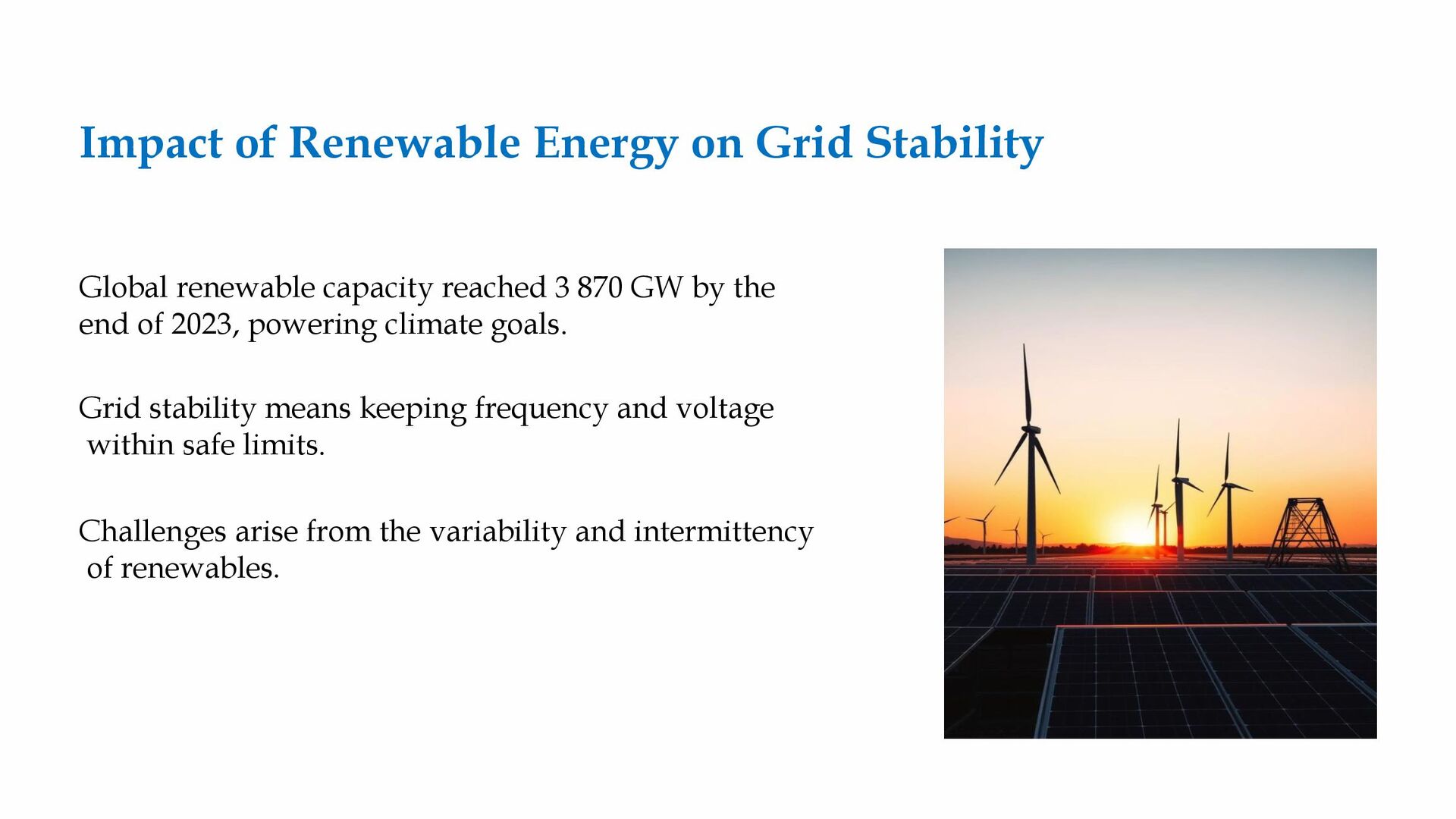

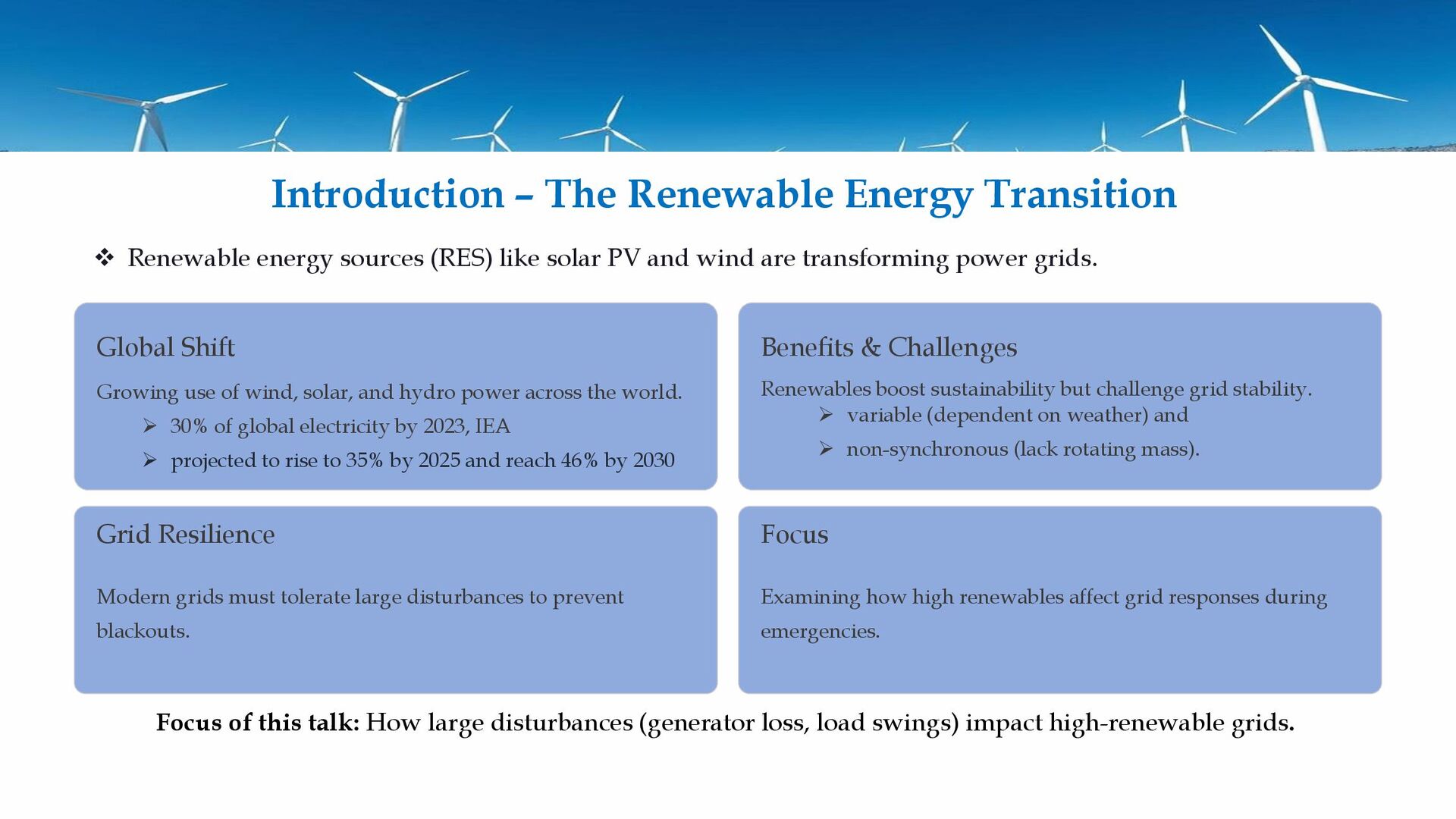

We’re seeing a global shift with renewable energy sources like solar PV and wind transforming power grids. As per the latest IEA reports of 2023, 30% of global electricity comes from renewable sources and this state is projected to rise to 35% by 2025 which is this year and reach 46% by 2030. However, this transition brings benefits like sustainability but also challenges, such as grid stability due to variable weather and non-synchronous sources. Modern grids must now tolerate large disturbances to prevent blackouts, and our focus today is how these affect high-renewable grids during emergencies.

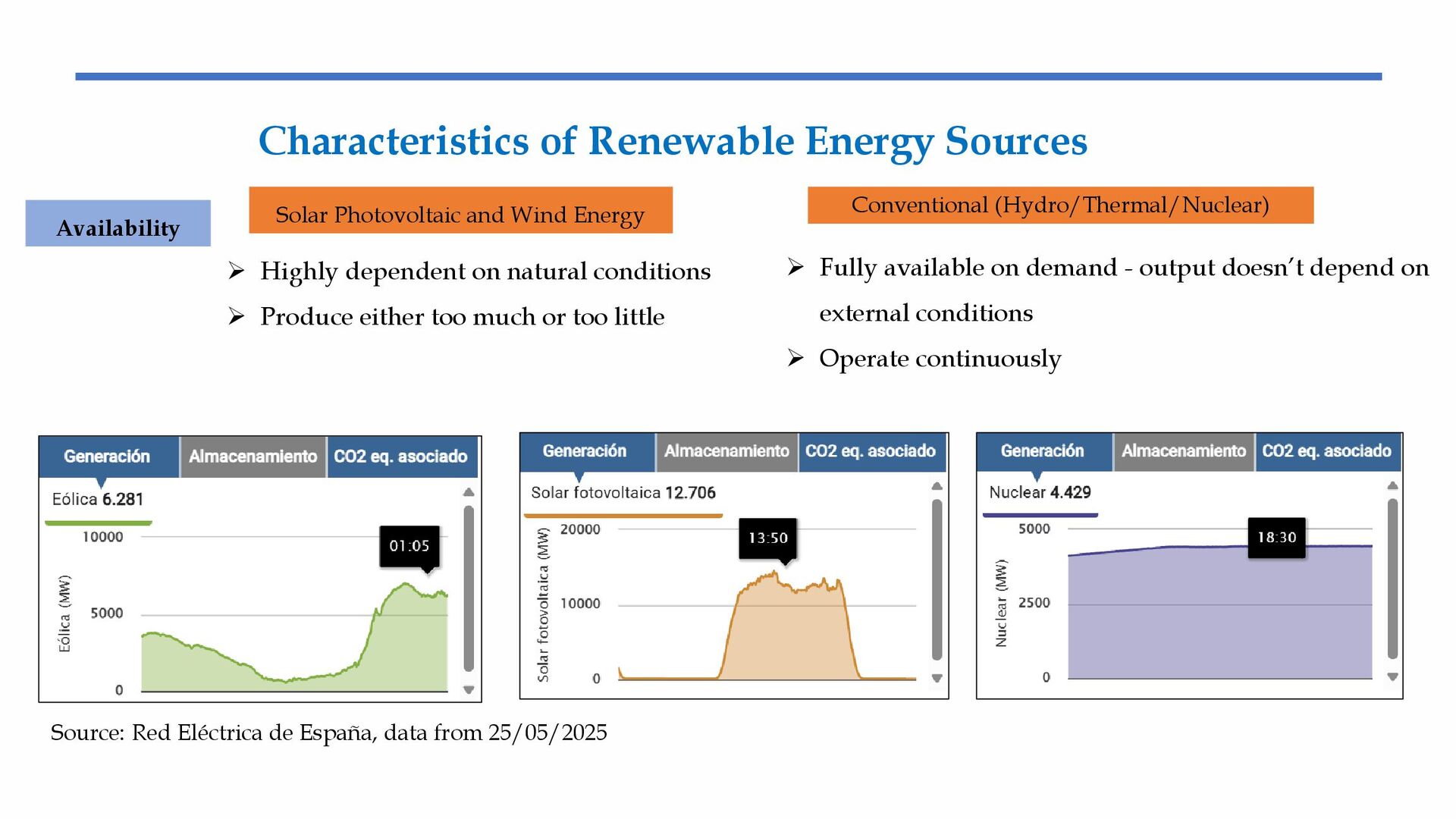

One of the most critical challenges with integrating renewable energy sources like solar and wind into the grid is their intermittency. These sources depend entirely on natural conditions — solar panels only generate electricity when the sun is shining, and wind turbines only work when wind speeds are within a certain range. This means their output can fluctuate significantly over minutes or even seconds, and we can’t fully control when or how much they produce.
Unlike conventional power plants, which can adjust their output to match demand, solar and wind often produce either too much or too little compared to what the grid needs at any given moment. This mismatch makes it much harder to keep the power system stable, especially when large disturbances occur — for example, when a big generator fails or there's a sudden surge in electricity demand
Conventional energy sources — such as thermal, hydro, and nuclear — have the advantage of being fully available on demand. Their output doesn’t depend on external conditions like sunlight or wind. As long as there’s fuel or water, these power plants can generate electricity whenever it's needed, whether it's day or night, sunny or cloudy.
This high availability makes them very reliable for supporting the grid, especially during periods of high demand or unexpected disturbances. They can operate continuously and maintain a steady baseline output, which is why they’re often used to supply what's called base load power.

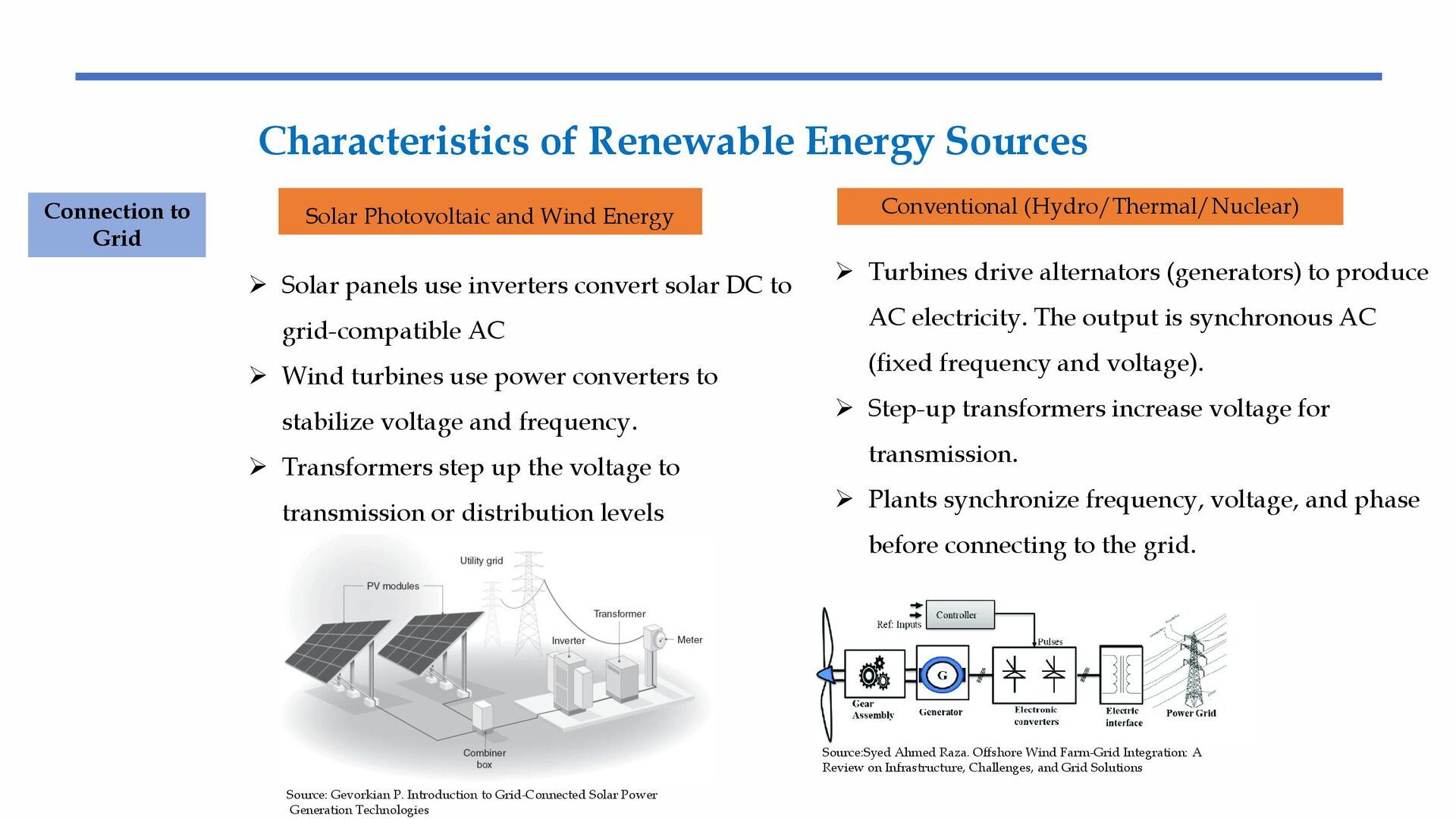

Solar panels produce electricity in the form of direct current, or DC, which has no frequency because the voltage remains constant over time. To connect this to the grid, we use inverters that not only convert the DC into alternating current, or AC, but also ensure the output matches the grid’s voltage, frequency — usually 50 Hz — and phase.
In contrast, wind turbines generate AC electricity directly. However, because wind speed varies, the frequency and voltage of this AC also fluctuate. To stabilize this, we use power converters, which typically include a rectifier that converts the variable AC into DC, followed by an inverter that produces grid-compatible AC.
Finally, in both solar and wind systems, transformers are used to increase the voltage to the appropriate level for transmission or distribution on the electrical grid.
Conventional power plants, such as hydro, thermal, or nuclear, generate electricity using turbines connected to alternators. These alternators produce alternating current, or AC, directly. Since the turbines rotate at a controlled speed, the electricity they generate has a stable frequency and voltage, typically matching grid standards — we call this synchronous AC power.
Before this electricity is sent to the transmission grid, a step-up transformer increases its voltage to minimize energy loss over long distances. To connect safely and reliably to the grid, these plants must ensure that their output matches the grid’s frequency, voltage, and phase exactly.

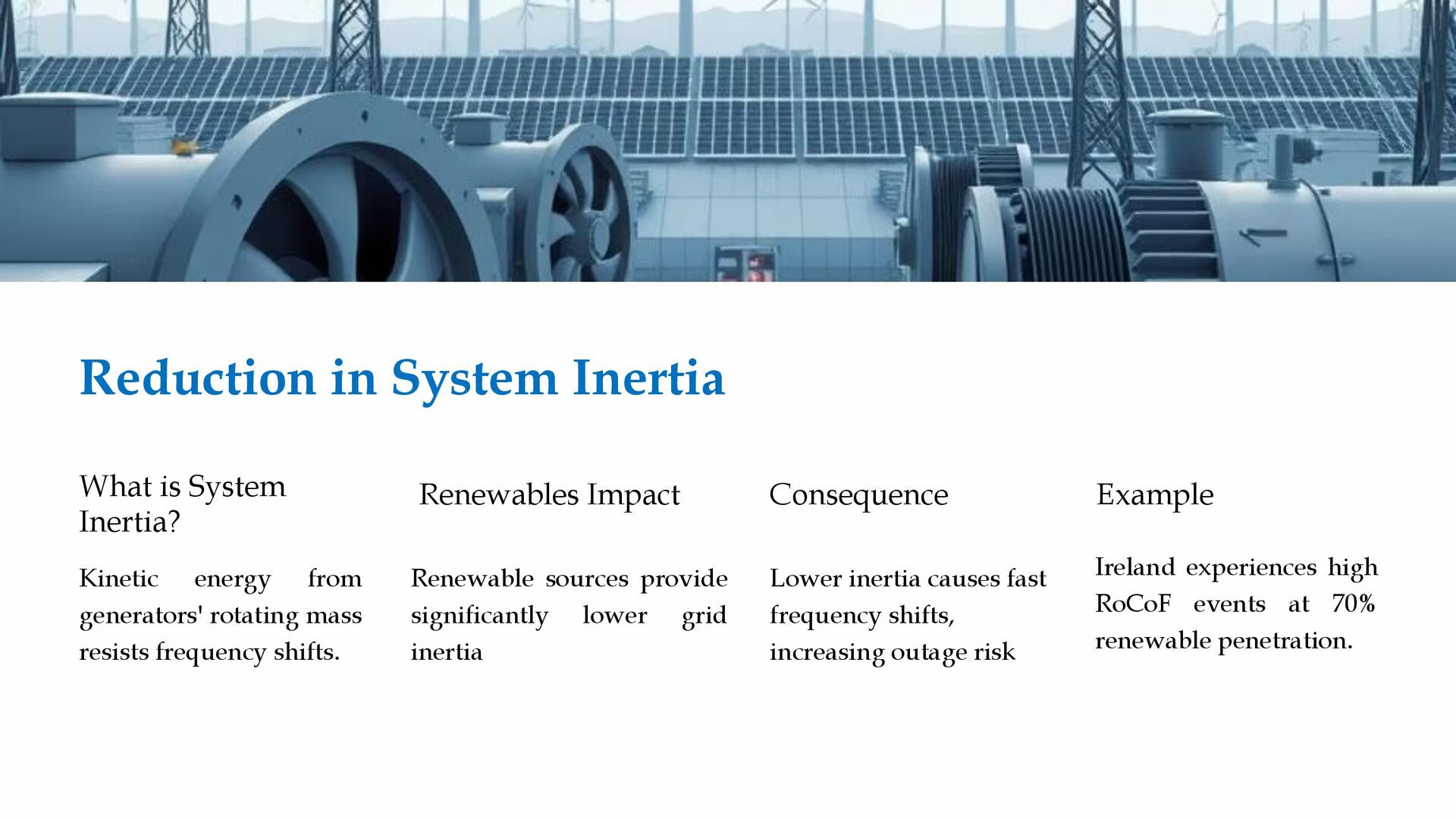

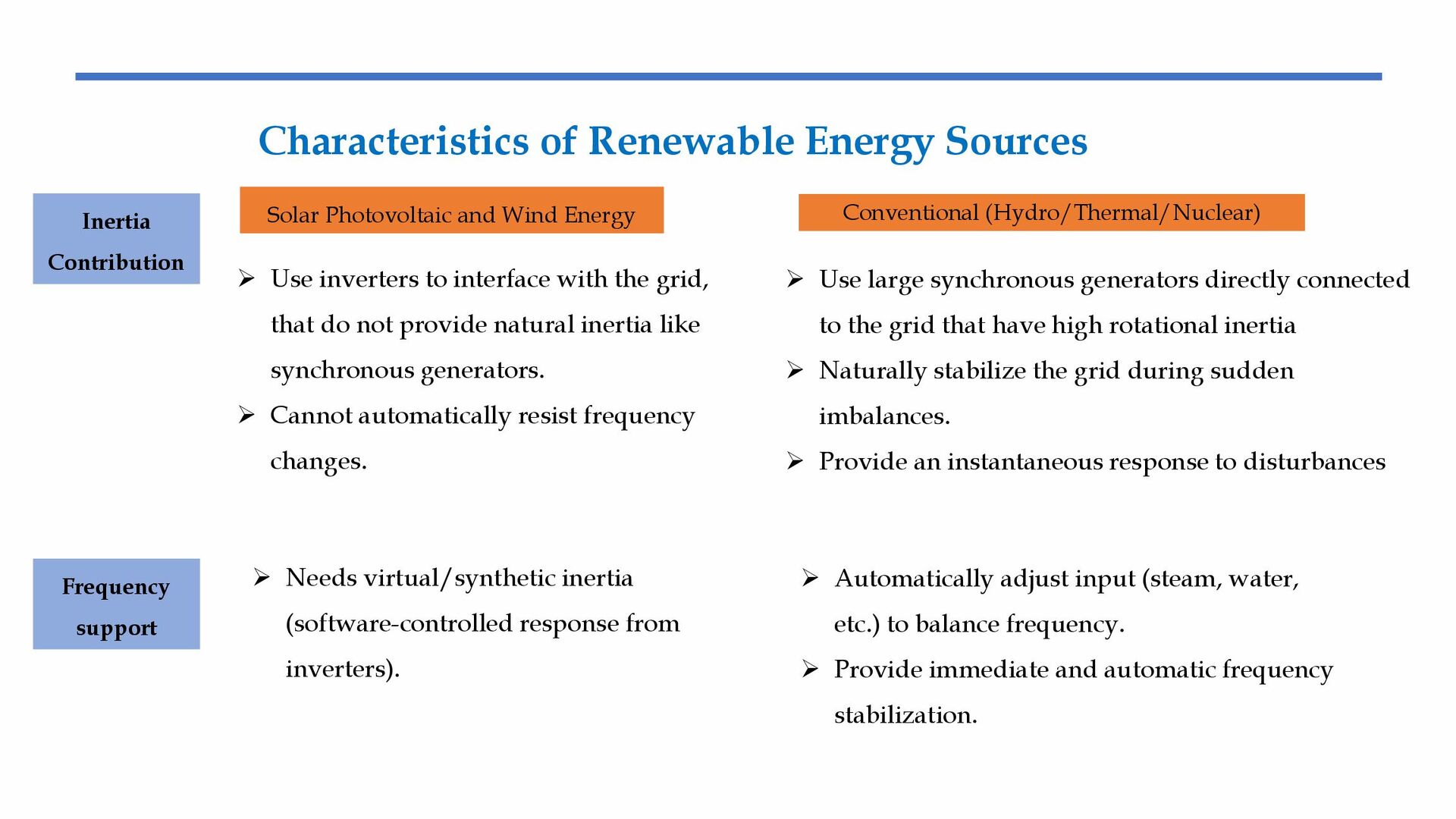

Solar and many wind energy systems connect to the grid through inverters, which convert their electrical output into grid-compatible alternating current. Unlike conventional generators, these inverters don’t have any physical rotating mass, so they don’t provide natural inertia. As a result, they can’t automatically resist changes in grid frequency Conventional power plants use large synchronous generators that are directly connected to the grid. These generators have high rotational inertia, meaning their spinning mass naturally resists sudden changes in frequency.

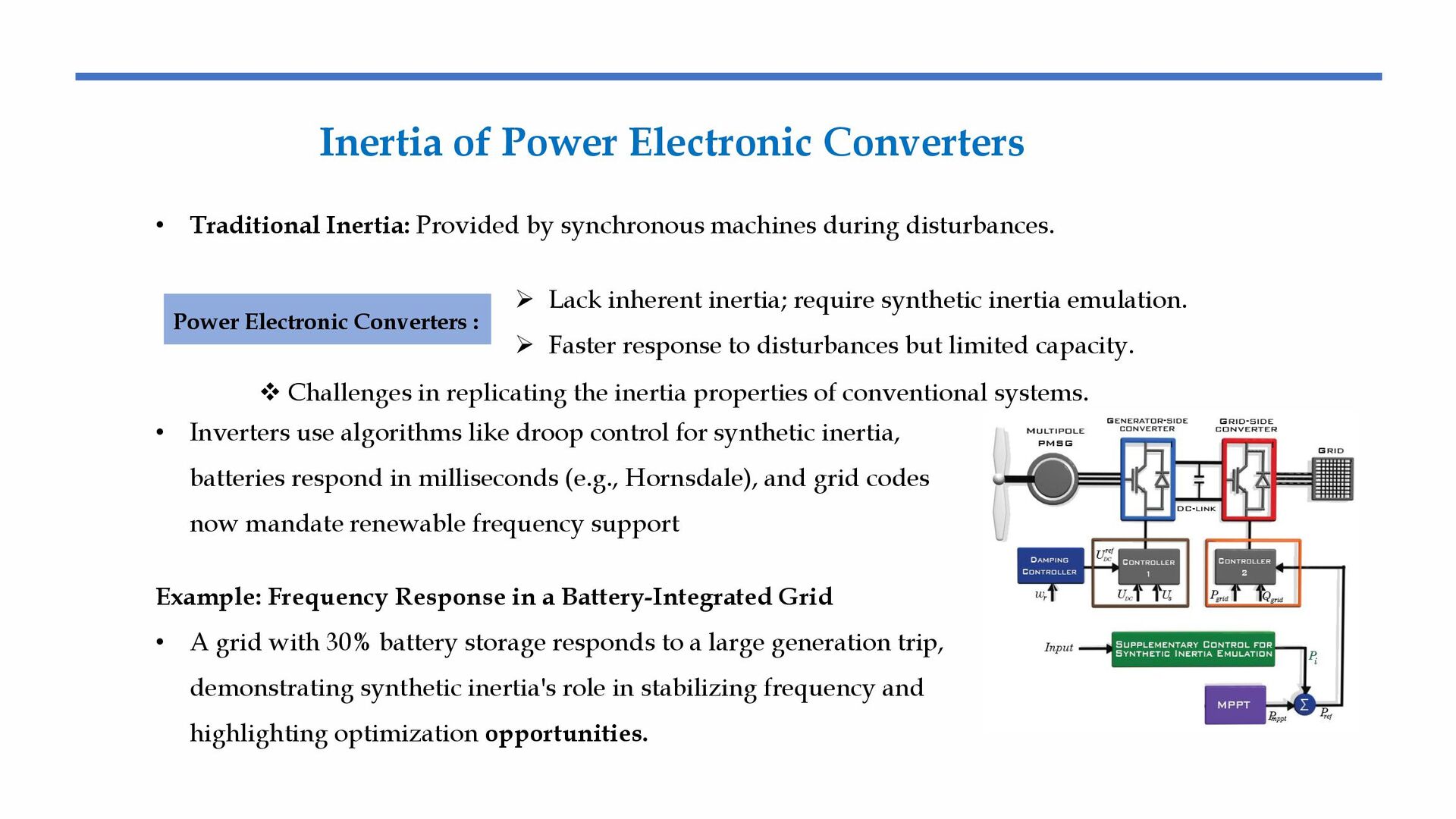

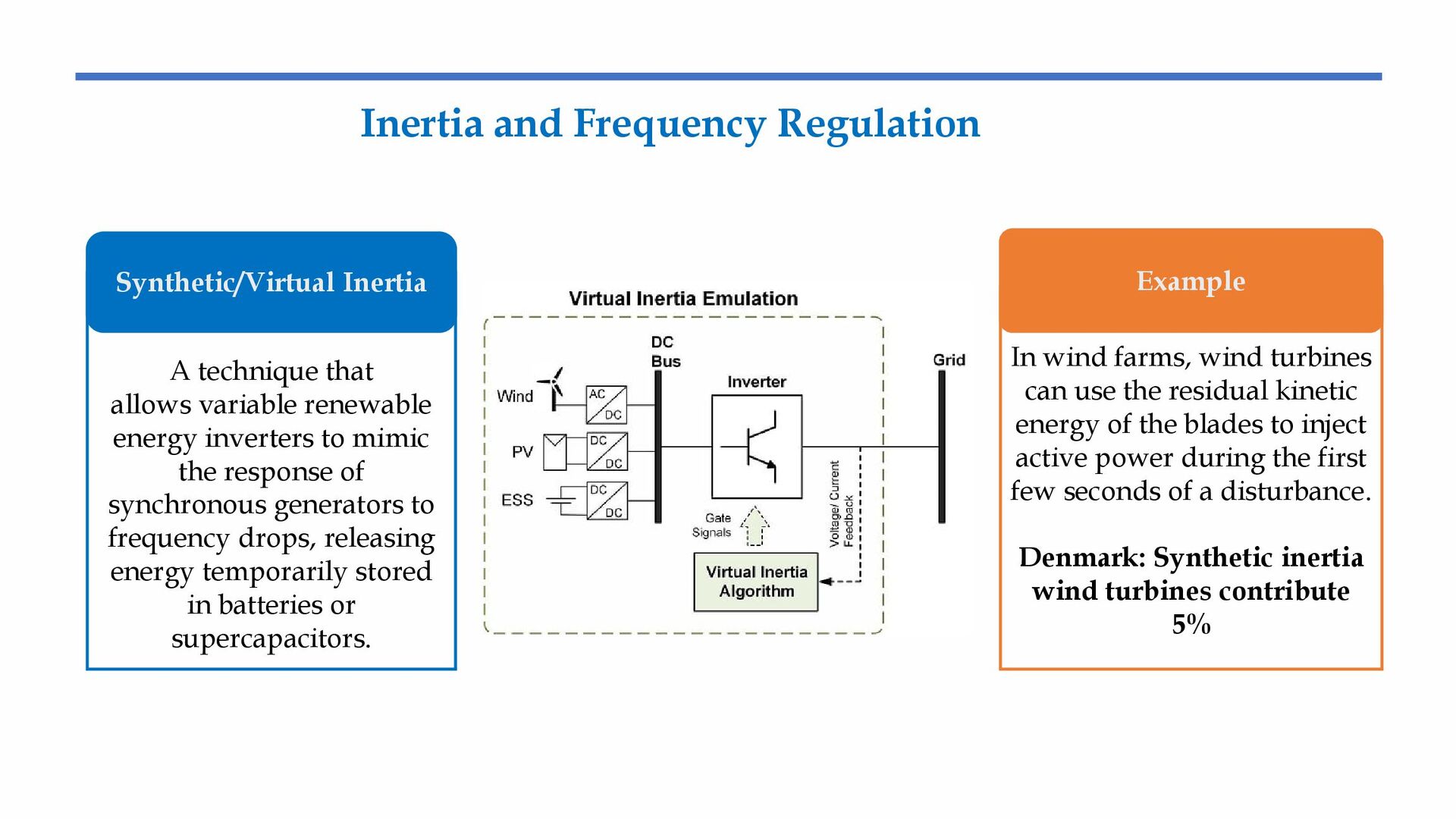

Because solar and wind systems don’t have physical inertia, they rely on virtual or synthetic inertia. This is a software-controlled response from inverters, which detects changes in grid frequency and temporarily adjusts power output to help stabilize the system — though this response is not as immediate or robust as natural inertia from conventional generators.
These generators are equipped with governors that automatically adjust the input — such as steam in thermal plants or water flow in hydro plants — to respond to changes in grid frequency.

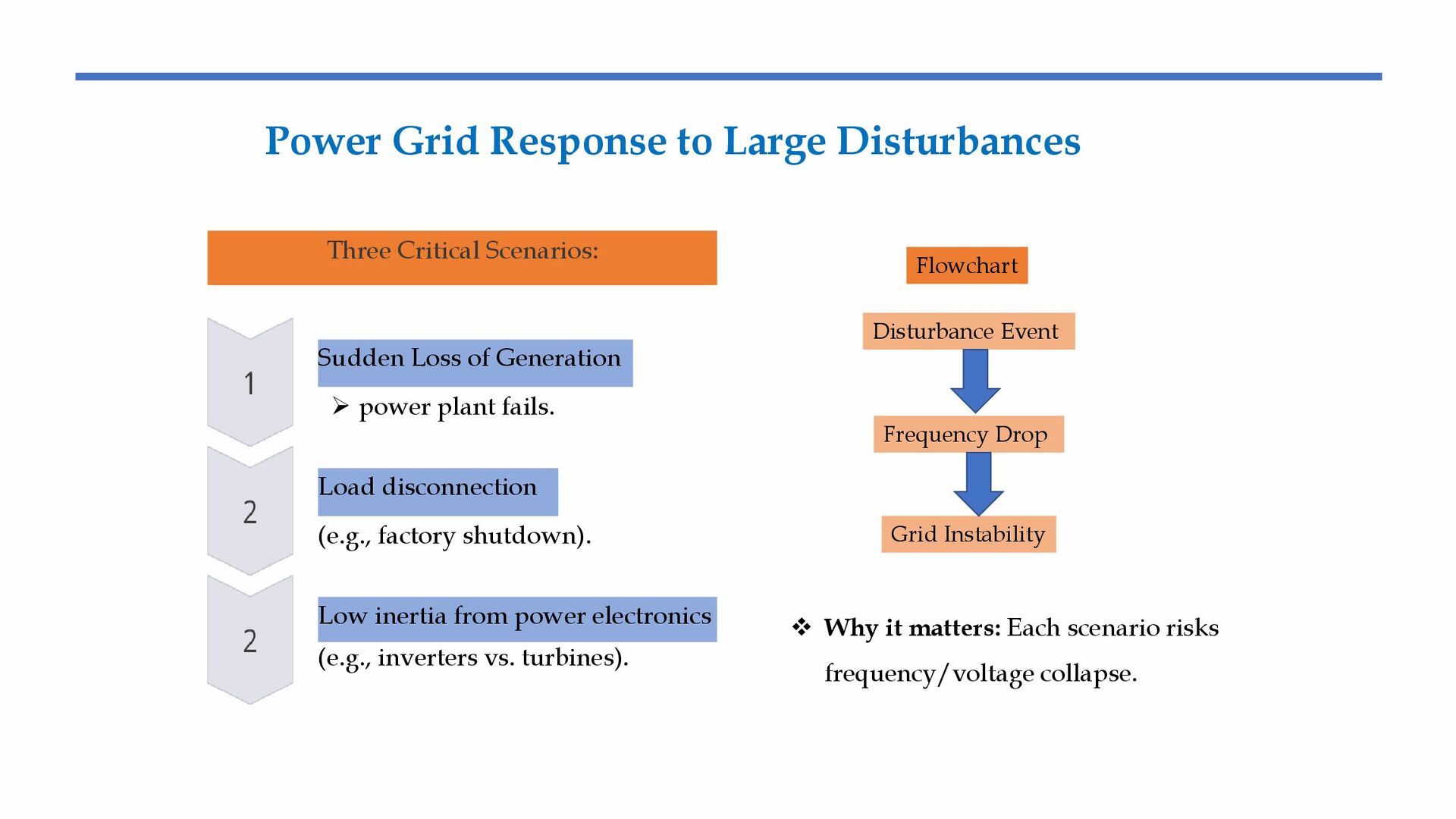

three critical scenarios impacting grid stability. First, a sudden loss of generation, like a power plant failure. Second, load disconnection, such as a factory shutdown. Third, low inertia from power electronics, like inverters versus turbines. As shown in the flowchart, a disturbance event can lead to a frequency drop and grid instability, risking frequency or voltage collapse in each case.

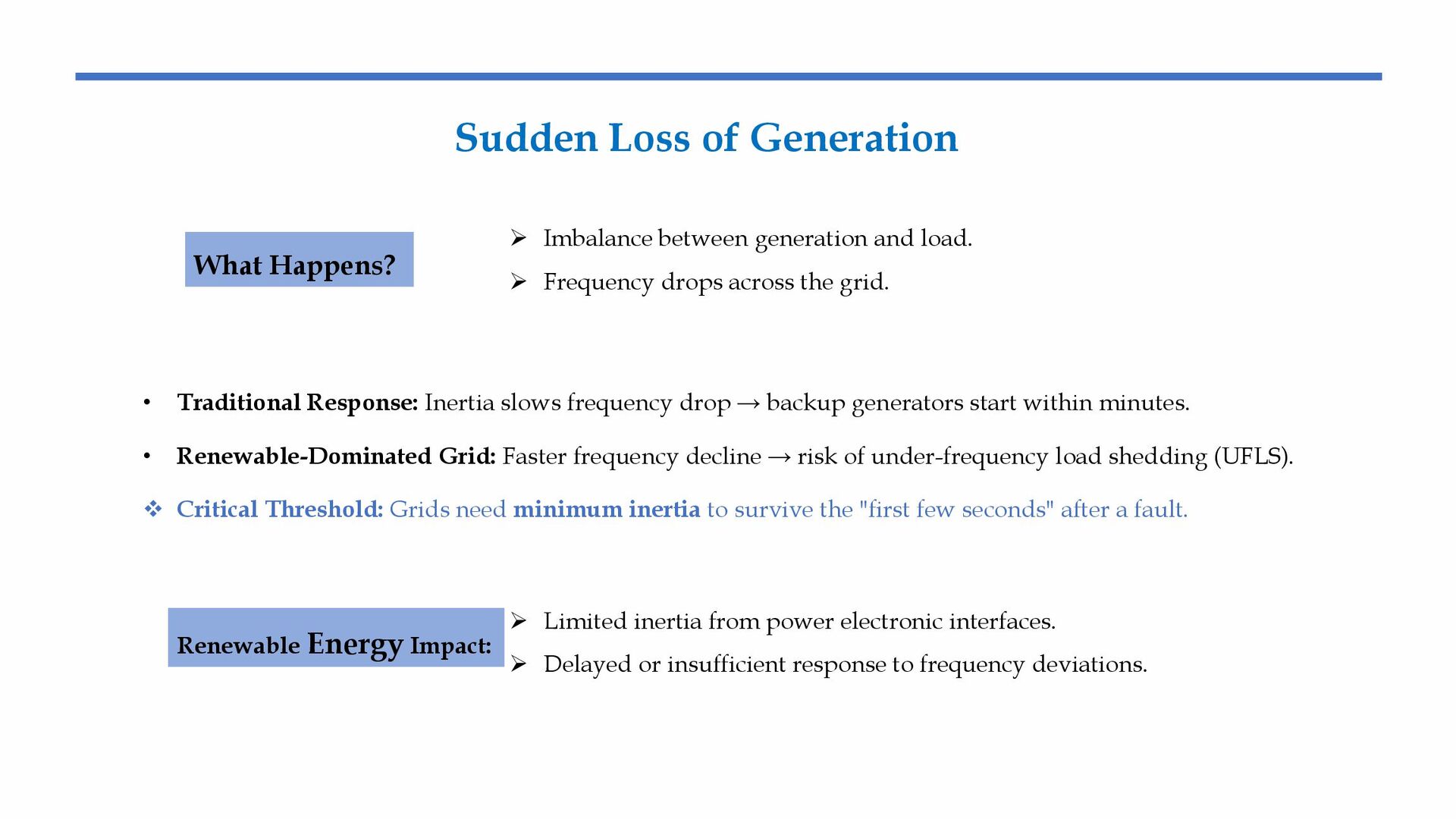

Focusing on sudden loss of generation, this creates an imbalance between power supply and demand, causing frequency drops across the grid. Traditionally, inertia slows this drop, with backup generators starting within minutes. In renewable-dominated grids, the faster decline risks under-frequency load shedding. A key impact is limited inertia from power electronics, leading to delayed frequency responses.

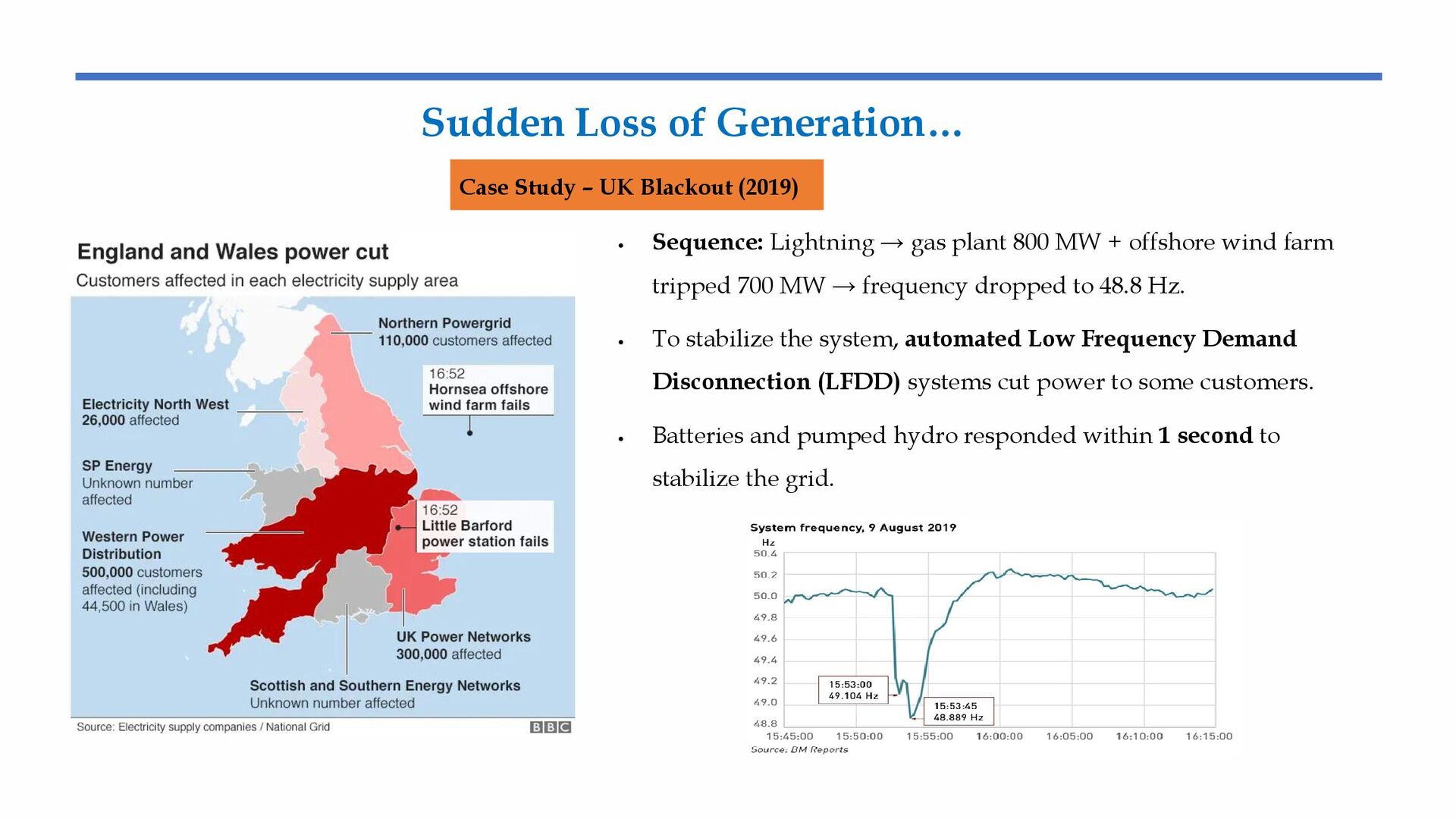

Lightning caused a gas plant and offshore wind farm to trip, dropping frequency to 48.8 Hz. Batteries and pumped hydro responded within one second to stabilize the grid. This highlights that fast frequency response is critical for renewable-heavy systems. This case study underscores the vulnerability of grids with significant renewable energy integration to sudden generation losses, the role of automatic systems in managing such events, and the importance of fast-responding technologies like batteries and pumped hydro in preventing widespread blackouts.
Key Insight: Fast Frequency Response (FFR) is critical for renewable-heavy systems.
