Concurrency and Parallelism in Ruby

Facts and myths about concurrency and parallelisms in Ruby

Transcript

1. Concurrency and Parallelism in Ruby @nikitachernov

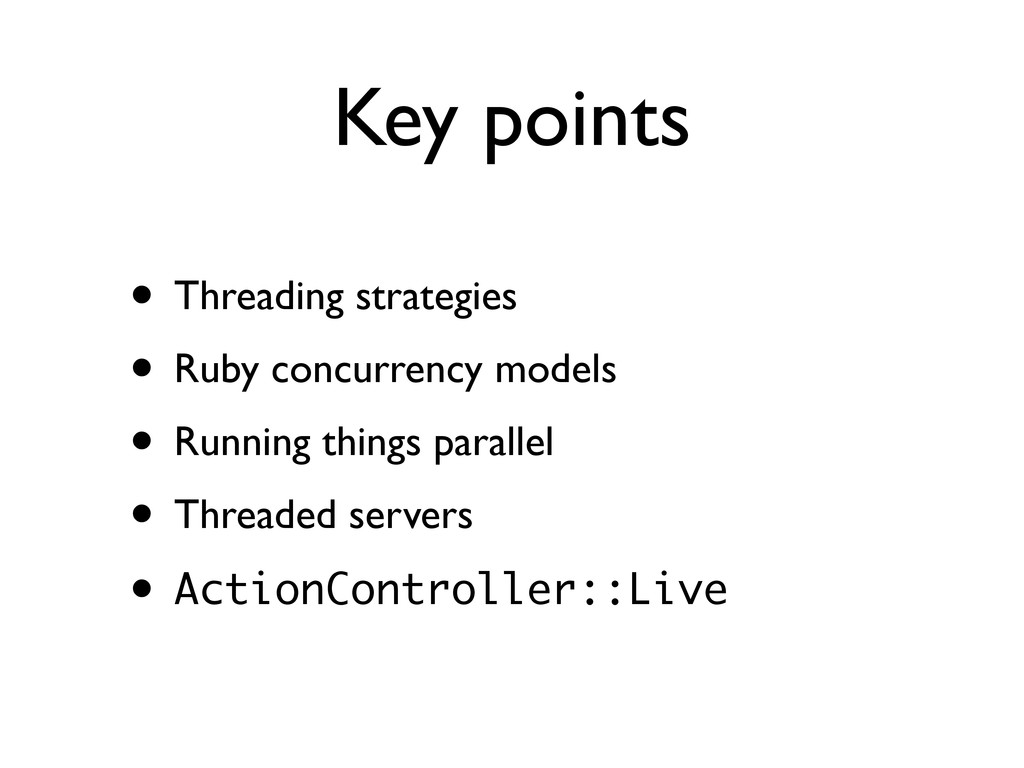

2. Key points • Threading strategies • Ruby concurrency models • Running things parallel • Threaded servers • ActionController::Live
3. Concurrency is not Parallelism © Rob Pike

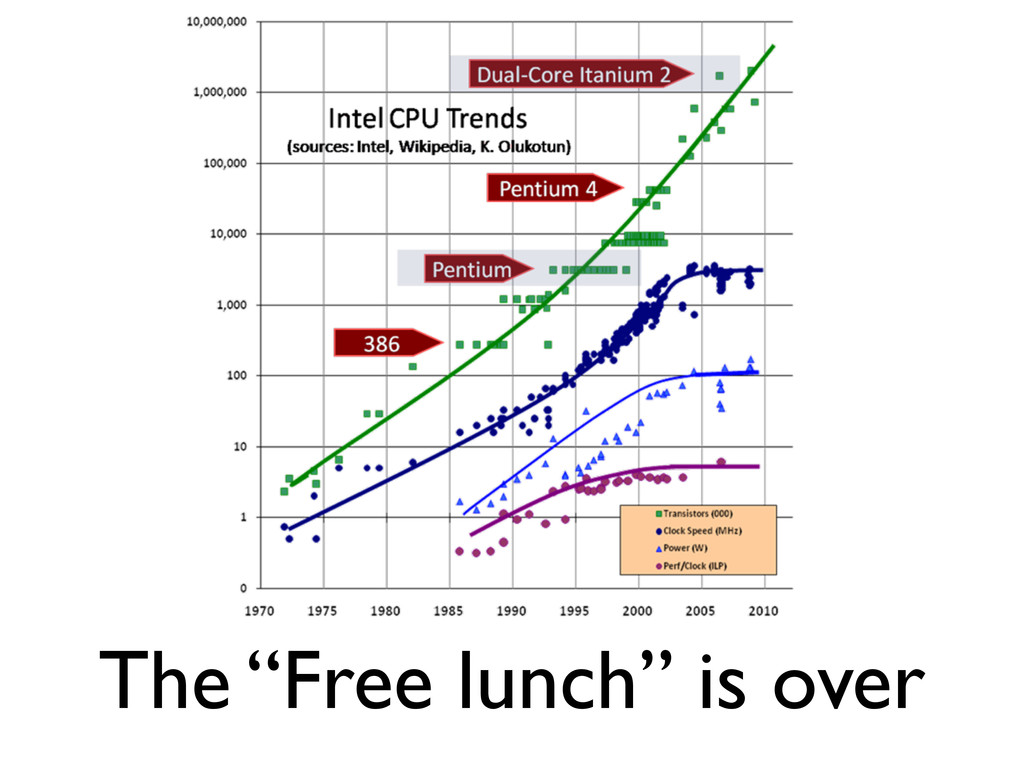

4. The “Free lunch” is over
5. Threading Strategies

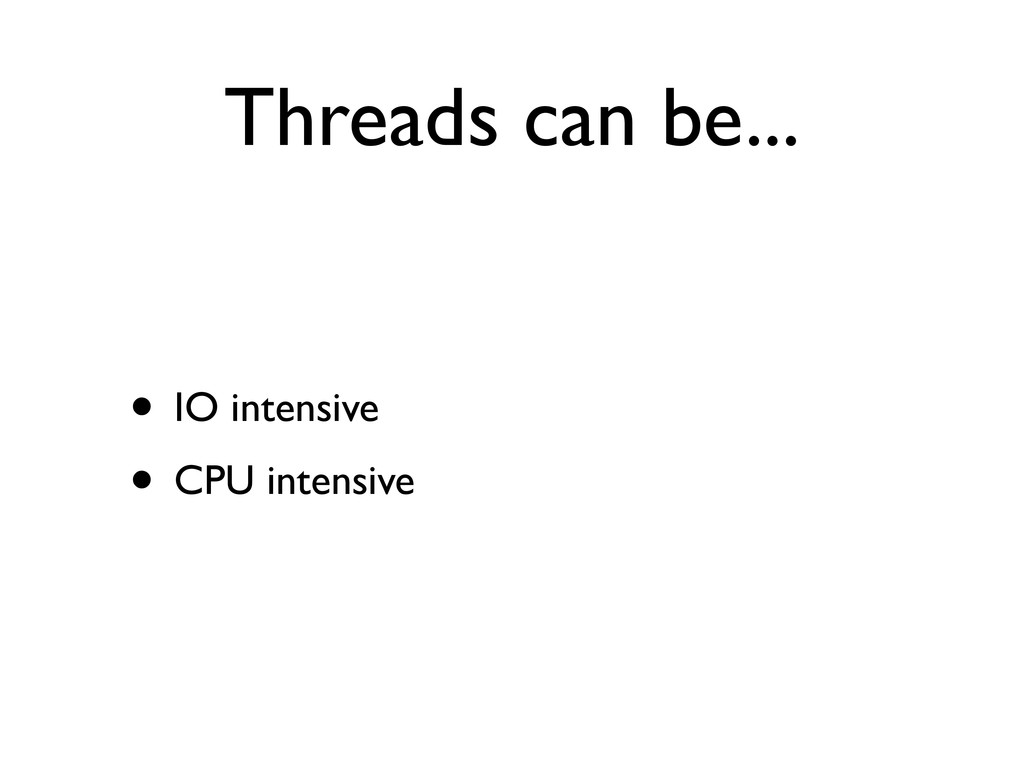

6. Threads can be... • IO intensive • CPU intensive

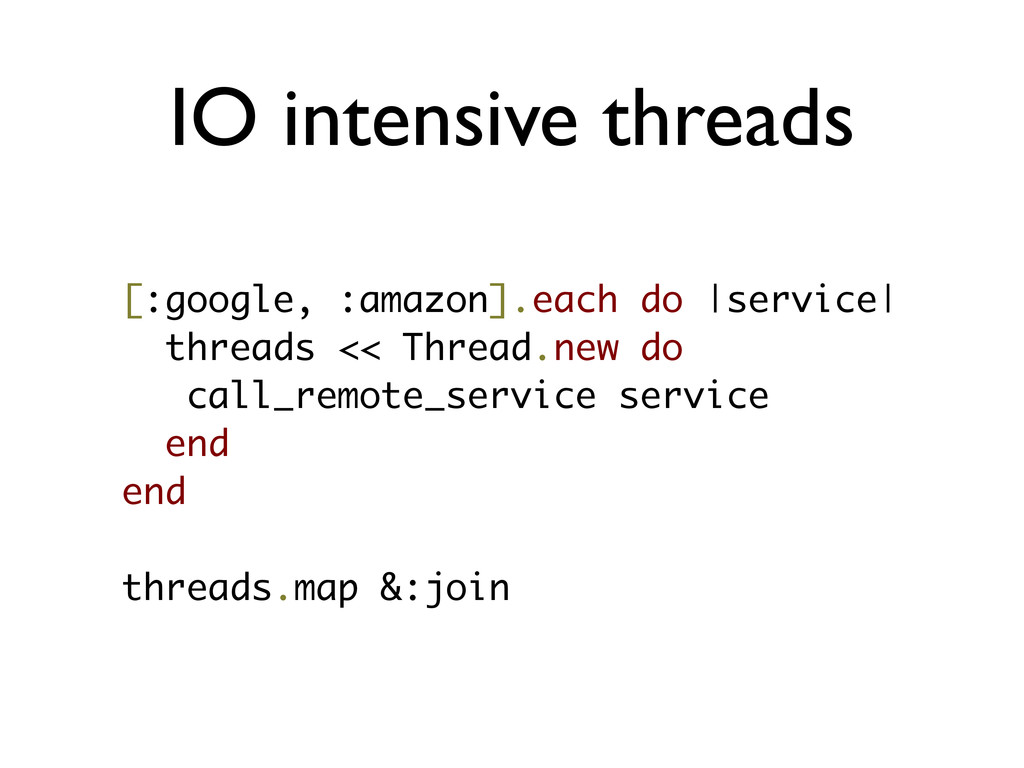

7. IO intensive threads [:google, :amazon].each do |service| threads << Thread.new do call_remote_service service end end threads.map &:join

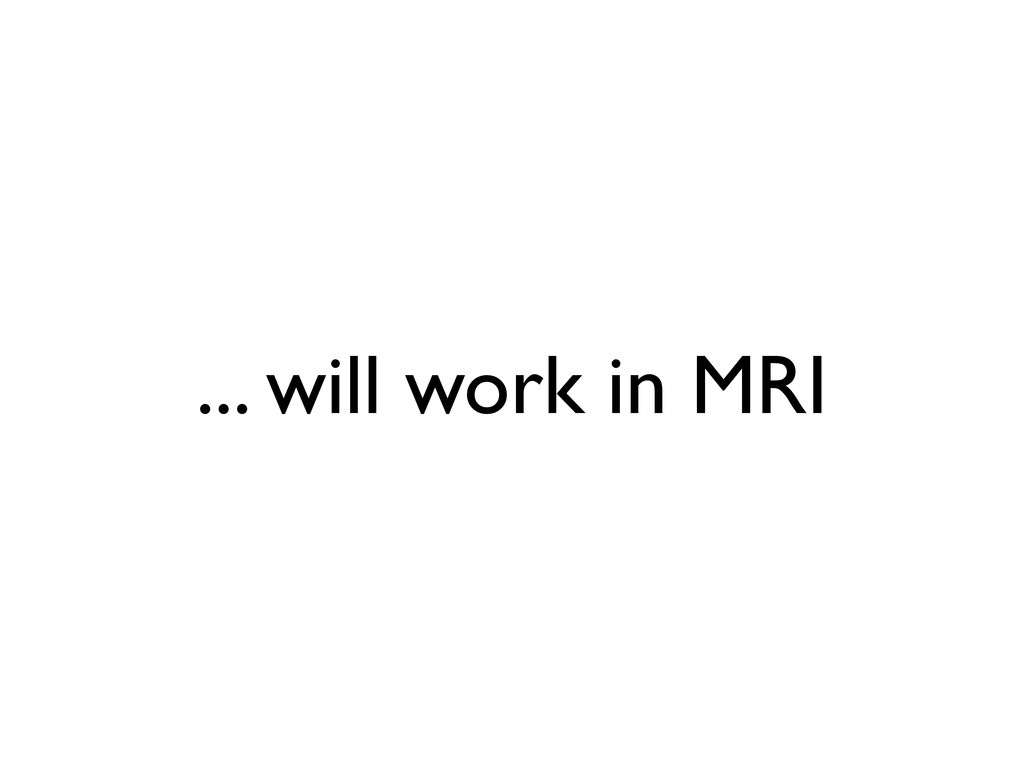

8. ... will work in MRI

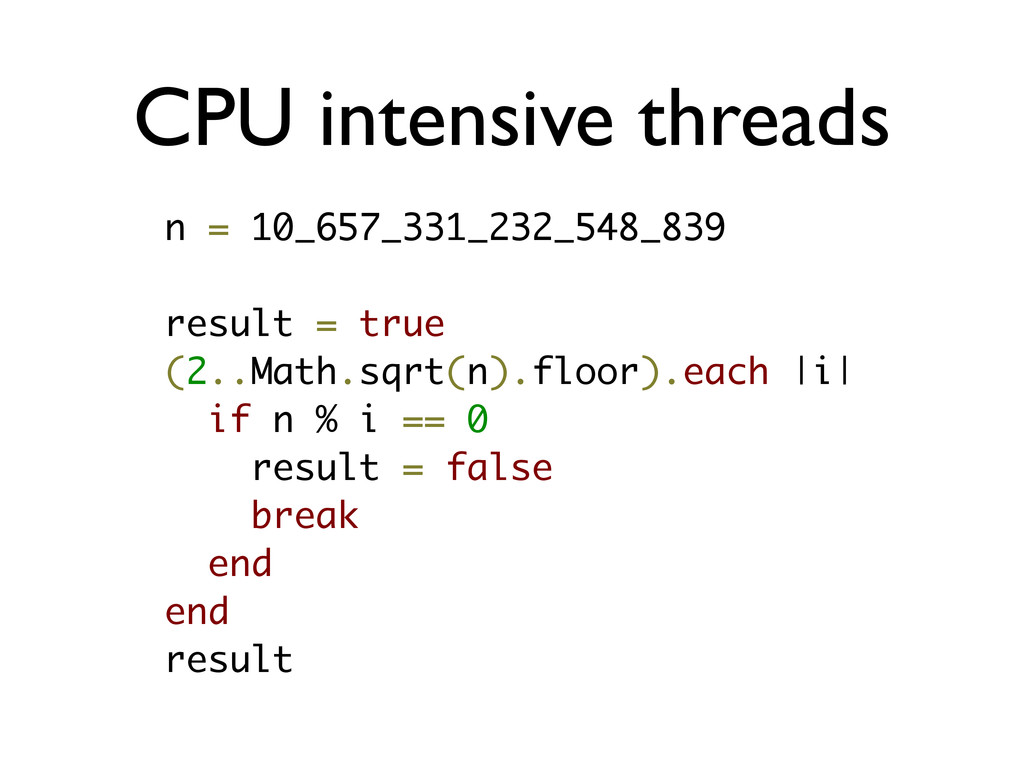

9. CPU intensive threads n = 10_657_331_232_548_839 result = true (2..Math.sqrt(n).floor).each |i| if n % i == 0 result = false break end end result

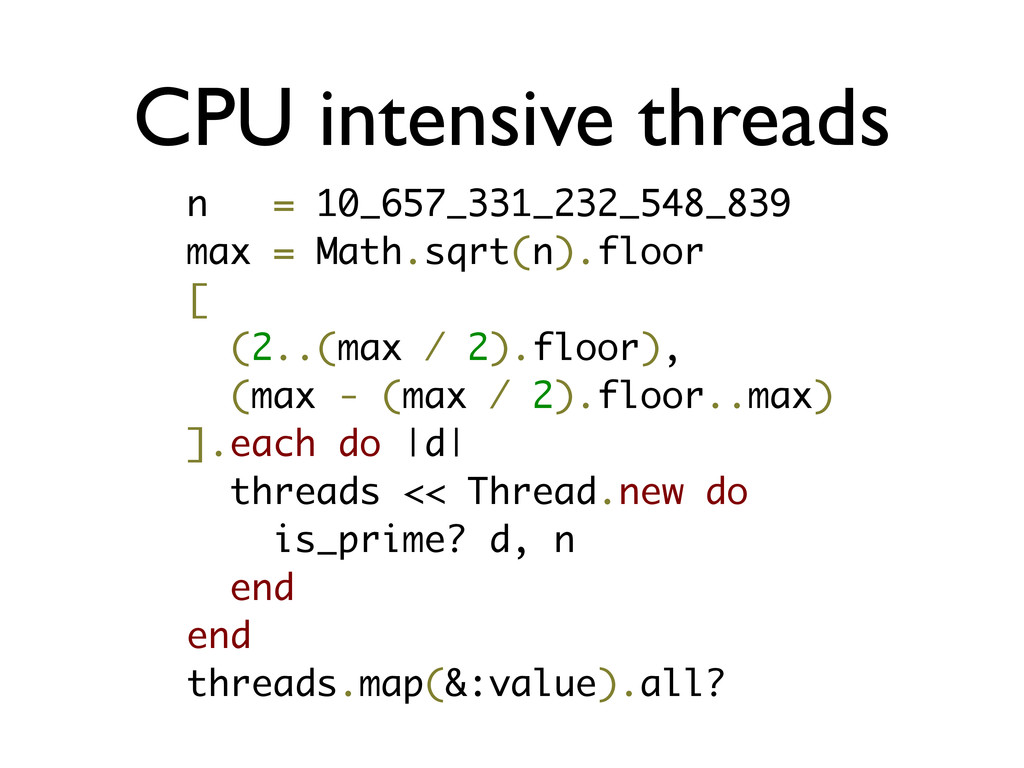

10. CPU intensive threads n = 10_657_331_232_548_839 max = Math.sqrt(n).floor [ (2..(max / 2).floor), (max - (max / 2).floor..max) ].each do |d| threads << Thread.new do is_prime? d, n end end threads.map(&:value).all?
11. ... will not work in MRI

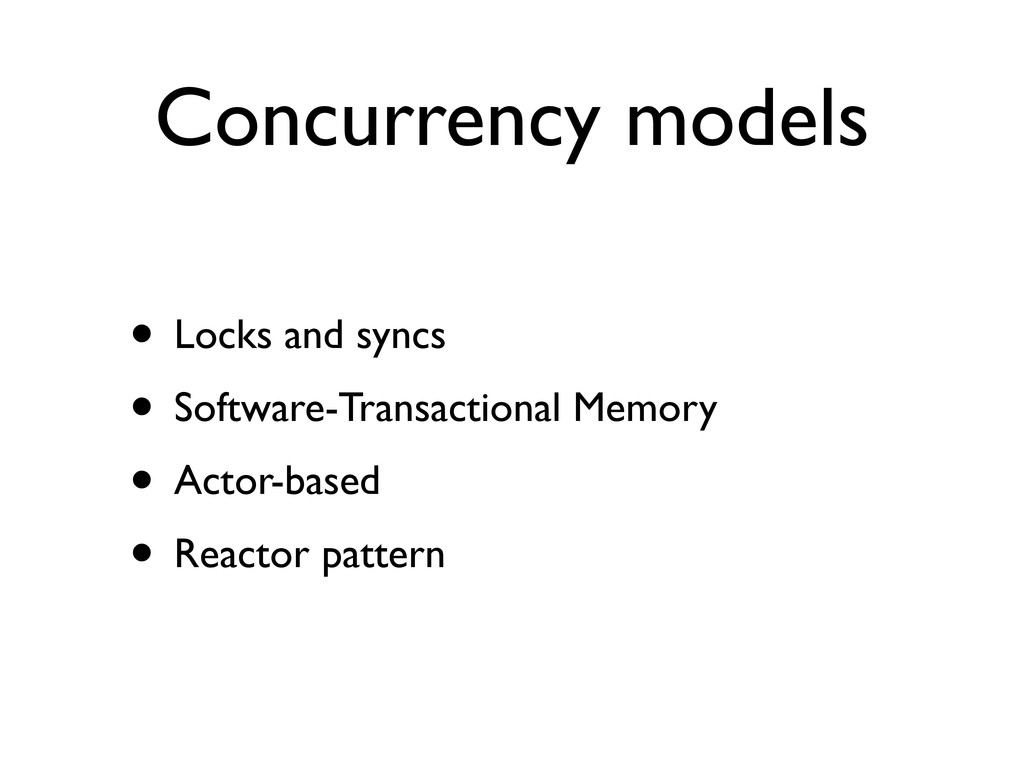

12. Concurrency models • Locks and syncs • Software-Transactional Memory • Actor-based • Reactor pattern

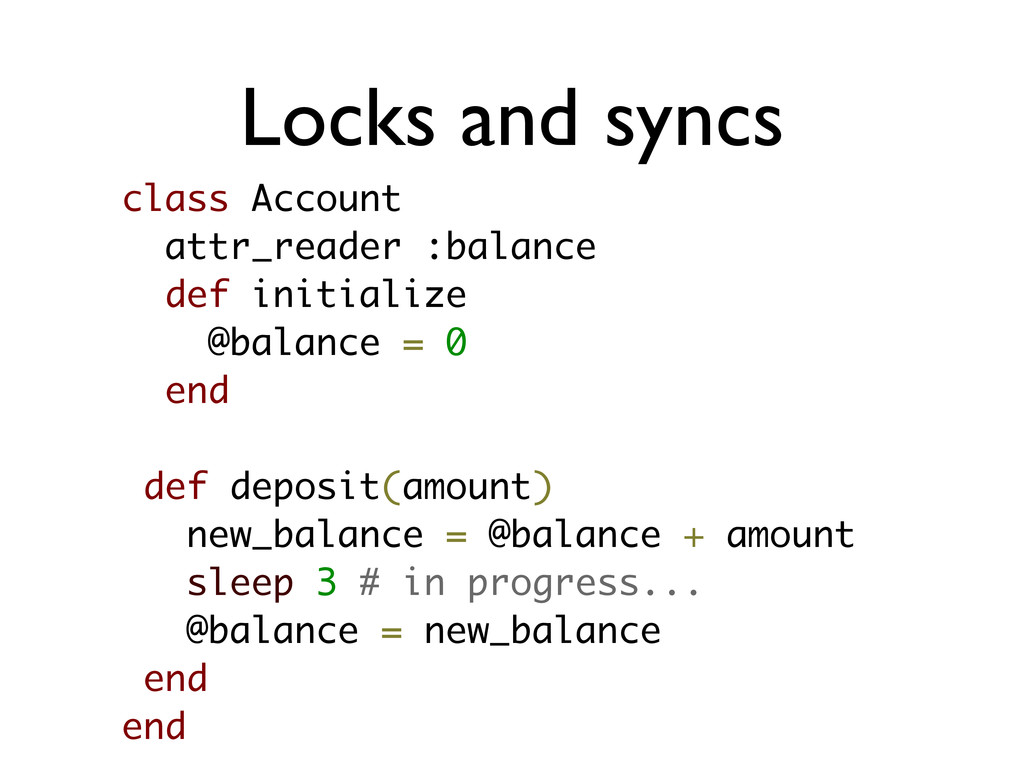

13. Locks and syncs class Account attr_reader :balance def initialize @balance = 0 end def deposit(amount) new_balance = @balance + amount sleep 3 # in progress... @balance = new_balance end end

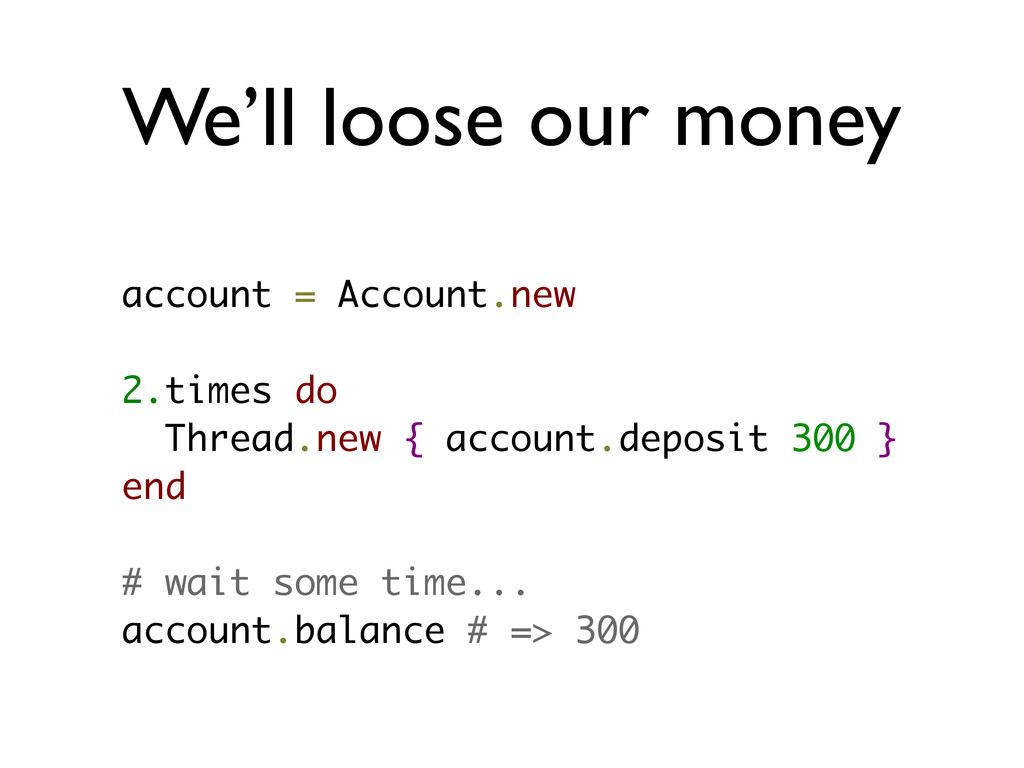

14. We’ll loose our money account = Account.new 2.times do Thread.new { account.deposit 300 } end # wait some time... account.balance # => 300
15. Lock deposits class Account def initialize @balance = 0 @mutex = Mutex.new end def deposit(amount) @mutex.synchronize do # deposit money... end end end

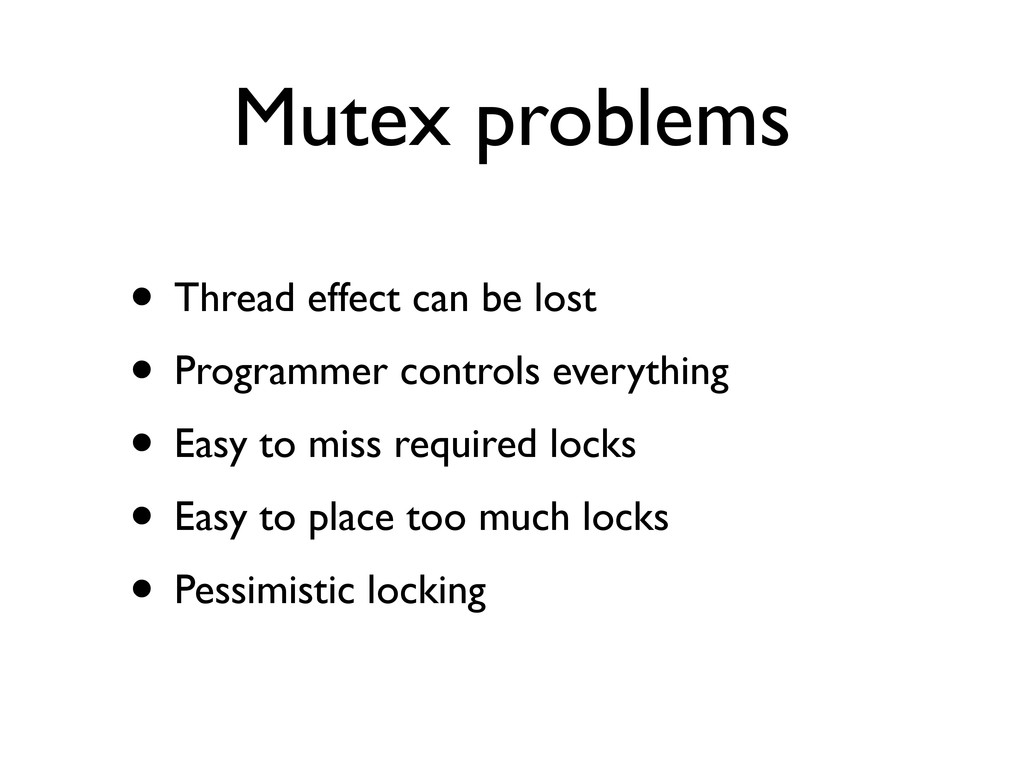

16. Mutex problems • Thread effect can be lost • Programmer controls everything • Easy to miss required locks • Easy to place too much locks • Pessimistic locking

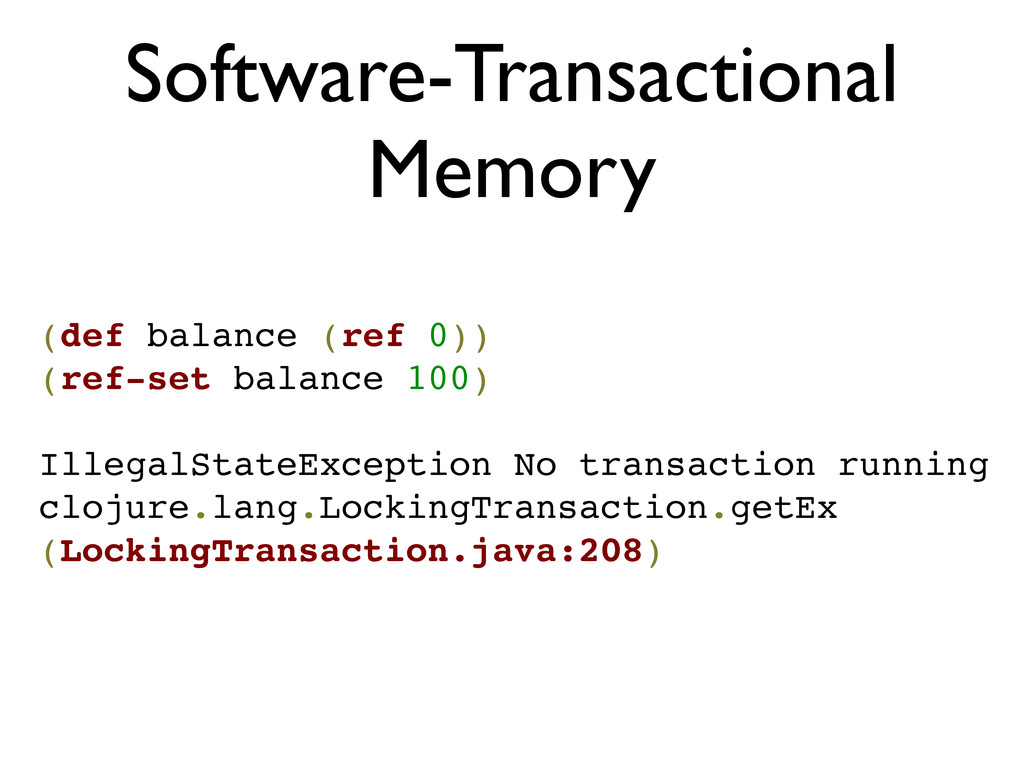

17. Software-Transactional Memory (def balance (ref 0)) (ref-set balance 100) IllegalStateException No transaction running clojure.lang.LockingTransaction.getEx (LockingTransaction.java:208)

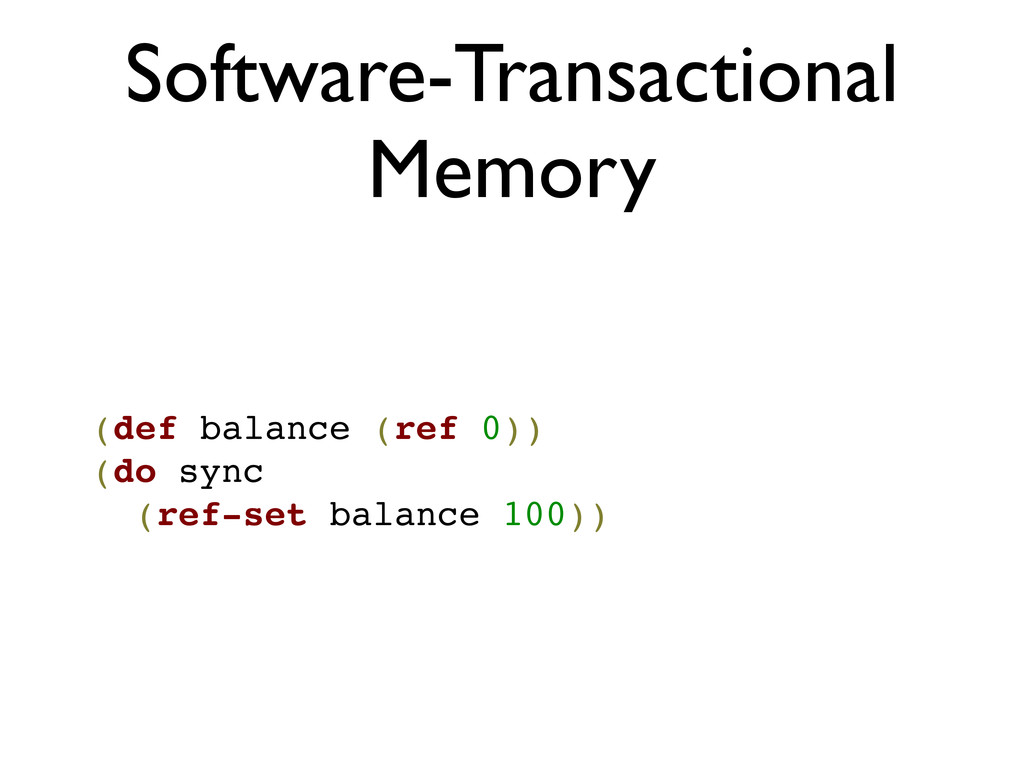

18. Software-Transactional Memory (def balance (ref 0)) (do sync (ref-set balance 100))

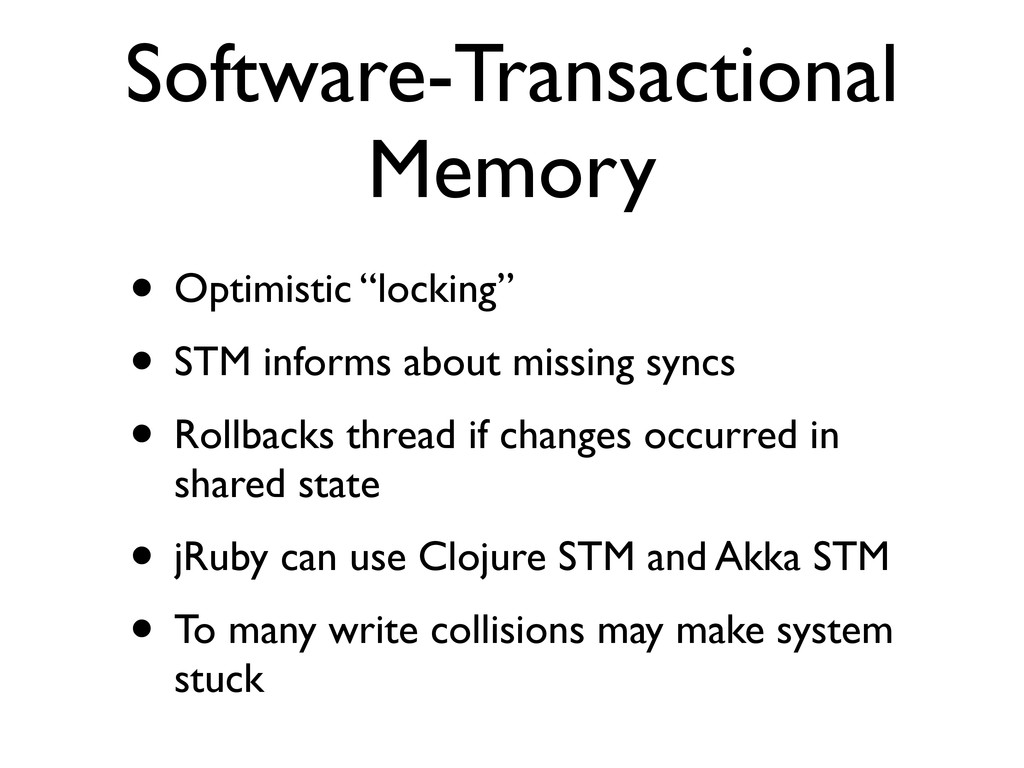

19. Software-Transactional Memory • Optimistic “locking” • STM informs about missing syncs • Rollbacks thread if changes occurred in shared state • jRuby can use Clojure STM and Akka STM • To many write collisions may make system stuck

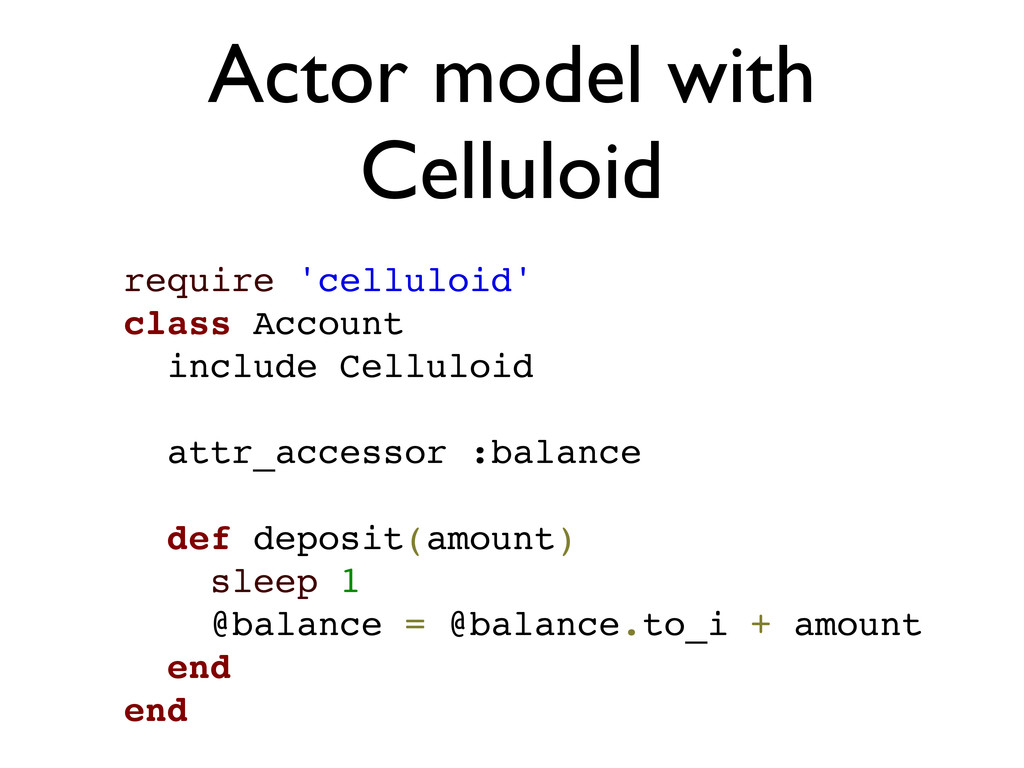

20. Actor model with Celluloid require 'celluloid' class Account include Celluloid attr_accessor :balance def deposit(amount) sleep 1 @balance = @balance.to_i + amount end end

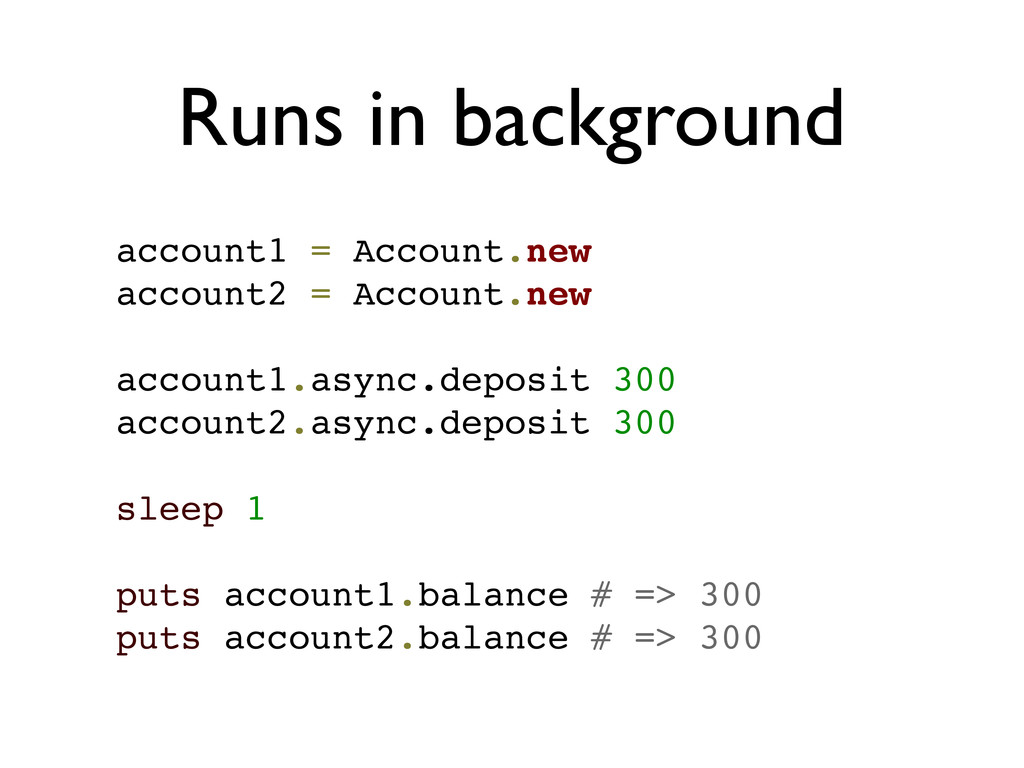

21. Runs in background account1 = Account.new account2 = Account.new account1.async.deposit 300 account2.async.deposit 300 sleep 1 puts account1.balance # => 300 puts account2.balance # => 300

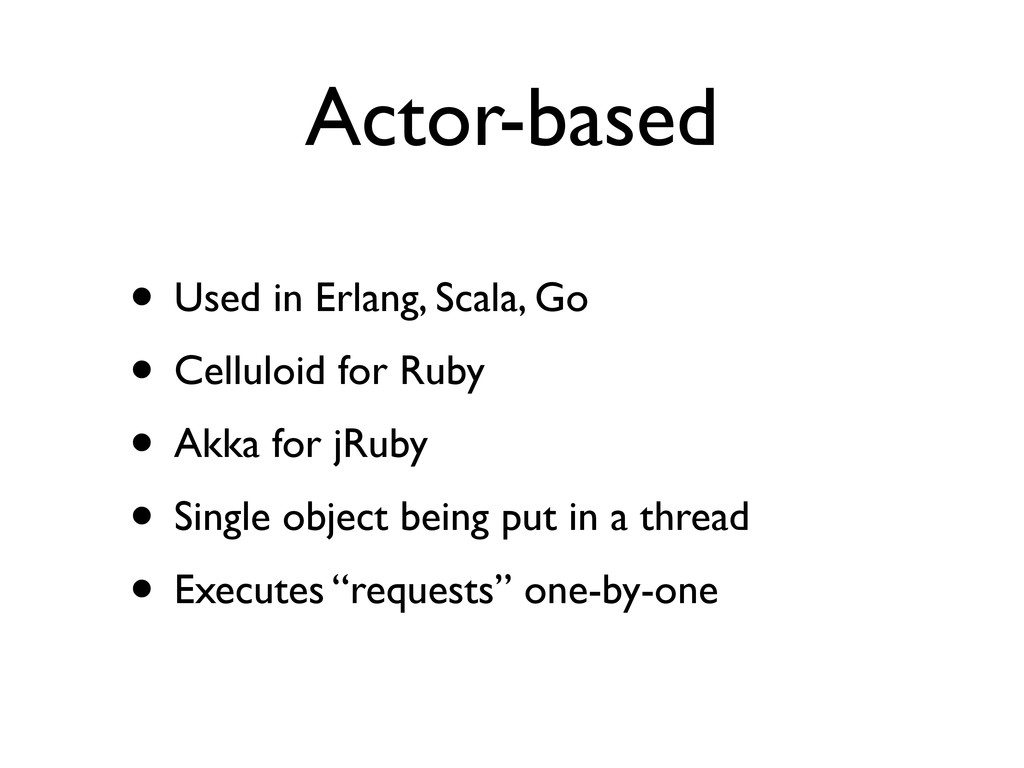

22. Actor-based • Used in Erlang, Scala, Go • Celluloid for Ruby • Akka for jRuby • Single object being put in a thread • Executes “requests” one-by-one

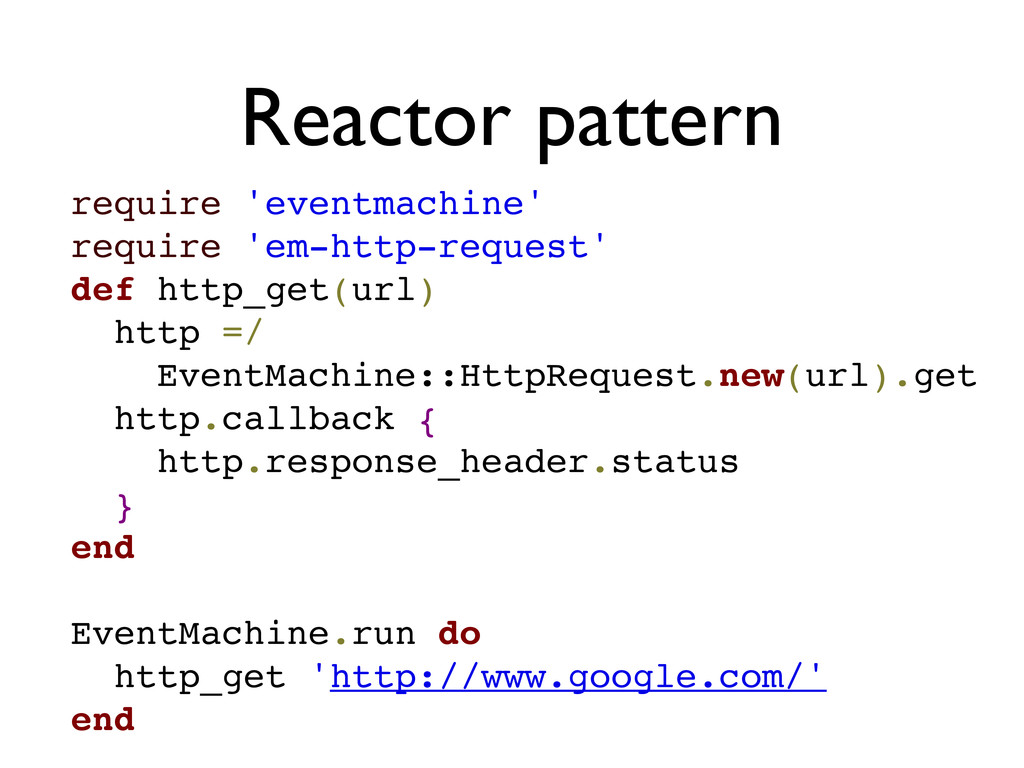

23. Reactor pattern require 'eventmachine' require 'em-http-request' def http_get(url) http =/ EventMachine::HttpRequest.new(url).get http.callback { http.response_header.status } end EventMachine.run do http_get 'http://www.google.com/' end

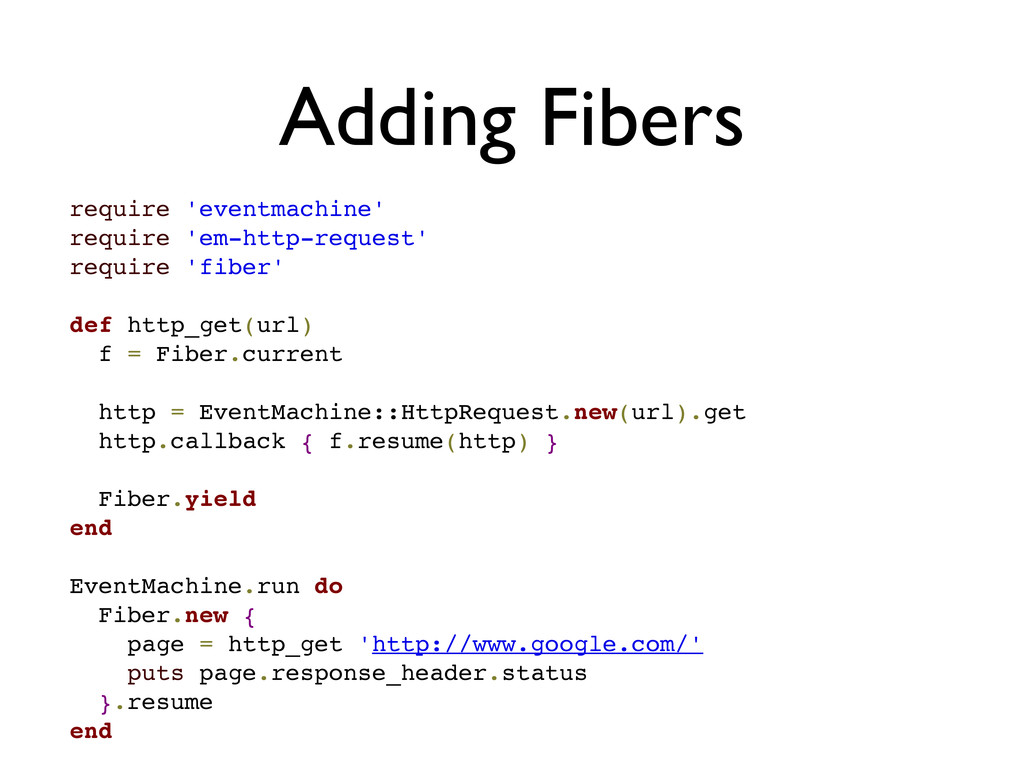

24. Adding Fibers require 'eventmachine' require 'em-http-request' require 'fiber' def http_get(url) f = Fiber.current http = EventMachine::HttpRequest.new(url).get http.callback { f.resume(http) } Fiber.yield end EventMachine.run do Fiber.new { page = http_get 'http://www.google.com/' puts page.response_header.status }.resume end

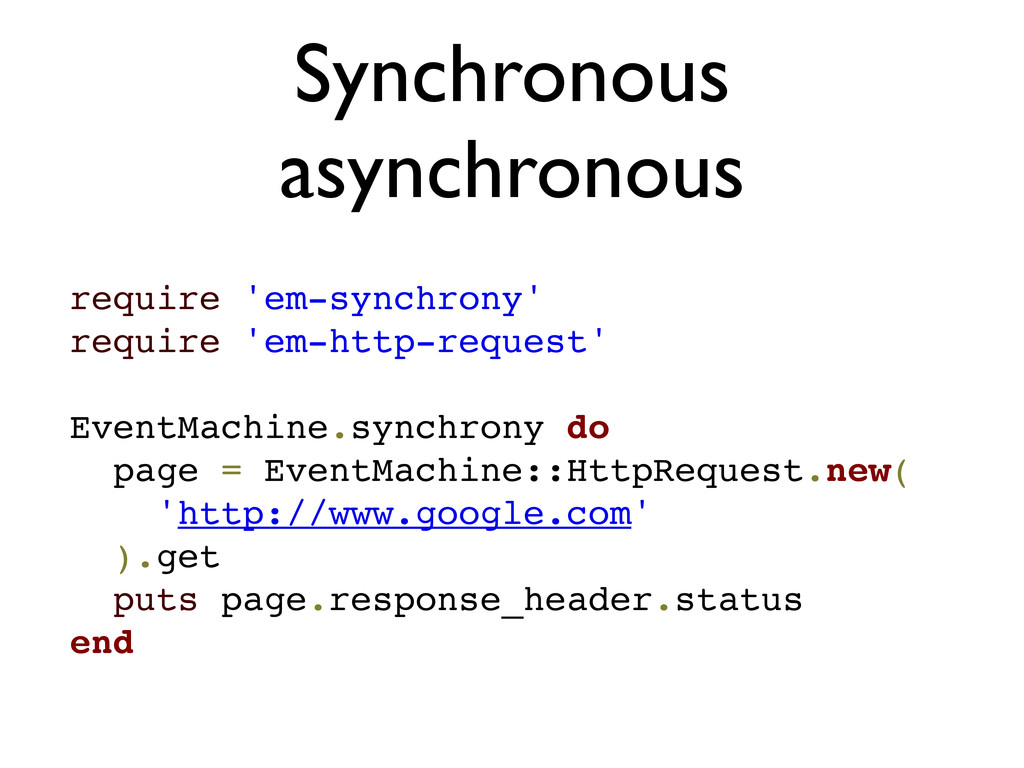

25. Synchronous asynchronous require 'em-synchrony' require 'em-http-request' EventMachine.synchrony do page = EventMachine::HttpRequest.new( 'http://www.google.com' ).get puts page.response_header.status end

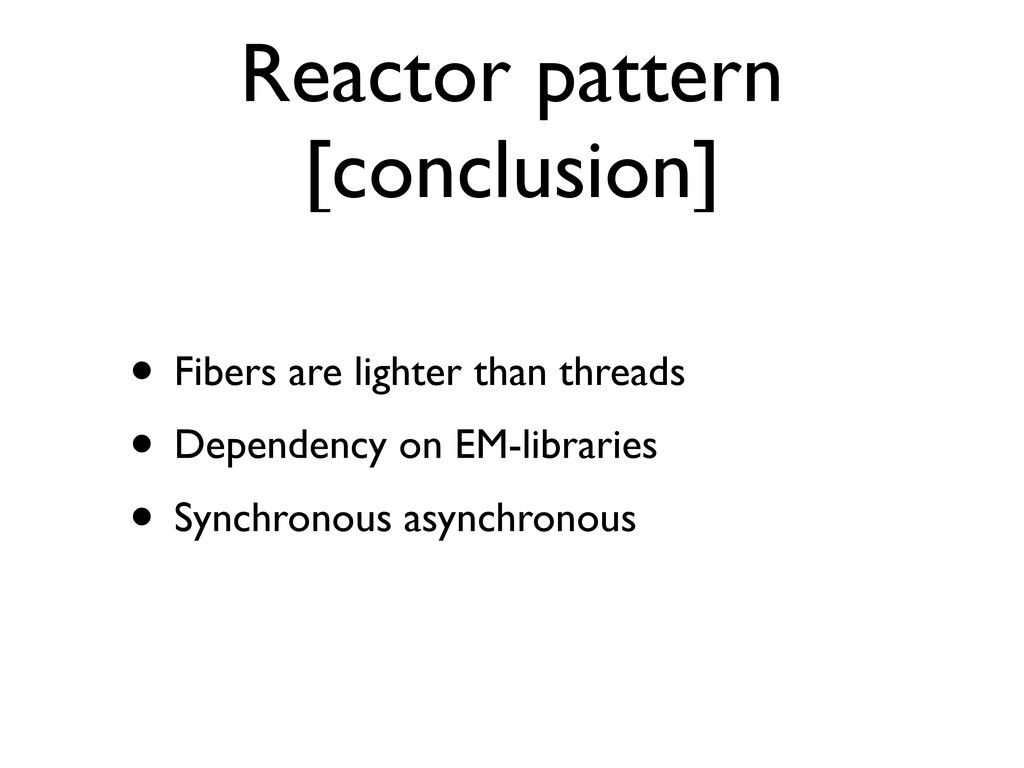

26. Reactor pattern [conclusion] • Fibers are lighter than threads • Dependency on EM-libraries • Synchronous asynchronous

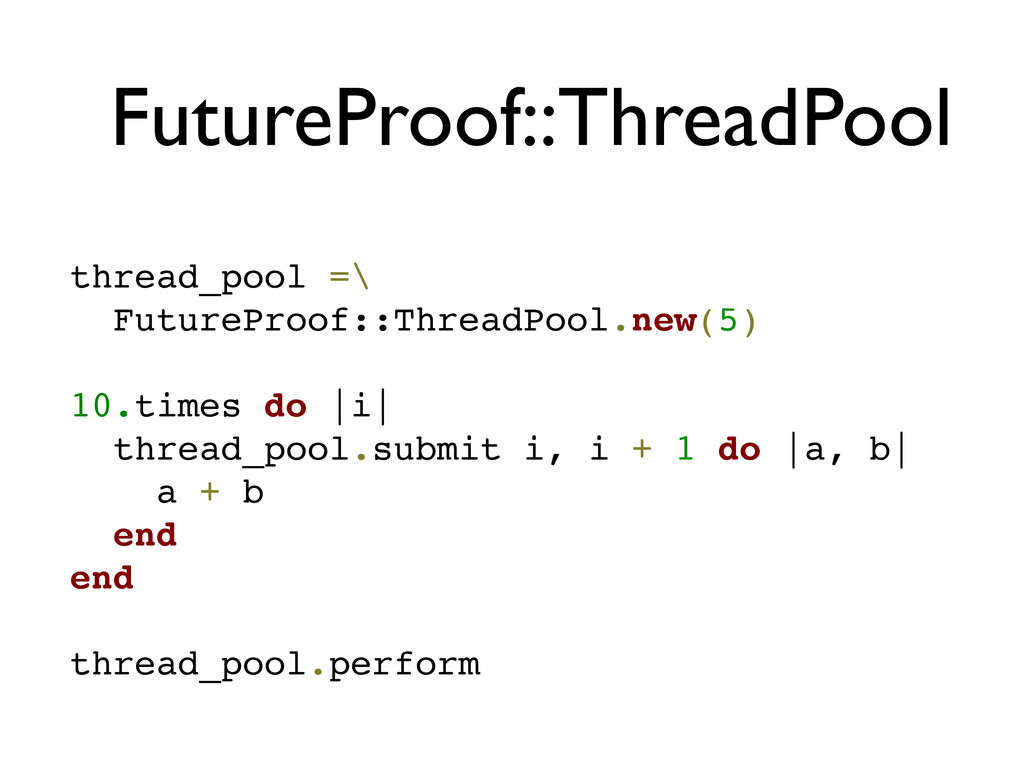

27. FutureProof::ThreadPool thread_pool =\ FutureProof::ThreadPool.new(5) 10.times do |i| thread_pool.submit i, i + 1 do |a, b| a + b end end thread_pool.perform

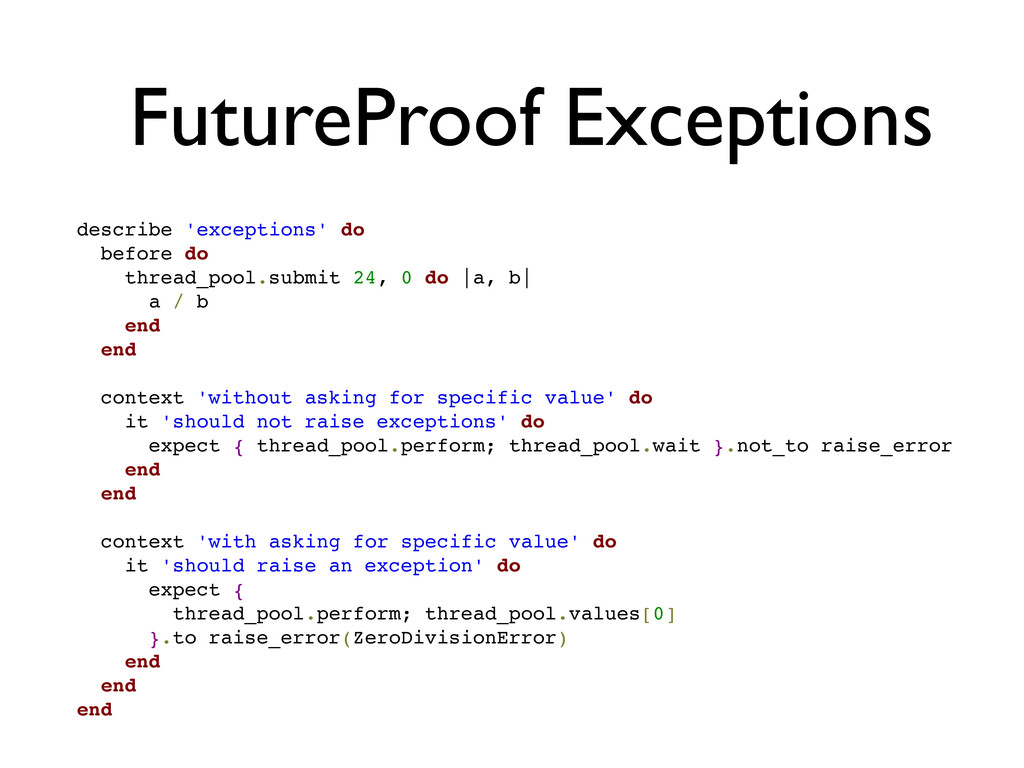

28. FutureProof Exceptions describe 'exceptions' do before do thread_pool.submit 24, 0 do |a, b| a / b end end context 'without asking for specific value' do it 'should not raise exceptions' do expect { thread_pool.perform; thread_pool.wait }.not_to raise_error end end context 'with asking for specific value' do it 'should raise an exception' do expect { thread_pool.perform; thread_pool.values[0] }.to raise_error(ZeroDivisionError) end end end

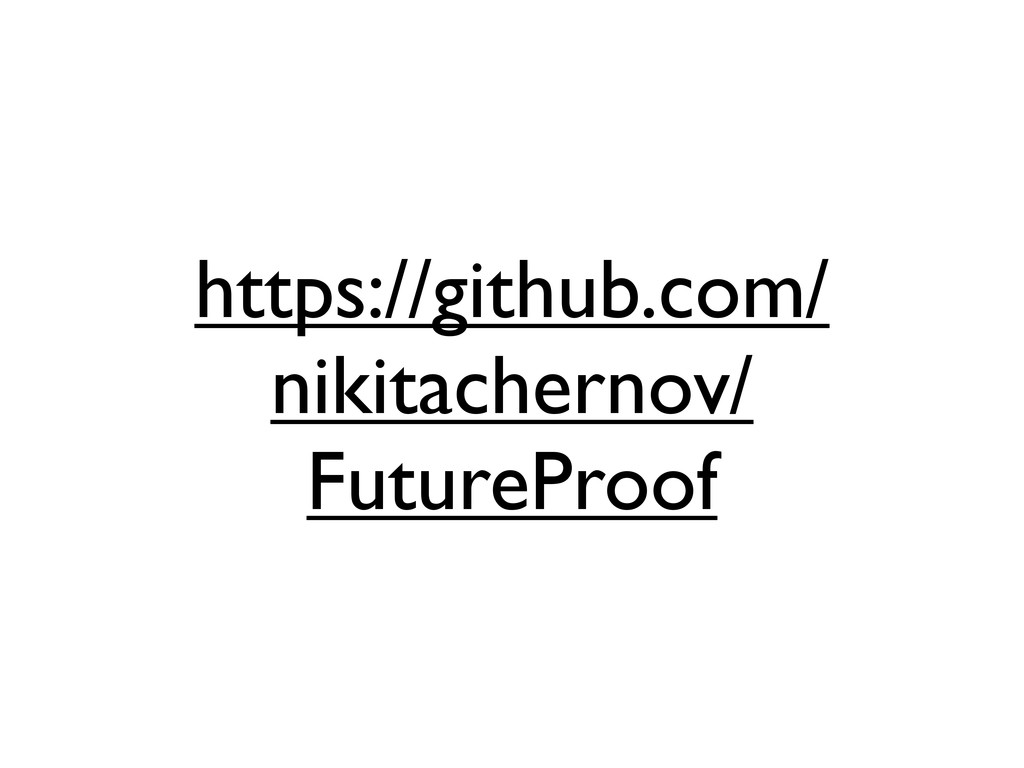

29. https://github.com/ nikitachernov/ FutureProof
30. Running parallel

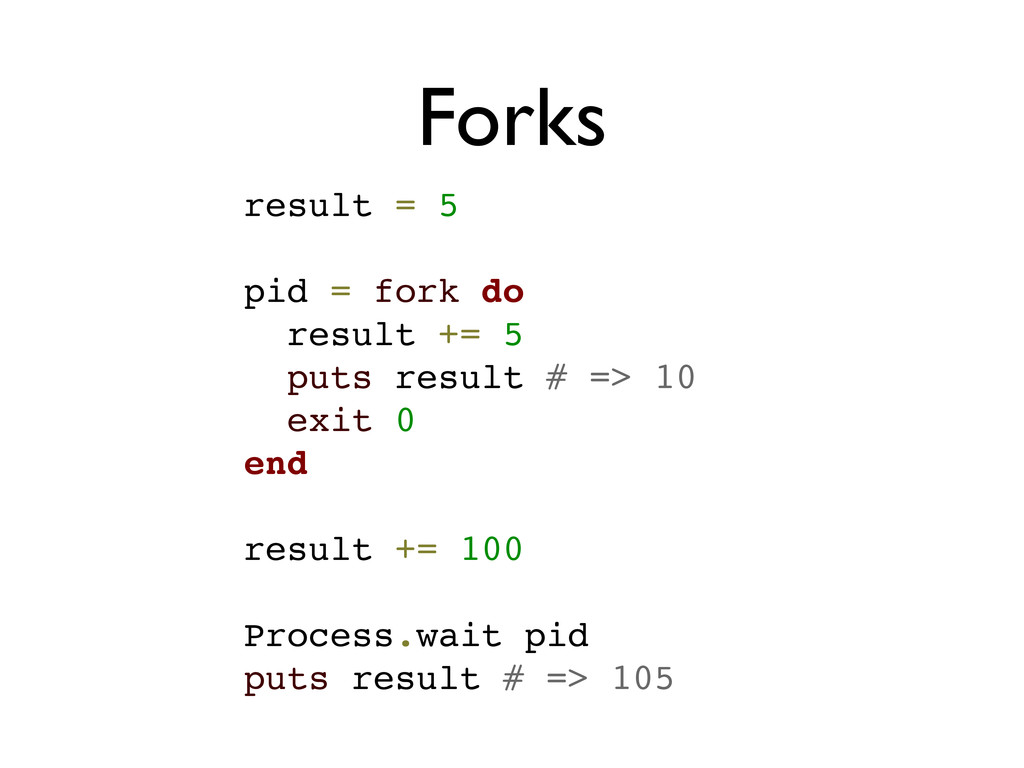

31. Forks result = 5 pid = fork do result += 5 puts result # => 10 exit 0 end result += 100 Process.wait pid puts result # => 105

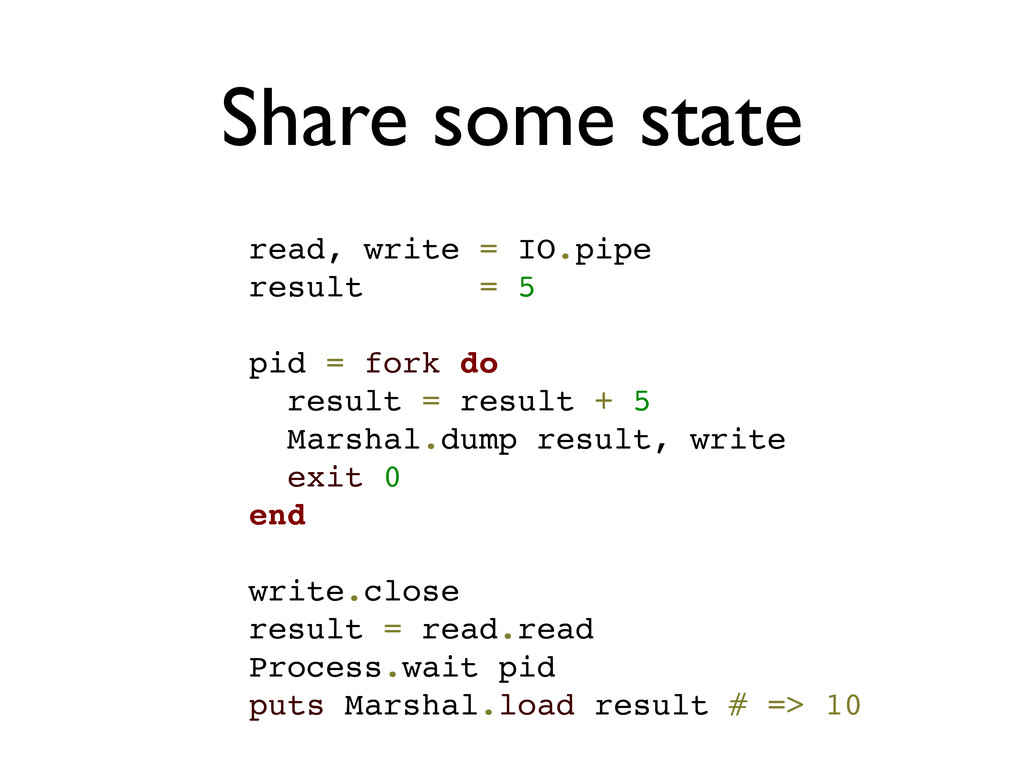

32. Share some state read, write = IO.pipe result = 5 pid = fork do result = result + 5 Marshal.dump result, write exit 0 end write.close result = read.read Process.wait pid puts Marshal.load result # => 10
33. dRuby
34. Expose object over the network require 'drb/drb' class Account attr_reader :balance def initialize(balance) @balance = balance end def withdraw(amount) if @balance >= amount @balance -= amount end end end DRb.start_service( 'druby://192.168.0.1:8787', Account.new(500) ) DRb.thread.join
35. Connect to remote object require 'drb/drb' DRb.start_service account = DRbObject.new_with_uri( 'druby://192.168.0.1:8787' ) account.withdraw 300

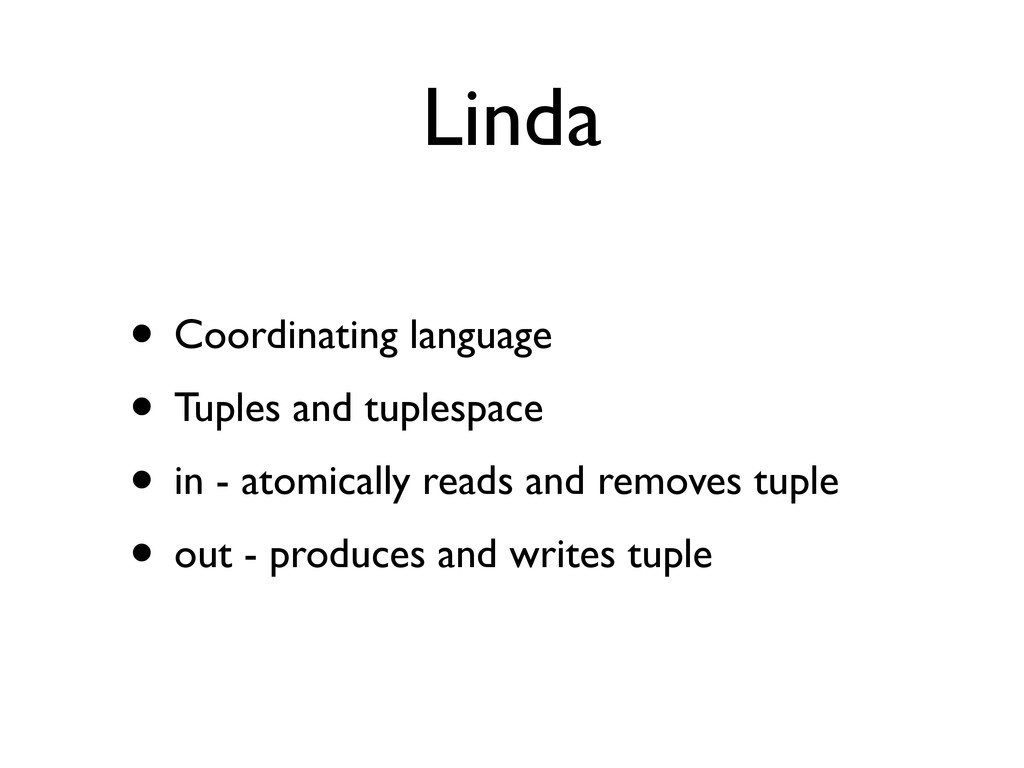

36. Linda • Coordinating language • Tuples and tuplespace • in - atomically reads and removes tuple • out - produces and writes tuple

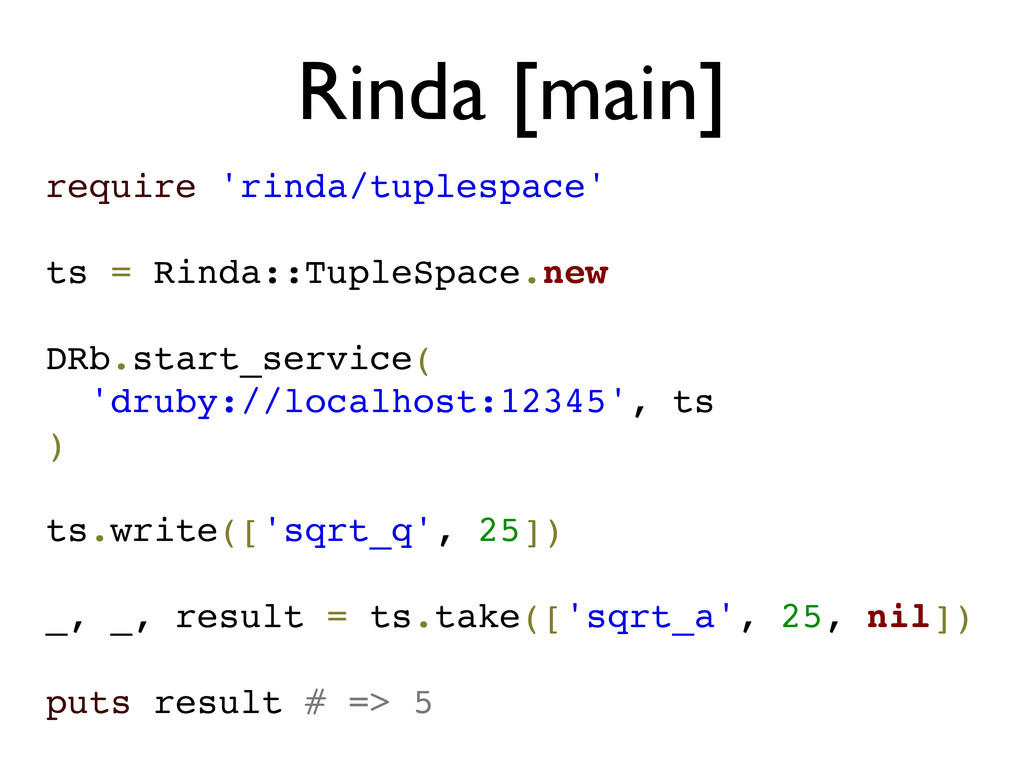

37. Rinda [main] require 'rinda/tuplespace' ts = Rinda::TupleSpace.new DRb.start_service( 'druby://localhost:12345', ts ) ts.write(['sqrt_q', 25]) _, _, result = ts.take(['sqrt_a', 25, nil]) puts result # => 5

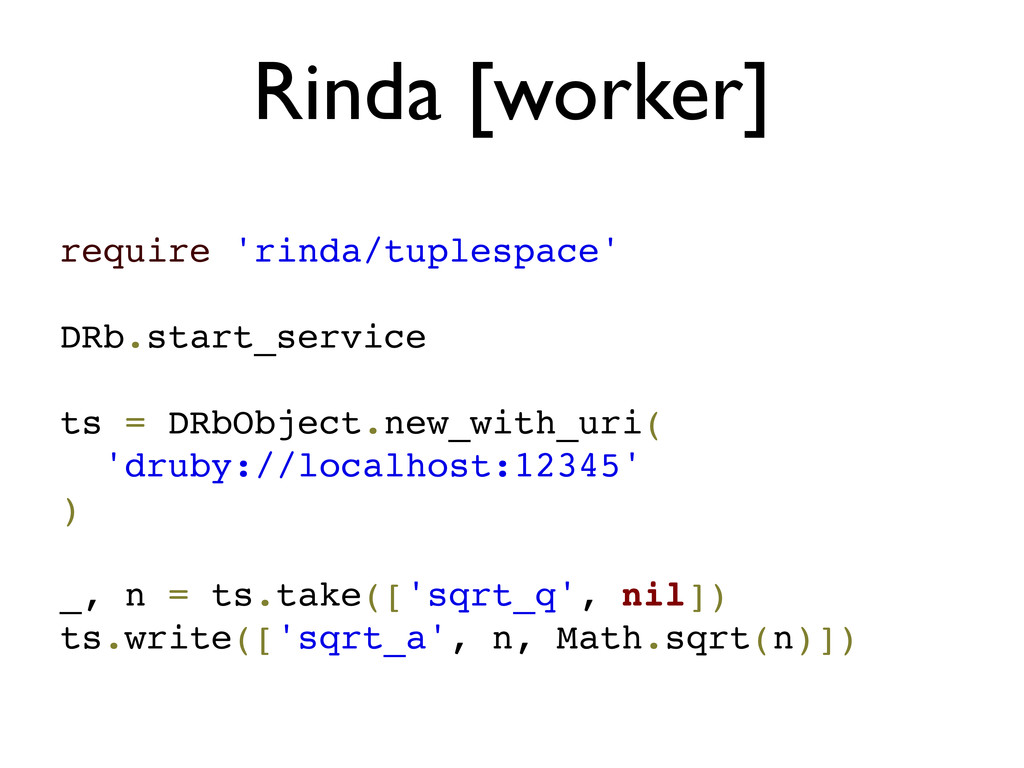

38. Rinda [worker] require 'rinda/tuplespace' DRb.start_service ts = DRbObject.new_with_uri( 'druby://localhost:12345' ) _, n = ts.take(['sqrt_q', nil]) ts.write(['sqrt_a', n, Math.sqrt(n)])

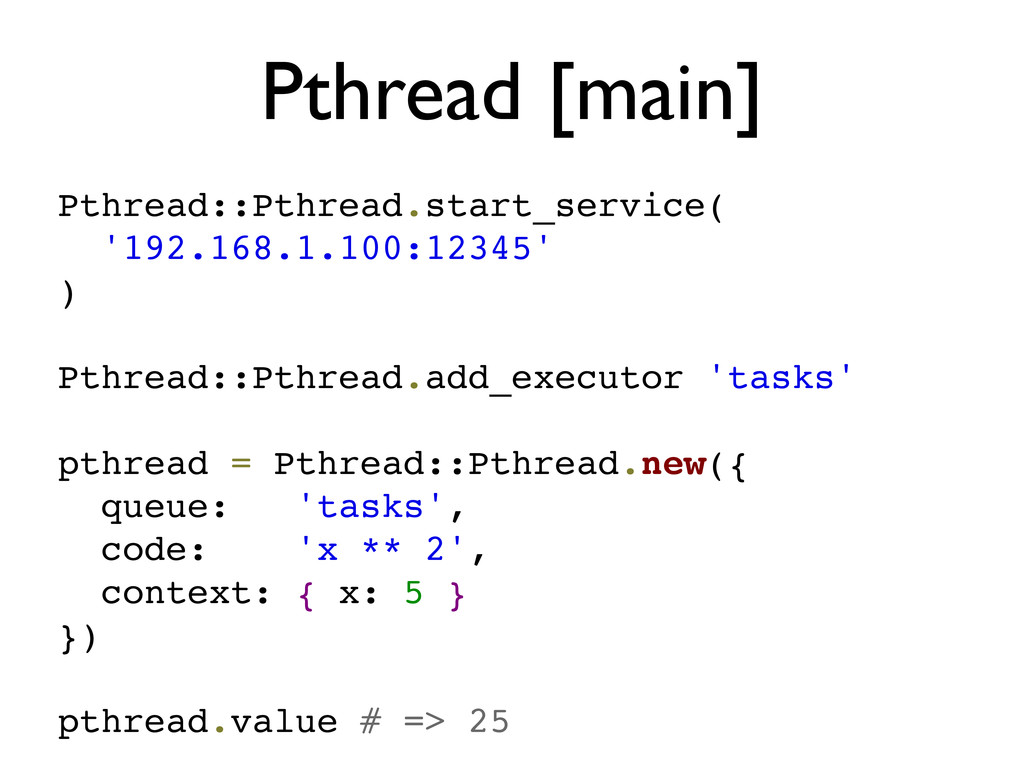

39. Pthread [main] Pthread::Pthread.start_service( '192.168.1.100:12345' ) Pthread::Pthread.add_executor 'tasks' pthread = Pthread::Pthread.new({ queue: 'tasks', code: 'x ** 2', context: { x: 5 } }) pthread.value # => 25

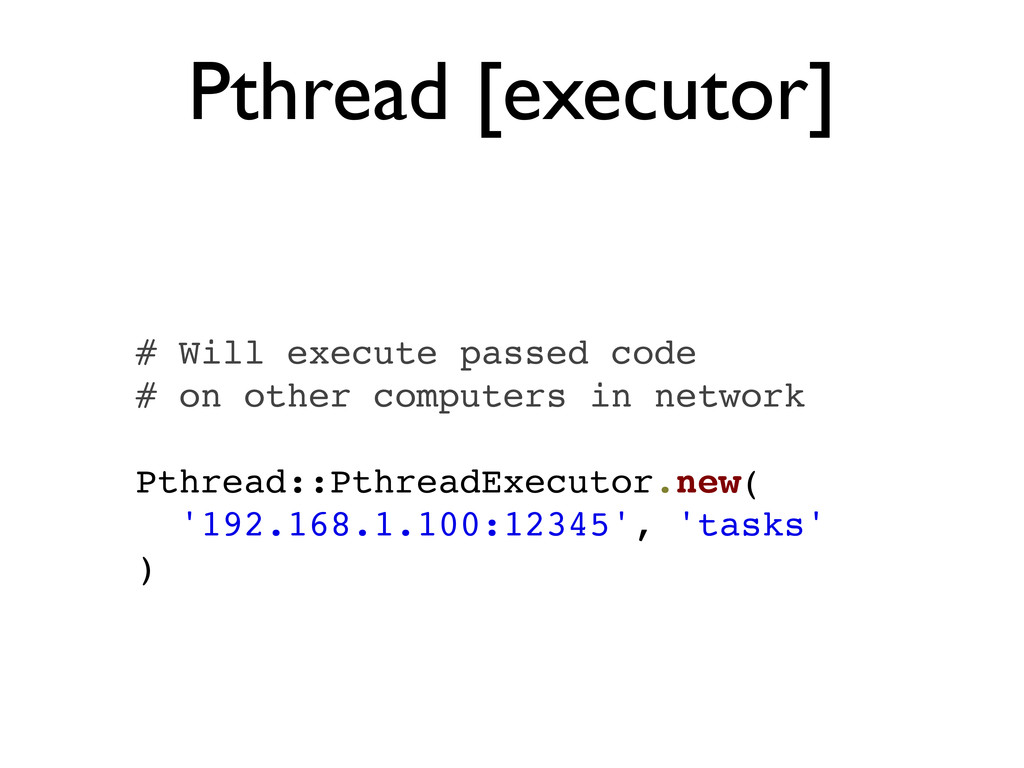

40. Pthread [executor] # Will execute passed code # on other computers in network Pthread::PthreadExecutor.new( '192.168.1.100:12345', 'tasks' )

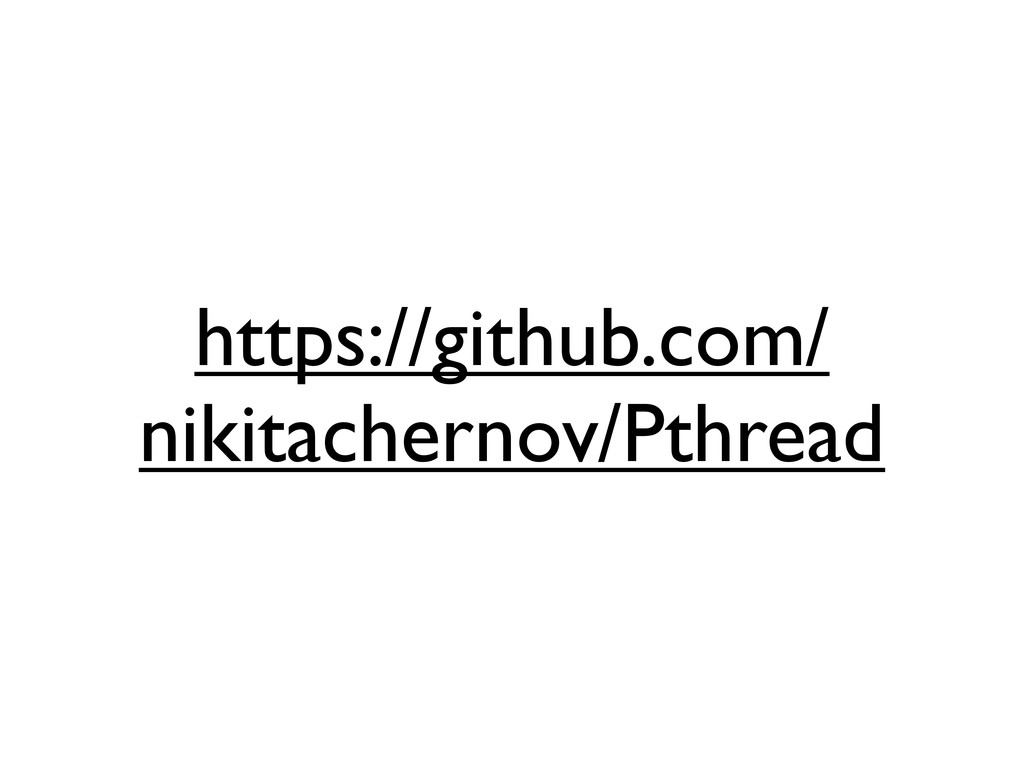

41. https://github.com/ nikitachernov/Pthread

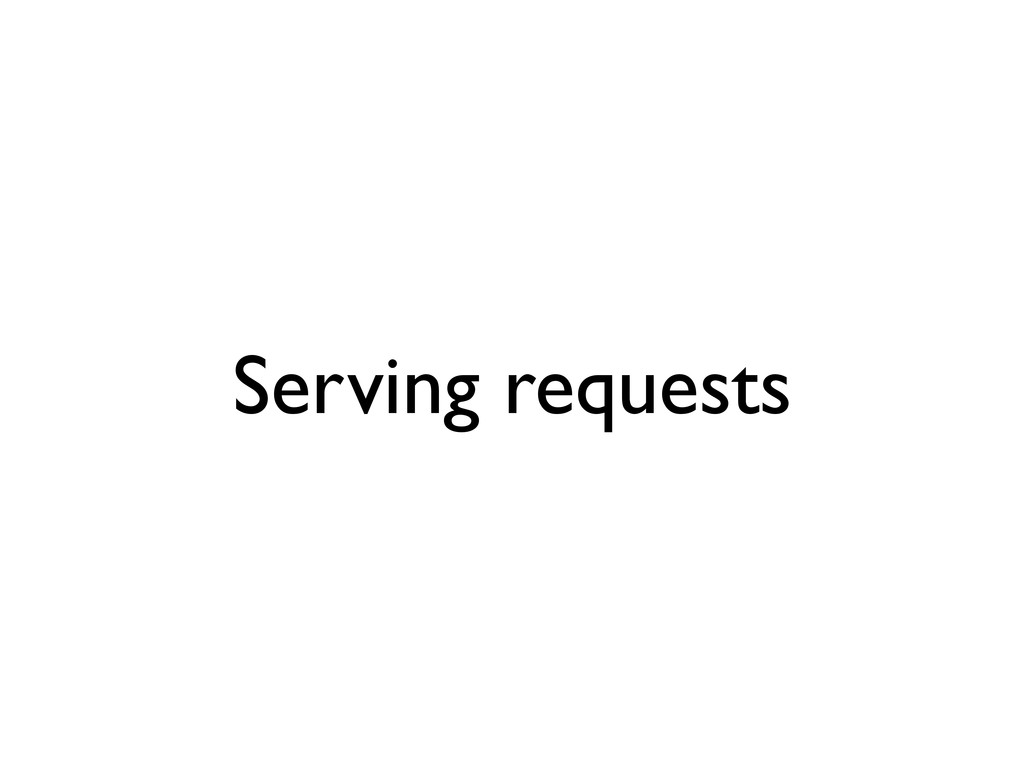

42. Serving requests

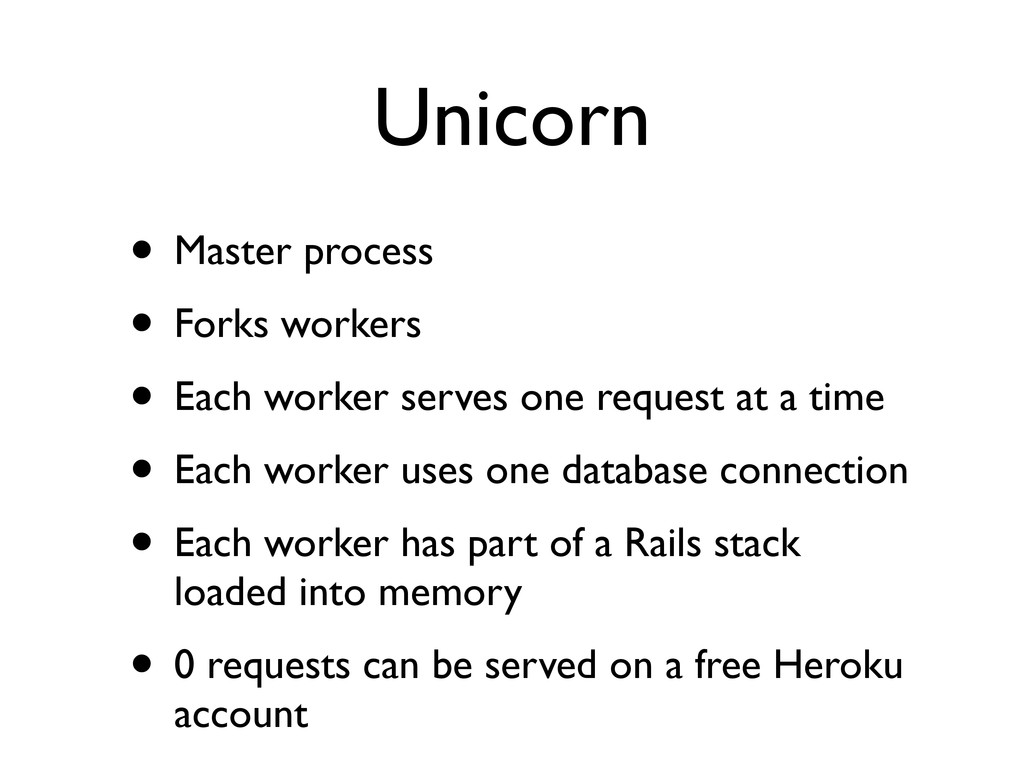

43. Unicorn • Master process • Forks workers • Each worker serves one request at a time • Each worker uses one database connection • Each worker has part of a Rails stack loaded into memory • 0 requests can be served on a free Heroku account
44. Puma • Single process • Serves each request in an own thread • Each thread has only own context loaded in memory • Each thread requires an own database connection • Can server multiple requests at the same time on a free Heroku account
45. repeat 3 curl h1ghlights.herokuapp.com • Started GET "/" for 212.142.101.97 • Processing by HighlightsController#index • Started GET "/" for 212.142.101.97 • Started GET "/" for 212.142.101.97 • Processing by HighlightsController#index • Processing by HighlightsController#index • Completed 200 OK in 79ms • Completed 200 OK in 67ms • Completed 200 OK in 94ms
46. ! IO time

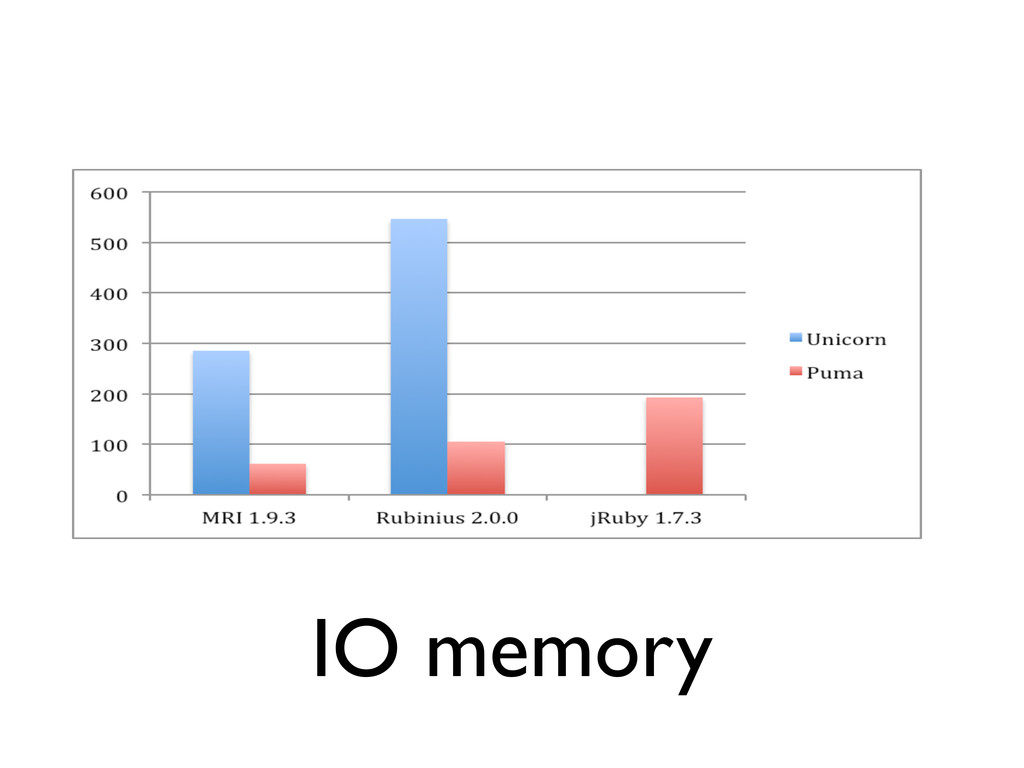

47. ! IO memory

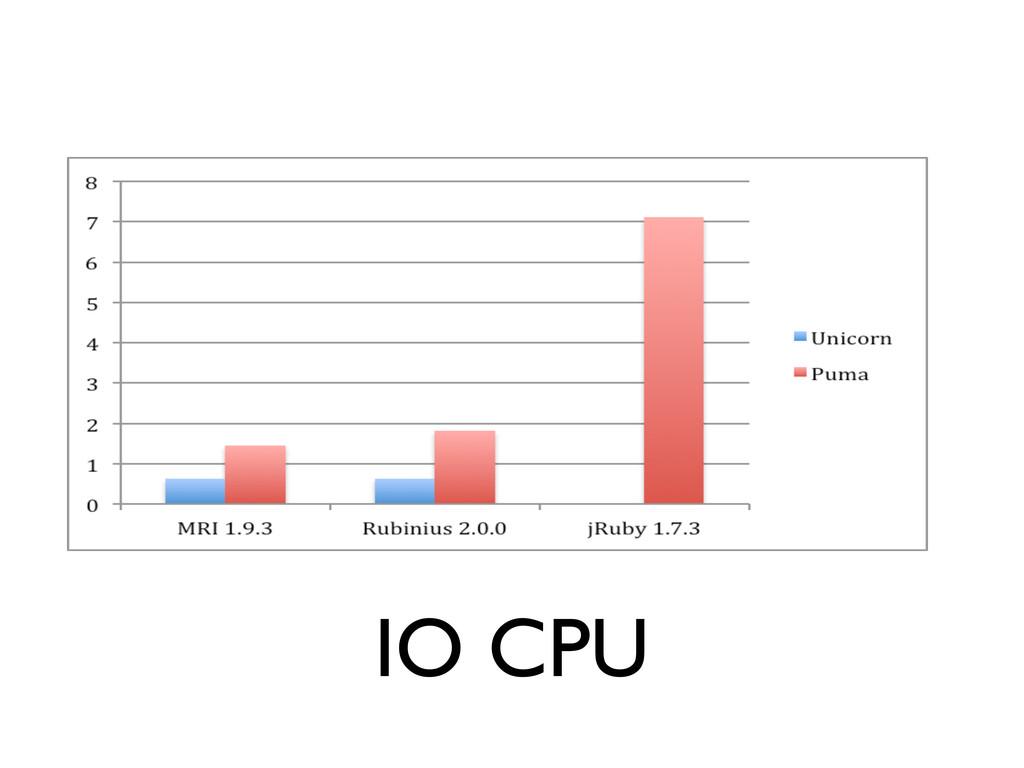

48. ! IO CPU

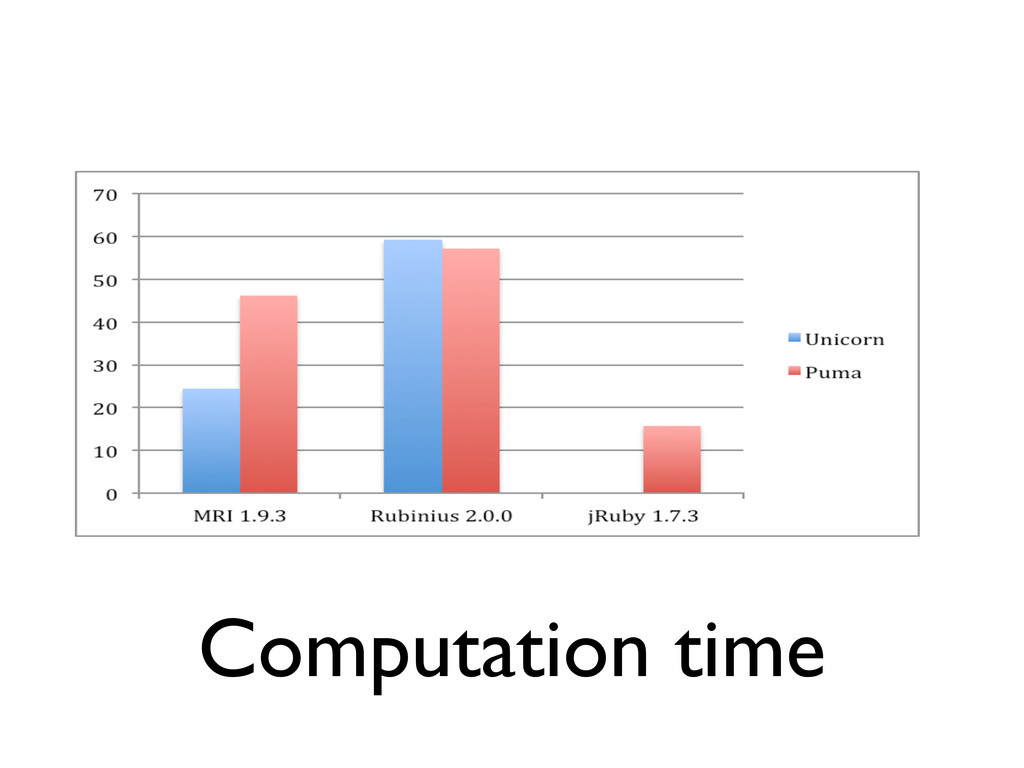

49. ! Computation time

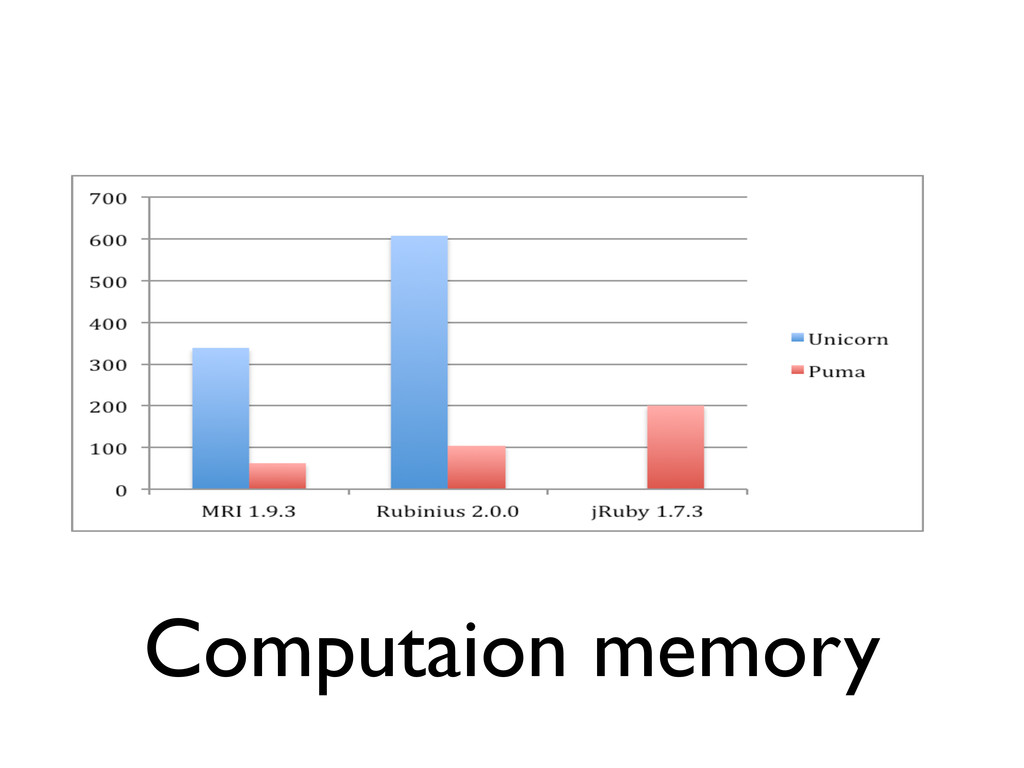

50. ! Computaion memory
51. ! Computation CPU

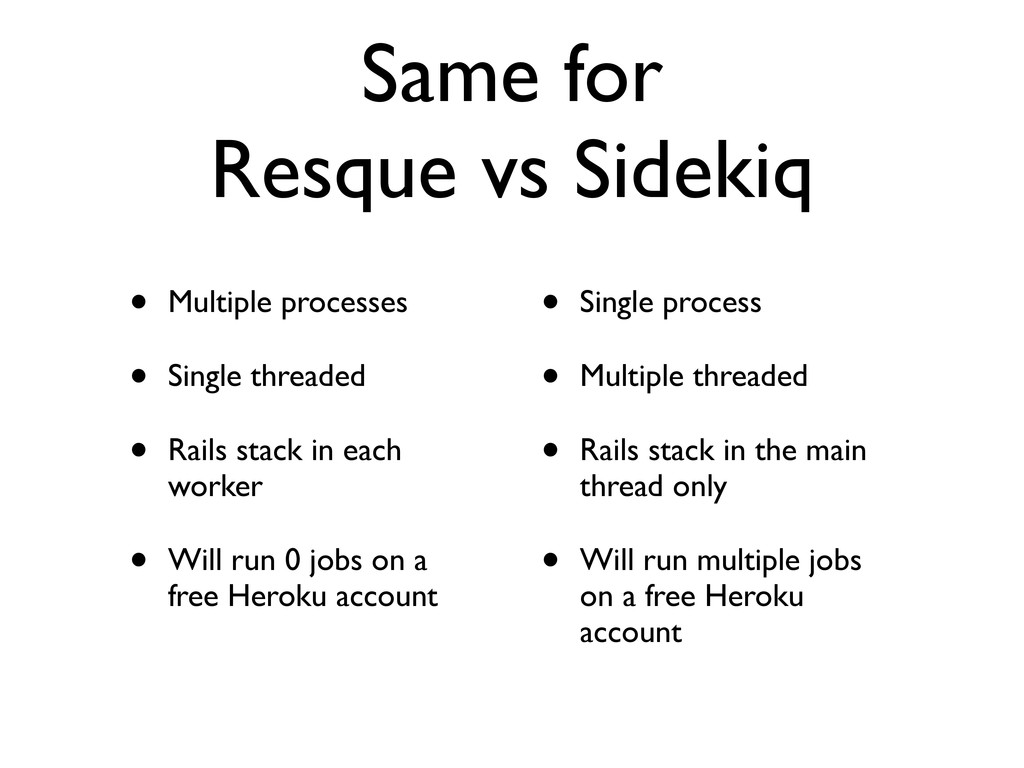

52. Same for Resque vs Sidekiq • Multiple processes • Single threaded • Rails stack in each worker • Will run 0 jobs on a free Heroku account • Single process • Multiple threaded • Rails stack in the main thread only • Will run multiple jobs on a free Heroku account
53. Test-drive on Heroku • Register “test-app” and “test-app-worker” • Set 1 web dyno for “test-app” • Set 1 worker dyno for “test-app-worker” • Configure both to use the same database (e.g. MONGOHQ_URL) and Redis (e.g. REDISTOGO_URL) • More at: https://github.com/phoet/freemium

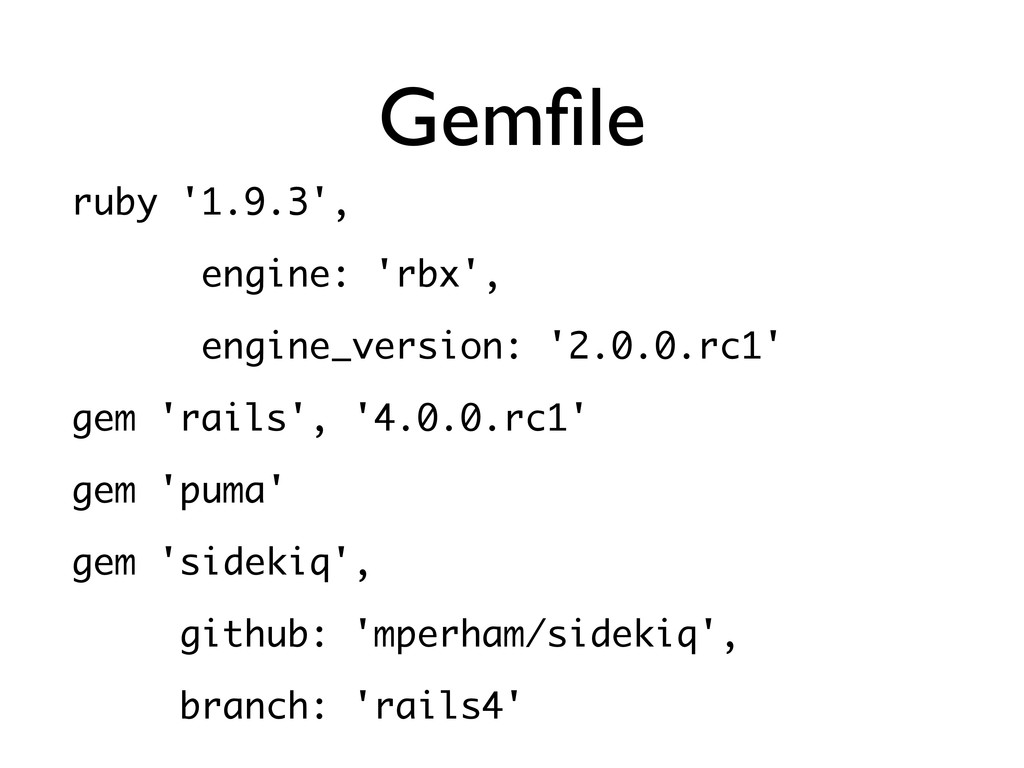

54. Gemfile ruby '1.9.3', engine: 'rbx', engine_version: '2.0.0.rc1' gem 'rails', '4.0.0.rc1' gem 'puma' gem 'sidekiq', github: 'mperham/sidekiq', branch: 'rails4'
55. Procfile web: bundle exec rails server puma -p $PORT -e $RACK_ENV worker: bundle exec sidekiq

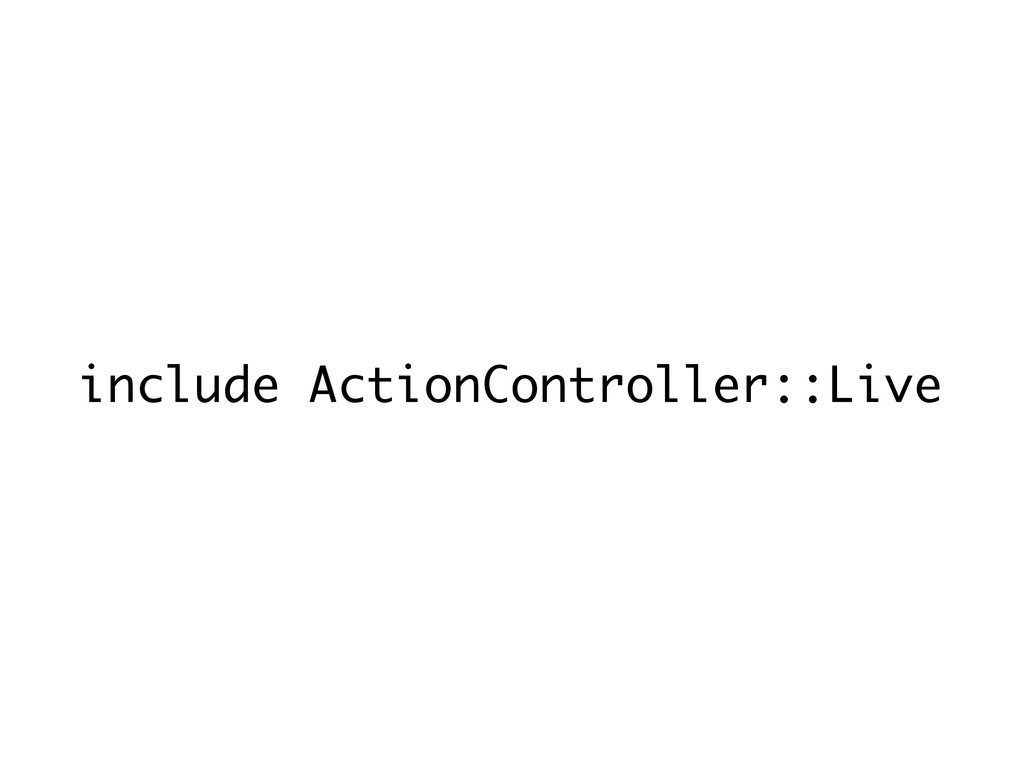

56. include ActionController::Live

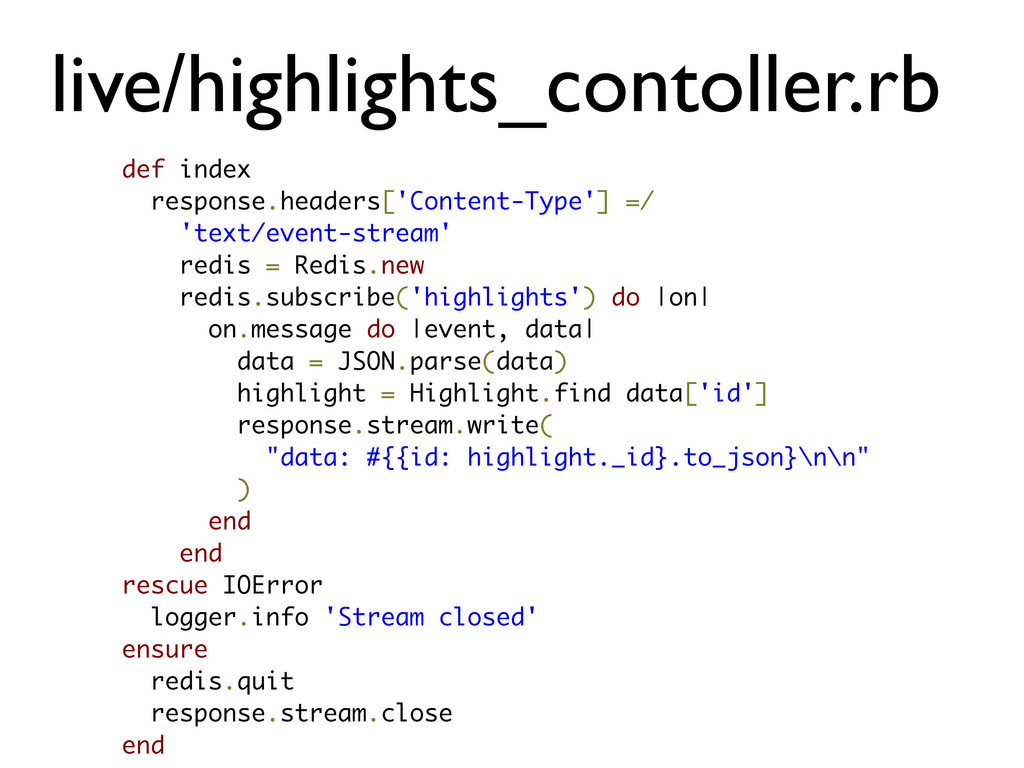

57. live/highlights_contoller.rb def index response.headers['Content-Type'] =/ 'text/event-stream' redis = Redis.new redis.subscribe('highlights') do |on| on.message do |event, data| data = JSON.parse(data) highlight = Highlight.find data['id'] response.stream.write( "data: #{{id: highlight._id}.to_json}\n\n" ) end end rescue IOError logger.info 'Stream closed' ensure redis.quit response.stream.close end

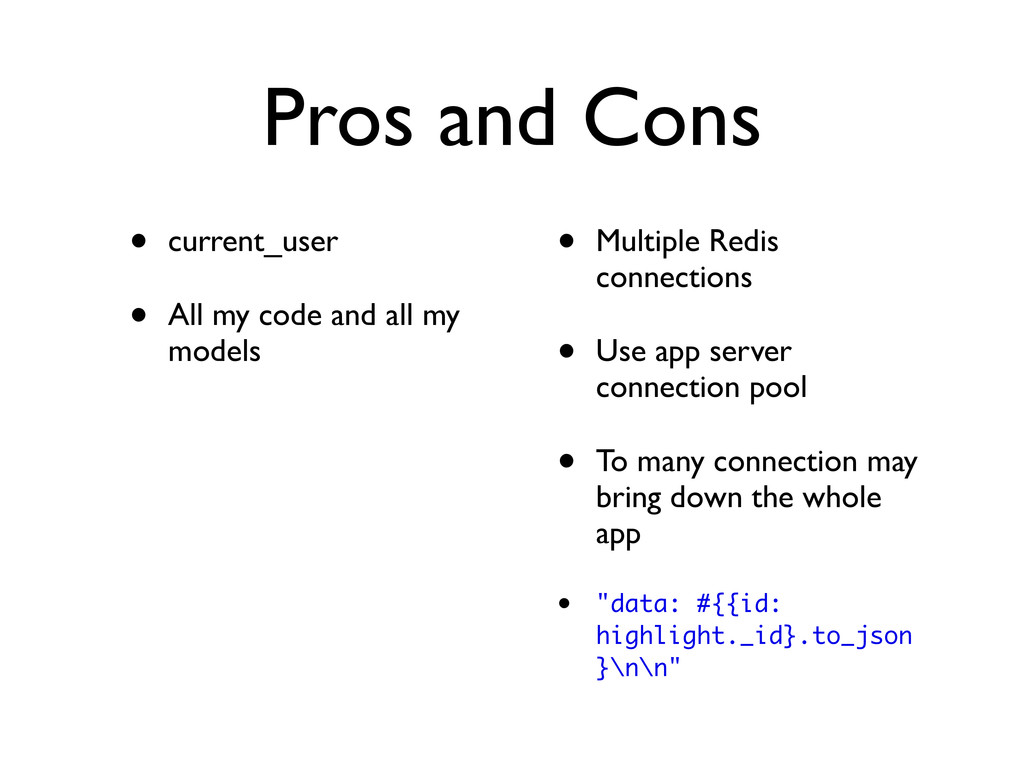

58. Pros and Cons • current_user • All my code and all my models • Multiple Redis connections • Use app server connection pool • To many connection may bring down the whole app • "data: #{{id: highlight._id}.to_json }\n\n"

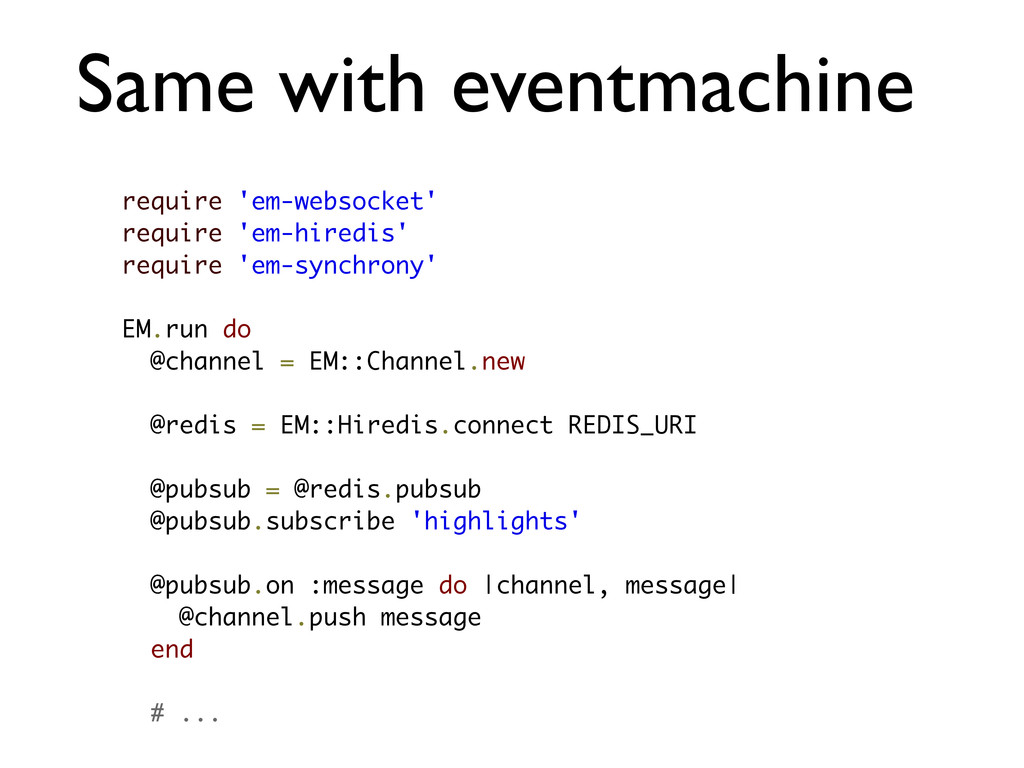

59. Same with eventmachine require 'em-websocket' require 'em-hiredis' require 'em-synchrony' EM.run do @channel = EM::Channel.new @redis = EM::Hiredis.connect REDIS_URI @pubsub = @redis.pubsub @pubsub.subscribe 'highlights' @pubsub.on :message do |channel, message| @channel.push message end # ...

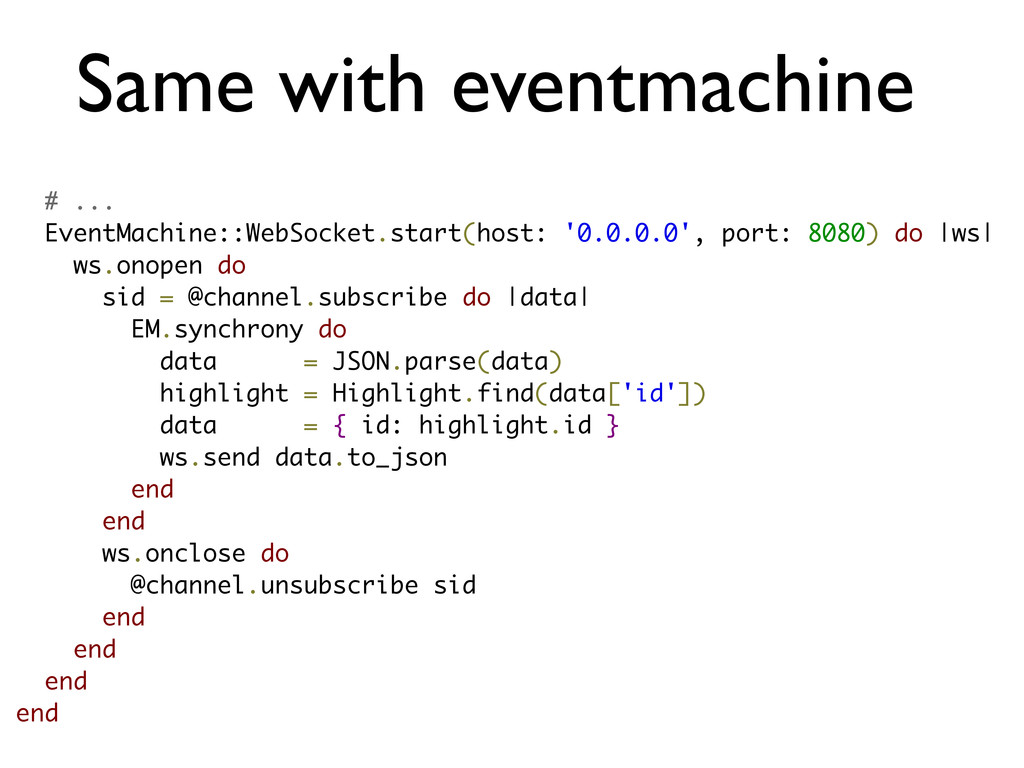

60. Same with eventmachine # ... EventMachine::WebSocket.start(host: '0.0.0.0', port: 8080) do |ws| ws.onopen do sid = @channel.subscribe do |data| EM.synchrony do data = JSON.parse(data) highlight = Highlight.find(data['id']) data = { id: highlight.id } ws.send data.to_json end end ws.onclose do @channel.unsubscribe sid end end end end
61. Pros and Cons • One Redis for app and one Redis for EM • If EM is down app is still working • Cleaner code • Sessions and users • Different codebase
62. Sources • http://www.everytalk.tv/talks/2075-Waza- Concurrency-Is-Not-Parallelism • http://www.gotw.ca/publications/concurrency-ddj.htm • http://pragprog.com/book/vspcon/programming- concurrency-on-the-jvm • http://pragprog.com/book/sidruby/the-druby-book • http://www.igvita.com/2010/03/22/untangling-evented- code-with-ruby-fibers/
63. ¿Preguntas?
