TestContainers + JUnit 5 = elegant integration and e2e tests for microservices

Transcript

1. 1.

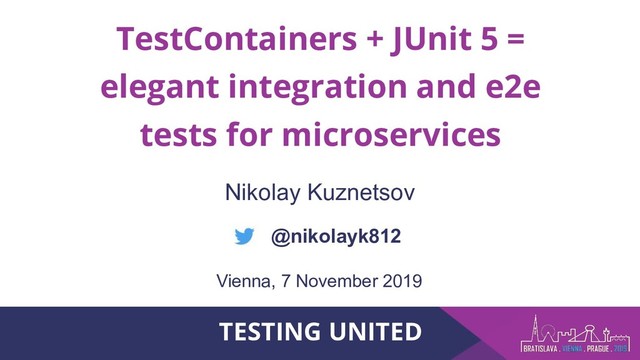

   TestContainers + JUnit 5 = elegant integration and e2e tests

   for microservices Nikolay Kuznetsov @nikolayk812 TESTING UNITED Vienna, 7 November 2019
2. 2.

   About me • Go developer at Zalando Helsinki • Java

   developer at Infobip, DevExperts • C developer at Samsung, Motorola
3. 3.

   My testing experience • Unit, integration and end-to-end automated tests

   development • Various organizational structures ◦ Separate QA teams ◦ QA engineers in a dev team ◦ No QA teams/engineers at all
4. 4.

   Key points • Targeting automated testing • Examples and demos

   in Java: TestContainers-Java, JUnit 5, Spring Boot • Principles are language-agnostic
5. 5.

   Why integration testing?

6. 6.

   2 unit tests, 0 integration tests

7. 7.

   Tests trade-offs

8. 8.

   None
9. 9.

   Basic integration test

10. 10.

    Integration testing evolution • In-memory mocking • Local DBs •

    Vagrant • Docker, Docker Compose • Docker API
11. 11.

    Docker architecture

12. 12.

    How to start a container for test? • Shell scripts

    • Maven plugin • Docker Compose • Docker API • MiniKube, Kubernetes
13. 13.

    Shell scripts

14. 14.

    Maven plugin github.com/fabric8io/docker-maven-plugin

15. 15.

    Docker Compose

16. 16.

    Docker API

17. 17.

    None
18. 18.

    TestContainers flavors

19. 19.

    TestContainers Java • github.com/testcontainers/testcontainers-java • Wraps docker-java library • Docker

    environment autodiscovery • Host port randomization • Containers clean up on JVM shutdown • Readiness waiting strategies
20. 20.

    As simple as var redis = new GenericContainer("redis:5.0.5") .withExposedPorts(6379); var

    postgres = new PostgreSQLContainer();
21. 21.

    Docker environment autodiscovery

22. 22.

    Host port randomization • Prevents port conflicts • Enables parallel

    CI builds • API to get an actual host port
23. 23.

    Containers cleanup github.com/testcontainers/moby-ryuk

24. 24.

    Readiness waiting strategies • Host port • HTTP status/body •

    Log message • Docker healthcheck • Combination of above • Custom
25. 25.

    Demo setup User Service

26. 26.

    Demo scenario User Service INSERT INTO SELECT FROM

27. 27.

    Demo github.com/nikolayk812/tu-tc-demo

28. 28.

    Demo recap • JUnit 5 integration via Extension API ◦

    @TestContainers / @Container • TestContainers Modules ◦ 14 databases ◦ Kafka, MockServer, LocalStack, ToxiProxy, etc
29. 29.

    JUnit 5 Extensions • Customizable extension points: ◦ Life-cycle phases

    ◦ Parameter resolution ◦ Conditional execution, etc • Extension logic registered with @ExtendsWith
30. 30.

    github.com/nikolayk812/tu-tc-demo Demo-2: setup User Service

31. 31.

    Demo-2: scenario User Service POST /users GET /user/<id>

32. 32.

    Demo-2: Docker network User Service user-alias: 8083 postgres-alias: 5432 localhost:

    32812
33. 33.

    Demo 2 github.com/nikolayk812/tu-tc-demo

34. 34.

    Demo-2: recap • Docker network and alias

35. 35.

    Why end-to-end testing? • Business flows across multiple services •

    Regression, when ◦ + new service ◦ - legacy service
36. 36.

    Testing/staging deployed cluster Spring Cloud Kubernetes

37. 37.

    Testing against a deployed cluster • Deploy a new service

    version to the cluster? • Unexpected versions of dependent services • Unexpected database states ◦ Care to clear after the test? • Parallel CI builds?
38. 38.

    On-demand cluster for E2E tests + Locally and at CI

    machines + Control over dependent services versions - Time to start all containers - Resources: memory and CPU How to do it?
39. 39.

    Kubernetes for E2E tests?

40. 40.

    Kubernetes for E2E tests - YAGNI TestContainers + Docker network!

41. 41.

    E2E test setup User Service Item Service

42. 42.

    Takeaways • https://testcontainers.org • Balance between flexibility, speed and features

    • Works on Mac, Linux, Windows
43. 43.

    QUESTIONS ?
