Mobile Authentication: Implementing FIDO UAF on mobile

Password based authentication is a pain for users and has some risks. FIDO are scalable, open standards that address the lack of interoperability among strong authentication devices and enable simpler and stronger user authentication based on public key cryptography.

I show how the FIDO UAF protocol works and share my experience about what it means to implement it on the mobile side.

This talk was presented at Mobile Romandie Meetup, Lausanne, Switzerland, on Jan 17, 2019.

Transcript

1. MOBILE AUTHENTICATION IMPLEMENTING FIDO ON MOBILE Mobile Romandie Meetup • January 2019 • Nicolas Marfurt
2. Senior Software Engineer at AdNovum @nmarfurt

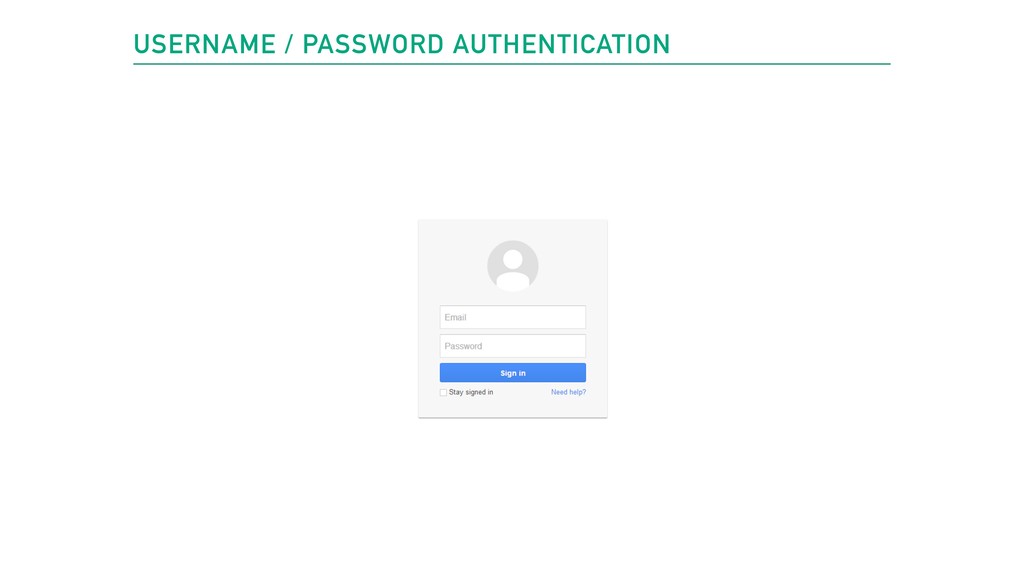

3. USERNAME / PASSWORD AUTHENTICATION

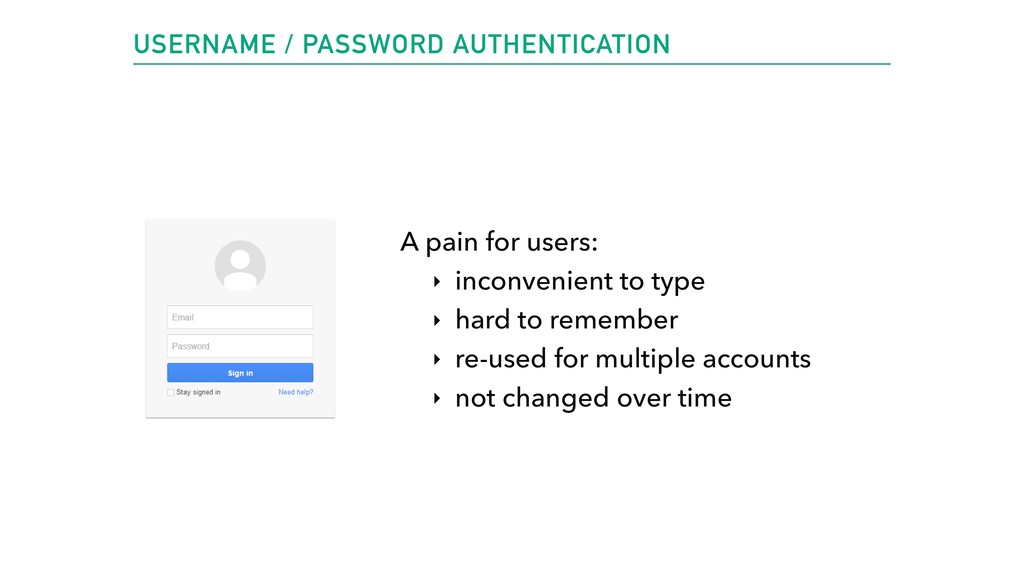

4. USERNAME / PASSWORD AUTHENTICATION A pain for users: ‣ inconvenient to type ‣ hard to remember ‣ re-used for multiple accounts ‣ not changed over time

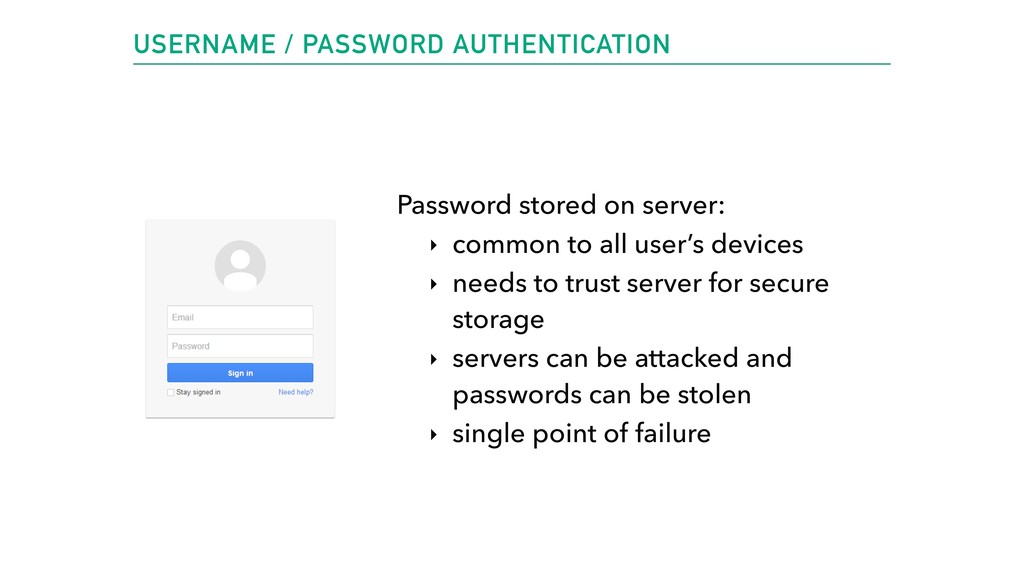

5. USERNAME / PASSWORD AUTHENTICATION Password stored on server: ‣ common to all user’s devices ‣ needs to trust server for secure storage ‣ servers can be attacked and passwords can be stolen ‣ single point of failure
6. THE WORLD HAS A PASSWORD PROBLEM

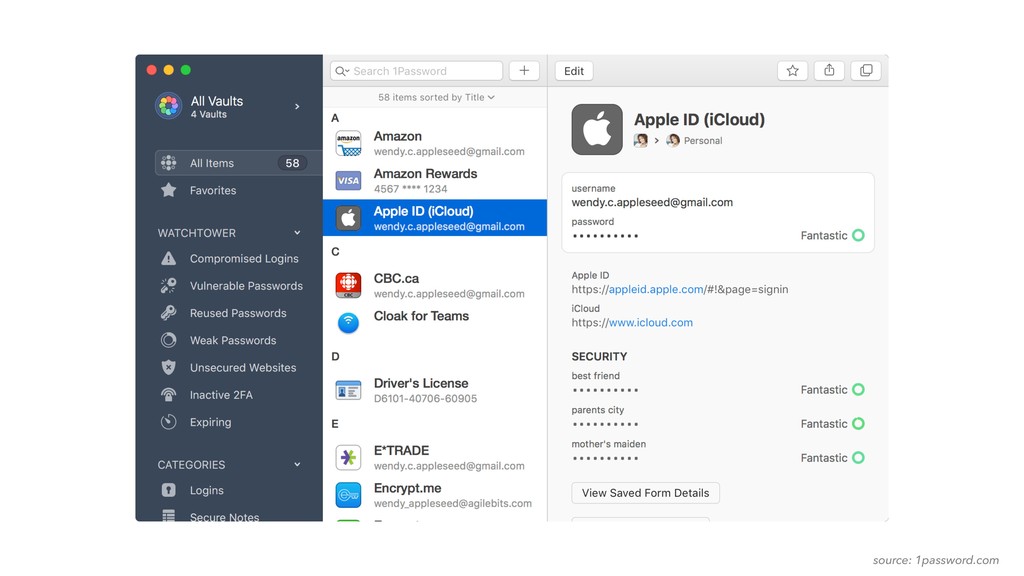

7. source: 1password.com

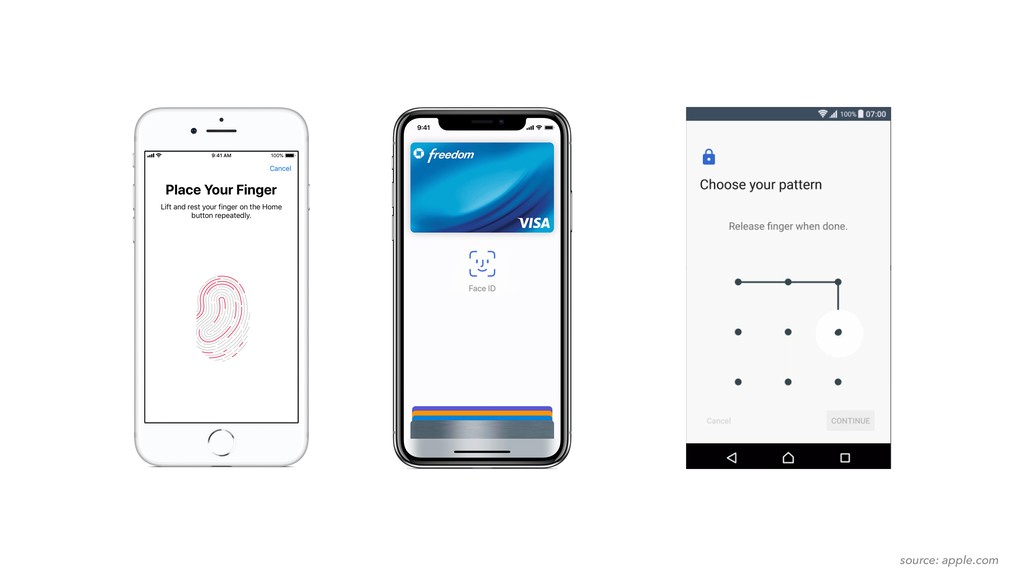

8. source: apple.com
9. THE WORLD HAS A PASSWORD PROBLEM STILL
10. FIDO
11. source: http://artychoc-studio.com/portfolio/graphic-design-0033/
12. Fast Identity Online
14. YOU CAN’T LEAK PASSWORDS IF YOU DON’T STORE PASSWORD

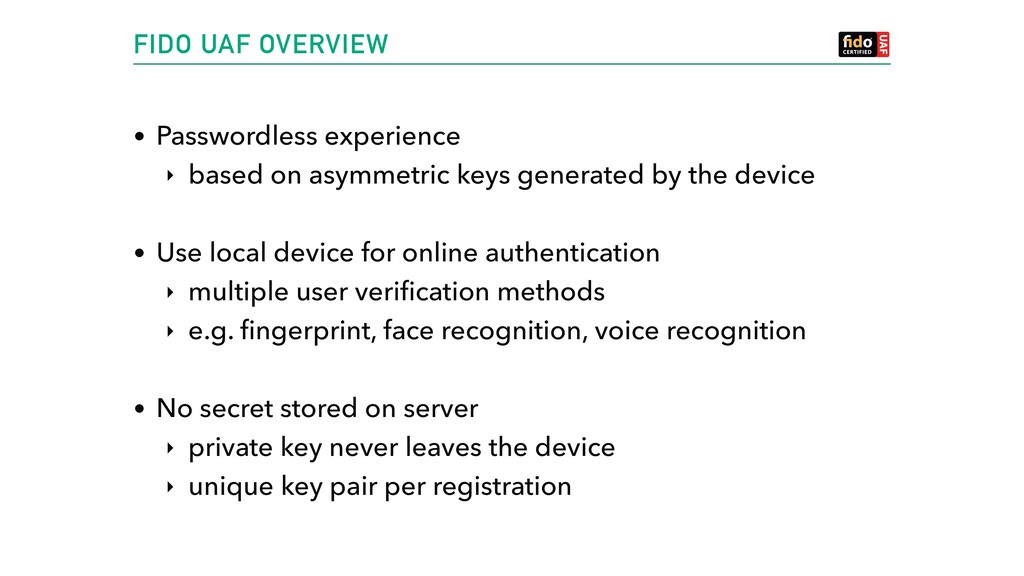

15. FIDO UAF OVERVIEW • Passwordless experience ‣ based on asymmetric keys generated by the device • Use local device for online authentication ‣ multiple user verification methods ‣ e.g. fingerprint, face recognition, voice recognition • No secret stored on server ‣ private key never leaves the device ‣ unique key pair per registration

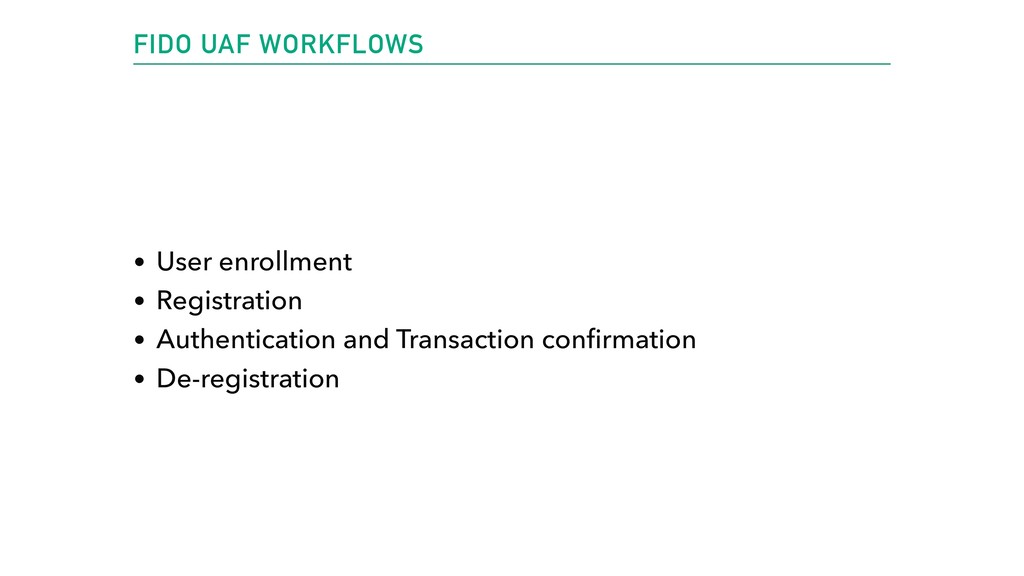

16. FIDO UAF WORKFLOWS • User enrollment • Registration • Authentication and Transaction confirmation • De-registration

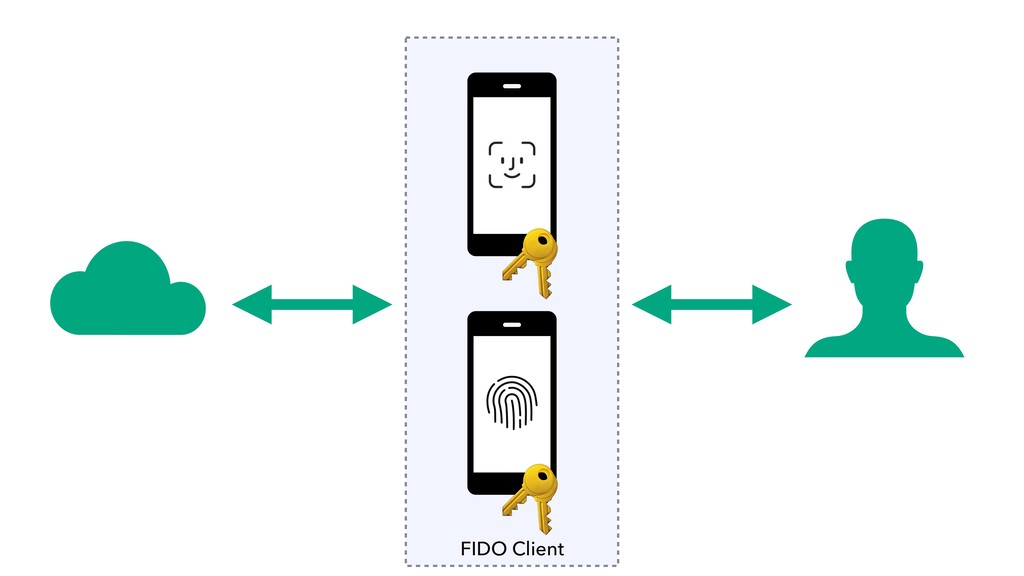

17. FIDO Client
18. FIDO Client
19. USER ENROLLMENT

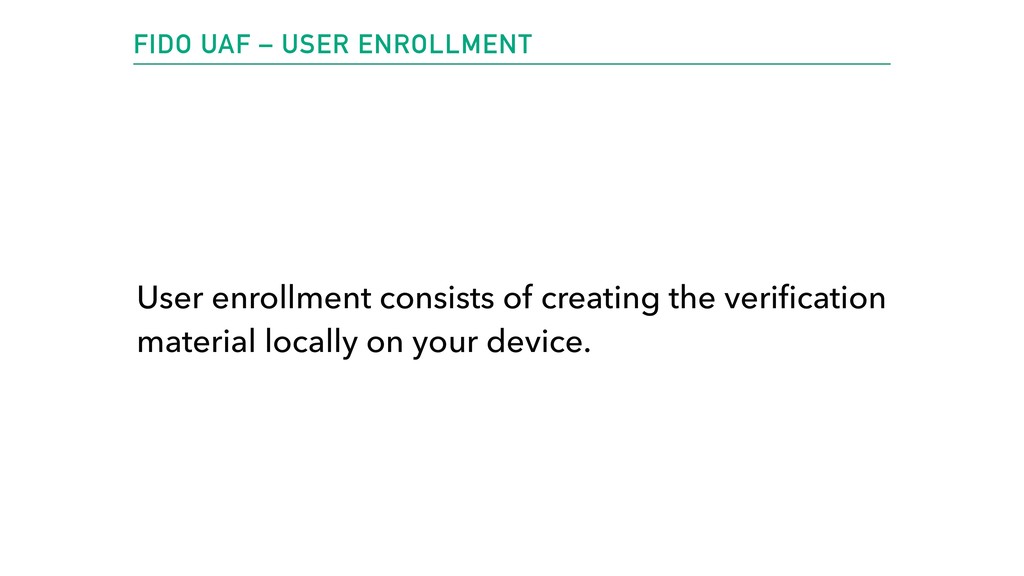

20. FIDO UAF – USER ENROLLMENT User enrollment consists of creating the verification material locally on your device.

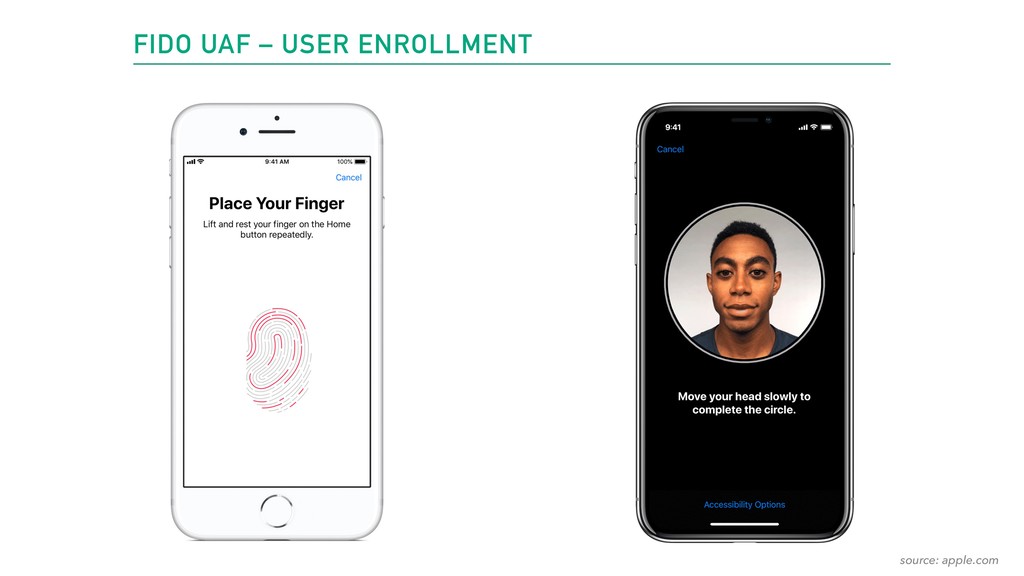

21. FIDO UAF – USER ENROLLMENT source: apple.com
22. REGISTRATION
23. FIDO UAF – REGISTRATION The user registers their device to the online service by selecting a local authentication mechanism.

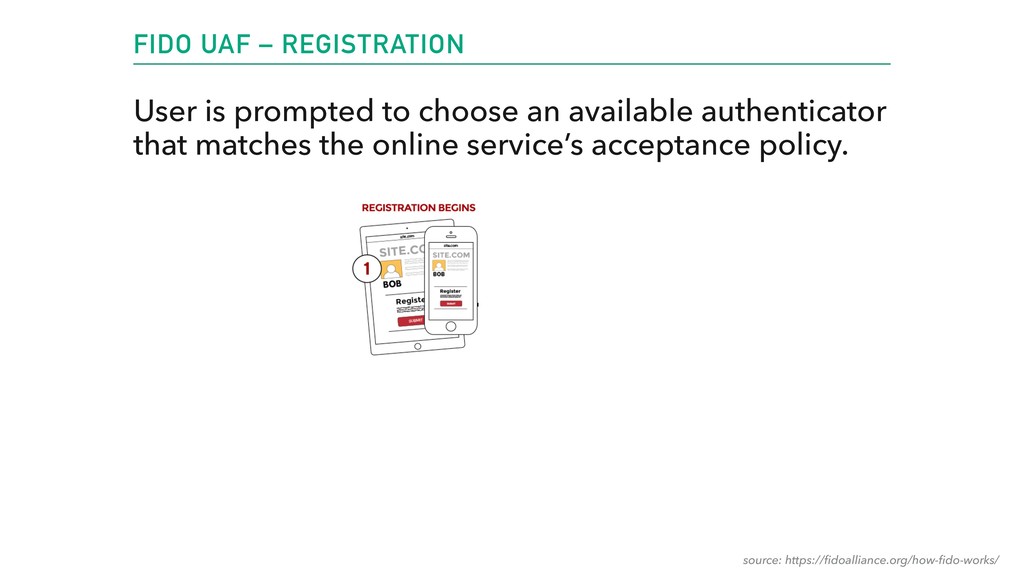

24. FIDO UAF – REGISTRATION User is prompted to choose an available authenticator that matches the online service’s acceptance policy. source: https://fidoalliance.org/how-fido-works/

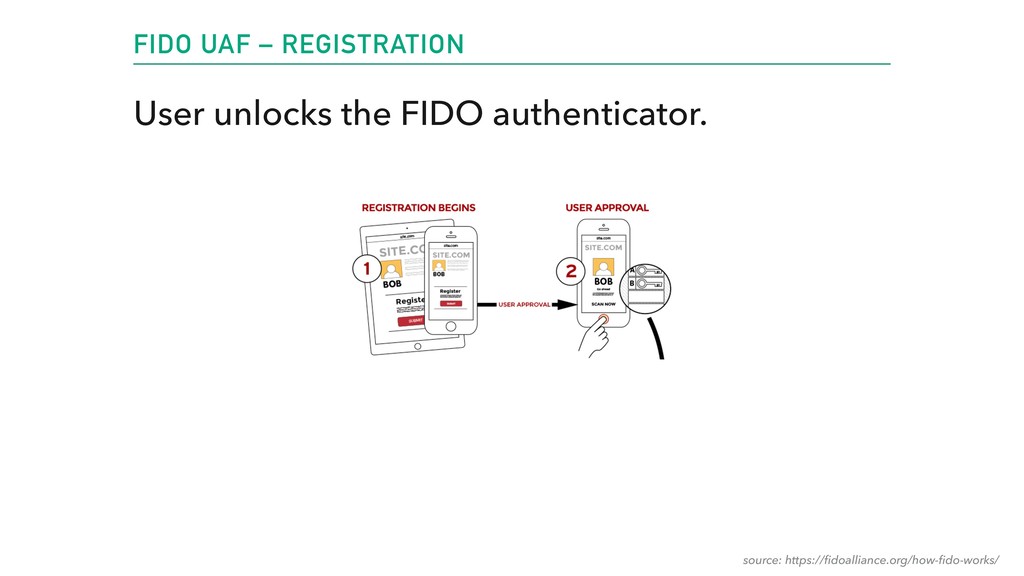

25. FIDO UAF – REGISTRATION User unlocks the FIDO authenticator. source: https://fidoalliance.org/how-fido-works/

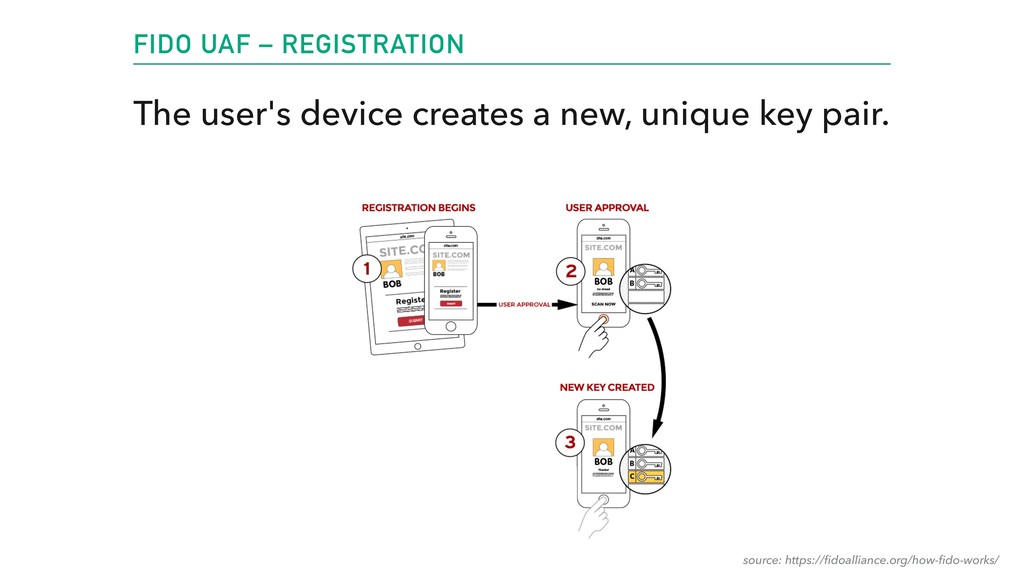

26. FIDO UAF – REGISTRATION The user's device creates a new, unique key pair. source: https://fidoalliance.org/how-fido-works/

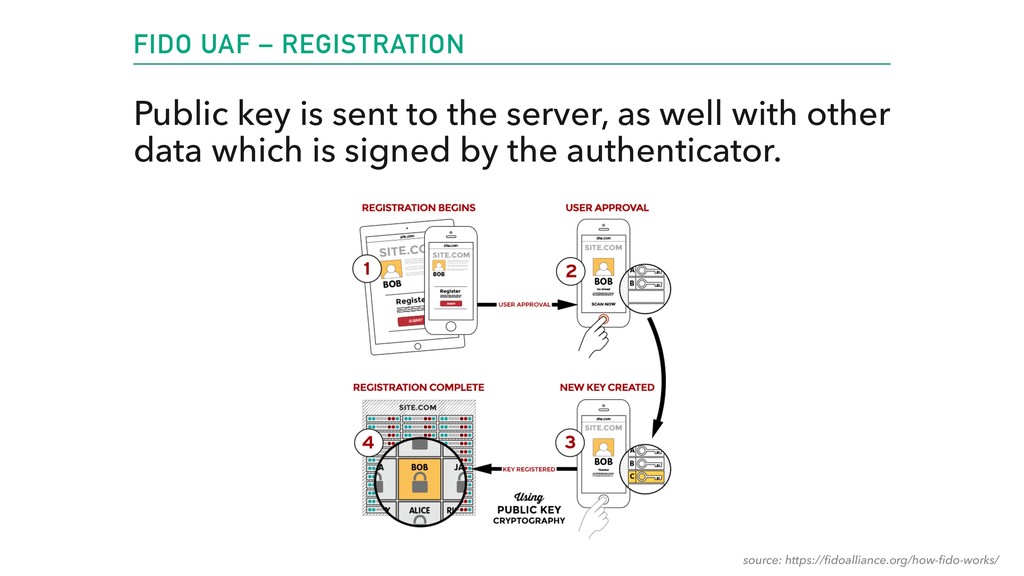

27. FIDO UAF – REGISTRATION Public key is sent to the server, as well with other data which is signed by the authenticator. source: https://fidoalliance.org/how-fido-works/
28. AUTHENTICATION

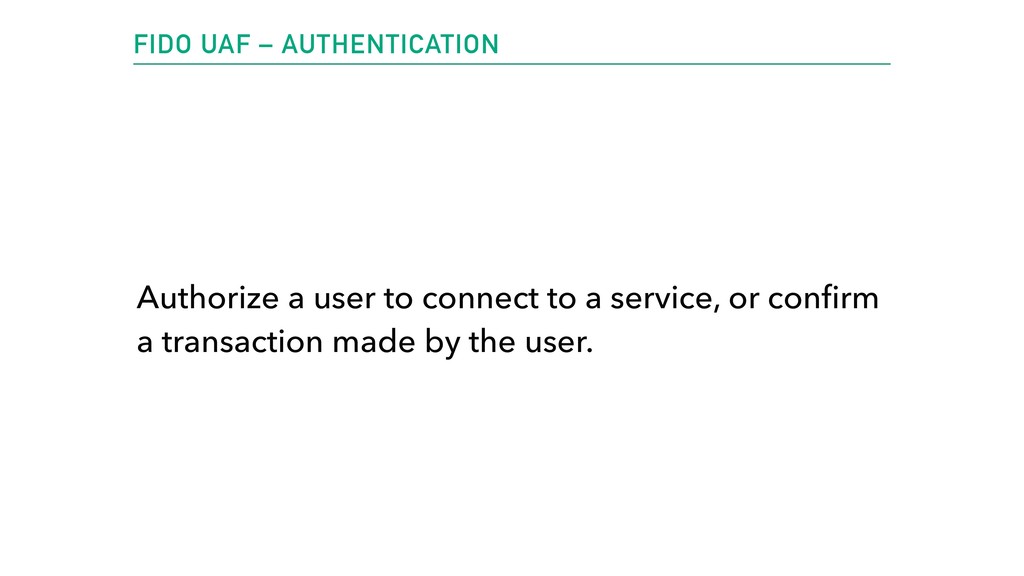

29. FIDO UAF – AUTHENTICATION Authorize a user to connect to a service, or confirm a transaction made by the user.

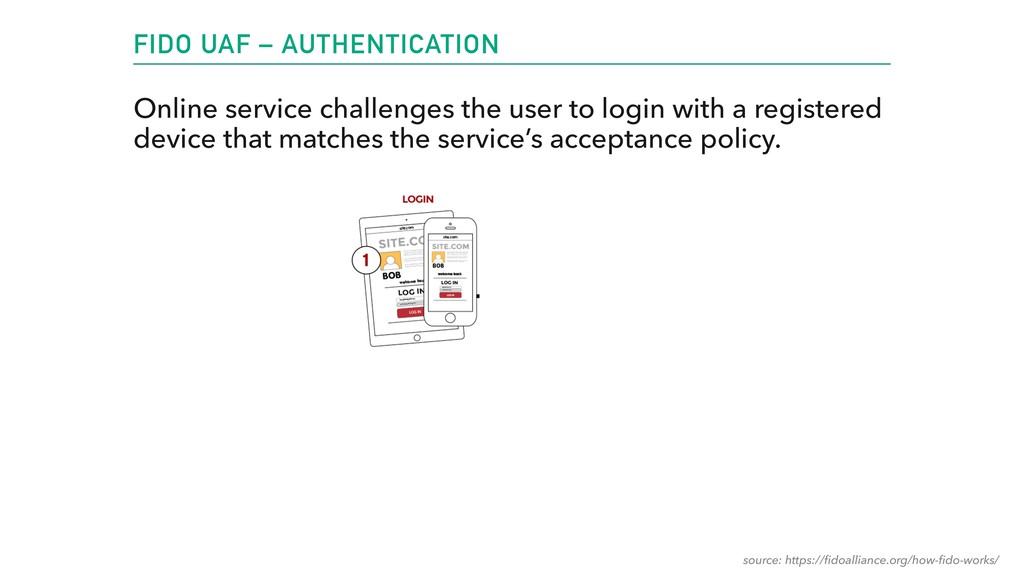

30. FIDO UAF – AUTHENTICATION Online service challenges the user to login with a registered device that matches the service’s acceptance policy. source: https://fidoalliance.org/how-fido-works/
31. FIDO UAF – AUTHENTICATION User is verified to unlock the FIDO authenticator. source: https://fidoalliance.org/how-fido-works/

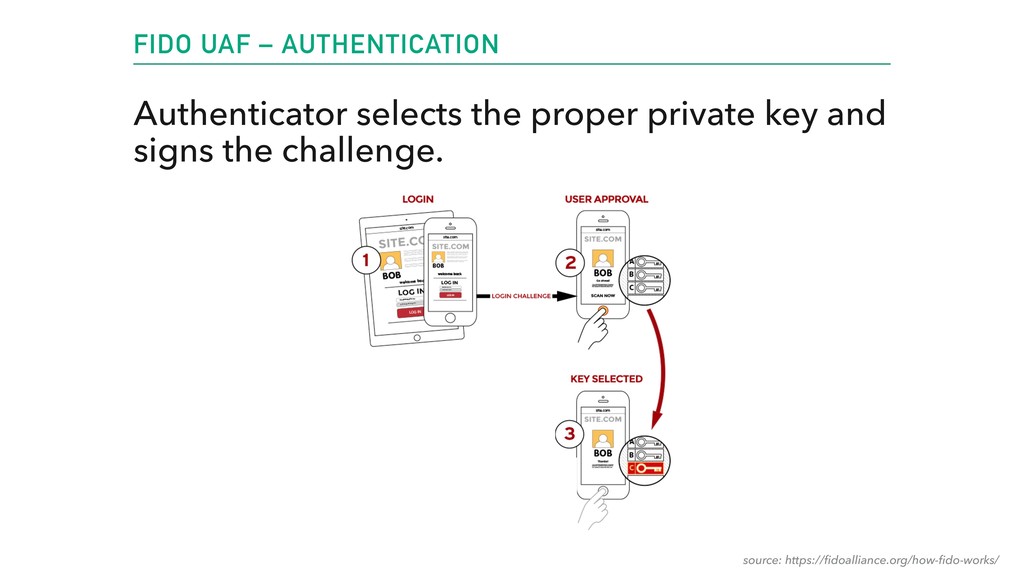

32. FIDO UAF – AUTHENTICATION Authenticator selects the proper private key and signs the challenge. source: https://fidoalliance.org/how-fido-works/

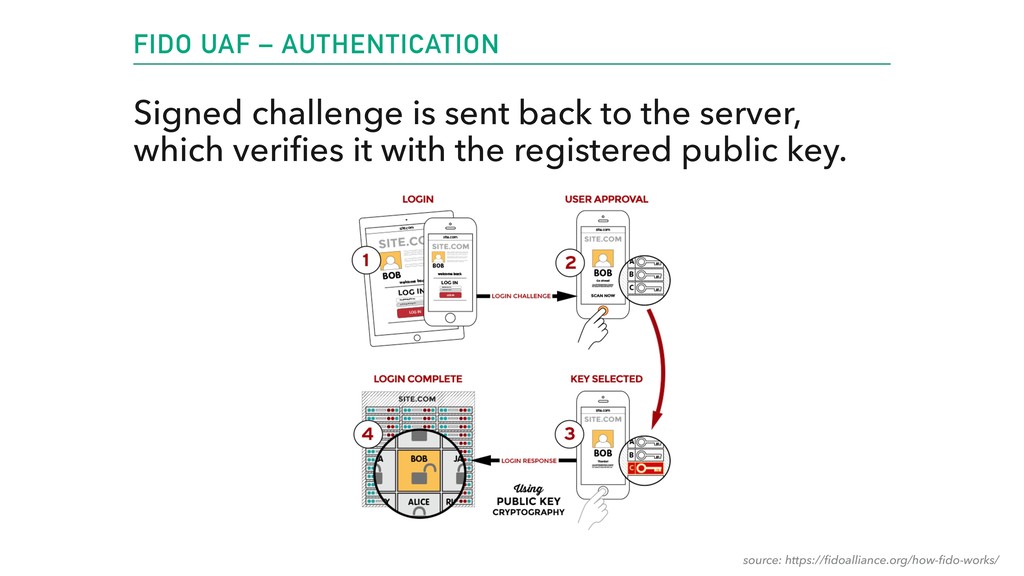

33. FIDO UAF – AUTHENTICATION Signed challenge is sent back to the server, which verifies it with the registered public key. source: https://fidoalliance.org/how-fido-works/
34. DE-REGISTRATION

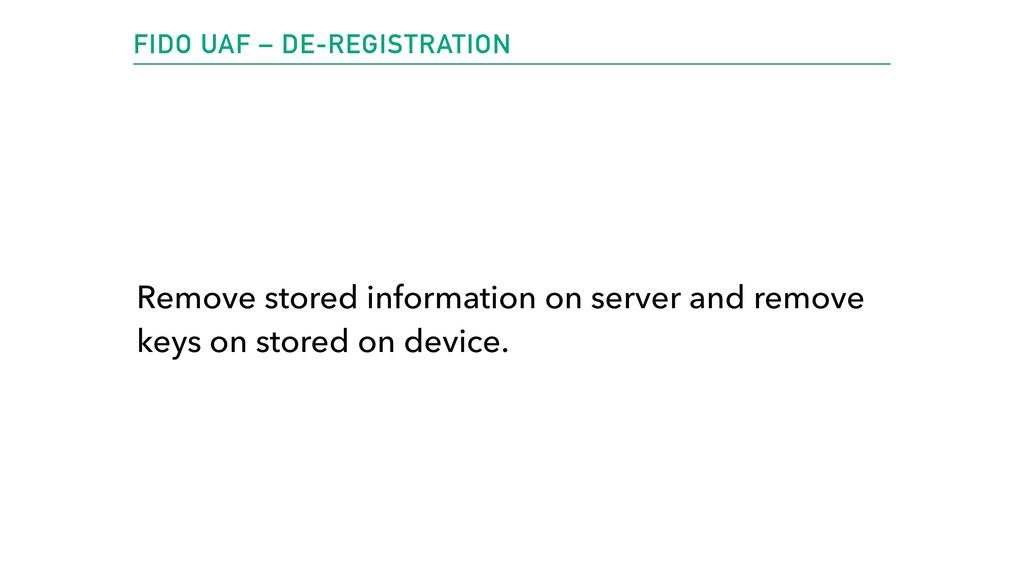

35. FIDO UAF – DE-REGISTRATION Remove stored information on server and remove keys on stored on device.
36. IMPLEMENTING FIDO

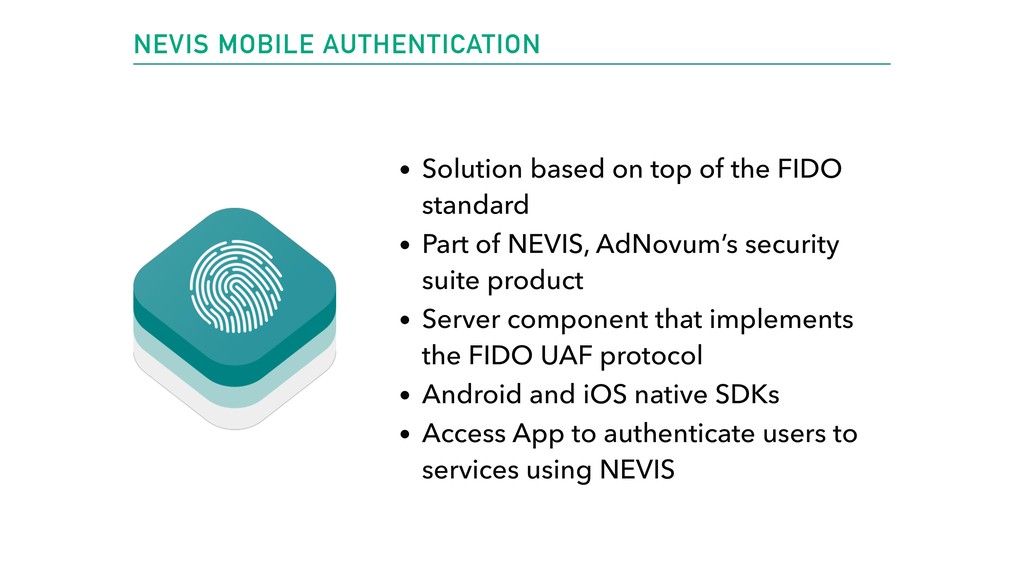

37. NEVIS MOBILE AUTHENTICATION • Solution based on top of the FIDO standard • Part of NEVIS, AdNovum’s security suite product • Server component that implements the FIDO UAF protocol • Android and iOS native SDKs • Access App to authenticate users to services using NEVIS
38. BUILDING A FIDO CLIENT FRAMEWORK • Designing a robust architecture ‣ close collaboration between Android and iOS developers • Shaping a public API ‣ allowing flexibility to the users of the SDK ‣ … while offering standard use cases out of the box • Very good testing to ensure quality • Good documentation
39. UNDERSTANDING THE FIDO SPECIFICATIONS

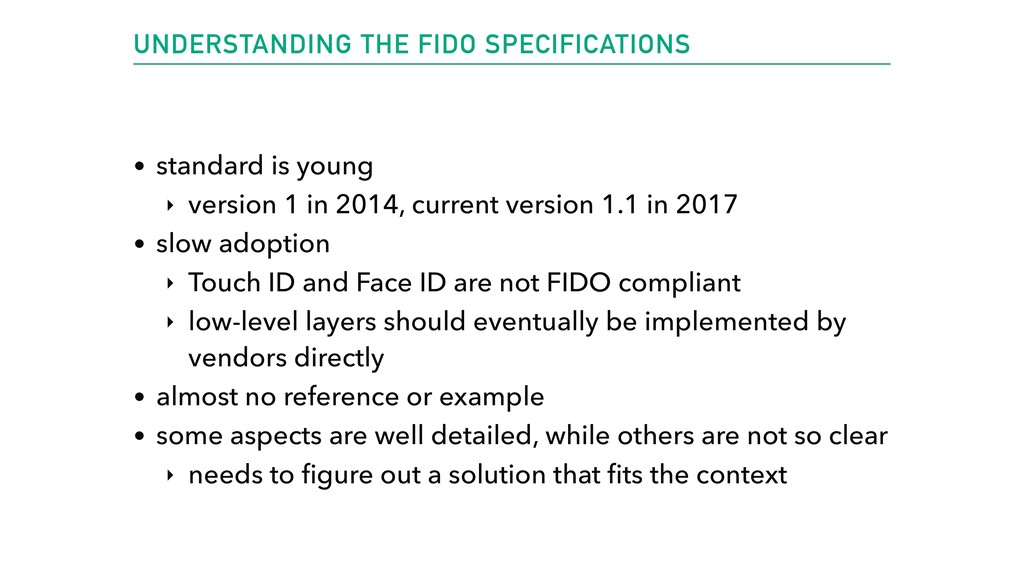

40. UNDERSTANDING THE FIDO SPECIFICATIONS • standard is young ‣ version 1 in 2014, current version 1.1 in 2017 • slow adoption ‣ Touch ID and Face ID are not FIDO compliant ‣ low-level layers should eventually be implemented by vendors directly • almost no reference or example • some aspects are well detailed, while others are not so clear ‣ needs to figure out a solution that fits the context
41. SECURITY ASPECTS

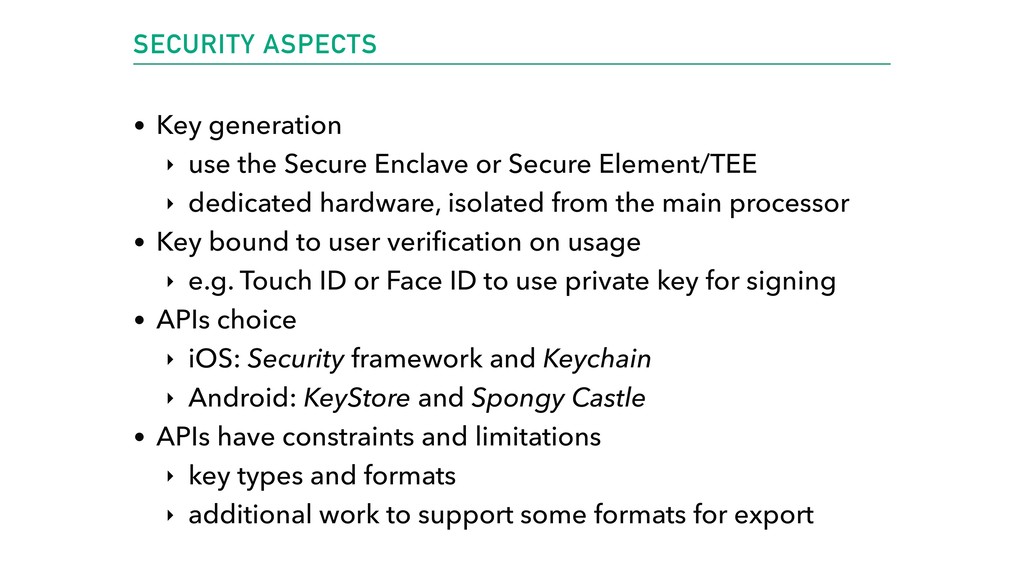

42. SECURITY ASPECTS • Key generation ‣ use the Secure Enclave or Secure Element/TEE ‣ dedicated hardware, isolated from the main processor • Key bound to user verification on usage ‣ e.g. Touch ID or Face ID to use private key for signing • APIs choice ‣ iOS: Security framework and Keychain ‣ Android: KeyStore and Spongy Castle • APIs have constraints and limitations ‣ key types and formats ‣ additional work to support some formats for export

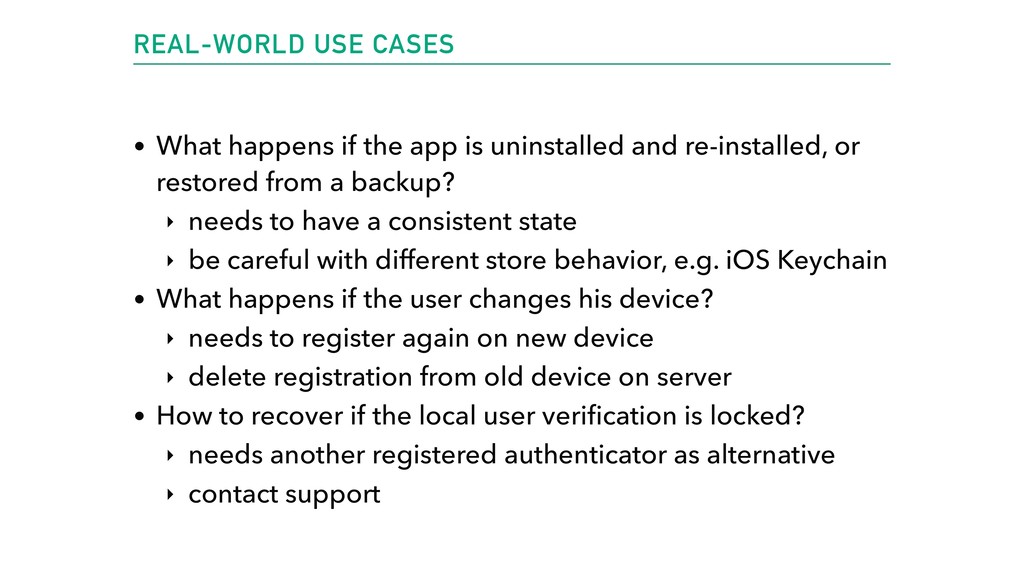

43. REAL-WORLD USE CASES • What happens if the app is uninstalled and re-installed, or restored from a backup? ‣ needs to have a consistent state ‣ be careful with different store behavior, e.g. iOS Keychain • What happens if the user changes his device? ‣ needs to register again on new device ‣ delete registration from old device on server • How to recover if the local user verification is locked? ‣ needs another registered authenticator as alternative ‣ contact support
44. WHAT ARE YOUR QUESTIONS
45. LINKS & DOCUMENTATION Links • https://fidoalliance.org/what-is-fido/ • https://fidoalliance.org/specifications/download/ • https://www.nevis-security.ch/en/offering/solution/ mobile_authentication.html • https://developers.google.com/android/reference/com/ google/android/gms/fido/Fido • https://www.linkedin.com/pulse/eliminate-passwords-new- approach-authentication-needed-peter-gassmann/ • https://en.wikipedia.org/wiki/Public-key_cryptography
