1. Oracle RMAN Best Practices Swiss Oracle User Group - 23 October 2025 Seàn Scott Managing Principal Consultant, Viscosity North America Oracle ACE Director
2. Get the slides:
3. Database Reliability Engineering MAA ⁘ RAC ⁘ RMAN Data Guard ⁘ Sharding ⁘ Partitioning Information Lifecycle Management Exadata & Engineered Systems Database Modernization Upgrades ⁘ Patching ⁘ Migrations Cloud ⁘ Hybrid Automation DevOps ⁘ IaC ⁘ Containers ⁘ Terraform Vagrant ⁘ Ansible Observability AHF ⁘ TFA ⁘ CHA ⁘ CHM
5. www.viscosityna.com @ViscosityNA Oracle on Docker Running Oracle Databases in Linux Containers Free sample chapter: https://oraclesean.com
6. www.viscosityna.com @ViscosityNA RMAN Best Practices*

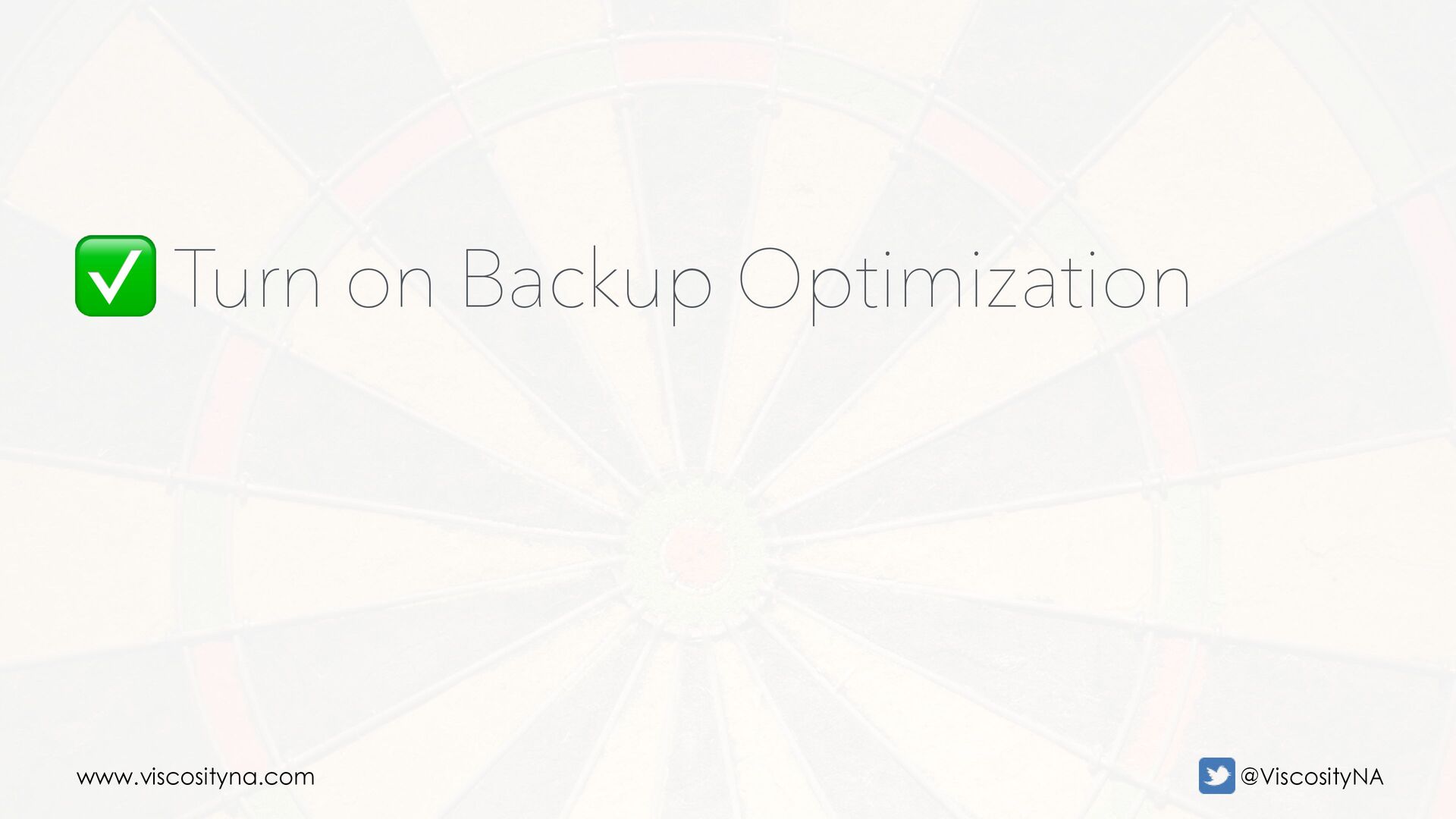

7. www.viscosityna.com @ViscosityNA ✅ Turn on Backup Optimization

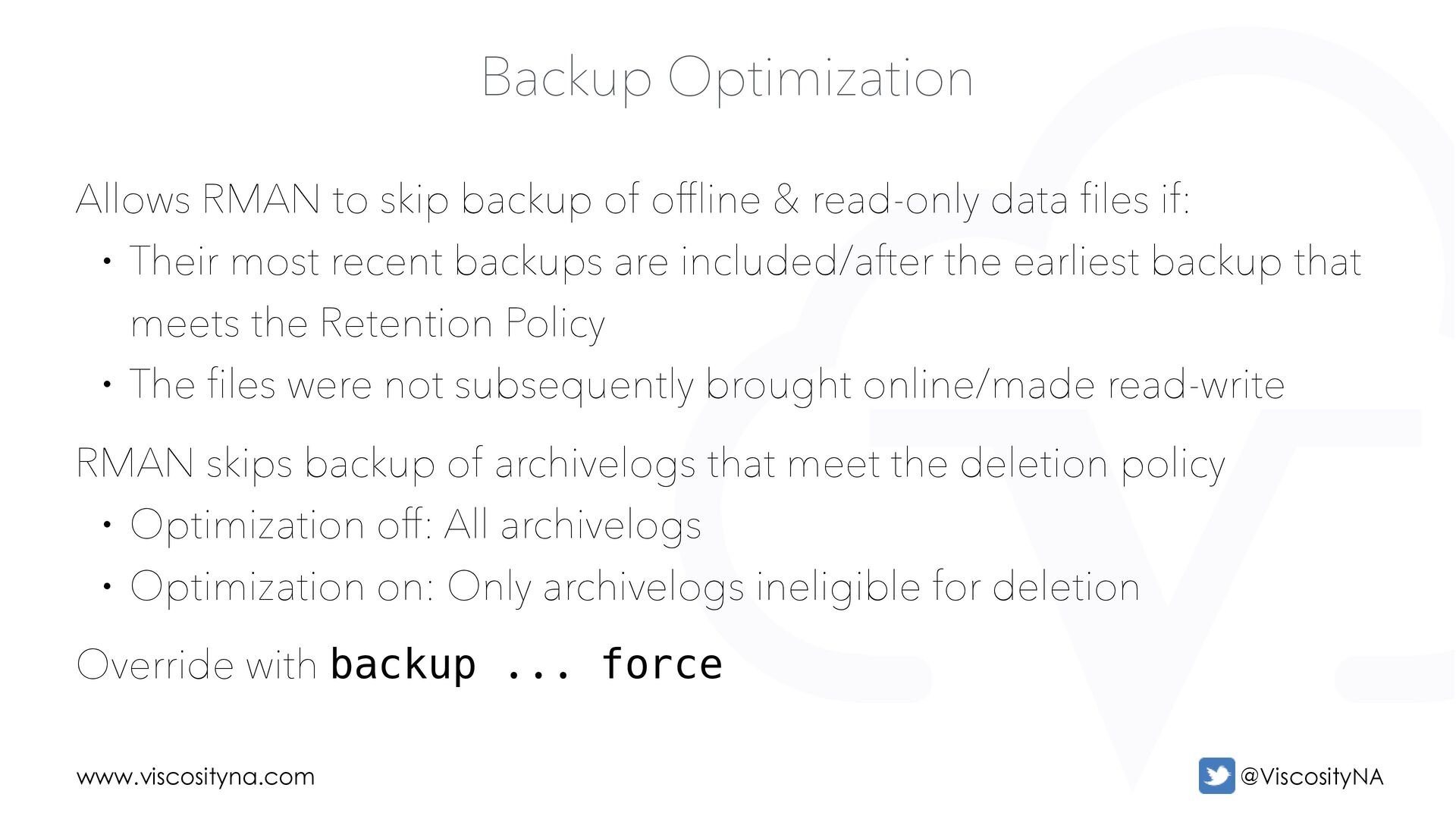

8. www.viscosityna.com @ViscosityNA Backup Optimization Allows RMAN to skip backup of offline & read-only data files if: • Their most recent backups are included/after the earliest backup that meets the Retention Policy • The files were not subsequently brought online/made read-write RMAN skips backup of archivelogs that meet the deletion policy • Optimization off: All archivelogs • Optimization on: Only archivelogs ineligible for deletion Override with backup ... force
9. www.viscosityna.com @ViscosityNA ✅ Use Block Change Tracking*

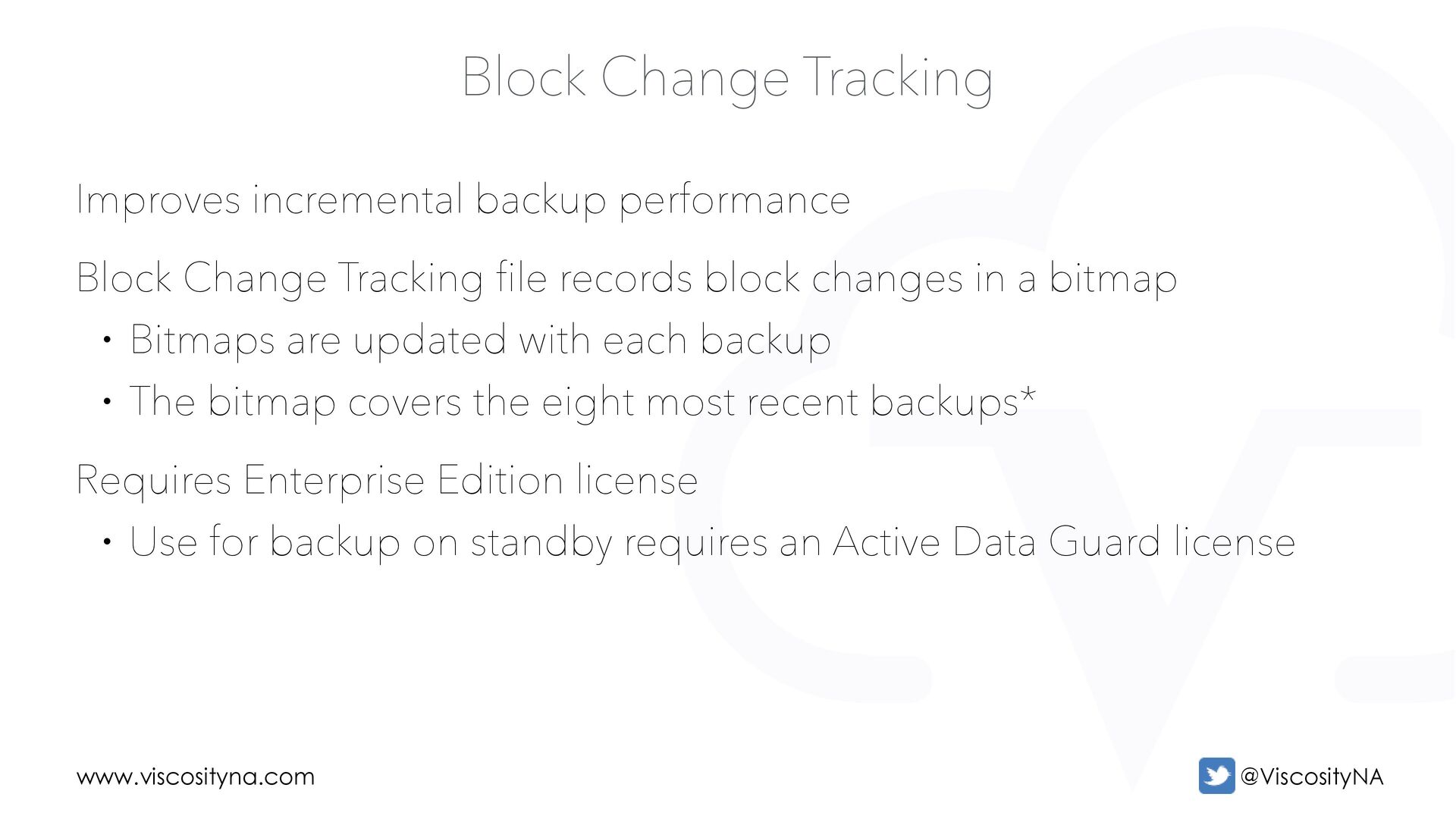

10. www.viscosityna.com @ViscosityNA Block Change Tracking Improves incremental backup performance Block Change Tracking file records block changes in a bitmap • Bitmaps are updated with each backup • The bitmap covers the eight most recent backups* Requires Enterprise Edition license • Use for backup on standby requires an Active Data Guard license

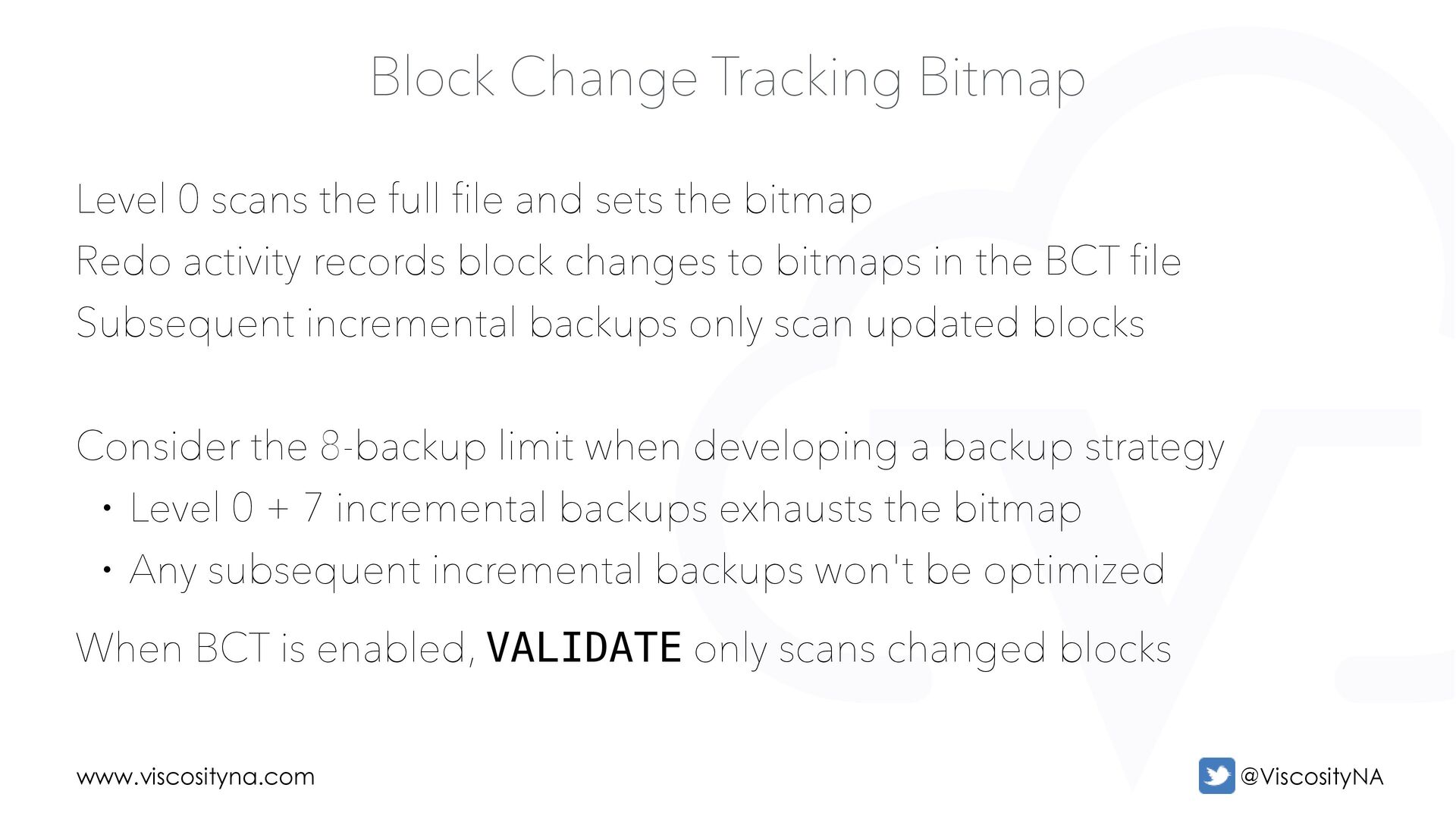

11. www.viscosityna.com @ViscosityNA Block Change Tracking Bitmap Level 0 scans the full file and sets the bitmap Redo activity records block changes to bitmaps in the BCT file Subsequent incremental backups only scan updated blocks Consider the 8-backup limit when developing a backup strategy • Level 0 + 7 incremental backups exhausts the bitmap • Any subsequent incremental backups won't be optimized When BCT is enabled, VALIDATE only scans changed blocks

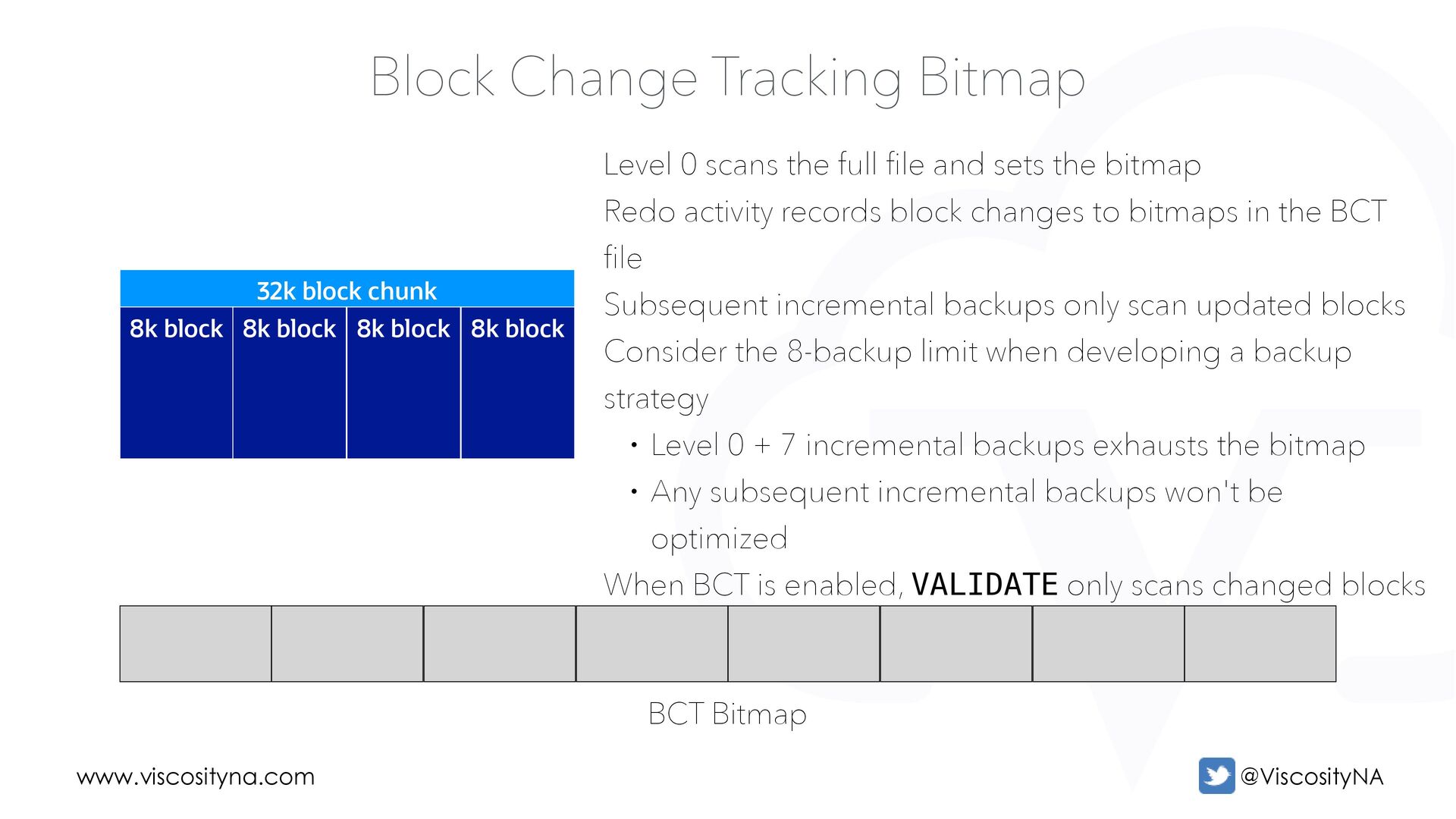

12. www.viscosityna.com @ViscosityNA BCT Bitmap 32k block chunk 8k block 8k block 8k block 8k block Level 0 scans the full file and sets the bitmap Redo activity records block changes to bitmaps in the BCT file Subsequent incremental backups only scan updated blocks Consider the 8-backup limit when developing a backup strategy • Level 0 + 7 incremental backups exhausts the bitmap • Any subsequent incremental backups won't be optimized When BCT is enabled, VALIDATE only scans changed blocks Block Change Tracking Bitmap

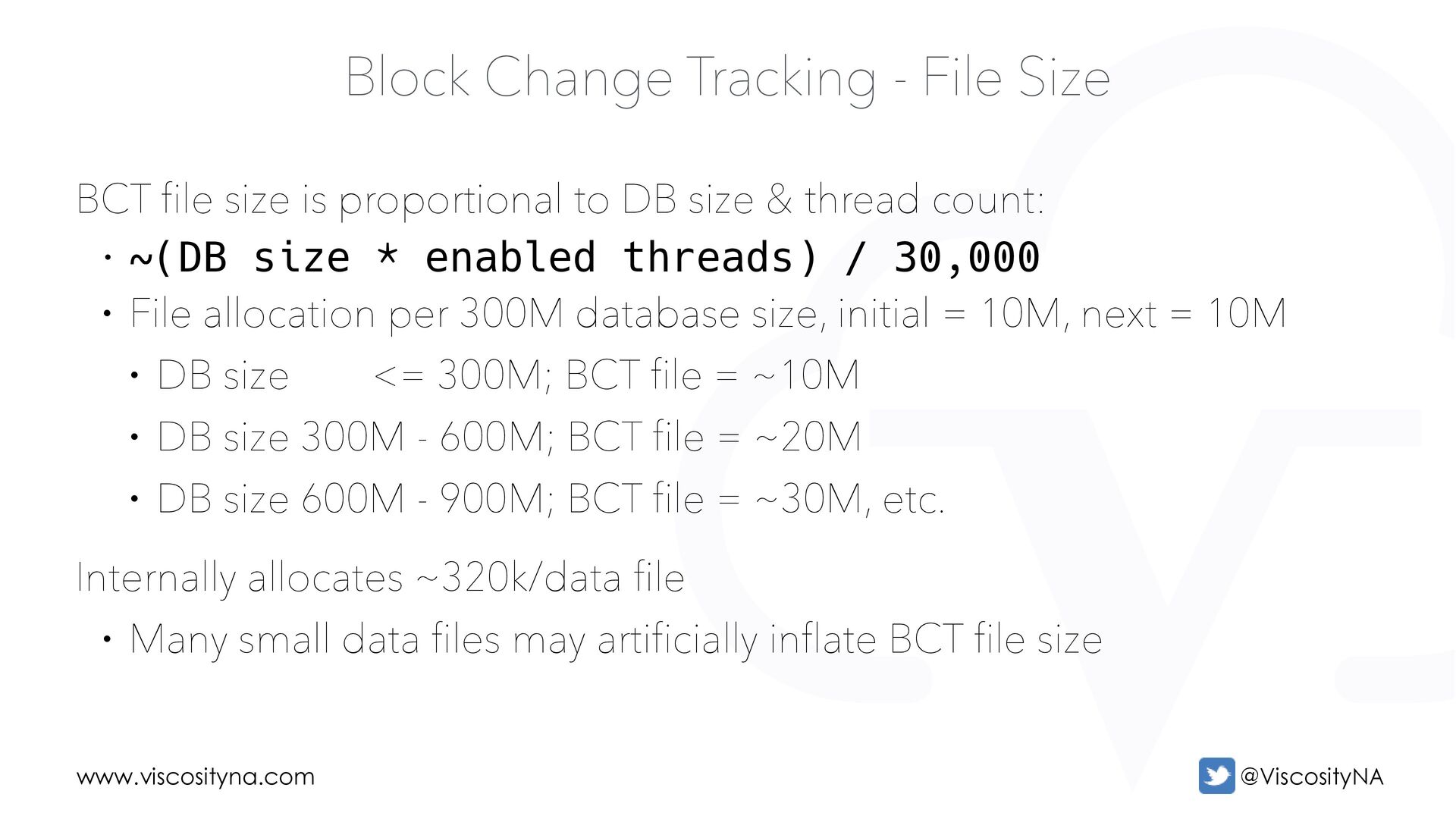

13. www.viscosityna.com @ViscosityNA Block Change Tracking - File Size BCT file size is proportional to DB size & thread count: • ~(DB size * enabled threads) / 30,000 • File allocation per 300M database size, initial = 10M, next = 10M • DB size <= 300M; BCT file = ~10M • DB size 300M - 600M; BCT file = ~20M • DB size 600M - 900M; BCT file = ~30M, etc. Internally allocates ~320k/data file • Many small data files may artificially inflate BCT file size

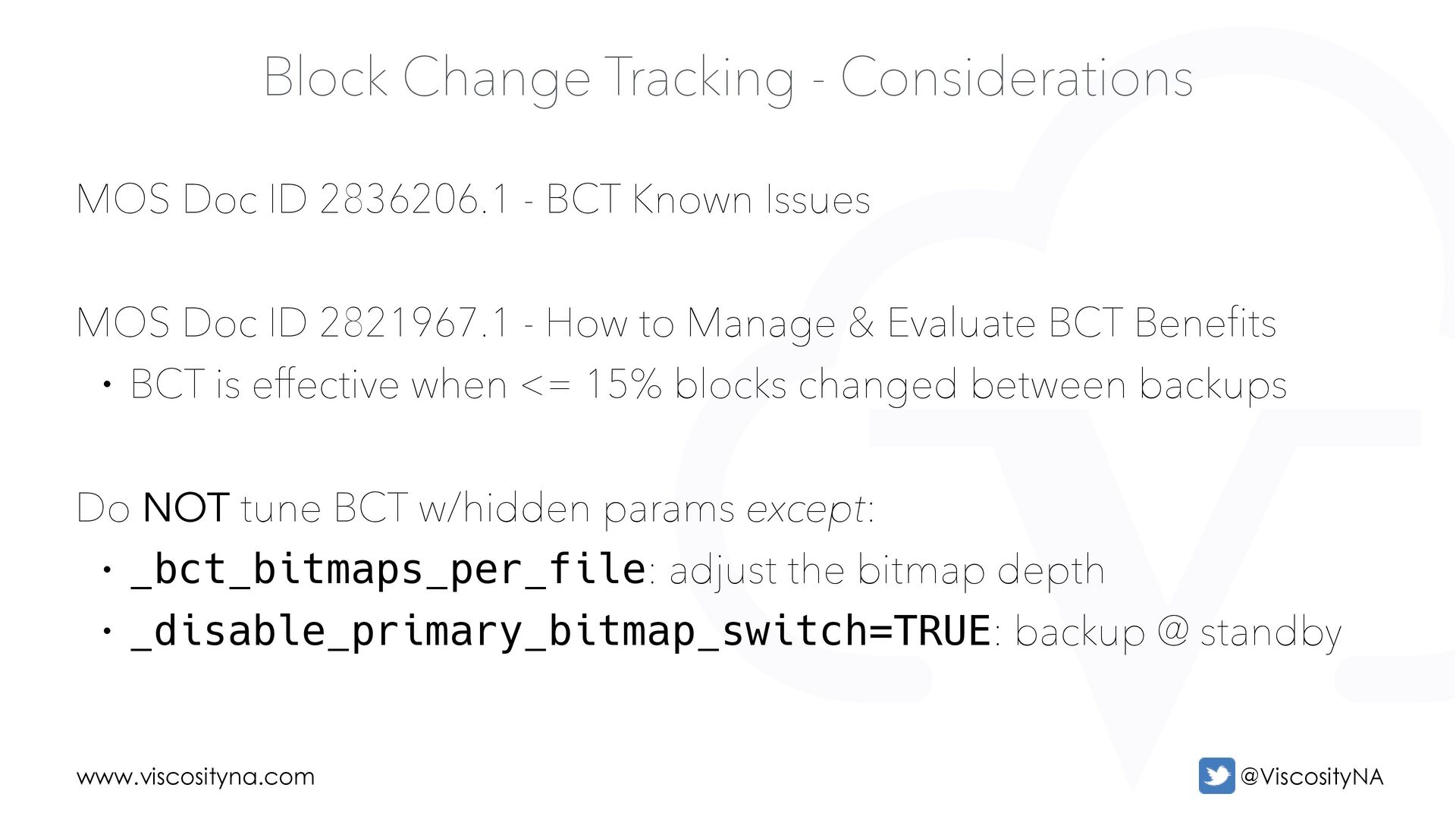

14. www.viscosityna.com @ViscosityNA Block Change Tracking - Considerations MOS Doc ID 2836206.1 - BCT Known Issues MOS Doc ID 2821967.1 - How to Manage & Evaluate BCT Benefits • BCT is effective when <= 15% blocks changed between backups Do NOT tune BCT w/hidden params except: • _bct_bitmaps_per_file: adjust the bitmap depth • _disable_primary_bitmap_switch=TRUE: backup @ standby

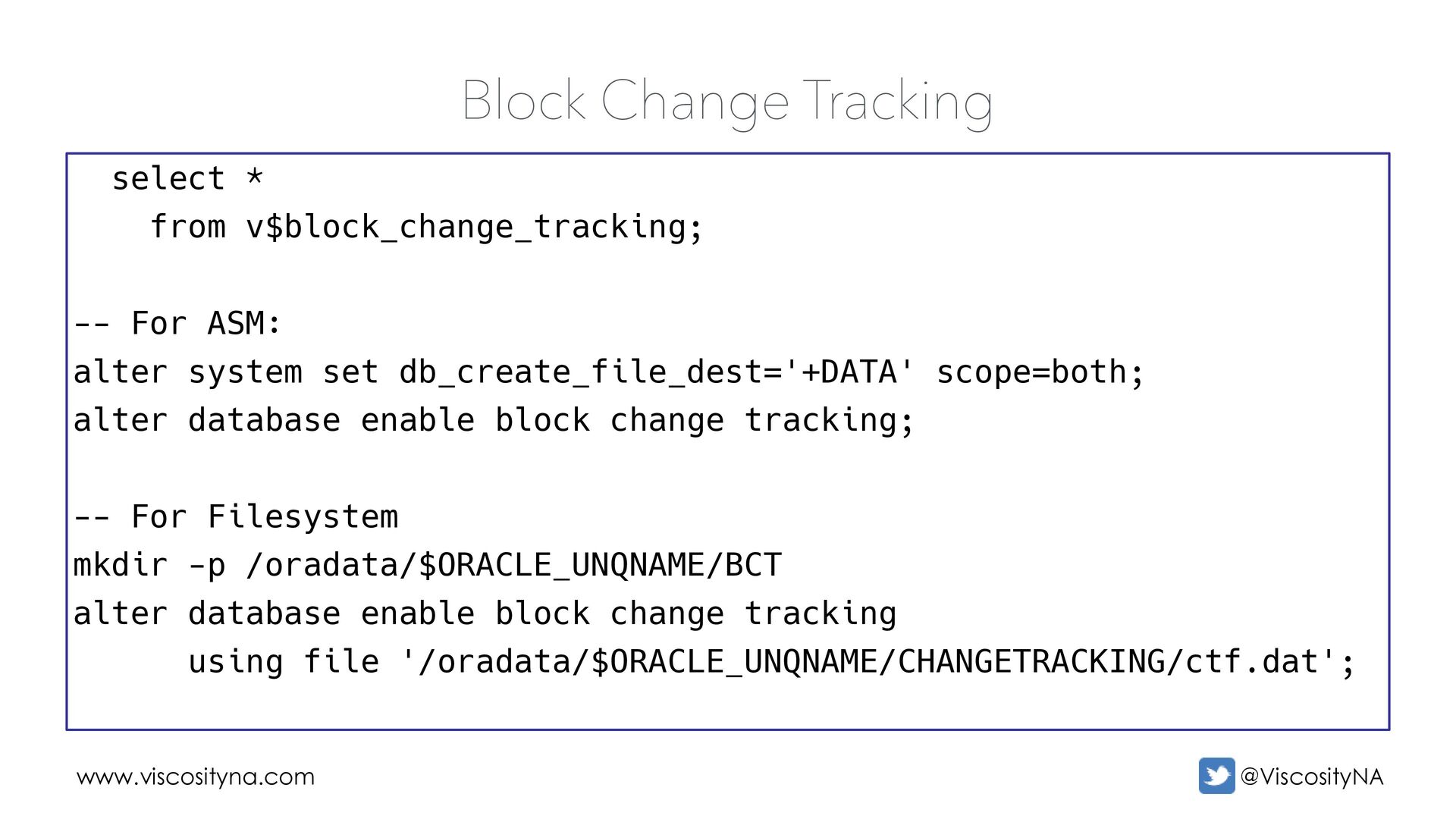

15. www.viscosityna.com @ViscosityNA Block Change Tracking select * from v$block_change_tracking; -- For ASM: alter system set db_create_file_dest='+DATA' scope=both; alter database enable block change tracking; -- For Filesystem mkdir -p /oradata/$ORACLE_UNQNAME/BCT alter database enable block change tracking using file '/oradata/$ORACLE_UNQNAME/CHANGETRACKING/ctf.dat';
16. www.viscosityna.com @ViscosityNA ✅ Enable Controlfile Autobackup* * And understand what it really does

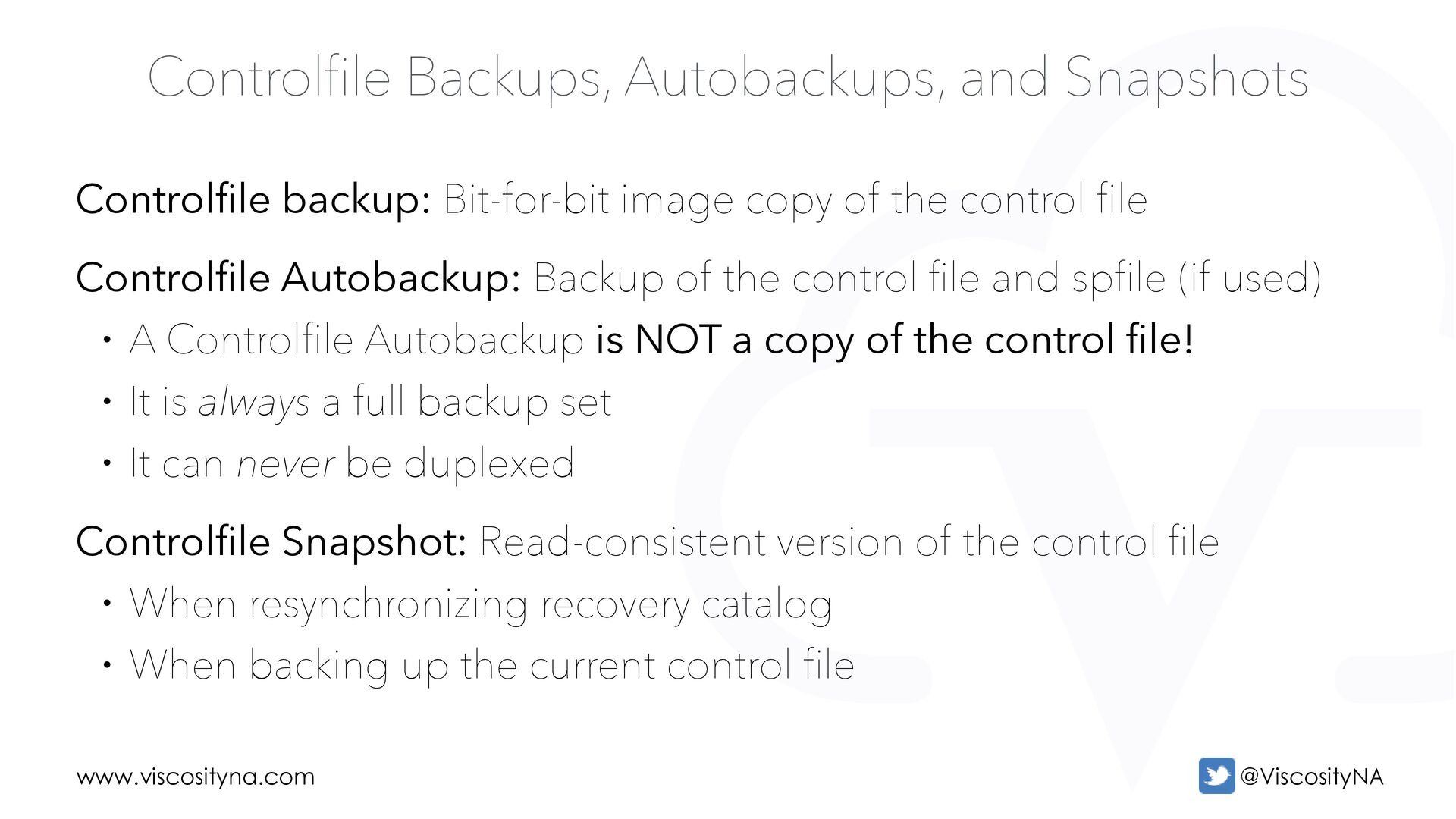

17. www.viscosityna.com @ViscosityNA Controlfile Backups, Autobackups, and Snapshots Controlfile backup: Bit-for-bit image copy of the control file Controlfile Autobackup: Backup of the control file and spfile (if used) • A Controlfile Autobackup is NOT a copy of the control file! • It is always a full backup set • It can never be duplexed Controlfile Snapshot: Read-consistent version of the control file • When resynchronizing recovery catalog • When backing up the current control file

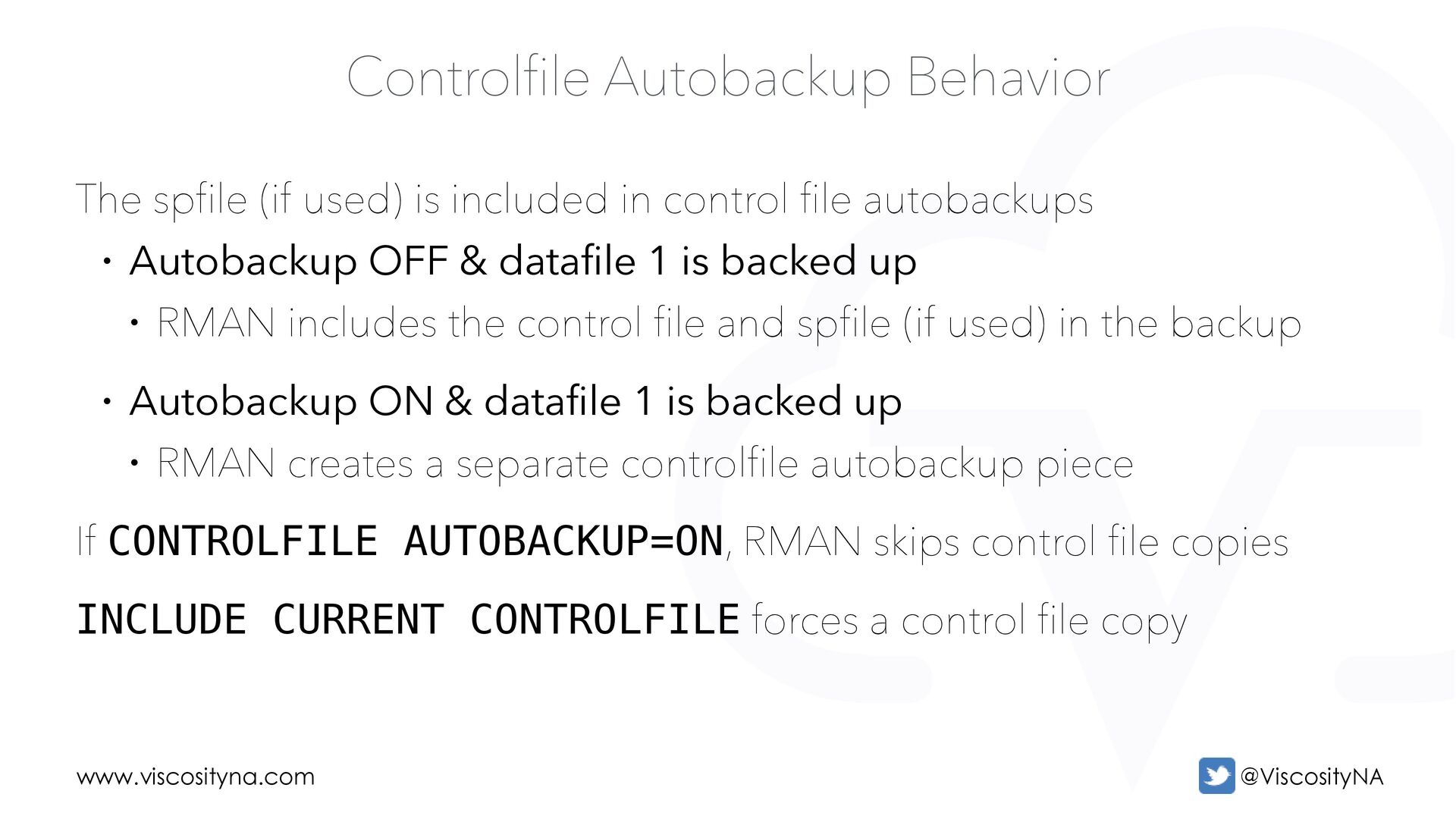

18. www.viscosityna.com @ViscosityNA Controlfile Autobackup Behavior The spfile (if used) is included in control file autobackups • Autobackup OFF & datafile 1 is backed up • RMAN includes the control file and spfile (if used) in the backup • Autobackup ON & datafile 1 is backed up • RMAN creates a separate controlfile autobackup piece If CONTROLFILE AUTOBACKUP=ON, RMAN skips control file copies INCLUDE CURRENT CONTROLFILE forces a control file copy

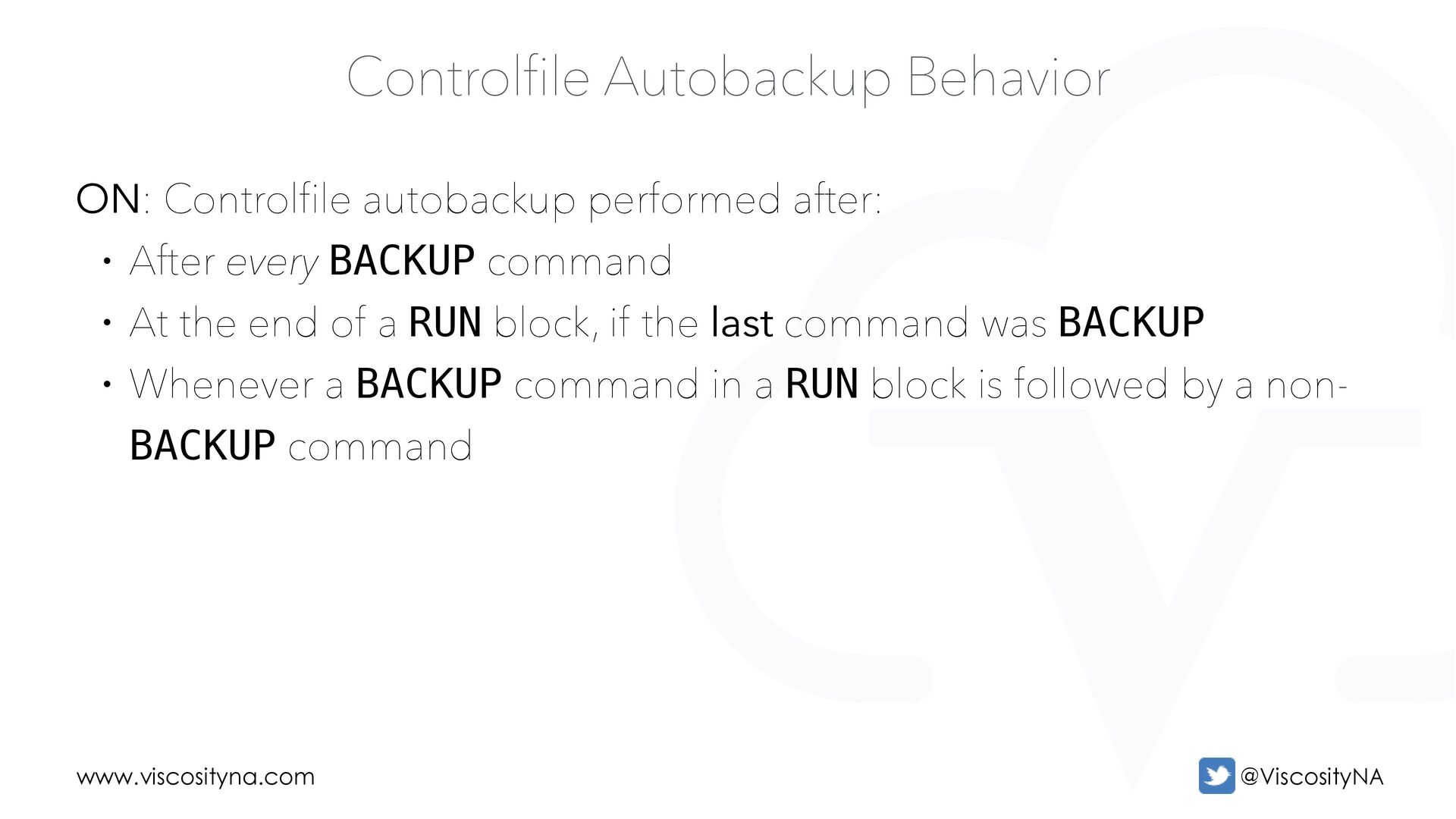

19. www.viscosityna.com @ViscosityNA Controlfile Autobackup Behavior ON: Controlfile autobackup performed after: • After every BACKUP command • At the end of a RUN block, if the last command was BACKUP • Whenever a BACKUP command in a RUN block is followed by a non- BACKUP command

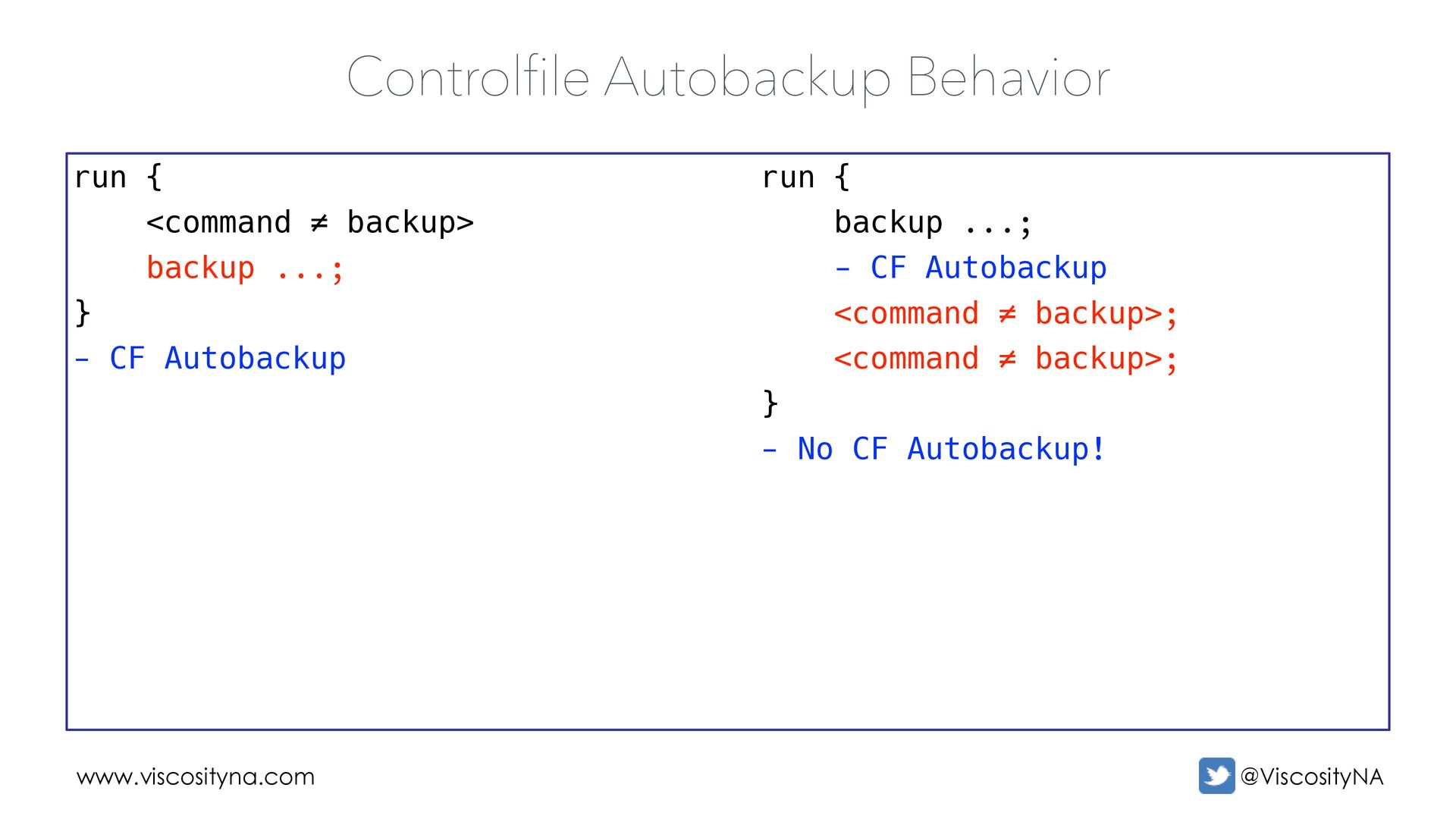

20. www.viscosityna.com @ViscosityNA run { <command ≠ backup> backup ...; } - CF Autobackup run { backup ...; - CF Autobackup <command ≠ backup>; <command ≠ backup>; } - No CF Autobackup! Controlfile Autobackup Behavior

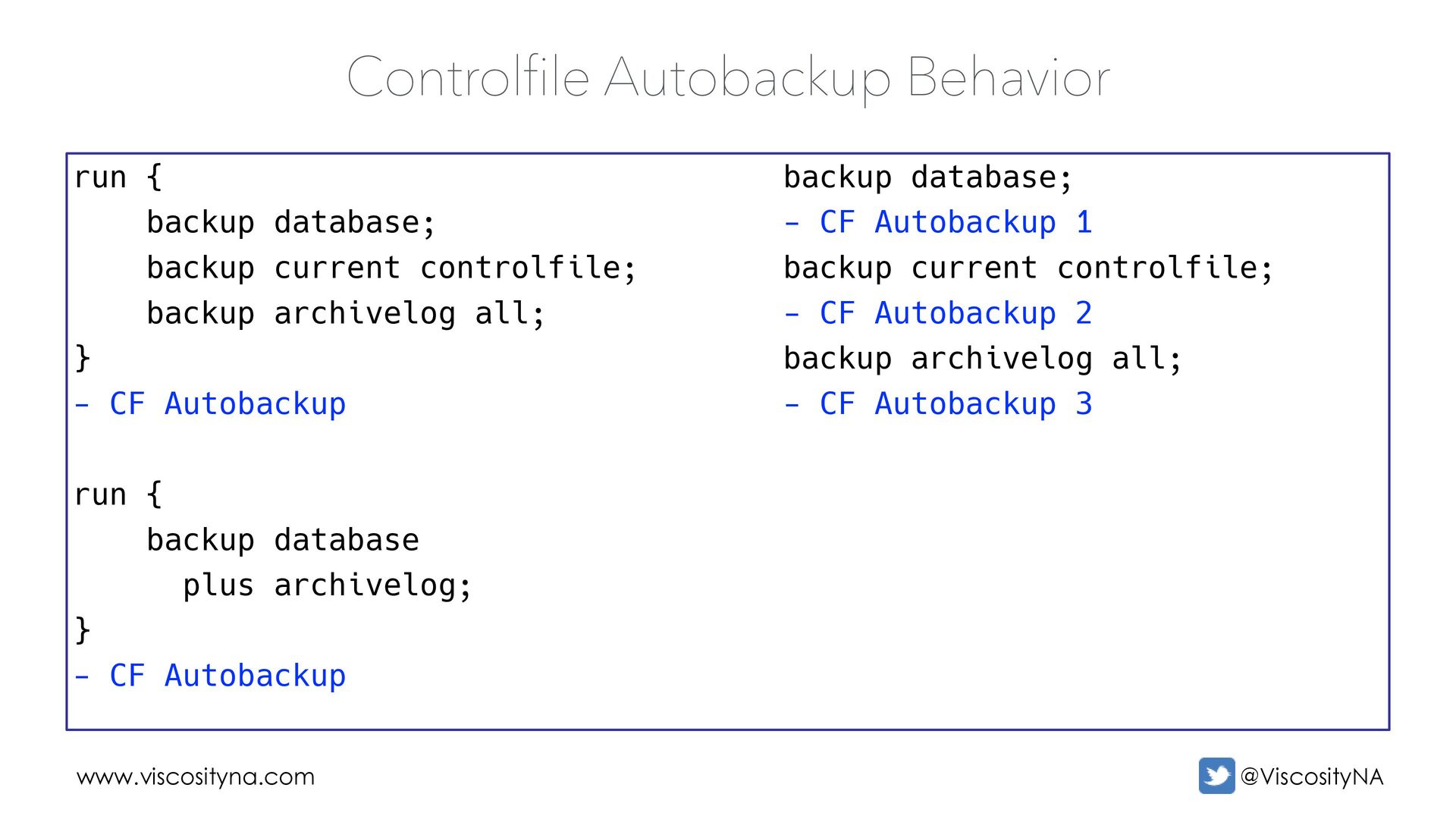

21. www.viscosityna.com @ViscosityNA run { backup database; backup current controlfile; backup archivelog all; } - CF Autobackup run { backup database plus archivelog; } - CF Autobackup backup database; - CF Autobackup 1 backup current controlfile; - CF Autobackup 2 backup archivelog all; - CF Autobackup 3 Controlfile Autobackup Behavior

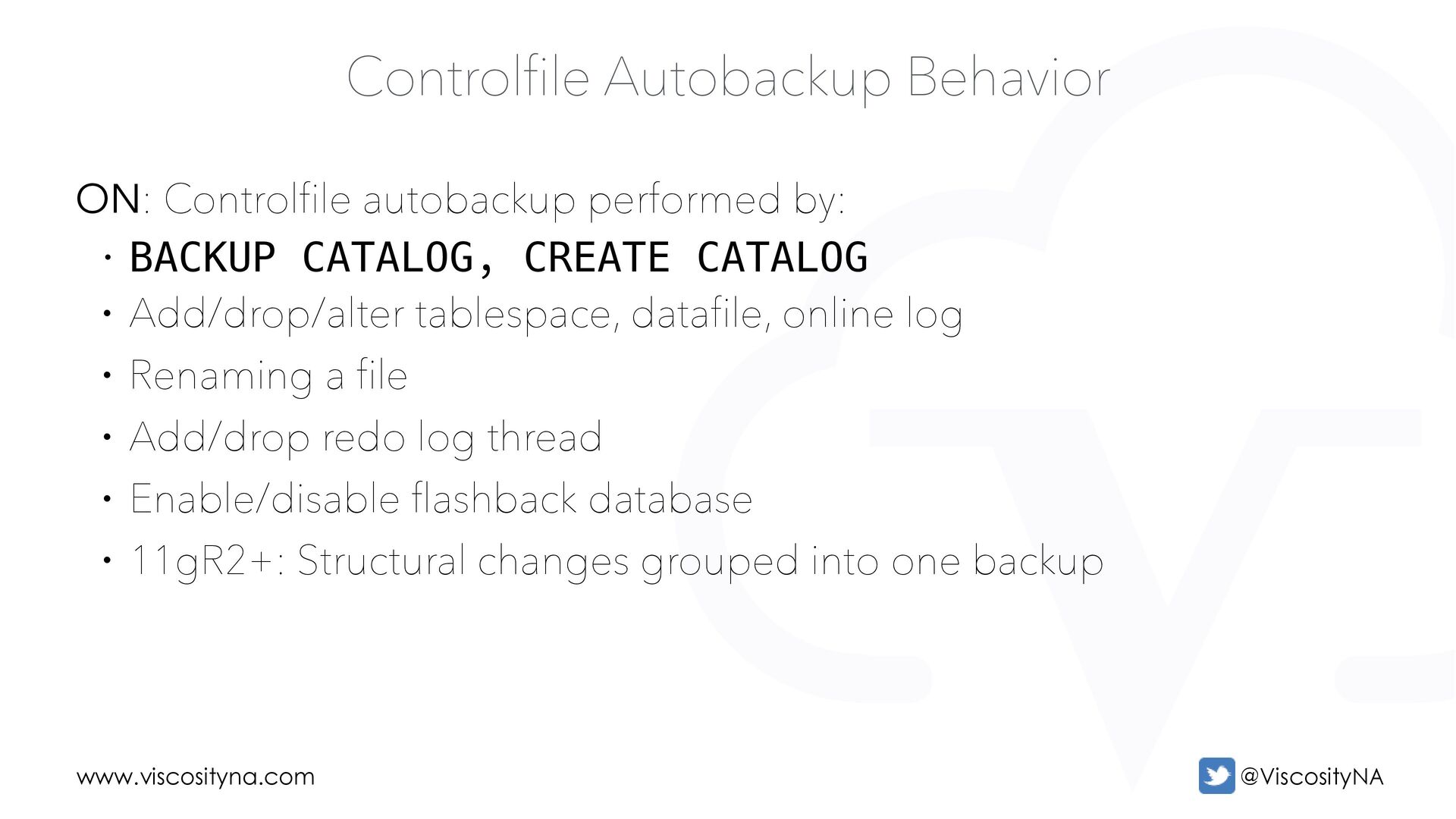

22. www.viscosityna.com @ViscosityNA ON: Controlfile autobackup performed by: • BACKUP CATALOG, CREATE CATALOG • Add/drop/alter tablespace, datafile, online log • Renaming a file • Add/drop redo log thread • Enable/disable flashback database • 11gR2+: Structural changes grouped into one backup Controlfile Autobackup Behavior

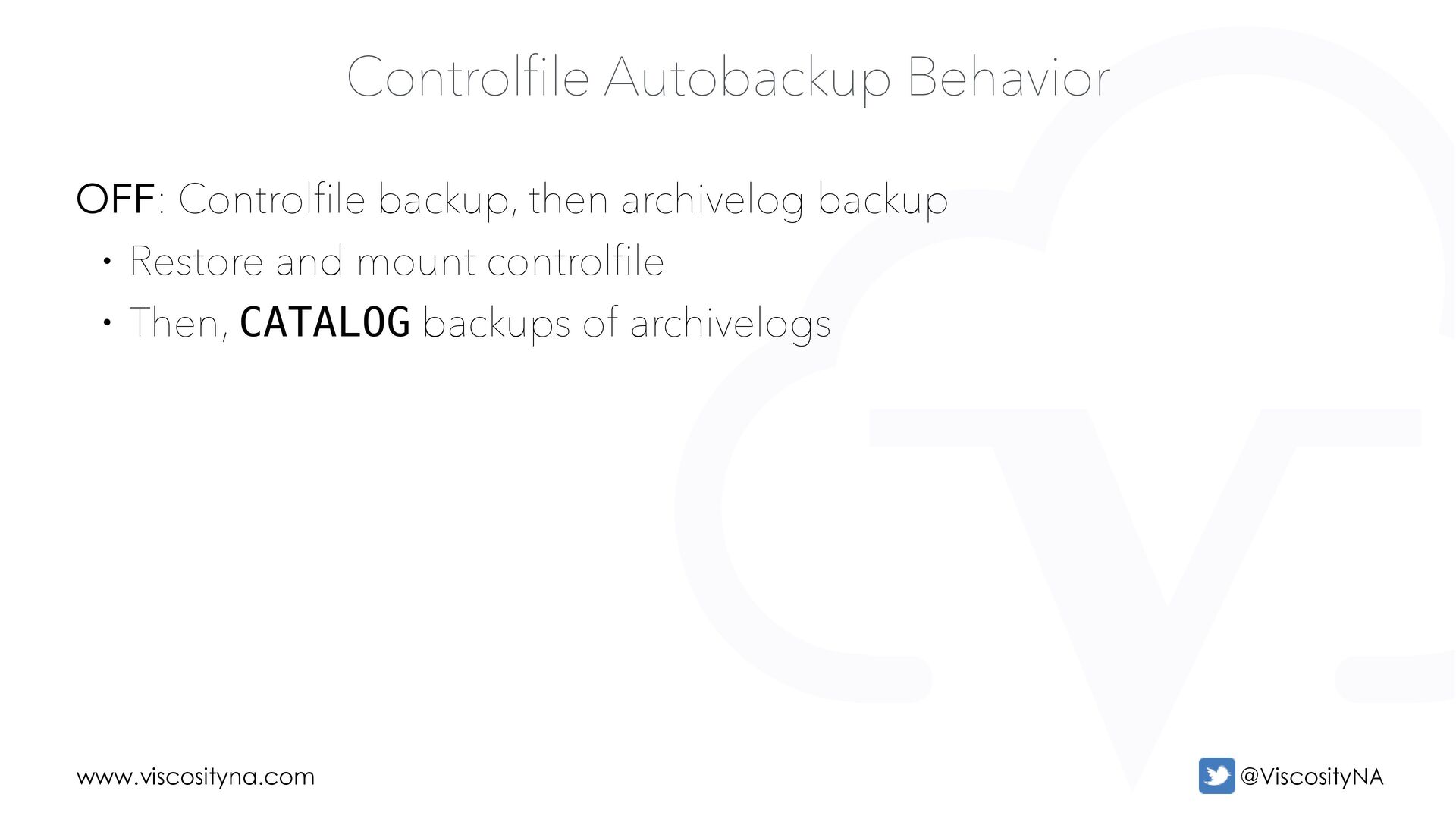

23. www.viscosityna.com @ViscosityNA OFF: Controlfile backup, then archivelog backup • Restore and mount controlfile • Then, CATALOG backups of archivelogs Controlfile Autobackup Behavior

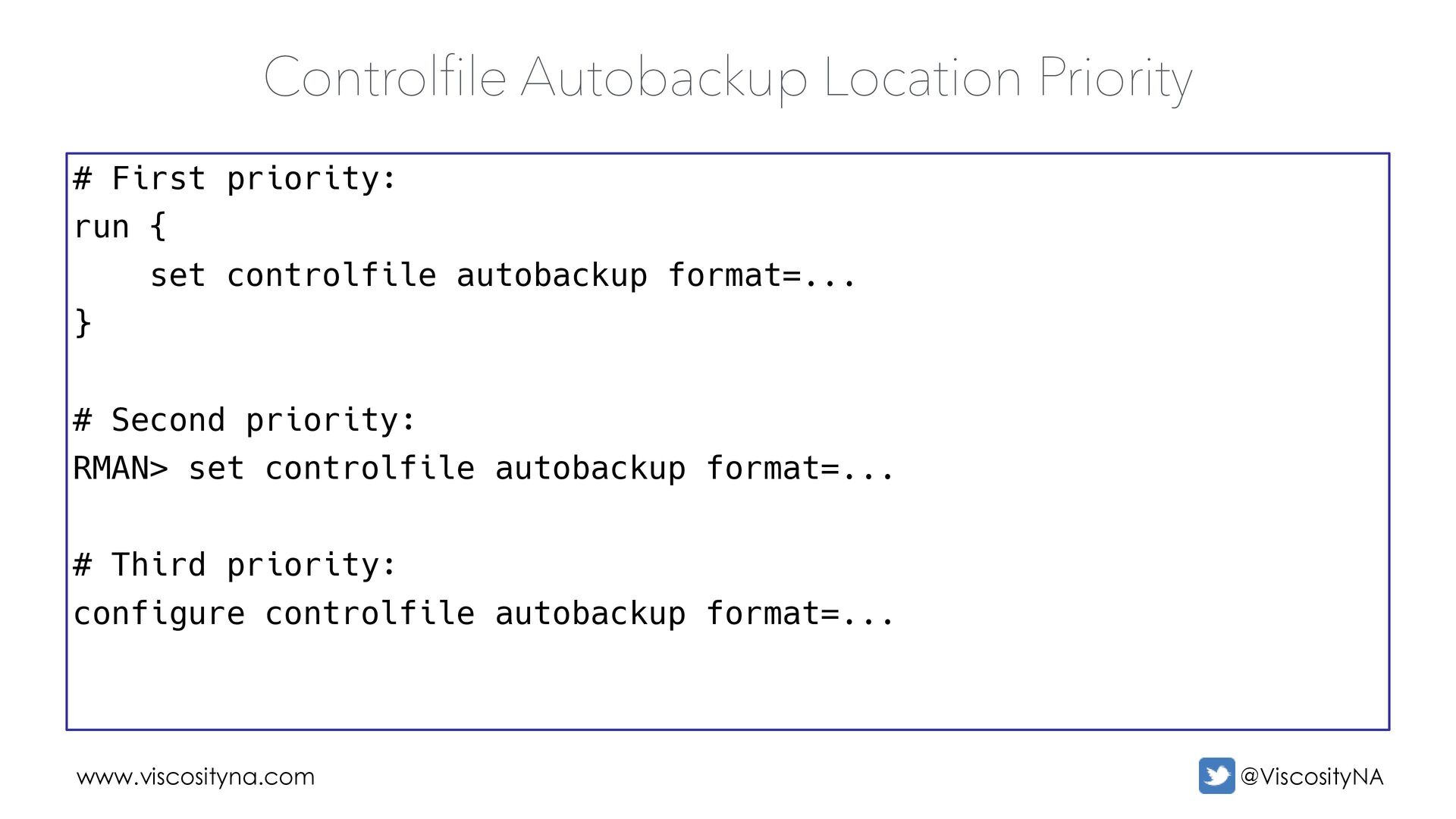

24. www.viscosityna.com @ViscosityNA # First priority: run { set controlfile autobackup format=... } # Second priority: RMAN> set controlfile autobackup format=... # Third priority: configure controlfile autobackup format=... Controlfile Autobackup Location Priority

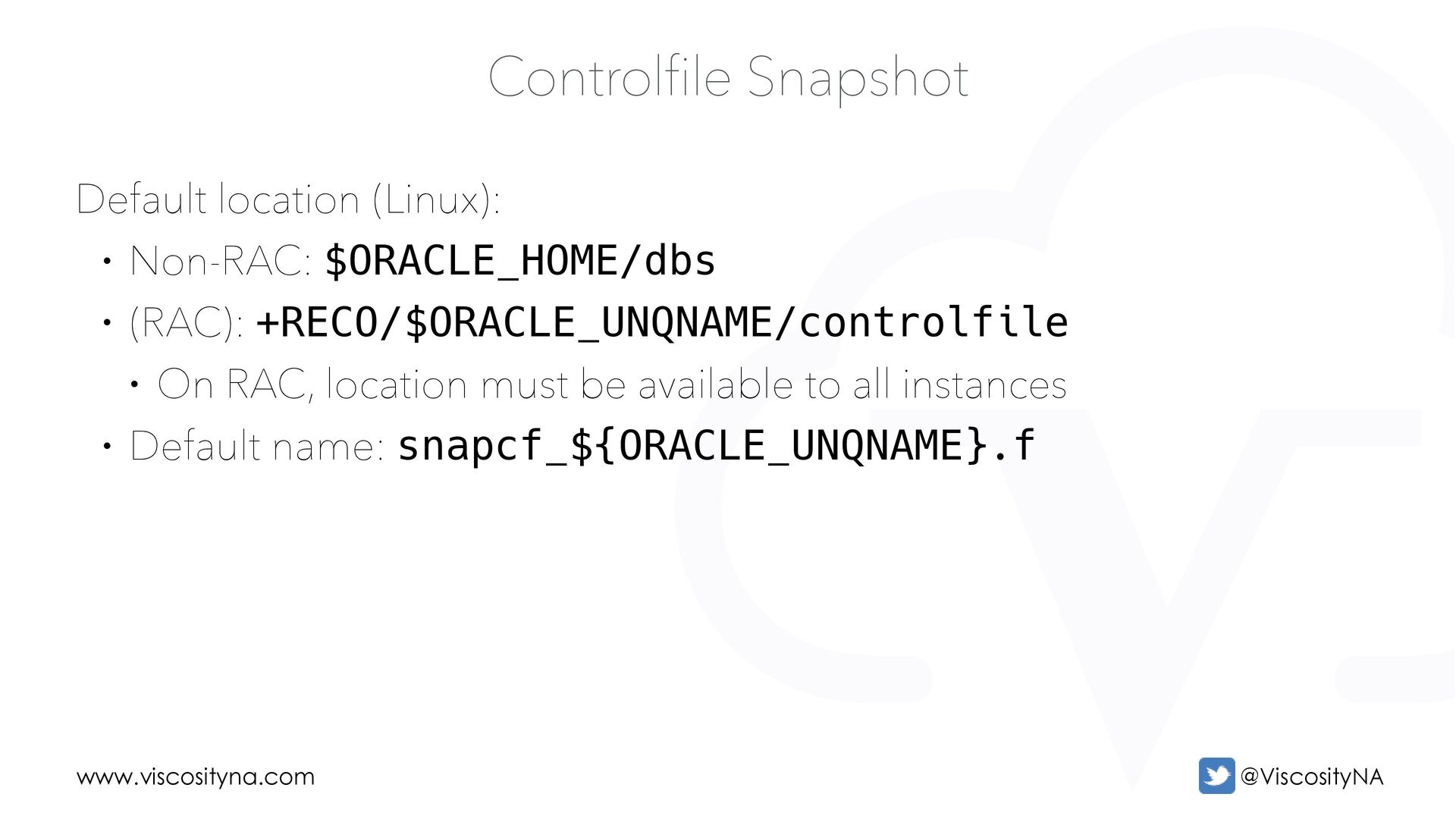

25. www.viscosityna.com @ViscosityNA Controlfile Snapshot Default location (Linux): • Non-RAC: $ORACLE_HOME/dbs • (RAC): +RECO/$ORACLE_UNQNAME/controlfile • On RAC, location must be available to all instances • Default name: snapcf_${ORACLE_UNQNAME}.f

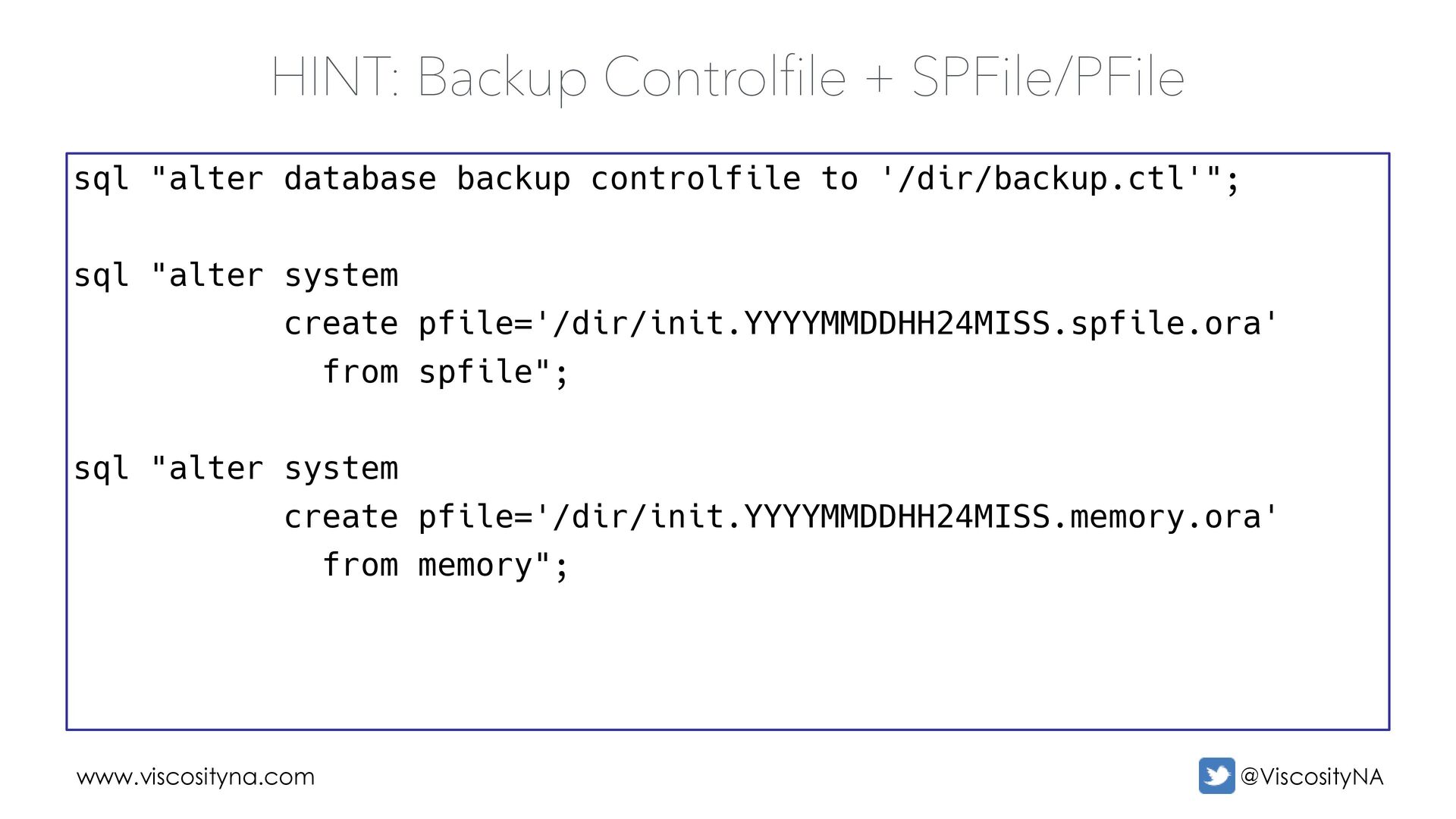

26. www.viscosityna.com @ViscosityNA sql "alter database backup controlfile to '/dir/backup.ctl'"; sql "alter system create pfile='/dir/init.YYYYMMDDHH24MISS.spfile.ora' from spfile"; sql "alter system create pfile='/dir/init.YYYYMMDDHH24MISS.memory.ora' from memory"; HINT: Backup Controlfile + SPFile/PFile
27. www.viscosityna.com @ViscosityNA ✅ Increase RMAN Output Retention

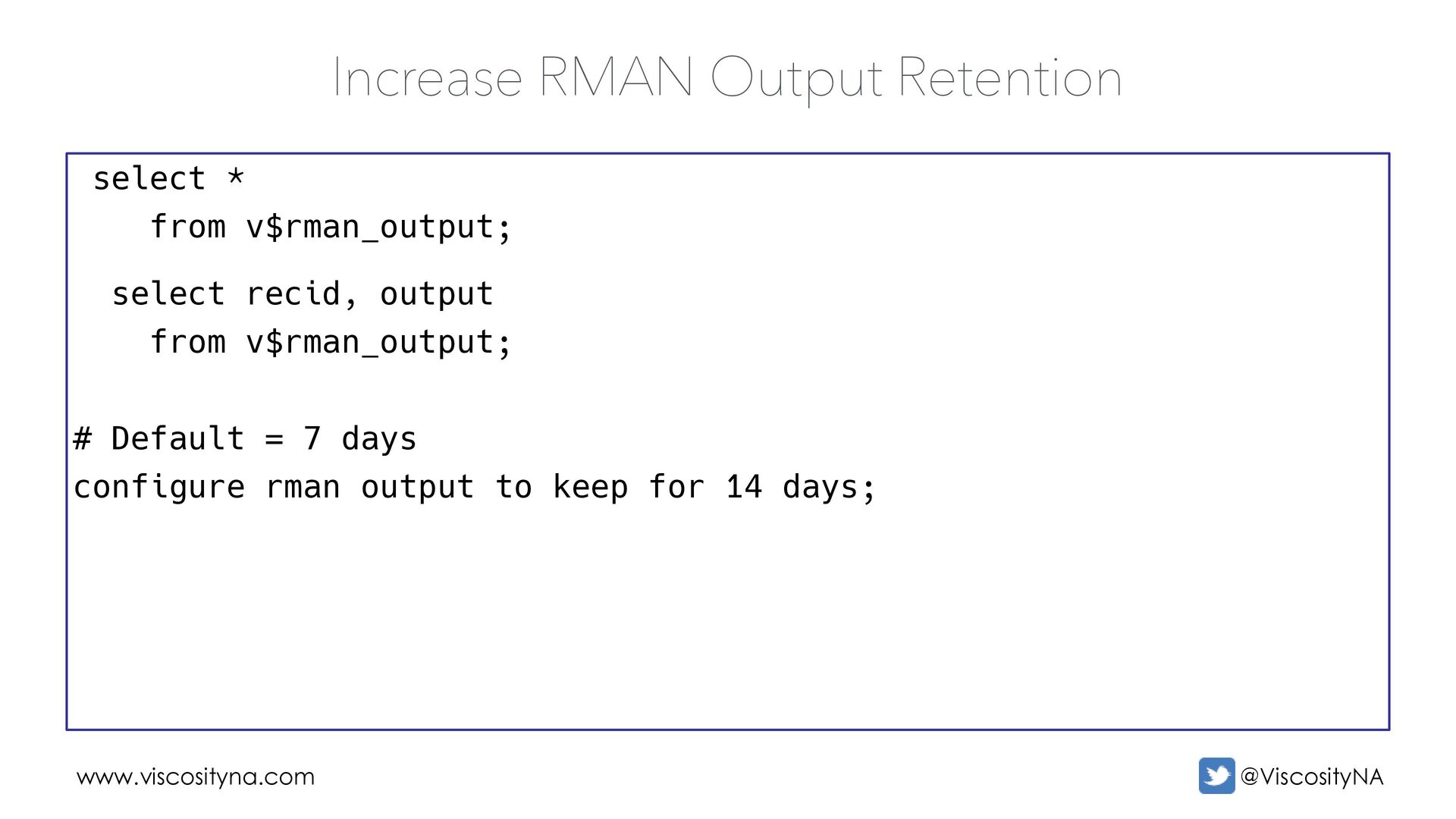

28. www.viscosityna.com @ViscosityNA select * from v$rman_output; select recid, output from v$rman_output; # Default = 7 days configure rman output to keep for 14 days; Increase RMAN Output Retention

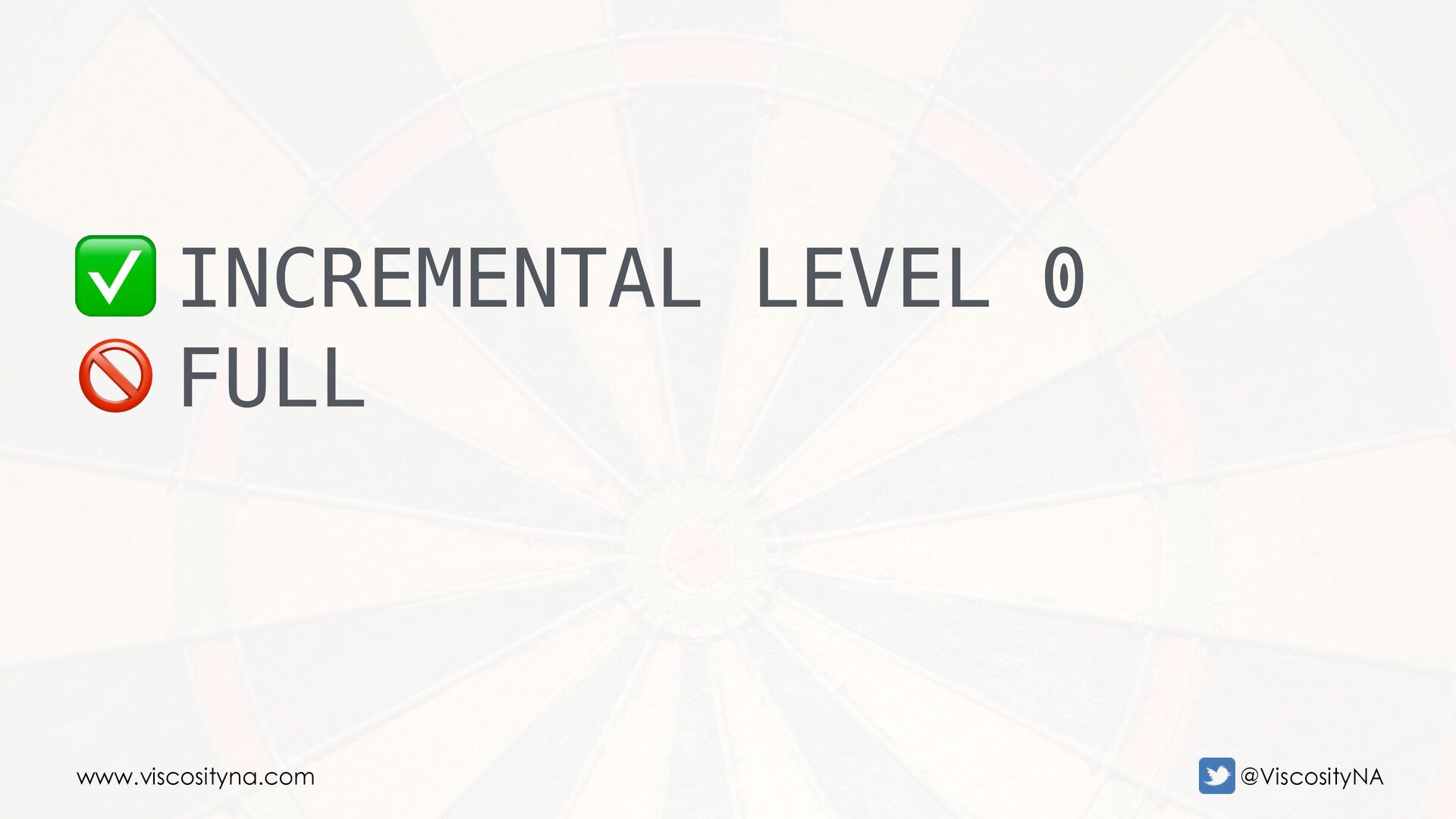

29. www.viscosityna.com @ViscosityNA ✅ INCREMENTAL LEVEL 0 🚫 FULL

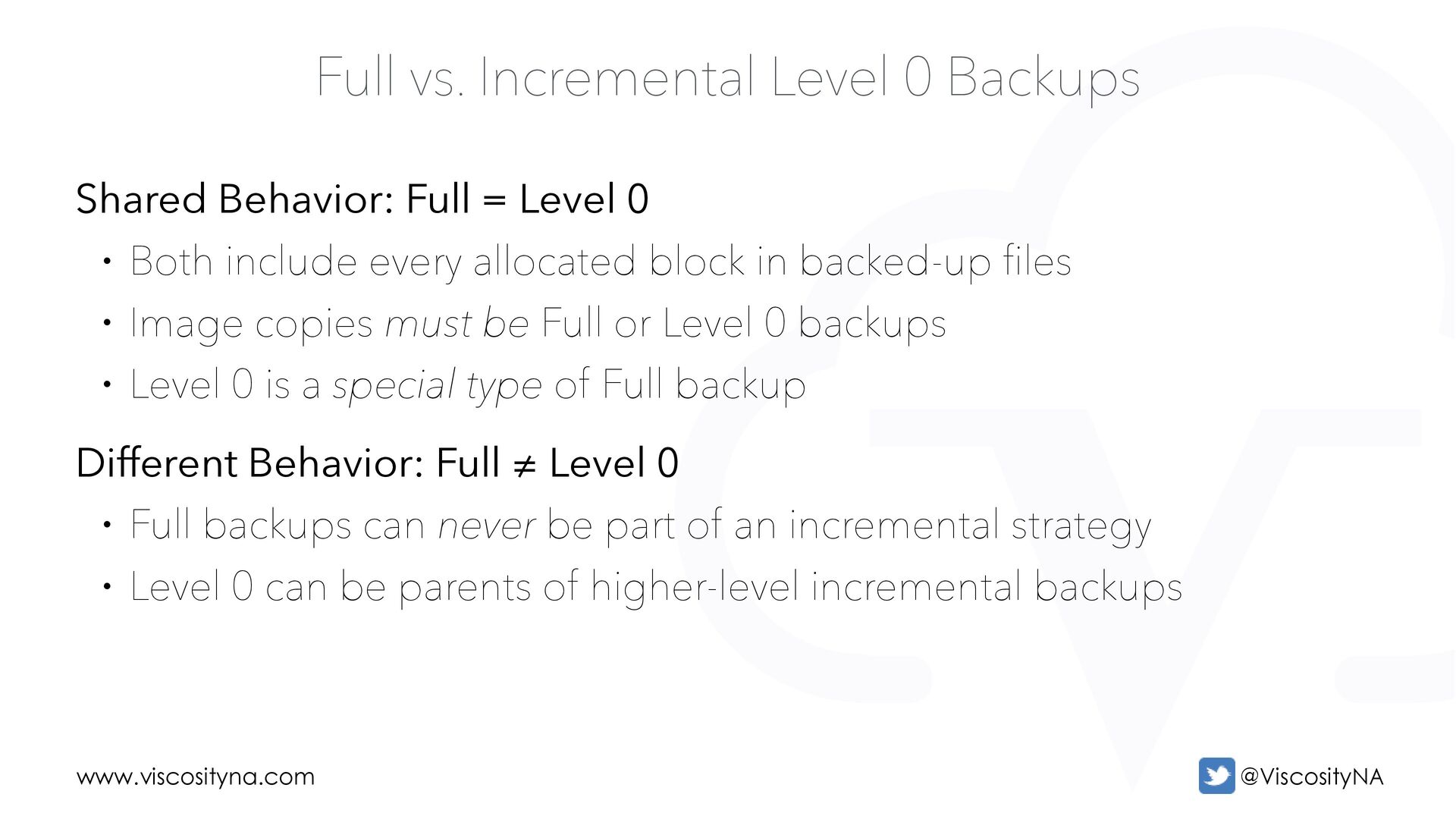

30. www.viscosityna.com @ViscosityNA Full vs. Incremental Level 0 Backups Shared Behavior: Full = Level 0 • Both include every allocated block in backed-up files • Image copies must be Full or Level 0 backups • Level 0 is a special type of Full backup Different Behavior: Full ≠ Level 0 • Full backups can never be part of an incremental strategy • Level 0 can be parents of higher-level incremental backups
31. www.viscosityna.com @ViscosityNA ✅ INCREMENTAL LEVEL 1+ 🚫 BACKUP ARCHIVELOG ALL* * Exclusively/only

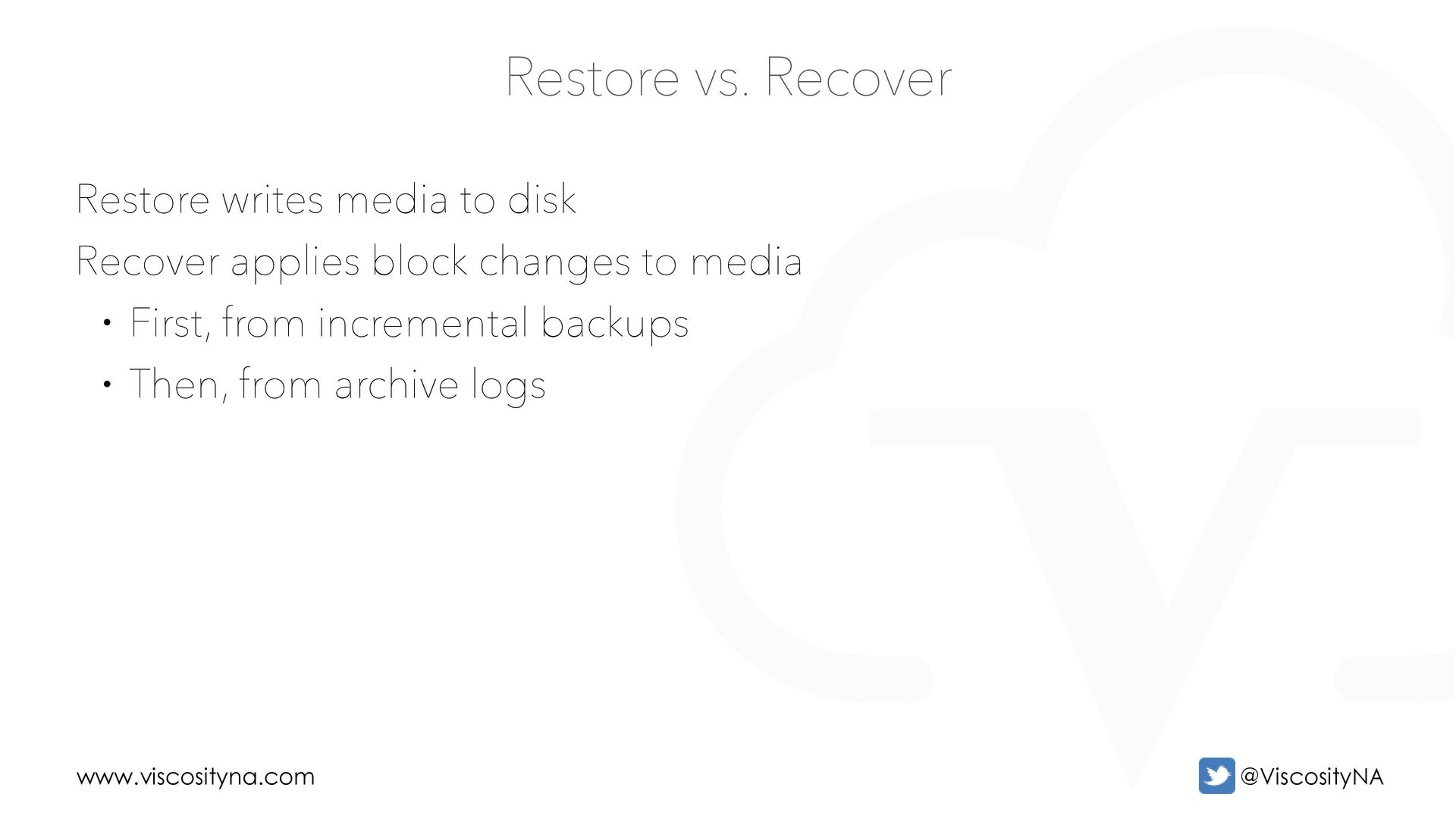

32. www.viscosityna.com @ViscosityNA Restore vs. Recover Restore writes media to disk Recover applies block changes to media • First, from incremental backups • Then, from archive logs
33. www.viscosityna.com @ViscosityNA ✅ BACKUPSET 🚫 IMAGE COPY* * For "ordinary" backups

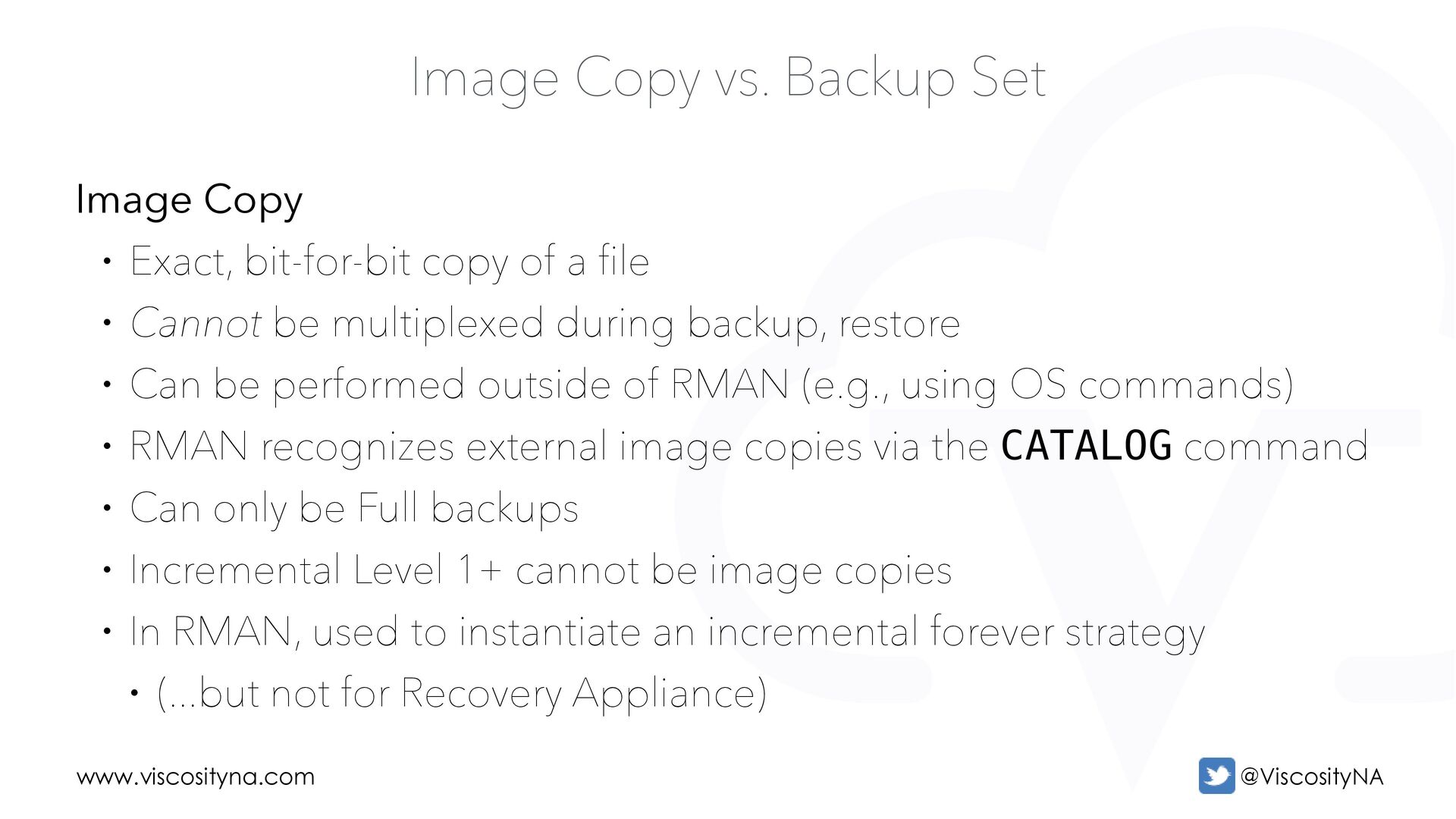

34. www.viscosityna.com @ViscosityNA Image Copy vs. Backup Set Image Copy • Exact, bit-for-bit copy of a file • Cannot be multiplexed during backup, restore • Can be performed outside of RMAN (e.g., using OS commands) • RMAN recognizes external image copies via the CATALOG command • Can only be Full backups • Incremental Level 1+ cannot be image copies • In RMAN, used to instantiate an incremental forever strategy • (...but not for Recovery Appliance)

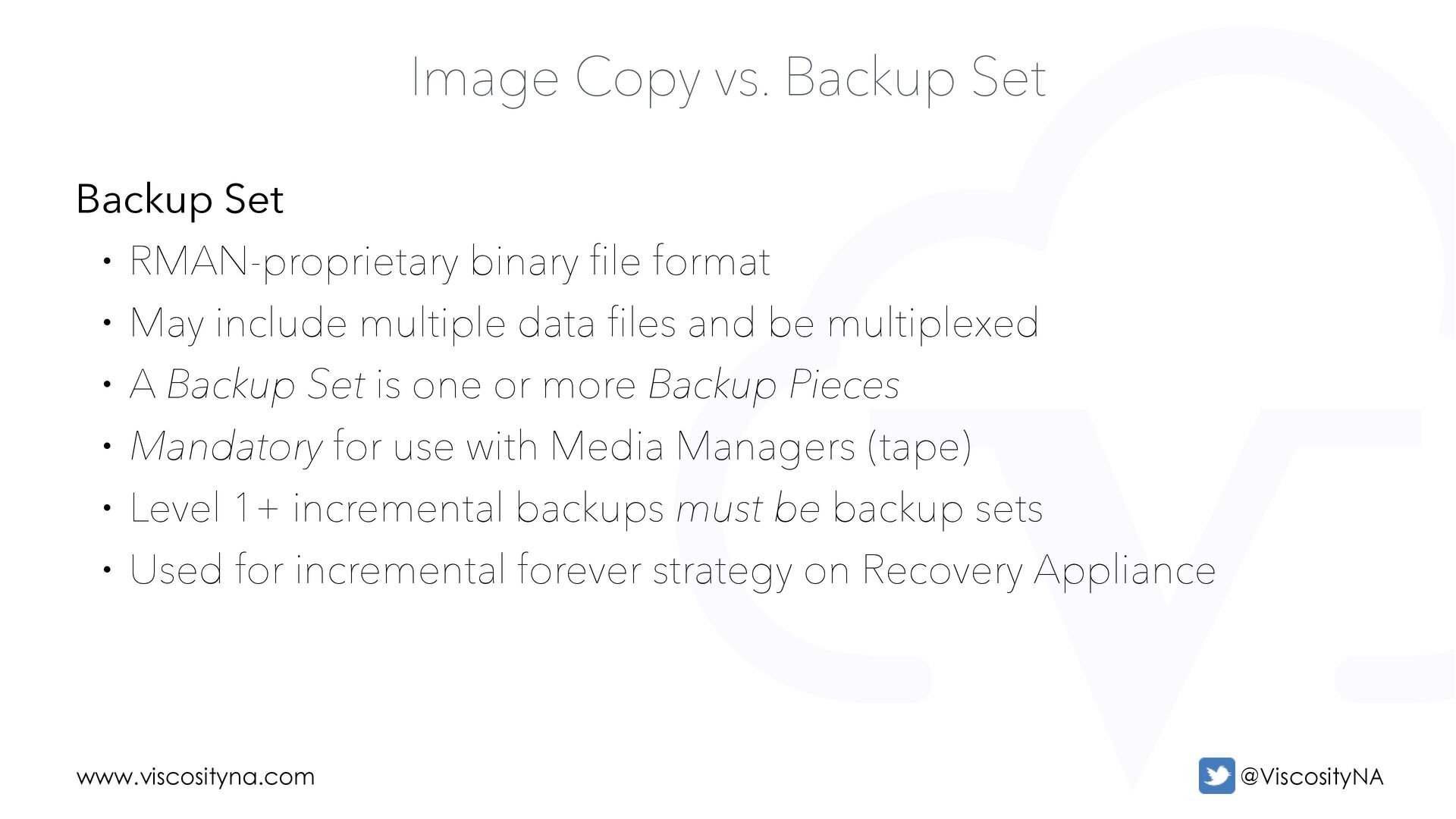

35. www.viscosityna.com @ViscosityNA Backup Set • RMAN-proprietary binary file format • May include multiple data files and be multiplexed • A Backup Set is one or more Backup Pieces • Mandatory for use with Media Managers (tape) • Level 1+ incremental backups must be backup sets • Used for incremental forever strategy on Recovery Appliance Image Copy vs. Backup Set

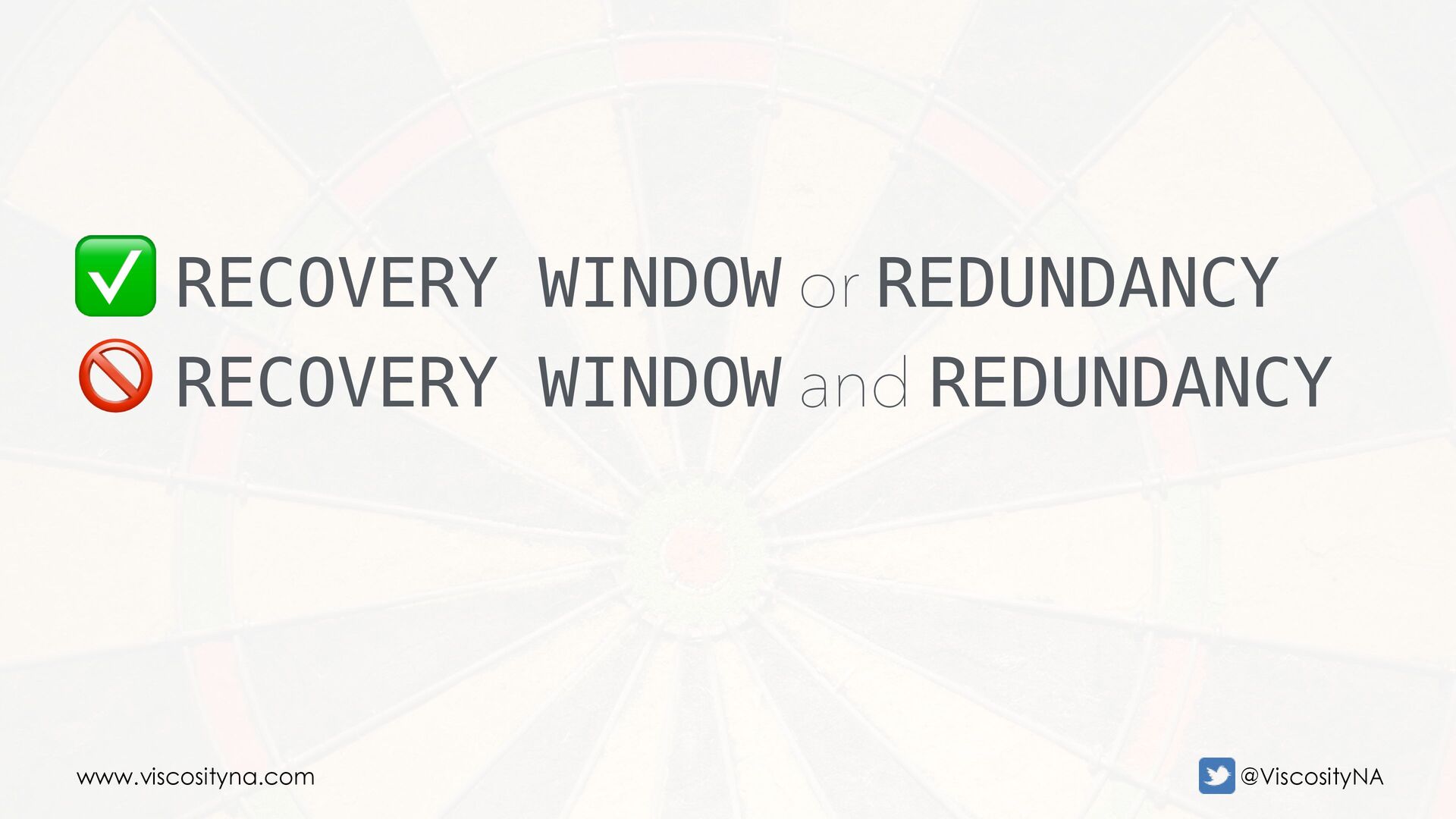

36. www.viscosityna.com @ViscosityNA ✅ RECOVERY WINDOW or REDUNDANCY 🚫 RECOVERY WINDOW and REDUNDANCY

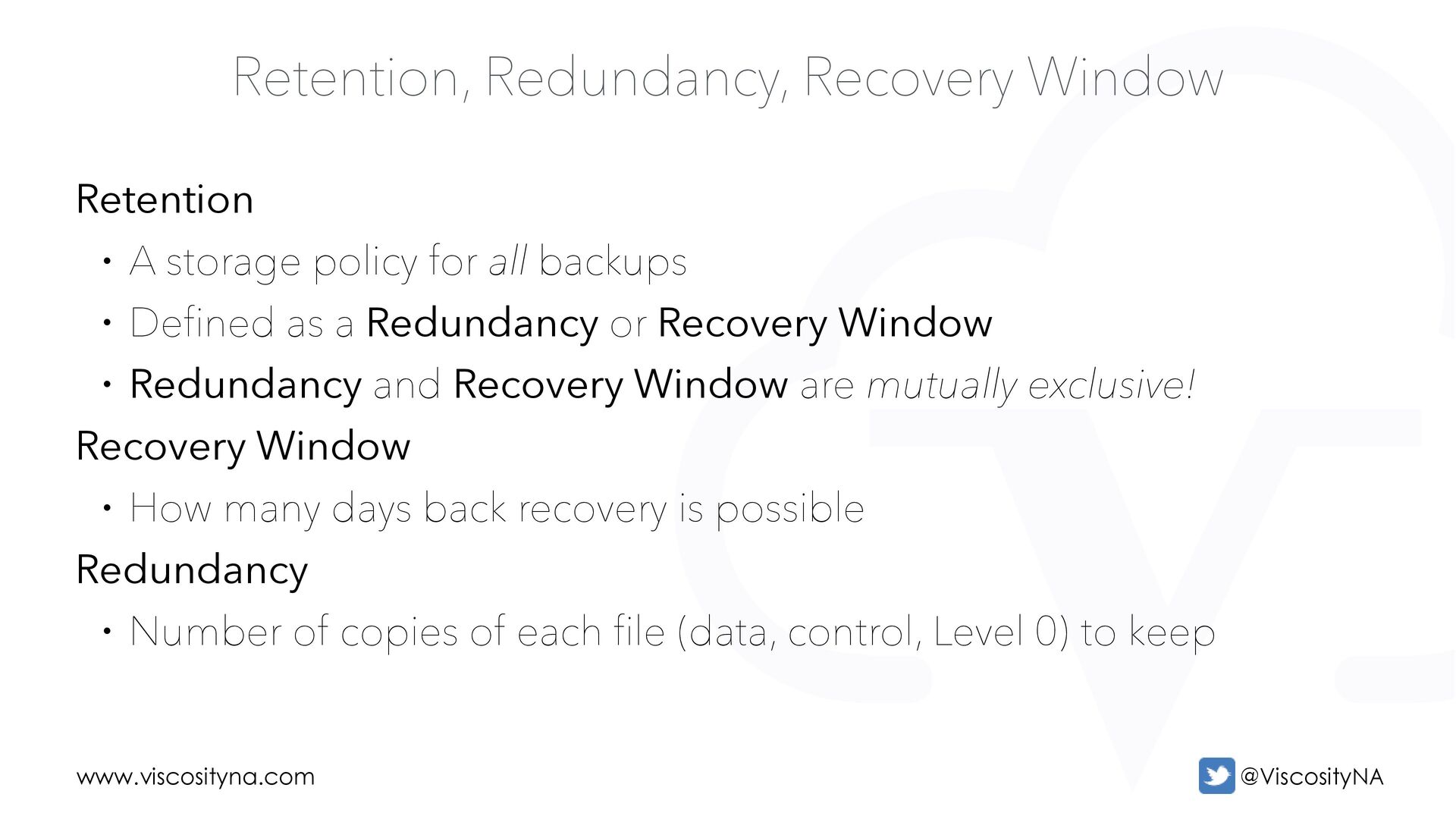

37. www.viscosityna.com @ViscosityNA Retention, Redundancy, Recovery Window Retention • A storage policy for all backups • Defined as a Redundancy or Recovery Window • Redundancy and Recovery Window are mutually exclusive! Recovery Window • How many days back recovery is possible Redundancy • Number of copies of each file (data, control, Level 0) to keep

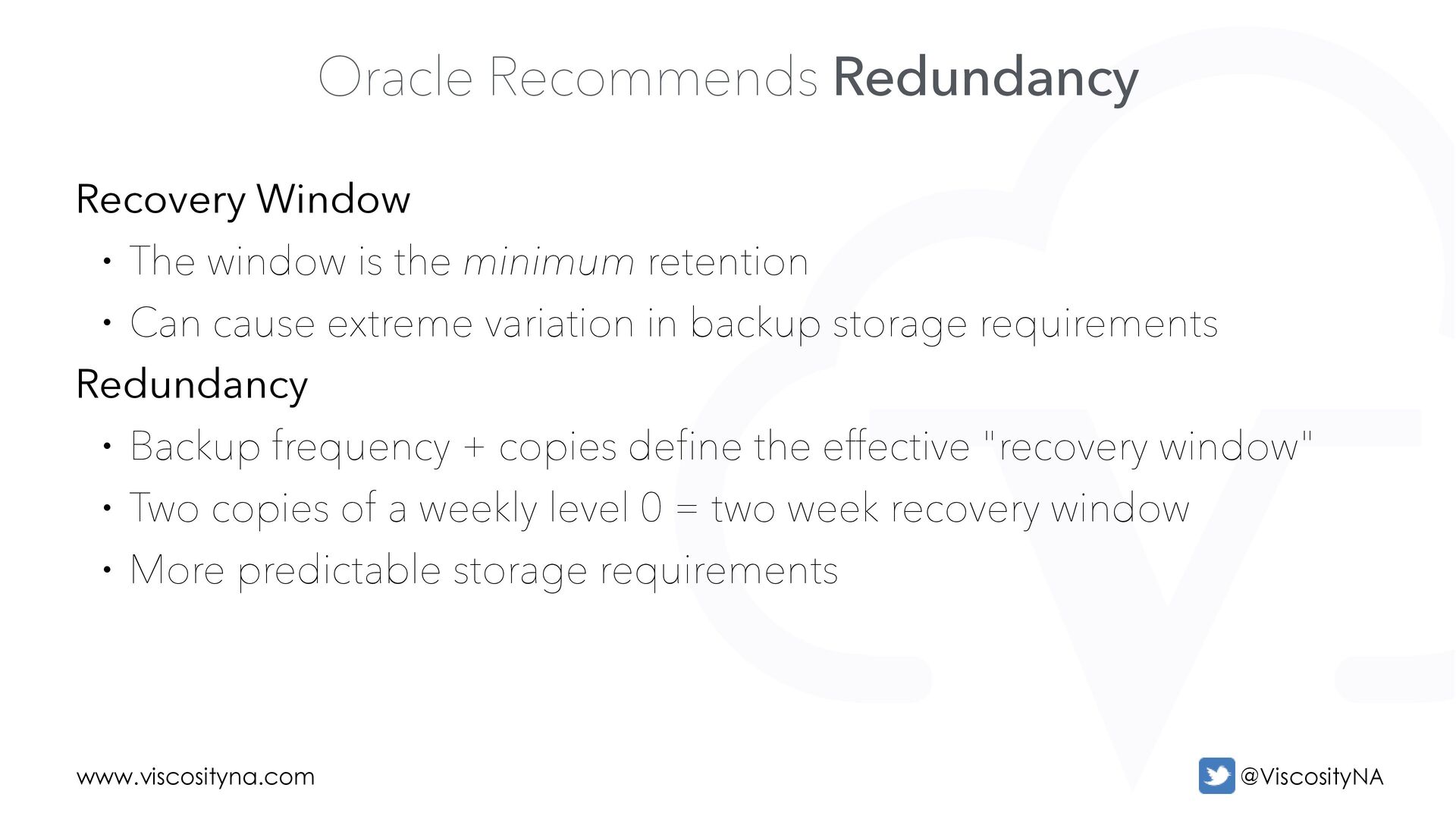

38. www.viscosityna.com @ViscosityNA Oracle Recommends Redundancy Recovery Window • The window is the minimum retention • Can cause extreme variation in backup storage requirements Redundancy • Backup frequency + copies define the effective "recovery window" • Two copies of a weekly level 0 = two week recovery window • More predictable storage requirements

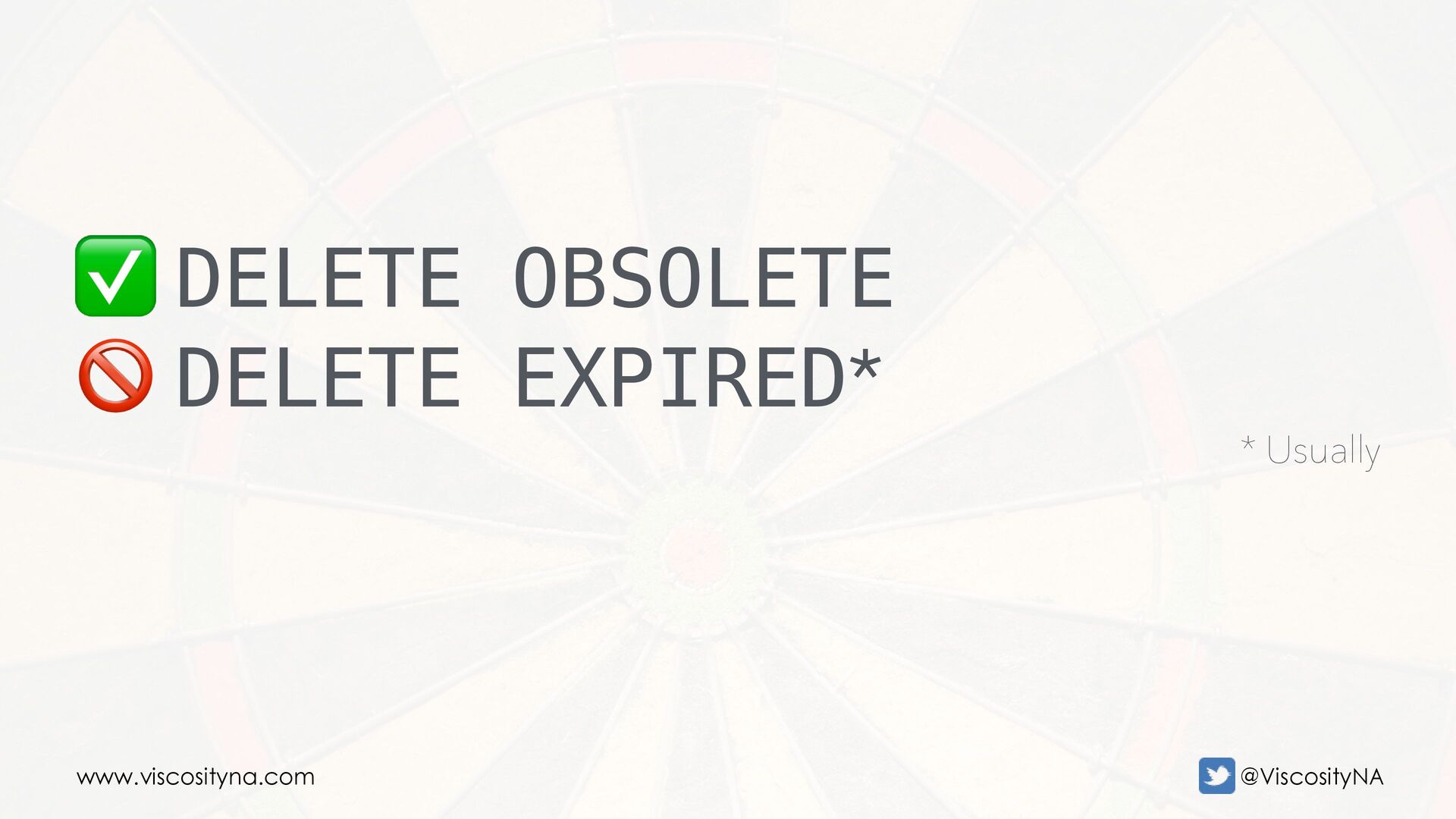

39. www.viscosityna.com @ViscosityNA ✅ DELETE OBSOLETE 🚫 DELETE EXPIRED* * Usually

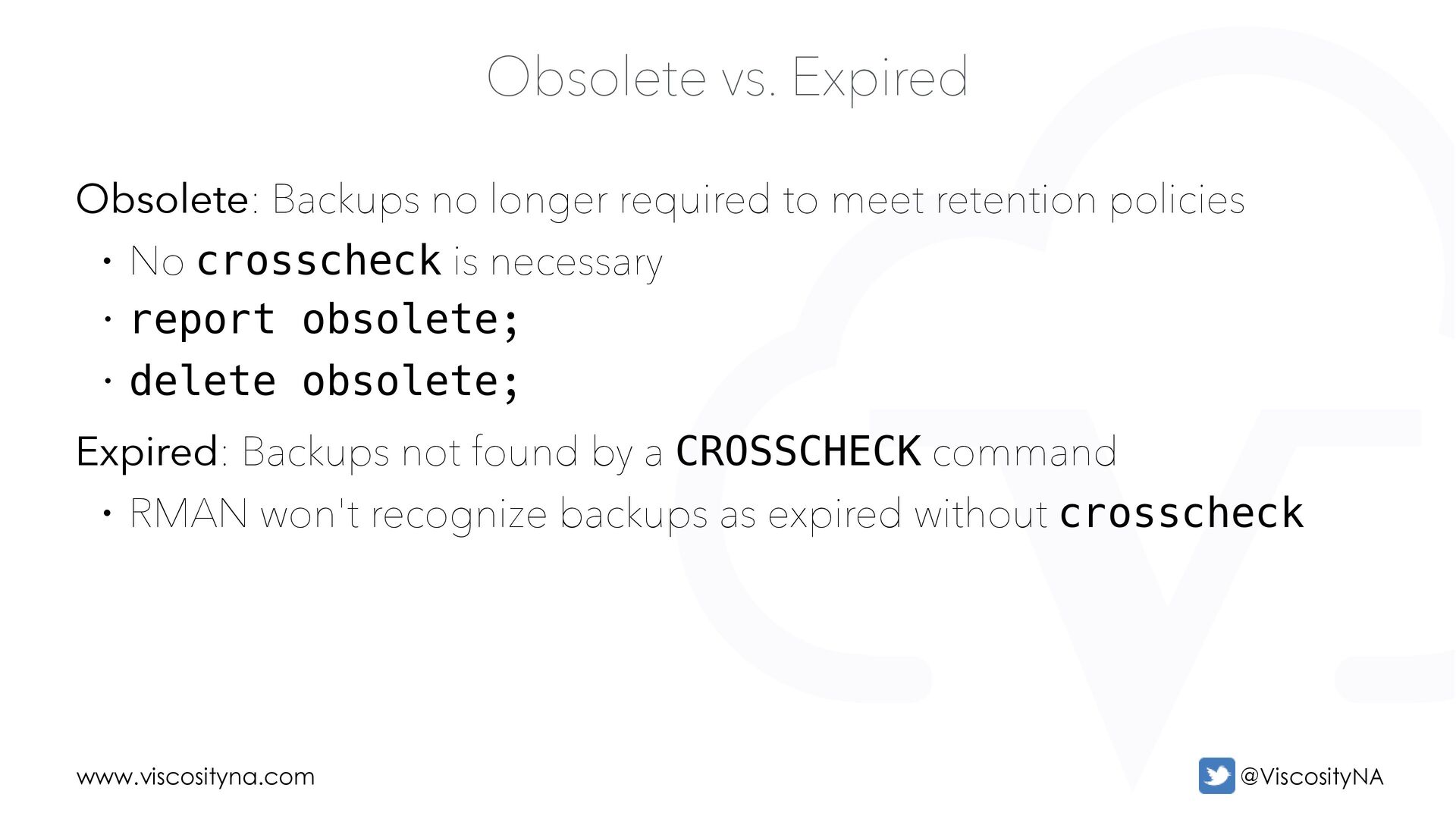

40. www.viscosityna.com @ViscosityNA Obsolete vs. Expired Obsolete: Backups no longer required to meet retention policies • No crosscheck is necessary • report obsolete; • delete obsolete; Expired: Backups not found by a CROSSCHECK command • RMAN won't recognize backups as expired without crosscheck
41. www.viscosityna.com @ViscosityNA Expired Backups EXPIRED represents the state of a backup in the recovery catalog • It is not definitive or final! • May be caused by: • Media Manager misconfiguration • Device availability • Network/DNS issues • File movement • Rerun crosscheck after resolution to reset state to AVAILABLE
42. www.viscosityna.com @ViscosityNA ✅ Validate backups

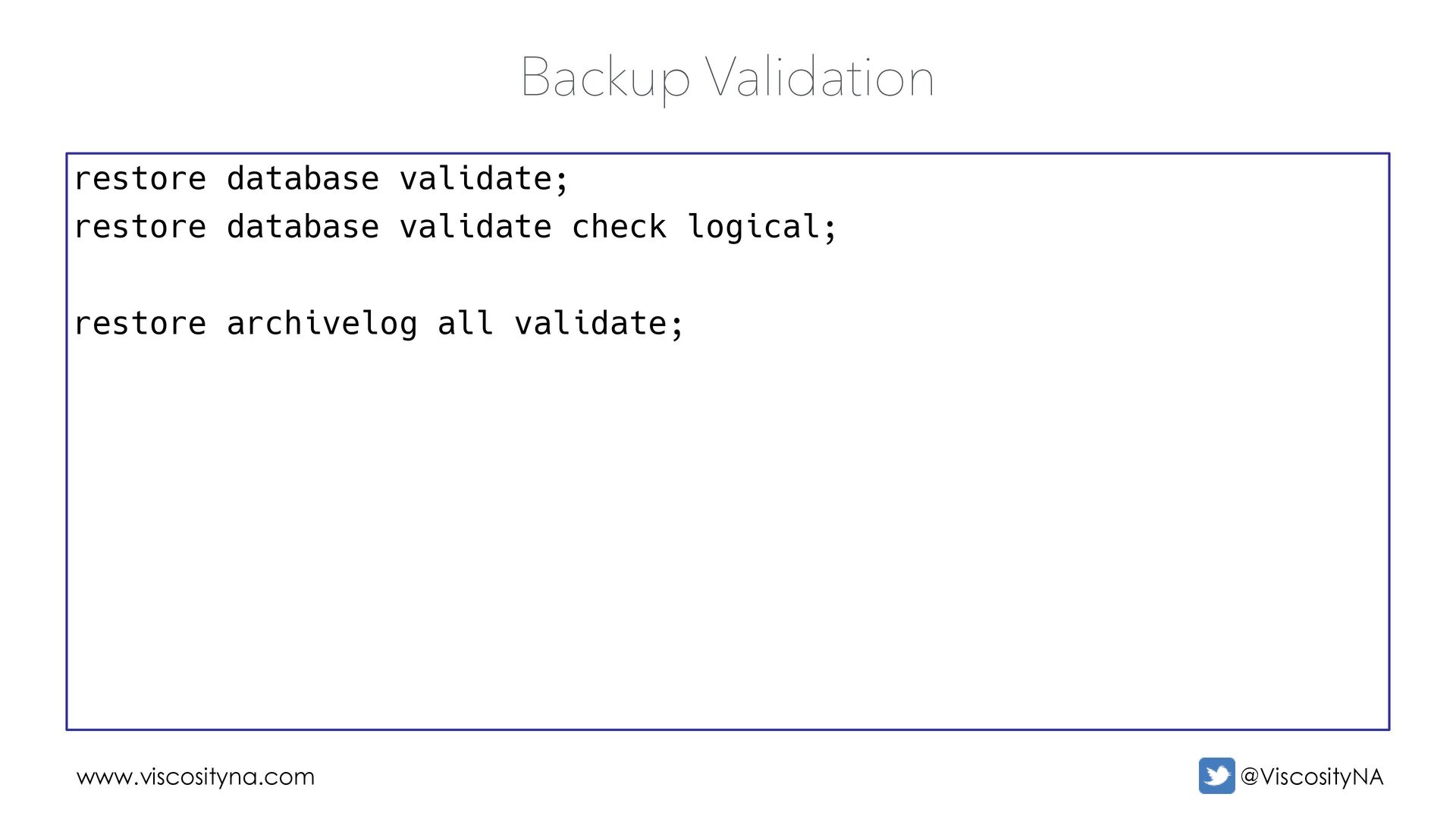

43. www.viscosityna.com @ViscosityNA restore database validate; restore database validate check logical; restore archivelog all validate; Backup Validation
44. www.viscosityna.com @ViscosityNA Lesser Known and Misunderstood Features

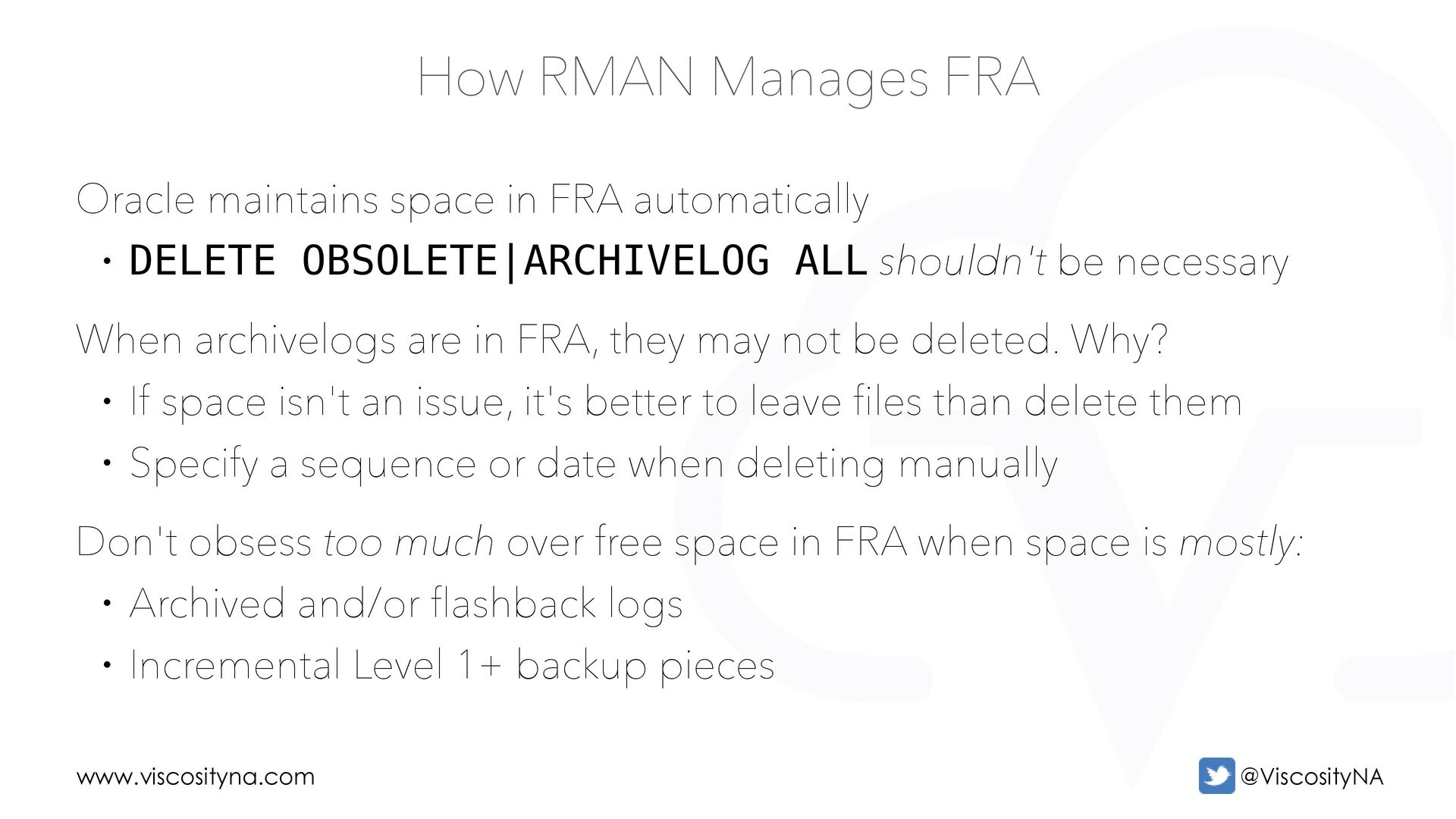

45. www.viscosityna.com @ViscosityNA How RMAN Manages FRA Oracle maintains space in FRA automatically • DELETE OBSOLETE|ARCHIVELOG ALL shouldn't be necessary When archivelogs are in FRA, they may not be deleted. Why? • If space isn't an issue, it's better to leave files than delete them • Specify a sequence or date when deleting manually Don't obsess too much over free space in FRA when space is mostly: • Archived and/or flashback logs • Incremental Level 1+ backup pieces

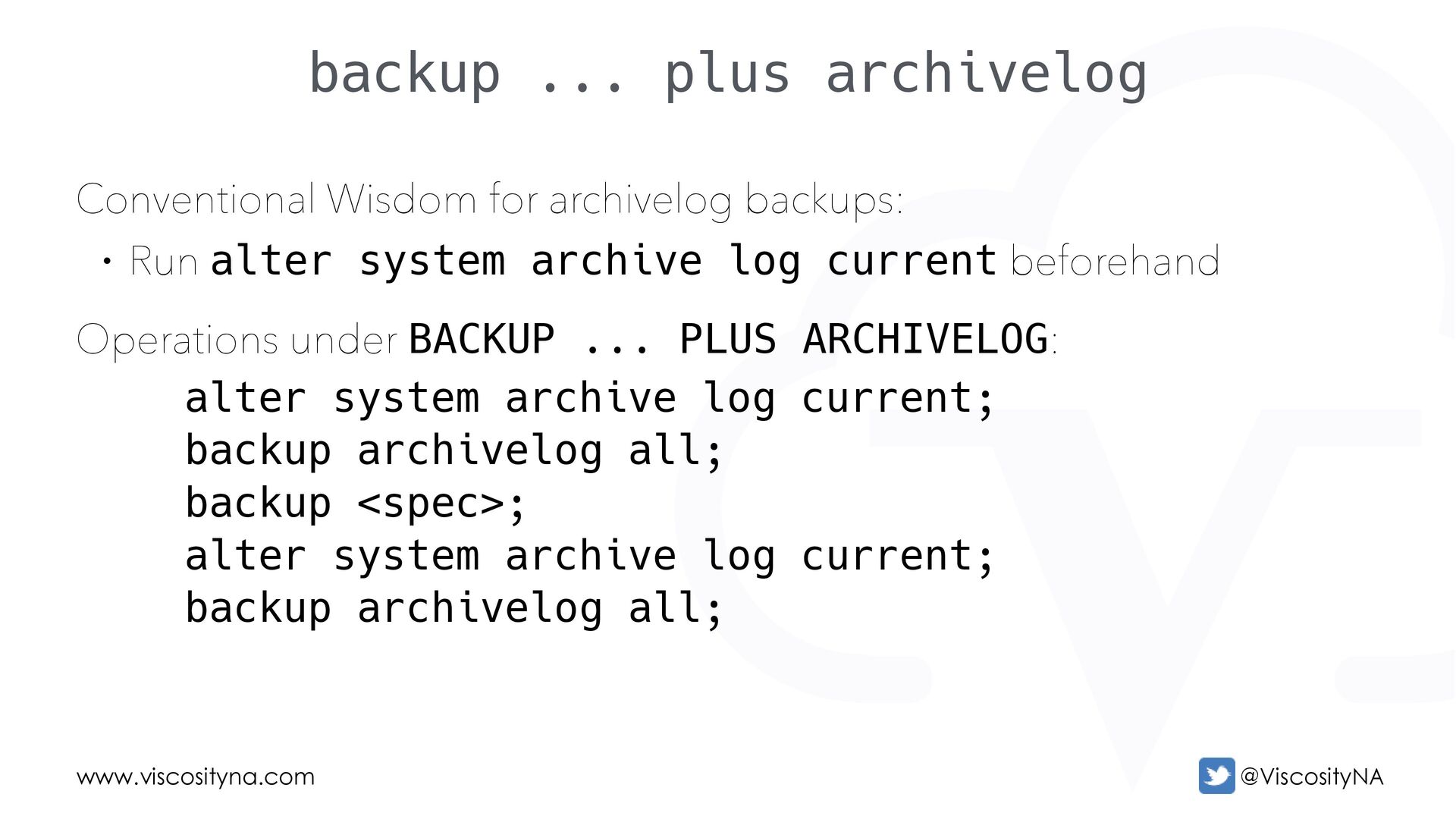

46. www.viscosityna.com @ViscosityNA backup ... plus archivelog Conventional Wisdom for archivelog backups: • Run alter system archive log current beforehand Operations under BACKUP ... PLUS ARCHIVELOG: alter system archive log current; backup archivelog all; backup <spec>; alter system archive log current; backup archivelog all;

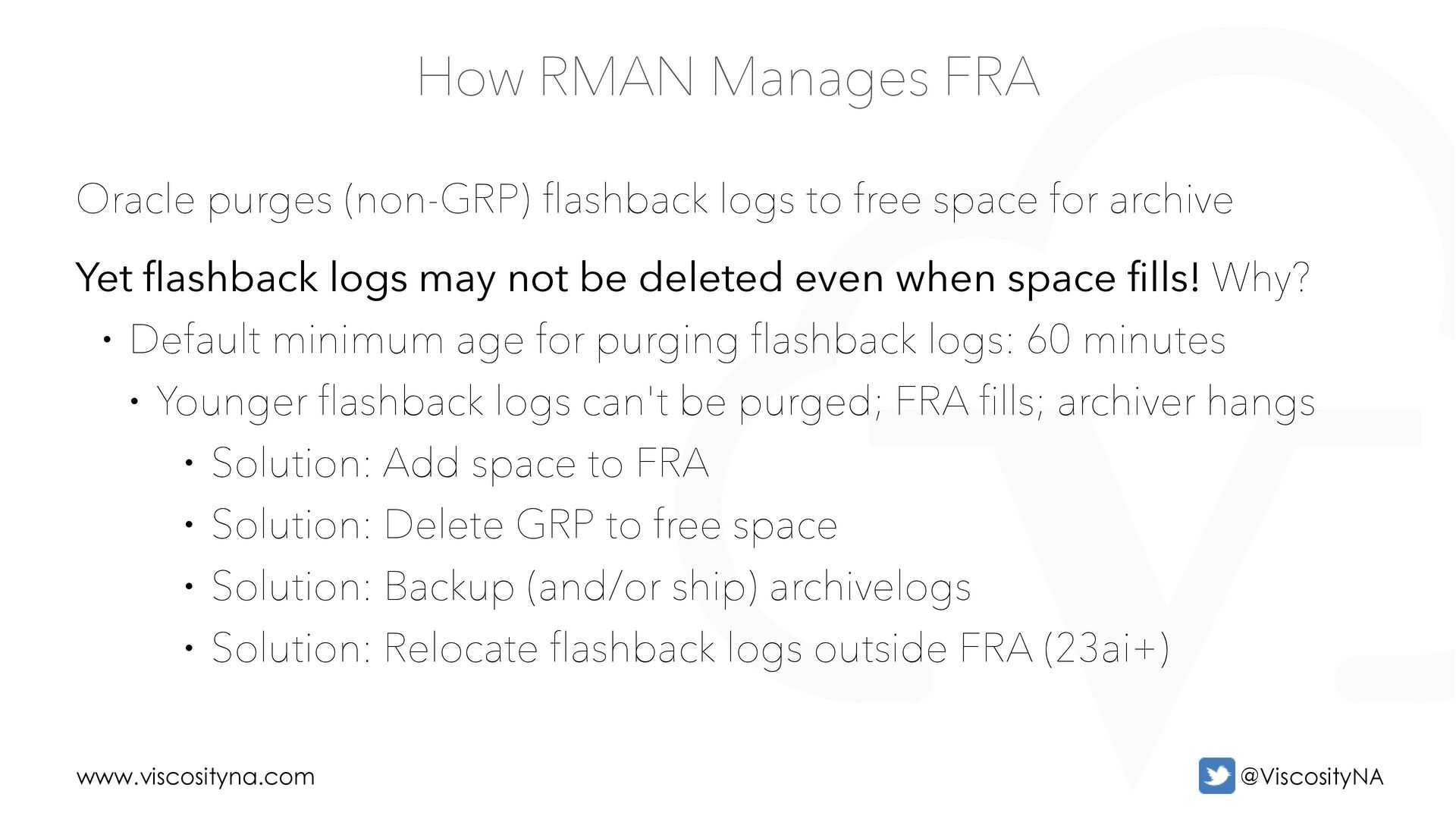

47. www.viscosityna.com @ViscosityNA How RMAN Manages FRA Oracle purges (non-GRP) flashback logs to free space for archive Yet flashback logs may not be deleted even when space fills! Why? • Default minimum age for purging flashback logs: 60 minutes • Younger flashback logs can't be purged; FRA fills; archiver hangs • Solution: Add space to FRA • Solution: Delete GRP to free space • Solution: Backup (and/or ship) archivelogs • Solution: Relocate flashback logs outside FRA (23ai+)

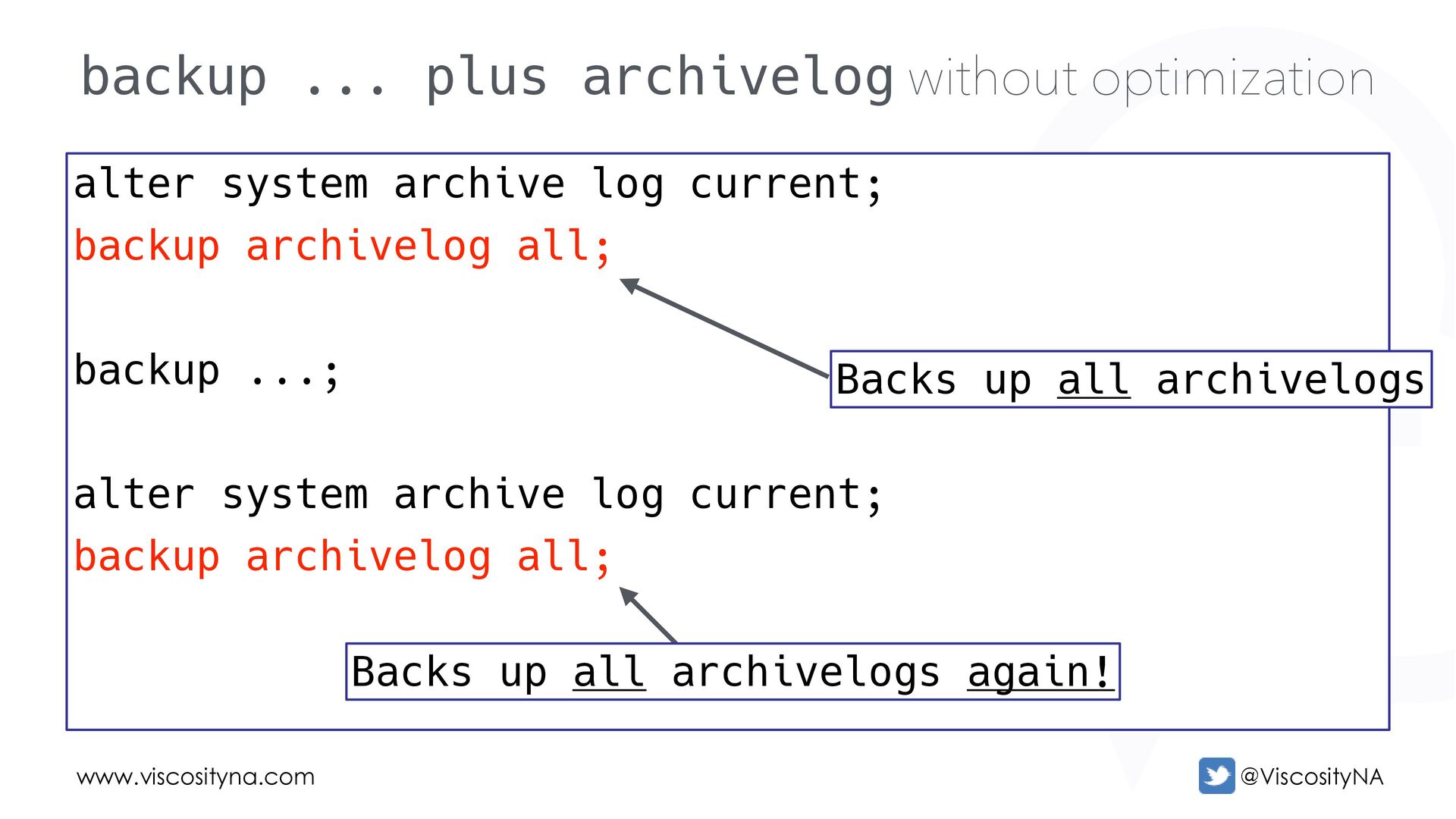

48. www.viscosityna.com @ViscosityNA alter system archive log current; backup archivelog all; backup ...; alter system archive log current; backup archivelog all; backup ... plus archivelog without optimization Backs up all archivelogs Backs up all archivelogs again!

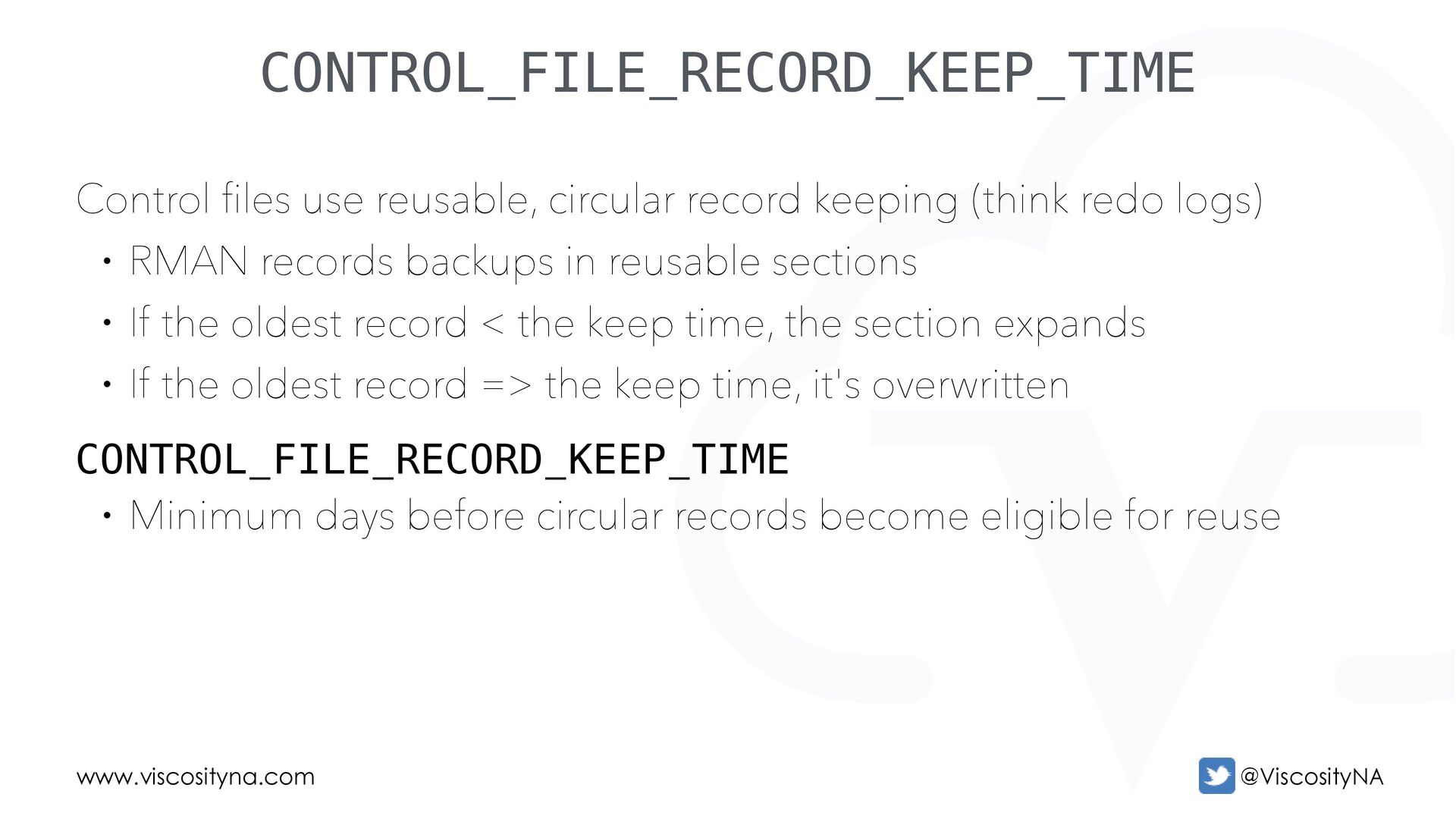

49. www.viscosityna.com @ViscosityNA CONTROL_FILE_RECORD_KEEP_TIME Control files use reusable, circular record keeping (think redo logs) • RMAN records backups in reusable sections • If the oldest record < the keep time, the section expands • If the oldest record => the keep time, it's overwritten CONTROL_FILE_RECORD_KEEP_TIME • Minimum days before circular records become eligible for reuse

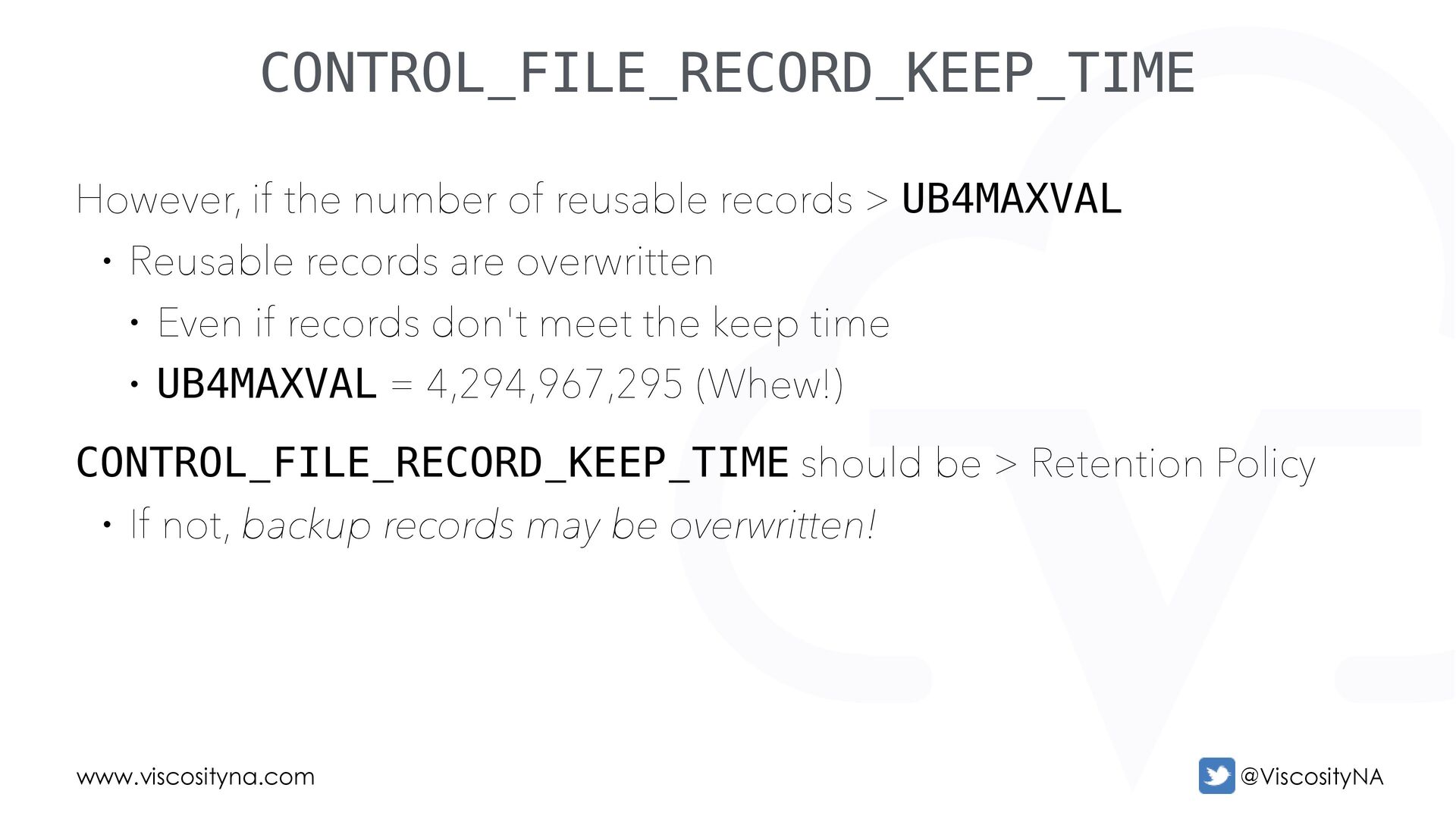

50. www.viscosityna.com @ViscosityNA However, if the number of reusable records > UB4MAXVAL • Reusable records are overwritten • Even if records don't meet the keep time • UB4MAXVAL = 4,294,967,295 (Whew!) CONTROL_FILE_RECORD_KEEP_TIME should be > Retention Policy • If not, backup records may be overwritten! CONTROL_FILE_RECORD_KEEP_TIME

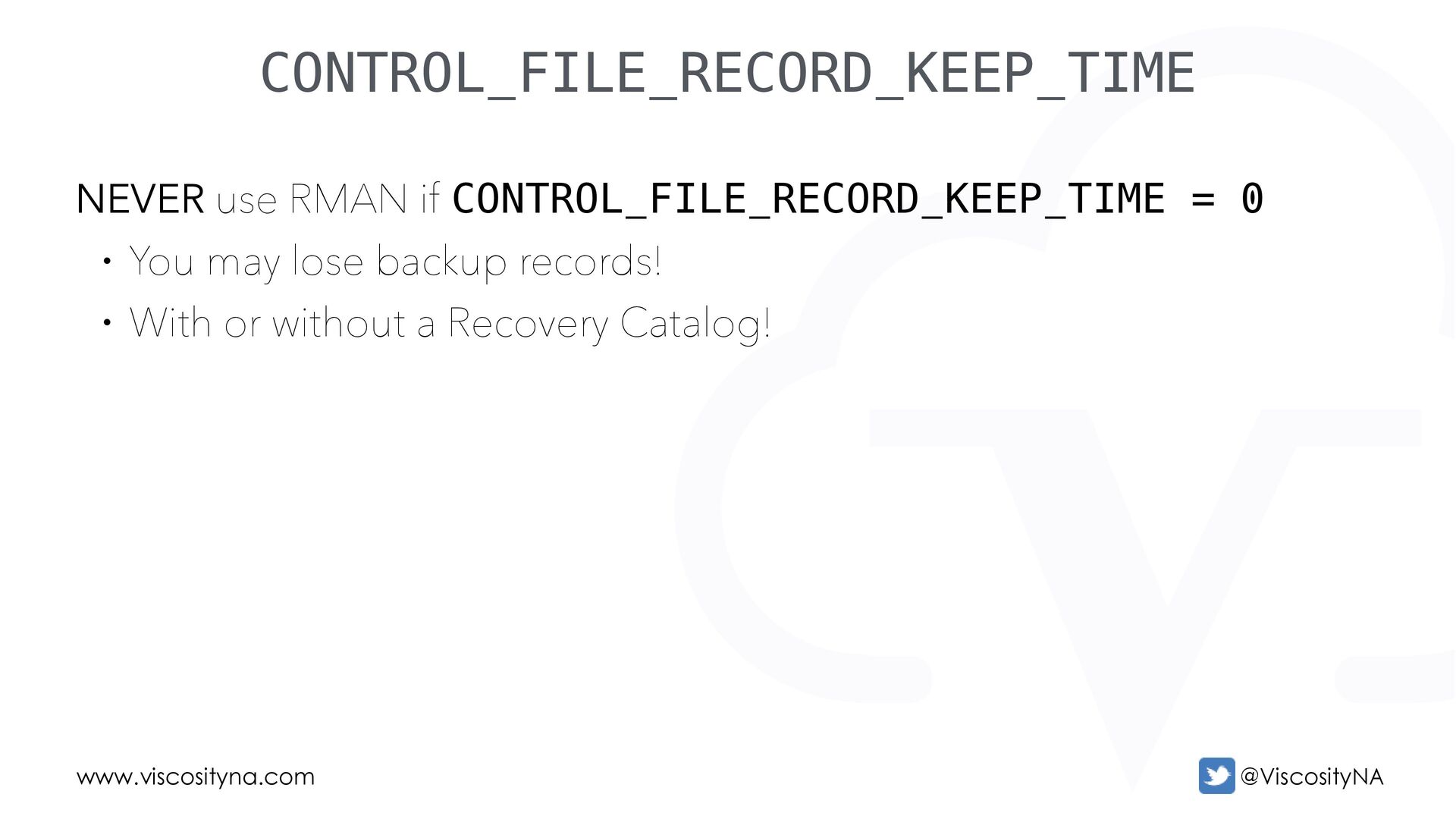

51. www.viscosityna.com @ViscosityNA NEVER use RMAN if CONTROL_FILE_RECORD_KEEP_TIME = 0 • You may lose backup records! • With or without a Recovery Catalog! CONTROL_FILE_RECORD_KEEP_TIME

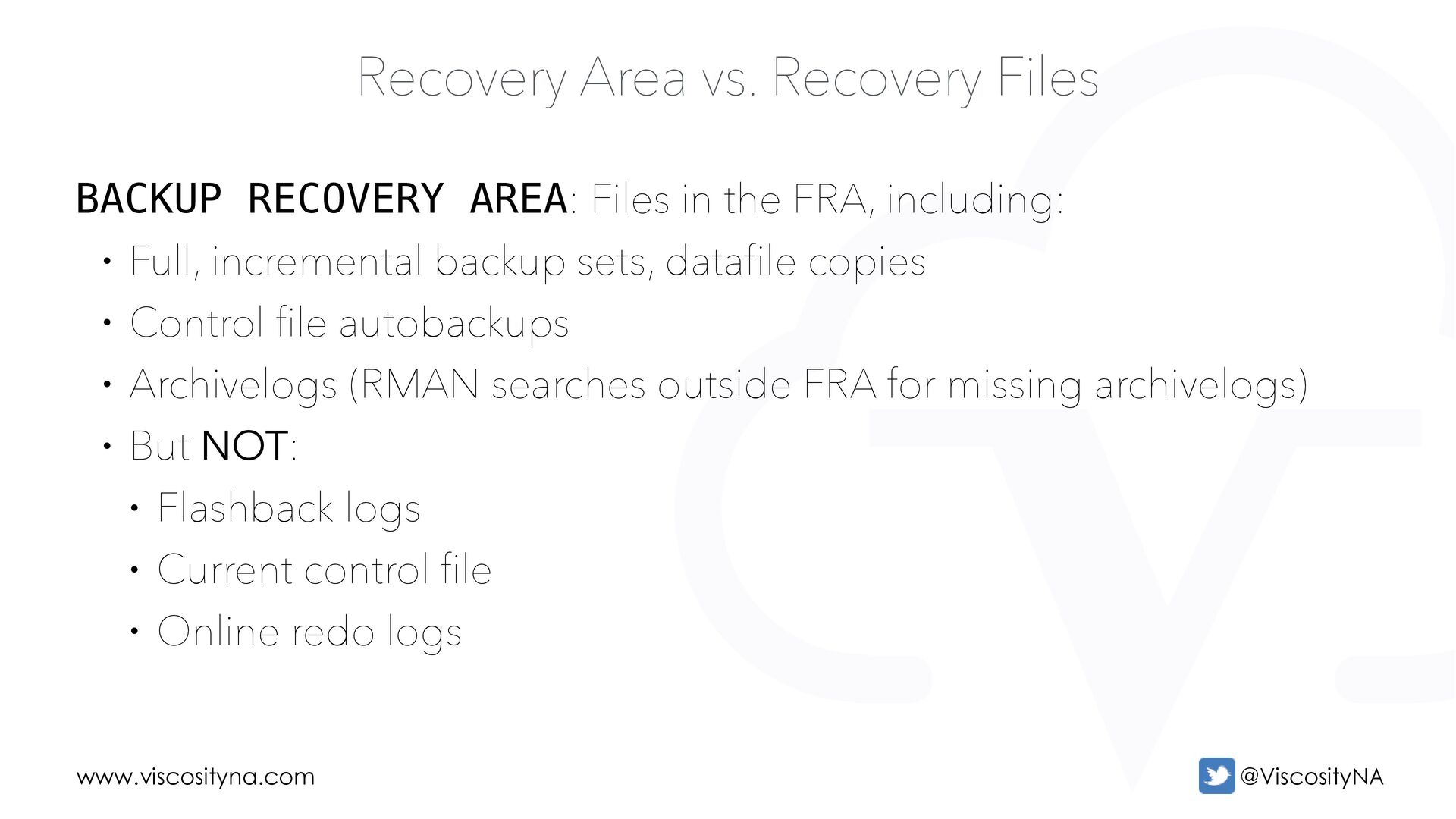

52. www.viscosityna.com @ViscosityNA Recovery Area vs. Recovery Files BACKUP RECOVERY AREA: Files in the FRA, including: • Full, incremental backup sets, datafile copies • Control file autobackups • Archivelogs (RMAN searches outside FRA for missing archivelogs) • But NOT: • Flashback logs • Current control file • Online redo logs

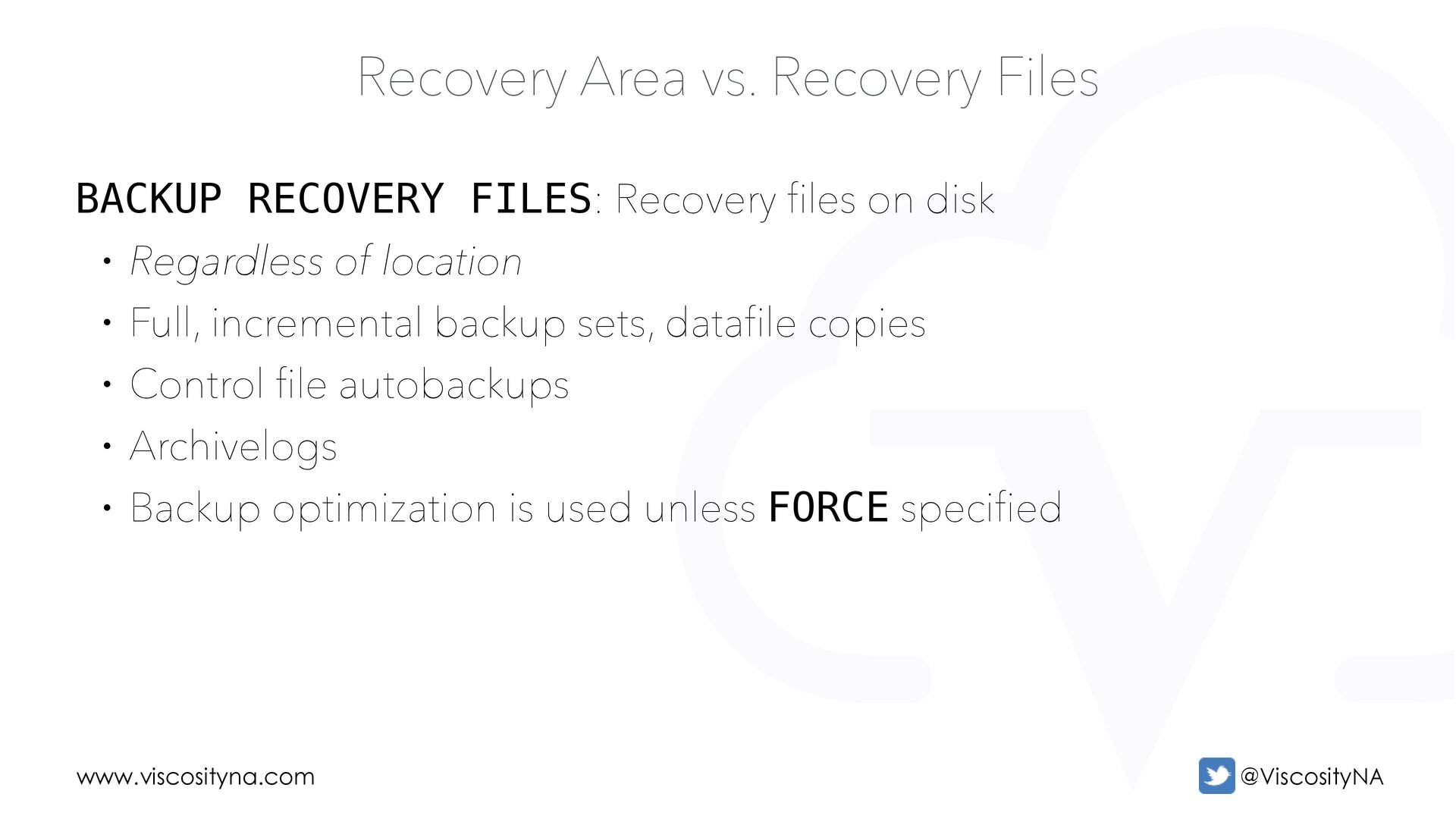

53. www.viscosityna.com @ViscosityNA BACKUP RECOVERY FILES: Recovery files on disk • Regardless of location • Full, incremental backup sets, datafile copies • Control file autobackups • Archivelogs • Backup optimization is used unless FORCE specified Recovery Area vs. Recovery Files

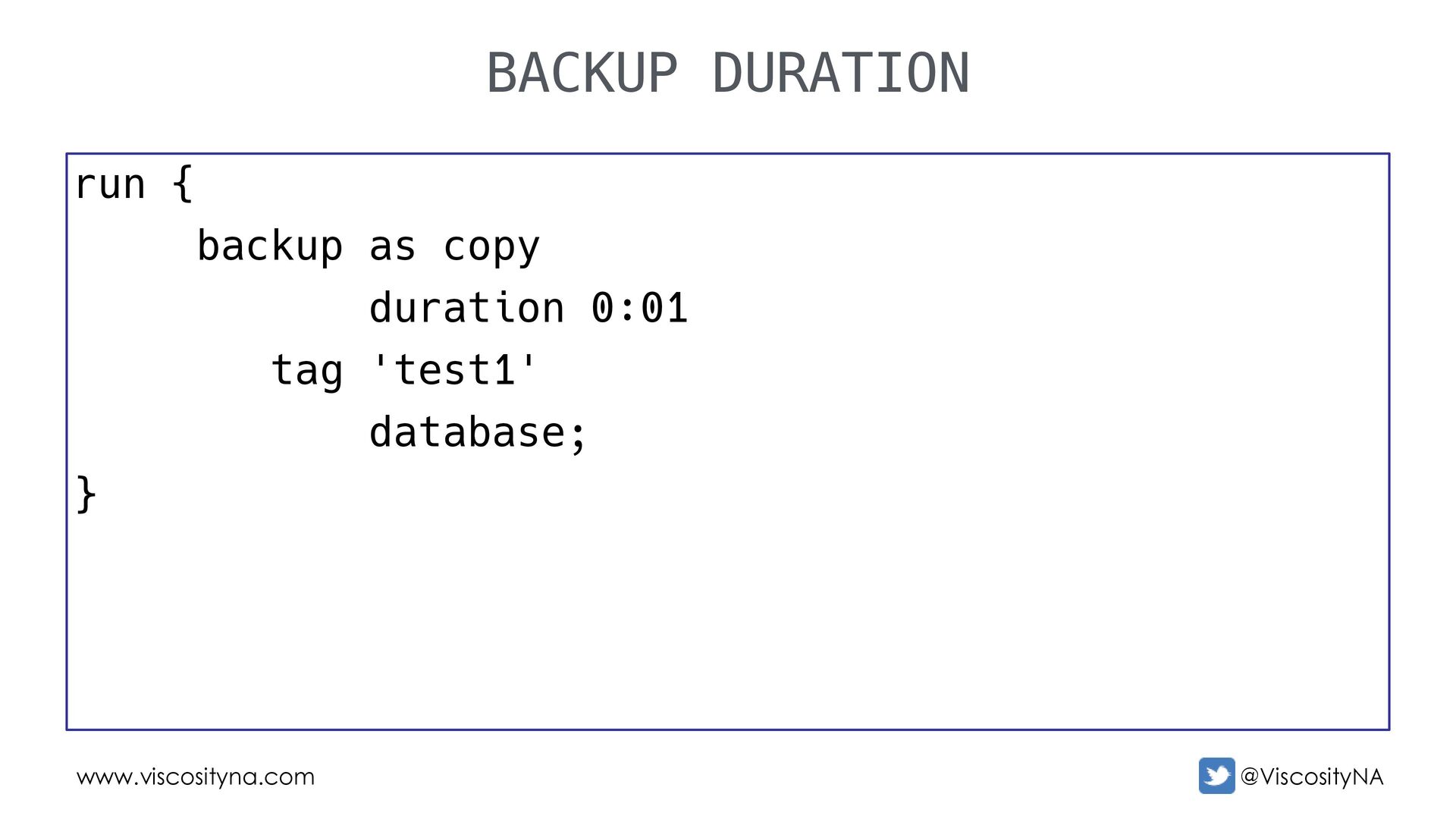

54. www.viscosityna.com @ViscosityNA run { backup as copy duration 0:01 tag 'test1' database; } BACKUP DURATION

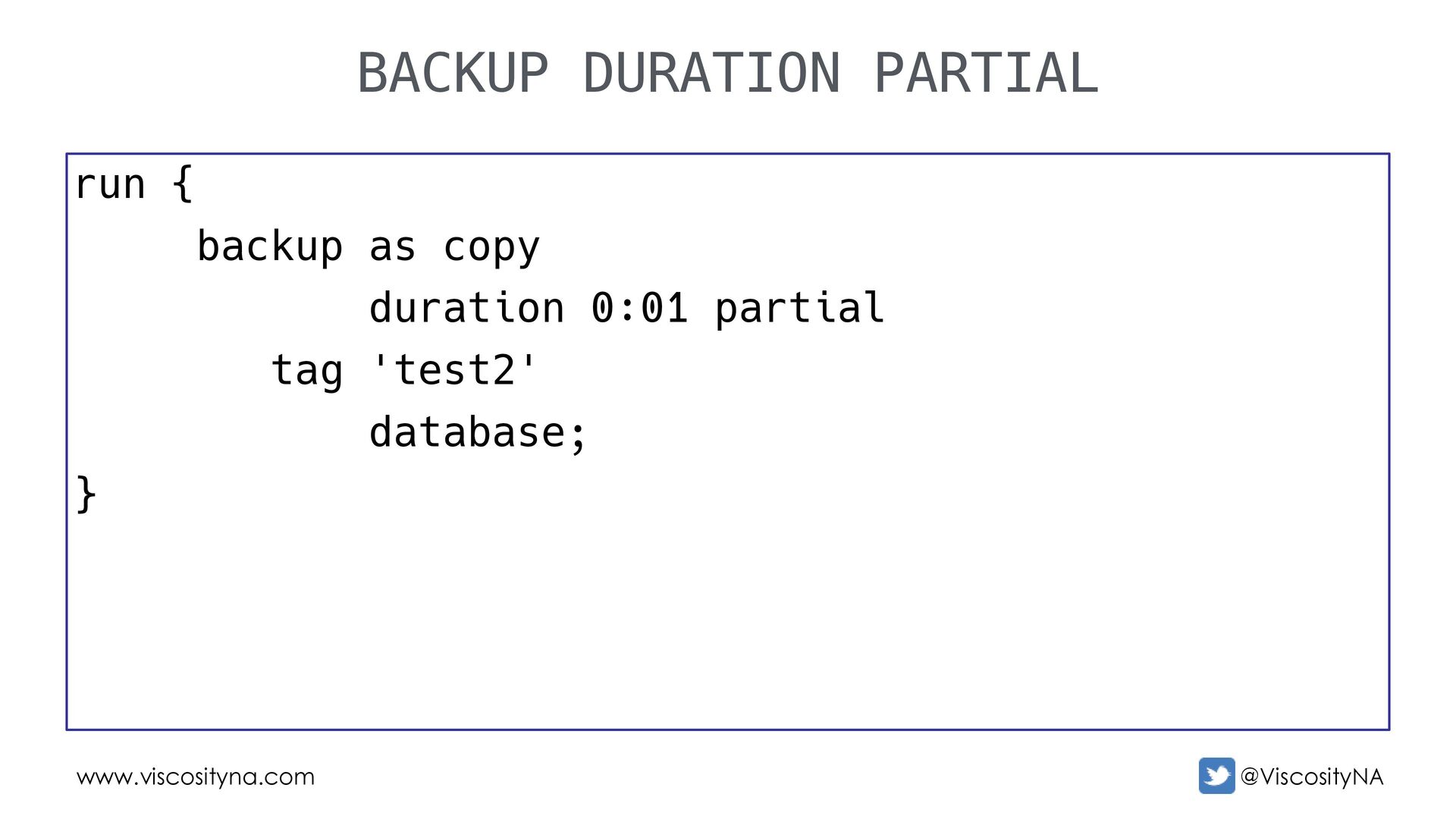

55. www.viscosityna.com @ViscosityNA run { backup as copy duration 0:01 partial tag 'test2' database; } BACKUP DURATION PARTIAL

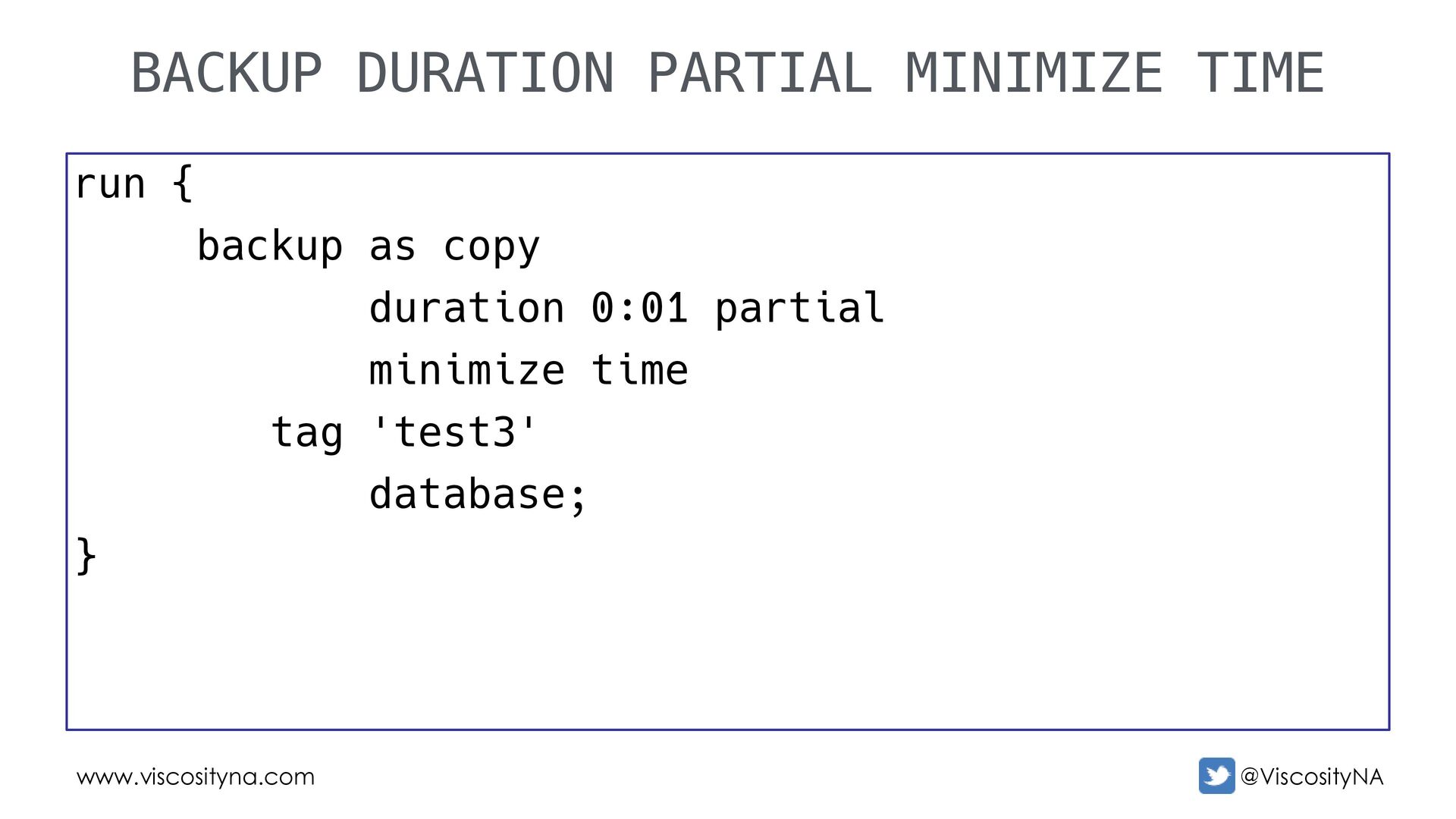

56. www.viscosityna.com @ViscosityNA run { backup as copy duration 0:01 partial minimize time tag 'test3' database; } BACKUP DURATION PARTIAL MINIMIZE TIME
57. www.viscosityna.com @ViscosityNA run { backup as copy duration 0:01 partial minimize load tag 'test4' database; } BACKUP DURATION PARTIAL MINIMIZE LOAD

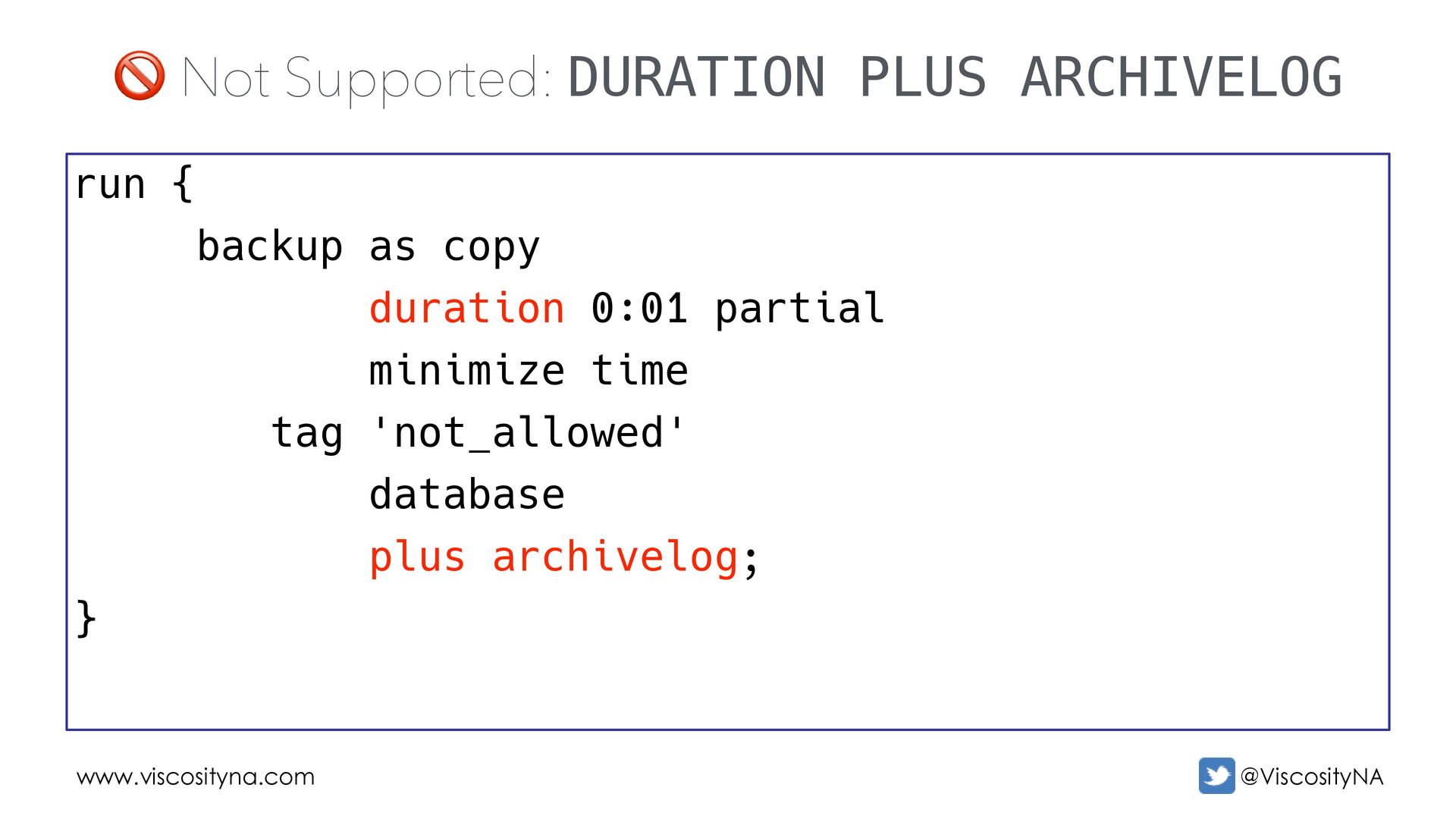

58. www.viscosityna.com @ViscosityNA run { backup as copy duration 0:01 partial minimize time tag 'not_allowed' database plus archivelog; } 🚫 Not Supported: DURATION PLUS ARCHIVELOG

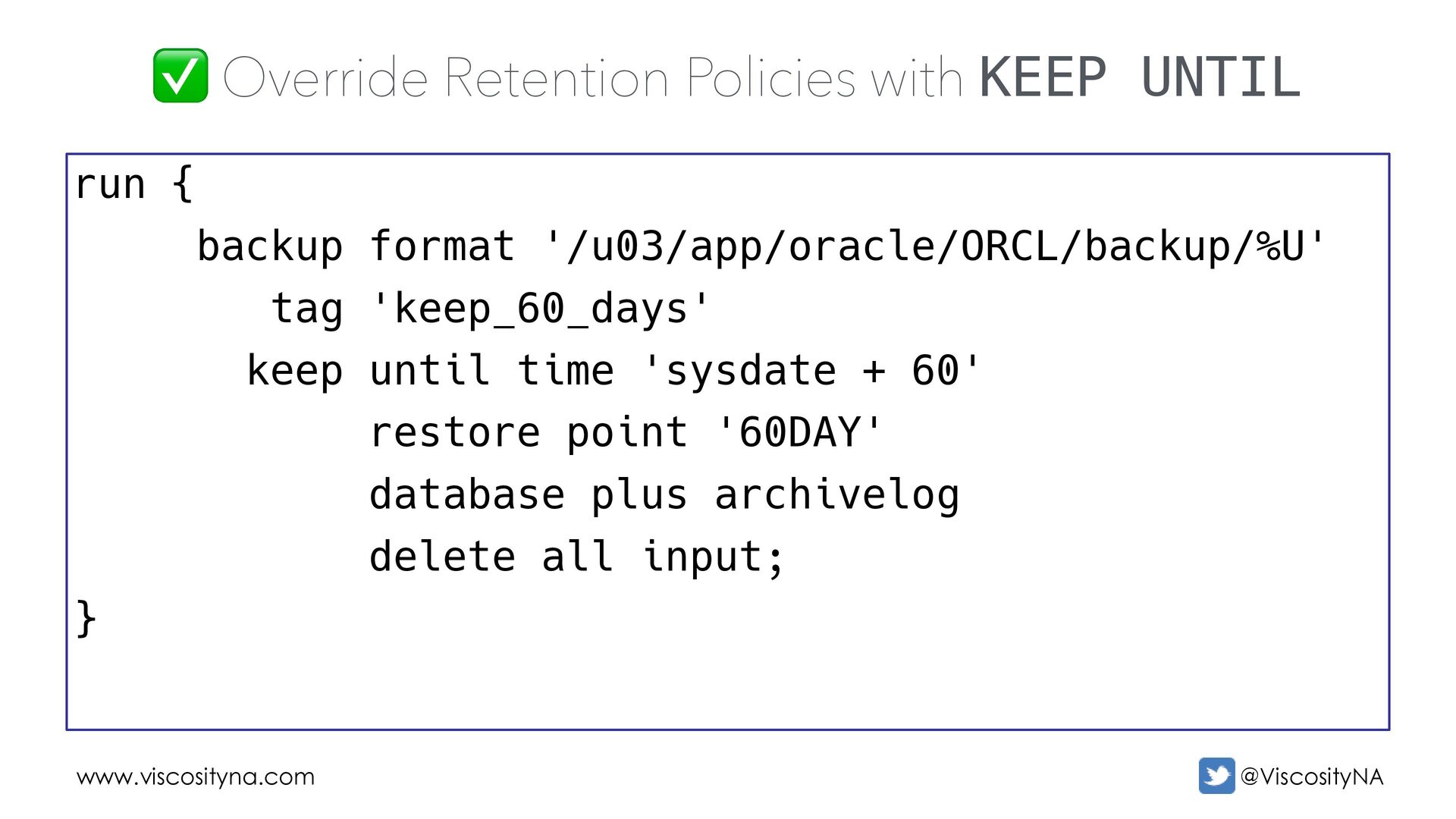

59. www.viscosityna.com @ViscosityNA run { backup format '/u03/app/oracle/ORCL/backup/%U' tag 'keep_60_days' keep until time 'sysdate + 60' restore point '60DAY' database plus archivelog delete all input; } ✅ Override Retention Policies with KEEP UNTIL

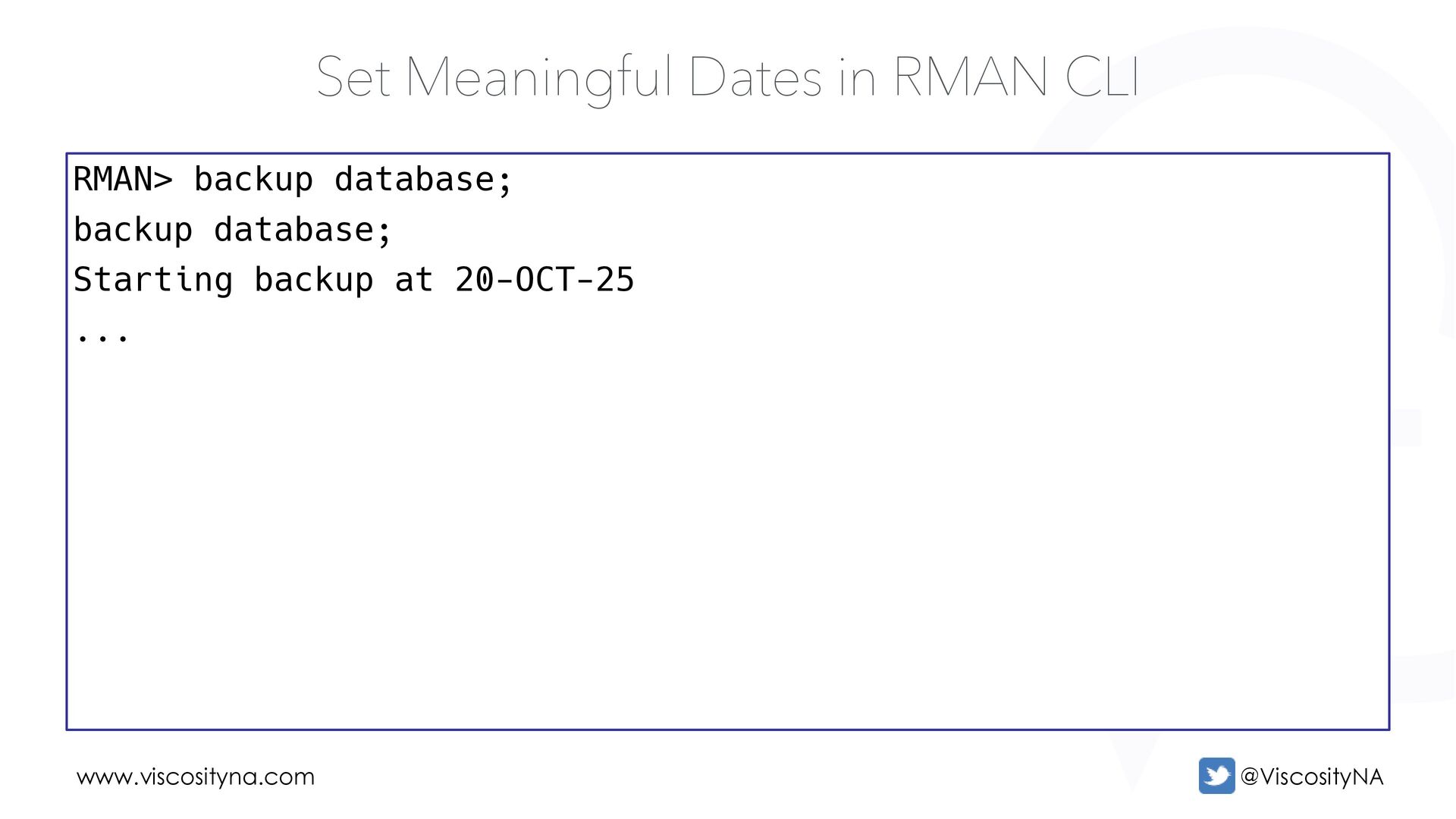

60. www.viscosityna.com @ViscosityNA RMAN> backup database; backup database; Starting backup at 20-OCT-25 ... Set Meaningful Dates in RMAN CLI

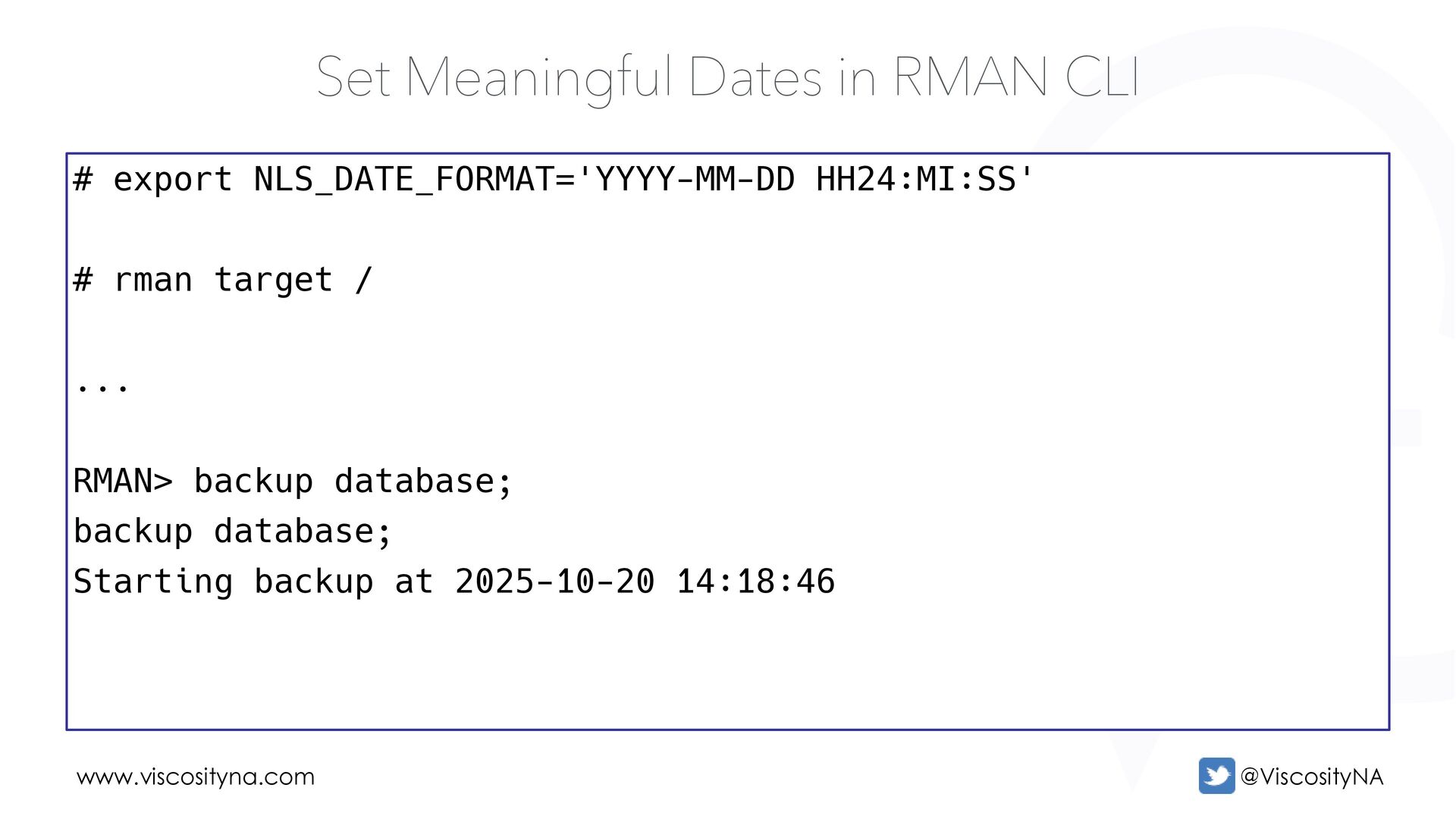

61. www.viscosityna.com @ViscosityNA # export NLS_DATE_FORMAT='YYYY-MM-DD HH24:MI:SS' # rman target / ... RMAN> backup database; backup database; Starting backup at 2025-10-20 14:18:46 Set Meaningful Dates in RMAN CLI

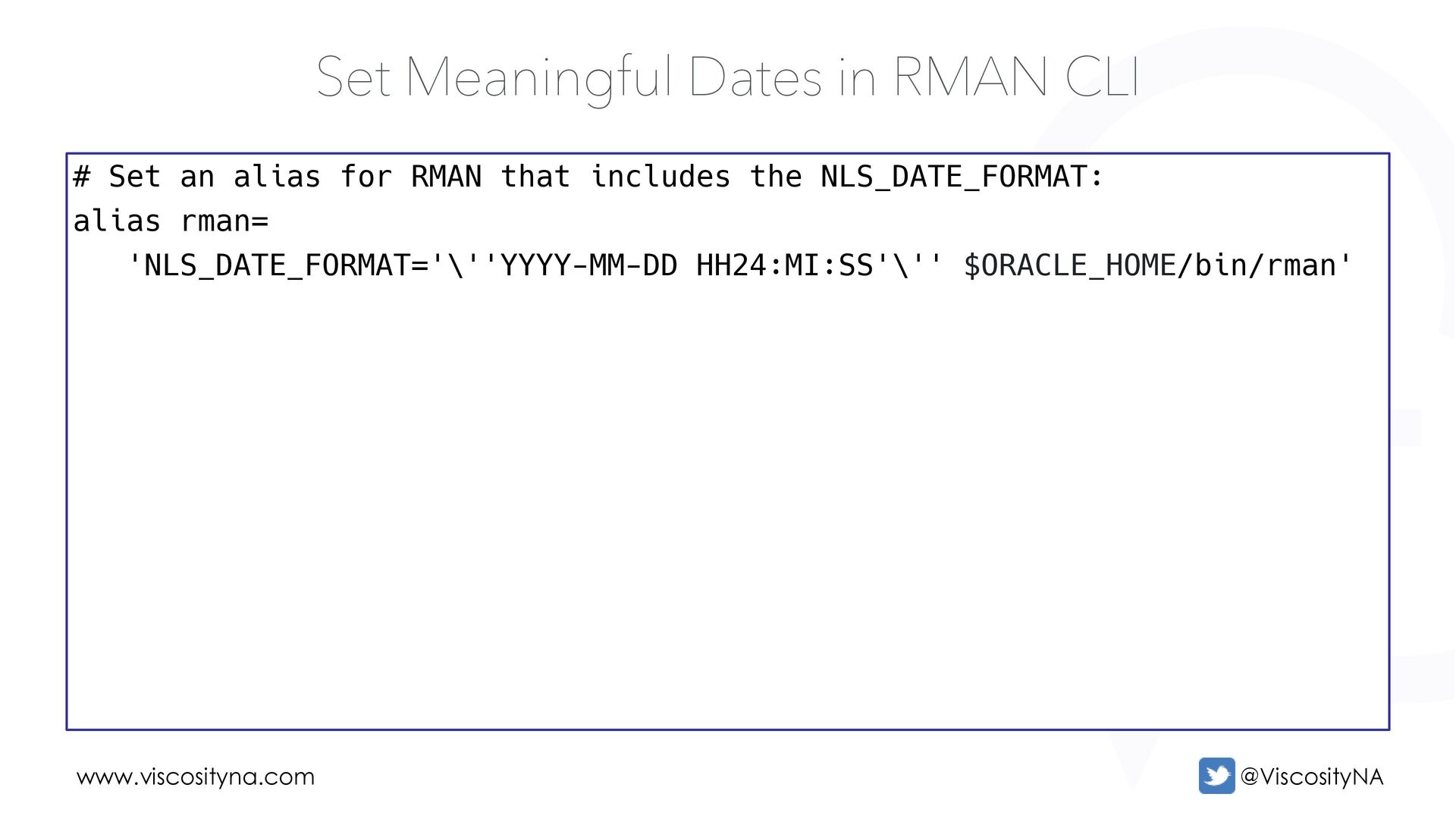

62. www.viscosityna.com @ViscosityNA # Set an alias for RMAN that includes the NLS_DATE_FORMAT: alias rman= 'NLS_DATE_FORMAT='\''YYYY-MM-DD HH24:MI:SS'\'' $ORACLE_HOME/bin/rman' Set Meaningful Dates in RMAN CLI

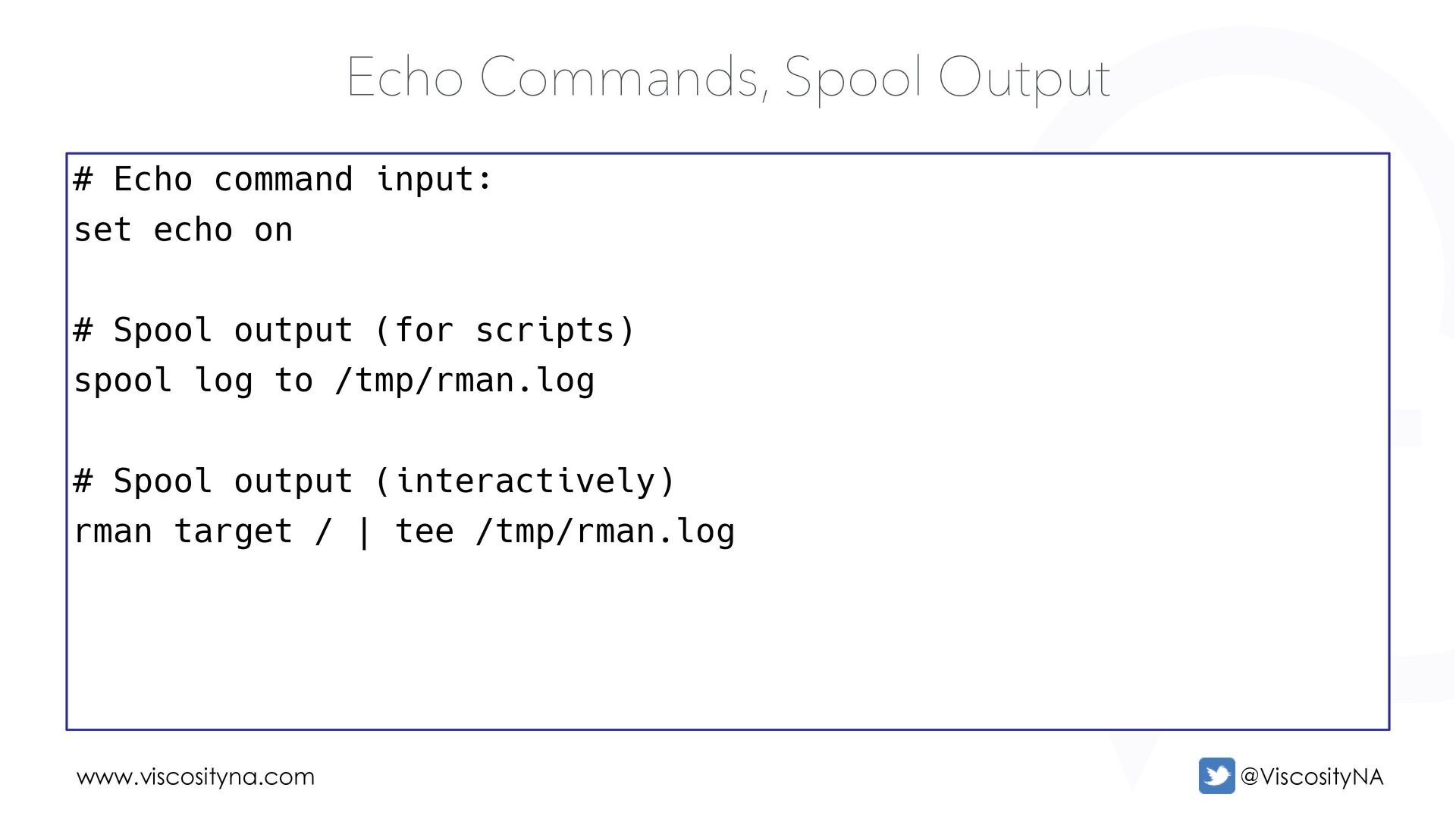

63. www.viscosityna.com @ViscosityNA # Echo command input: set echo on # Spool output (for scripts) spool log to /tmp/rman.log # Spool output (interactively) rman target / | tee /tmp/rman.log Echo Commands, Spool Output

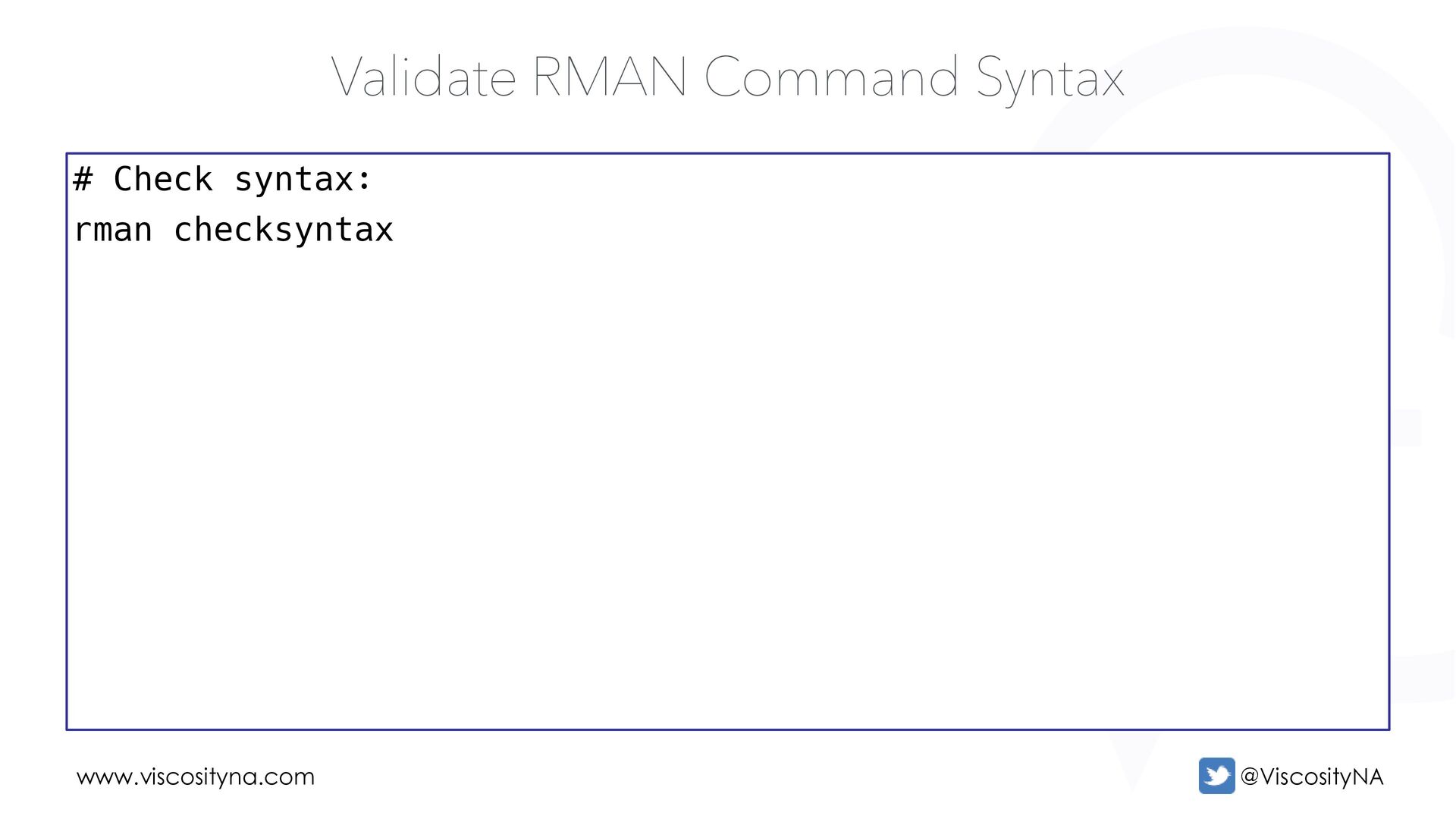

64. www.viscosityna.com @ViscosityNA # Check syntax: rman checksyntax Validate RMAN Command Syntax

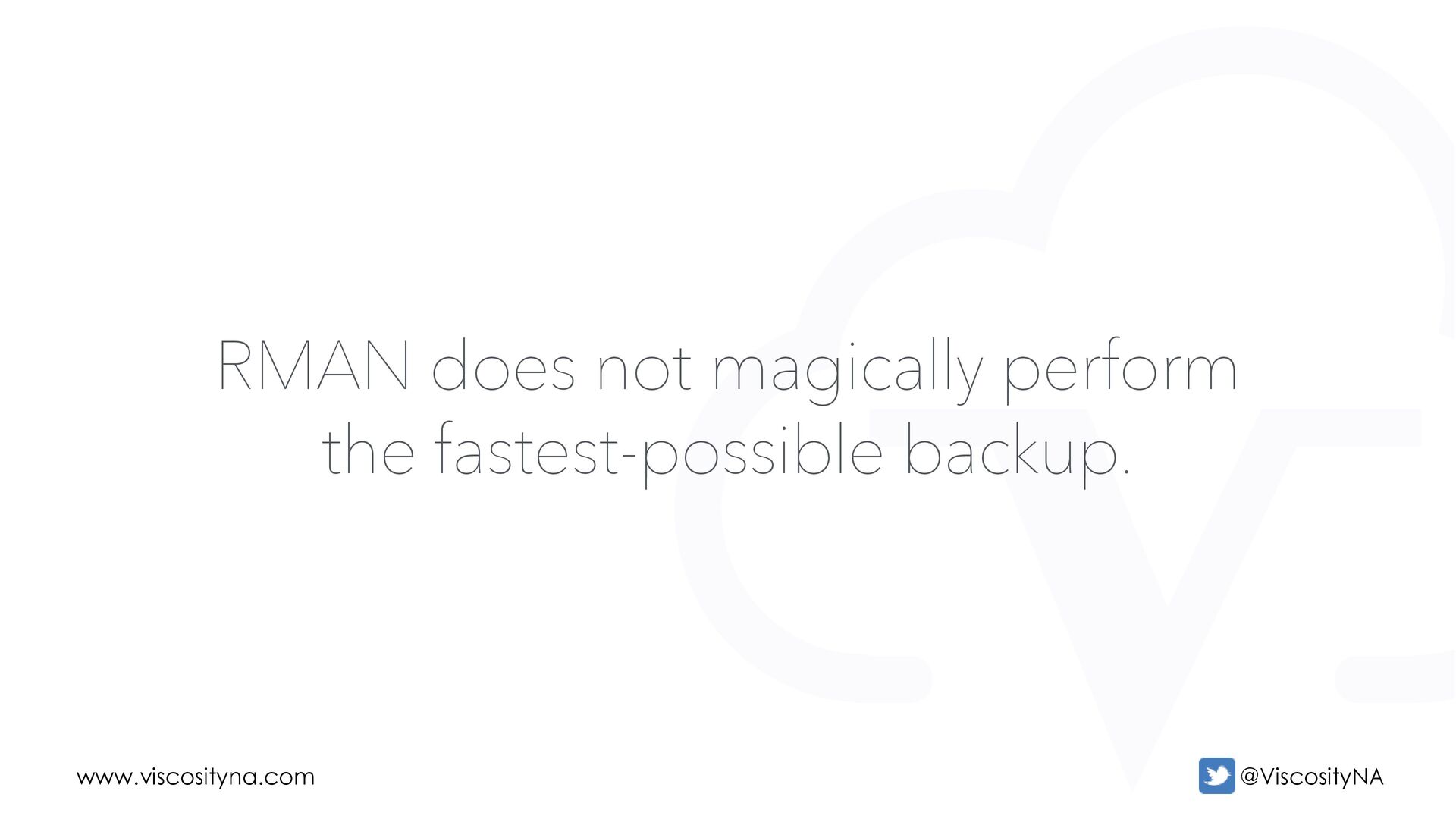

65. www.viscosityna.com @ViscosityNA RMAN does not magically perform the fastest-possible backup.

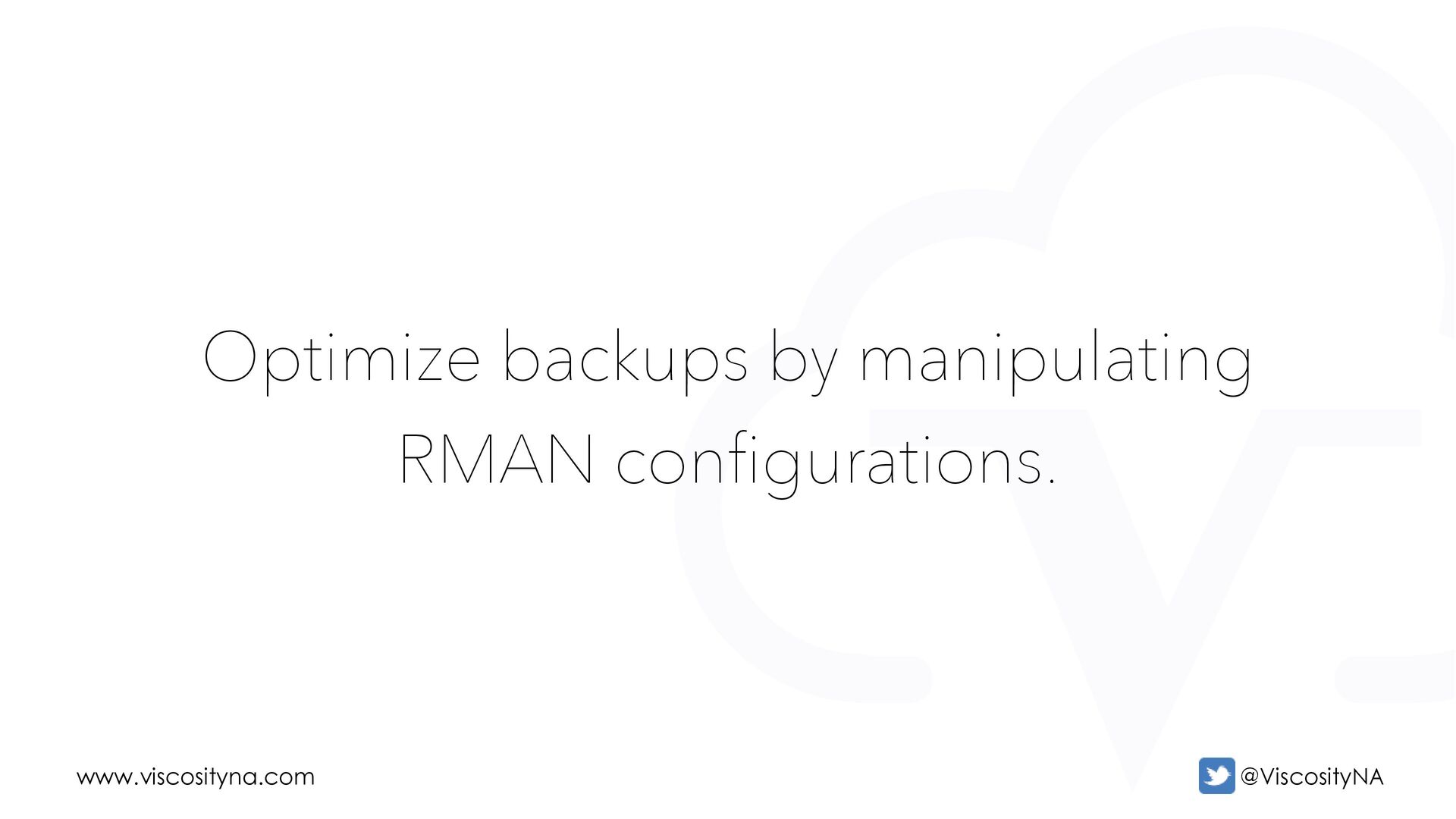

66. www.viscosityna.com @ViscosityNA Optimize backups by manipulating RMAN configurations.
67. www.viscosityna.com @ViscosityNA Sets, Pieces and Sections

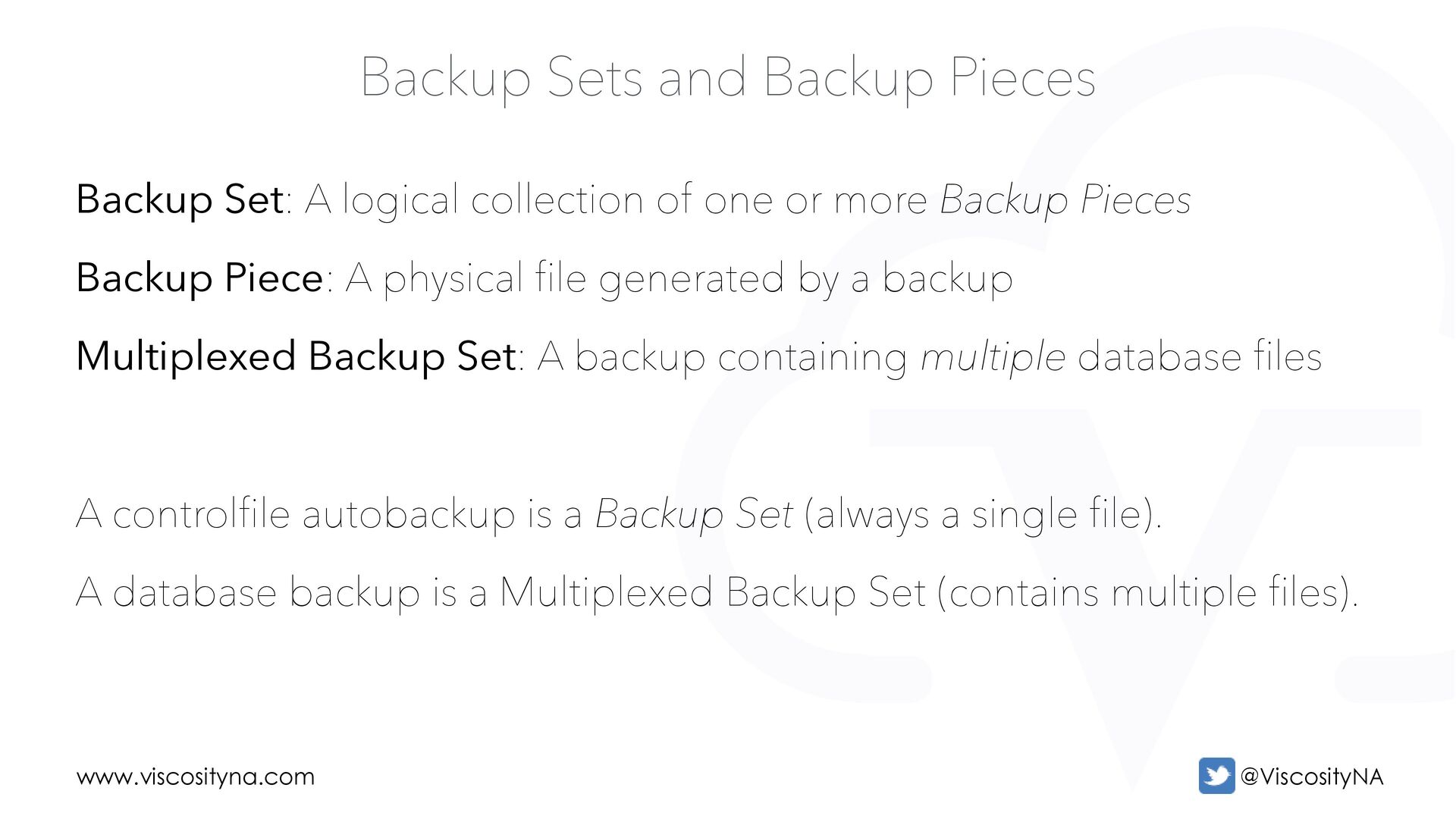

68. www.viscosityna.com @ViscosityNA Backup Sets and Backup Pieces Backup Set: A logical collection of one or more Backup Pieces Backup Piece: A physical file generated by a backup Multiplexed Backup Set: A backup containing multiple database files A controlfile autobackup is a Backup Set (always a single file). A database backup is a Multiplexed Backup Set (contains multiple files).

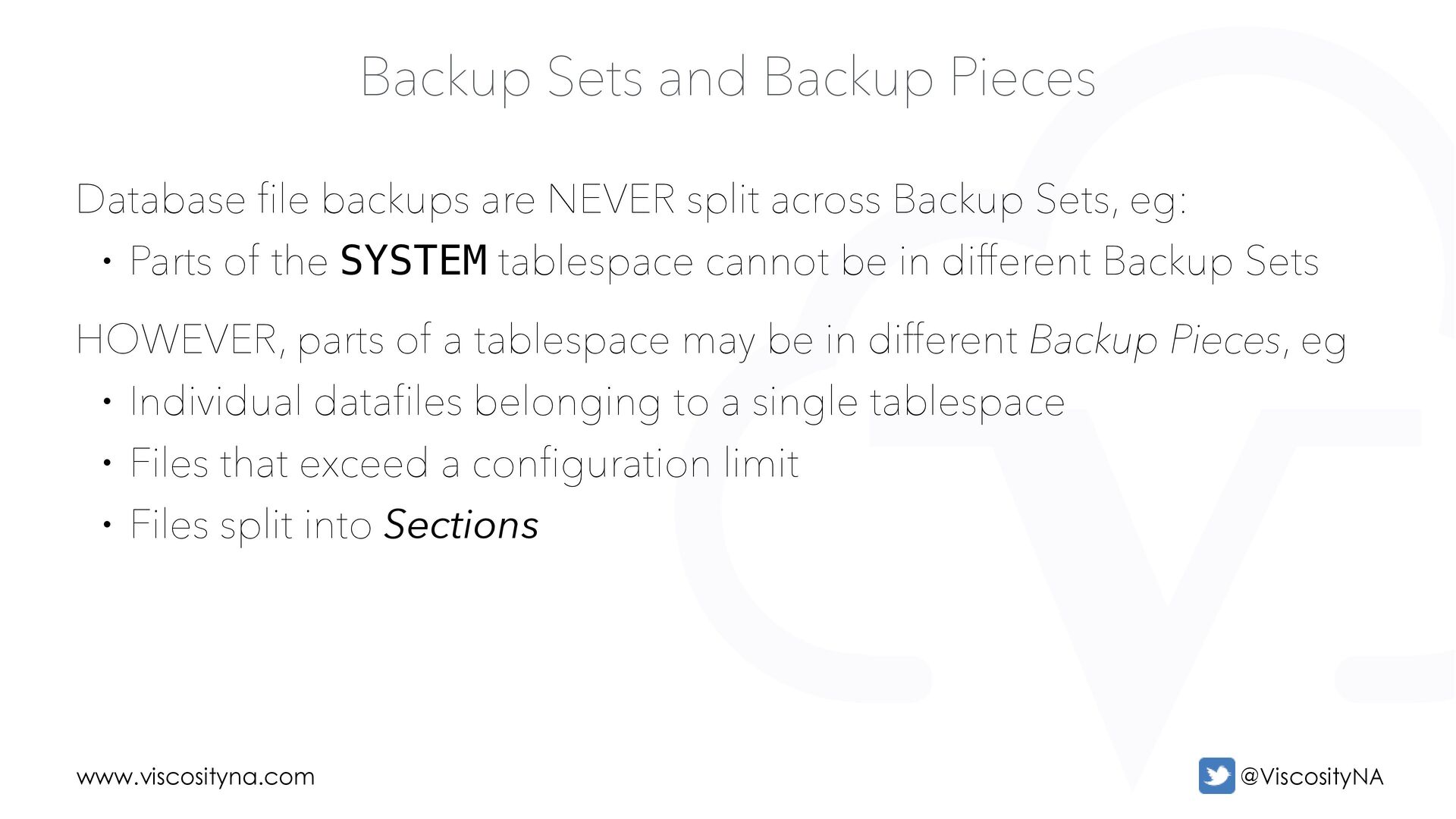

69. www.viscosityna.com @ViscosityNA Backup Sets and Backup Pieces Database file backups are NEVER split across Backup Sets, eg: • Parts of the SYSTEM tablespace cannot be in different Backup Sets HOWEVER, parts of a tablespace may be in different Backup Pieces, eg • Individual datafiles belonging to a single tablespace • Files that exceed a configuration limit • Files split into Sections

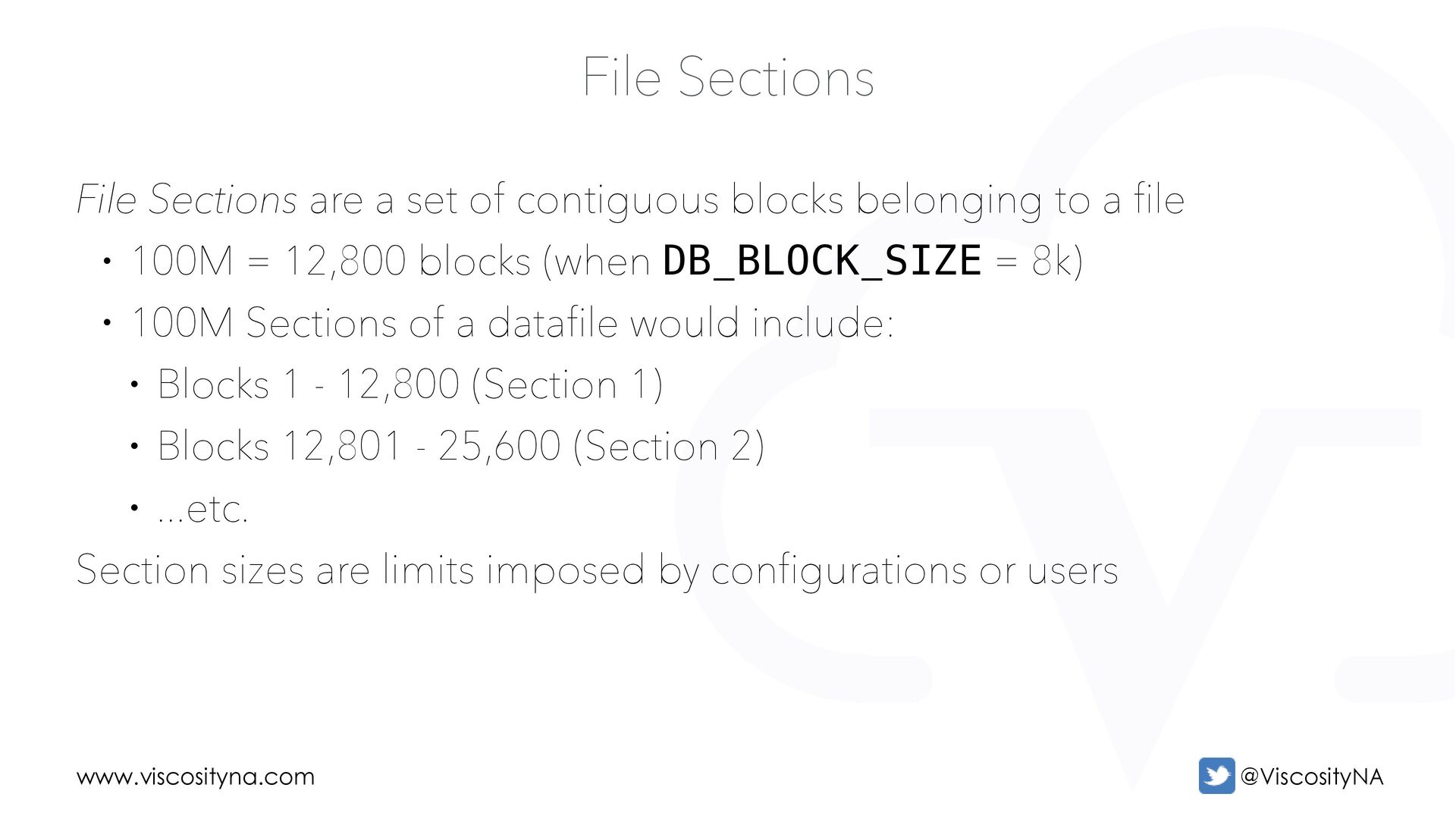

70. www.viscosityna.com @ViscosityNA File Sections File Sections are a set of contiguous blocks belonging to a file • 100M = 12,800 blocks (when DB_BLOCK_SIZE = 8k) • 100M Sections of a datafile would include: • Blocks 1 - 12,800 (Section 1) • Blocks 12,801 - 25,600 (Section 2) • ...etc. Section sizes are limits imposed by configurations or users

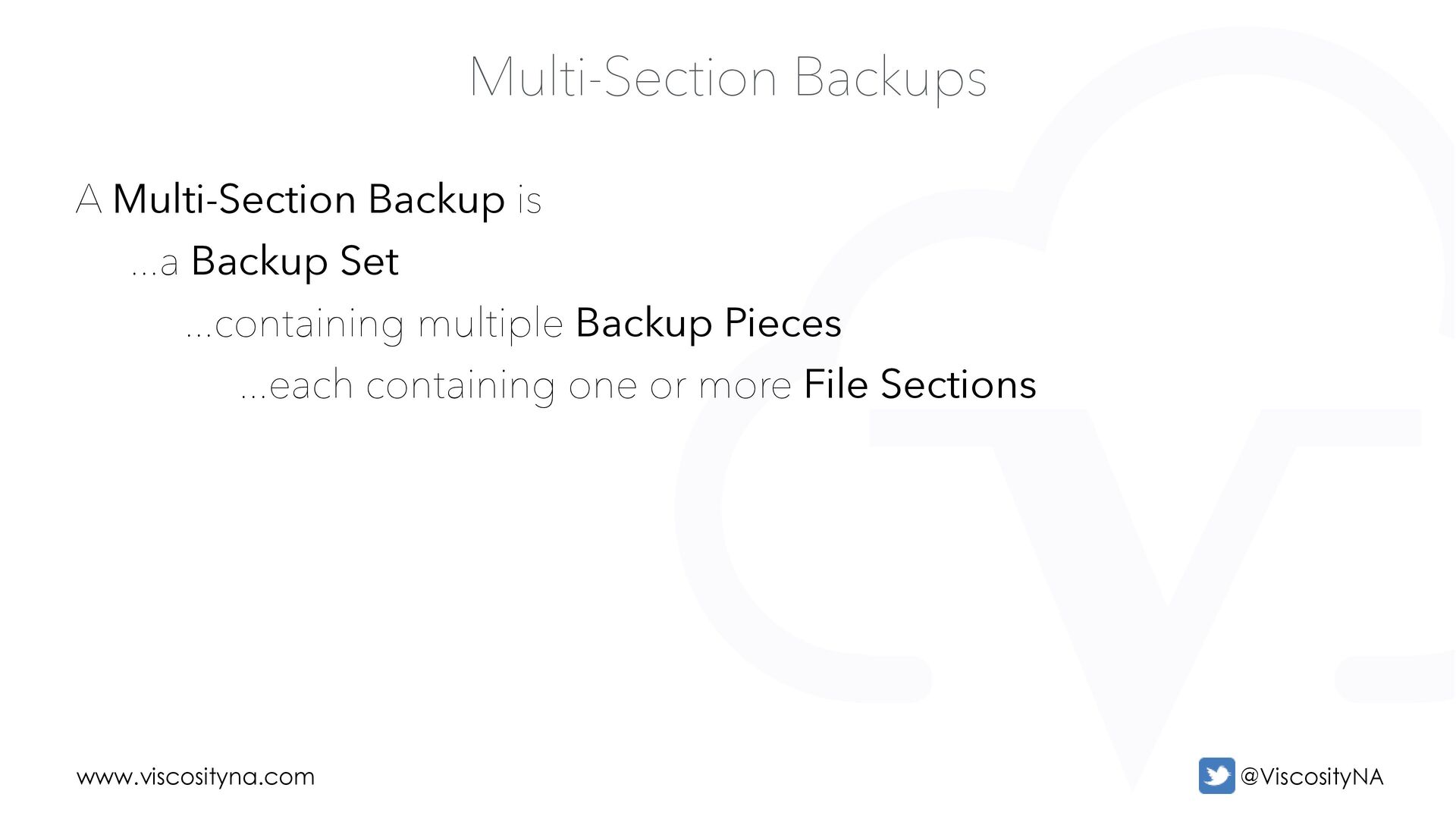

71. www.viscosityna.com @ViscosityNA Multi-Section Backups A Multi-Section Backup is ...a Backup Set ...containing multiple Backup Pieces ...each containing one or more File Sections

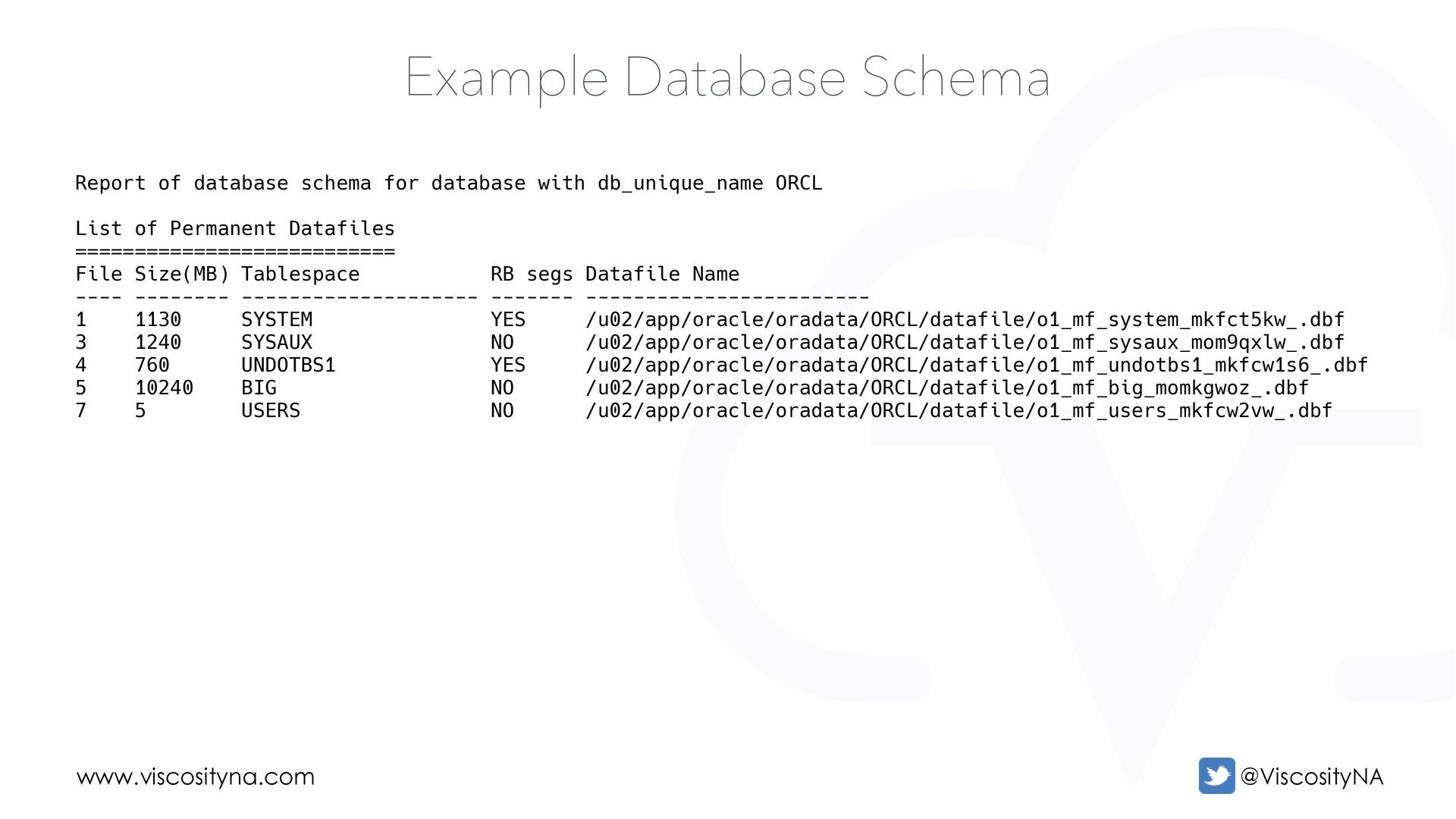

72. www.viscosityna.com @ViscosityNA Example Database Schema Report of database schema for database with db_unique_name ORCL List of Permanent Datafiles =========================== File Size(MB) Tablespace RB segs Datafile Name ---- -------- -------------------- ------- ------------------------ 1 1130 SYSTEM YES /u02/app/oracle/oradata/ORCL/datafile/o1_mf_system_mkfct5kw_.dbf 3 1240 SYSAUX NO /u02/app/oracle/oradata/ORCL/datafile/o1_mf_sysaux_mom9qxlw_.dbf 4 760 UNDOTBS1 YES /u02/app/oracle/oradata/ORCL/datafile/o1_mf_undotbs1_mkfcw1s6_.dbf 5 10240 BIG NO /u02/app/oracle/oradata/ORCL/datafile/o1_mf_big_momkgwoz_.dbf 7 5 USERS NO /u02/app/oracle/oradata/ORCL/datafile/o1_mf_users_mkfcw2vw_.dbf

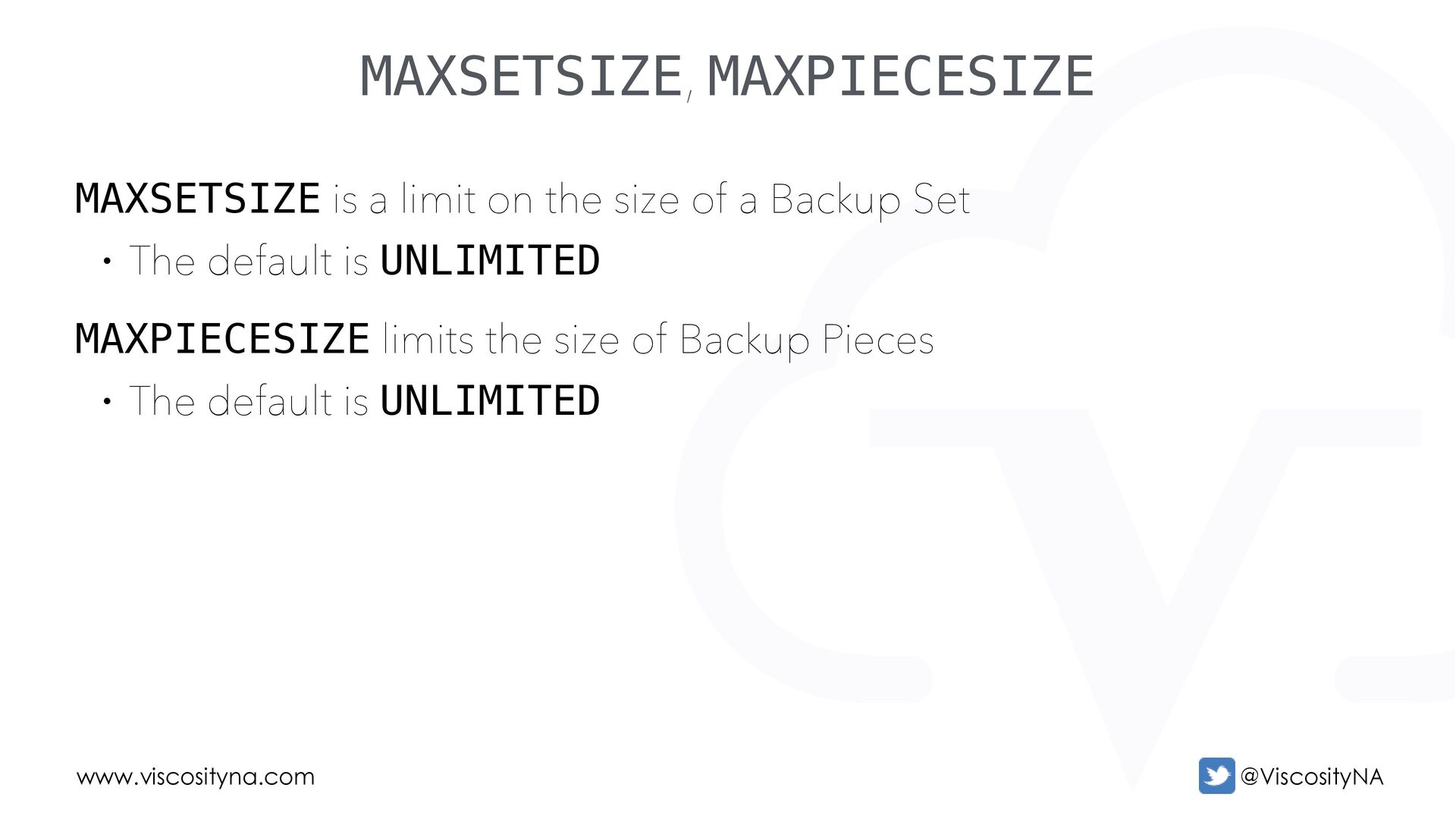

73. www.viscosityna.com @ViscosityNA MAXSETSIZE, MAXPIECESIZE MAXSETSIZE is a limit on the size of a Backup Set • The default is UNLIMITED MAXPIECESIZE limits the size of Backup Pieces • The default is UNLIMITED

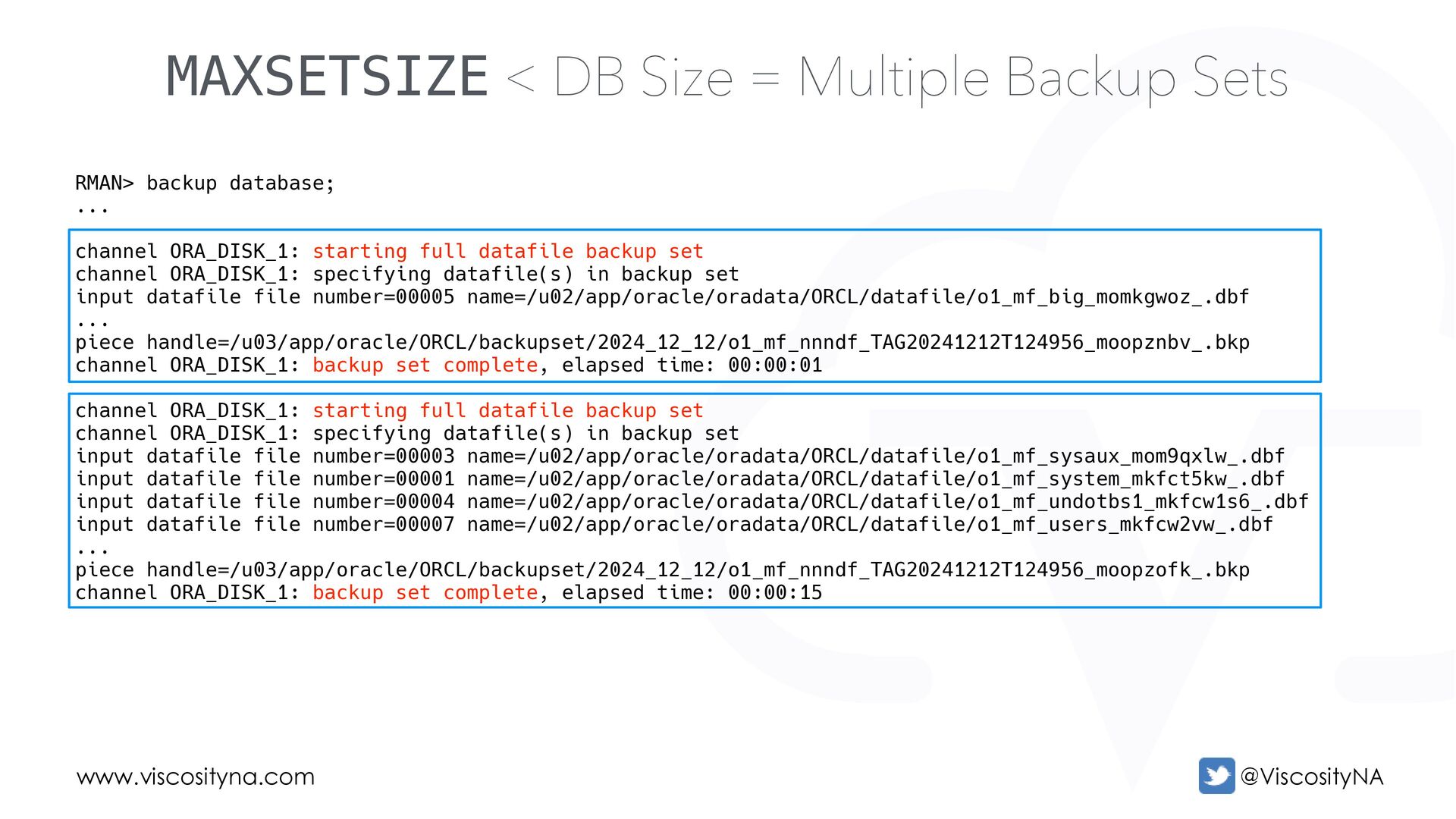

74. www.viscosityna.com @ViscosityNA MAXSETSIZE < DB Size = Multiple Backup Sets RMAN> backup database; ... channel ORA_DISK_1: starting full datafile backup set channel ORA_DISK_1: specifying datafile(s) in backup set input datafile file number=00005 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_big_momkgwoz_.dbf ... piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T124956_moopznbv_.bkp channel ORA_DISK_1: backup set complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting full datafile backup set channel ORA_DISK_1: specifying datafile(s) in backup set input datafile file number=00003 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_sysaux_mom9qxlw_.dbf input datafile file number=00001 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_system_mkfct5kw_.dbf input datafile file number=00004 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_undotbs1_mkfcw1s6_.dbf input datafile file number=00007 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_users_mkfcw2vw_.dbf ... piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T124956_moopzofk_.bkp channel ORA_DISK_1: backup set complete, elapsed time: 00:00:15

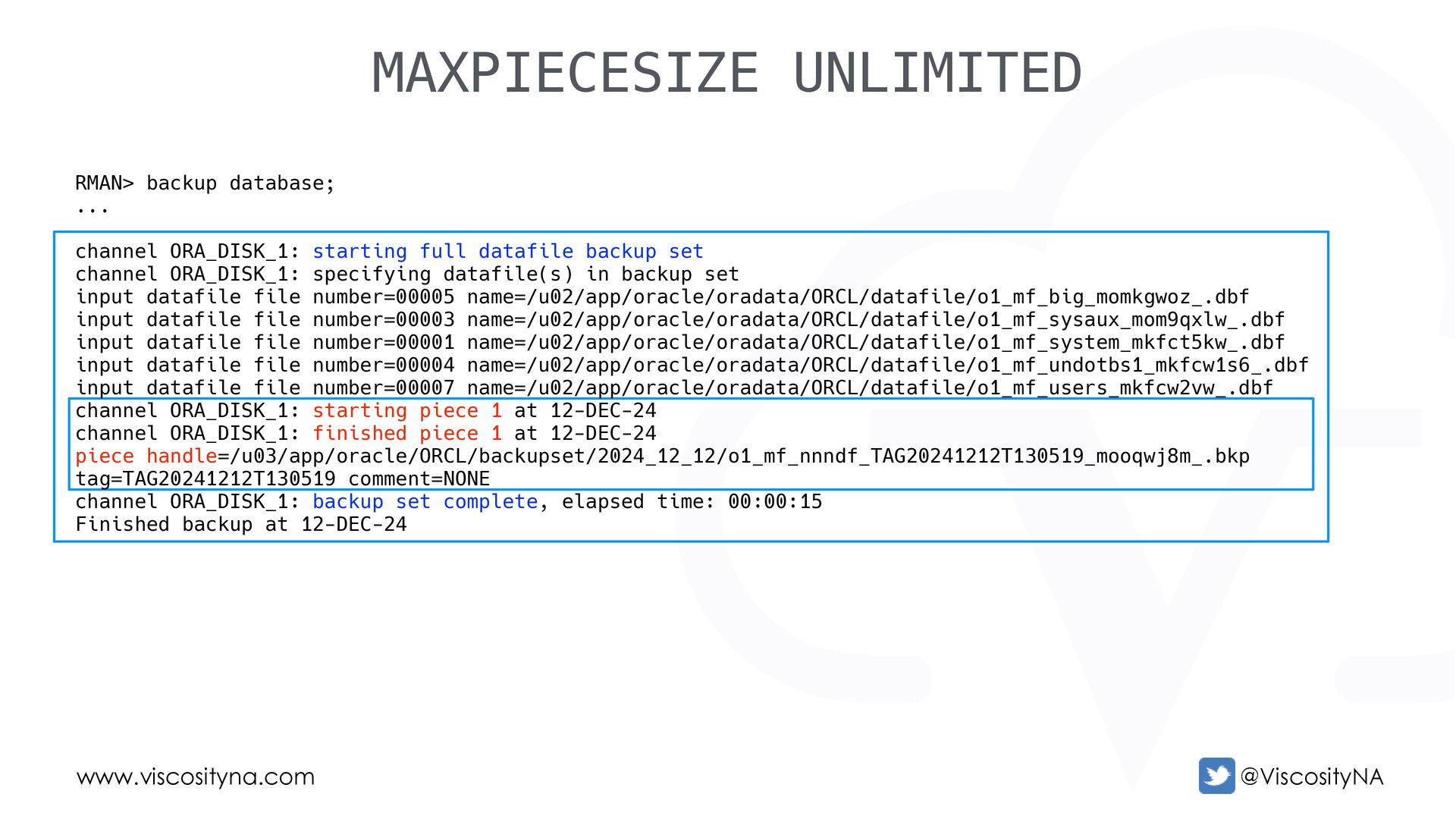

75. www.viscosityna.com @ViscosityNA MAXPIECESIZE UNLIMITED RMAN> backup database; ... channel ORA_DISK_1: starting full datafile backup set channel ORA_DISK_1: specifying datafile(s) in backup set input datafile file number=00005 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_big_momkgwoz_.dbf input datafile file number=00003 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_sysaux_mom9qxlw_.dbf input datafile file number=00001 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_system_mkfct5kw_.dbf input datafile file number=00004 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_undotbs1_mkfcw1s6_.dbf input datafile file number=00007 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_users_mkfcw2vw_.dbf channel ORA_DISK_1: starting piece 1 at 12-DEC-24 channel ORA_DISK_1: finished piece 1 at 12-DEC-24 piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T130519_mooqwj8m_.bkp tag=TAG20241212T130519 comment=NONE channel ORA_DISK_1: backup set complete, elapsed time: 00:00:15 Finished backup at 12-DEC-24

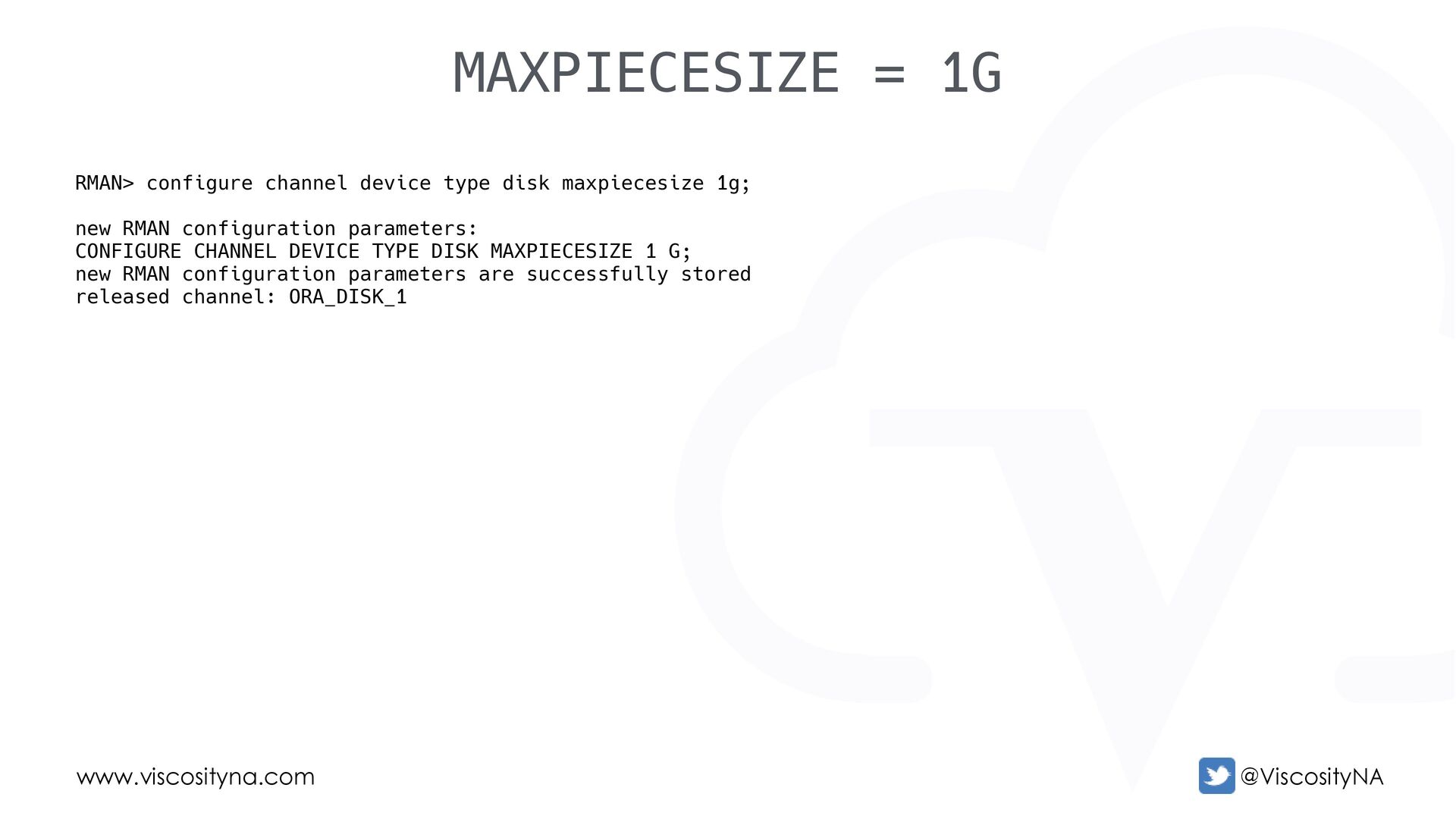

76. www.viscosityna.com @ViscosityNA MAXPIECESIZE = 1G RMAN> configure channel device type disk maxpiecesize 1g; new RMAN configuration parameters: CONFIGURE CHANNEL DEVICE TYPE DISK MAXPIECESIZE 1 G; new RMAN configuration parameters are successfully stored released channel: ORA_DISK_1
77. www.viscosityna.com @ViscosityNA RMAN> backup database; Starting backup at 12-DEC-24 allocated channel: ORA_DISK_1 channel ORA_DISK_1: SID=23 device type=DISK channel ORA_DISK_1: starting full datafile backup set channel ORA_DISK_1: specifying datafile(s) in backup set input datafile file number=00005 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_big_momkgwoz_.dbf input datafile file number=00003 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_sysaux_mom9qxlw_.dbf input datafile file number=00001 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_system_mkfct5kw_.dbf input datafile file number=00004 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_undotbs1_mkfcw1s6_.dbf input datafile file number=00007 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_users_mkfcw2vw_.dbf channel ORA_DISK_1: starting piece 1 at 12-DEC-24 channel ORA_DISK_1: finished piece 1 at 12-DEC-24 piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T131429_moorfowr_.bkp channel ORA_DISK_1: starting piece 2 at 12-DEC-24 channel ORA_DISK_1: finished piece 2 at 12-DEC-24 piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T131429_moorfwwg_.bkp channel ORA_DISK_1: starting piece 3 at 12-DEC-24 channel ORA_DISK_1: finished piece 3 at 12-DEC-24 piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T131429_moorg3wl_.bkp channel ORA_DISK_1: backup set complete, elapsed time: 00:00:15 Finished backup at 12-DEC-24 MAXPIECESIZE = 1G

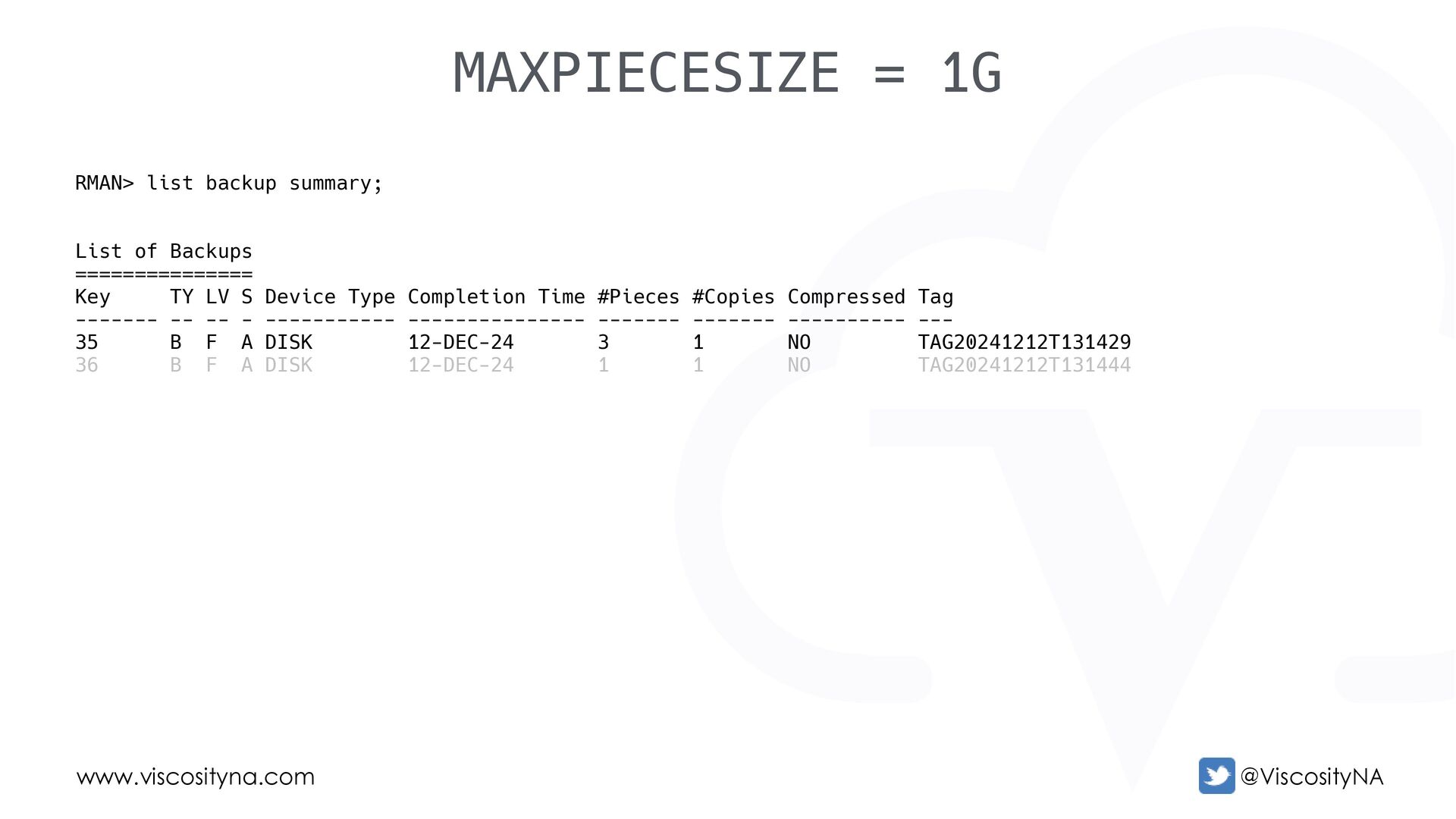

78. www.viscosityna.com @ViscosityNA RMAN> list backup summary; List of Backups =============== Key TY LV S Device Type Completion Time #Pieces #Copies Compressed Tag ------- -- -- - ----------- --------------- ------- ------- ---------- --- 35 B F A DISK 12-DEC-24 3 1 NO TAG20241212T131429 36 B F A DISK 12-DEC-24 1 1 NO TAG20241212T131444 MAXPIECESIZE = 1G

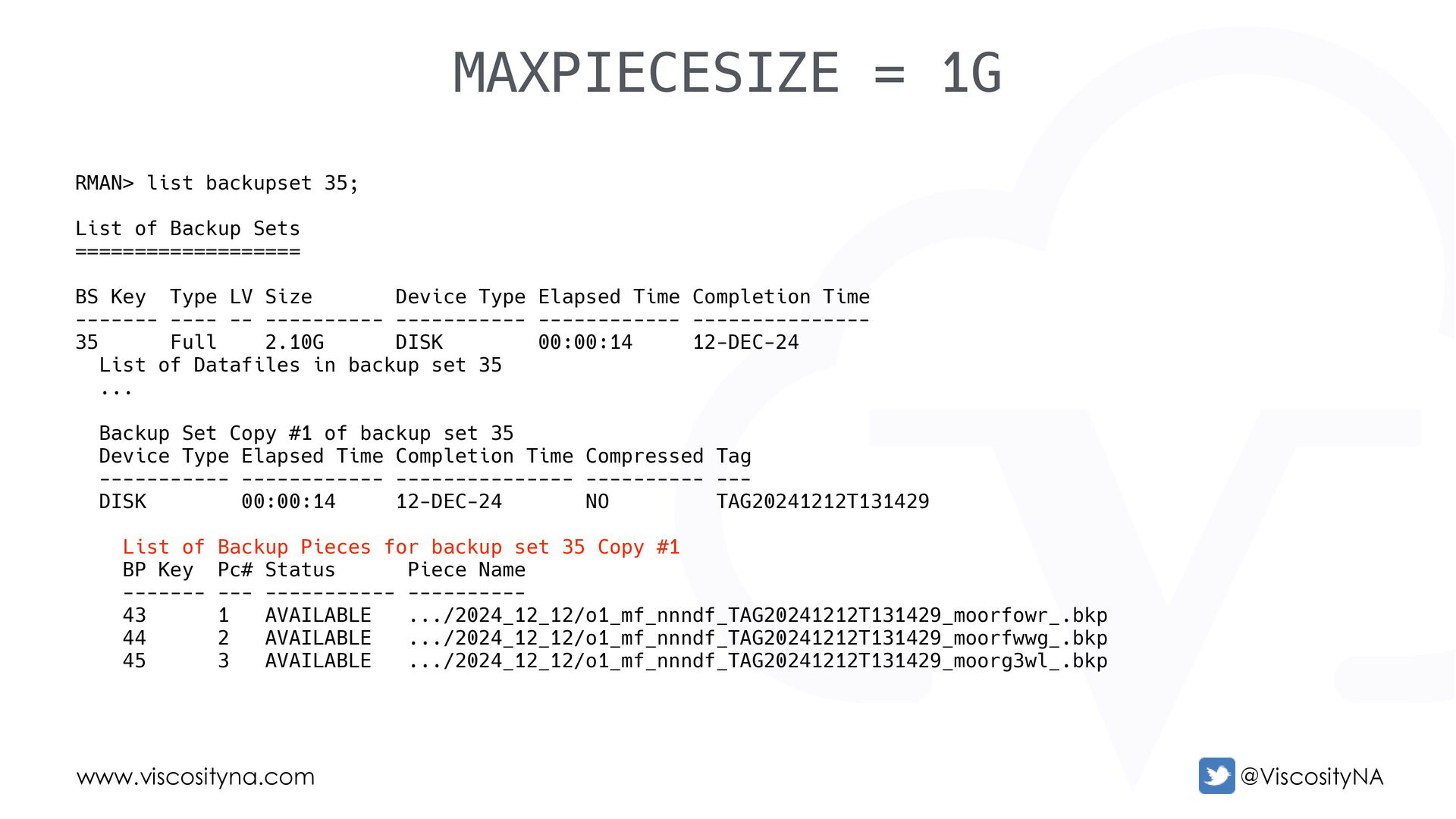

79. www.viscosityna.com @ViscosityNA RMAN> list backupset 35; List of Backup Sets =================== BS Key Type LV Size Device Type Elapsed Time Completion Time ------- ---- -- ---------- ----------- ------------ --------------- 35 Full 2.10G DISK 00:00:14 12-DEC-24 List of Datafiles in backup set 35 ... Backup Set Copy #1 of backup set 35 Device Type Elapsed Time Completion Time Compressed Tag ----------- ------------ --------------- ---------- --- DISK 00:00:14 12-DEC-24 NO TAG20241212T131429 List of Backup Pieces for backup set 35 Copy #1 BP Key Pc# Status Piece Name ------- --- ----------- ---------- 43 1 AVAILABLE .../2024_12_12/o1_mf_nnndf_TAG20241212T131429_moorfowr_.bkp 44 2 AVAILABLE .../2024_12_12/o1_mf_nnndf_TAG20241212T131429_moorfwwg_.bkp 45 3 AVAILABLE .../2024_12_12/o1_mf_nnndf_TAG20241212T131429_moorg3wl_.bkp MAXPIECESIZE = 1G

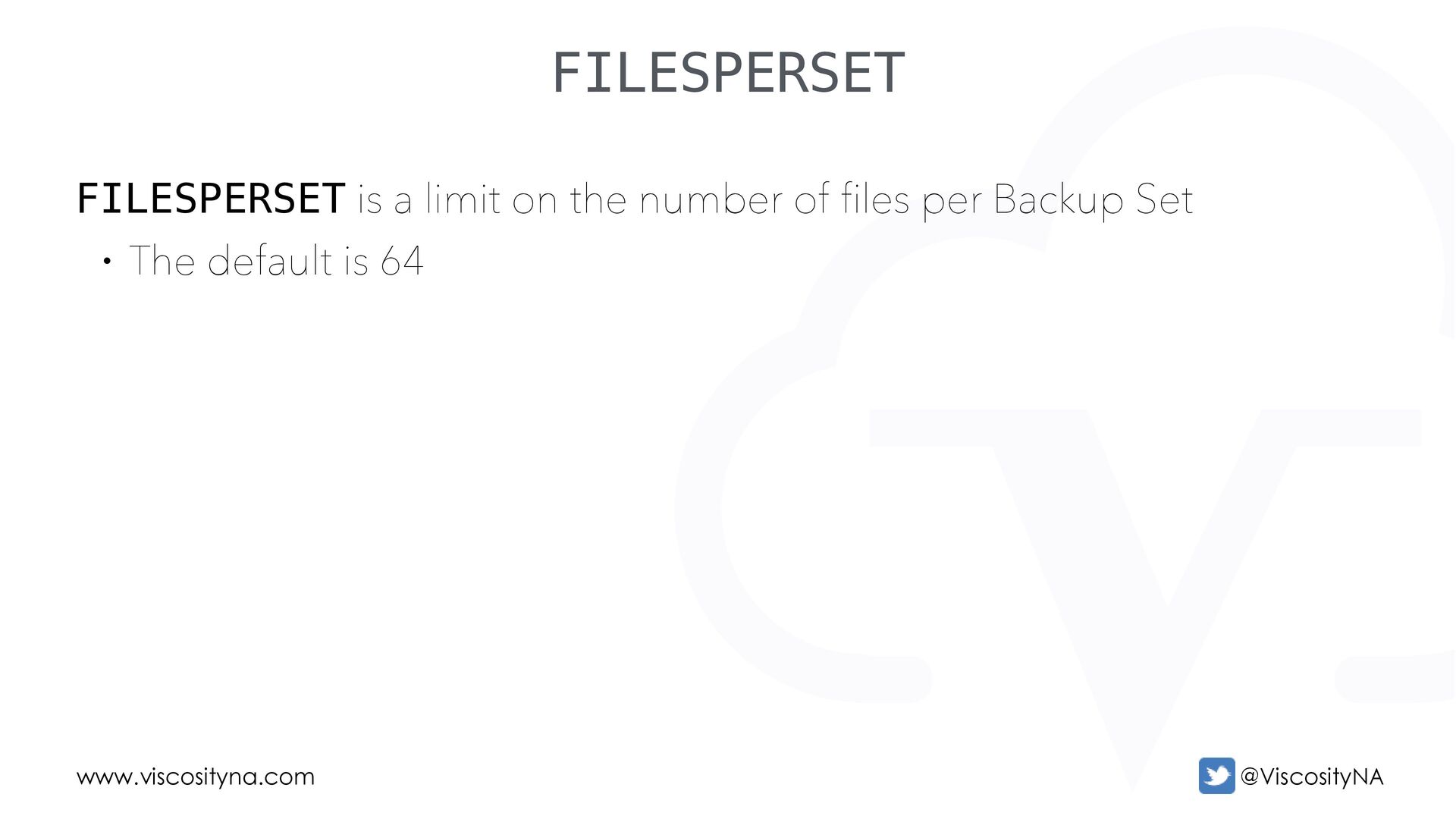

80. www.viscosityna.com @ViscosityNA FILESPERSET FILESPERSET is a limit on the number of files per Backup Set • The default is 64

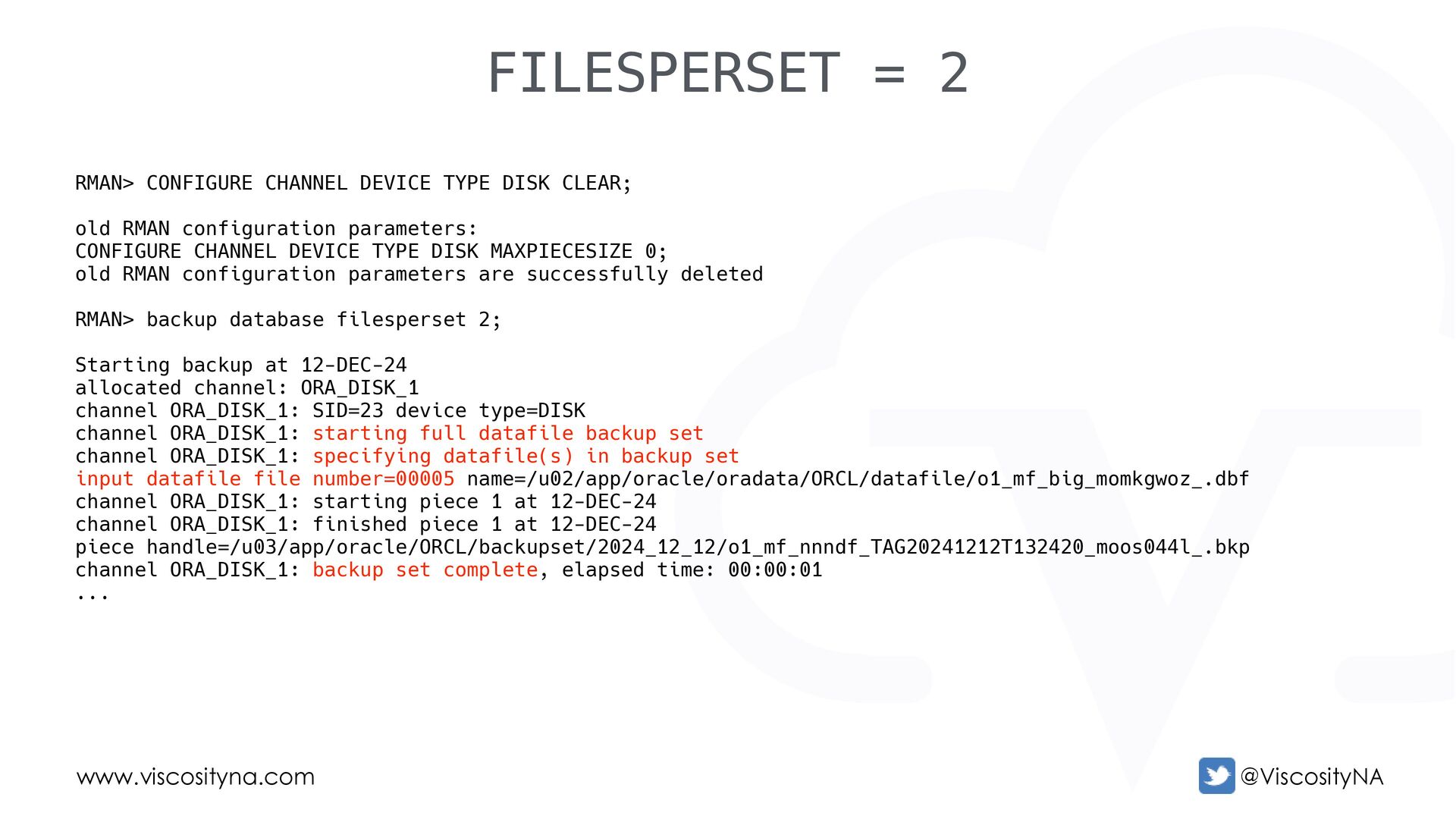

81. www.viscosityna.com @ViscosityNA FILESPERSET = 2 RMAN> CONFIGURE CHANNEL DEVICE TYPE DISK CLEAR; old RMAN configuration parameters: CONFIGURE CHANNEL DEVICE TYPE DISK MAXPIECESIZE 0; old RMAN configuration parameters are successfully deleted RMAN> backup database filesperset 2; Starting backup at 12-DEC-24 allocated channel: ORA_DISK_1 channel ORA_DISK_1: SID=23 device type=DISK channel ORA_DISK_1: starting full datafile backup set channel ORA_DISK_1: specifying datafile(s) in backup set input datafile file number=00005 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_big_momkgwoz_.dbf channel ORA_DISK_1: starting piece 1 at 12-DEC-24 channel ORA_DISK_1: finished piece 1 at 12-DEC-24 piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T132420_moos044l_.bkp channel ORA_DISK_1: backup set complete, elapsed time: 00:00:01 ...

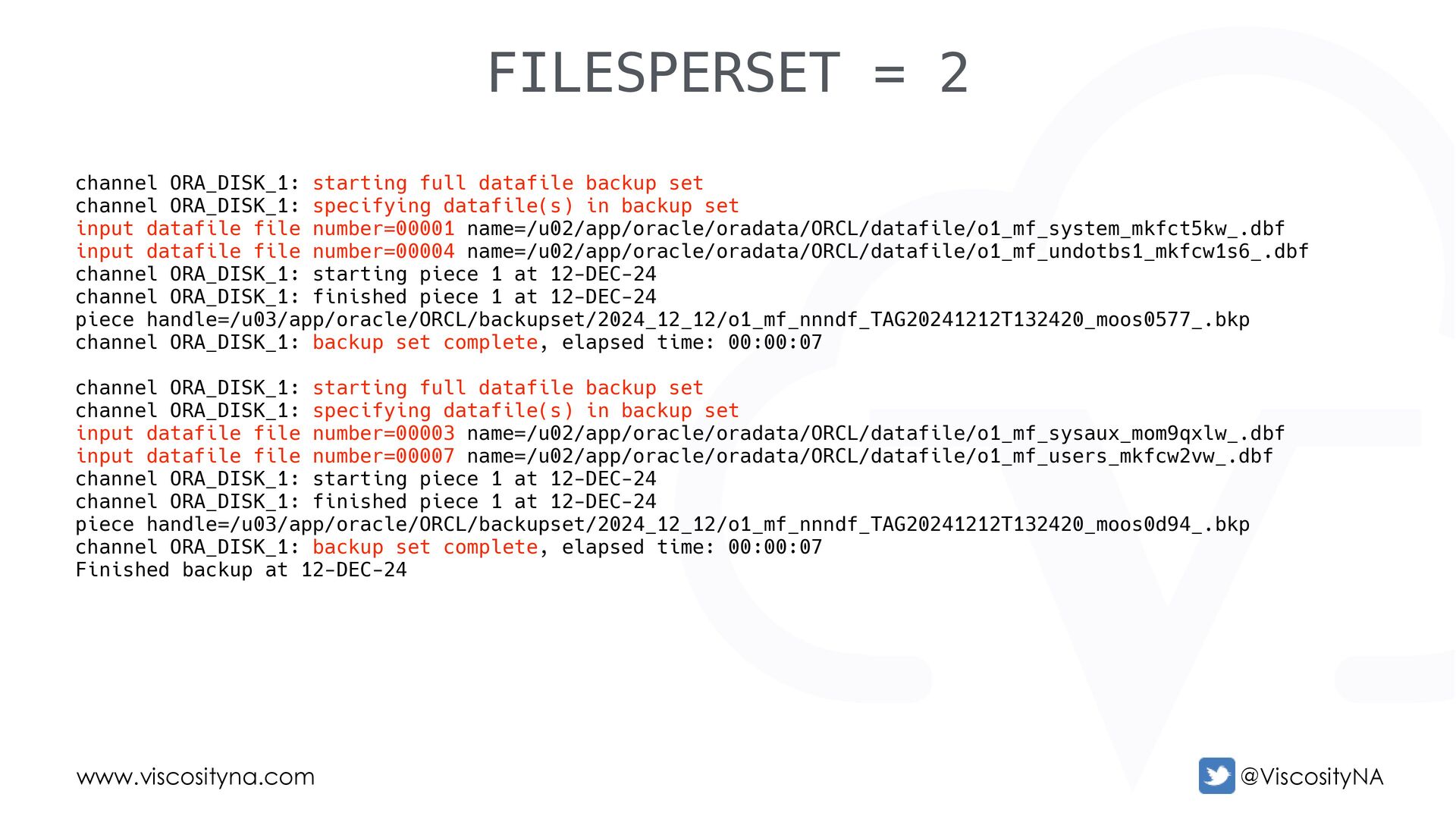

82. www.viscosityna.com @ViscosityNA FILESPERSET = 2 channel ORA_DISK_1: starting full datafile backup set channel ORA_DISK_1: specifying datafile(s) in backup set input datafile file number=00001 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_system_mkfct5kw_.dbf input datafile file number=00004 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_undotbs1_mkfcw1s6_.dbf channel ORA_DISK_1: starting piece 1 at 12-DEC-24 channel ORA_DISK_1: finished piece 1 at 12-DEC-24 piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T132420_moos0577_.bkp channel ORA_DISK_1: backup set complete, elapsed time: 00:00:07 channel ORA_DISK_1: starting full datafile backup set channel ORA_DISK_1: specifying datafile(s) in backup set input datafile file number=00003 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_sysaux_mom9qxlw_.dbf input datafile file number=00007 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_users_mkfcw2vw_.dbf channel ORA_DISK_1: starting piece 1 at 12-DEC-24 channel ORA_DISK_1: finished piece 1 at 12-DEC-24 piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T132420_moos0d94_.bkp channel ORA_DISK_1: backup set complete, elapsed time: 00:00:07 Finished backup at 12-DEC-24

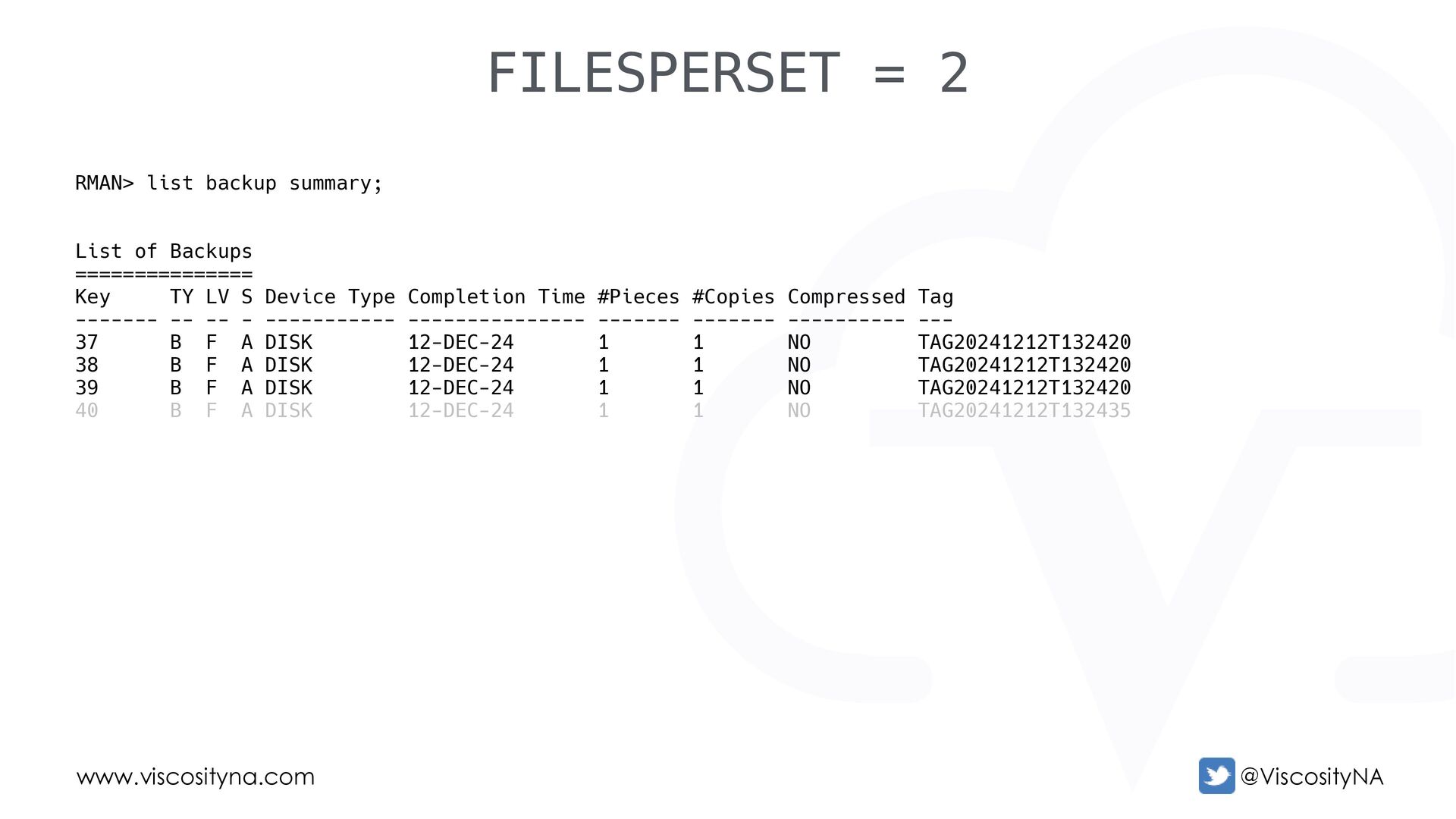

83. www.viscosityna.com @ViscosityNA FILESPERSET = 2 RMAN> list backup summary; List of Backups =============== Key TY LV S Device Type Completion Time #Pieces #Copies Compressed Tag ------- -- -- - ----------- --------------- ------- ------- ---------- --- 37 B F A DISK 12-DEC-24 1 1 NO TAG20241212T132420 38 B F A DISK 12-DEC-24 1 1 NO TAG20241212T132420 39 B F A DISK 12-DEC-24 1 1 NO TAG20241212T132420 40 B F A DISK 12-DEC-24 1 1 NO TAG20241212T132435
84. www.viscosityna.com @ViscosityNA Backup Set 37 BS Key Type LV Size Device Type Elapsed Time Completion Time ------- ---- -- ---------- ----------- ------------ --------------- 37 Full 67.98M DISK 00:00:00 12-DEC-24 BP Key: 47 Status: AVAILABLE Compressed: NO Tag: TAG20241212T132420 Piece Name: /u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T132420_moos044l_.bkp List of Datafiles in backup set 37 File LV Type Ckp SCN Ckp Time Abs Fuz SCN Sparse Name ---- -- ---- ---------- --------- ----------- ------ ---- 5 Full 6244578 12-DEC-24 NO /u02/app/oracle/oradata/ORCL/datafile/o1_mf_big.dbf FILESPERSET = 2

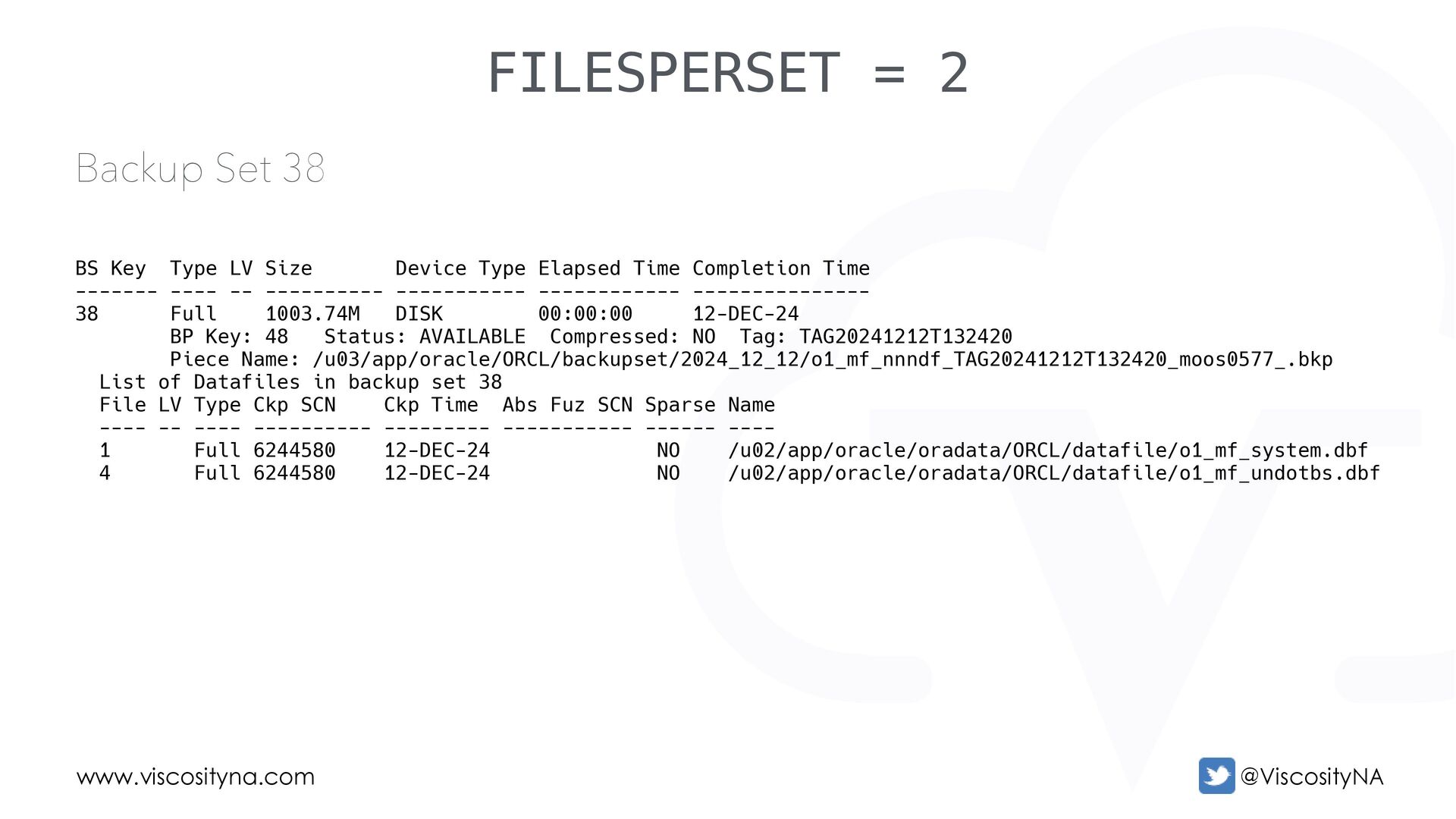

85. www.viscosityna.com @ViscosityNA Backup Set 38 BS Key Type LV Size Device Type Elapsed Time Completion Time ------- ---- -- ---------- ----------- ------------ --------------- 38 Full 1003.74M DISK 00:00:00 12-DEC-24 BP Key: 48 Status: AVAILABLE Compressed: NO Tag: TAG20241212T132420 Piece Name: /u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T132420_moos0577_.bkp List of Datafiles in backup set 38 File LV Type Ckp SCN Ckp Time Abs Fuz SCN Sparse Name ---- -- ---- ---------- --------- ----------- ------ ---- 1 Full 6244580 12-DEC-24 NO /u02/app/oracle/oradata/ORCL/datafile/o1_mf_system.dbf 4 Full 6244580 12-DEC-24 NO /u02/app/oracle/oradata/ORCL/datafile/o1_mf_undotbs.dbf FILESPERSET = 2

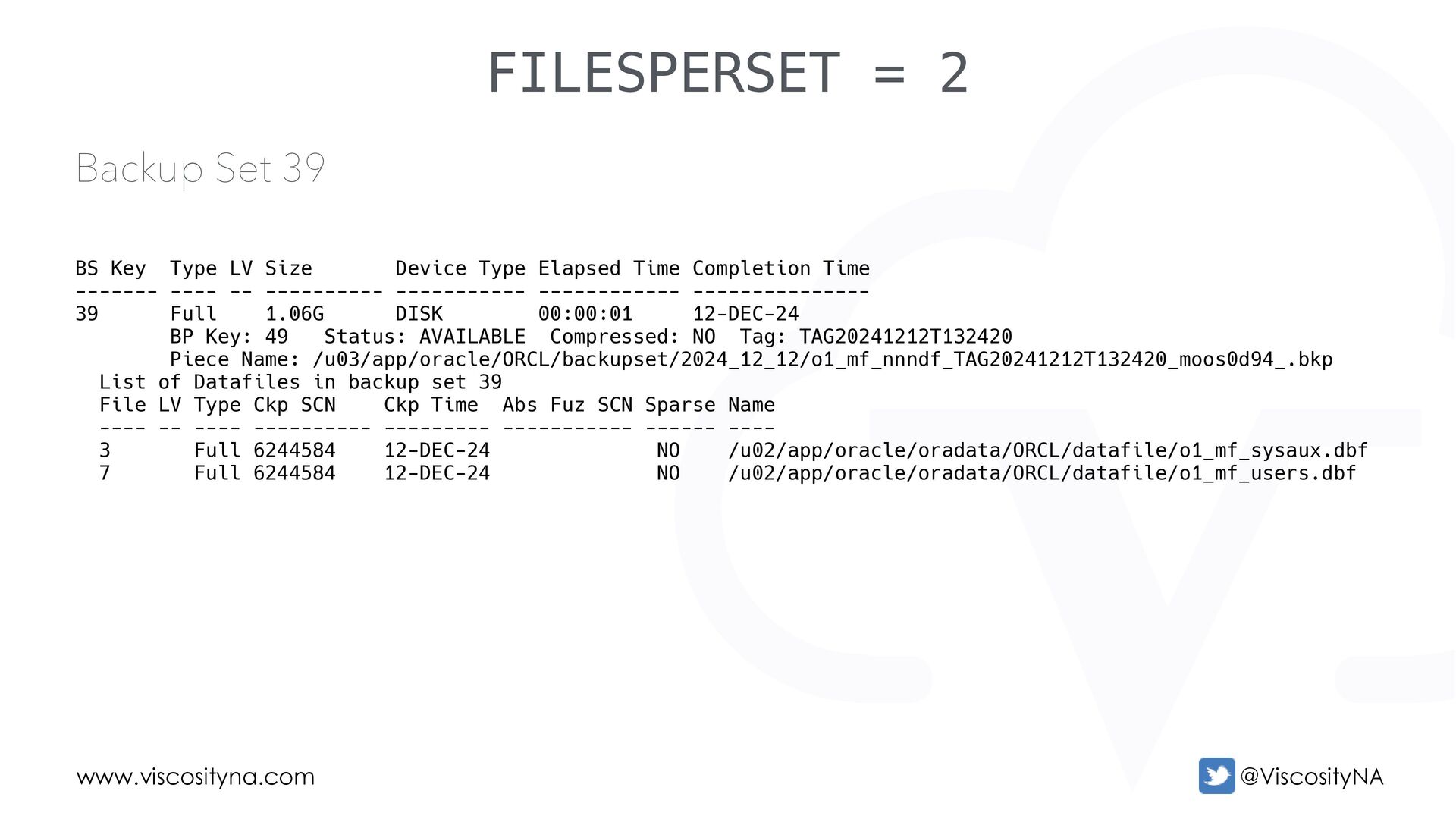

86. www.viscosityna.com @ViscosityNA Backup Set 39 BS Key Type LV Size Device Type Elapsed Time Completion Time ------- ---- -- ---------- ----------- ------------ --------------- 39 Full 1.06G DISK 00:00:01 12-DEC-24 BP Key: 49 Status: AVAILABLE Compressed: NO Tag: TAG20241212T132420 Piece Name: /u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T132420_moos0d94_.bkp List of Datafiles in backup set 39 File LV Type Ckp SCN Ckp Time Abs Fuz SCN Sparse Name ---- -- ---- ---------- --------- ----------- ------ ---- 3 Full 6244584 12-DEC-24 NO /u02/app/oracle/oradata/ORCL/datafile/o1_mf_sysaux.dbf 7 Full 6244584 12-DEC-24 NO /u02/app/oracle/oradata/ORCL/datafile/o1_mf_users.dbf FILESPERSET = 2

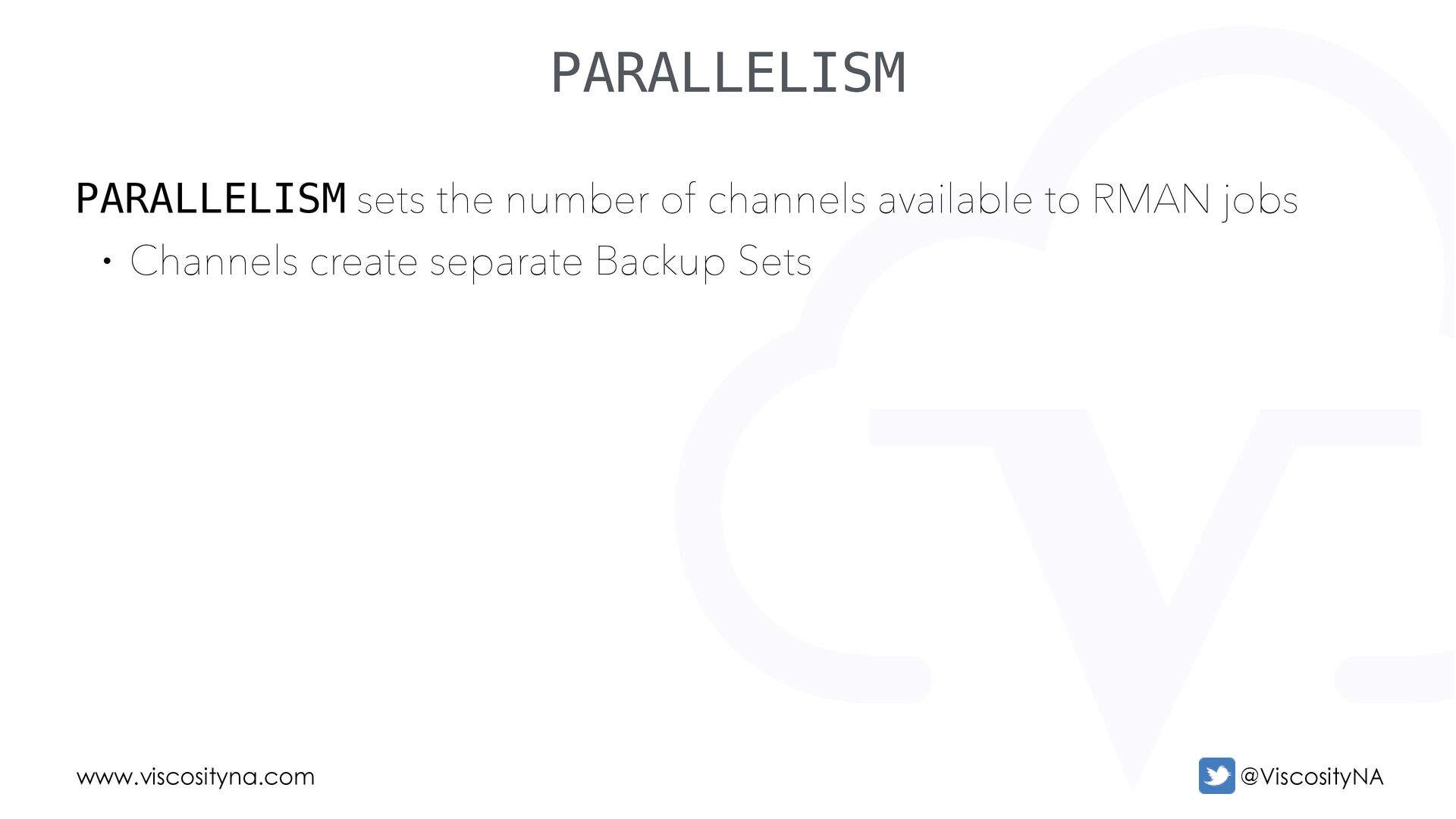

87. www.viscosityna.com @ViscosityNA PARALLELISM PARALLELISM sets the number of channels available to RMAN jobs • Channels create separate Backup Sets

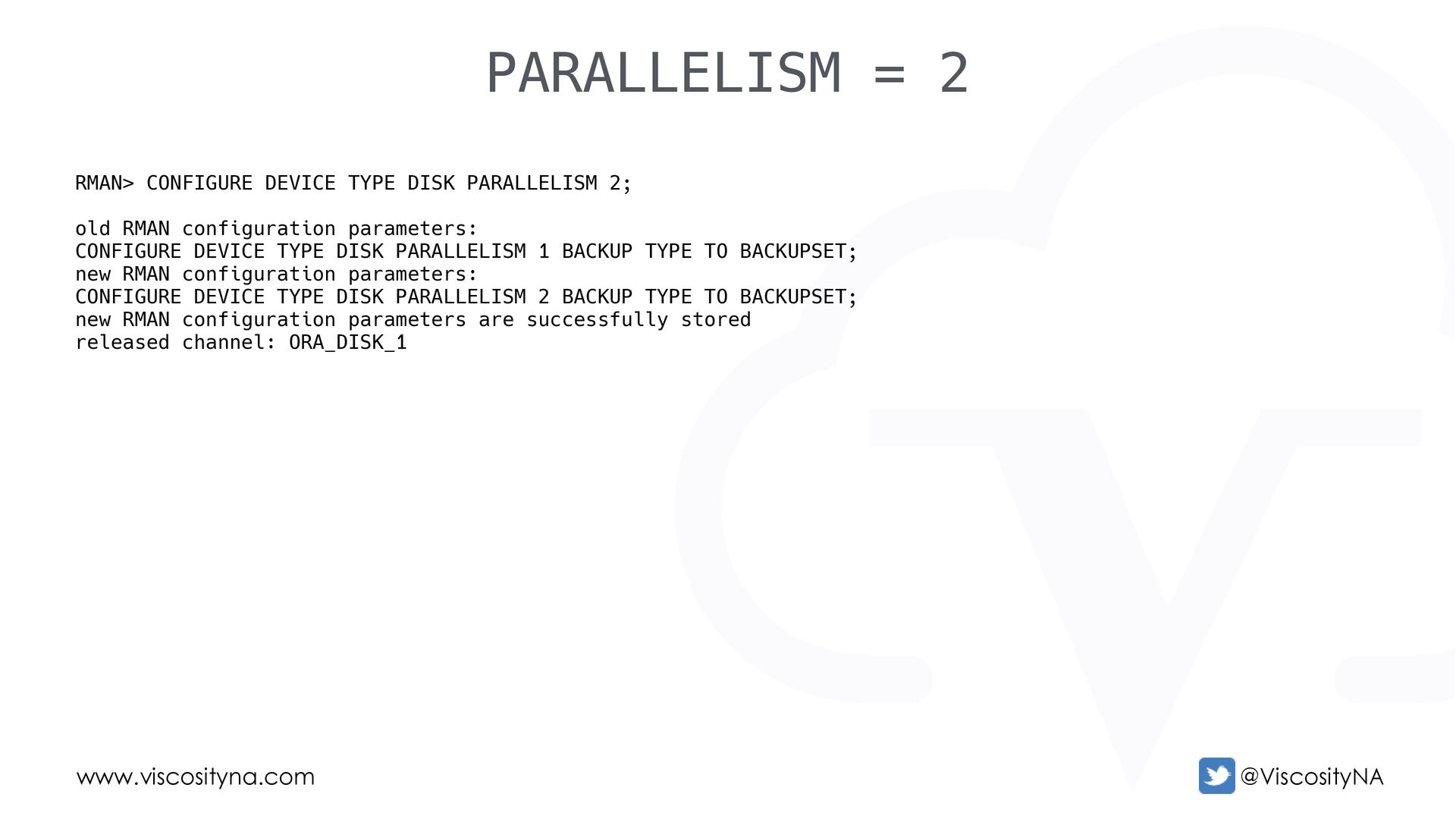

88. www.viscosityna.com @ViscosityNA PARALLELISM = 2 RMAN> CONFIGURE DEVICE TYPE DISK PARALLELISM 2; old RMAN configuration parameters: CONFIGURE DEVICE TYPE DISK PARALLELISM 1 BACKUP TYPE TO BACKUPSET; new RMAN configuration parameters: CONFIGURE DEVICE TYPE DISK PARALLELISM 2 BACKUP TYPE TO BACKUPSET; new RMAN configuration parameters are successfully stored released channel: ORA_DISK_1

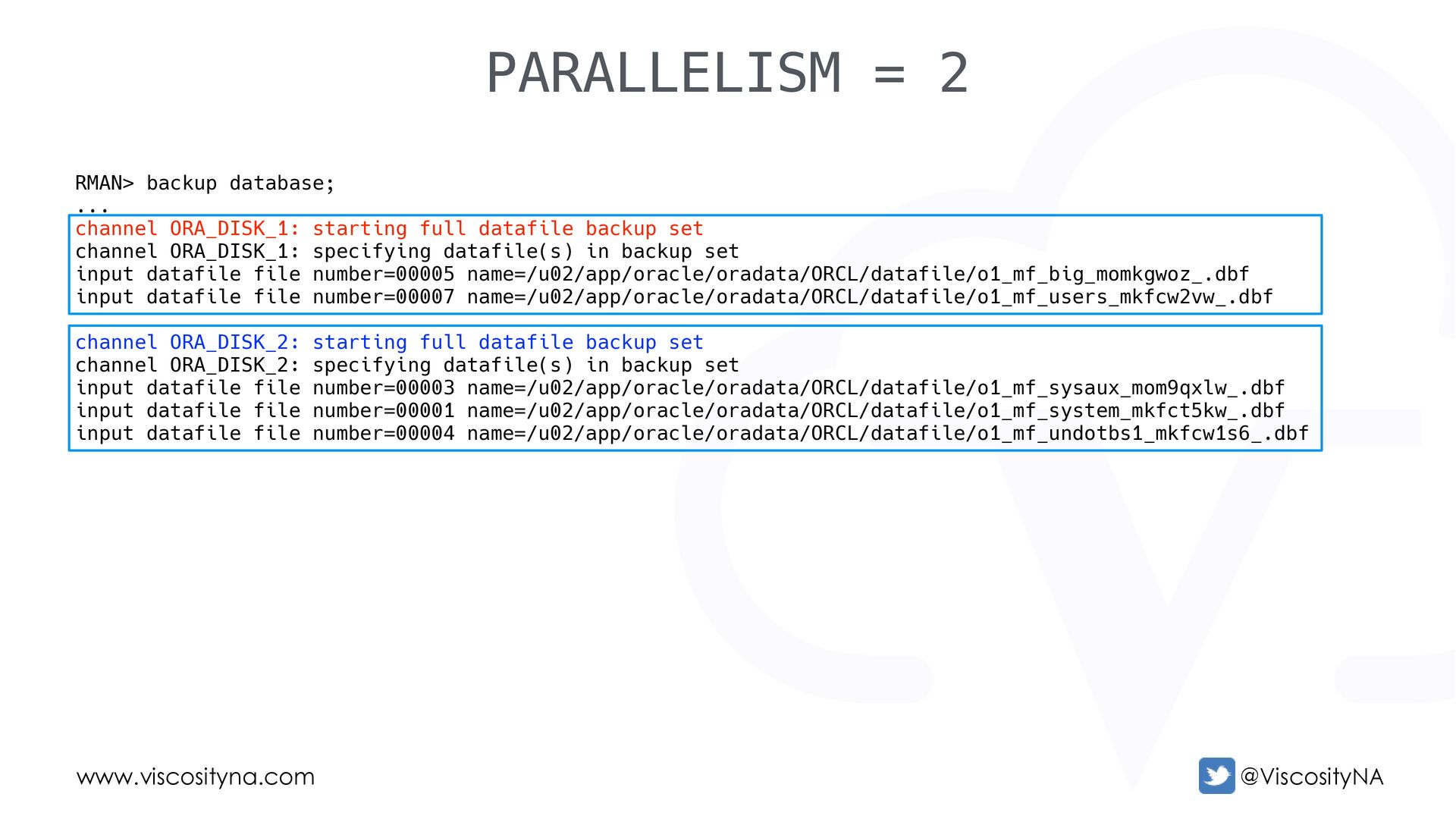

89. www.viscosityna.com @ViscosityNA PARALLELISM = 2 RMAN> backup database; ... channel ORA_DISK_1: starting full datafile backup set channel ORA_DISK_1: specifying datafile(s) in backup set input datafile file number=00005 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_big_momkgwoz_.dbf input datafile file number=00007 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_users_mkfcw2vw_.dbf channel ORA_DISK_2: starting full datafile backup set channel ORA_DISK_2: specifying datafile(s) in backup set input datafile file number=00003 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_sysaux_mom9qxlw_.dbf input datafile file number=00001 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_system_mkfct5kw_.dbf input datafile file number=00004 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_undotbs1_mkfcw1s6_.dbf

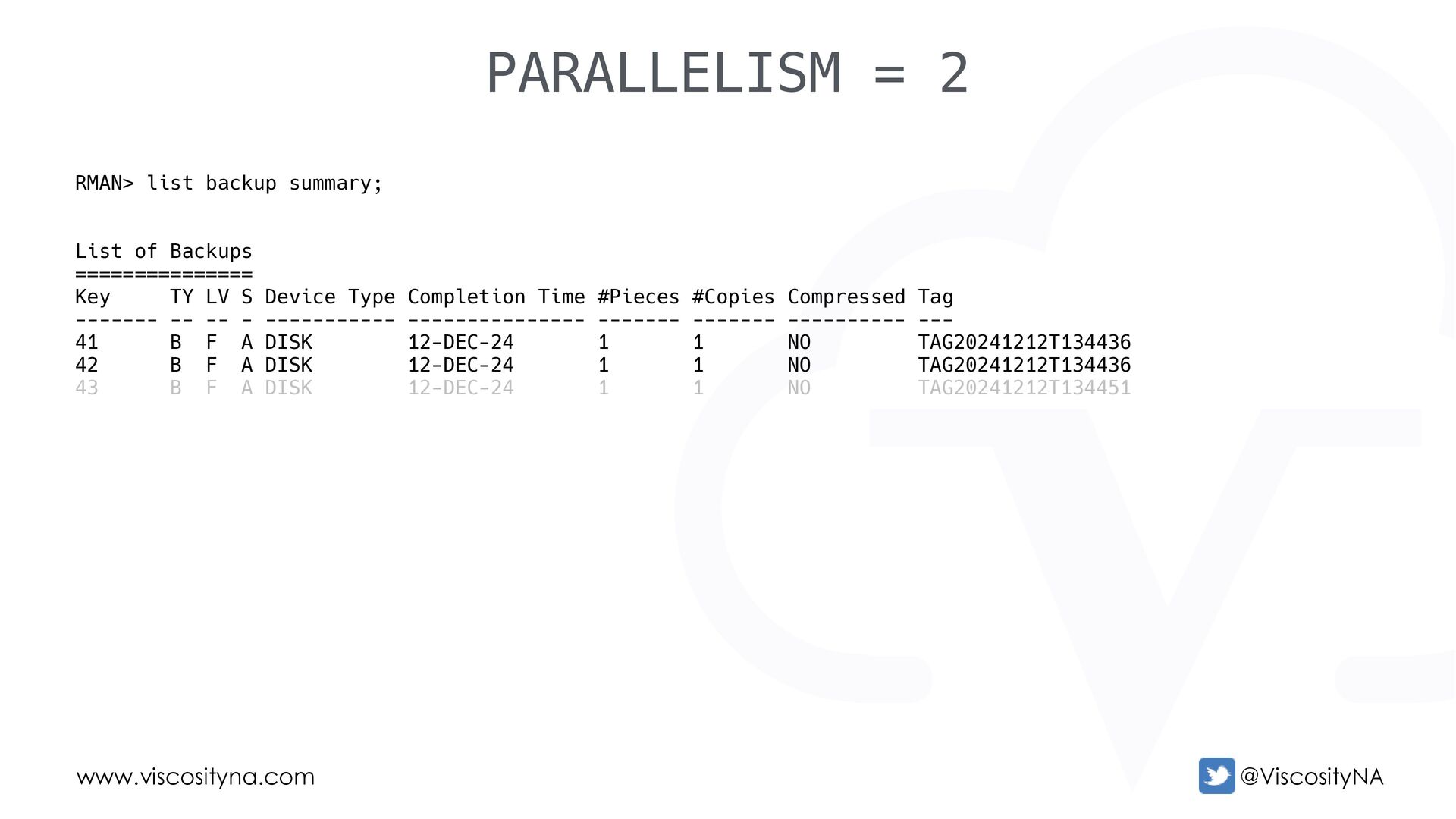

90. www.viscosityna.com @ViscosityNA PARALLELISM = 2 RMAN> list backup summary; List of Backups =============== Key TY LV S Device Type Completion Time #Pieces #Copies Compressed Tag ------- -- -- - ----------- --------------- ------- ------- ---------- --- 41 B F A DISK 12-DEC-24 1 1 NO TAG20241212T134436 42 B F A DISK 12-DEC-24 1 1 NO TAG20241212T134436 43 B F A DISK 12-DEC-24 1 1 NO TAG20241212T134451

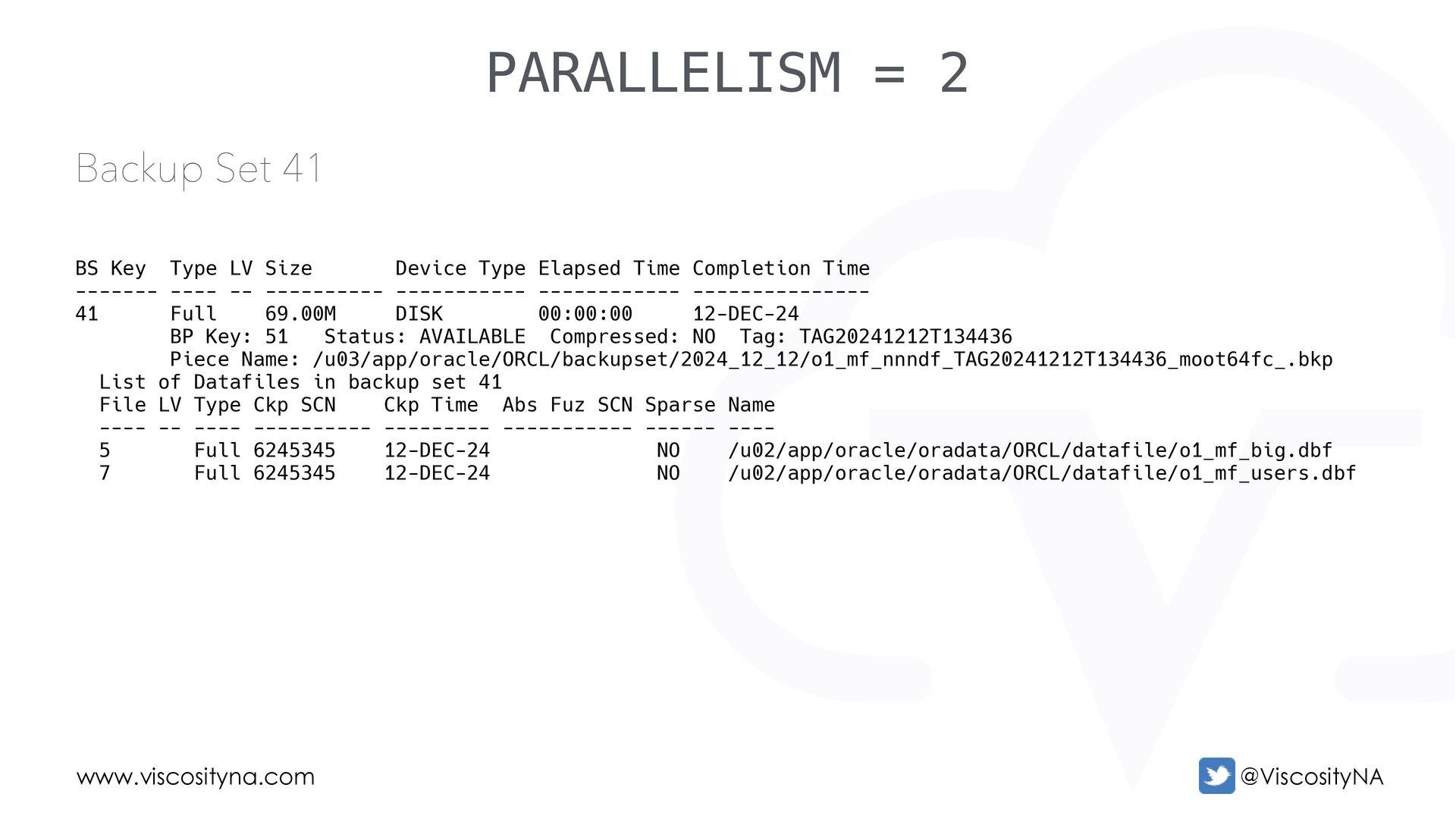

91. www.viscosityna.com @ViscosityNA Backup Set 41 PARALLELISM = 2 BS Key Type LV Size Device Type Elapsed Time Completion Time ------- ---- -- ---------- ----------- ------------ --------------- 41 Full 69.00M DISK 00:00:00 12-DEC-24 BP Key: 51 Status: AVAILABLE Compressed: NO Tag: TAG20241212T134436 Piece Name: /u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T134436_moot64fc_.bkp List of Datafiles in backup set 41 File LV Type Ckp SCN Ckp Time Abs Fuz SCN Sparse Name ---- -- ---- ---------- --------- ----------- ------ ---- 5 Full 6245345 12-DEC-24 NO /u02/app/oracle/oradata/ORCL/datafile/o1_mf_big.dbf 7 Full 6245345 12-DEC-24 NO /u02/app/oracle/oradata/ORCL/datafile/o1_mf_users.dbf

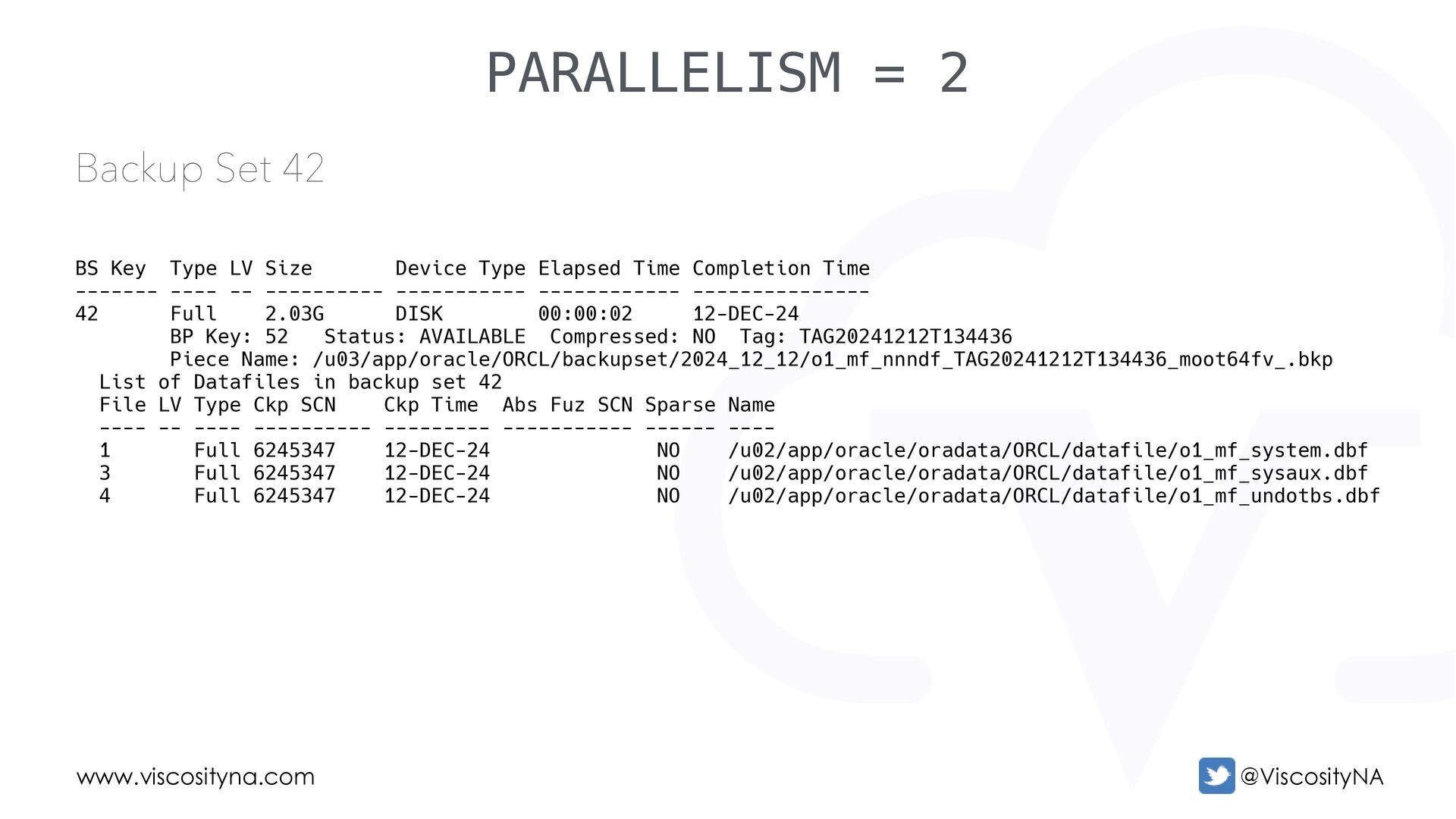

92. www.viscosityna.com @ViscosityNA PARALLELISM = 2 BS Key Type LV Size Device Type Elapsed Time Completion Time ------- ---- -- ---------- ----------- ------------ --------------- 42 Full 2.03G DISK 00:00:02 12-DEC-24 BP Key: 52 Status: AVAILABLE Compressed: NO Tag: TAG20241212T134436 Piece Name: /u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T134436_moot64fv_.bkp List of Datafiles in backup set 42 File LV Type Ckp SCN Ckp Time Abs Fuz SCN Sparse Name ---- -- ---- ---------- --------- ----------- ------ ---- 1 Full 6245347 12-DEC-24 NO /u02/app/oracle/oradata/ORCL/datafile/o1_mf_system.dbf 3 Full 6245347 12-DEC-24 NO /u02/app/oracle/oradata/ORCL/datafile/o1_mf_sysaux.dbf 4 Full 6245347 12-DEC-24 NO /u02/app/oracle/oradata/ORCL/datafile/o1_mf_undotbs.dbf Backup Set 42

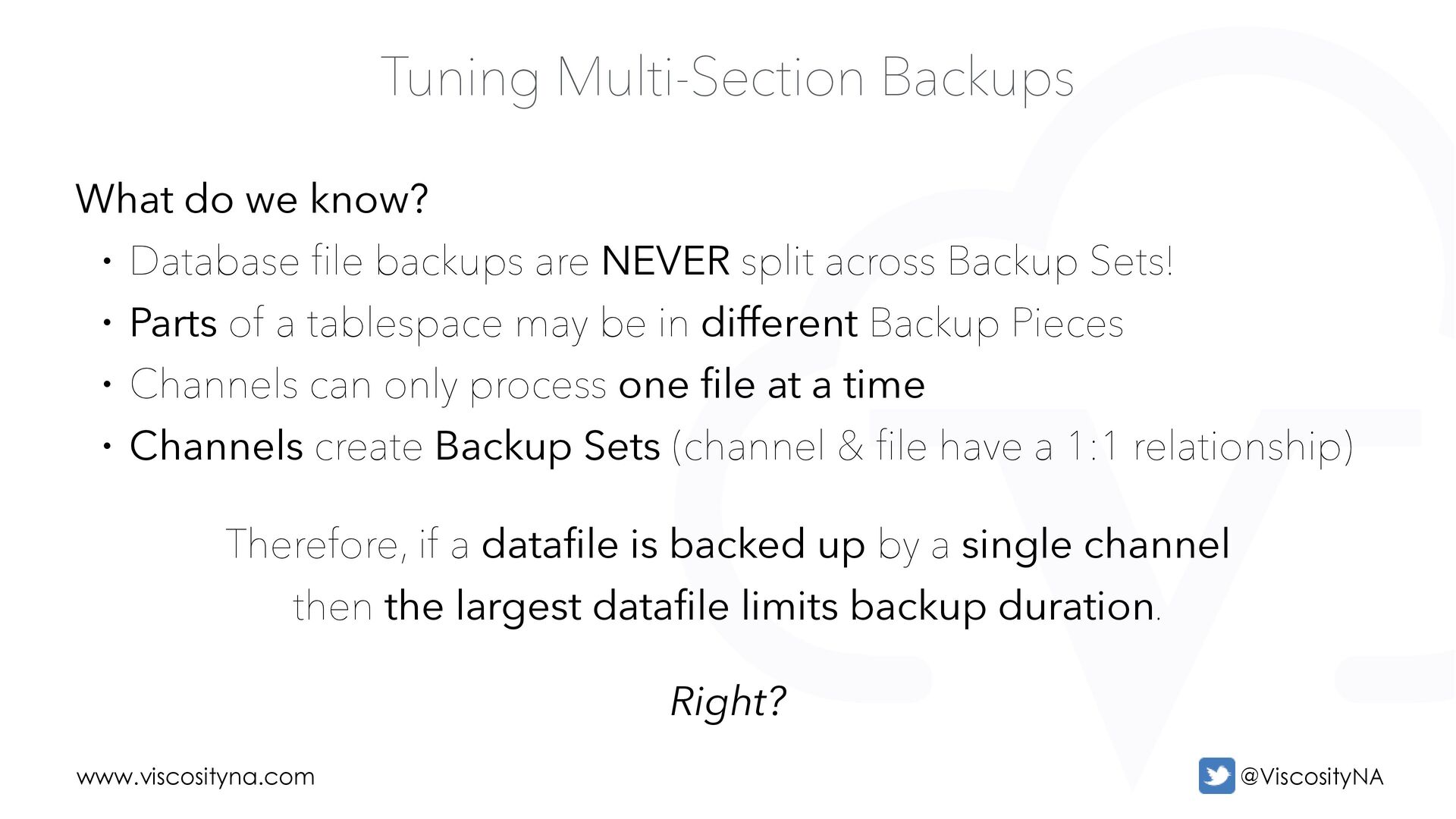

93. www.viscosityna.com @ViscosityNA Tuning Multi-Section Backups What do we know? • Database file backups are NEVER split across Backup Sets! • Parts of a tablespace may be in different Backup Pieces • Channels can only process one file at a time • Channels create Backup Sets (channel & file have a 1:1 relationship) Therefore, if a datafile is backed up by a single channel then the largest datafile limits backup duration. Right?

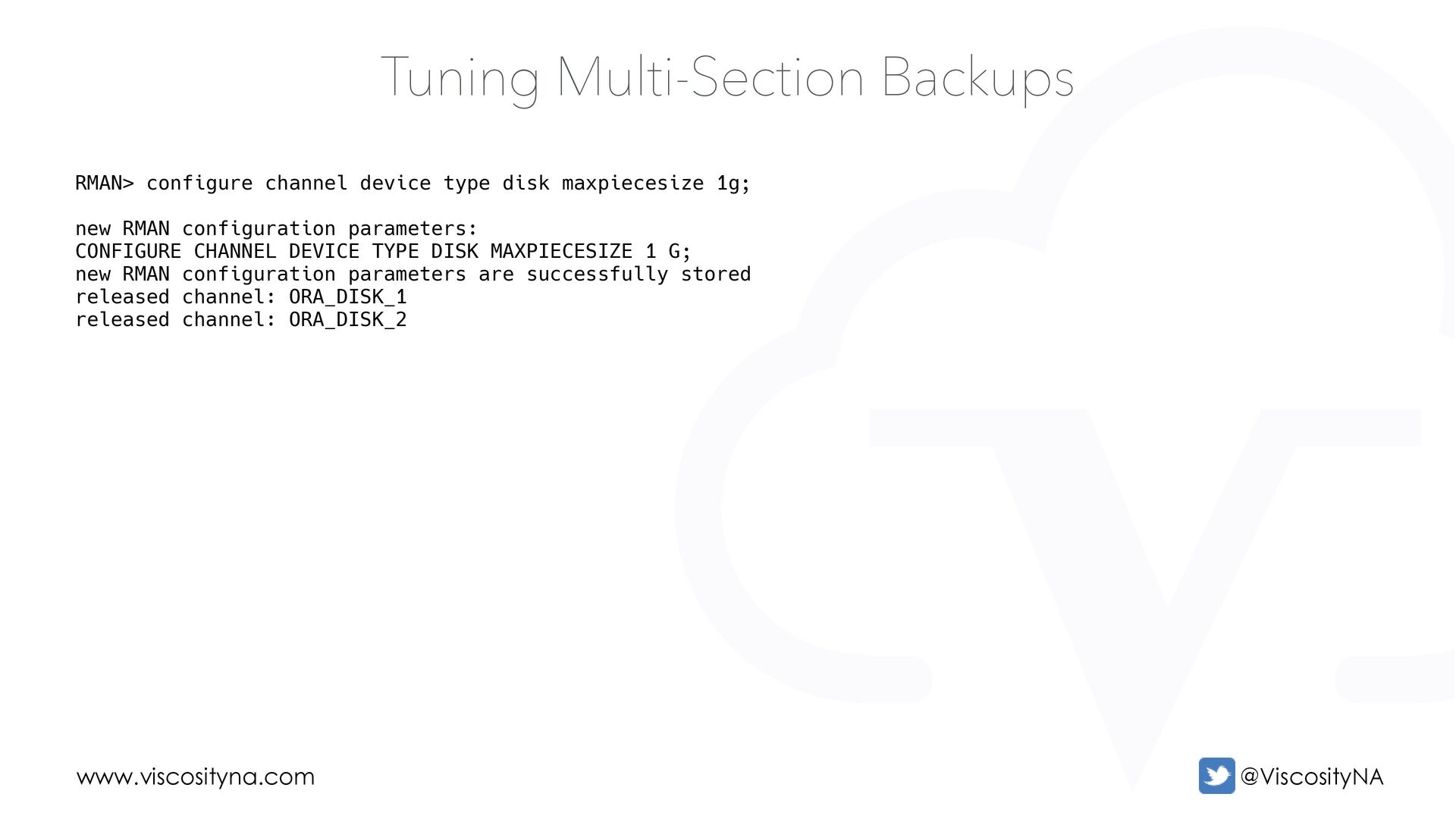

94. www.viscosityna.com @ViscosityNA RMAN> configure channel device type disk maxpiecesize 1g; new RMAN configuration parameters: CONFIGURE CHANNEL DEVICE TYPE DISK MAXPIECESIZE 1 G; new RMAN configuration parameters are successfully stored released channel: ORA_DISK_1 released channel: ORA_DISK_2 Tuning Multi-Section Backups

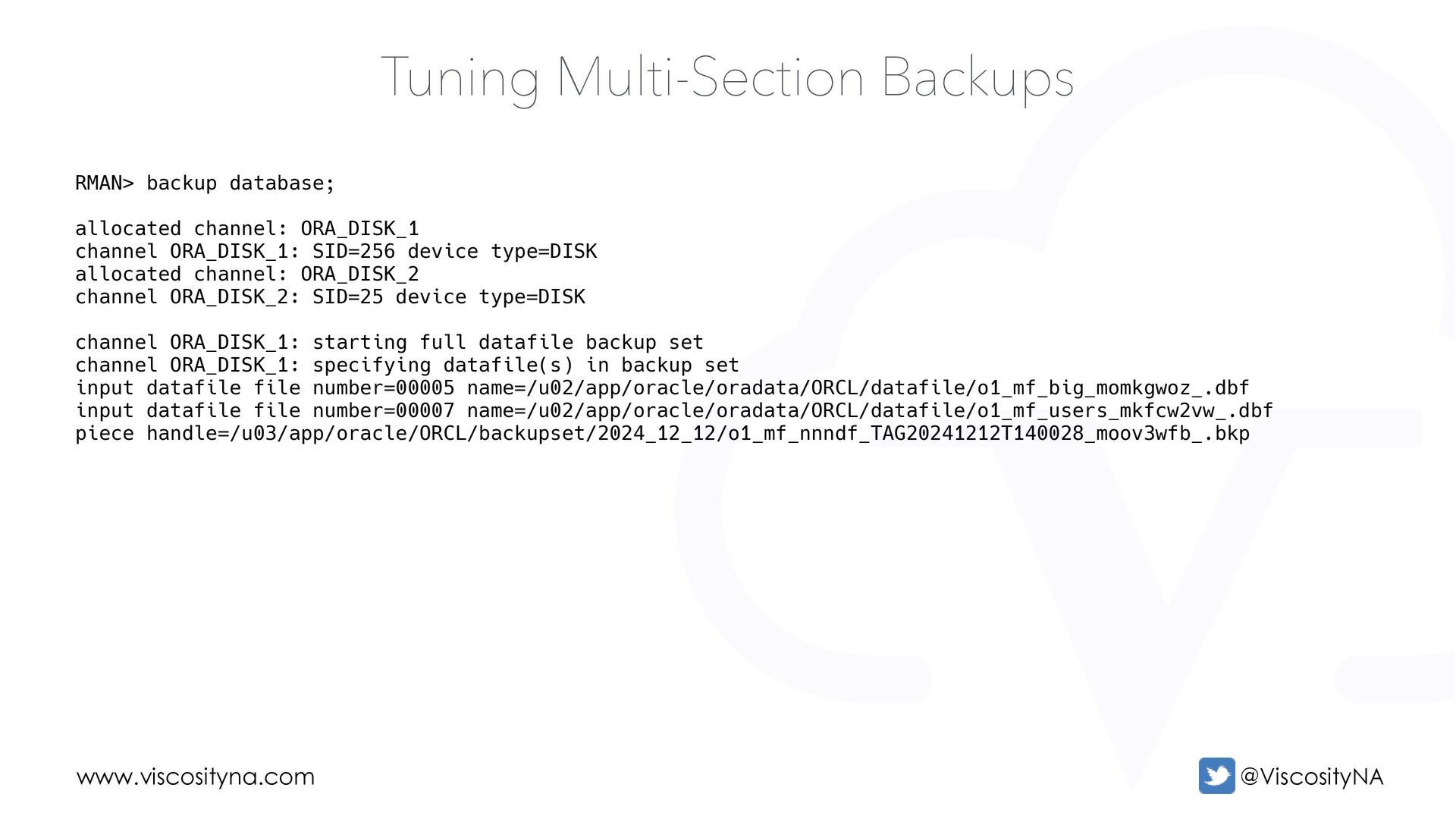

95. www.viscosityna.com @ViscosityNA RMAN> backup database; allocated channel: ORA_DISK_1 channel ORA_DISK_1: SID=256 device type=DISK allocated channel: ORA_DISK_2 channel ORA_DISK_2: SID=25 device type=DISK channel ORA_DISK_1: starting full datafile backup set channel ORA_DISK_1: specifying datafile(s) in backup set input datafile file number=00005 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_big_momkgwoz_.dbf input datafile file number=00007 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_users_mkfcw2vw_.dbf piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T140028_moov3wfb_.bkp Tuning Multi-Section Backups
96. www.viscosityna.com @ViscosityNA channel ORA_DISK_2: specifying datafile(s) in backup set input datafile file number=00003 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_sysaux_mom9qxlw_.dbf input datafile file number=00001 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_system_mkfct5kw_.dbf input datafile file number=00004 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_undotbs1_mkfcw1s6_.dbf channel ORA_DISK_2: finished piece 1 at 12-DEC-24 piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T140028_moov3wfs_.bkp channel ORA_DISK_2: finished piece 2 at 12-DEC-24 piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T140028_moov43pn_.bkp channel ORA_DISK_2: finished piece 3 at 12-DEC-24 piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T140028_moov4bpq_.bkp Tuning Multi-Section Backups

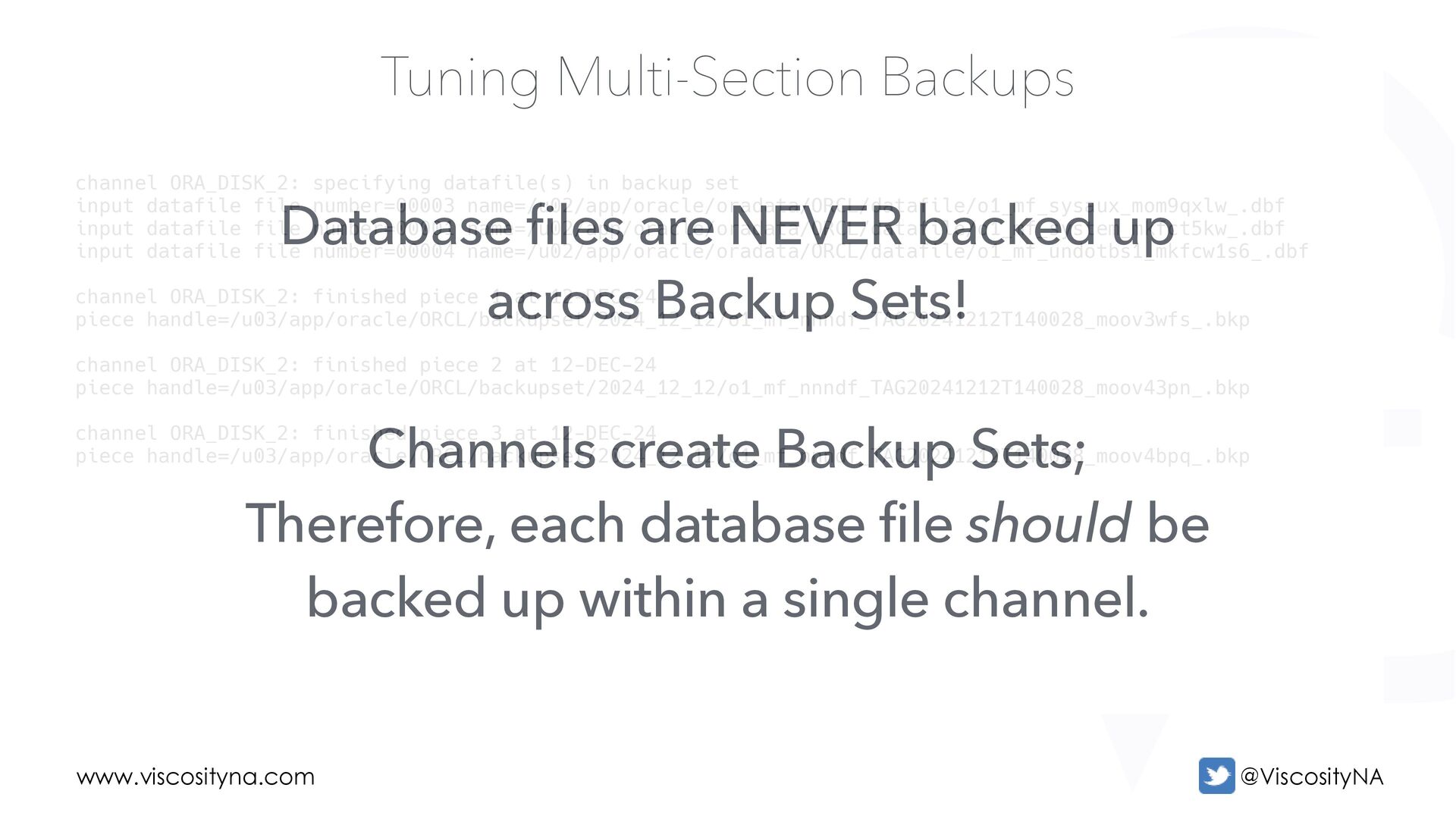

97. www.viscosityna.com @ViscosityNA channel ORA_DISK_2: specifying datafile(s) in backup set input datafile file number=00003 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_sysaux_mom9qxlw_.dbf input datafile file number=00001 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_system_mkfct5kw_.dbf input datafile file number=00004 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_undotbs1_mkfcw1s6_.dbf channel ORA_DISK_2: finished piece 1 at 12-DEC-24 piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T140028_moov3wfs_.bkp channel ORA_DISK_2: finished piece 2 at 12-DEC-24 piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T140028_moov43pn_.bkp channel ORA_DISK_2: finished piece 3 at 12-DEC-24 piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T140028_moov4bpq_.bkp Database files are NEVER backed up across Backup Sets! Channels create Backup Sets; Therefore, each database file should be backed up within a single channel. Tuning Multi-Section Backups
98. www.viscosityna.com @ViscosityNA Section Size

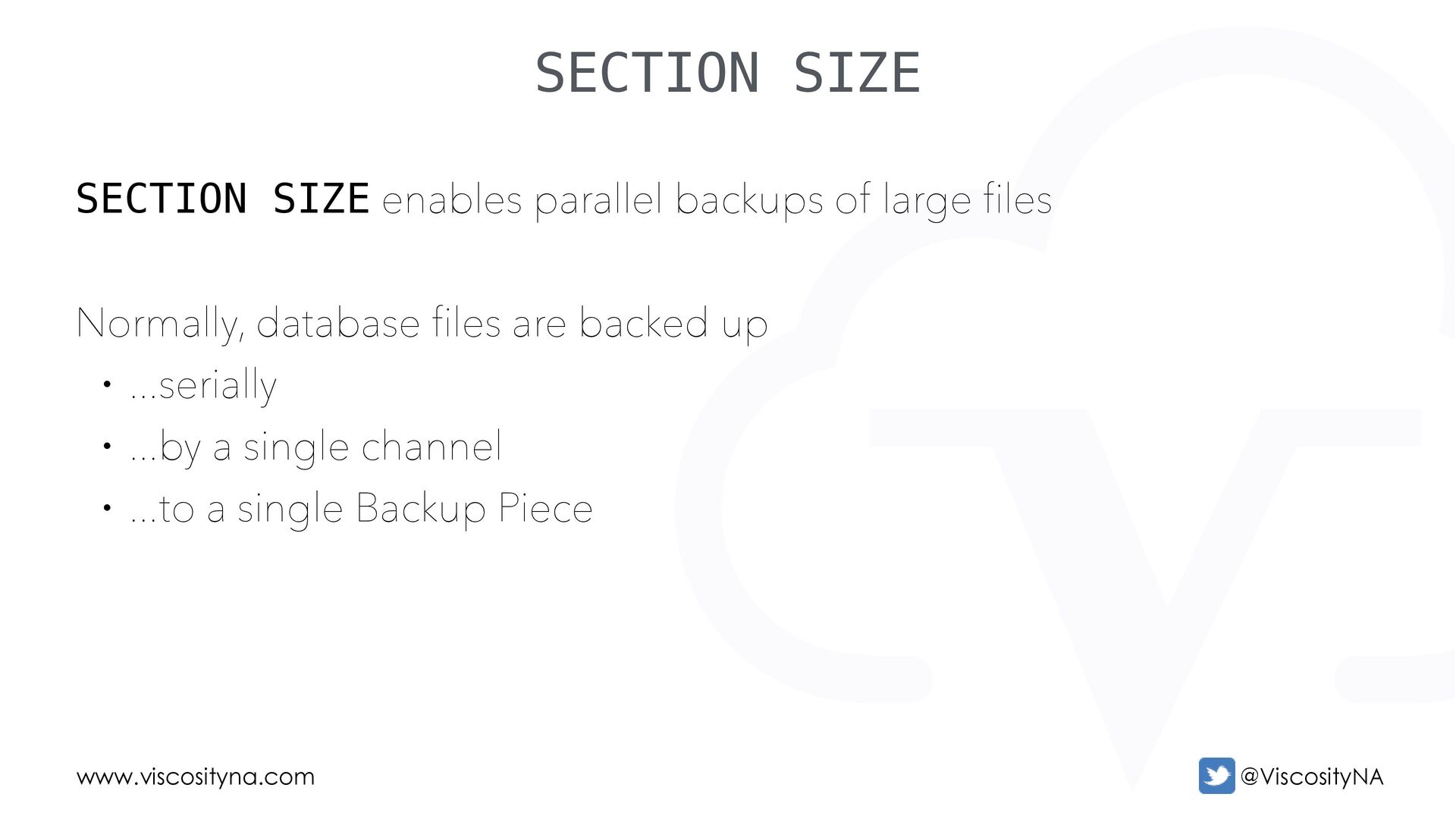

99. www.viscosityna.com @ViscosityNA SECTION SIZE SECTION SIZE enables parallel backups of large files Normally, database files are backed up • ...serially • ...by a single channel • ...to a single Backup Piece

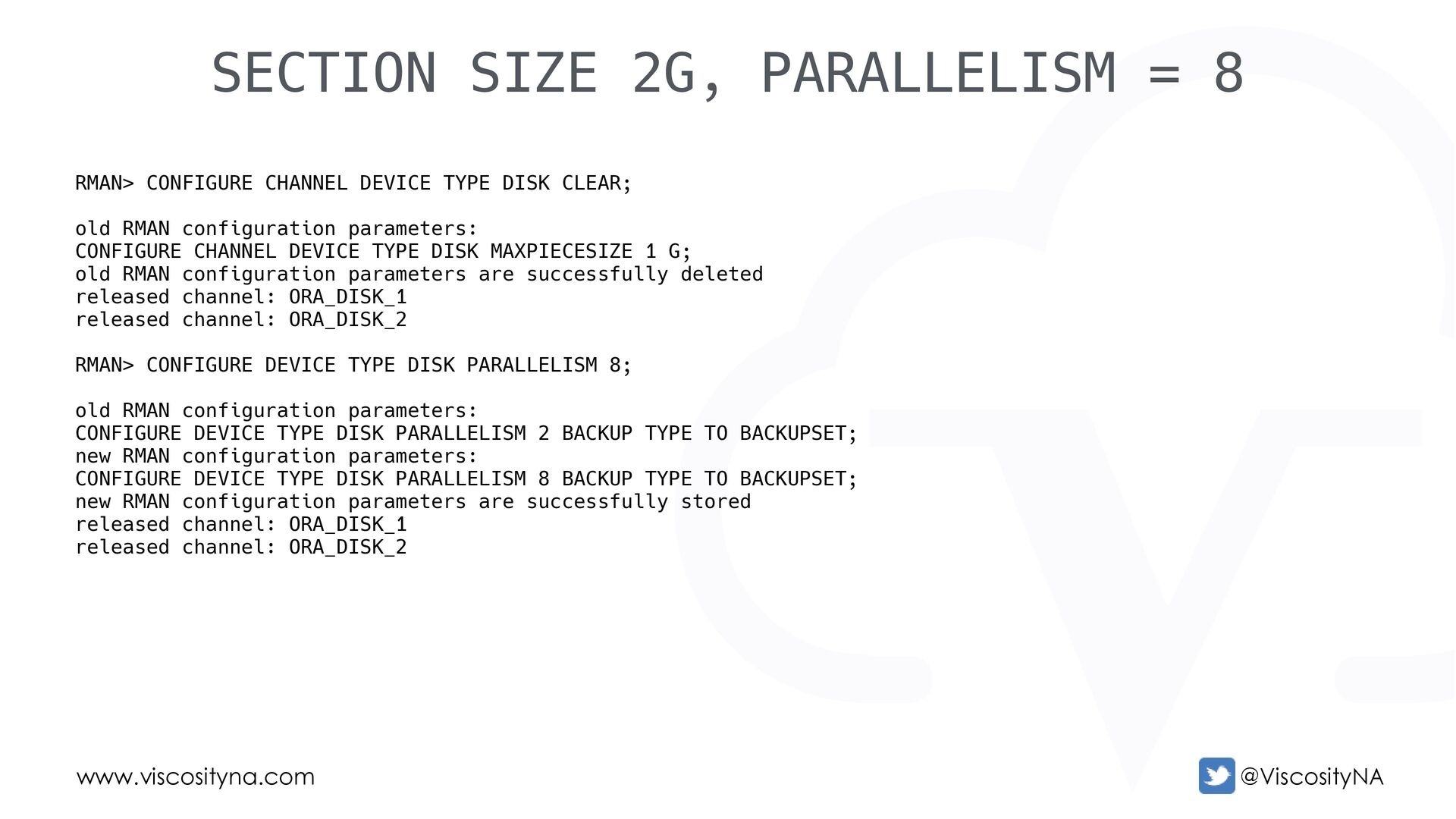

100. www.viscosityna.com @ViscosityNA SECTION SIZE 2G, PARALLELISM = 8 RMAN> CONFIGURE CHANNEL DEVICE TYPE DISK CLEAR; old RMAN configuration parameters: CONFIGURE CHANNEL DEVICE TYPE DISK MAXPIECESIZE 1 G; old RMAN configuration parameters are successfully deleted released channel: ORA_DISK_1 released channel: ORA_DISK_2 RMAN> CONFIGURE DEVICE TYPE DISK PARALLELISM 8; old RMAN configuration parameters: CONFIGURE DEVICE TYPE DISK PARALLELISM 2 BACKUP TYPE TO BACKUPSET; new RMAN configuration parameters: CONFIGURE DEVICE TYPE DISK PARALLELISM 8 BACKUP TYPE TO BACKUPSET; new RMAN configuration parameters are successfully stored released channel: ORA_DISK_1 released channel: ORA_DISK_2

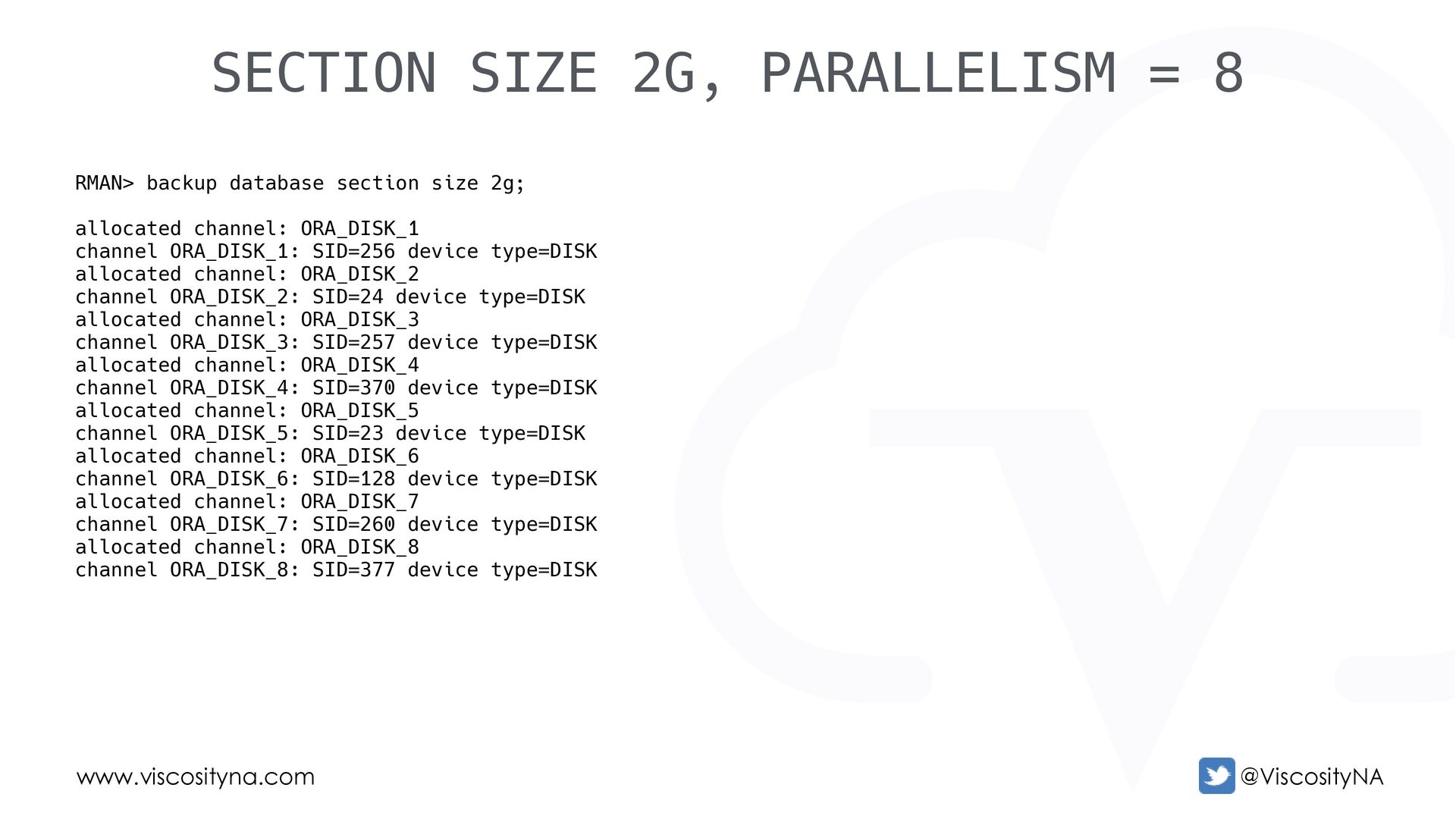

101. www.viscosityna.com @ViscosityNA SECTION SIZE 2G, PARALLELISM = 8 RMAN> backup database section size 2g; allocated channel: ORA_DISK_1 channel ORA_DISK_1: SID=256 device type=DISK allocated channel: ORA_DISK_2 channel ORA_DISK_2: SID=24 device type=DISK allocated channel: ORA_DISK_3 channel ORA_DISK_3: SID=257 device type=DISK allocated channel: ORA_DISK_4 channel ORA_DISK_4: SID=370 device type=DISK allocated channel: ORA_DISK_5 channel ORA_DISK_5: SID=23 device type=DISK allocated channel: ORA_DISK_6 channel ORA_DISK_6: SID=128 device type=DISK allocated channel: ORA_DISK_7 channel ORA_DISK_7: SID=260 device type=DISK allocated channel: ORA_DISK_8 channel ORA_DISK_8: SID=377 device type=DISK

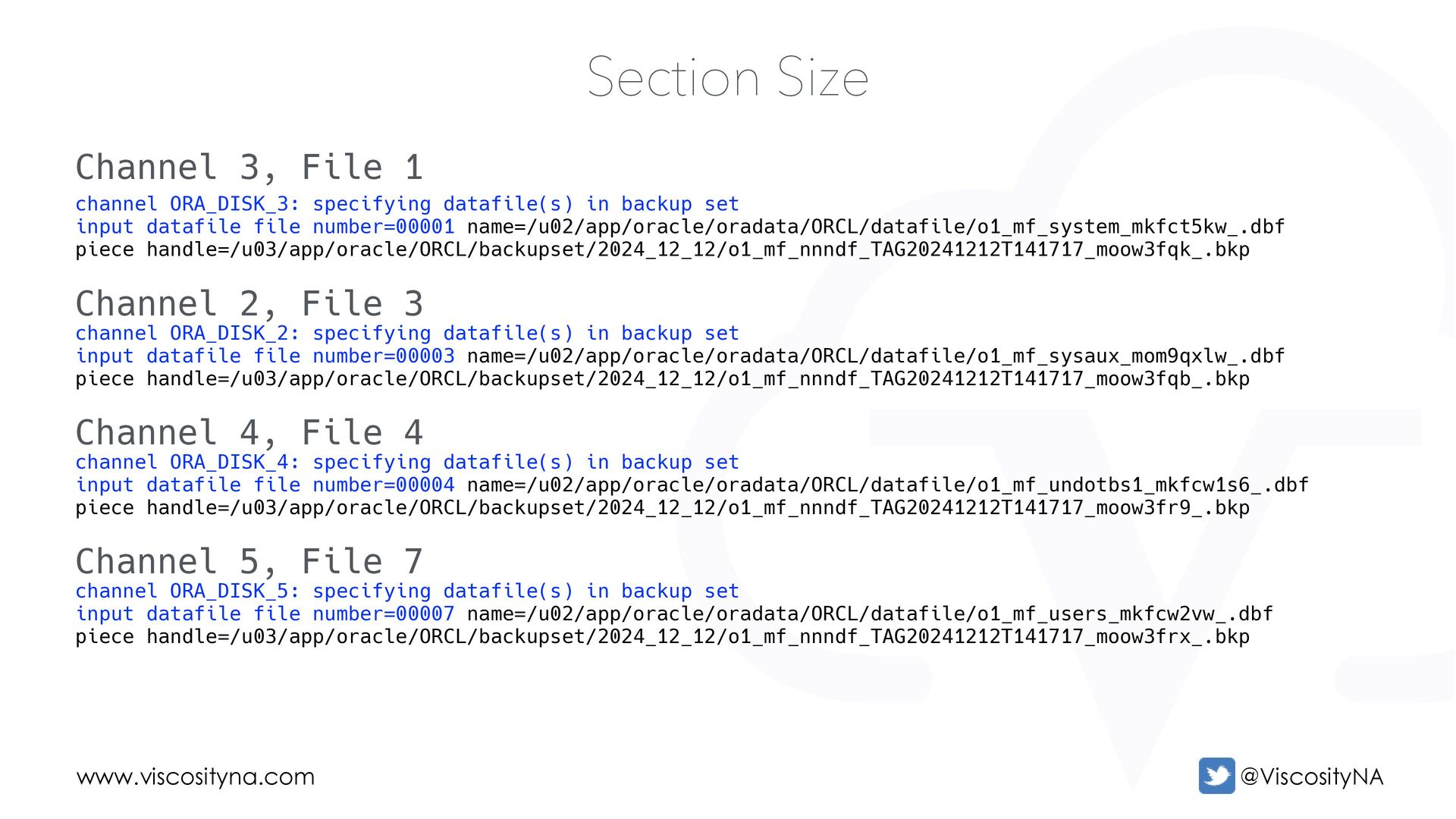

102. www.viscosityna.com @ViscosityNA Channel 3, File 1 Section Size channel ORA_DISK_3: specifying datafile(s) in backup set input datafile file number=00001 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_system_mkfct5kw_.dbf piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T141717_moow3fqk_.bkp Channel 2, File 3 channel ORA_DISK_2: specifying datafile(s) in backup set input datafile file number=00003 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_sysaux_mom9qxlw_.dbf piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T141717_moow3fqb_.bkp Channel 4, File 4 channel ORA_DISK_4: specifying datafile(s) in backup set input datafile file number=00004 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_undotbs1_mkfcw1s6_.dbf piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T141717_moow3fr9_.bkp Channel 5, File 7 channel ORA_DISK_5: specifying datafile(s) in backup set input datafile file number=00007 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_users_mkfcw2vw_.dbf piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T141717_moow3frx_.bkp

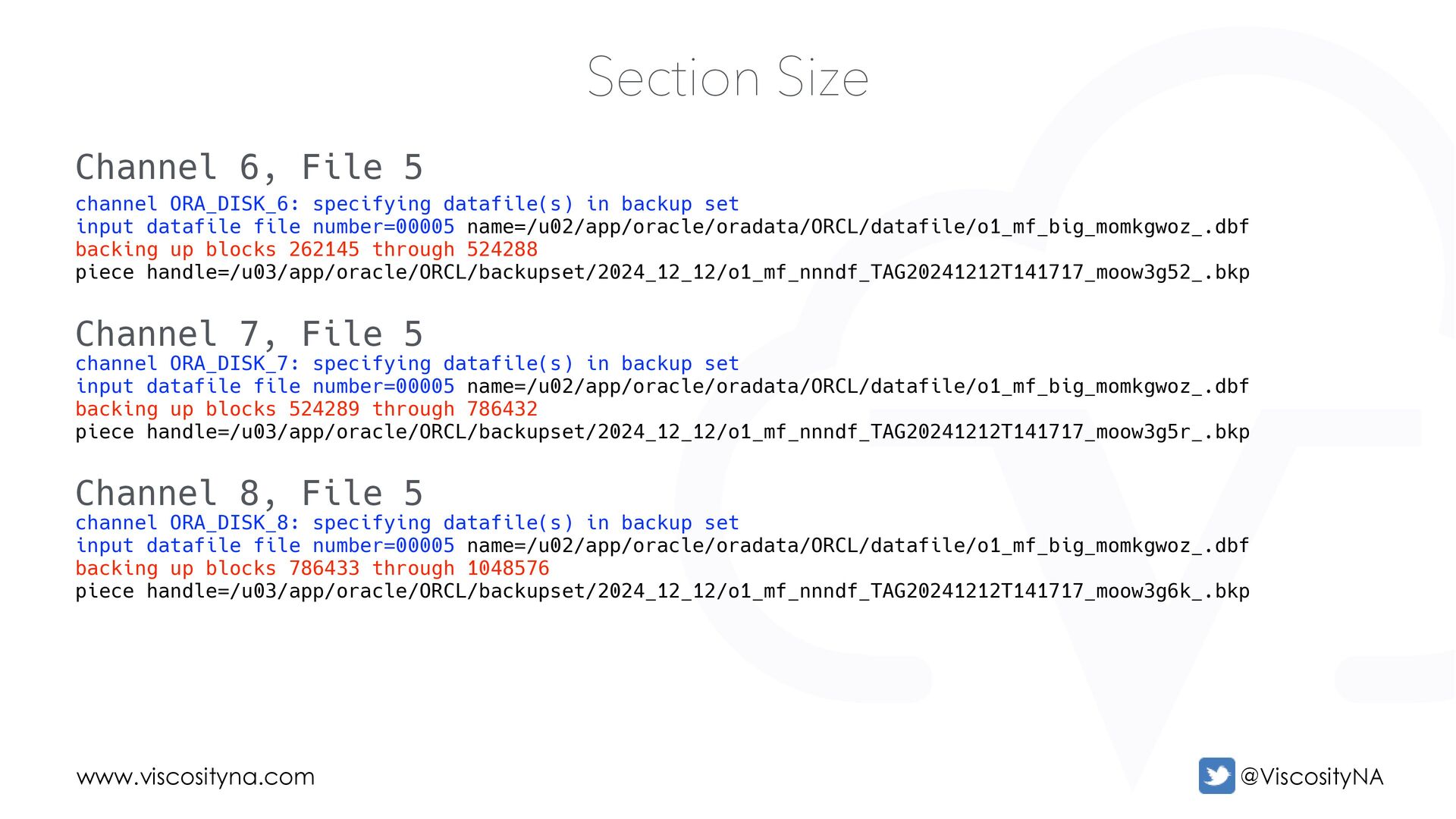

103. www.viscosityna.com @ViscosityNA Channel 6, File 5 Section Size channel ORA_DISK_6: specifying datafile(s) in backup set input datafile file number=00005 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_big_momkgwoz_.dbf backing up blocks 262145 through 524288 piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T141717_moow3g52_.bkp Channel 7, File 5 channel ORA_DISK_7: specifying datafile(s) in backup set input datafile file number=00005 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_big_momkgwoz_.dbf backing up blocks 524289 through 786432 piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T141717_moow3g5r_.bkp Channel 8, File 5 channel ORA_DISK_8: specifying datafile(s) in backup set input datafile file number=00005 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_big_momkgwoz_.dbf backing up blocks 786433 through 1048576 piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T141717_moow3g6k_.bkp
104. www.viscosityna.com @ViscosityNA Channel 1, File 5 Section Size channel ORA_DISK_1: specifying datafile(s) in backup set input datafile file number=00005 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_big_momkgwoz_.dbf backing up blocks 1 through 262144 piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T141717_moow3fpn_.bkp channel ORA_DISK_1: specifying datafile(s) in backup set input datafile file number=00005 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_big_momkgwoz_.dbf backing up blocks 1048577 through 1310720 piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T141717_moow3gbk_.bkp

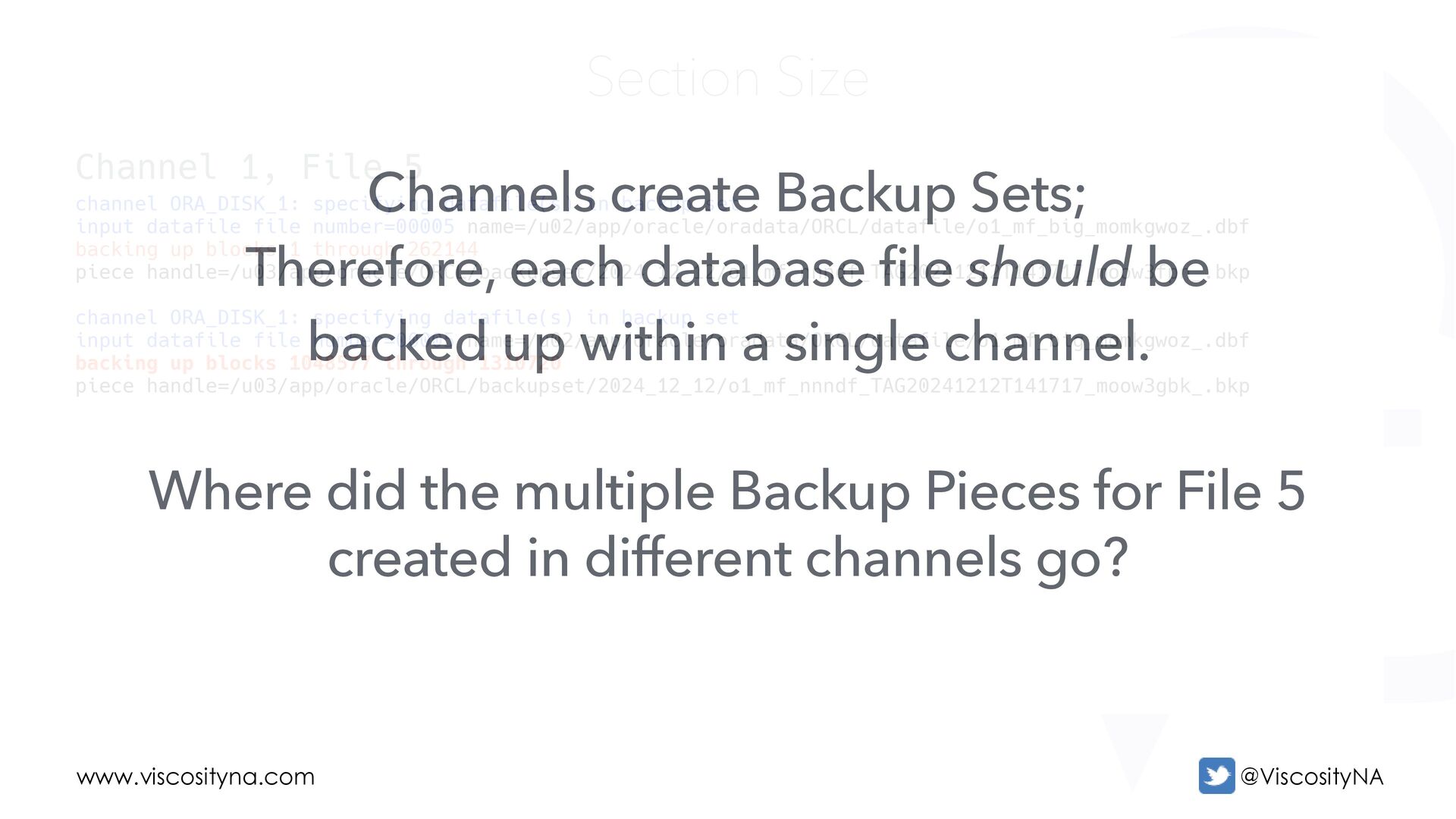

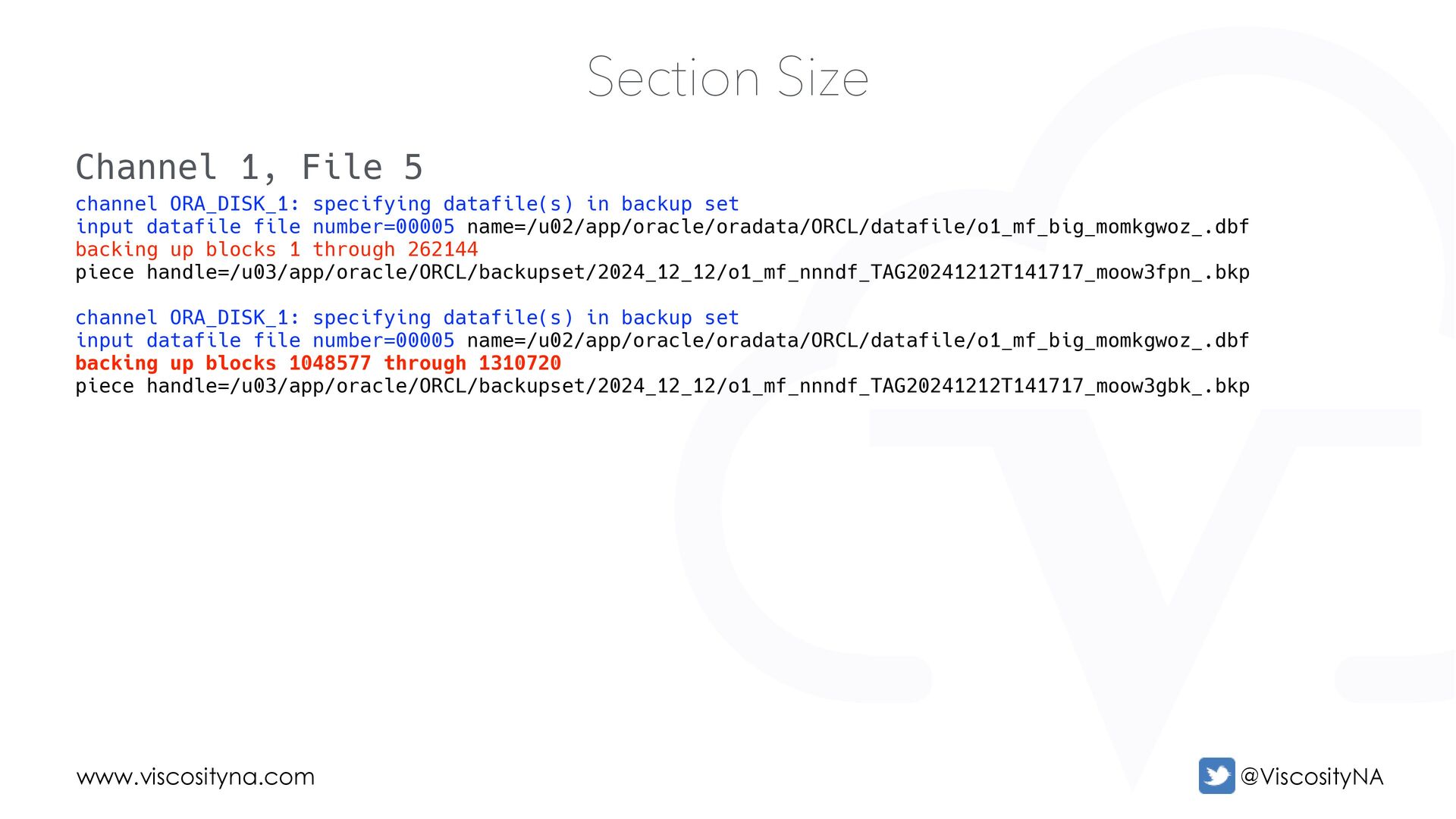

105. www.viscosityna.com @ViscosityNA Channel 1, File 5 Section Size channel ORA_DISK_1: specifying datafile(s) in backup set input datafile file number=00005 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_big_momkgwoz_.dbf backing up blocks 1 through 262144 piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T141717_moow3fpn_.bkp channel ORA_DISK_1: specifying datafile(s) in backup set input datafile file number=00005 name=/u02/app/oracle/oradata/ORCL/datafile/o1_mf_big_momkgwoz_.dbf backing up blocks 1048577 through 1310720 piece handle=/u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T141717_moow3gbk_.bkp Channels create Backup Sets; Therefore, each database file should be backed up within a single channel. Where did the multiple Backup Pieces for File 5 created in different channels go?

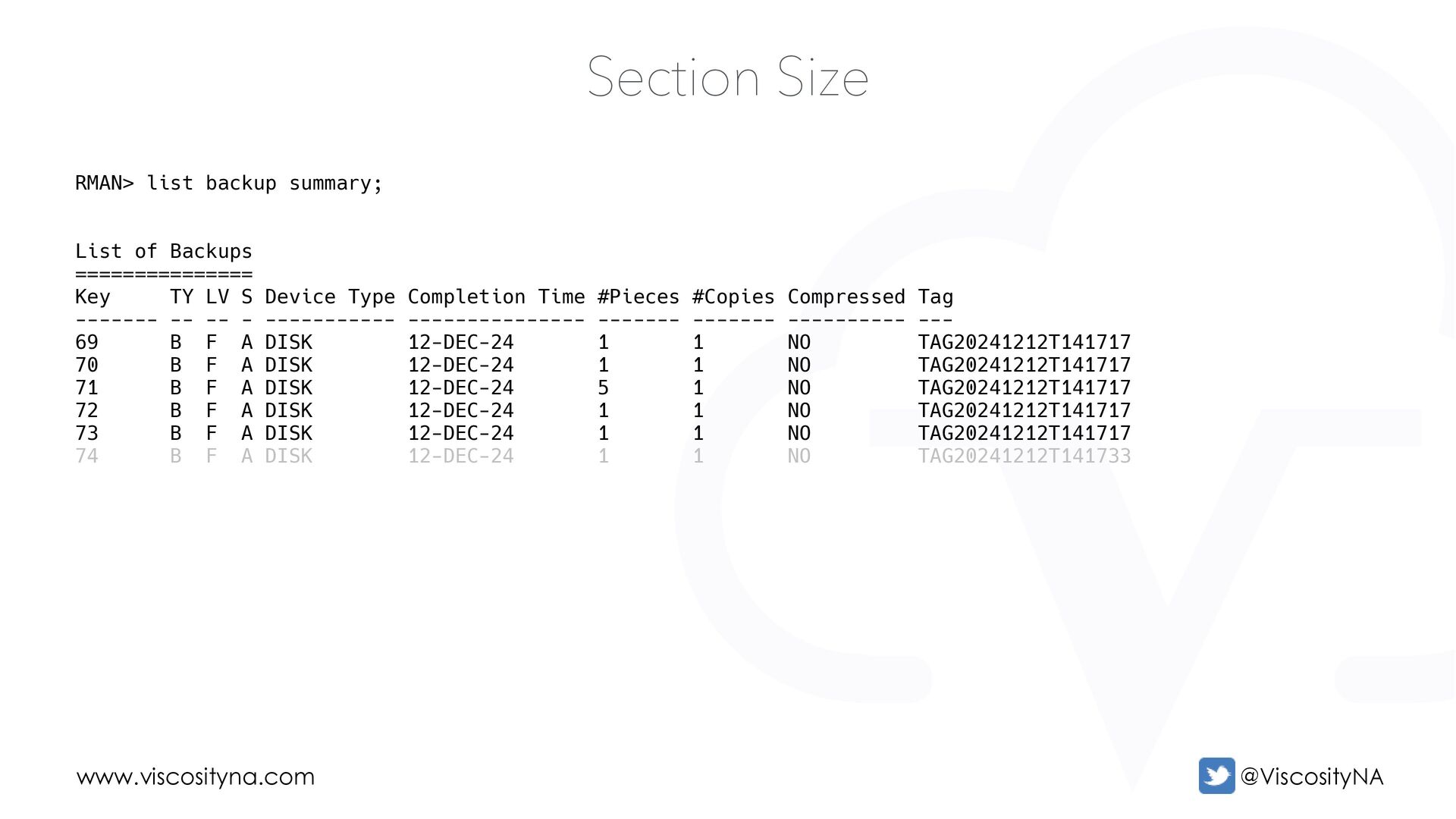

106. www.viscosityna.com @ViscosityNA RMAN> list backup summary; List of Backups =============== Key TY LV S Device Type Completion Time #Pieces #Copies Compressed Tag ------- -- -- - ----------- --------------- ------- ------- ---------- --- 69 B F A DISK 12-DEC-24 1 1 NO TAG20241212T141717 70 B F A DISK 12-DEC-24 1 1 NO TAG20241212T141717 71 B F A DISK 12-DEC-24 5 1 NO TAG20241212T141717 72 B F A DISK 12-DEC-24 1 1 NO TAG20241212T141717 73 B F A DISK 12-DEC-24 1 1 NO TAG20241212T141717 74 B F A DISK 12-DEC-24 1 1 NO TAG20241212T141733 Section Size

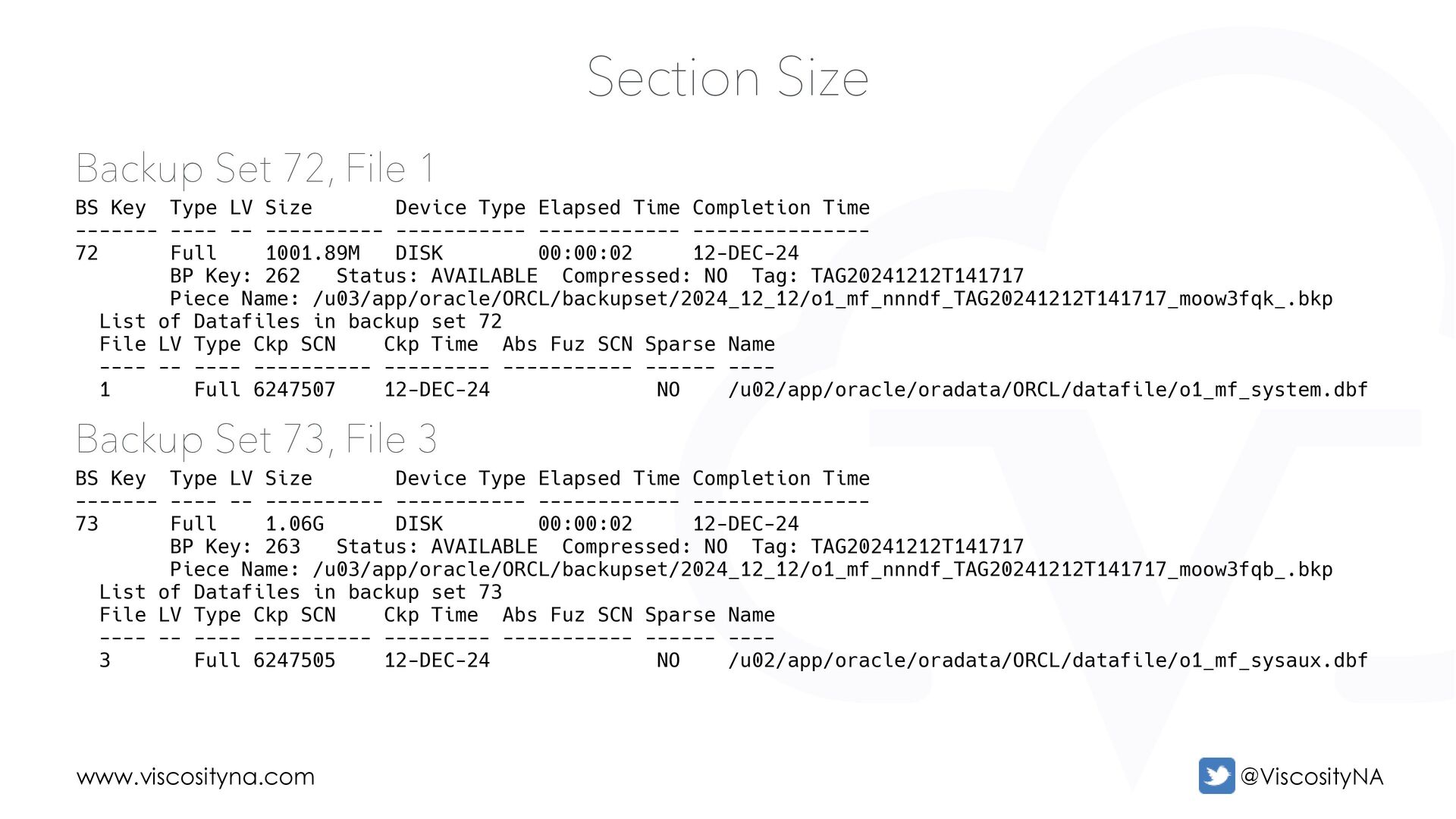

107. www.viscosityna.com @ViscosityNA Backup Set 72, File 1 BS Key Type LV Size Device Type Elapsed Time Completion Time ------- ---- -- ---------- ----------- ------------ --------------- 72 Full 1001.89M DISK 00:00:02 12-DEC-24 BP Key: 262 Status: AVAILABLE Compressed: NO Tag: TAG20241212T141717 Piece Name: /u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T141717_moow3fqk_.bkp List of Datafiles in backup set 72 File LV Type Ckp SCN Ckp Time Abs Fuz SCN Sparse Name ---- -- ---- ---------- --------- ----------- ------ ---- 1 Full 6247507 12-DEC-24 NO /u02/app/oracle/oradata/ORCL/datafile/o1_mf_system.dbf Section Size Backup Set 73, File 3 BS Key Type LV Size Device Type Elapsed Time Completion Time ------- ---- -- ---------- ----------- ------------ --------------- 73 Full 1.06G DISK 00:00:02 12-DEC-24 BP Key: 263 Status: AVAILABLE Compressed: NO Tag: TAG20241212T141717 Piece Name: /u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T141717_moow3fqb_.bkp List of Datafiles in backup set 73 File LV Type Ckp SCN Ckp Time Abs Fuz SCN Sparse Name ---- -- ---- ---------- --------- ----------- ------ ---- 3 Full 6247505 12-DEC-24 NO /u02/app/oracle/oradata/ORCL/datafile/o1_mf_sysaux.dbf

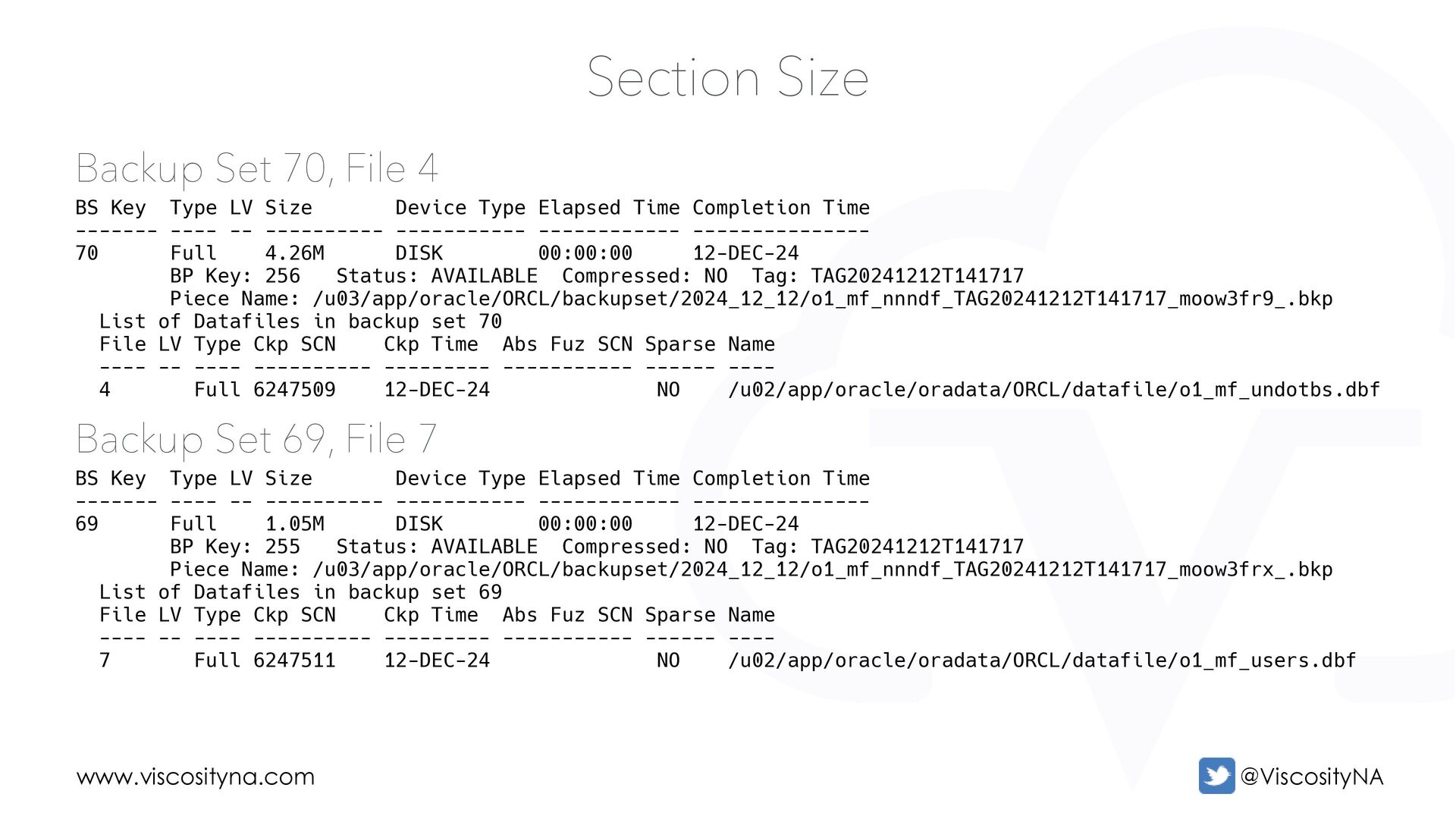

108. www.viscosityna.com @ViscosityNA Backup Set 70, File 4 BS Key Type LV Size Device Type Elapsed Time Completion Time ------- ---- -- ---------- ----------- ------------ --------------- 70 Full 4.26M DISK 00:00:00 12-DEC-24 BP Key: 256 Status: AVAILABLE Compressed: NO Tag: TAG20241212T141717 Piece Name: /u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T141717_moow3fr9_.bkp List of Datafiles in backup set 70 File LV Type Ckp SCN Ckp Time Abs Fuz SCN Sparse Name ---- -- ---- ---------- --------- ----------- ------ ---- 4 Full 6247509 12-DEC-24 NO /u02/app/oracle/oradata/ORCL/datafile/o1_mf_undotbs.dbf Section Size Backup Set 69, File 7 BS Key Type LV Size Device Type Elapsed Time Completion Time ------- ---- -- ---------- ----------- ------------ --------------- 69 Full 1.05M DISK 00:00:00 12-DEC-24 BP Key: 255 Status: AVAILABLE Compressed: NO Tag: TAG20241212T141717 Piece Name: /u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T141717_moow3frx_.bkp List of Datafiles in backup set 69 File LV Type Ckp SCN Ckp Time Abs Fuz SCN Sparse Name ---- -- ---- ---------- --------- ----------- ------ ---- 7 Full 6247511 12-DEC-24 NO /u02/app/oracle/oradata/ORCL/datafile/o1_mf_users.dbf
109. www.viscosityna.com @ViscosityNA Backup Set 71, File 5, Pieces 257 - 261 BS Key Type LV Size Device Type Elapsed Time Completion Time ------- ---- -- ---------- ----------- ------------ --------------- 71 Full 68.20M DISK 00:00:01 12-DEC-24 List of Datafiles in backup set 71 File LV Type Ckp SCN Ckp Time Abs Fuz SCN Sparse Name ---- -- ---- ---------- --------- ----------- ------ ---- 5 Full 6247503 12-DEC-24 NO /u02/app/oracle/oradata/ORCL/datafile/o1_mf_big.dbf Backup Set Copy #1 of backup set 71 Device Type Elapsed Time Completion Time Compressed Tag ----------- ------------ --------------- ---------- --- DISK 00:00:01 12-DEC-24 NO TAG20241212T141717 List of Backup Pieces for backup set 71 Copy #1 BP Key Pc# Status Piece Name ------- --- ----------- ---------- 257 1 AVAILABLE /u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T141717_moow3fpn_.bkp 258 2 AVAILABLE /u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T141717_moow3g52_.bkp 259 3 AVAILABLE /u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T141717_moow3g5r_.bkp 260 4 AVAILABLE /u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T141717_moow3g6k_.bkp 261 5 AVAILABLE /u03/app/oracle/ORCL/backupset/2024_12_12/o1_mf_nnndf_TAG20241212T141717_moow3gbk_.bkp Section Size

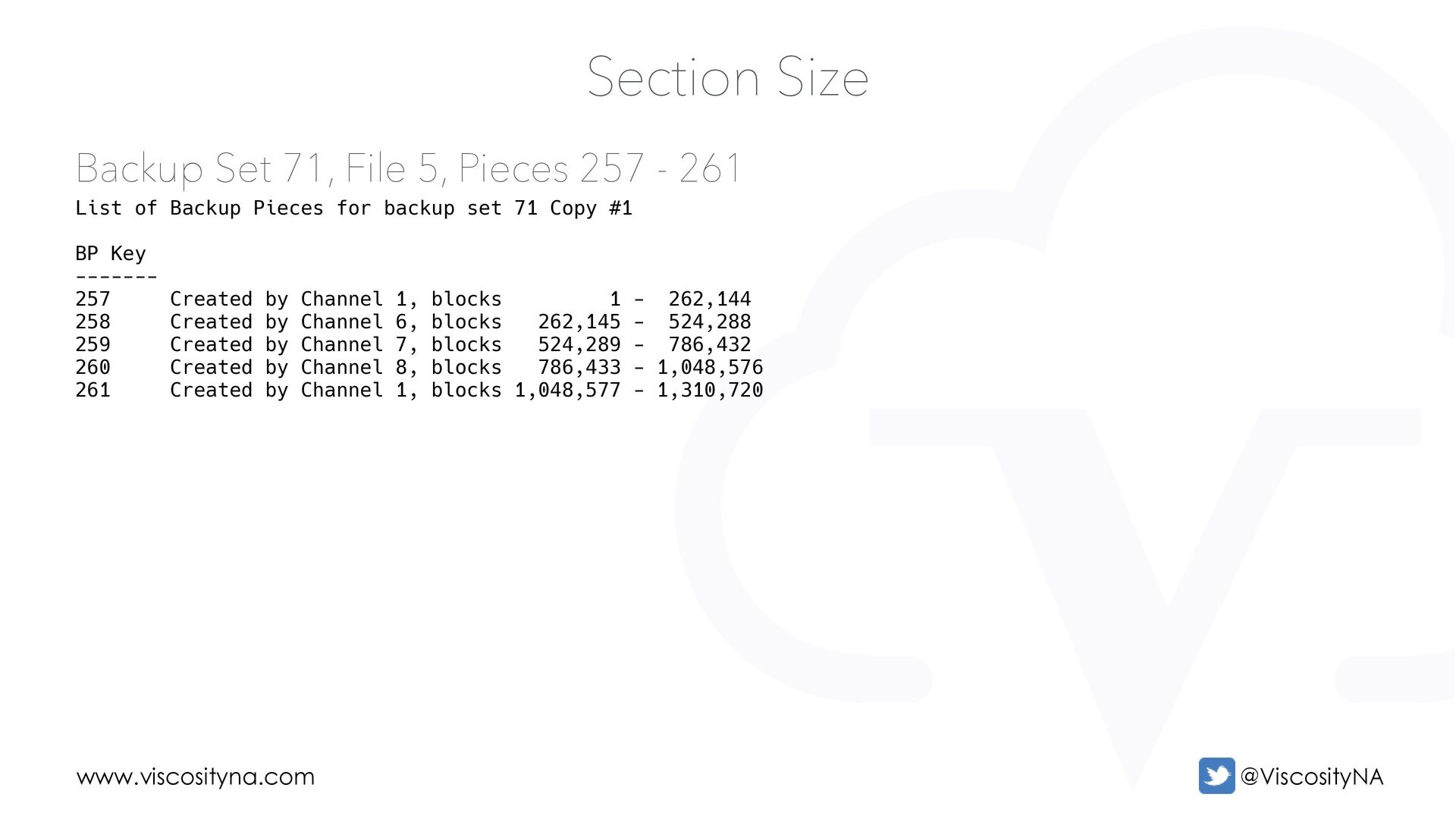

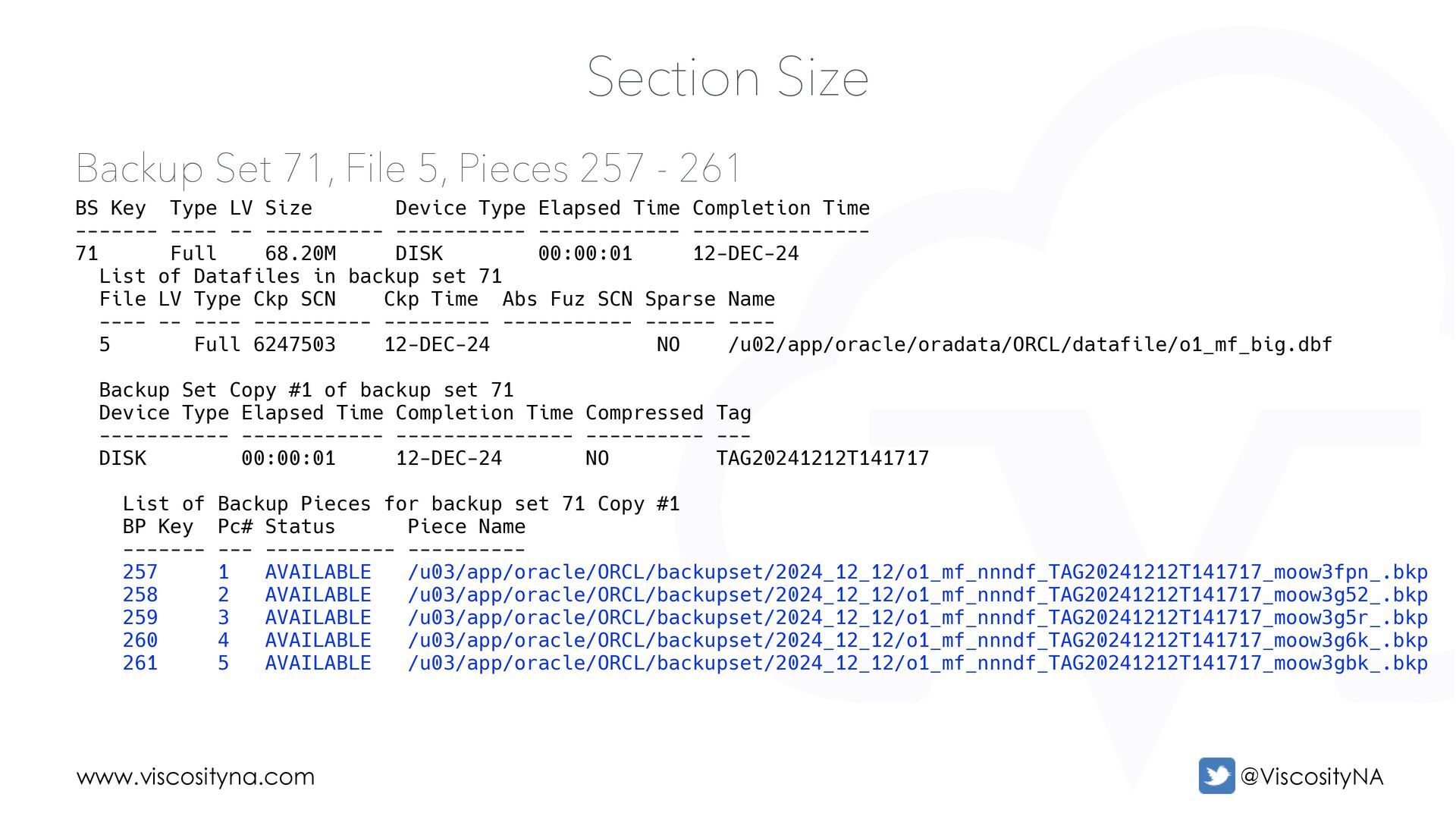

110. www.viscosityna.com @ViscosityNA Backup Set 71, File 5, Pieces 257 - 261 List of Backup Pieces for backup set 71 Copy #1 BP Key ------- 257 Created by Channel 1, blocks 1 - 262,144 258 Created by Channel 6, blocks 262,145 - 524,288 259 Created by Channel 7, blocks 524,289 - 786,432 260 Created by Channel 8, blocks 786,433 - 1,048,576 261 Created by Channel 1, blocks 1,048,577 - 1,310,720 Section Size

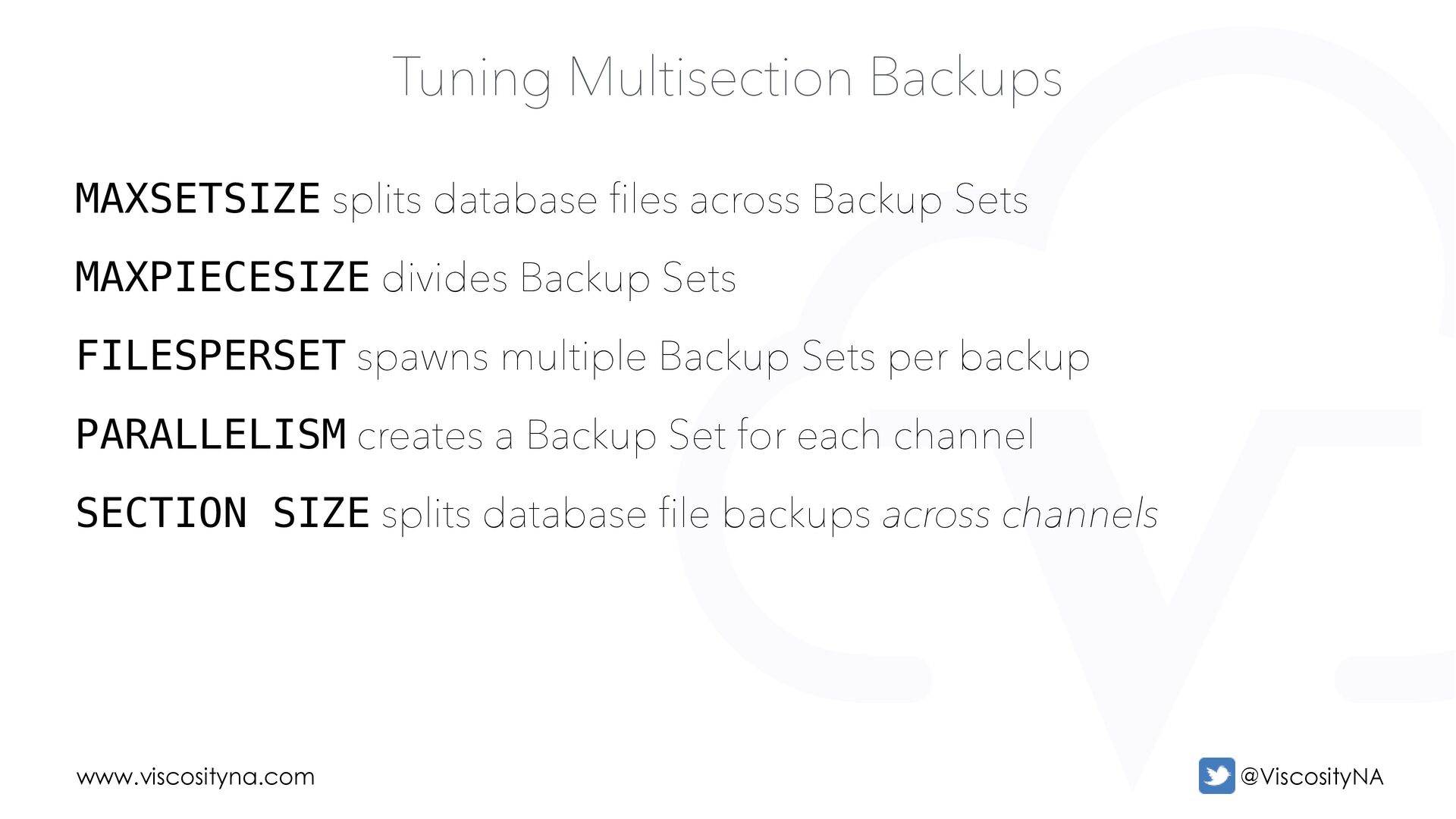

111. www.viscosityna.com @ViscosityNA Tuning Multisection Backups MAXSETSIZE splits database files across Backup Sets MAXPIECESIZE divides Backup Sets FILESPERSET spawns multiple Backup Sets per backup PARALLELISM creates a Backup Set for each channel SECTION SIZE splits database file backups across channels
