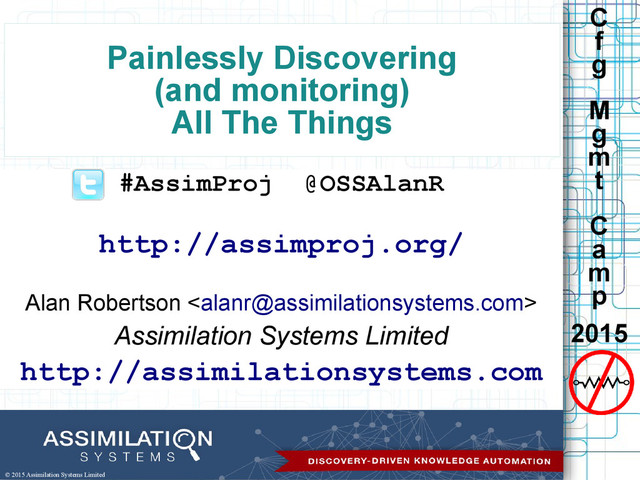

   Painlessly Discovering
   (and monitoring)
   All The Things
   #AssimProj @OSSAlanR
   http://assimproj.org/
   Alan Robertson
   Assimilation Systems Limited
   http://assimilationsystems.com
   © 2015 Assimilation Systems Limited


   View Slide

2. CfgMgmt
   Camp
   03 February 2015
   2/38
   C
   f
   g
   M
   g
   m
   t
   C
   a
   m
   p
   2015
   © 2015 Assimilation Systems Limited
   Biography
   ●
   35+ years in IT/development – 10 years in
   system management (SysAdmin)
   ●
   Founded Linux-HA project - led 1998-2007
   – aka “Heartbeat” - now called Pacemaker
   ●
   Founded Assimilation Project in 2010
   ●
   Founded Assimilation Systems Limited in
   2013
   ●
   Alumnus of Bell Labs, SuSE, IBM


   View Slide

3. CfgMgmt
   Camp
   03 February 2015
   3/38
   C
   f
   g
   M
   g
   m
   t
   C
   a
   m
   p
   2015
   © 2015 Assimilation Systems Limited
   Assimilation Project History
   ●
   Inspired by 2 million core computer (cyclops64)
   ●
   Concerns for extreme scale
   ●
   Topology aware monitoring
   ●
   Topology discovery w/out security issues
   =►Discovery of everything!


   View Slide

4. CfgMgmt
   Camp
   03 February 2015
   4/38
   C
   f
   g
   M
   g
   m
   t
   C
   a
   m
   p
   2015
   © 2015 Assimilation Systems Limited
   An 8-dimensional overview
   1.Problems Addressed
   2.Unique Capabilities
   3.Distribution of Work
   4.Architectural Components
   5.Sample Graph and Discovery API
   6.Best Practice Analyses
   7.Current Status
   8.What You Need To Do!


   View Slide

5. C
   f
   g
   M
   g
   m
   t
   C
   a
   m
   p
   2015
   First Dimension:
   Problems Addressed
   ●
   Discovering and maintaining documentation
   (CMDB) using continuous discovery
   – Services, Systems, Dependencies, Switches,
   Interconnects, Configuration
   ●
   Monitoring and alerting: services, systems
   and compliance
   ●
   Managing compliance
   ●
   Mitigating risk


   View Slide

6. CfgMgmt
   Camp
   03 February 2015
   6/38
   C
   f
   g
   M
   g
   m
   t
   C
   a
   m
   p
   2015
   © 2015 Assimilation Systems Limited
   Highly Scalable Discovery-
   Driven Automation
   Continuous Discovery drives everything
   ●
   Continuous extensible discovery (CMDB)
   – systems, switches, services, dependencies –
   zero network footprint discovery process
   ●
   Extensible exception monitoring
   – more than 100K systems
   ●
   Discovery Drives Best Practice Analyses
   – Initially concentrating on security
   ●
   All data goes into central graph CMDB


   View Slide

7. CfgMgmt
   Camp
   03 February 2015
   7/38
   C
   f
   g
   M
   g
   m
   t
   C
   a
   m
   p
   2015
   © 2015 Assimilation Systems Limited
   Why Discovery? (DevOps)
   ●
   Documentation: incomplete, incorrect
   ●
   Dependencies: unknown
   ●
   Planning: Needs accurate data
   ●
   Best Practices: Verification needs data
   ●
   ITIL CMDB (Configuration Management
   Data Base)
   Our Discovery: continuous, low-profile


   View Slide

8. CfgMgmt
   Camp
   03 February 2015
   8/38
   C
   f
   g
   M
   g
   m
   t
   C
   a
   m
   p
   2015
   © 2015 Assimilation Systems Limited
   Second Dimension:
   Unique Powerful Features
   1. Continuous Discovery
   2. Discovery: Zero network footprint
   3. Centralized graph database
   4. We know everything that changes
   5. Discover and update dependency
   information
   6. Discovery and monitoring tightly
   integrated – discovery drives automation


   View Slide

9. CfgMgmt
   Camp
   03 February 2015
   9/38
   C
   f
   g
   M
   g
   m
   t
   C
   a
   m
   p
   2015
   © 2015 Assimilation Systems Limited
   (even more) Features...
   7. Discovery and monitoring easily
   extensible
   8. Naturally scalable to > 100K systems
   9. Minimal network load
   10.Server failures distinguishable
   from switch failures
   11.Best practice and vulnerability alerts
   12.Multi-tenant support


   View Slide

10. CfgMgmt
    Camp
    03 February 2015
    10/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    This all sounds unreasonable...
    ●
    Huge scalability without complexity?
    ●
    Discovery without pings or port scans?
    Really?


    View Slide

11. CfgMgmt
    Camp
    03 February 2015
    11/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    Third Dimension:
    Fully distributed work
    Two philosophical underpinnings
    1. Monitoring and Discovery are fully distributed
    2. Reliable “no news is good news”
    Only responses to changes are centralized


    View Slide

12. CfgMgmt
    Camp
    03 February 2015
    12/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    Simple Scalability
    I can explain how we scale so your
    grandmother would understand...


    View Slide

13. CfgMgmt
    Camp
    03 February 2015
    13/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    Simple Scalability
    I can explain how we scale so your
    grandmother would understand...
    istockphoto
    ©bowdenimages


    View Slide

14. CfgMgmt
    Camp
    03 February 2015
    14/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    Massive Scalability – or
    “I see dead servers in O(1) time”
    ●
    Adding systems does not increase the monitoring work on any
    system
    ●
    Each server monitors 2 (or 4) neighbors
    ●
    Each server monitors and discovers its own services
    ●
    Ring repair and alerting is O(n) – but a very small amount of work
    Current Implementation


    View Slide

15. CfgMgmt
    Camp
    03 February 2015
    15/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    Fourth Dimension:
    Architectural Components
    Three Architectural Components
    1. Collective Management Authority
    ●
    One CMA per installation
    2. Nanoprobes (agents)
    ●
    One per system
    3. Data Storage
    ●
    Central Neo4j graph database (CMDB)


    View Slide

16. CfgMgmt
    Camp
    03 February 2015
    16/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    Basic CMA Functions (python)
    Nanoprobe management
    ●
    Configure & direct
    ●
    Hear alerts & discovery
    ●
    Update rings: join/leave
    Update database
    Analyze configuration changes
    Issue alerts
    -- provide event notification


    View Slide

17. CfgMgmt
    Camp
    03 February 2015
    17/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    Nanoprobe Functions ('C')
    Announce self to CMA
    ●
    Default: use reserved multicast address
    Do what CMA says
    ●
    receive configuration information
    – CMA addresses, ports, defaults
    ●
    send/expect heartbeats
    ●
    perform discovery actions
    ●
    perform monitoring actions
    No persistent state across reboots


    View Slide

18. CfgMgmt
    Camp
    03 February 2015
    18/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    Service Monitoring based on
    HA Technologies
    ●
    Well-proven architecture:
    – reliable “no news is good news”
    ●
    Implements Open Cluster Framework
    standard (LSB and others)
    ●
    Each system monitors own services
    ●
    Can also start, stop, migrate services


    View Slide

19. CfgMgmt
    Camp
    03 February 2015
    19/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    A multi-dimensional demo
    ●
    Demonstrate basic capabilities
    – Discovery
    – Discovery-driven monitoring configuration
    – Discovery-driven 'tripwire-like' checksums
    – Monitoring – failures / successes
    – Host down notification
    ●
    No configuration was supplied
    – everything comes from discovery
    http://assimilationsystems.com/90_second_demo/


    View Slide

20. CfgMgmt
    Camp
    03 February 2015
    20/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    Fifth Dimension:
    Discovery Graph and API


    View Slide

21. CfgMgmt
    Camp
    03 February 2015
    21/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    How does discovery work?
    Nanoprobe scripts perform discovery
    ●
    Each discovers one kind of information
    ●
    Can take arguments from environment
    ●
    Output JSON
    CMA stores Discovery Information
    ●
    JSON stored in Neo4j database
    ●
    CMA discovery plugins => graph nodes and
    relationships


    View Slide

22. CfgMgmt
    Camp
    03 February 2015
    22/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    A Few Canned Queries
    allipports get all port/ip/service/hosts
    allswitchports get switch connections
    crashed get crashed servers
    shutdown get gracefully shutdown servers
    downservices get nonworking services
    findip get system owning IP
    findmac get system owning MAC
    unknownips get unknown IP addresses
    unmonitored get unmonitored services


    View Slide

23. CfgMgmt
    Camp
    03 February 2015
    23/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    OS discovery JSON Snippet
    { "nodename": "alanr-1225B",
    "operating-system": "GNU/Linux",
    "machine": "x86_64",
    "processor": "x86_64",
    "hardware-platform": "x86_64",
    "kernel-name": "Linux",
    "kernel-release": "3.8.0-31-generic",
    "kernel-version": "#46-Ubuntu SMP ...",
    "Distributor ID": "Ubuntu",
    "Description": "Ubuntu 13.04",
    "Release": "13.04",
    "Codename": "raring" }


    View Slide

24. CfgMgmt
    Camp
    03 February 2015
    24/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    Sixth Dimension:
    Best Practice Analyses
    This is a planned direction of the project
    ●
    Triggered by Discovery Updates
    – Analysis occurs within seconds of change
    – No change => No analysis
    ●
    We can analyze anything discovered
    ●
    Expect to create alerts and reports


    View Slide

25. CfgMgmt
    Camp
    03 February 2015
    25/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    Sample Security Best Practices
    ●
    Inappropriate services (telnet, etc)
    ●
    Settings in /proc/sys/
    ●
    Security Patch Coverage
    – OS vendor (RedHat, SuSE, Canonical, etc)
    – Application (Oracle, IBM, WordPress, etc)
    ●
    Other OS settings
    ●
    Common Application Settings
    FYI: Sharing information with Lynis project


    View Slide

26. CfgMgmt
    Camp
    03 February 2015
    26/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    Other Sample Security Features
    ●
    Discovery of “forgotten” IP addresses
    ●
    Monitoring of Open Ports and Services
    ●
    Nmon profiling of new MAC addresses
    ●
    Checksum outliers analysis
    ●
    Security Best Practice Analyses


    View Slide

27. CfgMgmt
    Camp
    03 February 2015
    27/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    Seventh Dimension:
    Current Status
    ●
    Fifth release tagged 30 January 2015
    ●
    Moving towards security emphasis
    ●
    Great unit and system tests
    ●
    Strongly encrypted communication
    ●
    Several discovery methods written
    ●
    Extensible Automated Discovery Triggers
    ●
    Discovery => Automatic Monitoring + Network-Facing
    Checksums
    ●
    Command Line Queries
    ●
    Licenses: Commercial or GPLv3


    View Slide

28. CfgMgmt
    Camp
    03 February 2015
    28/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    Eighth Dimension:
    Get Involved!
    ●
    Early adopters – customers!
    ●
    Contributors
    – Testers, Continuous Integration
    – Best practice experts
    – Designers
    – Developers (C,Python, Shell, PowerShell,
    JavaScript)
    – Porters (esp Windows)
    – Promoters, Publicists, Packagers, etc.


    View Slide

29. CfgMgmt
    Camp
    03 February 2015
    29/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    Resistance Is Futile!
    These slides bit.ly/AssimCFGMC15
    Mailing List bit.ly/AssimML
    #AssimProj @OSSAlanR
    #assimilation on freenode IRC
    Project Web Site
    assimproj.org
    Company Web Site
    assimilationsystems.com


    View Slide

30. CfgMgmt
    Camp
    03 February 2015
    30/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    Risk Management/Mitigation
    ●
    Intrusions
    ●
    Vulnerable Software
    ●
    Licensed Software
    ●
    Audit Risk
    ●
    Outages
    ●
    System management


    View Slide

31. CfgMgmt
    Camp
    03 February 2015
    31/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    Why a graph database? (Neo4j)
    ●
    Humans describe systems as graphs
    ●
    Dependency & Discovery information: graph
    ●
    Speed of graph traversals depends on size of
    subgraph, not total graph size
    ●
    Root cause queries  graph traversals –
    notoriously slow in relational databases
    ●
    Visualization is Natural
    ●
    Schema-less design: good for constantly changing
    heterogeneous environment
    ●
    Graph Model === Object Model


    View Slide

32. CfgMgmt
    Camp
    03 February 2015
    32/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    Monitoring Pros and Cons
    Pros
    Simple & Scalable
    Uniform work distribution
    No single point of failure
    Distinguishes switch vs
    host failure
    Easy on LAN, WAN
    Multi-tenant approach
    Cons
    Active agents
    Potential slowness
    at power-on


    View Slide

33. CfgMgmt
    Camp
    03 February 2015
    33/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    Minimizing Network Footprint
    (planned)
    ●
    Support diagnosing switch issues
    ●
    Minimize network traffic
    ●
    Ideal for multi-site arrangements


    View Slide

34. CfgMgmt
    Camp
    03 February 2015
    34/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    Sixth Dimension:
    Graph Schema
    Two Schema subgraphs
    ●
    Client / server
    dependency
    ●
    Switch interconnect


    View Slide

35. CfgMgmt
    Camp
    03 February 2015
    35/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    "sshd": {
    "exe": "/usr/sbin/sshd",
    "cmdline": [ "/usr/sbin/sshd", "-D" ],
    "uid": "root",
    "gid": "root",
    "cwd": "/",
    "listenaddrs": {
    "0.0.0.0:22": {
    "proto": "tcp",
    "addr": "0.0.0.0",
    "port": 22 },
    sshd Service JSON Snippet
    (from netstat and /proc)


    View Slide

36. CfgMgmt
    Camp
    03 February 2015
    36/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    "ssh": {
    "exe": "/usr/sbin/ssh",
    "cmdline": [ "ssh", "servidor" ],
    "uid": "alanr",
    "gid": "alanr",
    "cwd": "/home/alanr/monitor/src",
    "clientaddrs": {
    "10.10.10.5:22": {
    "proto": "tcp",
    "addr": "10.10.10.5",
    "port": 22 },
    ssh Client JSON Snippet
    (from netstat and /proc)


    View Slide

37. CfgMgmt
    Camp
    03 February 2015
    37/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    ssh -> sshd dependency graph


    View Slide

38. CfgMgmt
    Camp
    03 February 2015
    38/38
    C
    f
    g
    M
    g
    m
    t
    C
    a
    m
    p
    2015
    © 2015 Assimilation Systems Limited
    Switch Discovery Data
    from LLDP (or CDP)


    View Slide
