Android rendering performance and tools

Rendering performance for android applications
in these slides you can find:
- how views are rendered in android
- which relevant tools we find to measure performance
- how compose render views
- what tools for compose we can find to measure performance
- tips for composable functions to improve performance

Transcript

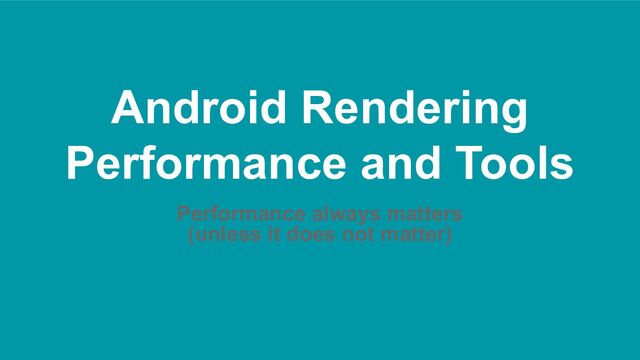

1. Android Rendering Performance and Tools Performance always matters (unless it does not matter)
2. What is rendering? Component GPU Rasterization Screen CPU Convert / load Polygons Load Textures
3. GPU - Rasterization • Strings, components (Buttons, RadioButton, Checkbox, etc), shapes -> to pixels • GPU is high consuming process • Display list: works as a cache strategy for the instances loaded in the gpu. • Calling invalidate makes this process more expensive in terms of performance
4. GPU - Display List • List of commands to be executed in the GPU • These commands are saved once they are created GPU Button Valid displayList ? Execute display List yes no Record new display List Alert! Invalidate is called
5. Invalidated vs Non-Invalidated • Change background • Change size • Change text • Change position in the layout • When you call invalidate method inside your custom view • All resources are pre-loaded in the GPU, so any resource used can help to not invalidate the view • Keeping resources (xml) to handle the changes (shapes for example) • Use clip to cut unnecessary part of views that are not visible for the user Invalidated called Invalidated not called
6. Rendering phases - Android View Measure Layout Drawing Android View
7. Frames vs rendering (Android Smooth Transitions) 60 frames / second 1000ms / 60 frames = 16.666 ms/frame Removed Frame Removed Frame You have 16ms to: • Computations and calculations • Draw views • Update views • Animations and transitions • Give time to GC collect everything that is needed GOOD LUCK !!!
8. How to measure performance • Overdraw • GPU profiling tool Developer options Android Studio • LogCat • Layout Inspector
9. How we treat rendering issues? • 1st: treat performance is not an easy task (keep this in mind) • Possible points to target: ◦ Check Overdraw ◦ Check which specific stage of rendering is demanding more work ◦ Check hierarchy
10. Overdraw • How many times a view or part of view is being draw on top of another view / group view • Some overdraw might be expected, but we might be doing more than necessary • GPU costs are expensive, reducing overdraw might reduce this costs. Developer Options -> Debug GPU overdraw
11. Overdraw - how to fix https://medium.com/androiddevelopers/draw-what-you-see-a nd-clip-the-e11-out-of-the-rest-6df58c47873e • Reduce unnecessary backgrounds • Flatten hierarchy • Clip to reduce views overlapping • Eliminate invisible views (if possible) • Reduce transparency https://www.lvguowei.me/post/android-custom-view-102-3/ https://developer.android.com/codelabs/advanced-android-kotlin-training-clipping-canvas-objects
12. GPU Profiling tool 16ms limit
13. GPU Profiling tool 1 2 3 4 5 6 7 8 Reduce draw logics Reduce draw work Too large / too many images Use Glide/Picasso Reduce hierarchy of views Check animators Reduce work / extract to another thread (onclick(), onLongClick(), onFocusChange(, onKeyListener() Reduce hierarchy of views
14. Layout inspector - Android views Levels of hierarchy
15. Logcat Filter name What does Example TaskActivityManager Show the activity startup time Displayed com.paulacr.performance/androidx.compose.ui. tooling.PreviewActivity: +1s192ms Choreographer Show skipped frames Skipped 42 frames! The application may be doing too much work on its main thread. OpenGLRenderer Time consumption in GPU rendering Davey! duration=743ms; Flags=0, IntendedVsync=151198870863899, Vsync=151199570863871, (...) GpuCompleted=0,
16. Rendering performance for Compose Extracted from https://developers.android.com/ • Not having xml does not mean that rendering problems ended • One of the problems for compose is the recomposition
17. Recomposition Tree skipped skipped skipped skipped skipped • Any composable function has the ability to be re-invoked at anytime • Composable functions are re-invoked when the input changes • When recomposition happens it only calls the composables or lambdas that changed and skip the rest
18. Layout inspector - Compose • Show recomposition count • Show skipped count • Allow to view the hierarchy in a better way • Can tell us where is a potential problem in our composable functions Skipped count Recomposition count
19. Recomposition Compose attributes for functions Skippable: skip the function if all parameters are equal as before Restartable: restarting point Attributes for object instances Immutable Unstable Stable
20. Stable vs Unstable type Stable type • Marked with annotation @Stable • Data classes with all “val” properties • Compose MutableState Unstable type • Mutable properties (var) • Collections: List, Set, Map, etc • Types from third parties libraries • All classes in non-compose project modules
21. Composable metrics by Chris Banes subprojects { tasks.withType(org.jetbrains.kotlin.gradle.tasks.KotlinCompile).configureEach { kotlinOptions { if (project.findProperty("app.enableComposeCompilerReports") == "true") { freeCompilerArgs += [ "-P", "plugin:androidx.compose.compiler.plugins.kotlin:reportsDestination=" + project.buildDir.absolutePath + "/compose_metrics" ] freeCompilerArgs += [ "-P", "plugin:androidx.compose.compiler.plugins.kotlin:metricsDestination=" + project.buildDir.absolutePath + "/compose_metrics" ] } } } } ./gradlew assembleRelease -Papp.enableComposeCompilerReports=true build.gradle (root)
22. Composable metrics { "skippableComposables": 57, "restartableComposables": 63, "readonlyComposables": 0, "totalComposables": 63, "restartGroups": 63, "totalGroups": 67, "staticArguments": 34, … } app-release-module.json restartable skippable scheme("...") fun CatItemImmutable( stable cat: CatImmutable stable buttonText: String stable onClick: Function0<Unit> stable onItemClick: Function0<Unit> ) app-release-composables.txt Skippability
23. Composable metrics stable class CatImmutable { stable val breed: String stable val color: Color stable val id: Int? <runtime stability> = Stable } unstable class CatMutable { stable val breed: String stable var color: Color <runtime stability> = Unstable } stability app-release-classes.txt app-release-classes.txt
24. Changing stability @Stable data class CatMutable( val breed: String, @Stable var color: Color ) stable class CatMutable { stable val breed:String stable var color: Color }
25. Lazy Layout Keys LazyColumn { items( items = notes, key = { note -> note.id} ) { note: Note -> NoteItem(item = note) { notes.remove(note) } } }
26. Lazy Layout Keys Without key With key
27. Lambda Modifiers Column { Card( modifier = Modifier.offset(position) ) { Text() } Button() }
28. Lambda Modifiers Column { Card( modifier = Modifier.offset{ position } ) { Text() } Button() }
29. DerivedStateOf • Used when the state change more than you want to update the UI val isValid = remember { derivedStateOf { typedEmail.value.contains("@") } }
30. Useful references • Overdraw + GPU ◦ https://developer.android.com/topic/performance/rendering/inspect-gpu-rendering ◦ https://chris.banes.me/posts/composable-metrics/ ◦ https://youtu.be/zdQRIYOST64 (Google Io - how Android renders) ◦ https://developer.android.com/topic/performance/rendering/overdraw ◦ https://developer.android.com/topic/performance/rendering/inspect-gpu-rendering • Clip Android Views ◦ https://medium.com/androiddevelopers/draw-what-you-see-and-clip-the-e11-out-of-the-r est-6df58c47873e ◦ https://www.lvguowei.me/post/android-custom-view-102-3/ ◦ https://developer.android.com/codelabs/advanced-android-kotlin-training-clipping-canvas -objects • Compose ◦ https://developer.android.com/jetpack/compose/performance/bestpractices ◦ https://youtu.be/6BRlI5zfCCk (compose runtime) ◦ https://youtu.be/ahXLwg2JYpc (compose performance tips) ◦ https://youtu.be/0yK7KoruhSM (compose rendering phases) ◦ https://youtu.be/BjGX2RftXsU (compose modifier deep dive) ◦ https://developer.android.com/jetpack/compose/graphics/images/optimization (images)
