Client-Side Storage: Past, Present and Future

A brief history of client-side storage followed by a more in-depth review of Web Storage, Web SQL Database and Indexed Database before concluding with a look towards the Filesystem API

Transcript

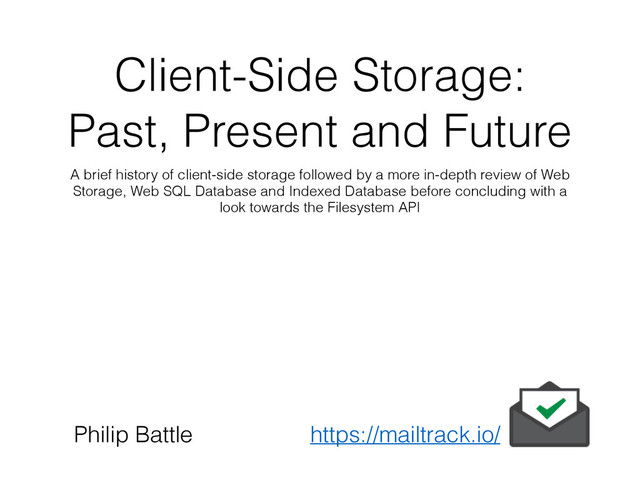

1. Client-Side Storage: Past, Present and Future A brief history of client-side storage followed by a more in-depth review of Web Storage, Web SQL Database and Indexed Database before concluding with a look towards the Filesystem API Philip Battle https://mailtrack.io/
2. Table of contents • What is client-side storage? • Brief History • Cookies • Web SQL Database • Web Storage • Indexed Database • Libraries • Filesystem API
3. What is client-side storage? • “Client-side storage serves to give the web browser a memory.” Javascript: The Definitive Guide, O’Reilly • Allows for the retention of state between the client and server • Data is stored on the user's hard drive • Stores basic user preferences or even a web apps complete state (think offline Gmail)
4. Brief History • Ubiquitous cookies invented by Lou Montulli around 1994 • Flash Cookies (LSO) • window.name • IE userData persistance • Google Gears (Web browser extension)
5. Cookies (the past?) Advantages! • Supported in all modern browsers • Reliable • Session or persistent ! ! Disadvantages! • Store only very small amounts of string data (4k) • Travel from browser to server with every HTTP request • Vulnerable to attack • Awkward JavaScript API • Synchronous
6. WebSQL DB (the past!) Web SQL is a W3C module for storing data in a database within the browser. The spec defines an API on top of the standard SQLite 3.1.19 database, which uses a single file to store data.
7. Since November 18, 2010, the W3C announced that Web SQL database is a deprecated Mozilla article: Beyond HTML5: Database APIs and the Road to IndexedDB
8. Can I use WebSQL Database
9. Example code… var db = openDatabase('documents', '1.0', ‘Offline storage', 5*1024*1024 /* modal */ /* creationCallback */ ); ! db.transaction(function(tx) { tx.executeSql("CREATE TABLE IF NOT EXISTS tasks (id REAL UNIQUE, text TEXT, blob BLOB)”, [] /* SQLStatementCallback */ /* errorCallback*/); });
10. WebSQL DB Advantages! • Uses SQL syntax like many server side applications • Webkit support • The user interface will ask permission scale up the database size: 5, 10, 50, 100 and 500MB etc. • Good search performance • Asynchronous Disadvantages! • Abandoned by standards authority • Vendors likely to drop support • SQL doesn't seem appropriate for client-side development • Rigid lacking agility since schema must be defined upfront
11. Web Storage (the present) Web Storage aka DOM Storage supports persistent data storage, similar to cookies but with a greatly enhanced capacity.
12. Can I use Web Storage
13. Example code… // Is localStorage available? if (typeof window.localStorage !== 'undefined') { ! // Store localStorage.setItem('greeting', 'Hello World!'); ! // Retrieve console.log(localStorage.getItem('greeting‘)); ! // Delete localStorage.removeItem('greeting'); }
14. Further API calls // Clear localstorage.clear(); ! // Event listener window.addEventListener('storage', function(event) { var key = event.key; var oldValue = event.oldValue; var newValue = event.newValue; var url = event.url; // Address of the page var storageArea = event.storageArea; ! // Handle event });
15. Web Storage Advantages! • Supported in all modern browsers • Simple API • Session or persistent • Event model • Pollyfills Disadvantages! • Store only ~5Mb • Unstructured data with no transactions, indexing or searching facilties • Synchronous • Poor performance for large/ complex data (lack of indexing)
16. IndexedDB (near future) IndexedDB is an API for client-side storage of significant amounts of structured data and for high performance searches on this data using indexes.
17. Can I use IndexedDB
18. Key concepts • IndexedDB databases store key-value pairs • IndexedDB is built on a transactional database model • The IndexedDB API is mostly asynchronous • IndexedDB is object-oriented • IndexedDB uses requests almost everywhere
19. Example code… // Vendor prefixes window.indexedDB = window.indexedDB || window.mozIndexedDB || window.webkitIndexedDB || window.msIndexedDB; ! var db; var request = window.indexedDB.open("customers", 1); // returns IDBOpenDBRequest ! request.onerror = function(event) { console.log("error: ", event.target.errorCode); }; ! request.onsuccess = function(event) { db = request.result; }; !
20. Version control request.onupgradeneeded = function(event) { var db = event.target.result; ! // Create an objectStore var objectStore = db.createObjectStore("customers",{ keyPath: "id" // The objects must have a unique property with the same name as the keyPath /* autoIncrement: true */ /* out-of-line key */ }); ! …
21. Create indices … ! // Create an index to search customers by name. We may have duplicates so we can't use a unique index. objectStore.createIndex("name", "name", {unique: false}); ! // Create an index to search customers by email. We want to ensure that no two customers have the same email, so use a unique index. objectStore.createIndex("email", "email", {unique: true}); ! …
22. Adding data inside transactions … ! // “readwrite” transaction. “read-only” by default var customerObjectStore = db.transaction(["customers"], "readwrite").objectStore("customers"); ! customerObjectStore.add({ id: "658-44-4444", name: "Philip", age: 35, email: “philip@company.com" }); ! customerObjectStore.add({ id: "658-55-5555", name: "Jose", age: 36, email: "jose@company.com" }); ! customerObjectStore.add({ id: "658-66-6666", name: "Anne", age: 37, email: "another@company.com" }); };
23. Read // Shorthand db.transaction(["customers"], "read- only").objectStore("customers").get("65 8-44-4444").onsuccess = function(event) { console.log("Name for 658-44-4444 is " + event.target.result.name); };
24. Update var objectStore = db.transaction(["customers"], "readwrite").objectStore("customers"); ! var request = objectStore.get("658-44-4444"); ! request.onsuccess = function(event) { // Get the old value that we want to update var data = request.result; ! // Update the value(s) in the object that you want to change data.age = 42; ! // Put this updated object back into the database. objectStore.put(data); };
25. Using an index var index = objectStore.index("name"); ! index.get("Philip").onsuccess = function(event) { console.log(“Philip's id is " + event.target.result.id); };
26. Using a cursor objectStore.openCursor().onsuccess = function(event) { var cursor = event.target.result; ! if (cursor) { console.log("Name for id " + cursor.key + " is " + cursor.value.name); customers.push(cursor.value); cursor.continue(); // Ascending order } else { console.log("No more entries!"); } };
27. Specifying the range and direction of cursors // Match anything between "Philip" and "Anne", but not including "Anne" var boundKeyRange = IDBKeyRange.bound("Philip", "Anne", false, true); ! index.openCursor(boundKeyRange, "prev").onsuccess = function(event) { var cursor = event.target.result; ! if (cursor) { // Do something with the matches. cursor.continue(); } };
28. IndexedDB Advantages! • Robust client-side data storage and access • good browsers support • No limit on the database's size. The user interface will just ask permission for storing blobs bigger than 50 MB • Good performance (indexes) • Non blocking API Disadvantages! • The API is very new, complex, and subject to revision • Little support in older and mobile browsers • Difficult and largely impractical to create a IndexedDB polyfill • like any NoSQL store, data is unstructured which can lead to integrity issues
29. Libraries 1. localForage 2. Lawnchair 3. Jquery-IndexedDB 4. IndexedDBShim
30. Filesystem API (the future) The previous formats are all suitable for text and structured data, but when it comes to large files and binary content, we need something else.
31. Can I use Filesystem API
32. Key concepts • The File System API is a virtual representation of a file system • The File System API can use different storage types • Browsers impose storage quotas • The File System API has asynchronous and synchronous versions • The File System API interacts with other APIs
33. Example code… var fs = requestFileSystemSync(TEMPORARY, 1024*1024 /* successCallback */ /* error Callback */); ! fs.root.getFile('log.txt', {create: true, exclusive: true}, function(fileEntry) { ! // fileEntry.isFile === true // fileEntry.name == 'log.txt' // fileEntry.fullPath == '/log.txt' ! }, errorHandler);
34. Filesystem API Advantages! • Can store large content and binary files, so it's suitable for images, audio, video etc • Good performance, having an asynchronous API ! Disadvantages! • Very early standard. Only available in Chrome and Opera • No transaction support • No built-in search/indexing support
35. “fin”
