From requests to responses: a journey into the ASP.NET Web API runtime architecture

Slides for my NDC 2013 session on the ASP.NET Web API internal runtime architecture
Video is available here: https://vimeo.com/68215605

Transcript

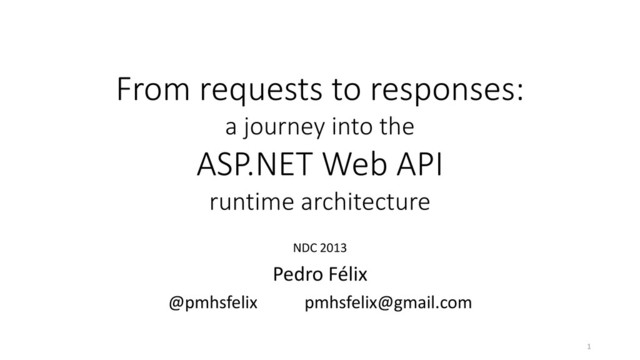

1. From requests to responses: a journey into the ASP.NET Web API runtime architecture NDC 2013 Pedro Félix @pmhsfelix pmhsfelix@gmail.com 1
2. whoami • Professor at the Lisbon Polytechnic Institute • Independent Consultant • Currently with the Service Delivery Broker team (SAPO - Portugal Telecom) • Co-author of Designing Evolvable Web APIs with ASP.NET (to be published in 2013 by O’Reilly) 2
3. Concrete Controller HTTP is a stateless request/response protocol that operates by exchanging messages An HTTP "server" is a program that accepts connections in order to service HTTP requests by sending HTTP responses. In Hypertext Transfer Protocol (HTTP/1.1): Message Syntax and Routing 3 Request Message Response Message ? ASP.NET Web API
4. Outline • Message Representation • The HttpRequestMessage and HttpResponseMessage classes • The HttpContent and derived classes • Message Processing • Processing layers • Extensibility points • Examples 4
5. Message Representation 5
6. System.Net.Http • Introduced in .NET 4.5 • Backported to .NET 4.0 6
7. Instantiability and testability 7 [Fact] public void HttpRequestMessage_is_easy_to_instantiate() { var request = new HttpRequestMessage( HttpMethod.Get, new Uri("http://www.ietf.org/rfc/rfc2616.txt")); Assert.Equal(HttpMethod.Get, request.Method); Assert.Equal("http://www.ietf.org/rfc/rfc2616.txt", request.RequestUri.ToString()); Assert.Equal(new Version(1,1), request.Version); } [Fact] public void HttpResponseMessage_is_easy_to_instantiate() { var response = new HttpResponseMessage(HttpStatusCode.OK); Assert.Equal(HttpStatusCode.OK, response.StatusCode); Assert.Equal(new Version(1,1), response.Version); }
8. Typed headers 8
9. Typed headers 9 [Fact] public void Header_classes_expose_headers_in_a_strongly_typed_way() { var request = new HttpRequestMessage(); request.Headers.Add( "Accept", "text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8"); HttpHeaderValueCollection<MediaTypeWithQualityHeaderValue> accept = request.Headers.Accept; Assert.Equal(4, accept.Count); MediaTypeWithQualityHeaderValue third = accept.Skip(2).First(); Assert.Equal("application/xml", third.MediaType); Assert.Equal(0.9, third.Quality); Assert.Null(third.CharSet); Assert.Equal(1, third.Parameters.Count); Assert.Equal("q", third.Parameters.First().Name); Assert.Equal("0.9", third.Parameters.First().Value); }
10. HttpContent 10
11. Custom content 11 public class FileContent : HttpContent { private readonly Stream _fstream; public FileContent(string path, string mediaType = "application/octet-stream") { _fstream = new FileStream(path, FileMode.Open, FileAccess.Read); base.Headers.ContentType = new MediaTypeHeaderValue(mediaType); } protected override Task SerializeToStreamAsync(Stream stream, TransportContext context) { return _fstream.CopyToAsync(stream); } protected override bool TryComputeLength(out long length) { if (!_fstream.CanSeek){ length = 0; return false; } else{ length = _fstream.Length; return true; } } protected override void Dispose(bool disposing) { _fstream.Dispose(); } }
12. System.Net.Http • Faithful to RFC 2616 • Easier to instantiate and test • Both typed and untyped access to message members (e.g. headers) • Extensible HTTP content class hierarchy • Based on the Task Asynchronous Pattern • Usable on both the client and server sides 12
13. Message Processing 13
14. Runtime Architecture Web Host | Self Host | Custom Hosts Message Handler ApiController Concrete Controller GetAction PostAction ... 14 HttpRequestMessage HttpResponseMessage HttpRequestMessage HttpResponseMessage HttpRequestMessage HttpResponseMessage Message Handler Message Handler • Controller Layer • Controllers, actions, parameters • Model binding, validation and formatters • Filters • Message Handling Layer • Message transformation • Response message generation • Host adaptation Layer • Request message generation • Response message consuption
15. Message Processing Message Handling Layer 15
16. Message Handlers 16 HttpRequestMessage HttpResponseMessage Message Handler HttpRequestMessage Task<HttpResponseMessage> DelegatingHandler HttpRequestMessage HttpResponseMessage
17. Message Handlers 17 HttpRequestMessage HttpResponseMessage Message Handler HttpRequestMessage Task<HttpResponseMessage> DelegatingHandler HttpRequestMessage HttpResponseMessage
18. Basic Authentication 18 async protected override Task<HttpResponseMessage> SendAsync( HttpRequestMessage request, CancellationToken cancellationToken) { if (HasAuthorizationHeaderWithBasicScheme(request)) { var username = TryExtractAndValidateCredentials( request.Headers.Authorization.Parameter); if (username == null) return UnauthorizedResponseMessage(_realm); SetPrincipal(request, username); } var response = await base.SendAsync(request, cancellationToken); if(response.StatusCode == HttpStatusCode.Unauthorized) response.Headers.WwwAuthenticate.Add( new AuthenticationHeaderValue("Basic", string.Format("realm={0}", _realm))); return response; }
19. HttpServer • Message Handler pipeline • Common pipeline ended with a special route dispatcher handler • Per-route pipeline • Associated configuration • HttpServer is also a DelegatingHandler 19 Message Handler Http Configuration Message Handler Route Dispatcher Controller Dispatcher Per-Route Handler
20. 20 Web Host | Self Host | Custom Hosts ApiController Concrete Controller GetAction PostAction ... HttpRequestMessage HttpResponseMessage HttpRequestMessage HttpResponseMessage Message Handler Http Configuration Message Handler Route Dispatcher Controller Dispatcher Per-Route Handler
21. HttpConfiguration • Routing HttpRouteCollection Routes { get; } • Middleware container Collection<DelegatingHandler> MessageHandlers { get; } HttpFilterCollection Filters { get; } MediaTypeFormatterCollection Formatters { get; } ParameterBindingRulesCollection ParameterBindingRules { get; } • Service location IDependencyResolver DependencyResolver { get; set; } ServicesContainer Services { get; internal set; } 21
22. Message Processing Host Adaptation Layer 22
23. Hosts • Web Host • ASP.NET Pipeline • Self Host • HttpListener - uses the WCF channel stack • Custom hosts • E.g. Service Bus host • OWIN hosts 23
24. ASP.NET Pipeline 24 HttpApplication IHttpModule IHttpModule UrlRoutingModule IHttpModule RouteTable.Routes IHttpHandler
25. ASP.NET Hosting (Web Hosting) 25 HttpApplication IHttpModule IHttpModule UrlRoutingModule IHttpModule RouteTable.Routes HttpControllerHandler HttpRequestMessage HttpResponseMessage HttpServer GlobalConfiguration .HttpConfiguration
26. ASP.NET Hosting (Web Hosting) • Hosting adaptation concerns • Request and response buffering – IHostBufferSelector • TLS client certificate • Uses ASP.NET Routing • To select the ASP.NET IHttpHandlers • To obtain the Web API routing data • Sits on top of the classical ASP.NET pipeline • Connection configuration at IIS 26
27. Self Hosting 27 WCF Channel Stack Transport Channel HttpMessageEncoder HttpRequestMessage HttpResponseMessage HttpServer HttpSelfHost Configuration HttpBinding HttpSelfHostServer
28. Self Hosting • Hosting adaptation concerns • HttpSelfHostConfiguration properties • Request and response buffering (.TransferMode) • TLS client certificate (.ClientCredentialType) • Timeouts (.ReceiveTimeout) • Throttling (.MaxConcurrentRequests) • Does not perform any routing • Routing is evaluated by the routing message handler • After the common message handlers • Connection configuration via netsh 28
29. In-memory hosting • Since a HttpServer is also a delegating handler... 29 Message Handler Http Configuration Message Handler Route Dispatcher Controller Dispatcher Per-Route Handler Message Handler HttpClient
30. Service Bus Hosting 30 Message Handler Http Configuration Message Handler Route Dispatcher Controller Dispatcher Per-Route Handler WCF Generic Service Using WebHttpRelayBinding Service Bus Relay HttpRequestMessage HttpResponseMessage
31. Message Processing Controller Layer 31
32. Controller Dispatching 32 IHttpController Concrete Controller GetAction PostAction ... HttpControllerDispatcher HttpResponseMessage HttpRequestMessage HttpControllerContext HttpRequestMessage HttpControllerDescriptor HttpResponseMessage ApiController (actions, filters, model binding, formatters) Concrete Controller ExecuteAsync
33. Controller selection, instantiation and invocation 33
34. ApiController.ExecuteAsync • Initialize properties (e.g. Request, User) from controller context • Use IHttpActionSelector to get HttpActionDescriptor • Filters • Parameter binding • Result convertion • Create HttpActionContext • Create action pipeline • filters, parameter binding and result conversion • Invoke pipeline 34
35. Action pipeline 35 AuthorizationFilter HttpResponseMessage HttpActionContext AuthorizationFilter HttpActionBinding AuthorizationFilter ActionFilter HttpResponseMessage action arguments Action method IActionResultConverter object HttpResponseMessage HttpRequestMessage ExceptionFilter ExceptionFilter parameters
36. Filters and attributes 36
37. Parameter binding • Handled by HttpParameterBinding derived classes • ModelBinderParameterBinding • Based on model binders and value providers (similar to ASP.NET MVC) • Used to bind from request URI • Related to FromUriAttribute • Multiple parameters • Default for simple types • FormatterParameterBinding • Based on the MediaTypeFormatter concept • Used to bind from request body • Related to FromBodyAttribute • One parameter only • Default for complex types 37
38. Custom parameter binding 38 public class IPAddressParameterBinding : HttpParameterBinding { public IPAddressParameterBinding(HttpParameterDescriptor descriptor) : base(descriptor) { } public override Task ExecuteBindingAsync(ModelMetadataProvider metadataProvider, HttpActionContext actionContext, CancellationToken cancellationToken) { var request = actionContext.Request; var ipString = GetClientIpAddressFrom(request); SetValue(actionContext, IPAddress.Parse(ipString)); return Task.FromResult<object>(null); } } config.ParameterBindingRules.Add(prm => prm.ParameterType == typeof(IPAddress) ? new IPAddressParameterBinding(prm) : null);
39. The "Content-Type" header field indicates the media type of the associated representation The indicated media type defines both the data format and how that data is intended to be processed by a recipient In Hypertext Transfer Protocol (HTTP/1.1): Semantics and Content (bolds are mine) • Examples • text/plain, text/html, application/json, application/xml • application/hal+json, application/vnd.collection+json • application/vnd.github+json • See http://www.iana.org/assignments/media-types 39
40. MediaTypeFormatter Media Type Formatters 40 HttpRequestMessage Request URI Headers Body Content-Type: media-type stream MediaTypeFormatter CLR Object
41. MediaTypeFormatter • MediaTypeFormatter is selected based on • The content media type • The parameter CLR type • Examples • JsonMediaTypeFormatter • XmlMediaTypeFormatter • FormUrlEncodedMediaTypeFormatter 41
42. Result conversion • Convert the action returned object into a HttpResponseMessage • IActionResultConverter interface • HttpResponseMessage Convert( HttpControllerContext controllerContext, object actionResult); • Implementations • ResponseMessageResultConverter • VoidResultConverter • ValueResultConverter 42
43. ValueResultConverter • Uses a MediaTypeFormatter to convert CLR object  byte sequence • The MediaTypeFormatter is chosen based on • The CLR object type • The request message, namely • The Accept header • The request URI • Server-driven content negotiation 43
44. MediaTypeFormatter (again) • Collection<MediaTypeHeaderValue> SupportedMediaTypes { get;} • Collection<Encoding> SupportedEncodings { get; private set; } • Collection<MediaTypeMapping> MediaTypeMappings { get; } • abstract bool CanReadType(Type type); • abstract bool CanWriteType(Type type); • Task<object> ReadFromStreamAsync(Type type, Stream readStream, …) • Task WriteToStreamAsync(Type type, object value, Stream writeStream, …) 44
45. Conclusions and final remarks • Layered runtime architecture • Hosting Adaptation • Message Handling Pipeline • Controller Layer • HTTP messages using the new class model • Several extensibility points 45
