Katie Bell - The computer science of marking computer science assignments

When writing systems to test if beginner programmers' code was correct, I didn't expect to need numpy, scipy a custom C module and a whole lot of cool geometry algorithms. Giving actionable feedback on tasks (in this case logo/turtle vector drawings), is necessary for the learning process and goes some fun places. Take this as a case study of writing efficient geometry number crunching in Python.

https://us.pycon.org/2016/schedule/presentation/2247/

Transcript

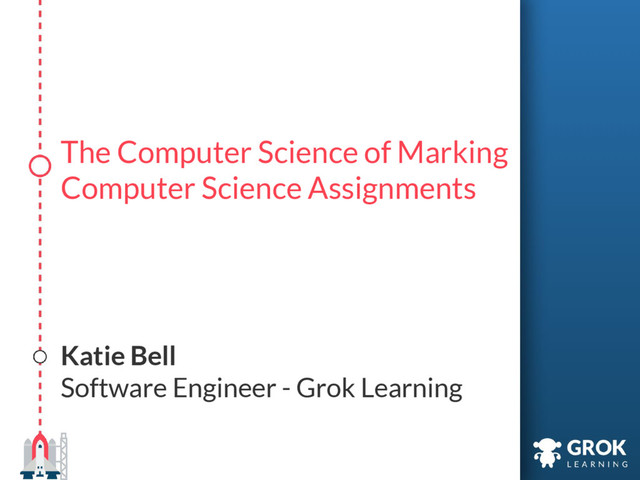

1. The Computer Science of Marking
   Computer Science Assignments
   Katie Bell
   Software Engineer - Grok Learning


   View Slide

2. I’ve never heard of this ‘Grok Learning’
   Image: CC0 Public Domain


   View Slide

3. Background


   View Slide

4. Let me tell you a story...
   Image: The Princess Bride (1987)


   View Slide

5. Turtles
   “It’s turtles all the way down!”
   1


   View Slide

6. Example
   from turtle import *
   left(60)
   forward(100)
   right(120)
   forward(100)
   right(120)
   forward(100)
   left(90)
   forward(100)
   left(90)
   forward(100)
   left(90)
   forward(100)


   View Slide

7. Example challenges


   View Slide

8. ○ Simple, graphical, engaging
   ○ Built-in module in Python
   ○ Teachers were asking for it
   ○ Ties in well with maths teaching
   Why Turtle?


   View Slide

9. True to built-in Python Turtle in the browser
   Frontend
   Sandboxed
   Python
   Browser
   Code and
   stdin Realtime
   animation events
   SVG animation
   Modified
   turtle.py


   View Slide

10. The marking system
    Because feedback is important.
    2


    View Slide

11. “You’re missing this line: {diagram}”
    “The angle between these two lines should
    be {angle} but it’s {angle}°.”
    “This line is the wrong colour. It was
    {colour1} but it should be {colour2}.”
    “There’s an extra line here {diagram}, that
    shouldn’t be there.”
    Meaningful feedback goals


    View Slide

12. 1. Rendered pixel-level differences
    2. Vector comparison
    Marking Options:


    View Slide

13. Comparing pixel by pixel
    angle = 360/7
    angle = int(360/7)


    View Slide

14. Vector Comparison
    Down the rabbit hole...
    3


    View Slide

15. Visually distinguishable differences between
    drawings should matter.
    ○ Additional lines, Missing lines
    ○ Lines of different lengths/positions
    So we have two drawings: Expected and Actual


    View Slide

16. ○ Fuzzy floating point matching
    ○ Drawing order should not matter.
    ○ Overlapping lines should not matter.
    ○ Translation of the whole drawing should
    not matter
    Additional Requirements:


    View Slide

17. Connected & Overlapping Lines


    View Slide

18. Simplifying
    Raw line segments
    from turtle drawing
    Minimised line
    segments


    View Slide

19. Where we’re at:


    View Slide

20. Filled areas!
    “It’s complicated.” - Facebook
    4


    View Slide

21. from turtle import *
    fillcolor('red')
    begin_fill()
    for i in range(3):
    forward(100)
    left(120)
    end_fill()
    Fills with turtle


    View Slide

22. The fun of fills


    View Slide

23. The fun of fills


    View Slide

24. The fun of fills
    White rectangle drawn
    over the top


    View Slide

25. The fun of fills


    View Slide

26. “Resolving overlapping polygons is a solved
    problem right? There should be a ready made
    algorithm and library for this.”
    - Me


    View Slide

27. Convex Simple
    Polygon
    Types of polygons
    Simple Polygon
    Complex Polygon
    (Self intersecting)


    View Slide

28. Triangulate
    Image Source: http://hyperboleandahalf.blogspot.com/


    View Slide

29. Delaunay Triangulation
    Image: Public Domain


    View Slide

30. from scipy.spatial import Delaunay
    Conveniently in Scipy


    View Slide

31. 1. Resolve shapes to non-overlapping triangles
    2. Work out what colour each triangle is
    3. Stitch the triangles together to form an
    outline of the filled area
    4. Compare the vectors of filled area outlines
    for each colour
    Here’s the plan:


    View Slide

32. Applying triangulation


    View Slide

33. Applying triangulation


    View Slide

34. Applying triangulation


    View Slide

35. Take the centroid of each triangle.
    Determine the highest (drawing order)
    shape which contains that point.
    Colour each triangle


    View Slide

36. Testing if a point is in a complex polygon


    View Slide

37. Testing if a point is in a complex polygon


    View Slide

38. Testing if a point is in a complex polygon


    View Slide

39. Testing if a point is in a complex polygon


    View Slide

40. INTERSECTING LINES
    Trickier than originally thought.


    View Slide

41. In order for the triangulation to work


    View Slide

42. In order for the triangulation to work


    View Slide

43. Resolve all the shapes in one triangulation


    View Slide

44. Resolve all the shapes in one triangulation


    View Slide

45. Stitching together


    View Slide

46. Stitching together


    View Slide

47. Stitching together


    View Slide

48. Stitching together


    View Slide

49. Stitching together


    View Slide

50. Stitching together


    View Slide

51. Stitching together


    View Slide

52. Simplify the vectors and we're done!


    View Slide

53. Sweet, it works!
    But there's one small problem...
    5


    View Slide

54. Birthday Banner


    View Slide

55. 6-8 seconds
    Per test case, for 6 test cases.


    View Slide

56. Triangulation of Birthday Banner:


    View Slide

57. $ nosetests test_checker_logo_diff.py --with-profile
    ................................................
    13327123 function calls (13321330 primitive calls) in 22.131 seconds
    Ordered by: cumulative time
    ncalls cumtime percall filename:lineno(function)
    9/1 22.131 22.131 site-packages/nose/suite.py:176(__call__)
    9/1 22.131 22.131 site-packages/nose/suite.py:197(run)
    48 22.129 0.461 site-packages/nose/case.py:44(__call__)
    48 22.129 0.461 site-packages/nose/case.py:115(run)
    48 22.124 0.461 site-packages/nose/case.py:142(runTest)
    48 22.124 0.461 unittest/case.py:394(__call__)
    48 22.124 0.461 unittest/case.py:297(run)
    38 22.091 0.581 checker_logo_diff.py:1094(check)
    146 21.554 0.148 checker_logo_diff.py:925(resolve_fill_triangles)
    90280 20.810 0.000 checker_logo_diff.py:140(is_intersection)
    538466 14.157 0.000 site-packages/numpy/core/numeric.py:2276(isclose)
    467962 13.619 0.000 site-packages/numpy/core/numeric.py:2212(allclose)
    76 11.475 0.151 checker_logo_diff.py:773(collapse_shapes_to_lines)
    Profiling


    View Slide

58. Attempt 1: Bentley–Ottmann algorithm


    View Slide

59. Conditions:
    1. No two line segment endpoints or
    crossings have the same x-coordinate
    2. No line segment endpoint lies upon
    another line segment
    3. No three line segments intersect at a
    single point.
    Attempt 1: Bentley–Ottmann algorithm


    View Slide

60. ○ 2 days of development time
    ○ 84% of test cases passing
    ○ Speed roughly the same as before
    Conclusion: Not working
    Attempt 1: Bentley–Ottmann algorithm


    View Slide

61. Attempt 2: CGAL
    The Computational Geometry Algorithms Library (C++)


    View Slide

62. github.com/CGAL/cgal-swig-bindings
    “This project is still experimental and more
    packages will be added.”
    So uh… Python bindings?


    View Slide

63. But it was too precise...


    View Slide

64. ○ 305 lines of horrific SWIG and C++ typedefs
    ○ ~1 day of development time
    ○ Test suite even slower
    Conclusion: Not working
    Attempt 2: CGAL


    View Slide

65. is_intersection


    View Slide

66. Attempt 3: Write a custom C Module
    def is_intersection(seg1, seg2, check_dir=False, ends=True):
    return fastlogo.fast_is_intersection(
    tuple(seg1[0]),
    tuple(seg1[1]),
    tuple(seg2[0]),
    tuple(seg2[1]),
    check_dir,
    ends)


    View Slide

67. ~10x speed increase!
    For both birthday banner and the test suite.


    View Slide

68. Lessons Learned:
    1. Geometry is fun!
    2. Profiling is the best.
    3. If you want more speed, forget algorithms
    and rewrite it in C.


    View Slide

69. ○ True-to-builtin Python Turtle in the browser
    ○ Good automated feedback to students
    Todo:
    ○ Add yet more detailed feedback
    ○ More algorithmic/speed improvements
    Where we are now:


    View Slide

70. Questions?
    @notsolonecoder, @groklearning
    katie@groklearning.com
    Try a turtle activity (Hour of Code):
    groklearning.com/hoc-2015
