Der Vortrag zeigt, wie Sie die Qualität Ihrer Dokumentation erhöhen und gleichzeitig den Aufwand zur Pflege reduzieren, indem Sie Ihre Dokumentation genauso wie Ihren Code verwalten und in den Build integrieren. Anhand des Beispiels einer Architekturdokumentation, zeigt Ralf, wie Sie mit dem arc42-Template im AsciiDoc-Format und Gradle als Build-Tool einfach Diagramme in Ihre Dokumentation integrieren, Stakeholder-spezifische Dokumente erzeugen und verschiedene Ausgabeformate generieren.

Reviewfähige PDF-Dokumente? Publishing nach Confluence? Integration einer Präsentation? Alles kein Problem! Einige Teile der Doku können Sie sogar automatisiert testen. Zwischendurch bekommen Sie zahlreiche Tipps, wie und wo Sie systematisch den Aufwand für Dokumentation reduzieren können und trotzdem lesbare, verständliche und praxistaugliche Ergebnisse produzieren.

https://docs-as-co.de

https://www.dbsystel.de/

Ralf D. Müller

April 08, 2019
Tweet

More Decks by Ralf D. Müller

Other Decks in Programming

Transcript

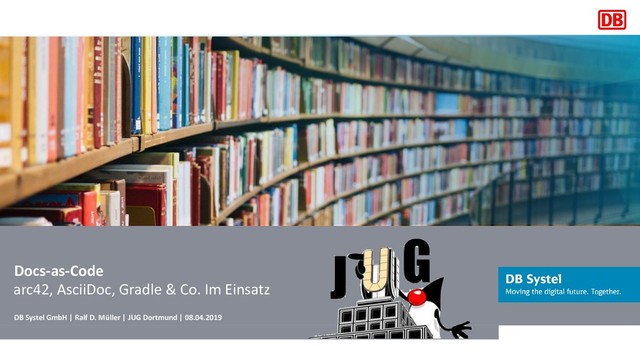

  1. arc42, AsciiDoc, Gradle & Co. Im Einsatz DB Systel GmbH

    | Ralf D. Müller | JUG Dortmund | 08.04.2019 Platzhalter für Titelbild – Hier können Sie Bilder aus der Mediathek einfügen! Placeholder for title picture – You can insert here pictures from the Mediathek! Docs-as-Code
  2. Incomplete or confusing documentation #1 Problem with Open Source DB

    Systel GmbH | Ralf D. Müller | 19.03.2019 2
  3. Ralf D. Müller Software Architect @ DB Systel mit Schwerpunkt

    Web-Technologien Qualität (Security, Testautomation) Produktivität (Gradle, Groovy, Grails) Prozessoptimierung In der Freizeit Geek, arc42 Contributor & Maintainer von docToolchain DB Systel GmbH | Ralf D. Müller | 19.03.2019 3
  4. Dr. Gernot Starke – innoQ Fellow Softwarearchitektur Entwurf Evolution +

    Modernisierung Dokumentation Reviews +49 177 7282570 [email protected] DB Systel GmbH | Ralf D. Müller | 19.03.2019 4
  5. Was machen wir die nächsten 40 Minuten? Mischung aus Tipps

    zu arc42 und docs-as-code Best Practice zum Umgang zur Pflege einer Architekturdokumentation Experimentelle Features :-) Vorschläge aus Erfahrung, keine Silver Bullet DB Systel GmbH | Ralf D. Müller | 19.03.2019 5
  6. VEry NOrMal System Gewachsene Dokumentation Unterschiedliche Stakholder Aufgrund verschiedener Änderungen

    stets im Wandel Hoher Pflegeaufwand Das VENOM Projekt DB Systel GmbH | Ralf D. Müller | 19.03.2019 6
  7. Darf ich vorstellen? Geoff – Solution Architect Geoff ist Solution

    Architect bei SAMM Inc Zuständig für VENOM Starker technischer Background Aufgaben: Weiterentwicklung der Architektur Pflege der Dokumentation Kommunikation der Architektur DB Systel GmbH | Ralf D. Müller | 19.03.2019 7
  8. Heutiger Fokus: Architektur Docs-as-Code Wie schreibe ich eine System-Dokumentation? Dr.

    Peter Hruschka http://www.peterhruschka.eu/ Dr. Gernot Starke http://gernotstarke.de/ http://arc42.org/ DAS Template für die Dokumentation eines Software Systems. DB Systel GmbH | Ralf D. Müller | 19.03.2019 10
  9. arc42 … … ist das Standard-Template im deutschsprachigen Raum …

    ist verfügbar in Deutsch, Englisch und Spanisch und Russisch … ist verfügbar in > 9 Formaten (.adoc, .docx, .rst, .md, .tex …) … gibt der Dokumentation eine einheitliche Struktur … ist verfügbar mit und ohne Hilfestellung … hilft die richtigen Aspekte richtig zu dokumentieren DB Systel GmbH | Ralf D. Müller | 19.03.2019 11
  10. arc42 – ein Kleiderschrank für Dokumentation 1. Requirements & Goals

    2. Constraints 3. Scope & Context 4. Solution Strategy 5. Building Block View 6. Runtime View 7. Deployment View 10. Quality Scenarios 11. Risks & Tech Debt 12. Glossary 9. Decisions 8. Crosscutting Concepts DB Systel GmbH | Ralf D. Müller | 19.03.2019 13
  11. Format der Dokumentation MS Word ist der etablierte Standard Arc42

    existiert in vielen Formaten: Docx latex html Asciidoc textile confluence markdown Geoff wählt AsciiDoc aufgrund vieler Vorteile AsciiDoc DB Systel GmbH | Ralf D. Müller | 19.03.2019 14
  12. arc42 als AsciiDoc Template == Architecture Constraints [role="arc42help"] **** .Contents

    Any requirement that constrains software architects in their freedom of design and implementation decisions or decision about the development process. These constraints sometimes go beyond individual systems and are valid for whole organizations and companies. .Motivation Architects should know exactly where they are free in their design decisions and where they must adhere to constraints. Constraints must always be dealt with; they may be negotiable, though. .Form Simple tables of constraints with explanations. If needed you can subdivide them into technical constraints, organizational and political constraints and conventions (e.g. programming or versioning guidelines, documentation or naming conventions) **** DB Systel GmbH | Ralf D. Müller | 19.03.2019 15
  13. Was ist Docs-as-Code? DB Systel GmbH | Ralf D. Müller

    |19. März 2019 18 ,--._______,-. ,',' , . ,_`-. / / ,' , _` ``. | ) `-.. (,';'""`/ '"`-._ ` \/ ______ \\ : ,o.-`- ,o. )\` -' `---.)) : , d8b ^-. '| `. ` `. |/ __:_ `. | , ` ` \ | ( ,-.`-. ;' ; ` : ; | | , `. / ; : \ ;-'`:::._,`.__),' : ; / , `- `-- ; | / \ ` , | ( ` : : ,\ | \ `. : : : ,' \ : \ `|-- ` \ ,' ,-' :-.-'; : |`--.______; | : : : / | | | \ | ; ; ; / ; _/--' | -hrr- :`-- / \_:_:_| ,',',' | |___ \ `^._,--' / , , .) `-._,-' ------------------------------------------------ This ASCII pic can be found at https://asciiart.website/index.php?art=animals/dogs
  14. demo.adoc build.gradle console output = A first Headline And a

    first paragraph. It continous on the next headline Second paragraph. == Second-Level Headline A link to http://asciidoctor.org/docs[Asciidoctor.org] Demo – eine erste Konvertierung DB Systel GmbH | Ralf D. Müller | 19.03.2019 19
  15. demo.adoc build.gradle console output plugins { id "org.asciidoctor.convert" version "1.5.3"

    } Demo – eine erste Konvertierung DB Systel GmbH | Ralf D. Müller | 19.03.2019 20
  16. build.gradle demo.adoc console output PS C:\Users\Demo\jax2017\demo1> gradle asciidoc :asciidoctor io/console

    not supported; tty will not be manipulated BUILD SUCCESSFUL Total time: 4.554 secs PS C:\Users\Demo\jax2017\demo1> Demo – eine erste Konvertierung DB Systel GmbH | Ralf D. Müller | 19.03.2019 21
  17. Out-of-the-Box Features „ablenkungsfrei“ – Dokumentation wie eMails schreiben Gliederung in

    Unterdokumente Neugliederung je nach Stakeholder Bilder werden referenziert, nicht eingebettet leichte Versionierung „handle Docs-as-Code“ Formatierung von Source-Code Reviews, Pull-Requests, Versionierung durch Git Konvertierung nach HTML5 und DocBook DB Systel GmbH | Ralf D. Müller | 19.03.2019 23
  18. .adoc .adoc …doch die Reise beginnt erst Geoff ist mit

    seiner Entscheidung erst mal zufrieden die alte Dokumentation muss aber zunächst überführt werden Geoff entscheidet sich im Rahmen einer Überarbeitung die Dokumentation per Copy & Paste in AsciiDoc zu überführen. .docx .adoc .html DB Systel GmbH | Ralf D. Müller | 19.03.2019 24
  19. treat Docs-as-Code I: Version Control .adoc .adoc .adoc .html DB

    Systel GmbH | Ralf D. Müller | 19.03.2019 25
  20. treat Docs-as-Code II: Git-Flow .adoc .adoc .adoc .html Fork PR

    .adoc DB Systel GmbH | Ralf D. Müller | 19.03.2019 26
  21. treat Docs-as-Code III: Build-Server .adoc .adoc .adoc .html Fork PR

    .adoc Build- Server On Change Publish DB Systel GmbH | Ralf D. Müller | 19.03.2019 27
  22. The End? DB Systel GmbH | Ralf D. Müller |

    19.03.2019 28 Danke für Ihre Aufmerksamkeit! Fragen?
  23. Diagramme: PlantUML .Benutzer und Benutzergruppen von VENOM [plantuml] ---- !pragma

    graphviz_dot jdot (VENOM\ni.B.O.S.S) as venom "Private User" -right-> venom "User Groups" --> venom "Corporate Users" --> venom "Government Users" -up-> venom "Regulation &\nStandard Bodies" -up-> venom "Operations" --> venom "Internal Users" -left-> venom ---- DB Systel GmbH | Ralf D. Müller | 19.03.2019 32
  24. draw.io DB Systel GmbH | Ralf D. Müller |19. März

    2019 35 PNG-Diagramm <xml> … </xml> Meta-Daten
  25. treat Docs-as-Code IV: automate Betreiber und Administratoren von VENOM Flexibilität

    hinsichtlich Betriebsumgebung, Betriebssystem. Möglichst wenig Aufwand bei technischer Administration und Inbetriebnahmen. Technisches Monitoring. DB Systel GmbH | Ralf D. Müller | 19.03.2019 38
  26. treat Docs-as-Code IV: automate {adoc:stakeholder} | Operations | Betreiber und

    Administratoren von VENOM | Flexibilität hinsichtlich Betriebsumgebung, Betriebssystem. Möglichst wenig Aufwand bei technischer Administration und Inbetriebnahmen. Technisches Monitoring. DB Systel GmbH | Ralf D. Müller | 19.03.2019 39
  27. === Stakeholder ==== Users and Groups of Users image::ea/1.5_Stakeholder.png[] |===

    | Role | Description | Goal | Comment include::../../ea/stakeholder.ad[] |=== treat Docs-as-Code: automate! DB Systel GmbH | Ralf D. Müller | 19.03.2019 40
  28. Don‘t know how to draw your component diagrams? => take

    a look at the C4-Model by Simon Brown https://c4model.com/ Context, Containers, Components, Classes Diagramme DB Systel GmbH | Ralf D. Müller | 19.03.2019 42
  29. Modulare Dokumentation DB Systel GmbH | Ralf D. Müller |19.

    März 2019 47 arc42- master.adoc kapitel1.adoc kapitel2.adoc public class HelloWorld { public static void main (String[] args) { // Ausgabe Hello World! System.out.println("Hello World!"); } } include include include kapitel8.adoc kapitel8.1.adoc include security- master.adoc business- master.adoc
  30. Tabellen in AsciiDoc [options="header",cols="7,23,17,33,11,11"] |=== | Nr. | Name |

    Rolle | Email | Telefon | PLZ | 1 | Hubert Kleinschmidt | Product Owner | [email protected] | 555 102 | 40388 | 2 | Erika Mustermann | Scrum Master | [email protected] | 555 103 | 41222 |=== mit MS Excel! DB Systel GmbH | Ralf D. Müller | 19.03.2019 59
  31. Export PPT Sprechernotizen enthalten asciidoc Slides und asciidoc werden automatisch

    exportiert DB Systel GmbH | Ralf D. Müller | 19.03.2019 61
  32. Automatisiertes Testing der Doku DB Systel GmbH | Ralf D.

    Müller | 19.03.2019 64 Broken Cross References (aka Broken Internal Links) Missing Images Files Multiple Definitions of Bookmarks or ID’s Missing Local Resources Missing Alt-tags in Images https://github.com/aim42/htmlSanityCheck
  33. Automatisiertes Testing der Doku DB Systel GmbH | Ralf D.

    Müller | 19.03.2019 65 https://github.com/aim42/htmlSanityCheck
  34. Vielen Dank für Ihre Aufmerksamkeit! https://docs-as-co.de @docToolchain Image-Credits: Title -

    Photo by Susan Yin on Unsplash Clipart: presentermedia.com, licenced to [email protected] www.dbsystel.de
