1. Part 3 Fundamentals 9. Custom methods Rick Hwang 2022/04/20 1

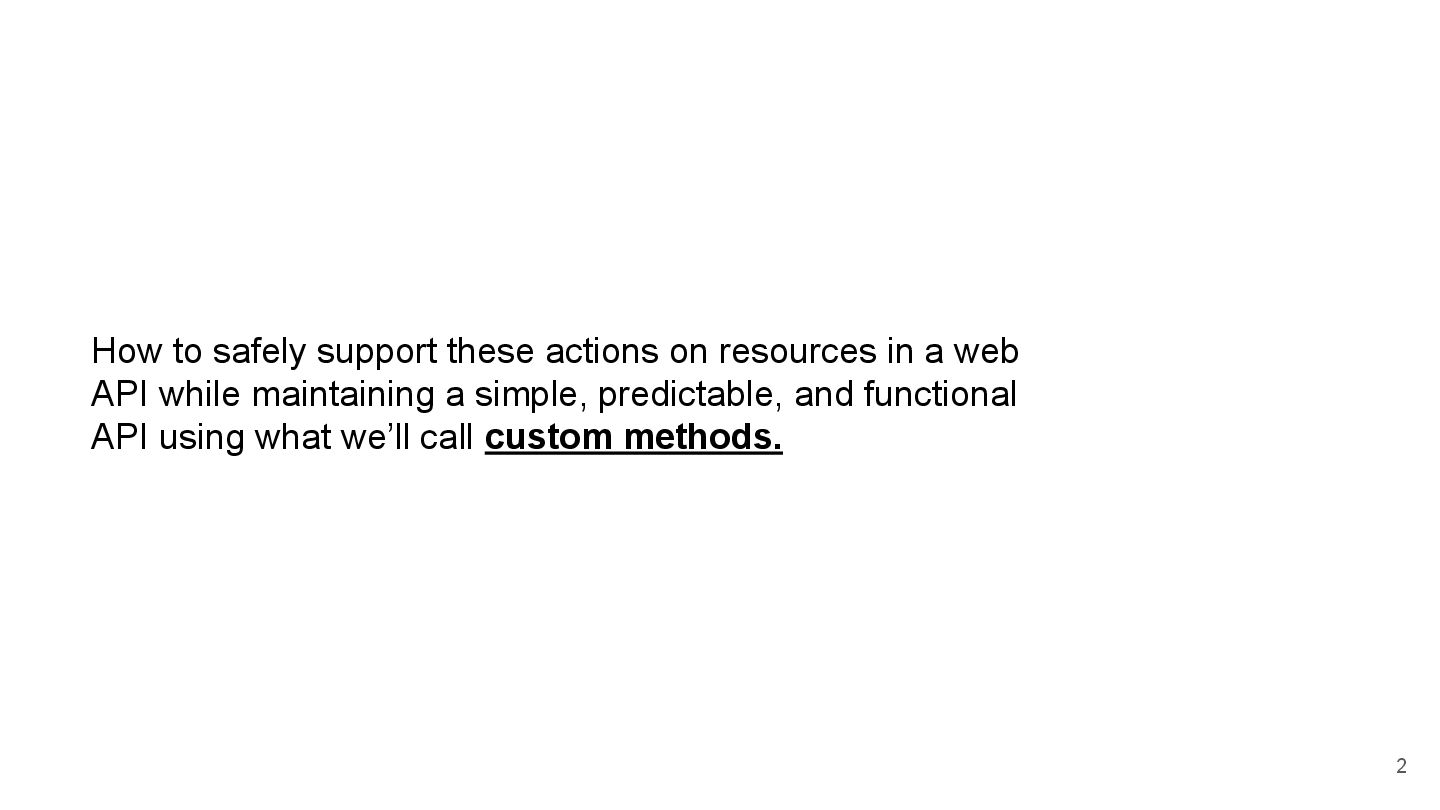

2. How to safely support these actions on resources in a web API while maintaining a simple, predictable, and functional API using what we’ll call custom methods. 2

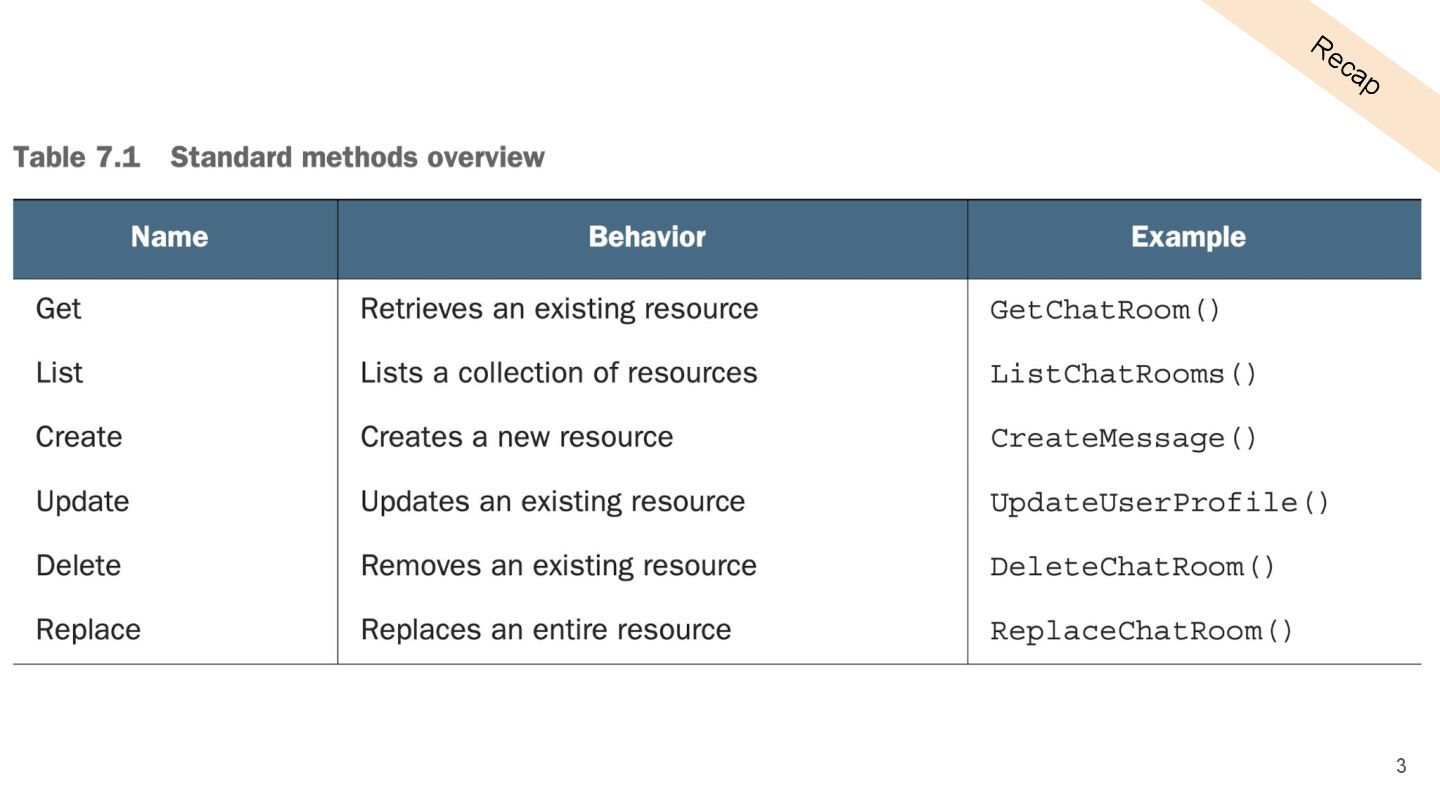

3. Recap 3

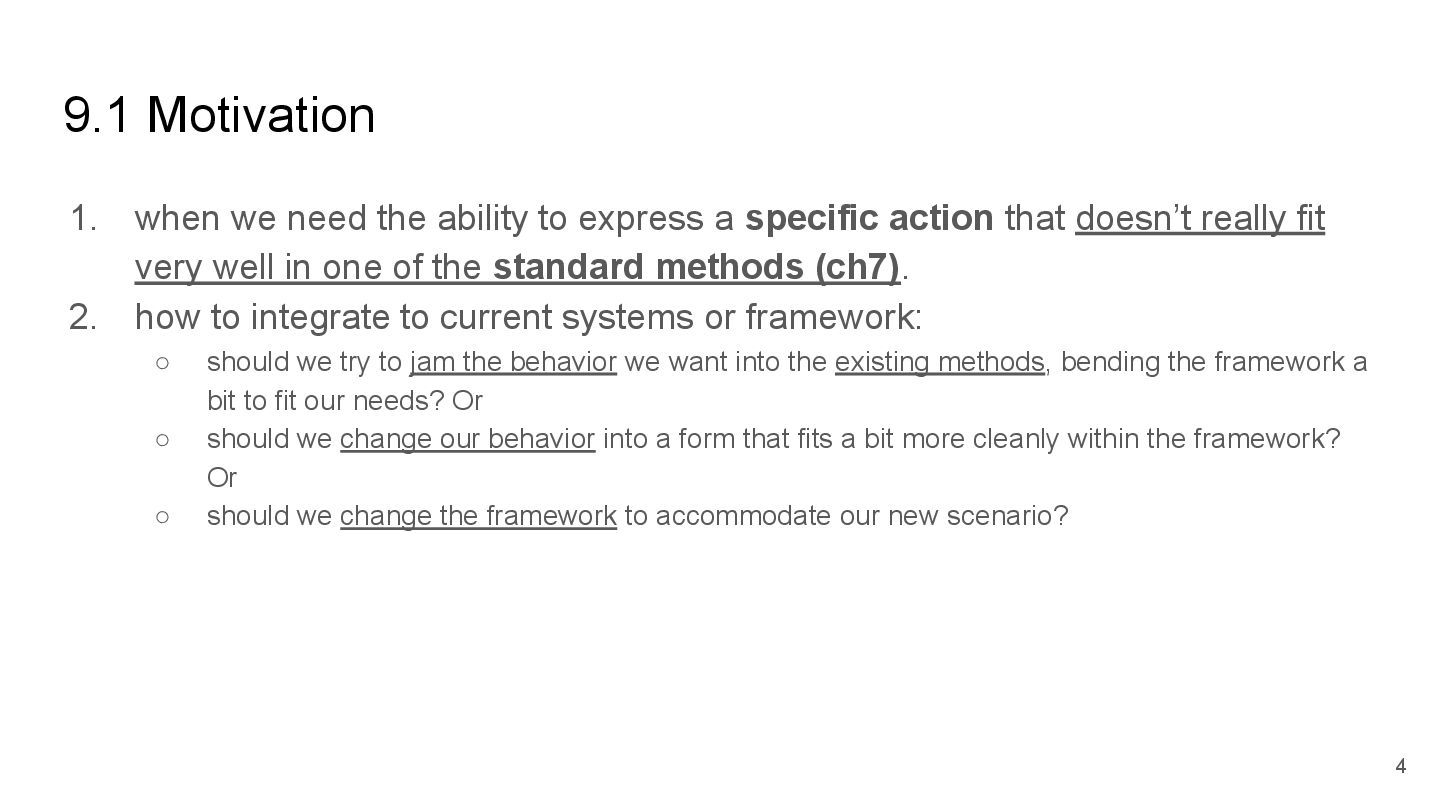

4. 9.1 Motivation 1. when we need the ability to express a specific action that doesn’t really fit very well in one of the standard methods (ch7). 2. how to integrate to current systems or framework: ◦ should we try to jam the behavior we want into the existing methods, bending the framework a bit to fit our needs? Or ◦ should we change our behavior into a form that fits a bit more cleanly within the framework? Or ◦ should we change the framework to accommodate our new scenario? 4

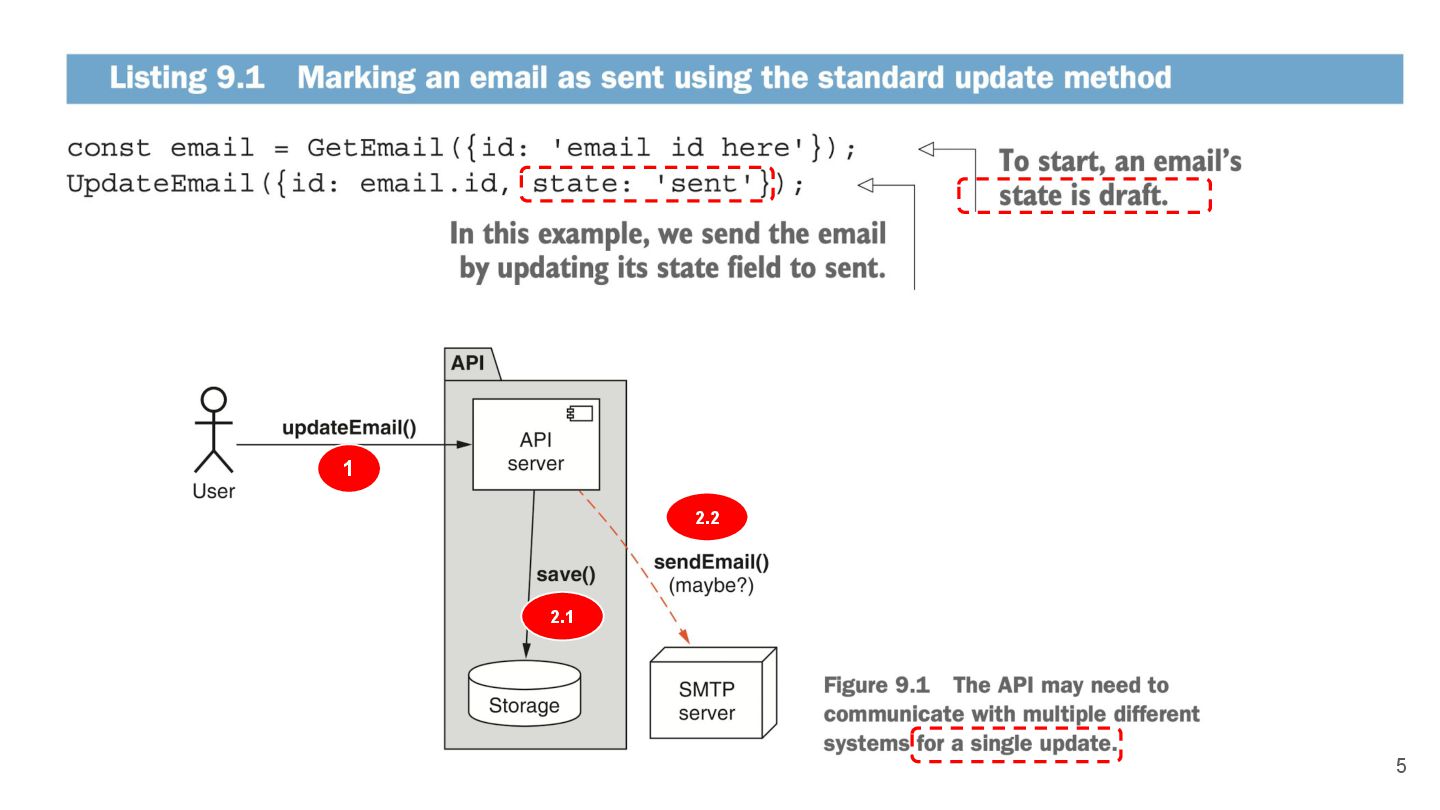

5. 1 2.1 2.2 5

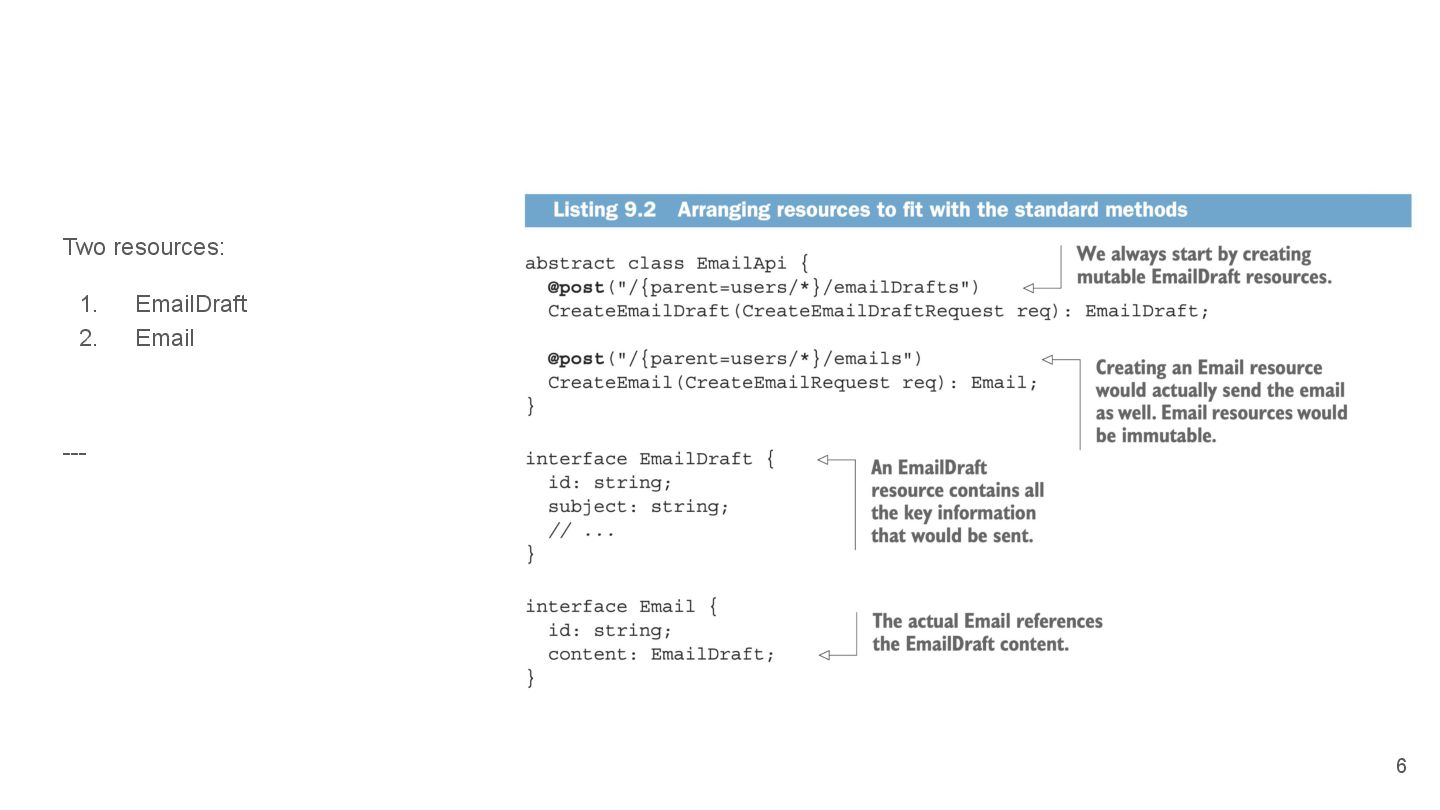

6. Two resources: 1. EmailDraft 2. Email --- 6

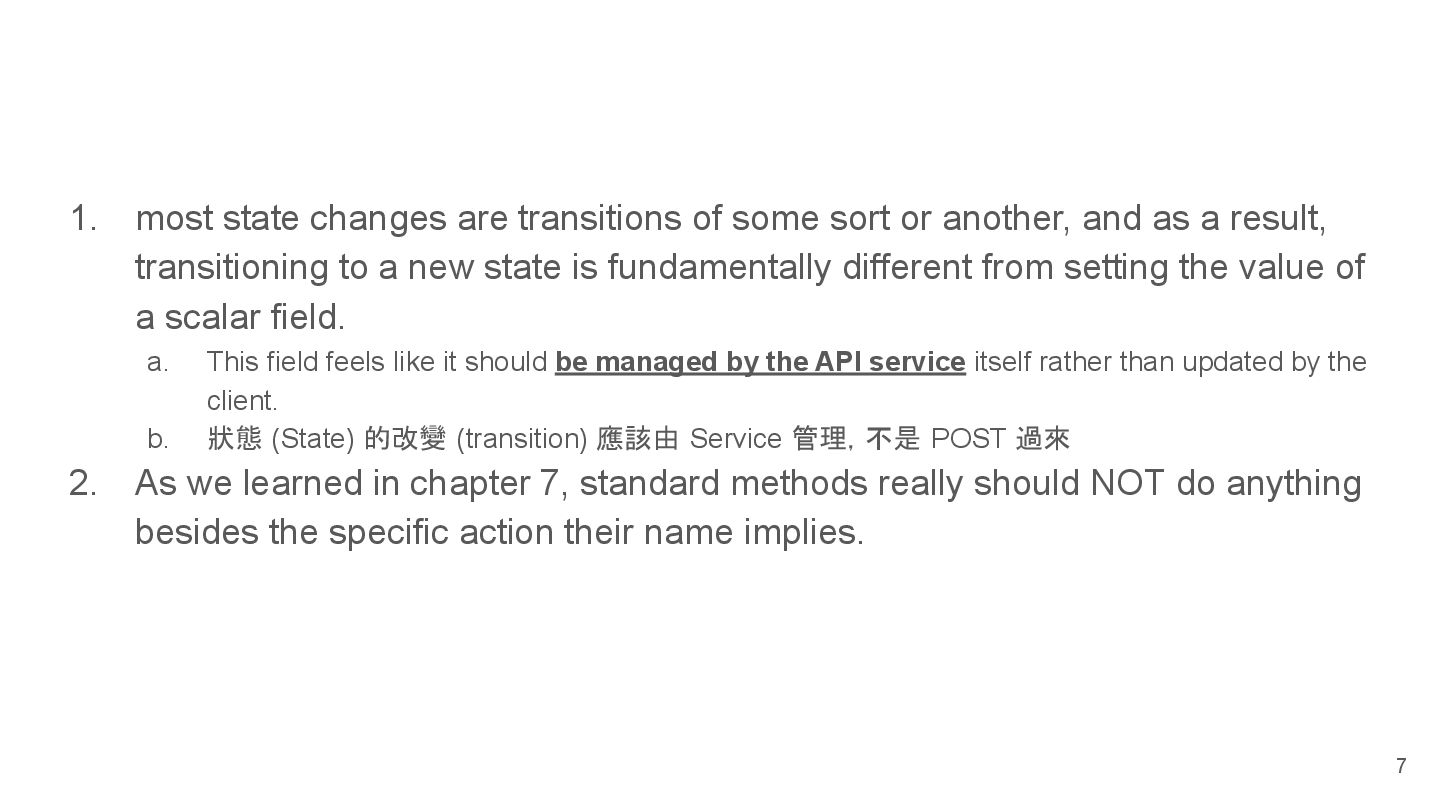

7. 1. most state changes are transitions of some sort or another, and as a result, transitioning to a new state is fundamentally different from setting the value of a scalar field. a. This field feels like it should be managed by the API service itself rather than updated by the client. b. 狀態 (State) 的改變 (transition) 應該由 Service 管理，不是 POST 過來 2. As we learned in chapter 7, standard methods really should NOT do anything besides the specific action their name implies. 7

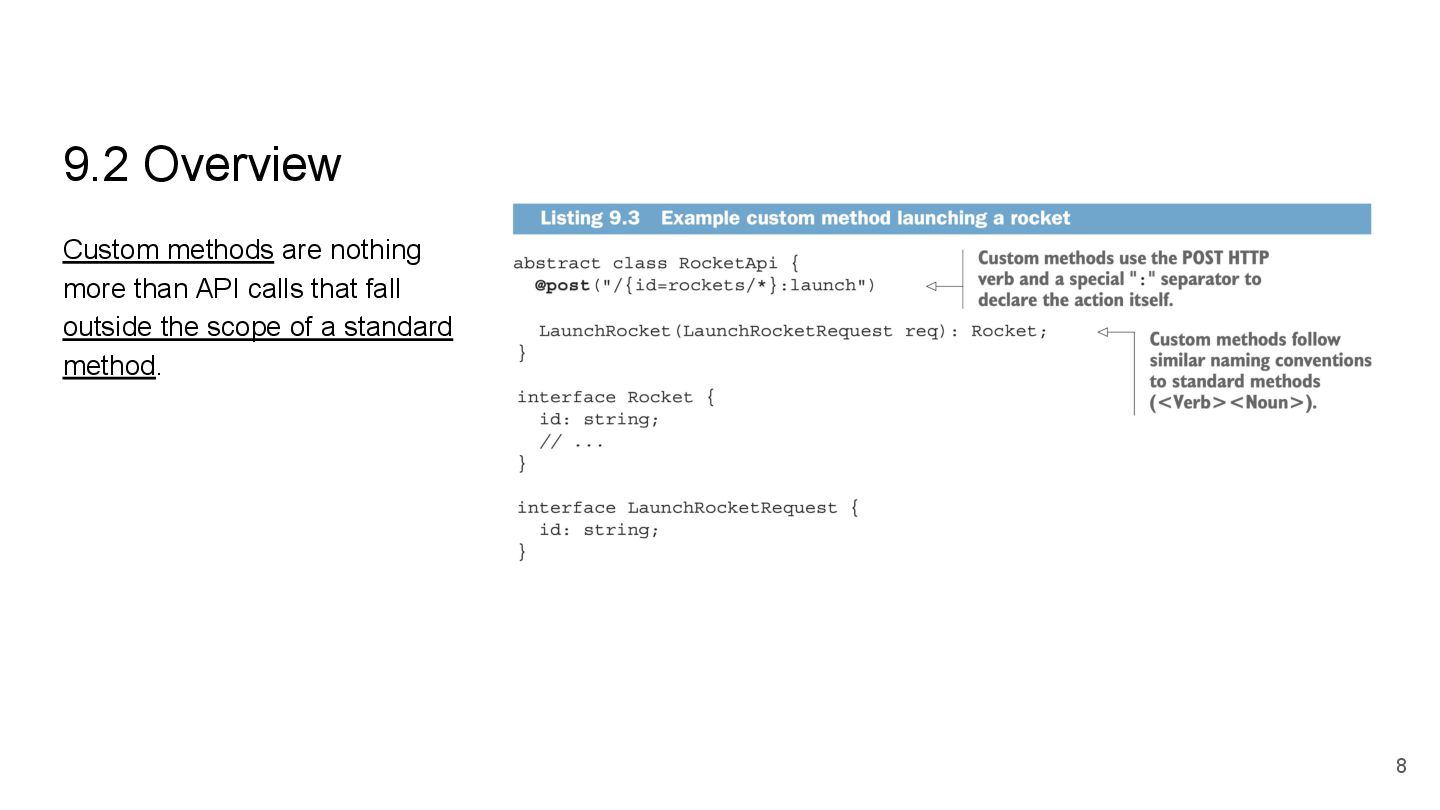

8. 9.2 Overview Custom methods are nothing more than API calls that fall outside the scope of a standard method. 8

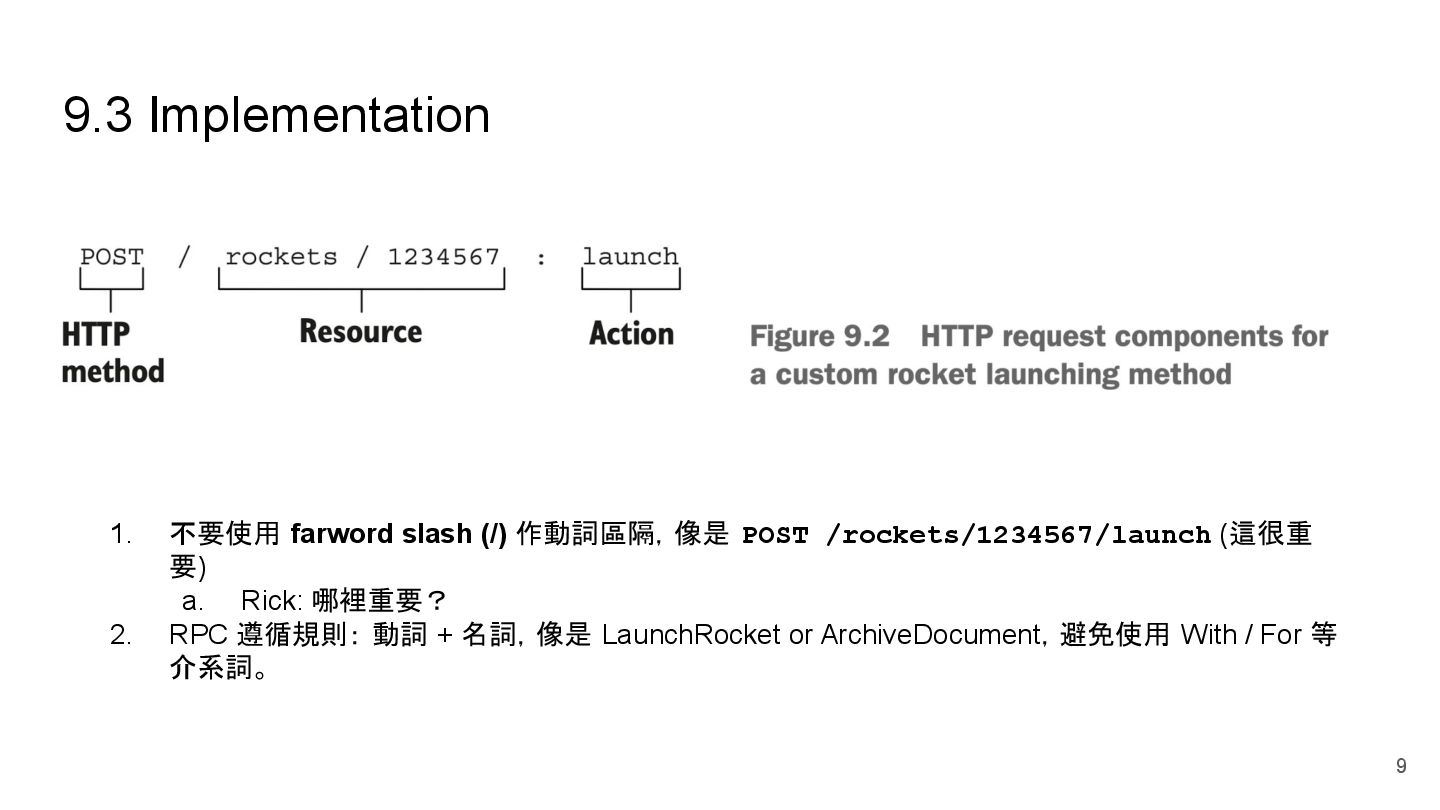

9. 9.3 Implementation 1. 不要使用 farword slash (/) 作動詞區隔，像是 POST /rockets/1234567/launch (這很重 要) a. Rick: 哪裡重要？ 2. RPC 遵循規則： 動詞 + 名詞，像是 LaunchRocket or ArchiveDocument，避免使用 With / For 等 介系詞。 9

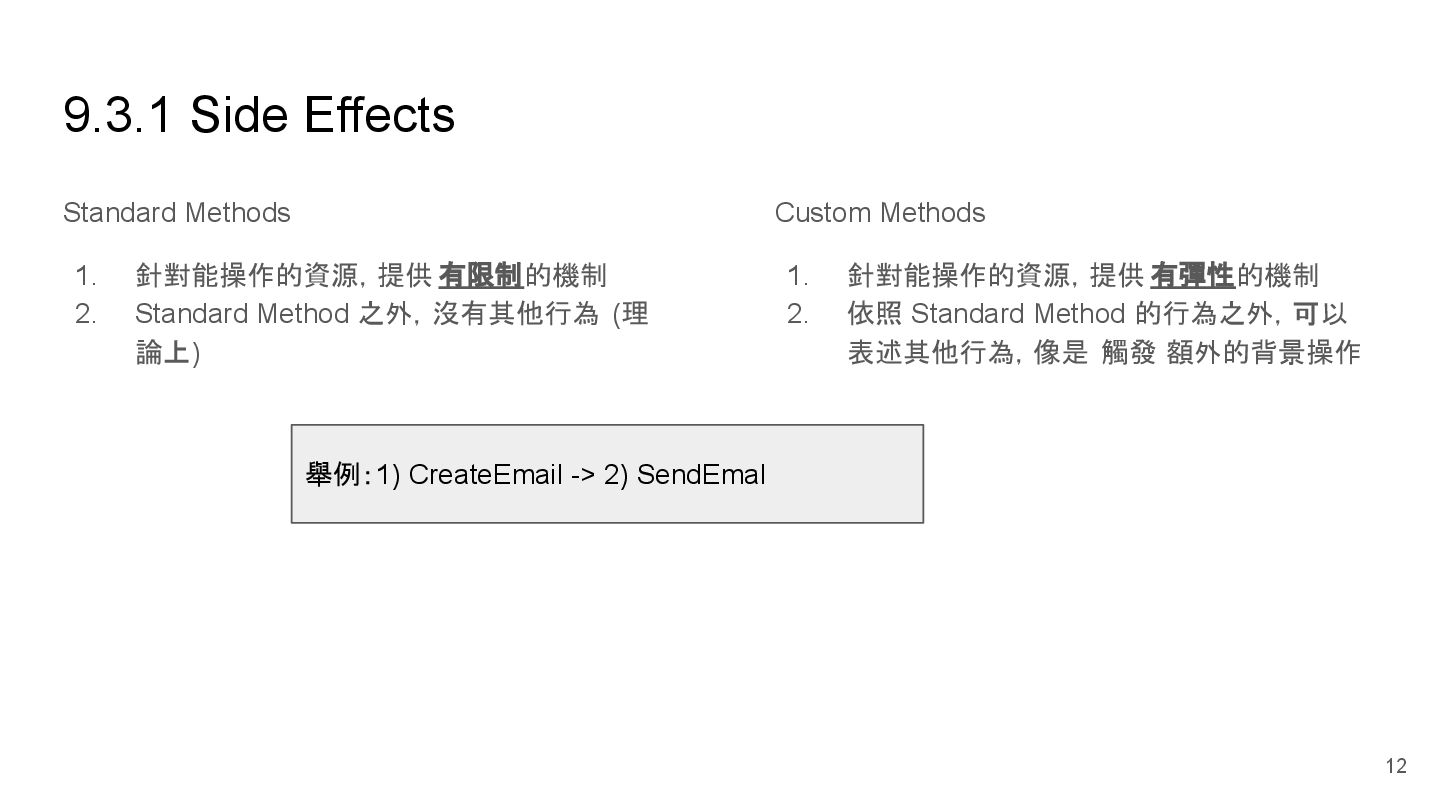

12. 9.3.1 Side Effects Standard Methods 1. 針對能操作的資源，提供 有限制的機制 2. Standard Method 之外，沒有其他行為 (理 論上) Custom Methods 1. 針對能操作的資源，提供 有彈性的機制 2. 依照 Standard Method 的行為之外，可以 表述其他行為，像是 觸發 額外的背景操作 舉例：1) CreateEmail -> 2) SendEmal 12

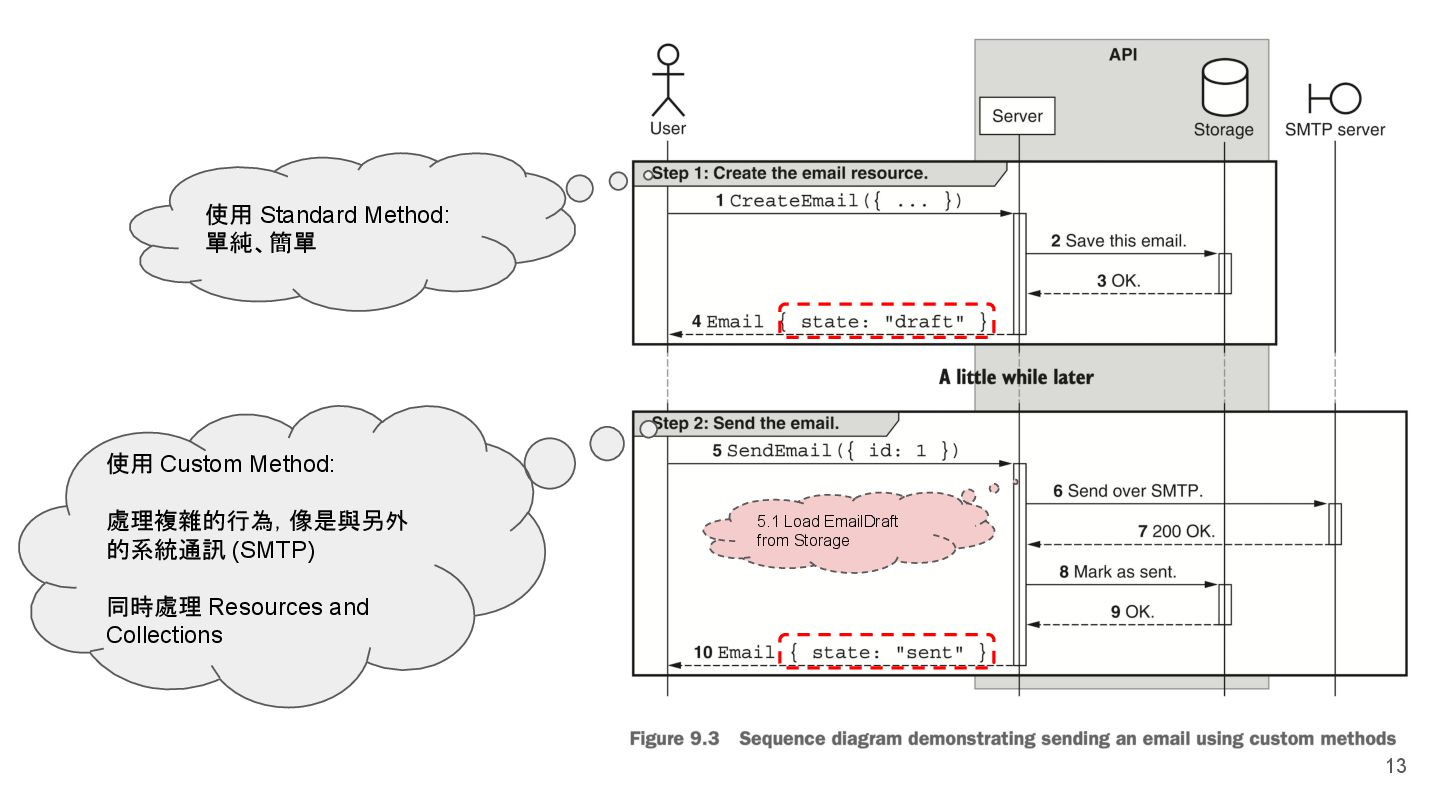

13. 5.1 Load EmailDraft from Storage 使用 Custom Method: 處理複雜的行為，像是與另外 的系統通訊 (SMTP) 同時處理 Resources and Collections 使用 Standard Method: 單純、簡單 13

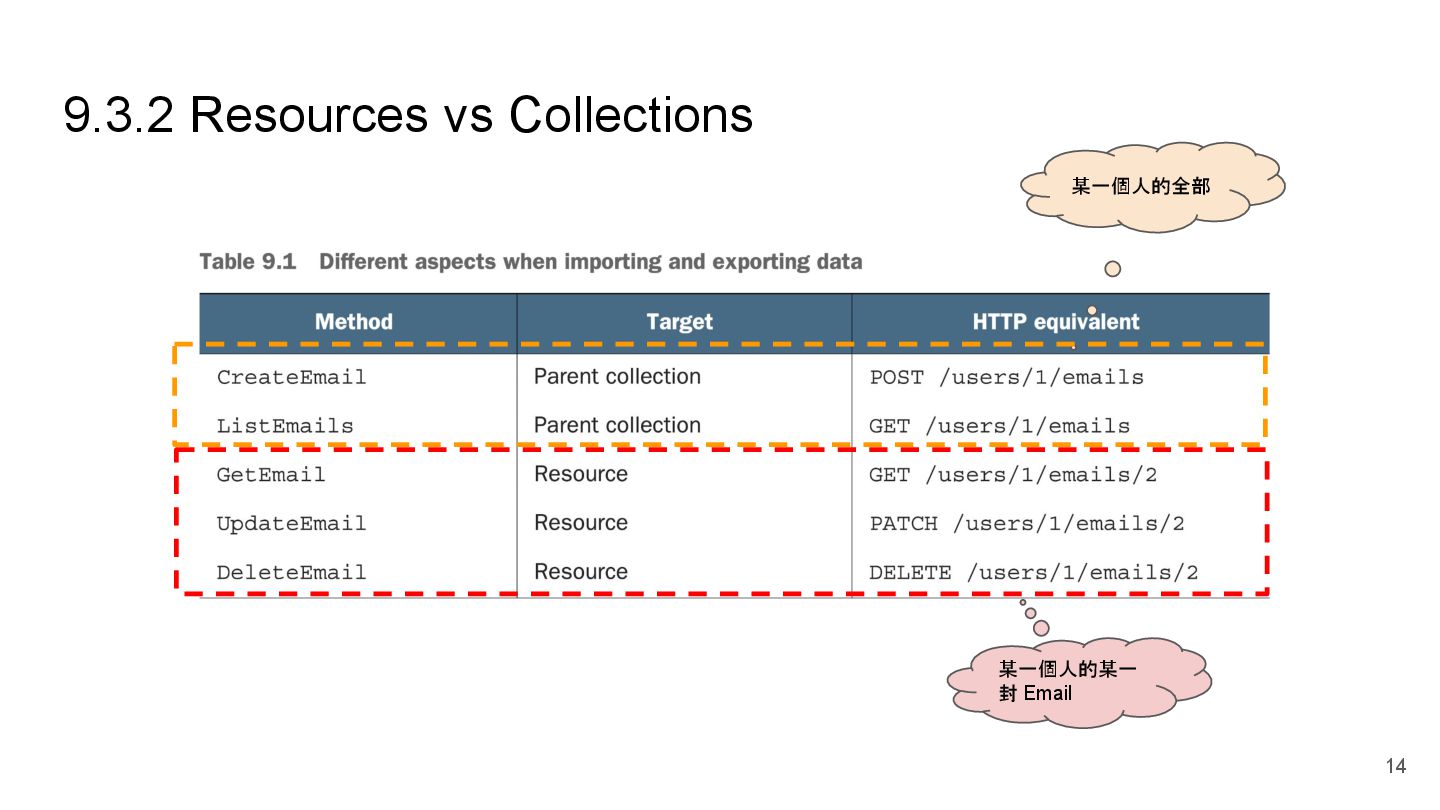

14. 9.3.2 Resources vs Collections 某一個人的某一 封 Email 某一個人的全部 14

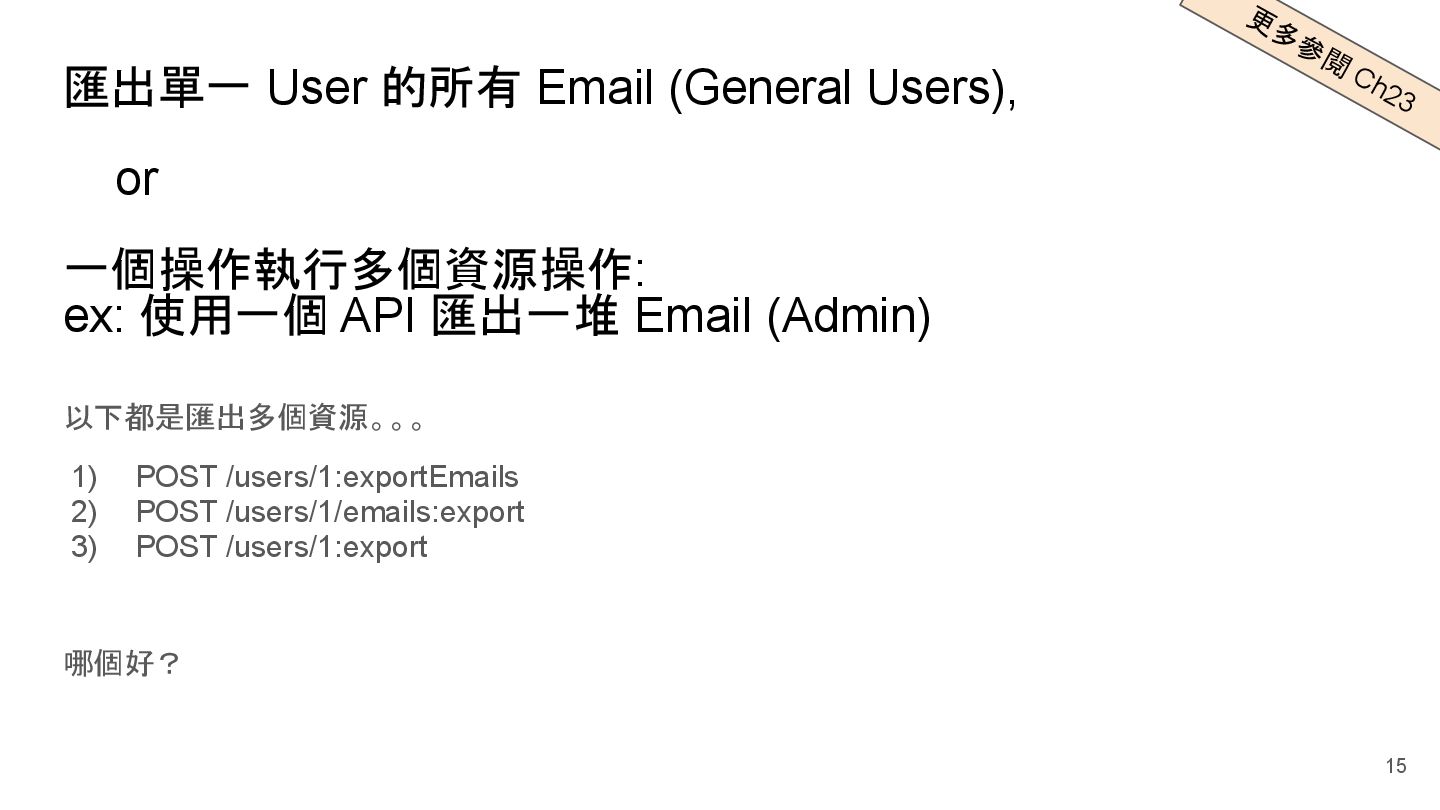

15. 匯出單一 User 的所有 Email (General Users), or 一個操作執行多個資源操作: ex: 使用一個 API 匯出一堆 Email (Admin) 以下都是匯出多個資源。。。 1) POST /users/1:exportEmails 2) POST /users/1/emails:export 3) POST /users/1:export 哪個好？ 更多參 閱 Ch23 15

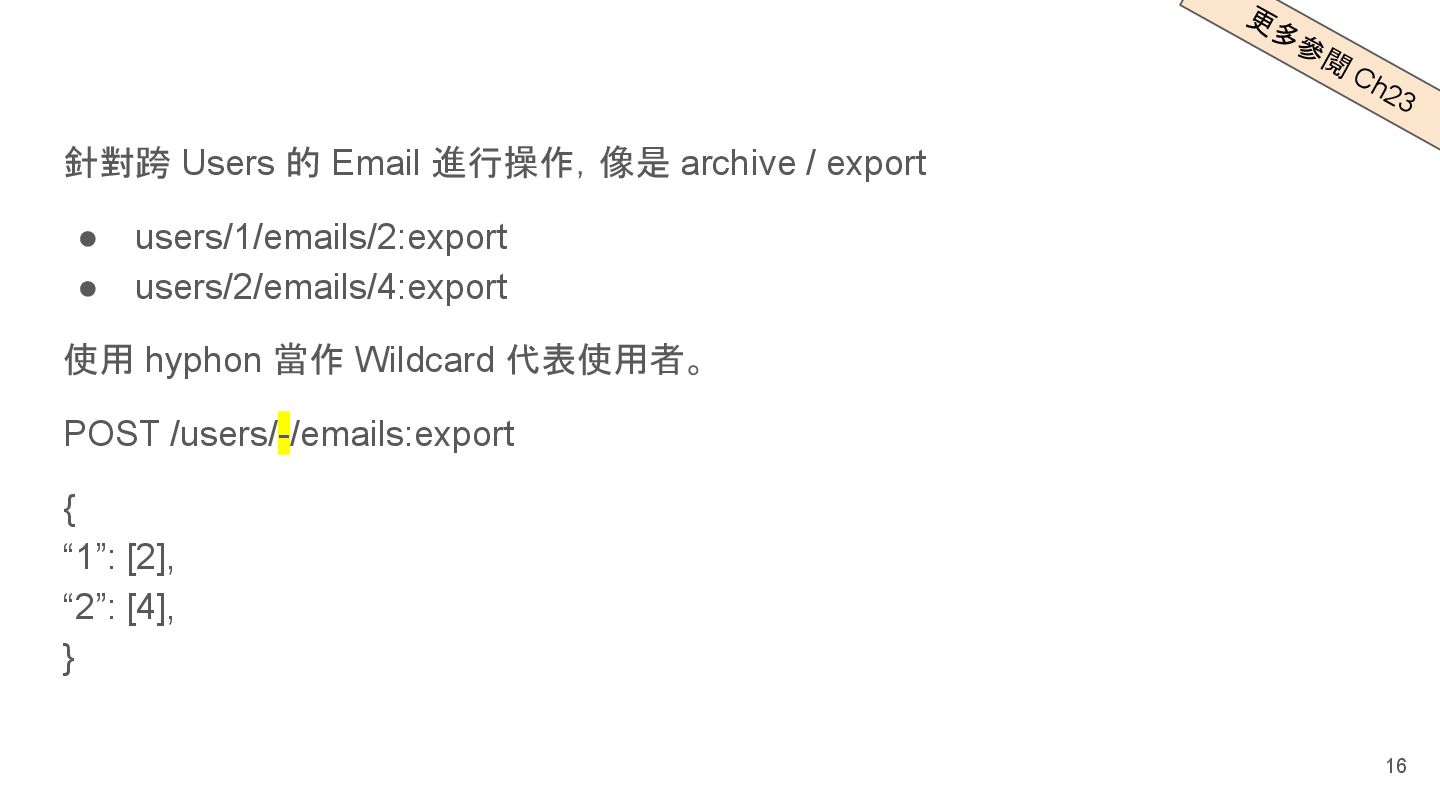

16. 針對跨 Users 的 Email 進行操作，像是 archive / export • users/1/emails/2:export • users/2/emails/4:export 使用 hyphon 當作 Wildcard 代表使用者。 POST /users/-/emails:export { “1”: [2], “2”: [4], } 更多參 閱 Ch23 16

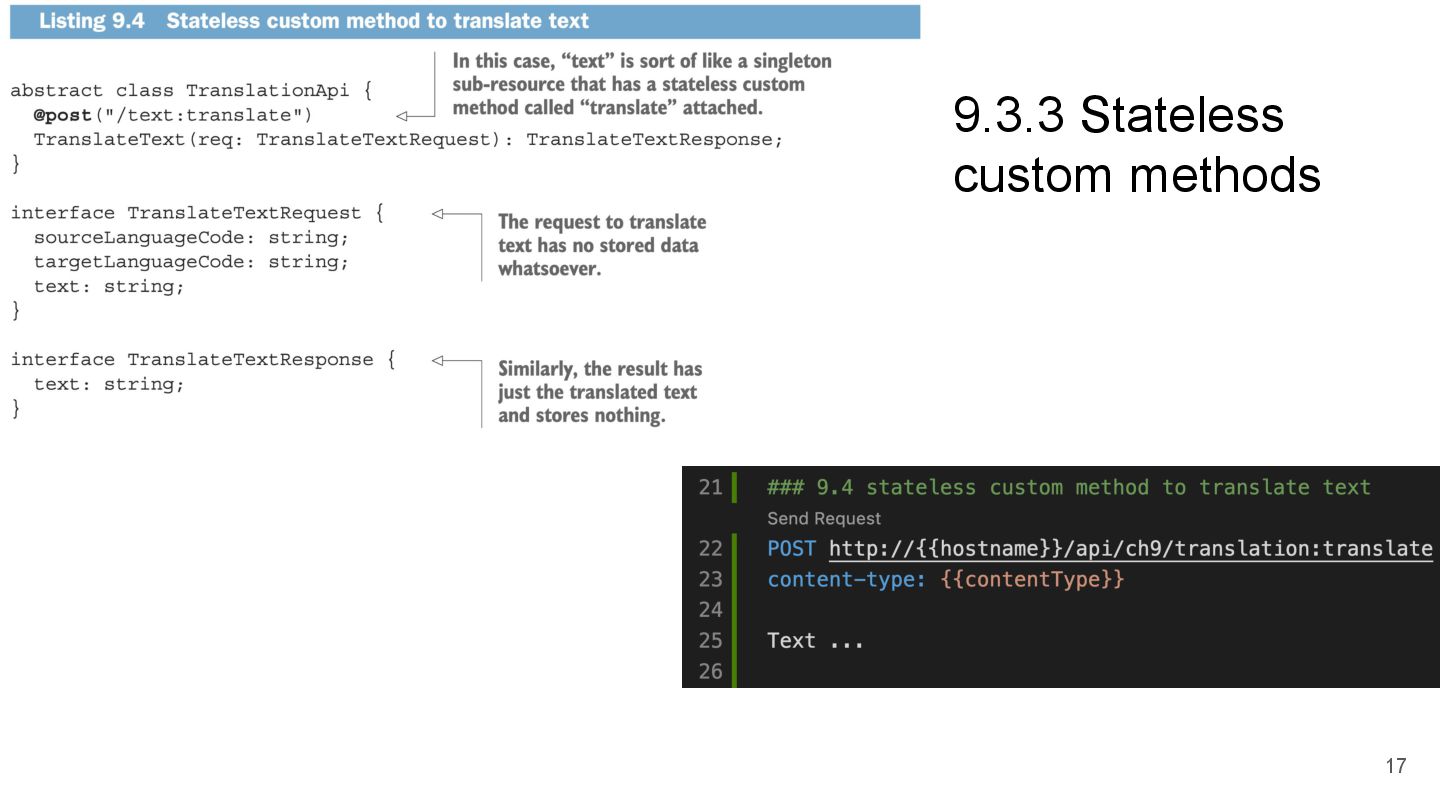

17. 9.3.3 Stateless custom methods 17

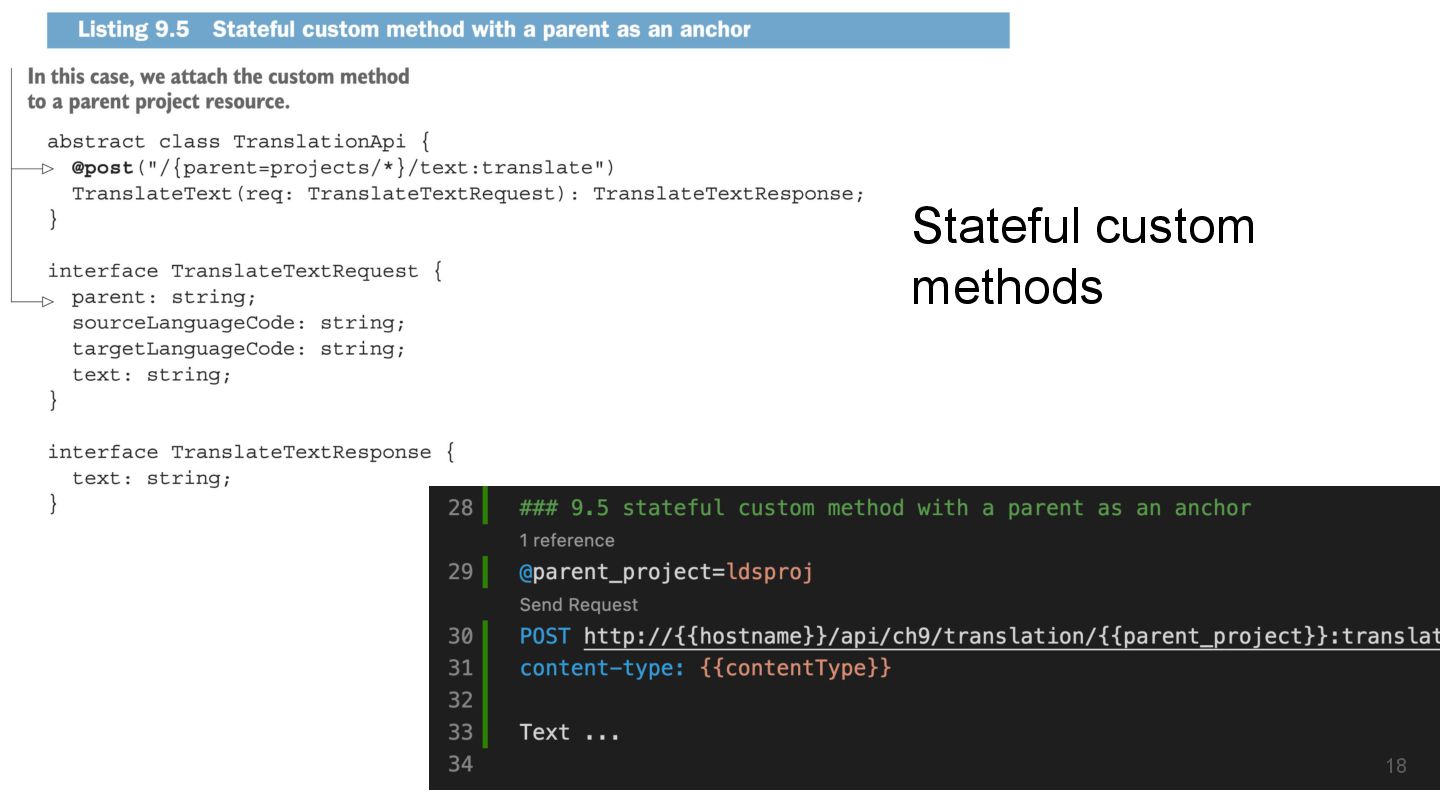

18. Stateful custom methods 18

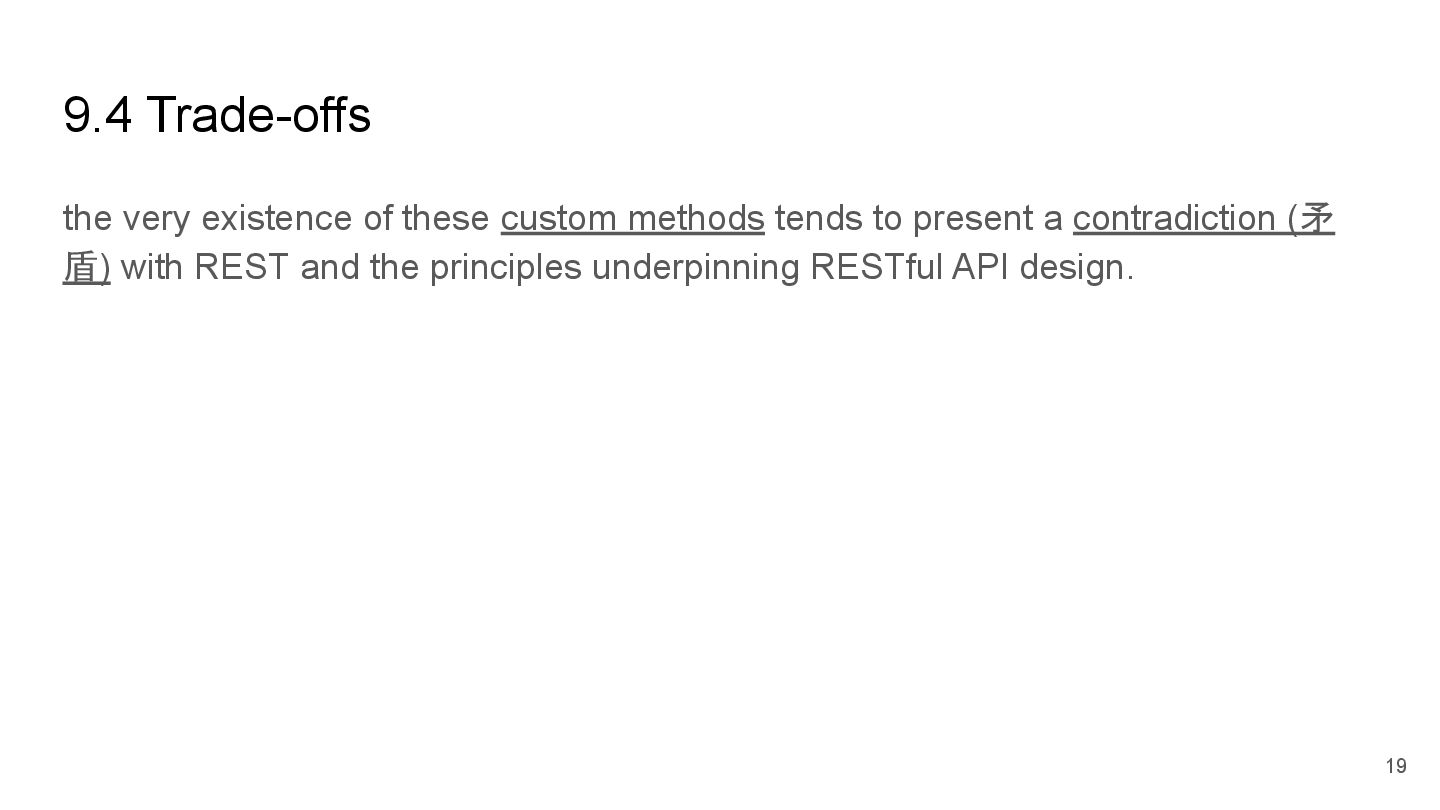

19. 9.4 Trade-offs the very existence of these custom methods tends to present a contradiction (矛 盾) with REST and the principles underpinning RESTful API design. 19

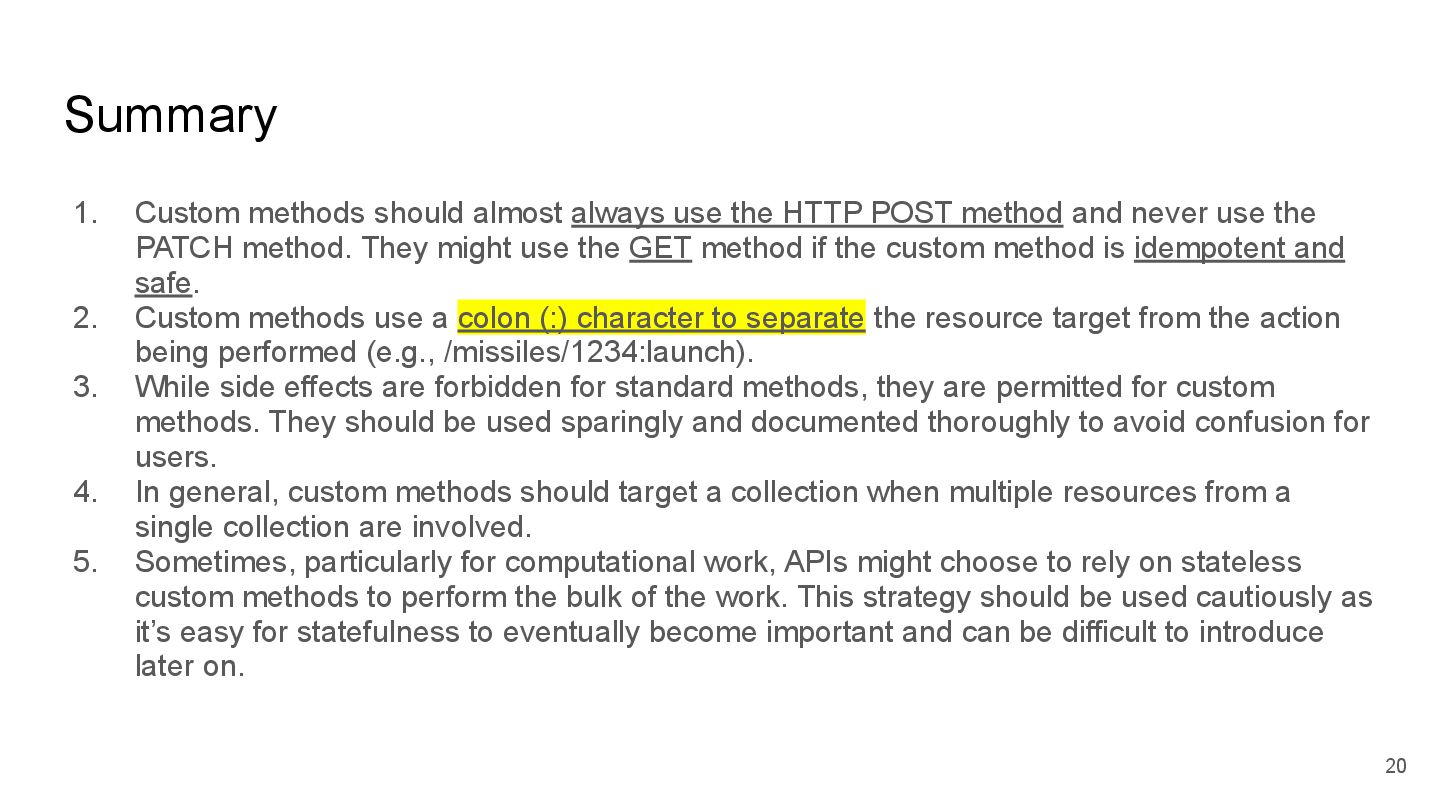

20. Summary 1. Custom methods should almost always use the HTTP POST method and never use the PATCH method. They might use the GET method if the custom method is idempotent and safe. 2. Custom methods use a colon (:) character to separate the resource target from the action being performed (e.g., /missiles/1234:launch). 3. While side effects are forbidden for standard methods, they are permitted for custom methods. They should be used sparingly and documented thoroughly to avoid confusion for users. 4. In general, custom methods should target a collection when multiple resources from a single collection are involved. 5. Sometimes, particularly for computational work, APIs might choose to rely on stateless custom methods to perform the bulk of the work. This strategy should be used cautiously as it’s easy for statefulness to eventually become important and can be difficult to introduce later on. 20
