Making Helm 2 Secure and Scalable, Hamburg, Germany

A talk about some of the core security issues related to a server-side component "Tiller" in Helm 2.
Hence, in the recent Helm Summit, the community decided to vote for a Tiller-less Helm in v3. The question to ask is how to make Helm 2 more secure given that v3 is planned for some time next year.

Transcript

1. Making Helm 2 Secure and Scalable Hamburg, October 29th 2018

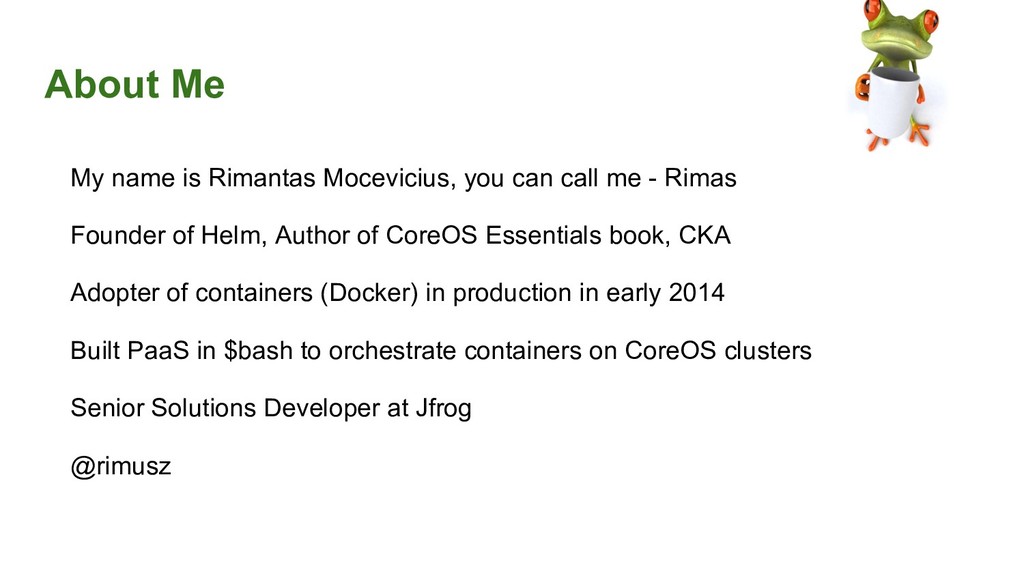

2. About Me My name is Rimantas Mocevicius, you can call me - Rimas Founder of Helm, Author of CoreOS Essentials book, CKA Adopter of containers (Docker) in production in early 2014 Built PaaS in $bash to orchestrate containers on CoreOS clusters Senior Solutions Developer at Jfrog @rimusz
3. Kubernetes
4. I have Kubernetes, now what? Should be easy to… • Get up and running your apps • Define new apps • Collaborate on apps

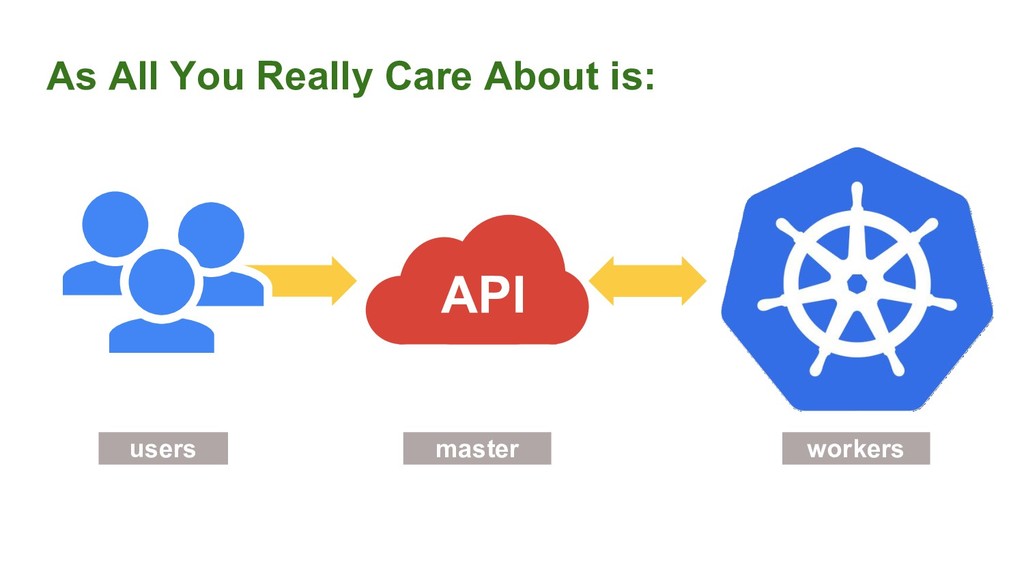

5. UI API As All You Really Care About is: users master workers

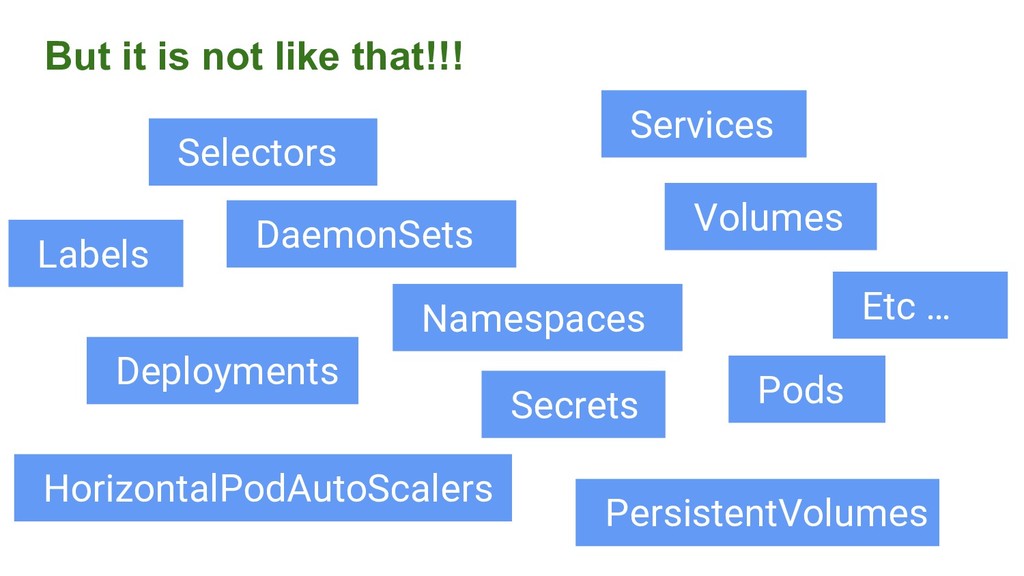

6. Selectors Labels Pods Volumes Deployments Services Secrets HorizontalPodAutoScalers DaemonSets PersistentVolumes Namespaces Etc … But it is not like that!!!

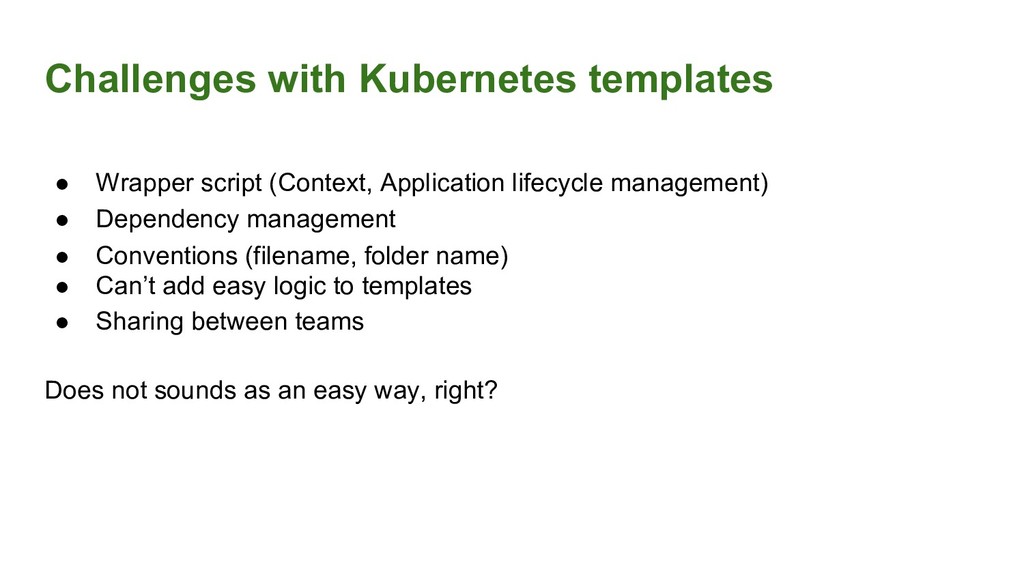

7. Challenges with Kubernetes templates • Wrapper script (Context, Application lifecycle management) • Dependency management • Conventions (filename, folder name) • Can’t add easy logic to templates • Sharing between teams Does not sounds as an easy way, right?
8. Let’s you and your team manage apps running on Kubernetes https://helm.sh

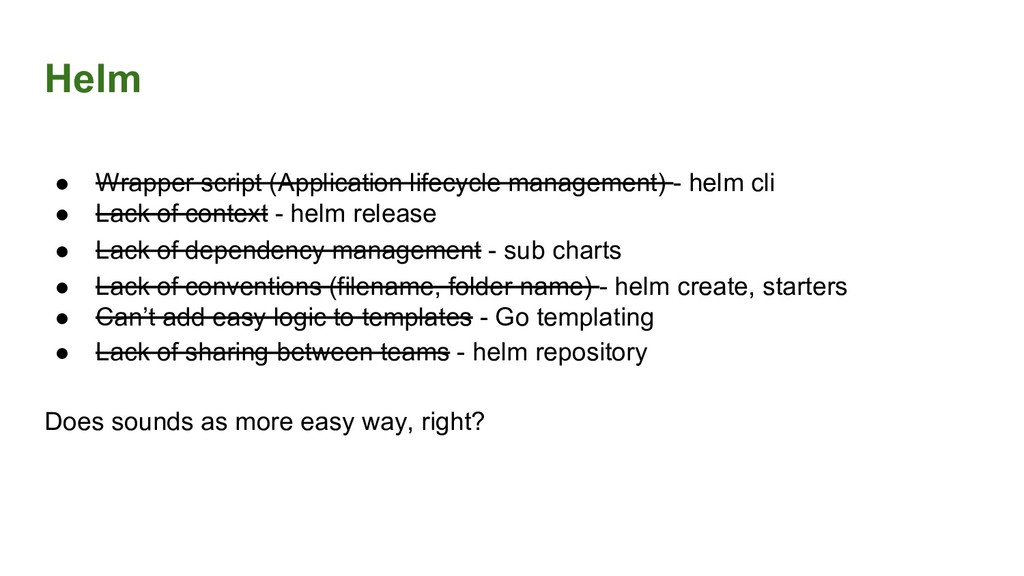

9. Helm • Wrapper script (Application lifecycle management) - helm cli • Lack of context - helm release • Lack of dependency management - sub charts • Lack of conventions (filename, folder name) - helm create, starters • Can’t add easy logic to templates - Go templating • Lack of sharing between teams - helm repository Does sounds as more easy way, right?
10. Helm Sounds very cool, right?

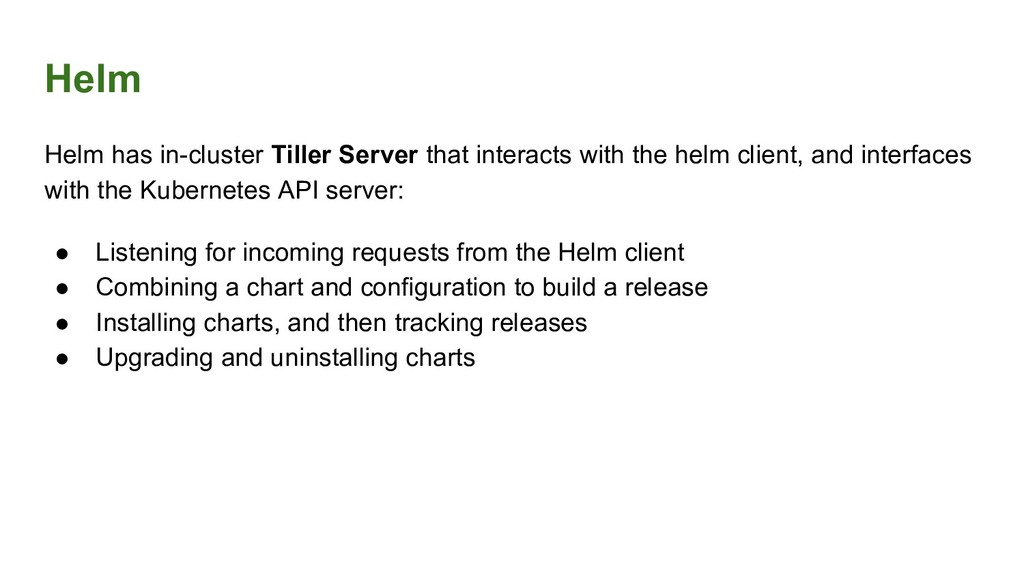

11. Helm Helm has in-cluster Tiller Server that interacts with the helm client, and interfaces with the Kubernetes API server: • Listening for incoming requests from the Helm client • Combining a chart and configuration to build a release • Installing charts, and then tracking releases • Upgrading and uninstalling charts

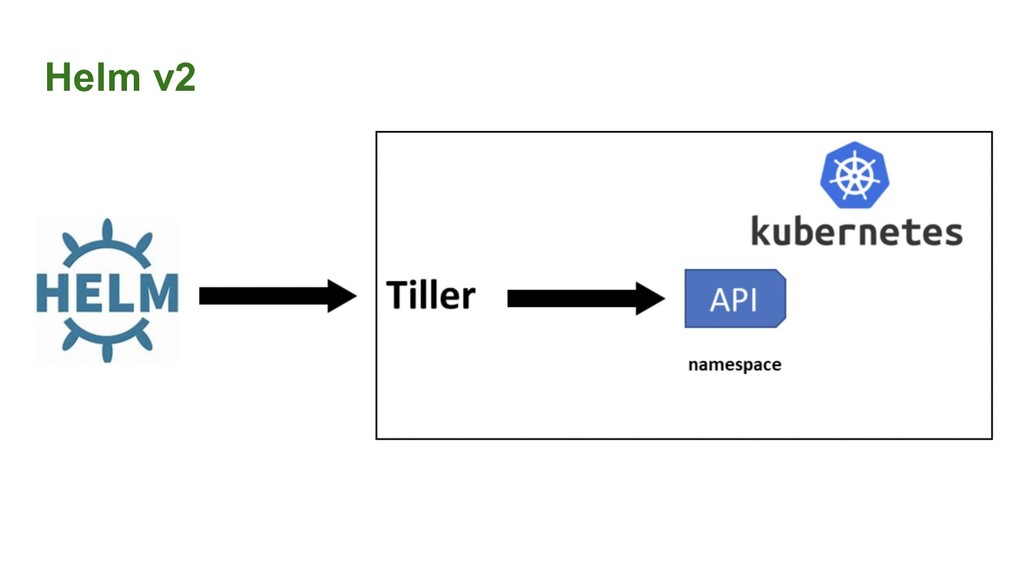

12. Helm v2

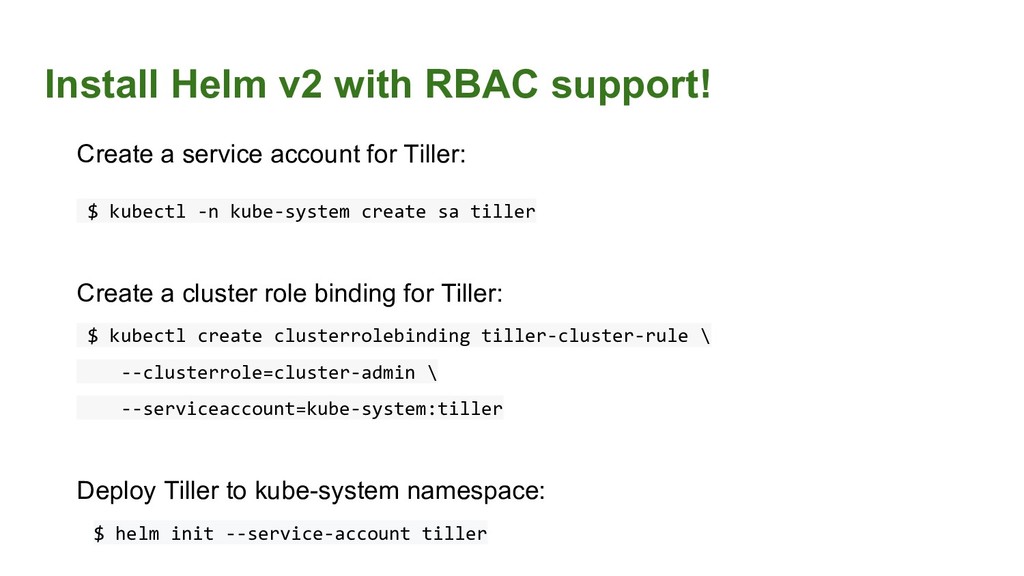

13. Install Helm v2 with RBAC support! Create a service account for Tiller: $ kubectl -n kube-system create sa tiller Create a cluster role binding for Tiller: $ kubectl create clusterrolebinding tiller-cluster-rule \ --clusterrole=cluster-admin \ --serviceaccount=kube-system:tiller Deploy Tiller to kube-system namespace: $ helm init --service-account tiller
14. Helm v2 Sounds as an amazing setup?
15. There is one big but! Tiller runs in your Kubernetes cluster with superpowers! Helm v2

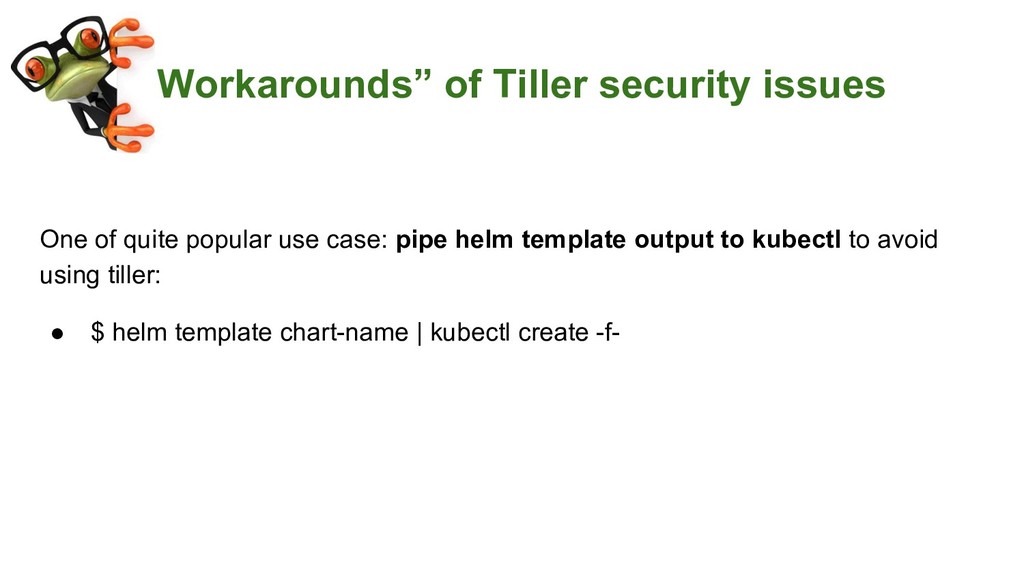

17. “Workarounds” of Tiller security issues One of quite popular use case: pipe helm template output to kubectl to avoid using tiller: • $ helm template chart-name | kubectl create -f-

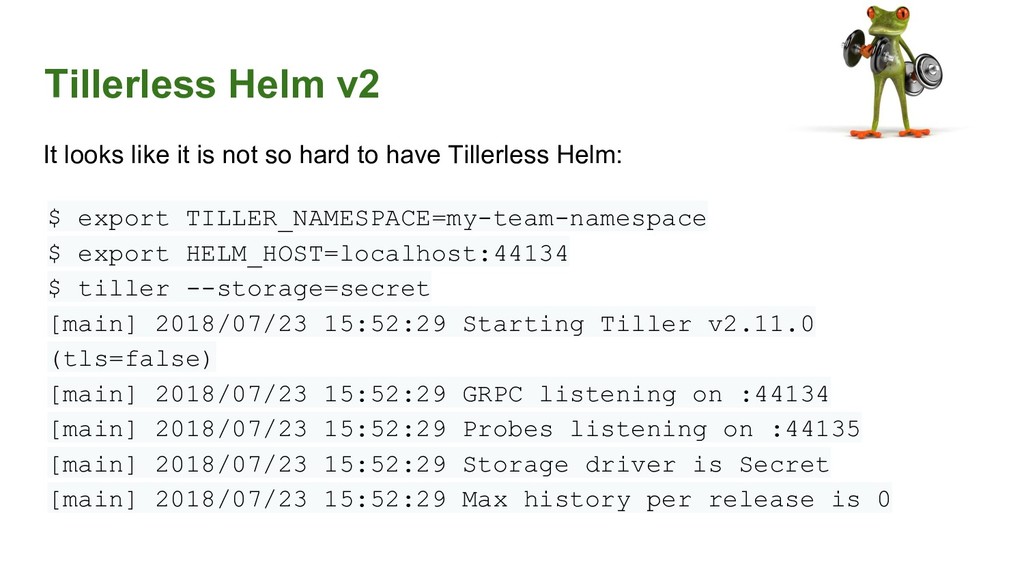

18. Tillerless Helm v2 It looks like it is not so hard to have Tillerless Helm: $ export TILLER_NAMESPACE=my-team-namespace $ export HELM_HOST=localhost:44134 $ tiller --storage=secret [main] 2018/07/23 15:52:29 Starting Tiller v2.11.0 (tls=false) [main] 2018/07/23 15:52:29 GRPC listening on :44134 [main] 2018/07/23 15:52:29 Probes listening on :44135 [main] 2018/07/23 15:52:29 Storage driver is Secret [main] 2018/07/23 15:52:29 Max history per release is 0

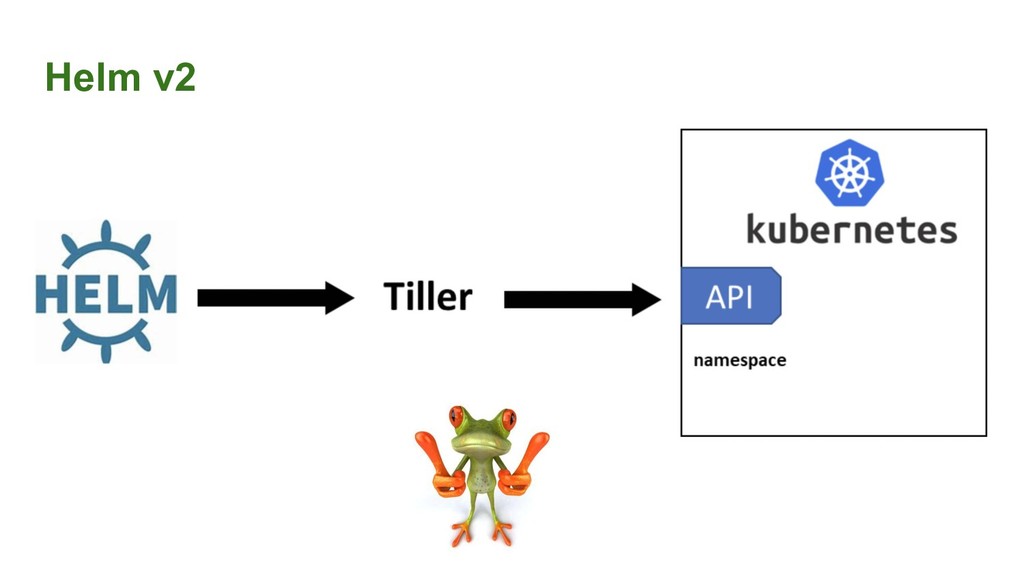

19. Helm v2

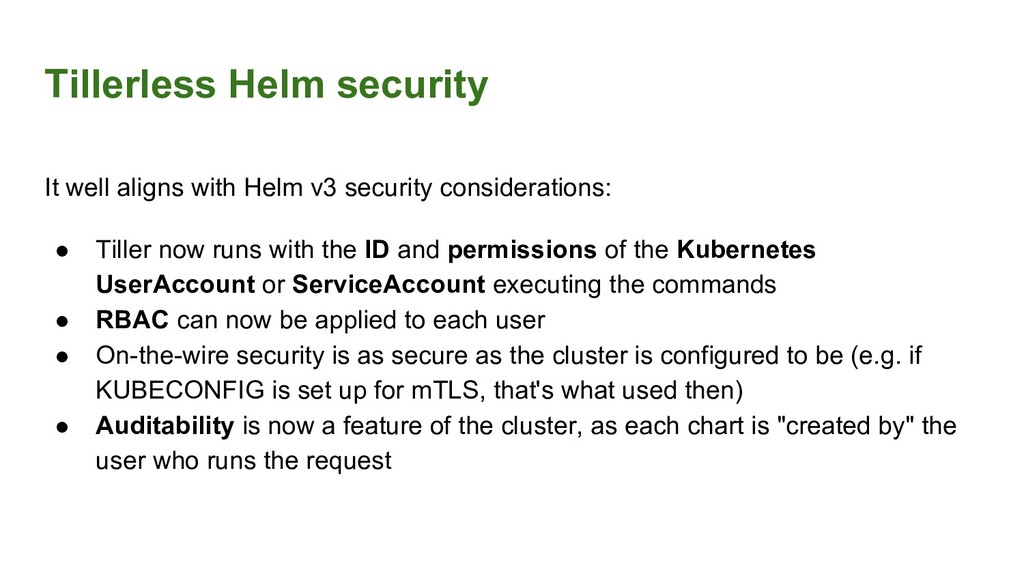

20. Tillerless Helm security It well aligns with Helm v3 security considerations: • Tiller now runs with the ID and permissions of the Kubernetes UserAccount or ServiceAccount executing the commands • RBAC can now be applied to each user • On-the-wire security is as secure as the cluster is configured to be (e.g. if KUBECONFIG is set up for mTLS, that's what used then) • Auditability is now a feature of the cluster, as each chart is "created by" the user who runs the request
21. Tillerless Helm That brings us good news! It is secure and scalable!!!

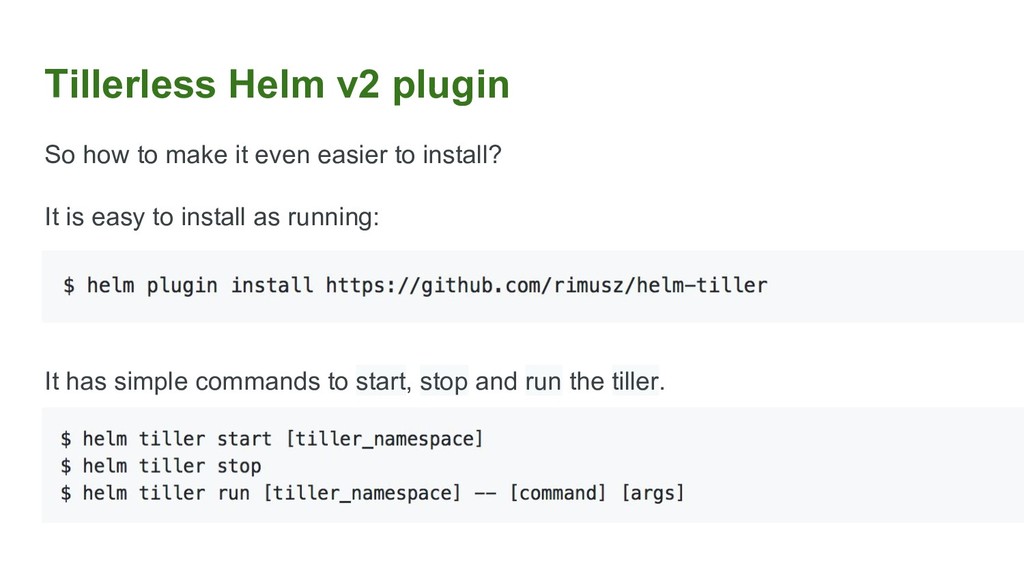

22. Tillerless Helm v2 plugin So how to make it even easier to install? It is easy to install as running: It has simple commands to start, stop and run the tiller.
23. Demo time!
24. Questions?

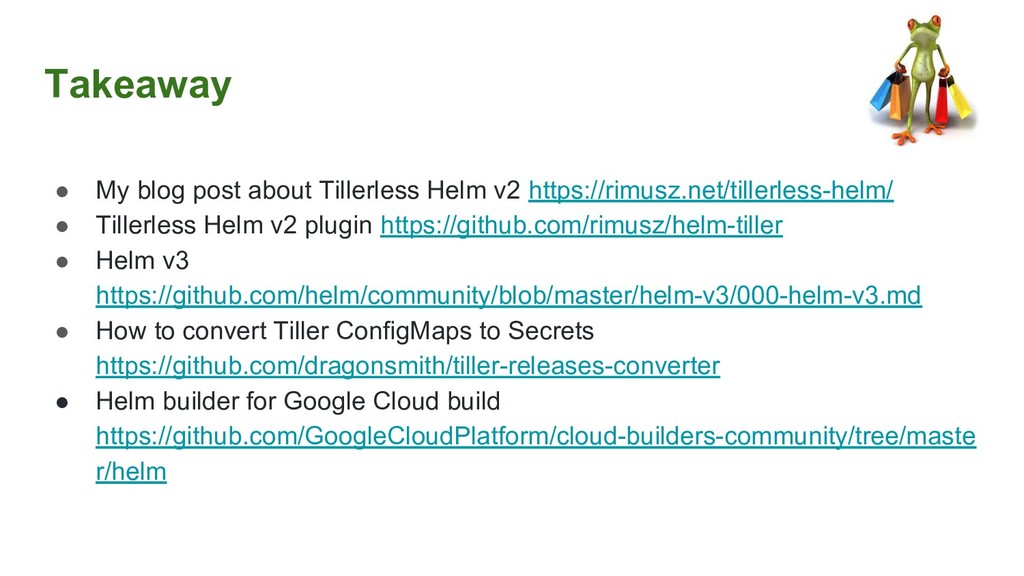

25. Takeaway • My blog post about Tillerless Helm v2 https://rimusz.net/tillerless-helm/ • Tillerless Helm v2 plugin https://github.com/rimusz/helm-tiller • Helm v3 https://github.com/helm/community/blob/master/helm-v3/000-helm-v3.md • How to convert Tiller ConfigMaps to Secrets https://github.com/dragonsmith/tiller-releases-converter • Helm builder for Google Cloud build https://github.com/GoogleCloudPlatform/cloud-builders-community/tree/maste r/helm
