Let's name an APT group name!

AVTOKYO2016

I'd like to introduce about a process to name APT group name or campaign name with concrete example of the feature obtained by malware analysis and the like.

http://en.avtokyo.org/avtokyo2016/speakers#seraph

Transcript

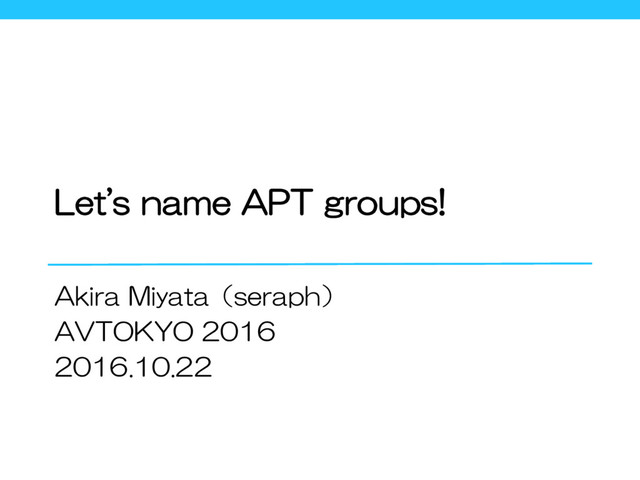

1. Let's name APT groups! Akira Miyata（seraph） AVTOKYO 2016 2016.10.22
2. Are U drinking?
3. Introduction
4. Introduction Akira Miyata Twitter: @Seraph39 Malware analyst ... NOT! AVTOKYO2015 Speaker Collecting information of targeted attacks by OSINT SANS Lethal Forensicator Coin Holder 2014 Washington D.C. (FOR610)
5. Today's talk What kind of investigation have been done before the attacker groups and campaign are given names? What kind of attacker groups and campaign are given names by some companies?
6. Investigation of the features of the attacker
7. IOC Tools Logs Decoy file Infection method Mail Attack target area Malware
8. IOC Tools Logs Decoy file Infection method Mail Attack target area Malware
9. Mail •  Mail address –  Free mail –  Hijacked and used •  Sender IP（Inc. fake） •  Sender Time（UTC＋•） •  Relay mail server
10. Mail •  Distinctive string such as「ご高覧 (Your perusal)」 •  First line is blank （Ref.）https://www.ipa.go.jp/files/000053445.pdf
11. IOC Tools Logs Decoy file Infection method Mail Attack Target area Malware
12. Decoy file •  Presence – Included in the malware •  this case is majority – After extracting the compressed file, if it exists separately •  Font – Display font of decoy file •  Simsun font used on Emdivi's decoy file
13. Decoy file •  Shoddy faction –  Blank files often seen in the spreading mail •  Procurement faction –  In many cases, files that have been published –  Although some case are cross off docs, but it's public file. •  Earnest faction –  Obtained file at intrusion •  This file turns out intrusion and information leakage
14. IOC Tools Logs Decoy file Infection method Mail Attack Target area Malware
15. Malware •  Icon disguise •  Extension impersonation – using RLO – long file name •  Compression technology – zip, lzh, rar, 7z, etc
16. Malware •  Using vulnerability – It is often used immediately after a vulnerability found(release) – Vulnerability of Ichitaro •  Clearly, target to Japan •  Original User Agent （Ref.）http://d.hatena.ne.jp/Kango/20141113/1415901362
17. Malware •  C2(C&C) Server –  Register info（Name, Mail, Address, etc） –  Which service? –  AVTOKYO 2015 •  Collecting information of targeted attacks by OSINT •  Language information •  Compiled date –  We can see trend but hard to recognize time zone
18. Malware •  Grouping with a name in new species case •  Subspecies or new species
19. Malware •  Characteristic – Strings in the packet – Strings in the binary – ID – PW – Encryption scheme
20. Malware •  Case of Emdivi –  Recognize of used in Japan •  Version –  t17：Used in targeted mail –  t20：Used after intrusion –  From around t17.08.23 –  Campaign name or Attack target ＋ Attack date •  Let's see about some Emdivi we can get it online
21. Ex. MD5: dba397405916869fdbfc66fa57f553ae traffic content: Y3yfO=tuhnrmst%17%7E%09%03%09%0B%7 E%10%0B%09%02%0A&2be78j=a&date=rBQF. 4%60%25%23%3A%24%2C%3A%27%24%3 AS%7C%7D%21%26%26%3A%21r%26q%25 %2C%27%21%20u%27%25%26%24%2C%26 %1Dh%1DZ%40.4%21%3A%25%3A%26%22 %24%2%1DOqz9AGI%1Dh%1DYQY. 4%25%26%2CY%1Dh%1DSY%40%3C9%22% 3D
22. Ex.：Decoded・・・ •  "date"="fVER: t17.08.30.Ghi522.5f2e18354a312 082 | NT: 5.1.2601& [en-US]MEM: 128M | GMT(-6) •  Point is「Ghi522」
23. Ex.：Ghi522 Hotel Grand Hill Ichigaya
24. Ex.：Ghi522 Special info:Ministry of Defense Mutal Aid Associa;on
25. Ex.：Ghi522 •  Compiled date of Emdivi •  2015/05/22 03:51:18(UTC+0) •  Hotel Grand Hill Ichigaya attacked （参考）http://www.mod.go.jp/j/press/kisha/2015/07/07.html Cyber attacked at May
26. IOC Tools Logs Decoy file Infection method Mail Attack Target area Malware
27. Tools •  Pass-the-hash – e.g., Mimikatz, gsecdump, PwDump7, etc •  Using vulnerability – e.g., MS14-068 – Vulnerability in Kerberos could allow elevation of privilege •  Horizontal expansion
28. Tools •  Archiver – rar •  Windows genuine – cmd – csvde, dsquery（ActiveDirectory management tool）
29. Tools •  Flow of attack – Horizontal expansion – AD Server compromise – Information transmission •  Traces of the tool used – Memory – hiberfil.sys, pagefile.sys
30. IOC Tools Logs Decoy file Infection method Mail Attack Target area Malware
31. Infection method •  Targeted attack mail •  Water hole attack •  Malvertising •  Thumb drive
32. IOC Tools Logs Decoy file Infection method Mail Attack Target area Malware
33. Attack target area •  Critical infrastructure(13fields) – Information and communication, finance, aviation, railway, power supply, gas, government services ,health care ,water supply, logistics, chemical, credit, oil •  Other・・・ – Small and medium sized enterprises – University （Ref.）http://www.nisc.go.jp/active/infra/outline.html
34. IOC Tools Logs Decoy files Infection method Mail Attack Target area Malware
35. Logs •  eventlog •  access.log •  FW log （Ref）https://www.blackhat.com/docs/us-15/materials/us-15- Metcalf-Red-Vs-Blue-Modern-Active-Directory-Attacks- Detection-And-Protection.pdf
36. Data accumulation and visualization
37. Data accumulation and visualization •  accumulation – Using Excel is first step – If you do more seriously, use database •  visualization – Loading accumulate data, and analysis – Maltego – Analyst's Notebook
38. Share of IOC
39. Share of IOC •  Snort •  Yara •  Open IOC –  Mandiant •  CybOX –  Cyber Observable eXpression •  STIX –  Structed Threat Information eXpression •  TAXII –  Trusted Automated eXchange of Indicator Information –  Secure transfer and exchange of threat information •  STIXVIZ （Ref.）https://github.com/ STIXProject/stix-viz
40. Let's name attacker groups and campaigns！！
41. Naming is difficult •  If treat to characteristic malware, It is relatively easy to define name by it. –  However, once define malware name,It will be confusing future •  Since the consolidation of the attacker group name is common ,let's name for the time being. •  Easy to define campaign name –  Add name with characteristics of the attack for now
42. Naming What name is better? Let's see name defined by each company
43. FireEye（Mandiant）case •  APT Series –  Seems it is code name that US Air Force of the intelligence agencies had been using •  APT1 •  People's Liberation Army General Staff Department Part 3 second station –  PLA Unit 61398 –  Specific locations (Shanghai Pudong New Area) And, it is
44. CrowdStrike case •  Panda Series –  China •  Bear Series –  Russia •  Kitten Series –  Iran –  Cat is a revered animal in Islam •  Tiger Series –  India –  National animal：Bengal tiger •  Chollima –  North Korea –  Cheollima (千里馬) is a symbol of socialism
45. Naming（Good） •  Try to name for attacker groups and campaigns as easy to uderstand •  Trying to unify the rules of name – Already decided naming rule like Panda blah blah •  Let's make a catchy name – Easy to image by icons
46. Naming（Bad） •  Do not name in the malware and tools name – PlugX1, PlugX2 – OK as a classification of malware •  Do not use number – APT1, APT2, ・・・ – Hard to know what is it.
47. Frankly Speaking, Unify it! APT groups and operations is useful！ （Ref.）https://docs.google.com/spreadsheets/d/ 1H9_xaxQHpWaa4O_Son4Gx0YOIzlcBWMsdvePFX68EKU/ edit#gid=361554658
48. Case Study
49. Case:Japan Pension Service Takaido Suginami Tokyo Japan Pension Service headquarters
50. Case:Japan Pension Service （Ref.）http://www.nisc.go.jp/active/kihon/pdf/incident_report.pdf From mail address Attached file compress type To mail address Link to online strage service Malware type Domain name to connect Sender IP address Suspicious mail common point ※ line is rerated to
51. Case:Japan Pension Service
52. Case:JTB •  Cases of this year March –  Info lreak 6,788,443 people •  Possibly aiming on 3 days off •  Attacks using Elirks –  Case of Elirks（Attack on Taiwan） 　（Ref）https://media.blackhat.com/us-13/US-13-Yarochkin- In-Depth-Analysis-of-Escalated-APT-Attacks-Slides.pdf •  May related to Ise-Shima summit 　（Ref.）http://csirt.ninja/?p=772 Convert to IP addr , and connect
53. Case: JTB （Ref.）http://www.pref.mie.lg.jp/NYUSATSU/2015070504.htm Beside JTB, other tourist company has possibility to be attacked Ise-Shima summit hotel reservation system provided by 3 tourist company consortium
54. Conclusion
55. Let's see world wide affairs •  If some APT involved to some Nation •  It is essential to understand the history and situation of the world. – For example, anniversary in each country, holidays, etc.
56. Conclusion •  There are many attacker groups and campaigns that are not well-known •  Please try to compare and link named attacker groups and campaign to published reports •  Share information, improve our security!
57. Thank you so much! @Seraph39
