QConPlus'21 - Beating the Speed of Light with Intelligent Request Routing

Network request latency is crucial for many Internet applications. For Netflix it matters even outside video streaming - lower latencies to our AWS cloud endpoints mean smoother browsing experience for hundreds of millions of members. The catch - Netflix service is used on hundreds of millions of devices all around the world, connecting to our data centers over the open Internet - an ever-changing global network with many possible paths, distributed ownership and lack of centralized control.

This talk is both about API acceleration technology and data-driven approach to building distributed systems at a global scale that are safe to deploy and easy to maintain. While this talk demonstrates Netflix’s journey, the main principles and techniques can easily be applied and practiced by every owner of Internet-based services.

From this talk you’ll learn:

- how to build the Internet latency map for your customers;
- how to leverage the knowledge of network protocols and edge infrastructure to do the impossible - beat the speed of light;
- how to use a data-driven approach to evolve your client-server interactions;
- how to do that with a small team, on a tight schedule and minimal risk to your users.

Transcript

1. Beating the Speed of Light with Intelligent Request Routing Sergey Fedorov QConPlus May 2021
2. INTRO Why does Network Speed Matter? +100ms = 1% A 100 ms latency penalty implies a 1% sales loss. Amazon, 2009 Liddle, J.: Amazon Found Every 100ms of Latency Cost Them 1% in Sales. http://goo.gl/BUJgV sales loss latency

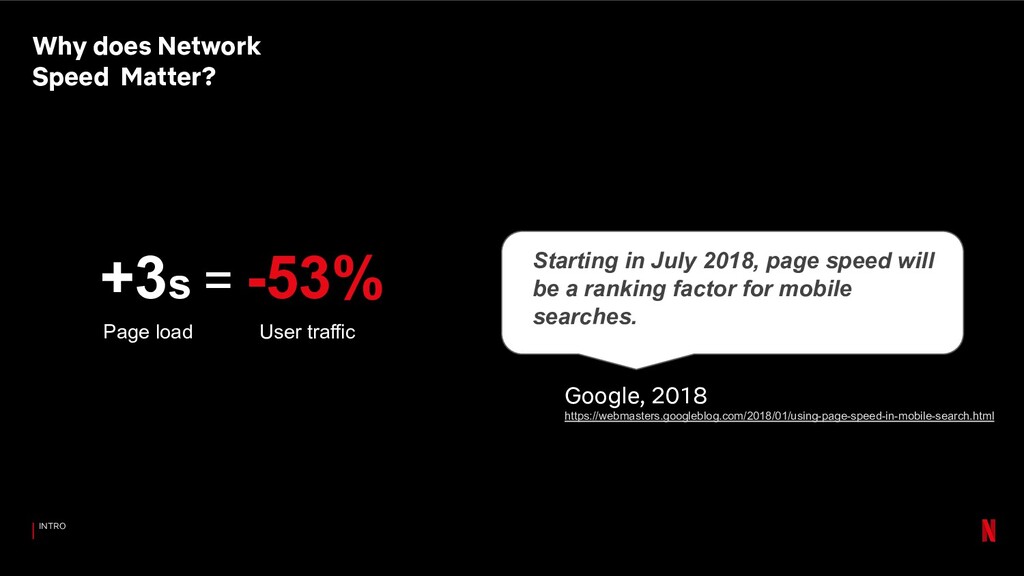

3. Google, 2018 https://webmasters.googleblog.com/2018/01/using-page-speed-in-mobile-search.html INTRO Why does Network Speed Matter? +3s = -53% Starting in July 2018, page speed will be a ranking factor for mobile searches. User traffic Page load
4. INTRO Why does Network Speed Matter? The reduction in latency can improve performance, and even improve profitability and increase sales for some customers. Hibernia Networks, 2015 https://www.submarinenetworks.com/en/systems/trans-atlantic/project-express/hiber nia-express-connects-new-york-to-london-in-under-58-95ms $400M investment to reduce New York to London latency by 6ms That’s $66M per ms!
5. INTRO What about Netflix?
6. INSIDE NETFLIX Video streaming Small objects delivery DNS CDN Static Content Delivery with Open Connect CDN
7. This rack can serve around 1% of Internet traffic FreeBSD + Nginx Lots of SSDs/HDDs Optimized for max network throughput Open Connect Appliance (OCA)
8. Deployed in Thousands of Locations around the World
9. INSIDE NETFLIX Connected by a Backbone Network
10. INSIDE NETFLIX Learning More about Open Connect and Streaming Delivery

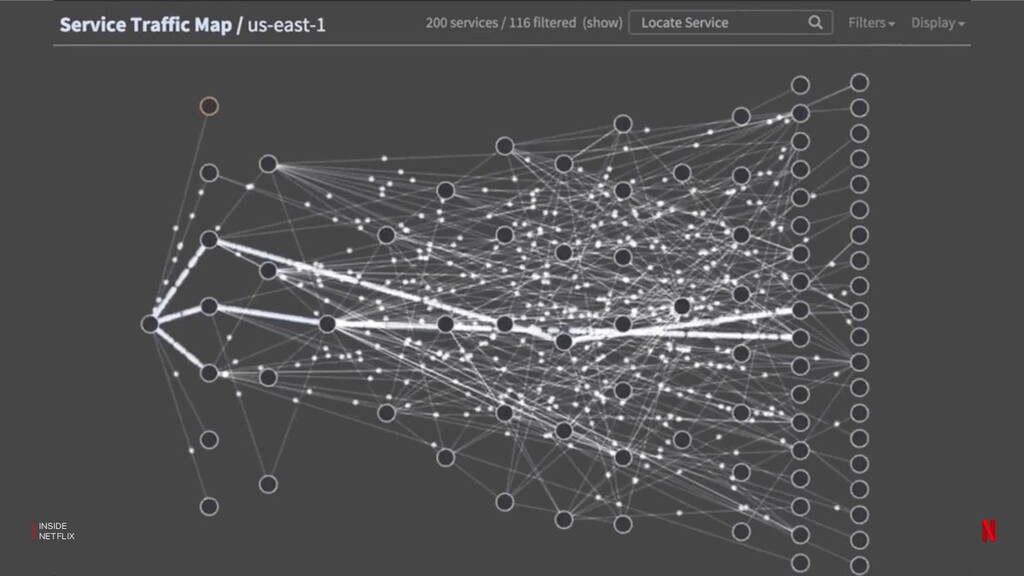

11. INSIDE NETFLIX Hundreds of microservices Personalization Control plane Telemetry Big Data Encoding HTTP APIs UI Personalization is Powered by the AWS Cloud CDN
12. Cloud Services: 3 AWS Regions
13. INSIDE NETFLIX
14. Personalized network requests contribute up to 40% of time to render Netflix home page INSIDE NETFLIX

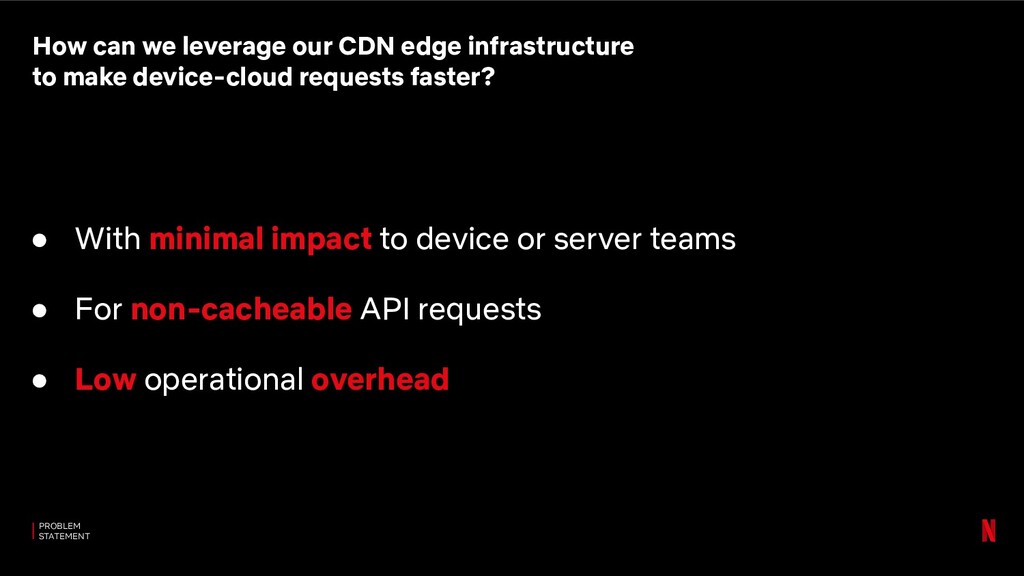

15. • With minimal impact to device or server teams • For non-cacheable API requests • Low operational overhead PROBLEM STATEMENT How can we leverage our CDN edge infrastructure to make device-cloud requests faster?
16. Director of Engineering, Content Delivery • 8+ years at Netflix ◦ CDN Monitoring ◦ FAST.com ◦ API acceleration ◦ QoE optimization • Past: Intel/Microsoft SPEAKER INFO About me Sergey Fedorov

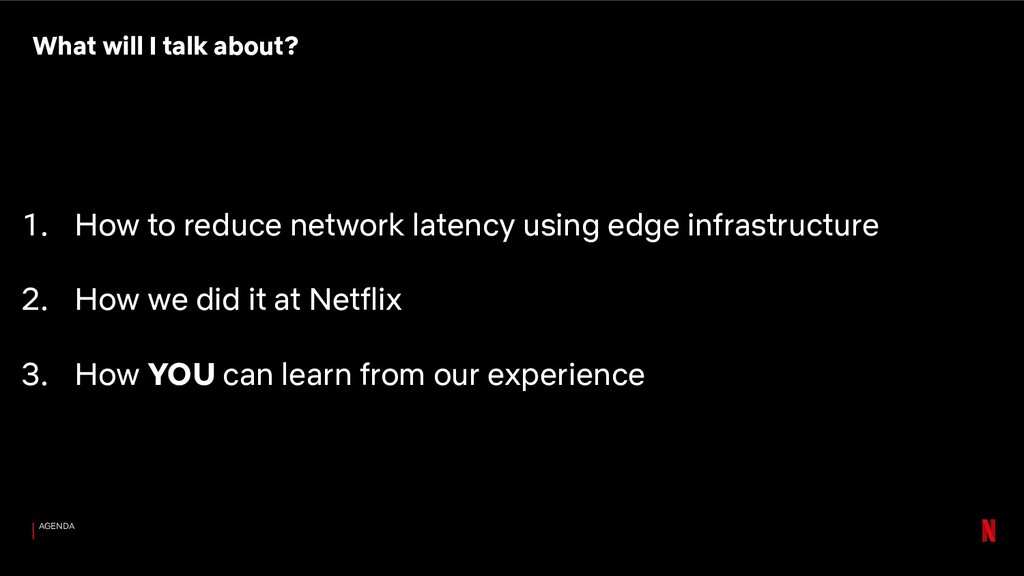

17. 1. How to reduce network latency using edge infrastructure 2. How we did it at Netflix 3. How YOU can learn from our experience AGENDA What will I talk about?
18. 1 How to accelerate requests using CDN Edge THEORY: EDGE ACCELERATION
19. Cloud Services: 3 AWS Regions Client Client Client
20. Can CDN Help? Client Client Client
21. Client Client CDN Client Client hops onto the OC backbone through the OCA. The closer the OCA, the greater the acceleration. Proxying Requests via CDN Edge Server
22. THEORY: EDGE ACCELERATION Background: TCP + TLS Connection Establishment Time Depends on Distance to a Server 0 ms 100 ms 200 ms 300 ms 50 ms 150 ms 250 ms Client AWS 100 ms RTT SYN SYN ACK ACK ClientHello ClientKeyShare ServerHello ServerKeyShare Certificate Finished Finished HTTP Request HTTP Response Data TCP - 100ms TLS - 100ms Time To First Byte: 300ms + Processing

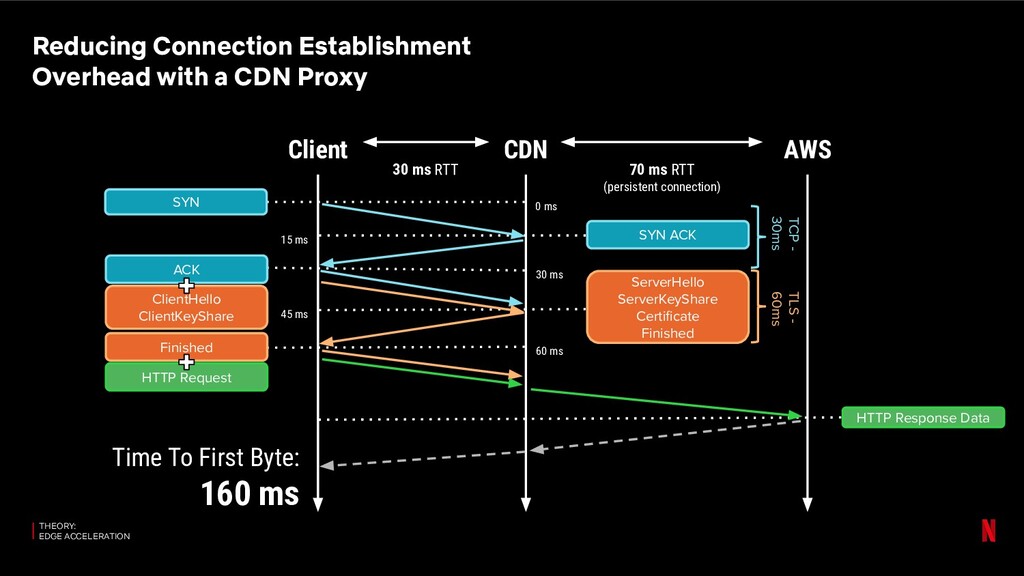

23. THEORY: EDGE ACCELERATION Reducing Connection Establishment Overhead with a CDN Proxy HTTP Response Data 0 ms 30 ms 60 ms 15 ms 45 ms Time To First Byte: 160 ms Client CDN 30 ms RTT AWS 70 ms RTT (persistent connection) SYN TCP - 30ms TLS - 60ms ACK ClientHello ClientKeyShare Finished HTTP Request SYN ACK ServerHello ServerKeyShare Certificate Finished
24. THEORY: EDGE ACCELERATION Reducing Data Transfer Times Multiplexing with HTTP/2 CDN Proxy HTTP/1.1 Client HTTP/1.1 Client HTTP/2 Client HTTP/2 Client Congestion avoidance with private backbone Faster loss recovery

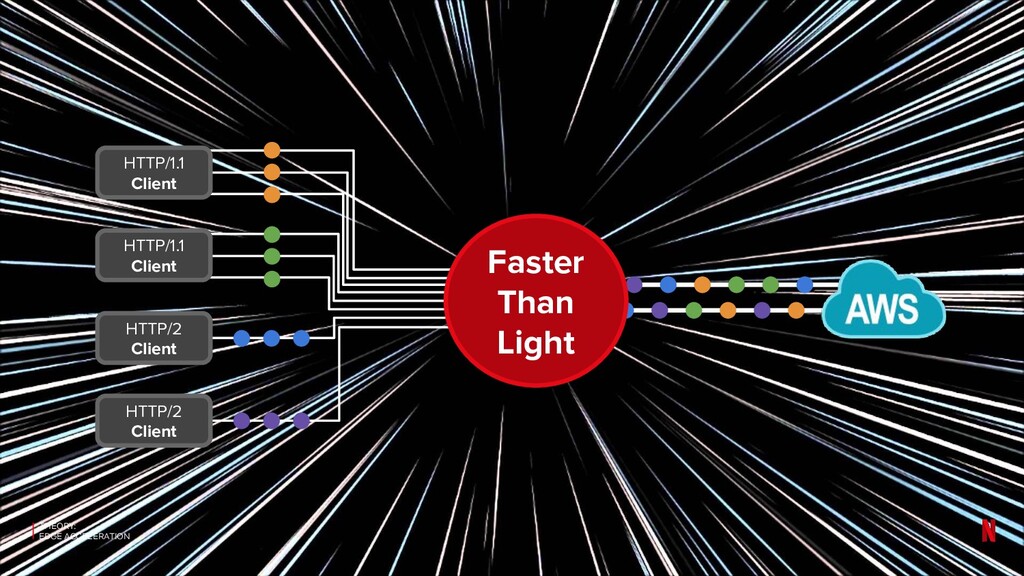

25. THEORY: EDGE ACCELERATION HTTP/1.1 Client HTTP/1.1 Client HTTP/2 Client HTTP/2 Client Faster Than Light
26. THEORY: EDGE ACCELERATION Let’s launch it?!
27. How We did it at Netflix NETFLIX SECTION DIVIDER 2
28. NETFLIX IMPLEMENTATION: MEASUREMENTS Measure what you can. Isolate the rest. Measure Measure
29. Goal: understand network connectivity between Netflix devices and servers. aka build a latency map of the Internet for Netflix users … and use it to compare different routing options NETFLIX IMPLEMENTATION: MEASUREMENTS

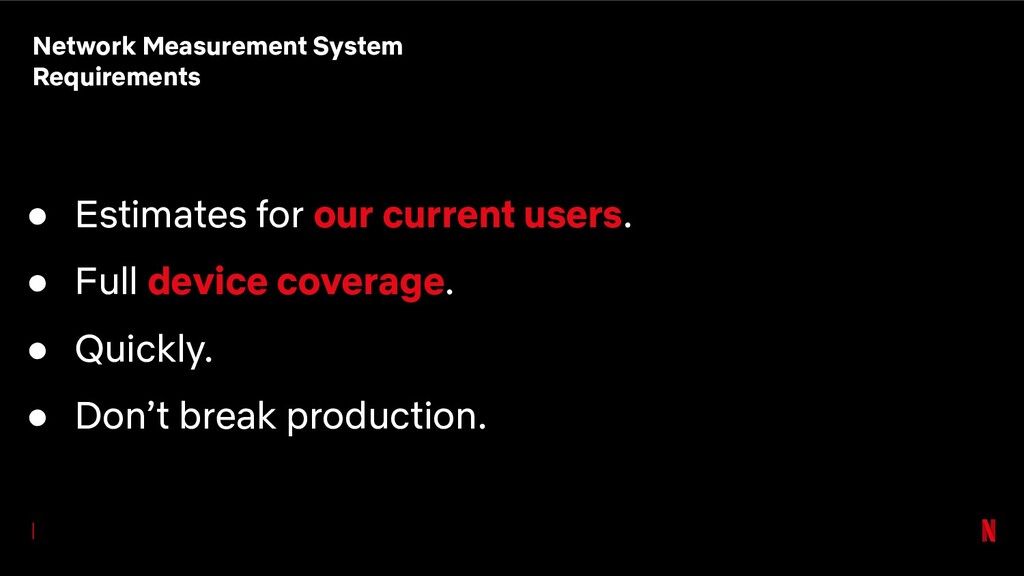

30. • Estimates for our current users. • Full device coverage. • Quickly. • Don’t break production. Network Measurement System Requirements
31. NETFLIX GRAPH App Launch API Call Asset Loading Rendering Time Real User Monitoring 100% geo 100% devices Noisy signal Only production traffic NETFLIX IMPLEMENTATION: MEASUREMENTS

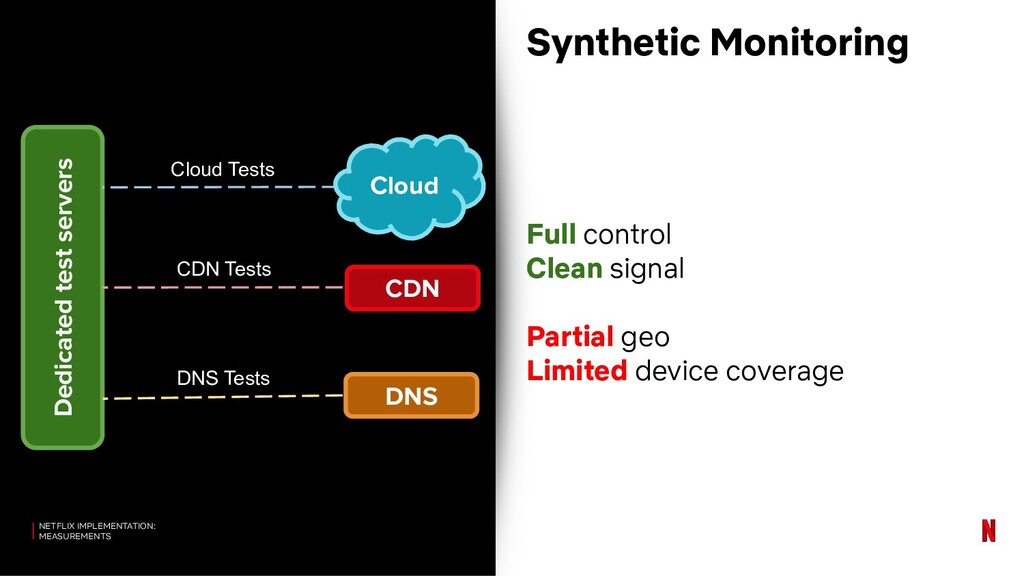

32. Synthetic Monitoring NETFLIX IMPLEMENTATION: MEASUREMENTS Dedicated test servers CDN Tests Cloud Tests DNS CDN DNS Tests Full control Clean signal Partial geo Limited device coverage Cloud

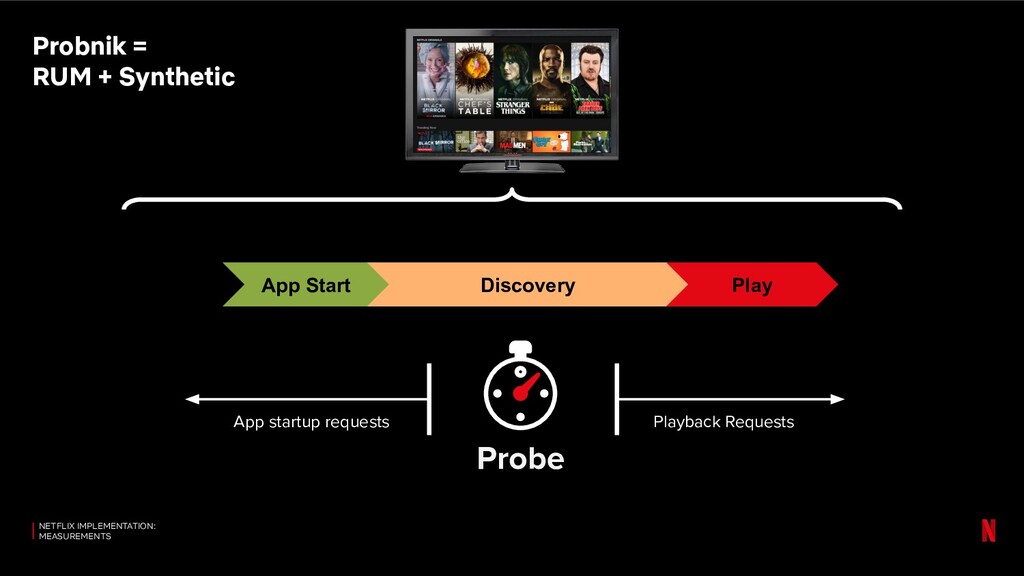

33. NETFLIX IMPLEMENTATION: MEASUREMENTS Probnik = RUM + Synthetic App Start Discovery Play App startup requests Playback Requests Probe

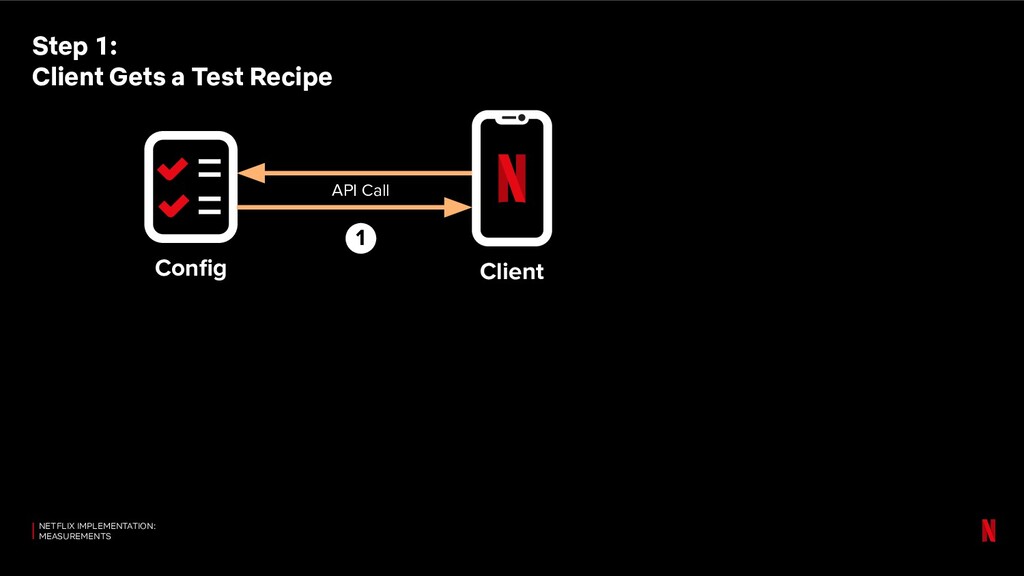

34. Client Config API Call 1 NETFLIX IMPLEMENTATION: MEASUREMENTS Step 1: Client Gets a Test Recipe

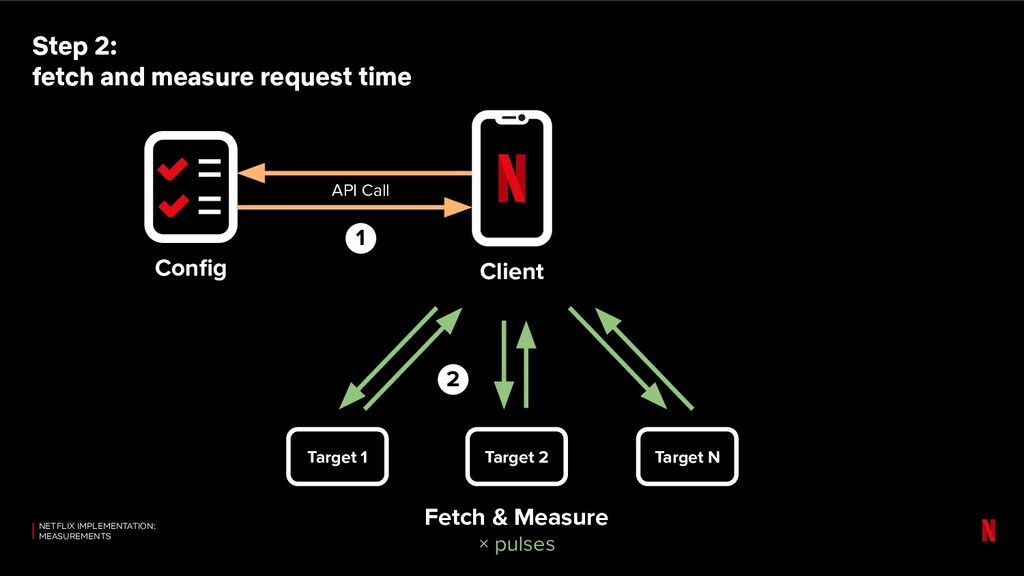

35. Client Config API Call 1 Target 1 Target 2 Target N 2 Fetch & Measure × pulses NETFLIX IMPLEMENTATION: MEASUREMENTS Step 2: fetch and measure request time
36. Client Config API Call 1 LOG Results 3 Target 1 Target 2 Target N 2 Report Fetch & Measure × pulses NETFLIX IMPLEMENTATION: MEASUREMENTS Step 3: Upload Results
37. NETFLIX IMPLEMENTATION: MEASUREMENTS More Details about Probnik
38. NETFLIX IMPLEMENTATION: PROTOTYPING Verify performance expectations Prototype Prototype Measure
39. • Proxy: implementation and deployment on CDN • Steering: how to choose the CDN server for a client? • Comparison: Proxied requests vs AWS-direct NETFLIX IMPLEMENTATION: PROTOTYPING What to Use for Measurements? Need a Quick Proof-of-Concept.

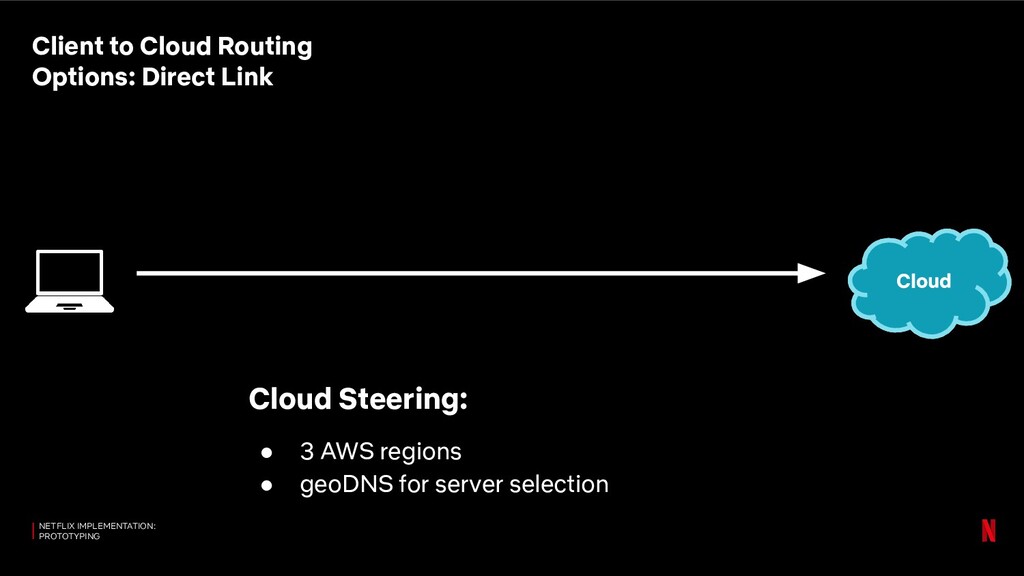

40. NETFLIX IMPLEMENTATION: PROTOTYPING Client to Cloud Routing Options: Direct Link Cloud Steering: • 3 AWS regions • geoDNS for server selection Cloud Cloud
41. NETFLIX IMPLEMENTATION: PROTOTYPING Client to Cloud Routing Options: CDN Proxy CDN Proxy Steering: • TCP Anycast • Single IP for all CDN locations CDN Cloud Proxy

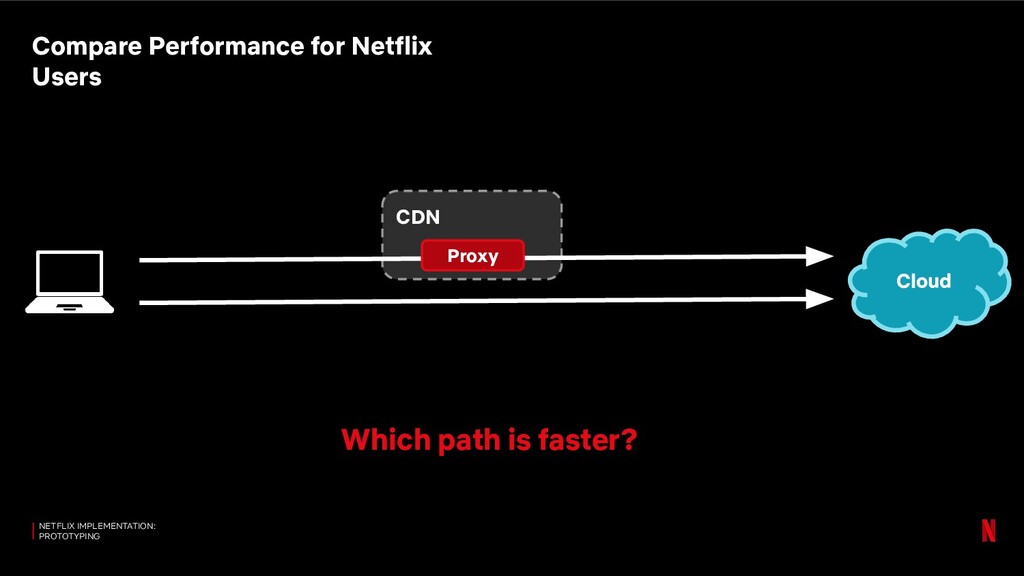

42. NETFLIX IMPLEMENTATION: PROTOTYPING Compare Performance for Netflix Users Which path is faster? CDN Cloud Proxy
43. Using the Probing System to Compare type: HTTP GET name: steering test targets: cdn-proxy.test.me/probe cloud.test.me/probe NETFLIX IMPLEMENTATION: PROTOTYPING cdn-proxy: time / OK / FAIL cloud: time / OK / FAIL CDN Cloud Proxy CLOUD CDN-PROXY

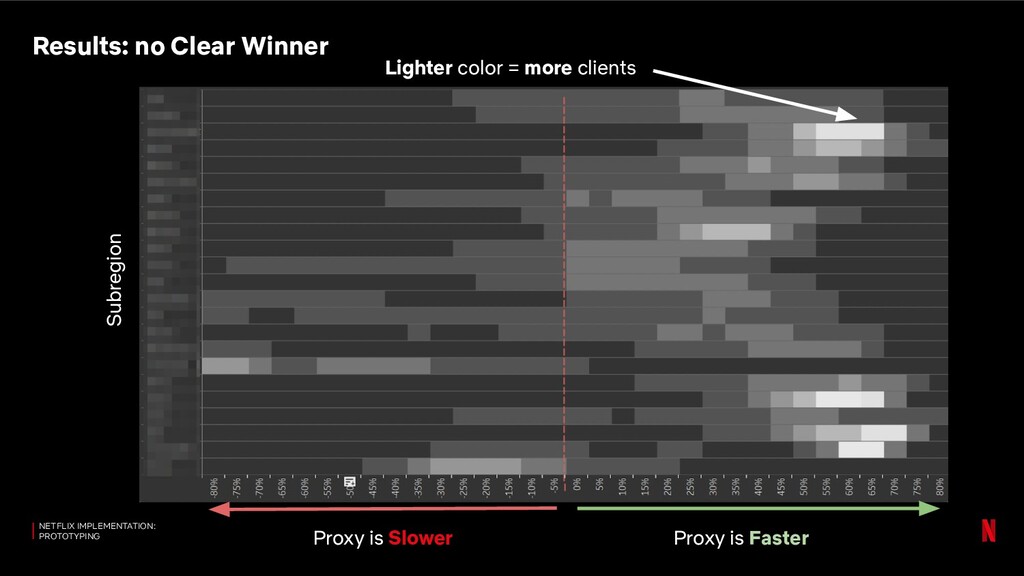

44. NETFLIX IMPLEMENTATION: PROTOTYPING Subregion Proxy is Faster Proxy is Slower Lighter color = more clients Results: no Clear Winner

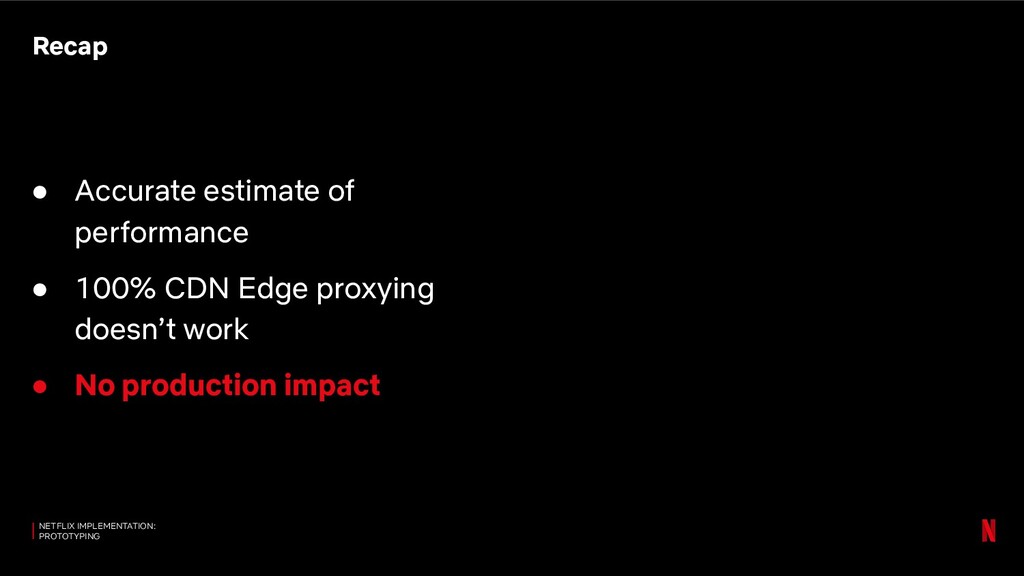

47. • Accurate estimate of performance • 100% CDN Edge proxying doesn’t work • No production impact NETFLIX IMPLEMENTATION: PROTOTYPING Recap
48. NETFLIX IMPLEMENTATION: PROTOTYPING Verify your performance expectations Prototype Prototype Measure 2x

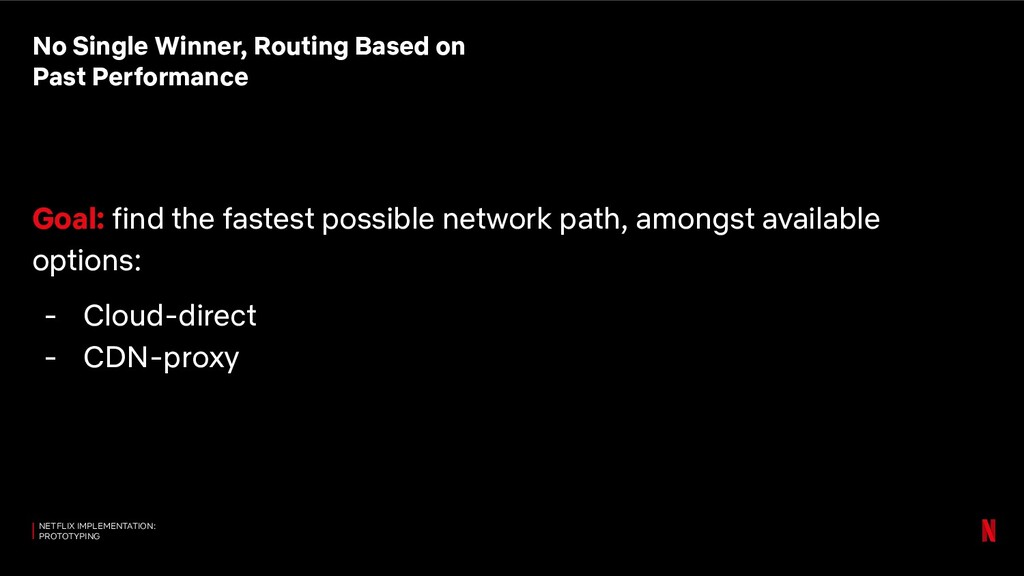

49. Goal: find the fastest possible network path, amongst available options: - Cloud-direct - CDN-proxy NETFLIX IMPLEMENTATION: PROTOTYPING No Single Winner, Routing Based on Past Performance

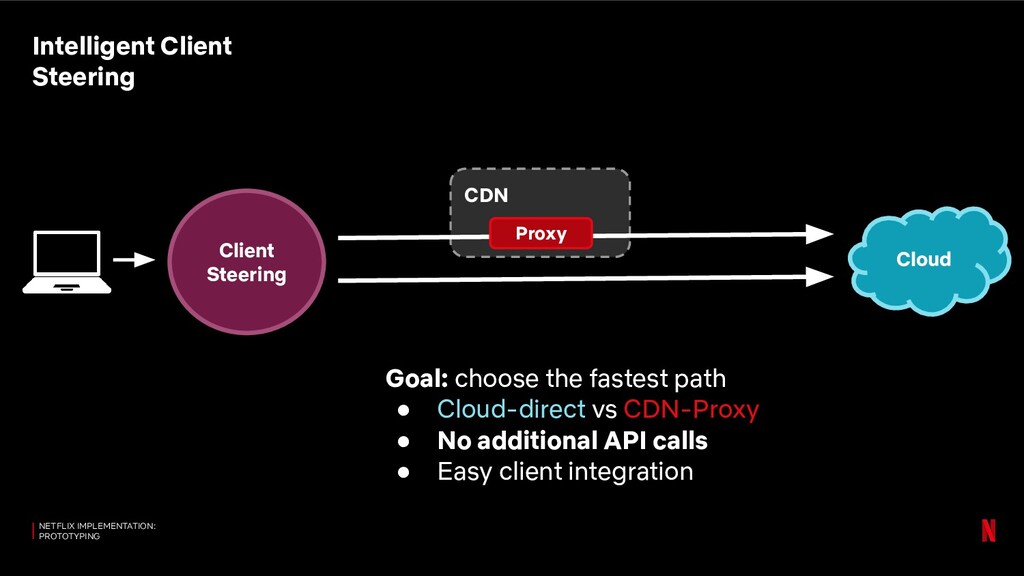

50. NETFLIX IMPLEMENTATION: PROTOTYPING Intelligent Client Steering Goal: choose the fastest path • Cloud-direct vs CDN-Proxy • No additional API calls • Easy client integration Client Steering CDN Cloud Proxy

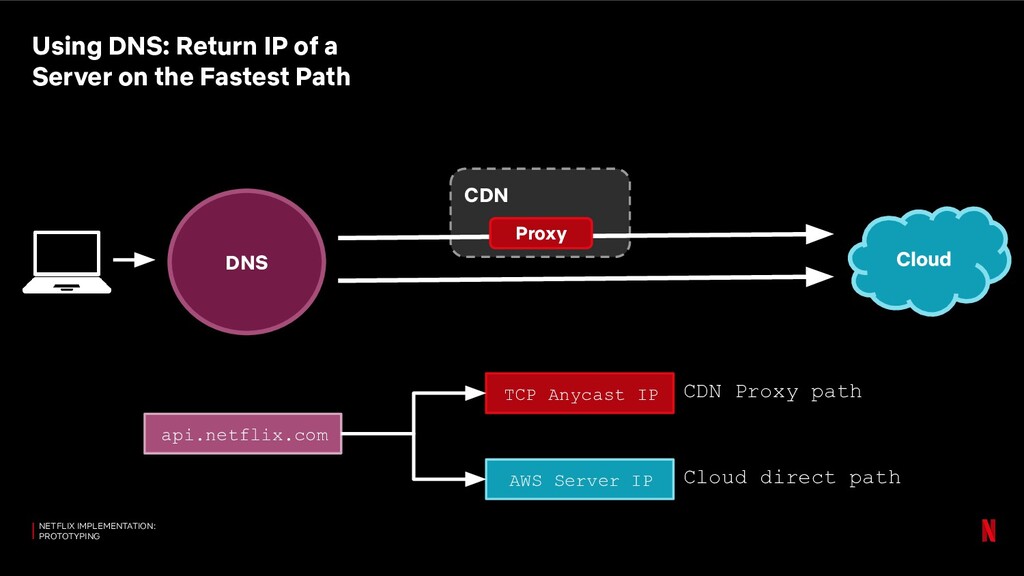

51. NETFLIX IMPLEMENTATION: PROTOTYPING Using DNS: Return IP of a Server on the Fastest Path DNS CDN Cloud Proxy api.netflix.com AWS Server IP TCP Anycast IP Cloud direct path CDN Proxy path
52. NETFLIX IMPLEMENTATION: PROTOTYPING DNS Resolver Based Steering Challenge: auth DNS can only see recursive DNS resolver IP. Need to make a decision based on aggregate client performance. Auth DNS Recursive DNS Resolver CDN Cloud Proxy
53. Step 1: Measure Network Performance for Each Client and Each Path NETFLIX IMPLEMENTATION: PROTOTYPING type: HTTP GET name: steering test targets: cloud.test.me/probe cdn-proxy.test.me/probe cloud: time / OK / FAIL cdn-proxy: time / OK / FAIL CDN Cloud Proxy CLOUD CDN-PROXY
54. Step 2: Aggregate Device Measurements by DNS Resolver NETFLIX IMPLEMENTATION: PROTOTYPING Resolver 1 Resolver 2 CDN Proxy GROUP BY resolver: resolver 1: CDN Proxy resolver 2: AWS … Probe
55. NETFLIX IMPLEMENTATION: PROTOTYPING Step 3: Load the Resolver Map to Auth DNS and Steer Based on Resolver IP Resolver IP → CDN Proxy AWS Path: Auth DNS Recursive DNS Resolver CDN Cloud Proxy Resolver Map
56. Client Steering NETFLIX IMPLEMENTATION: PROTOTYPING Automatic Traffic Steering Probes → Data Pipeline → Measure different client routing options Choose the fastest path Use for production steering policy

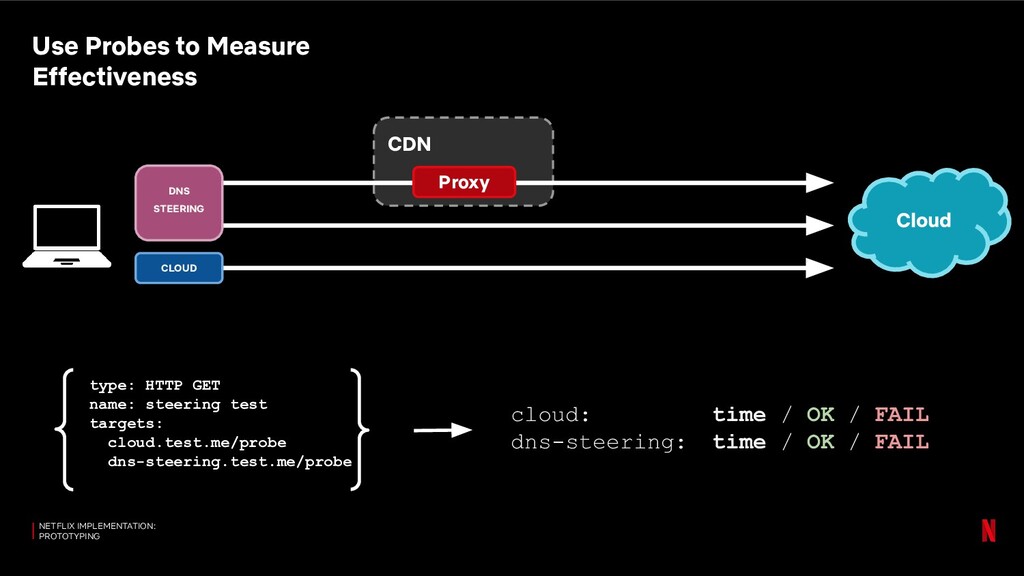

57. NETFLIX IMPLEMENTATION: PROTOTYPING Use Probes to Measure Effectiveness type: HTTP GET name: steering test targets: cloud.test.me/probe dns-steering.test.me/probe cloud: time / OK / FAIL dns-steering: time / OK / FAIL CDN Cloud Proxy CLOUD DNS STEERING
58. NETFLIX IMPLEMENTATION: PROTOTYPING Subregion Steering is Faster Steering is Slower Lighter color = more clients Results: Equal or Better Performance

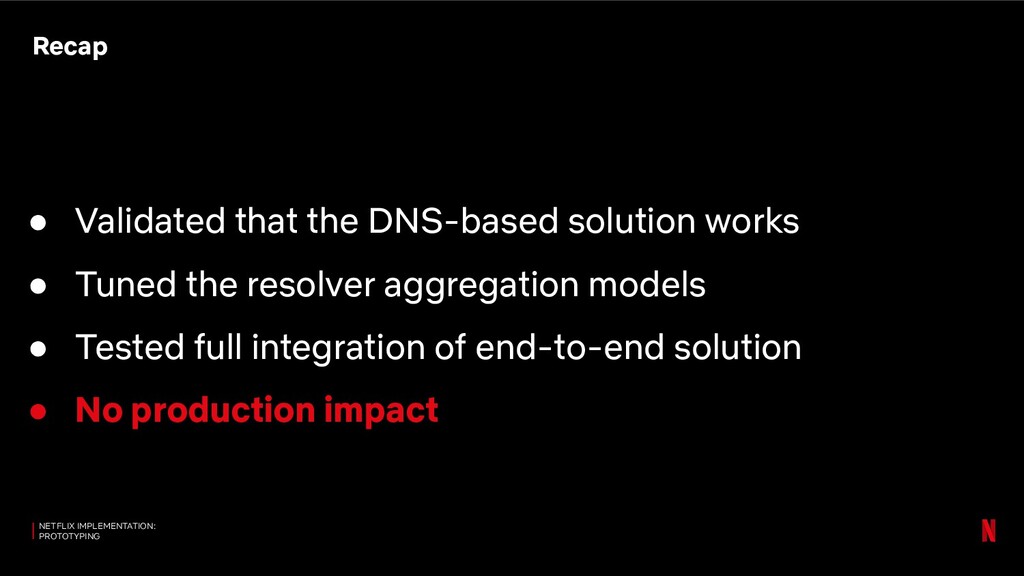

60. • Validated that the DNS-based solution works • Tuned the resolver aggregation models • Tested full integration of end-to-end solution • No production impact NETFLIX IMPLEMENTATION: PROTOTYPING Recap
61. NETFLIX IMPLEMENTATION: PRODUCTIZATION From prototype to production Productize Productize Prototype Measure

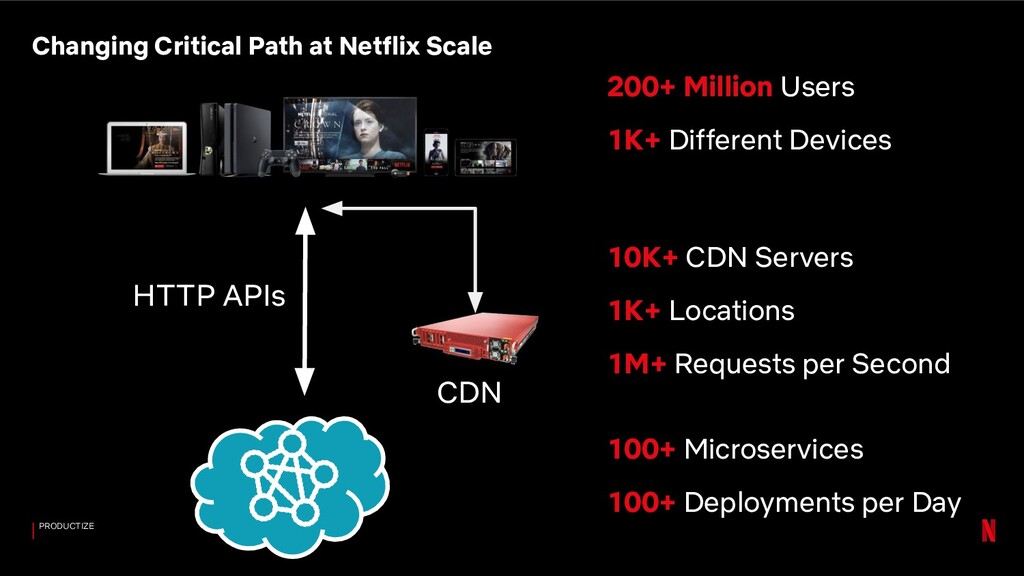

62. CDN HTTP APIs PRODUCTIZE Changing Critical Path at Netflix Scale 200+ Million Users 1K+ Different Devices 10K+ CDN Servers 1K+ Locations 1M+ Requests per Second 100+ Microservices 100+ Deployments per Day
63. PRODUCTIZE Faster Than Light Sergey Fedorov Antoine Girbal Olivier Poitrey
64. Minimize the scope of failure Embrace failure as part of your design Graceful degradation NETFLIX IMPLEMENTATION: PRODUCTIZATION Changing Critical Path with Minimal Production Impact
65. PRODUCTIZE Embrace Failure as Part of Your Architecture ftl.netflix.com Fallback fallback.netflix.com Client FTL
66. Small features. Frequent deployments. Clean metrics NETFLIX IMPLEMENTATION: PRODUCTIZATION Deployment Principles Workflow: 1. Probe test 2. AB tests or Canaries 3. Progressive rollout 4. Done
67. NETFLIX IMPLEMENTATION: OPERATIONS Minimize operational overhead Operate Operate Productize Prototype Measure

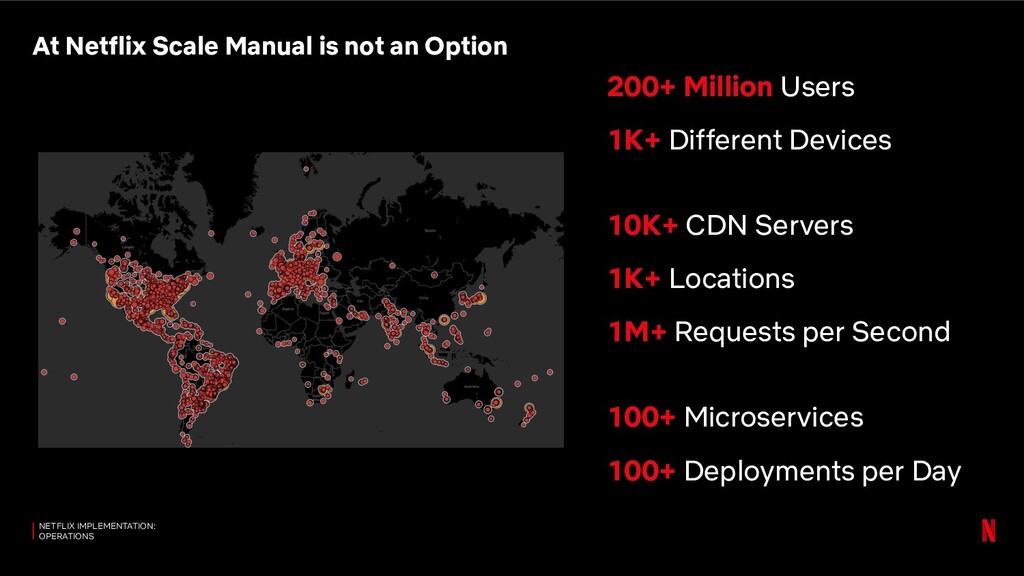

68. NETFLIX IMPLEMENTATION: OPERATIONS At Netflix Scale Manual is not an Option 200+ Million Users 1K+ Different Devices 10K+ CDN Servers 1K+ Locations 1M+ Requests per Second 100+ Microservices 100+ Deployments per Day

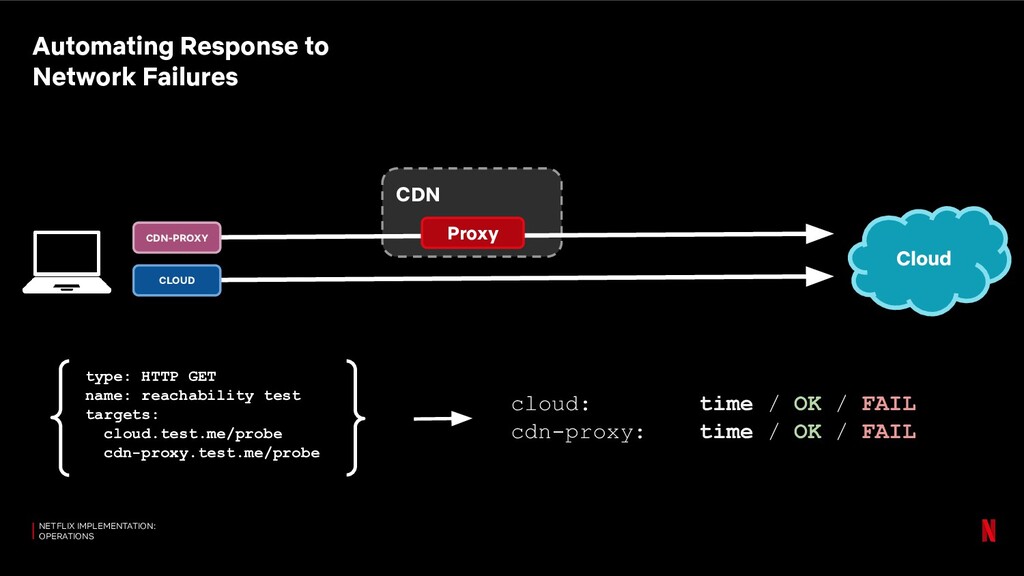

69. NETFLIX IMPLEMENTATION: OPERATIONS Automating Response to Network Failures type: HTTP GET name: reachability test targets: cloud.test.me/probe cdn-proxy.test.me/probe cloud: time / OK / FAIL cdn-proxy: time / OK / FAIL CDN Cloud Proxy CLOUD CDN-PROXY

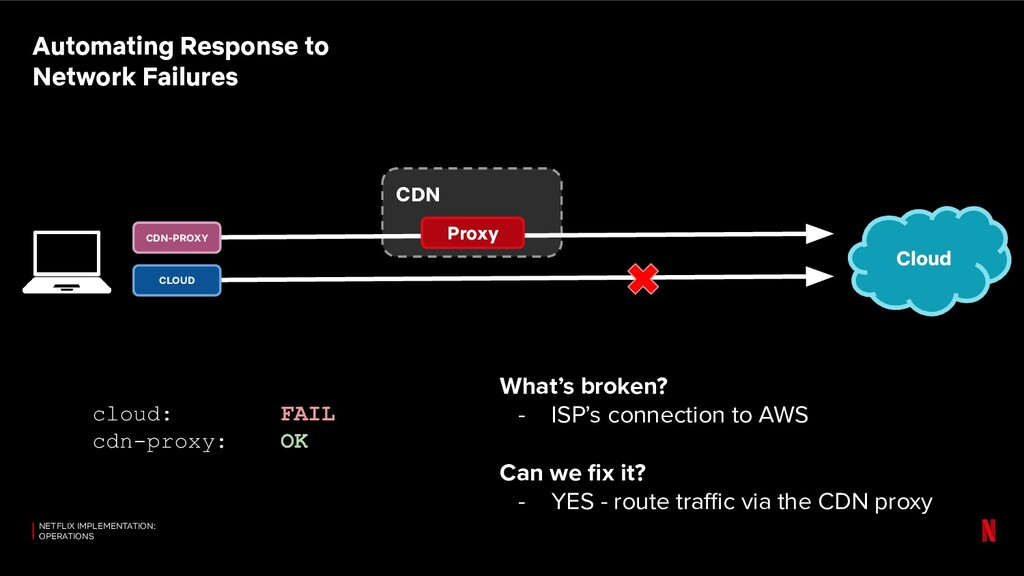

70. cloud: FAIL cdn-proxy: OK What’s broken? - ISP’s connection to AWS Can we fix it? - YES - route traffic via the CDN proxy NETFLIX IMPLEMENTATION: OPERATIONS Automating Response to Network Failures CDN Cloud Proxy CLOUD CDN-PROXY
71. cloud: OK cdn-proxy: FAIL What’s broken? - Backbone link to AWS Can we fix it? - YES - Move traffic to cloud-direct path NETFLIX IMPLEMENTATION: OPERATIONS Automating Response to Network Failures CDN Cloud Proxy CLOUD CDN-PROXY

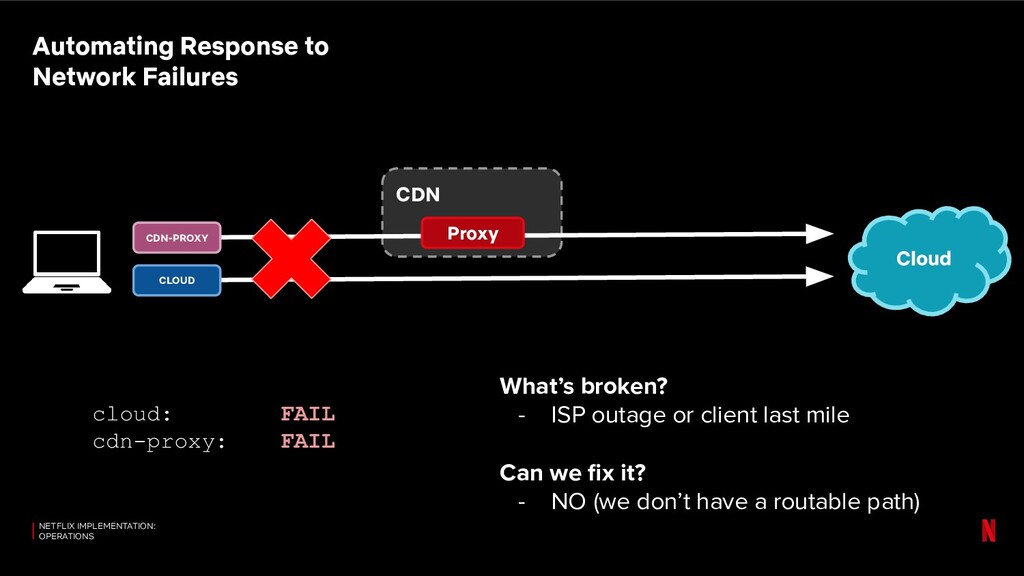

72. cloud: FAIL cdn-proxy: FAIL What’s broken? - ISP outage or client last mile Can we fix it? - NO (we don’t have a routable path) NETFLIX IMPLEMENTATION: OPERATIONS Automating Response to Network Failures CDN Cloud Proxy CLOUD CDN-PROXY
73. NETFLIX IMPLEMENTATION: OPERATIONS Automatic Traffic Steering Client Steering Probes → Data Pipeline → Measure different client routing options Choose the fastest path Use for production steering policy
74. 1M+ production requests per second NETFLIX IMPLEMENTATION: SUMMARY Recap: Device-Cloud API Acceleration at Netflix 200K routes Client Steering Probes → Data Pipeline → 100K measurements per minute
75. 10% median acceleration of requests on existing connection NETFLIX IMPLEMENTATION: SUMMARY Recap: Device-Cloud API Acceleration at Netflix 25% median acceleration of requests on new connections
76. This is not what’s available only to the unicorn companies
77. What can YOU Learn from it LEARNINGS 3
78. LEARNINGS Even if You don’t Run Physical Infrastructure, there is Plenty to Choose from
79. Question Your Intuition and Learn from Your Users LEARNINGS

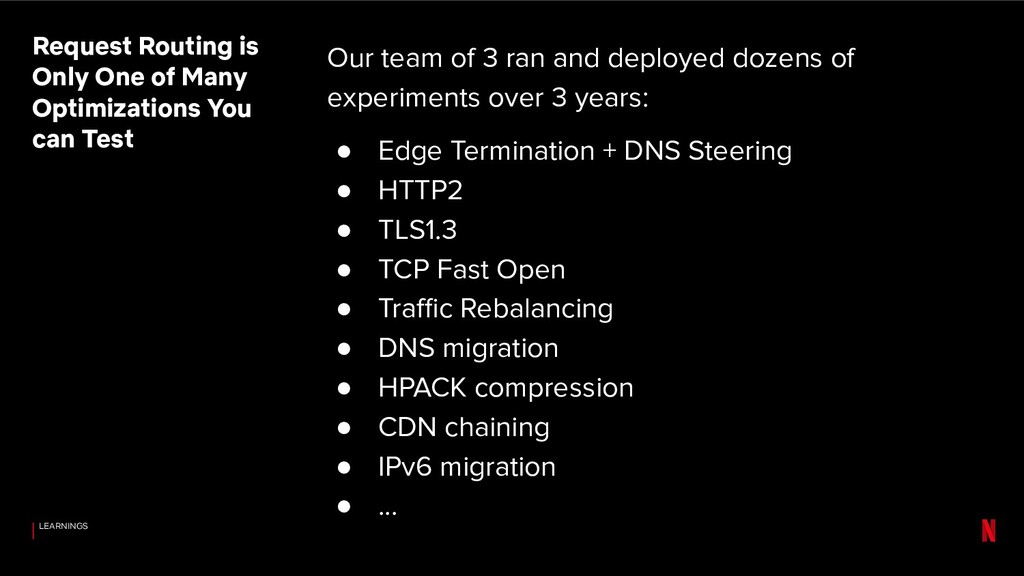

80. LEARNINGS Request Routing is Only One of Many Optimizations You can Test Our team of 3 ran and deployed dozens of experiments over 3 years: • Edge Termination + DNS Steering • HTTP2 • TLS1.3 • TCP Fast Open • Traffic Rebalancing • DNS migration • HPACK compression • CDN chaining • IPv6 migration • ...
81. LEARNINGS Reduce Measure-Prototype Flow, only Productize what Works Operate Productize Prototype Measure Probing system First prototype DNS Steering First prod traffic Progressive deployment 3mo 1mo 3mo 2mo 2+yr

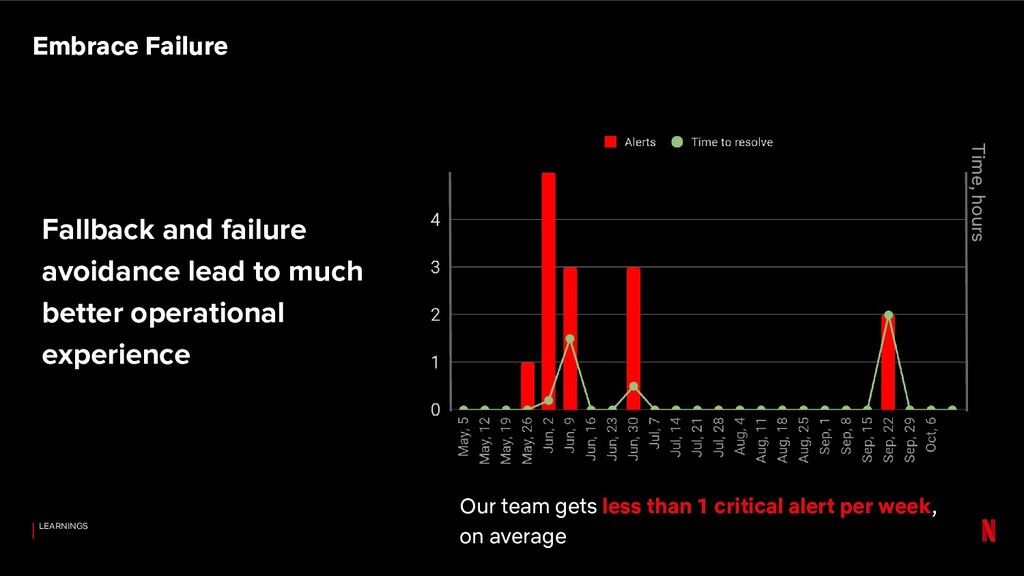

82. Fallback and failure avoidance lead to much better operational experience Embrace Failure LEARNINGS Our team gets less than 1 critical alert per week, on average Time, hours

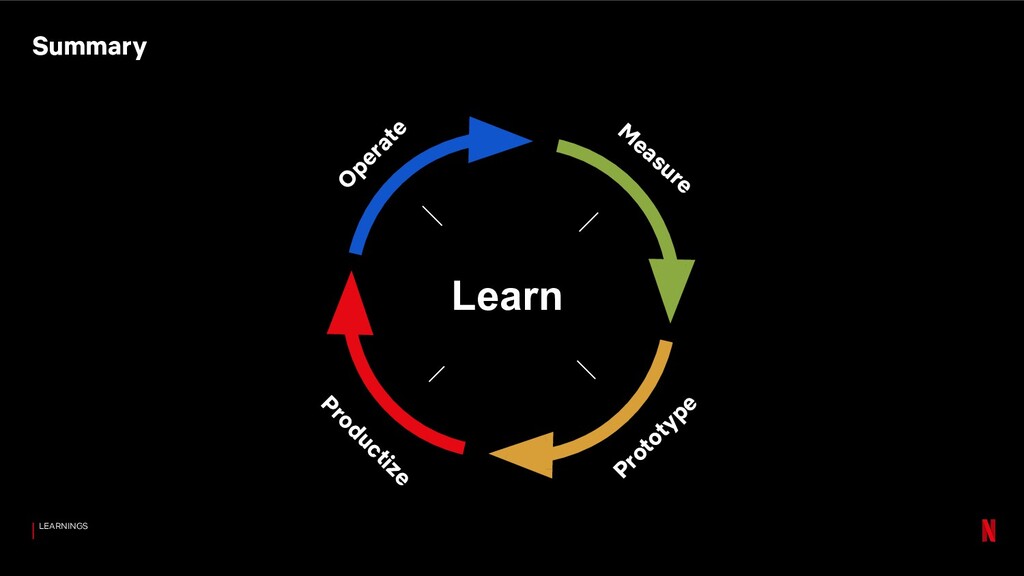

83. LEARNINGS Summary Learn M easure Prototype Productize O perate
84. THANK YOU Happy Networking! linkedin.com/in/sfedov/ @sfedov
