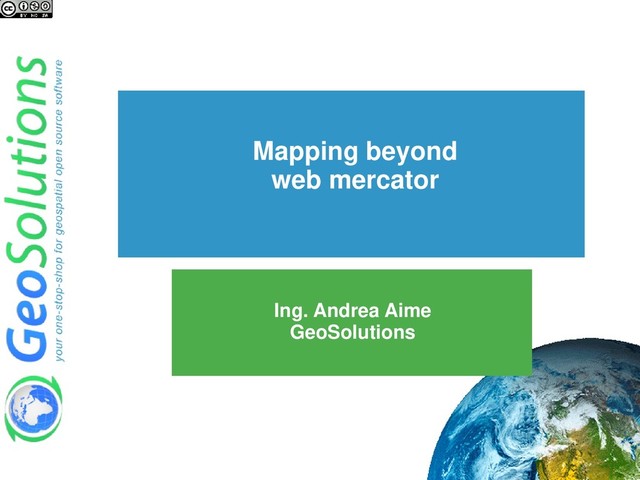

  1. Mapping beyond
    web mercator
    Ing. Andrea Aime
    GeoSolutions

    View Slide

  2. GeoSolutions

    Italian SME

    Expertise
    • Image Processing, GeoSpatial Data Fusion
    • Java, Java Enterprise, C++, Python
    • JPEG2000, JPIP, Advanced 2D visualization

    Supporting/Developing FOSS4G projects

    GeoServer, MapStore

    GeoNetwork, GeoNode, Ckan

    Clients

    Public Agencies

    Private Companies

    http://www.geo-solutions.it
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  3. Why Web Mercator

    View Slide

  4. Why: it’s everywhere, it’s free
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  5. Why: familiar
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  6. Why: easy
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  7. Why: fair to the dateline
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  8. Some reasons to avoid Web Mercator

    View Slide

  9. One reason to rule them all
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  10. Area distortion in web mercator
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  11. Equal-area maps to the rescue
    Lambert azimuthal
    equal area Mollweide
    Equal Earth
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  12. FAO example
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  13. Distance perception
    http://braincrunch.tumblr.com/post/23672142073/mercators-egg
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  14. Equidistant maps to the rescue
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  15. Example: weather radar maps
    https://weather.gc.ca/radar/index_e.html?id=xsm
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  16. Who ate the poles?!
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  17. Polar stereographic
    http://www.add.scar.org/home/add6
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  18. Polar stereographic
    http://www.polarview.aq/ (also GeoServer powered)
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  19. FAO Species Distribution
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  20. And then… legislation
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  21. And then… AUTO codes
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  22. Handling all these projections

    View Slide

  23. Should be simple no?
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  24. One (tragic) example
    FOSS4G 2019, August 26th/30th, Bucharest
    UTM 32N

    View Slide

  25. What’s going on?
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  26. Automate! With APH
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  27. Step 1: which data to read
    Requested
    Read
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  28. Step 2: cut excess data
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  29. Step 3: data wrapping
    Requested
    Read
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  30. Step 4: densification
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  31. Step 4: densification
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  32. Step 5: reproject
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  33. Step 6: detect dateline crossing
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  34. Some side by side examples
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  35. PDC Mercator, EPSG:3832
    Antactica was here…
    Funny
    Greenland

    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  36. Lambert conf. conic, EPSG:2225
    ?!!
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  37. Datum change, ED50, EPSG:4230
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  38. UTM32N, EPSG:32632
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  39. No reprojection, but Pacific centered
    Would really like
    to see Americas
    here…
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  40. Some other hard data

    View Slide

  41. Data between 0 and 360
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  42. Satellites satellites
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  43. And more satellites
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  44. Final words

    View Slide

  45. The beginning of the end?
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  46. In summary
    FOSS4G 2019, August 26th/30th, Bucharest

    View Slide

  47. That’s all folks!
    Questions?
    [email protected]
