Supporting precision farming with GeoServer: past experiences and way forward

This presentation will condense 10 years of GeoSolutions in ingesting, managing and disseminate data at scale in the cloud with GeoServer for the precision farming industry covering items like:
- Proper optimizations and organization of raster data
- Proper optimizations and organization of vector data
- Modeling data for performance & scalability in GeoServer and PostGIS
- Deployment guidelines for performance and scaling GeoServer
- Styling to create NDVI and other visualizations on the fly

At the end of the presentation the attendees will be able to design and plan properly a GeoServer deployment to serve precision farming data at scale.

Transcript

1. Simone Giannecchini
   Andrea Aime
   GeoSolutions

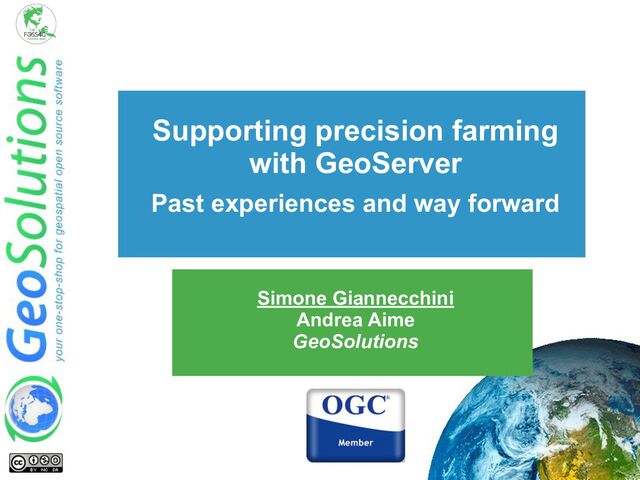

   Supporting precision farming
   with GeoServer
   Past experiences and way forward


   View Slide

2. GeoSolutions
   Enterprise Support
   Services
   Deployment
   Subscription
   Professional
   Training
   Customized
   Solutions
   GeoNode
   • Offices in Italy & US, Global Clients/Team
   • 40+ collaborators, 30+ Engineers
   • Our products
   • Our Offer


   View Slide

3. Affiliations
   We strongly support Open
   Source, it Is in our core
   We actively participate in
   OGC working groups and
   get funded to advance new
   open standards
   We support standards
   critical to GEOINT


   View Slide

4. Setting the context


   View Slide

5. GeoServer
   ●
   GeoSpatial enterprise gateway
   − Modular & extensible
   − Management & dissemination of raster and vector data
   ●
   Cloud/ Big Data friendly
   − Cluster deployments in AWS, Azure, On Premise
   − Powering petabytes-size data (EO, MetOcean, etc.)
   − Serving up to 10k+ requests per second
   ●
   Standards compliant
   − OGC WCS 1.0, 1.1.1 (RI), 2.0.1
   − OGC WFS 1.0, 1.1 (RI), 2.0
   − OGC WMS 1.1.1, 1.3
   − OGC WPS 1.0.0
   − OGC CSW 2.0.2
   ●
   Google Earth/Maps support
   ●
   License is GPL v2.0
   More Information


   View Slide

6. GeoServer
   GeoServer
   WFS
   WMS
   PostGIS
   Oracle
   H2
   DB2
   SQL Server
   GeoPackag
   e
   MySql
   Spatialite
   Elastic
   MongoDB
   Shapefile ----------
   ----------
   ---------
   ----------
   ----------
   ----------
   ---------
   ----------
   ----------
   ----------
   ---------
   ----------
   WFS
   WMS
   WMTS
   PNG, GIF
   JPEG
   TIFF,
   GeoTIFF
   SVG, PDF
   KML/KMZ
   Shapefile
   GML2
   GML3
   GeoRSS
   GeoJSON
   CSV/XLS
   GeoPackage
   Raw vector
   data
   Servers
   Styled
   maps
   DBMS
   Vector files
   WCS
   GeoTIFF
   WMS
   ArcGrid
   Img+world
   Mosaic
   MrSID
   JPEG 2000
   ECW,Pyrami
   d, NetCDF,... Raster files
   Raw raster
   data
   GeoTIFF
   ArcGrid
   GTopo30
   Img+World
   WMTS,
   TMS
   KML superoverlays
   Google maps tiles
   OGC tiles
   OSGEO tiles
   KML
   WPS
   CSW
   ESRI
   REST


   View Slide

7. Key Concepts
   • Supporting farming decision makers
   • with consuming various types of data
   • EO Data
   • Drone Imagery
   • Field Sensors (e.g. Meteo Stations)
   • Vehicles Positions & Sensors
   • Meteorological Models
   • More (not related to our work)
   • from different deployments
   • (Private|Public) Cloud
   • On Prem


   View Slide

8. Key Concepts
   • via Heterogeneous types of platforms
   • All-in-one DAAS solution to farmers
   • EO focused platform
   • IOT Focused platform for vehicle data
   • IOT Focused platform for field sensors
   • Various combinations of the above
   • setup by entities with diff bkgs & objectives
   • Large Corp. focusing solely on Precision Farming
   • Subsidiaries|Branches of large Corp. focusing solely
   on Precision Farming
   • Startups focusing solely on Precision Farming


   View Slide

9. Key Concepts
   • Challenging environments to support
   • Lots of different data
   • Continuously ingested
   • & processed into new data, alerts, charts, etc..
   • We are going to address some challenges &
   Scenarios
   • Serving EO Data
   • Serving Drone Data
   • Serving IOT Like Data
   • Deploying & Operating GeoServer


   View Slide

10. Serving EO Data


    View Slide

11. Serving EO Data
    • Typical EO scenario
    • Multispectral data (Sentinel, Landsat, Planet, etc…)
    • Hyperspectral data (Hyperion, EnMap, etc..)
    • Rarely SAR data
    • Focus on
    • RGB data → mostly pure visualization
    • Indexes → mostly band algebra like NDVI and friends
    • Deep time series for comparison and analysis
    • Continuous ingestion is crucial


    View Slide

12. Serving EO Data
    Hyperion
    4 years MSAVI Sentinel
    2 Time Series
    Multiple Indexes with
    Sentinel, Landsat and
    Planet Data


    View Slide

13. • Poor Data Preprocessing|Optimization
    • GeoServer is slow at serving index XXX out of my
    uncompressed, untiled, multiband geotiff, why?
    • Rule #1 → preprocess|optimize data at ingestion
    • Rule #2 → preprocess|optimize data at ingestion (not a
    typo, just reinforcing)
    • Hint #1 → GDAL is your friend|swiss knife
    • Hint #2 → Automate! Airflow, Lambda, etc..
    • Suggestions
    • GeoTiff is usually the best format (COG later on) and it is free!
    • Compression, Tiling and Overviews are crucial → spend some
    early CPU cycle to get performance later on
    • Do not fear lossy compression when possible
    • Do not be afraid of sacrificing space for performance if needed
    Typical Mistakes and how to avoid them


    View Slide

14. Typical Mistakes and how to avoid them
    • Resources on data preprocessing
    • Our training material
    • Best Practices for Optimizing Performance with
    GeoServer (deck, video)
    • A DevOps perspective on GeoServer: Deployment
    planning guidelines, (video, deck, FOSS4G2021)
    • Precision Farming with GeoServer, GeoSolutions
    Recommendations-v01.01 (beware, long document!)
    • GeoServer on steroids presentations from FOSS4G
    • A ton of GDAL related material you can find on the
    web!


    View Slide

15. • Poor data organization in GeoServer
    • My GeoServer does not scale as I expected, despite
    proper data preprocessing. It takes minutes to (re)start,
    why?
    • Fact #1 → if you have thousands of layers, you need to
    reorganize data quickly
    • Fact #2 → if you have millions of layers, you are doomed!
    • Suggestions
    • Conceptually organize EO data by common sensor, data type, etc..
    • Map this to multidimensional ImageMosaic → break the 1 scene 1
    layer circle
    • Use REST API to automate data management → no need to reload
    configuration, can use simple passive clustering
    • 99% of the time all you need are a handful (<100)
    of multidimensional ImageMosaic layers!
    Typical Mistakes and how to avoid them


    View Slide

16. • Resources
    • A DevOps perspective on GeoServer: Deployment
    planning guidelines, (video, deck)
    • Precision Farming with GeoServer, GeoSolutions
    Recommendations-v01.01 (beware, long document!)
    Typical Mistakes and how to avoid them


    View Slide

17. • Poor caching
    • My GeoServer does not scale as I expected, despite
    proper data preprocessing and organization, why?
    • Rule number 1 → preprocess|optimize data at
    ingestion (not a typo, just reinforcing)
    • Rule number 2 → introduce tile caching
    • Rule number 3 → introduce HTTP caching (if possible)
    • Suggestions
    • Once data is optimized and all, focus on caching, not before!
    • Tile Caching comes at a cost, make sure you can reuse tiles
    multiple times otherwise avoid caching
    • HTTP Caching is super important but also tricky, evaluate carefully
    the impact before adopting
    • Tile|HTTP Caching works nicely with URLs whose content
    does not change over time
    Typical Mistakes and how to avoid them


    View Slide

18. • Resources
    • A DevOps perspective on GeoServer: Deployment
    planning guidelines, (video, deck)
    • Precision Farming with GeoServer, GeoSolutions
    Recommendations-v01.01 (beware, long document!)
    Typical Mistakes and how to avoid them


    View Slide

19. More Goodies: COG
    • Cloud Optimize Geotiff
    • EFS costs are killing us, what can we do?
    • COG is (usually) the answer
    • GeoServer supports COG as single GeoTiff or
    ImageMosaic
    • We support S3, Google Cloud Storage and (soon)
    Azure
    • Missing bits
    • Local caching
    • Support for Binary Masks
    • Before you ask
    • Object Storage gives you better scalability at a fraction
    of the price → you might sacrifice some raw speed!


    View Slide

20. More Goodies: COG
    • Resources
    • Modern Cloud Geospatial Architectures Survey
    • Best Practices for Optimizing Performance with
    GeoServer (deck, video)
    • Serving earth observation data with GeoServer: COG,
    STAC, OpenSearch and more
    • GeoServer docs
    • Many other resources on the web


    View Slide

21. More Goodies: ImageMosaic & Time Series
    ●
    About data
    ●
    Data is added or removed to GS
    ●
    Data is rarely updated
    ●
    E.g. data from EO, MetOc, Drones, IOT Sensors
    ●
    Refrain from creating millions of layers, it won’t scale 🡪
    organize your data properly
    ●
    Use ImageMosaic for rasters if possible
    ●
    Use TIME and other dimensions
    ●
    Use CQL_Filter
    ●
    Keep # of layers low if not constant
    ●
    Manager data via REST API 🡪 no configuration reload
    ●
    Use single tables for vector if possible
    ●
    Use TIME and other dimensions
    ●
    Use CQL_Filter or Parametric SQL View
    ●
    Keep # of layers low if not constant as you ingest data


    View Slide

22. More Goodies: ImageMosaic & Time Series
    • Resources
    • Best Practices for Optimizing Performance with
    GeoServer (deck, video)
    • Serving earth observation data with GeoServer: COG,
    STAC, OpenSearch and more
    • Our training material
    • Precision Farming with GeoServer, GeoSolutions
    Recommendations-v01.01 (beware, long document!)
    • GeoServer on steroids presentations from FOSS4G


    View Slide

23. More Goodies: Map Algebra with Jiffle
    • Map algebra for GeoServer
    • Simple expressions, but also decisions, loops, arrays,
    variables
    • Reduce time to publishing
    • Compute products on the fly
    • Add new products without writing code
    • Docs
    • Use it in
    • Straight WPS calculation
    • As part of styles
    • Large computed downloads (also WPS)


    View Slide

24. More Goodies: Map Algebra with Jiffle
    • Normalized Differential Vegetation Index
    (Hyperion)



    coverage


    script

    nir = src[46];
    vir = src[31];
    dest = (nir - vir) / (nir + vir);






    1.0


    ….






    View Slide

25. Serving Drone Data


    View Slide

26. Serving Drone Data
    • Typical Drone scenario
    • Multispectral data
    • Hyperspectral data
    • Downstream Products → vector and raster
    • Focus on
    • RGB data → mostly pure visualization
    • Downstream Products → analysis & decision making
    • Time series for comparison and analysis
    • Ad-hoc or Periodic ingestion
    • Heavy automated processing
    • Data size can be challenging


    View Slide

27. Serving Drone Data
    • Most (all?) the previous recommendations are
    valid
    • Optimize data and product before serving
    • Use COG
    • Use Tile Caching
    • ImageMosaic is still crucial
    • Organize conceptually your data: same data type,
    same CRS, etc..
    • Use ImageMosaic with dimensions: acquisition time,
    flightUUID, anything
    • Decouple # of layers from # of acquisitions
    • Caching is crucial


    View Slide

28. Serving Drone Data
    • What about vector products?
    • Many products are vector datasets
    • We need to be able to related them to raw raster data
    and rater products
    • SQL Views & Table Partitioning to the rescue
    • Create a single table in Postgis
    • add pivot attributes to filter later like like acquisition
    time, flightUUID, anything
    • use SQL views in GeoServer to decouple # of layers
    from # of acquisitions
    • ingest directly in the database, no changes to the
    GeoServer configuration!


    View Slide

29. Serving Drone Data
    • Mosaicking datastore in under development!
    • Ability to create a seamless vector store in GeoServer
    • which can index products stored separately
    (flatgeobuf?)
    • and works similarly to ImageMosaic to support
    dimensions like acquisition time, flightUUID, anything
    • to decouple # of layers from # of acquisitions
    • Simplify ingestion & reduce cost
    • This solution does not fit all use cases
    • Secondary store might not support advanced filtering


    View Slide

30. Serving Drone Data


    View Slide

31. Serving IOT Like Data


    View Slide

32. Serving IOT Data
    • Typical Scenario
    • Vehicle telemetries
    • Vehicle sensors data
    • Seeds planting information
    • Huge amounts of points & trucks
    • Focus on
    • RGB data → mostly pure visualization
    • Continuous ingestion


    View Slide

33. Serving IOT Data
    • SQL Views & Table Partitioning to the rescue
    • Create a single table in Postgis
    • add pivot attributes to filter later like like acquisition
    time, flightUUID, anything
    • use SQL views in GeoServer to decouple # of layers
    from # of acquisitions
    • ingest directly in the database, no changes to the
    GeoServer configuration!
    • Potential issues
    • Operating a large Postgis cluster
    • Cost (AWS, Azure)


    View Slide

34. Serving IOT Data
    • ElasticSearch to the rescue
    • Manage billions of points, shard data and scale queries
    linearly
    • Add extra hardware as needed, automatic resharding
    • Very fast aggregation of point to build summary views
    (GeoHash gridding, Tile gridding)
    • Potential issues
    • Operating ES
    • Cost (AWS, Azure)
    • Mosaicking Datastore?


    View Slide

35. Serving IOT Data
    • Rasterization to speed up serving?
    • Rasterize common visualizations
    • Use vector data visualization for other
    • Caching is crucial


    View Slide

36. Serving IOT Data
    • SLD Service
    • Generate classified
    styles based on data
    • Methods: equalInterval,
    uniqueInterval, quantile,
    jenks, equalArea,
    standardDeviation
    • Provide custom colors
    • Clip by standard deviation
    • Works both on raster and
    vector
    • Work on large rasters by
    statistical sampling MapStore driving SLDService


    View Slide

37. Deploying & Operating GeoServer


    View Slide

38. Deploying & Operating GeoServer → Resources
    • A DevOps perspective on GeoServer material
    • A DevOps perspective on GeoServer: Deployment
    planning guidelines, (video, deck, FOSS4G21)
    • GeoServer on Kubernetes: Set up and operate a
    GeoServer Cluster in K8s, (video, deck)
    • A DevOps perspective on GeoServer: Monitoring,
    Metering, Logging and Troubleshooting, (video, deck)
    • Our Training material
    • Advanced GeoServer Configuration
    • Enterprise Set-up Recommendations
    • More material
    • Best Practices for Optimizing Performance with
    GeoServer (deck, video)
    • Precision Farming with GeoServer, GeoSolutions
    Recommendations-v01.01 (beware, long document!)
    • GeoServer on steroids presentations from FOSS4G


    View Slide

39. Cloud & GeoServer
    ●
    GeoServer is not cloud-native
    ●
    It was born when cloud meant this 🡪
    ●
    We can’t depend on any cloud provider
    ●
    GeoServer is cloud-ready
    ●
    It is known to run in AWS, Azure, GCP, OpenShift, IBM
    Cloud, etc..
    ●
    It is known to run in K8s, Rancher
    ●
    It can autoscale (CPU is the resource to look at)
    ●
    It can use Object Storage (Tile Cache, COG, etc..)
    ●
    Prefers compute intensive instances
    ●
    Likes Containers
    ●
    Likes Automation! (Azure Pipelines, Jenkins, etc..)


    View Slide

40. GeoServer Facts & Myths
    ●
    GeoServer Data Directory
    ●
    Where GeoServer stores configuration in files
    ●
    No automatic way to pick up config changes from files
    ●
    Data can live in it, but we do not recommend it in
    enterprise set ups
    ●
    Manually messing with the configuration files is
    dangerous
    ●
    Memory-bound configuration
    ●
    GeoServer loads data configuration in memory at
    startup (configuration not data itself)
    ●
    GeoServer exposes GUI and REST endpoints to reload
    config when needed
    ●
    Configuration reloading does not break OGC services
    ●
    Configuration reloading blocks GUI and REST API


    View Slide

41. GeoServer Facts & Myths
    ●
    GeoServer Needs a lot of memory
    ●
    With properly configured data and styles the bottleneck
    is usually the CPU not the memory
    ●
    Our reference dimensioning is 4CPU, 2 to 4 GB of HEAP
    ●
    Do you have 1M+ layers? If no, 2GB is enough
    ●
    Do you generate large PDF prints of PNG maps? If no,
    2GB is enough
    ●
    Do you have 8 or more CPUs? If no, 2GB is enough
    ●
    GeoServer is slow
    ●
    Are you serving a 1TB striped Bigtiff with no overviews?
    Are you visualizing 10M points from an Oracle table?
    ●
    You have deployed a single GeoServer instance with 2
    CPUs, no caching and you expect it to handle 200
    req/sec?
    ●
    99% of performance issues is either data not optimized
    or simply trying to render too much data


    View Slide

42. GeoServer Facts & Myths
    ●
    Serving a large number of layers
    ●
    Large usually mean 50k or more
    ●
    Start up times / Reload times can grow (e.g. DBMS
    tables)
    ●
    Heap Memory usage might grow
    ●
    GetCapabilities documents become slow and hard to
    parse for clients (e.g. bloated 100MB+ files)
    ●
    Partitioning with Virtual Services can help
    ●
    Sharding on different instances can help


    View Slide

43. Clustering
    ●
    Scalability + High Availability
    ●
    Scaling GeoServer
    ●
    Scaling up to 64 cores has been proven in the past
    ●
    Scaling out has been done in K8s, AWS, Azure, GCP,
    etc…
    ●
    Our Recommendations
    ●
    Scale out instances with 4CPU + 8GB Ram
    ●
    Scale up instances if really needed
    ●
    Autoscaling based on CPU usage is expected under
    load instances with 4CPU + 8GB Ram
    ●
    Autoscaling based on RAM might be the effect of an
    issue or a big
    ●
    Clustering Paradigms
    ●
    Passive Clustering 🡪 GS instances ignore each other
    ●
    Active Clustering 🡪 GS instances talk to each other


    View Slide

44. Preferred Clustering Layout
    Backoffice - Production
    ●
    Backoffice instance is for administration
    ●
    Changes via GUI or via REST Interface
    ●
    Can do Active/Passive
    ●
    Productions instances are for data serving
    ●
    No config changes
    ●
    Can scale horizontally (autoscaling)
    ●
    Data is centralized and shared between instances
    ●
    Configuration changes requires reload
    ●
    It can cover most use cases


    View Slide

45. Clustering - Takeaways
    ● GS stores its config in files in the data directory
    ● GS load its config in memory at startup
    ● GS does not automatically pick up config changes
    from the data directory
    ● GS startup/reload times can be long with 10k+
    layers
    ● GS continuously write to log files
    ● GS TileCache can work in clustering
    ● 99% of cases clustering with
    backoffice-production is the way to go!


    View Slide

46. Final Checklist
    ✔ Study/Analyze your data
    ✔ Study/Analyze your users/scenario
    ✔ Study/Analyze the deployment
    environment
    ✔ Study/Analyze GeoServer strengths and
    limitations wrt to the above (we can help
    here )
    ✔ Prepare a deployment plan
    ✔ Repeat 🡪 perfection comes from
    practice!
    • Do your homework or suffer forever!


    View Slide

47. Conclusions


    View Slide

48. Conclusions
    • Key element to focus on
    • data optimization
    • data modeling
    • GeoServer configuration
    • Favor parametric stores in GeoServer
    • ImageMosaic
    • SQL Views
    • After data optimization → plan caching
    • Favor simpler deployment → easier to scale
    • Automate as much as possible


    View Slide

49. The End
    Questions?
    simone.giannecchini@geosolutionsgroup.com
    andrea.aime@geosolutionsgroup.com
    info@geosolutionsgroup.com


    View Slide
