Byteman - Carving up your Java code

Brown Bag talk I gave on first steps with Byteman.

Transcript

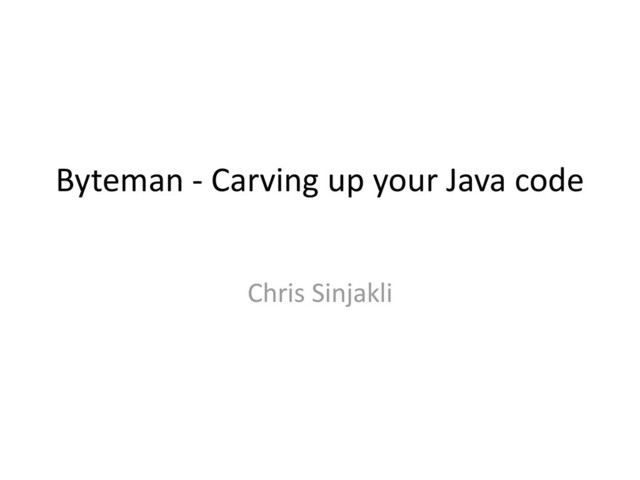

1. Byteman - Carving up your Java code
   Chris Sinjakli


   View Slide

2. A tracing/debugging tool
   Runtime manipulation of Java code


   View Slide

3. Java Agent API
   Muck around with the bytecode to
   your heart’s content


   View Slide

4. Java Agent API
   package java.lang.instrument;
   interface ClassFileTransformer
   {
   byte[] transform(ClassLoader loader, String
   className, Class> classBeingRedefined,
   ProtectionDomain protectionDomain,
   byte[] classfileBuffer);
   }


   View Slide

5. Who does this?
   • About a million tutorials
   – Usually print the class name
   – At best adding simple trace code to methods
   • Newer, cooler mocking frameworks
   – Powermock, Mockito, JMockit
   – Better approach then JMock & friends (which use
   Proxy + CGLIB)
   – Mock final classes/methods, plus other stuff
   • Pure Java profilers?


   View Slide

6. Not that convenient
   Who wants to spend their time
   dealing with bytecode?


   View Slide

7. Byteman
   Muck around with the Java code to
   your heart’s content


   View Slide

8. How?
   • Specify byteman.jar as a Java Agent when you
   start your app
   • Provide a Byteman rule script
   • Can provide these scripts later (to a running
   app) – app must be started with Byteman
   listener


   View Slide

9. Simple program
   package org.my
   class AppMain
   {
   public static void main(String[] args)
   {
   for (int i = 0; i < args.length; i++) {
   System.out.println(args[i]);
   }
   }
   }


   View Slide

10. Run it
    > java org.my.AppMain foo bar baz
    foo
    bar
    baz
    >


    View Slide

11. Byteman rule script
    RULE trace main entry
    CLASS AppMain
    METHOD main
    AT ENTRY
    IF true
    DO traceln("entering main")
    ENDRULE


    View Slide

12. Byteman rule script
    RULE trace main exit
    CLASS AppMain
    METHOD main
    AT EXIT
    IF true
    DO traceln("exiting main")
    ENDRULE


    View Slide

13. Run it
    > java -
    javaagent:byteman.jar=script:appmain.btm org.m
    y.AppMain foo bar baz
    entering main
    foo
    bar
    baz
    exiting main
    >


    View Slide

14. Worth mentioning
    • You can use it on classes you don’t have the
    source for
    • You can even use this on core Java classes
    (java.lang) – Byteman makes you confirm
    • Works on interfaces too (all implementing classes
    get your injected code)
    • Much more sophisticated rule scripts
    – Different “AT” points in method
    – “IF” statements that do something
    – Access to local variables (eg “AFTER WRITE $foo”)


    View Slide

15. Testing


    View Slide

16. Testing support
    • Comes with a JUnit Runner
    • Define the rules (from earlier scripts) as test
    annotations
    • Useful for fault injection (integration tests
    where you’re not mocking everything out?)


    View Slide

17. Testing support
    @Test
    @BMRule(name=“foo”,
    targetClass = “FileInputStream”,
    targetMethod=“(File)”,
    condition=“$1.getName().equals(\“doesnt_exist.txt\”)”,
    action=“throw new FileNotFoundException(\“It’s not there!\”)”)
    public void testReadFile() {
    ...
    myClass.processFile(“doesnt_exist.txt”); // Throws an exception
    ...
    }


    View Slide

18. Testing support
    • Rule in previous example will only be in place
    for that test
    – Can annotate class instead to apply to all tests
    • There’s also @BMScript to import external
    rule scripts
    • Relatively simple to run with maven (config
    samples on website)


    View Slide

19. Summary
    • Seems cool
    • Not sure what I’d actually use it for
    • Integration tests most likely candidate


    View Slide

20. Questions?


    View Slide
