1. Web Application Firewall Prepared by: Soaphorn Seuo Barcamp ASEAN
2. ~ echo $USER  Network Engineer @ TrendSec Solution  I’m a Security Enthusiast and CTFer  Strong passion for Vulnerability Research, Reverse Engineering and Exploit Development

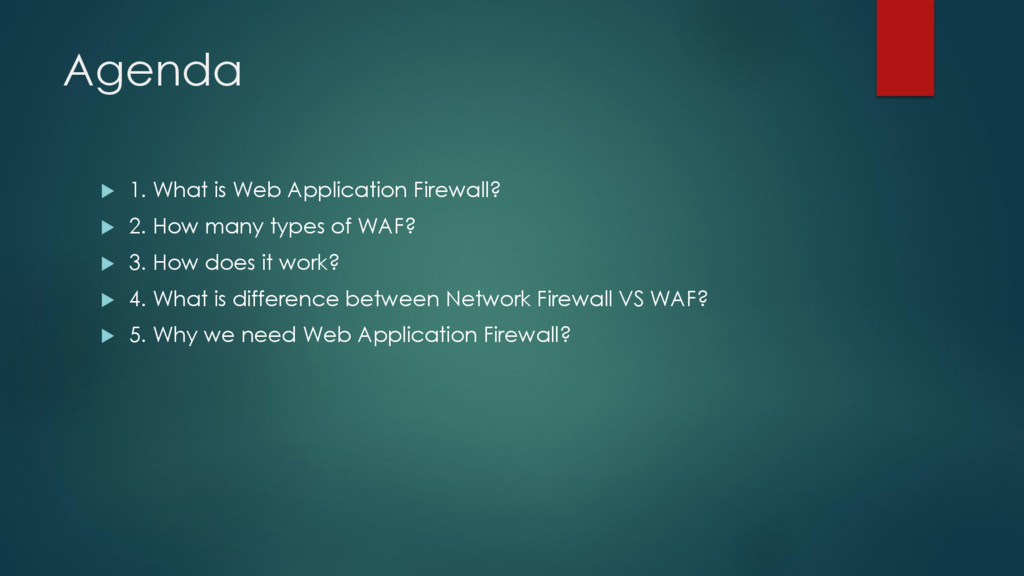

3. Agenda  1. What is Web Application Firewall?  2. How many types of WAF?  3. How does it work?  4. What is difference between Network Firewall VS WAF?  5. Why we need Web Application Firewall?

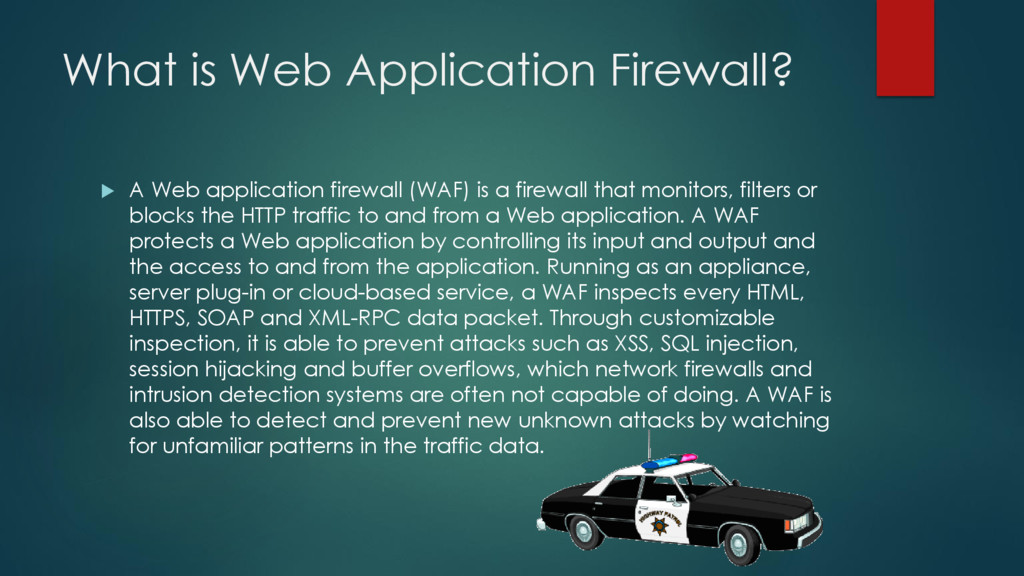

4. What is Web Application Firewall?  A Web application firewall (WAF) is a firewall that monitors, filters or blocks the HTTP traffic to and from a Web application. A WAF protects a Web application by controlling its input and output and the access to and from the application. Running as an appliance, server plug-in or cloud-based service, a WAF inspects every HTML, HTTPS, SOAP and XML-RPC data packet. Through customizable inspection, it is able to prevent attacks such as XSS, SQL injection, session hijacking and buffer overflows, which network firewalls and intrusion detection systems are often not capable of doing. A WAF is also able to detect and prevent new unknown attacks by watching for unfamiliar patterns in the traffic data.

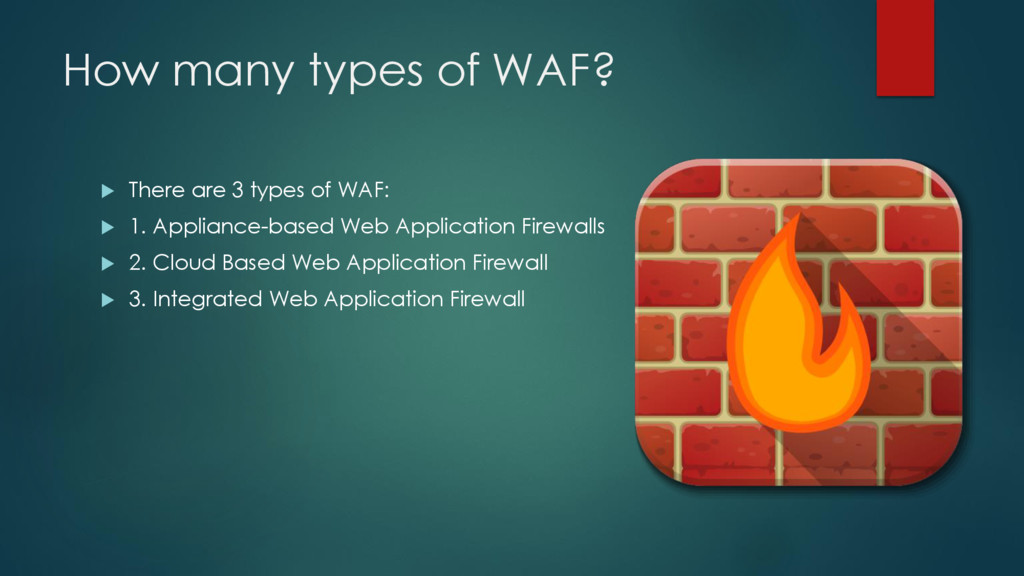

5. How many types of WAF?  There are 3 types of WAF:  1. Appliance-based Web Application Firewalls  2. Cloud Based Web Application Firewall  3. Integrated Web Application Firewall

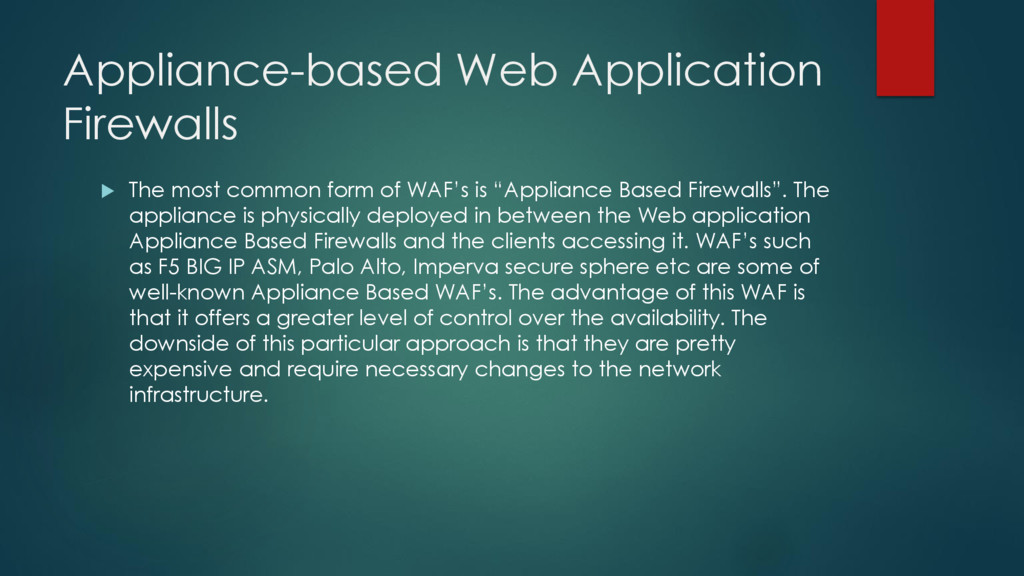

6. Appliance-based Web Application Firewalls  The most common form of WAF’s is “Appliance Based Firewalls”. The appliance is physically deployed in between the Web application Appliance Based Firewalls and the clients accessing it. WAF’s such as F5 BIG IP ASM, Palo Alto, Imperva secure sphere etc are some of well-known Appliance Based WAF’s. The advantage of this WAF is that it offers a greater level of control over the availability. The downside of this particular approach is that they are pretty expensive and require necessary changes to the network infrastructure.

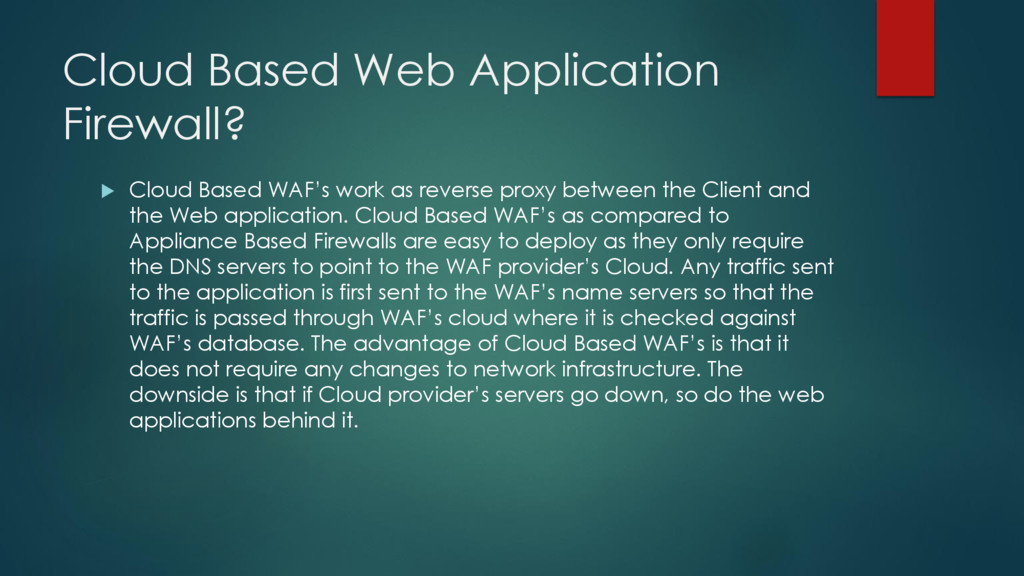

7. Cloud Based Web Application Firewall?  Cloud Based WAF’s work as reverse proxy between the Client and the Web application. Cloud Based WAF’s as compared to Appliance Based Firewalls are easy to deploy as they only require the DNS servers to point to the WAF provider’s Cloud. Any traffic sent to the application is first sent to the WAF’s name servers so that the traffic is passed through WAF’s cloud where it is checked against WAF’s database. The advantage of Cloud Based WAF’s is that it does not require any changes to network infrastructure. The downside is that if Cloud provider’s servers go down, so do the web applications behind it.

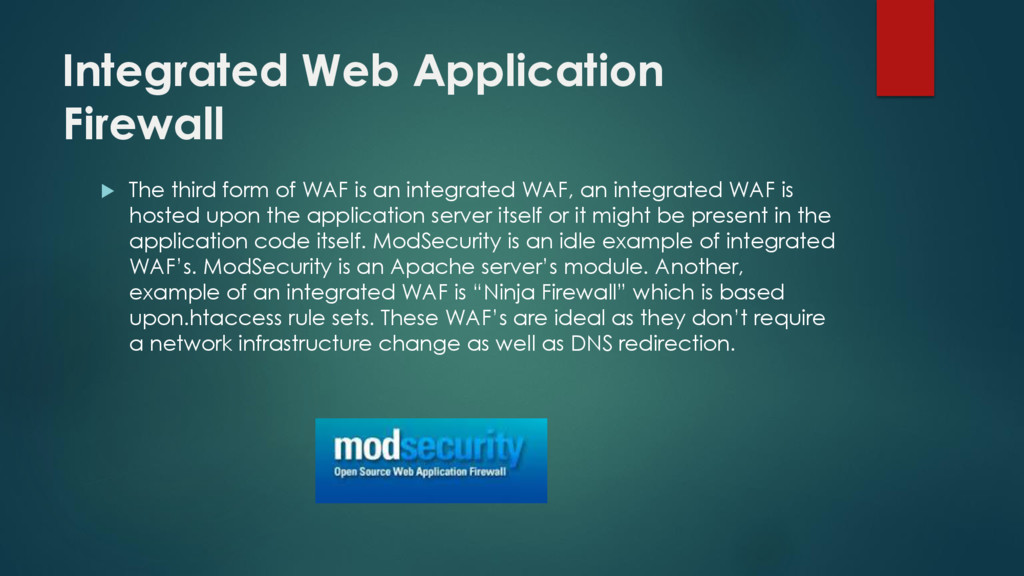

8. Integrated Web Application Firewall  The third form of WAF is an integrated WAF, an integrated WAF is hosted upon the application server itself or it might be present in the application code itself. ModSecurity is an idle example of integrated WAF’s. ModSecurity is an Apache server’s module. Another, example of an integrated WAF is “Ninja Firewall” which is based upon.htaccess rule sets. These WAF’s are ideal as they don’t require a network infrastructure change as well as DNS redirection.

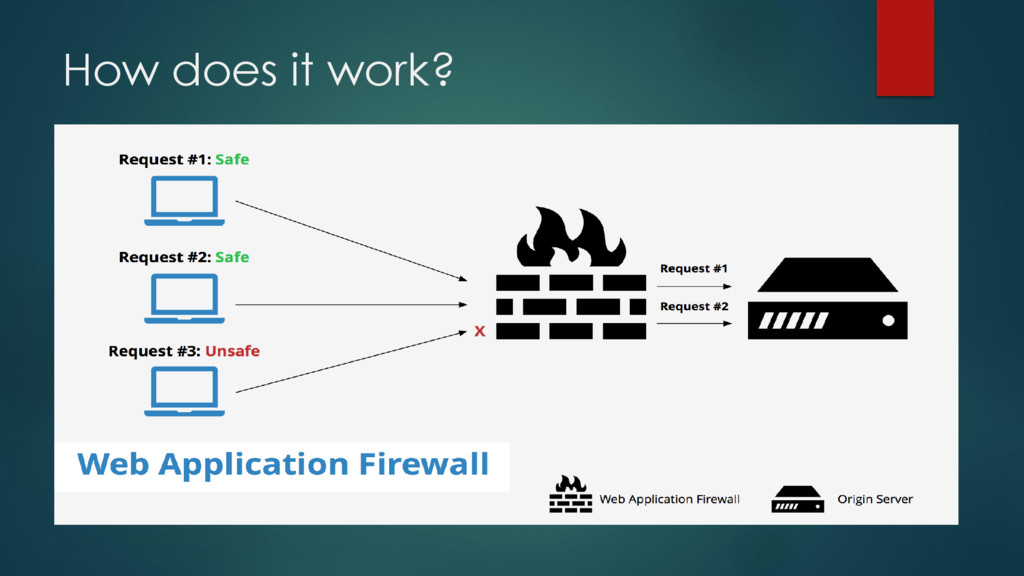

9. How does it work?

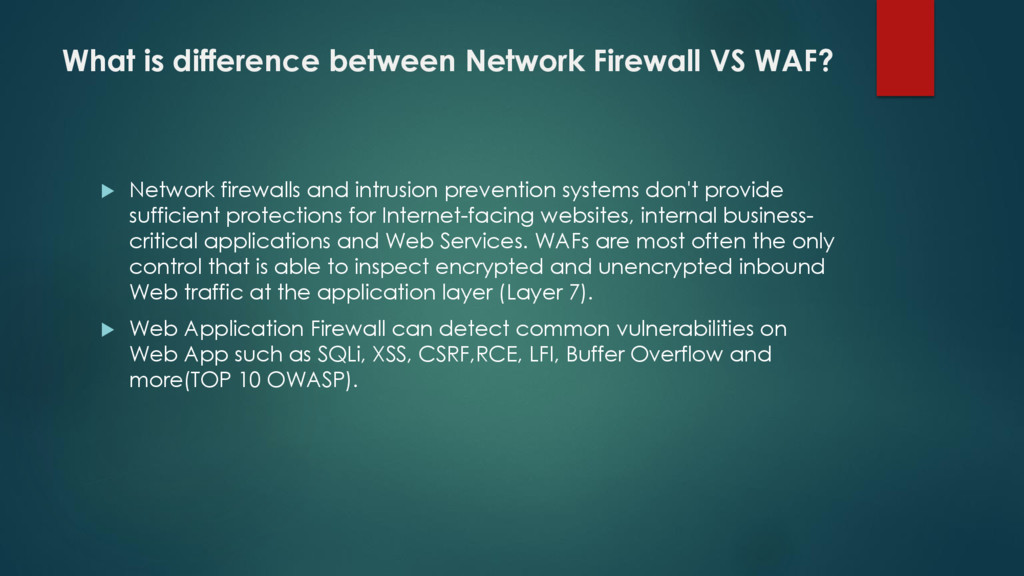

10. What is difference between Network Firewall VS WAF?  Network firewalls and intrusion prevention systems don't provide sufficient protections for Internet-facing websites, internal business- critical applications and Web Services. WAFs are most often the only control that is able to inspect encrypted and unencrypted inbound Web traffic at the application layer (Layer 7).  Web Application Firewall can detect common vulnerabilities on Web App such as SQLi, XSS, CSRF,RCE, LFI, Buffer Overflow and more(TOP 10 OWASP).

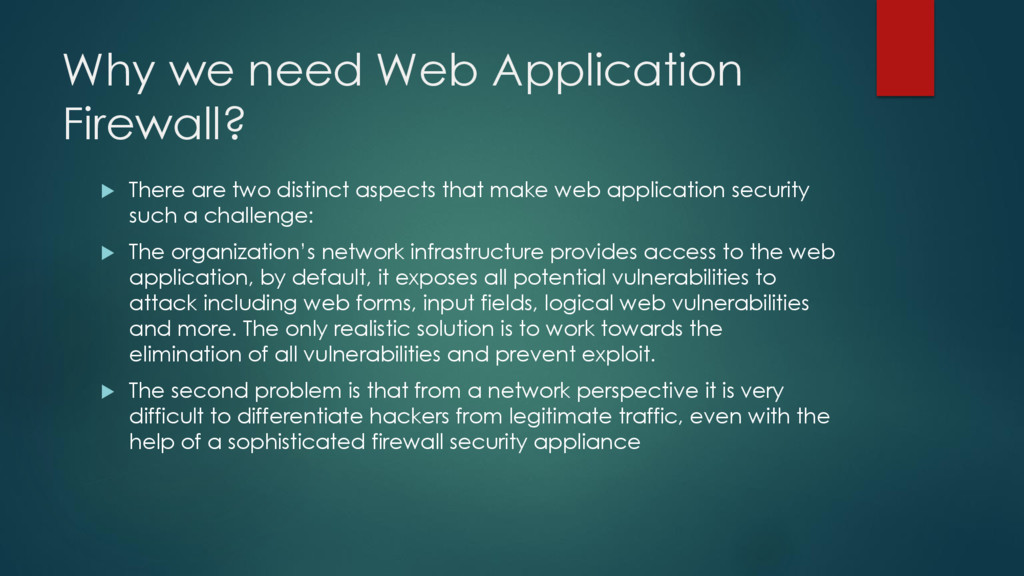

11. Why we need Web Application Firewall?  There are two distinct aspects that make web application security such a challenge:  The organization’s network infrastructure provides access to the web application, by default, it exposes all potential vulnerabilities to attack including web forms, input fields, logical web vulnerabilities and more. The only realistic solution is to work towards the elimination of all vulnerabilities and prevent exploit.  The second problem is that from a network perspective it is very difficult to differentiate hackers from legitimate traffic, even with the help of a sophisticated firewall security appliance

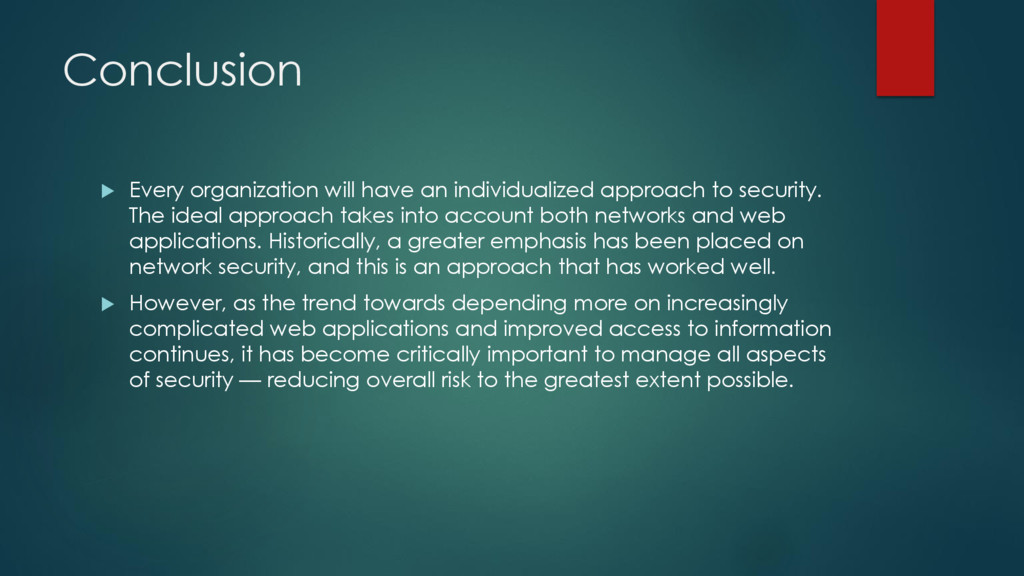

12. Conclusion  Every organization will have an individualized approach to security. The ideal approach takes into account both networks and web applications. Historically, a greater emphasis has been placed on network security, and this is an approach that has worked well.  However, as the trend towards depending more on increasingly complicated web applications and improved access to information continues, it has become critically important to manage all aspects of security — reducing overall risk to the greatest extent possible.
