Restful on web service

This example uses backbone.js and express.js.

Transcript

1. Restful on web service Sparrow Jang

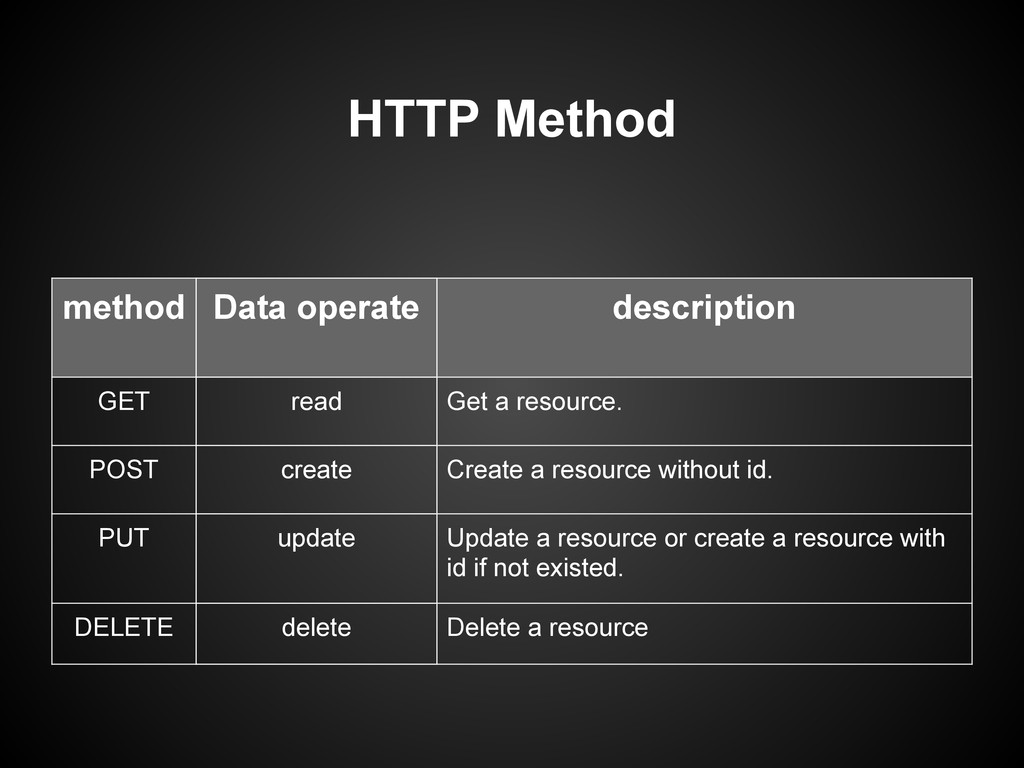

3. HTTP Method method Data operate description GET read Get a resource. POST create Create a resource without id. PUT update Update a resource or create a resource with id if not existed. DELETE delete Delete a resource

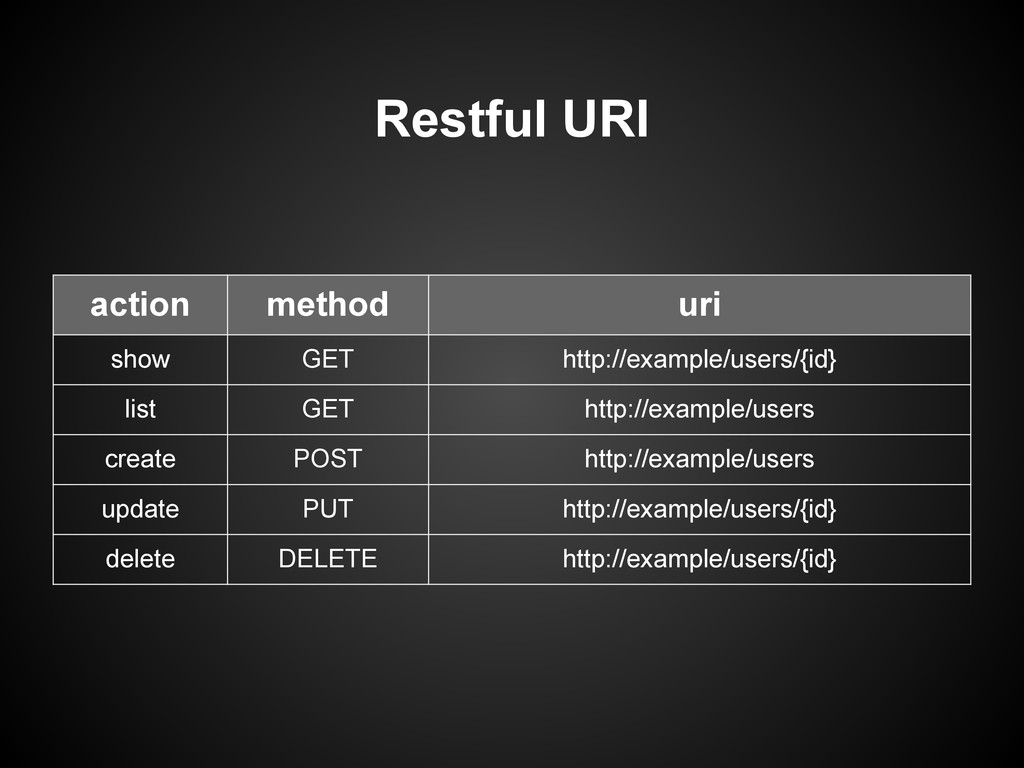

4. Restful URI action method uri show GET http://example/users/{id} list GET http://example/users create POST http://example/users update PUT http://example/users/{id} delete DELETE http://example/users/{id}

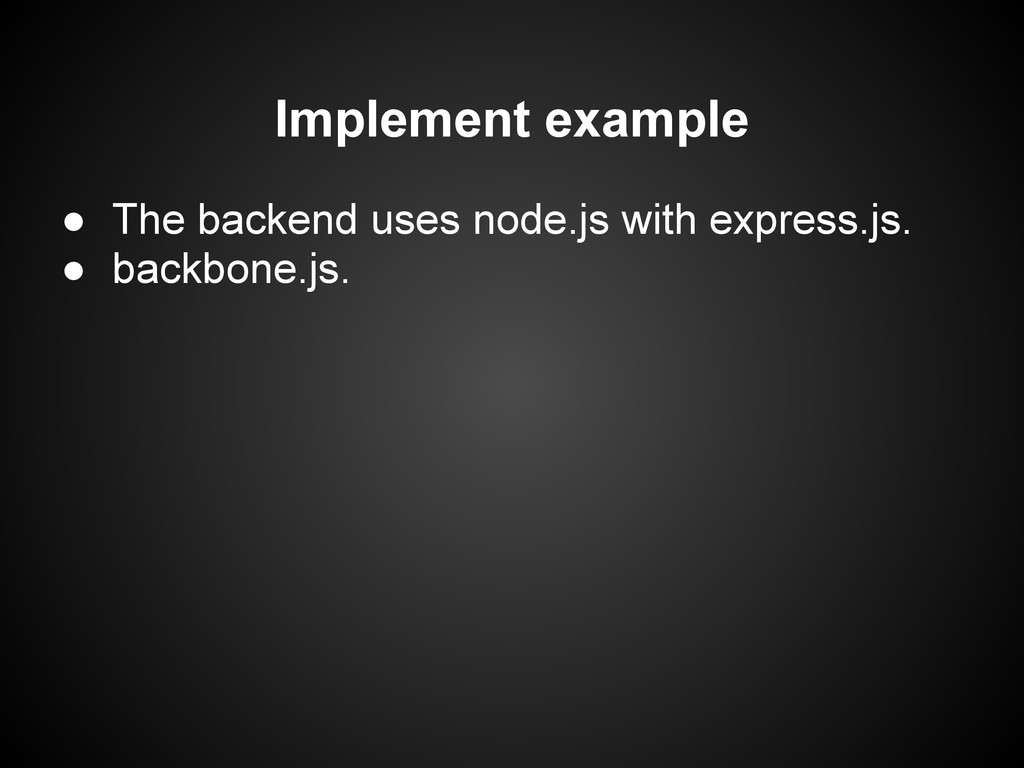

5. Implement example • The backend uses node.js with express.js. • backbone.js.

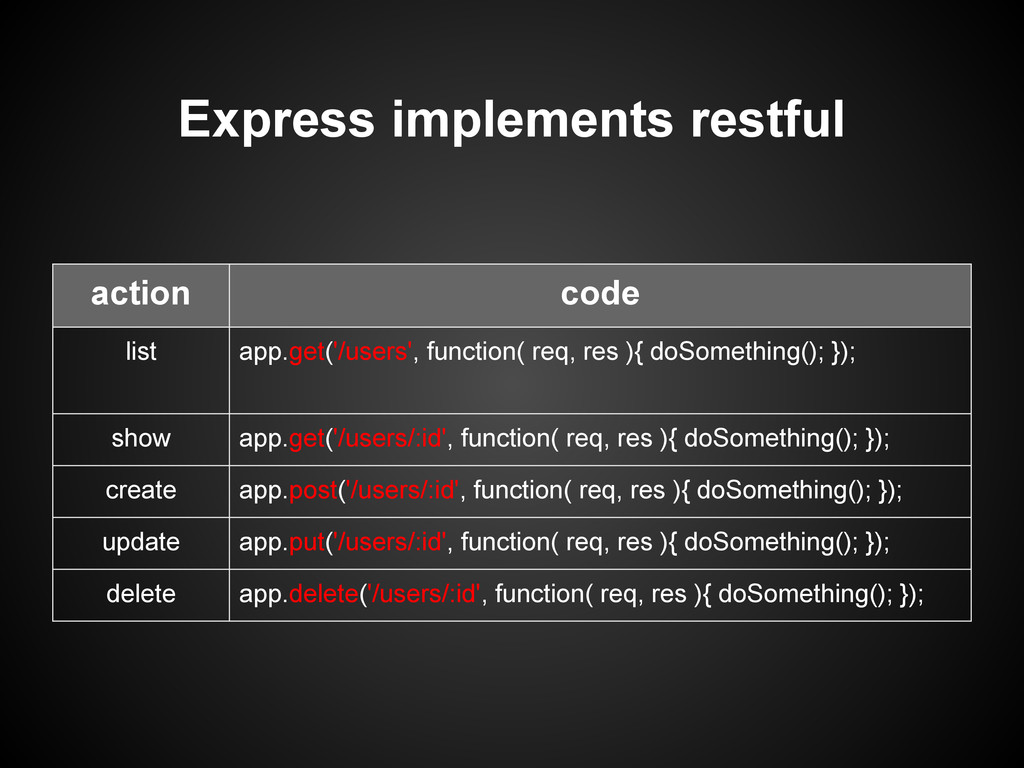

6. Express implements restful action code list app.get('/users', function( req, res ){ doSomething(); }); show app.get('/users/:id', function( req, res ){ doSomething(); }); create app.post('/users/:id', function( req, res ){ doSomething(); }); update app.put('/users/:id', function( req, res ){ doSomething(); }); delete app.delete('/users/:id', function( req, res ){ doSomething(); });

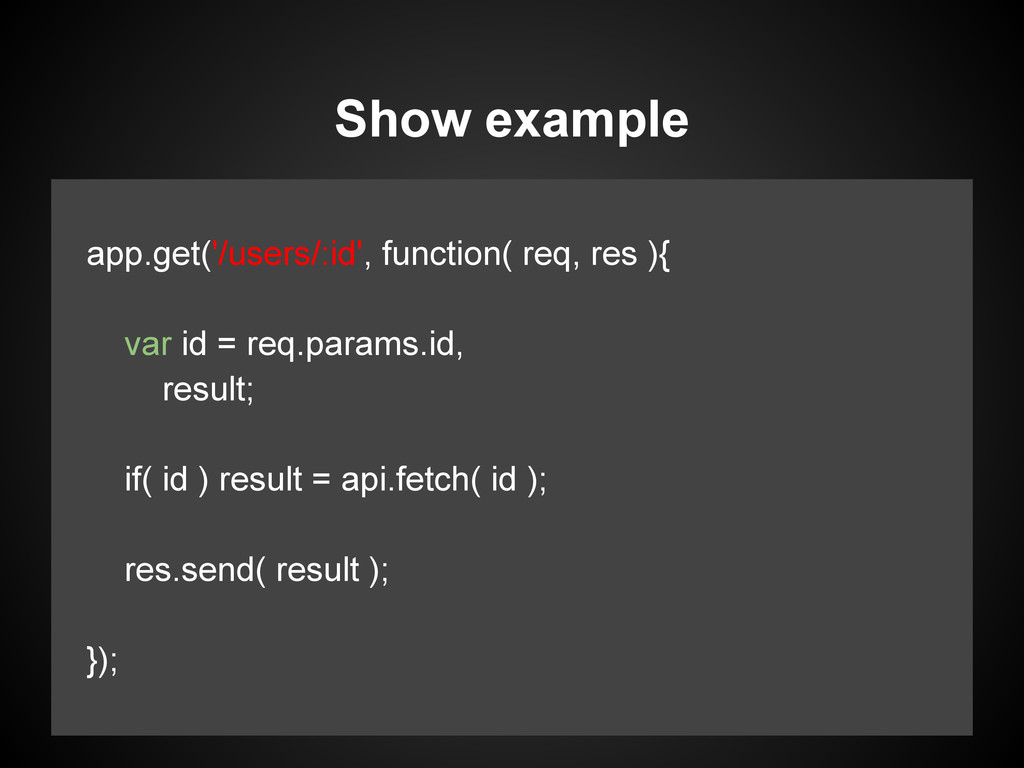

7. Show example app.get('/users/:id', function( req, res ){ var id = req.params.id, result; if( id ) result = api.fetch( id ); res.send( result ); });

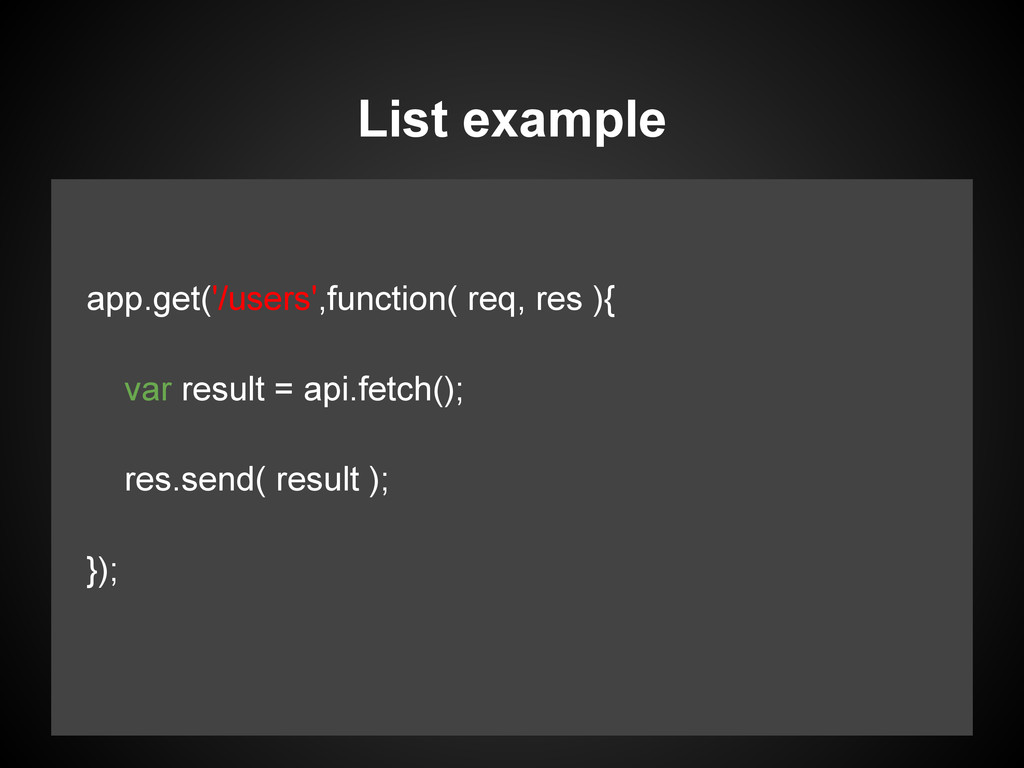

8. List example app.get('/users',function( req, res ){ var result = api.fetch(); res.send( result ); });

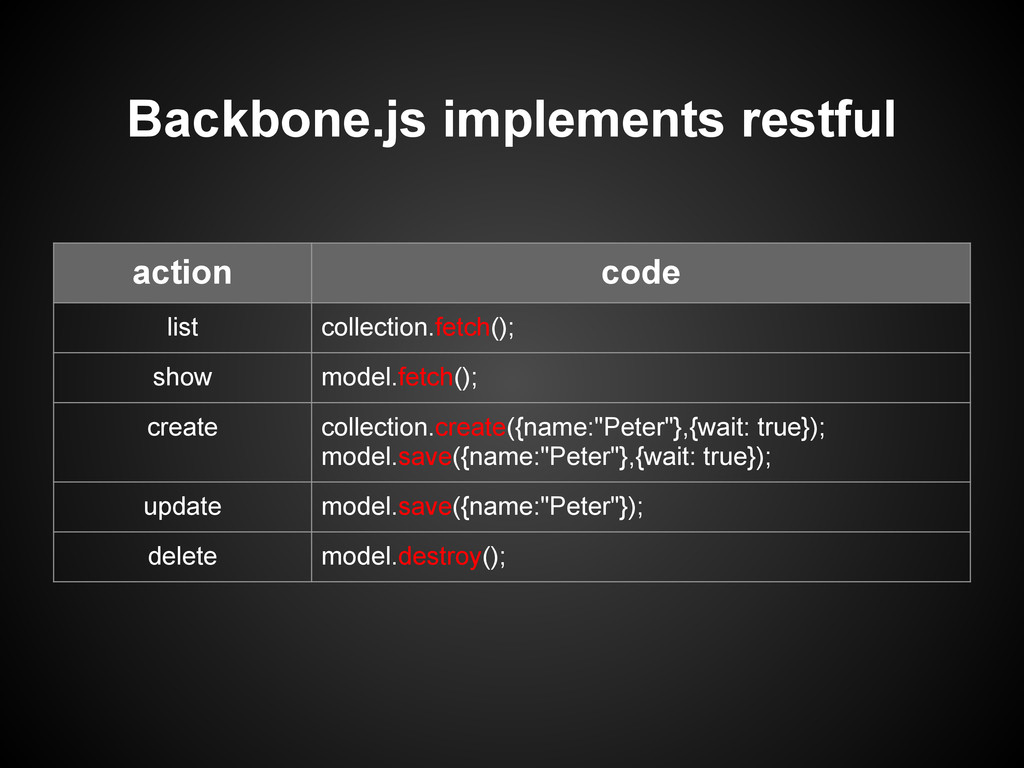

9. Backbone.js implements restful action code list collection.fetch(); show model.fetch(); create collection.create({name:"Peter"},{wait: true}); model.save({name:"Peter"},{wait: true}); update model.save({name:"Peter"}); delete model.destroy();

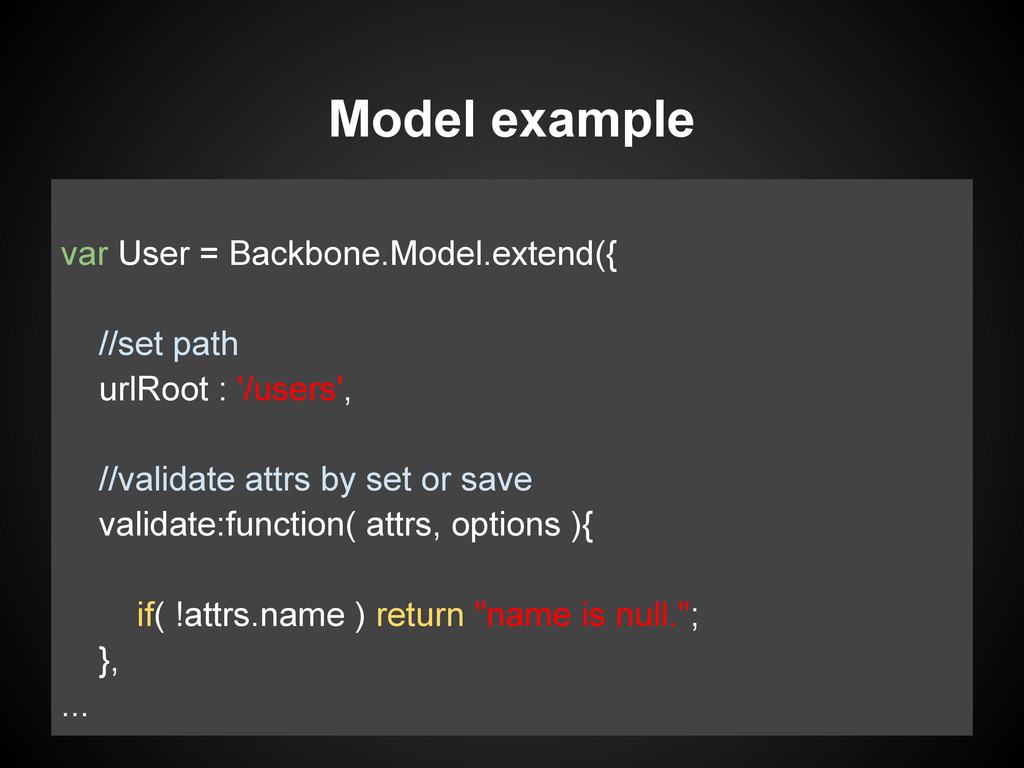

10. Model example var User = Backbone.Model.extend({ //set path urlRoot : '/users', //validate attrs by set or save validate:function( attrs, options ){ if( !attrs.name ) return "name is null."; }, ...

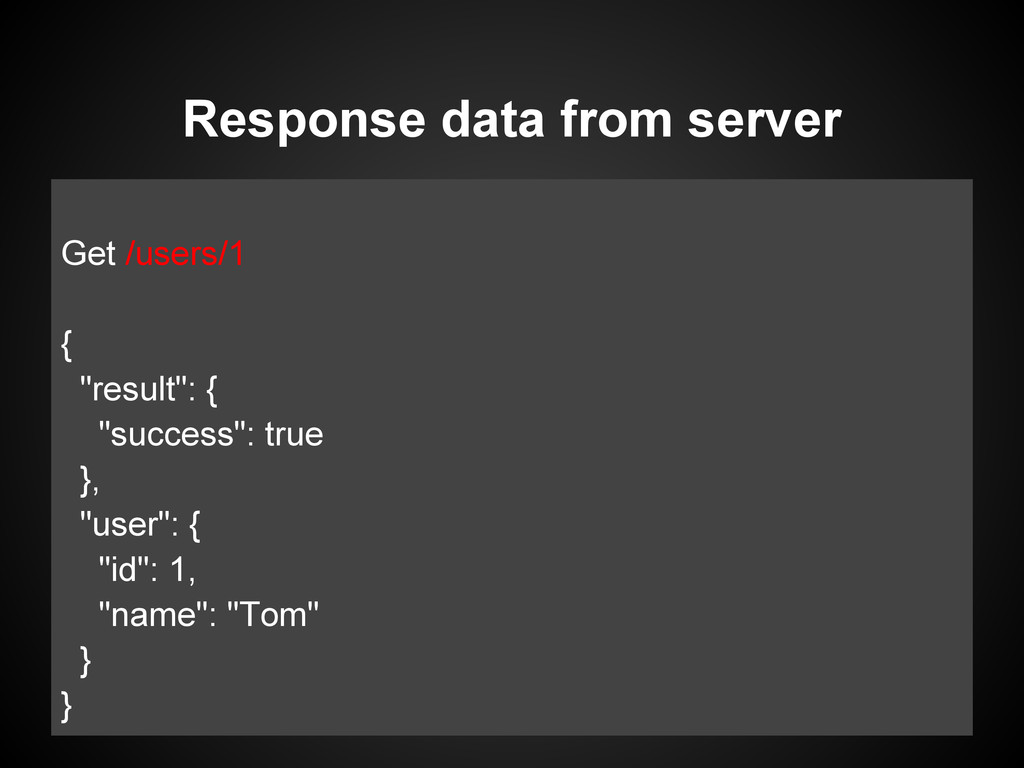

11. Response data from server Get /users/1 { "result": { "success": true }, "user": { "id": 1, "name": "Tom" } }

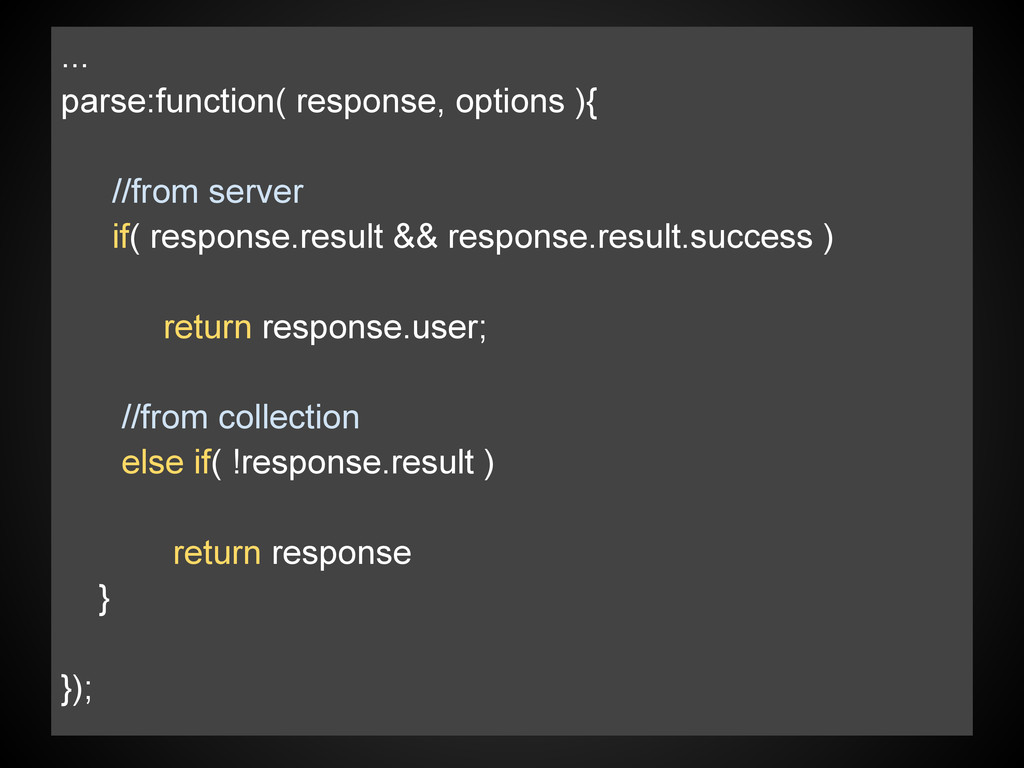

12. ... parse:function( response, options ){ //from server if( response.result && response.result.success ) return response.user; //from collection else if( !response.result ) return response } });

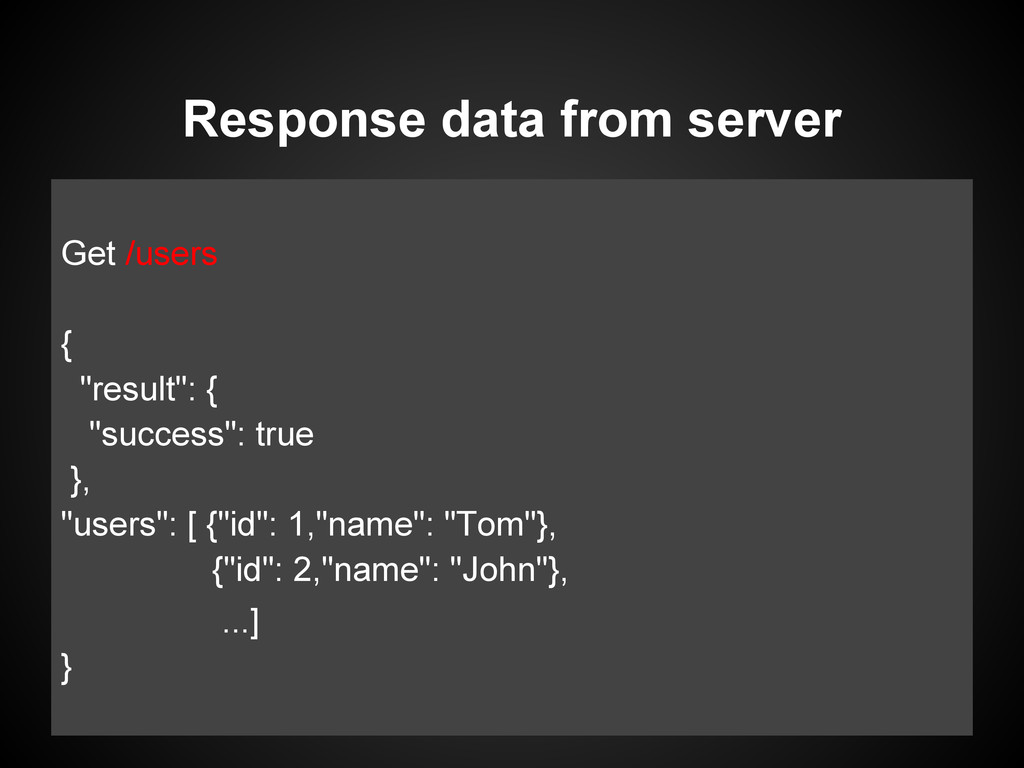

13. Response data from server Get /users { "result": { "success": true }, "users": [ {"id": 1,"name": "Tom"}, {"id": 2,"name": "John"}, ...] }

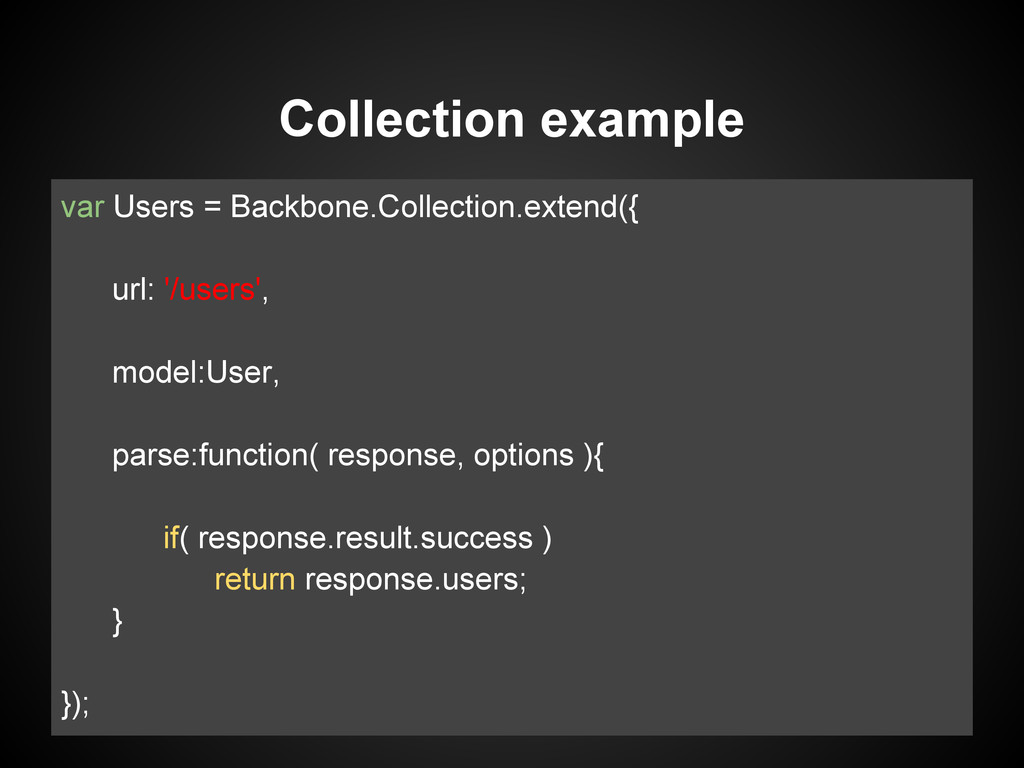

14. Collection example var Users = Backbone.Collection.extend({ url: '/users', model:User, parse:function( response, options ){ if( response.result.success ) return response.users; } });
15. The End 1. github 2. http://sparrowhome.twbbs.org/wordpress/
