Elastic User Group NL - Feb 2017

Anomaly Detection and Machine Learning with Elasticsearch

Transcript

1. 1 Dr. Stephen Dodson Tech Lead Machine Learning, Elastic Machine Learning and the Elastic Stack © Elasticsearch BV

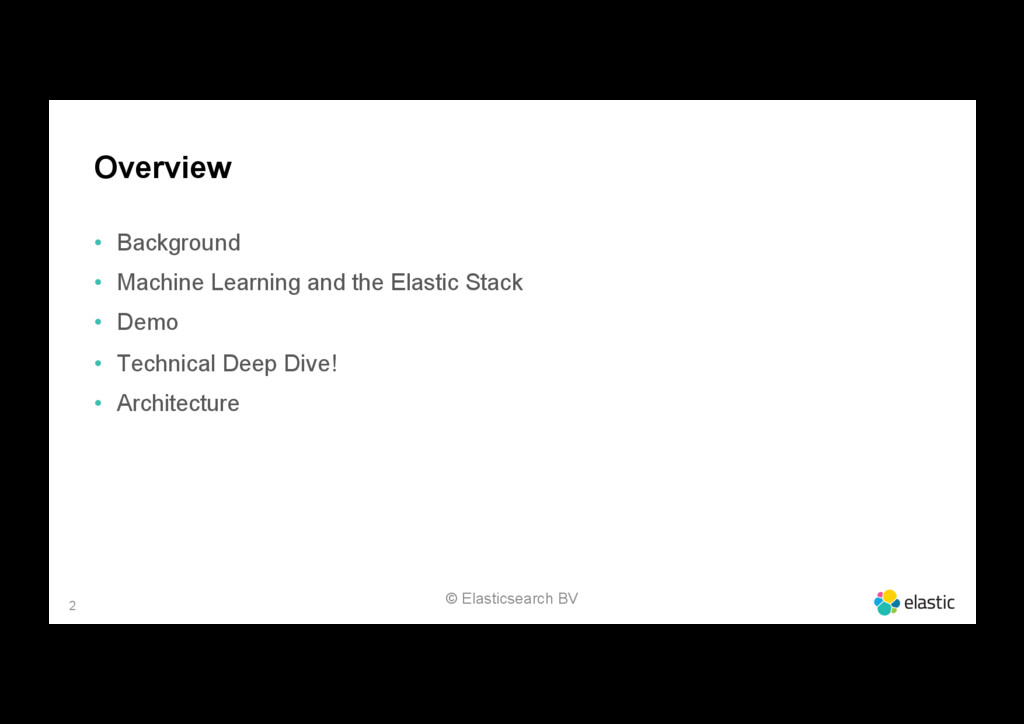

2. 2 Overview •  Background •  Machine Learning and the Elastic Stack •  Demo •  Technical Deep Dive! •  Architecture © Elasticsearch BV

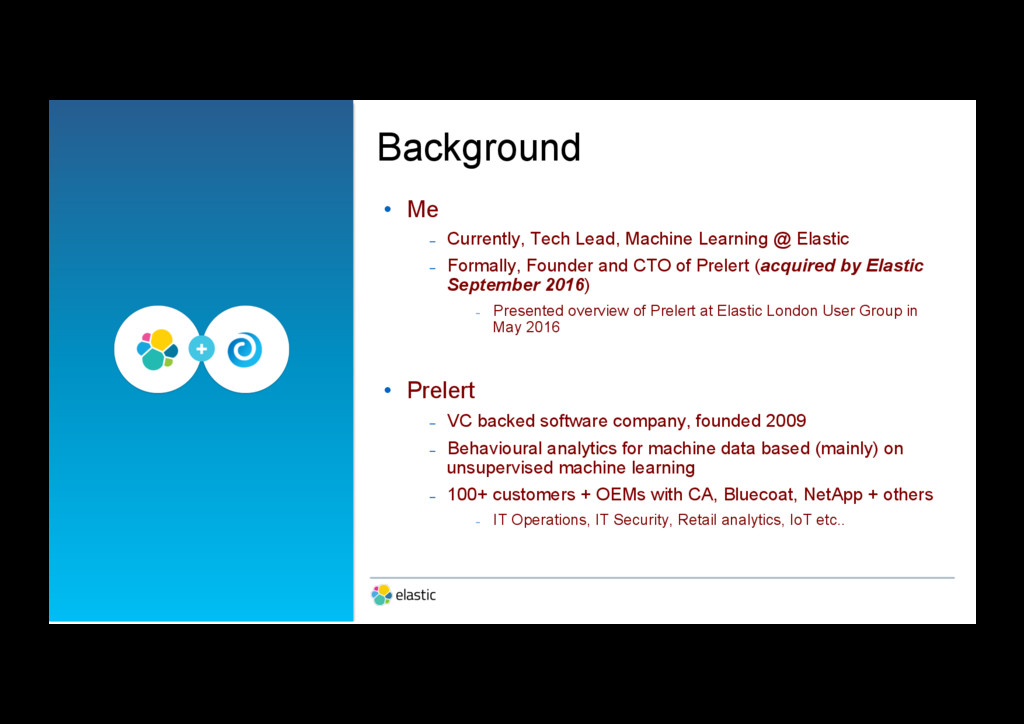

3. Background •  Me –  Currently, Tech Lead, Machine Learning @ Elastic –  Formally, Founder and CTO of Prelert (acquired by Elastic September 2016) ‒  Presented overview of Prelert at Elastic London User Group in May 2016 •  Prelert –  VC backed software company, founded 2009 –  Behavioural analytics for machine data based (mainly) on unsupervised machine learning –  100+ customers + OEMs with CA, Bluecoat, NetApp + others ‒  IT Operations, IT Security, Retail analytics, IoT etc..

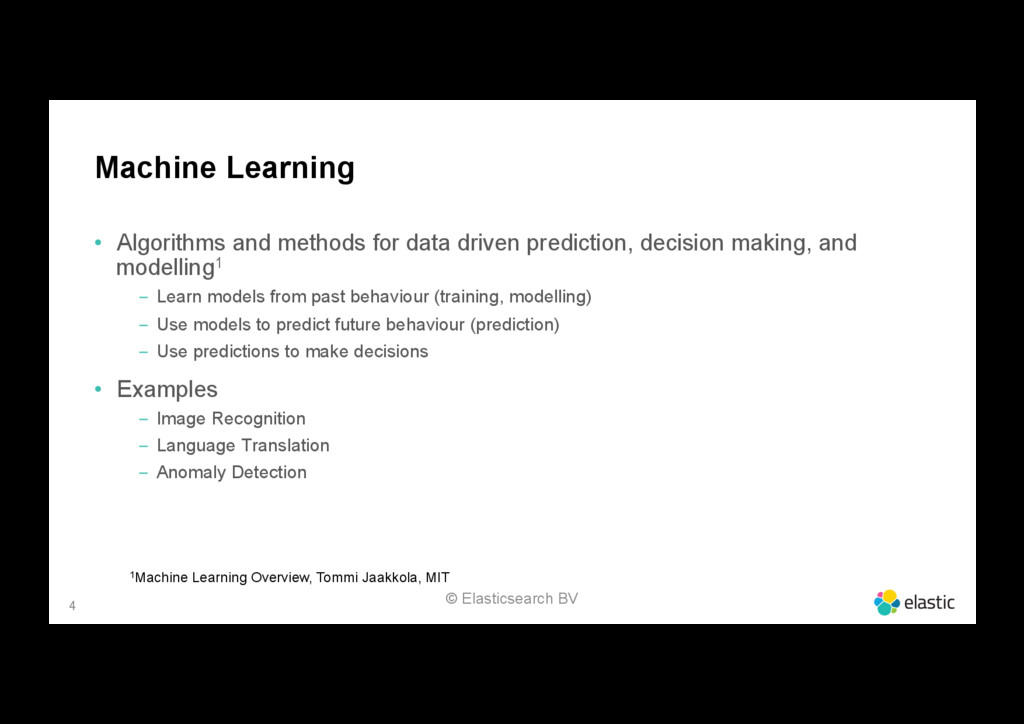

4. 4 Machine Learning •  Algorithms and methods for data driven prediction, decision making, and modelling1 ‒  Learn models from past behaviour (training, modelling) ‒  Use models to predict future behaviour (prediction) ‒  Use predictions to make decisions •  Examples ‒  Image Recognition ‒  Language Translation ‒  Anomaly Detection 1Machine Learning Overview, Tommi Jaakkola, MIT © Elasticsearch BV

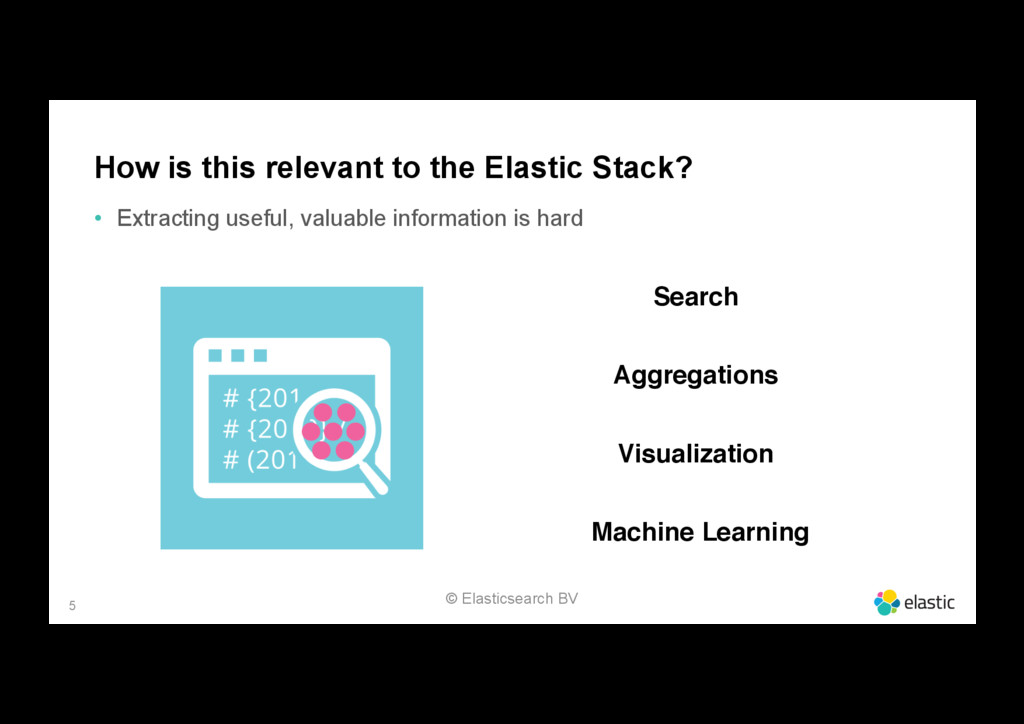

5. 5 How is this relevant to the Elastic Stack? •  Extracting useful, valuable information is hard Search Aggregations Visualization Machine Learning © Elasticsearch BV

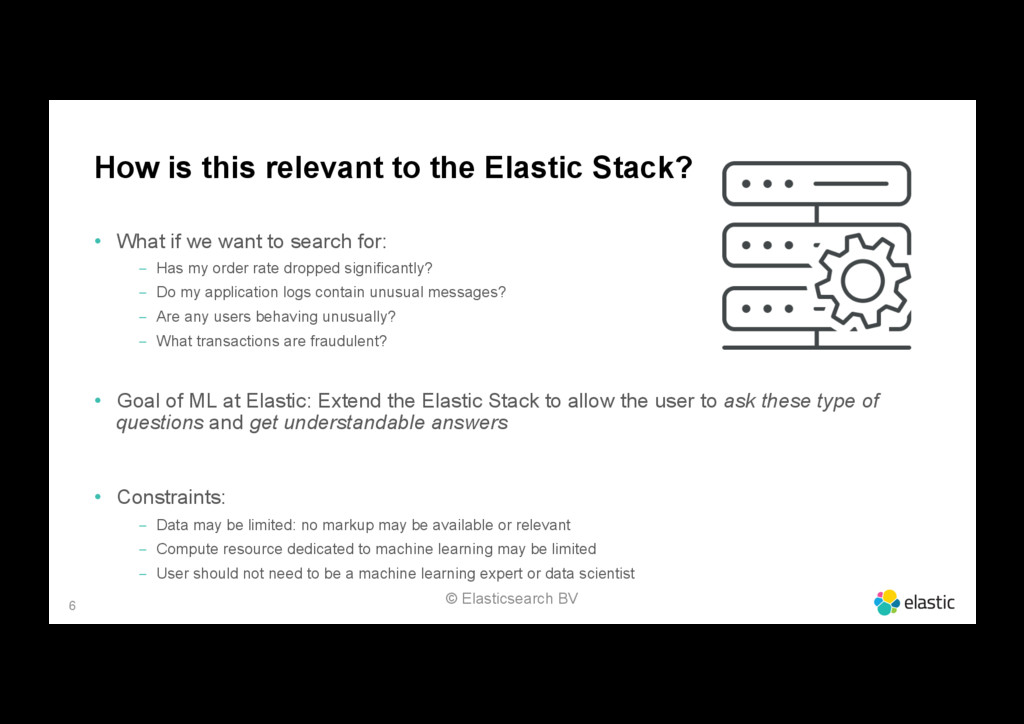

6. 6 How is this relevant to the Elastic Stack? •  What if we want to search for: ‒  Has my order rate dropped significantly? ‒  Do my application logs contain unusual messages? ‒  Are any users behaving unusually? ‒  What transactions are fraudulent? •  Goal of ML at Elastic: Extend the Elastic Stack to allow the user to ask these type of questions and get understandable answers •  Constraints: ‒  Data may be limited: no markup may be available or relevant ‒  Compute resource dedicated to machine learning may be limited ‒  User should not need to be a machine learning expert or data scientist © Elasticsearch BV

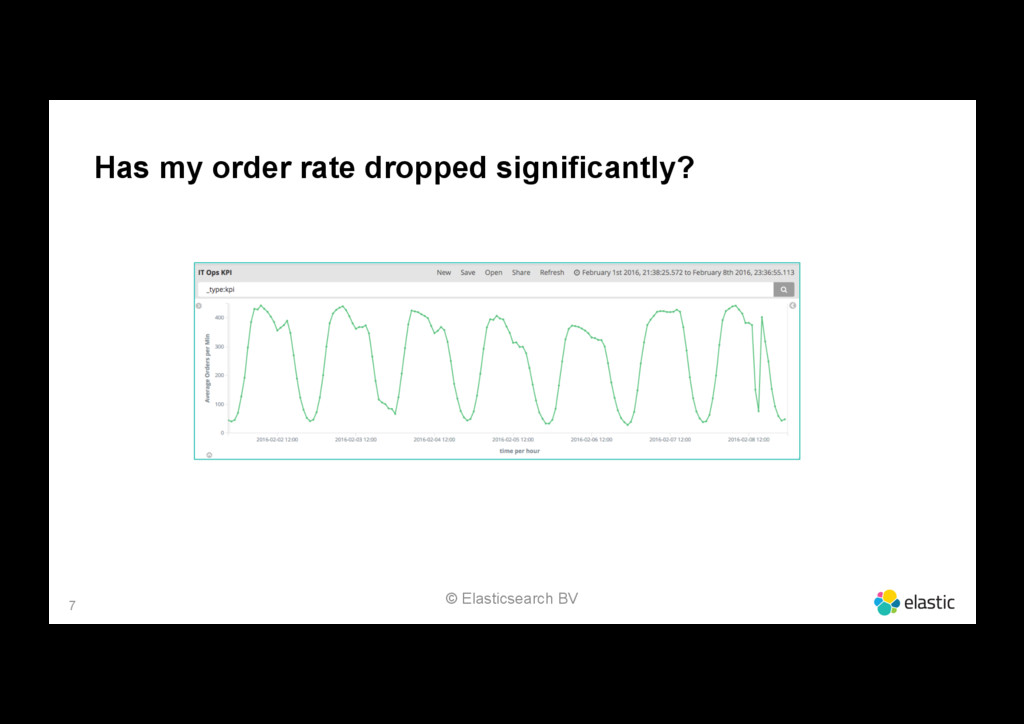

7. 7 Has my order rate dropped significantly? © Elasticsearch BV

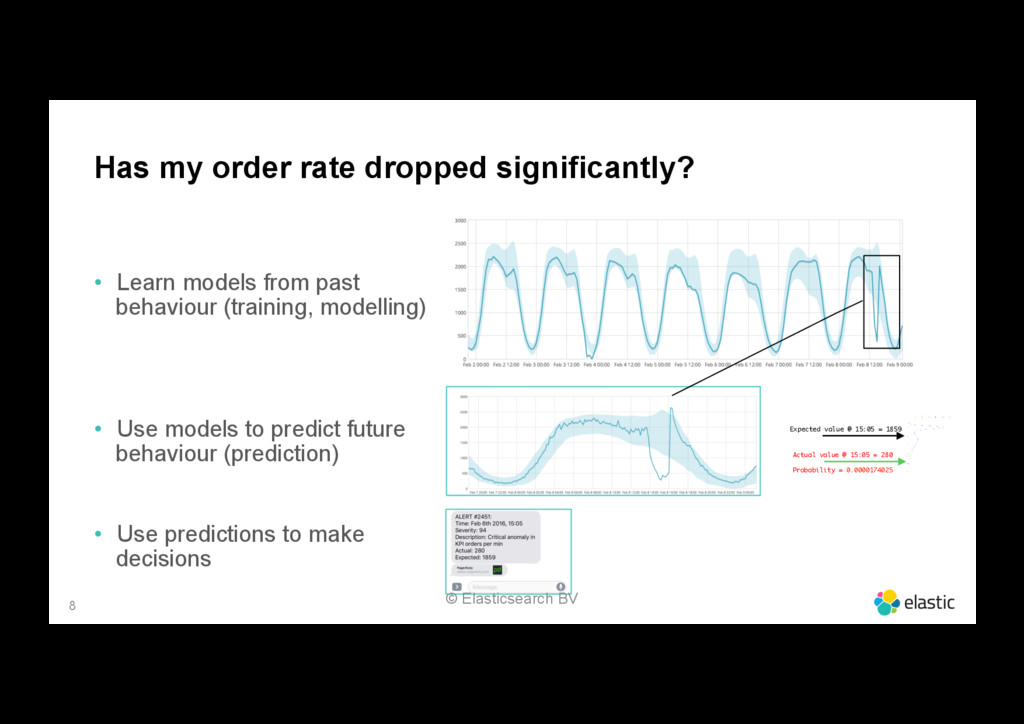

8. 8 Has my order rate dropped significantly? •  Learn models from past behaviour (training, modelling) •  Use models to predict future behaviour (prediction) •  Use predictions to make decisions Expected value @ 15:05 = 1859 Actual value @ 15:05 = 280 Probability = 0.0000174025 © Elasticsearch BV
9. Demo: Simple Time Series

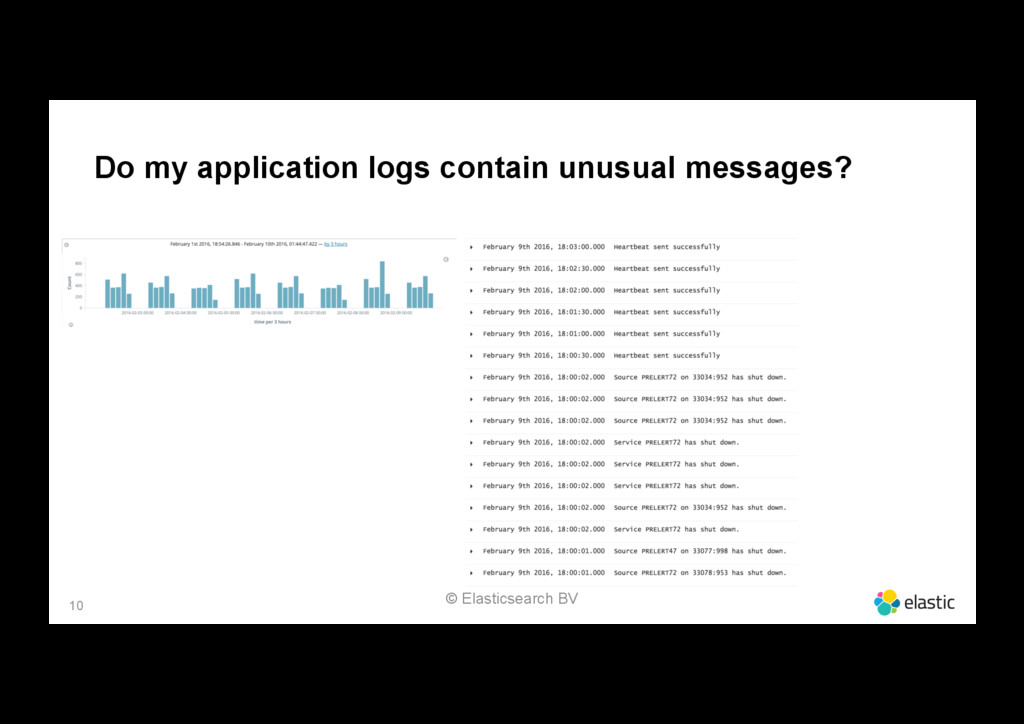

10. 10 Do my application logs contain unusual messages? © Elasticsearch BV

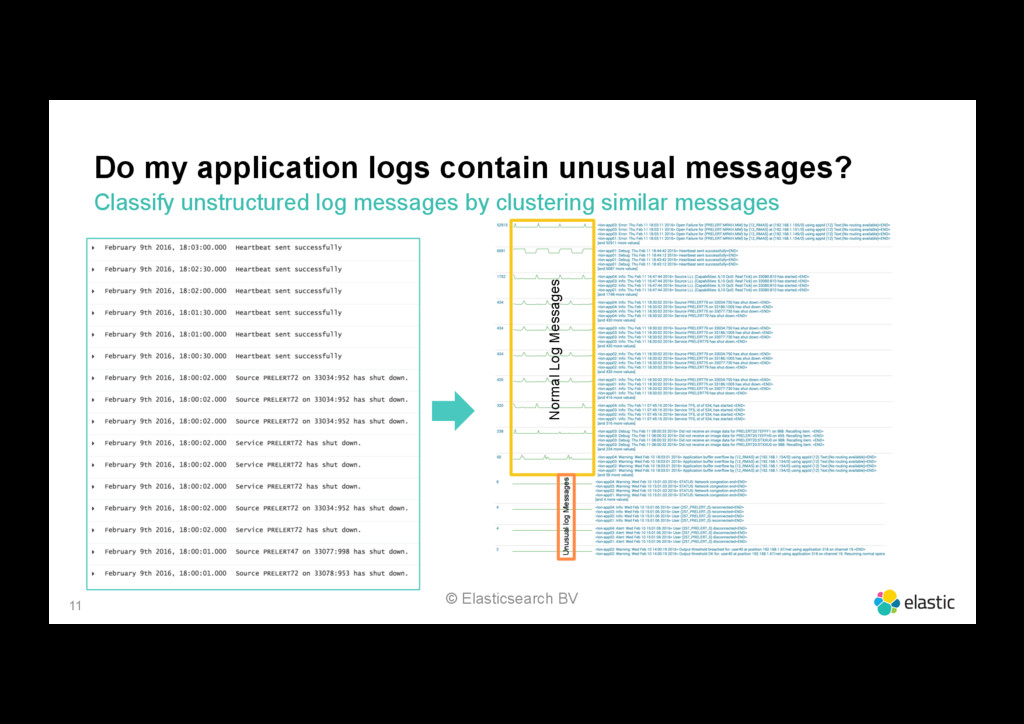

11. 11 Do my application logs contain unusual messages? Classify unstructured log messages by clustering similar messages Normal Log Messages Unusual log Messages © Elasticsearch BV
12. Demo: Multiple Data Sources

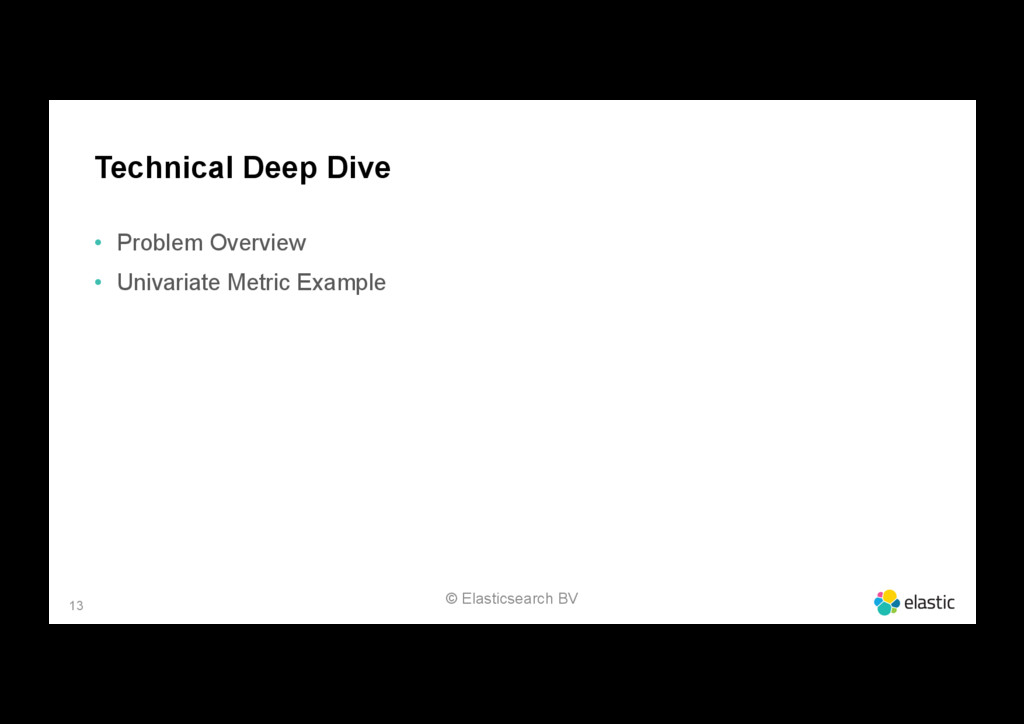

13. 13 Technical Deep Dive •  Problem Overview •  Univariate Metric Example © Elasticsearch BV

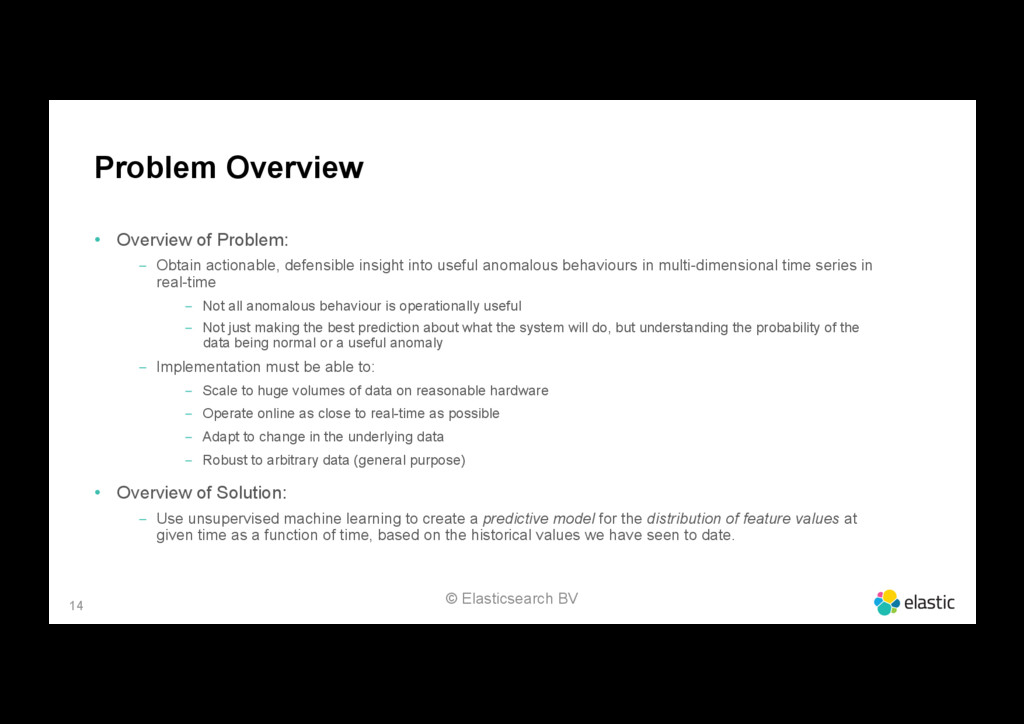

14. 14 Problem Overview •  Overview of Problem: ‒  Obtain actionable, defensible insight into useful anomalous behaviours in multi-dimensional time series in real-time ‒  Not all anomalous behaviour is operationally useful ‒  Not just making the best prediction about what the system will do, but understanding the probability of the data being normal or a useful anomaly ‒  Implementation must be able to: ‒  Scale to huge volumes of data on reasonable hardware ‒  Operate online as close to real-time as possible ‒  Adapt to change in the underlying data ‒  Robust to arbitrary data (general purpose) •  Overview of Solution: ‒  Use unsupervised machine learning to create a predictive model for the distribution of feature values at given time as a function of time, based on the historical values we have seen to date. © Elasticsearch BV

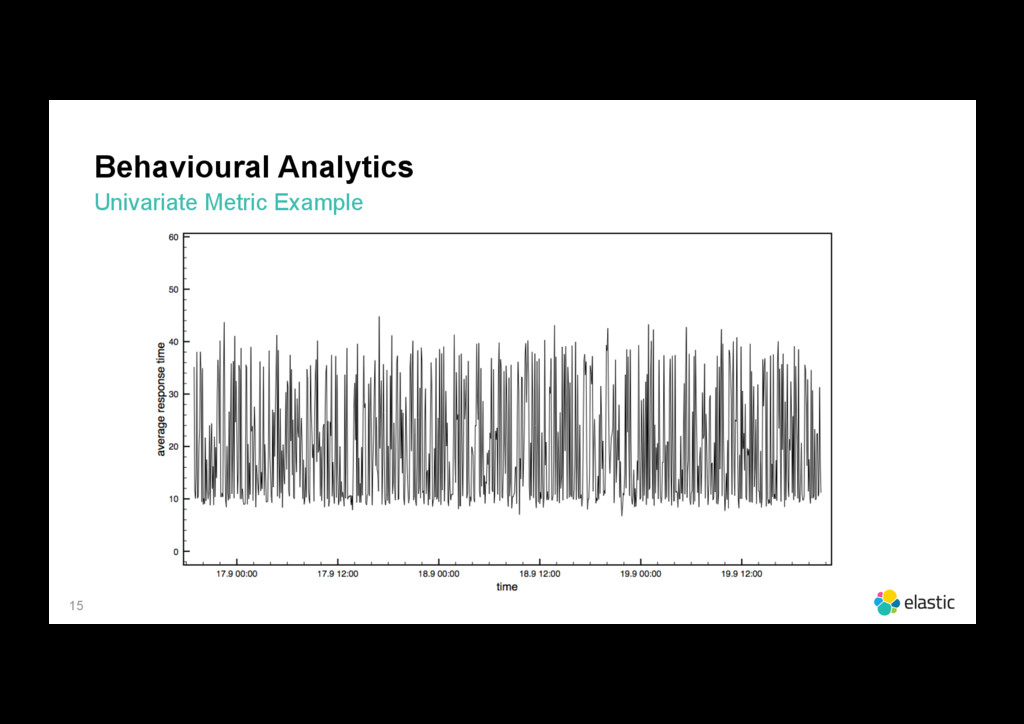

15. 15 Behavioural Analytics Univariate Metric Example

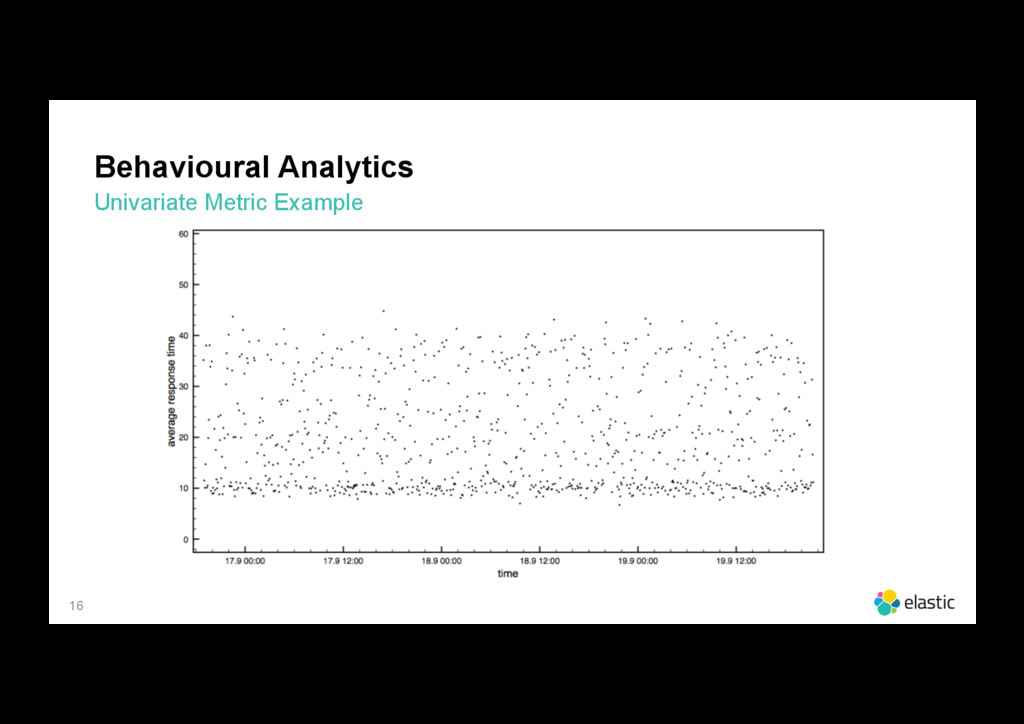

16. 16 Behavioural Analytics Univariate Metric Example

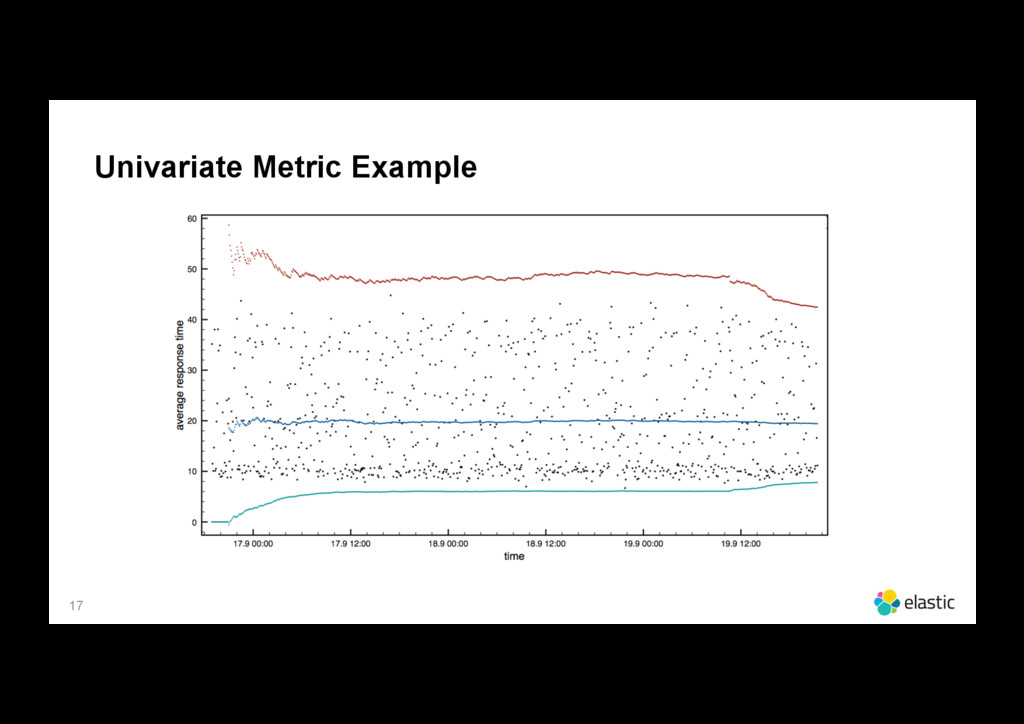

17. 17 Univariate Metric Example

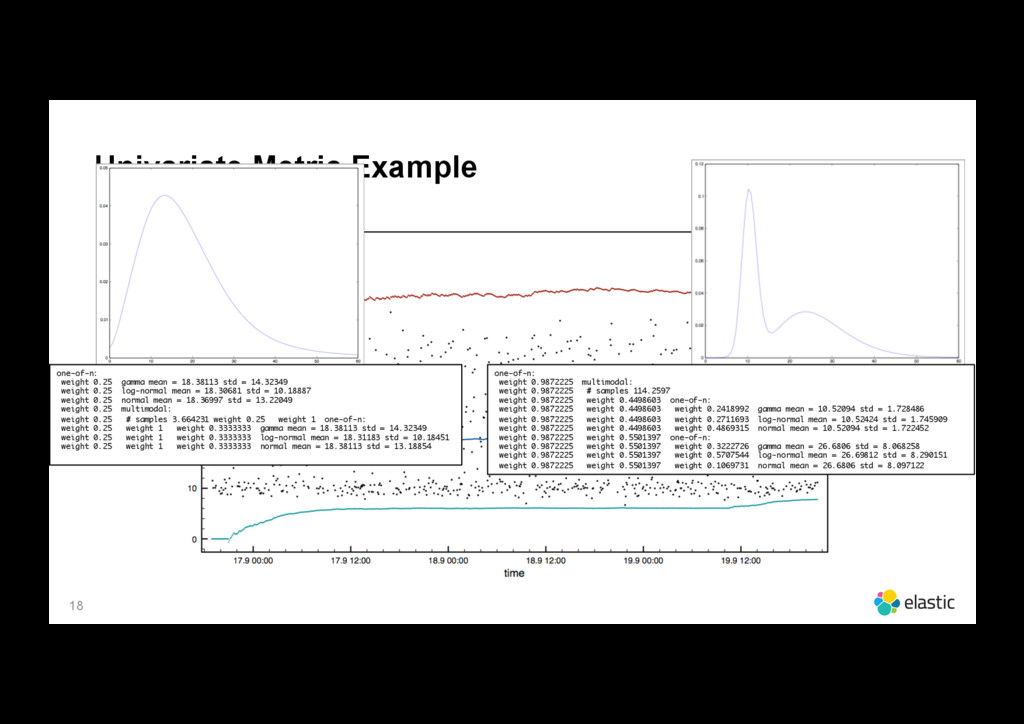

18. 18 Univariate Metric Example one-of-n: weight 0.25 gamma mean = 18.38113 std = 14.32349 weight 0.25 log-normal mean = 18.30681 std = 10.18887 weight 0.25 normal mean = 18.36997 std = 13.22049 weight 0.25 multimodal: weight 0.25 # samples 3.664231 weight 0.25 weight 1 one-of-n: weight 0.25 weight 1 weight 0.3333333 gamma mean = 18.38113 std = 14.32349 weight 0.25 weight 1 weight 0.3333333 log-normal mean = 18.31183 std = 10.18451 weight 0.25 weight 1 weight 0.3333333 normal mean = 18.38113 std = 13.18854 one-of-n: weight 0.9872225 multimodal: weight 0.9872225 # samples 114.2597 weight 0.9872225 weight 0.4498603 one-of-n: weight 0.9872225 weight 0.4498603 weight 0.2418992 gamma mean = 10.52094 std = 1.728486 weight 0.9872225 weight 0.4498603 weight 0.2711693 log-normal mean = 10.52424 std = 1.745909 weight 0.9872225 weight 0.4498603 weight 0.4869315 normal mean = 10.52094 std = 1.722452 weight 0.9872225 weight 0.5501397 one-of-n: weight 0.9872225 weight 0.5501397 weight 0.3222726 gamma mean = 26.6806 std = 8.068258 weight 0.9872225 weight 0.5501397 weight 0.5707544 log-normal mean = 26.69812 std = 8.290151 weight 0.9872225 weight 0.5501397 weight 0.1069731 normal mean = 26.6806 std = 8.097122

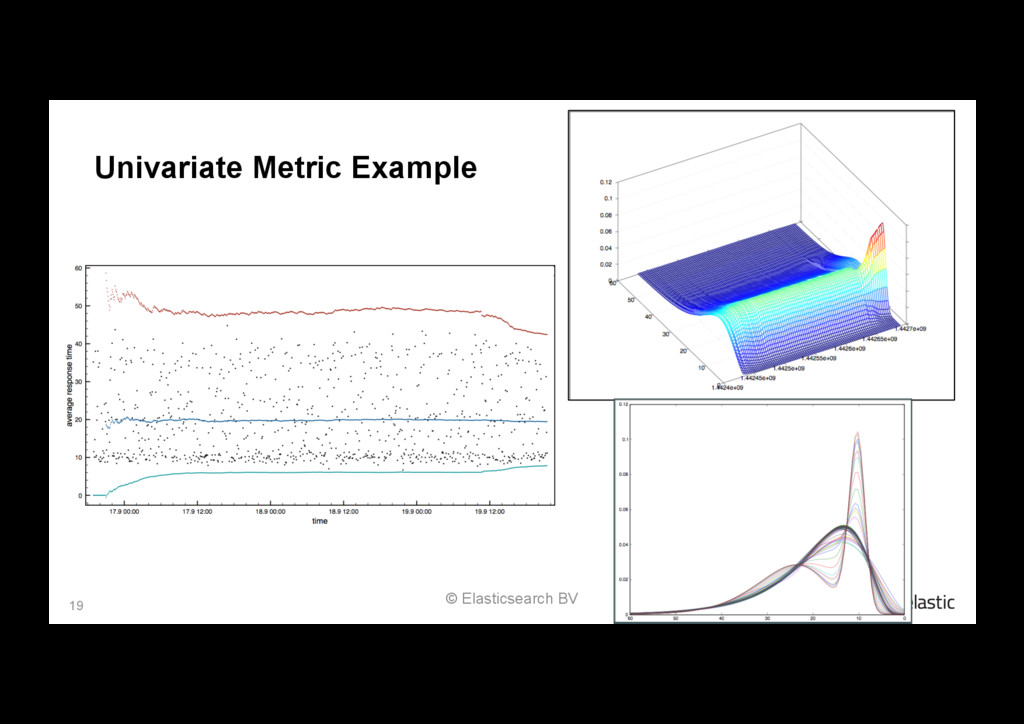

19. 19 Univariate Metric Example © Elasticsearch BV

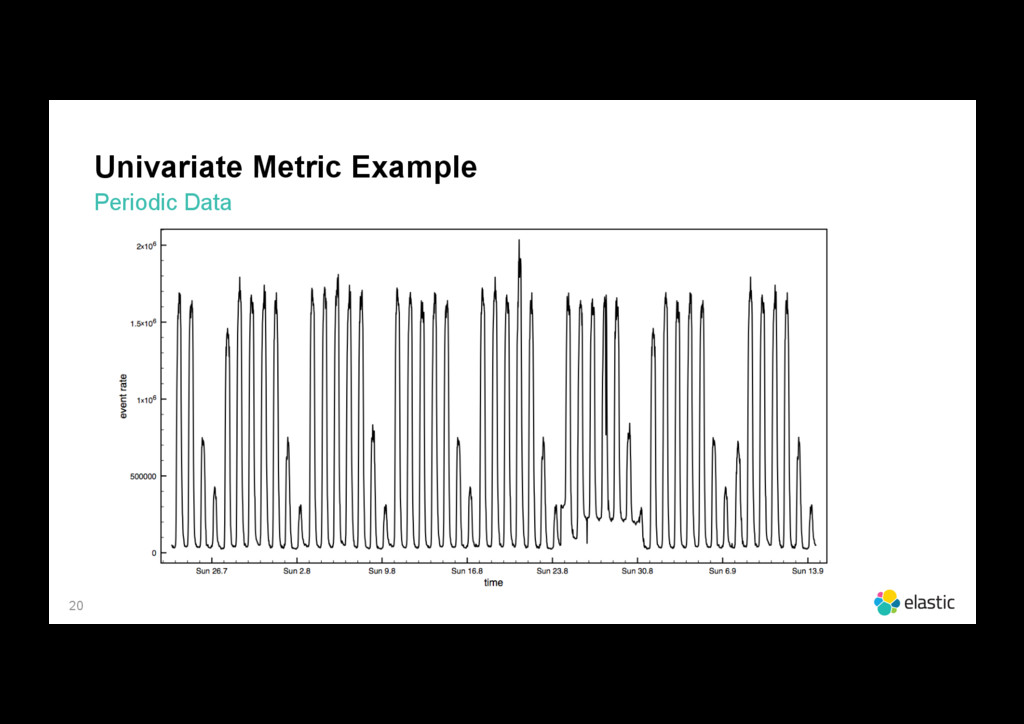

20. 20 Univariate Metric Example Periodic Data
21. 21 Univariate Metric Example Periodic Data Trend Residual Distribution

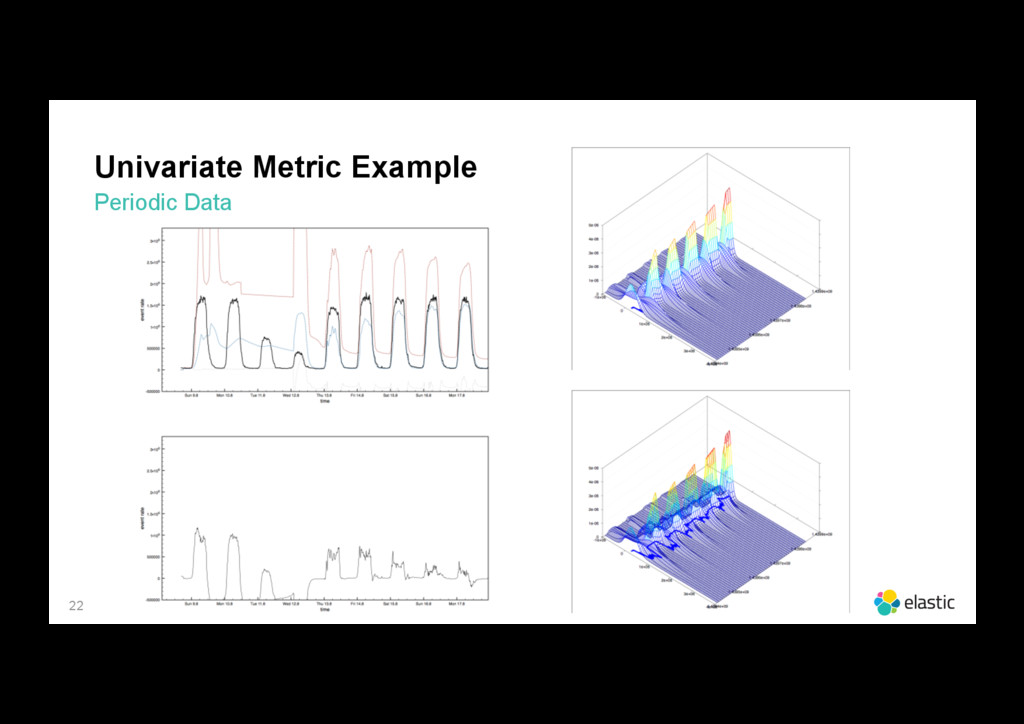

22. 22 Univariate Metric Example Periodic Data

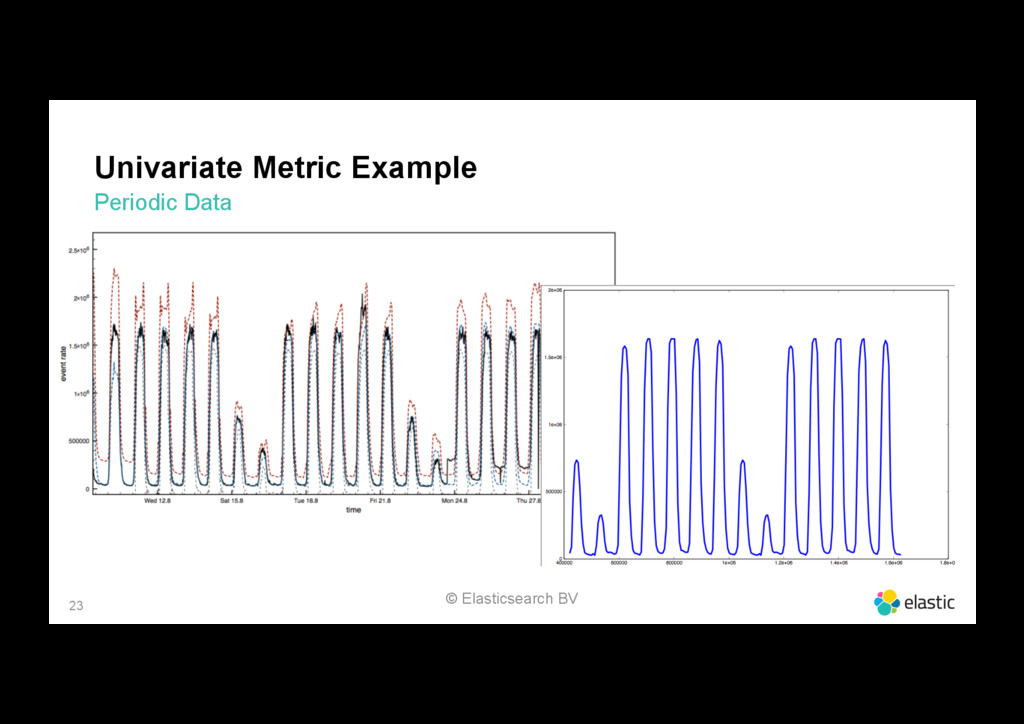

23. 23 Univariate Metric Example Periodic Data © Elasticsearch BV

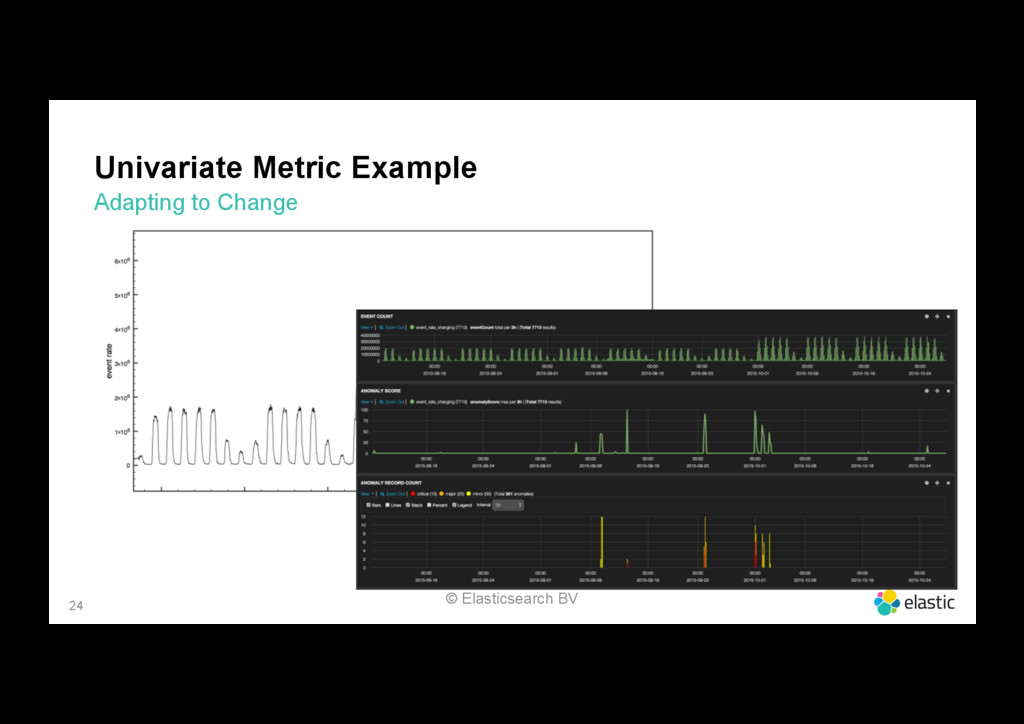

24. 24 Univariate Metric Example Adapting to Change © Elasticsearch BV

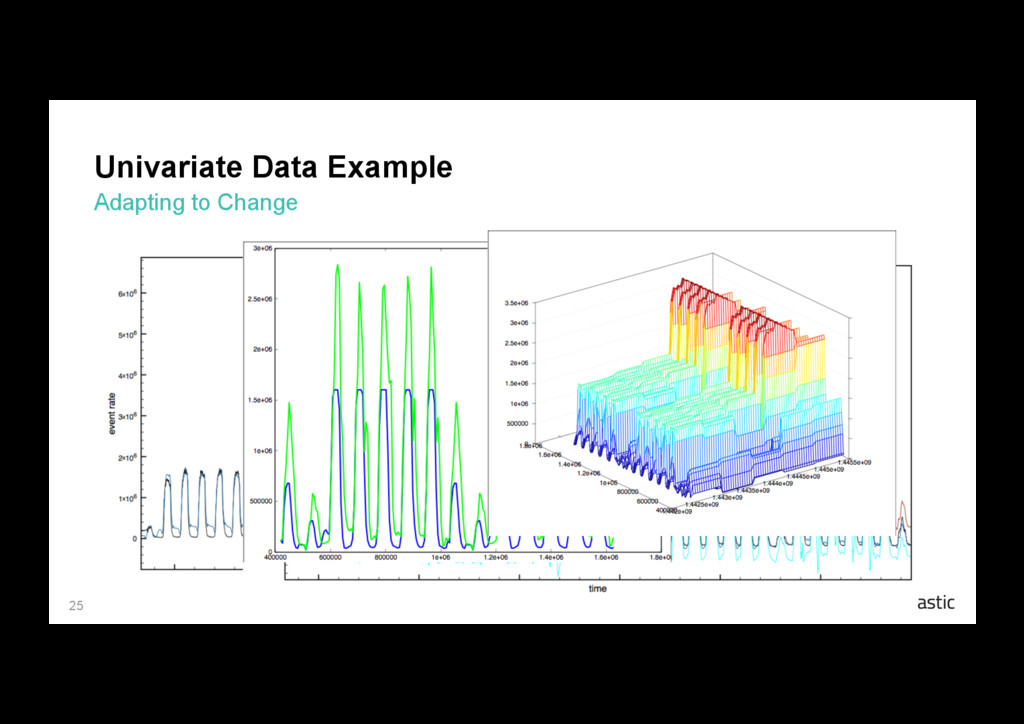

25. 25 Univariate Data Example Adapting to Change
26. 26 Analytics Outside of Elastic Architecture Beats Logstash Kibana X-Pack X-Pack Elasticsearch Prelert analysis node Data Kibana Prelert UI •  Issues –  Data Gravity – data from Elasticsearch needs to be sent to Prelert analytics node –  Context – anomalies and data are stored in different data stores and viewed in different Uis –  Scale – Prelert analysis was not easily distributable across nodes –  Resilience – Prelert analysis needed to be restored manually on failover © Elasticsearch BV

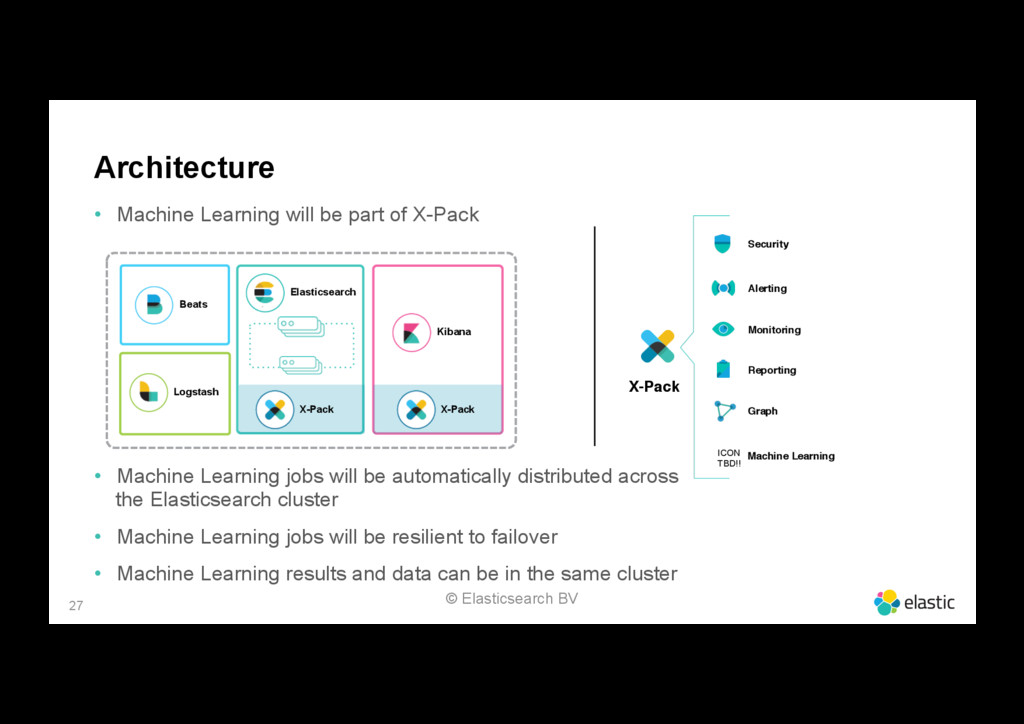

27. 27 Architecture •  Machine Learning will be part of X-Pack •  Machine Learning jobs will be automatically distributed across the Elasticsearch cluster •  Machine Learning jobs will be resilient to failover •  Machine Learning results and data can be in the same cluster Beats Logstash Kibana X-Pack X-Pack Elasticsearch Security Alerting Monitoring Reporting Graph Machine Learning ICON TBD!! X-Pack © Elasticsearch BV

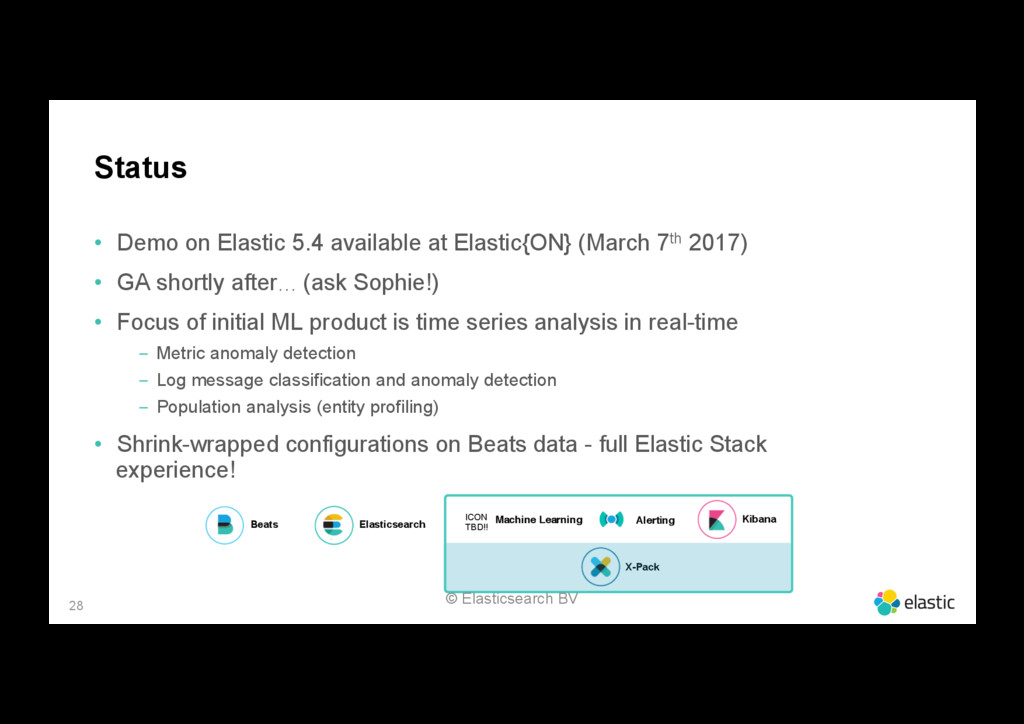

28. 28 Status •  Demo on Elastic 5.4 available at Elastic{ON} (March 7th 2017) •  GA shortly after… (ask Sophie!) •  Focus of initial ML product is time series analysis in real-time ‒  Metric anomaly detection ‒  Log message classification and anomaly detection ‒  Population analysis (entity profiling) •  Shrink-wrapped configurations on Beats data - full Elastic Stack experience! Beats X-Pack Elasticsearch Alerting Machine Learning ICON TBD!! Kibana © Elasticsearch BV
