A Quick Look at the Performance of SAP's Modern UI Technologies

A Quick Look at the Performance of SAP's Modern UI Technologies

A brief overview of what to look for when assessing technologies and environments for front-end performance, and how networks play a big role with "cloud" deployments. We then look at the high-level profiles of Web Dynpro, Fiori (Wave 1) and good old SAP GUI, and what might be done to improve end-user perceived response times.

Sascha Wenninger

March 31, 2014
Tweet

More Decks by Sascha Wenninger

Other Decks in Technology

Transcript

  1. Sascha  Wenninger
    A  Look  at  the  Performance  of  SAP’s
    Modern  UI  Technologies

    View Slide

  2. programming.oreilly.com/2009/07/velocity-­‐making-­‐your-­‐site-­‐fast.html

    View Slide

  3. programming.oreilly.com/2009/07/velocity-­‐making-­‐your-­‐site-­‐

    View Slide

  4. h  But  we’re  not  Google!

    View Slide

  5. h

    View Slide

  6. View Slide

  7. What  Now?
    • Understand  your  Environment
    • Assess  your  Technologies

    View Slide

  8. Your  Environment
    • Who?
    • Where?
    • How  many?
    • How  criRcal  is  performance?

    View Slide

  9. MMG

    View Slide

  10. Client  Time
    Network  Time
    Server  Time
    Perceived  Response  Time

    View Slide

  11. Client  Time
    Network  Time
    Server  Time
    Perceived  Response  Time

    View Slide

  12. View Slide

  13. View Slide

  14. www.submarinecablemap.com

    View Slide

  15. www.telegeography.com

    View Slide

  16. www.telegeography.com

    View Slide

  17. To  USA
    www.telegeography.com

    View Slide

  18. Bandwidth  !==  Latency
    • More  bandwidth  is  easy.
    • Speeding  up  light  is  not.
    1ms ≈ 100km* in fibre
    *Round-­‐Trip  distance

    View Slide

  19. h

    View Slide

  20. www.wondernetwork.com/pings

    View Slide

  21. wheresiYast.com

    View Slide

  22. Performance  CriIcality
    Arguable
    …but…
    Non-­‐core  maGeneric
    Core

    View Slide

  23. Measure  Early,  Measure  OLen
    (and  not  just  the  server!)

    View Slide

  24. View Slide

  25. FREE!
    FREE!
    FREE!
    FREE!
    FREE!
    $50   FREE!

    View Slide

  26. hConduct  Performance  Assessments

    View Slide

  27. Off-­‐The  Shelf
    • Helps  to  set  expectaRons
    • “Eyes  wide  open”
    • Buy  Rme
    – configure  WAN  accelerators  properly
    – deploy  caching  proxies  in  remote  locaRons
    – consider  internet  access  strategies

    View Slide

  28. Custom  Development
    • Conscious  decisions  and  trade-­‐offs
    • Iterate  and  improve
    • Rough  &  ready,  informal  is  fine
    – As  long  as  you  start  early
    – And  improve  as  you  go

    View Slide

  29. Rule  1  -­‐  Make  Fewer  HTTP  Requests
    Rule  2  -­‐  Use  a  Content  Delivery  Network
    Rule  3  -­‐  Add  an  Expires  Header
    Rule  4  -­‐  Gzip  Components
    Rule  5  -­‐  Put  Stylesheets  at  the  Top
    Rule  6  -­‐  Put  Scripts  at  the  BoRule  7  -­‐  Avoid  CSS  Expressions
    Rule  8  -­‐  Make  JavaScript  and  CSS  External
    Rule  9  -­‐  Reduce  DNS  Lookups
    Rule  10  -­‐  Minify  JavaScript
    Rule  11  -­‐  Avoid  Redirects
    Rule  12  -­‐  Remove  Duplicate  Scripts
    Rule  13  -­‐  Configure  ETags
    Rule  14  -­‐  Make  AJAX  Cacheable

    View Slide

  30. Rule  1  -­‐  Make  Fewer  HTTP  Requests
    Rule  2  -­‐  Use  a  Content  Delivery  Network
    Rule  3  -­‐  Add  an  Expires  Header
    Rule  4  -­‐  Gzip  Components
    Rule  5  -­‐  Put  Stylesheets  at  the  Top
    Rule  6  -­‐  Put  Scripts  at  the  BoRule  7  -­‐  Avoid  CSS  Expressions
    Rule  8  -­‐  Make  JavaScript  and  CSS  External
    Rule  9  -­‐  Reduce  DNS  Lookups
    Rule  10  -­‐  Minify  JavaScript
    Rule  11  -­‐  Avoid  Redirects
    Rule  12  -­‐  Remove  Duplicate  Scripts
    Rule  13  -­‐  Configure  ETags
    Rule  14  -­‐  Make  AJAX  Cacheable
    Make  Fewer  Requests

    View Slide

  31. Rule  1  -­‐  Make  Fewer  HTTP  Requests
    Rule  2  -­‐  Use  a  Content  Delivery  Network
    Rule  3  -­‐  Add  an  Expires  Header
    Rule  4  -­‐  Gzip  Components
    Rule  5  -­‐  Put  Stylesheets  at  the  Top
    Rule  6  -­‐  Put  Scripts  at  the  BoRule  7  -­‐  Avoid  CSS  Expressions
    Rule  8  -­‐  Make  JavaScript  and  CSS  External
    Rule  9  -­‐  Reduce  DNS  Lookups
    Rule  10  -­‐  Minify  JavaScript
    Rule  11  -­‐  Avoid  Redirects
    Rule  12  -­‐  Remove  Duplicate  Scripts
    Rule  13  -­‐  Configure  ETags
    Rule  14  -­‐  Make  AJAX  Cacheable
    Make  Fewer  Requests
    Speed  up  Round-­‐Trips

    View Slide

  32. Rule  1  -­‐  Make  Fewer  HTTP  Requests
    Rule  2  -­‐  Use  a  Content  Delivery  Network
    Rule  3  -­‐  Add  an  Expires  Header
    Rule  4  -­‐  Gzip  Components
    Rule  5  -­‐  Put  Stylesheets  at  the  Top
    Rule  6  -­‐  Put  Scripts  at  the  BoRule  7  -­‐  Avoid  CSS  Expressions
    Rule  8  -­‐  Make  JavaScript  and  CSS  External
    Rule  9  -­‐  Reduce  DNS  Lookups
    Rule  10  -­‐  Minify  JavaScript
    Rule  11  -­‐  Avoid  Redirects
    Rule  12  -­‐  Remove  Duplicate  Scripts
    Rule  13  -­‐  Configure  ETags
    Rule  14  -­‐  Make  AJAX  Cacheable
    Make  Fewer  Requests
    Speed  up  Round-­‐Trips
    Reduce  Payloads

    View Slide

  33. Rule  1  -­‐  Make  Fewer  HTTP  Requests
    Rule  2  -­‐  Use  a  Content  Delivery  Network
    Rule  3  -­‐  Add  an  Expires  Header
    Rule  4  -­‐  Gzip  Components
    Rule  5  -­‐  Put  Stylesheets  at  the  Top
    Rule  6  -­‐  Put  Scripts  at  the  BoRule  7  -­‐  Avoid  CSS  Expressions
    Rule  8  -­‐  Make  JavaScript  and  CSS  External
    Rule  9  -­‐  Reduce  DNS  Lookups
    Rule  10  -­‐  Minify  JavaScript
    Rule  11  -­‐  Avoid  Redirects
    Rule  12  -­‐  Remove  Duplicate  Scripts
    Rule  13  -­‐  Configure  ETags
    Rule  14  -­‐  Make  AJAX  Cacheable
    Make  Fewer  Requests
    Speed  up  Round-­‐Trips
    Reduce  Payloads
    Browser  Efficiencies

    View Slide

  34. Make  Fewer  Requests
    Speed  up  Round-­‐Trips
    Reduce  Payloads
    Browser  Efficiencies

    View Slide

  35. View Slide

  36. 0%  Cacheable
    3  Round  Trips
    Download:
    15  kB
    Opening  PA20

    View Slide

  37. + Few round-trips
    + Small payloads
    + Efficient
    - Single threaded
    à Not good for latency
    - Proprietary
    à no caching
    - Uncool

    View Slide

  38. Web  Dynpro  ABAP

    View Slide

  39. 95%  Cacheable
    74  Round  Trips
    Download:
    1,300  kB
    Web  Dynpro  Leave  Request

    View Slide

  40. hFiori  (Wave  1)

    View Slide

  41. Download:
    2,770  kB
    Fiori  Leave  Request
    56  Round  Trips
    84%  Cacheable

    View Slide

  42. Payload  (kB)
    0
    500
    1000
    1500
    2000
    2500
    3000
    Fiori   Web  Dynpro
    0
    10
    20
    30
    40
    50
    60
    70
    80
    Fiori   Web  Dynpro
    Chaoness
    IniRal
    Cached

    View Slide

  43. Google’s  mod_pagespeed
    Automagic  server-­‐side  web  page  opRmisaRon

    • Recompresses  images
    • Combines  CSS  &  JavaScript  files
    • Applies  minificaRon
    • etc.  etc.

    View Slide

  44. 37%  Fewer  Requests
    Google  PageSpeed  Score:
    88  !  98
    YSlow  Score:
    83  !  93
    It  works:

    View Slide

  45. • Fiori  is  JavaScript-­‐driven:
    – Very  minimal  HTML
    – JS  loads  more  JS,  other  resources  to  build  page
    • PageSpeed  can  only  opRmise  HTML  &  references
    • <10%  reducRon  in  load  Rme,  resources
    Mastering SAP Technologies 2014 | 45
    …but  not  with  Fiori…

    View Slide

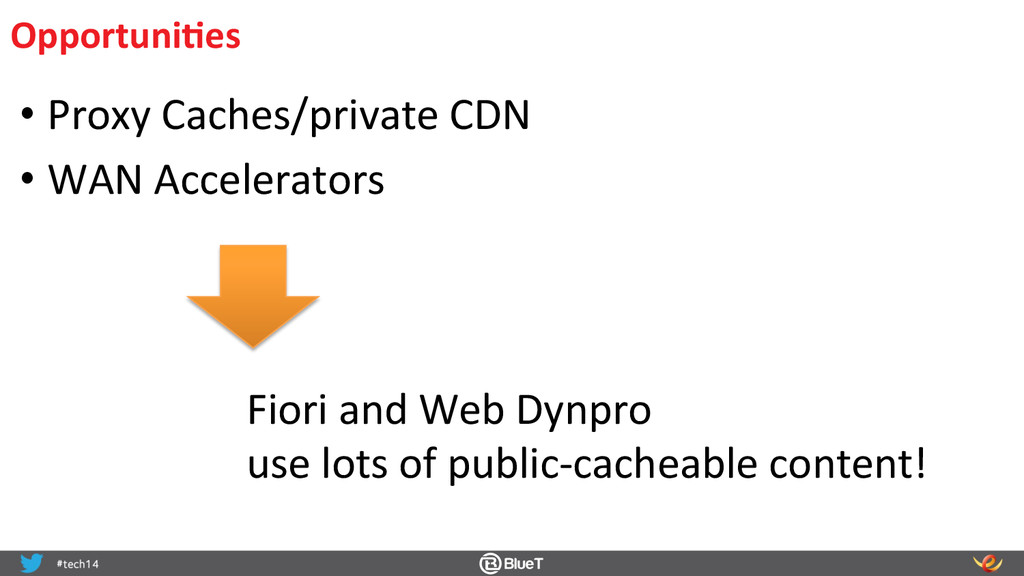

  46. OpportuniIes
    • Proxy  Caches/private  CDN
    • WAN  Accelerators

    Fiori  and  Web  Dynpro
    use  lots  of  public-­‐cacheable  content!

    View Slide

  47. Just  Browser  Caching  isn’t  enough!
    Mastering SAP Technologies 2014 | 47
    Yahoo  @  2007:

    40-­‐60%  of  users  visit
    www.yahoo.com  with  empty
    cache!

    20%  of  all  page  views  done
    with  empty  cache!
    h

    View Slide

  48. OpportuniIes
    • Wave  2+

    • Cordova/Phonegap  container  apps
    • Custom  build  for  performance-­‐criRcal  scenarios.
    Greatly  improved  architecture
    Performance  is  high  on  the  agenda

    View Slide

  49. Make  Fewer  Requests
    Speed  up  Round-­‐Trips
    Reduce  Payloads
    Browser  Efficiencies

    View Slide

  50. View Slide

  51. Want  to  Read  More?
    •  How  Fast  Are  We  Going  Now?
    •  Cache  them  if  you  can!
    •  Browser  Cache  Usage  Exposed!
    •  How  to  Read  HTTP  Waterfall  Charts
    •  Velocity  Conference  Talks:  2012  (US),  2012  (Europe),  2013
    •  Some  talks  from  the  Chrome  Dev  Summit
    •  People  on  twi@guypod,  @mnot,  @stoyanstefanov,  @agl__  (and  their  blogs!)
    •  Blogs:  h

    View Slide

  52. [email protected]
    +61  403  933  472
    BlueT.com.au
    @sufw
    Mastering SAP Technologies 2014 | 52
    Sascha  Wenninger
