Basics of Fluid Kinematics

The video contains basics of Fluid Kinematics, Lagrangian approach, Eulerian Approach, Velocity and Acceleration of Fluid particle.

Transcript

1. Fluid Mechanics Unit 3:-Fluid Kinematics Prepared by Dr. Sujit Vishwanath Kumbhar Associate Professor Department of Automation and Robotics

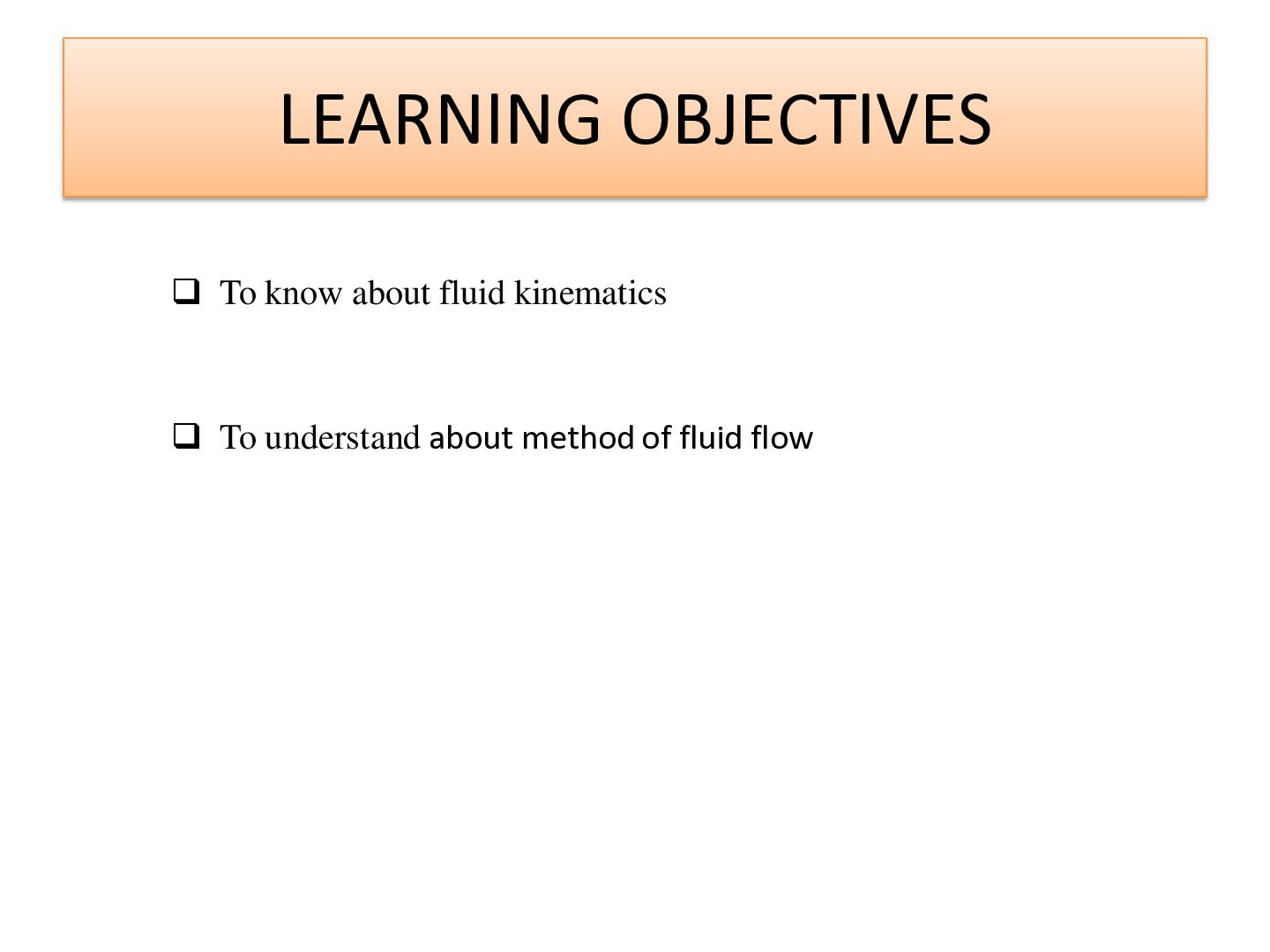

2. LEARNING OBJECTIVES  To know about fluid kinematics  To understand about method of fluid flow

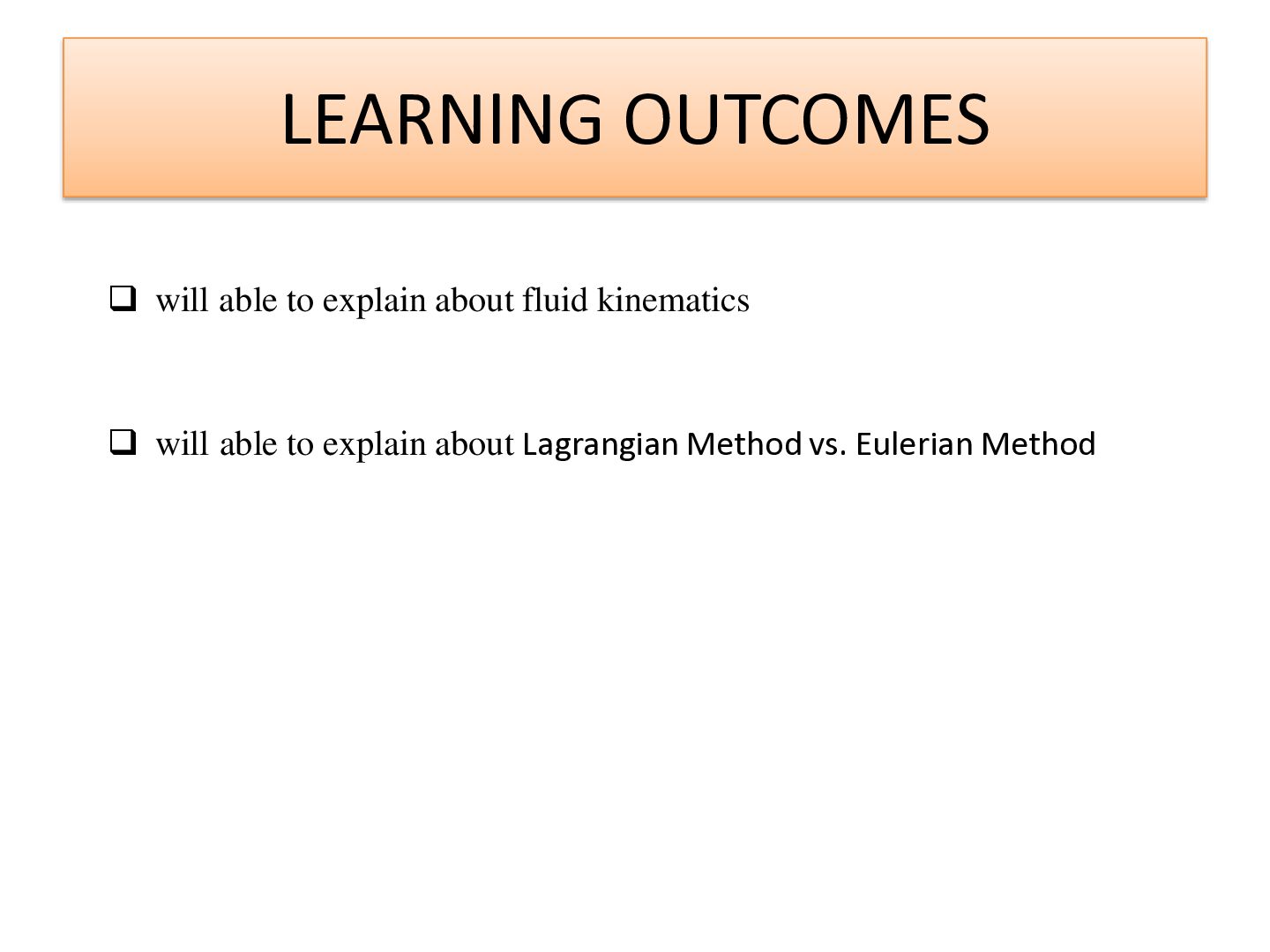

3. LEARNING OUTCOMES  will able to explain about fluid kinematics  will able to explain about Lagrangian Method vs. Eulerian Method
4. Fluid Kinematics Focus on – velocity and acceleration of fluid flow

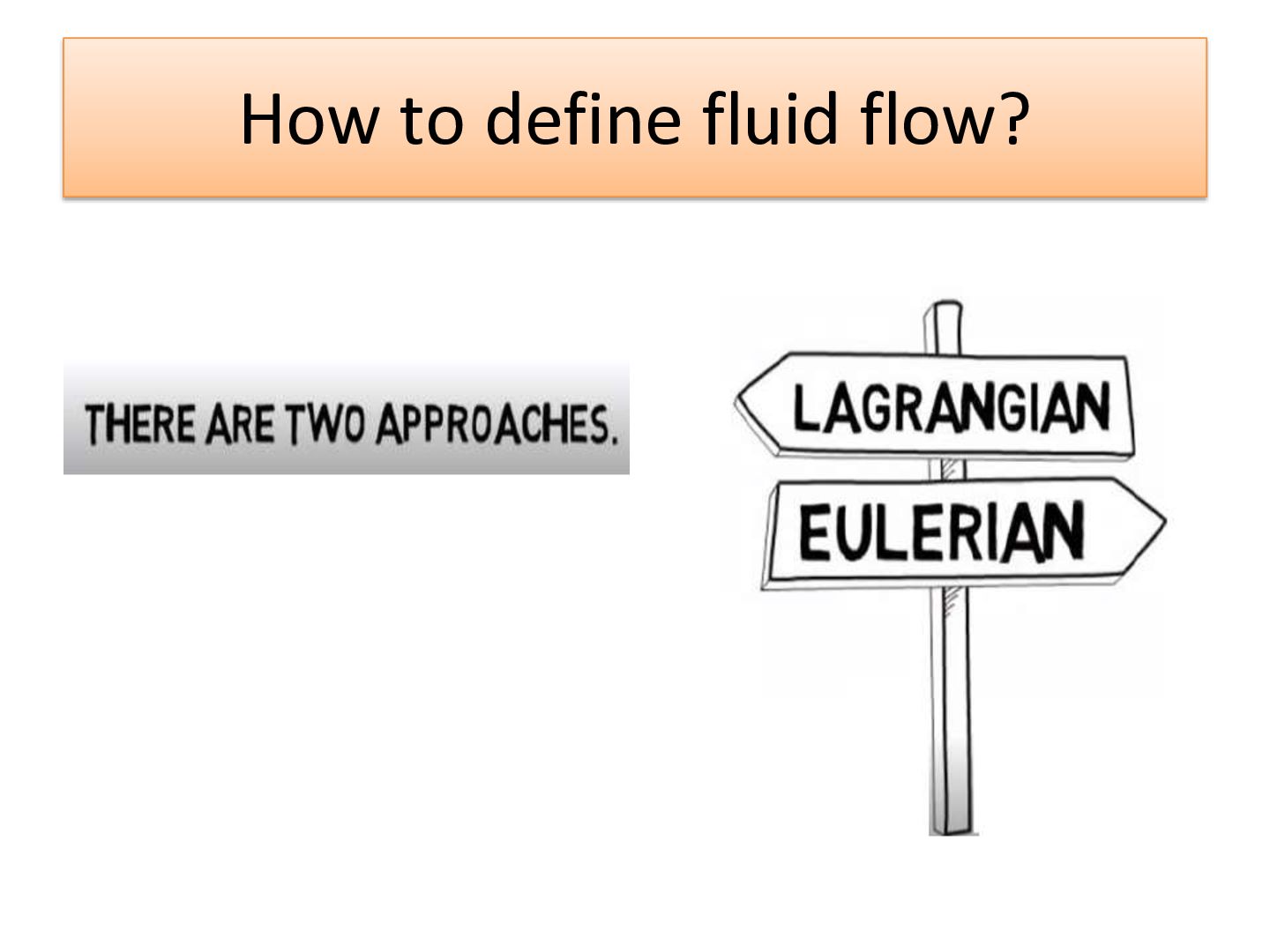

5. How to define fluid flow?

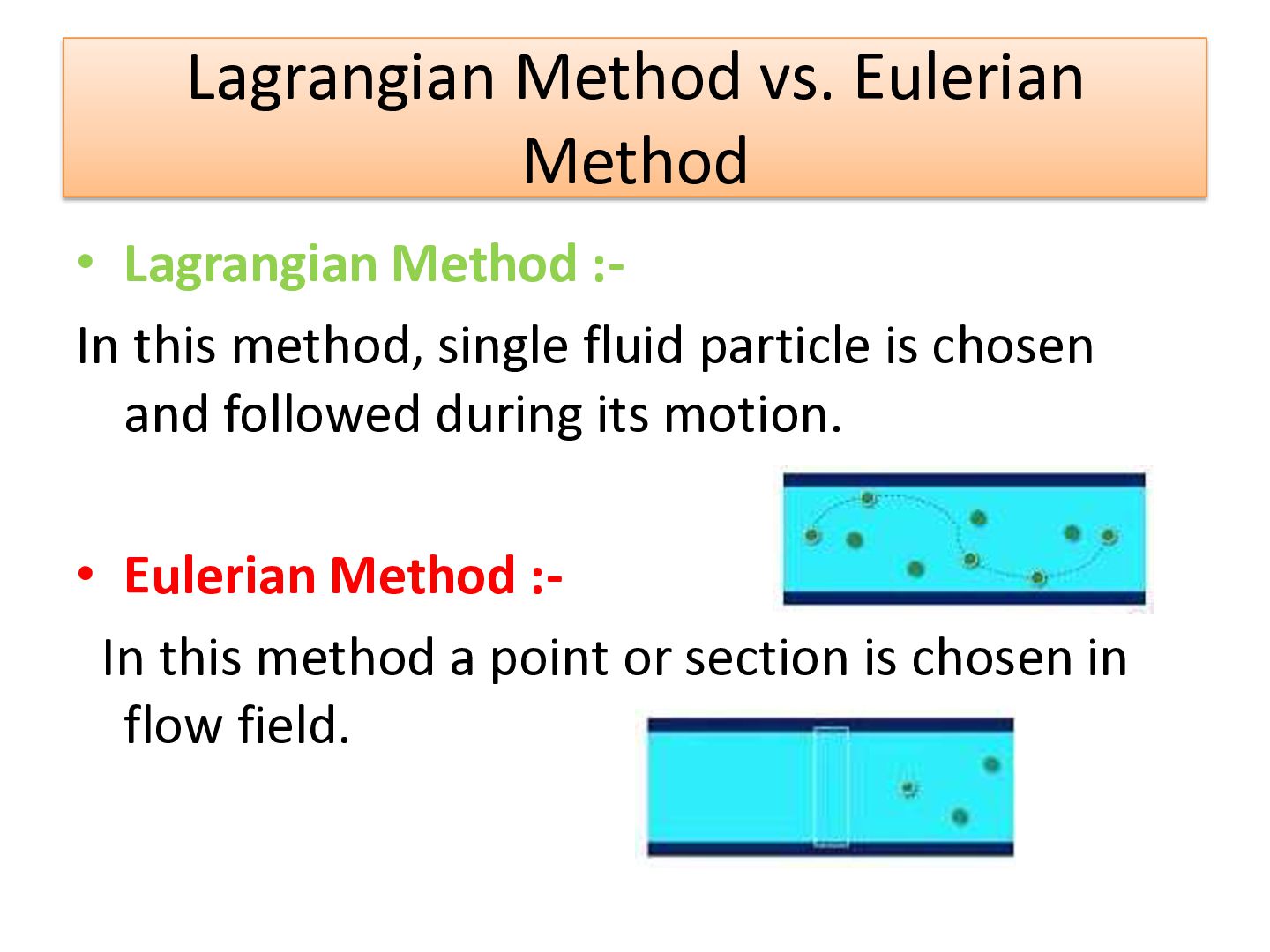

6. Lagrangian Method vs. Eulerian Method • Lagrangian Method :In this method, single fluid particle is chosen and followed during its motion. • Eulerian Method :In this method a point or section is chosen in flow field.

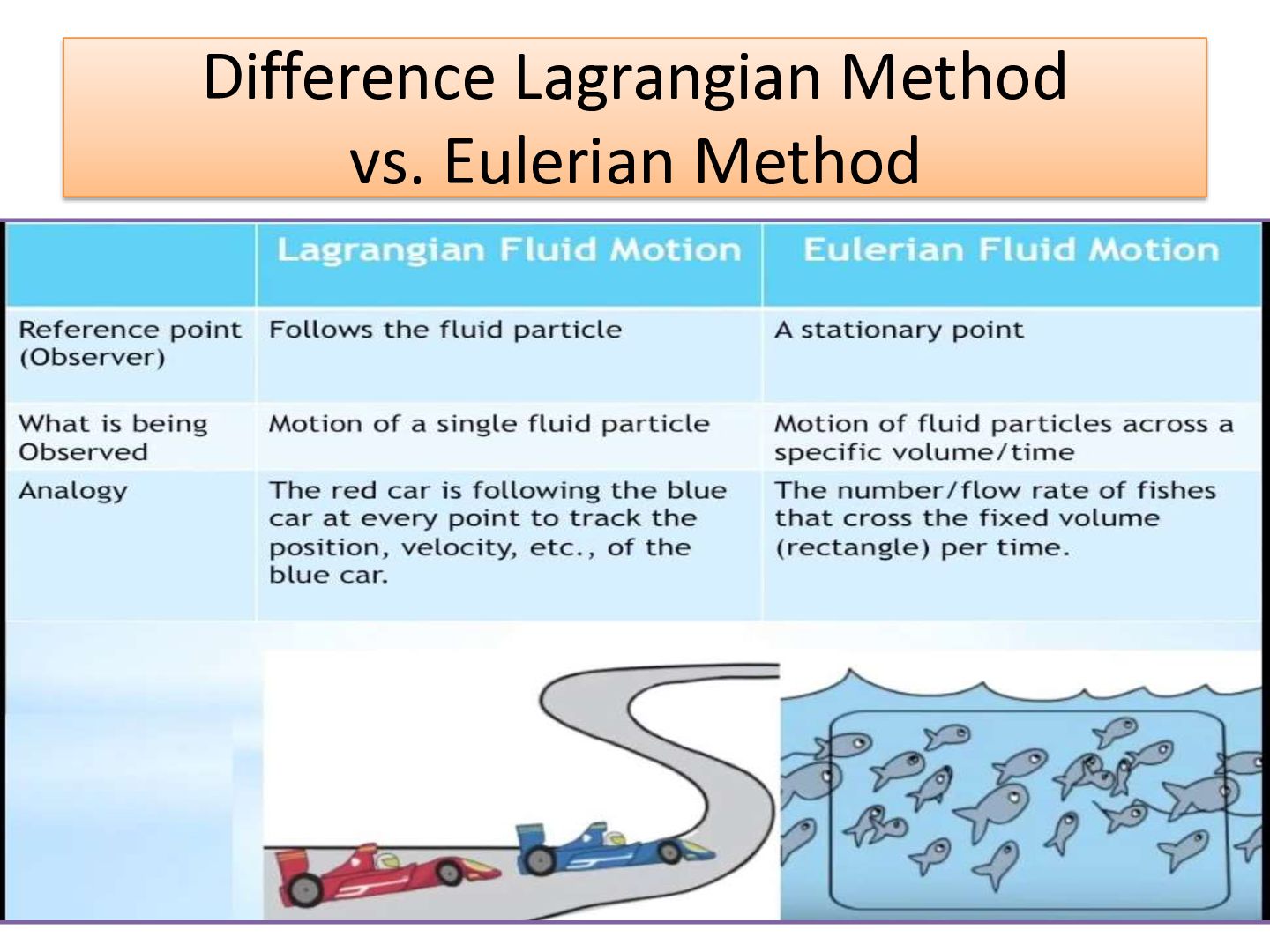

7. Difference Lagrangian Method vs. Eulerian Method

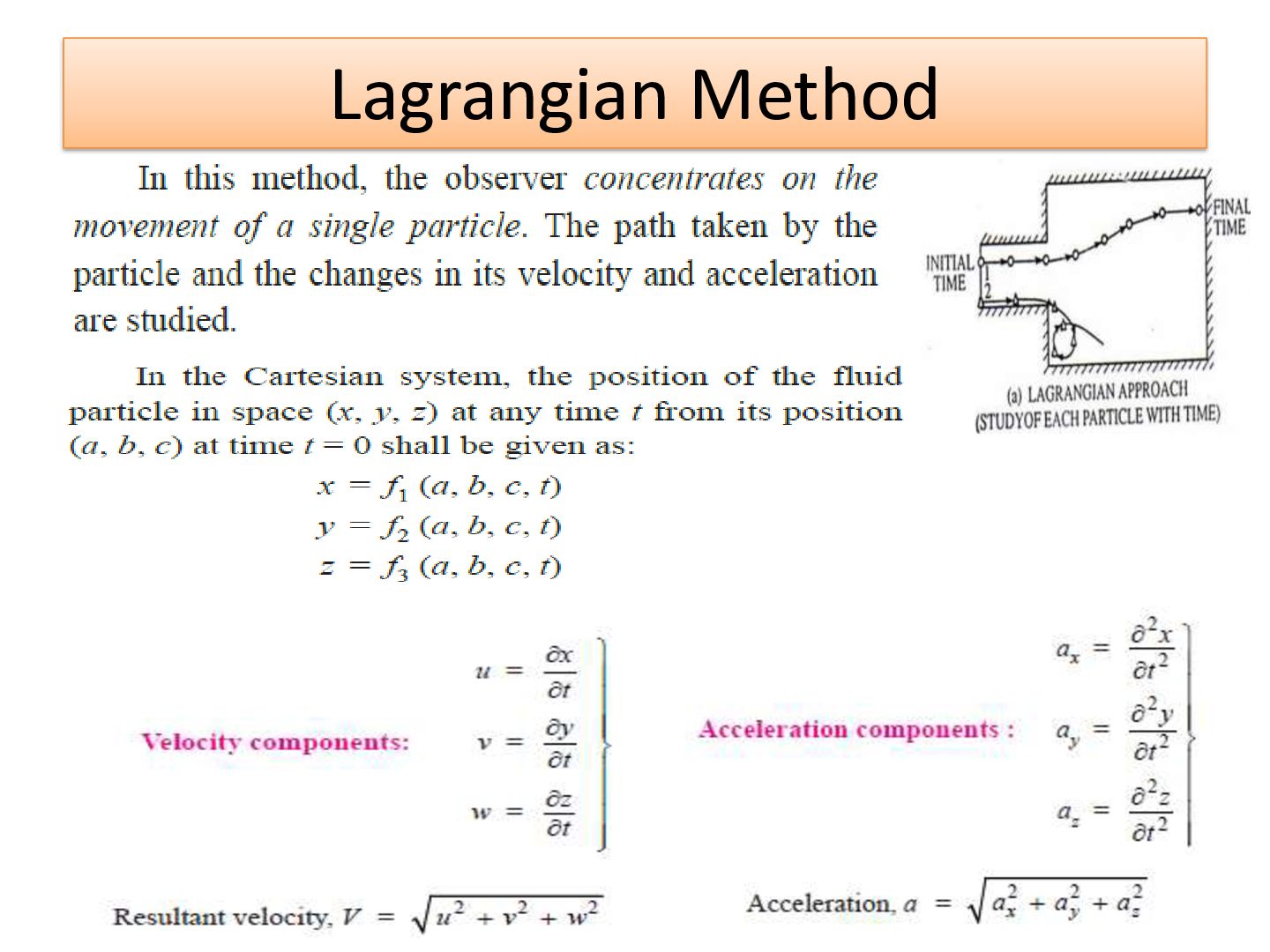

8. Lagrangian Method

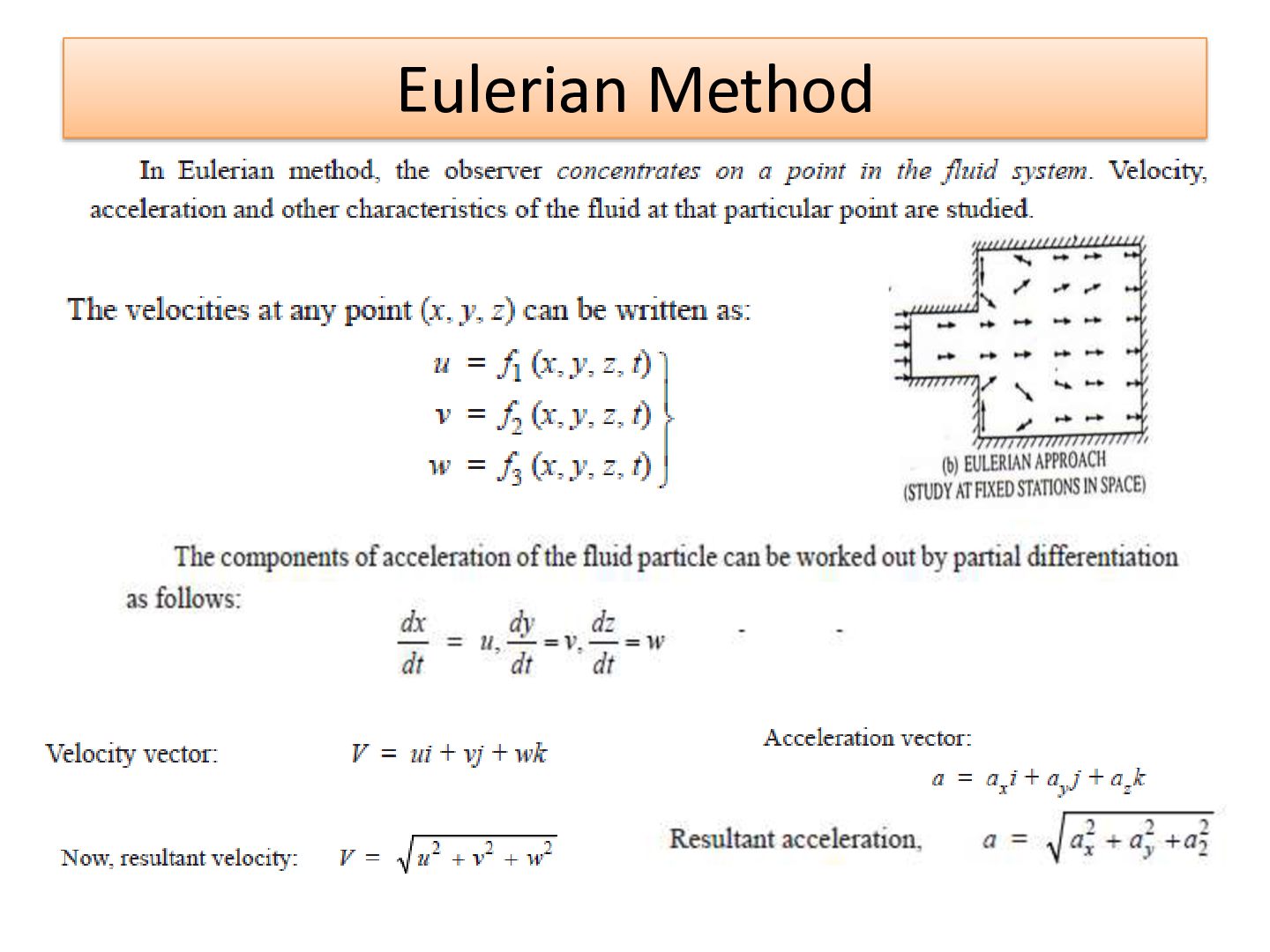

9. Eulerian Method

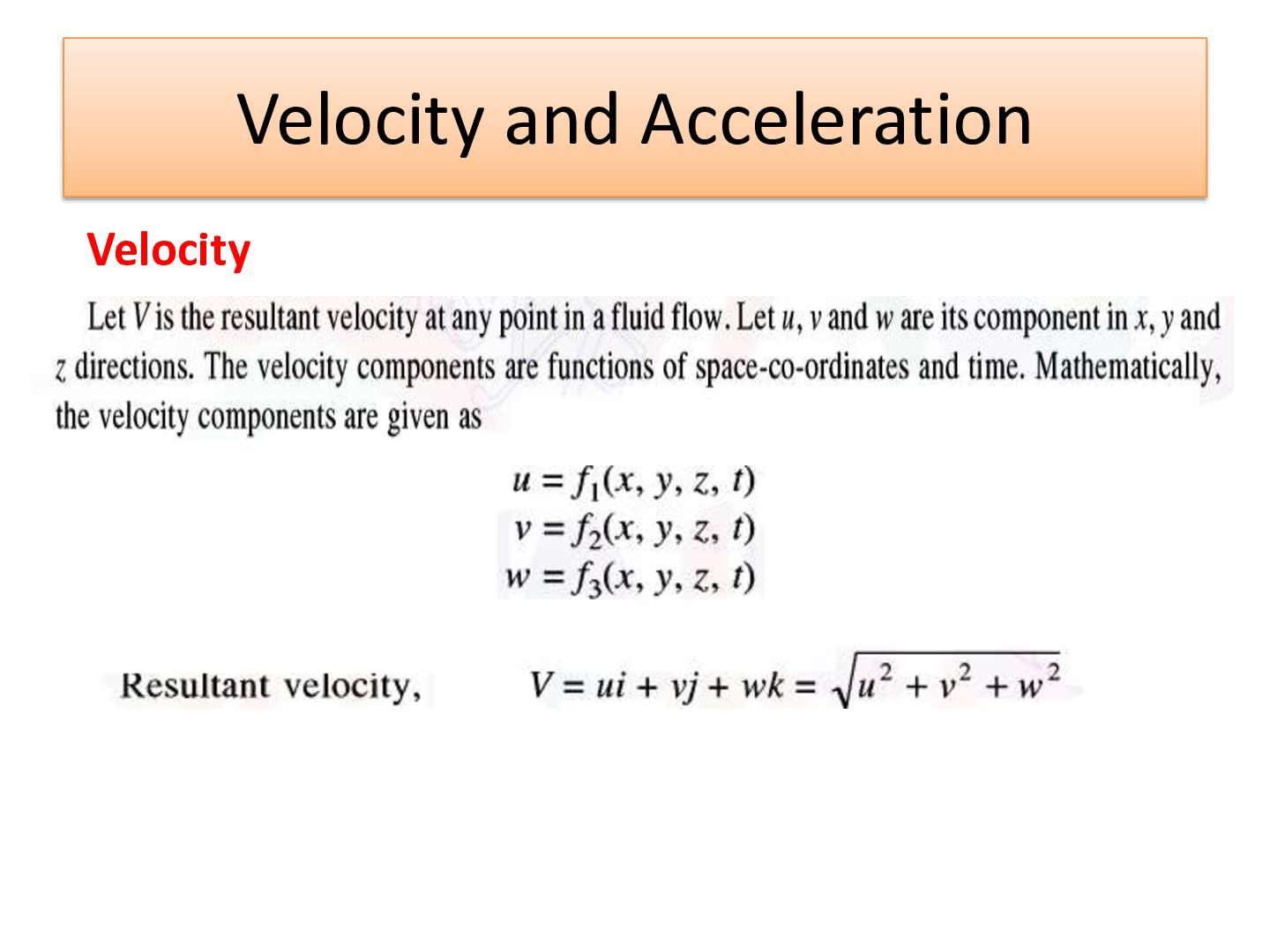

10. Velocity and Acceleration Velocity

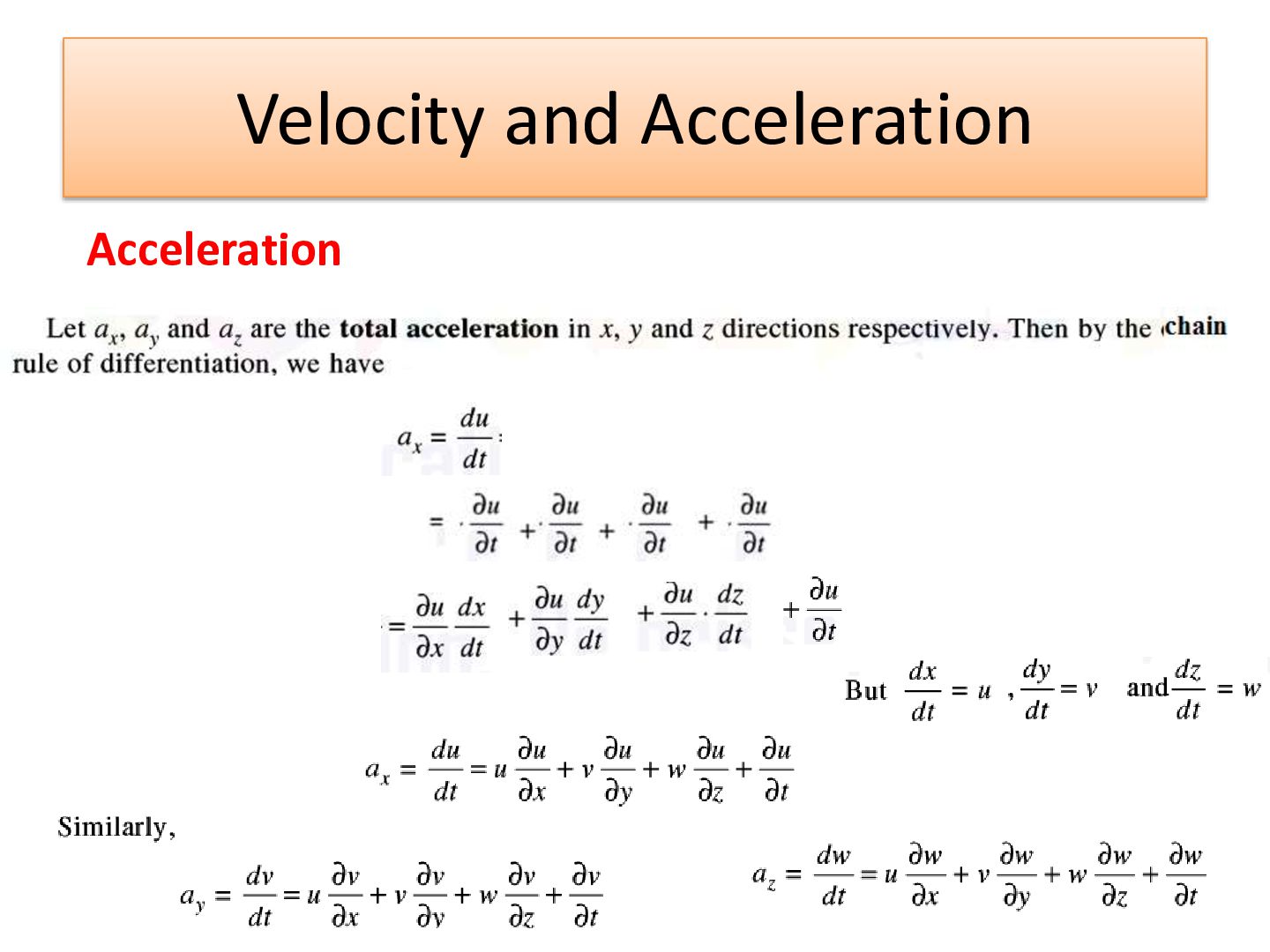

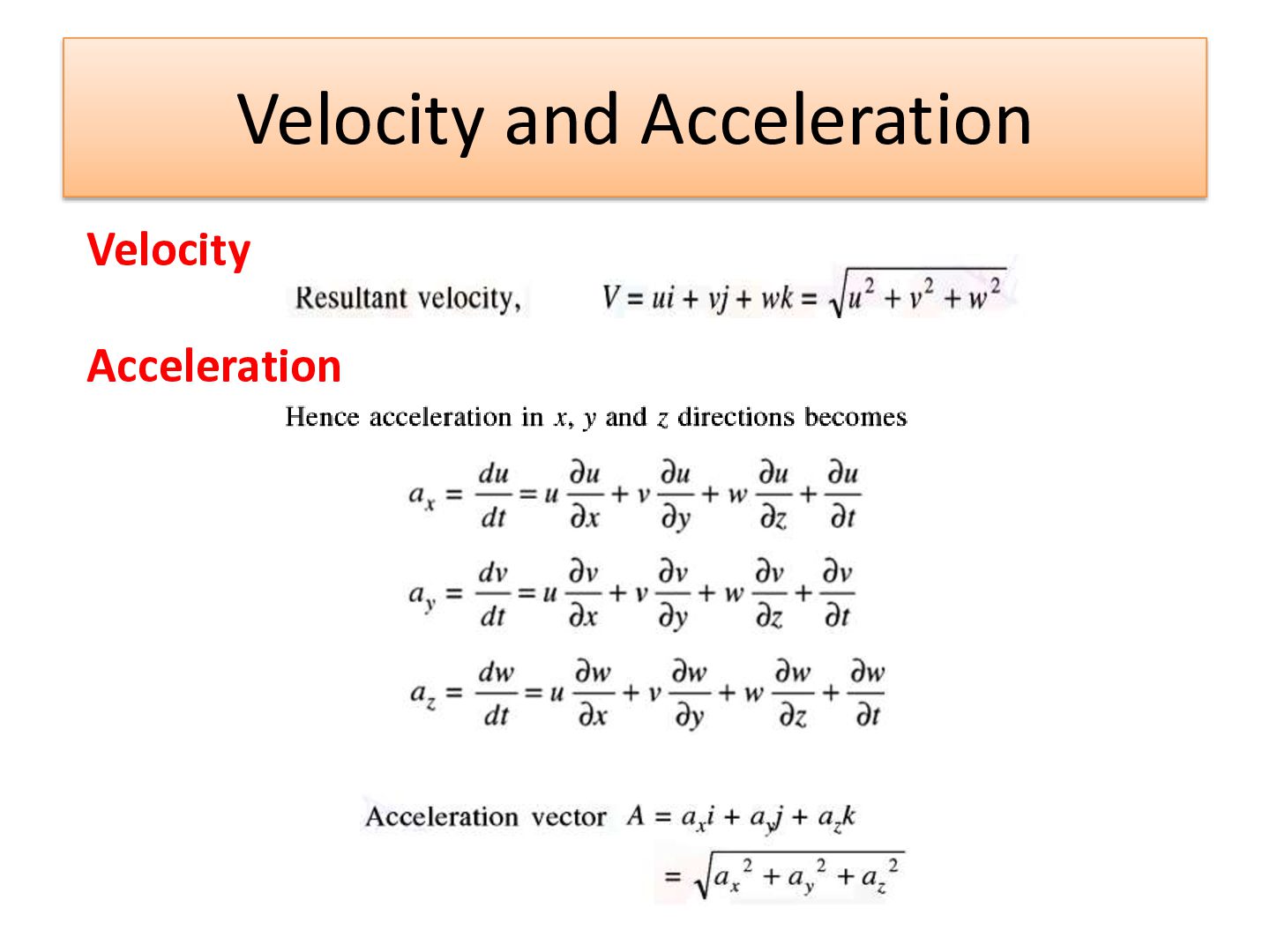

11. Velocity and Acceleration Acceleration
12. Velocity and Acceleration Velocity Acceleration

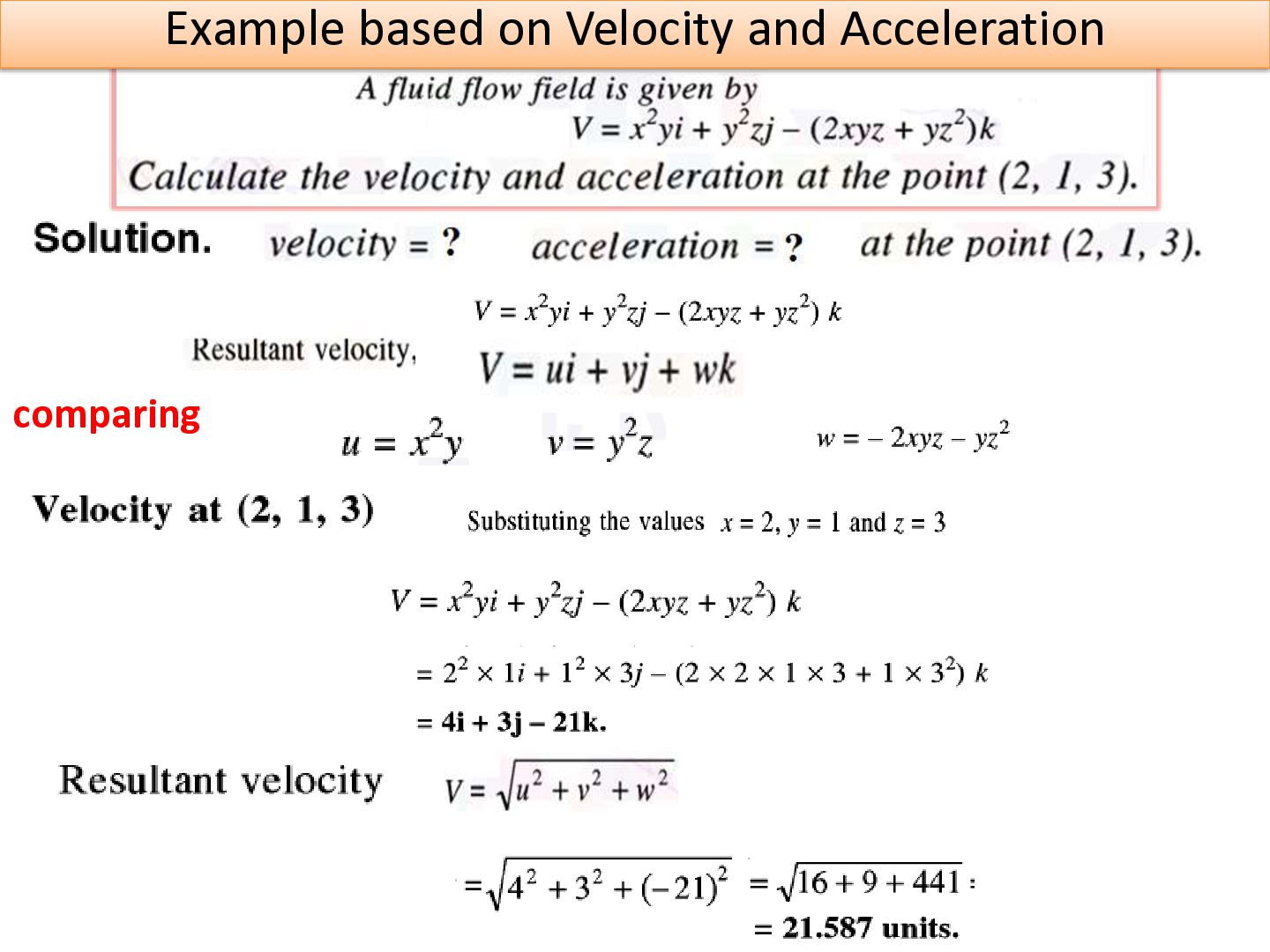

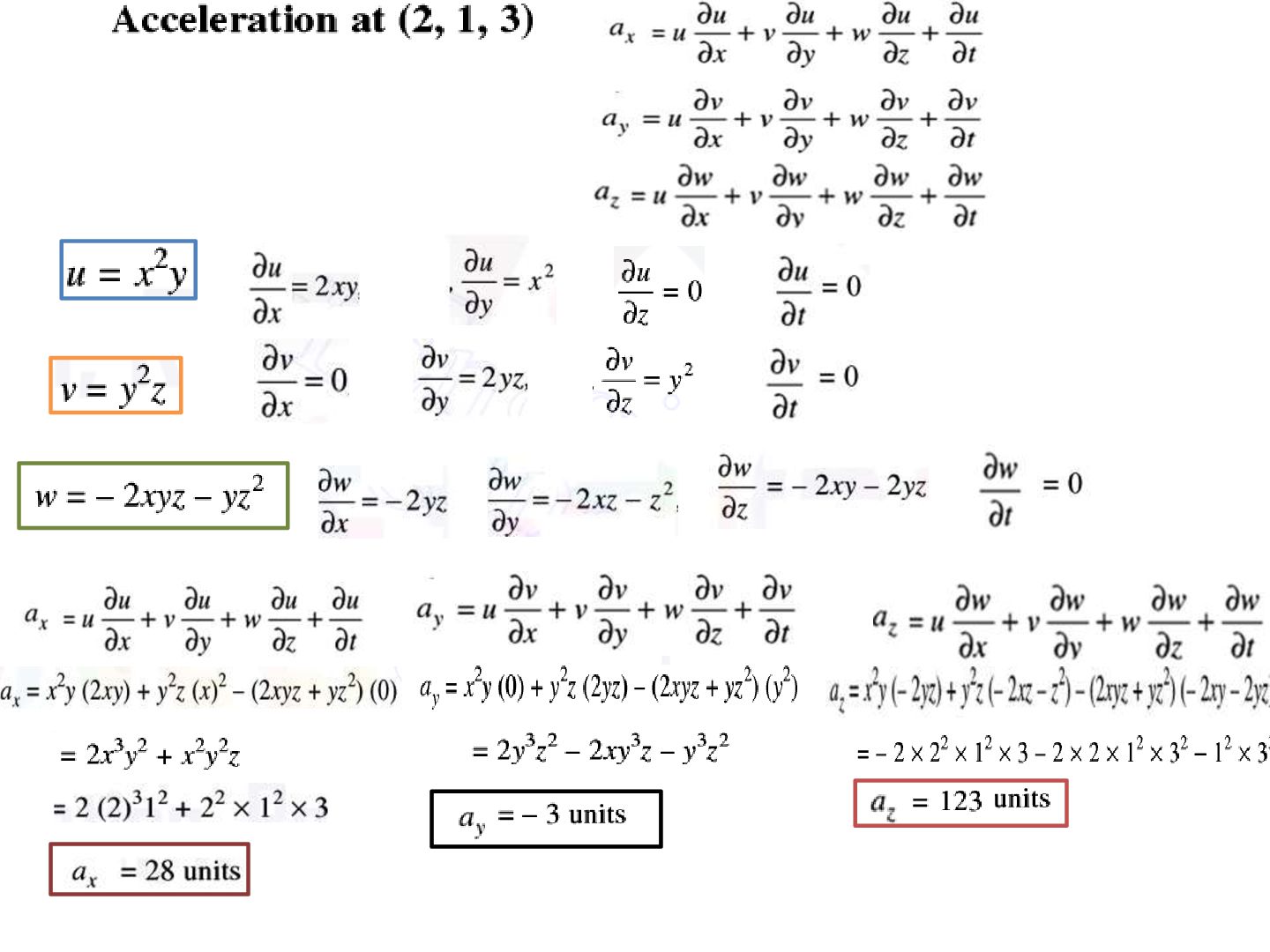

13. Example based on Velocity and Acceleration comparing
16. Thank You
