1. Portals and portlets 16-May-16 1

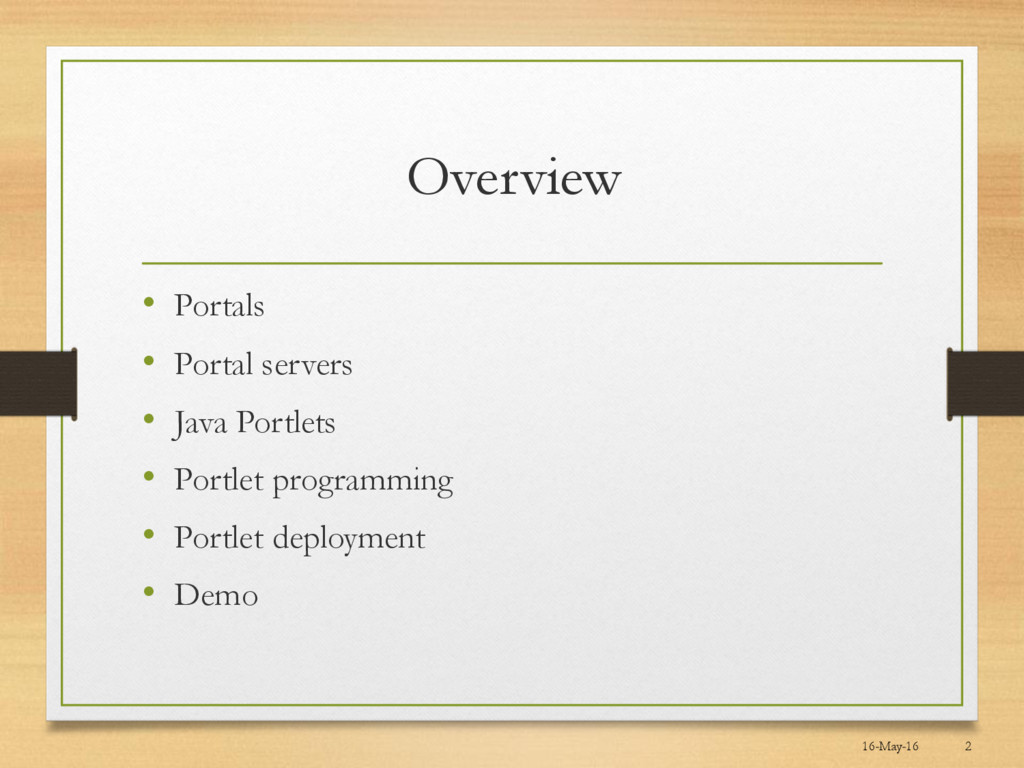

2. Overview • Portals • Portal servers • Java Portlets • Portlet programming • Portlet deployment • Demo 16-May-16 2

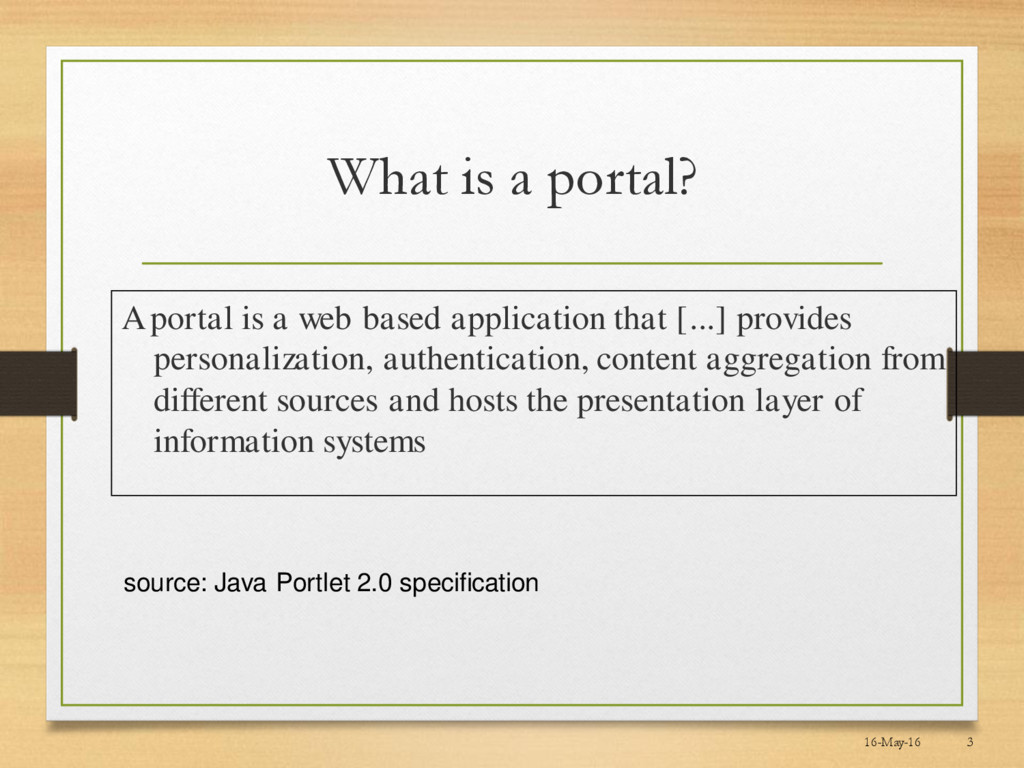

3. What is a portal? A portal is a web based application that [...] provides personalization, authentication, content aggregation from different sources and hosts the presentation layer of information systems source: Java Portlet 2.0 specification 16-May-16 3

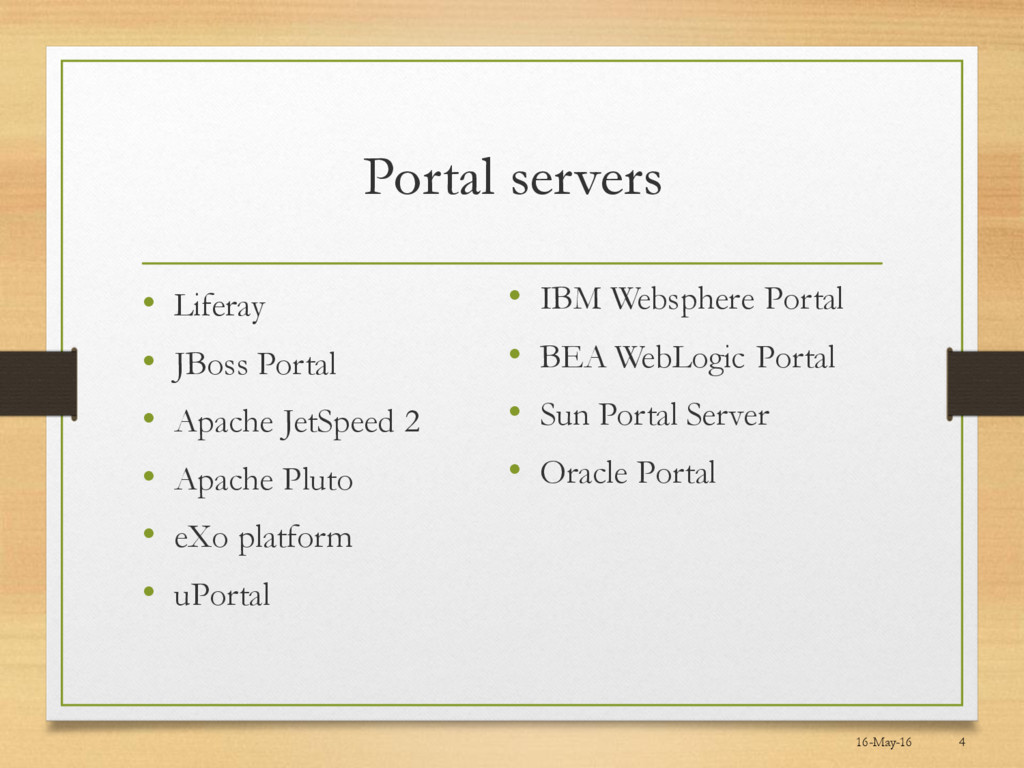

4. Portal servers • Liferay • JBoss Portal • Apache JetSpeed 2 • Apache Pluto • eXo platform • uPortal • IBM Websphere Portal • BEA WebLogic Portal • Sun Portal Server • Oracle Portal 16-May-16 4

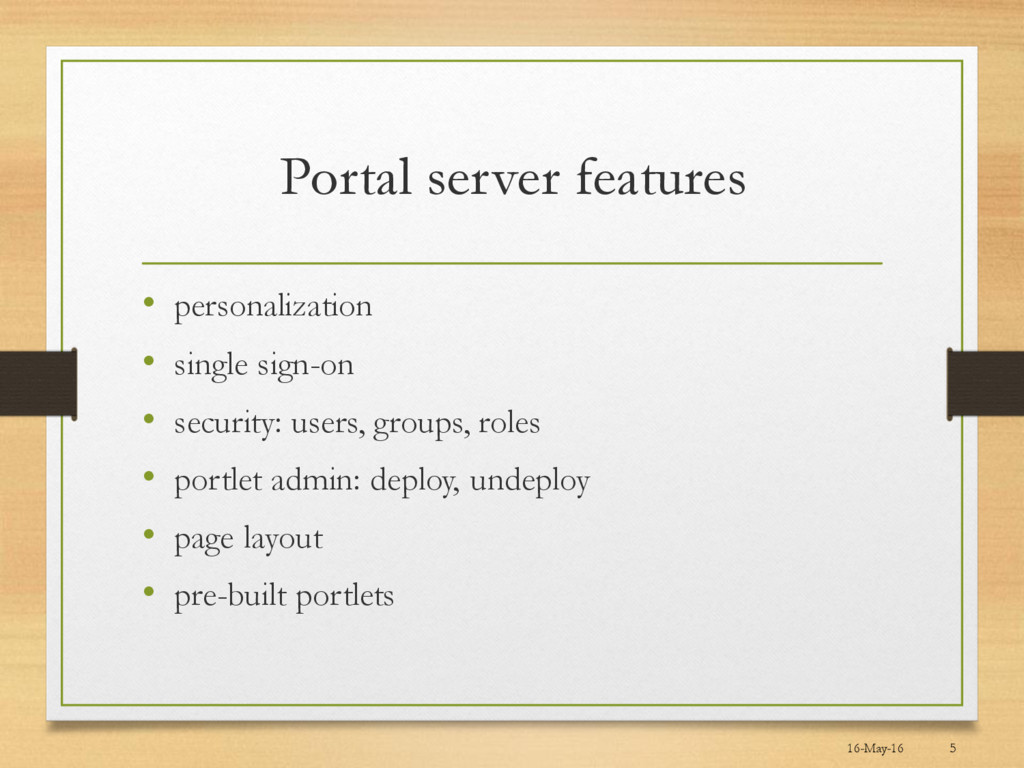

5. Portal server features • personalization • single sign-on • security: users, groups, roles • portlet admin: deploy, undeploy • page layout • pre-built portlets 16-May-16 5

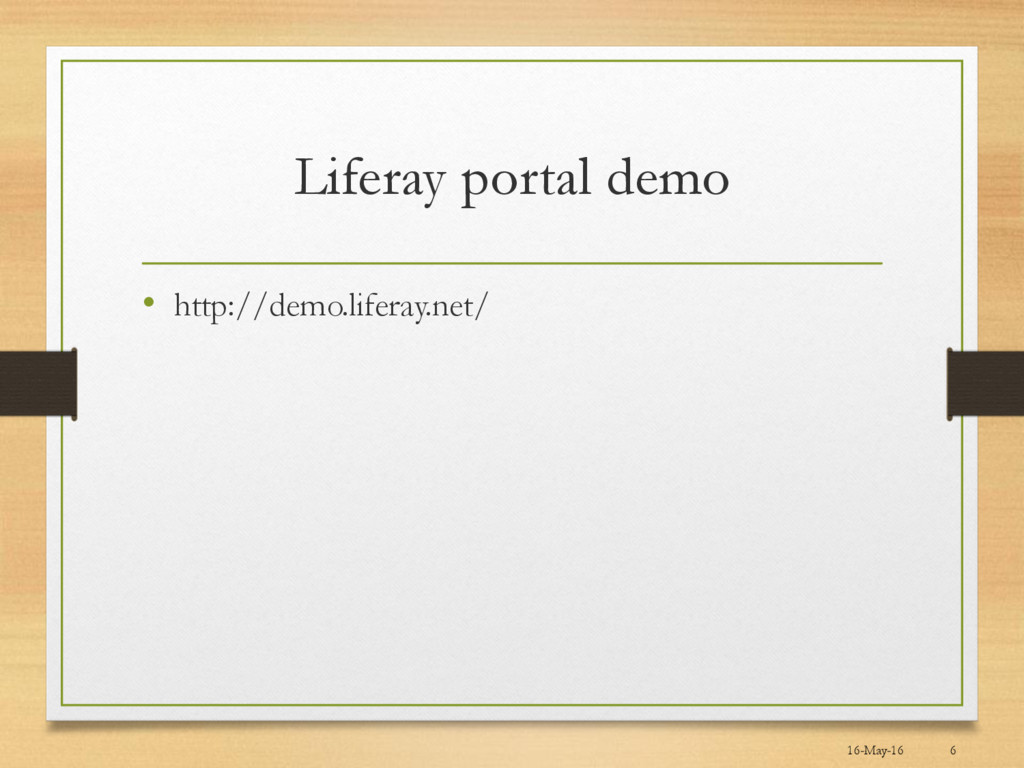

6. Liferay portal demo • http://demo.liferay.net/ 16-May-16 6
7. Portlet fragments The content generated by a portlet is also called a fragment. A fragment is a piece of markup (e.g. HTML, XHTML, WML) adhering to certain rules and can be aggregated with other fragments to form a complete document. The content of a portlet is normally aggregated with the content of other portlets to form the portal page. source: Java Portlet 2.0 specification 16-May-16 7
8. Java Portlet specifications • Portlet 1.0 • JSR-168 • Portlet 2.0 • JSR-286 16-May-16 8
9. Java Portlet API • javax.portlet.Portlet • javax.portlet.GenericPortlet • javax.portlet.ActionRequest • javax.portlet.ActionResponse • javax.portlet.RenderRequest • javax.portlet.RenderResponse 16-May-16 9
10. javax.portlet.Portlet • public void destroy() • public void init(PortletConfig cfg) • public void processAction(ActionRequest, ActionResponse) • public void render(RenderRequest, RenderResponse) 16-May-16 10
11. javax.portlet.GenericPortlet • protected void doView(...) • protected void doEdit(...) • protected void doHelp(...) • protected void processAction(...) 16-May-16 11

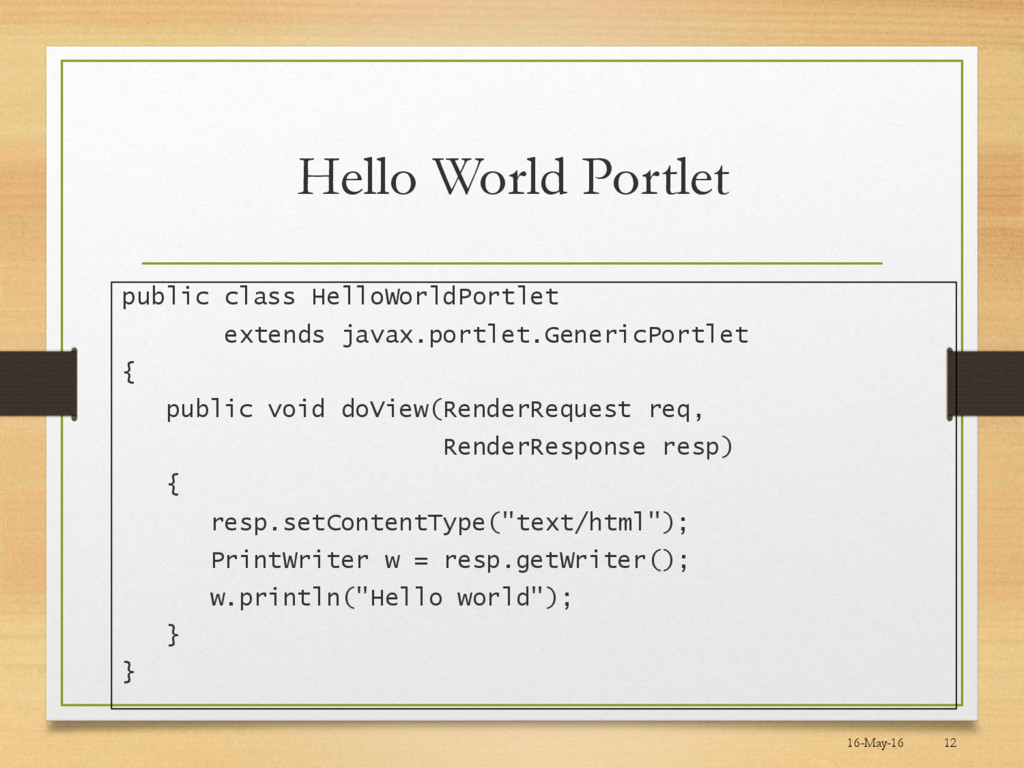

12. Hello World Portlet public class HelloWorldPortlet extends javax.portlet.GenericPortlet { public void doView(RenderRequest req, RenderResponse resp) { resp.setContentType("text/html"); PrintWriter w = resp.getWriter(); w.println("Hello world"); } } 16-May-16 12

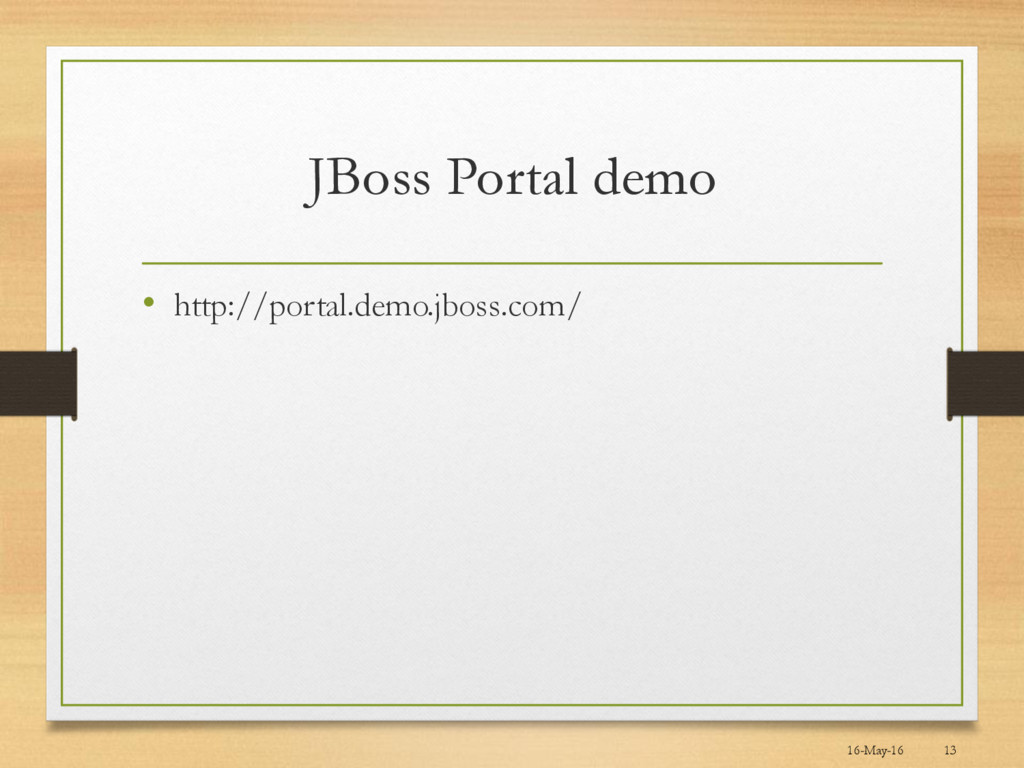

13. JBoss Portal demo • http://portal.demo.jboss.com/ 16-May-16 13
14. Portlet requests 1. Action requests 2. Render requests 16-May-16 14

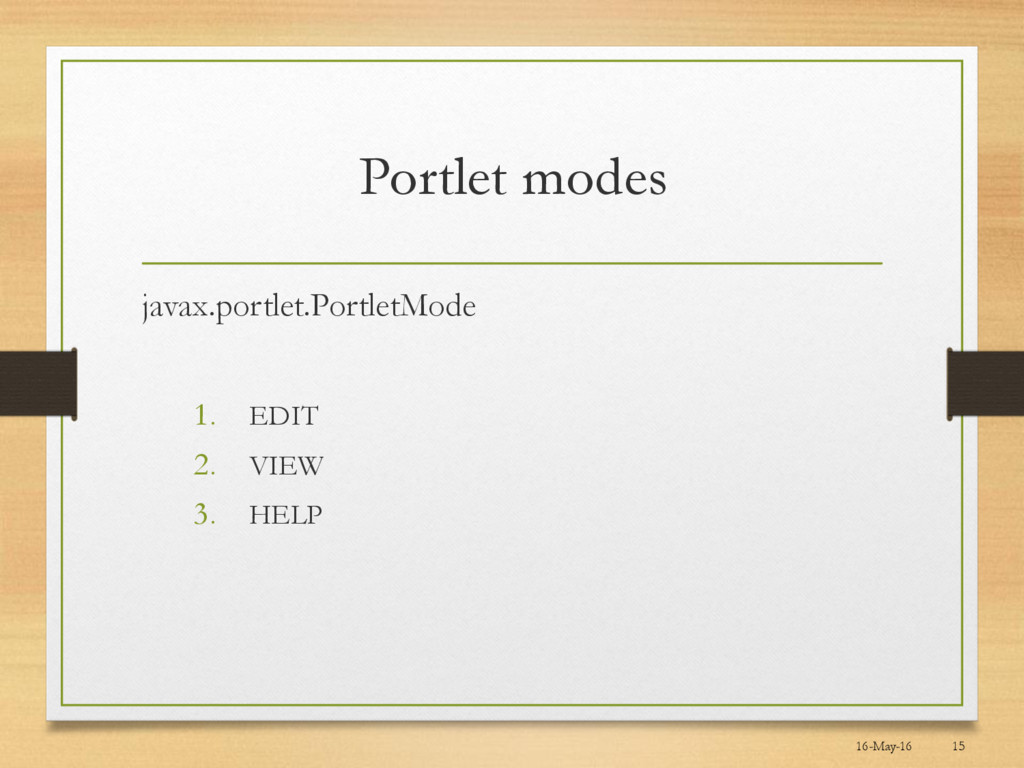

15. Portlet modes javax.portlet.PortletMode 1. EDIT 2. VIEW 3. HELP 16-May-16 15
16. Portlet window states javax.portlet.WindowState 1. MAXIMIZED 2. MINIMIZED 3. NORMAL 16-May-16 16

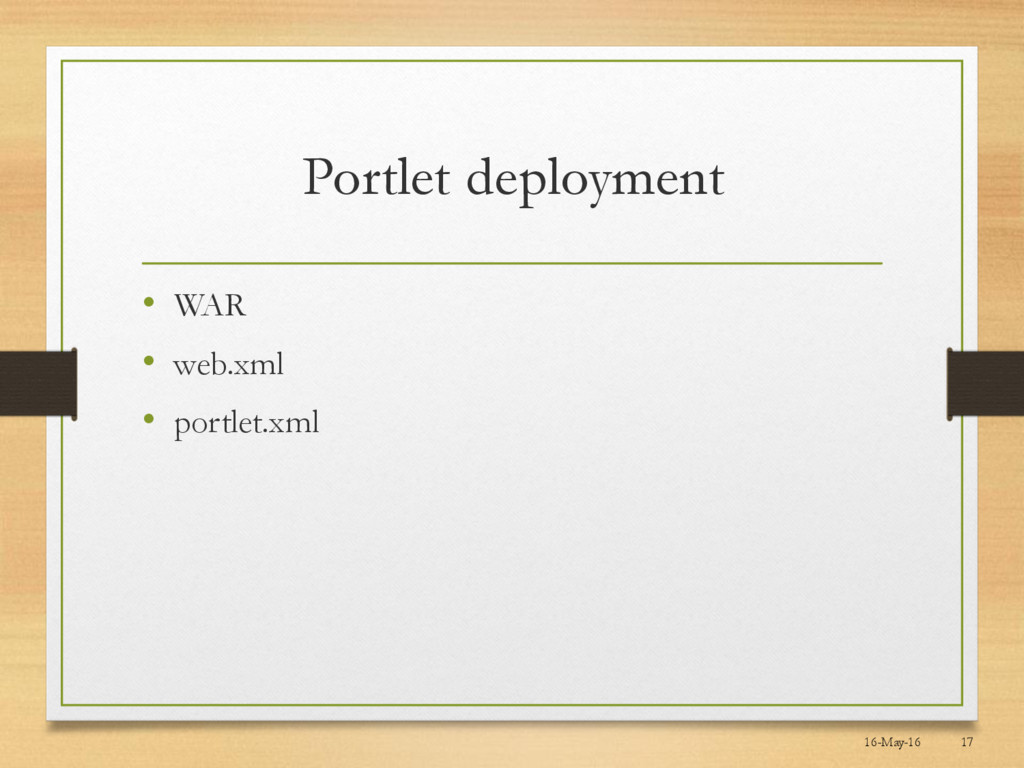

17. Portlet deployment • WAR • web.xml • portlet.xml 16-May-16 17

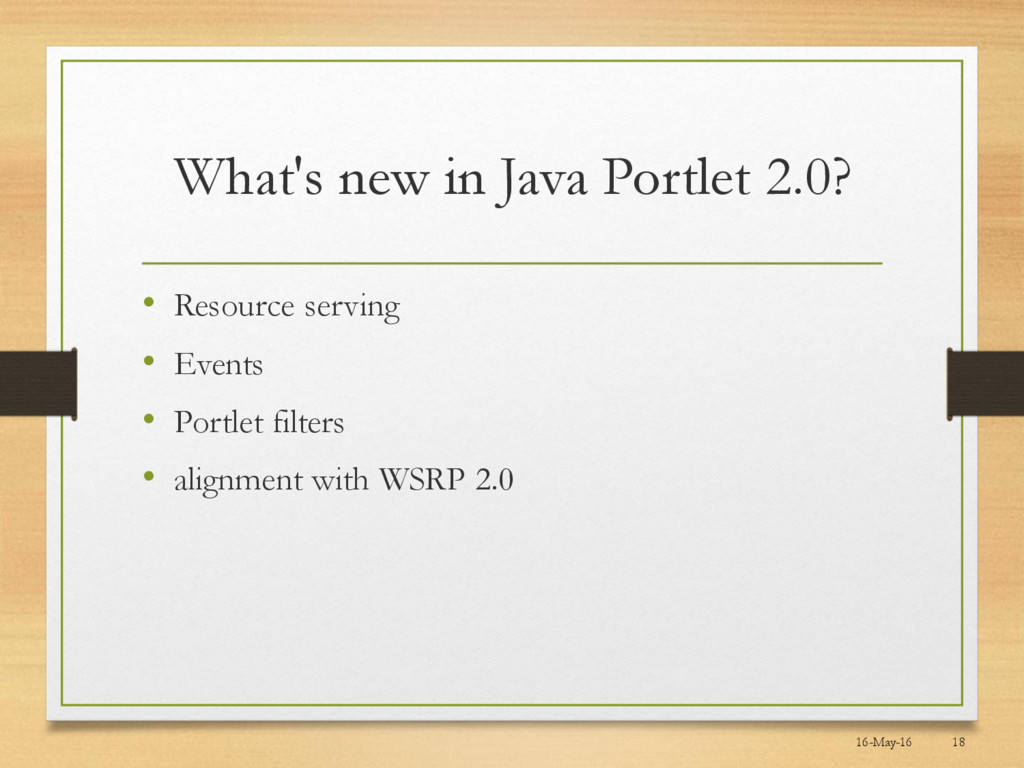

18. What's new in Java Portlet 2.0? • Resource serving • Events • Portlet filters • alignment with WSRP 2.0 16-May-16 18
19. Additional topics • Caching • CSS • Internationalization • File upload • Inter-portlet communication • Wrapping existing applications • WSRP 16-May-16 19

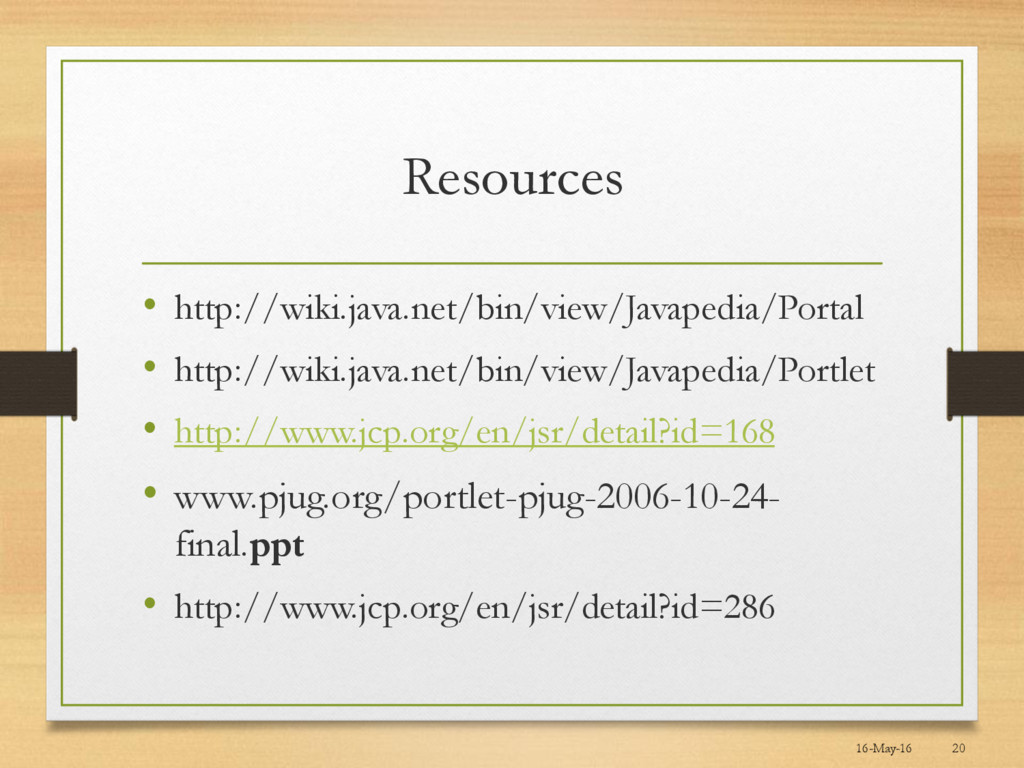

20. Resources • http://wiki.java.net/bin/view/Javapedia/Portal • http://wiki.java.net/bin/view/Javapedia/Portlet • http://www.jcp.org/en/jsr/detail?id=168 • www.pjug.org/portlet-pjug-2006-10-24- final.ppt • http://www.jcp.org/en/jsr/detail?id=286 16-May-16 20
