Modsecurity - NSM - Security Boootcamp 2014

Security Bootcamp 2014 - Da Nang - Vietnam

-
Ryan C. Barnett @Blackhat Arsenal 2014

ModSecurity is an open source, cross-platform web application firewall (WAF) module. Known as the "Swiss Army Knife" of WAFs, it enables web application defenders to gain visibility into HTTP(S) traffic and provides a power rules language and API to implement advanced protections.

-
The Elasticsearch ELK Stack

By combining the massively popular Elasticsearch, Logstash and Kibana we have created an end-to-end stack that delivers actionable insights in real-time from almost any type of structured and unstructured data source. Built and supported by the engineers behind each of these open source products, the Elasticsearch ELK stack makes searching and analyzing data easier than ever before.
Used as a stand-alone application to provide strategic business insights or integrate with your existing applications to power their interactions with incoming data. Thousands of organizations worldwide use the Elasticsearch ELK stack for an endless variety of business critical functions.

http://www.elasticsearch.org/overview/

Transcript

1. MODSECURITY ELK If we do not wish to fight we can prevent! {
2. ModSecurity Security Bootcamp 2014 2
3. *log Security Bootcamp 2014 3

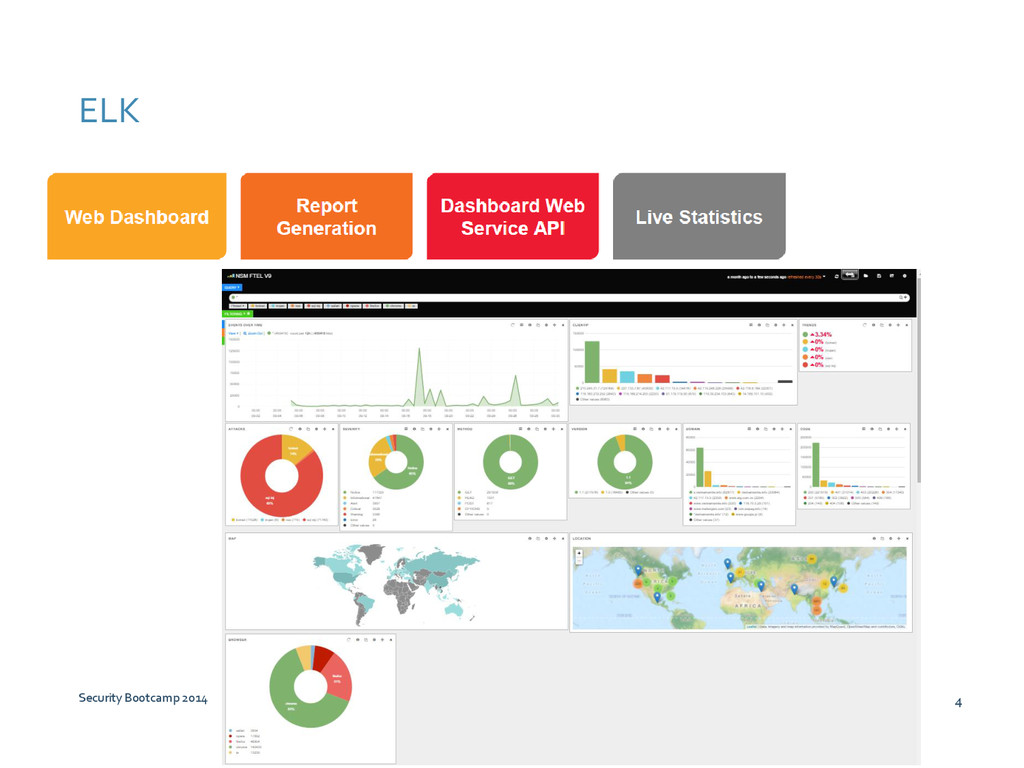

4. ELK Security Bootcamp 2014 4
5. ModSecurity Ryan C. Barnett ModSecurity is an open source, cross-platform web application firewall (WAF) module. Known as the "Swiss Army Knife" of WAFs, it enables web application defenders to gain visibility into HTTP(S) traffic and provides a power rules language and API to implement advanced protections. Blackhat Arsenal 2014 Security Bootcamp 2014 5
6. Surviving D-Day Omaha Beach 1944 Security Bootcamp 2014 6
7. Surviving D-Day Omaha Beach 1944 Security Bootcamp 2014 7  Fake tank  Fake aircraft  Fake Napoli (Egypt)  Fake ……

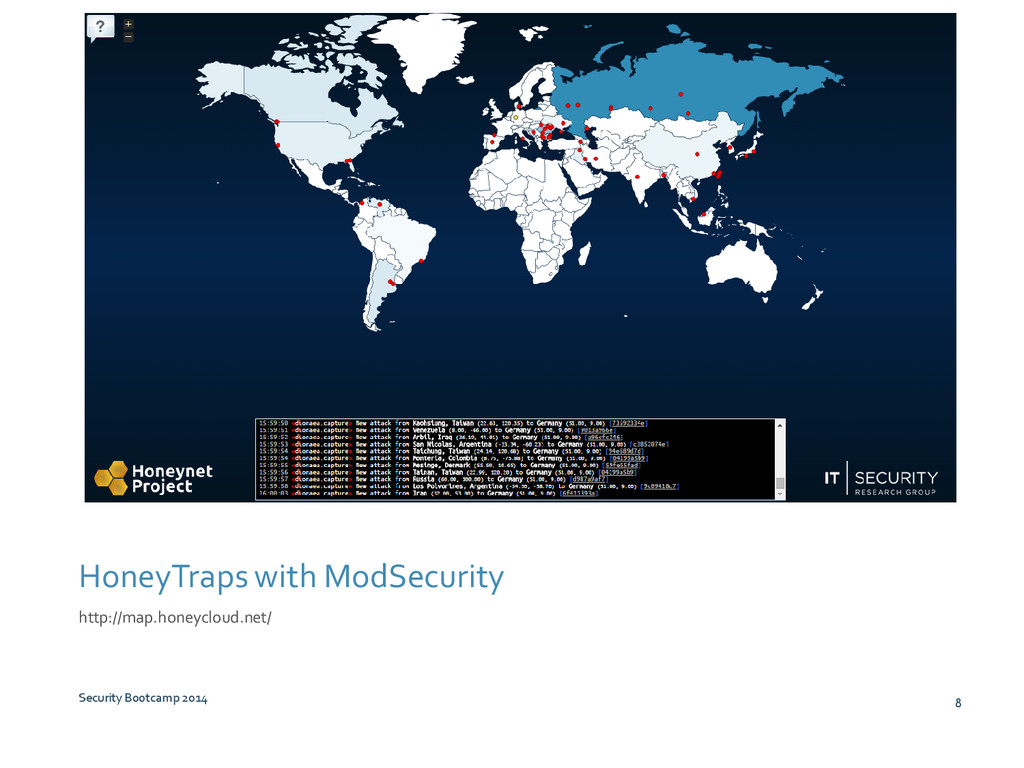

8. HoneyTraps with ModSecurity http://map.honeycloud.net/ Security Bootcamp 2014 8
9. 1.Real-time Application Profiling Security Bootcamp 2014 9

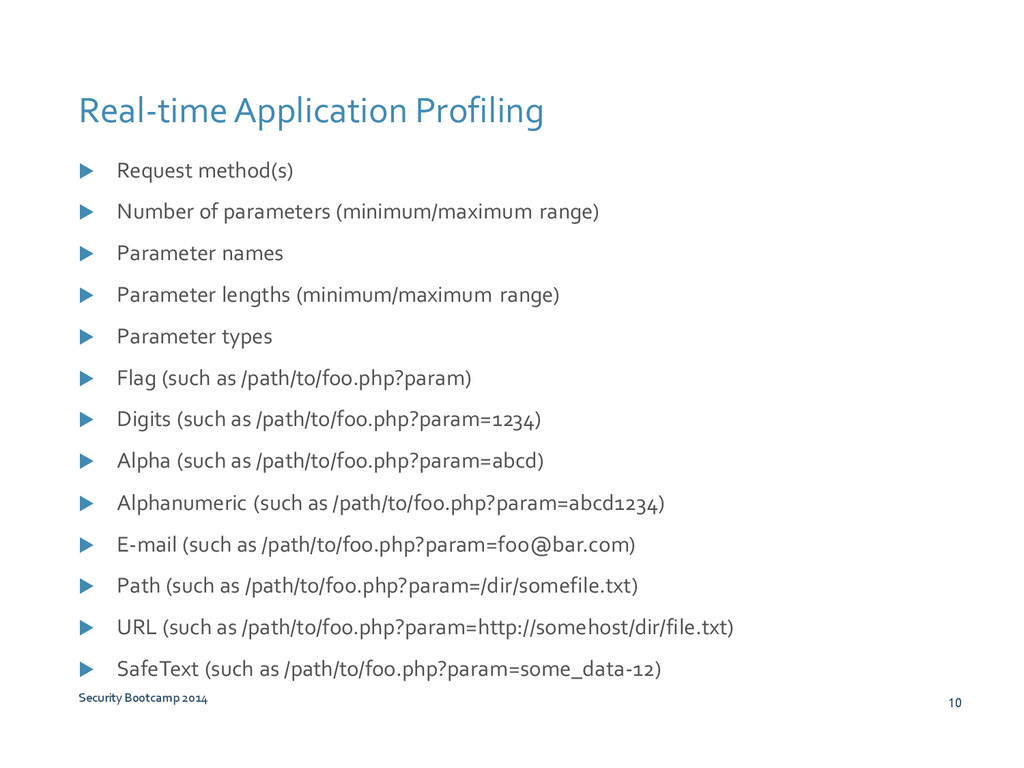

10. Real-time Application Profiling  Request method(s)  Number of parameters (minimum/maximum range)  Parameter names  Parameter lengths (minimum/maximum range)  Parameter types  Flag (such as /path/to/foo.php?param)  Digits (such as /path/to/foo.php?param=1234)  Alpha (such as /path/to/foo.php?param=abcd)  Alphanumeric (such as /path/to/foo.php?param=abcd1234)  E-mail (such as /path/to/foo.php?param=foo@bar.com)  Path (such as /path/to/foo.php?param=/dir/somefile.txt)  URL (such as /path/to/foo.php?param=http://somehost/dir/file.txt)  SafeText (such as /path/to/foo.php?param=some_data-12) Security Bootcamp 2014 10

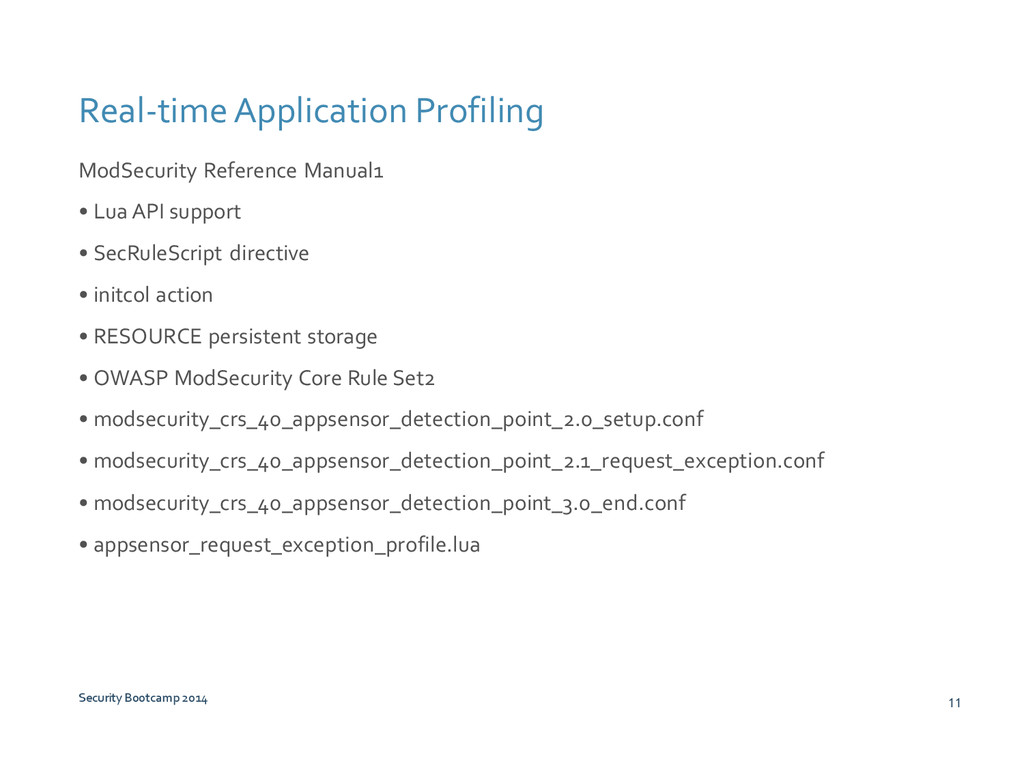

11. Real-time Application Profiling ModSecurity Reference Manual1 • Lua API support • SecRuleScript directive • initcol action • RESOURCE persistent storage • OWASP ModSecurity Core Rule Set2 • modsecurity_crs_40_appsensor_detection_point_2.0_setup.conf • modsecurity_crs_40_appsensor_detection_point_2.1_request_exception.conf • modsecurity_crs_40_appsensor_detection_point_3.0_end.conf • appsensor_request_exception_profile.lua Security Bootcamp 2014 11

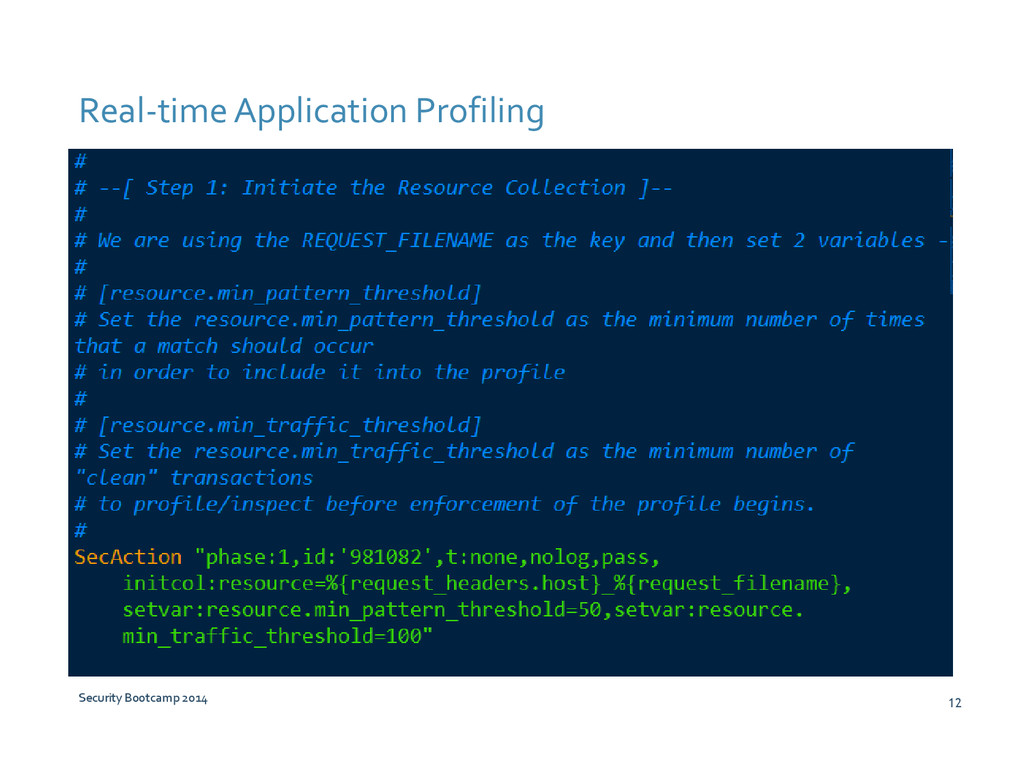

12. Real-time Application Profiling Security Bootcamp 2014 12

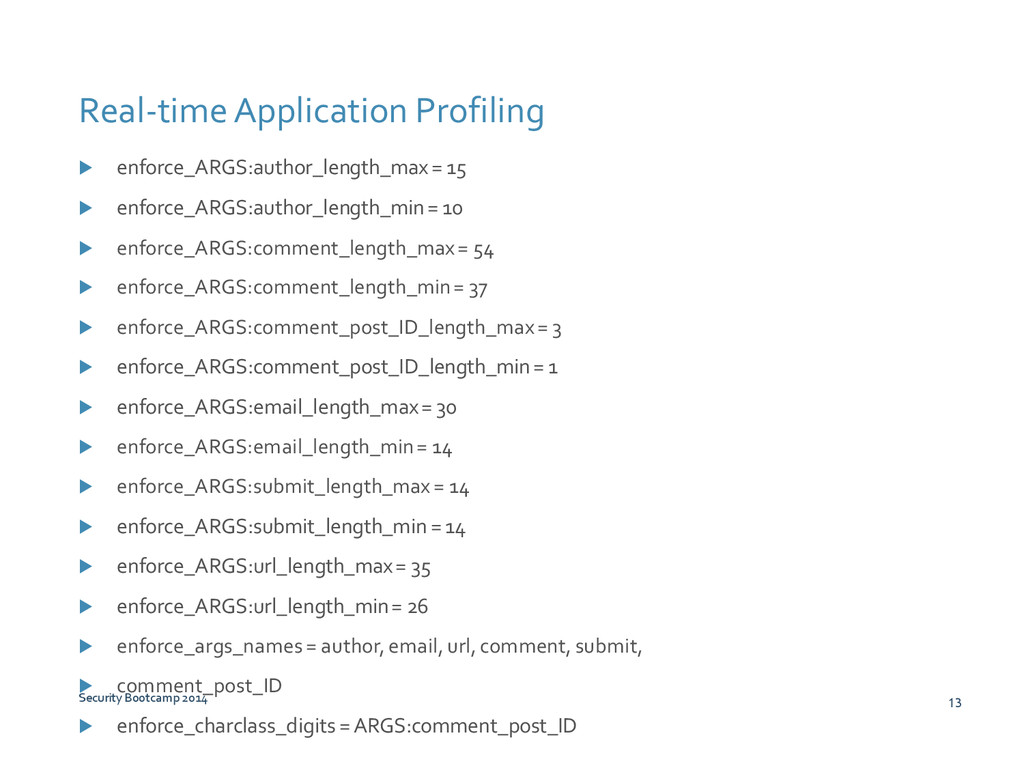

13. Real-time Application Profiling Security Bootcamp 2014 13  enforce_ARGS:author_length_max = 15  enforce_ARGS:author_length_min = 10  enforce_ARGS:comment_length_max = 54  enforce_ARGS:comment_length_min = 37  enforce_ARGS:comment_post_ID_length_max = 3  enforce_ARGS:comment_post_ID_length_min = 1  enforce_ARGS:email_length_max = 30  enforce_ARGS:email_length_min = 14  enforce_ARGS:submit_length_max = 14  enforce_ARGS:submit_length_min = 14  enforce_ARGS:url_length_max = 35  enforce_ARGS:url_length_min = 26  enforce_args_names = author, email, url, comment, submit,  comment_post_ID  enforce_charclass_digits = ARGS:comment_post_ID

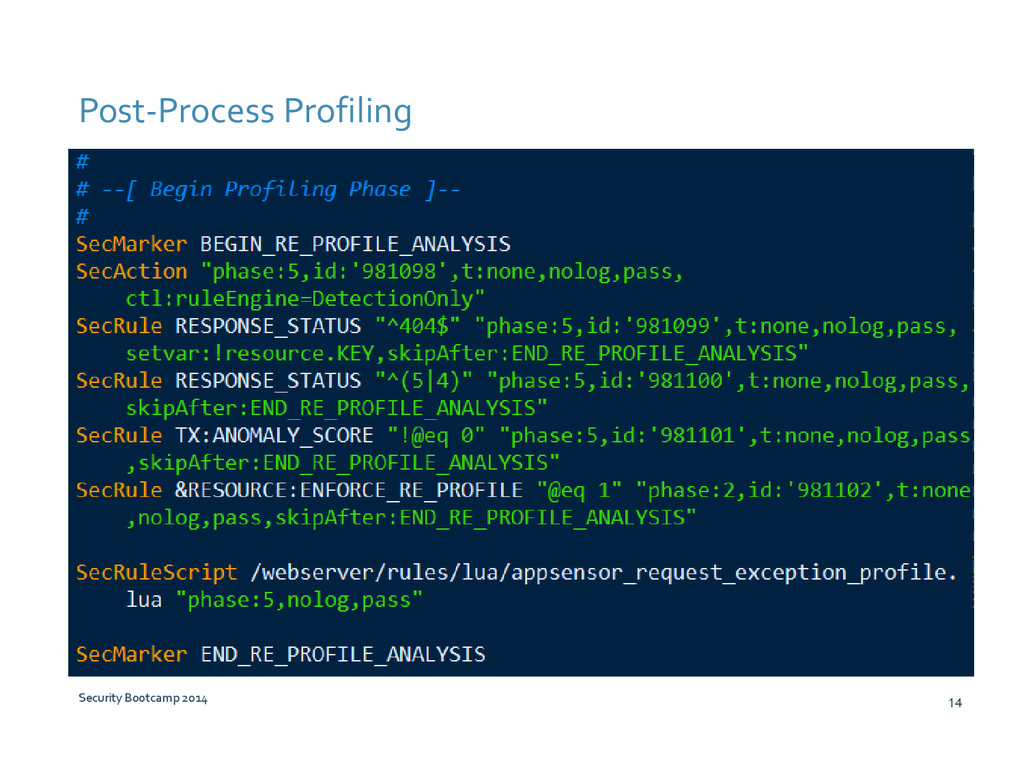

14. Post-Process Profiling Security Bootcamp 2014 14

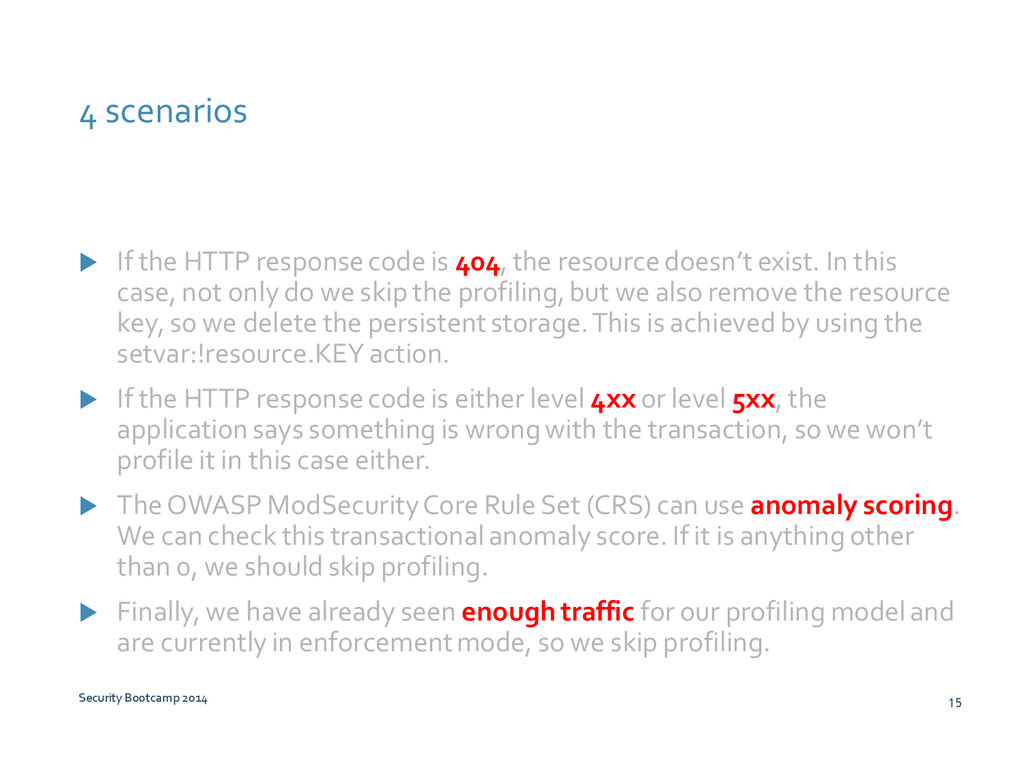

15. 4 scenarios  If the HTTP response code is 404, the resource doesn’t exist. In this case, not only do we skip the profiling, but we also remove the resource key, so we delete the persistent storage. This is achieved by using the setvar:!resource.KEYaction.  If the HTTP response code is either level 4xx or level 5xx, the application says something is wrong with the transaction, so we won’t profile it in this case either.  The OWASP ModSecurityCore Rule Set (CRS) can use anomaly scoring. We can check this transactional anomaly score. If it is anything other than 0, we should skip profiling.  Finally, we have already seen enough traffic for our profiling model and are currently in enforcement mode, so we skip profiling. Security Bootcamp 2014 15
16. 2. Hacker Traps Security Bootcamp 2014 16

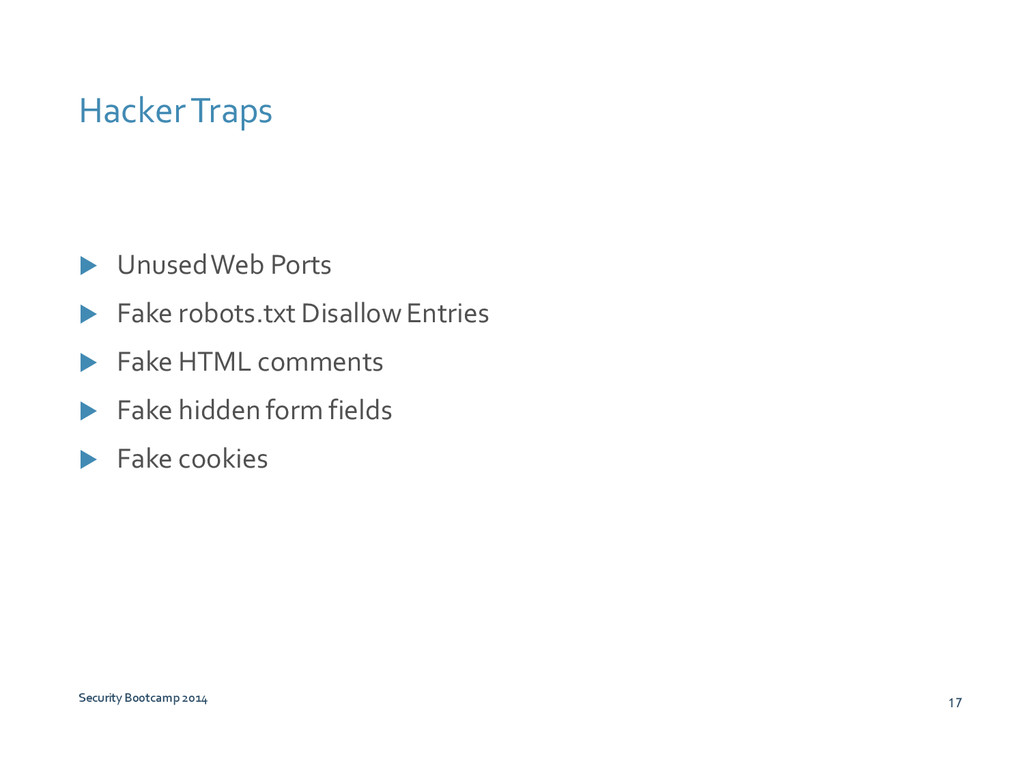

17. Hacker Traps  Unused Web Ports  Fake robots.txt Disallow Entries  Fake HTML comments  Fake hidden form fields  Fake cookies Security Bootcamp 2014 17

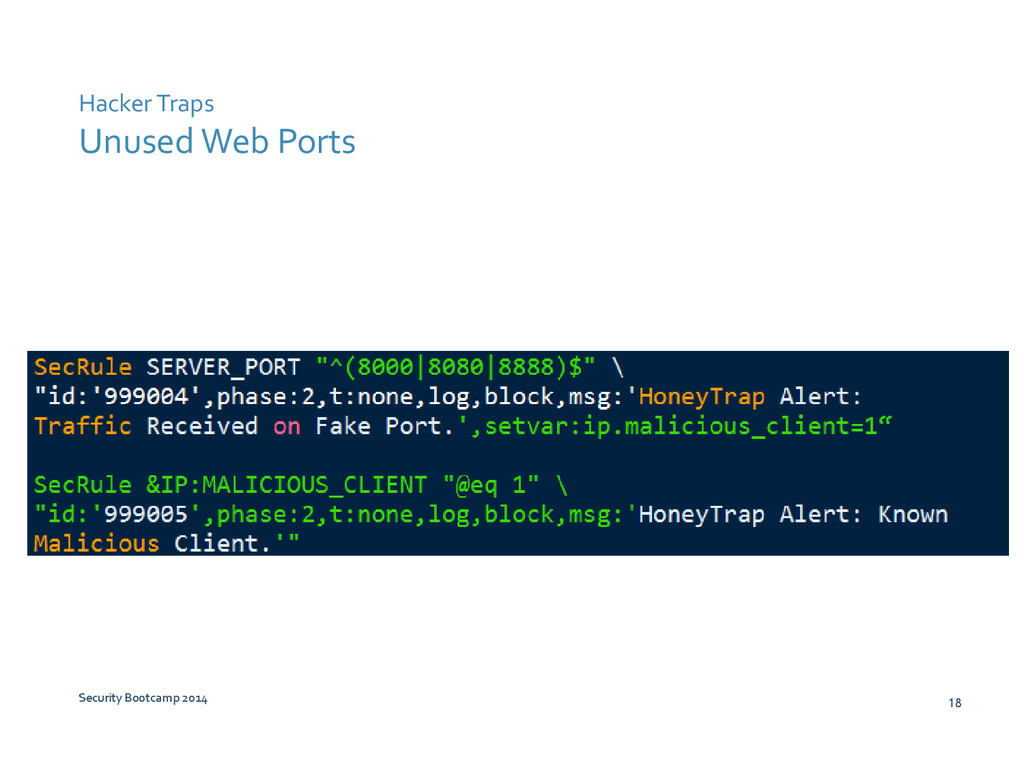

18. Hacker Traps Unused Web Ports Security Bootcamp 2014 18

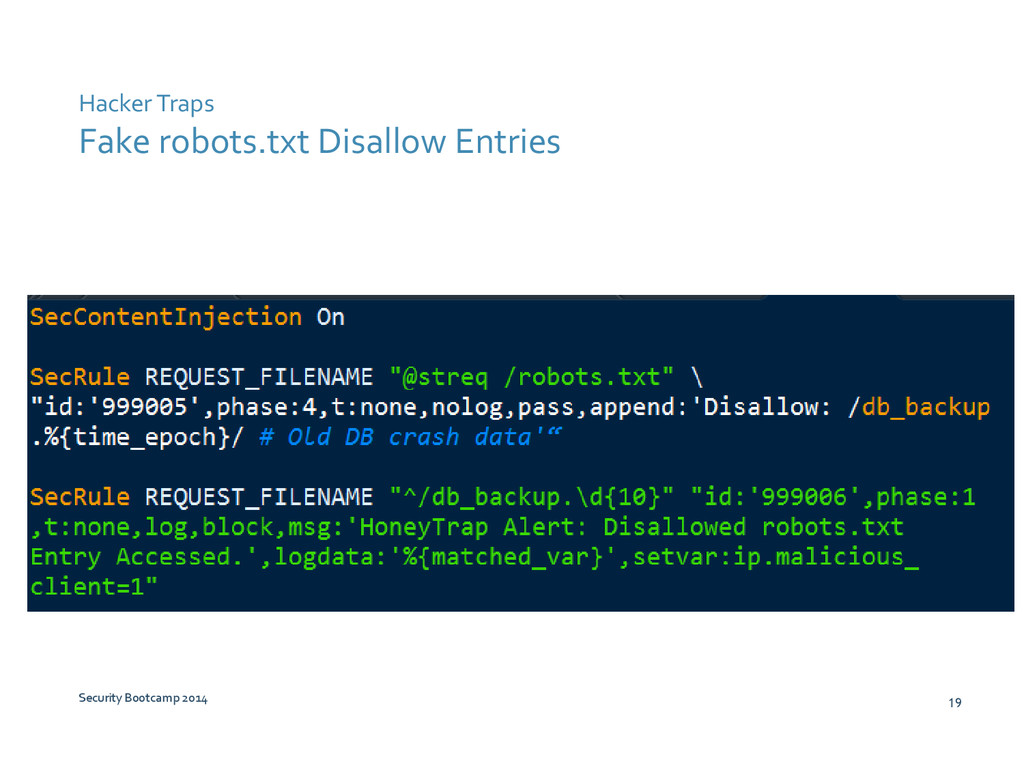

19. Hacker Traps Fake robots.txt Disallow Entries Security Bootcamp 2014 19
20. Hacker Traps Fake HTML comments Security Bootcamp 2014 20

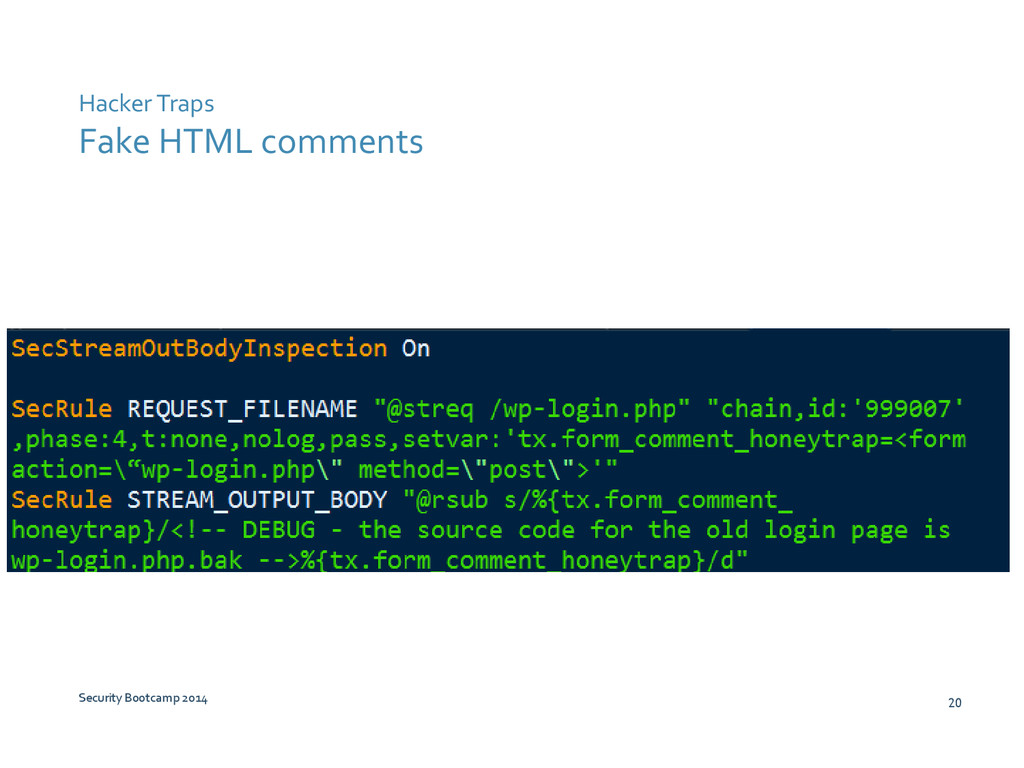

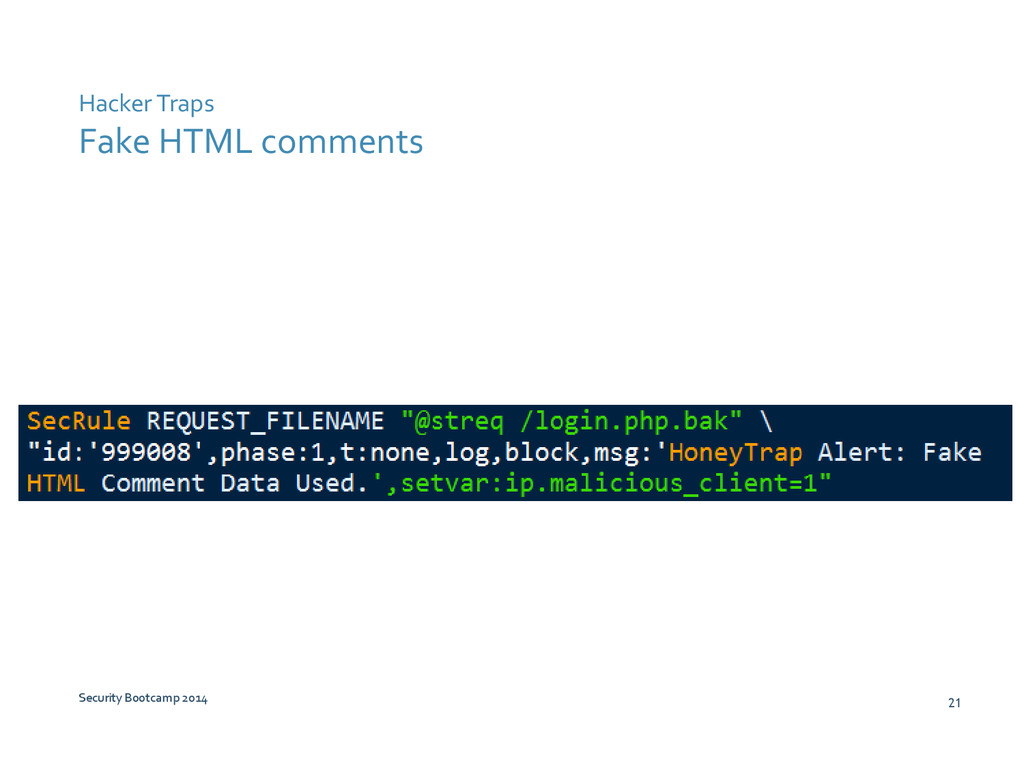

21. Hacker Traps Fake HTML comments Security Bootcamp 2014 21

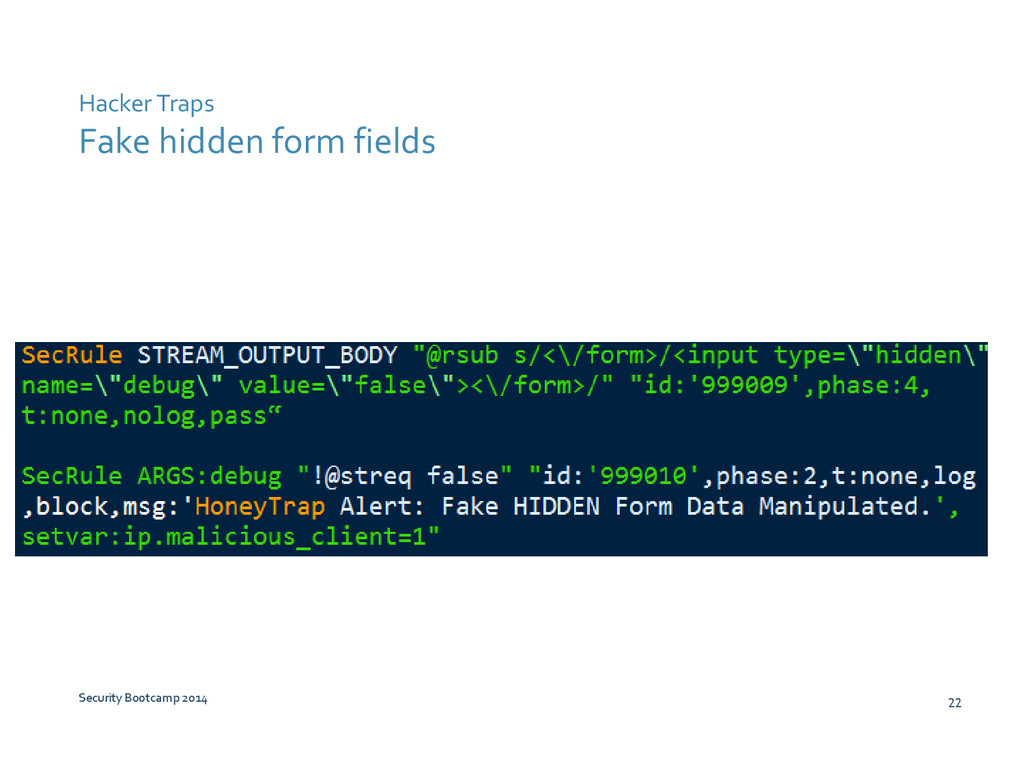

22. Hacker Traps Fake hidden form fields Security Bootcamp 2014 22

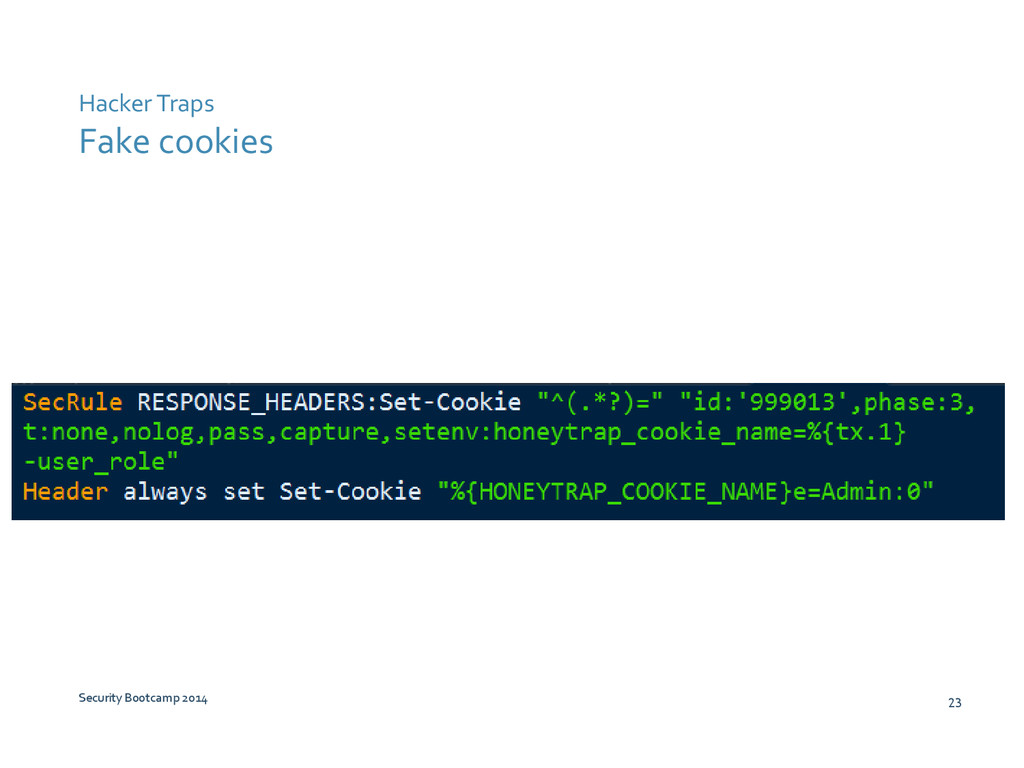

23. Hacker Traps Fake cookies Security Bootcamp 2014 23

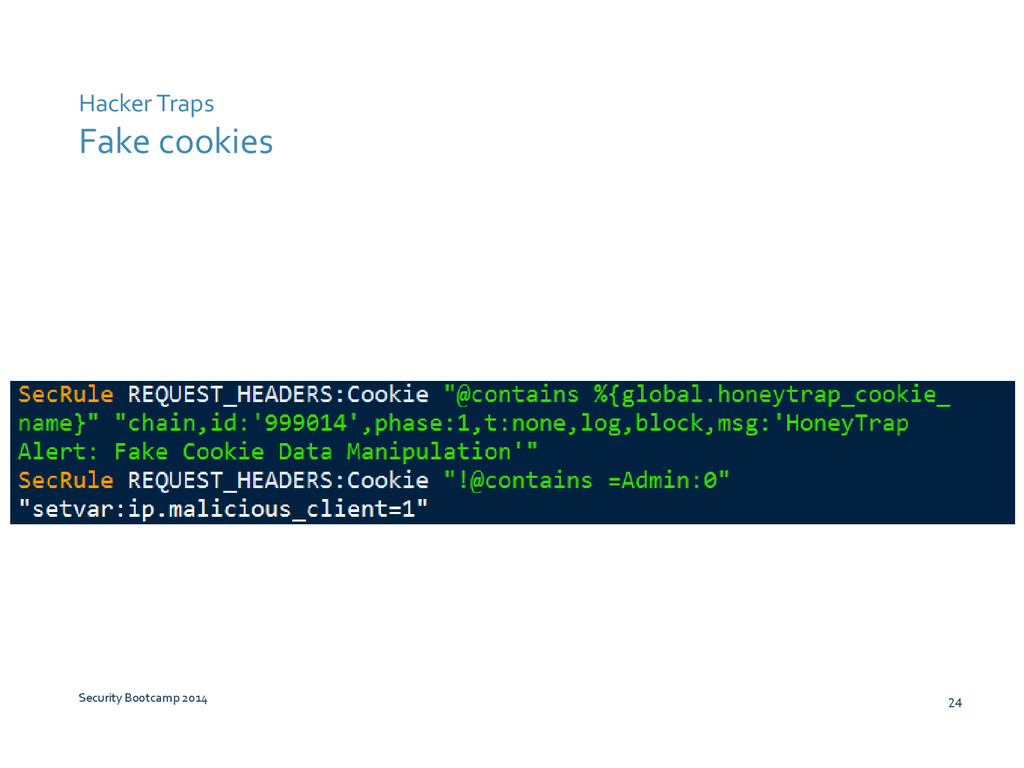

24. Hacker Traps Fake cookies Security Bootcamp 2014 24
25. 3a. Self-Contained vs. Collaborative Detection Security Bootcamp 2014 25

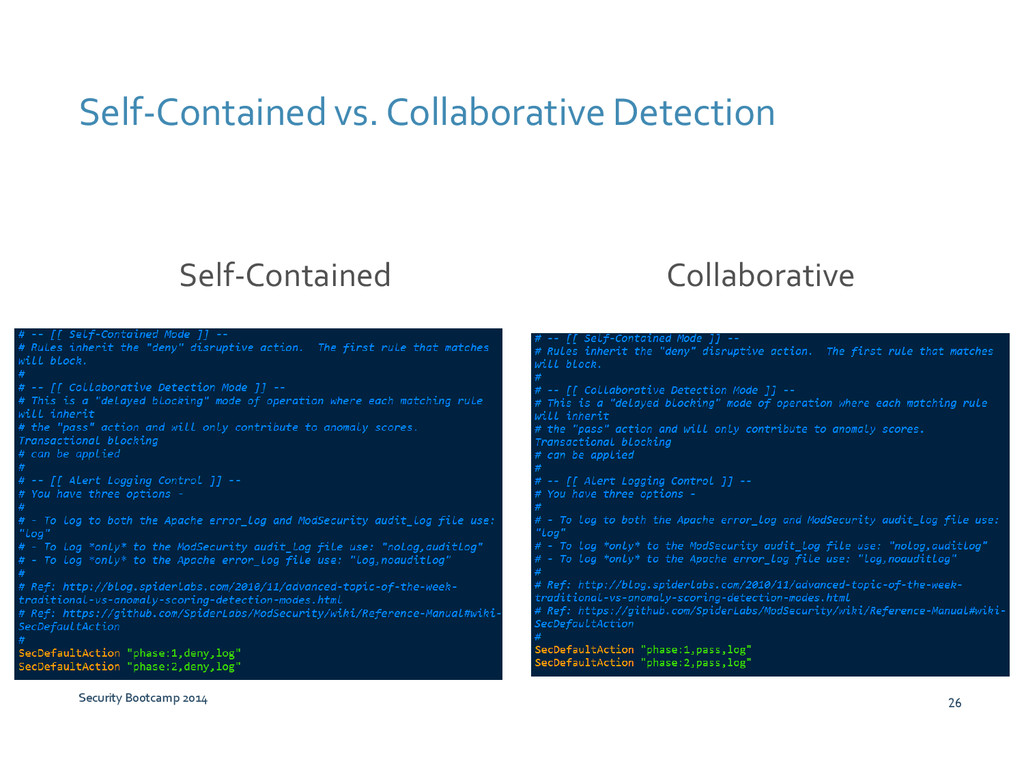

26. Self-Contained vs. Collaborative Detection Self-Contained Collaborative Security Bootcamp 2014 26

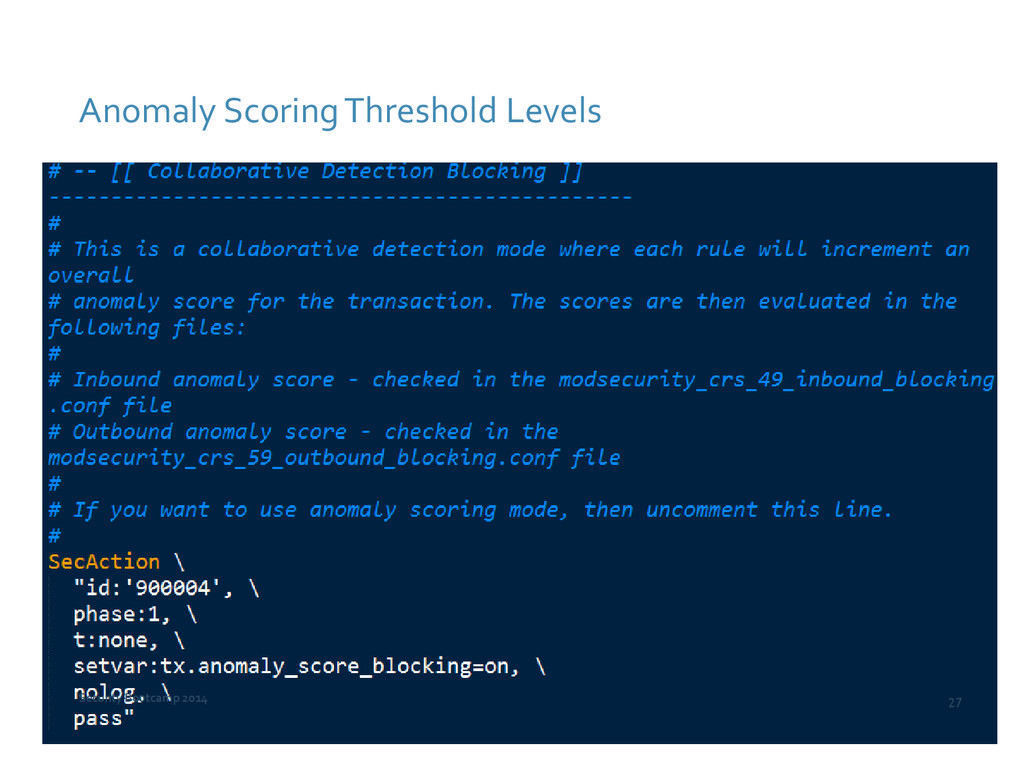

27. Anomaly Scoring Threshold Levels Security Bootcamp 2014 27

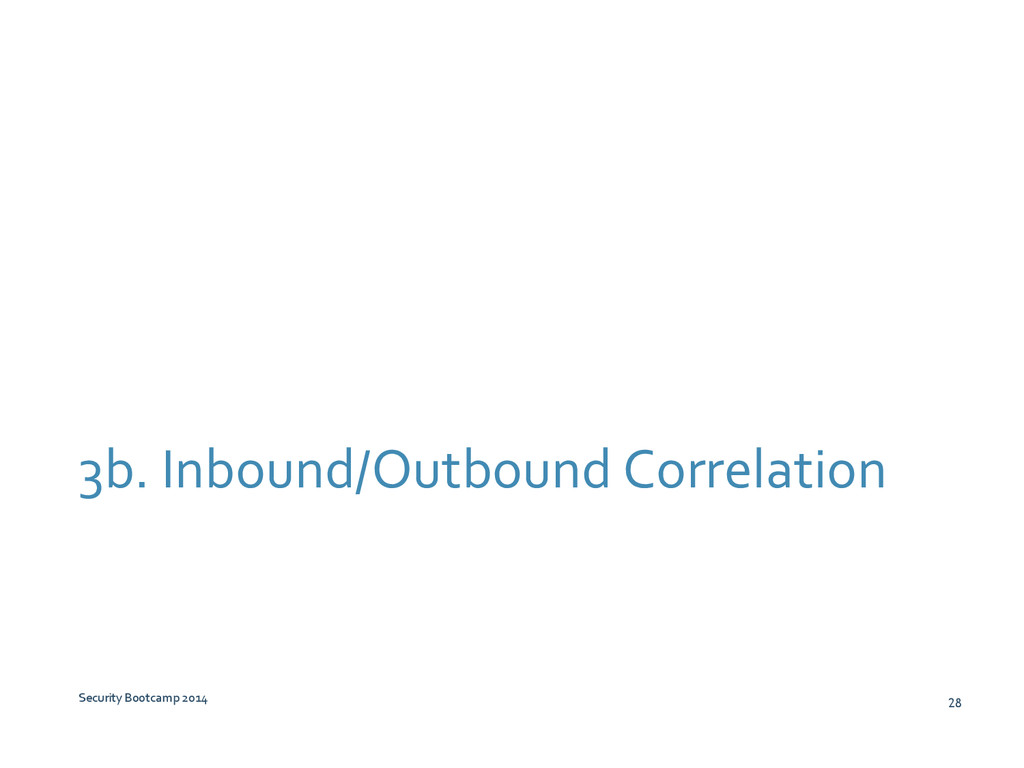

28. 3b. Inbound/Outbound Correlation Security Bootcamp 2014 28

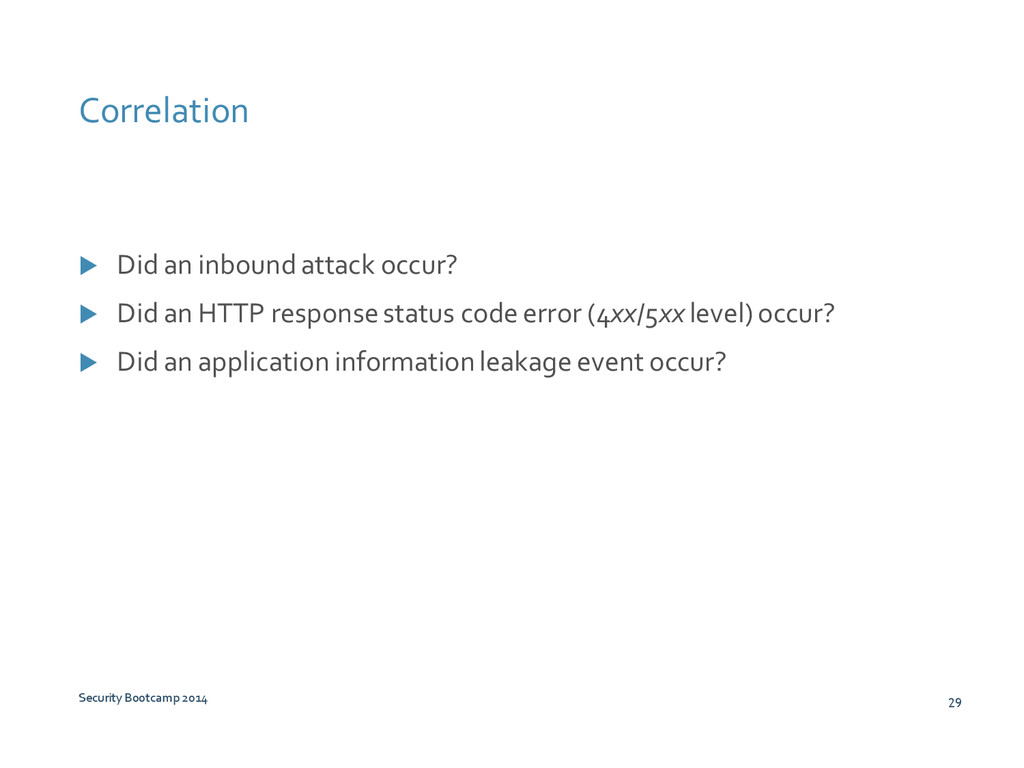

29. Correlation  Did an inbound attack occur?  Did an HTTP response status code error (4xx/5xx level) occur?  Did an application information leakage event occur? Security Bootcamp 2014 29

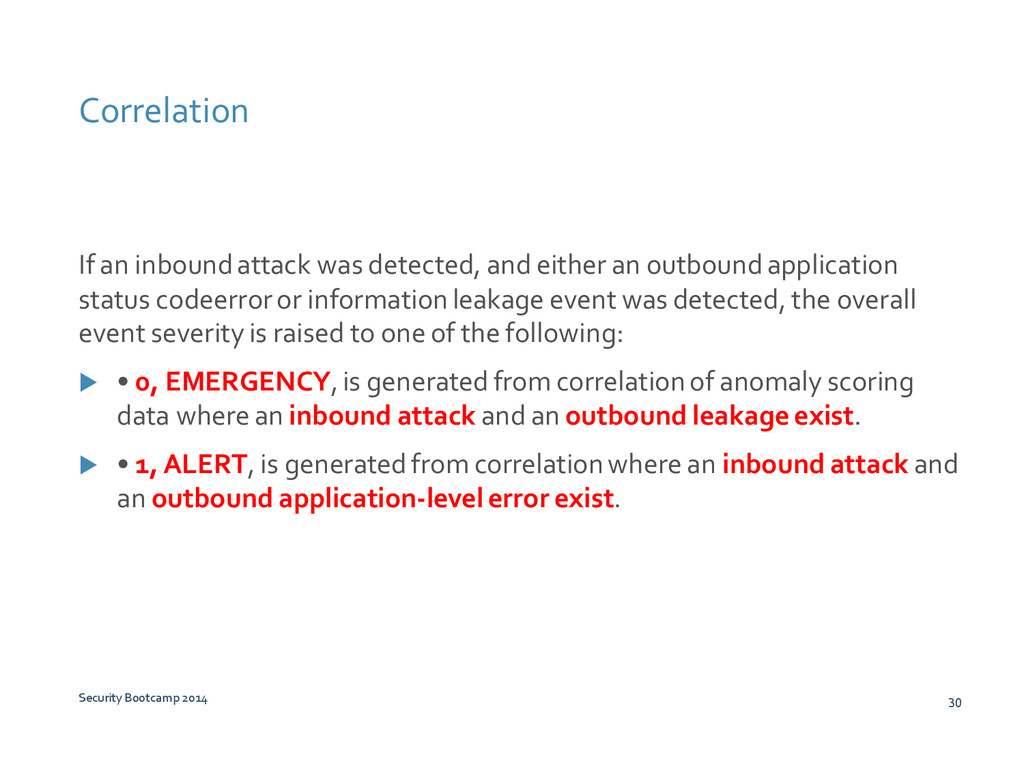

30. Correlation If an inbound attack was detected, and either an outbound application status codeerroror information leakage event was detected, the overall event severity is raised to one of the following:  • 0, EMERGENCY, is generated from correlation of anomaly scoring data where an inbound attack and an outbound leakage exist.  • 1, ALERT, is generated from correlation where an inbound attack and an outbound application-level error exist. Security Bootcamp 2014 30

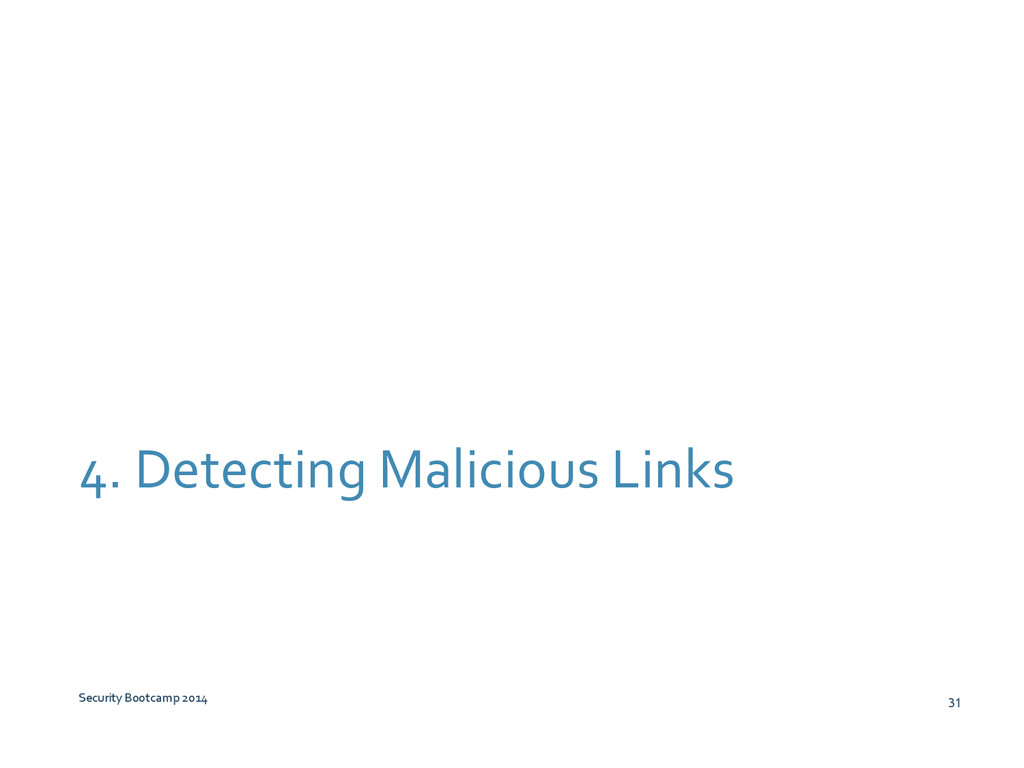

31. 4. Detecting Malicious Links Security Bootcamp 2014 31
32. Detecting Malicious Links  URI Blacklist RBL6  Google’s Safe Browsing API7  ModSecurity  @rbl operator  @gsbLookup operator  @rsub operator  SecGsbLookupDb directive  SecStreamOutBodyInspection directive  SecContentInjection directive  STREAM_OUTPUT_BODY variable Security Bootcamp 2014 32

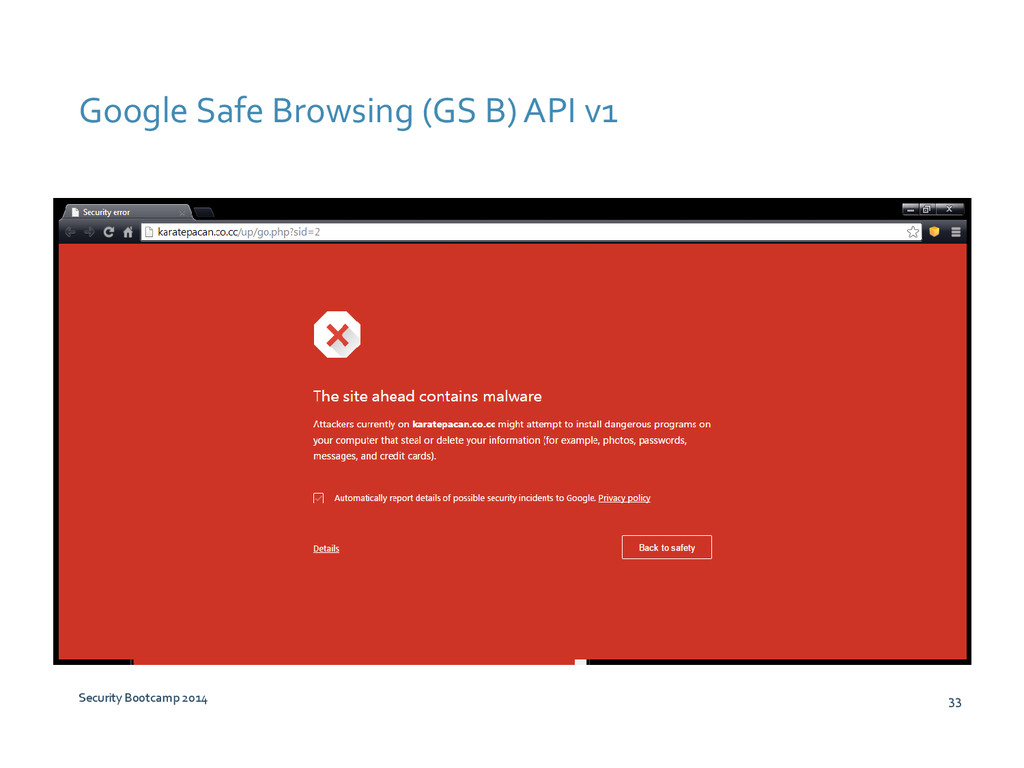

33. Google Safe Browsing (GS B) API v1 Security Bootcamp 2014 33

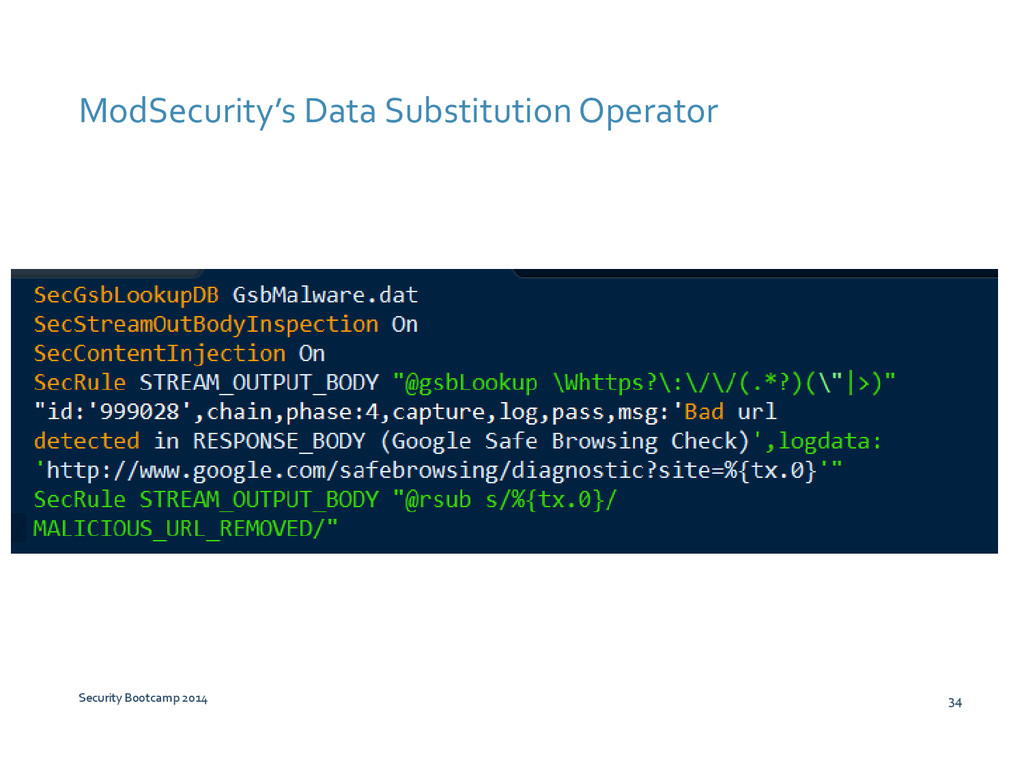

34. ModSecurity’s Data Substitution Operator Security Bootcamp 2014 34
35. 5. Normalizing Unicode Security Bootcamp 2014 35

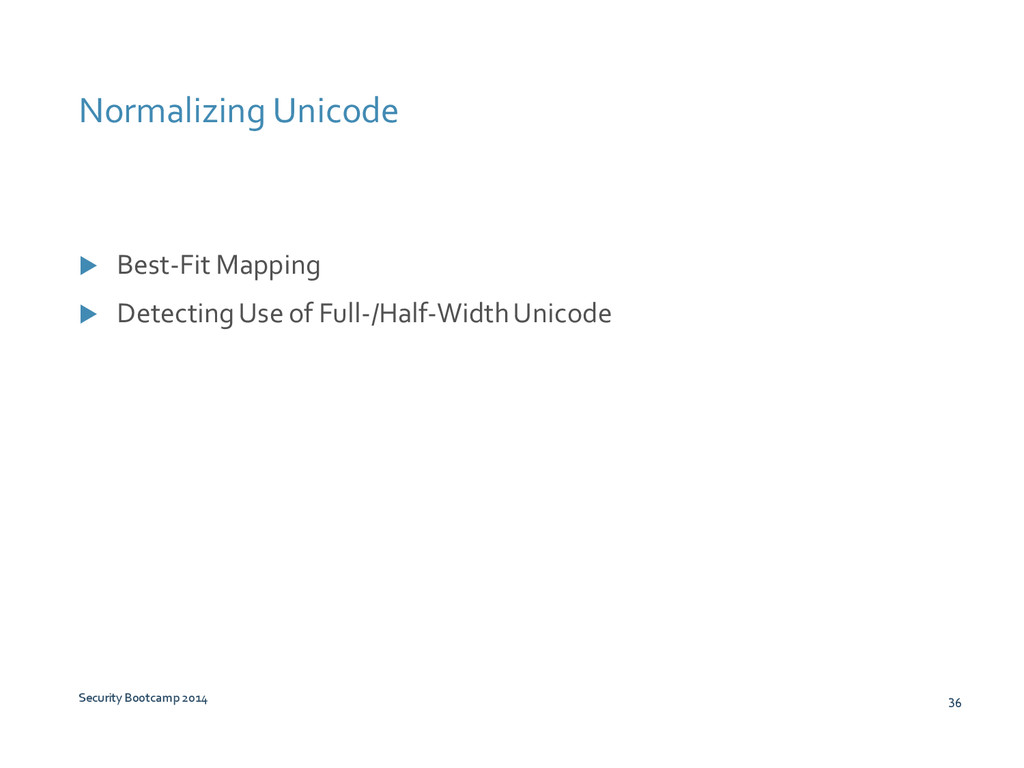

36. Normalizing Unicode  Best-Fit Mapping  Detecting Use of Full-/Half-Width Unicode Security Bootcamp 2014 36

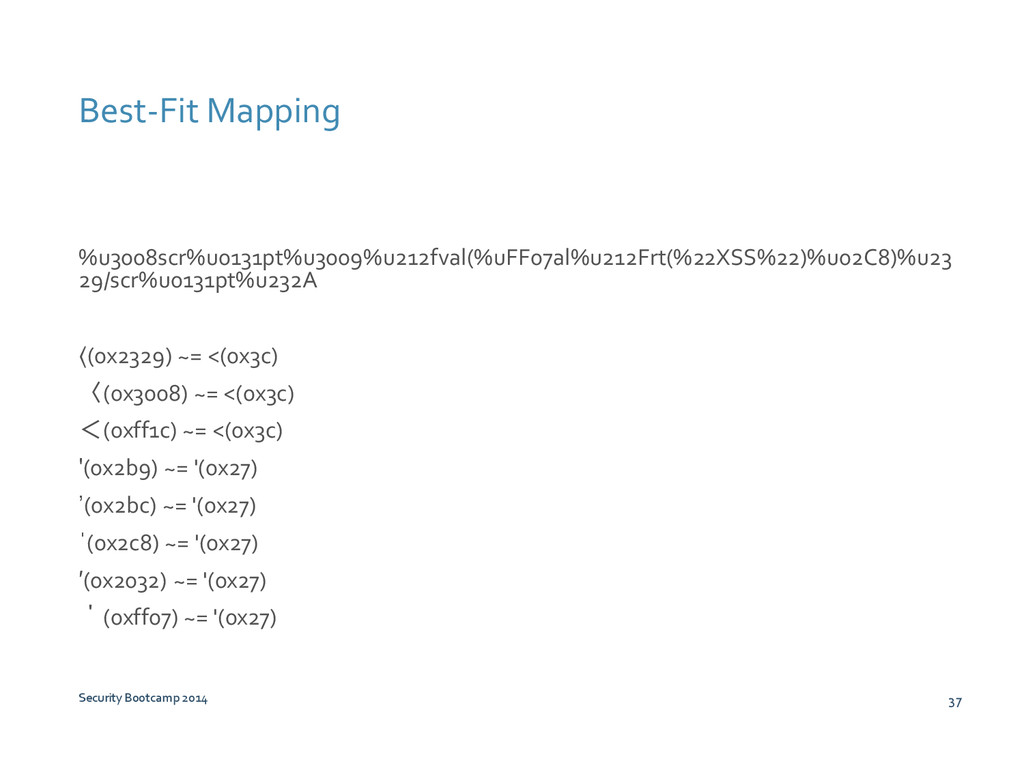

37. Best-Fit Mapping %u3008scr%u0131pt%u3009%u212fval(%uFF07al%u212Frt(%22XSS%22)%u02C8)%u23 29/scr%u0131pt%u232A 〈(0x2329) ~= <(0x3c) 〈(0x3008) ~= <(0x3c) ＜(0xff1c) ~= <(0x3c) ʹ(0x2b9) ~= '(0x27) ʼ(0x2bc) ~= '(0x27) ˈ(0x2c8) ~= '(0x27) ′(0x2032) ~= '(0x27) ＇(0xff07) ~= '(0x27) Security Bootcamp 2014 37

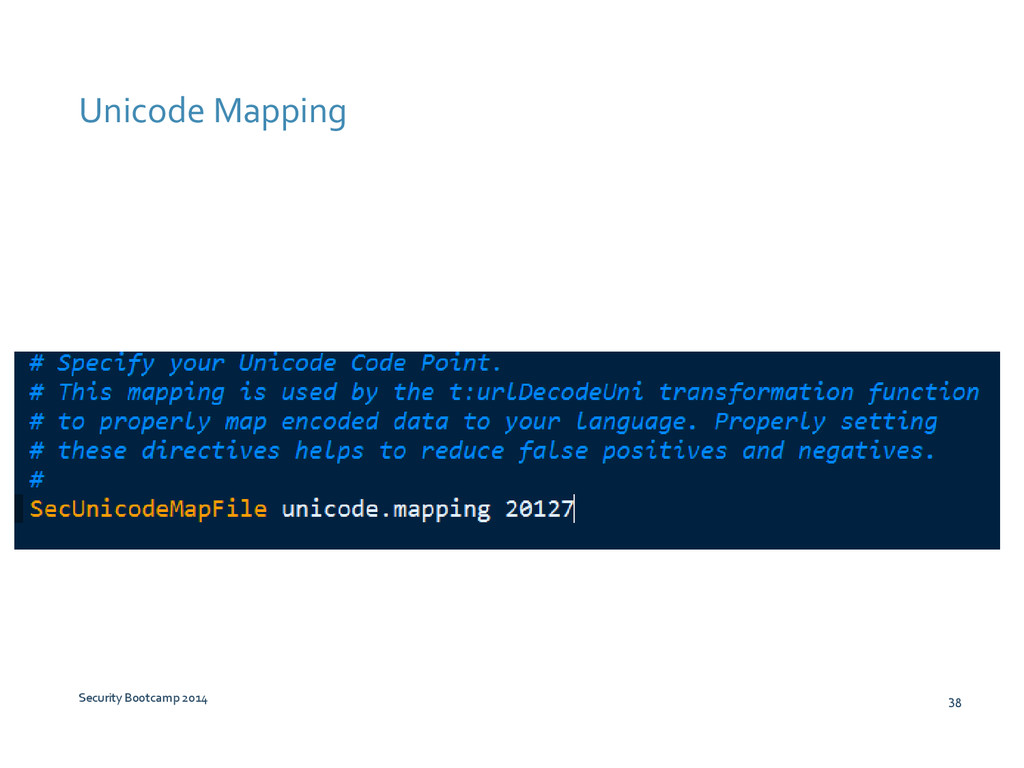

38. Unicode Mapping Security Bootcamp 2014 38

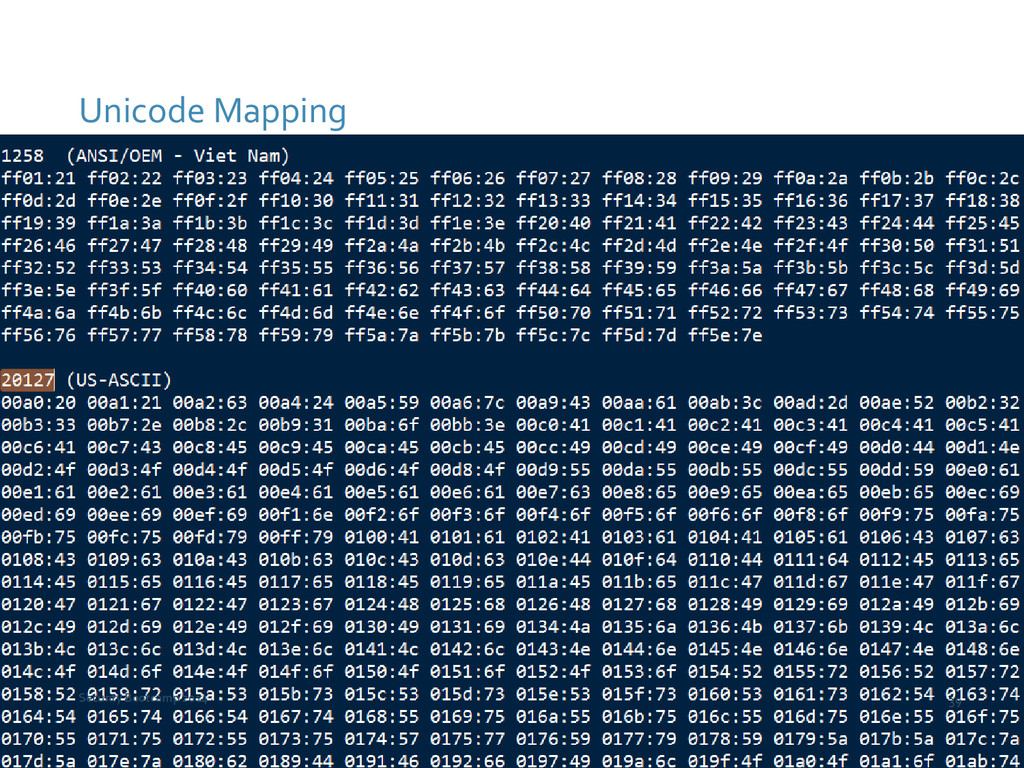

39. Unicode Mapping Security Bootcamp 2014 39

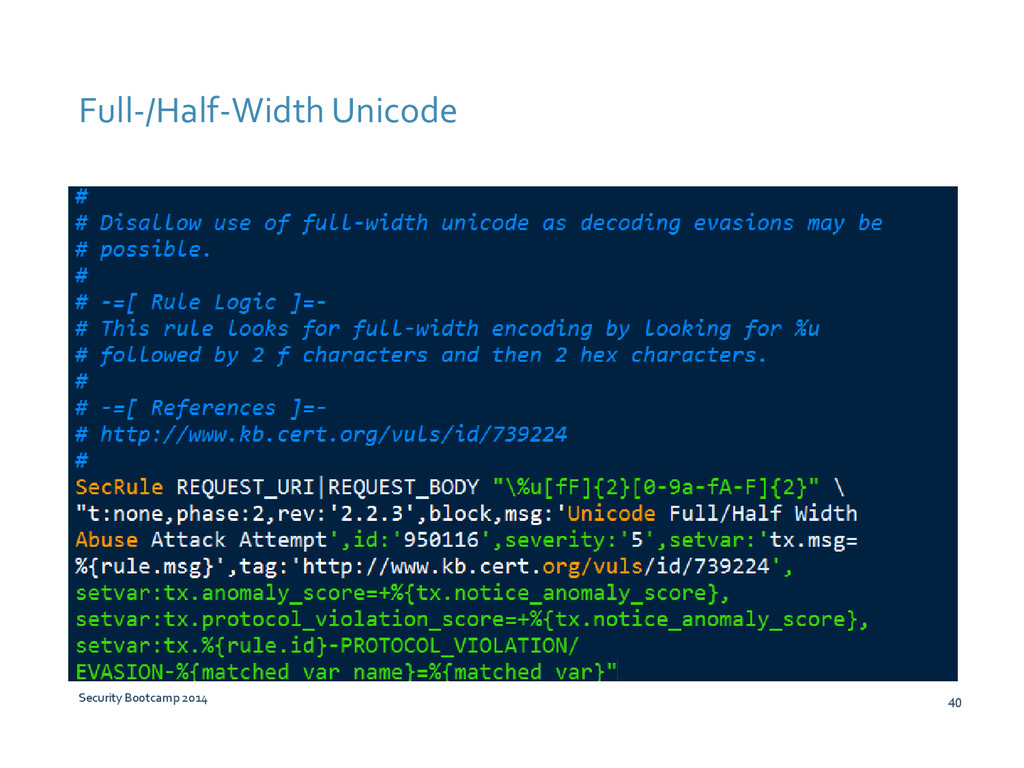

40. Full-/Half-Width Unicode Security Bootcamp 2014 40
41. 6. Abnormal Header Ordering Security Bootcamp 2014 41

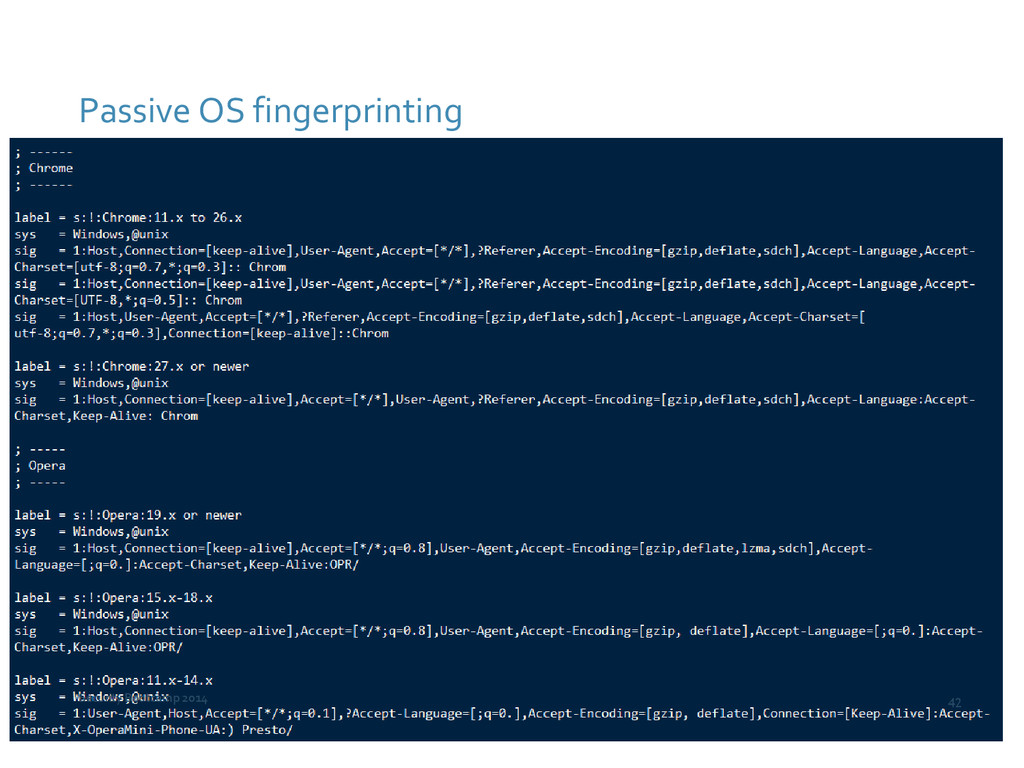

42. Passive OS fingerprinting Security Bootcamp 2014 42

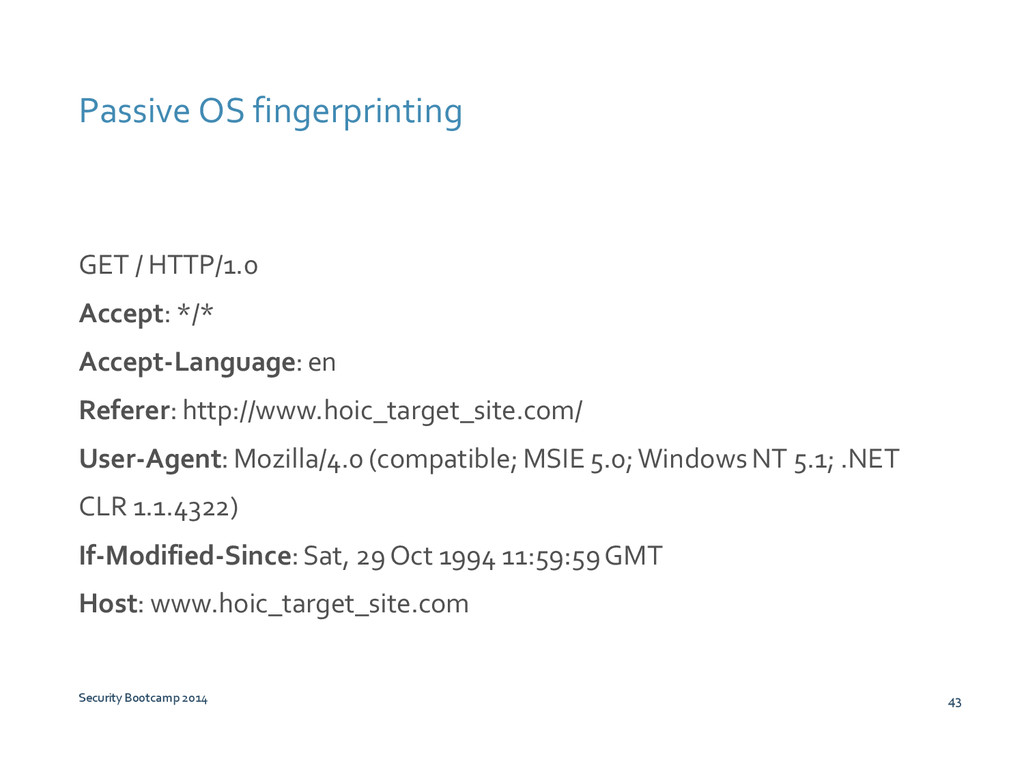

43. Passive OS fingerprinting Security Bootcamp 2014 43 GET / HTTP/1.0 Accept: */* Accept-Language: en Referer: http://www.hoic_target_site.com/ User-Agent: Mozilla/4.0 (compatible; MSIE 5.0; Windows NT 5.1; .NET CLR 1.1.4322) If-Modified-Since: Sat, 29 Oct 1994 11:59:59 GMT Host: www.hoic_target_site.com

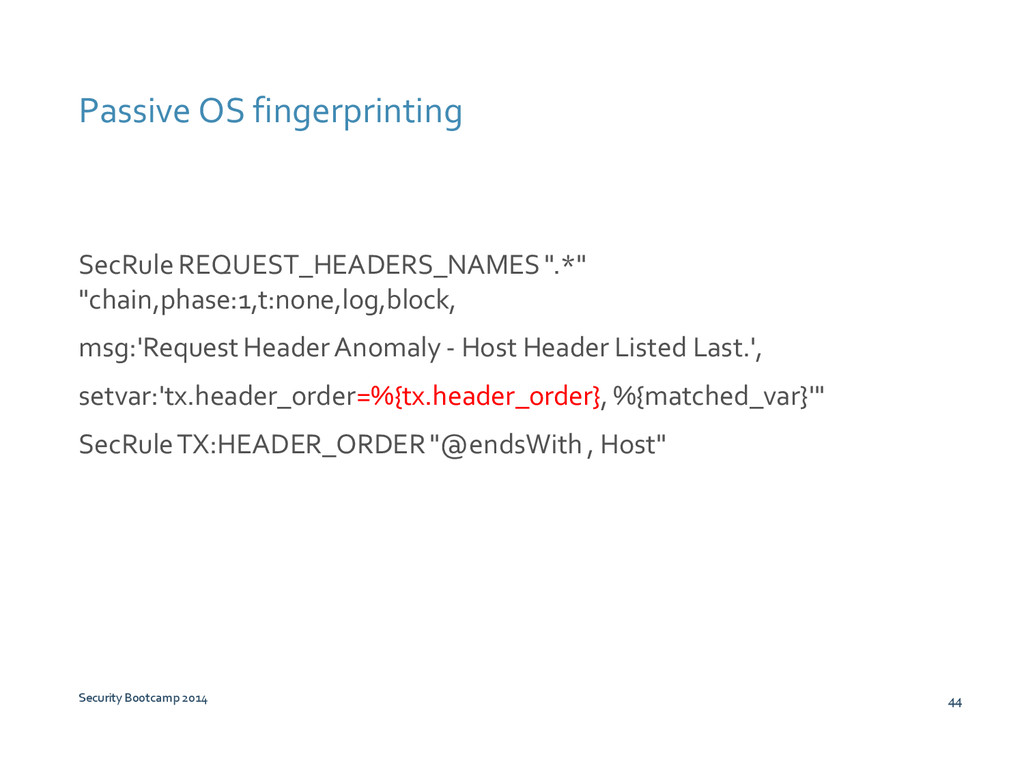

44. Passive OS fingerprinting Security Bootcamp 2014 44 SecRule REQUEST_HEADERS_NAMES ".*" "chain,phase:1,t:none,log,block, msg:'Request Header Anomaly - Host Header Listed Last.', setvar:'tx.header_order=%{tx.header_order}, %{matched_var}'" SecRule TX:HEADER_ORDER "@endsWith , Host"

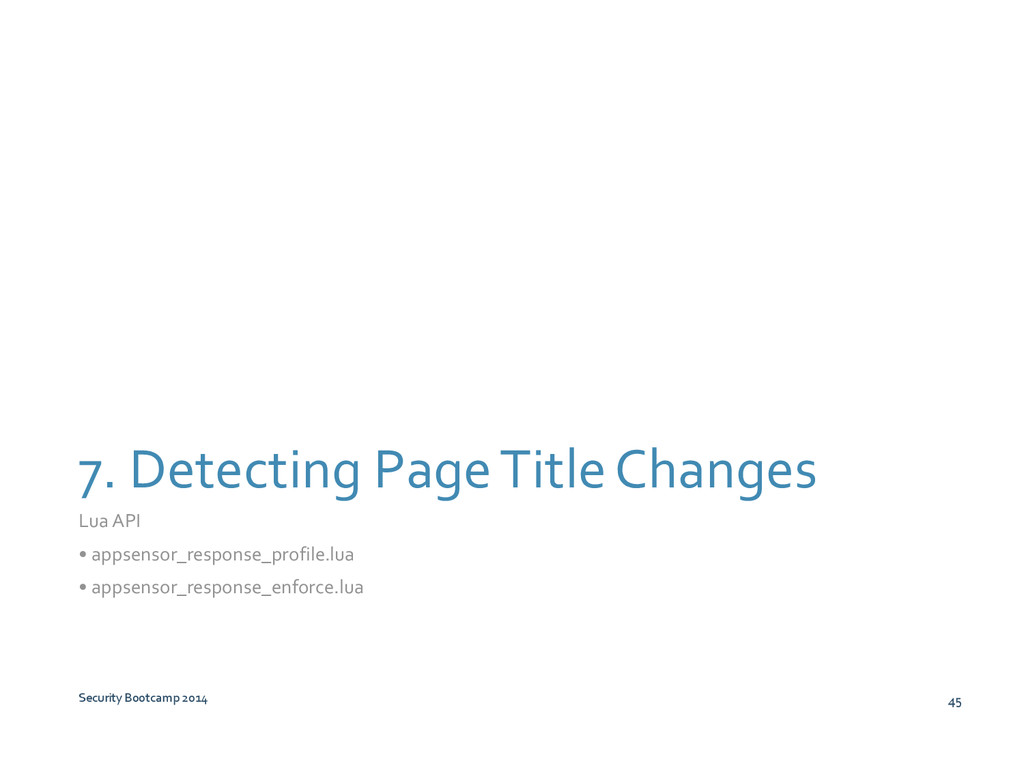

45. 7. Detecting Page Title Changes Lua API • appsensor_response_profile.lua • appsensor_response_enforce.lua Security Bootcamp 2014 45

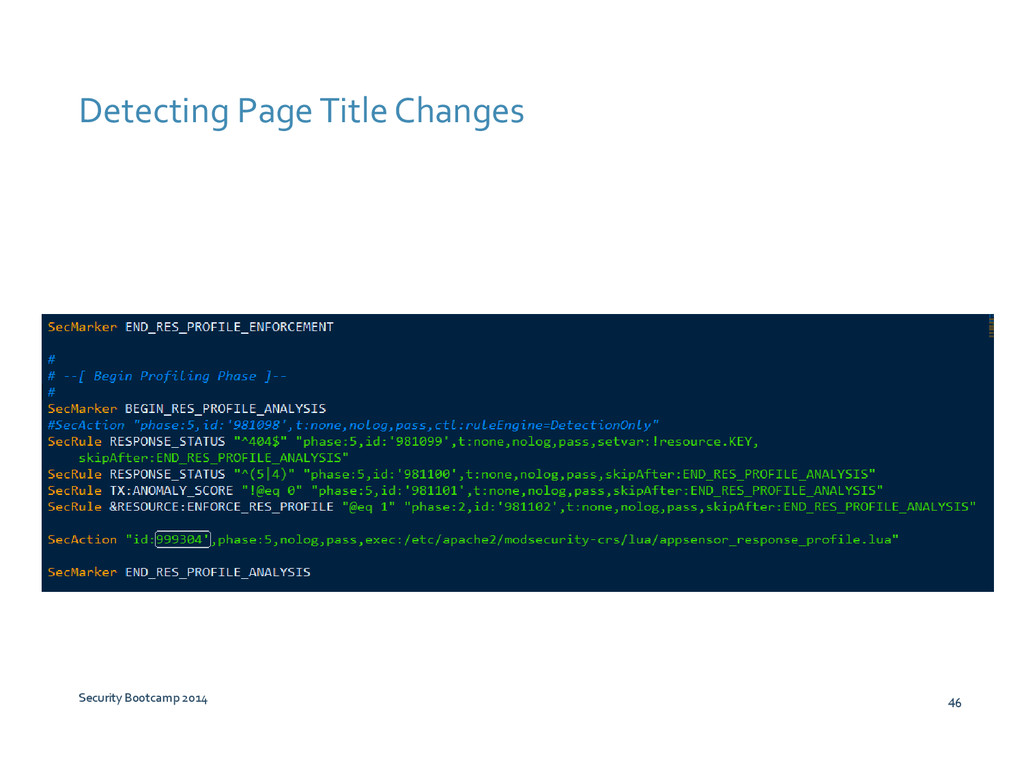

46. Detecting Page Title Changes Security Bootcamp 2014 46

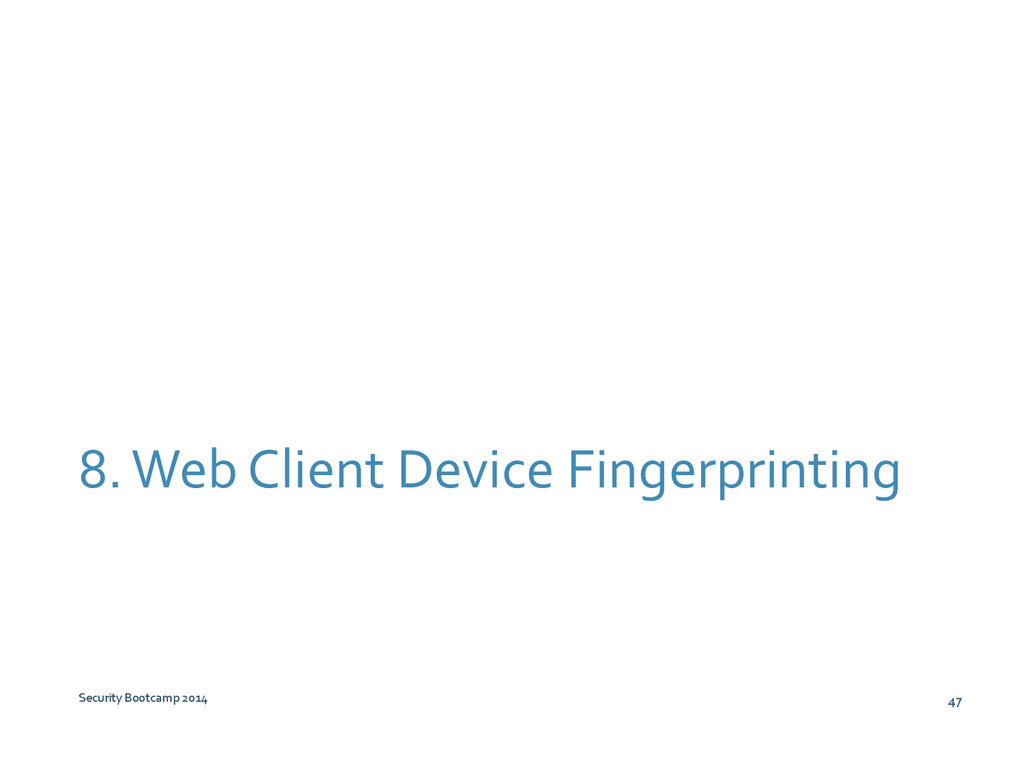

47. 8. Web Client Device Fingerprinting Security Bootcamp 2014 47

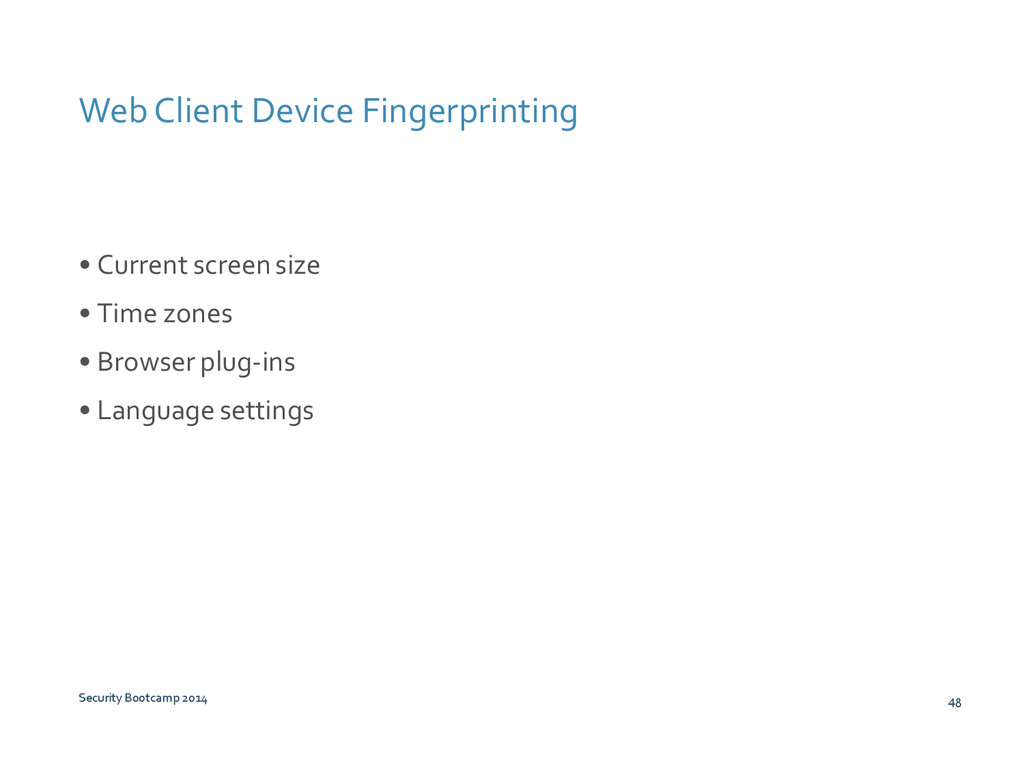

48. Web Client Device Fingerprinting Security Bootcamp 2014 48 • Current screen size • Time zones • Browser plug-ins • Language settings

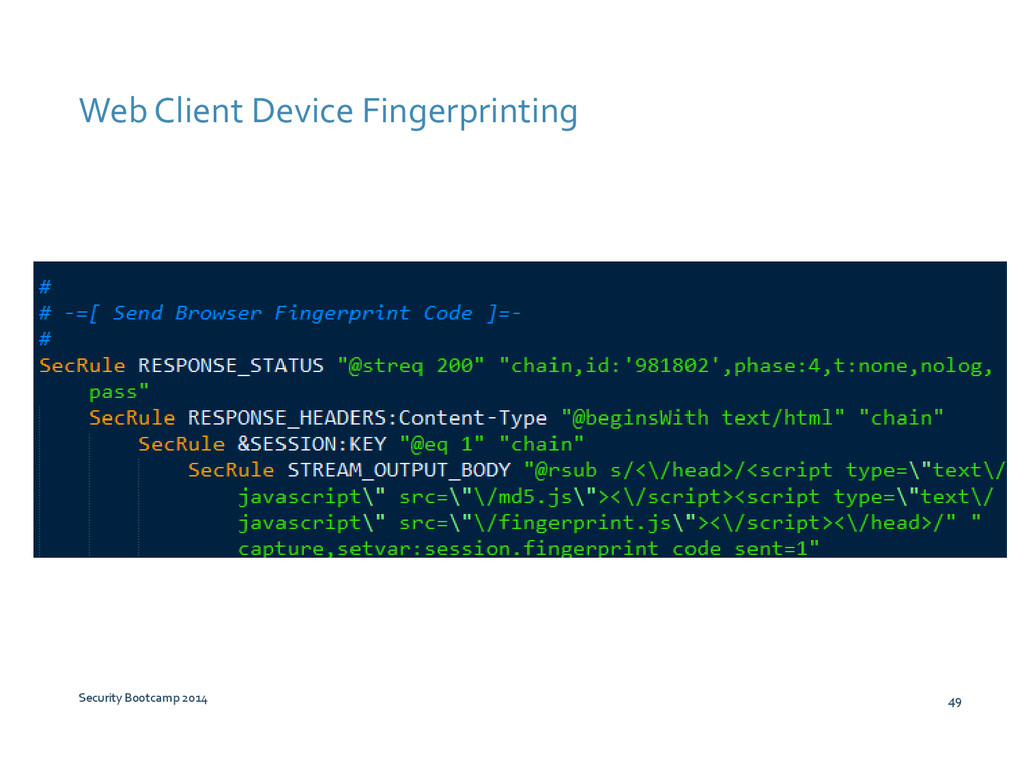

49. Web Client Device Fingerprinting Security Bootcamp 2014 49

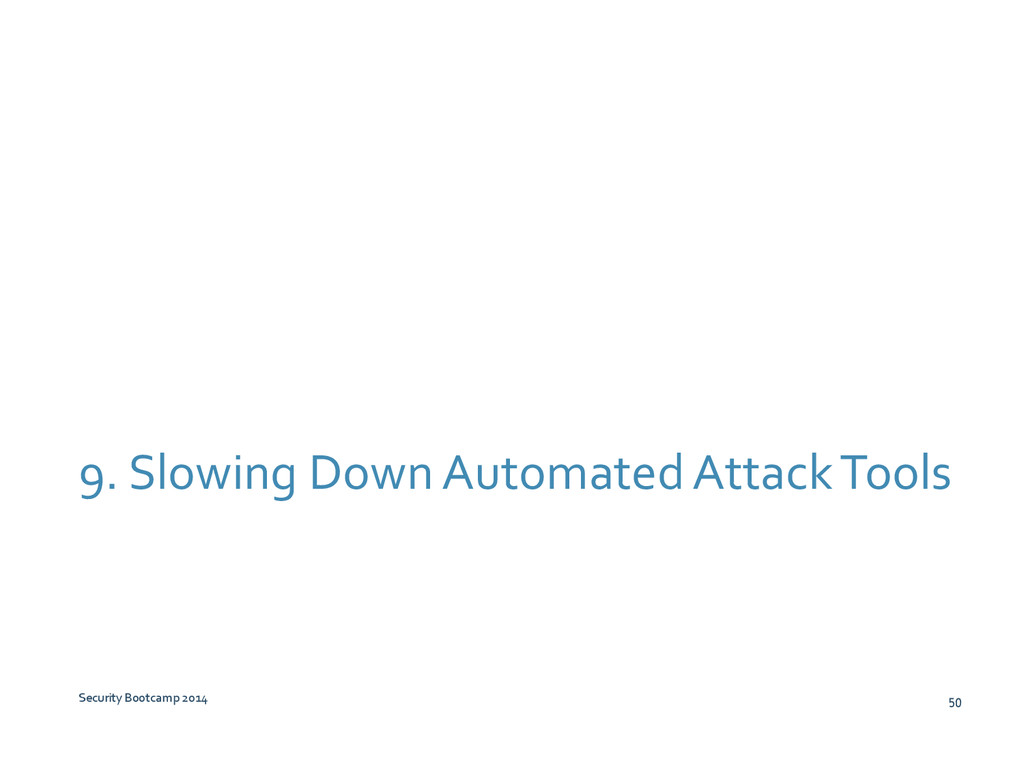

50. 9. Slowing Down Automated Attack Tools Security Bootcamp 2014 50
51. Slowing Down Automated Attack Tools Security Bootcamp 2014 51

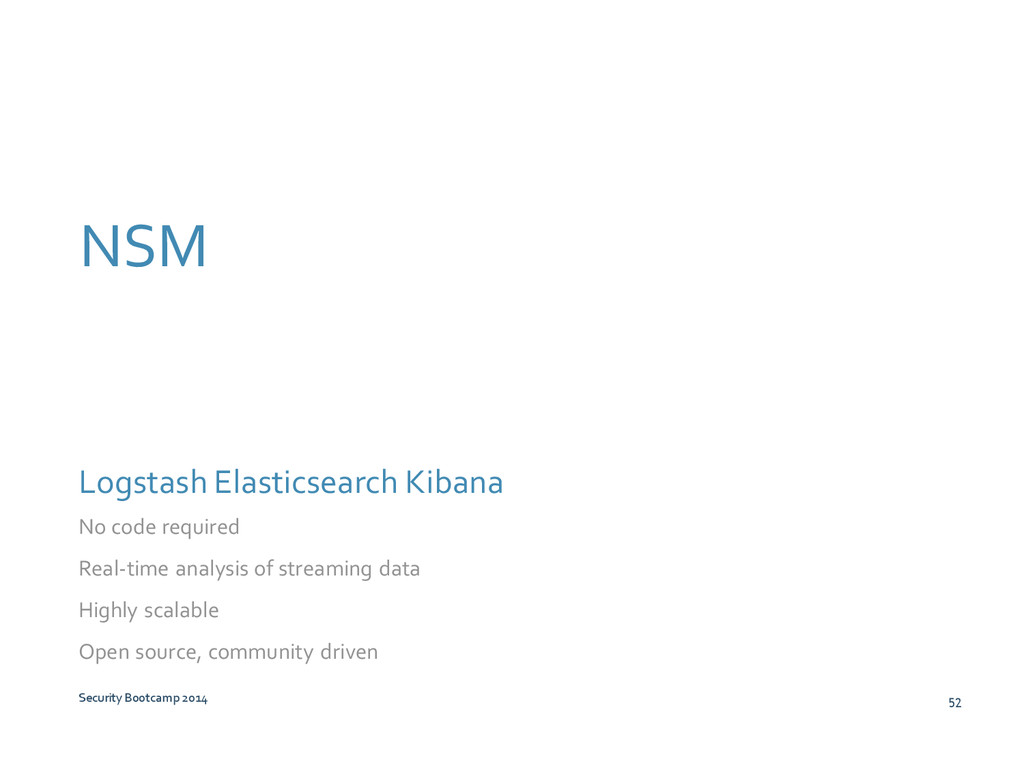

52. NSM Logstash Elasticsearch Kibana No code required Real-time analysis of streaming data Highly scalable Open source, community driven Security Bootcamp 2014 52

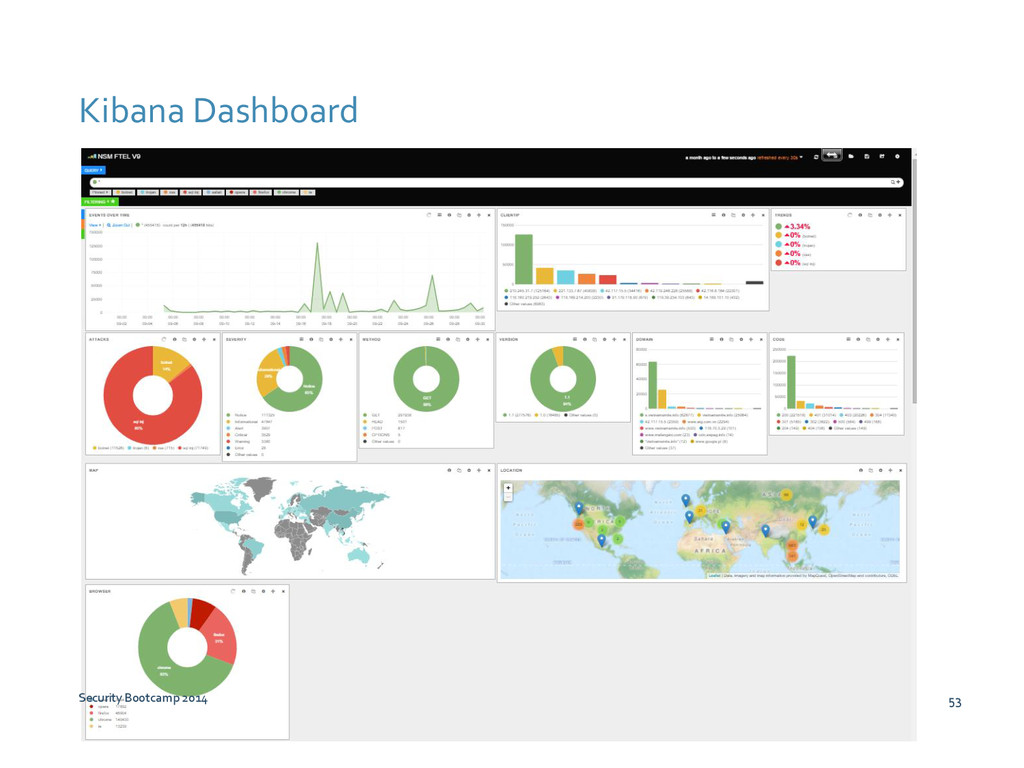

53. Kibana Dashboard Security Bootcamp 2014 53

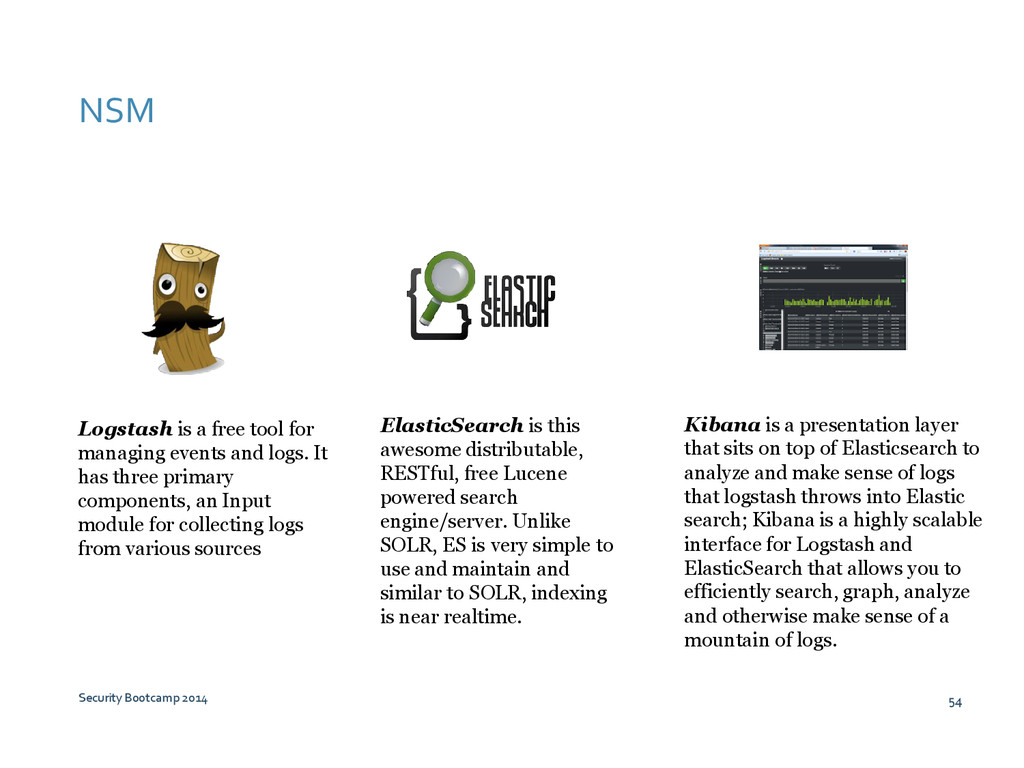

54. NSM Security Bootcamp 2014 54 Logstash is a free tool for managing events and logs. It has three primary components, an Input module for collecting logs from various sources ElasticSearch is this awesome distributable, RESTful, free Lucene powered search engine/server. Unlike SOLR, ES is very simple to use and maintain and similar to SOLR, indexing is near realtime. Kibana is a presentation layer that sits on top of Elasticsearch to analyze and make sense of logs that logstash throws into Elastic search; Kibana is a highly scalable interface for Logstash and ElasticSearch that allows you to efficiently search, graph, analyze and otherwise make sense of a mountain of logs.
55. Flow Security Bootcamp 2014 55

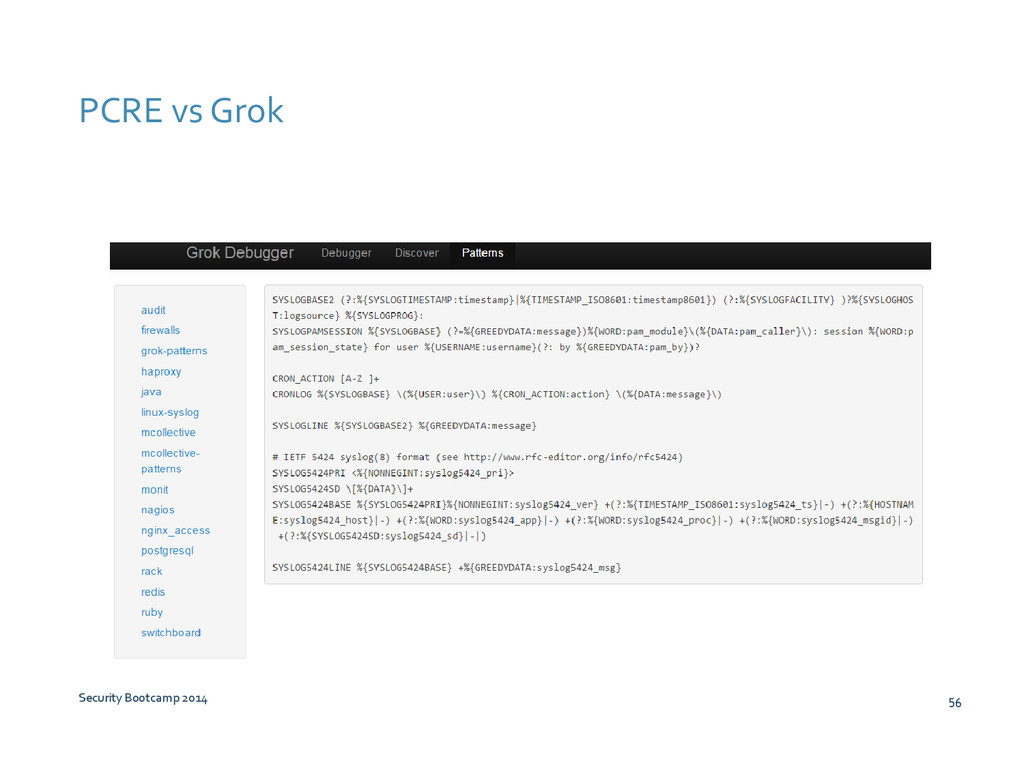

56. PCRE vs Grok Security Bootcamp 2014 56

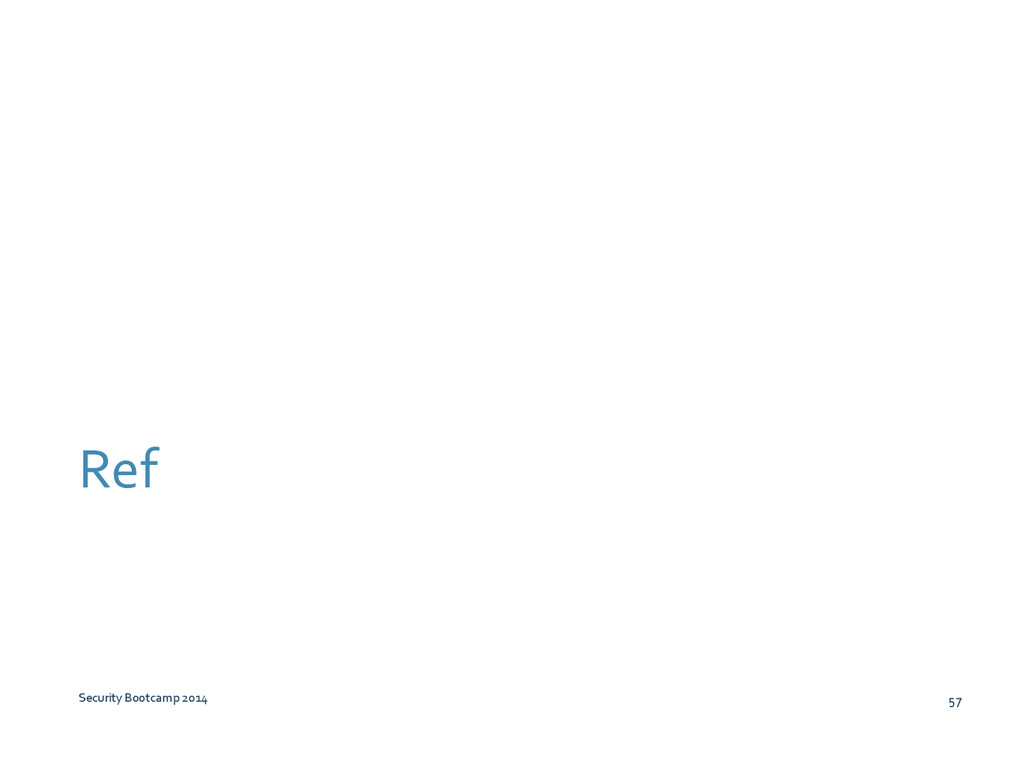

57. Ref Security Bootcamp 2014 57
58. Web Application Defender's Cookbook Battling Hackers and Protecting Users Ryan Barnett Security Bootcamp 2014 58

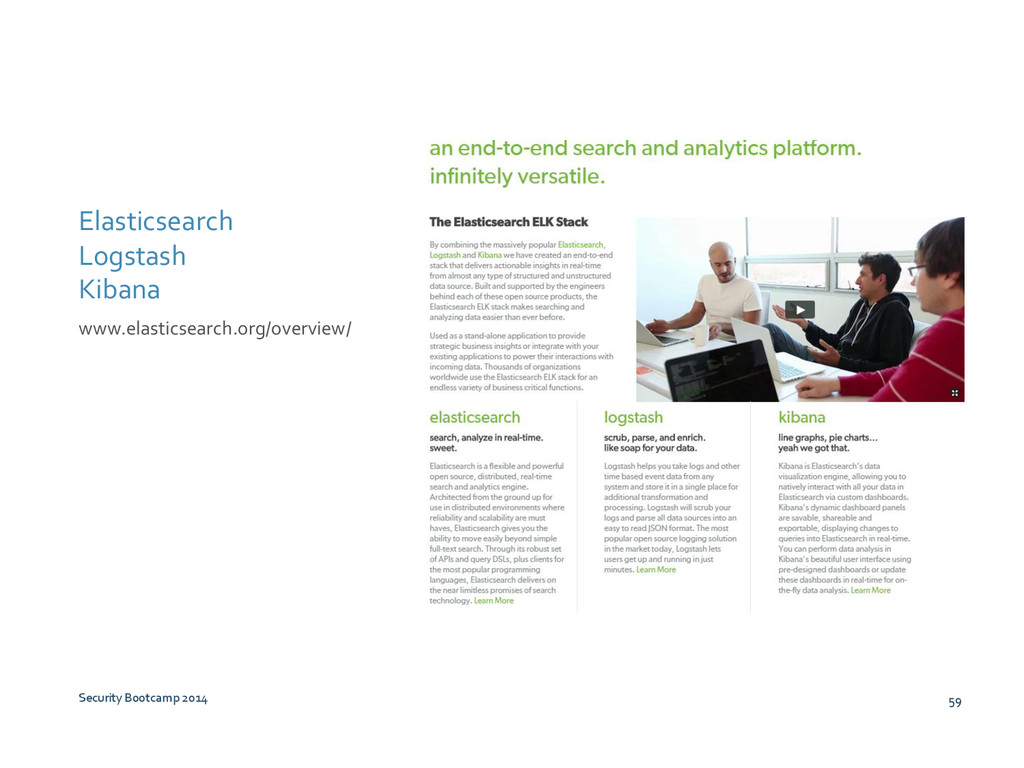

59. Elasticsearch Logstash Kibana www.elasticsearch.org/overview/ Security Bootcamp 2014 59
60. “ ” Thank you! Question, huh? Security Bootcamp 2014 60
