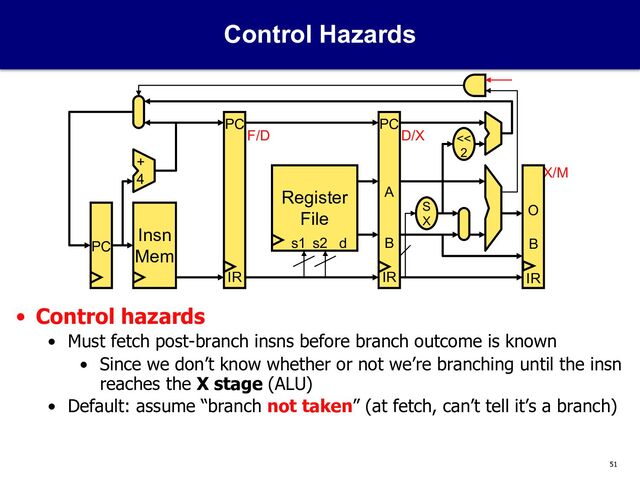

  1. 51
    Control Hazards
    • Control hazards
    • Must fetch post-branch insns before branch outcome is known
    • Since we don’t know whether or not we’re branching until the insn
    reaches the X stage (ALU)
    • Default: assume “branch not taken” (at fetch, can’t tell it’s a branch)
    PC
    Insn
    Mem
    Register
    File
    s1 s2 d
    +
    4
    <<
    2
    F/D D/X
    X/M
    PC
    A
    B
    IR
    O
    B
    IR
    PC
    IR
    S
    X

    View Slide

  2. 52
    Branch Recovery
    • Branch recovery: what to do when branch is taken
    • Flush insns currently in F/D and D/X (they’re wrong)
    • Replace with NOPs
    + Haven’t yet written to RegFile or DMem
    PC
    Insn
    Mem
    Register
    File
    s1 s2 d
    +
    4 <<
    2
    PC
    F/D D/X
    X/M
    nop
    nop
    PC
    A
    B
    IR
    O
    B
    IR
    PC
    IR
    S
    X

    View Slide

  3. 56
    Fast Branch
    • Fast branch: can decide at D instead of X
    • Duplicate comparison logic only, not the whole ALU
    + New taken branch penalty is now 1 stall instead of 2
    – Additional insns (slt) for more complex tests, must bypass to D too
    • 25% of branches have complex tests that require extra insn
    • CPI = 1 + 0.20*0.75*1(branch) + 0.20*0.25*1(extra insn) = 1.2
    PC
    Insn
    Mem
    Register
    File
    s1 s2 d
    +
    4
    <<
    2
    F/D
    D/X X/M
    S
    X
    <>
    0
    O
    B
    IR
    A
    B
    IR
    PC
    IR
    S
    X
