Recent Developments on FRATS

Sander ter Veen

Transcript

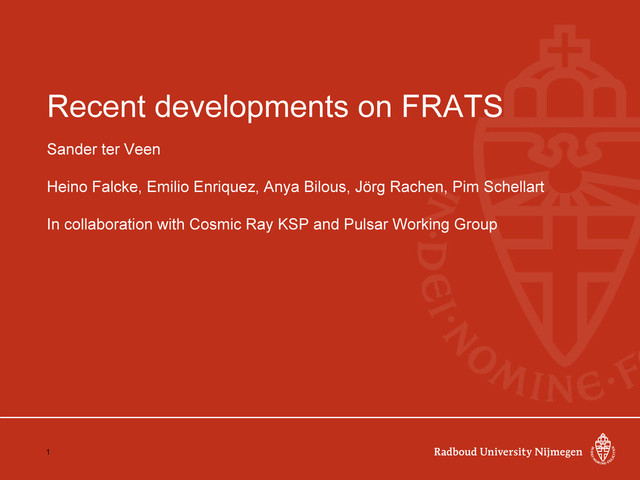

1. Recent developments on FRATS
   Sander ter Veen
   Heino Falcke, Emilio Enriquez, Anya Bilous, Jörg Rachen, Pim Schellart
   In collaboration with Cosmic Ray KSP and Pulsar Working Group
   1


   View Slide

2. FRATS
   Real-time detection of Fast Radio Transients
   2
   •  Science:
   •  Millisecond pulses
   •  Searching for Unknown Objects
   •  Searching for Unknown classes/ processes
   •  Statistics on known sources
   •  Fishing expedition
   •  Fast: beamforming mode


   View Slide

3. Objects emitting millisecond pulses
   3
   Pulsars/ RRATs
   (exo) planets
   Humans
   Flare stars


   View Slide

4. Catch them all!
   Fish in the big pool
   4
   Incoherent summation of
   the station beam
   Keeps large FoV
   Parallel observing to other
   observations
   FoV
   (sq. degr)
   LBA
   INNER
   LBA
   OUTER
   30 MHz 419 65.8
   60 MHz 105 16.5
   HBA
   CORE
   HBA
   150 MHz 18.4 10.3


   View Slide

5. Disperion
   “refractive index of space”
   5
   •  Dispersion effect:
   Signal at lower frequencies
   arrive later.
   •  Data is split in small
   channels (~ kHz )
   •  Channels are summed
   according to dispersion law
   •  Many (>100) DM trials
   Lorimer et al. 2007
   Trigger moment
   Stop delay


   View Slide

6. What is it?
   6


   View Slide

7. What is it?
   Is it celestial?
   7
   Lorimer Burst
   Lorimer et al. 2007
   Is it a Peryton?
   Burke-Spoloar et al. 2010
   Need an array for confirmation!
   Two more found!


   View Slide

8. Trigger on source
   Real-time detection.
   8
   Dedispersion in multiple frequency bands
   Coincidence requirement between the bands


   View Slide

9. Transient Buffer Board (TBBs)
   RAM Ring buffer for each LBA/HBA
   element
   Data stored, stopped, dumped to
   disk.
   Reproduce any LOFAR signal; Also
   your data!
   Limited memory => limited time
   Beamsize:
   LBA: All-sky (30000 sq. degr)
   HBA: 500 sq. degr.
   9


   View Slide

10. Use TBB data to identify the source
    Real-time detection.
    10
    Dedispersion in multiple frequency bands
    Coincidence requirement between the bands
    Image from TBB data
    Use to identify source

    +Multiwavelength Follow-up
    4 stations
    See Presentation by Emilio at 17:05


    View Slide

11. FRATS + MSSS LBA
    •  MSSS LBA
    •  All-sky observations
    •  3 beams of 8x2 MHz
    •  Test observations have run
    •  100 hours remaining
    •  1 locus node per beam
    •  150 DM trials
    11


    View Slide

12. Search parameters: Maximum DM
    •  After trigger, same bandwidth should be available in TBB data for easy
    checking
    •  Dispersion delay
    •  ΔtDM
    =1.3 s (buffer length)
    •  Max DM depends on frequency
    12


    View Slide

13. DM step and time window
    13
    •  Error in DM trial vs DM pulse
    •  Decreases efficiency
    •  Compared samples summed for
    for one DM trial compared to the next
    •  150-200 DM trials in real-time
    •  ΔDM=0.1 reasonable
    •  Lower frequencies problematic, skip?
    •  Time window 200 ms


    View Slide

14. Coincidence between bands
    single triggers
    14


    View Slide

15. Coincidence between bands
    dual channel triggers
    15


    View Slide

16. Coincidence between bands
    triple channel triggers
    16


    View Slide

17. RFI mitigation: Raw data
    17


    View Slide

18. RFI mitigation: Divide by spectrum
    18


    View Slide

19. RFI mitigation: Flagging method
    •  Gaussian data:
    •  Flag channels that are outliers
    •  Narrow time flagging:
    -  Dedisperse DM=0
    -  Coincidence of 2 bands
    19
    n
    ⌅
    i=1
    a2
    i
    ⇥
    n
    ⌅
    i=1
    ai
    ⇤2
    = C


    View Slide

20. RFI mitigation: Flag RFI
    20


    View Slide

21. Different averages per block
    21
    Top to bottom:
    73-75 MHz
    65-67 MHz
    60-62 MHz
    54-56 MHz
    48-50 MHz
    42-44 MHz
    36-38 MHz
    30-32 MHz
    Arbitrary offset
    between channels



    View Slide

22. Artifacts in dedispersed data
    22
    Top to bottom:
    73-75 MHz
    65-67 MHz
    60-62 MHz
    54-56 MHz
    48-50 MHz
    42-44 MHz
    36-38 MHz
    30-32 MHz
    Arbitrary offset
    between channels



    View Slide

23. RFI mitigation: Subtract average timeseries (zeroDM-ing)
    23


    View Slide

24. Sometimes there is just too much RFI
    24


    View Slide

25. Manual trigger verification
    25
    BAD


    View Slide

26. Manual trigger verification
    Real pulse from B1919+21
    26
    Good


    View Slide

27. Trigger settings MSSS LBA
    8x 2 MHz bands at: 30-32 MHz
    36-38 MHz
    42-44 MHz
    48-50 MHz
    54-56 MHz
    60-62 MHz
    65-67 MHz
    73-75 MHz
    DM range 0-15 pc cm-3
    DM step: 0.01 pc cm-3
    Coincidence time window: 200 ms
    Coincidences required: 3 bands
    27


    View Slide

28. Log N / Log S
    1 hour of data 4x11 minute
    28


    View Slide

29. Status and outlook
    •  Trigger algorithm now runs 150 DM trials real-time
    •  Trigger parameters defined
    •  First test observations have been run (3x 4 hours)
    -  Handled triggers were all RFI events, apart from a trigger on B1919+21
    •  To do:
    -  Run during remaining MSSS LBA observation (100 h)
    -  Run during MSSS HBA observations (full sky)
    -  Run during other observations?
    -  Make FRATS an easy add-on in LOFAR online system
    -  Further tuning of trigger algorithm
    -  Only use core-stations for incoherent beam
    •  TBB localisation (see talk by Emilio Enriquez)
    •  Trigger from ARTEMIS and other sources
    29


    View Slide

30. Summary
    FRATS searches for dispersed millisecond pulses from various
    objects with a wide FoV parallel to other observations.
    Transient Buffer Boards see the whole sky for 1.3 seconds and
    thereby are a powerful tool to identify short duration signals
    First commissioning observations have been run
    30


    View Slide

31. View Slide

32. Scattering
    Low DM, low scattering
    32


    View Slide

33. Trigger parameters
    LBA bright small-band pulses observed or Scintillation effects?
    33
    Subband group
    38 MHz
    54 MHz
    Sample number
    Detected pulses in each band


    View Slide
