8 Years of Config Management

Starting with a small Puppet deployment in 2009, followed by the spread of Bcfg2 and finally the development and full-scale adoption of BundleWrap, we explore how configuration management at //SEIBERT/MEDIA has changed over the years.
This is not a talk about what you should do, but one about what we did – and more importantly where we went wrong. Learn from our mistakes as we did, both on a technical level and from a human perspective as we scaled our config managment from 1 to 30 contributors and 700 servers. Understand why we made BundleWrap and how some of its unique features help us every day.

Recording: https://media.ccc.de/v/froscon2017-1977-8_years_of_config_management

Transcript

1. 8 YEARS CONFIG MANAGEMENT OF FrOScon 2017
2. TORSTEN REHN since 2008
3. 38 commits per day 21 contributors last month 10k+ services in Icinga 727 managed nodes WHY SHOULD YOU CARE?
4. 2009 HUMBLE BEGINNINGS
5. no iPad Michael Jackson lives Obama freshly in office Deepwater Horizon a year away still looking for bin Laden H1N1
6. THE MISSION “Build something that automates management of our web hosting customers.”
7. In the beginning, there was a shell script.
10. BCFG2 LDAP WEB WEB DB CTRL
11. 2011 WHAT HAVE I DONE
12. LDAP LDAP LDAP LDAP LDAP LDAP BCFG2 LDAP WEB WEB DB BCFG2 LDAP GIT BCFG2 LDAP BCFG2 LDAP STUFF STUFF STUFF BCFG2 LDAP CTRL CTRL REPL REPL MASTER DEV
13. <?python if 'debian' in metadata.groups or 'ubuntu' in metadata.groups: import ldap l = ldap.initialize('ldap://localhost:389') l.simple_bind("uid=bcfg2,ou=AutomationUsers,dc=smhss,dc=de", "32US5wa8jXTb") users = [] g = l.search_s('dc=smhss,dc=de', ldap.SCOPE_SUBTREE, '(&(objectClass=posixGroup)(|(cn=' + metadata.hostname + ')(cn=systems)))', ['cn', 'memberUid']) for group in g: for uid in group[1].get("memberUid", ()): u = l.search_s('dc=smhss,dc=de', ldap.SCOPE_SUBTREE, '(&(objectClass=posixAccount)(uid=' + uid + '))', ['homeDirectory', 'sshPublicKey']) users.append({ "uid" : uid, "homedir" : u[0][1]["homeDirectory"][0], "pubkey" : u[0][1]["sshPublicKey"][0], }) ?> <Bundle name="ssh_ldap_pubkey" xmlns:py="http://genshi.edgewall.org/" xmlns:xi="http://www.w3.org/ 2001/XInclude"> <py:if test="'debian' in metadata.groups or 'ubuntu' in metadata.groups"> <Package name="auth-client-config" /> <BoundConfigFile py:for="user in users" name="${user['homedir'].rstrip('/')}/.ssh/authorized_keys" owner="${user['uid']}" group="root" perms="0600" >${user['pubkey']}</BoundConfigFile>
14. git commit; git push wait for post-update hooks to rsync git repo to each bcfg2-server ssh into each node running slapd rm -rf /var/lib/ldap/* && /etc/init.d/slapd restart ssh into target node run bcfg2-apply wait up to 70 minutes hit N, ENTER a couple dozen times curse the idiot who came up with this crap
15. 2012 HOW HARD CAN IT BE
16. „Instead of spending hours trying to get Chef installed, […] we recommend […] a free Enterprise Chef account and we'll take care of the Chef Server for you.“ learnchef.opscode.com
17. commit f31421576b00f0b167cdbe61217c31c21a41ac02 Author: Michael DeHaan <[…]@gmail.com> Date: Thu Feb 23 14:17:24 2012 -0500 Genesis.
18. NIH
19. commit e94fefc88863dcd9943078ff8ef7c869d837786c Author: Torsten Rehn <torsten@rehn.tel> Date: Sun Jul 1 21:03:20 2012 +0200 A NEW HOPE
20. “FIXING” BCFG2 better Template engine no more XML item-level parallelism fast diffs bundles + metadata = configuration interactive mode Python everywhere
21. NO SERVER
22. NO AGENT
24. BundleWrap
25. 2013 HOLD MY BEER
26. commit b2d3f78fcb8392864527721dde32f923d4c4e2ee Author: Torsten Rehn <torsten@rehn.tel> Date: Sun Jun 9 15:38:25 2013 +0200 Damn the torpedoes. Four bells, Captain Drayton.
27. $ bw test ✓ gce.smedia-1.netbox has no metadata collisions ✓ gce.smedia-1.netbox systemd action:systemd-locale ✓ gce.smedia-1.netbox netbox symlink:/opt/netbox ✓ gce.smedia-1.netbox ntp file:/etc/ntp.conf ✓ gce.smedia-1.netbox has no IP conflicts ✓ gce.smedia-1.netbox has valid SLA metadata
28. $ bw verify -a mynode ✓ mynode hosts file:/etc/hosts ✓ mynode hosts file:/etc/hostname i ╭────────┬───────┬──────┬─────┬────────┬──────────╮ i │ node │ items │ good │ bad │ health │ duration │ i ├────────┼───────┼──────┼─────┼────────┼──────────┤ i │ mynode │ 2 │ 2 │ 0 │ 100.0% │ 1s │ i ╰────────┴───────┴──────┴─────┴────────┴──────────╯
29. groups = { ‘important_stuff’: { ‘members’: [‘that-old-db-host’], ‘member_patterns’: [‘^cluster-1\.’], ‘members_add’: lambda node: node.metadata[‘is_production’], ’members_remove’: lambda node: node.os == ‘debian’, } }
30. groups = { ‘germany’: { ‘metadata’: {‘nameservers’: [‘8.8.8.8’]}, ‘subgroups’: [‘frankfurt’], }, ‘frankfurt’: { ‘metadata’: {‘nameservers’: [‘8.8.4.4’]}, ‘members’: [‘node-1’], }, } nodes = { ‘node-1': { ‘metadata’: {‘nameservers’: atomic([’10.1.2.3’])},

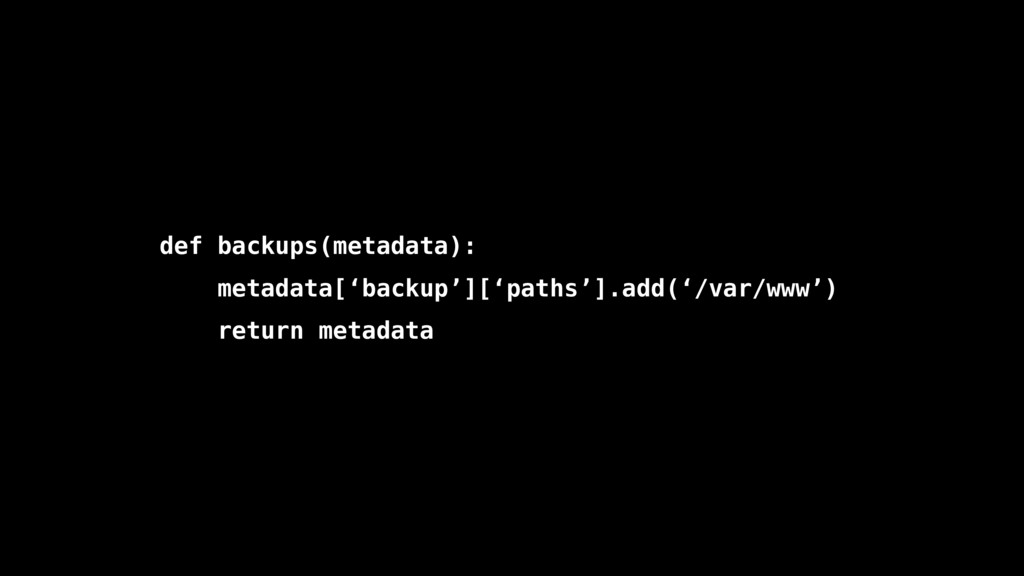

31. def backups(metadata): metadata[‘backup’][‘paths’].add(‘/var/www’) return metadata
32. 2014 LET’S DO THIS
33. 0 142 284 426 568 710 3 Median 87 Average NODES / BUNDLE
34. 1 10 100 1.000 3 Median 87 Average NODES / BUNDLE
35. $ bw plot node mynode | dot -Tpng -omynode.png
39. REPO NODE ITEM file dir svc pkg file hash hash hash hash hash hash hash hash
40. $ bw hash -d gce.smedia-1.netbox file:/etc/hosts content_hash 4deb6fa4dfbfc49197d2010e8c3243734b4ec9d5 group root mode 0644 owner root type file $ bw hash -d gce.smedia-1.netbox d97ae6dbf84a38[…]c372febd90e0 file:/etc/crontab 1744c47d6eade0[…]5a246abac701 file:/etc/hosts 0b7f33337af160[…]e53aadbac864 pkg_apt:nginx $ bw hash gce.smedia-1.netbox file:/etc/hosts 1744c47d6eade097d10e8c3243735a246abac701
41. $ bw hash -d 59881a3be29f[…]bee39bcf7 gce.smedia-1.gateway 915f56ca0785[…]3aa9cf7d3 gce.smedia-1.hubot 9ecef21615f0[…]e5a8635c4 gce.smedia-1.inforelay a6de0dd8a187[…]2f9426ac7 gce.smedia-1.netbox 9e7468028d2a[…]e1f257155 gce.smedia-1.nexus $ bw hash a43042c583392f46dce1e25f0bef1949b7122934 $ bw hash gce.smedia-1.netbox a6de0dd8a187446e308a989861369152f9426ac7
42. 2016 WEEEEEEEEEE
43. 0 2.500 5.000 7.500 10.000 2009 2010 2011 2012 2013 2014 2015 2016 2017 COMMITS / YEAR

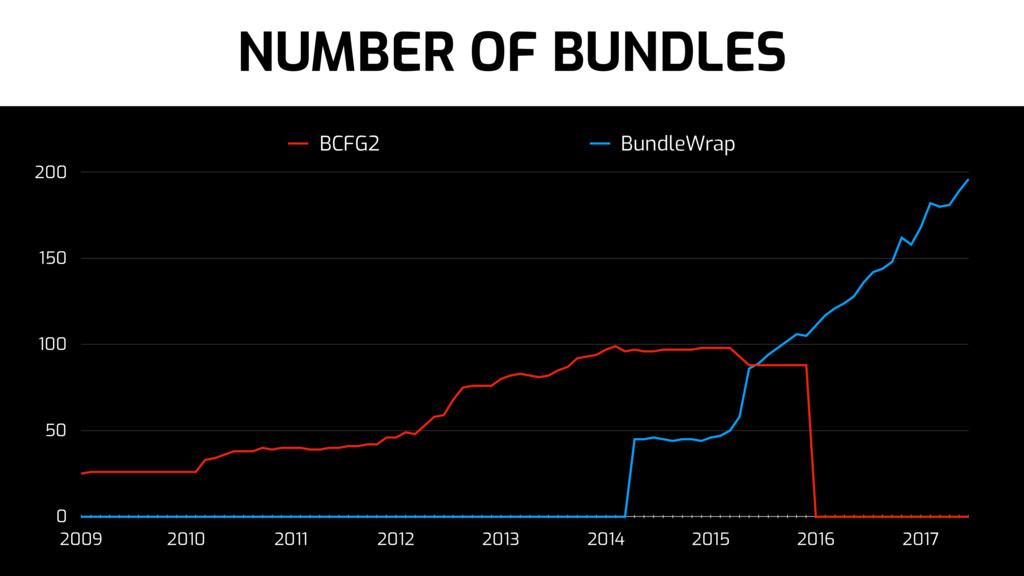

44. 0 50 100 150 200 2009 2010 2011 2012 2013 2014 2015 2016 2017 BCFG2 BundleWrap NUMBER OF BUNDLES
45. 0 75 150 225 300 Mar 2016 May 2016 Jul 2016 Sep 2016 Nov 2016 Jan 2017 Mar 2017 May 2017 Jul 2017 PULL REQUESTS / MONTH

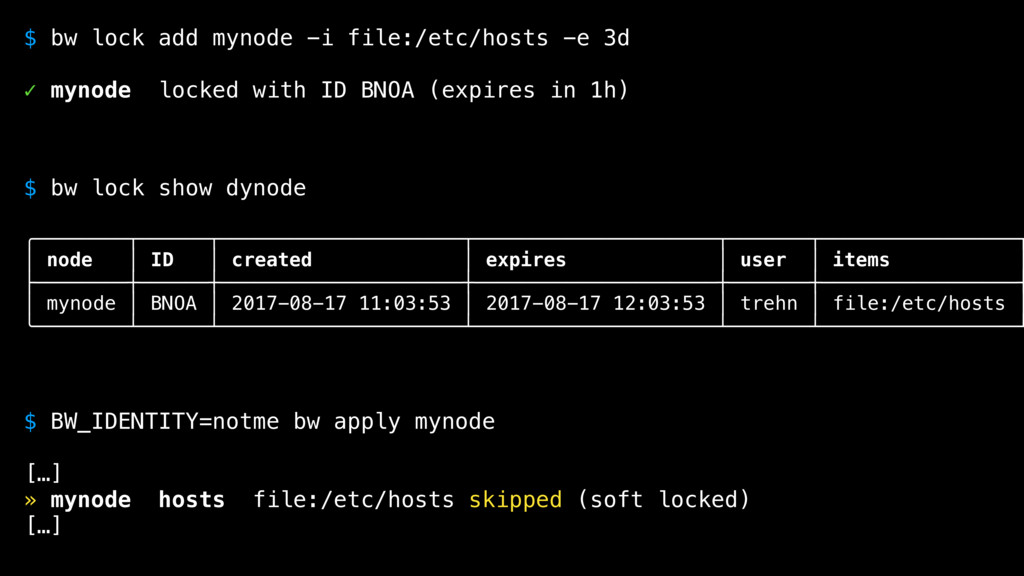

46. $ bw lock add mynode -i file:/etc/hosts -e 3d ✓ mynode locked with ID BNOA (expires in 1h) $ bw lock show dynode ╭────────┬──────┬─────────────────────┬─────────────────────┬───────┬─────────────────┬ │ node │ ID │ created │ expires │ user │ items │ ├────────┼──────┼─────────────────────┼─────────────────────┼───────┼─────────────────┼ │ mynode │ BNOA │ 2017-08-17 11:03:53 │ 2017-08-17 12:03:53 │ trehn │ file:/etc/hosts │ ╰────────┴──────┴─────────────────────┴─────────────────────┴───────┴─────────────────┴ $ BW_IDENTITY=notme bw apply mynode […] » mynode hosts file:/etc/hosts skipped (soft locked) […]
47. $ bw repo create $ cat .secrets.cfg # DO NOT COMMIT THIS FILE # share it with your team through a secure channel [generate] key = VzPbOWr-Oh65UUXgvN-b5WUdUBSu5gB0L8Fq-iUCkmo= [encrypt] key = m6Lvf37SHwTdQZpZ78eqGVoJLkoo5GAHJMAz5RhTOyU=
48. files = { '/etc/secret': { 'content': repo.vault.password_for('something secret'), }, }
49. 2017 ALL ABOARD!
50. 0 5 10 15 20 25 2009 2010 2011 2012 2013 2014 2015 2016 2017 CONTRIBUTORS / MONTH
51. 0 200 400 600 800 2009 2010 2011 2012 2013 2014 2015 2016 2017 BCFG2 BundleWrap NUMBER OF NODES
52. $ bw metadata --table gce is_production ╭──────────────────────────────────────────┬───────────────╮ │ node │ is_production │ ├──────────────────────────────────────────┼───────────────┤ │ gce.smedia-1.bind-1 │ True │ │ gce.smedia-1.bitbucket │ True │ │ gce.smedia-1.dashboard │ True │ │ gce.smedia-1.firescope-test │ False │ │ gce.smedia-1.galaxy │ True │ │ gce.smedia-1.gateway │ False │ │ gce.smedia-1.hubot │ True │ │ gce.smedia-1.inforelay │ True │ │ gce.smedia-1.metrics │ True │ │ gce.smedia-1.netbox │ True │ │ gce.smedia-1.nexus │ True │ │ gce.smedia-1.nipap │ True │ │ gce.smedia-1.onetimesecret │ True │
54. 'tunnels': [ ('fra-1', 'ovh-1'), ('fra-1', 'pb-1'), ('fra-1', 'pb-2'), ('fra-1', 'pb-5'), ('haj1', ‘haj2'), ('haj1', 'ovh-1'), ('haj1', 'pb-2'), ('haj2', 'fra-1'), ('haj2', 'pb-1'), ('haj2', 'pb-2'), ('haj2', 'pb-3'), ('lf', 'fra-1'), ('lf', 'haj1'),
55. 'haj2': { 'networks': [ '10.3.0.0/16', '10.66.30.0/24', '10.68.3.0/24', ], 'private_as_number': 64603, }, 'fra-1': { 'networks': ['10.4.0.0/16'], 'private_as_number': 64604, }, 'ovh-1': { 'networks': ['10.20.0.0/24'],
56. PNGs REPO TeamVault netbox LDAP DNS INTEGRATIONS
57. $ git rev-parse HEAD 4caf23a7b2d42de9f59f23a9ac321f44c20413d7 $ BW_TEAMVAULT_DUMMY_MODE=1 bw hash 94789b4b4fb63da317f4b0d8ae78b3e64daf4e22
58. phone numbers IPAM dump critical secrets (encrypted) data center contact info EMERGENCY KIT
59. Having the right tools is important. If you can’t find them, build them. As Open Source.
60. Treasure your (git) history.
61. Allow your culture to evolve.
62. 2018 TO THE MOON
63. SPEED
64. ORCHESTRATION
65. BundleWrap CIC Who applied where when? show affected nodes for each commit read-only API for metadata auto apply if node goes stale automated commits?
66. THANK YOU! bundlewrap.org seibert-media.net speakerdeck.com/trehn @trehn on Twitter We’re a sponsor and hiring, come talk to us at our booth.
