Rails Routing DSL

How exactly does the rails routing DSL parsed and executed? What are the downsides to the current implementation and how to refactor it into a much more modular codebase?

Transcript

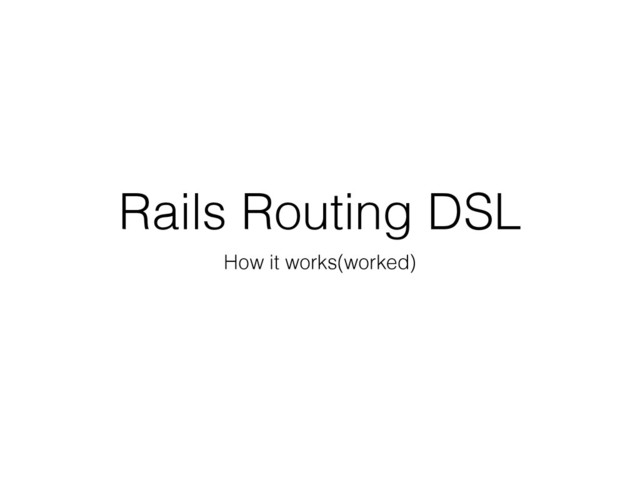

1. Rails Routing DSL How it works(worked)
2. I’m Ujjwal and I’m NEW to New Delhi @Ujjwal_Thaakar Github: @ujjwalt www.espress.in
3. –Ryan Bigg “You can fit all of the people who understand ActionDispatch inside a taxi”
4. A little background • All core components in Rails are a subclass of Railtie • Engines are subclasses of Railtie and responsible for routing and other request handling configuration • Rails apps are supercharged engines
5. ActionDispatch • ActionDispatch is located within ActionPack • It is responsible for dispatching HTTP requests to appropriate controller actions • Responsible for parsing the routing map and generating url helpers
6. Routes • All engines have a routing table accessible by the Rails.application.routes method • routes is an instance of ActionDispatch::RouteSet • routes.routes is an instance of Journey::Routes • routes.routes.routes is an array of Journey::Route
7. It’s messy But we’ll get to that later
8. I like Messi but not with my Ruby code
9. –Me, who else? “Let’s first focus on how the DSL parsing works.”
10. Routing DSL • Probably everyone here has written a Rails app • You can’t write one without declaring at least one route • The DSL is flexible, intuitive, helpful and awesome
11. Scope • All route declarations happen within an implicit or explicit scope • Scope is a set of properties that determine the default options of a route • Most essentially these are the path, controller and action properties
12. Mapper • Call to draw instance execs the block on an instance of Mapper • Mapper holds global state e.g. current scope, declared concerns, nesting and the route set • Scope is a hash that is backed up before running new scopes and then restored
13. def scope(*args) options = args.extract_options!.dup recover = {} options[:path] = args.flatten.join('/') if args.any? options[:constraints] ||= {} unless nested_scope? options[:shallow_path] ||= options[:path] if options.key?(:path) options[:shallow_prefix] ||= options[:as] if options.key?(:as) end if options[:constraints].is_a?(Hash) defaults = options[:constraints].select do |k, v| URL_OPTIONS.include?(k) && (v.is_a?(String) || v.is_a?(Fixnum)) end (options[:defaults] ||= {}).reverse_merge!(defaults) else block, options[:constraints] = options[:constraints], {} end SCOPE_OPTIONS.each do |option| if option == :blocks value = block elsif option == :options value = options else value = options.delete(option) end if value recover[option] = @scope[option] @scope[option] = send("merge_#{option}_scope", @scope[option], value) end end yield self ensure @scope.merge!(recover) end
14. Route generators • match is the basis of all route generators • get/post/put/patch/delete are wrappers around match • match normalizes everything and uses Mapping to create a normalized route and adds it to the RouteSet • RouteSet further normalizes the routes and adds them to it’s own set (Journey::Router)
15. –Once again me “Too much normalization going around”
16. Problems • Implementation is both brittle and confusing - hard even for experienced developers to get there head around it • Aaron Patterson (author of Journey) calls Mapper the biggest pain point of ActionDispatch • Merging of scopes loses information that is useful when route is added to route set
17. Problems continue • Because resources is just a macro you have no information on whether a route is singular or not • Normalization is redundant because routes are unaware of controllers and actions • Paths are parsed multiple times in each route set
18. And they continue… • A route doesn’t know if it represents a resource. This has led to long standing problems • Problems like generating polymorphic urls with singular resources. See issue #1769 • Using hash to maintains scope makes the DSL hard to test and maintain
22. Object Graph • Instead of a Hash - create an Object Graph • Treat the Mapper as just a root scope • Encapsulate common logic in AbstractScope
23. The Refactor • Calls that add routes execute within a scope and have direct access to the scope properties within which they execute • AbstractScope has an ivar parent pointing to it’s parent scope or nil for root scopes
24. AbstractScope Scope ResourceScope
25. And so will be resources now This allows us to remove a lot of normalization code and generate appropriate routes directly
26. ResourceScope Singleton ResourceScope Collection ResourceScope
27. CollectionResourceScope • Declares routes for performing bulk operations on a resource • CRUD operations for multiple entities in one atomic call • Takes an ids parameter e.g. /posts/1,3,6..9,21…42
28. How does it fit together? • Entire DSL is declared on the AbstractScope class instead of Mapper • Subclasses use the super implementation along with their own customizations • All properties on a scope are built by merging with from it's parent scope which does so by merging with it's own parent and up… • Global state like route set is accessed from parent unless specified during initialization
29. Thank You And I hope to see many more meet ups
