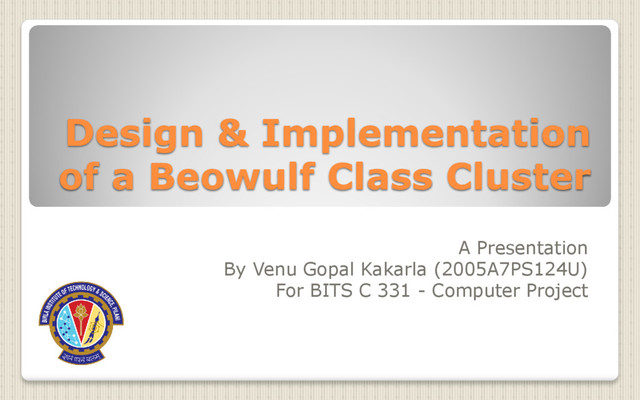

1. Design & Implementation of a Beowulf Class Cluster A Presentation By Venu Gopal Kakarla (2005A7PS124U) For BITS C 331 - Computer Project
2. What is a Beowulf?  The nodes are dedicated to the beowulf.  The network is dedicated to the beowulf.  The nodes are mass market commodity off the shelf (MMCOTS) computers.  Nodes are relatively inexpensive hardware.  The network is also a COTS entity, eg Standard Ethernet.  The nodes all run open source software.  The resulting cluster is used for High Performance Computing (HPC), also called parallel supercomputing.
3. More Characteristics of a Beowulf.  The nodes all run a variant of GNU/Linux as their base operating system.  There is one special node generally called the head or master node.  Generally the nodes are all identical i.e have same CPU, motherboard, network, memory, disks.  Generally the nodes are all running just one calculation at a time.
4. Architecture of a Beowulf Node. Parallel applications Message Passing Interface Libraries & API High Level Languages Operating System CPU Architecture & Hardware Network Stack & Software Network Hardware
5. Virtualization Software Virtualization Architecture.
6. MPI (Message Passing Interface)
7. MPI Routines  The MPI standard includes routines for the following operations: ◦ Point-to-point communication ◦ Collective communications ◦ Process groups ◦ Process topologies ◦ Environment management and inquiry
8. MPI Advantages  Use MPI when you need: ◦ parallel code that is portable across platforms ◦ higher performance, e.g. when small-scale "loop- level" parallelism does not provide enough speedup  Provide source code portability — MPI programs should compile and run as-is on any platform.  Allow efficient implementations across a range of architectures.
9. MPI Disadvantages  Do not use MPI when you ◦ can achieve sufficient performance and portability by using the "loop level" parallelism available in such software OpenMP. ◦ don't need parallelism at all  Dynamic process management — changing the number of processes while the code is running.
10. Initializing MPI – getting the rank. int MPI_Comm_rank(MPI_Comm comm, int *rank);  Ranks are consecutive and start with 0, for both C and Fortran.  A given processor may have different ranks in the various communicators to which it belongs.
11. Initializing MPI – getting the size. int MPI_Comm_size(MPI_Comm comm, int *size);  A processor can also determine the size,  i.e., number of processors, of any communicator to which it belongs.
12. MPI Datatype C Type MPI_CHAR signed char MPI_SHORT signed short int MPI_INT signed int MPI_LONG signed long int MPI_UNSIGNED_CHAR unsigned char MPI_UNSIGNED_SHORT unsigned short int MPI_UNSIGNED unsigned int MPI_UNSIGNED_LONG unsigned long int MPI_FLOAT float MPI_DOUBLE double MPI_LONG_DOUBLE long double MPI_BYTE (none) MPI_PACKED (none) MPI Datatypes
13. MPI Send int MPI_Send(void *buf, int count, MPI_Datatype dtype, int dest, int tag, MPI_Comm comm);
14. MPI Receive int MPI_Recv(void *buf, int count, MPI_Datatype dtype, int source, int tag, MPI_Comm comm, MPI_Status *status);
15. #include <stdio.h> #include <mpi.h> void main (int argc, char **argv) { int myrank,i; MPI_Status status; double a[100],b[100]; MPI_Init(&argc, &argv); /* Initialize MPI */ MPI_Comm_rank(MPI_COMM_WORLD, &myrank); /* Get rank */ if( myrank == 0 ) /* Send a message */ for (i=0;i<100;++i) a[i]=sqrt(i); MPI_Send( a, 100, MPI_DOUBLE, 1, 17, MPI_COMM_WORLD ); else if( myrank == 1 ) /* Receive a message */ MPI_Recv( b, 100, MPI_DOUBLE, 0, 17, MPI_COMM_WORLD, &status ); MPI_Finalize(); /* Terminate MPI */ } MPI Send and Receive example
16. Deadlock A deadlock happens when two processes are both waiting for the other to send first. Or both waiting to send after they receive from the other.
17. #include <stdio.h> #include <mpi.h> void main (int argc, char **argv) { int myrank; MPI_Status status; double a[100], b[100]; MPI_Init(&argc, &argv); /* Initialize MPI */ MPI_Comm_rank(MPI_COMM_WORLD, &myrank); /* Get rank */ if( myrank == 0 ) { /* Master process should Receive a message, then send one */ MPI_Recv( b, 100, MPI_DOUBLE, 1, 19, MPI_COMM_WORLD, &status ); MPI_Send( a, 100, MPI_DOUBLE, 1, 17, MPI_COMM_WORLD ); } else if( myrank == 1 ) { /* Slave process should Send a message, then receive one */ MPI_Send( a, 100, MPI_DOUBLE, 0, 19, MPI_COMM_WORLD ); MPI_Recv( b, 100, MPI_DOUBLE, 0, 17, MPI_COMM_WORLD, &status ); } MPI_Finalize(); /* Terminate MPI */ } Deadlock avoiding
18. Broadcast (MPI_BCAST) In a broadcast operation a single process sends a copy of some data to all the other processes in a group.
19. #include <mpi.h> void main(int argc, char *argv[]) { int rank; double param; MPI_Init(&argc, &argv); MPI_Comm_rank(MPI_COMM_WORLD,&rank); if(rank==5) param=23.0; MPI_Bcast(&param,1,MPI_DOUBLE,5,MPI_COMM_WORLD); printf("P:%d after broadcast parameter is %f \n",rank,param); MPI_Finalize(); } MPI Broadcast example
20. Reduce (MPI_REDUCE) A collective operation in which a single process (the root process) collects data from the other processes in a group and performs an operation on that data, which produces a single value.
21. #include <stdio.h> #include <mpi.h> void main(int argc, char *argv[]) { int rank,source,result,root; /* run on 10 processors */ MPI_Init(&argc, &argv); MPI_Comm_rank(MPI_COMM_WORLD,&rank); root=7; source=rank+1; MPI_Barrier(MPI_COMM_WORLD); MPI_Reduce(&source,&result,1,MPI_INT,MPI_PROD,root,MPI_COMM_W ORLD); if(rank==root) printf("P:%d MPI_PROD result is %d \n",rank,result); MPI_Finalize(); } MPI Reduce example
22. Gather (MPI_GATHER) Distributes data on many processors to a single processor
23. #include <stdio.h> #include <mpi.h> void main(int argc, char *argv[]) { int rank,size; double param[16],mine; int sndcnt,rcvcnt; int i; MPI_Init(&argc, &argv); MPI_Comm_rank(MPI_COMM_WORLD,&rank); MPI_Comm_size(MPI_COMM_WORLD,&size); sndcnt=1; mine=23.0+rank; if(rank==7) rcvcnt=1; MPI_Gather(&mine,sndcnt,MPI_DOUBLE,param,rcvcnt,MPI_DOUBLE,7,MPI_COMM_WORLD); if(rank==7) for(i=0;i<size;++i) printf("PE:%d param[%d] is %f \n",rank,i,param[i]]); MPI_Finalize(); } MPI Gather example
24. All Gather (MPI_ALLGATHER)
25. Scatter (MPI_SCATTER) Distribute data on one processor across a group of processors
26. #include <stdio.h> #include <mpi.h> void main(int argc, char *argv[]) { int rank,size,i; double param[8],mine; int sndcnt,rcvcnt; MPI_Init(&argc, &argv); MPI_Comm_rank(MPI_COMM_WORLD,&rank); MPI_Comm_size(MPI_COMM_WORLD,&size); rcvcnt=1; if(rank==3) { for(i=0;i<8;++i) param[i]=23.0+i; sndcnt=1; } MPI_Scatter(param,sndcnt,MPI_DOUBLE,&mine,rcvcnt,MPI_DOUBLE,3,MPI_COMM_WORLD); for(i=0;i<size;++i) { if(rank==i) printf("P:%d mine is %f n",rank,mine); fflush(stdout); MPI_Barrier(MPI_COMM_WORLD); } MPI_Finalize(); } MPI Scatter example
27. Lessons Learnt…  Architecting a Beowulf Cluster  Linux kernel customization  Creating hardware assisted virtual nodes  Programming using the MPI Libraries  Linux system Administration (NFS, DHCP, SSH, PXE BOOT, Network Stack)
28. Future Directions…  Implement the same cluster on Real Hardware with Real Nodes.  More Algorithm Implementations  Performance Analysis  VPN implementation for connecting nodes across the internet.  Many more things…
29. Open Problems…  There is no easy way to parallelize a sequential algorithm.  Current network topologies are a bottlenecks to Beowulf’s performance.  There is no easy way to detect deadlocks in code, and to eliminate them.
