4. 4 9.2 million 43.339 TB are sent across all mobile phones globally everyday. That is enough to fill... 1.7 million Blu-rays DVDs 3.5” diskettes 63.9 trillion
7. Christopher Wells Virtualization Solutions Architect @wygtya Shift Happens: Achieving ‘Always On’ and Cloud Ready

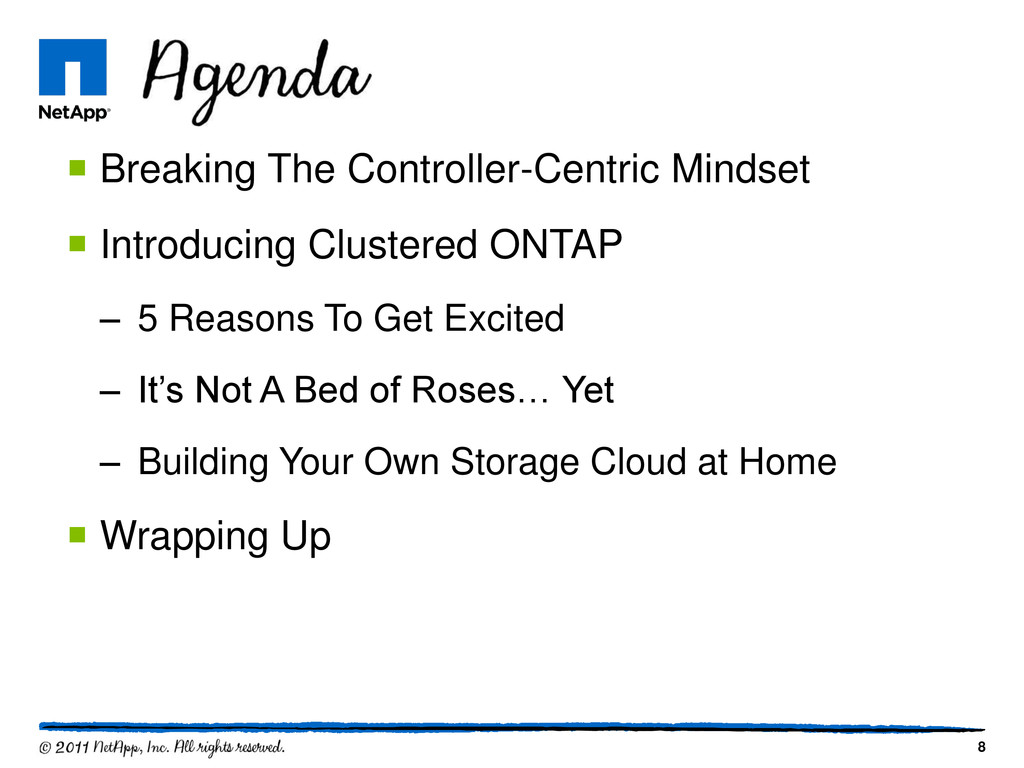

8. 8  Breaking The Controller-Centric Mindset  Introducing Clustered ONTAP – 5 Reasons To Get Excited – It’s Not A Bed of Roses… Yet – Building Your Own Storage Cloud at Home  Wrapping Up
10. Breaking the Controller-Centric Mindset 10

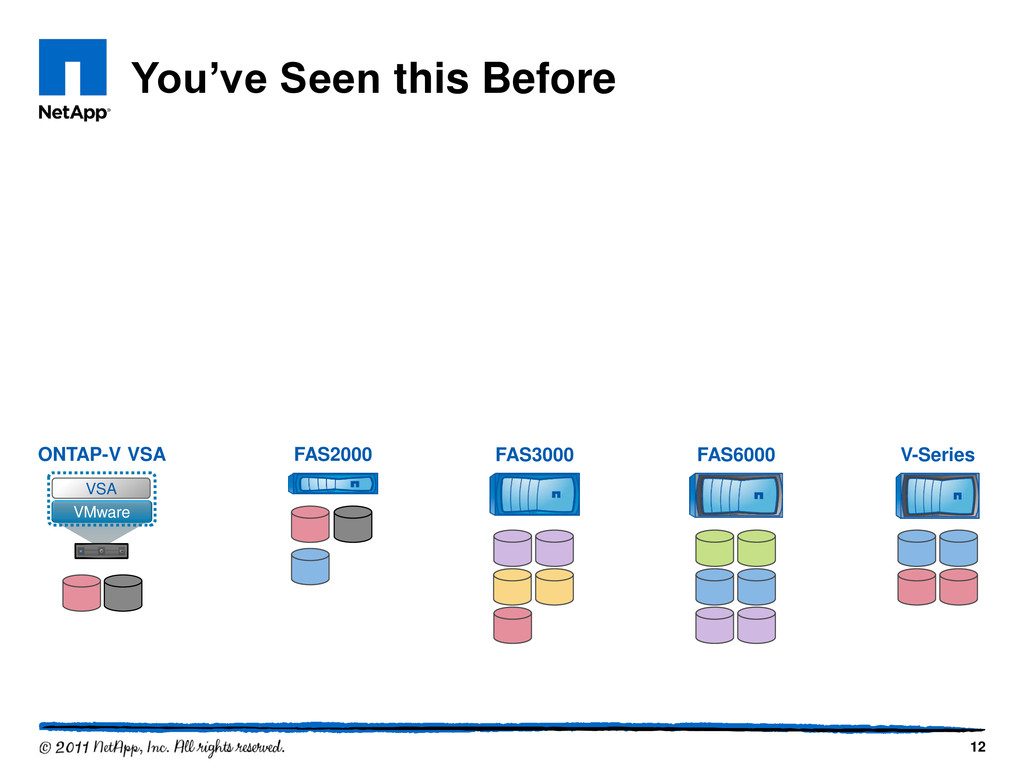

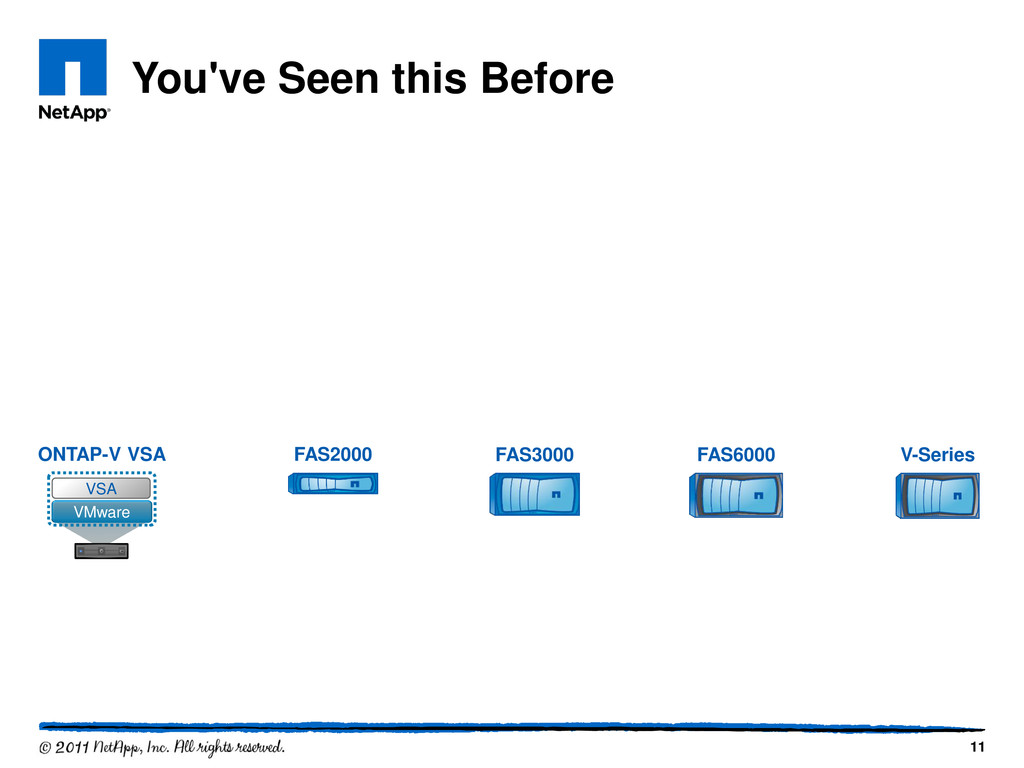

11. You've Seen this Before 11 ONTAP-V VSA VSA VMware FAS2000 FAS3000 FAS6000 V-Series

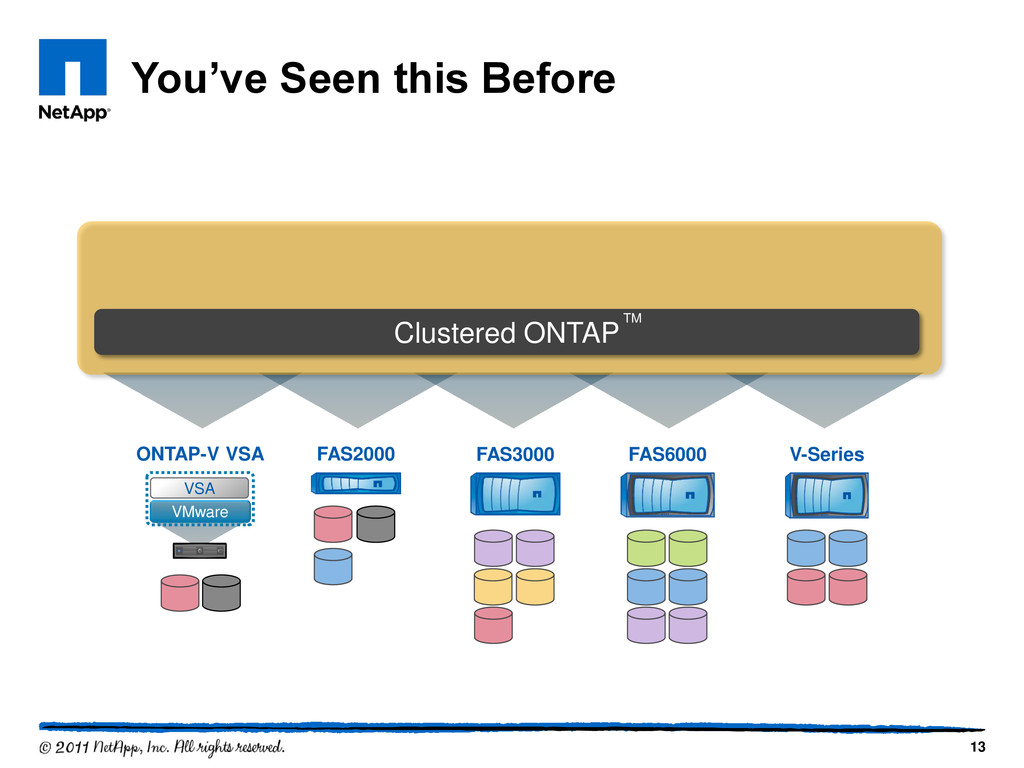

12. You’ve Seen this Before 12 ONTAP-V VSA VSA VMware FAS2000 FAS3000 FAS6000 V-Series
13. You’ve Seen this Before 13 ONTAP-V VSA VSA VMware FAS2000 FAS3000 FAS6000 V-Series Clustered ONTAPTM

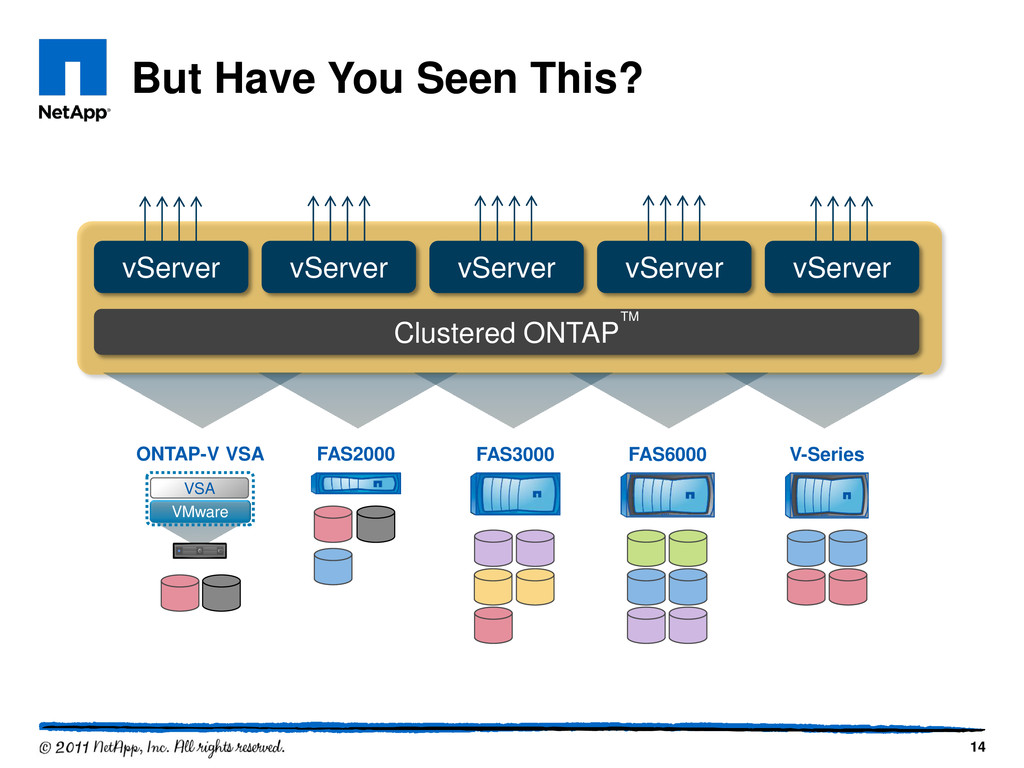

14. But Have You Seen This? 14 ONTAP-V VSA VSA VMware FAS2000 FAS3000 FAS6000 V-Series Clustered ONTAP TM vServer vServer vServer vServer vServer
15. And Have You Thought About Like This? 15 Clustered ONTAP TM vServer vServer vServer vServer vServer

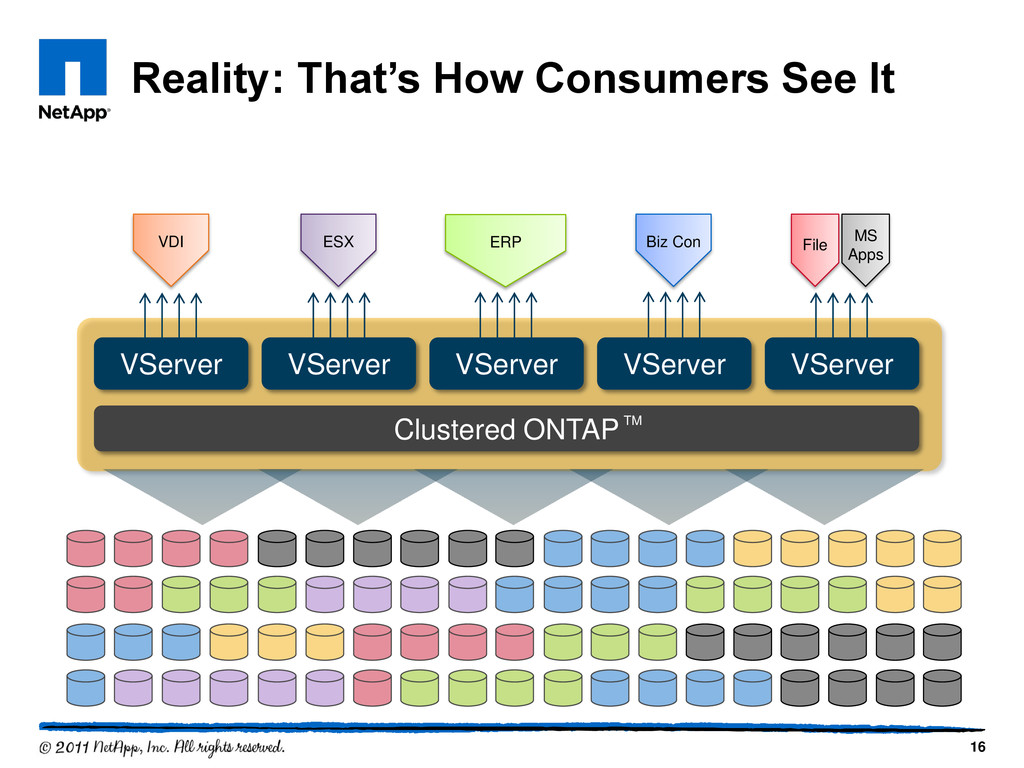

16. Reality: That’s How Consumers See It 16 Clustered ONTAP TM VServer VServer VServer VServer VServer ESX ERP VDI File MS Apps Biz Con

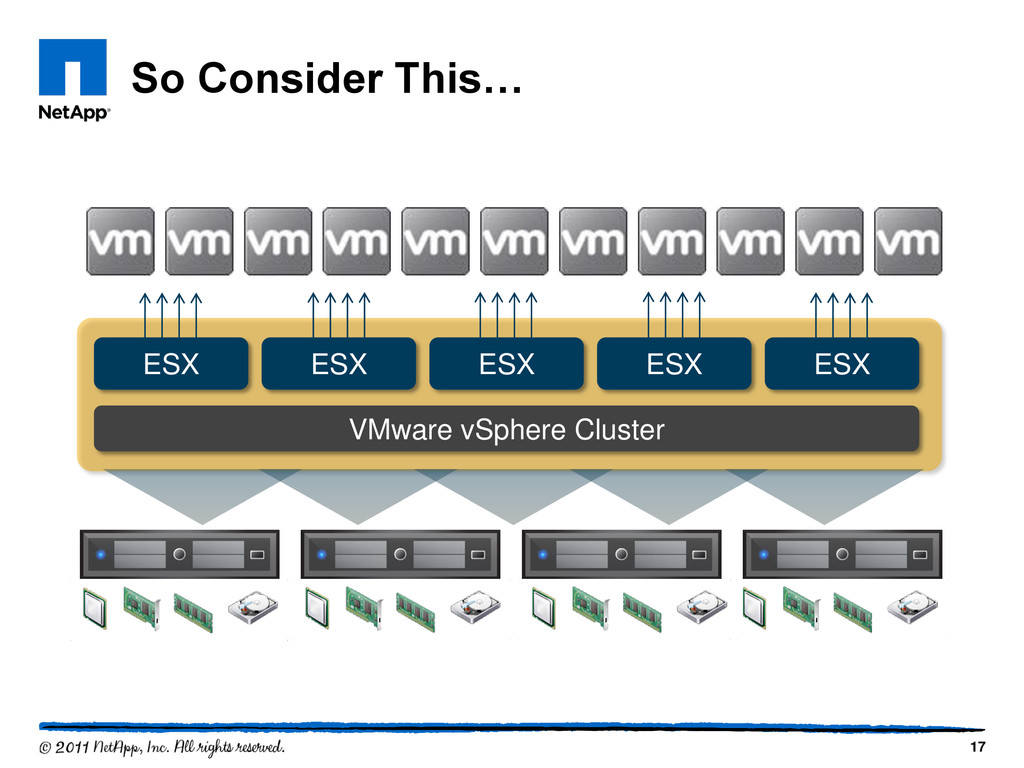

17. So Consider This… 17 VMware vSphere Cluster ESX ESX ESX ESX ESX

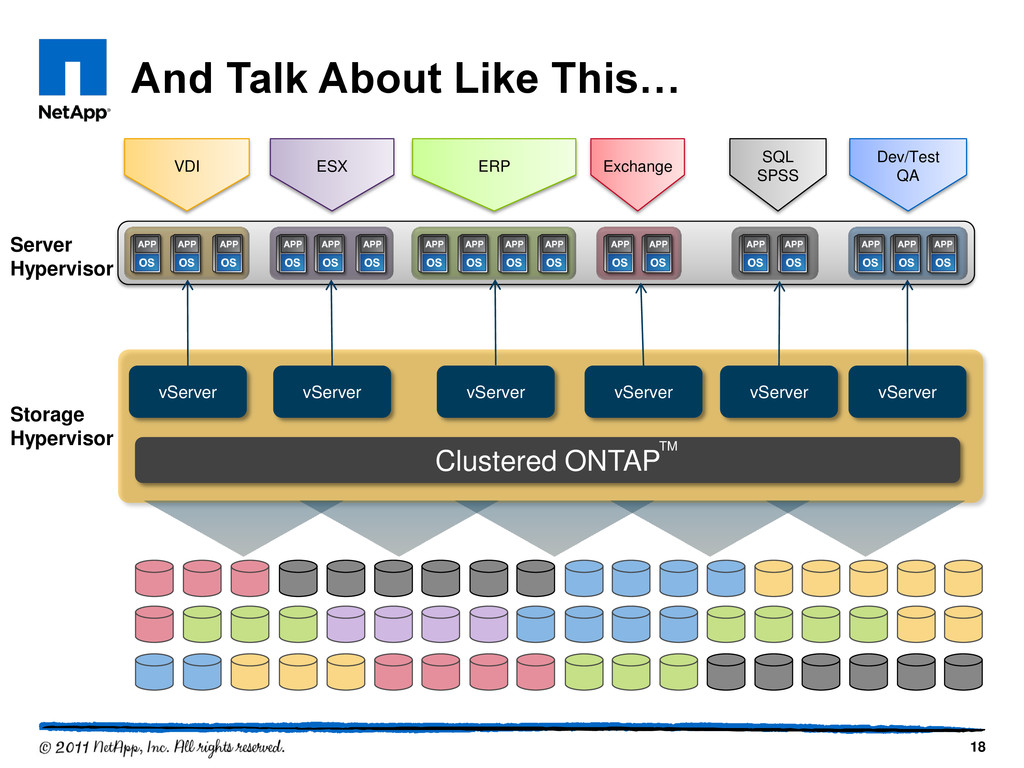

18. And Talk About Like This… 18 Clustered ONTAP TM vServer ESX ERP VDI Exchange SQL SPSS Dev/Test QA vServer vServer vServer vServer vServer Server Hypervisor Storage Hypervisor
19. Introducing Clustered ONTAP 19
20. Guiding Principles for Clusters 20  Non-Stop and Non Disruptive  Virtualized Access is the Managed Entity  Object Mobility and Container Transparency  “as-a-Single System” Computing  Delegated Management  Ubiquitous Access

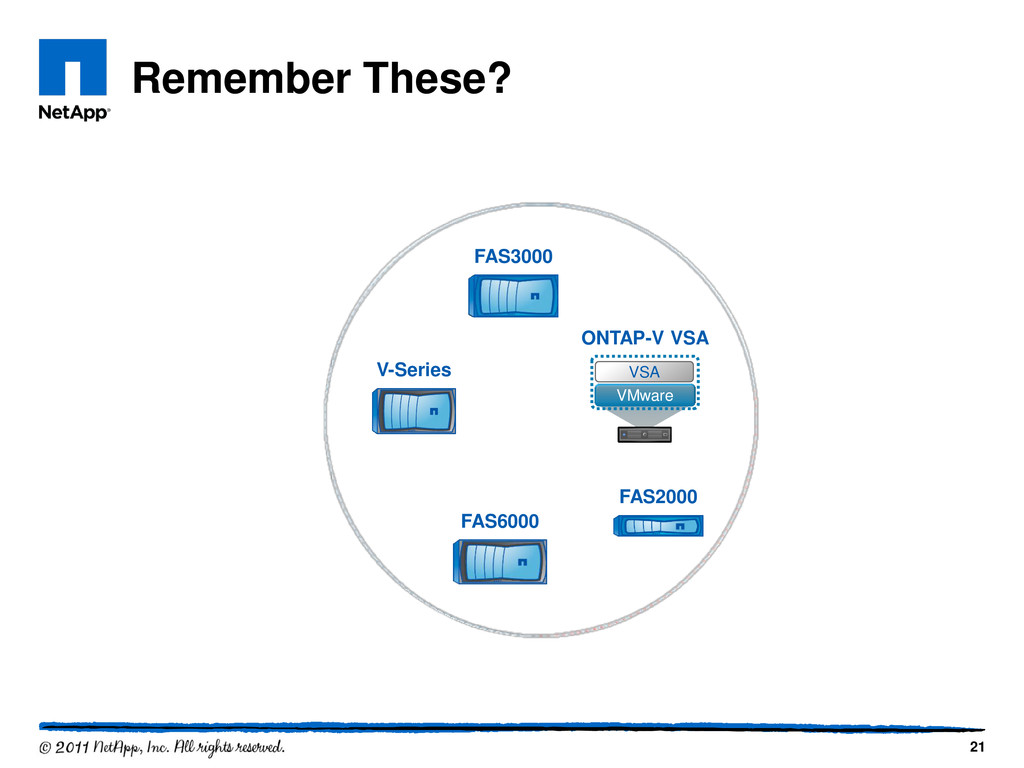

21. 21 ONTAP-V VSA VSA VMware FAS2000 FAS3000 FAS6000 V-Series Remember These?

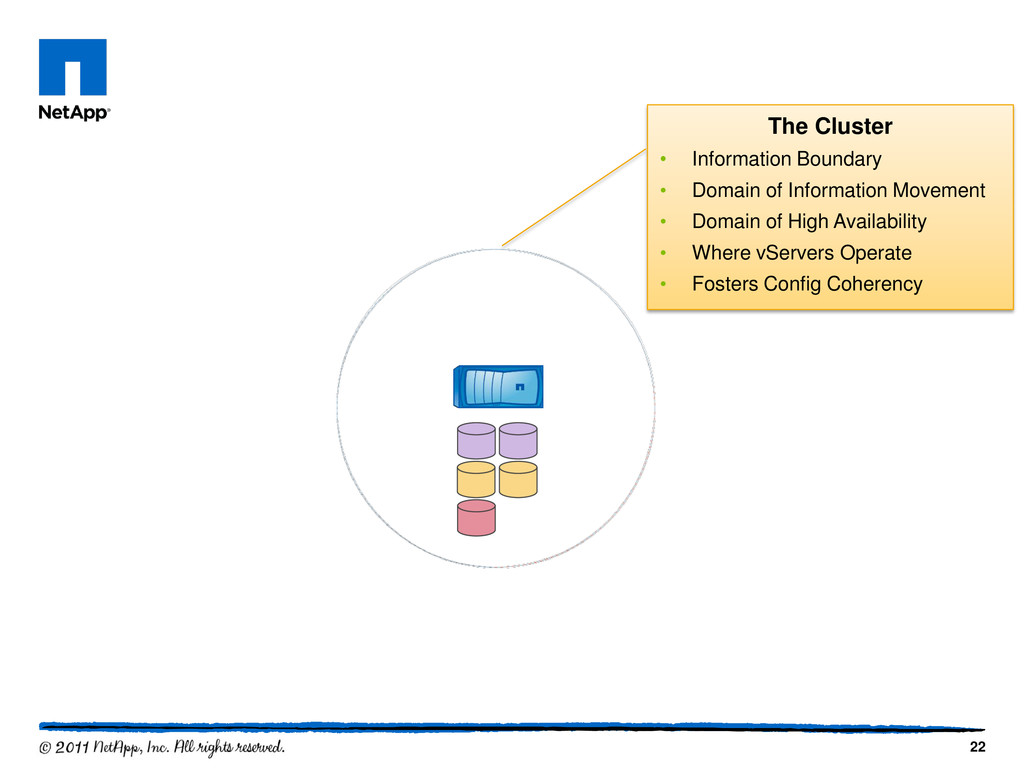

22. 22 The Cluster • Information Boundary • Domain of Information Movement • Domain of High Availability • Where vServers Operate • Fosters Config Coherency

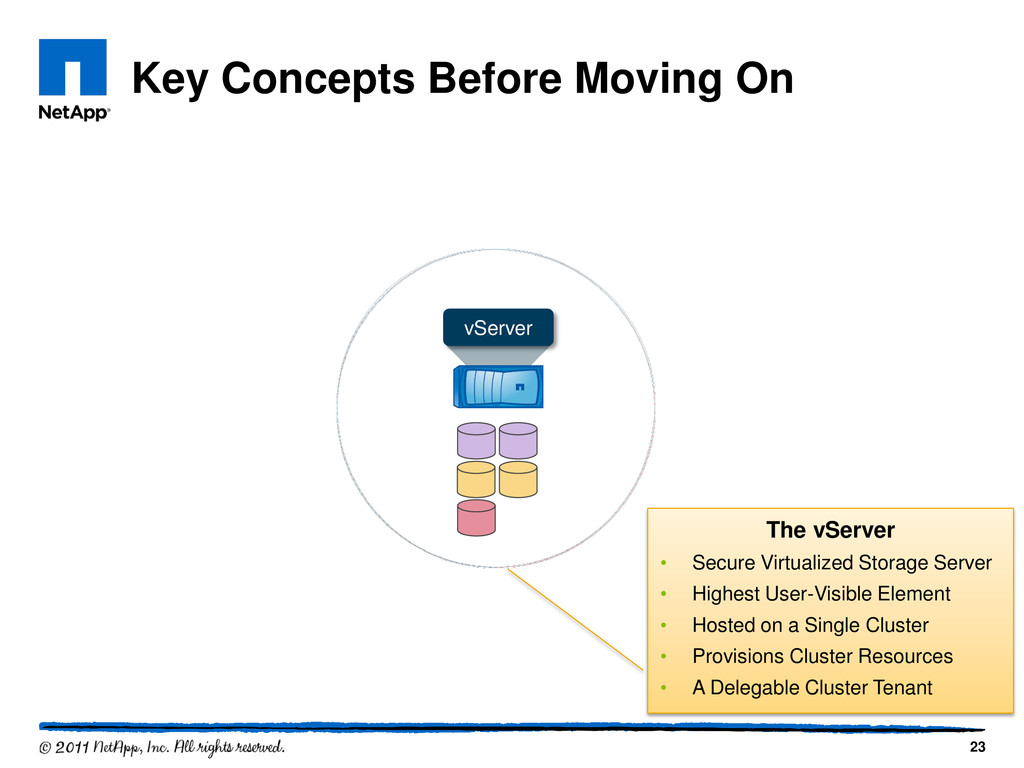

23. Key Concepts Before Moving On 23 The vServer • Secure Virtualized Storage Server • Highest User-Visible Element • Hosted on a Single Cluster • Provisions Cluster Resources • A Delegable Cluster Tenant vServer
24. Key Concepts Before Moving On 24 A Node • Physical Entity Running ONTAP • Natively Executes on:  NetApp Controller  ONTAP-V (VSA)  3rd Party Array via V-Series FILE BLOC K Cluster Network Data Path Manager Cluster Interface Storage Assigned to Node

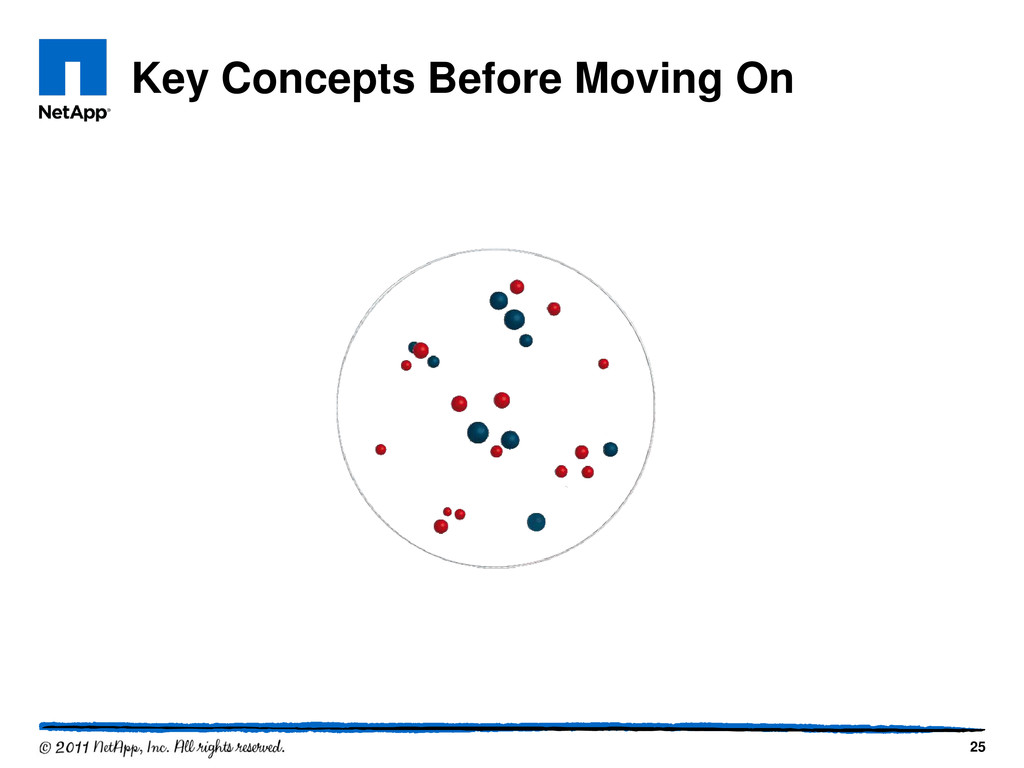

25. Key Concepts Before Moving On 25

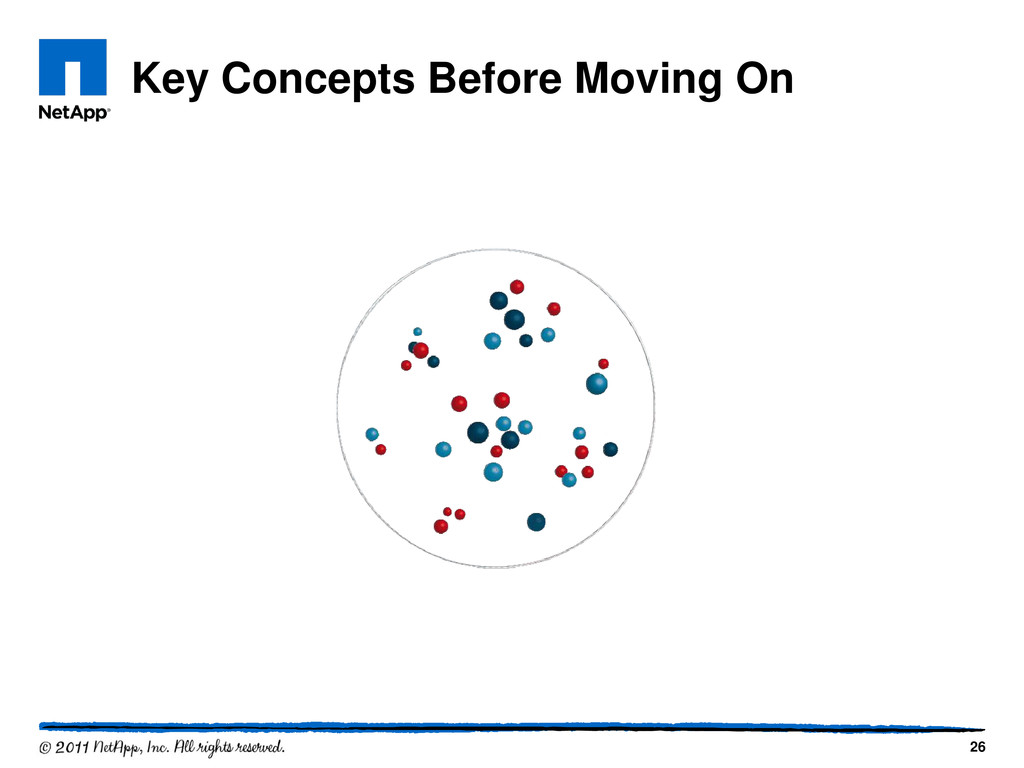

26. Key Concepts Before Moving On 26
27. Key Concepts Before Moving On 27

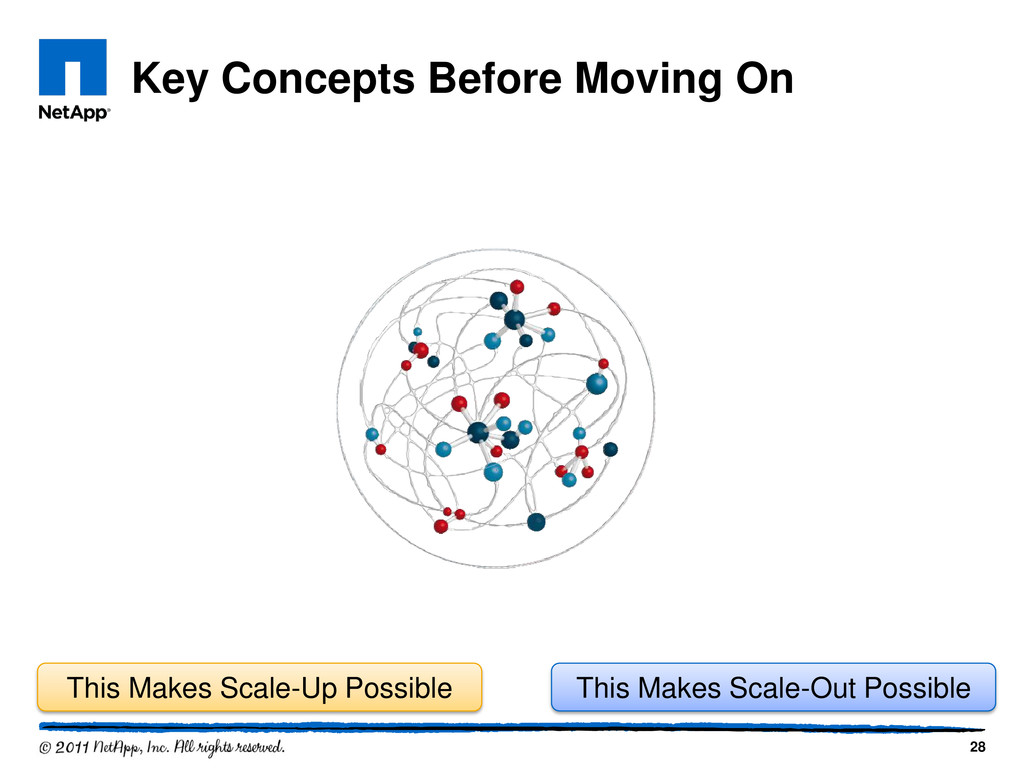

28. Key Concepts Before Moving On 28 This Makes Scale-Up Possible This Makes Scale-Out Possible

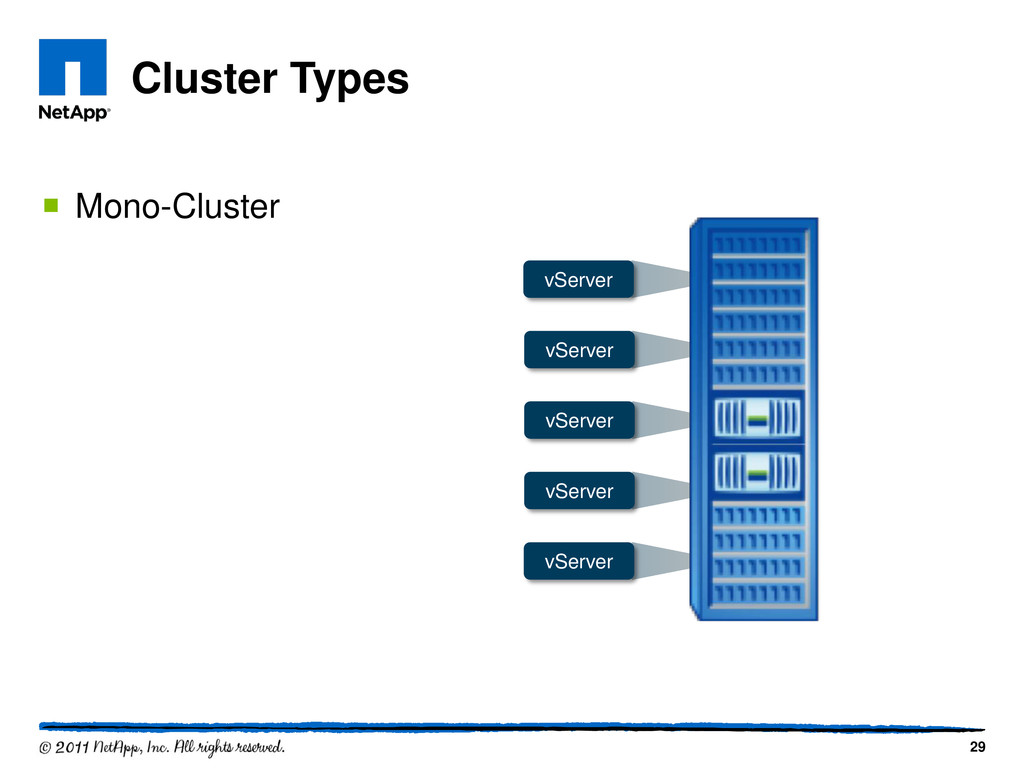

29. vServer Cluster Types  Mono-Cluster 29 vServer vServer vServer vServer

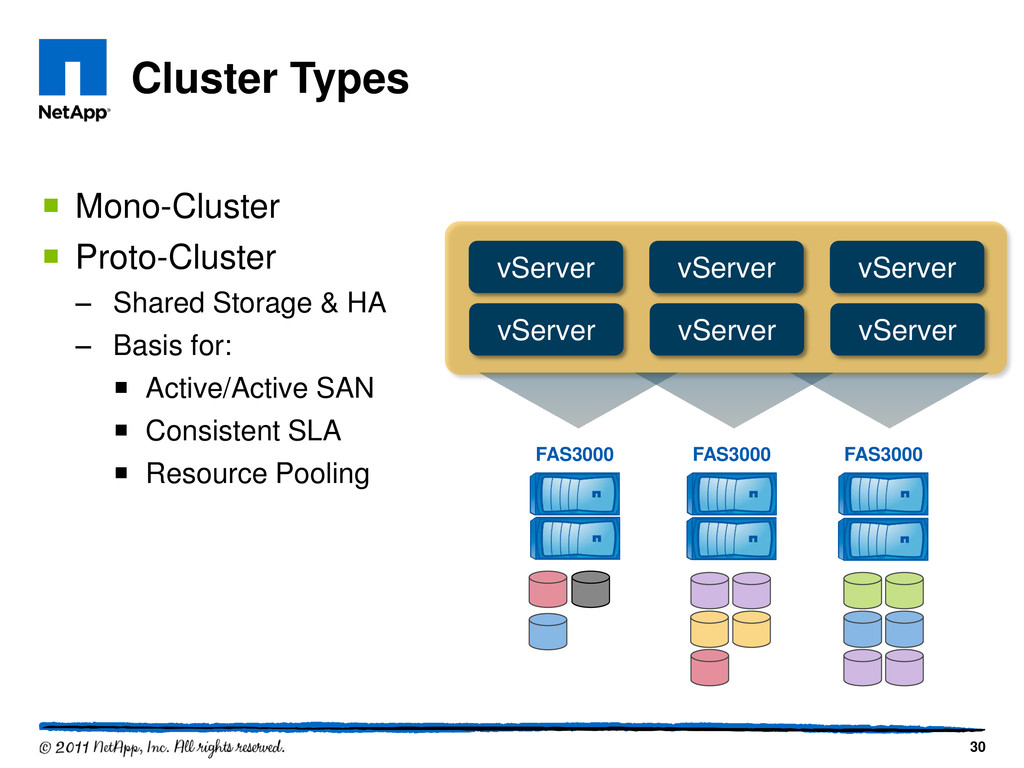

30. Cluster Types  Mono-Cluster  Proto-Cluster – Shared Storage & HA – Basis for:  Active/Active SAN  Consistent SLA  Resource Pooling 30 FAS3000 vServer vServer vServer FAS3000 FAS3000 vServer vServer vServer

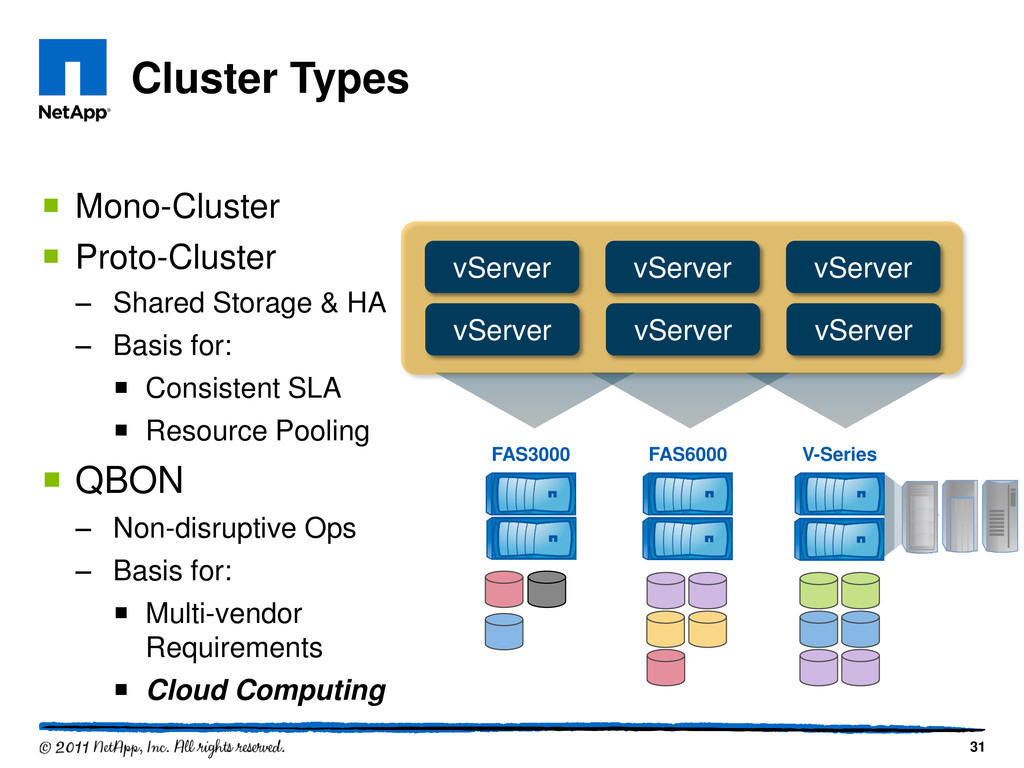

31. Cluster Types 31 FAS6000 vServer vServer vServer V-Series FAS3000 vServer vServer vServer  Mono-Cluster  Proto-Cluster – Shared Storage & HA – Basis for:  Consistent SLA  Resource Pooling  QBON – Non-disruptive Ops – Basis for:  Multi-vendor Requirements  Cloud Computing

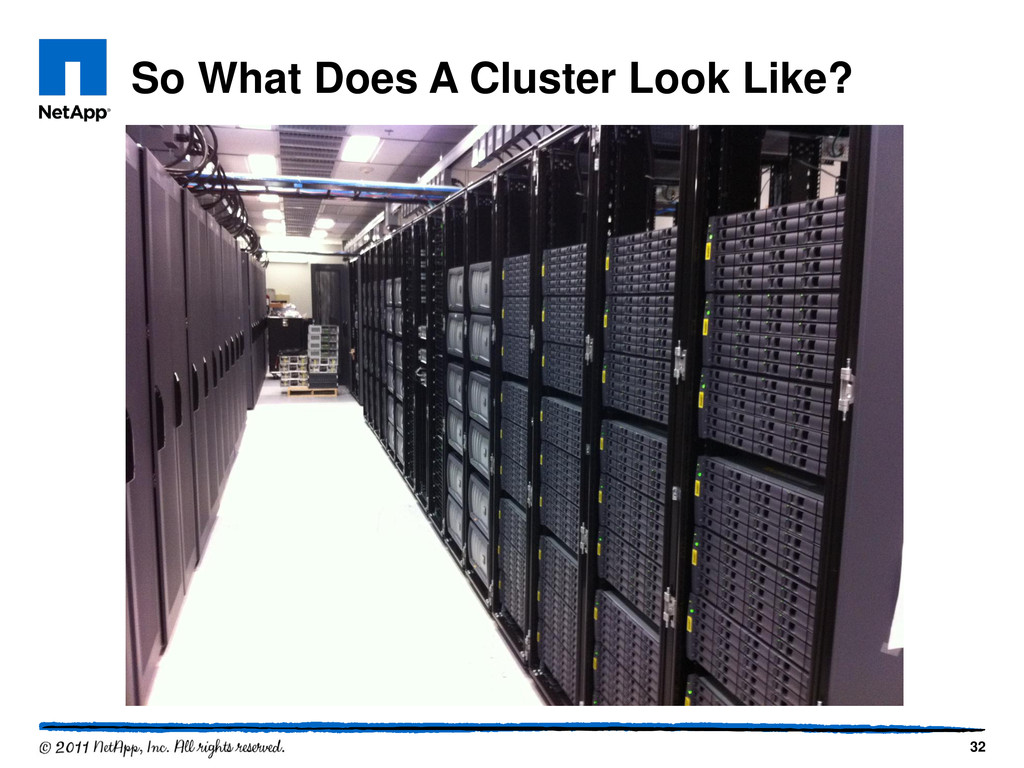

32. So What Does A Cluster Look Like? 32

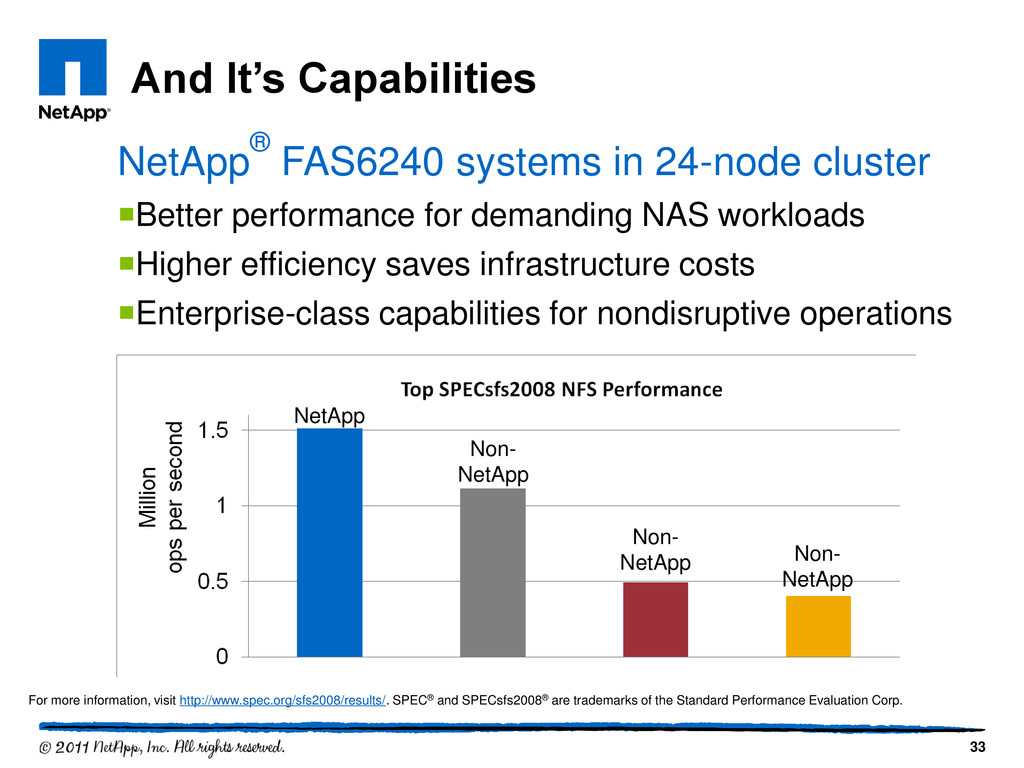

33. And It’s Capabilities 33 NetApp® FAS6240 systems in 24-node cluster Better performance for demanding NAS workloads Higher efficiency saves infrastructure costs Enterprise-class capabilities for nondisruptive operations For more information, visit http://www.spec.org/sfs2008/results/. SPEC® and SPECsfs2008® are trademarks of the Standard Performance Evaluation Corp. NetApp Non- NetApp Non- NetApp Non- NetApp

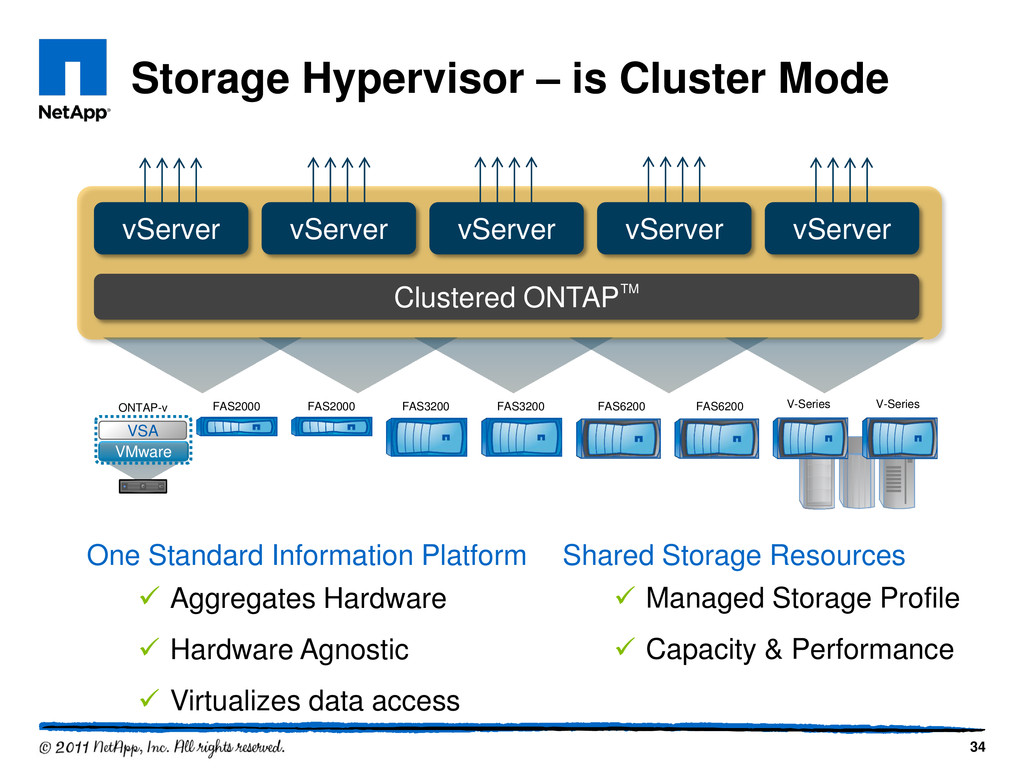

34. VSA VMware Storage Hypervisor – is Cluster Mode Clustered ONTAP TM vServer vServer vServer vServer vServer Shared Storage Resources  Managed Storage Profile  Capacity & Performance One Standard Information Platform  Aggregates Hardware  Hardware Agnostic  Virtualizes data access 34 V-Series FAS2000 FAS3200 FAS6200 FAS3200 FAS6200 V-Series FAS2000 ONTAP-v
36. 5 Things to get Really Excited About 36

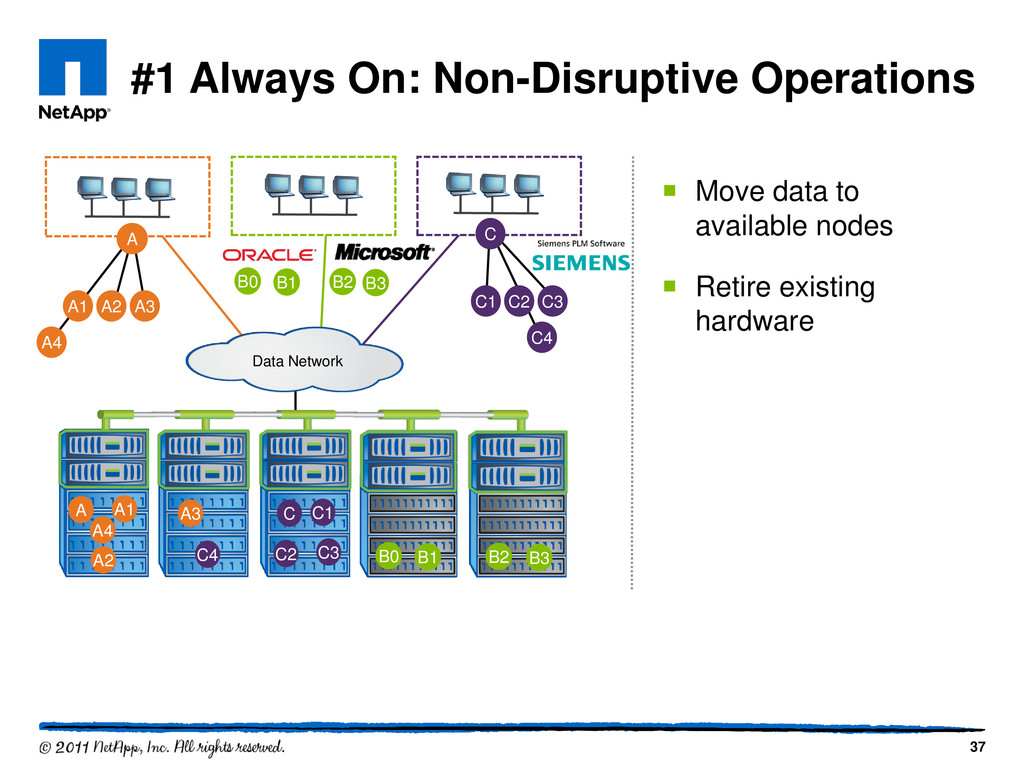

37.  Move data to available nodes  Retire existing hardware 37 A3 A A1 A2 C C1 C2 C3 Data Network A A1 C2 C3 C C1 B0 B1 B2 B3 A4 A4 C4 A2 #1 Always On: Non-Disruptive Operations B0 B1 B2 B3 C4 A3

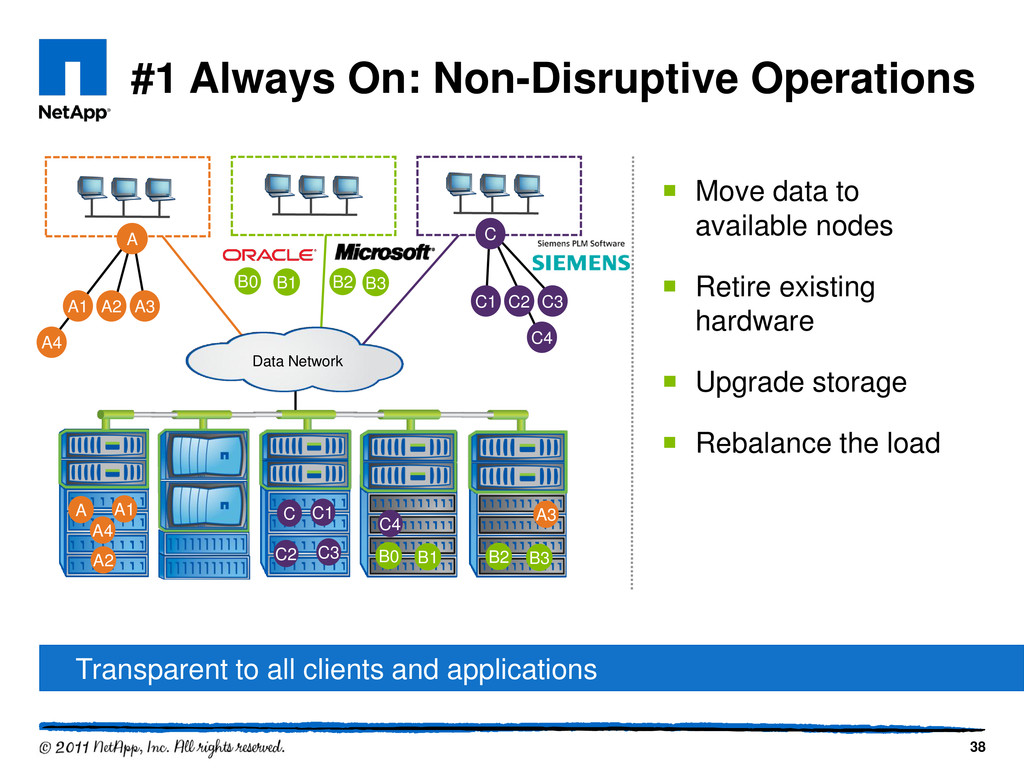

38.  Move data to available nodes  Retire existing hardware  Upgrade storage  Rebalance the load 38 A3 A A1 A2 C C1 C2 C3 Data Network A A1 C2 C3 C C1 B0 B1 B2 B3 A4 A4 C4 A2 B0 B1 B2 B3 C4 A3 Transparent to all clients and applications #1 Always On: Non-Disruptive Operations

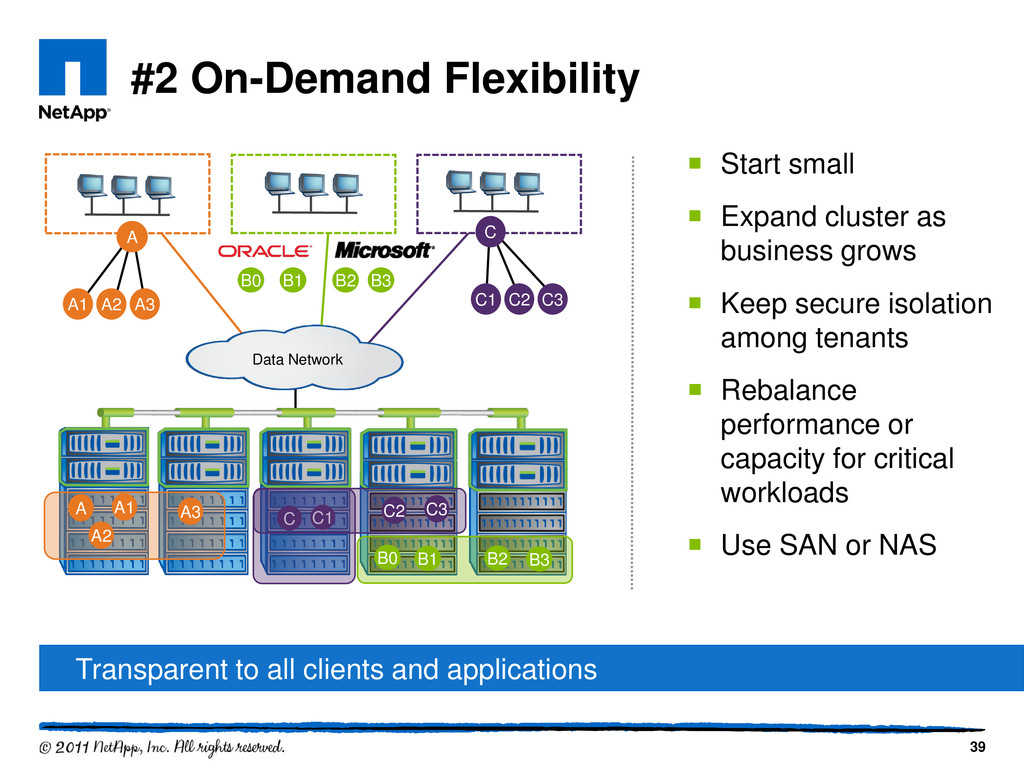

39. A3 #2 On-Demand Flexibility  Start small  Expand cluster as business grows  Keep secure isolation among tenants  Rebalance performance or capacity for critical workloads  Use SAN or NAS Transparent to all clients and applications A A1 A2 C C1 C2 C3 Data Network A A1 A2 A3 C2 C3 C C1 B0 B1 B2 B3 B0 B1 B2 B3 39
40. #3 Operational Efficiency  Tiered storage: – Match data to disk price and performance – Manage multiple tiers in the same namespace or many – Examples:  Reference data  Disaster-recovery mirror destination  Scalable archives B C A2 A3 C1 C2 Projects A B C A1 A2 A3 B1 B2 C1 C2 C3 A1 B1 High-Speed Storage (Highest Performance across All Workloads) High-Capacity Storage (Lower $ per GB) B2 C3 40

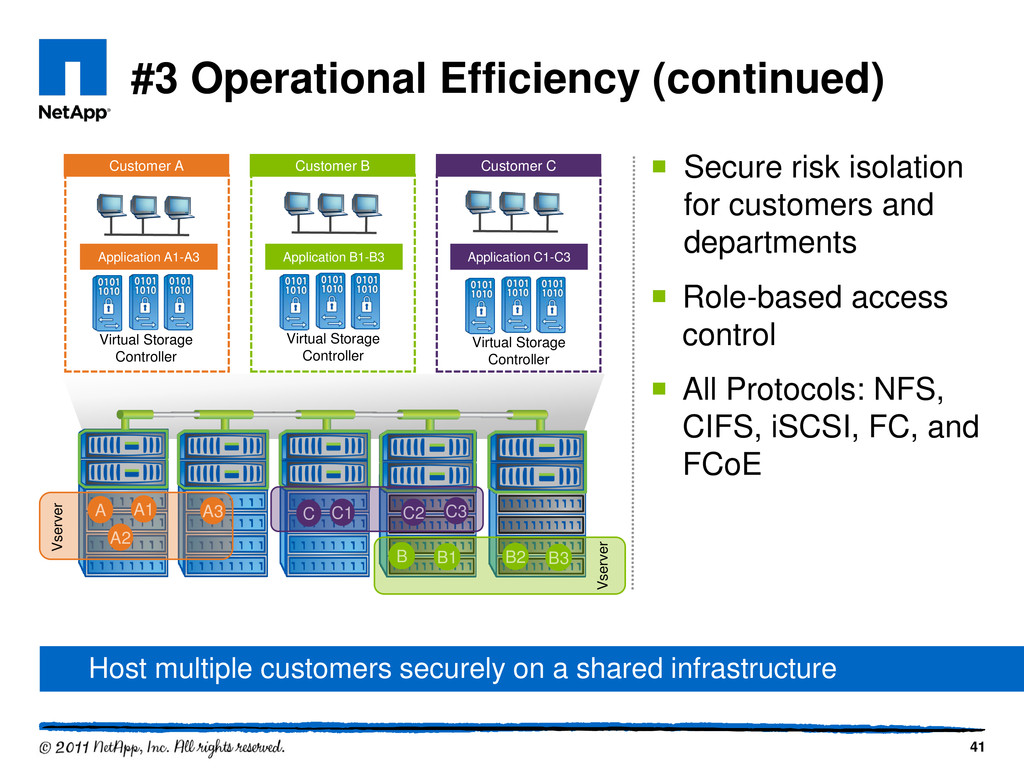

41. #3 Operational Efficiency (continued)  Secure risk isolation for customers and departments  Role-based access control  All Protocols: NFS, CIFS, iSCSI, FC, and FCoE Customer A Customer C Customer B Application A1-A3 Application B1-B3 Application C1-C3 Virtual Storage Controller Host multiple customers securely on a shared infrastructure C C1 C2 C3 A A1 A3 A2 Vserver B B1 B2 B3 Vserver Virtual Storage Controller Virtual Storage Controller 41
42. #4 Global Namespace: Stretched Clusters 42 vServer A vServer A Cached Source US-Cluster Las Vegas, NV EMEA-Cluster London, UK WAN
43. .Snapshot Namespace #4 Global Namespace: Data Protection 43 vServer A vServer Vault vServer B vServer C WAN US-Cluster Las Vegas, NV EMEA-Cluster London, UK

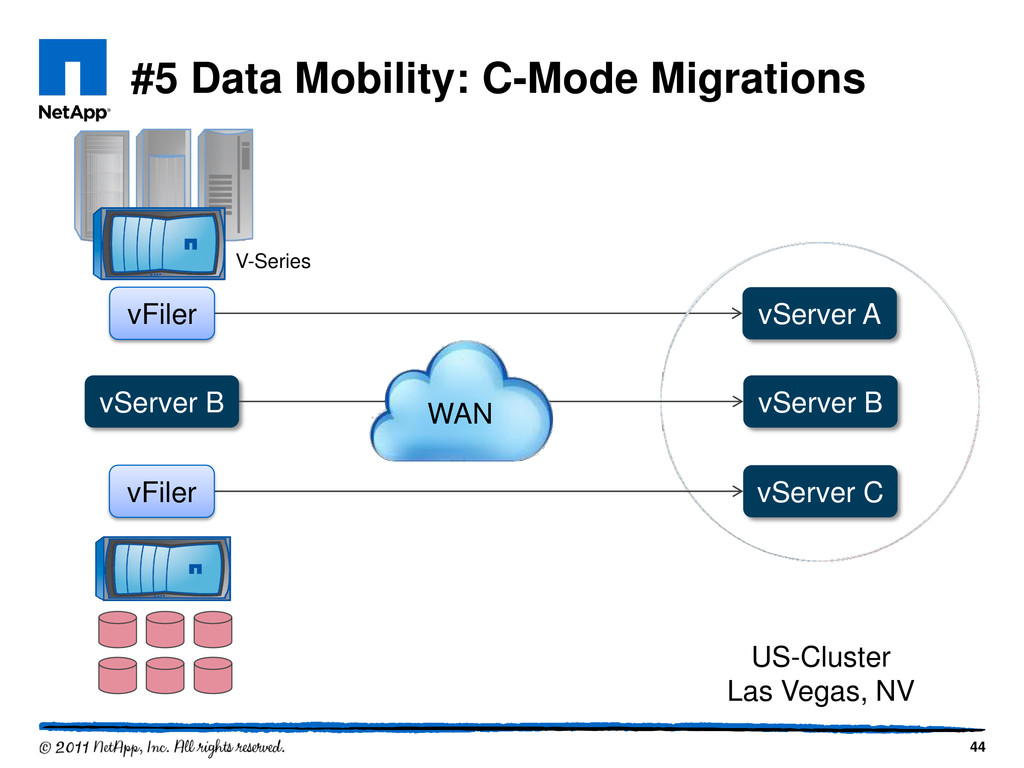

44. #5 Data Mobility: C-Mode Migrations 44 vServer C US-Cluster Las Vegas, NV vFiler V-Series vFiler vServer A vServer B vServer B WAN

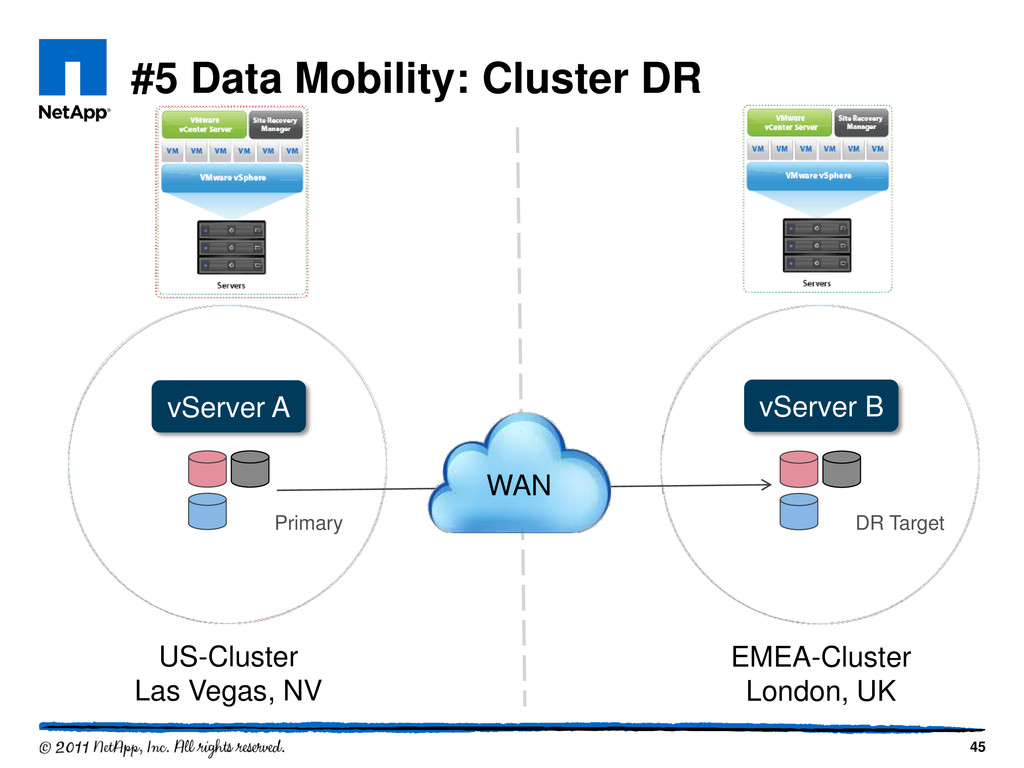

45. #5 Data Mobility: Cluster DR 45 vServer A vServer B DR Target Primary US-Cluster Las Vegas, NV EMEA-Cluster London, UK WAN

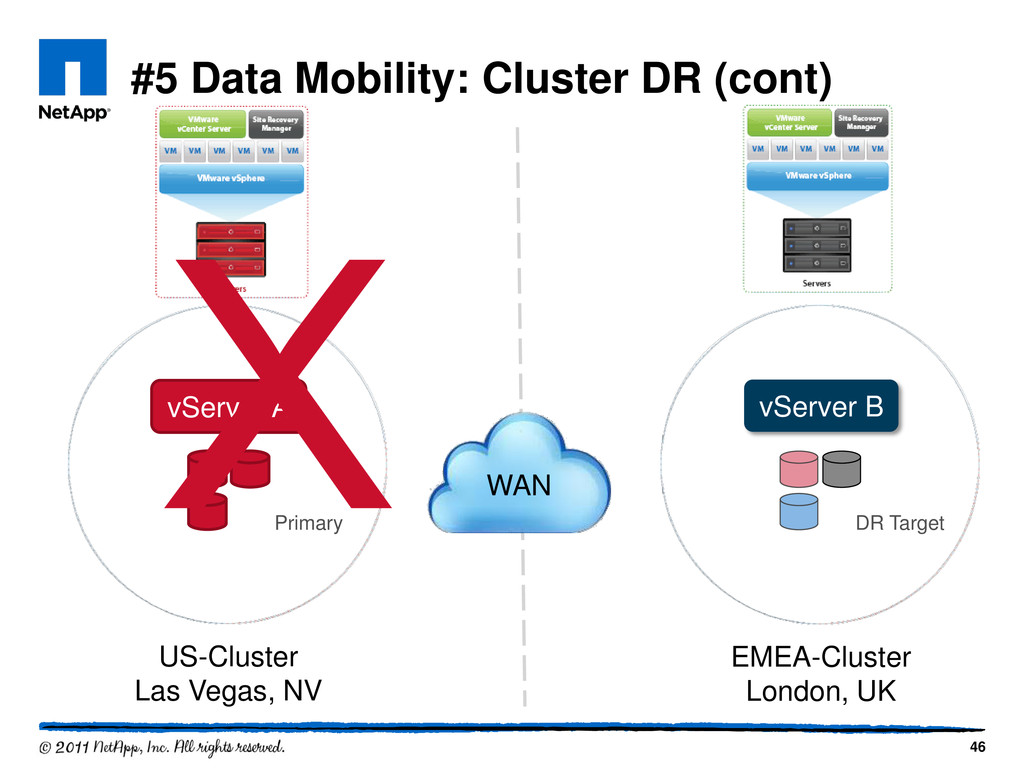

46. #5 Data Mobility: Cluster DR (cont) 46 vServer A vServer B DR Target Primary US-Cluster Las Vegas, NV EMEA-Cluster London, UK WAN
47. Making it VMware Ready 47

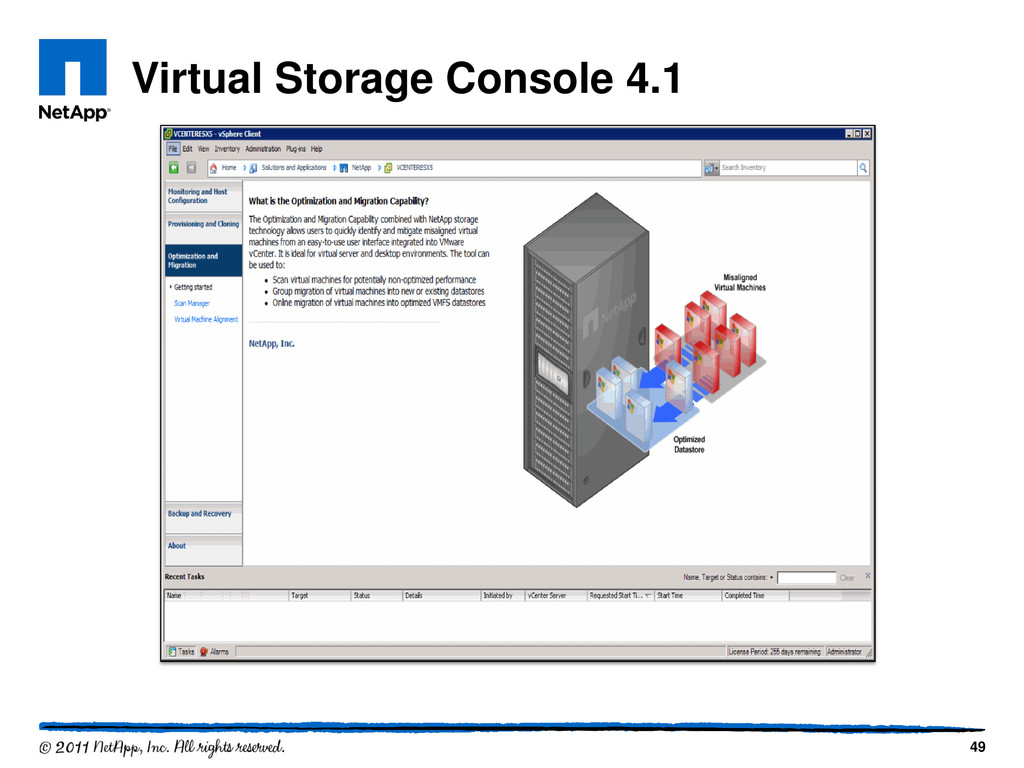

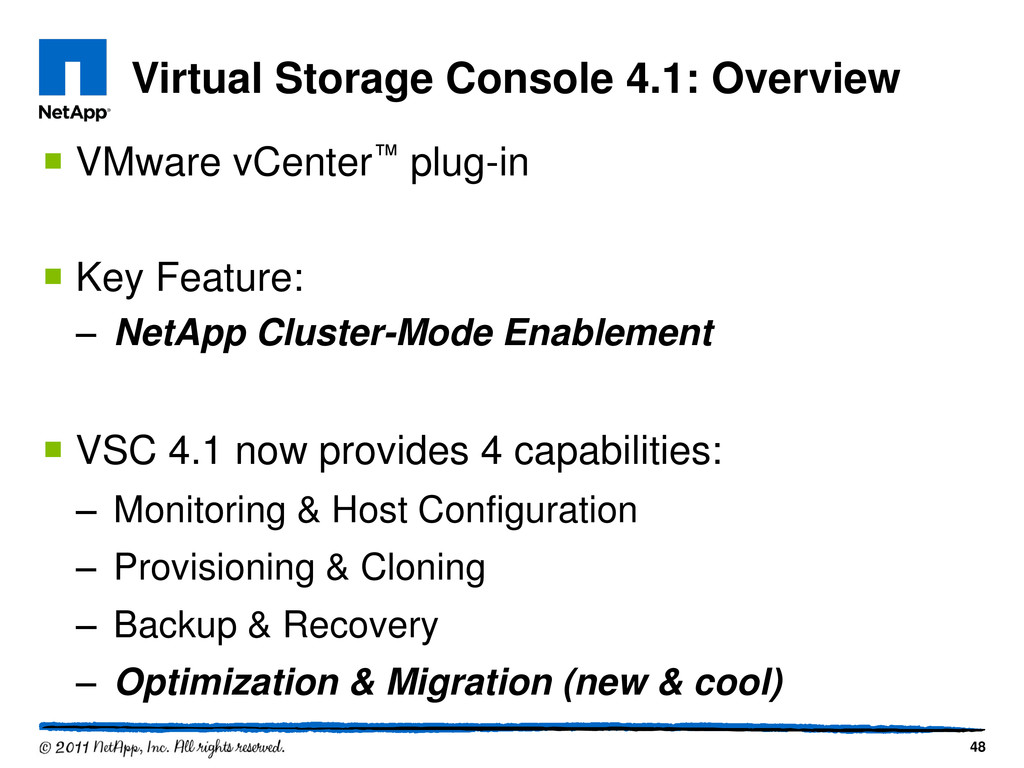

48. Virtual Storage Console 4.1: Overview 48  VMware vCenter™ plug-in  Key Feature: – NetApp Cluster-Mode Enablement  VSC 4.1 now provides 4 capabilities: – Monitoring & Host Configuration – Provisioning & Cloning – Backup & Recovery – Optimization & Migration (new & cool)
49. Virtual Storage Console 4.1 49
50. It’s Not A Bed of Roses… Yet 50

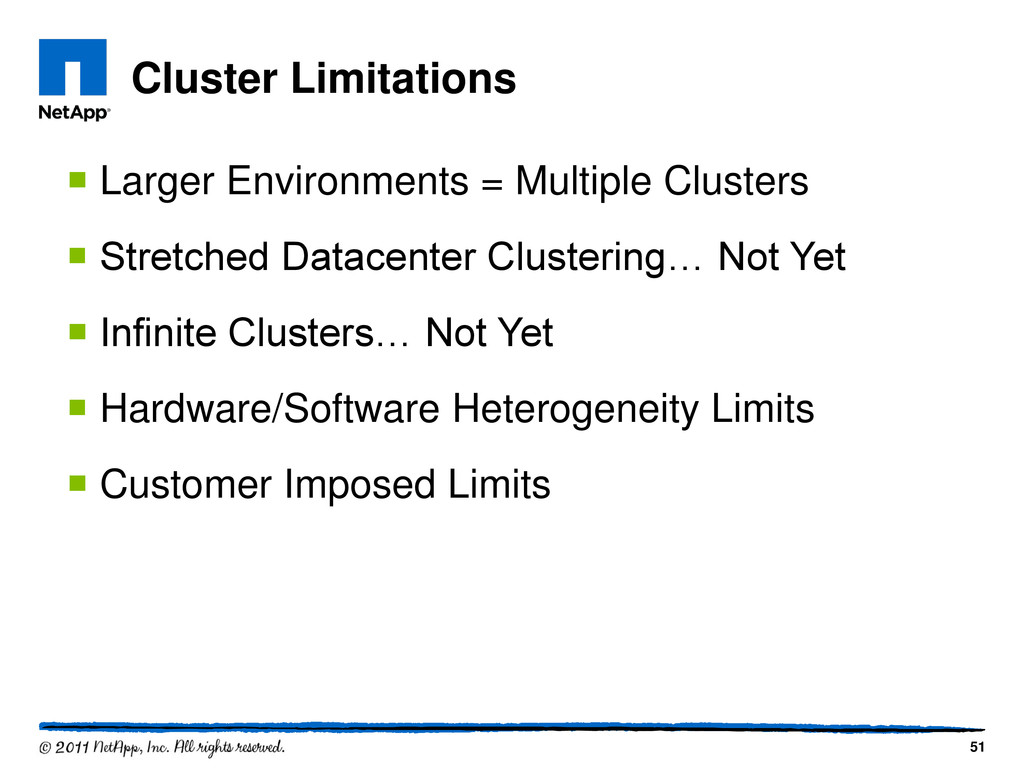

51. Cluster Limitations 51  Larger Environments = Multiple Clusters  Stretched Datacenter Clustering… Not Yet  Infinite Clusters… Not Yet  Hardware/Software Heterogeneity Limits  Customer Imposed Limits
52. Building Your Own Storage Cloud at Home 52

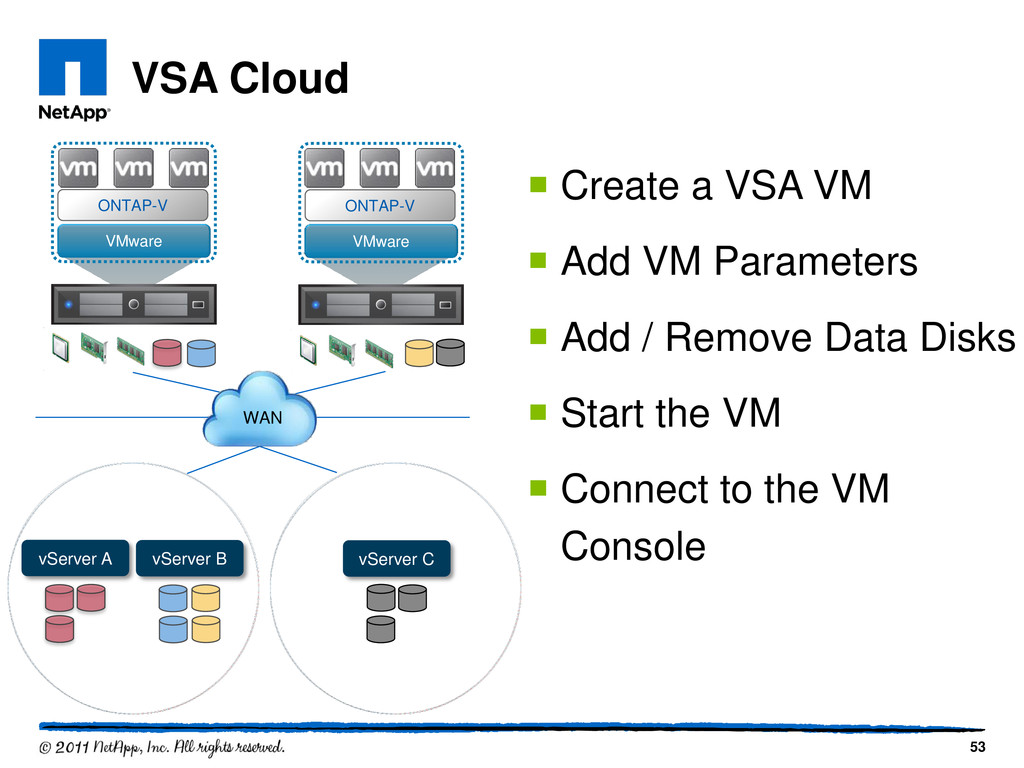

53. VSA Cloud 53 ONTAP-V VMware  Create a VSA VM  Add VM Parameters  Add / Remove Data Disks  Start the VM  Connect to the VM Console ONTAP-V VMware vServer A vServer C vServer B WAN
54. Wrapping UP 54
55. Standard API One Standard Supporting all Workloads Foundational Efficiency Availability Security Clustered ONTAP RAID-DP Native Dedup Storage Tiering Native Protection vServer vServer vServer Secure Multi-Tenancy NetApp Tools Partner Tools Your Tools Core Engine vServer TM 55 ESX ERP VDI File MS Apps Biz Con

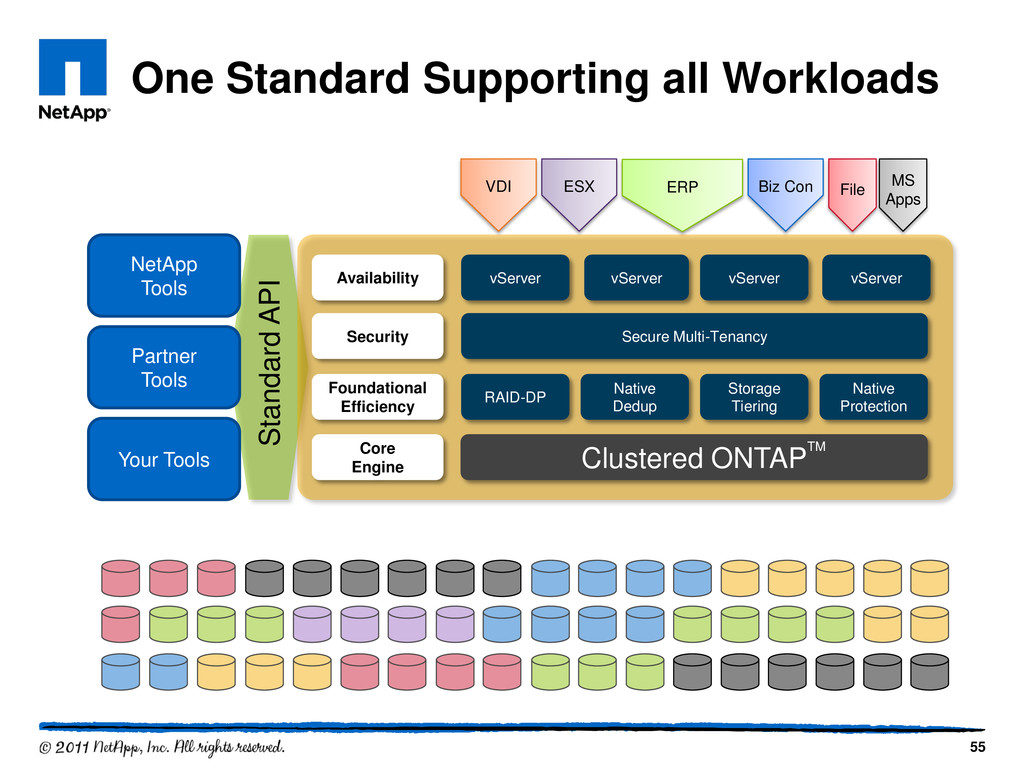

56. © 2011 NetApp, Inc. All rights reserved. No portions of this document may be reproduced without prior written consent of NetApp, Inc. Specifications are subject to change without notice. NetApp, the NetApp logo, and Go further, faster, are trademarks or registered trademarks of NetApp, Inc. in the United States and/or other countries. All other brands or products are trademarks or registered trademarks of their respective holders and should be treated as such. © 2011 NetApp, Inc. All rights reserved. No portions of this document may be reproduced without prior written consent of NetApp, Inc. Specifications are subject to change without notice. NetApp, the NetApp logo, and Go further, faster, are trademarks or registered trademarks of NetApp, Inc. in the United States and/or other countries. All other brands or products are trademarks or registered trademarks of their respective holders and should be treated as such.
