1. Dijkstra Algorithm 2013 立人高中暑期程設集訓

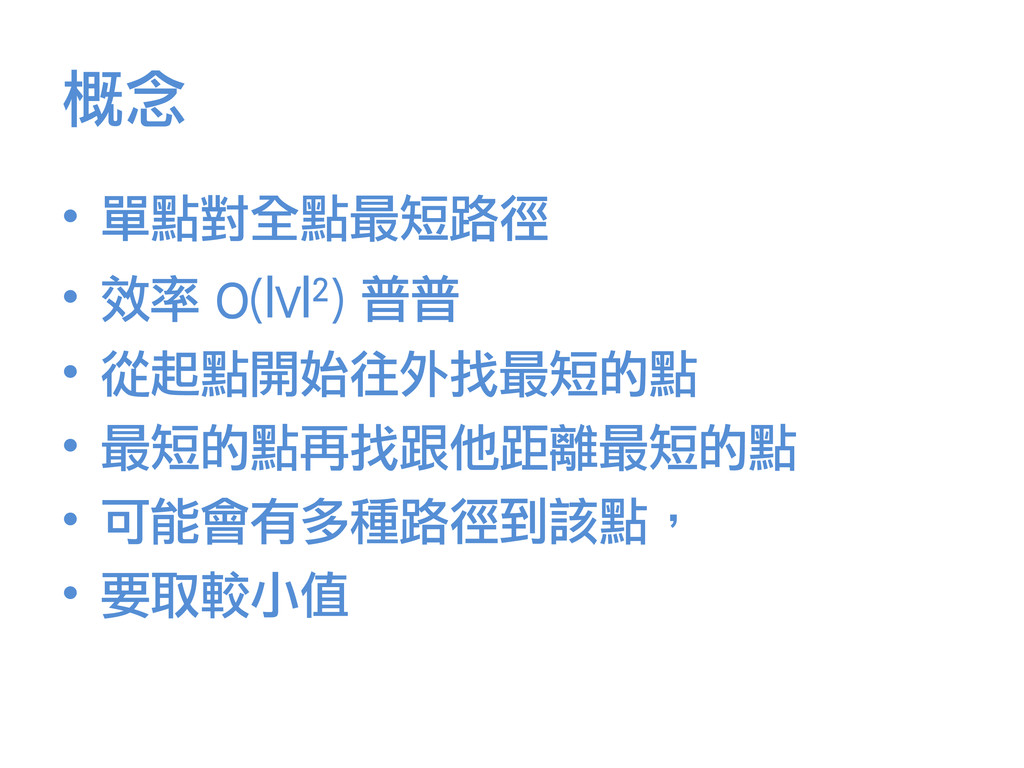

2. 概念 • 單點對全點最短路徑 • 效率 O(|V|2) 普普 • 從起點開始往外找最短的點 • 最短的點再找跟他距離最短的點 • 可能會有多種路徑到該點， • 要取較小值

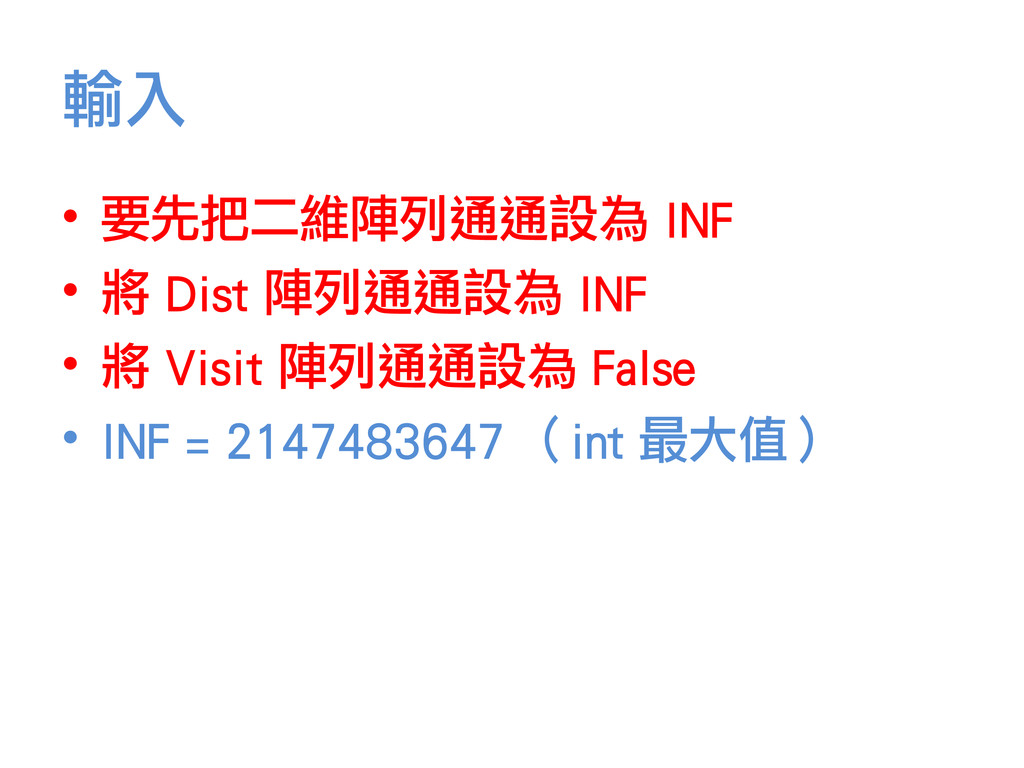

3. 輸入 • 要先把二維陣列通通設為 INF • 將 Dist 陣列通通設為 INF • 將 Visit 陣列通通設為 False • INF = 2147483647 （int 最大值）

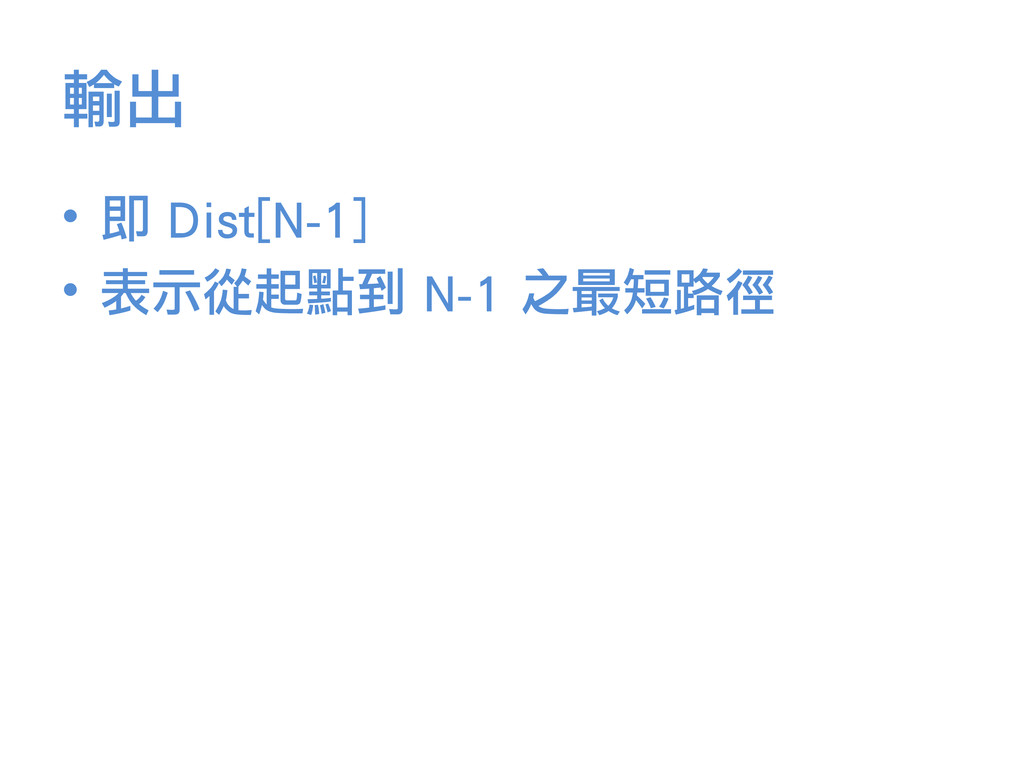

4. 輸出 • 即 Dist[N-1] • 表示從起點到 N-1 之最短路徑

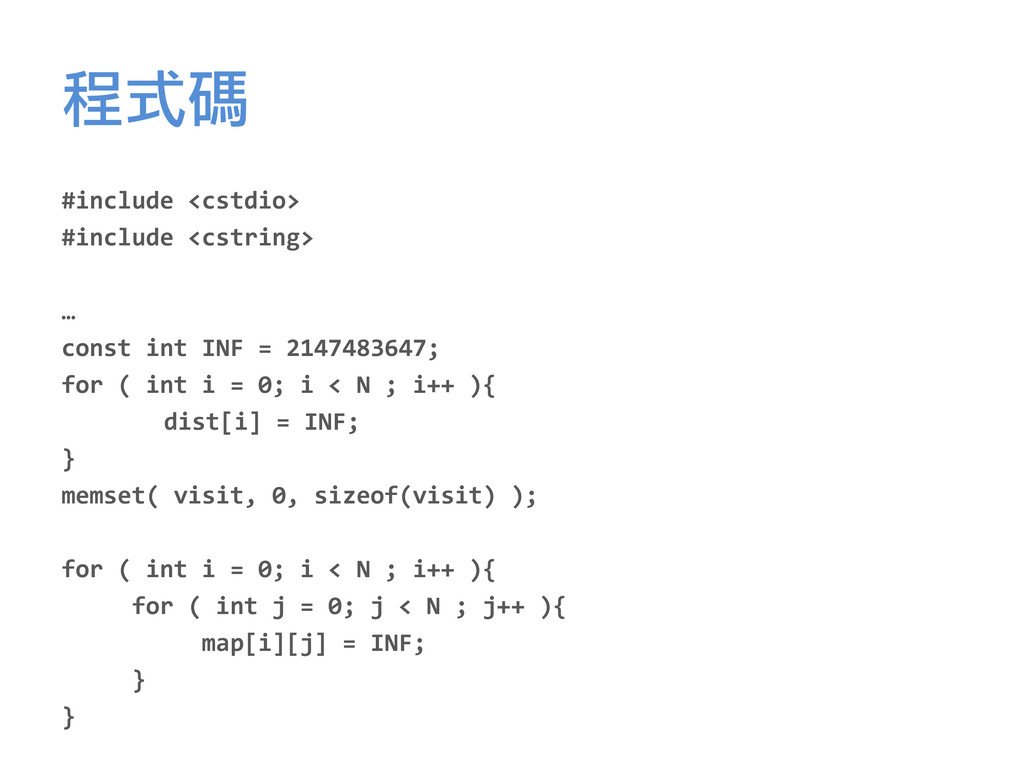

5. 程式碼 #include <cstdio> #include <cstring> … const int INF = 2147483647; for ( int i = 0; i < N ; i++ ){ dist[i] = INF; } memset( visit, 0, sizeof(visit) ); for ( int i = 0; i < N ; i++ ){ for ( int j = 0; j < N ; j++ ){ map[i][j] = INF; } }

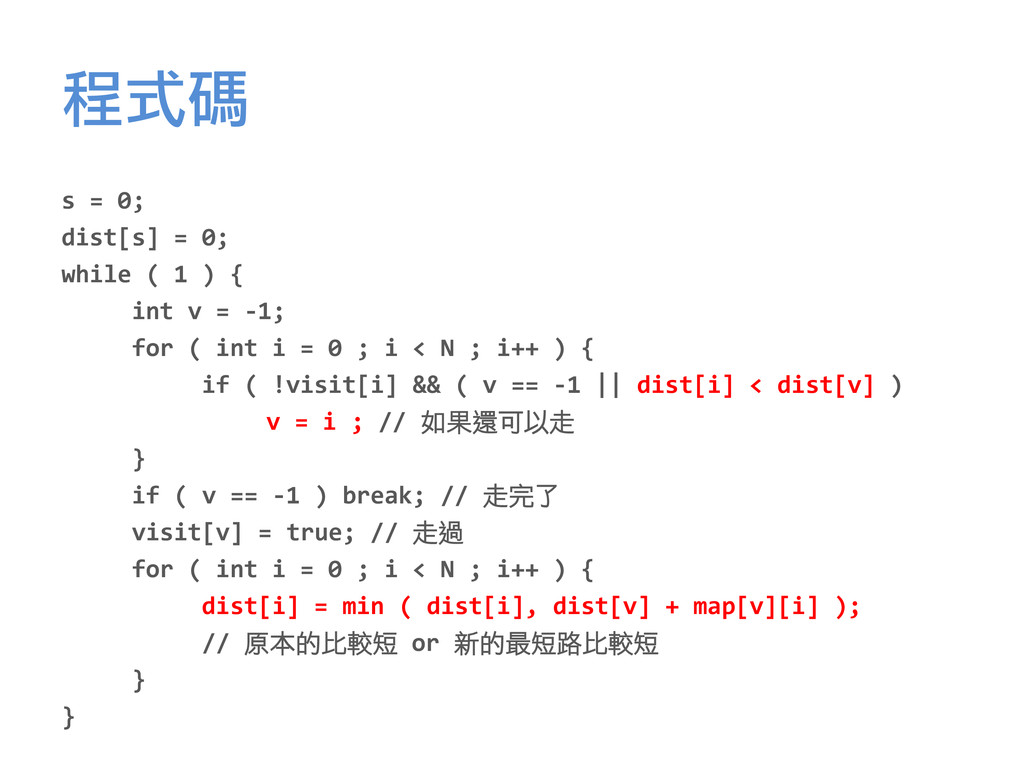

6. 程式碼 s = 0; dist[s] = 0; while ( 1 ) { int v = -1; for ( int i = 0 ; i < N ; i++ ) { if ( !visit[i] && ( v == -1 || dist[i] < dist[v] ) v = i ; // 如果還可以走 } if ( v == -1 ) break; // 走完了 visit[v] = true; // 走過 for ( int i = 0 ; i < N ; i++ ) { dist[i] = min ( dist[i], dist[v] + map[v][i] ); // 原本的比較短 or 新的最短路比較短 } }

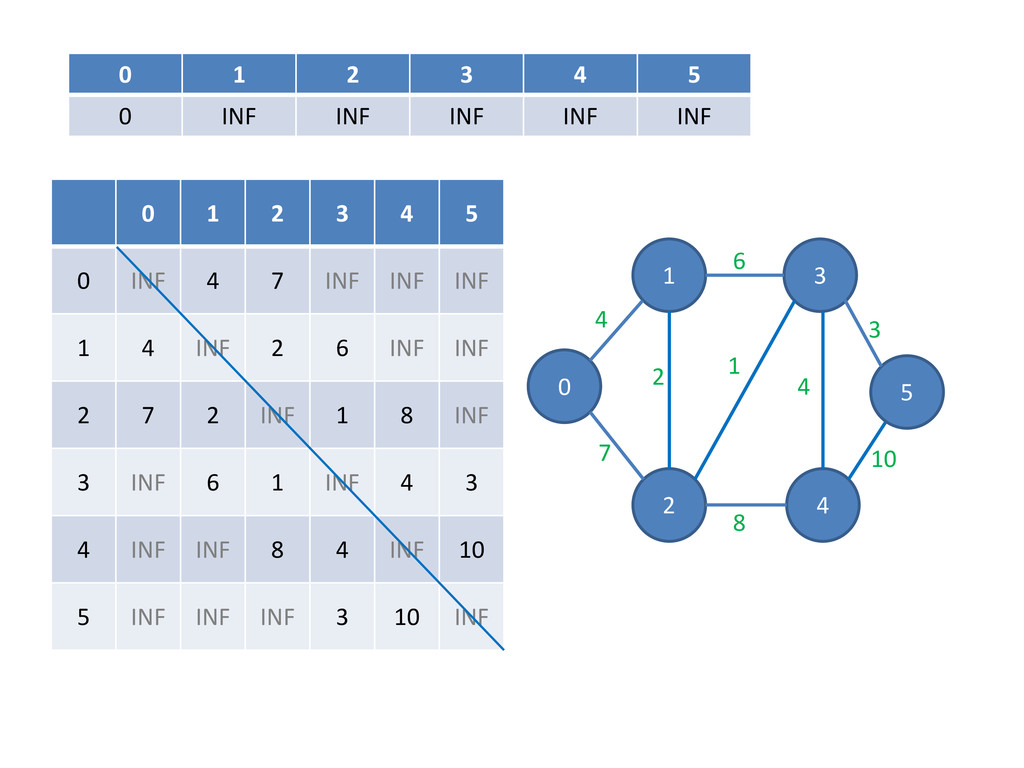

7. 0 1 2 3 4 5 0 INF 4 7 INF INF INF 1 4 INF 2 6 INF INF 2 7 2 INF 1 8 INF 3 INF 6 1 INF 4 3 4 INF INF 8 4 INF 10 5 INF INF INF 3 10 INF 1 3 0 2 5 4 4 7 6 2 1 4 3 10 8 0 1 2 3 4 5 0 INF INF INF INF INF
8. 0 1 2 3 4 5 0 INF 4 7 INF INF INF 1 4 INF 2 6 INF INF 2 7 2 INF 1 8 INF 3 INF 6 1 INF 4 3 4 INF INF 8 4 INF 10 5 INF INF INF 3 10 INF 1 3 0 2 5 4 4 7 6 2 1 4 3 10 8 0 1 2 3 4 5 0 4 INF INF INF INF

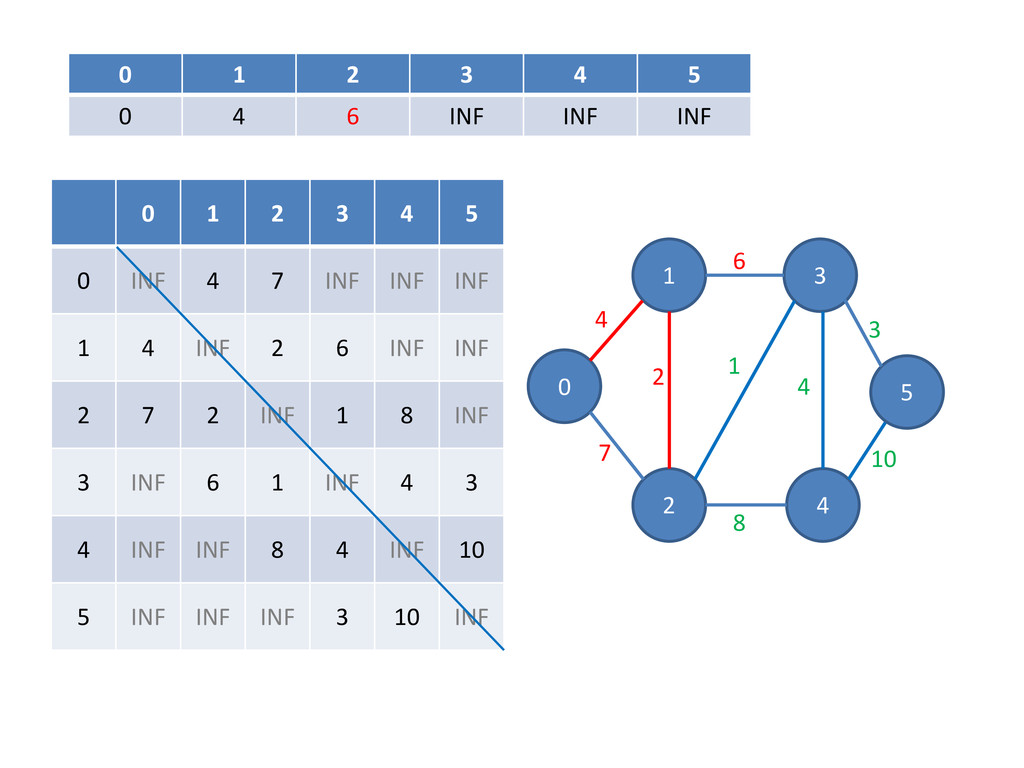

9. 0 1 2 3 4 5 0 INF 4 7 INF INF INF 1 4 INF 2 6 INF INF 2 7 2 INF 1 8 INF 3 INF 6 1 INF 4 3 4 INF INF 8 4 INF 10 5 INF INF INF 3 10 INF 1 3 0 2 5 4 4 7 6 2 1 4 3 10 8 0 1 2 3 4 5 0 4 6 INF INF INF
10. 0 1 2 3 4 5 0 INF 4 7 INF INF INF 1 4 INF 2 6 INF INF 2 7 2 INF 1 8 INF 3 INF 6 1 INF 4 3 4 INF INF 8 4 INF 10 5 INF INF INF 3 10 INF 1 3 0 2 5 4 4 7 6 2 1 4 3 10 8 0 1 2 3 4 5 0 4 6 7 INF INF
11. 0 1 2 3 4 5 0 INF 4 7 INF INF INF 1 4 INF 2 6 INF INF 2 7 2 INF 1 8 INF 3 INF 6 1 INF 4 3 4 INF INF 8 4 INF 10 5 INF INF INF 3 10 INF 1 3 0 2 5 4 4 7 6 2 1 4 3 10 8 0 1 2 3 4 5 0 4 6 7 11 INF

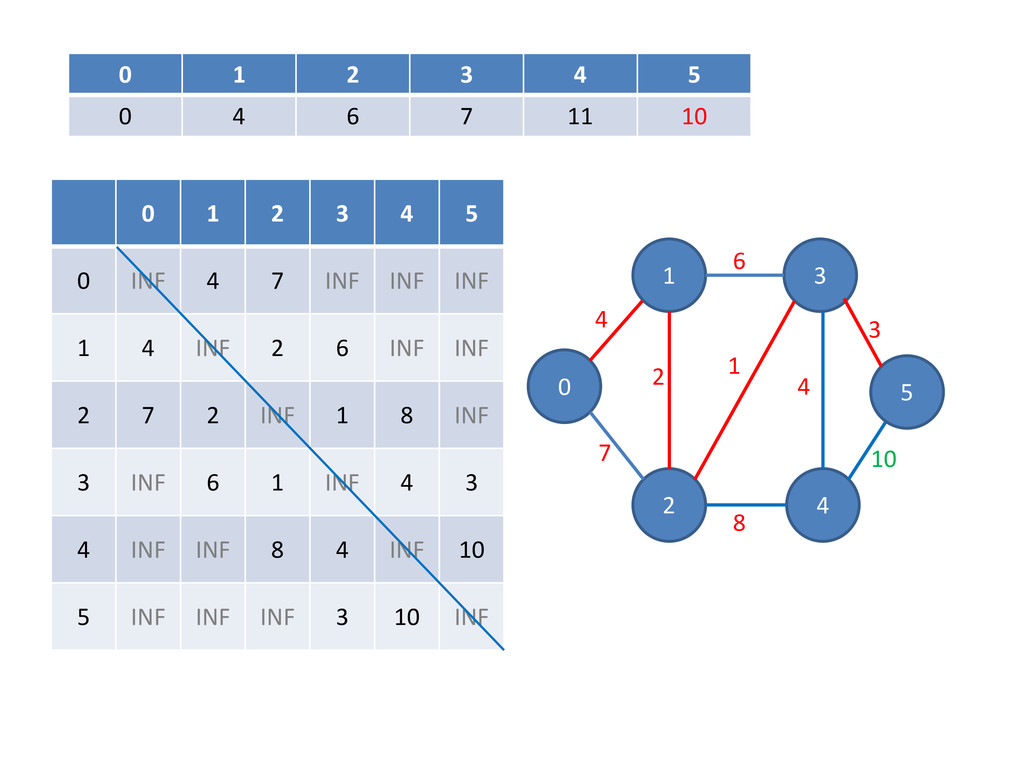

12. 0 1 2 3 4 5 0 INF 4 7 INF INF INF 1 4 INF 2 6 INF INF 2 7 2 INF 1 8 INF 3 INF 6 1 INF 4 3 4 INF INF 8 4 INF 10 5 INF INF INF 3 10 INF 1 3 0 2 5 4 4 7 6 2 1 4 3 10 8 0 1 2 3 4 5 0 4 6 7 11 10

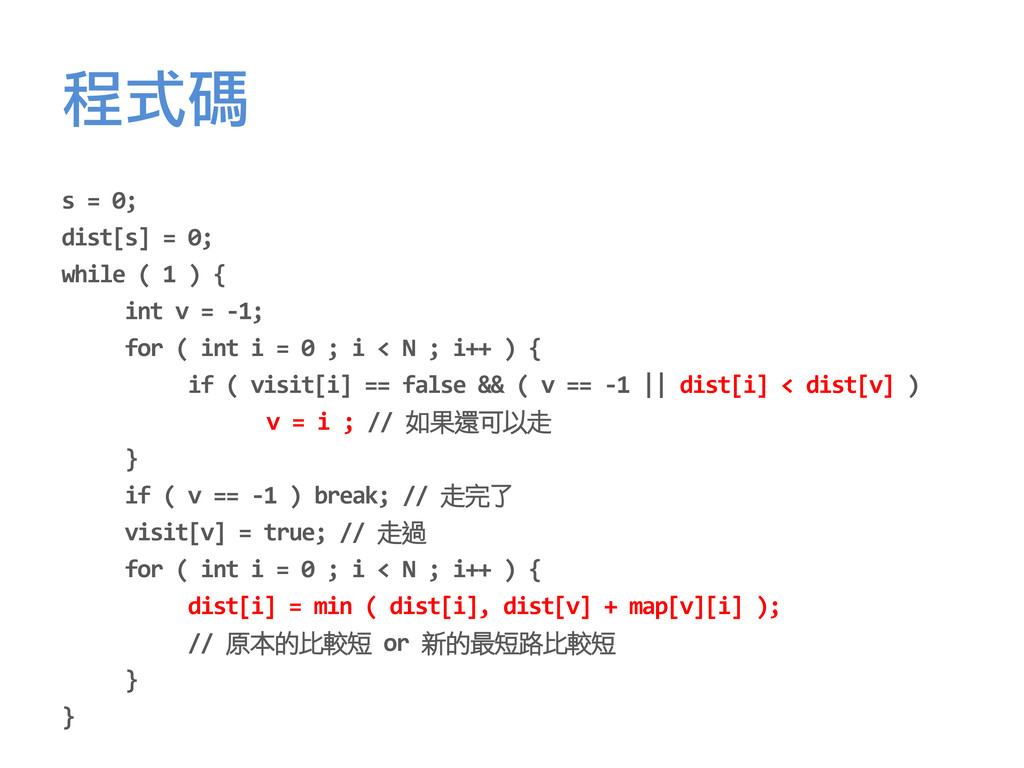

13. 程式碼 s = 0; dist[s] = 0; while ( 1 ) { int v = -1; for ( int i = 0 ; i < N ; i++ ) { if ( visit[i] == false && ( v == -1 || dist[i] < dist[v] ) v = i ; // 如果還可以走 } if ( v == -1 ) break; // 走完了 visit[v] = true; // 走過 for ( int i = 0 ; i < N ; i++ ) { dist[i] = min ( dist[i], dist[v] + map[v][i] ); // 原本的比較短 or 新的最短路比較短 } }
14. Thanks
