Swift Code Patterns

An updated version of my older Code Patterns talk.

This talk starts of reviewing small recommendations and works it's way up to talking about extensions (including some examples taken from recent projects) and then finally about larger design patterns including: Dependency Injection, Launch/Debug Menus and Many DataSources / Scenarios.

Transcript

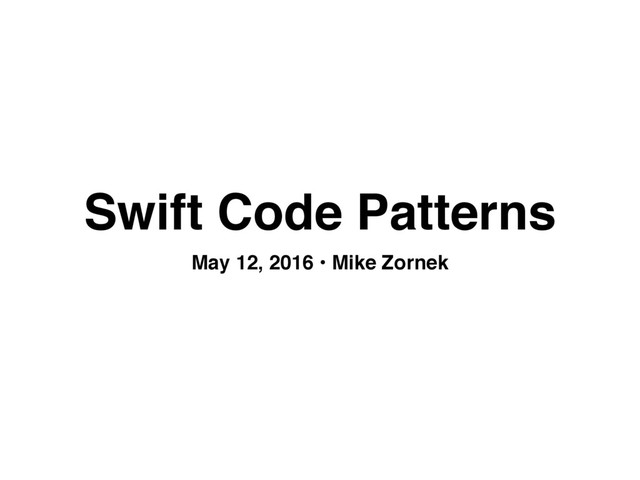

1. Swift Code Patterns
   May 12, 2016 • Mike Zornek


   View Slide

2. Introductions


   View Slide

3. View Slide

4. View Slide

5. View Slide

6. View Slide

7. Questions, anytime.


   View Slide

8. What’s Inside?


   View Slide

9. NSLocalizedString()


   View Slide

10. NSLocalizedString("Job Request",
    comment: "header text for information regarding a job")


    View Slide

11. NSLocalizedString("shopping-cart.create-order.button",
    comment: "Title for footer button in Shopping Cart")


    View Slide

12. TODO Comments


    View Slide

13. // TODO: Add proper error handling.


    View Slide

14. // TODO: Add proper error handling.
    // https://github.com/bignerdranch/project-x/issues/39


    View Slide

15. DRY


    View Slide

16. Storyboards


    View Slide

17. struct AppNameStoryboards {
    static func logInStoryboard() -> UIStoryboard {
    return UIStoryboard(name: "LogIn", bundle: nil)
    }
    }
    // LoginViewController.swift
    private struct Segue {
    static let PINSetup = "showPinSetup"
    static let RetrieveUsername = "showRetrieveUsername"
    static let ResetPassword = "showResetPassword"
    static let ResendActivationLink = "showResendActivationLink"
    }


    View Slide

18. Filenames
    URLs
    Preference Names
    JSON keys


    View Slide

19. Extensions


    View Slide

20. UIColor


    View Slide

21. Forgive my
    indentation.


    View Slide

22. let c1 = UIColor.redColor()
    let c2 = UIColor(hue: 0.8,
    saturation: 0.8,
    brightness: 0.8,
    alpha: 1.0)
    let c3 = UIColor(red: 50/255,
    green: 25/255,
    blue: 32/255,
    alpha: 255/255)
    let c4 = UIColor(hex: 0xE6A024)


    View Slide

23. public extension UIColor {
    convenience init(hex: UInt32) {
    let red = CGFloat((hex >> 16) & 0xff) / 255
    let green = CGFloat((hex >> 8) & 0xff) / 255
    let blue = CGFloat((hex ) & 0xff) / 255
    self.init(red: red, green: green, blue: blue, alpha: 1)
    }
    }


    View Slide

24. public extension UIColor {
    convenience init(bnr_hex: UInt32) {
    let red = CGFloat((hex >> 16) & 0xff) / 255
    let green = CGFloat((hex >> 8) & 0xff) / 255
    let blue = CGFloat((hex ) & 0xff) / 255
    self.init(red: red, green: green, blue: blue, alpha: 1)
    }
    }
    bnr_hex


    View Slide

25. struct DayTheme {
    static let backgroundColor = UIColor(hex: 0xfefefe)
    static let textColor = UIColor(hex: 0x121212)
    static let highlightColor = UIColor.redColor()
    }
    greetingLabel.textColor = DayTheme.textColor


    View Slide

26. UITableView


    View Slide

27. let cell =
    tableView.dequeueReusableCellWithIdentifier("CustomCell",
    forIndexPath: indexPath) as! CustomCell
    let cell = tableView.dequeue(cellOfType: CustomCell.self,
    indexPath: indexPath)


    View Slide

28. extension UITableView {
    func dequeue(cellOfType type: V.Type,
    indexPath: NSIndexPath, reuseIdentifier: String? = nil) -> V {
    let identifier = reuseIdentifier ?? String(type)
    return dequeueReusableCellWithIdentifier(identifier,
    forIndexPath: indexPath) as! V
    }
    }
    String(type) // old way NSStringFromClass(type)


    View Slide

29. Custom Table Cells


    View Slide

30. protocol NibLoadable: class {
    static var nibName: String { get }
    static var nib: UINib { get }
    }
    extension NibLoadable {
    static var nib: UINib {
    return UINib(nibName: nibName, bundle: NSBundle(forClass: self))
    }
    }


    View Slide

31. protocol NibLoadable: class {
    static var nibName: String { get }
    static var nib: UINib { get }
    func createView(ofType _: View.Type) -> View
    }
    extension NibLoadable {
    static var nib: UINib {
    return UINib(nibName: nibName, bundle: NSBundle(forClass: self))
    }
    // Useful for custom view designed in xibs, eg: table header view, section headers, etc.
    static func createView(ofType _: View.Type)
    -> View {
    let nib = View.nib
    let nibContents = nib.instantiateWithOwner(nil, options: nil)
    assert(nibContents.count == 1, "\(nib) should hold only
    a single view, but found \(nibContents.count) items: \(nibContents)")
    return nibContents.first as! View
    }
    }


    View Slide

32. class ChangePasswordCreateViewController: FormTableViewController {
    private lazy var tableHeaderView: FormTableHeaderView = {
    let headerView = createView(ofType: FormTableHeaderView.self)
    headerView.textLabel.text = NSLocalizedString("settings.change-
    password.create-new.header", comment: "Form table header text for new
    password creation.")
    Themer.themeDarkFormHeader(headerView)
    return headerView
    }()
    private func setupTableView() {
    // other stuff
    tableView.tableHeaderView = tableHeaderView
    }
    }


    View Slide

33. Enum


    View Slide

34. Humanize TableView
    Layout


    View Slide

35. class StoreDetailsController: UITableViewController {
    private enum CellType: String {
    case Map = "MapCell"
    case Title = "TitleCell"
    case Address = "AddressCell"
    case Phone = "PhoneCell"
    case StoreHours = "StoreHoursCell"
    }
    private var cells: [CellType] = []
    private var store: Store!
    func configure(store: Store) {
    self.store = store
    cells = [.Map, .Title, .Address]
    if store.locationPhone != nil {
    cells.append(.Phone)
    }
    if store.storeHours != nil {
    cells.append(.StoreHours)
    }
    }
    }


    View Slide

36. override func tableView(tableView: UITableView,
    cellForRowAtIndexPath indexPath: NSIndexPath) ->
    UITableViewCell {
    let cellType = cells[indexPath.row]
    let reuseIdentifier = cellType.rawValue
    let cell = tableView.dequeueReusableCellWithIdentifier(reuseIdentifier,
    forIndexPath: indexPath)
    switch cellType {
    case .Map:
    print("custom config")
    case .Title:
    print("custom config")
    case .Address:
    print("custom config")
    case .Phone:
    print("custom config")
    case .StoreHours:
    print("custom config")
    }
    return cell
    }


    View Slide

37. enum UserProfileSections {
    case UsageDataSection
    case ContactInfoSection
    static let count = 2
    }
    enum UsageDataRows {
    case NumberOfTweetsRow
    case NumberOfFollowersRow
    static let count = 2
    }
    enum ContactInfoRows {
    case EmailRow
    case PhoneRow
    case PostalRow
    static let count = 3
    }


    View Slide

38. Result


    View Slide

39. enum WebServiceResult {
    case Success(String)
    case Error(Int)
    }
    let result = downloadWebContent()
    switch result {
    case .Success(let content):
    print("Success content: \(content)")
    case .Error(let errorCode):
    print("Error code: \(errorCode)")
    }


    View Slide

40. UIImage


    View Slide

41. extension UIImage {
    enum AssetIdentifier: String {
    case Location = "icon-location-small-gray"
    case Phone = "icon-phone"
    case Star = "icon-fav-location-off"
    case StarOn = "icon-fav-location-on"
    case StarGrey = "icon-fav-location-small-gray"
    case Time = "icon-time"
    case ChevronDown = "icon-chevron-down"
    case Error = "icon-error"
    }
    convenience init!(_ assetIdentifier: AssetIdentifier) {
    self.init(named: assetIdentifier.rawValue)
    }
    }
    let icon = UIImage(.Star)


    View Slide

42. Dependency
    Injection
    Tell, Don’t Ask


    View Slide

43. View Slide

44. Not Easy :(


    View Slide

45. extension DashboardViewController {
    func configure(toDoListStore: ToDoListStore, delegate:
    DashboardViewControllerDelegate) {
    self.toDoListStore = toDoListStore
    self.delegate = delegate
    }
    }


    View Slide

46. Launch / Debug
    Menu


    View Slide

47. View Slide

48. struct MenuItem {
    let title: String
    let details: String?
    let runAction: ((navigation: UINavigationController) -> ())?
    }
    struct MenuSection {
    let title: String
    let items: [MenuItem]
    }
    struct Menu {
    let title: String
    let sections: [MenuSection]
    }


    View Slide

49. extension Menu {
    static func appMemu() -> Menu {
    let uiColorDemo = MenuItem(title: "UIColor",
    details: "Building colors from hex values”,
    runAction: { (navigation) in
    let storyboard = UIStoryboard(name: "UIColorDemo", bundle: nil)
    let vc =
    storyboard.instantiateViewControllerWithIdentifier("UIColorDemoViewController")
    as! UIColorDemoViewController
    navigation.pushViewController(vc, animated: true)
    })
    let demos = MenuSection(title: "Demos", items: [uiColorDemo]);
    let menu = Menu(title: "Menu", sections: [demos])
    return menu
    }
    }
    class MenuViewController: UITableViewController { ... }


    View Slide

50. Many DataSources


    View Slide

51. View Slide

52. View Slide

53. View Slide

54. View Slide

55. View Slide

56. Resources
    • Weather Demo, that illustrates some of the patterns
    discussed.

    https://github.com/zorn/WeatherDemo
    • Collection of source files, used to prep slides.

    https://github.com/zorn/CodePatternsScratchPad
    • https://www.bignerdranch.com/opensource/


    View Slide

57. Learn More?


    View Slide

58. View Slide

59. View Slide

60. https://vimeo.com/144116310


    View Slide

61. Thank you.
    Michael Zornek
    zorn@bignerdranch.com
    @zorn


    View Slide
