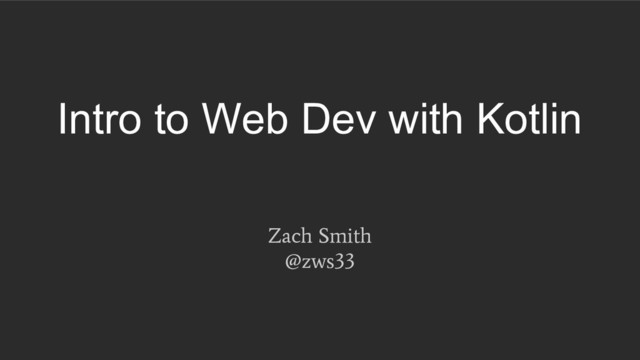

Intro to Web Dev with Kotlin

Transcript

repositories { mavenCentral() maven { url "https://dl.bintray.com/kotlin/kotlin-eap" } } dependencies { classpath "org.jetbrains.kotlin:kotlin-gradle-plugin:$kotlin_version" classpath "org.jetbrains.kotlin:kotlin-frontend-plugin:0.0.44" classpath "org.jetbrains.kotlin:kotlin-serialization:$kotlin_version" } } } Root - build.gradle

Backend

apply plugin: 'kotlin2js' apply plugin: 'kotlin-dce-js' repositories { jcenter() }

dependencies { implementation "org.jetbrains.kotlin:kotlin-stdlib-js:$kotlin_version" implementation "org.jetbrains.kotlin:kotlin-test-js:$kotlin_version" } compileKotlin2Js { kotlinOptions.moduleKind = 'commonjs' kotlinOptions.outputFile = "$buildDir/js/index.js" } Backend - build.gradle

{ "name": "backend", "version": "1.0.0", "description": "", "main": "index.js", "scripts":

{ "test": "echo \"Error: no test specified\" && exit 1", "start": "node ./build/js/index.js" }, "author": "", "license": "ISC", "dependencies": { "express": "^4.16.4", "kotlin": "^1.3.21", "request": "^2.88.0" } } Backend - package.json

{ "name": "backend", "version": "1.0.0", "description": "", "main": "index.js", "scripts":

{ "test": "echo \"Error: no test specified\" && exit 1", "start": "node ./build/js/index.js" }, "author": "", "license": "ISC", "dependencies": { "express": "^4.16.4", "kotlin": "^1.3.21", "request": "^2.88.0" } } Backend - package.json

external fun require(module: String): dynamic fun main() { val express

= require("express") val request = require("request") val app = express() ... }

external fun require(module: String): dynamic fun main() { val express

= require("express") val request = require("request") val app = express() ... } Declare externally defined API returning dynamic type.

Dynamic • The dynamic type basically turns off Kotlin's type

checker. • A dynamic value can be assigned to any variable or passed anywhere as a parameter. • Any value can be assigned to dynamic variable • Any value can be passed to a function that takes dynamic as a parameter. • Null-checks are disabled for dynamic values.

external fun require(module: String): dynamic fun main() { ... app.use(express.static("public"))

app.get("/") { req, res -> res.send("public") } app.get("/todos") { req, res -> request.get("https://jsonplaceholder.typicode.com/todos") { err, response, body -> res.type("text/json") res.send(response.body) } } app.listen(3000) { println("Listening on port 3000") } }

Frontend

apply plugin: 'kotlin2js' apply plugin: 'kotlin-dce-js' apply plugin: 'org.jetbrains.kotlin.frontend' apply

plugin: 'kotlinx-serialization' repositories { jcenter() maven { url "http://dl.bintray.com/kotlin/kotlin-dev" } maven { url "http://dl.bintray.com/kotlinx/kotlinx" } maven { url "https://kotlin.bintray.com/kotlinx" } maven { url "http://dl.bintray.com/kotlin/kotlin-js-wrappers" } } dependencies { implementation "org.jetbrains.kotlin:kotlin-stdlib-js:$kotlin_version" implementation "org.jetbrains.kotlinx:kotlinx-html-js:0.6.12" implementation "org.jetbrains.kotlinx:kotlinx-serialization-runtime-js:0.10.0" implementation 'org.jetbrains:kotlin-react:16.6.0-pre.68-kotlin-1.3.20' implementation "org.jetbrains:kotlin-react-dom:16.6.0-pre.68-kotlin-1.3.20" } Frontend - build.gradle

apply plugin: 'kotlin2js' apply plugin: 'kotlin-dce-js' apply plugin: 'org.jetbrains.kotlin.frontend' apply

kotlinFrontend { downloadNodeJsVersion = 'latest' sourceMaps = true npm {

dependency "style-loader" dependency "react" dependency "react-dom" devDependency "karma" } webpackBundle { bundleName = "main" contentPath = file('src/main/web') } } Frontend - build.gradle

compileKotlin2Js { kotlinOptions { metaInfo = true outputFile = "$project.buildDir.path/js/${project.name}.js"

sourceMap = true moduleKind = 'commonjs' main = "call" } } Frontend - build.gradle

<!DOCTYPE html> <html> <head> <link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.2.1/css/bootstrap.min.css" integrity="sha384-GJzZqFGwb1QTTN6wy59ffF1BuGJpLSa9DkKMp0DgiMDm4iYMj70gZWKYbI706tWS" crossorigin="anonymous"> <title>Kotlin

React Demo</title> </head> <body> <div id="root"></div> <script type="text/javascript" src="main.bundle.js"></script> </body> </html> Index.html

<!DOCTYPE html> <html> <head> <link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.2.1/css/bootstrap.min.css" integrity="sha384-GJzZqFGwb1QTTN6wy59ffF1BuGJpLSa9DkKMp0DgiMDm4iYMj70gZWKYbI706tWS" crossorigin="anonymous"> <title>Kotlin

React Demo</title> </head> <body> <div id="root"></div> <script type="text/javascript" src="main.bundle.js"></script> </body> </html> Index.html

React • A JavaScript library for building user interfaces •

Uses the concept of Components • Components can manage their own state, and can be composed make complex UIs.

Components • Components have a “render()” method. • Method takes

input data and returns “descriptions” of what to display. • “Descriptions” are defined in objects call React Elements

React Elements • React Elements are cheap to create and

maintain. • React uses these to model the state of the UI. • When component state changes, render is called, and new React Elements are produced that reflect updated state. • Can diff this ui model with current DOM state and will only update the DOM nodes necessary to bring DOM to correct state

fun main() { render(document.getElementById("root")) { appComponent() } }

fun render(container: Element?, callback: () -> Unit = {}, handler:

RBuilder.() -> Unit) = render(buildElements(handler), container, callback)

fun render(container: Element?, callback: () -> Unit = {}, handler:

RBuilder.() -> Unit) = render(buildElements(handler), container, callback) Invokes external render function in React JS library.

class AppComponent : RComponent<RProps, RState>() { override fun RBuilder.render() {

div("container") { div("row") { h2("display-1") { +"Welcome to React with Kotlin" } } todoListComponent() } } } fun RBuilder.appComponent() = child(AppComponent::class) {} Render method for defining UI

class AppComponent : RComponent<RProps, RState>() { override fun RBuilder.render() {

div("container") { div("row") { h2("display-1") { +"Welcome to React with Kotlin" } } todoListComponent() } } } fun RBuilder.appComponent() = child(AppComponent::class) {}

package react import kotlinext.js.* // Props external interface RProps val

RProps.children: Any get() = asDynamic().children var RProps.key: String get() = error("key cannot be read from props") set(value) { asDynamic().key = value }

class AppComponent : RComponent<RProps, RState>() { override fun RBuilder.render() {

inline fun RBuilder.div(..., block: RDOMBuilder<DIV>.() -> Unit): ReactElement: { return

tag(block) { ... } } fun <P:RProps, C:Component<P, *>> child( klazz: KClass<C>, handler: RHandler<P> ): ReactElement { val rClass = klazz.js as RClass<P> return rClass(handler) }

class AppComponent : RComponent<RProps, RState>() { override fun RBuilder.render() {

class TodoListComponent(props: TodoListProps) : RComponent<TodoListProps, TodoListState>(props) { override fun TodoListState.init(props:

TodoListProps) {...} override fun RBuilder.render() {...} private fun addTodo() {...} private fun deleteTodo(selectedTodo: TodoItem) {...} private fun fetchTodosFromNetwork() {...} } fun RBuilder.todoListComponent(items: List<TodoItem> = listOf()) { return child(TodoListComponent::class) { attrs.initialItems = items } }

interface TodoListProps : RProps { var initialItems: List<TodoItem> } interface

TodoListState : RState { var todos: List<TodoItem> var text: String }

@Serializable data class TodoItem( val userId: Int, val id: Int,

val title: String, val completed: Boolean )

class TodoListComponent(props: TodoListProps) : RComponent<TodoListProps, TodoListState>(props) { override fun TodoListState.init(props:

TodoListProps) { ... } override fun RBuilder.render() { div("row justify-content-center") { div("input-group mb-3") { input(type = InputType.text, name = "itemText", classes = "form-control") { key = "itemText" attrs { value = state.text placeholder = "Add a to-do item" onChangeFunction = { val target = it.target as HTMLInputElement setState { text = target.value } } } } ... } } ...

class TodoListComponent(props: TodoListProps) : RComponent<TodoListProps, TodoListState>(props) { override fun TodoListState.init(props:

TodoListProps) { ... } override fun RBuilder.render() { div("row justify-content-center") { div("input-group mb-3") { input(type = InputType.text, name = "itemText", classes = "form-control") { key = "itemText" attrs { value = state.text placeholder = "Add a to-do item" onChangeFunction = { val target = it.target as HTMLInputElement setState { text = target.value } } } } ... } } ...

class TodoListComponent(props: TodoListProps) : RComponent<TodoListProps, TodoListState>(props) { ... override fun

RBuilder.render() { div("row justify-content-center") { div("input-group mb-3") { ... div("input-group-append") { primaryButton("Add", ::addTodo) primaryButton("Get Todos From Network", ::fetchTodosFromNetwork) } } } ...

class TodoListComponent(props: TodoListProps) : RComponent<TodoListProps, TodoListState>(props) { ... override fun

RBuilder.render() { div("row justify-content-center") { ... } div("row justify-content-center") { ul("list-group") { state.todos.forEachIndexed { index, todo -> li("list-group-item d-flex justify-content-between align-items-center") { key = index.toString() +todo.title deleteButton("DELETE") { deleteTodo(todo) } } } } } } ...

class TodoListComponent(props: TodoListProps) : RComponent<TodoListProps, TodoListState>(props) { ... override fun

fun RDOMBuilder<*>.primaryButton(btnText: String, onClick: () -> Unit): ReactElement { return

button(classes = "btn btn-outline-secondary") { +btnText attrs { onClickFunction = { onClick() } } } } fun RDOMBuilder<*>.deleteButton(btnText: String, onClick: () -> Unit): ReactElement { return button(classes = "badge badge-danger badge-pill") { +btnText attrs { onClickFunction = { onClick() } } } }

class TodoListComponent(props: TodoListProps) : RComponent<TodoListProps, TodoListState>(props) { ... private fun

addTodo() { if (state.text.isNotEmpty()) { setState { todos += TodoItem( userId = 1, id = generateId(), title = text, completed = false ) text = "" } } } ...

class TodoListComponent(props: TodoListProps) : RComponent<TodoListProps, TodoListState>(props) { ... private fun

deleteTodo(selectedTodo: TodoItem) { setState { todos = todos.filter { todoItem -> todoItem.id != selectedTodo.id } } } ...

class TodoListComponent(props: TodoListProps) : RComponent<TodoListProps, TodoListState>(props) { ... private fun

fetchTodosFromNetwork() { xhrGet("https://jsonplaceholder.typicode.com/todos") { response -> setState { todos += Json.parse(TodoItem.serializer().list, response) } } } }

fun xhrGet(url: String, callback: (String) -> Unit) { val request

= XMLHttpRequest() request.open("GET", url) request.onload = { if (request.readyState == 4.toShort() && request.status == 200.toShort()) { callback.invoke(request.responseText) } } request.send() }

class TodoListComponent(props: TodoListProps) : RComponent<TodoListProps, TodoListState>(props) { override fun TodoListState.init(props:

TodoListProps) {...} override fun RBuilder.render() {...} private fun addTodo() {...} private fun deleteTodo(selectedTodo: TodoItem) {...} private fun fetchTodosFromNetwork() {...} }

Advantages Backend • Can interact with existing node systems. •

Compile kotlin programs to deploy on AWS systems running node. • Isomorphic JS -> Sharing code between frontend and backend • Kotlin Common -> Shared code with other platforms (iOS & Android)

Advantages Frontend • Statically-typed front end web development • Isomorphic

Kotlin/JS -> Sharing code between frontend and backend • Existing React wrapper libraries facilitate reactive programming. • Kotlin's language support for DSL's and extension allow for rich, fluid ui composition

Disadvantages • Consuming JavaScript returns “dynamic” types. • 3rd party

wrappers are still limited. • Integration with popular libs would require writing your own wrappers or forgoing type safety. • Debugging can be difficult.

• Your first Node.js app with Kotlin ◦ https://medium.com/@Miqubel/your-first-node-js-app-with-kotlin-30e07baa0bf7 •

Kotlin and Javascript ◦ https://www.baeldung.com/kotlin-javascript • Web App With Kotlin.js: Getting Started ◦ https://www.raywenderlich.com/201669-web-app-with-kotlin-js-getting-started • Kotlin/JS configuration made simple ◦ https://blog.kotlin-academy.com/kotlin-js-configuration-made-simple-ef0e361 fcd4 • Kotlin wrappers for popular JavaScript libraries ◦ https://github.com/JetBrains/kotlin-wrappers • Create React apps using Kotlin with no build configuration ◦ https://github.com/JetBrains/create-react-kotlin-app • Kotlin Full-stack Application Example ◦ https://github.com/Kotlin/kotlin-fullstack-sample • KotlinConf 2017 - How to Build a React App in Kotlin by Dave Ford ◦ https://www.youtube.com/watch?v=FDOECr-sT6U
