Two-level Just-in-Time Compilation with One Interpreter and One Engine

Presented at PEPM 2022.

Avatar for Yusuke Izawa

Yusuke Izawa

February 01, 2022
Tweet

More Decks by Yusuke Izawa

Other Decks in Technology

Transcript

  1. Two-level Just-in-Time Compilation with One Interpreter and One Engine Yusuke

    Izawa 1 Hidehiko Masuhara 1 Carl Friedrich Bolz-Tereick 2 1Tokyo Institute of Technology 2Heinrich-Heine-Universität Düsseldorf PEPM 2022 January 18, 2022 Two-level JIT Compilation with .. PEPM 2022 1 / 15

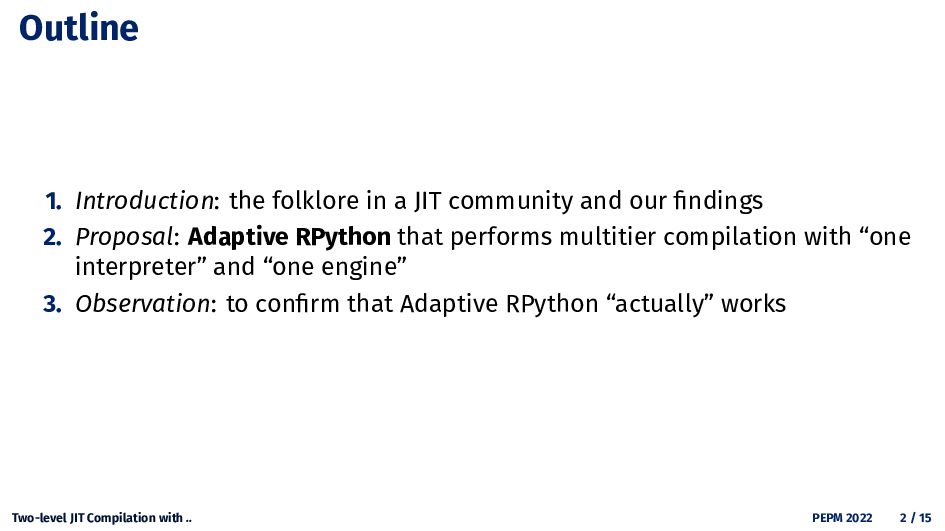

  2. Outline 1. Introduction: the folklore in a JIT community and

    our findings 2. Proposal: Adaptive RPython that performs multitier compilation with “one interpreter” and “one engine” 3. Observation: to confirm that Adaptive RPython “actually” works Two-level JIT Compilation with .. PEPM 2022 2 / 15

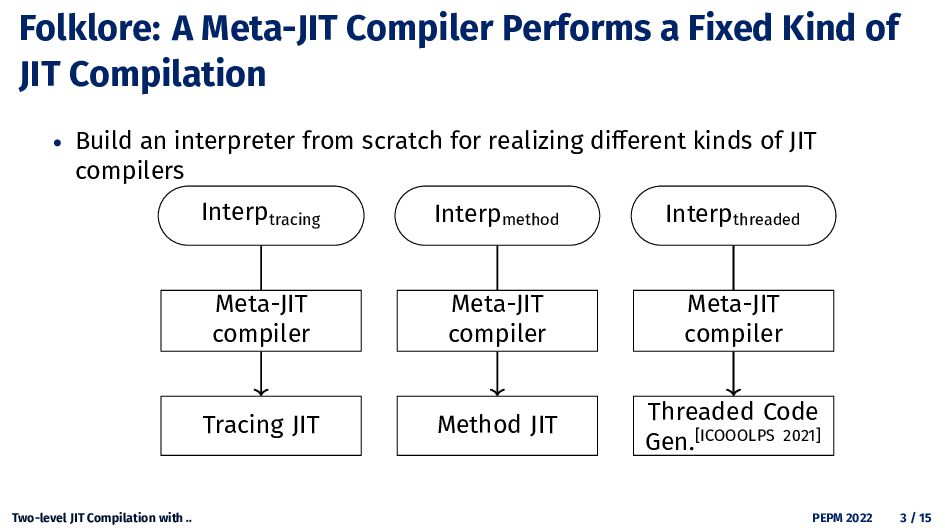

  3. Folklore: A Meta-JIT Compiler Performs a Fixed Kind of JIT

    Compilation • Build an interpreter from scratch for realizing different kinds of JIT compilers Interptracing Interpmethod Interpthreaded Meta-JIT compiler Meta-JIT compiler Meta-JIT compiler Tracing JIT Method JIT Threaded Code Gen.[ICOOOLPS 2021] Two-level JIT Compilation with .. PEPM 2022 3 / 15
  4. Folklore: A Meta-JIT Compiler Performs a Fixed Kind of JIT

    Compilation • Build an interpreter from scratch for realizing different kinds of JIT compilers Interptracing Interpmethod Interpthreaded Meta-JIT compiler Meta-JIT compiler Meta-JIT compiler Tracing JIT Method JIT Threaded Code Gen.[ICOOOLPS 2021] consisting CALL insts in bytecode: removing indirect-branching Two-level JIT Compilation with .. PEPM 2022 3 / 15
  5. Folklore: A Meta-JIT Compiler Performs a Fixed Kind of JIT

    Compilation • Build an interpreter from scratch for realizing different kinds of JIT compilers Interptracing Interpmethod Interpthreaded RPython Truffle/Graal Meta-JIT compiler PyPy TruffleRuby Threaded Code Gen.[ICOOOLPS 2021] Two-level JIT Compilation with .. PEPM 2022 3 / 15
  6. Our Findings Will Affect JIT Community’s Assumption JIT community assumes

    that .. • Meta-tracing JIT compiler can only do tracing compilation RPython[interp, source] = ptracing Two-level JIT Compilation with .. PEPM 2022 4 / 15
  7. Our Findings Will Affect JIT Community’s Assumption JIT community assumes

    that .. • Meta-tracing JIT compiler can only do tracing compilation But, with our findings .. • Let meta-tracing JIT do several compilations, like − method compilation − threaded code compilation − etc. RPython[interp, source] = ptracing RPython[interp, source] = p α RPython[interp, source] = p β RPython[interp, source] = p γ · · · Two-level JIT Compilation with .. PEPM 2022 4 / 15
  8. Our Findings By providing different interp definitions to RPython, can

    derive different kinds of outputs E.g. when passes .. Two-level JIT Compilation with .. PEPM 2022 5 / 15

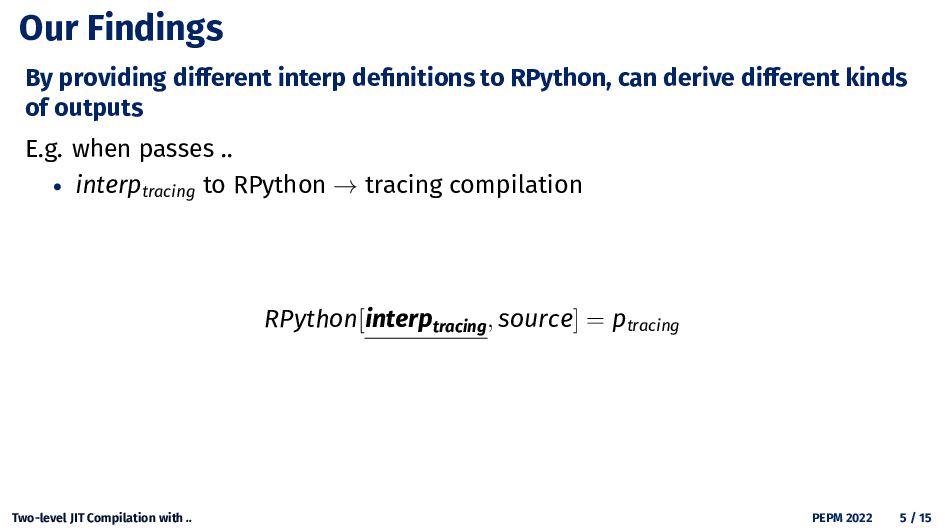

  9. Our Findings By providing different interp definitions to RPython, can

    derive different kinds of outputs E.g. when passes .. • interptracing to RPython → tracing compilation RPython[interptracing, source] = ptracing Two-level JIT Compilation with .. PEPM 2022 5 / 15
  10. Our Findings By providing different interp definitions to RPython, can

    derive different kinds of outputs E.g. when passes .. • interptracing to RPython → tracing compilation • interpmethod to RPython → method compilation RPython[interptracing, source] = ptracing RPython[interpmethod, source] = pmethod Two-level JIT Compilation with .. PEPM 2022 5 / 15

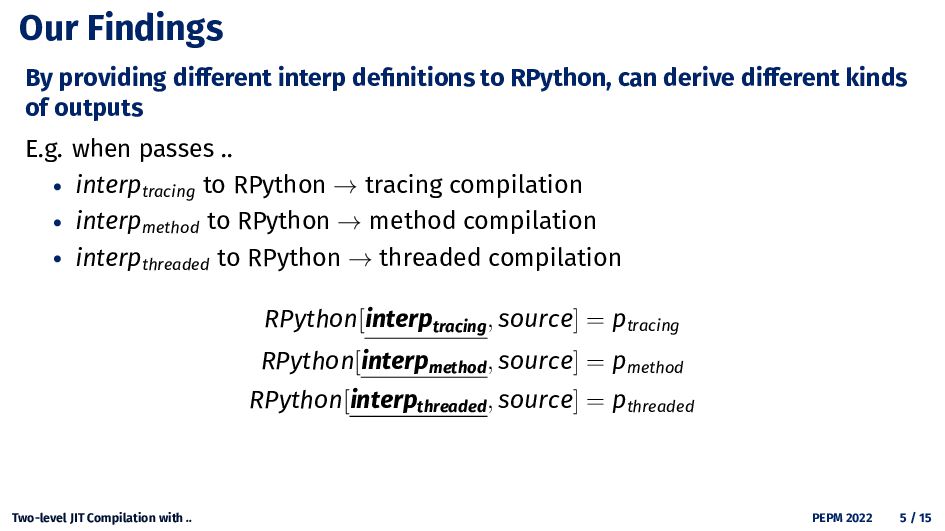

  11. Our Findings By providing different interp definitions to RPython, can

    derive different kinds of outputs E.g. when passes .. • interptracing to RPython → tracing compilation • interpmethod to RPython → method compilation • interpthreaded to RPython → threaded compilation RPython[interptracing, source] = ptracing RPython[interpmethod, source] = pmethod RPython[interpthreaded, source] = pthreaded Two-level JIT Compilation with .. PEPM 2022 5 / 15
  12. Our Findings By providing different interp definitions to RPython, can

    derive different kinds of outputs E.g. when passes .. • interptracing to RPython → tracing compilation • interpmethod to RPython → method compilation • interpthreaded to RPython → threaded compilation RPython[interptracing, source] = ptracing RPython[interpmethod, source] = pmethod RPython[interpthreaded, source] = pthreaded  In other words .. By changing an interpreter, we can get different kinds of compilers Two-level JIT Compilation with .. PEPM 2022 5 / 15

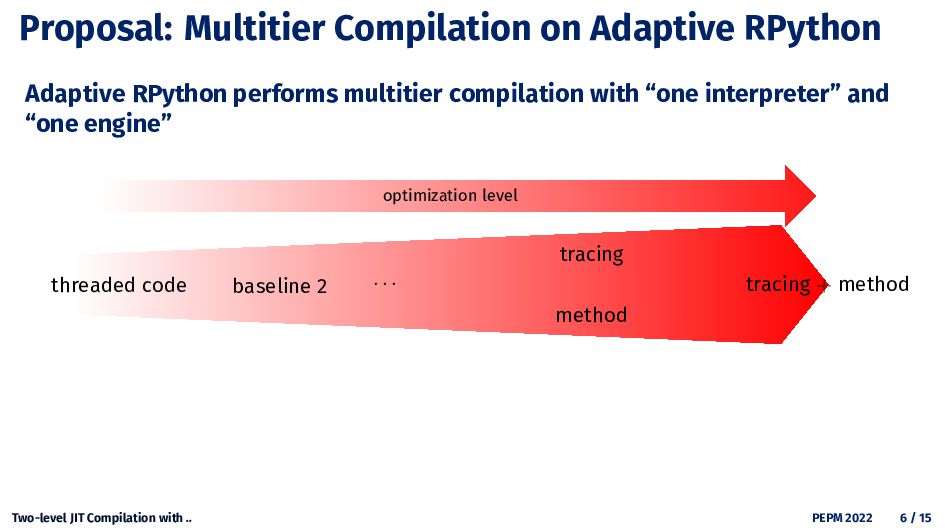

  13. Proposal: Multitier Compilation on Adaptive RPython Adaptive RPython performs multitier

    compilation with “one interpreter” and “one engine” optimization level threaded code baseline 2 · · · tracing method tracing + method Two-level JIT Compilation with .. PEPM 2022 6 / 15
  14. Proposal: Multitier Compilation on Adaptive RPython Adaptive RPython performs multitier

    compilation with “one interpreter” and “one engine” optimization level threaded code baseline 2 · · · tracing method tracing + method With Adaptive RPython .. one generic interp. → common interp + a bit different definitions Two-level JIT Compilation with .. PEPM 2022 6 / 15

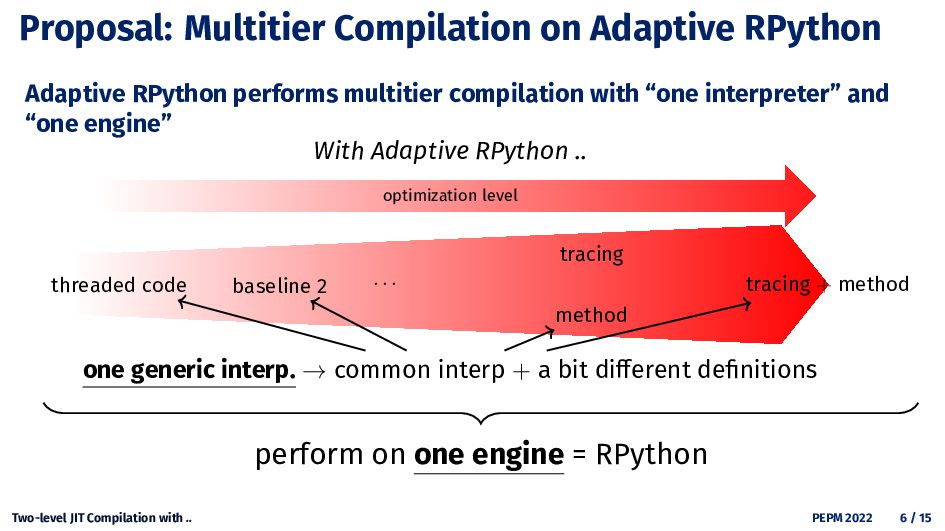

  15. Proposal: Multitier Compilation on Adaptive RPython Adaptive RPython performs multitier

    compilation with “one interpreter” and “one engine” optimization level threaded code baseline 2 · · · tracing method tracing + method With Adaptive RPython .. one generic interp. → common interp + a bit different definitions perform on one engine = RPython Two-level JIT Compilation with .. PEPM 2022 6 / 15
  16. Overview: Adaptive RPython Performs Multitier Compilation (1) A developer writes

    a generic interp Generic interp Adaptive RPython Pre-processor Adaptive RPython P.E. System Two-level JIT Compilation with .. PEPM 2022 7 / 15

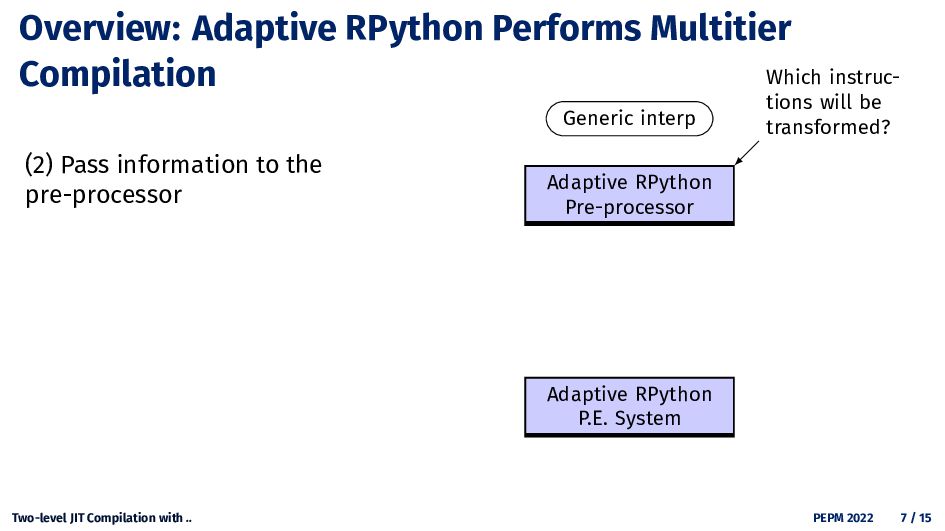

  17. Overview: Adaptive RPython Performs Multitier Compilation (2) Pass information to

    the pre-processor Generic interp Adaptive RPython Pre-processor Which instruc- tions will be transformed? Adaptive RPython P.E. System Two-level JIT Compilation with .. PEPM 2022 7 / 15

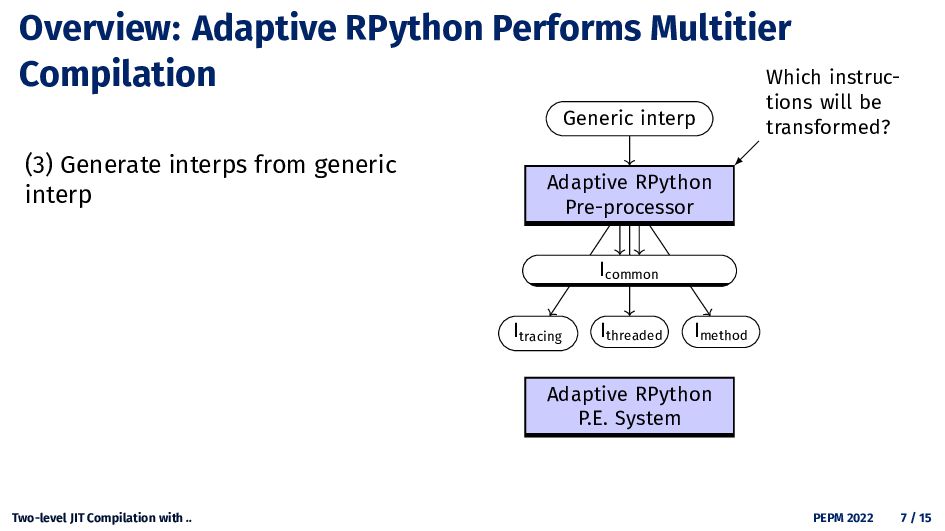

  18. Overview: Adaptive RPython Performs Multitier Compilation (3) Generate interps from

    generic interp Generic interp Adaptive RPython Pre-processor Which instruc- tions will be transformed? Icommon Itracing Ithreaded Imethod Adaptive RPython P.E. System Two-level JIT Compilation with .. PEPM 2022 7 / 15
  19. Overview: Adaptive RPython Performs Multitier Compilation (4) Pass information to

    the offline P.E. Generic interp Adaptive RPython Pre-processor Which instruc- tions will be transformed? Icommon Itracing Ithreaded Imethod Adaptive RPython P.E. System Source program and info about static and dy- namic inputs Two-level JIT Compilation with .. PEPM 2022 7 / 15

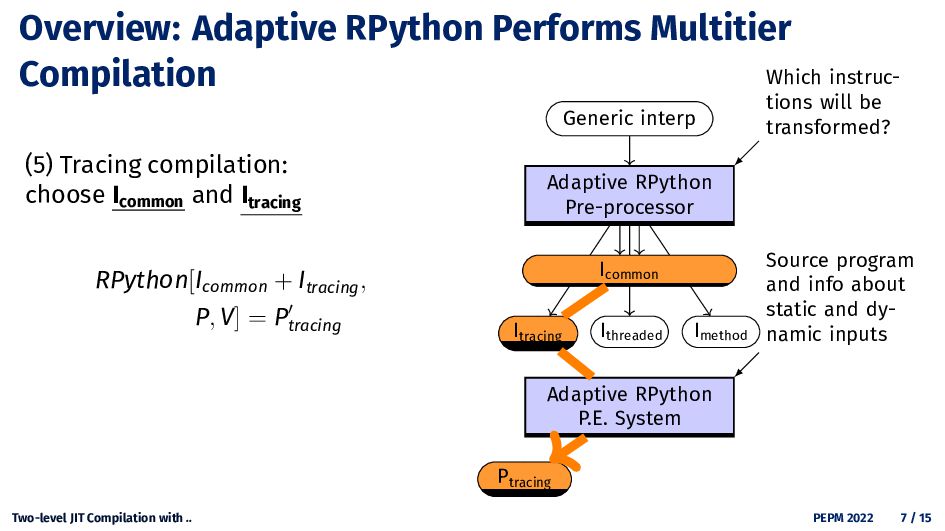

  20. Overview: Adaptive RPython Performs Multitier Compilation (5) Tracing compilation: choose

    Icommon and I tracing RPython[Icommon + Itracing, P, V] = P′ tracing Generic interp Adaptive RPython Pre-processor Which instruc- tions will be transformed? Icommon Itracing Ithreaded Imethod Adaptive RPython P.E. System Source program and info about static and dy- namic inputs Ptracing Two-level JIT Compilation with .. PEPM 2022 7 / 15

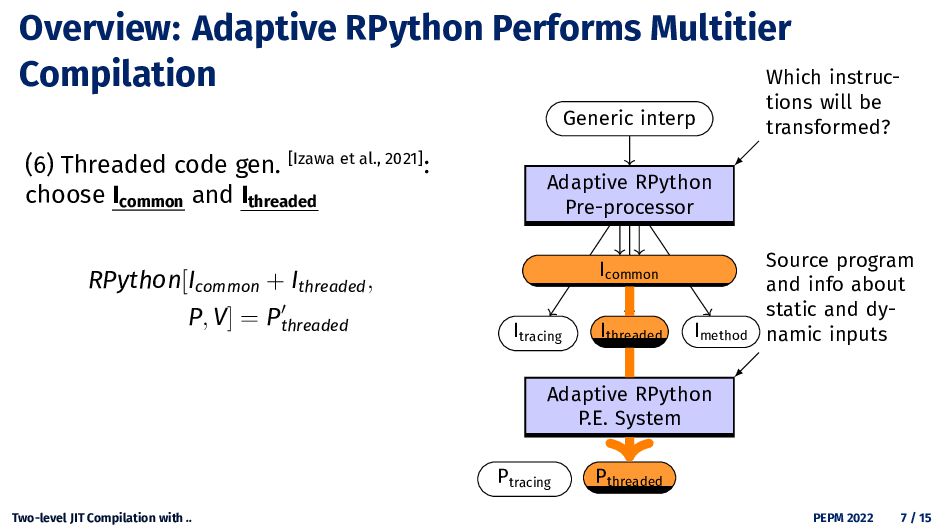

  21. Overview: Adaptive RPython Performs Multitier Compilation (6) Threaded code gen.

    [Izawa et al., 2021]: choose Icommon and Ithreaded RPython[Icommon + Ithreaded, P, V] = P′ threaded Generic interp Adaptive RPython Pre-processor Which instruc- tions will be transformed? Icommon Itracing Ithreaded Imethod Adaptive RPython P.E. System Source program and info about static and dy- namic inputs Ptracing Pthreaded Two-level JIT Compilation with .. PEPM 2022 7 / 15

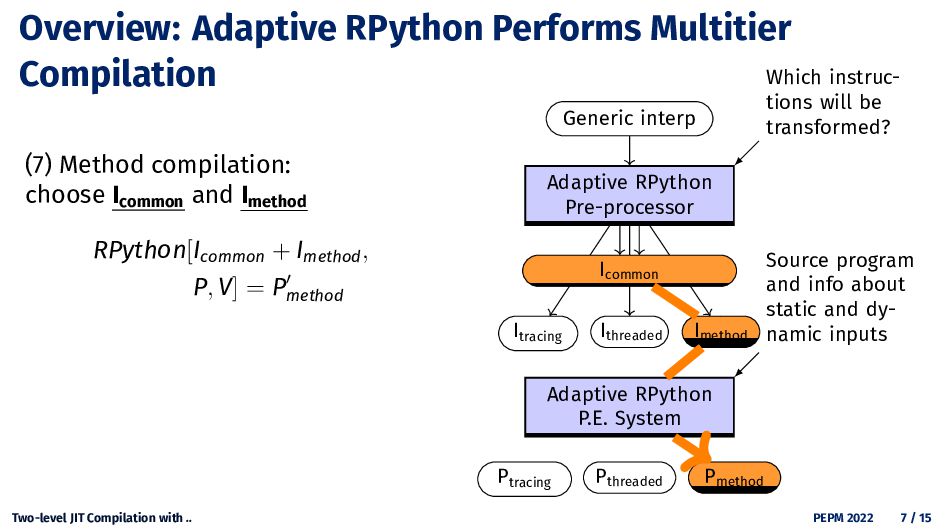

  22. Overview: Adaptive RPython Performs Multitier Compilation (7) Method compilation: choose

    Icommon and Imethod RPython[Icommon + Imethod, P, V] = P′ method Generic interp Adaptive RPython Pre-processor Which instruc- tions will be transformed? Icommon Itracing Ithreaded Imethod Adaptive RPython P.E. System Source program and info about static and dy- namic inputs Ptracing Pthreaded Pmethod Two-level JIT Compilation with .. PEPM 2022 7 / 15

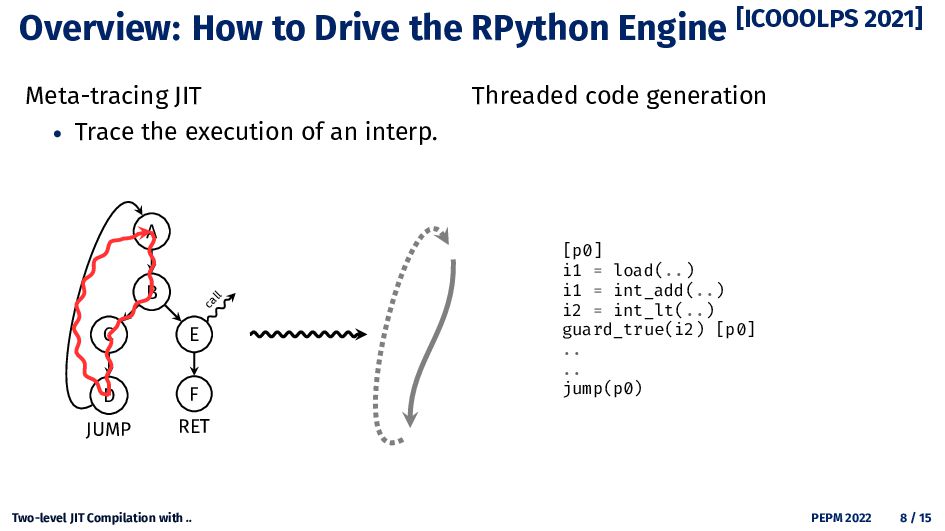

  23. Overview: How to Drive the RPython Engine [ICOOOLPS 2021] Meta-tracing

    JIT • Trace the execution of an interp. Threaded code generation A B C D JUMP E F RET call [p0] i1 = load(..) i1 = int_add(..) i2 = int_lt(..) guard_true(i2) [p0] .. .. jump(p0) Two-level JIT Compilation with .. PEPM 2022 8 / 15
  24. Overview: How to Drive the RPython Engine [ICOOOLPS 2021] Meta-tracing

    JIT • Trace the execution of an interp Threaded code generation Two-level JIT Compilation with .. PEPM 2022 9 / 15
  25. Overview: How to Drive the RPython Engine [ICOOOLPS 2021] Meta-tracing

    JIT • Trace the execution of an interp Threaded code generation • Traverse the entire method body • Not trace inside the handlers Two-level JIT Compilation with .. PEPM 2022 9 / 15
  26. Overview: How to Drive the RPython Engine [ICOOOLPS 2021] Meta-tracing

    JIT • Trace the execution of an interp Threaded code generation • Traverse the entire method body • Not trace inside the handlers A B C D JUMP E F RET call call Traverse the en- tire method body Not trace the inside but leave CALL to the handler Cut/stitch the temporal trace [p0] i7 = call_i(ConstClass(DUP, ..)) i12 = call_i(ConstClass(CONST_I ..)) i16 = call_i(ConstClass(LT, ..)) guard_true(i16) [p0] ... jump(p0) [p0] ... i28 = call_i(ConstClass(CALL, ..)) ... i32 = call_i(ConstClass(RET, ..2)) leave_portal_frame(0) finish(i32) bridge Two-level JIT Compilation with .. PEPM 2022 9 / 15
  27. Overview: How to Drive the RPython Engine [ICOOOLPS 2021] Meta-tracing

    JIT • Trace the execution of an interp Threaded code generation • Traverse the entire method body • Not trace inside the handlers tweaking an interp A B C D JUMP E F RET call call Traverse the en- tire method body Not trace the inside but leave CALL to the handler Cut/stitch the temporal trace [p0] i7 = call_i(ConstClass(DUP, ..)) i12 = call_i(ConstClass(CONST_I ..)) i16 = call_i(ConstClass(LT, ..)) guard_true(i16) [p0] ... jump(p0) [p0] ... i28 = call_i(ConstClass(CALL, ..)) ... i32 = call_i(ConstClass(RET, ..2)) leave_portal_frame(0) finish(i32) bridge Two-level JIT Compilation with .. PEPM 2022 9 / 15

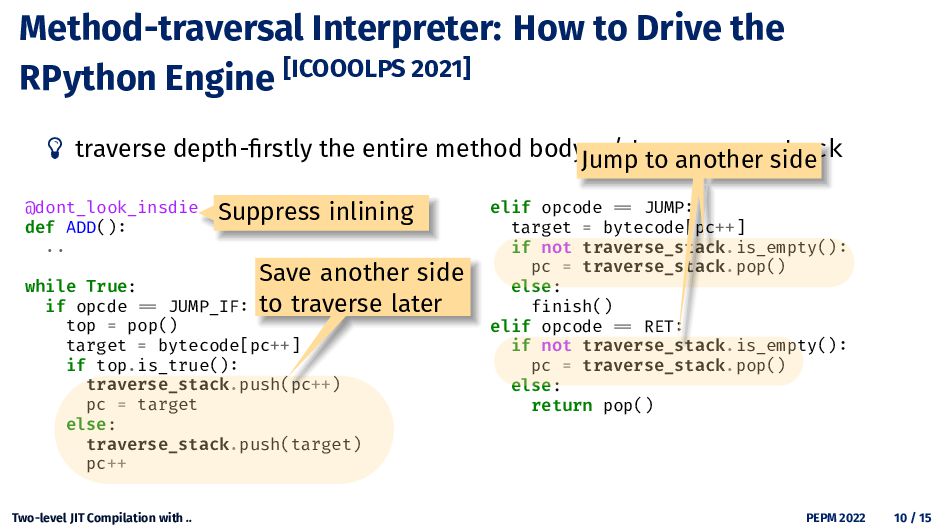

  28. Method-traversal Interpreter: How to Drive the RPython Engine [ICOOOLPS 2021]

     traverse depth-firstly the entire method body w/ traverse_stack @dont_look_insdie def ADD(): .. while True: if opcde == JUMP_IF: top = pop() target = bytecode[pc++] if top.is_true(): traverse_stack.push(pc++) pc = target else: traverse_stack.push(target) pc++ elif opcode == JUMP: target = bytecode[pc++] if not traverse_stack.is_empty(): pc = traverse_stack.pop() else: finish() elif opcode == RET: if not traverse_stack.is_empty(): pc = traverse_stack.pop() else: return pop()
  29. Method-traversal Interpreter: How to Drive the RPython Engine [ICOOOLPS 2021]

     traverse depth-firstly the entire method body w/ traverse_stack @dont_look_insdie def ADD(): .. while True: if opcde == JUMP_IF: top = pop() target = bytecode[pc++] if top.is_true(): traverse_stack.push(pc++) pc = target else: traverse_stack.push(target) pc++ elif opcode == JUMP: target = bytecode[pc++] if not traverse_stack.is_empty(): pc = traverse_stack.pop() else: finish() elif opcode == RET: if not traverse_stack.is_empty(): pc = traverse_stack.pop() else: return pop() Suppress inlining
  30. Method-traversal Interpreter: How to Drive the RPython Engine [ICOOOLPS 2021]

     traverse depth-firstly the entire method body w/ traverse_stack @dont_look_insdie def ADD(): .. while True: if opcde == JUMP_IF: top = pop() target = bytecode[pc++] if top.is_true(): traverse_stack.push(pc++) pc = target else: traverse_stack.push(target) pc++ elif opcode == JUMP: target = bytecode[pc++] if not traverse_stack.is_empty(): pc = traverse_stack.pop() else: finish() elif opcode == RET: if not traverse_stack.is_empty(): pc = traverse_stack.pop() else: return pop() Suppress inlining Save another side to traverse later
  31. Method-traversal Interpreter: How to Drive the RPython Engine [ICOOOLPS 2021]

     traverse depth-firstly the entire method body w/ traverse_stack @dont_look_insdie def ADD(): .. while True: if opcde == JUMP_IF: top = pop() target = bytecode[pc++] if top.is_true(): traverse_stack.push(pc++) pc = target else: traverse_stack.push(target) pc++ elif opcode == JUMP: target = bytecode[pc++] if not traverse_stack.is_empty(): pc = traverse_stack.pop() else: finish() elif opcode == RET: if not traverse_stack.is_empty(): pc = traverse_stack.pop() else: return pop() Suppress inlining Save another side to traverse later Jump to another side Two-level JIT Compilation with .. PEPM 2022 10 / 15
  32. The Design of Generic Interpreter • From a generic interp,

    Adaptive RPython generates interps including MTI  Embed tier-specific definitions in a meta-tracing-based interpreter 1. Declare JitTierDriver jittierdriver = JitTierDriver(pc='pc') def interp(self); .. if opcode == JUMP_IF: target = bytecode[pc] elif opcode == JUMP: target = bytecode[pc] elif opcode == RET: w_x = self.pop() elif .. Two-level JIT Compilation with .. PEPM 2022 11 / 15
  33. The Design of Generic Interpreter • From a generic interp,

    Adaptive RPython generates interps including MTI  Embed tier-specific definitions in a meta-tracing-based interpreter 1. Declare JitTierDriver 2. Define can_enter_tier1_XX at JUMP_IF, JUMP, RET for threaded code gen. and method comp. jittierdriver = JitTierDriver(pc='pc') def interp(self); .. if opcode == JUMP_IF: target = bytecode[pc] jittierdriver.can_enter_tier1_branch( true_path=target,false_path=pc+1, cond=self.is_true) if we_are_in_tier2(): elif opcode == JUMP: target = bytecode[pc] jittierdriver.can_enter_tier1_jump(target=target) elif opcode == RET: w_x = self.pop() jittierdriver.can_enter_tier1_ret(ret_value=w_x) elif .. Two-level JIT Compilation with .. PEPM 2022 11 / 15

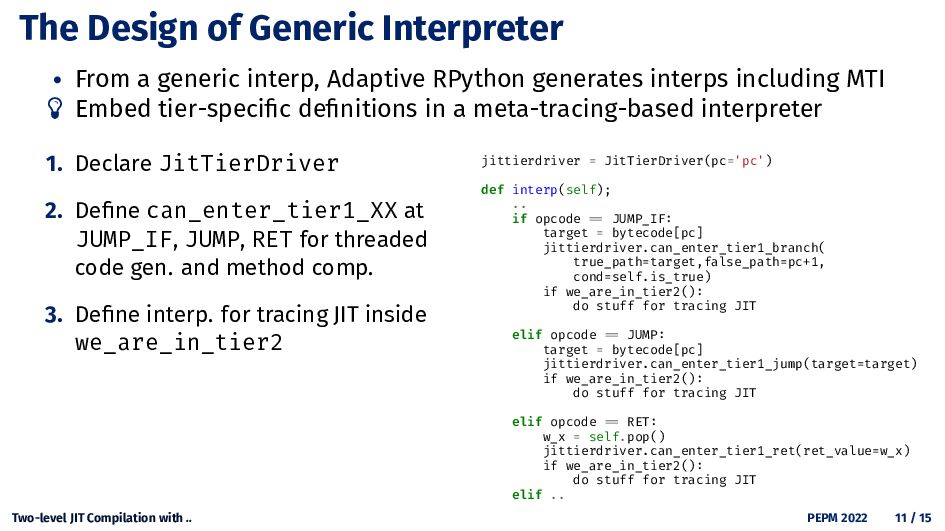

  34. The Design of Generic Interpreter • From a generic interp,

    Adaptive RPython generates interps including MTI  Embed tier-specific definitions in a meta-tracing-based interpreter 1. Declare JitTierDriver 2. Define can_enter_tier1_XX at JUMP_IF, JUMP, RET for threaded code gen. and method comp. 3. Define interp. for tracing JIT inside we_are_in_tier2 jittierdriver = JitTierDriver(pc='pc') def interp(self); .. if opcode == JUMP_IF: target = bytecode[pc] jittierdriver.can_enter_tier1_branch( true_path=target,false_path=pc+1, cond=self.is_true) if we_are_in_tier2(): do stuff for tracing JIT elif opcode == JUMP: target = bytecode[pc] jittierdriver.can_enter_tier1_jump(target=target) if we_are_in_tier2(): do stuff for tracing JIT elif opcode == RET: w_x = self.pop() jittierdriver.can_enter_tier1_ret(ret_value=w_x) if we_are_in_tier2(): do stuff for tracing JIT elif .. Two-level JIT Compilation with .. PEPM 2022 11 / 15

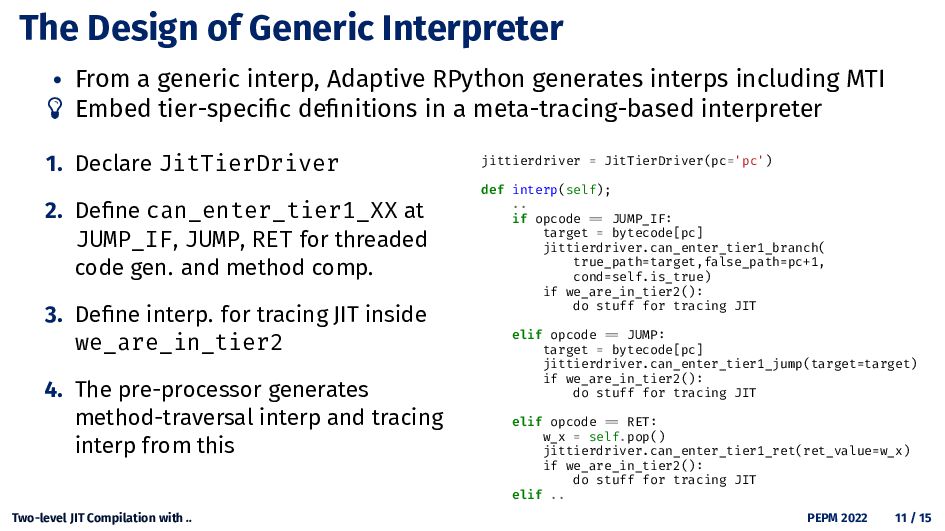

  35. The Design of Generic Interpreter • From a generic interp,

    Adaptive RPython generates interps including MTI  Embed tier-specific definitions in a meta-tracing-based interpreter 1. Declare JitTierDriver 2. Define can_enter_tier1_XX at JUMP_IF, JUMP, RET for threaded code gen. and method comp. 3. Define interp. for tracing JIT inside we_are_in_tier2 4. The pre-processor generates method-traversal interp and tracing interp from this jittierdriver = JitTierDriver(pc='pc') def interp(self); .. if opcode == JUMP_IF: target = bytecode[pc] jittierdriver.can_enter_tier1_branch( true_path=target,false_path=pc+1, cond=self.is_true) if we_are_in_tier2(): do stuff for tracing JIT elif opcode == JUMP: target = bytecode[pc] jittierdriver.can_enter_tier1_jump(target=target) if we_are_in_tier2(): do stuff for tracing JIT elif opcode == RET: w_x = self.pop() jittierdriver.can_enter_tier1_ret(ret_value=w_x) if we_are_in_tier2(): do stuff for tracing JIT elif .. Two-level JIT Compilation with .. PEPM 2022 11 / 15
  36. Observation: Can Adaptive RPython “Actually” Work? (1) Setup • Write

    TLA lang. interpreter in Adaptive RPython • Run TLA interpreter on small examples − loopabit: nested loop − callabit: two functions – one is suitable for tracing, the other is for thraeded code gen. (method) NOTE • Current multitier is the combination of threaded code gen. and tracing (two-level) Two-level JIT Compilation with .. PEPM 2022 12 / 15
  37. Observation: Can Adaptive RPython “Actually” Work? (2) Situation in callabit:

    increasing an optimization level program JIT applied to f JIT applied to g callabit_baseline_interp threaded (interpreted) function f (for threaded code gen.) function g (for trac- ing comp.) call ret threaded code generation interpreted Two-level JIT Compilation with .. PEPM 2022 13 / 15

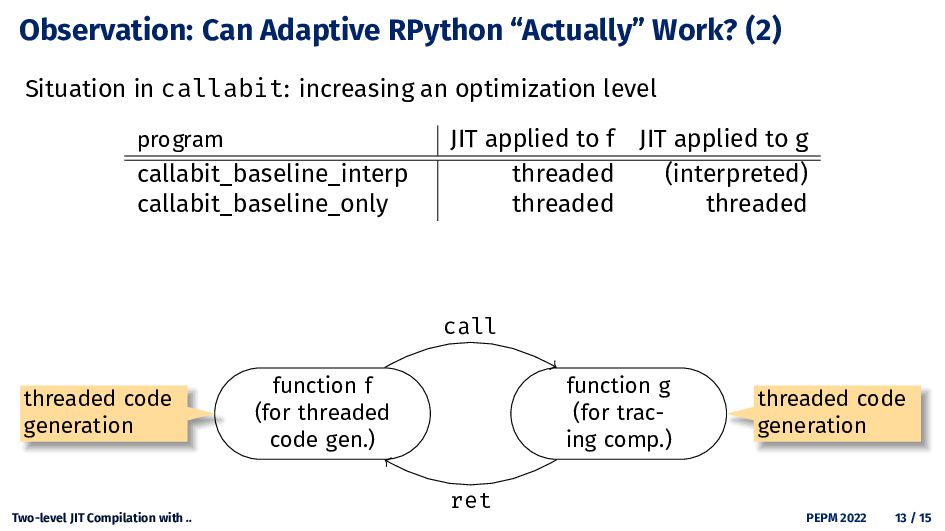

  38. Observation: Can Adaptive RPython “Actually” Work? (2) Situation in callabit:

    increasing an optimization level program JIT applied to f JIT applied to g callabit_baseline_interp threaded (interpreted) callabit_baseline_only threaded threaded function f (for threaded code gen.) function g (for trac- ing comp.) call ret threaded code generation threaded code generation Two-level JIT Compilation with .. PEPM 2022 13 / 15
  39. Observation: Can Adaptive RPython “Actually” Work? (2) Situation in callabit:

    increasing an optimization level program JIT applied to f JIT applied to g callabit_baseline_interp threaded (interpreted) callabit_baseline_only threaded threaded callabit_tracing_baseline tracing baseline function f (for threaded code gen.) function g (for trac- ing comp.) call ret tracing compi- lation threaded code generation Two-level JIT Compilation with .. PEPM 2022 13 / 15
  40. Observation: Can Adaptive RPython “Actually” Work? (2) Situation in callabit:

    increasing an optimization level program JIT applied to f JIT applied to g callabit_baseline_interp threaded (interpreted) callabit_baseline_only threaded threaded callabit_tracing_baseline tracing baseline callabit_baseline_tracing threaded tracing function f (for threaded code gen.) function g (for trac- ing comp.) call ret threaded code generation tracing compi- lation Two-level JIT Compilation with .. PEPM 2022 13 / 15

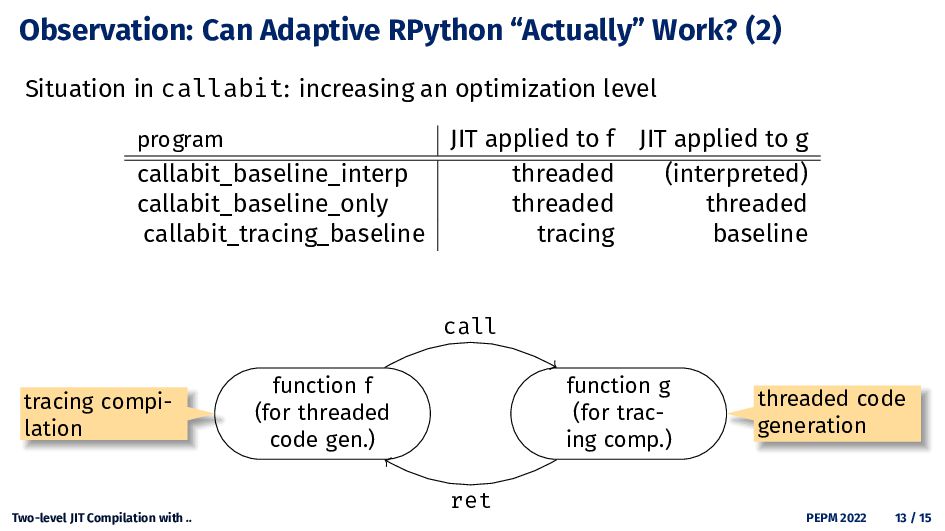

  41. Observation: Can Adaptive RPython “Actually” Work? (2) Situation in callabit:

    increasing an optimization level program JIT applied to f JIT applied to g callabit_baseline_interp threaded (interpreted) callabit_baseline_only threaded threaded callabit_tracing_baseline tracing baseline callabit_baseline_tracing threaded tracing callabit_tracing_only tracing tracing function f (for threaded code gen.) function g (for trac- ing comp.) call ret tracing compi- lation tracing compi- lation Two-level JIT Compilation with .. PEPM 2022 13 / 15
  42. Observation: Running Speeds and Trace Sizes • Actually worked: compilation

    speed is reaching to tracing compilation callabit_baseline_interp callabit_baseline_only callabit_baseline_tracing callabit_tracing_baseline callabit_tracing_only 0.0 0.5 1.0 1.5 2.0 2.5 3.0 The speed up ratio (interp = 1) TLA w/ Adaptive RPython (Stable speed) # Traces 0 50 100 150 200 250 300 350 400 callabit_baseline_interp callabit_baseline_only callabit_baseline_tracing callabit_tracing_baseline callabit_tracing_only Increasing better smaller Two-level JIT Compilation with .. PEPM 2022 14 / 15
  43. Observation: Running Speeds and Trace Sizes • Actually worked: compilation

    speed is reaching to tracing compilation • Promising signs: multitier is same speed but smaller code size compared to single tier → might get good performance in the future callabit_baseline_interp callabit_baseline_only callabit_baseline_tracing callabit_tracing_baseline callabit_tracing_only 0.0 0.5 1.0 1.5 2.0 2.5 3.0 The speed up ratio (interp = 1) TLA w/ Adaptive RPython (Stable speed) # Traces 0 50 100 150 200 250 300 350 400 callabit_baseline_interp callabit_baseline_only callabit_baseline_tracing callabit_tracing_baseline callabit_tracing_only better smaller Two-level JIT Compilation with .. PEPM 2022 14 / 15
  44. Conclusion and Future Work Conclusion • Adaptive RPython actually worked

    on a small lang. RPython [I, P, V] = P′ RPython [ Icommon + Itracing, P, V ] = P′ tracing RPython [ Icommon + Ithreaded, P, V ] = P′ threaded RPython [ Icommon + Imethod, P, V ] = P′ method One Engine One Interpreter Multitier Outputs Derive from Generic Interp. Common Interp. Tweaked Defs. Future Work Two-level JIT Compilation with .. PEPM 2022 15 / 15
  45. Conclusion and Future Work Conclusion • Adaptive RPython actually worked

    on a small lang. RPython [I, P, V] = P′ RPython [ Icommon + Itracing, P, V ] = P′ tracing RPython [ Icommon + Ithreaded, P, V ] = P′ threaded RPython [ Icommon + Imethod, P, V ] = P′ method One Engine One Interpreter Multitier Outputs Derive from Generic Interp. Common Interp. Tweaked Defs. Future Work • Decide multitier compilation strategy − How to shift between levels? − How to decide an appropriate level? • Implement our ideas on PyPy Two-level JIT Compilation with .. PEPM 2022 15 / 15
  46. Conclusion and Future Work Conclusion • Adaptive RPython actually worked

    on a small lang. RPython [I, P, V] = P′ RPython [ Icommon + Itracing, P, V ] = P′ tracing RPython [ Icommon + Ithreaded, P, V ] = P′ threaded RPython [ Icommon + Imethod, P, V ] = P′ method One Engine One Interpreter Multitier Outputs Derive from Generic Interp. Common Interp. Tweaked Defs. Future Work • Decide multitier compilation strategy − How to shift between levels? − How to decide an appropriate level? • Implement our ideas on PyPy Two-level JIT Compilation with .. PEPM 2022 15 / 15
  47. References I Izawa, Y., Masuhara, H., Bolz-Tereick, C. F., and

    Cong, Y. (2021). Threaded code generation with a meta-tracing JIT compiler. The Journal of Object Technology Special Issue for ICOOOLPS 2021, pages 1–11. Accepted. Two-level JIT Compilation with .. PEPM 2022 1 / 1
