Representational State Transfer (REST)

Brief description of Representational State Transfer

Transcript

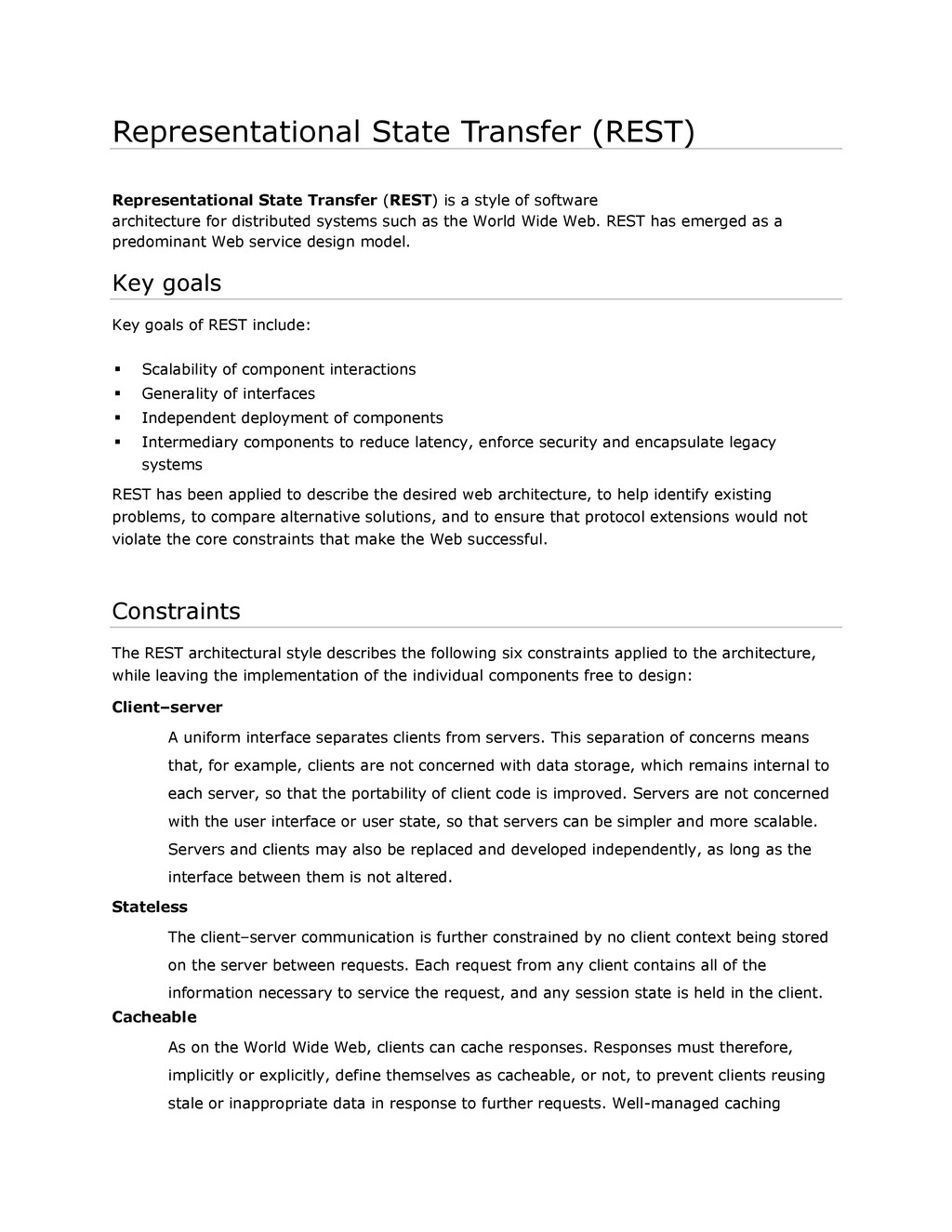

1. Representational State Transfer (REST) Representational State Transfer (REST) is a style of software architecture for distributed systems such as the World Wide Web. REST has emerged as a predominant Web service design model. Key goals Key goals of REST include:  Scalability of component interactions  Generality of interfaces  Independent deployment of components  Intermediary components to reduce latency, enforce security and encapsulate legacy systems REST has been applied to describe the desired web architecture, to help identify existing problems, to compare alternative solutions, and to ensure that protocol extensions would not violate the core constraints that make the Web successful. Constraints The REST architectural style describes the following six constraints applied to the architecture, while leaving the implementation of the individual components free to design: Client–server A uniform interface separates clients from servers. This separation of concerns means that, for example, clients are not concerned with data storage, which remains internal to each server, so that the portability of client code is improved. Servers are not concerned with the user interface or user state, so that servers can be simpler and more scalable. Servers and clients may also be replaced and developed independently, as long as the interface between them is not altered. Stateless The client–server communication is further constrained by no client context being stored on the server between requests. Each request from any client contains all of the information necessary to service the request, and any session state is held in the client. Cacheable As on the World Wide Web, clients can cache responses. Responses must therefore, implicitly or explicitly, define themselves as cacheable, or not, to prevent clients reusing stale or inappropriate data in response to further requests. Well-managed caching

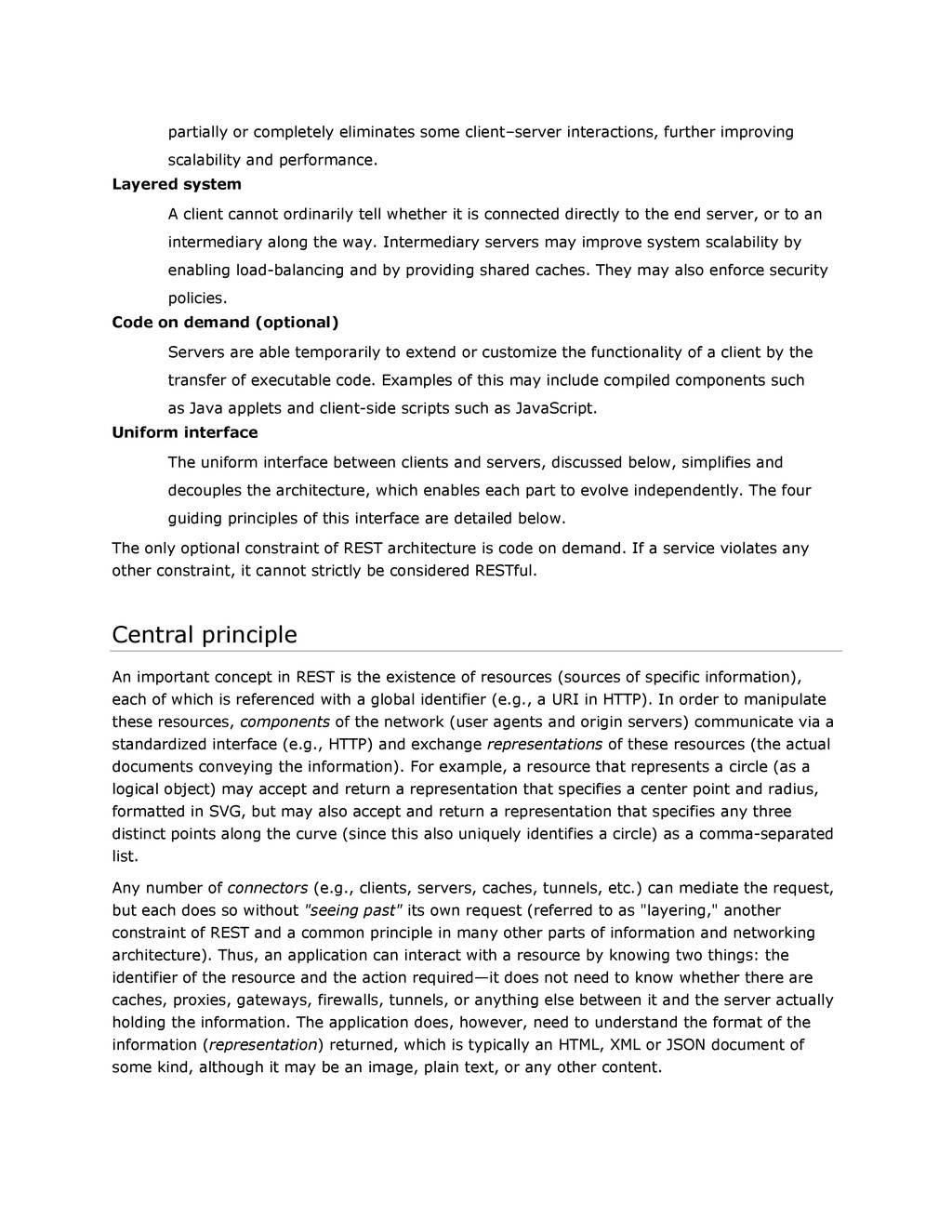

2. partially or completely eliminates some client–server interactions, further improving scalability and performance. Layered system A client cannot ordinarily tell whether it is connected directly to the end server, or to an intermediary along the way. Intermediary servers may improve system scalability by enabling load-balancing and by providing shared caches. They may also enforce security policies. Code on demand (optional) Servers are able temporarily to extend or customize the functionality of a client by the transfer of executable code. Examples of this may include compiled components such as Java applets and client-side scripts such as JavaScript. Uniform interface The uniform interface between clients and servers, discussed below, simplifies and decouples the architecture, which enables each part to evolve independently. The four guiding principles of this interface are detailed below. The only optional constraint of REST architecture is code on demand. If a service violates any other constraint, it cannot strictly be considered RESTful. Central principle An important concept in REST is the existence of resources (sources of specific information), each of which is referenced with a global identifier (e.g., a URI in HTTP). In order to manipulate these resources, components of the network (user agents and origin servers) communicate via a standardized interface (e.g., HTTP) and exchange representations of these resources (the actual documents conveying the information). For example, a resource that represents a circle (as a logical object) may accept and return a representation that specifies a center point and radius, formatted in SVG, but may also accept and return a representation that specifies any three distinct points along the curve (since this also uniquely identifies a circle) as a comma-separated list. Any number of connectors (e.g., clients, servers, caches, tunnels, etc.) can mediate the request, but each does so without "seeing past" its own request (referred to as "layering," another constraint of REST and a common principle in many other parts of information and networking architecture). Thus, an application can interact with a resource by knowing two things: the identifier of the resource and the action required—it does not need to know whether there are caches, proxies, gateways, firewalls, tunnels, or anything else between it and the server actually holding the information. The application does, however, need to understand the format of the information (representation) returned, which is typically an HTML, XML or JSON document of some kind, although it may be an image, plain text, or any other content.

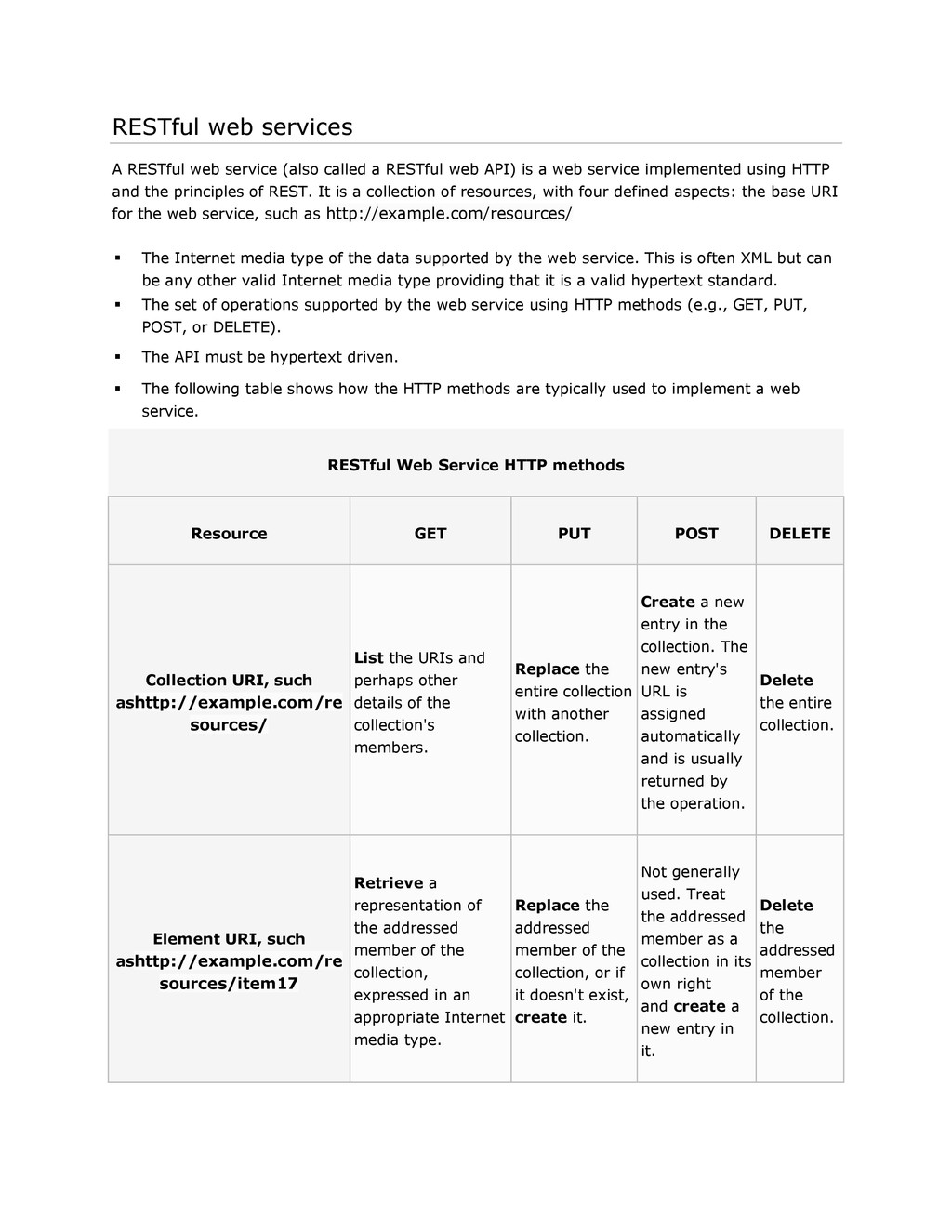

3. RESTful web services A RESTful web service (also called a RESTful web API) is a web service implemented using HTTP and the principles of REST. It is a collection of resources, with four defined aspects: the base URI for the web service, such as http://example.com/resources/  The Internet media type of the data supported by the web service. This is often XML but can be any other valid Internet media type providing that it is a valid hypertext standard.  The set of operations supported by the web service using HTTP methods (e.g., GET, PUT, POST, or DELETE).  The API must be hypertext driven.  The following table shows how the HTTP methods are typically used to implement a web service. RESTful Web Service HTTP methods Resource GET PUT POST DELETE Collection URI, such ashttp://example.com/re sources/ List the URIs and perhaps other details of the collection's members. Replace the entire collection with another collection. Create a new entry in the collection. The new entry's URL is assigned automatically and is usually returned by the operation. Delete the entire collection. Element URI, such ashttp://example.com/re sources/item17 Retrieve a representation of the addressed member of the collection, expressed in an appropriate Internet media type. Replace the addressed member of the collection, or if it doesn't exist, create it. Not generally used. Treat the addressed member as a collection in its own right and create a new entry in it. Delete the addressed member of the collection.
4. The PUT and DELETE methods are idempotent methods. The GET method is a safe method (or nullipotent), meaning that calling it produces no side-effects. Unlike SOAP-based web services, there is no "official" standard for RESTful web services. This is because REST is an architectural style, unlike SOAP, which is a protocol. Even though REST is not a standard, a RESTful implementation such as the Web can use standards like HTTP, URI, XML, etc. Why is it called Representational State Transfer? The Web is comprised of resources. A resource is any item of interest. For example, the Boeing Aircraft Corp may define a 747 resource. Clients may access that resource with this URL: http://www.boeing.com/aircraft/747 A representation of the resource is returned (e.g., Boeing747.html). The representation places the client application in a state. The result of the client traversing a hyperlink in Boeing747.html is another resource is accessed. The new representation places the client application into yet another state. Thus, the client application changes (transfers) state with each resource representation --> Representational State Transfer! Here is Roy Fielding's explanation of the meaning of Representational State Transfer: "Representational State Transfer is intended to evoke an image of how a well-designed Web application behaves: a network of web pages (a virtual state-machine), where the user progresses through an application by selecting links (state transitions), resulting in the next page (representing the next state of the application) being transferred to the user and rendered for their use." REST - An Architectural Style, Not a Standard REST is not a standard. You will not see the W3C putting out a REST specification. You will not see IBM or Microsoft or Sun selling a REST developer's toolkit. Why? Because REST is just an architectural style. You can't bottle up that style. You can only understand it, and design your Web services in that style. (Analogous to the client-server architectural style. There is no client-server standard.) While REST is not a standard, it does use standards: HTTP URL XML/HTML/GIF/JPEG/etc (Resource Representations) text/xml, text/html, image/gif, image/jpeg, etc (MIME Types)

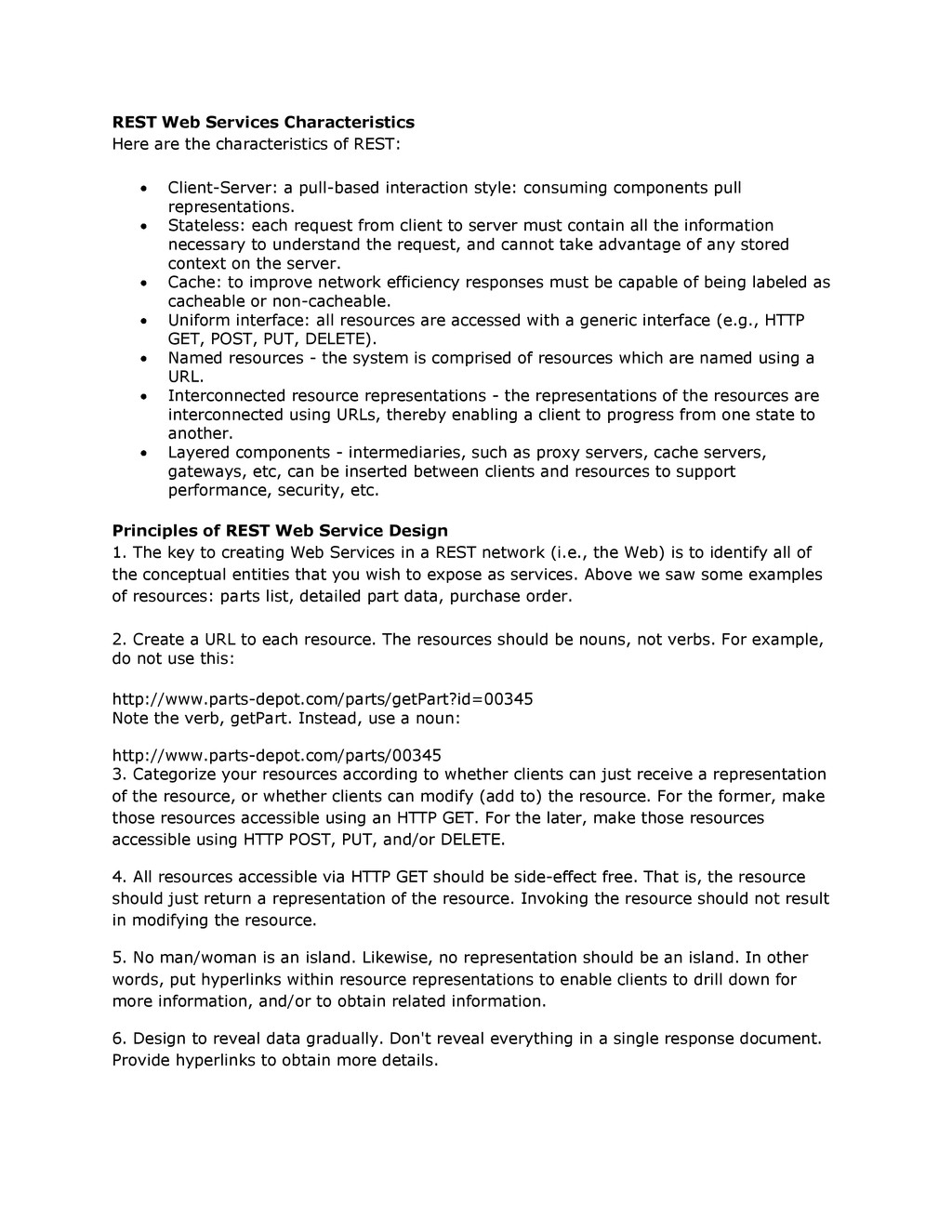

5. REST Web Services Characteristics Here are the characteristics of REST: Client-Server: a pull-based interaction style: consuming components pull representations. Stateless: each request from client to server must contain all the information necessary to understand the request, and cannot take advantage of any stored context on the server. Cache: to improve network efficiency responses must be capable of being labeled as cacheable or non-cacheable. Uniform interface: all resources are accessed with a generic interface (e.g., HTTP GET, POST, PUT, DELETE). Named resources - the system is comprised of resources which are named using a URL. Interconnected resource representations - the representations of the resources are interconnected using URLs, thereby enabling a client to progress from one state to another. Layered components - intermediaries, such as proxy servers, cache servers, gateways, etc, can be inserted between clients and resources to support performance, security, etc. Principles of REST Web Service Design 1. The key to creating Web Services in a REST network (i.e., the Web) is to identify all of the conceptual entities that you wish to expose as services. Above we saw some examples of resources: parts list, detailed part data, purchase order. 2. Create a URL to each resource. The resources should be nouns, not verbs. For example, do not use this: http://www.parts-depot.com/parts/getPart?id=00345 Note the verb, getPart. Instead, use a noun: http://www.parts-depot.com/parts/00345 3. Categorize your resources according to whether clients can just receive a representation of the resource, or whether clients can modify (add to) the resource. For the former, make those resources accessible using an HTTP GET. For the later, make those resources accessible using HTTP POST, PUT, and/or DELETE. 4. All resources accessible via HTTP GET should be side-effect free. That is, the resource should just return a representation of the resource. Invoking the resource should not result in modifying the resource. 5. No man/woman is an island. Likewise, no representation should be an island. In other words, put hyperlinks within resource representations to enable clients to drill down for more information, and/or to obtain related information. 6. Design to reveal data gradually. Don't reveal everything in a single response document. Provide hyperlinks to obtain more details.

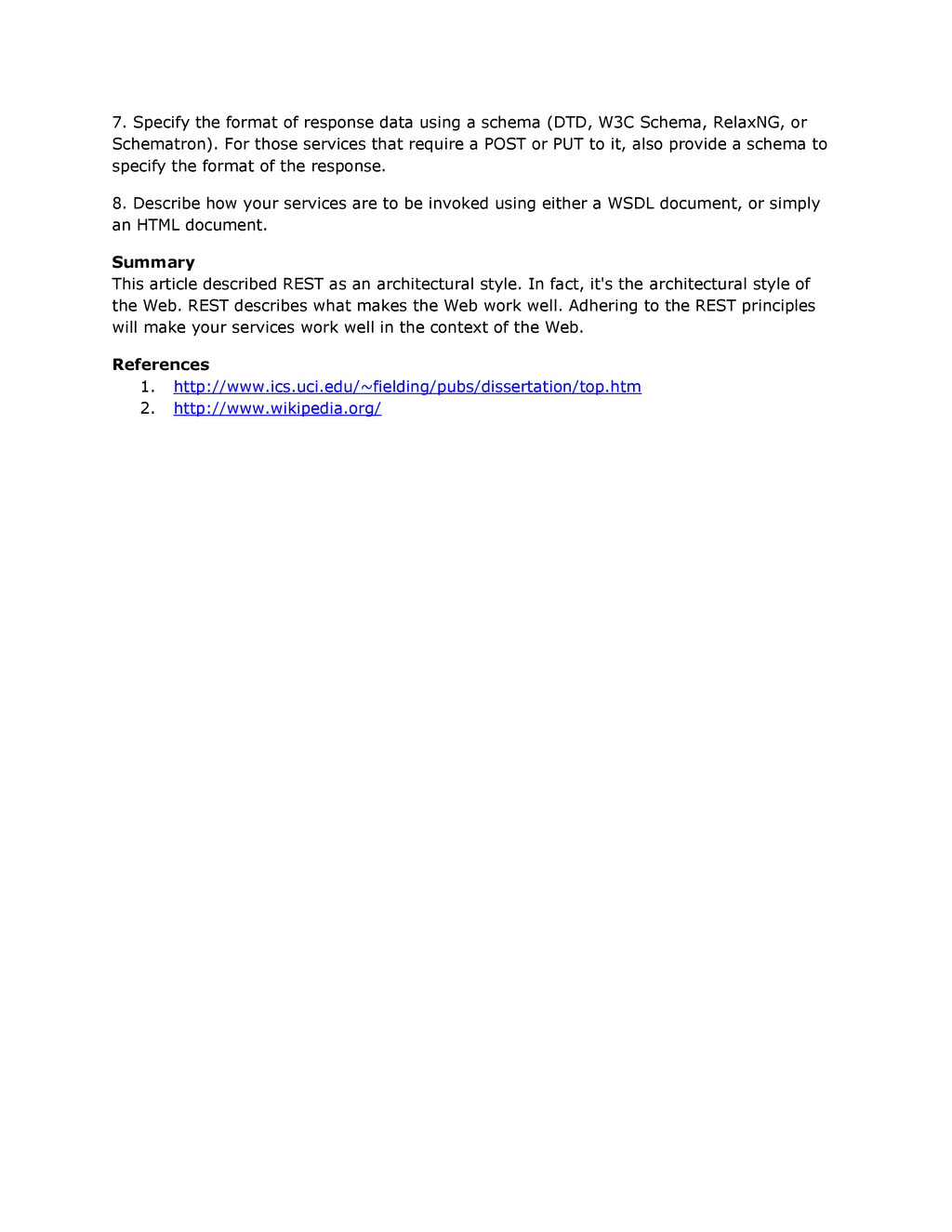

6. 7. Specify the format of response data using a schema (DTD, W3C Schema, RelaxNG, or Schematron). For those services that require a POST or PUT to it, also provide a schema to specify the format of the response. 8. Describe how your services are to be invoked using either a WSDL document, or simply an HTML document. Summary This article described REST as an architectural style. In fact, it's the architectural style of the Web. REST describes what makes the Web work well. Adhering to the REST principles will make your services work well in the context of the Web. References 1. http://www.ics.uci.edu/~fielding/pubs/dissertation/top.htm 2. http://www.wikipedia.org/
