Architecture Katas: Improve your system architecture design skills in a fun way !

How to learn architecture ? How to improve in this field ? How do we recognize a good or a bad architecture ?

There are plenty of books and training sessions about this subject. The best thing is to practice!

In the same way as coding dojos, I will present to you architecture katas. There are created by Ted Neward (http://blogs.tedneward.com/). His idea came from the following observation :

"So how are we supposed to get great architects, if they only get the chance to architect fewer than a half-dozen times in their career?"

One solution to this issue could be to practice regularly on several topics to gain experience.

After a brief introduction of how to start designing an architecture, I will present architecture katas, and the conduct.

To conclude, after this first try I will present the benefits I had benefited.

Transcript

1. @worldlinexpert / @touret_alex
   #Devoxx #ArchitectureKatas

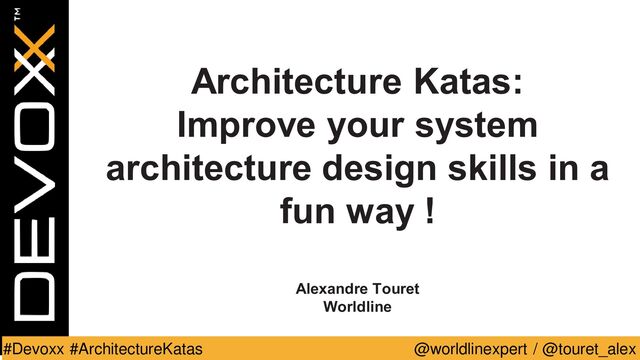

   Architecture Katas:
   Improve your system
   architecture design skills in a
   fun way !
   Alexandre Touret
   Worldline


   View Slide

2. @worldlinexpert / @touret_alex
   #Devoxx #ArchitectureKatas
   Alexandre Touret
   Architect / Developer
   #Java #API #CI #Cloud
   #Software_Craftsmanship
   https://blog.touret.info


   View Slide

3. @worldlinexpert / @touret_alex
   #Devoxx #ArchitectureKatas
   A Developer Story


   View Slide

4. @worldlinexpert / @touret_alex
   #Devoxx #ArchitectureKatas


   View Slide

5. @worldlinexpert / @touret_alex
   #Devoxx #ArchitectureKatas


   View Slide

6. @worldlinexpert / @touret_alex
   #Devoxx #ArchitectureKatas
   All architecture is design but not all design is
   architecture. Architecture represents the
   significant design decisions that shape
   a system, where significant is measured
   by cost of change.
   Grady Booch


   View Slide

7. @worldlinexpert / @touret_alex
   #Devoxx #ArchitectureKatas


   View Slide

8. @worldlinexpert / @touret_alex
   #Devoxx #ArchitectureKatas


   View Slide

9. @worldlinexpert / @touret_alex
   #Devoxx #ArchitectureKatas


   View Slide

10. @worldlinexpert / @touret_alex
    #Devoxx #ArchitectureKatas
    So how are we supposed to get great
    architects, if they only get the chance to
    architect fewer than a half-dozen times in their
    career?"
    Ted Neward


    View Slide

11. @worldlinexpert / @touret_alex
    #Devoxx #ArchitectureKatas
    Architecture
    Katas
    Coding dojos for architects


    View Slide

12. @worldlinexpert / @touret_alex
    #Devoxx #ArchitectureKatas
    Stage #1 : Warm-up (5mn)
    • Build teams mixing different profiles
    • No computer needed!
    • Try to find suitable syntax and formalism


    View Slide

13. @worldlinexpert / @touret_alex
    #Devoxx #ArchitectureKatas
    C4 Model


    View Slide

14. @worldlinexpert / @touret_alex
    #Devoxx #ArchitectureKatas
    User
    My wonderful system
    Enables magic
    API Management
    Identifies/authorizes customers requests
    Calls API endpoint
    External System
    User
    Call / Usage
    System Internal
    System
    Chart legend:
    FILE GATEWAY
    Sends files
    Fetchs files regularly
    S3 STORAGE
    Stores files


    View Slide

15. @worldlinexpert / @touret_alex
    #Devoxx #ArchitectureKatas
    External System
    User
    Call / Usage
    System Internal
    System
    Chart legend:
    User
    My API GATEWAY
    API Proxy
    Runtime:[Api Gateway]
    Mediation to back end
    OAUTHv2 Provider
    Runtime:[Api Gateway]
    Identifies and
    authorizes
    (1) API Call
    [JSON/HTTPS]
    My Wonderful System
    My App
    Runtime:[K8S,Docker,Spring
    Boot,JAVA11]
    (2) API Call
    [JSON/HTTPS]
    (3) Queries and stores datas
    [mongodb]
    Kubernetes
    MongoDB Replicaset
    Primary Secondary Arbiter


    View Slide

16. @worldlinexpert / @touret_alex
    #Devoxx #ArchitectureKatas
    Stage# 2: Design (1H)
    • All the teams get the subject
    • Teams can ask any questions
    • Teams can make any assumptions (if it’s relevant)
    • Teams can use any technology they want


    View Slide

17. @worldlinexpert / @touret_alex
    #Devoxx #ArchitectureKatas
    An exemple: Poorest roads
    Public administration has been struggling identifying
    poorest roads to refurbish.
    With the help of new car connectivity features, they would
    like to get circulation traffic dynamic dashboards.
    These one could help them determining which road
    worths should be revamped.
    Key figure: 1 transaction per second per car


    View Slide

18. @worldlinexpert / @touret_alex
    #Devoxx #ArchitectureKatas
    Tips & Tricks
    • Clarify the functional requirements (Why setting a new
    application up ?)
    • Point out technical requirements and key figures
    • Zoom on your design step by step


    View Slide

19. @worldlinexpert / @touret_alex
    #Devoxx #ArchitectureKatas
    ccepts files from truste
    customers
    person
    system
    e ternal person
    e ternal system


    View Slide

20. @worldlinexpert / @touret_alex
    #Devoxx #ArchitectureKatas
    n ular ava prin oot
    person
    system
    e ternal person
    e ternal system
    Assumption:
    We on’t deal with Mobile phone dead zones


    View Slide

21. @worldlinexpert / @touret_alex
    #Devoxx #ArchitectureKatas
    Stage #3 : Peer Review (5mn/team)
    • You now have to present your design
    • … an e plain it to the other teams


    View Slide

22. @worldlinexpert / @touret_alex
    #Devoxx #ArchitectureKatas
    How to evaluate a design?


    View Slide

23. @worldlinexpert / @touret_alex
    #Devoxx #ArchitectureKatas
    Three characteristics
    Simplicity Evolutivity Fits to the context


    View Slide

24. @worldlinexpert / @touret_alex
    #Devoxx #ArchitectureKatas
    At Worldline
    • We started some initiatives setting up katas as a regular
    meeting (before the COVID19 crisis)
    • We started online sessions using Zoom
    • We contextualized and complexified step by step the
    subjects


    View Slide

25. @worldlinexpert / @touret_alex
    #Devoxx #ArchitectureKatas
    Benefits
    • Working in a new team on a new subject
    • Identifying and adapting to requirements
    • Communicating and persuading
    • Gaining insight
    • Understanding other ways of thinking
    • Getting better thanks to colleague's experience


    View Slide

26. @worldlinexpert / @touret_alex
    #Devoxx #ArchitectureKatas
    Going further


    View Slide

27. @worldlinexpert / @touret_alex
    #Devoxx #ArchitectureKatas
    By dint of building well, you get to be a good
    architect
    Aristotle


    View Slide

28. @worldlinexpert / @touret_alex
    #Devoxx #ArchitectureKatas
    Thanks for your feedback!


    View Slide

29. @worldlinexpert / @touret_alex
    #Devoxx #ArchitectureKatas
    Architecture Katas:
    Improve your system
    architecture design skills in a
    fun way !
    Alexandre Touret
    Worldline
    Thanks !


    View Slide
