Azure Active Directory and Web Single Signon

Transcript

2. Windows Azure Active Directory and WebSSO Alex Thissen Principal Architect, Achmea

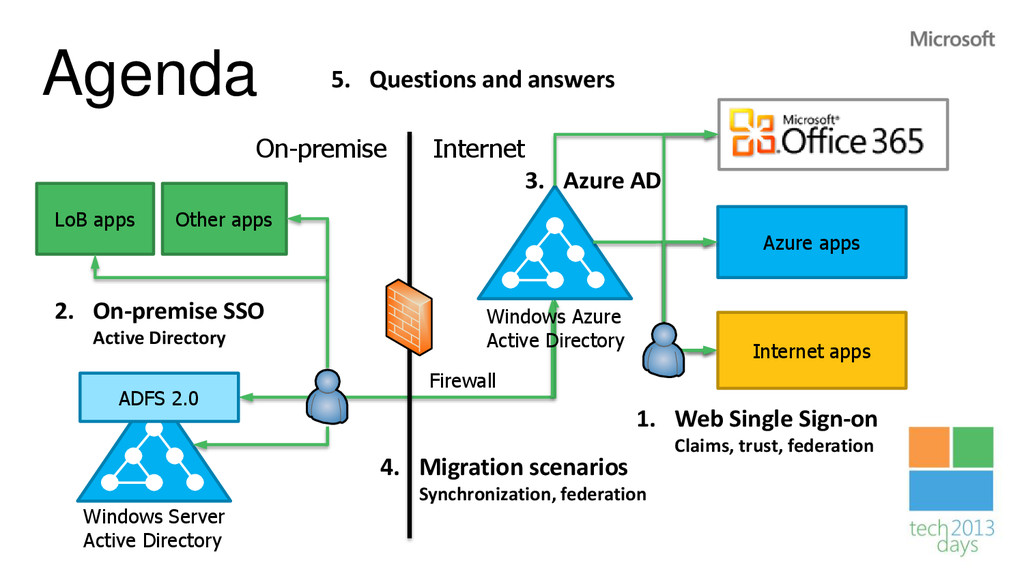

3. Agenda Azure apps Internet apps ADFS 2.0 Firewall Windows Azure Active Directory LoB apps Windows Server Active Directory On-premise Internet Other apps 1. Web Single Sign-on Claims, trust, federation 2. On-premise SSO Active Directory 3. Azure AD 4. Migration scenarios Synchronization, federation 5. Questions and answers
4. Web Single Sign-on aka identity federation 1. Prove who you are to an authority once 2. Get authenticated by every trusting application It’s all about claims and trust Problem of YAUP Yet Another Username & Password
5. demo Web Single Sign-on Using Office 365

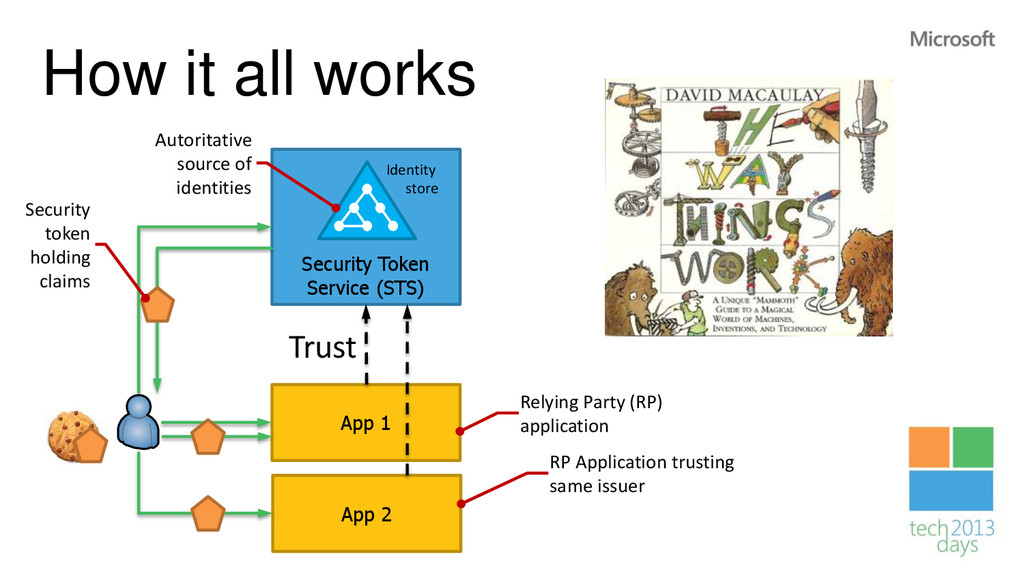

6. Security Token Service (STS) How it all works App 1 App 2 Identity store Trust Security token holding claims Autoritative source of identities RP Application trusting same issuer Relying Party (RP) application

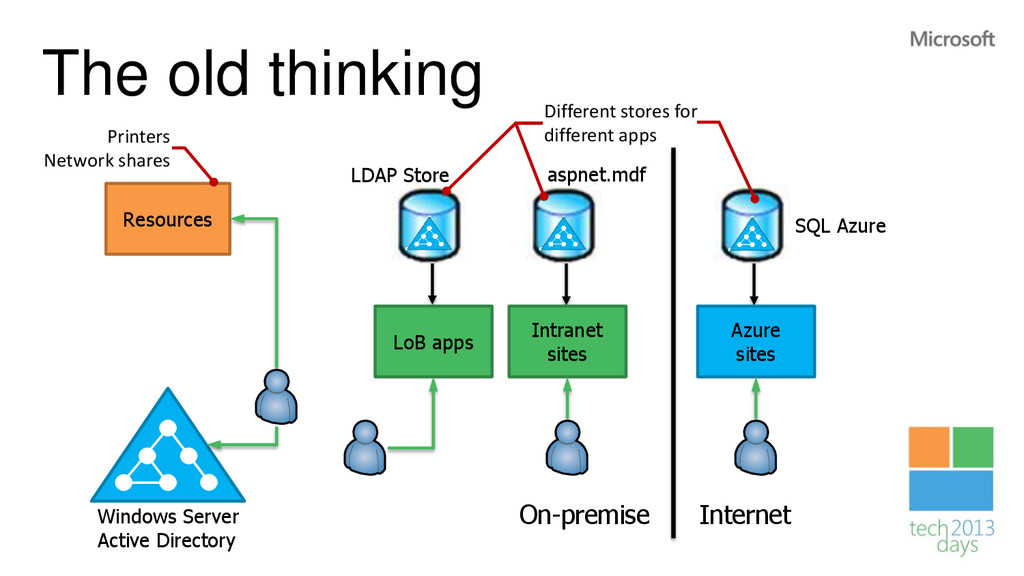

7. The old thinking LoB apps Windows Server Active Directory On-premise Resources Printers Network shares Intranet sites Azure sites SQL Azure LDAP Store aspnet.mdf Different stores for different apps Internet

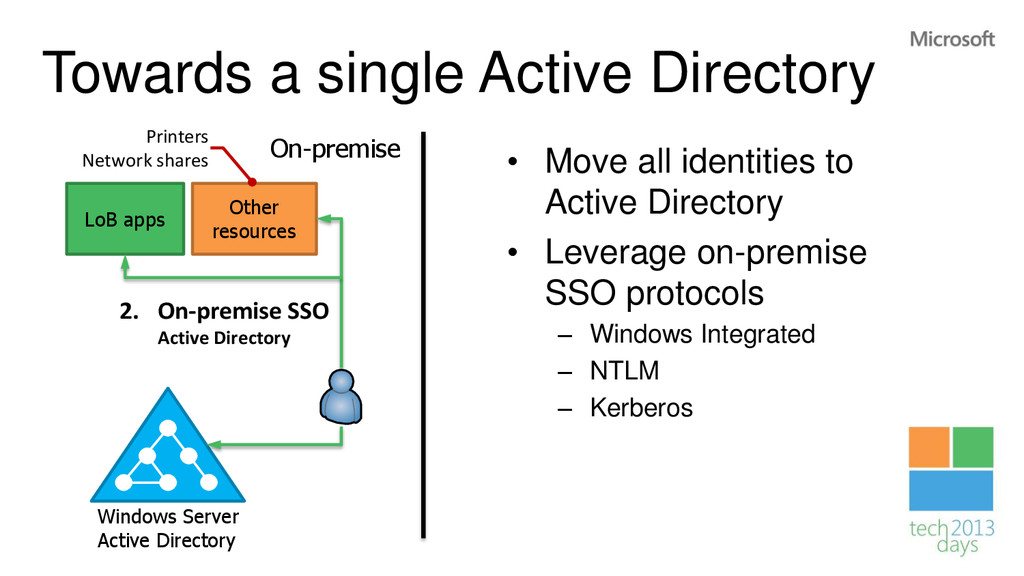

8. Towards a single Active Directory • Move all identities to Active Directory • Leverage on-premise SSO protocols – Windows Integrated – NTLM – Kerberos LoB apps Windows Server Active Directory On-premise Other resources 2. On-premise SSO Active Directory Printers Network shares

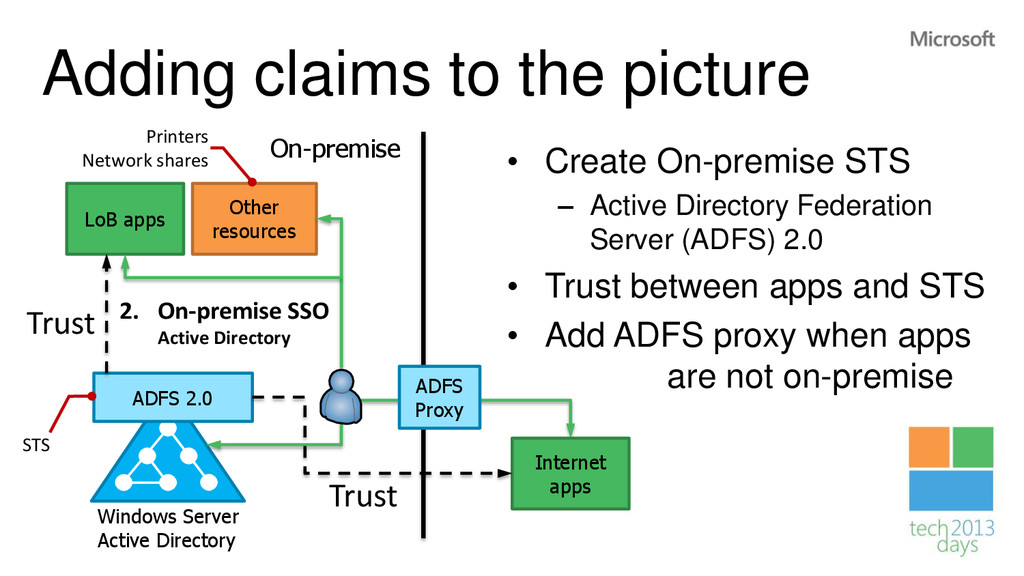

9. Adding claims to the picture • Create On-premise STS – Active Directory Federation Server (ADFS) 2.0 • Trust between apps and STS • Add ADFS proxy when apps are not on-premise ADFS 2.0 LoB apps Windows Server Active Directory On-premise Other resources 2. On-premise SSO Active Directory Trust ADFS Proxy STS Printers Network shares Internet apps Trust
10. demo Signing in with Passive Requestor Profile using Active Directory Federation Server 2.0

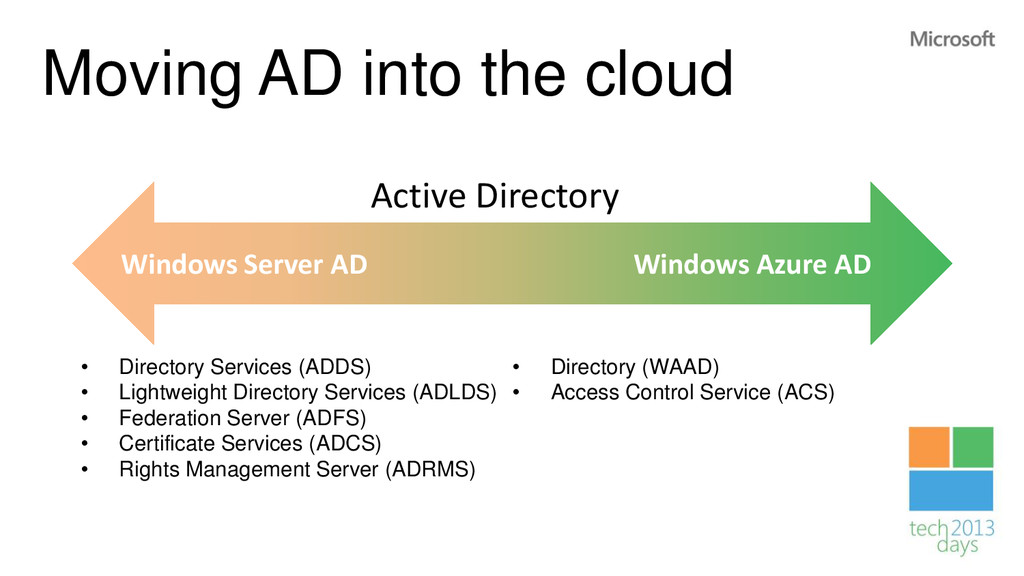

11. Moving AD into the cloud • Directory Services (ADDS) • Lightweight Directory Services (ADLDS) • Federation Server (ADFS) • Certificate Services (ADCS) • Rights Management Server (ADRMS) • Directory (WAAD) • Access Control Service (ACS) Windows Server AD Windows Azure AD Active Directory

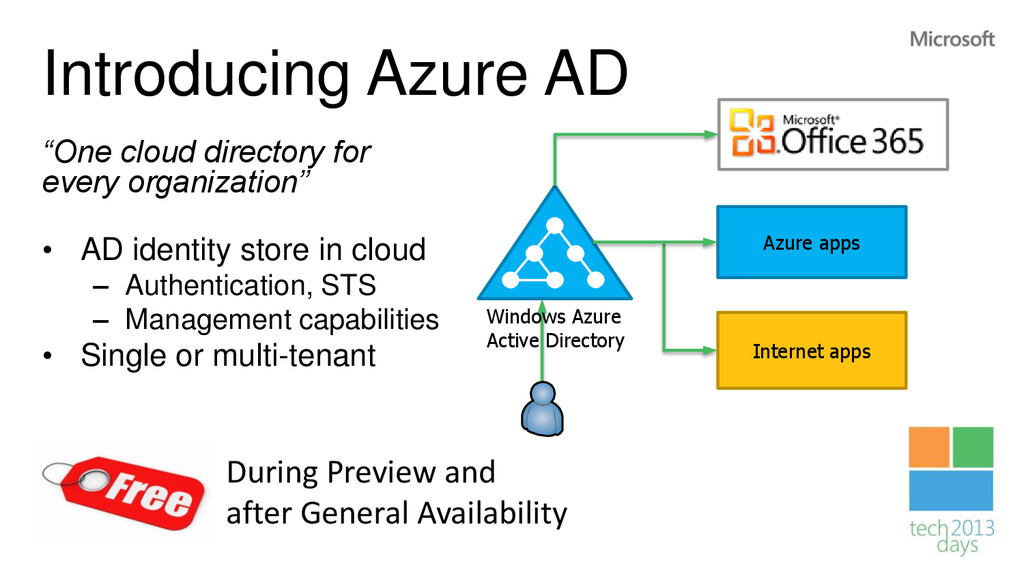

12. Introducing Azure AD “One cloud directory for every organization” • AD identity store in cloud – Authentication, STS – Management capabilities • Single or multi-tenant Azure apps Internet apps Windows Azure Active Directory During Preview and after General Availability
13. Azure AD Design Principles • Maximize device & platform reach – http/web/REST based protocols • Multi-tenancy – Customer owns directory, not Microsoft • Optimize for availability, consistent performance, and scale – Keep it simple

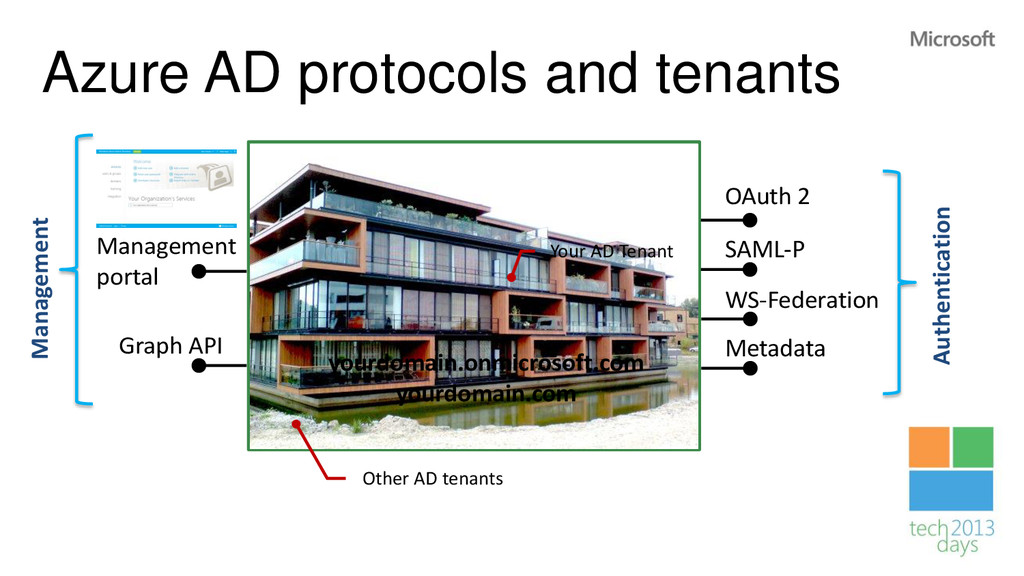

14. Azure AD protocols and tenants Windows Azure Active Directory Graph API OAuth 2 SAML-P WS-Federation Metadata yourdomain.onmicrosoft.com yourdomain.com Management portal Your AD Tenant Other AD tenants Authentication Management
15. walkthrough Windows Azure Active Directory Create a tenant Using Management Portal

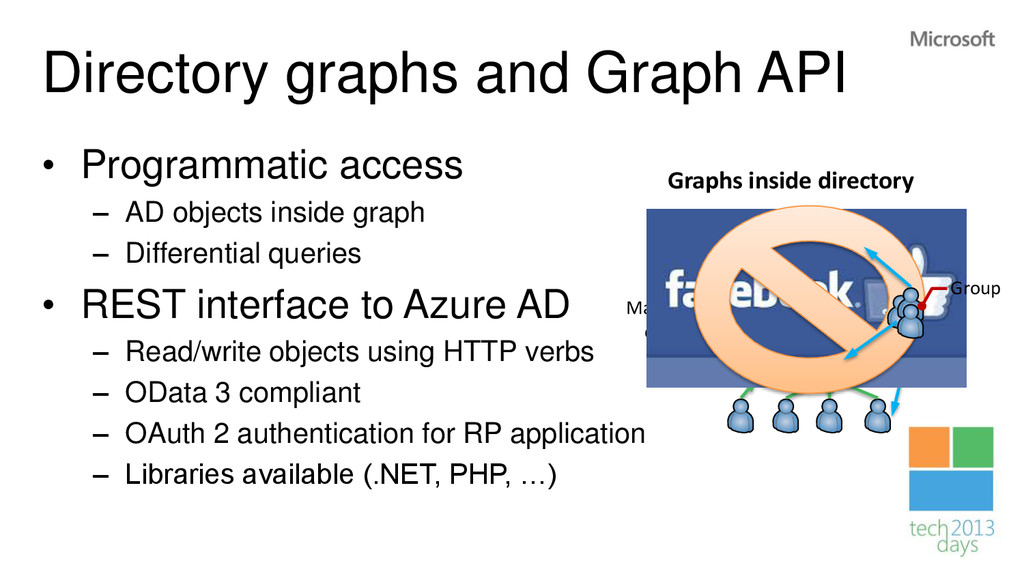

16. Directory graphs and Graph API • Programmatic access – AD objects inside graph – Differential queries • REST interface to Azure AD – Read/write objects using HTTP verbs – OData 3 compliant – OAuth 2 authentication for RP application – Libraries available (.NET, PHP, …) The Boss Manager of One Graphs inside directory Group
17. Azure Active Directory Single tenant apps 1. Unauthenticated user visits website 2. Redirected to Azure AD STS 3. Authenticates and receives security token 4. Client authenticates with token 5. Application authenticates for Graph API 6. App retrieves additional directory information (if necessary) Web app OAuth 2 WS-Federation WIF Security token holds identity claims only AAL Service principal represents app identity Graph API
18. demo Exploring Graph API Ta(l)king a little REST

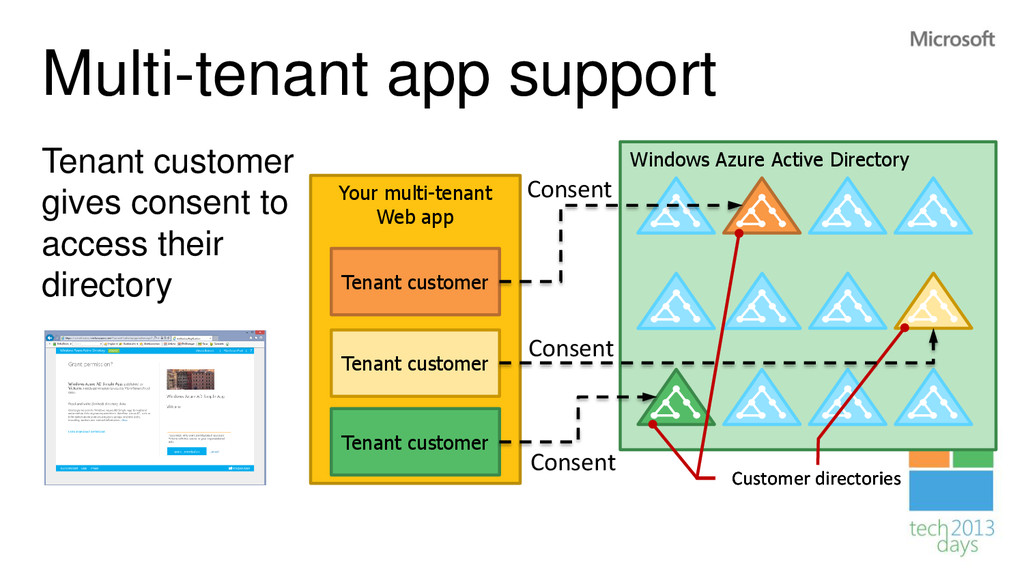

19. Multi-tenant app support Tenant customer gives consent to access their directory Windows Azure Active Directory Customer directories Your multi-tenant Web app Tenant customer Tenant customer Tenant customer Customer directories Customer directories Consent Consent Consent
20. demo Multi-tenant application sample Customer consent for directory access

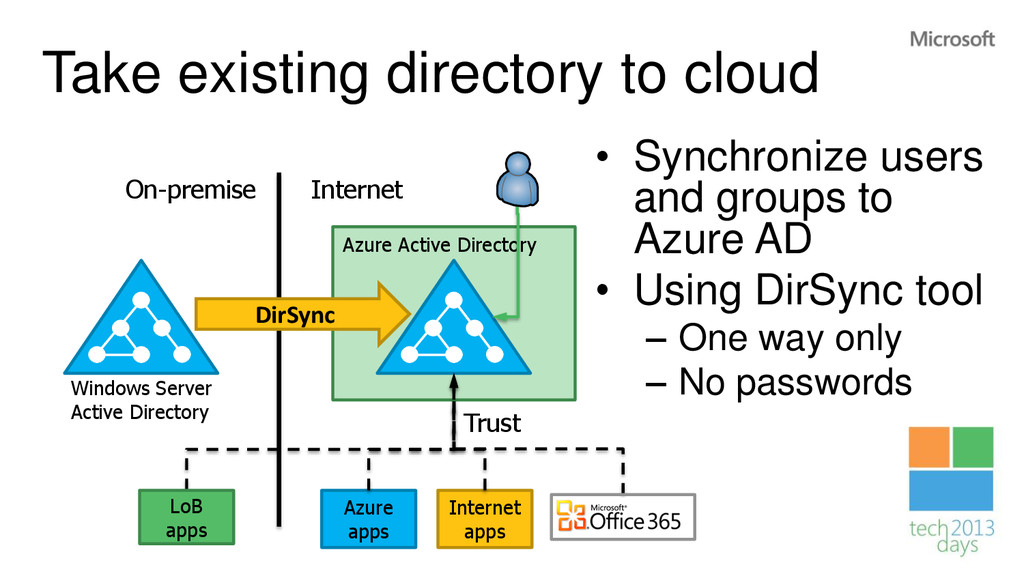

21. Azure Active Directory Take existing directory to cloud • Synchronize users and groups to Azure AD • Using DirSync tool – One way only – No passwords Windows Server Active Directory On-premise Internet DirSync Azure apps Internet apps LoB apps Trust

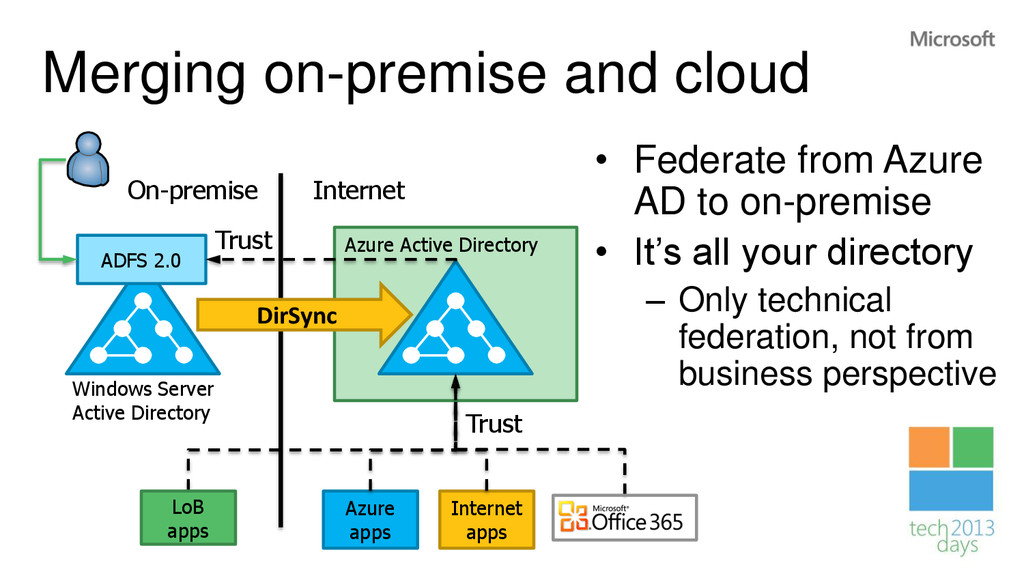

22. Azure Active Directory Merging on-premise and cloud • Federate from Azure AD to on-premise • It’s all your directory – Only technical federation, not from business perspective Windows Server Active Directory On-premise Internet DirSync Azure apps Internet apps LoB apps Trust ADFS 2.0 Trust

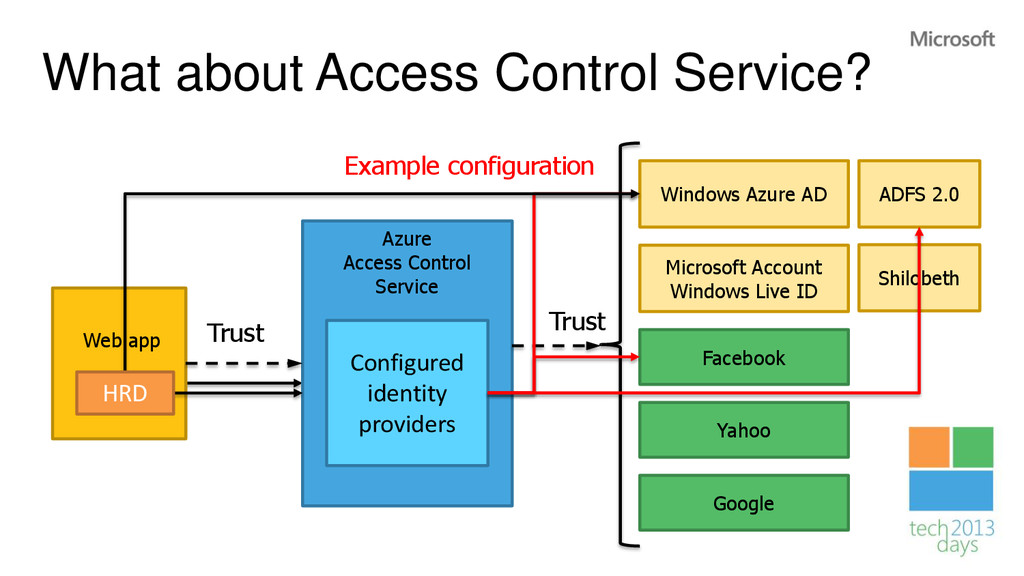

23. Azure Access Control Service What about Access Control Service? Web app Yahoo Microsoft Account Windows Live ID Facebook Trust Configured identity providers Google Windows Azure AD ADFS 2.0 Shilobeth Trust Example configuration HRD

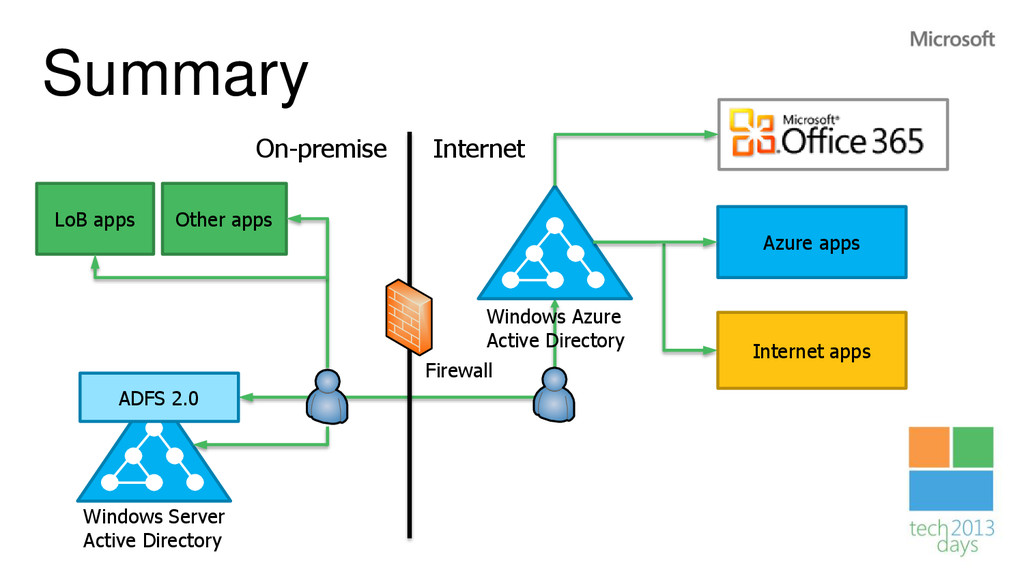

24. Summary Azure apps Internet apps ADFS 2.0 Firewall Windows Azure Active Directory LoB apps Windows Server Active Directory On-premise Internet Other apps
25. Questions and Answers Maybe later? @alexthissen alex.thissen@achmea.nl
26. Popquiz How many “Laws of Identity” did Kim Cameron describe? Who is the WIF program manager with the black ponytail? #Achmea Price for 1st twitter with correct answers:
27. Wat kun jij ons vertellen over?
