Claims-based Security for Web Apps using WIF 4.5

Het Microsoft platform heeft verschillende producten, diensten en frameworks die oplossingen bieden voor Identity & Access Management. In deze sessie zie je hoe je de cloud services Windows Azure Active Directory en Access Control Service en on-premise ADFS 2.0 servers inzet om single-signon op het web (WebSSO ) te realiseren. Je leert hoe je van je bestaande locale AD kunt doorgroeien naar een oplossing die WebSSO voor al je web applicaties mogelijk maakt, maar ook hoe je web identiteiten zoals Google, Facebook en Office365 kunt inzetten.

Transcript

2. Claims-based security for Web applications using WIF 4.5 Alex Thissen Principal Architect, Achmea

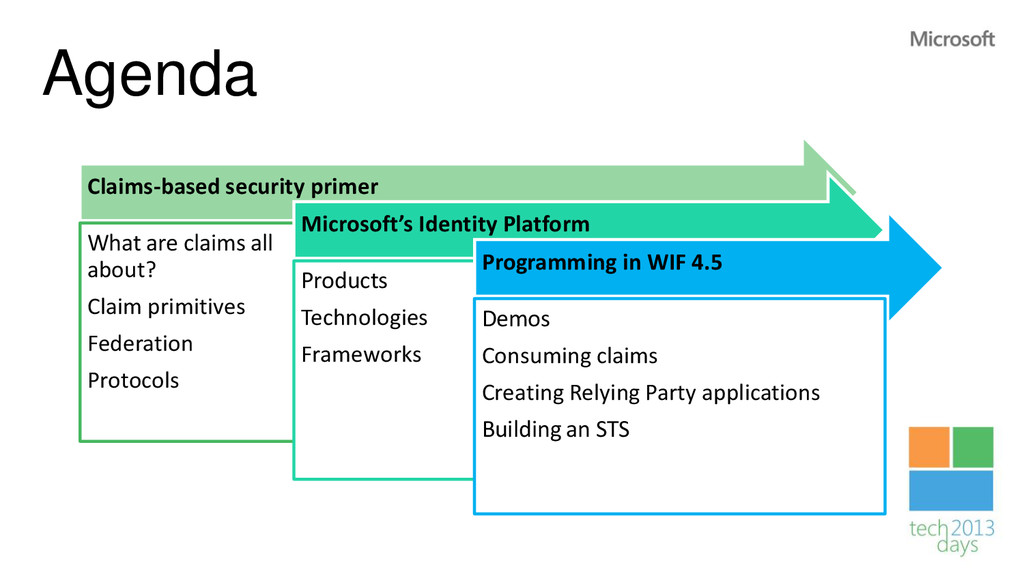

3. Agenda Claims-based security primer What are claims all about? Claim primitives Federation Protocols Microsoft’s Identity Platform Products Technologies Frameworks Programming in WIF 4.5 Demos Consuming claims Creating Relying Party applications Building an STS

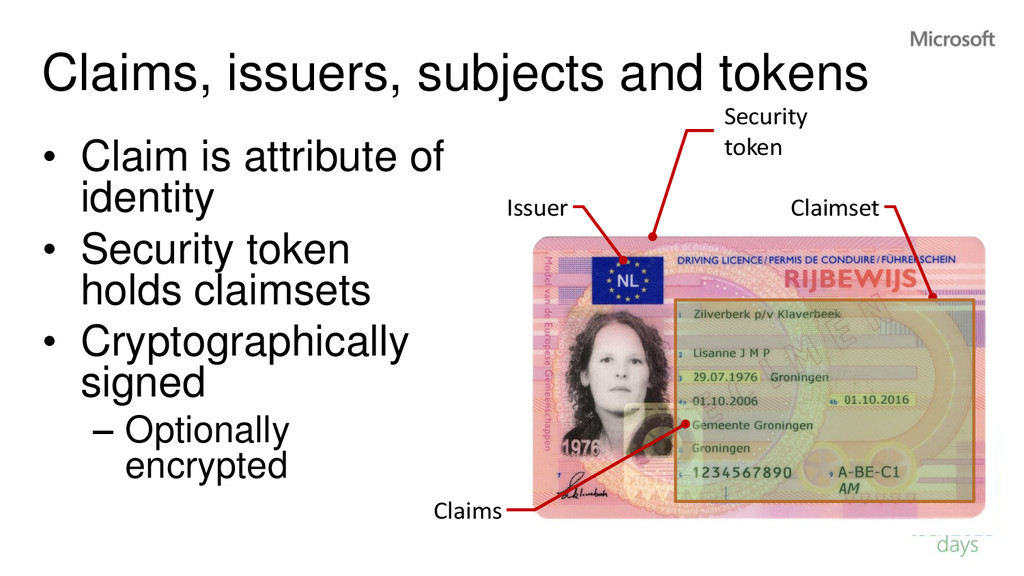

4. Claims, issuers, subjects and tokens • Claim is attribute of identity • Security token holds claimsets • Cryptographically signed – Optionally encrypted Issuer Claimset Security token Claims
5. Passive Profile Federation Security Token Service (STS) Identity store Trust Autoritative source of identities Federation across organizations credentials Identity Provider Security token 1 2 3 4 Relying Party Web app WIF Security Token Service (STS) Identity store Trust Other IP Can also be mobile app in most cases

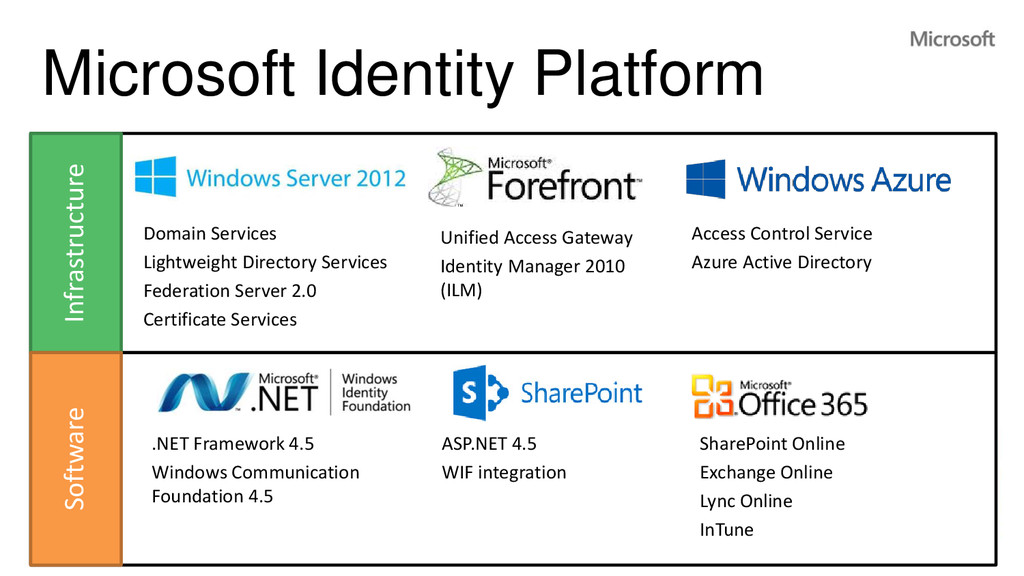

6. Microsoft Identity Platform Unified Access Gateway Identity Manager 2010 (ILM) .NET Framework 4.5 Windows Communication Foundation 4.5 ASP.NET 4.5 WIF integration Infrastructure Software Domain Services Lightweight Directory Services Federation Server 2.0 Certificate Services Access Control Service Azure Active Directory SharePoint Online Exchange Online Lync Online InTune

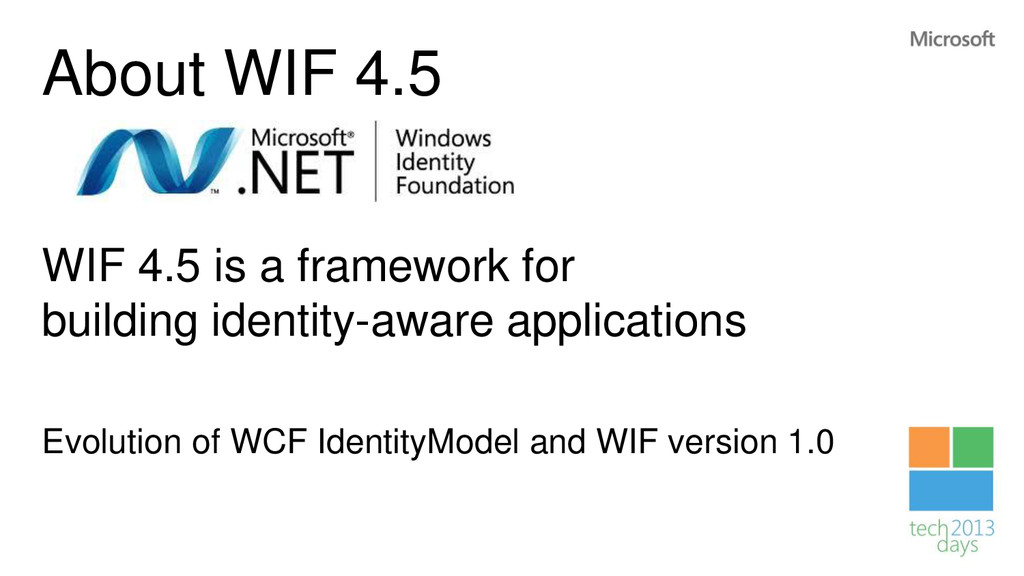

7. About WIF 4.5 WIF 4.5 is a framework for building identity-aware applications Evolution of WCF IdentityModel and WIF version 1.0

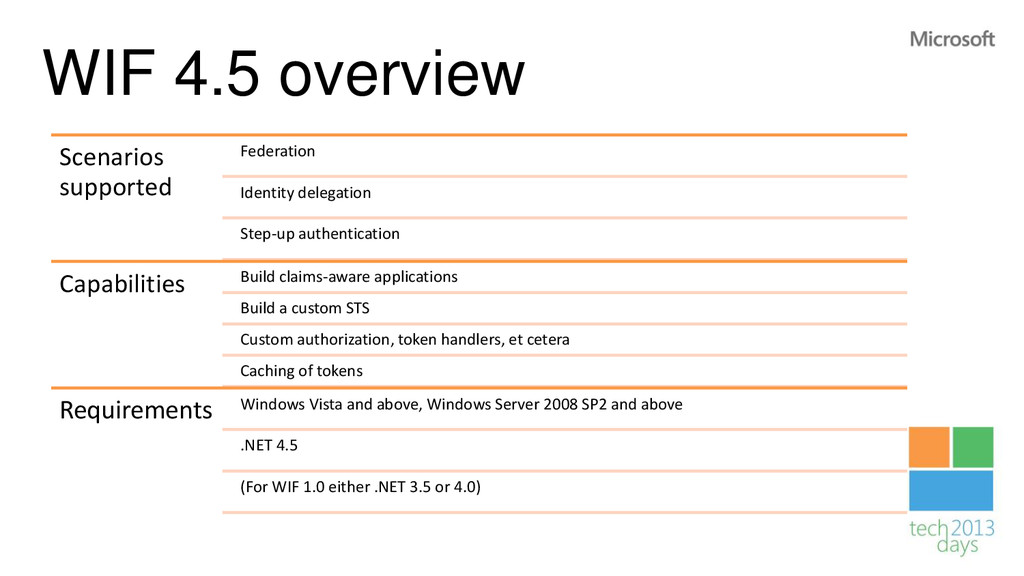

8. WIF 4.5 overview Scenarios supported Federation Identity delegation Step-up authentication Capabilities Build claims-aware applications Build a custom STS Custom authorization, token handlers, et cetera Caching of tokens Requirements Windows Vista and above, Windows Server 2008 SP2 and above .NET 4.5 (For WIF 1.0 either .NET 3.5 or 4.0)

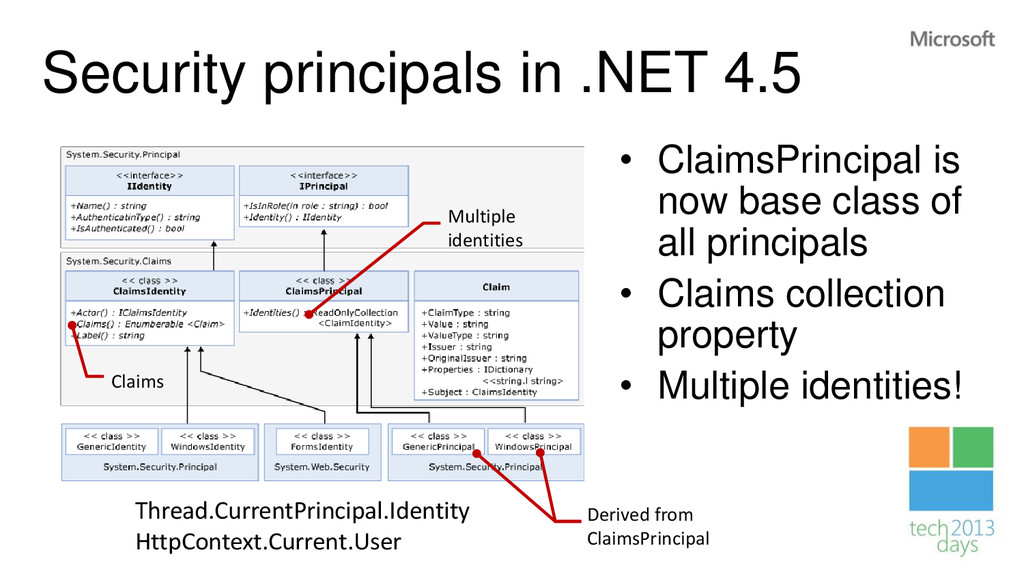

9. Security principals in .NET 4.5 • ClaimsPrincipal is now base class of all principals • Claims collection property • Multiple identities! Thread.CurrentPrincipal.Identity HttpContext.Current.User Multiple identities Derived from ClaimsPrincipal Claims
10. demo New claim object model Creating and inspecting claims RBAC with claims

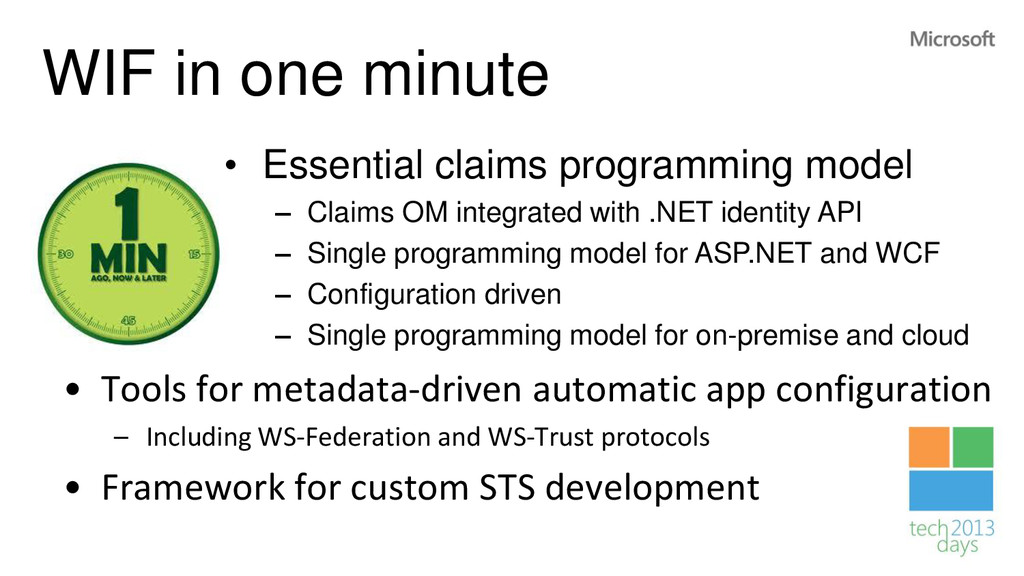

11. WIF in one minute • Essential claims programming model – Claims OM integrated with .NET identity API – Single programming model for ASP.NET and WCF – Configuration driven – Single programming model for on-premise and cloud • Tools for metadata-driven automatic app configuration – Including WS-Federation and WS-Trust protocols • Framework for custom STS development

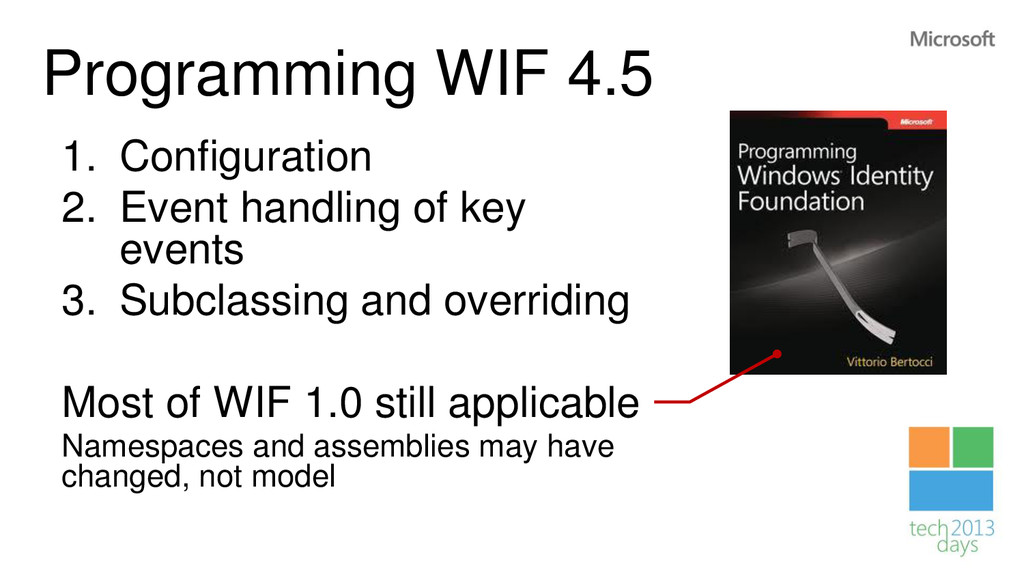

12. Programming WIF 4.5 1. Configuration 2. Event handling of key events 3. Subclassing and overriding Most of WIF 1.0 still applicable Namespaces and assemblies may have changed, not model

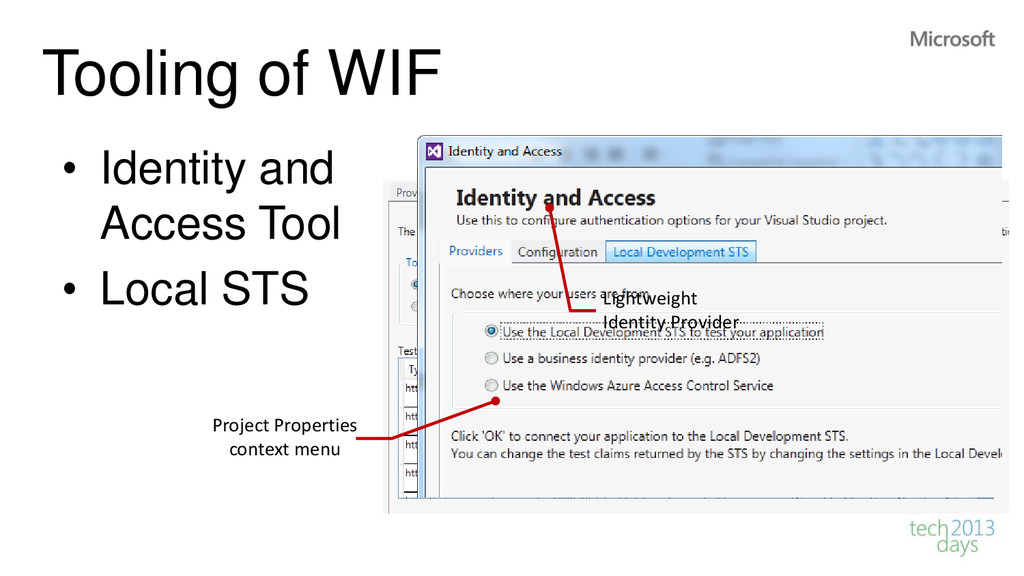

13. Tooling of WIF • Identity and Access Tool • Local STS Lightweight Identity Provider Project Properties context menu

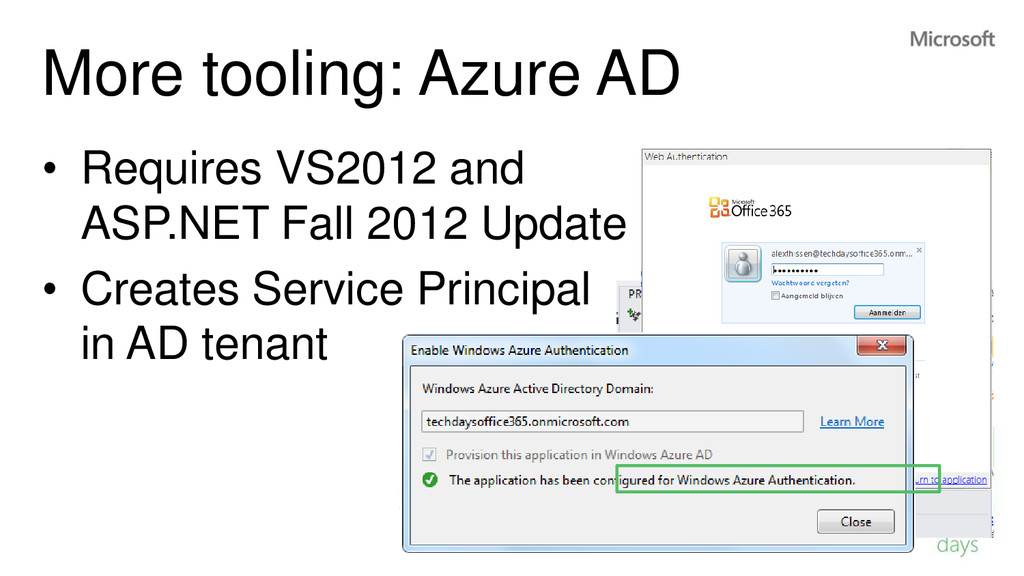

14. More tooling: Azure AD • Requires VS2012 and ASP.NET Fall 2012 Update • Creates Service Principal in AD tenant

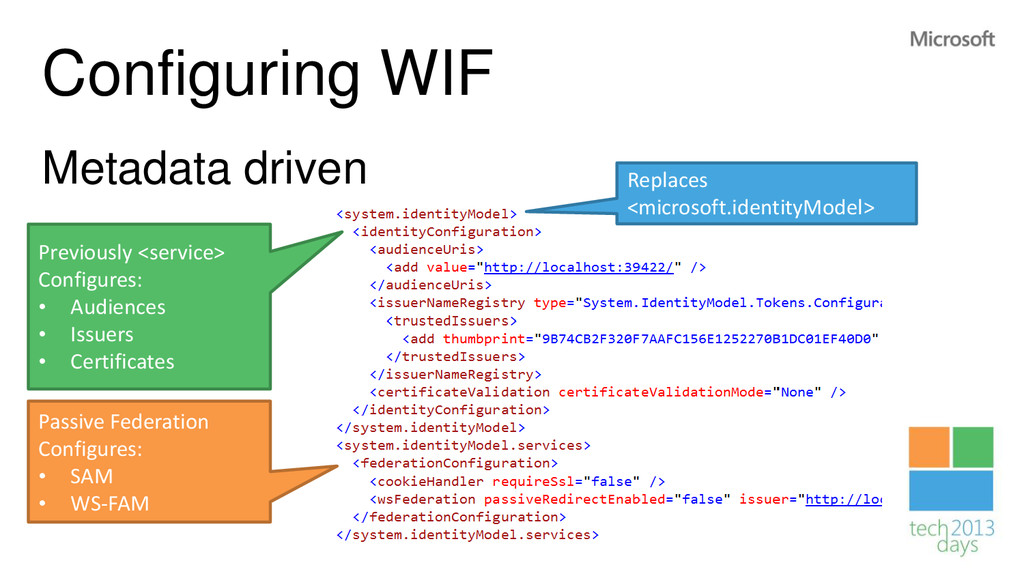

15. Replaces <microsoft.identityModel> Configuring WIF Metadata driven Passive Federation Configures: • SAM • WS-FAM Previously <service> Configures: • Audiences • Issuers • Certificates
16. demo Configuring an Identity Provider Using WIF Tooling Federate with Azure AD and Web identities

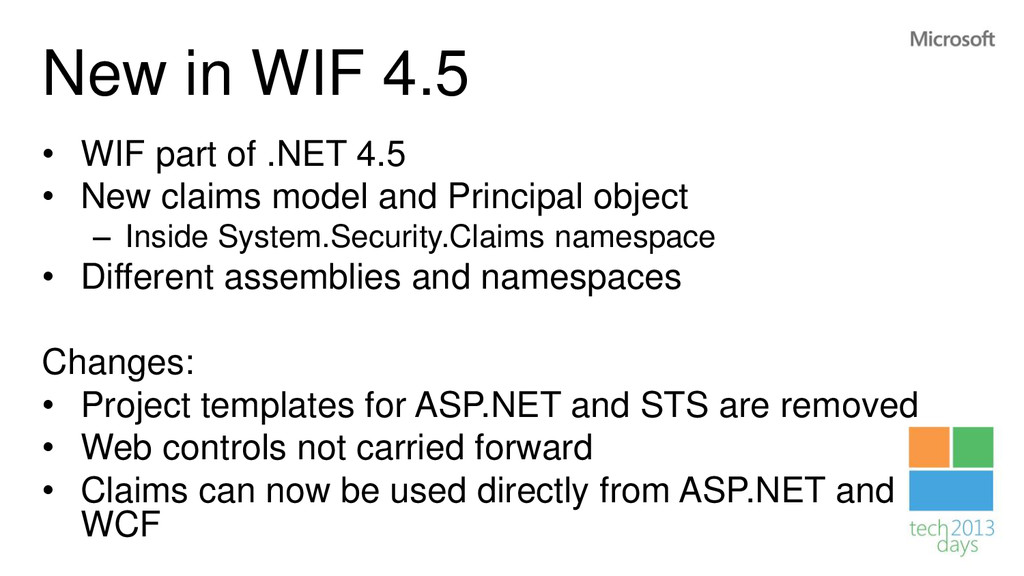

17. New in WIF 4.5 • WIF part of .NET 4.5 • New claims model and Principal object – Inside System.Security.Claims namespace • Different assemblies and namespaces Changes: • Project templates for ASP.NET and STS are removed • Web controls not carried forward • Claims can now be used directly from ASP.NET and WCF

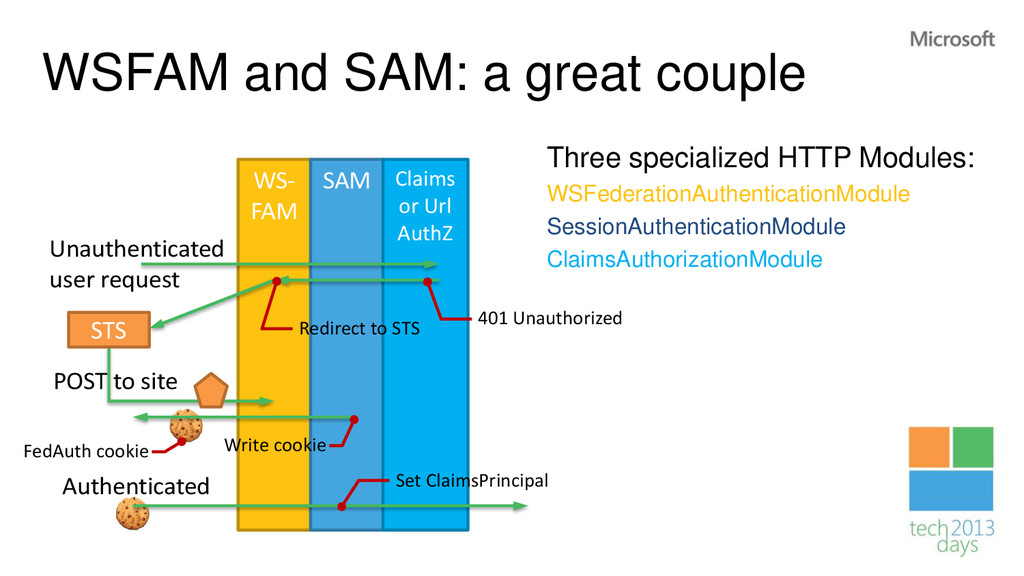

18. WS- FAM WSFAM and SAM: a great couple Three specialized HTTP Modules: WSFederationAuthenticationModule SessionAuthenticationModule ClaimsAuthorizationModule SAM Claims or Url AuthZ Unauthenticated user request 401 Unauthorized Authenticated Redirect to STS FedAuth cookie Set ClaimsPrincipal POST to site Write cookie STS

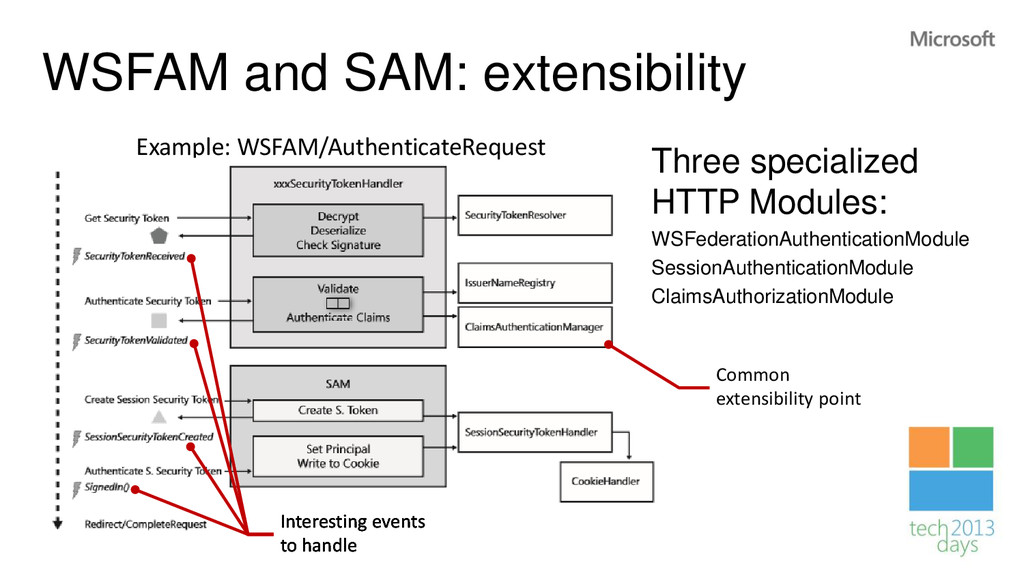

19. Interesting events to handle WSFAM and SAM: extensibility Three specialized HTTP Modules: WSFederationAuthenticationModule SessionAuthenticationModule ClaimsAuthorizationModule Interesting events to handle Interesting events to handle Interesting events to handle Common extensibility point Example: WSFAM/AuthenticateRequest

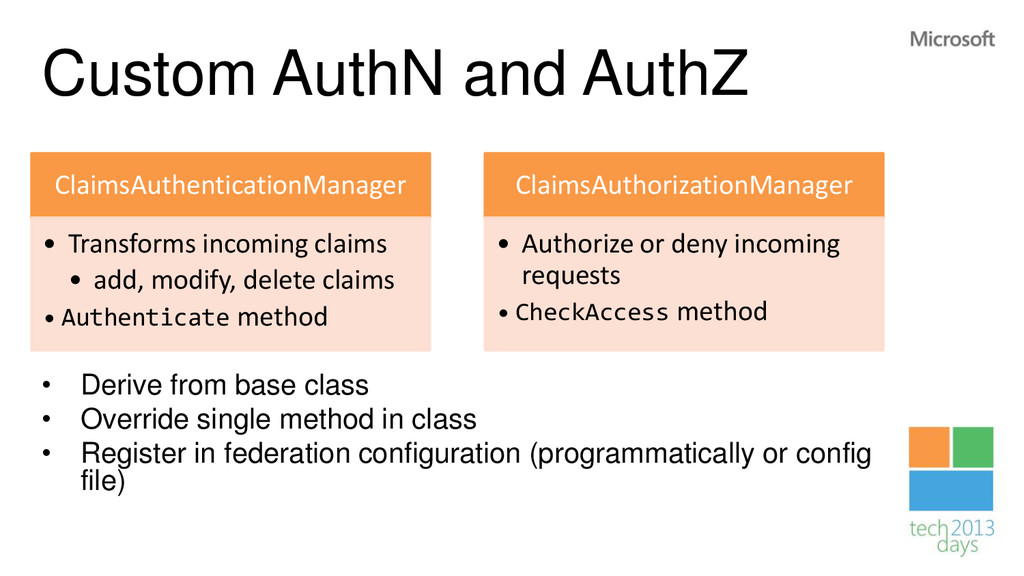

20. Custom AuthN and AuthZ ClaimsAuthenticationManager • Transforms incoming claims • add, modify, delete claims • Authenticate method ClaimsAuthorizationManager • Authorize or deny incoming requests • CheckAccess method • Derive from base class • Override single method in class • Register in federation configuration (programmatically or config file)
21. demo Authorizing using group claims Create a custom ClaimsAuthenticationManager

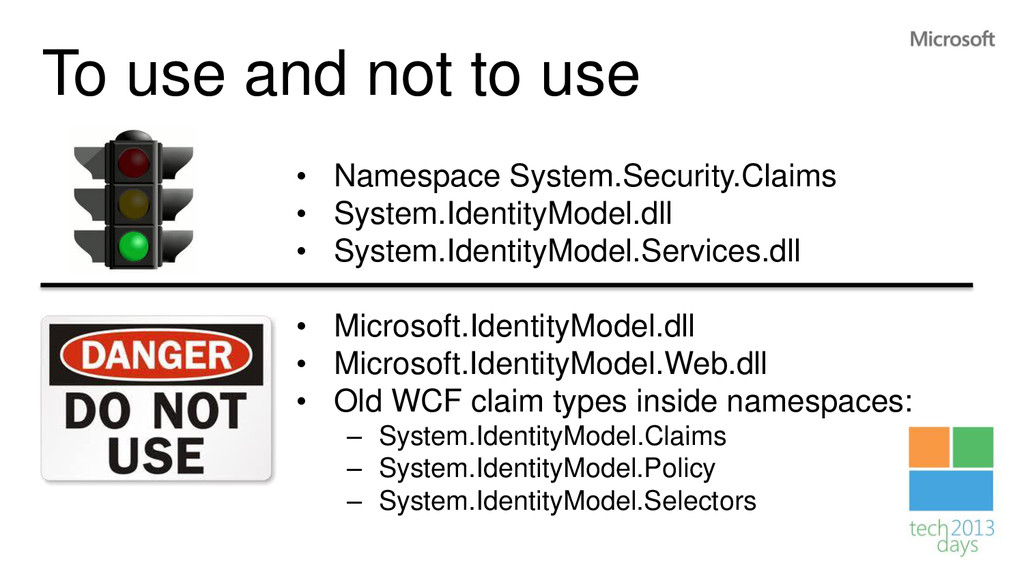

22. To use and not to use • Namespace System.Security.Claims • System.IdentityModel.dll • System.IdentityModel.Services.dll • Microsoft.IdentityModel.dll • Microsoft.IdentityModel.Web.dll • Old WCF claim types inside namespaces: – System.IdentityModel.Claims – System.IdentityModel.Policy – System.IdentityModel.Selectors

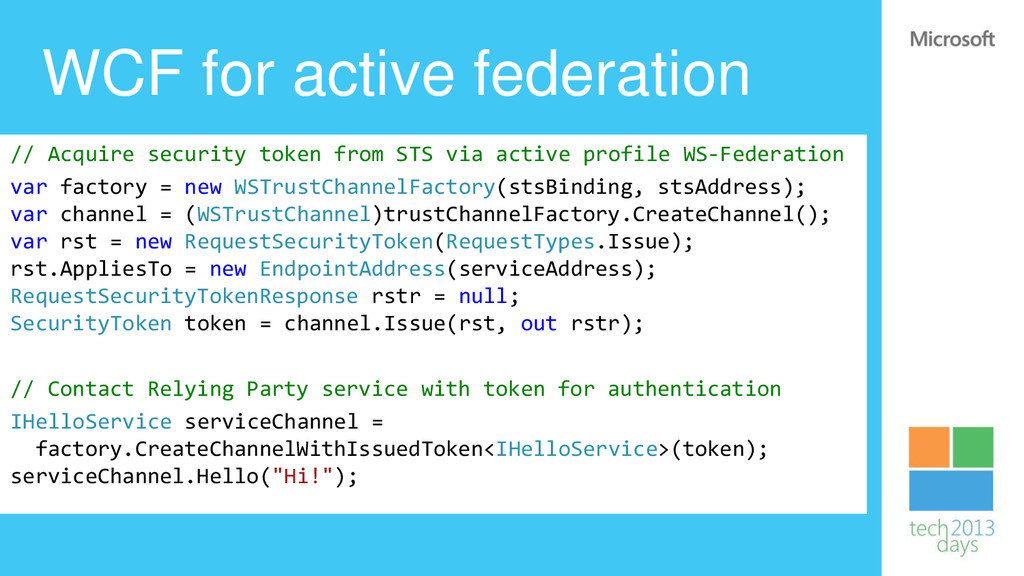

23. WCF for active federation // Acquire security token from STS via active profile WS-Federation var factory = new WSTrustChannelFactory(stsBinding, stsAddress); var channel = (WSTrustChannel)trustChannelFactory.CreateChannel(); var rst = new RequestSecurityToken(RequestTypes.Issue); rst.AppliesTo = new EndpointAddress(serviceAddress); RequestSecurityTokenResponse rstr = null; SecurityToken token = channel.Issue(rst, out rstr); // Contact Relying Party service with token for authentication IHelloService serviceChannel = factory.CreateChannelWithIssuedToken<IHelloService>(token); serviceChannel.Hello("Hi!");

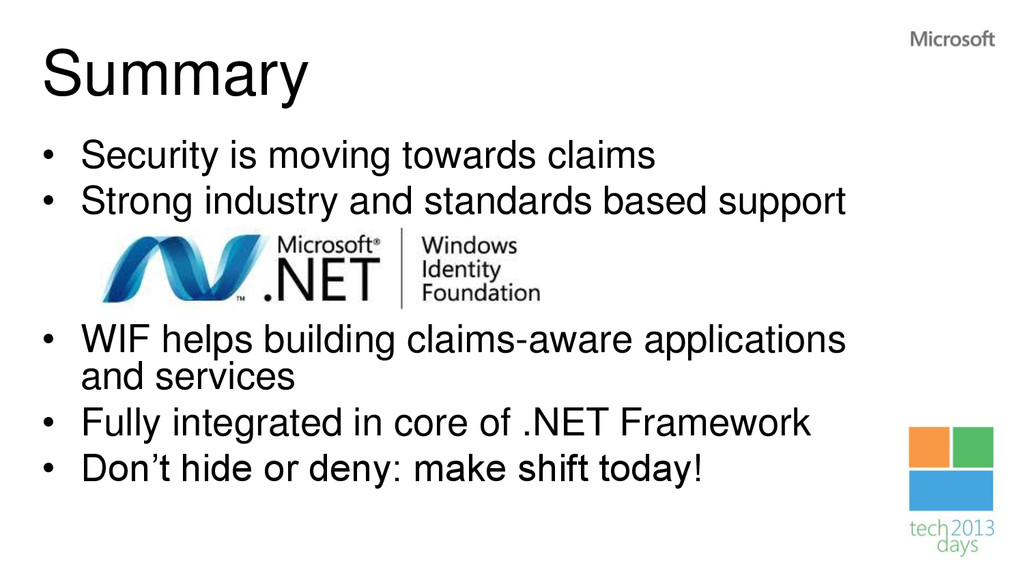

24. Summary • Security is moving towards claims • Strong industry and standards based support • WIF helps building claims-aware applications and services • Fully integrated in core of .NET Framework • Don’t hide or deny: make shift today!
25. Questions and Answers Maybe later? @alexthissen alex.thissen@achmea.nl
26. Popquiz What do the letters HRD mean in an MVC HrdController class created by the Identity and Access tool? #Achmea Price for 1st twitter with correct answer:
27. Wat kun jij ons vertellen over?

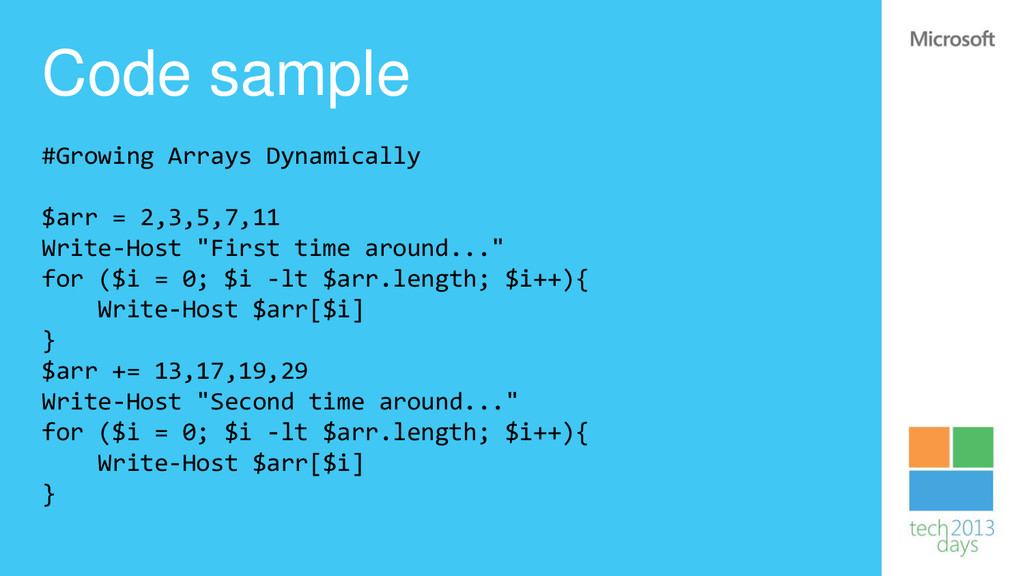

28. Code sample #Growing Arrays Dynamically $arr = 2,3,5,7,11 Write-Host "First time around..." for ($i = 0; $i -lt $arr.length; $i++){ Write-Host $arr[$i] } $arr += 13,17,19,29 Write-Host "Second time around..." for ($i = 0; $i -lt $arr.length; $i++){ Write-Host $arr[$i] }

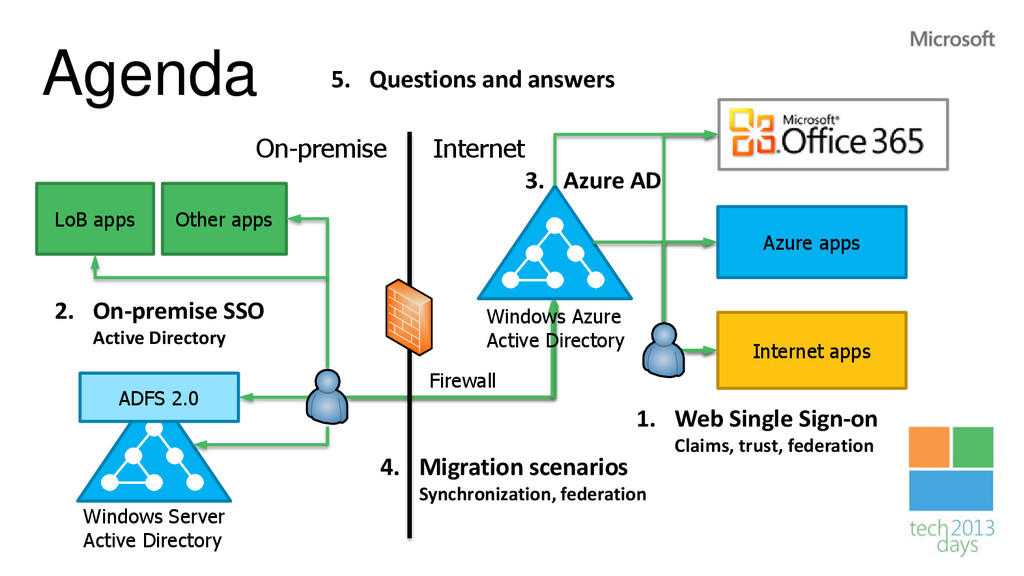

29. Agenda Azure apps Internet apps ADFS 2.0 Firewall Windows Azure Active Directory LoB apps Windows Server Active Directory On-premise Internet Other apps 1. Web Single Sign-on Claims, trust, federation 2. On-premise SSO Active Directory 3. Azure AD 4. Migration scenarios Synchronization, federation 5. Questions and answers
