TP-Link CPE210

To set up TP-Link CPE210 range extender, you first need to login to it using a default web address. Once you login to CPE210, you can easily configure or manage its wireless settings without any hassle. Login and navigate to Quick Setup. Follow the on-screen instructions to finalize the settings of your TP Link CPE210 range extender.
https://cpeextenderlogin.com/tp-link-cpe210-setup/

Transcript

1. How to Setup the TP-Link CPE210? SETUP THE TP-LINK CPE210 IN A FEW STEPS
2. Setup the TP-Link CPE210 Wired connection Wireless connection Important things you must do for the TP-Link CPE210 repeater setup Before you set up the TP-Link CPE210, you need to connect the devices. Then you need to login to the CPE PharOS dashboard. Two ways to make the connection: 1. 2. You will receive two Ethernet ports with the product: LAN0 (PoE) and LAN1 (non-PoE). Suggestion: It is recommended to make a wired connection, to ensure the network doesn’t get interfered during the TP-Link CPE210 setup.

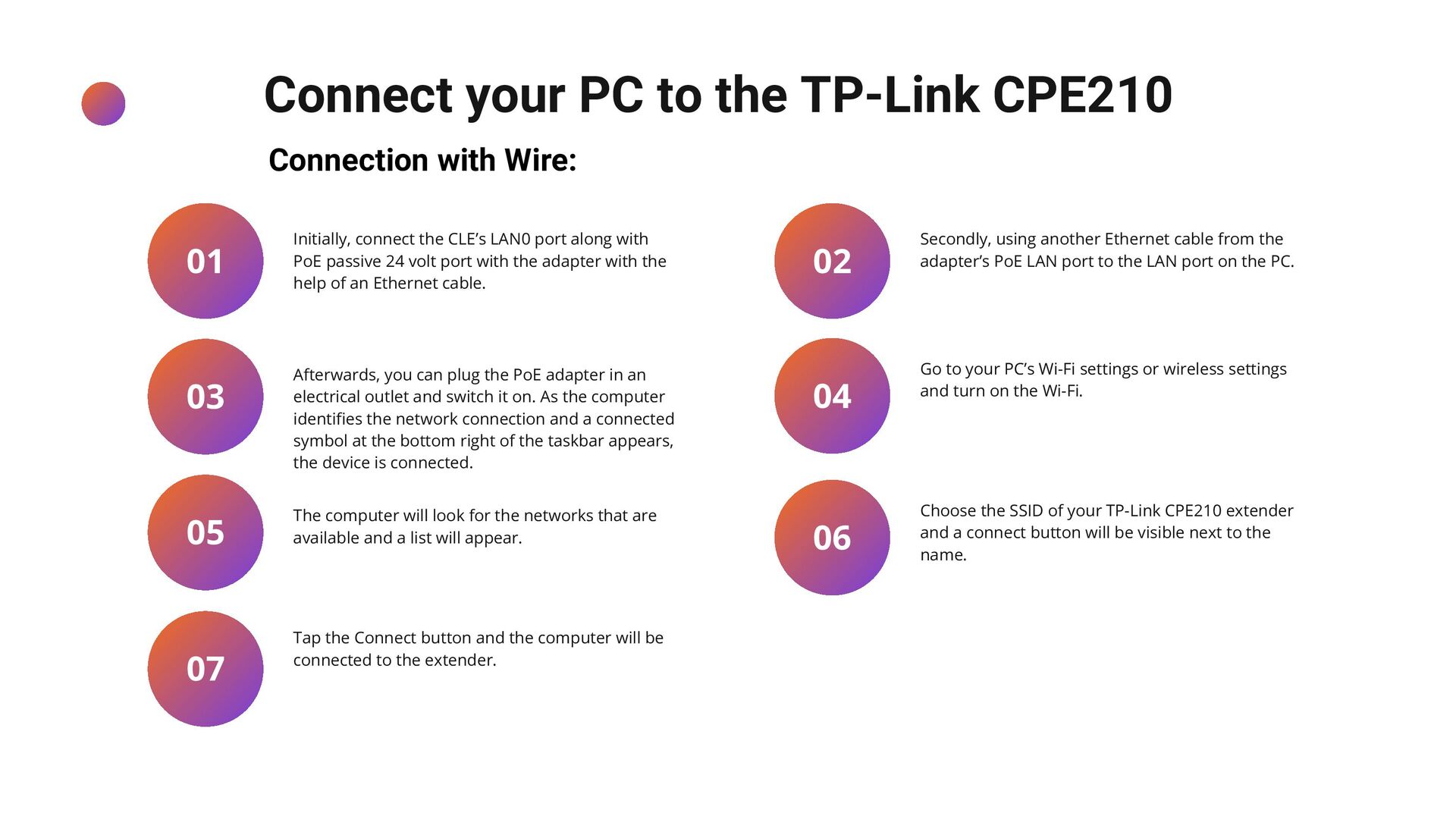

3. Initially, connect the CLE’s LAN0 port along with PoE passive 24 volt port with the adapter with the help of an Ethernet cable. 01 Afterwards, you can plug the PoE adapter in an electrical outlet and switch it on. As the computer identifies the network connection and a connected symbol at the bottom right of the taskbar appears, the device is connected. The computer will look for the networks that are available and a list will appear. Tap the Connect button and the computer will be connected to the extender. 03 05 Secondly, using another Ethernet cable from the adapter’s PoE LAN port to the LAN port on the PC. 02 Go to your PC’s Wi-Fi settings or wireless settings and turn on the Wi-Fi. Choose the SSID of your TP-Link CPE210 extender and a connect button will be visible next to the name. 04 06 07 Connect your PC to the TP-Link CPE210 Connection with Wire:
4. Steps to Login to the CPE PharOS Dashboard You require the IP address, username, and password to login to the dashboard. The steps are as follows: Open any browser of your choice on the computer that is connected to the PoE adapter or the TP-Link CPE210 network. Enter 192.168.0.254 in the address bar of the browser. This is the default IP address of the CPE210. A login screen will appear, in which you can add the default TP-Link username and password and then tap on the Login button. Now, you will be asked to select a language. Then, agree to the terms of services and you’ll be logged into the PharOS interface. Afterwards, you will be asked to modify the default admin details of your TP-Link CPE device. Tap on Create a New Password and add a strong password in the given field.’ Next, insert the password once more to confirm it and then click on the Apply tab to save the changes.
5. Procedure for the TP-Link CPE210 Repeater Setup When you have successfully logged in, select a functioning mode for the TP-Link CPE device. From the configuration page, you can change the TP-Link CPE210 outdoor device into the Repeater mode. In the Settings menu, tap on the Quick Setup. Then, below the Operation Mode, tap on Repeater and click Next. Next, go to the LAN settings in order to change the LAN IP address. To avoid any conflict between the network and the access point IP, changing the LAN IP address is necessary. The LAN IP and the subnet mask is to be stated for the CPE120 device. Now, the setup wizard will give on screen prompts that you can follow. After that, with the new IP address, login to the TP-Link CPE210 setup page. To set up your TP-Link CPE210, follow the process carefully:
6. Share your issues regarding the TP-Link CPE210 Setup with our team.
