No meu SERVICE ninguém MESH: uma visão descomplicada sobre segurança com Istio.

Atualmente a arquitetura de microservices é bastante utilizada em ambiente corporativo. Com aumento de interações e divisão em pequenas unidades de software, incluir segurança começa a ficar um pouco mais complexo que o usual. Problemas como falta de padronização e má implementação podem causar diversos problemas como vazamento de dados, dificuldade de identificar quem fez o que. Vamos demonstrar como o Istio implementa o conceito de zero trusted network e se utiliza de características de Cloud-native Applications. Utilizando de ferramentas do portfólio da CNCF vamos aplicar segurança para usuários finais usando JWT até criptografia na comunicação do serviço.

Transcript

1. No meu SERVICE ninguém MESH No meu SERVICE ninguém MESH
2. 2 Cláudio de Oliveira Tech Lead APIs @luizalabs Java & Golang K8s, Docker & Mesh
3. Tiago Angelo Sr. Software Engineer @ zup innovation • microservices and service mesh enthusiast • organizer of community.cncf.io/campinas and meetup.com/Golang-Campinas @kurtisangelo on Twitter /angelokurtis on GitHub

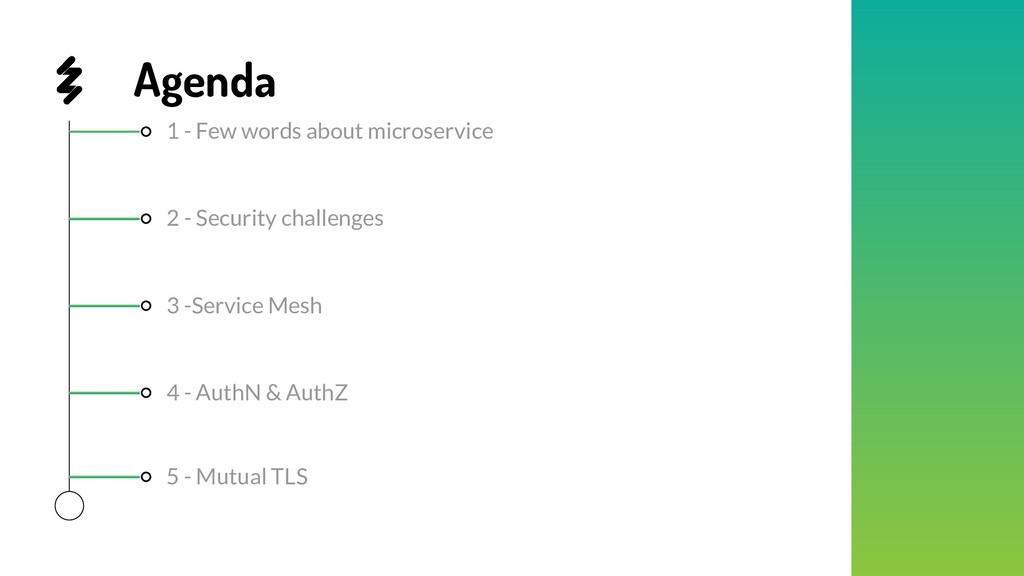

4. Agenda 1 - Few words about microservice 4 - AuthN & AuthZ 3 -Service Mesh 2 - Security challenges 5 - Mutual TLS

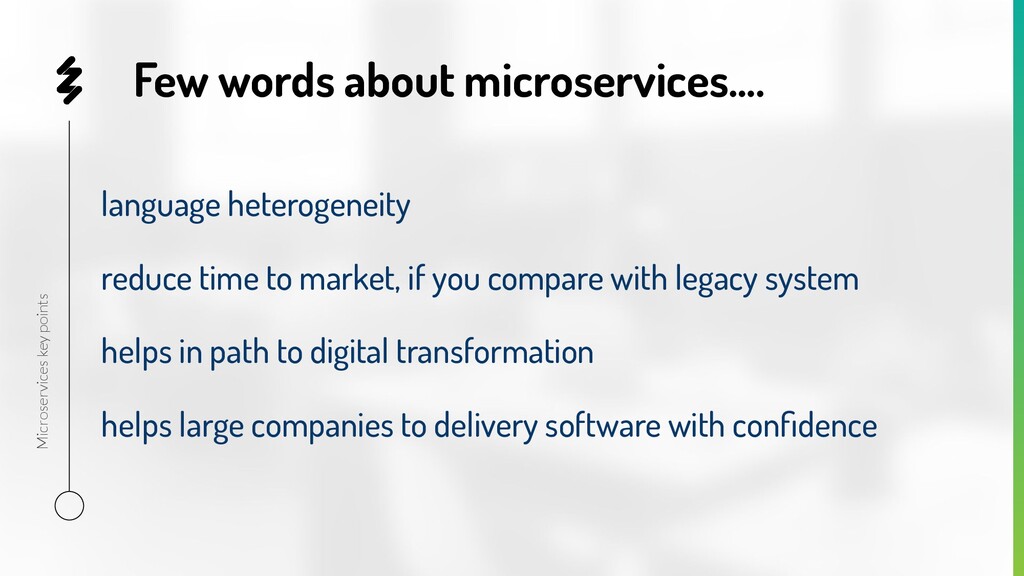

5. Microservices key points Few words about microservices…. language heterogeneity reduce time to market, if you compare with legacy system helps in path to digital transformation helps large companies to delivery software with confidence
6. NETWORK github.com/angelokurtis/football-bets
7. Security Challenges Common securities challenges for microservices

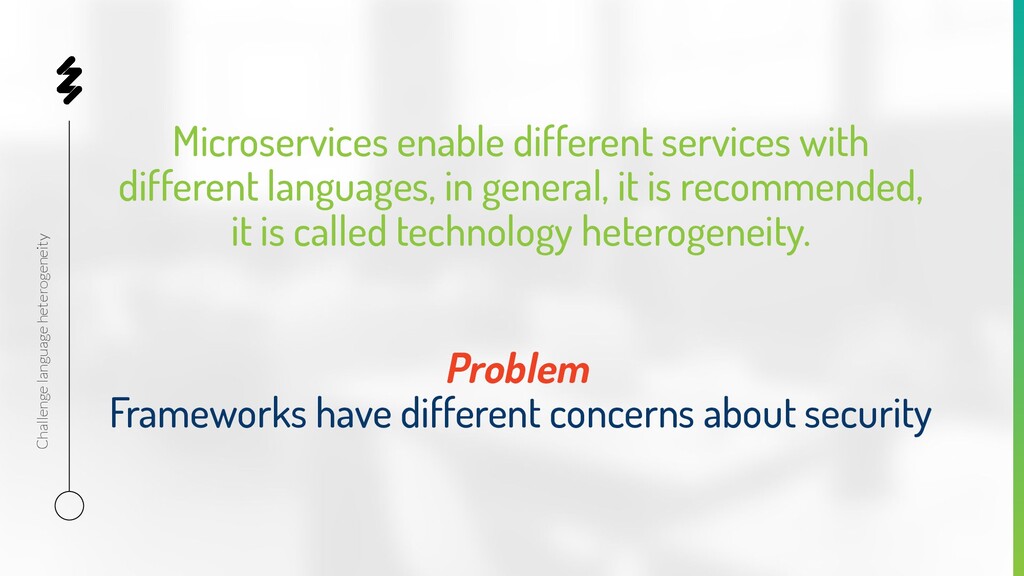

8. Challenge language heterogeneity Microservices enable different services with different languages, in general, it is recommended, it is called technology heterogeneity. Problem Frameworks have different concerns about security

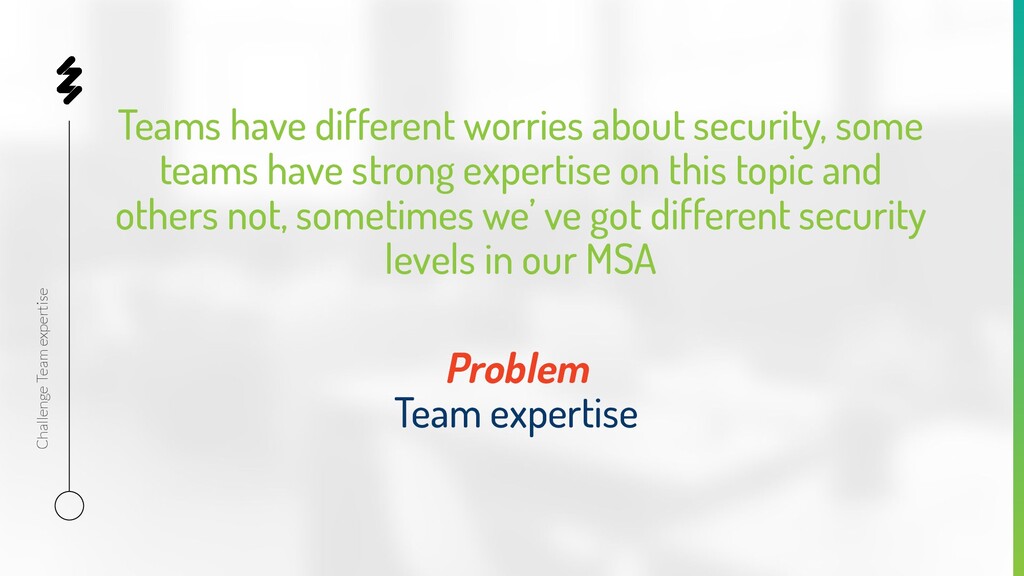

9. Challenge Team expertise Teams have different worries about security, some teams have strong expertise on this topic and others not, sometimes we’ ve got different security levels in our MSA Problem Team expertise

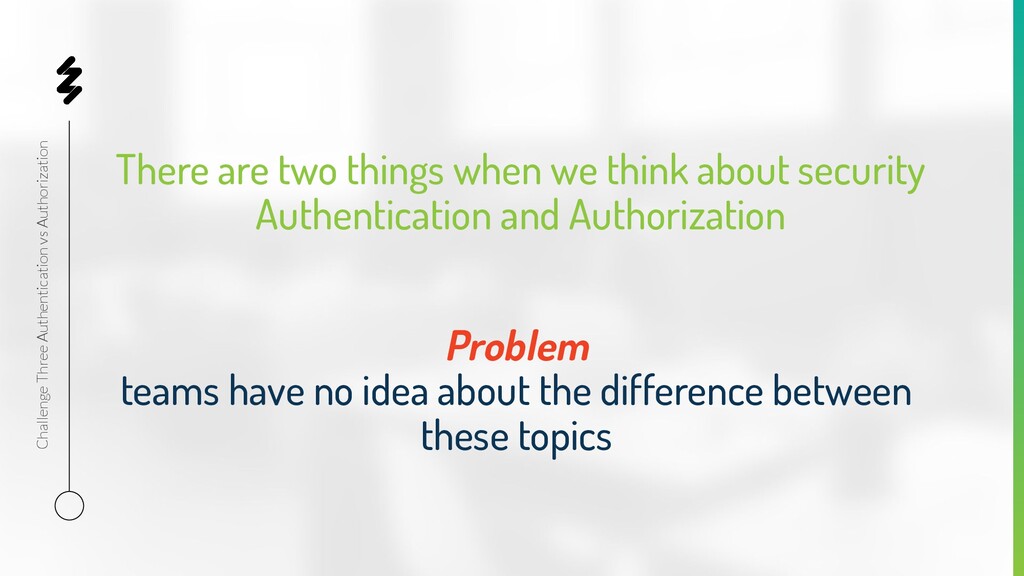

10. Challenge Three Authentication vs Authorization There are two things when we think about security Authentication and Authorization Problem teams have no idea about the difference between these topics
11. Service Mesh Service Mesh

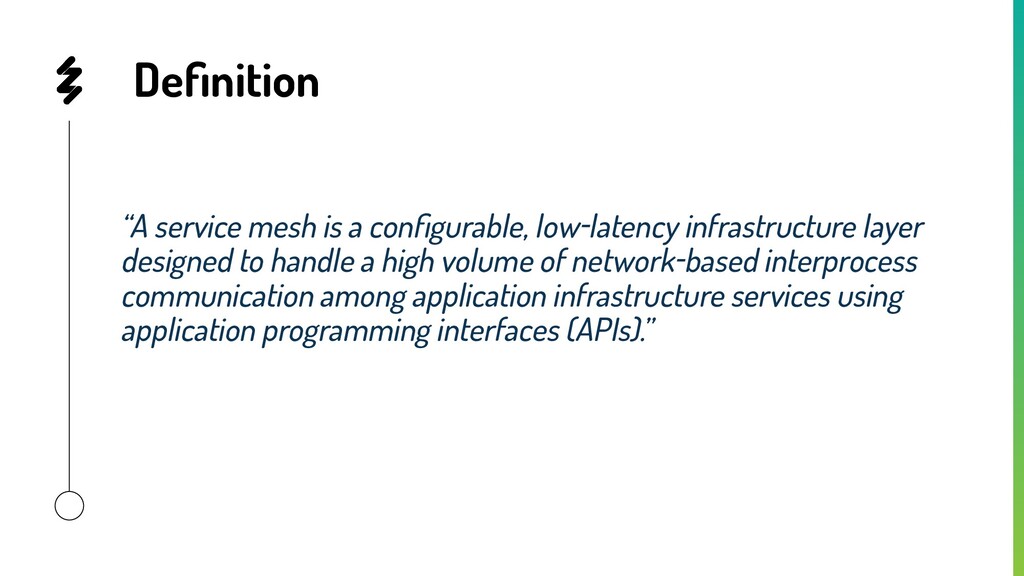

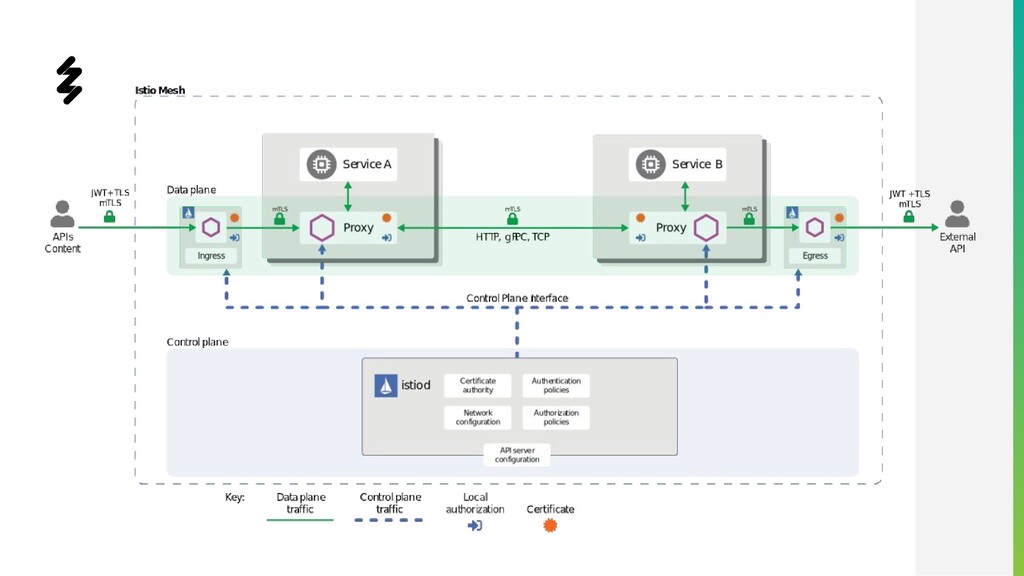

12. Definition “A service mesh is a configurable, low‑latency infrastructure layer designed to handle a high volume of network‑based interprocess communication among application infrastructure services using application programming interfaces (APIs).”
14. let’s zoom in a little bit…...

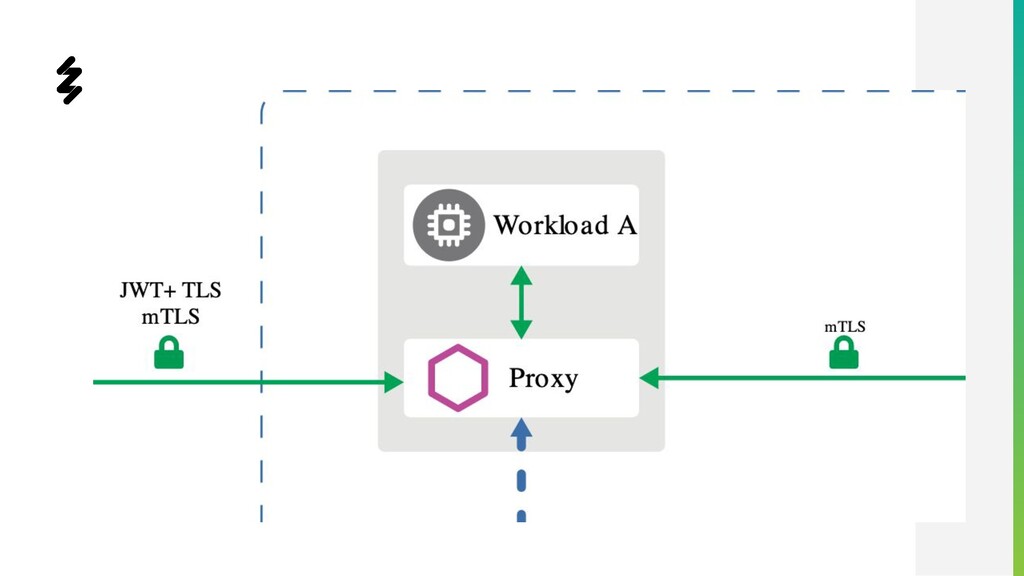

16. ALLLLLL services interactions happen over to sidecar a.k.a envoy proxy
18. The Sidecar as Policy Enforcement Points (PEPs)
19. we already give the platform a chance to handle our deployments let's give a chance to a platform to handle network for us, a.k.a security concerns
20. Step Back Step Back
21. Kubernetes is a very successful platform to help developers to deploy their containers and manage their workloads. The important part here: the kubernetes implements a sort of patterns to achieve it
22. All the deployment decisions are made on the platform Kubernetes Our applications don’t care about the cluster workload, kubernetes does it for us
25. Istio & Security Istio & Security

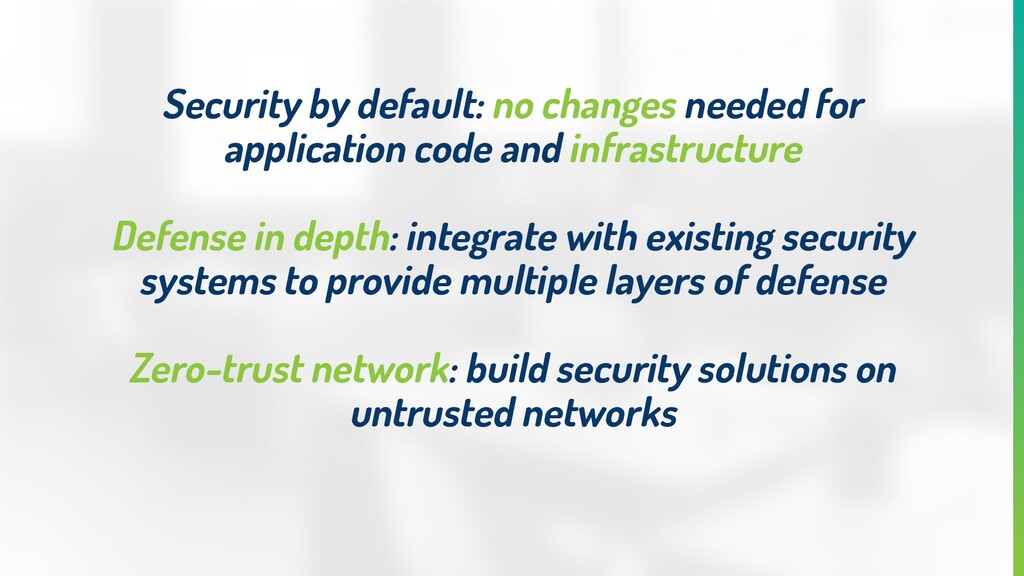

26. Security by default: no changes needed for application code and infrastructure Defense in depth: integrate with existing security systems to provide multiple layers of defense Zero-trust network: build security solutions on untrusted networks

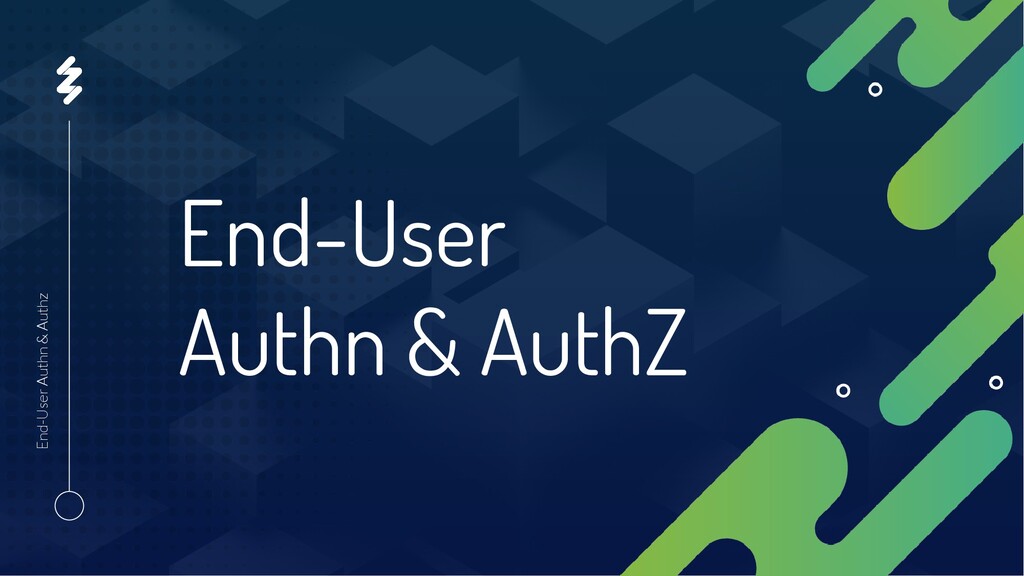

28. End-User Authn & AuthZ End-User Authn & Authz
29. It verifies the original client making the request as an end-user or device. Istio enables request-level authentication with JSON Web Token (JWT) validation and a streamlined developer experience for open source OpenID Connect provider

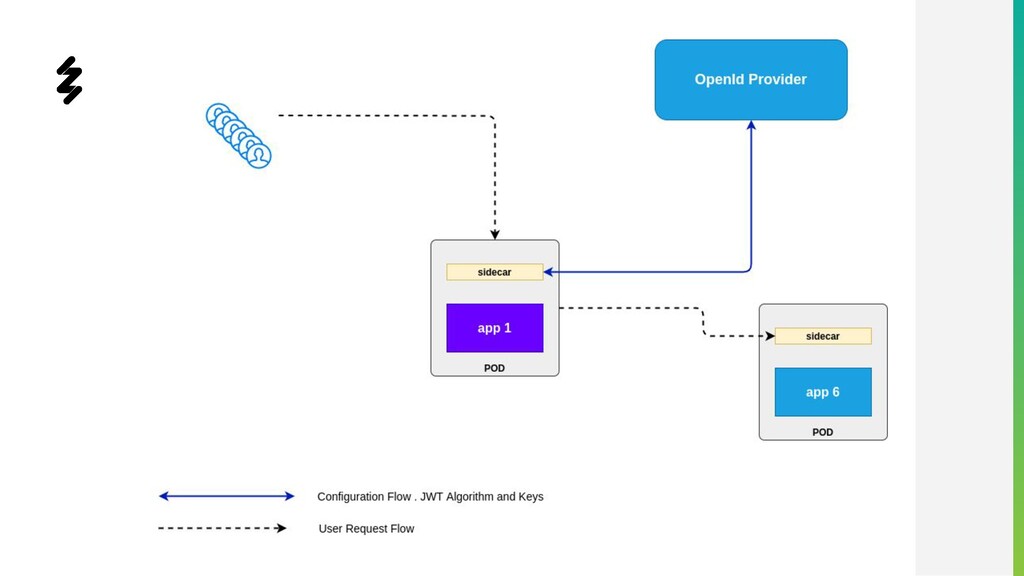

30. it integrates with OpenID Connect provider
33. End-User Authz End-User Authz

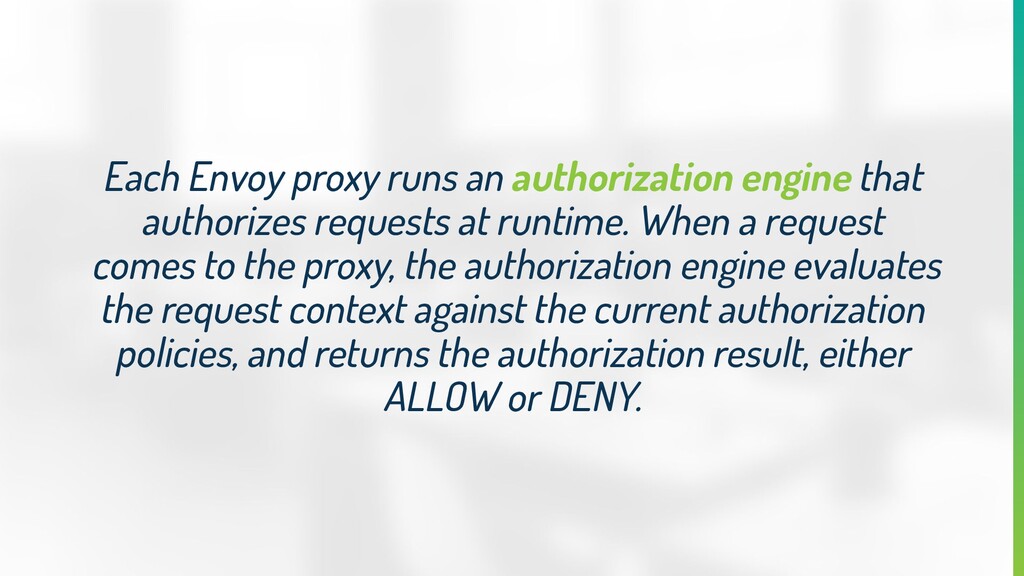

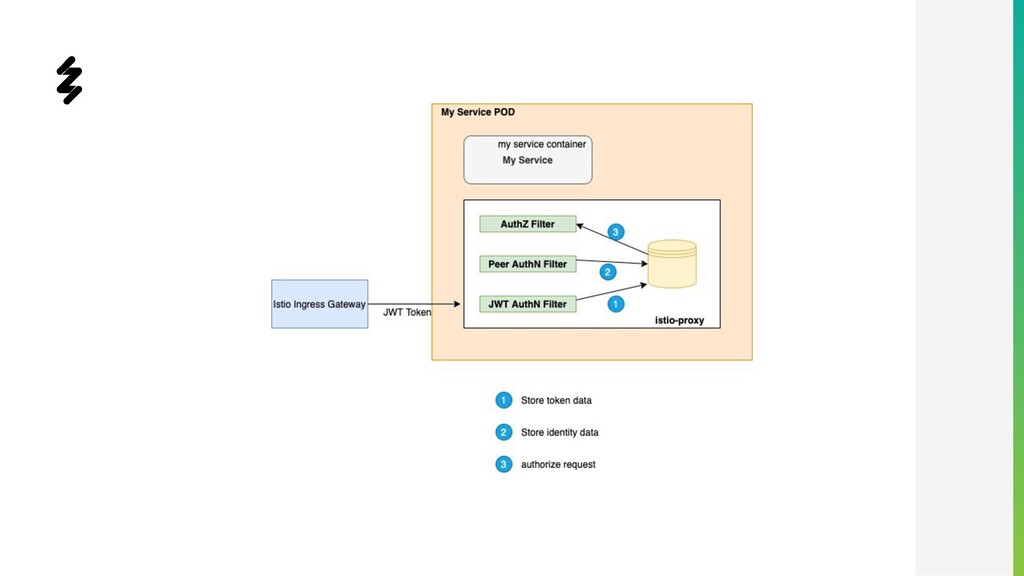

34. Each Envoy proxy runs an authorization engine that authorizes requests at runtime. When a request comes to the proxy, the authorization engine evaluates the request context against the current authorization policies, and returns the authorization result, either ALLOW or DENY.

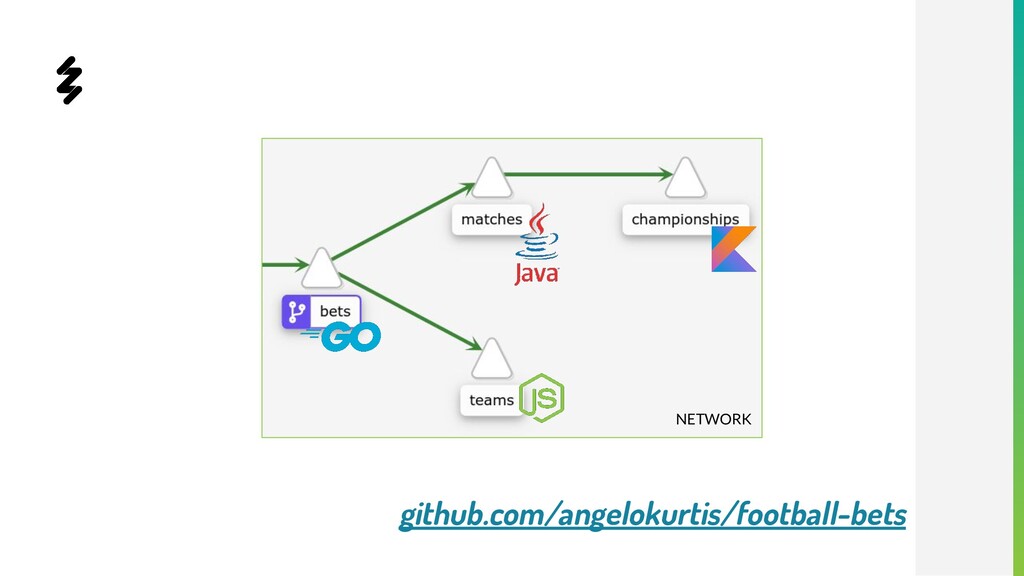

37. NETWORK github.com/angelokurtis/football-bets

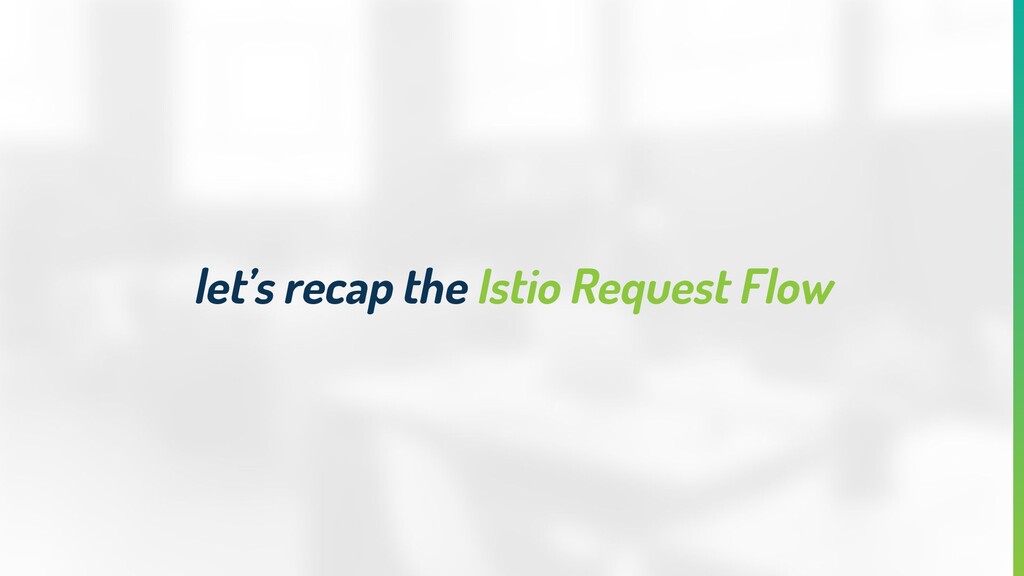

38. let’s recap the Istio Request Flow

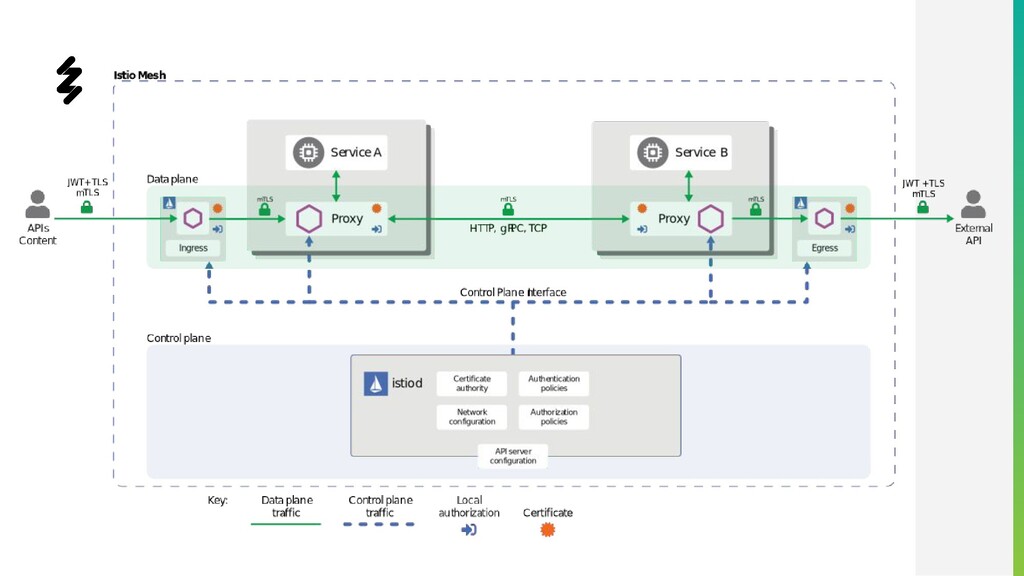

39. Istio Request Flow Istio Request Flow
41. Service-to-Service Authn Service-to-Service Authn

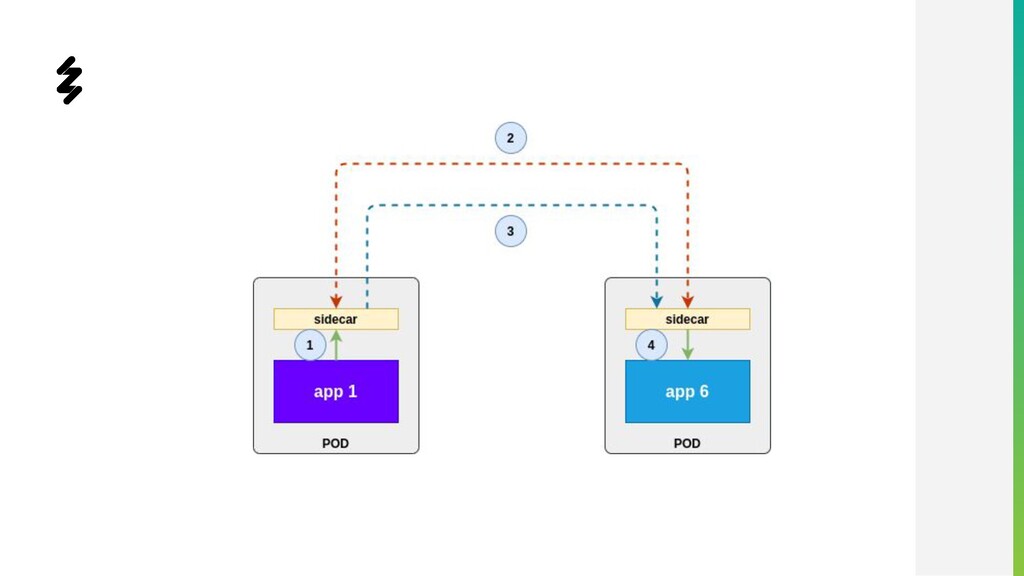

42. Transport authentication, also known as service-to-service authentication: verifies the direct client making the connection. Istio offers mutual TLS as a full stack solution for transport authentication

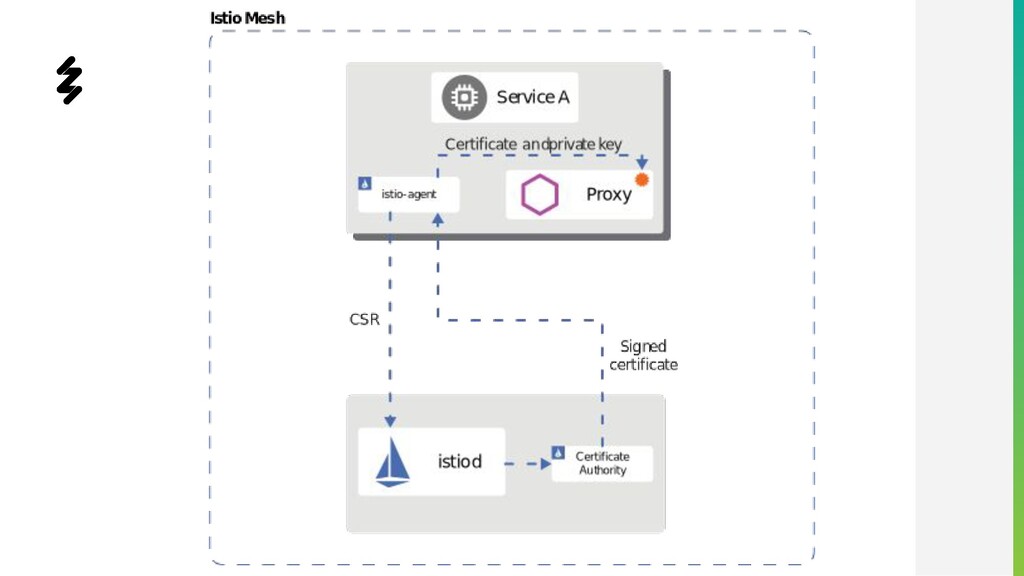

43. Provides a key management system to automate key and certificate generation, distribution, and rotation

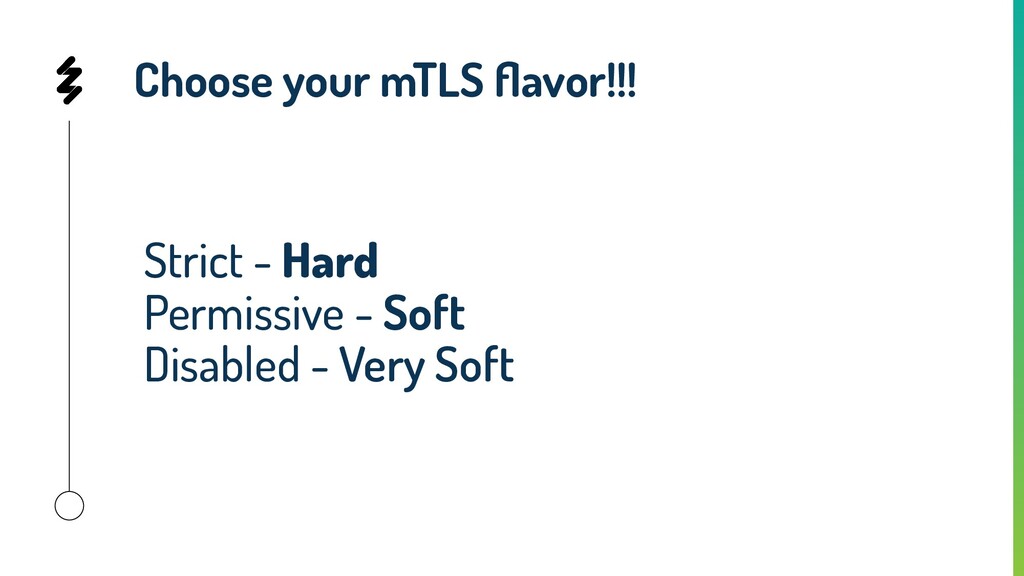

47. Choose your mTLS flavor!!! Strict - Hard Permissive - Soft Disabled - Very Soft

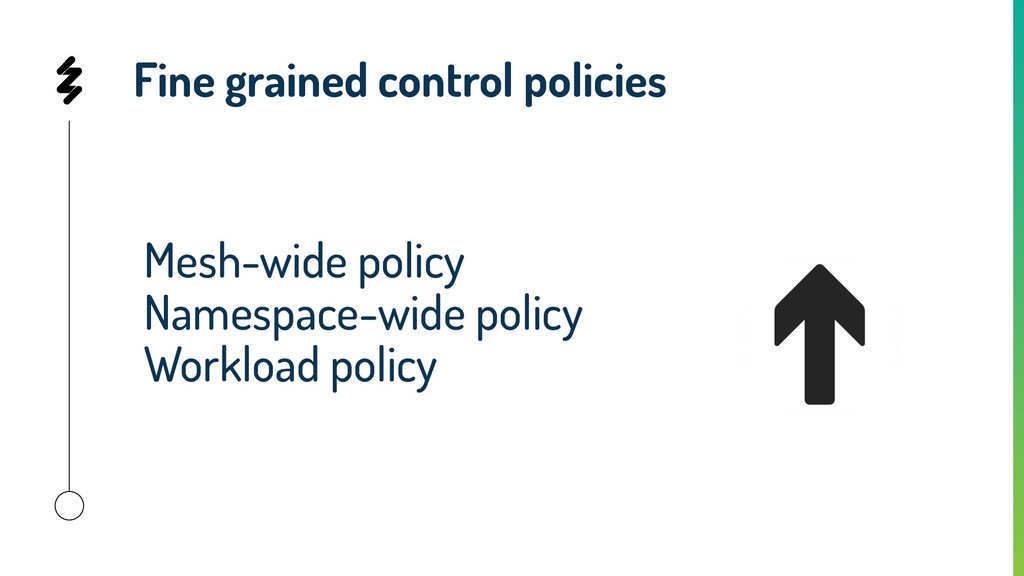

48. Fine grained control policies Mesh-wide policy Namespace-wide policy Workload policy
50. Final Words about Service Mesh Final words about Service Mesh
51. Zero code changes is not a 100% true Are headers propagated???
52. Can your service run with a sidecar???
53. Readiness and Liveness Probes???
54. THANKS! Any questions? You can find us at: linkedin.com/in/claudioed twitter.com/claudioed linkedin.com/in/tiagoangelo twitter.com/kurtisangelo Join us: community.cncf.io/campinas
